An Evolutionary Cultural Algorithm based Risk-aware Virtual

Machine Scheduling Optimisation in Infrastructure as a

Service (IaaS) Cloud

Ming Jiang

, Tom Kirkham

and Craig Sheridan

Faculty of Applied Sciences, University of Sunderland, Sunderland, U.K.

Scientific Computing Department, Science and Technology Facilities Council, Oxfordshire, U.K.

Flexiant Limited, Livingston, U.K.

Keywords: Cultural Algorithm, Service Reliability, Risk Management, Virtual Machine Scheduling, Optimisation.

Abstract: Cloud service reliability is one of the key common performance concerns of both Cloud Service Provider

(CSP) and Cloud Service User (CSU). As the capability and scale of a Cloud infrastructure increase, the

requirements of maintaining and improving the reliability of services is increasingly crucial for the CSP and

CSU. Risk management is the process of analysing the potential risk factors associated with the reliability

deterioration of a service provided by a CSP, assessing the uncertainties and consequences associated with

this kind of deterioration, and finally identifying the system wide appropriate mitigation strategies for risk

treatments. In this paper, an evolutionary Cultural Algorithm based risk management method is proposed to

facilitate the identification (i.e., probability and consequences) and treatment (i.e., mitigations) of Cloud

infrastructure reliability related risk for Virtual Machine scheduling optimisation.

1 INTRODUCTION

Cloud computing is an unprecedented and rapidly

evolving paradigm/business model of provision and

consumption of ICT services and resources.

Reliability and elasticity are two of the key

performance factors that directly affect the Quality

of Service (QoS) and revenues of a successful

modern Cloud Data Centre (CDC). As the

capability and scale of a CDC increase, with the

drastic demands of large scale and long-run Cloud

services deployed inside it, how to understand and

effectively manage the risk factors, such as hardware

failures, malfunctioned system software, security

breaches and human factors, which may downgrade

the reliability and elasticity performance of a CDC,

becomes an increasingly crucial and challenging

question.

Numerous recent years surveys and studies

consistently indicated that the reliability of Cloud

service is one of the top concerns of the adoption

Cloud computing business model, especially by

Small and Medium-sized Enterprises (SMEs), to

outsource the traditional in-house IT infrastructures

and applications to a public Cloud (Internet Society

Hong Kong and Cloud Security Alliance, 2014;

NetPilot Internet Security (NIS) Ltd, 2013;

Microsoft, 2013; Sahandi, et al., 2012). From the

perspective of revenues and reputation of a Cloud

Service Provider (CSP), this concern is at the heart

of maintaining and improving QoS challenge facing

the CSP. This paper proposes a risk management

method which focuses on for the QoS improvement

for CSPs by modelling, assessing and mitigating the

potential reliability deterioration risk. In particular,

the risk management method enables a CSP to

identify and minimize the risk level of scheduling

Virtual Machine allocations to the physical host

resources in the Infrastructure as a Service (IaaS)

Cloud computing model.

In the most general and simple terms, risk is

characterized by the likelihood of a threat and

associated impact of the threat (Institute of Risk

Management, 2002). At the heat of a risk

management process is to assess the risk in terms of

likelihood and impact and identify an appreciate risk

mitigation strategies for risk treatments. The

likelihood of a threat is inferred from both live and

historical data associated with the occurrence pattern

of the threat and its value could be a probability

value between 0.0 and 1.0. In the context of

Jiang, M., Kir kham, T. and Sher idan, C.

An Evolutionary Cultural Algorithm based Risk-aware Virtual Machine Scheduling Optimisation in Infrastructure as a Service (IaaS) Cloud.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 267-272

ISBN: 978-989-758-182-3

267

different applications, the probability can be

converted into relative likelihood levels, such as 1 to

7 to donate extreme low, very low, low, medium,

high, very high, and extreme high, with different

thresholds. The impact of a risk depends on the

context of the application. Since Cloud services are

based on the Virtual Machines hosted in the Cloud

hardware resources, in our work of managing the

reliability risk of Cloud services, physical host

failure is considered as the threat to the QoS of a

Cloud service and the impact is modelled as the

number Virtual Machines to be allocated to the

physical hosts and potentially to be affected in case

of physical host failures. In order to fit impacts into

risk calculations they are given a scale, such as 1 to

7 to indicate the level to which the impact could be.

The final risk value is calculated as likelihood

multiplied by the impact level and multiplication

result is then converted into a score scale of 1-7 to

indicate the overall risk level.

In order to support a large scale and flexible

Virtual Machine scheduling optimisation, in this

paper we propose an evolutionary Cultural

Algorithm (CA) (Reynoids, 1994) based risk aware

Virtual Machine allocation algorithm to minimize

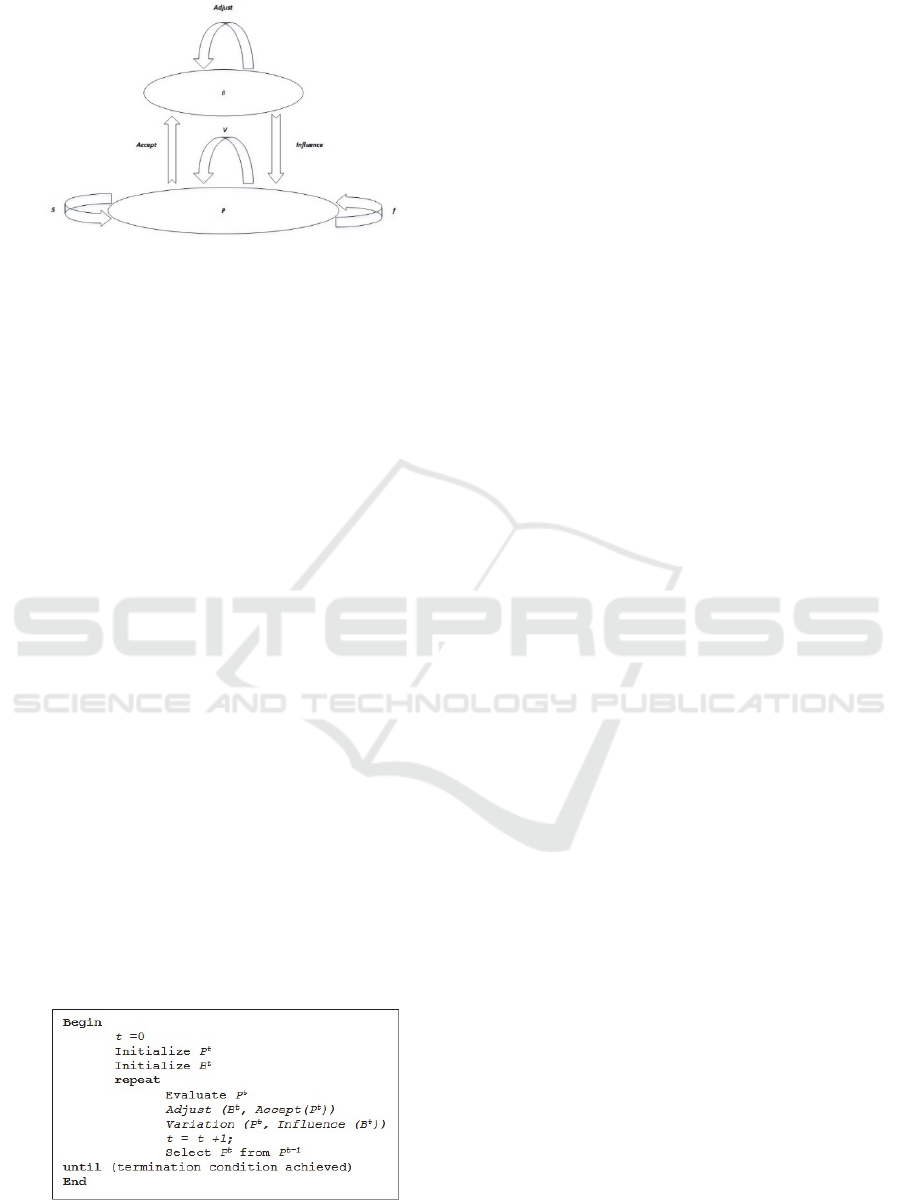

the risk of physical host failure. A CA framework

consists of three major components: a population

space, an external belief space, and a communication

protocol that defines the interactions between the

two spaces. Based on these components, a CA

controls a dual interdependent inheritance process

that harnesses the evolution of individuals both from

the macro-evolutionary level as within the belief

space and at the micro-evolutionary level as within

the population space. Our case study indicates this

dual interdependent inheritance process could

effectively support the scheduling optimisation in

large scale searching space and the traditional

Genetic Algorithms.

In the Section 2, the historical data based

modelling of physical host failure threat is

introduced and this provides a basis for assessing the

risk associated with the Virtual Machine allocations.

In Section 3, a specific risk mitigation strategy is

identified and designed as a risk impact

minimisation problem, which is based on the

searching and optimisation mechanisms of

evolutionary Cultural Algorithm. Section 4

introduces and explains the main contributions of the

work, which designs and implements an effective

Cultural Algorithm to support a large scale and

flexible Virtual Machine scheduling optimisation

and demonstrate the performance of the optimisation

algorithm with empirical comparisons with

traditional Genetic Algorithm(GA). Section 5 briefly

introduces the closely related works of general risk

management frameworks for Cloud service

provision and Virtual Machine scheduling specific

approaches. Finally, the conclusion of current work

in progress is presented in Section 6, in which future

work is also introduced and discussed.

2 MODELLING PHYSICAL HOST

FAILURE THREAT

In order to calculate the Probability of Failure (PoF)

of a physical host, gathering data relating to past and

current status of cloud resources is an essential

activity. Monitoring resource failures is crucial in

the design of reliable systems, e.g. the knowledge of

failure characteristics can be used in resource

management to improve resource availability.

Furthermore, calculating the risk of failure of a

resource depends on past failures as well.

There are various events that cause a resource to

fail. Cloud resources may fail as a result of a failure

of one or more of the resource components, such as

CPU or memory; this is known as hardware failure.

Another event which can result in a resource failure

is the failure of the operating system or programs

installed on the resource; this type is known as

software failure. The third event is the failure of

communication with the resource; this is referred to

as network failure. Finally, another event is the

disturbance to the building hosting the resource,

such as a power cut or an air conditioning failure;

this type is event is known as environment failure.

Sometimes, it is difficult to pinpoint the exact cause

of the failure, i.e. whether it is hardware, software,

network, or environment failure; this is therefore

referred to as unknown failure.

The Time To Fail (TTF) of a physical host is

modelled as a life time random variable whose value

is always more than zero. Given the physical host

has been up until time t, the Probability of Failure

(PoF) of it during future time interval x is a

conditional probability P{X<=t+x|t}. In order to

calculate the P{X<=t+x|t}, the general methodology

is based on the following 5 steps:

Step 1: Collect observed historical data

representing TTFs;

Step 2: Find a probability distribution model of

TTF of the physical host by data distribution fitting;

Step 3: Estimate the particular parameters of the

risk model by analysing the observations on the

physical host;

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

268

Step 4: Evaluate the distribution model by

comparing the risk model’s predictions based on

historical data and future observation data;

Step 5: Calculate P{X<=t+x|t} based on the

model with these parameters.

As an example of a previous work (Jiang, 2013),

the Weibull distribution mathematically

characterizes the probability distribution of a

lifetime variable with Probability Density Function

(PDF):





































(1)

And the Cumulative Density Function (CDF) of

it is calculated, by an integration of PDF over time,

as:









1













(2)

The α and λ parameters of Weibull distribution

can be statistically estimated by using the standard

Maximum Likelihood Estimation (MLE) algorithm

with historical observation data of TTFs. Hence, the

Probability of Failure (PoF) of a physical host

within future time x, given it has been on until time t

can be calculated as:

  











      

  













1

1















(3)

3 MITIGATION STRATEGY

Once the physical host failure is identified and

assessed as the key threat to the QoS, appropriate

risk mitigation solution and risk mitigation strategy

of implementing the solution should be considered

and decided respectively. In general, mitigation

strategy can be risk avoidance, limitation, retention,

transfer and acceptance (Institute of Risk

Management, 2002). Within the context of our work,

risk avoidance and limitation are the main strategies

to be applied. The selection and execution of a

mitigation solution will be based on the evaluation

on its effect on minimising the potential risk of

physical host failures on the running of Virtual

Machines hosted on these physical hosts.

Since the nature of mitigation is to take

precautionary actions before the occurrence of risk,

time constraint and cost of a mitigation solution are

key factors for deciding which mitigation strategies

to choose and how to deploy them. When multiple

risk factors need to be mitigated at the same time, it

will be more complex to make an optimized decision

under time and cost constraints (Djemame et al.,

2011). One example is that a set of risk mitigation

tasks with known, arbitrary execution times, need to

be implemented by some identical high level risk

mitigation solution executers by a given deadline.

The problem is to schedule all of the mitigation tasks

onto the least number of executers so that the

deadline is met. This is a classic One-Dimensional

Bin Packing problem in particular and combinatory

optimization problem in general. In practice, the

efficiency of scheduling and execution of a

particular risk mitigation strategy within the risk

management process as a whole is also part of the

Cloud infrastructure performance concerns from the

perspective of IaaS operational decision making

process. Hence, our work aims at investigating

optimization algorithms to help make decisions for

scenarios as illustrated in these examples.

In this paper we propose an evolutionary

Cultural Algorithm(CA) (Reynoids, 1994) based risk

aware Virtual Machine allocation algorithm to

minimize the risk of physical host failure for a given

elasticity commitment. The reliability risk aware

virtual machine allocation problem is specified with

a set of formal notations as follows:

Pi: Available Physical Host i

Vi: Number of possible newly added Virtual

Machines of Pi

LBi: Low bound value of Vi

UBi: Up bound value of Vi

Li: Level of failure likelihood of Pi

Ri: Reliability risk of allocation Vi Virtual

Machines to Pi and Ri= Li×Vi

TR: Total Risk of all associated physical hosts

and TR=SUM(Ri)

TNV: Total Number of Virtual Machines

allocated to all available physical hosts and TNV=

SUM(Vi)

The reliability risk aware virtual machine

allocation problem is to find an optimized

combination of eligible Vi, for a targeted TNV,

which is able to achieve the minimum TR: i.e.,

Minimise(TR), subject to a targeted TNV and LBi ≤

Vi ≤ UBi.

An Evolutionary Cultural Algorithm based Risk-aware Virtual Machine Scheduling Optimisation in Infrastructure as a Service (IaaS) Cloud

269

Figure 1: Cultural Algorithm Framework (Reynoids,

1994).

4 RISK-AWARE VIRTUAL

MACHINE SCHEDULING

4.1 Cultural Algorithm Framework

Cultural Algorithm (CA) (Reynoids, 1994)

framework consists of three major components: a

population space, an external belief space, and a

communication protocol that defines the interactions

between the two spaces. Based on these components,

a CA controls a dual interdependent inheritance

process that harnesses the evolution of individuals

both from the macro-evolutionary level as within the

belief space and at the micro-evolutionary level as

within the population space. With these major

components and other associated operators, Cultural

Algorithm framework can be defined by an 8-tuple:

Cultural Algorithm = <P, S, Vc, f, B, Accept,

Adjust, Influence>, where, P is a population; S is a

selection operator; Vc is a variation operator; f is the

performance function; B is the belief space; Accept

is the acceptance function; Adjust is a belief space

operator for changing the belief space knowledge, B;

and Influence is a set of influence functions on the

variation operator Vc, Accept and Influence together

represents the communication protocol for a Cultural

Algorithm. The belief space B stores five

types’ knowledge (Reynoids, 1994): Normative,

Figure 2: Cultural Algorithms Pseudo-code (Reynoids,

1994).

Situational, Domain, Topographical and History.

Figure 1 illustrates the 8 components and their

relationship in the Cultural Algorithm. Based on the

8 components, the pseudo-code of Cultural

Algorithm is described in Figure2.

4.2 Virtual Machine Allocation

Parameters Specification

In this section, we introduce a Virtual Machine

scheduling example to demonstrate how to adopt

Cultural Algorithm to optimise the risk level of

allocating Virtual Machines onto physical host with

potential failures.

Consider a pool of 128 physical hosts as Pi: P1,

P2 ... P128.

The value of Vi, the number of possible newly

added Virtual Machines of Pi, is bounded by a range

of (LBi, UBi), which is (5, 9) and (0, 9) for two sets

of experiments.

Li, the likelihood level of a failure, is defined by

the corresponding element in a list which consists of

128 different values for different physical hosts:

[34637275415112342115112373467752556141146

145561467752252214637274114271271264614234

377235335772712754712642343772353357725221

421].

The targeted number of Virtual Machine is 1000.

The reliability risk aware Virtual Machine

allocation algorithm is to find the appropriate

number of Virtual Machine for each physical host,

so that the total number of Virtual Machine equals to

the targeted number and the total risk is minimized.

4.3 Cultural Algorithm Functions

Parameters Specification

The specified parameters for the Cultural Algorithm

are the following:

Generate: A population of 200 random

individuals is generated.

Evaluate: Total risk level of physical host failure

is the fitness function for evaluation on an

individual.

Select: A tournament method is used for

selection and the size of tournament is 20. Elitism is

applied to select the fittest individual into the next

generation.

Accept: The fittest individual with the minimum

risk level of physical host failure is accept to update

the Belief Space.

Update: The belief space stores the fittest

individual with the minimum risk level of physical

host failure as the Situational Knowledge and the

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

270

experimental range for individual gene mutation on

genes as the Domain Knowledge.

Influence: Situational Knowledge is used to

influence the selection of individuals for crossover

and Domain Knowledge is used to influence the

mutation on them with a rate of 0.002.

Mutation Operator: The Mutation Rate is set to

0.2 with a range of (-2, 2) for gene change value.

Crossover Operator: The Uniform Rate is set to

0.8.

Table 1: Comparisons of Two Sets of Experiments Results

on GA and CA Algorithms (Targeted Virtual Machine is

1000, Average of 5 Runs).

Algo.

Name

Bound

Num. of

Evolution

Gen.

Execution

Time

(Sec.)

Risk

Level

(5,9)

(0,9)

40000

39120

27995

18493

301.426

295.493

210.498

156.835

3404

3350

4.4 Experiment Results and Analysis

In the following comparison study, Genetic

Algorithm and Cultural Algorithm are compared

with two sets of experiments.

In the first set of experiments, the range of a

possible allocated Virtual Machine is set to between

bounds (5, 9). In the second set of experiments, the

range of possible allocated Virtual Machine is set to

between bounds (0, 9). The searched optimal total

risk for these two sets are different due to the

different ranges of bounds and these bounds lead to

different sizes of search spaces for testing the

performance of the two algorithms.

As demonstrated in the Table 1, for both the sets

of experiments, the convergence of Cultural

Algorithm, in terms of number of generations and

time, is faster than the Genetic Algorithm and it

appears that with the increase of search space, the

performance of Cultural Algorithm excels better

than Genetic Algorithm does. This comparison

empirically demonstrates the effectiveness of the

dual interdependent inheritance process of a Cultural

Algorithm.

5 RELATED WORK

In recent years, the methodologies and practices of

risk assessment/management have been gradually

applied into the robust provisioning of Cloud

services at different levels for Software as a Service

(SaaS), Platform as a Service (PaaS) and

Infrastructure as a Service (IaaS) (Djemame et al.,

2011; Fitó et al., 2010).

As the scale of Cloud service increases at these

different levels, there are challenging demands on

the Quality of Service and associated risk

management and mitigation considerations. The

scalability of risk management process and the

effectiveness of mitigation strategy together defines

the overall of effect of risk-aware Cloud service

provision. Regarding the Virtual Machine

scheduling and Cloud infrastructure reliability

related risks, work have been focused on (Guitart,

2013; Fu, 2009).

Although Cultural Algorithms have been widely

applied into the many optimisation and searching

problems in engineering and business management

domains, some recent interesting work of

introducing Cultural Algorithms into the computing

resource management and task scheduling (Zhou,

2013) in the domain of Grid/Utility computing have

appeared in literature. Our work aims to explore the

feasibility of adopting Cultural Algorithms in a large

scale searching and optimisation space problems as

often raised in the resource and QoS management in

Cloud Data Centre/IaaS Cloud.

6 CONCLUSION AND FUTURE

WORK

In this paper, we identify and manage the risk

caused by physical host failure threat to the QoS of

Virtual Machines hosted in large scale Cloud

infrastructure. An evolutionary Cultural Algorithm

based risk management method is proposed and

validated to facilitate the identification (i.e.,

probability and consequences) and treatment (i.e.,

mitigations) of Cloud infrastructure reliability

related risk for Virtual Machine scheduling

optimisation. The dual interdependent inheritance

process of Cultural Algorithm is empirically

validated to demonstrate its effective support of

scheduling optimisation searching in large scale

searching space.

In future, the physical host level risk

management mechanism would be extended and

integrated into relatively high level decision making

or optimisation functional modules of an IaaS

provision; the risk management will be also explored

in the context of meta-management such as in case

An Evolutionary Cultural Algorithm based Risk-aware Virtual Machine Scheduling Optimisation in Infrastructure as a Service (IaaS) Cloud

271

of Cloud resource brokerage at SaaS, PaaS and IaaS

levels.

ACKNOWLEDGEMENTS

This work has been partially supported by the EU

with 7th Framework Programme under contract EU-

ICT-257115-Optimized Infrastructure Services

(OPTIMIS) Project and EU-ICT-317715-Model-

based Cloud Platform Upperware (PaaSage) Project.

REFERENCES

Djemame, K., Armstrong, D., Kiran, M., and Jiang, M.

(2011). A Risk Assessment Framework and Software

Toolkit for Cloud Service Ecosystems. In Proceedings

of the Second International Conference on Cloud

Computing, GRIDs, and Virtualization, Rome, Italy,

September 2011.

Fitó, J. O., Macías, M., and Guitart, J. (2010) Toward

business-driven risk management for cloud

computing. In Proceedings of International

Conference on Network and Service Management

(CNSM10), pages 238-241.

Fu, S. (2009) Failure-Aware Construction and

Reconfiguration of Distributed Virtual Machines for

High Availability Computing. in Proceedings of the

9th IEEE/ACM International Symposium on Cluster

Computing and the Grid (CCGrid09), Shanghai,

China, May 18-21, 2009, pages 372-379.

Guitart, J., Macías, M., Djemame, K., Kirkham, T., Jiang.,

M., and Armstrong, D. (2013). Risk-Driven Proactive

Fault-Tolerant Operation of IaaS Providers. In

Proceedings of CloudCom2013, pages 427-432.

Institute of Risk Management (2002). The Risk

Management Standard. The Association of Insurance

and Risk Managers, National Forum for Risk

Management in the Public Sector, Volume 2008, 21st

August, 2002.

Internet Society Hong Kong and Cloud Security Alliance

(HK & Macau Chapter) (2014). Report on Hong Kong

SME Cloud Adoption and Security Readiness Survey.

2 April 2014.

Jiang, M., Byrne, J., Molka, K., Armstrong, D., Djemame,

K., and Kirkham, T. (2013). Cost and Risk Aware

Support for Cloud SLAs. In Proceedings of the Third

International Conference on Cloud Computing and

Services Science (CLOSER2013), Aachen, Germany,

8-10 May 2013.

Microsoft (2013). Small and midsize businesses cloud

trust study: U.S. study results. June 2013.

NetPilot Internet Security (NIS) Ltd. (2013). A Study on

UK SME adoption of Cloud. 3 October 2013.

Reynoids, R. (1994). An introduction to cultural

algorithms. In Proceedings of the 3rd Annual

Conference on Evolutionary Programming, Sebald,

A.X., Fogel, L.J. (Editors), River Edge, NJ, World

Scientific Publishing, 1994, pages 131-139.

Sahandi, R., Alkhalil, A., and Opara-Martins, J. (2012).

SMEs’ Perception of Cloud Computing: Potential and

Security. In IFIP International Federation for

Information Processing 2012, pages 186–195, 2012.

Zhou, W., Yan-ping, B. and Ye-qing, Z. (2013). The

application of an improved cultural algorithm in grid

computing, In Proceedings of the Control and

Decision Conference (CCDC), 25-27 May 2013,

Guiyang, China, Pages 4565 – 4570.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

272
