Subgraph Isomorphism Search in Massive Graph Databases

Chemseddine Nabti

1,2

and Hamida Seba

1,2

Universit´e de Lyon, CNRS, Lyon, France

Universit´e Lyon 1, LIRIS, UMR5205, F-69622 Villeurbanne Cedex, France

Keywords:

Subgraph Isomorphism, Graph Query, Massive Graph Databases, Graph Summarizing, Modular Decomposi-

tion.

Abstract:

Subgraph isomorphism search is a basic task in querying graph data. It consists to ﬁnd all embeddings of a

query graph in a data graph. It is encountered in many real world applications that require the management

of structural data such as bioinformatics and chemistry. However, Subgraph isomorphism search is an NP-

complete problem which is prohibitively expensive in both memory and time in massive graph databases. To

tackle this problem, we propose a new approach based on concepts widely different from existing works. Our

approach relies on a summarized representation of the graph database that minimizes both the amount space

required to store data graphs and the processing time of querying them. Experimental results show that our

approach performs well compared to the most efﬁcient approach of the literature.

1 INTRODUCTION

Graphs are naturally used to represent data in several

domains and applications such as protein interactions,

regions of images, 2D and 3D shape recognition, etc.

Graphs are also a ﬁrst class solution for massive data

representation. In fact, graph databases enable us to

build interesting models that map closely to the prob-

lem domain. In this context, querying graphs is a fun-

damental problem studied by a large research com-

munity. Subgraph isomorphism search is the basic

type of graph queries. Given a query graph Q and

a data graph G, the subgraph isomorphism problem is

to ﬁnd all embeddings of Q in G. However, this prob-

lem is NP-complete (Garey and Johnson, 1979) and

the problem of ﬁnding practical solutions for mas-

sive graph databases is a challenge. Subgraph iso-

morphism knows a lot of works that consist in ﬁnding

the best way to match a query graph with the data

graphs. We review here the main existing algorithms.

For an exhaustive and detailed list of solutions, sev-

eral surveys are available on the topic such as (Lee

et al., 2013) and (Gallagher, 2006). Existing solutions

are generally classiﬁed into two main categories:

1. Exact Approaches: in this case, we are interested

by returning the list of subgraphs of G that match

exactly the query Q.

2. Inexact or error-tolerant approaches: in this case,

we are interested by a ranked list of of subgraphs

of G that are most similar to the query Q.

In both approaches, algorithms may be optimal or ap-

proximate. Optimal algorithms return a correct and

complete solution but have, generally, an exponen-

tial time complexity. Approximate algorithms may

not ﬁnd the correct/complete solution but guarantee a

polynomial time complexity.

The inexact approach knows a ﬂourishing re-

search activity in several application domains such

as databases and pattern recognition relying on dif-

ferent tools such as genetic algorithms (Khoo and

Suganthan, 2001), neural networks (Micheli, 2009),

etc. Within this approach, we generally compute a

distance between the graphs. This distance reﬂects

the degree of similarity or dissimilarity of the graphs.

We focus here on exact subgraph isomorphism search

where existing algorithms can be classiﬁed within 3

categories:

1. Backtracking-based algorithms such as Ullman’s

(Ullmann, 1976), VF2 (Cordella et al., 2004),

QuickSI (Shang et al., 2008), GraphQL (He and

Singh, 2008), GADDI (Zhang et al., 2009), and

SPath (Zhao and Han, 2010). This approach con-

structs a space search tree whose internal nodes

correspond to partial solutions and leaves corre-

spond to embeddings. The ﬁrst exact subgraph

isomorphism algorithm is due to Ullman (Ull-

mann, 1976). Ullmann’s basic approach is to enu-

merate all possible mappings of vertices between

204

Nabti, C. and Seba, H.

Subgraph Isomorphism Search in Massive Graph Databases.

DOI: 10.5220/0005875002040213

In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 204-213

ISBN: 978-989-758-183-0

 2016 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

the two graphs in a depth-ﬁrst tree-search. Each

node at level i of the search-tree maps a vertex

of the query to a vertex of the data graph. Each

path from the root to leaf in the search-tree repre-

sents a complete mapping between the query and

a subgraph of the data graph. This search-space

increases exponentially with the size of the input

graphs, so all the solutions proposed in this ap-

proach are based on some pruning rules that pre-

vent developing non necessary paths.

2. Indexing-based algorithms such as Grep (Shasha

et al., 2002), gIndex (Yan et al., 2004), FG-Index

(Cheng et al., 2007), Tree+△ (Zhao et al., 2007),

gCode (Zou et al., 2008), SwiftIndex (Shang et al.,

2008), and C-Tree (He and Singh, 2006). In this

approach, indexes are used to minimize the num-

ber of candidate graphs in the database. Then, a

subgraph isomorphism search is launched on the

candidates.

3. Candidate Region selecting algorithms such as

Turbo

ISO

(Han et al., 2013). In this approach,

the idea is to target speciﬁed regions on the same

graph for subgraph isomorphism search. These

regions are selected according to the properties of

the query.

A candidate region for a query graph Q is a sub-

graph of the data graph G which may contain

embeddings of the query graph. So, performing

subgraph isomorphism search on all candidate re-

gions will ensure that all embeddings can be ob-

tained. However, minimizing the number of can-

didate regions and the size of each region is ob-

viously important for faster matching. The main

solution within this approach is called Turbo

ISO

(Han et al., 2013). In order to minimize the size of

each candidate region, the authors of (Han et al.,

2013) propose to :

(a) Rewrite the query Q into an equivalent NEC

(Neighborhood Equivalence Class) tree Q

′

. In

′

each set of vertices that have the same label

and the same set of adjacent query vertices are

merged into one NEC vertex. So, a NEC vertex

is a compressed form of a set of vertices. Con-

sequently, using Q

′

instead of Q, will accelerate

the candidate region exploration process, since

the number of vertices is smaller.

(b) Construct candidate regions for the query Q in

the data graph G by constructing for each re-

gion a BFS search tree T

from the root node

′

of the NEC tree Q

′

so that each leaf is on the

shortest path from u

′

. Then, for the start ver-

tex v

of each target candidate region, identify

candidate data vertices for each query vertex by

simply performing depth-ﬁrst search using T

and starting from v

Minimizing the number of regions comes through

a careful choice of the root of the NEC tree.

For this, Turbo

ISO

ranks every query vertex u by

Rank(u) =

freq(G,L(u))

deg(u)

, where freq(G,l) is the

number of data vertices in G that have label l, and

deg(u) means the degree of u. This ranking func-

tion favors lower frequencies and higher degrees

which will minimize the number of regions.

When exploring candidate regions, Turbo

ISO

also

minimizes the number of enumerated partial so-

lutions by ordering the NEC vertices by increas-

ing sizes. Thus, paths involving fewer vertices are

explored ﬁrst, the space is pruned rapidly if no

isomorphism is possible. In (Han et al., 2013),

Turbo

ISO

is compared to the other approaches and

its superiority in processing queries is attested via

extensive experimentations.

Another solution that can be classiﬁed in this cat-

egory is STW proposed in (Sun et al., 2012). In

this solution, the authors propose a graph decom-

position into STwigs. An STwig is a two level tree

structure, q = (r,L), where r is the label of the root

node and L is the set of labels of its child nodes.

STwigs are non overlapping star structures, i.e.,

edge disjoint stars.

Given a query graph Q, (Sun et al., 2012) ﬁrst

decomposes Q into a set of STwigs, then it uses

exploration to ﬁnd matches to each STwig. Can-

didate region exploration concerns the graphs that

contain these STWings.

In this paper,we present a new approach for sub-

graph isomorphism search on large graphs. The pro-

posed approach is completely different from all the

previous approaches, and outperforms the most efﬁ-

cient existing algorithm in our experimentation. The

main idea of the proposed approach is to enhance

both time and space requirements of subgraph iso-

morphism search on large graphs. This is achieved by

working on summarized graphs that are simpler and

smaller than the original graphs.

The rest of the paper is organized as follows: Sec-

tion 2 deﬁnes our notations and presents the compres-

sion algorithm used to summarize the graphs. Section

3 describes the proposed algorithm for subgraph iso-

morphism search on summarized graphs. Section 4

presents an experimental evaluation to show the ef-

fective performance of the proposed technique over

the existing solutions. Finally, Section 5 concludes

the paper with a summary of our work and its per-

spectives.

Subgraph Isomorphism Search in Massive Graph Databases

205

2 PRELIMINARIES

Basics. We consider data graphs deﬁned as simple

vertex labeled graphs. Simple graphs are graphs with

no edges involving a single vertex. We rely on the

terminology used in (Basu and BBA, 2006; Fan et al.,

2010).

Deﬁnition 1. A data graph G is a 3-tuple G =

(V,E, ℓ ), where V is a set of nodes (also called ver-

tices), E ⊆ V × V is a set of edges connecting the

nodes, ℓ : V → Σ is a function labeling the nodes

where Σ is the sets of labels that can appear on the

nodes.

In this paper, the notation G = (V, E), with ℓ omit-

ted means that we actually do not need the labels of

the vertices but just their identiﬁers (i.e., indexes).

An undirected edge between vertices u and v is

denoted indifferently by (u, v) or (v, u). For each v ∈

V, d(v) denotes the degree of v, i.e., the number of

neighbors of v, where a neighbor is a vertex adjacent

to v. The label or set of labels of a vertex v is given by

ℓ(v).

The number of vertices of a graph is called the or-

der of the graph. The number of edges of a graph is

called the size of the graph. A graph that is contained

in another graph is called a subgraph and can be de-

ﬁned as follows:

Deﬁnition 2. A graph G

= (V

, f

) is a sub-

graph of a graph G

= (V

, f

), denoted G

⊆ G

if V

⊆ V

, E

⊆ E

, f

(x) = f

(x) ∀x ∈ V

Graph isomorphism is deﬁned as follows:

Deﬁnition 3. A graph G

= (V

, f

) and a graph

= (V

, f

) are said to be isomorphic, denoted

∼

G2, if there exists a bijective function h:V

→V

such that the following conditions are met:

1. ∀x ∈ V

: f

(x) = f

(h(x))

2. ∀(x, y) ∈ E

: (h(x),h(y)) ∈ E

3. ∀(h(x), h(y)) ∈ E

: (x,y) ∈ E

Given a query graph Q and a data graph G, the

subgraph isomorphism search of Q in G consists

to ﬁnd all the subgraphs of G that are isomorphic to Q.

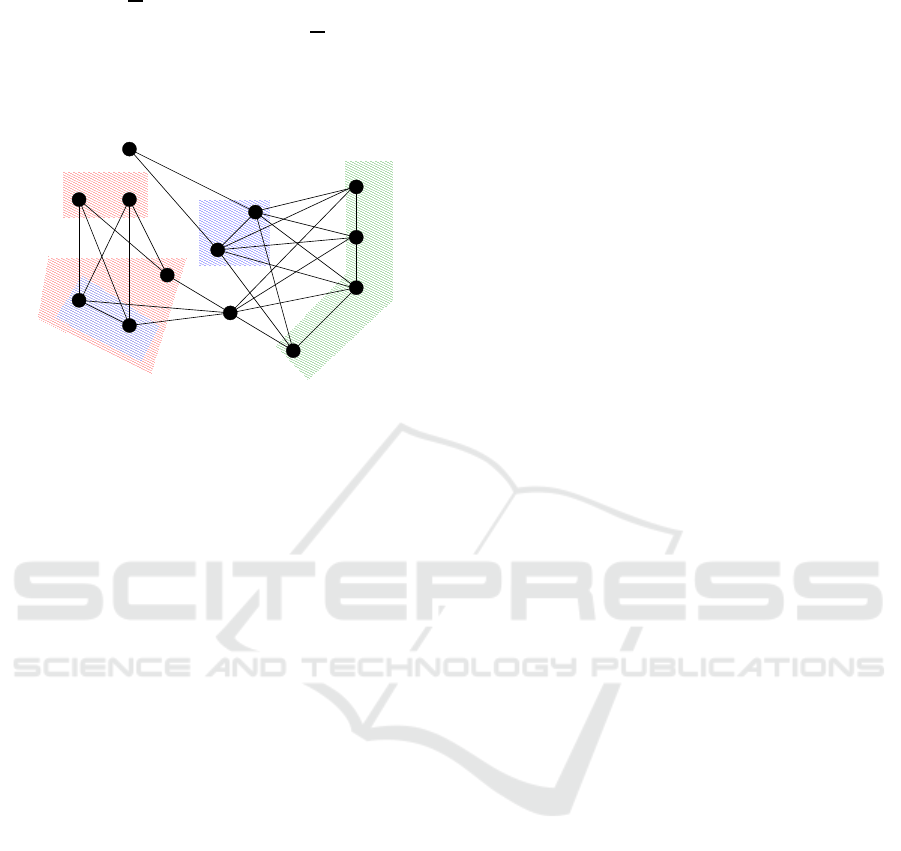

Graph Summarizing. Generally graph summarizing

methods designate graph compression methods that

aim to reduce the amount of storage space required

for storing a graph so that the processing of the graph

does not require its decompression. So, this sum-

maries must retain an amount of the graph properties

that are sufﬁcient to the application. Actually, this

line of research is very new and knows little works.

We can cite for example (Chen et al., 2009) where

Table 1: Notation.

Symbol Description

G = (V,E, ℓ) undirected vertex labeled graph,

f is a labeling function

V(G) vertex set of the graph G

E(G) edge set of the graph G

G the complement of the graph G

d(v) degree of vertex v

G[X] the subgraph of G induced by the set

of vertices X

C (G) compressed graph of G

root(C(G)) root of the tree corresponding to C (G)

Father(x) the module that contains vertex (or module) x

Leaves(x) set of vertices contained in module x

ℓ(x) set of labels of vertex (or module) x

the authors propose to summarize a graph by group-

ing the vertices that have the same label into super-

vertices. In (Fan et al., 2012), the authors summarize

graphs in a manner that preserves a class of queries,

i.e., a query of this class returns the same result when

applied to a graph G and when applied to the com-

pression of G. They considered mainly reachability

queries. In this kind of queries, we are interested in

verifying if there is a path between two vertices within

the graph. In (Lagraa et al., 2014), the authors pro-

pose a similarity measure between two large graphs

based on a similarity measure between compressed

versions of these graphs. They use modular decom-

position (Gallai, 1967; M¨ohring, 1985a) to compress

the graphs. A triangle listing algorithm is also pro-

posed on graphs compressed by modular decomposi-

tion in (Lagraa and Seba, 2016). These two applica-

tions show that modular decomposition is a promising

compression method for graphs. A modular decom-

position of a graph consists to ﬁnd within the graph all

the sets of vertices that share the same neighboring-

hood. These sets of vertices are called modules. In

our framework, we also rely on modular decomposi-

tion to compress graphs. Modular decomposition is

a graph representation method introduced by Gallai

(Gallai, 1967) to solve optimization problems. It was

also used to recognize some graph classes (M¨ohring,

1985a; M¨ohring, 1985b; Spinrad, 2003). For a survey

of applications of modular decomposition see (Gallai,

1967; M¨ohring, 1985a; Dahlhaus et al., 1997). The

basic concept of modular decomposition, used in the

compression process, is the notion of module deﬁned

as follows:

Deﬁnition 4. A module of a graph G = (V,E) is a set

M ⊆ V of vertices where all vertices in M have the

same neighbors in V M.

A module M of G can take one of the following

types:

• Series: if G[M] is a clique (A clique is a set of

IoTBD 2016 - International Conference on Internet of Things and Big Data

206

vertices connected to each other).

• Parallel: if

G[M] is a clique.

• Neighborhood: Both, G[M] and

G[M] are con-

nected graphs.

Figure 1 presents a graph and its modules.

l m

Figure 1: A Graph and its Modules (Lagraa et al., 2014).

The graph is compacted by replacing recursively

each module by a supervertex as illustrated in Fig-

ure 2. To obtain a unique representation of the graph

only the modules that do not overlap other modules

are considered.

To retain all the properties of the original graph

with the obtained compact representation of the

graph, adjacency information for neighborhood mod-

ules must be stored. Series and parallel modules need

no information about adjacency. For example, The

obtained compressed graph illustrated in Figure 2(e)

is itself a neighborhood module that can be denoted :

N(a, S(b,c),N(d,e, f, g),h,P(S(i, j), k),P(l, m)).

For this module, we retain the edges between the su-

pervertices to keep adjacency information. This gives

the ﬁnal compressed graph. We also retain the edges

that bind the vertices of the neighborhood module

N(d,e, f, g).

We note also that each module is a tree whose

leaves are the vertices of the original graph as illus-

trated in Figure 3 for the modules of our example.

Given a vertex v, we denote by Father(v) the mod-

ule that contains it and by root(C (G) the module cor-

responding to the compressed graph. Given a mod-

ule m, Leaves(m) gives the leaves, i.e., vertices of the

module m. Also, we will use ℓ (x) to denote the set of

labels of a module or vertex x. Table 1 summarizes

our notations.

Modular decomposition has been the subject of

extensive research for years (Gallai, 1967; M¨ohring,

1985a; Dahlhaus et al., 1997; Habib and Paul, 2010;

Quaddoura and Mansour, 2010). Several algorithms

that compute the modular decomposition of a graph

are proposed in the literature (Habib et al., 2004). The

most efﬁcient are linear time (Capelle et al., 2002;

Habib et al., 2004; Tedder et al., 2008) and achieve

in O(n+ m) .

3 SUM

ISO

: SUBGRAPH

ISOMORPHISM SEARCH ON

SUMMARIZED GRAPHS

As mentioned before, we propose here an algorithm

that ﬁnds all the embeddings of a query graph Q in

a data graph G. Both Q and G are compressed as

described in the previous section. We show that by

doing this we enhance both memory requirement for

storing the data graphs and the processing time of the

subgraph search. The algorithm, called Sum

ISO

, takes

in entry the compressed versions C (Q) and C (G) of

Q and G respectively and reports all the embeddings

of Q in G. The Algorithm operates in two phases: a

candidate supervertex selection phase and a subgraph

search phase. During the ﬁrst phase, the compressed

data graph is parsed to retain only regions of the graph

that are likely to contain the query. This selection uses

only the labels of the modules. During the second

phase, a backtracking-like algorithm is used in each

region to verify the embedding. In the following we

detail both phases and show how we can ﬁnd all the

embeddings by parsing the compressed graph data.

3.1 Candidate Supervertex Selection

The aim of this phase is to determine the modules (su-

pervertices) that are likely to match the query. With

this step, we minimize the number of vertices of the

data graph to be processed. For this, we explore the

vertices of C (G) to get all those that contain at least

one of the labels of the query. Let Cand denotes the

obtained result with:

Cand = {m ∈ C (G) such that ℓ(m) ∩ ℓ(C (Q)) 6= ∅}.

After that the set of candidate modules is parti-

tioned in several subsets where each of them is can-

didate for a single embedding. Each subset contains

the minimum number of modules that satisfy all the

labels of the query. Subgraph search is then invoked

on each of these subsets. Algorithm 1 details can-

didate supervertex selection. Figure 4 illustrates this

step on our example. In this Figure, we can see

that the query is compressed in a single supervertex

labeled S(P(b, c), a). ℓ(C (Q)) = {a,c,b}. Conse-

quently, Cand = {1,2}, where 1, and 2 are the identi-

ﬁers of the supervertices that are candidates to match

the query. The partitioning of Cand yields to the set

Subgraph Isomorphism Search in Massive Graph Databases

207

S(b,c)

l m

(a)

S(b,c)

N(d, e, f, g)

l m

(b)

S(b,c)

N(d, e, f, g)

P(l, m)

(c)

S(b,c)

N(d, e, f, g)

S(i, j)

P(l, m)

(d)

S(b,c)

N(d, e, f, g)

P(S(i,j), k)

P(l, m)

(e)

Figure 2: Compressing steps: S: series module. P: parallel module. N: neighborhood module (Lagraa et al., 2014).

Figure 3: Tree representation of Modules (Lagraa et al.,

2014).

{{1, 2}}. This means that there is only one possible

region of the graph to explore for subgraph isomor-

phism.

Note that at this step, we have a set of candidates

with no order. These candidates are selected solely

on labels. No structural veriﬁcation are done with the

query. So, at the end of this step, we do not know if

there is a subgraph in G that matches the query. The

aim of the next step is to aggregate the candidate su-

pervertices in order to verify if the structure of the

query is preserved within them.

Algorithm 1: Supervertex Selection.

Data: A summarized data graph C (G) and a

summarized query C (Q).

Result: A set of candidate supervertices of C (G) that

match C (Q).

begin

Cand ←

foreach m ∈ C (G) do

if ℓ(Q) ∩ ℓ(m) 6= ∅ then

Cand ← Cand ∪ {m};

end

C ← {s = {m

,· ·· , m

}|ℓ(Q) ⊆ ℓ(s)};

foreach s ∈ C do

P ←

SubgraphSearch(C (Q), s, P);

end

3.2 Subgraph Search

The subgraph search phase takes as inputs a query

C (Q) and a set s = {m

,··· , m

} of modules that

are likely to contain an embedding of the query. It

returns all the embeddings of the query in these mod-

ules. An embedding is represented by a set P of pairs

IoTBD 2016 - International Conference on Internet of Things and Big Data

208

S(b,c)

N(d, e, f, g)

P(S(i,j), k)

P(l, m)

Query

S(P(b,c), a)

Compressed Query

Cand={1,2}

Compressed Data Graph

Figure 4: Example of Candidate Supervertex Selection.

(u,v), where u is a query vertex and v is the data ver-

tex that matches u. Algorithm 2 shows all the details

of this phase. For each vertex u in C (Q), Subgraph-

Search ﬁrst ﬁnds the set of candidate vertices C

from

the vertices of the modules of the set s. A vertex v of

the data graph matches u if it has the same label as u

and all the neighbors of u are matched to neighbors

of v. This is veriﬁed by a call to function IsJoinable

(detailed in Algorithm 3). Given two vertices u ( from

the query) and v (from the data graph) to be matched,

function IsJoinable returns TRUE if the neighbors of

vertex u are matched to neighbors of vertex v in the

match P. To have the list of neighbors of a vertex in

a compressed graph, we use function Neighbors that

takes advantage from the tree structure of the com-

pressed graph (see Figure 3) to easily list the neigh-

bors of a vertex as detailed in Algorithm 4. Accord-

ing to the type (series, parallel or neighborhood) of

the module that contains the vertex we can easily de-

termine its neighbors. Algorithm 4 parses the subtree

of C (G) that contains u from the father of u upward

to the root of C (G). If a visited vertex x is a series

module, then all the leaves of its descendants that are

not in the branch that contains u are neighbors of u.

If the visited vertex is a neighborhood module, neigh-

bors of u are determined according to the edges of the

module.

When a match (u, v) is veriﬁed, in procedure

SubgraphSearch, it is reported in P. As in any

backtracking-based algorithm, SubgraphSearch uses

recursion to complete the partial match until it meets

the query. When a match fails, the procedure back-

tracks to the preceding state by removing the match.

4 EXPERIMENTAL RESULTS

We evaluate the execution time performance of our

algorithm, Sum

ISO

, over different type of graphs and

Algorithm 2: SubgraphSearch.

Data: A set of modules from the data graph

s = {m

,· ·· , m

}, the compressed query

C (Q) and a partial embedding P.

Result: All embeddings of Q in s.

begin

if |P| = |V(C (Q))| then

Report P;

else

Choose a non matched vertex u from

Leaves(m),m ∈ C (Q);

← { non matched v ∈ Leaves(m

) such

that m

∈ s and ℓ(v) = ℓ(u) and

IsJoinable(u, v, P)};

foreach v ∈ C

P ← P∪ {(u,v)};

SubgraphSearch(C (Q), s, P);

Remove (u, v) from P ;

end

Algorithm 3: Verify that two vertices to be matched

have the same adjacency (IsJoinable).

Data: Two vertices u and v to be matched.

Result: True is the the vertices have the same

adjacency.

begin

return (∀u

′

∈ Neighbors(u), if u

′

is matched to

′

then v

′

∈ Neignbors(v));

end

size of queries. We also compared it with the most

efﬁcient state of the art algorithm, called Turbo

ISO

and presented in (Han et al., 2013). We recall that

Turbo

ISO

is itself compared to the other existing solu-

tions in (Han et al., 2013) and showed to be superior

to them.

We ﬁrst describe the datasets used in the experi-

ments, then we present our results.

Subgraph Isomorphism Search in Massive Graph Databases

209

Algorithm 4: Computing the set of neighbors of a ver-

tex in a compressed graph (Neighbors).

Data: A vertex u and a compressed graph C (G).

Result: The set of neighbors of u in G.

begin

N ←

z ← u;

x ← Father(u);

while x 6= root(C (G)) do

switch type of x do

case a series module

foreach child y 6= z of x do

N ← N ∪ Leaves(y);

end

case a Neighborhood module

foreach edge (z,y) ∈ x do

N ← N ∪ Leaves(y);

end

endsw

z ← x;

x ← Father(x);

end

return N

end

4.1 Datasets

We use the same datasets considered in (Han et al.,

2013) for proving the superiority of Turbo

ISO

against

the other algorithm of the literature described in Sec-

tion 1. These datasets are referred to as AIDS, NASA,

and Human. Their description is as follows:

• AIDS database: This dataset consists of graphs

representing molecular compounds. It contains

10, 000 small graphs of 27 edges. The number of

unique labels in AIDS is 51.

• NASA database: This dataset contains 36, 790

trees with an average size of 32, and a number

of unique labels of 117, 302.

• HUMAN database: This dataset consists of one

large graph representing a protein interaction net-

work. This graph has 4,675 vertices and 86, 282

edges. The number of unique labels in the dataset

is 90.

We present a summary of these graph databases in

Table 2. Besides the average number of vertices and

edges of the graphs in the dataset, we also give the av-

erage compression rate of each dataset. Given a graph

G and its compressed graph C (G), the compression

rate of G is given by: CR(G) =

|E(C (G)|)|

|E(G)|

· 100%. It

compares the number of edges in C (G) in respect to

Graphs within the three datasets were preliminar-

ily compressed using an extension of the algorithm

proposed in (Capelle et al., 2002; Habib et al., 2004)

Table 2: Graph Dataset Characteristics. avg|V|: average

number of vertices. avg|E|: average number of edges. CR

average compression rate.

Dataset Number of avg|V| avg|E| CR

graphs

AIDS 10,000 26 27 56.8%

NASA 36,790 94 32 44.2%

HUMAN 1 4,675 86,282 61%

that computes the modular decomposition of a graph

in linear time. So, we compress an input graph in

O(n+ m) time, where n is the number of vertices and

m the number of edges of the graph.

To show the storage saving obtained by compress-

ing the datasets, Table 3 reports the size on disk of

each dataset before and after compression. We also

provide the time necessary to compress each dataset.

Table 3: Size on disk.

Dataset Size on disk (Mb) Size on disk after Compression

compression (Mb) time(ms)

AIDS 4.59 2.18 230

NASA 24 14.42 180

HUMAN 1.15 0.24 195

The experiments are performed on a 2.40 GHz

Intel(R) Core(TM) i5 − 4210U 64 bits laptop with

8 GB of RAM running windows 7. The algorithm is

implemented in C++.

We use the same query sets as in (Han et al.,

2013). These queries are constructed as follows (Han

et al., 2013):

• AIDS and NASA query sets: For each of these

datasets, the authors of (Han et al., 2013) con-

structed 6 query sets (Q4, Q8, Q12, Q16, Q20,

Q24), each of which contains 1,000 query graphs

of the same size. Additionally, each query Q

contained in a query Q

i+1

. Each query is a sub-

graph of a graph in the dataset.

• Human Query sets: For this dataset, the authors of

(Han et al., 2013) generated three kind of queries:

1. Subgraph queries as for the Aids and Nasa

datasets. In this case, we have 10 query sets

obtained by varying the number of query sizes

from 1 to 10.

2. Clique queries where the query subgraph is a

complete graph. For biological datasets, such

as Human, a clique Query corresponds to a pro-

tein complex (He and Singh, 2008).

3. Path queries where the query subgraph is a

path. A path query corresponds to transcrip-

tional or signaling pathways (He and Singh,

2008).

IoTBD 2016 - International Conference on Internet of Things and Big Data

210

4 8 12 16 20 24

Time(ms)

Size of the Query Graph

Turbo

ISO

Sum

ISO

Figure 5: AIDS dataset.

The time performance reported in the results is the

average time computed over the sets of queries of the

same size.

4.2 Results

Figure 5 shows the experimental results for AIDS. We

can clearly see that the time performed by Turbo

ISO

decreases when the query size increases. This is

explained in (Han et al., 2013) by the containment

relationship among the query sets in AIDS. We can

also observe the same behavior with Sum

ISO

which

achieves better than Turbo

ISO

. In our case, this

can be explained by important compression rate of

AIDS that yields a small number of candidates to be

considered.

4 8 12 16 20 24

Time(ms)

Size of the Query Graph

Turbo

ISO

Sum

ISO

Figure 6: NASA dataset.

Figure 6 shows the experimental results for

NASA. For this dataset, Sum

ISO

achieves signiﬁ-

cantly better than Turbo

ISO

for all the queries.

Figure 7 shows the results of subgraph queries

over the human dataset. The superiority of Sum

ISO

over Turbo

ISO

is clearly observable as soon as the

query size is greater than 8.

Figure 8 shows the results of subgraph isomor-

phism search for path and clique queries over the Hu-

man dataset. For the clique queries, Sum

ISO

signif-

icantly outperforms Turbo

ISO

. This is mainly due to

the fact that a clique is compressed to a single node

in our approach. For path queries, we have also a bet-

ter results than Turbo

ISO

even if not signiﬁcantly. We

explain this by the fact that paths are not summarized

by modular decomposition.

0.2

0.4

0.6

0.8

1.2

1.4

1.6

1.8

1 2 3 4 5 6 7 8 9 10

Time(ms)

Size of the Query Graph

Turbo

ISO

Sum

ISO

Figure 7: Human dataset.

5 CONCLUSIONS

In this paper, we presented a new approach to

subgraph isomorphism search in massive graph

databases. In our approach, data graphs are summa-

rized to minimize storage requirement. Our subgraph

isomorphism search algorithm, Sum

ISO

, ﬁnds all the

embeddings of a query graph in a summarized data

graph without decompressing the graph. Our experi-

mentations show that the proposed approach achieves

good performance on both time processing of queries

and space storage of data graphs. However, several

enhancement issues are possible and merit investiga-

tion. First, more experiments are needed to attest the

efﬁciency of the approach. In fact, we used the same

datasets as in (Han et al., 2013) for our evaluation to

compare with the Turbo

ISO

algorithm. These datasets,

namely AIDS, NASA and HUMAN are highly com-

pressible with more than 40% of compression rate.

However, not all the graphs are compressible with the

same rate. So, it is interesting to study the behavior

of the approach with less compressible graphs. Sec-

ond, it is interesting to compare the two approaches

on larger graphs. Third, it is interesting to see if it is

feasible to ran such an approach on a graph database

such as Neo4j and also investigate how it can be

implemented in a MapReduce framework. Finally,

we have not used pruning methods in the Subgraph-

Search phase and it may be possible to deﬁne some

rules to prune the explored compressed paths by rely-

ing on the properties of the compression.

Subgraph Isomorphism Search in Massive Graph Databases

211

0.2

0.4

0.6

0.8

1.2

1.4

1.6

1.8

2 3 4 5 6 7 8 9 10

Time(ms)

Size of the Query Graph

Turbo

ISO

Sum

ISO

0.05

0.1

0.15

0.2

0.25

0.3

0.35

2 3 4 5 6 7

Time(ms)

Size of the Query Graph

Turbo

ISO

Sum

ISO

(a) Path Queries. (b) Clique Queries.

Figure 8: Path and Clique Queries.

ACKNOWLEDGEMENTS

This work is partially funded by the French National

Research Agency (ANR) project CAIR (ANR-14-

CE23-0006).

REFERENCES

Basu, M. and BBA, T. K. H. (2006). Data Complexity in

Pattern Recognition. Springer.

Capelle, C., Habib, M., and Montgolﬁer, F. D. (2002).

Graph decompositions and factorizing permutations.

Discrete Mathematics & Theoretical Computer Sci-

ence - DMTCS, 5(1):55–70.

Chen, C., Lin, C. X., Fredrikson, M., Christodorescu, M.,

Yan, X., and Han, J. (2009). Mining graph patterns

efﬁciently via randomized summaries. Proc. VLDB

Endow., 2(1):742–753.

Cheng, J., Ke, Y., Ng, W., and Lu, A. (2007). Fg-index:

Towards veriﬁcation-free query processing on graph

databases. In Proceedings of the 2007 ACM SIGMOD

International Conference on Management of Data,

SIGMOD ’07, pages 857–872, New York, NY, USA.

ACM.

Cordella, L. P., Foggia, P., Sansone, C., and Vento, M.

(2004). A (Sub)Graph Isomorphism Algorithm for

Matching Large Graphs. IEEE Transactions on Pat-

tern Analysis and Machine Intelligence, 26:1367–

1372.

Dahlhaus, E., Gustedt, J., and McConnell, R. (1997).

Efﬁcient and practical modular decomposition. In

eighth annual ACM-SIAM symposium on Discrete al-

gorithms, pages 26–35.

Fan, W., Li, J., Ma, S., Tang, N., Wu, Y., and Wu, Y. (2010).

Graph pattern matching: From intractable to polyno-

mial time. Proc. VLDB Endow., 3(1-2):264–275.

Fan, W., Li, J., Wang, X., and Wu, Y. (2012). Query

preserving graph compression. In Proceedings of

the 2012 ACM SIGMOD International Conference on

Management of Data, SIGMOD ’12, pages 157–168,

New York, NY, USA. ACM.

Gallagher, B. (2006). Matching structure and semantics: A

survey on graph-based pattern matching. AAAI FS,

6:45–53.

Gallai, T. (1967). Transitiv orientierbare graphen. Acta

Mathematica Hungarica, 18:25–66.

Garey, M. R. and Johnson, D. S. (1979). Computers

and Intractability: A Guide to the Theory of NP-

Completeness.

Habib, M., Montgolﬁer, F. D., and Paul, C. (2004). A sim-

ple linear-time modular decomposition algorithm for

graphs. Scandinavian Workshop on Algorithm Theory

- SWAT, pages 187–198.

Habib, M. and Paul, C. (2010). A survey of the algorithmic

aspects of modular decomposition. Computer Science

Review, 4(1):41–59.

Han, W.-S., Lee, J., and Lee, J.-H. (2013). Turboiso:

Towards ultrafast and robust subgraph isomorphism

search in large graph databases. In Proceedings of

the 2013 ACM SIGMOD International Conference on

Management of Data, SIGMOD ’13, pages 337–348,

New York, NY, USA. ACM.

He, H. and Singh, A. (2006). Closure-tree: An index struc-

ture for graph queries. In Data Engineering, 2006.

ICDE ’06. Proceedings of the 22nd International Con-

ference on, pages 38–38.

He, H. and Singh, A. K. (2008). Graphs-at-a-time: Query

language and access methods for graph databases. In

Proceedings of the 2008 ACM SIGMOD International

Conference on Management of Data, SIGMOD ’08,

pages 405–418, New York, NY, USA. ACM.

Khoo, K. G. and Suganthan, P. N. (2001). Multiple rela-

tional graphs mapping using genetic algorithms. pages

727–737.

Lagraa, S. and Seba, H. (2016). An efﬁcient exact algorithm

for triangle listing in large graphs. Data Mining and

Knowledge Discovery, pages 1–20.

Lagraa, S., Seba, H., Khennoufa, R., M’Baya, A., and

Kheddouci, H. (2014). A distance measure for large

graphs based on prime graphs. Pattern Recognition,

47(9):2993 – 3005.

Lee, J., Han, W.-S., Kasperovics, R., and Lee, J.-H. (2013).

An in-depth comparison of subgraph isomorphism al-

gorithms in graph databases. In Proceedings of the

39th international conference on Very Large Data

IoTBD 2016 - International Conference on Internet of Things and Big Data

212

Bases, PVLDB’13, pages 133–144. VLDB Endow-

ment.

Micheli, A. (2009). Neural network for graphs : A con-

textual constructive approach. IEEE Transactions on

Neural Networks, 20(3):498–511.

M¨ohring, R. (1985a). Algorithmic aspect of the substitution

decomposition in optimization over relation, set sys-

tem and boolean function. Ann. Operations Research,

4:195–225.

M¨ohring, R. (1985b). Algorithmic aspects of comparability

graphs and interval graphs. I. Rival. Graphs and Order

(D. Reidel), pages 41–101.

Quaddoura, R. and Mansour, K. (2010). Classical graphs

decomposition and their totally 2010 decomposable

graphs. International Journal of Computer Science

and Network Security, 10:1240–1250.

Shang, H., Zhang, Y., Lin, X., and Yu, J. X. (2008). Tam-

ing veriﬁcation hardness: An efﬁcient algorithm for

testing subgraph isomorphism. Proc. VLDB Endow.,

1(1):364–375.

Shasha, D., Wang, J. T. L., and Giugno, R. (2002).

Algorithmics and applications of tree and graph

searching. In Proceedings of the Twenty-ﬁrst ACM

SIGMOD-SIGACT-SIGART Symposium on Principles

of Database Systems, PODS ’02, pages 39–52, New

York, NY, USA. ACM.

Spinrad, J. P. (2003). Efﬁcient Graph Representation.

American Mathematical Society.

Sun, Z., Wang, H., Wang, H., Shao, B., and Li, J. (2012).

Efﬁcient subgraph matching on billion node graphs.

PVLDB, 5(9):788–799.

Tedder, M., Corneil, D. G., Habib, M., and Paul, C. (2008).

Simpler linear-time modular decomposition via re-

cursive factorizing permutations. In Automata, Lan-

guages and Programming, 35th International Collo-

quium, ICALP 2008, Reykjavik, Iceland, July 7-11,

2008, Proceedings, Part I: Tack A: Algorithms, Au-

tomata, Complexity, and Games, pages 634–645.

Ullmann, J. R. (1976). An Algorithm for Subgraph Isomor-

phism. J. ACM, 23(1):31–42.

Yan, X., Yu, P. S., and Han, J. (2004). Graph indexing: A

frequent structure-based approach. In Proceedings of

the 2004 ACM SIGMOD International Conference on

Management of Data, SIGMOD ’04, pages 335–346,

New York, NY, USA. ACM.

Zhang, S., Li, S., and Yang, J. (2009). Gaddi: Dis-

tance index based subgraph matching in biological

networks. In Proceedings of the 12th International

Conference on Extending Database Technology: Ad-

vances in Database Technology, EDBT ’09, pages

192–203, New York, NY, USA. ACM.

Zhao, P. and Han, J. (2010). On graph query optimization

in large networks. PVLDB, 3(1):340–351.

Zhao, P., Yu, J. X., and Yu, P. S. (2007). Graph indexing:

Tree + delta >= graph. In Proceedings of the 33rd

International Conference on Very Large Data Bases,

VLDB ’07, pages 938–949. VLDB Endowment.

Zou, L., Chen, L., Yu, J. X., and Lu, Y. (2008). A novel

spectral coding in a large graph database. In Pro-

ceedings of the 11th International Conference on Ex-

tending Database Technology: Advances in Database

Technology, EDBT ’08, pages 181–192, New York,

NY, USA. ACM.

Subgraph Isomorphism Search in Massive Graph Databases

213
