DataCommandr: Column-oriented Data Integration, Transformation

and Analysis

Alexandr Savinov

Bosch Software Innovations GmbH, Stuttgarterstr. 130, 71332 Waiblingen, Germany

Keywords: Big Data, Data Wrangling, Ad-hoc Analytics, Agile Analytics, Column-oriented Representation.

Abstract: In this paper, we describe a novel approach to data integration, transformation and analysis, called

DataCommandr. Its main distinguishing feature is that it is based on operations with columns rather than

operations with tables in the relational model or operations with cells in spreadsheet applications. This data

processing model is free of such typical set operations like join, group-by or map-reduce which are difficult

to comprehend and slow at run time. Due to this ability to easily describe rather complex transformations

and high performance on analytical workflows, this approach can be viewed as an alternative to existing

technologies in the area of ad-hoc and agile data analysis.

1 INTRODUCTION

As data analysis and decision support systems

continue to evolve and improve, application

developers and analysts spend an inordinate amount

of time and effort manually preparing data and

representing it in a form suitable for visualization,

decision making or further analysis. This process

where the source data is made useful by iteratively

and exploratively transforming data into a suitable

form is frequently referred to as data wrangling

(Kandel et al., 2011). It is known as one of the most

tedious and highest cost issues in IT by covering

many application areas and technologies.

Data wrangling historically originates from the

processes of synchronizing a decision support

system with operational databases which is referred

to as Extract, Transform, Load (ETL). In more

general contexts, these processes where data is

transformed from many heterogeneous data sources

to a suitable format have been referred to as Data

Integration (DI). In data integration, the focus is

made on heterogeneity of the data sources and the

necessity to combine all of them into a unified data

representation. There exist multiple scenarios where

DI, ETL and data wrangling are used, for example,

business intelligence, data warehousing, data

migration and data federation. They are also used in

various big data and data analysis applications. Note

that the term “big data” means not only the amount

of data but also the diversity and variety of models,

formats and conventions for their representation

(Cohen et al., 2009). And the significant increase in

the variety of data sources determines high demand

for data wrangling technologies. However, several

significant modern trends over the last few years

determine new requirements to and new

functionalities of such systems.

Complex Analytics. In complex analytics, a query

is not a filter with a couple of joins anymore. It is a

data processing script intended to perform almost

arbitrary computations. Data processing is getting

closer to writing a program rather than retrieving

subsets of data using a declarative query languages

like SQL.

Agile and Ad-hoc Analytics. Perhaps the most

widely used approach to explorative data analysis is

based on OLAP and the multidimensional data

model. This approach uses application-specific

scenarios with predefined roles of dimensions,

measures, cubes and facts. Changing these scenarios

in OLAP is a quite difficult task because they are

embedded in both data warehouse and client

software (Krawatzeck, Dinter & Thi, 2015). The

goal of agile analytics consists in going beyond

standard OLAP analysis by facilitating exploratory

ad-hoc approaches where the user can freely vary

most data processing and visualization parameters.

Near Real-time Analytics. Traditional systems

cannot provide the necessary response time and

Savinov, A.

DataCommandr: Column-oriented Data Integration, Transformation and Analysis.

DOI: 10.5220/0005877203390347

In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 339-347

ISBN: 978-989-758-183-0

339

agility of decision making on large volumes of data

(Chaudhuri et al., 2011). It may take hours or days to

generate a report in a typical enterprise system and

newer map-reduce technologies like Hadoop are

even slower. However, for agile and ad-hoc

analytics, the response time should be minimized

because otherwise it is not possible to explore the

space of possible data transformation options. As the

volume of data coming from diverse sources is

increasing at ever faster rates, there is stronger

demand in reducing the time between data

acquisition and making a business decision.

Self-service Analytics. The above three

technological trends are present in the fourth

direction, called self-service analytics, the goal of

which is to provide tools for authoring complex ad-

hoc analysis scenarios in agile manner to end users

and domain experts as opposed to tools used by IT

persons. This trend is connected with the

democratization of data where ordinary users, and

not just database administrators and developers, are

directly involved in the process of data preparation,

transformation and visualization (Morton et al.,

2014).

Almost all currently existing technologies for

data transformation are based on the same

foundation. The main pattern is that it is necessary to

describe how a new data table is generated from

existing data tables and then provide an efficient

environment for executing these table

transformations. This paper describes a radically

new approach to data integration, transformation and

analysis, called DataCommandr. Its main

distinguishing feature is that the primary unit of

transformation is that of a column (rather than a

table) and hence it can be characterized as a column-

oriented approach. Instead of defining how new

tables are generated from existing tables, we define

how new columns are defined in terms of existing

columns. In mathematical terms, this means that

instead of defining transformations of relations

(sets), we define transformations of functions

(mappings). Thus a function (not a relation) is the

main element of the described data manipulation

language and the underlying data model.

Switching from tables to columns is a highly

non-trivial task. In particular, it is necessary to get

rid of such operators like join (Savinov, 2012a) and

group-by because they are inherently set-oriented

operators. To solve these problems, DataCommandr

relies on a novel concept-oriented model of data

(Savinov, 2014b; Savinov, 2012b) which provides

the necessary theoretical basis. As a result,

DataCommandr can be characterized as a column-

oriented, join-free and groupby-free approach. The

absence of these operators makes it much more

natural and easy to use while column orientation

makes it more efficient at run-time.

DataCommandr is a data processing engine

behind ConceptMix (Savinov, 2014a). Although

they both are based on the same theoretical basis

(the concept-oriented model of data) these systems

are targeted at different problems and have different

implementations. ConceptMix is intended for

interactive self-service data blending using rich UI

(implemented in C# for MS Windows).

DataCommandr is designed as a general purpose

data processing engine written in Java. It can be

embedded into or used from other applications with

the purpose similar to MapReduce (Dean and

Ghemawat, 2004) or Spark (Zaharia et al., 2012).

DataCommandr provides a novel concept-oriented

expression language (COEL) as a means for

describing data transformations which is absent in

ConceptMix.

This paper makes two major contributions:

 We present a novel data processing paradigm

which is based on column transformations as

opposed to the currently dominating approach

based on table transformations or cell

transformations in spreadsheets.

 We describe how this conception has been

implemented in DataCommandr

which is

designed to meet the requirements of the modern

technological trends.

The paper has the following layout. Section 2

provides the necessary background and describes the

main goals of DataCommandr. Sections 3-6 describe

main operations provided by DataCommandr for

defining transformations. Section 7 makes

concluding remarks.

2 BACKGROUND

2.1 Cell-oriented Functional Approach

Due to their simplicity and ease of use, spreadsheet

applications are known as the most popular type of

BI tools. The general idea of spreadsheets is based

on the following major principles. First, a minimum

unit of data is a cell which represents one value.

Second, cells have two-dimensional addresses, that

is, a unique address of a cell has two constituents

which are thought of as rows and columns of a table

http://conceptoriented.org

IoTBD 2016 - International Conference on Internet of Things and Big Data

340

called a spreadsheet (hence the name of the

approach). Third, data values can be computed using

a function which derives an output value from the

values in the cells referenced via their addresses.

Therefore, it is a functional approach: the system

evaluates these functions whenever some input value

changes.

DataCommandr aims at retaining the simplicity

and generality of spreadsheets. In particular,

DataCommandr assumes that data and data

transformations are represented as a number of

addressable units which can store either data values

or functions for computing these values. Functions

are represented as formulas that can involve data in

other storage units. Just as in the case of

spreadsheets, writing a data processing script is

reduced to writing (functional) expressions rather

than queries and it is exactly what provides

simplicity and generality.

Although DataCommandr shares the functional

paradigm with the spreadsheets, it is not an

alternative to spreadsheets or their variation. The

main difference is how storage units are defined and

hence what functions manipulate. In contrast to

spreadsheets where a data unit is a cell, a minimum

addressable data unit in DataCommandr is a column.

Thus one (simplistic) interpretation of

DataCommandr is that it is a column-oriented

spreadsheet, that is, a spreadsheet where the user

defines new columns in terms of other columns via

formulas using a special expression language. For

example (Fig. 1), a new cell could be defined as a

formula

C3=A1+B2 where A1, B2 and C3 are cell

addresses. In DataCommandr, a new column could

be defined as a formula

C=A+B where A, B and C are

column names. Importantly, it is not possible to

address individual values within a column – a

formula describes how all values in an output

column are computed from all values in input

columns.

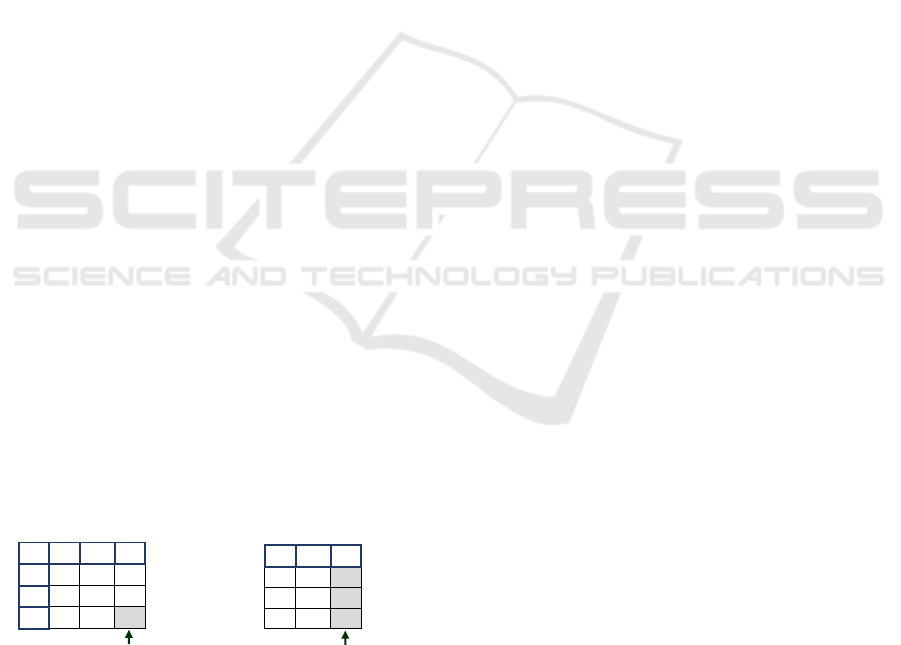

Figure 1: Cell-oriented spreadsheets vs. column-oriented

approach in DataCommandr.

A problem of spreadsheets is that thinking in

terms of cells is not inherently compatible with

thinking of data in terms of sets and columns. One

attempt to convert the very successful spreadsheet

approach to a column-oriented paradigm has been

made by Microsoft in its Data Analysis Expression

(DAX) language (Russo, Ferrari & Webb, 2012)

used in such products as Power Pivot and Power BI.

Although DAX has many interesting features which

distinguish it from most other techniques for data

manipulations, it is still a rather eclectic technique

rather than a theoretical conception, that is, it is a

number of syntactic constructs which allow us to

apply various functions to columns. In contrast,

DataCommandr proceeds from theoretical

foundations which have been developed in the

concept-oriented model (COM) of data. These

theoretical principles have been then applied to the

problem of data transformations by resulting in a

concept-oriented expression language (COEL).

COEL in this sense is simpler than DAX and it has

some significant differences. Note also that

Microsoft uses a new tabular data model which is

supposed to generalize various views on data

(particularly, multi-dimensional and relational) but it

did not result in a theoretical foundation but rather

remains a (highly interesting) technological artifact.

2.2 Table-oriented Functional

Approach

Just as spreadsheets dominate in self-service BI, the

relational model of data (in numerous variants and

reincarnations) dominates in server-side and

complex data processing. When we are talking about

data processing then this general paradigm is

reduced to the following principles. First, data is

stored in sets. If we want to represent and

manipulate data then we have to define the

corresponding sets – there is no possibility to work

with data not stored in sets. Second, sets consist of

tuples. Third, manipulations with data are described

as various operations with sets which return other

sets.

The relational model and SQL-like languages are

known to be quite restrictive when used for complex

analysis tasks (Atzeni et al., 2013). A description of

transformations can be quite lengthy and not very

natural in the case of many tables and relationships.

Also, the traditional row-oriented data processing

engines have relatively low performance when

applied to analytical workflows. These difficulties

explain why the column-oriented approach has been

so successful when implementing database

management systems (Copeland and Khoshafian,

1985; Abadi, 2007; Boncz, 2012). Yet, we are not

aware of any uses of the column-oriented approach

 A B C

1 4 

2 3

3  7

C3=A1+B2

Column‐oriented

A B C

4 1 5

3 3 6

2 5 7

C=A+B

Cell‐oriented

DataCommandr: Column-oriented Data Integration, Transformation and Analysis

341

in data processing systems which are not focused on

persistence and physical organization. Most

columnar databases rely on conventional set-

oriented query languages or API by changing only

the physical level of data organization. In contrast,

the main goal of DataCommandr is to introduce

column-orientation at the logical level so that these

operations are then naturally translated into the

columnar representation of the data at the physical

level.

DataCommandr also follows the approach where

the user has to define functions which transform

input data and produce output data. The main

difference (Fig. 2) is that these functions are defined

on columns rather than tables (sets). Obviously, it is

not a subtle feature but rather a fundamental

difference. The main reason why we switch to

column-orientation is that we want to radically

simplify operations with data by simultaneously

making them more efficient at run time for analytic

workflows.

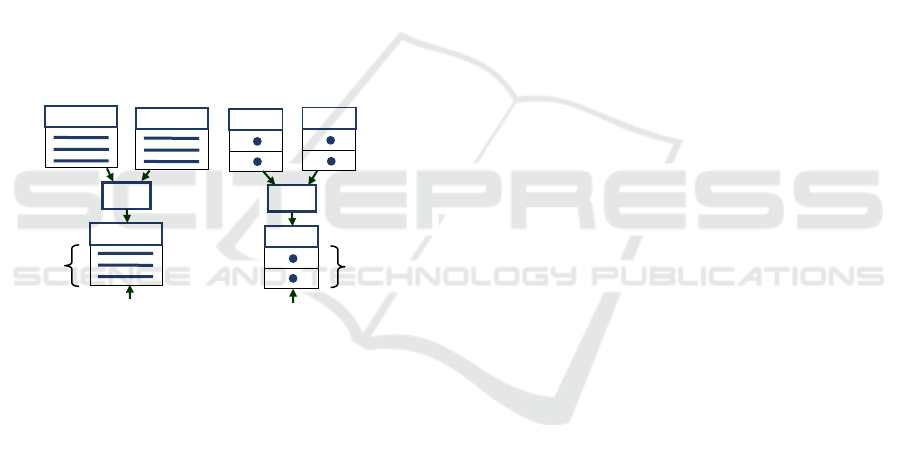

Figure 2: Column-oriented approach vs. table-oriented

data transformations.

An important observation is that table operations

and column operations can be mixed. For example, a

typical SQL query has a

SELECT clause which

contains also definitions of new columns like

price*quantity AS amount. Here price and

quantity are existing column names and amount is

a new derived column added to the result table. Such

a query mixes two concerns: how a table is

populated and how its columns are computed. One

of the goals of DataCommandr is to separate these

two concerns: tables and columns have to be defined

by independent constructs because table population

and column computations are conceptually different.

For example, in the case of SQL, we could imagine

that one statement defines a new table and other

statements define new columns:

CREATECOLUMNIN

MyTabletotalAmount=price*quantity

. One

of the distinguishing features of DataCommandr is

that we managed to reduce all table operations to

column expressions.

3 DERIVED COLUMNS

Tables in DataCommandr are created as empty

schema elements without columns and without data:

DcTableLineItems=

createTable("LineItems");

How tables are populated is described in Section 5.

Columns are added to (or deleted from) an

existing table using separate statements. For

example, we could add a new column

amount:

DcColumnamount=

createColumn("amount",LineItems,Double);

Here we specify column name (amount), input table

where this column exists (

LineItems) and output

table (data type). The column is of primitive type

Double but it could be any other existing table

(Section 4).

If we want to derive data in this column from

values in other columns then it is necessary to

provide its definition. If the

LineItems table has two

columns

price and quantity then the new column

can be defined by the following COEL formula:

amount.setFormula(

"this.[price]*this.[quantity]"

);

This formula means that the output value is

computed as the product of the values in the

columns

price and quantity. Note that these

values will be computed for the same row of the

LineItems table which is indicated by the (optional)

keyword

this. In the general case, formulas can

contain external procedures which are needed for

complex computations including system or user-

defined Java code.

The system knows that this column depends on

the two input columns used in its definition. In the

case some column changes, all dependent columns

can be updated automatically, that is, changes in the

data are propagated through the model without the

necessity to evaluate the whole model. A column in

this model collects data from other parts of the

database by processing it and storing the result as its

outputs. Cyclic dependencies are not allowed and

hence the model is a directed acyclic graph of

column definitions.

The main limitation of this type of row-based

formulas is that they are able to access and process

T2



operation

onrelations

C1



C2



C3



operationon

functions

C3=OP(C1,C2)

T1



T3



OP

Column‐oriented

Table‐oriented

values

tuples

T1=OP(T1,T2)

IoTBD 2016 - International Conference on Internet of Things and Big Data

342

only values within one current row of the table.

Even if a column contains a value identifying some

other row in another table, it is not possible to make

use of it. For example, if the table

LineItems has a

column

orderNo with the order this item belongs to

then we cannot use it in the formula for accessing

the corresponding record from the table

Orders

because it is simply a value and not a reference.

How this limitation can be overcome is described in

the next section.

4 LINK COLUMNS

Effective data analysis can be performed only if

arbitrary data in the current state can be accessed

and used for computing new data. Let us assume that

the price is specified in a table

Products rather than

LineItems but each line item stores a product

identifier. Conceptually, the task is very simple: we

need to find the corresponding product record and

then retrieve its price using dot notation:

amount.setFormula(

"this.[productId].[price]*this.[quantity]"

);

Yet, technologically it is not a trivial task because

the

productId column stores string values and the

system does not know that these values represent

records from another table. Therefore the above

formula will not work.

The classical approach to this problem consists

in providing a join condition. It is a predicate which

is true if two records are related. This join condition

is then used to produce a new table with related

records.

DataCommandr follows a different approach.

The idea is to define a new column which directly

references records from another table. In other

words, instead of specifying a join condition at the

query level, we define a new column in the schema

and then use it in other expressions precisely as all

other columns. In our example, the goal is to define

a column returning records from the

Products table

and hence

Products will be its type:

DcColumnproduct=createColumn(

"product",LineItems,Products

);

For each record of the LineItems table, this column

will return a record from the

Products table.

The main difference of this column is that it

returns tuples rather than primitive values returned

by numeric columns. Tuple is a syntactic construct

of COEL which encloses several members and is

written in double parentheses. Each member has a

type, column name and value as a COEL expression.

A link column in our example could be defined as

follows:

product.setFormula(

"((Stringid=this.[productId]))"

);

This tuple has one member of the String type,

named

id and its value is equal to the productId

column of the current record. For each

productId

from the

LineItems table, this expression will return

a record with the same

id from the Products table.

Now the

product column can be used in expressions

to directly access records from the

Products table.

In particular, the

amount column of the LineItems

table can be defined using the new

product column:

amount.setFormula(

"this.[product].[price]*this.[quantity]"

);

Tuple definitions are similar to join conditions and

can be easily translated to join conditions, for

instance, if it has to be executed in a relational

DBMS. Yet, there are fundamental differences

between joins and links. In link columns, we define

a mathematical function by specifying how its

outputs are built from inputs and this function is a

formal representation of a new column. Joins on the

other hand are predicates which determine if a

proposition is true or false. Note also that our

approach allows for specifying more complex tuples

including nested tuples with their own expressions.

5 TABLE POPULATION

Column is a mathematical function, that is, a

mapping from one input set to one output set. One

problem here is that these two sets have to exist

before a column can be defined. Therefore, table

(set) is a primary notion while column is a secondary

(dependent) notion. If we want to develop a purely

column-oriented approach then it is necessary to

resolve this controversy. In this section, we describe

how tables are populated by using only column

definitions without the need in separate table

definitions. There are three mechanisms for table

population: filter, product and projection.

Filter. The first approach consists in applying a

filter to an existing table by selecting a subset of its

records. DataCommandr uses a classical solution

where it is necessary to provide a predicate and the

DataCommandr: Column-oriented Data Integration, Transformation and Analysis

343

output table will contain only records for which it is

true. For example, if we want to find line items with

the amount less than 100.0 then first we create a new

table for the selected records:

DcTableCheapLI=

createTable("CheapLI",LineItems);

Here the second parameter is a super-table. The use

of super-tables is optional but it is rather convenient

because the new (child) table will automatically

“see” all the parent columns. In fact, any table in

DataCommandr has one super-column (Savinov,

2012b) which in this case points to the

LineItems

table. Now we simply provide a filter predicate as a

COEL expression:

CheapLI.setWhere("[amount]<100.0");

There are two features that differ this mechanism

from the conventional filtering:

 The new table will contain only references to the

records selected from the parent table (in its

super-column) and no other parent columns will

be copied. In contrast, the conventional way of

filtering consists in copying the original data to

the new output table.

 Although the predicate is part of the table

definition, it is treated as a special (boolean)

column which returns true or false. Formally, a

filter predicate is treated as a function from this

set to the boolean domain and hence it still

conforms to the principles of column-orientation

(no table operations).

Filtering can be done without the use of the super-

table but then it is necessary to explicitly add a

column which will point to the original table:

DcTableCheapLI=createTable("CheapLI");

DcColumnlineItem=createColumn(

"lineItem",CheapLI,LineItems

);

Now the predicate has to explicitly use this column

pointing to the original table for selecting records:

CheapLI.setWhere(

"lineItem.[amount]<100.0"

);

Product. This operation has the classical definition

and is intended to produce all combinations of

records from the input tables. However,

DataCommandr does not provide a dedicated

product operation (because it is a column-oriented

approach). Rather, any table will be automatically

populated with all combinations of input records

referenced by key columns. In other words, if a table

has several key columns then it will be automatically

populated with all combinations of their output

values. This mechanism will exclude records which

do not satisfy the filter as well as ingnore primitive

(infinite) key columns. Also, it will not be used in

the case this table is populated via projection (see

below).

For example, if we want to build a 2-dimensional

cube of all product categories and departments then

it is done by creating a new table and adding two

columns:

DcTableCube=createTable("Cube");

DcColumncategory=createColumn(

"category",Cube,Categories

);

DcColumndepartment=createColumn(

"department",Cube,Departments

);

The system will automatically populate this table

with all combinations of product categories and

departments. We can always add a filter to this table

and/or add measure columns with aggregations for

OLAP analysis (see next section).

Product operation in DataCommandr has the

following distinguishing features:

 Product table does not copy data from the input

tables but rather stores references to their

records. For comparison, the relational model

defines product differently by flattening the

result and copying the data.

 Product with a filter can be formally used for

joining tables but in DataCommandr it is

considered an anti-pattern or bad design. Product

is supposed to be used only for building a multi-

dimensional space in OLAP, and not for linking

and connectivity. For comparison, the relational

model uses product as a basis for the join

operation which is then used as a formal basis for

connectivity.

Project. One very important pattern used in

querying and data processing consists in finding all

unique records. For example, given a table with

transactions, we might want to find all unique

product categories or all unique departments, and

store them in another table. The output table is then

populated with new records which are obtained from

the original table. In the relational model, this

pattern is implemented using projection which is a

set operation. It takes several columns as parameters

and results in a new relation with only unique tuples

in these columns.

DataCommandr uses a novel approach where one

IoTBD 2016 - International Conference on Internet of Things and Big Data

344

column can be used to populate a new table by using

its output values. If a column is a function from table

A to table B then the outputs produced by this

function can be used to populate the target table B.

This column has to return tuples compatible with the

structure of table B precisely as it is done when

defining link columns (Section 4). If an output tuple

has been found in the target table then the column

simply references this existing record. If the output

tuple has not been found then a new record is added.

Note that only unique records are added and this is

why this mechanism works as the relational

projection. For example, all product categories in the

LineItems table can be found as follows:

DcTableCategories=

createTable("Categories");

DcColumncategory=createColumn(

"category",LineItems,Categories

);

categories.setFormula(

"((id=this.[categoryId]))"

);

After evaluating this formula, the output table

Categories will be populated with tuples consisting

of one

id field and it will contain only unique

category ids. Note also that the category column of

the

LineItems table will contain direct references to

the records from the new

Categories table.

6 ACCUMULATION

In this section, we describe how data can be

processed by selecting subsets of values from one

column as opposed to processing values from the

fields of one row. This generic analysis pattern is

called grouping and aggregation because it consists

of two steps. First (grouping), it is necessary to

break all records into subsets, called groups. Second

(aggregation), all individual groups have to be

processed by returning one data value for a group.

DataCommandr implements this analysis pattern

by means of the

ACCUMULATION operator. Grouping

of records is performed similar to other approaches

where each fact is assigned a group. In

DataCommandr, it is done by specifying a COEL

expression which returns a primitive value or an

element of another table interpreted as a group. For

example, if we want to group line items then a group

could be assigned by the expression

[product].[category] which returns an element

of the

Categories table. Note that the group here is

not a primitive value but rather an element from

another table.

Another parameter of the

ACCUMULATION

operator, called measure, is a property that has to be

aggregated. It is also provided as a COEL expression

which normally returns a numeric value. For

example, if we want to find total amount for each

category then the measure is specified as one

column

[amount]. We could also specify measure as

an in-line formula

[price]*[quantity].

The main distinguishing feature of this approach

is how data is being aggregated. A typical approach

is to specify an aggregation function which

processes a subset of values of the measure.

DataCommandr introduces the notion of an

accumulation function which updates the current

value of the column for each new value of the

measure (rather than overwrites it). For example,

such an accumulation function for summing up

numbers could be implemented as follows:

DoubleSUM(Doublevalue){

returnthis+value;

}

A column defined in this way will be able to

accumulate multiple values rather than to simply set

one single value computed by the formula. To

compute the final value of such a column it is

necessary to evaluate it for each element of the

group. The main benefit is that it is possible to

provide arbitrary user defined aggregation functions

without writing an explicit loop for processing

elements of the group.

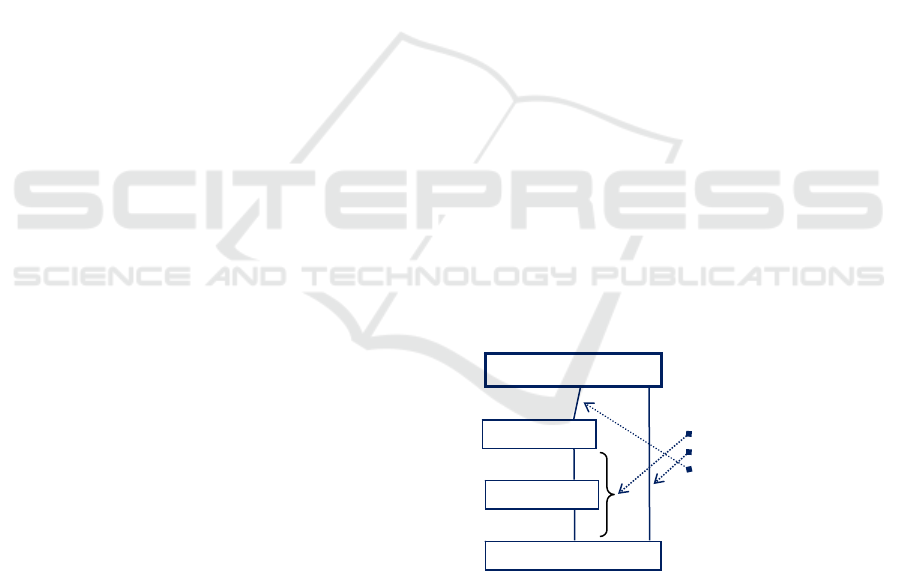

Figure 3: Data accumulation in DataCommandr.

For example, let us assume that we want to find

total amount paid for each product category by

aggregating data in the

LineItems table. According

to the DataCommandr conception, the goal is to

define a new (Double) column of the

Category table

which will store the sums computed for all line items

belonging to this category. This task is performed by

defining a new column using

ACCUMULATE operator

Double

Products

LineItems

category

Accumulatedcolumn:

total=ACCUMULATE(

facts=[LineItems],

groups=[product].[category],

measure=[amount],

accumulator=SUM)
