Feature Driven Survey of Big Data Systems

Cigdem Avci Salma

1,2

, Bedir Tekinerdogan

and Ioannis N. Athanasiadis

Information Technology, Wageningen University, Wageningen, The Netherlands

ESTEC, European Space Agency, Noordwijk, The Netherlands

Keywords: Feature Driven Design, Feature Modeling, Big Data.

Abstract: Big Data has become a very important driver for innovation and growth for various industries such as

health, administration, agriculture, defence, and education. Storing and analysing large amounts of data are

becoming increasingly common in many of these application areas. In general, different application

domains might require different type of big data systems. Although, lot has been written on big data it is not

easy to identify the required features for developing big data systems that meets the application

requirements and the stakeholder concerns. In this paper we provide a survey of big data systems based on

feature modelling which is a technique that is utilized for defining the common and variable features of a

domain. The feature model has been derived following an extensive literature study on big data systems. We

present the feature model and discuss the features to support the understanding of big data systems.

1 INTRODUCTION

The term Big Data usually refers to data sets with

sizes beyond the ability of commonly used software

tools to capture, curate, manage, and process data

within a tolerable elapsed time. In general, Big Data

can be explained according to three V’s: Volume

(amount of data), Velocity (speed of data), and

Variety (range of data types and sources) (Laney,

2001). The realization of Big Data relies on

disruptive technologies such as Cloud Computing,

Internet of Things and Data Analytics. An increasing

number of industries such as health, administration,

agriculture, defence, and education, adopt Big Data

to support innovation and growth. Usually, these

systems represent major, long-term investments

requiring considerable financial commitments and

massive scale software and system deployments.

Hence, it is important to identify the required

features for developing the proper big data system.

In fact, the characteristics of big data systems may

vary in terms of the application domain and as such

require different Big Data properties.

In this paper, we provide a survey of big data

systems based on feature modelling (Kang et al.,

1990). A feature model is a model that defines the

common and variant features of a domain. The

proposed feature model has been derived based on

the corresponding literature study of big data

systems. The feature model can be of benefit for

practitioners who aim to develop big data systems.

Researchers on the other hand can use the feature

model to scope the domain of big data systems and

the related research activities.

The remainder of the paper is organized as

follows. In Section 2, we present the background on

feature modelling. Section 3 elaborates the feature

model for big data systems. Section 4 provides the

discussion and finally section 5 concludes the paper.

2 FEATURE MODELING

For understanding the domain of big data systems

we have applied a systematic domain analysis

process. Domain analysis process (Arrango, 1994)

aims to identify, capture and organize the domain

knowledge for a problem domain in order to

facilitate reusability, especially during the

development of a new system. (Tekinerdogan and

Aksit, 2001; Kang et al., 1990). The notion of

domain can be defined differently by different

authors. We adopt the definition of the term

“domain” in the UML glossary which is as follows:

“Domain is an area of knowledge or activity

characterised by a set of concepts and terminology

understood by practitioners in that area.”

Several domain analysis methods have been

348

Salma, C., Tekinerdogan, B. and Athanasiadis, I.

Feature Driven Survey of Big Data Systems.

DOI: 10.5220/0005877503480355

In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 348-355

ISBN: 978-989-758-183-0

identified in the literature. Although these differ in

detail they also contain identical activities

(Tekinerdogan and Aksit, 2001; Czarnecki et al.,

2006; Kang et al., 1990). In general we can

distinguish between domain scoping (Harsu, 2002)

and domain modelling (Lee et al., 2002).

Domain scoping aims to determine the domains

of interest, the stakeholders, and their goals

(Tekinerdogan et al., 2005). Domain modelling aims

to provide an explicit representation of the domain.

A domain model is derived using a commonality and

variability analysis approach. Using a commonality

analysis the common concepts of the identified set

of knowledge sources are identified. Variability

analysis focuses on identifying and modelling the

differences. The domain model usually represents

both the commonality and variability and can be in

different forms (object-oriented language, algebraic

specifications, rules, conceptual models)

(Tekinerdogan and Öztürk, 2013).

Among the domain modelling approaches,

feature modelling is extensively used (Araùjo et al.,

2005) which is in particular used for representing

commonality and variability within one diagram. A

feature diagram is constructed as a tree whereby the

root element represents a concept or system and its

descendent nodes define the properties, the features,

of the concept. Features can have sub-features and

can be mandatory, optional, or alternative to each

other. A feature diagram by itself thus represents the

possible configuration space within a given system.

In general not all configurations are possible due to

some selection constraints. Hereby, two basic

constrains can be identified. A mutex constraint

defines the mutual exclusion between two concepts.

That is, if a feature f1 has a mutex relation with

another feature f2 then these two features cannot be

selected together. On the other hand the requires

relation between features defines that the

corresponding features need to be selected together.

FODA (Kang et al., 1990) describes the basic

variability model and different extensions have been

proposed in various studies. The classification of

these approaches can be found in (Sinnema and

Deelstra, 2007). In general, feature modelling has

been broadly applied in software product line

engineering, domain-driven design and software

architecture design. In this paper we will adopt

feature modelling to represent the concepts of Big

Data systems.

3 FEATURE MODELING OF BIG

DATA SYSTEMS

For analysing big data systems we will first consider

the overall reference architecture of big data

systems. A reference architecture based on (Marz

and Warren, 2015) is shown in Figure 1. Similarly,

several different reference architectures can be

derived from the literature. The goal of this study is

to describe the feature model for Big Data systems

that will support the design of the big data

architecture for the particular application domains.

Data Retrieval

Batch Layer

Serving Layer

Speed Layer

Query

Telemetry Data

(Payload+Housekeeping)

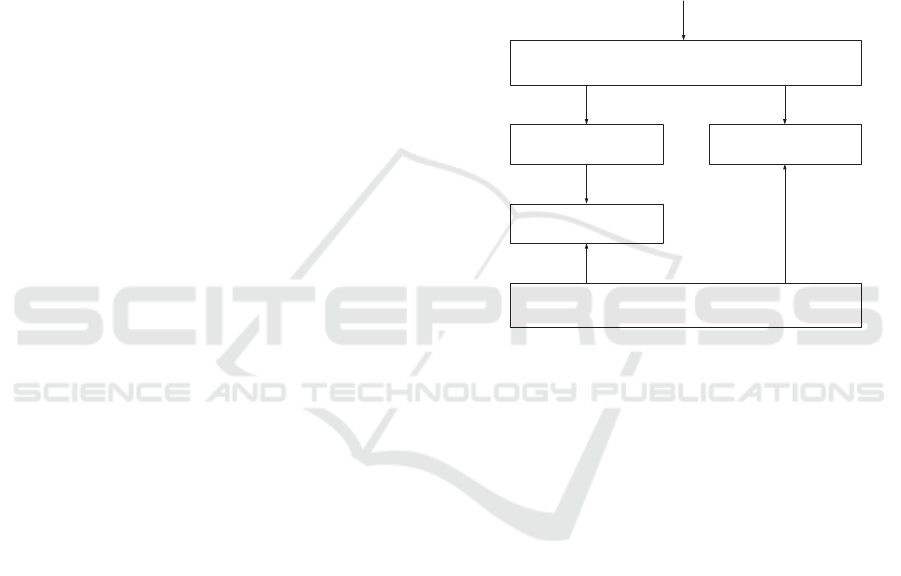

Figure 1: Conceptual Architecture of a Big Data System

by (Marz and Warren, 2015).

Figure 2 shows the approach for defining a feature

model for Big Data systems. The approach consists

of two basic activities of domain scoping and feature

modeling. In the domain scoping part we have

defined the search strategy, collected the papers and

selected the final set of papers that would be used

for feature modelling according to our

inclusion/exclusion criteria. Our search method was

a manual search of specific conference or journal

papers since 2010. In particular we selected papers

that explicitly discussed reference architectures. The

selected papers are shown in Table 1. In order to

assure the sufficient coverage, papers are searched

via and selected from three different electronic

libraries which are IEEE Xplore, Google Scholar

and ScienceDirect. Our inclusion criteria for a paper

is the maximum known feature coverage and the

reference architecture in each paper among the

outcome paper set is analysed in terms of the feature

set that it covers, in order to ensure that the

maximum known feature coverage is reached

without repetition.

For feature modelling we selected each paper of

Feature Driven Survey of Big Data Systems

349

Table 1 and extracted the features from the big data

reference architectures that is presented in the paper.

The features that have a very high frequency among

the reference architectures are selected as the

mandatory features where the others are considered

as optional. Afterwards, the features and their

relations are used to build up the feature model. The

feature model was evaluated against each paper by

the authors.

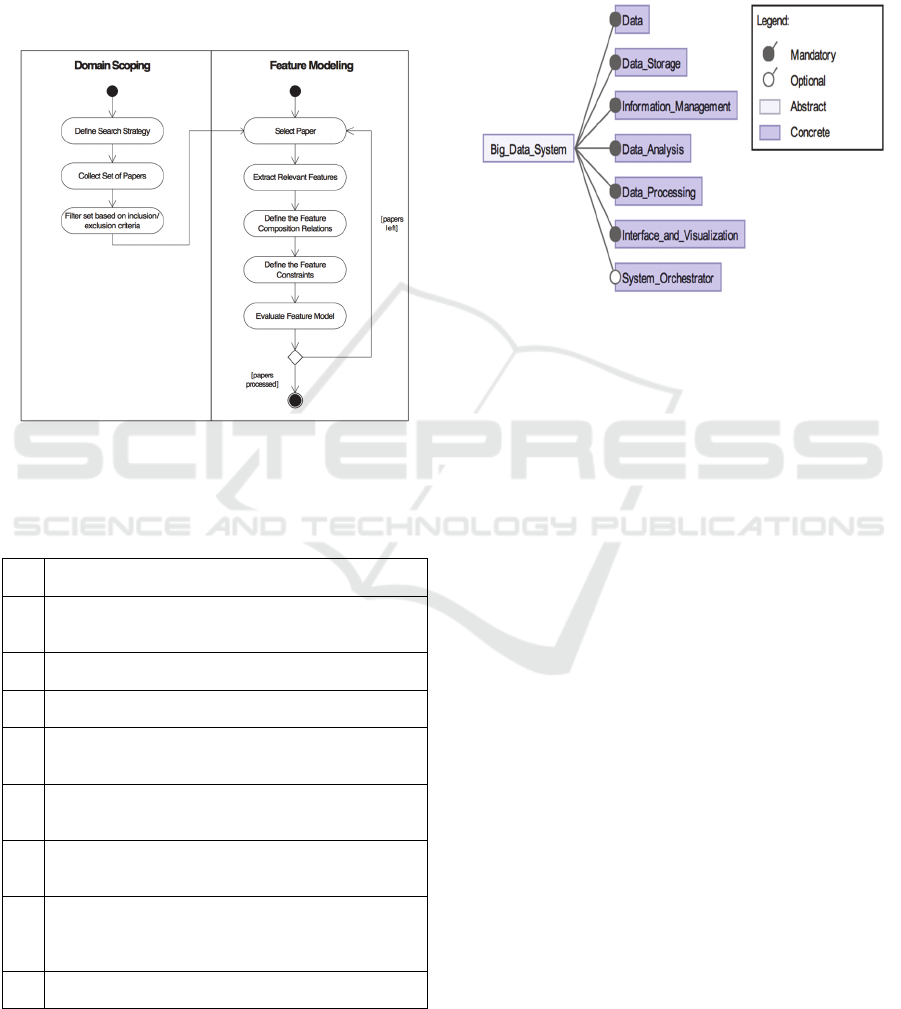

Figure 2: Approach for deriving a feature model of Big

Data systems.

Table 1: List of papers to derive the features of Big Data

systems in alphabetical order.

B. Geerdink. "A Reference Architecture for Big Data

Solutions.”

C. Ballard, et al. Information Governance Principles

and Practices for a Big Data Landscape. IBM

Redbooks, 2014.

D. Chapelle. “Big Data & Analytics Reference

Architecture.” An Oracle White Paper (2013)

M. Maier. A. Serebrenik, and I. T. P. Vanderfeesten.

"Towards a Big Data Reference Architecture." (2013).

NIST Big Data PWG, Draft NIST Big Data

Interoperability Framework: Volume 6, Reference

Architecture (2014).

N. Marz, and J. Warren. “Big Data: Principles and best

practices of scalable realtime data systems. “Manning

Publications Co. (2015).

Oracle, Information Management and Big Data A

Reference Architecture, An Oracle White Paper,

February (2013).

P. Pääkkönen, and D. Pakkala. "Reference Architecture

and Classification of Technologies, Products and

Services for Big Data Systems." Big Data Research

(2015).

S. Soares,. "Big Data Governance." Information Asset,

LLC (2012).

3.1 Top Level Feature Model

The top level feature diagram of Big Data Systems

that we have derived is shown in Figure 3. The

legend part represents the different types of features

including optional and mandatory (Aksit et al.,

1999).

Figure 3: Top Level Feature Model.

A Big Data system consists of the mandatory

features Data, Data Storage, Information

Management, Data Analysis, Data Processing,

Interface and Visualisation and the optional feature

System Orchestrator. Among the mandatory

features, although the necessity of the Information

Management in Big Data Systems is evident, it has a

vague representation in (Pääkkönen and Pakkala,

2015; Geerdink, 2013) only with its sub-features. In

(Geerdink, 2013; Maier et al., 2013) the System

Orchestrator is present with the form of a controller

module in the architecture. The sub-features of the

System Orchestrator are not explained in detail.

3.1.1 Data

Data is the feature that defines the variety of the data

types in terms of their usage, state and

representation. Hence, data in Big Data systems can

be classified in five dimensions: mobility, structure,

processing, security (Ballard et al., 2014) and

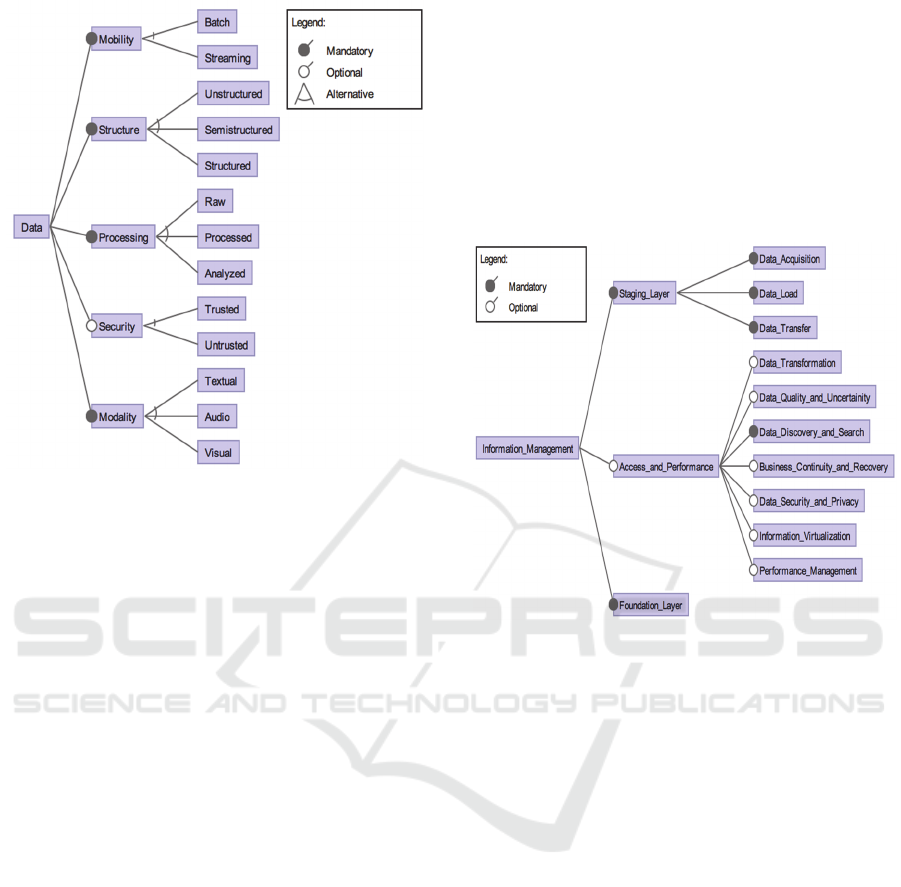

modality. The corresponding feature diagram is

shown in Figure 4. Mobility addresses the status of

the data during processing and analysis activities and

can be either batch or streaming. While the design

of the batch processing modules should be aligned

with the quality goals in terms of scalability, the

design of the stream processing activities are

effecting the performance of the system. In (Marz

and Warren, 2015; Chapelle, 2013) mobility is

referred as a feature of the reference architecture.

IoTBD 2016 - International Conference on Internet of Things and Big Data

350

Figure 4: Feature diagram of the Data feature and its sub-

features.

Another sub-feature of the feature Data in Big

Data systems is the Structure. Depending on the

source of the data, it can be in either of the following

three structural phases: Unstructured, Semi-

structured or Structured. The formation of the data

processing, analysis and storage modules is highly

depended on the structure of the data.

The Processing feature defines the processing

state of the data. Initially, the data in Big Data

systems is raw, and can be processed and analysed.

From the security perspective, the data can be either

trusted or untrusted (Ballard et al., 2014). Some of

the possible modalities of the Big Data are textual,

audio and video.

3.1.2 Information Management

This feature represents the governance of the data in

terms of security, privacy, data integration and data

quality. The feature is composed of three sub-

features, which is typically implemented as layers

which are the staging layer, access and performance

layer and the foundation layer. The staging layer is

an abstraction of the data acquisition process. It

calibrates the data receiving rate and prepares the

data for further processing. The access and

performance layer is utilised for access and

navigation of the data. Finally, the foundation layer

isolates the data in storage from the business

processes so that the data is ensured to be resilient to

changes.

Especially in (Soares, 2012; Ballard et al., 2014;

Chapelle, 2013; May, 2014), information

management has a crucial role in the reference

architecture. The well-structured information

management module architecture in (Ballard et al.,

2014) is used as a basis for the design of this feature.

On the other hand, (Pääkkönen and Pakkala, 2015;

Geerdink, 2013; Maier et al., 2013) distributes the

information management features among the other

high level features.

Figure 5: Feature diagram of Information Management

feature and its sub-features.

3.1.3 Data Processing

Preprocessing steps such as compression aim to

prepare the data so that they facilitate processing

activities. Depending on the state of the data, the

processing can be classified either as stream

processing (f.e. filtering, annotation) or batch

processing (f.e. cleaning, combining and

replication). For further processing purposes,

depending on the requirements of the system,

information extraction, data integration, in memory

processing and data ingestion activities can be

employed.

As shown in Figure 6, classification, entity

recognition, relationship extraction and structure

extraction can be listed among the information

extraction features. Data fusion, entity recognition

and schema integration are the basic data integration

activities. Under the category of in memory data

processing as opposed to processing in the hard

disks, hard speed query processing and results

caching are the possible features to be utilised.

Furthermore, data ingestion which involves data

obtaining and processing activities for later use is

Feature Driven Survey of Big Data Systems

351

another optional data processing feature.

In (Chapelle, 2013), the data processing concept

is discussed considering the query processing

concerns and in memory processing is emphasised.

Apart from (Maier et al., 2013; Chapelle, 2013), data

integration concepts are not addressed.

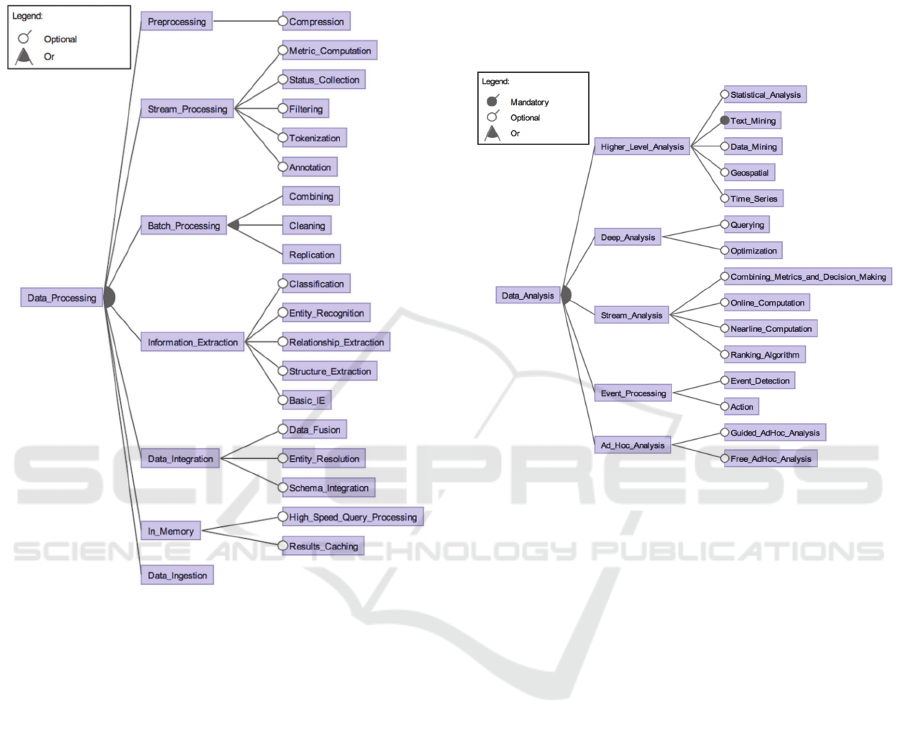

Figure 6: Feature diagram of Data Processing feature and

its sub-features.

3.1.4 Data Analysis

Data analysis is one of the major features of the Big

Data system. Stream analysis, high level analysis, ad

hoc analysis, event processing and deep analysis are

its sub-features that take part in the reference

architectures in the known literature.

Stream analysis makes use of methods such as

online computation, nearline computation and

ranking algorithm to analyse the data streams.

Statistical analysis, text mining, data mining,

geospatial analysis and time series analysis are

considered as high level analysis strategies in

(Ballard et al., 2014). Another sub-feature, which is

ad hoc analysis, is presented in (Maier et al., 2013)

and defined as the module that presents the user the

possible analysis strategies so that s/he can construct

an ad-hoc data analysis process. Event

detection/action (processing) is also listed among the

data analysis modules in (Geerdink, 2013) (Ballard

et al., 2014; Chapelle, 2013). Finally, gathering

information from multi-source datasets with

structured and unstructured data, that is known as

deep analysis, is presented among the data

processing modules with the querying and

optimization methodologies (Pääkkönen and

Pakkala, 2015; Chapelle, 2013). In Figure 7, the data

analysis feature and its sub-features are presented.

Figure 7: Feature diagram of Data Analysis feature and its

sub-features.

3.1.5 Data Storage

Data storage feature consists of query processing,

indexing, distributed file system, data model,

metadata management and database sub-features

which are shown in Figure 8. Besides the traditional

data storage features such as metadata management,

relational model and relational database, a Big Data

system can also employ features for streaming data

(i.e. in-stream query processing) and for storing

various data structures, with non-relational models

(i.e. NoSQL).

Although metadata management is an important

asset for data storage, it appears that except (Marz

and Warren, 2015; Soares, 2012) none of the

reference architectures prescribe a metadata

management module. In (Pääkkönen and Pakkala,

2015), the data storage modules are derived by

means of the applied processing strategy. The

related modules in (Maier et al., 2013) are eligible

for information management feature in our feature

model. Moreover in (Geerdink, 2013), the storage

modules are differentiated according to the data

source, timeliness or the target module that can

IoTBD 2016 - International Conference on Internet of Things and Big Data

352

process the data. The data models and distributed

file systems are addressed in (Marz and Warren,

2015; Ballard et al., 2014).

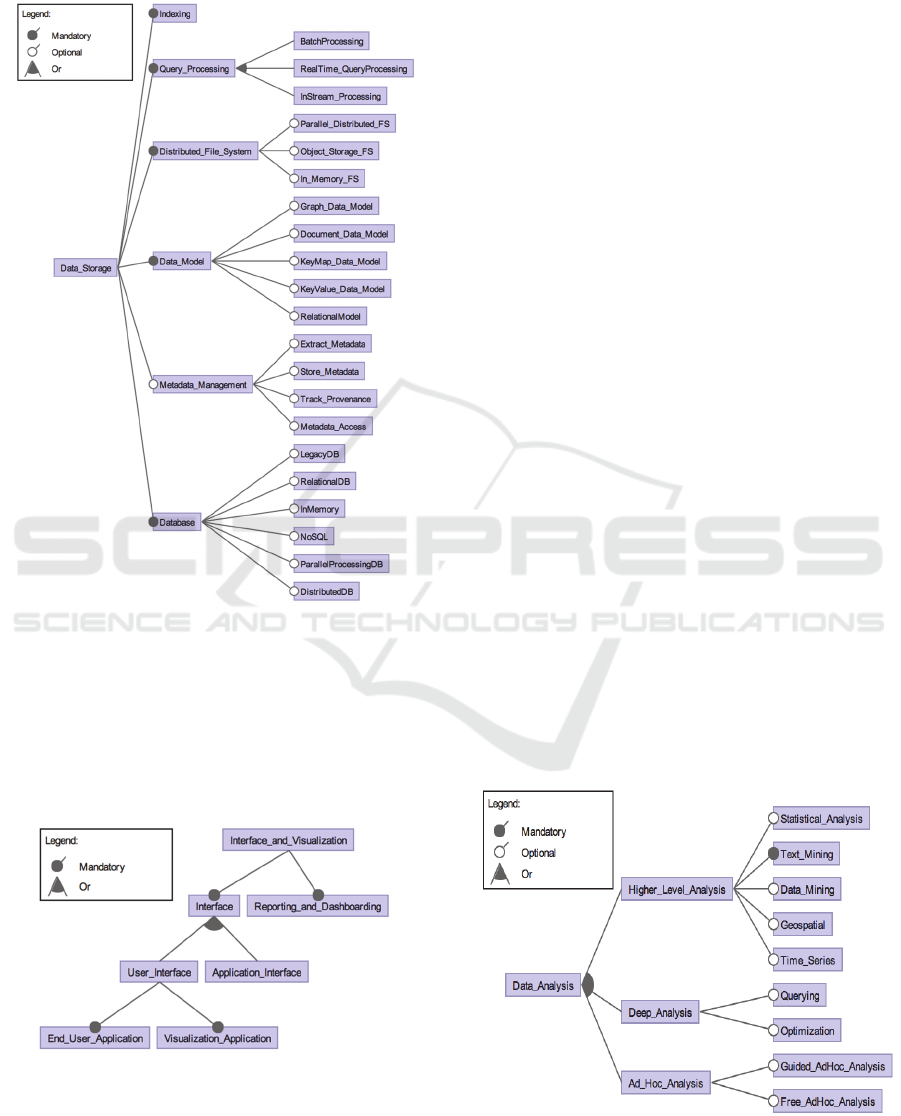

Figure 8: Feature diagram of Data Storage feature and its

sub-features.

3.1.6 Interface and Visualization

This feature provides the interaction of the Big Data

system with the user and other applications. The

sub-features of the Interface and Visualization

feature are expanded in Figure 9.

Figure 9: Feature diagram of Interface and Visualization

feature and its sub-features.

While reporting and dashboarding feature is used

for only information presentation, the user interface

and application interface features can provide

interactive services for the users and applications

storage. The retrieval of the data via the user

interfaces will require interactive response which

needs advanced optimisation techniques (May,

2014).

3.2 Feature Characterization of

Existing Systems

In the previous section we have defined the family

feature model for Big Data systems. The family

feature model defines the different possible Big Data

systems. We can use the family feature model to

characterize a particular Big Data system by

selecting the corresponding features. In this section,

we will illustrate this for two Big Data systems

namely Facebook and Twitter.

3.2.1 Facebook

The software architecture of Facebook is discussed

in (Thusoo et al., 2010). By means of the Big Data

System feature model that we have presented in

Section 3.1, the architecture covers all mandatory

features that are Data, Data Storage, Information

Management, Data Analysis, Data Processing, and

Interface and Visualization, while System

Orchestrator is not a feature of the Facebook

software architecture. Moreover, as shown in Figure

10, Event Processing, which is a sub-feature of Data

Analysis, is not included among the capabilities of

the architecture. Similarly, Data Integration sub-

feature of the Data Processing feature that is

achieved by Data Fusion, Entity Resolution or

Schema Integration is not described as a part of the

architecture. Finally, via the derived feature model

Figure 10: Feature diagram of Data Analysis feature of

Facebook.

Feature Driven Survey of Big Data Systems

353

of Facebook, it is observed that the structure and the

mobility of the data is addressed while the modality

and security perspectives of the data in the

architecture is not clarified.

3.2.2 Twitter

The Twitter data is often streaming and unstructured

(Mishne et al., 2013). Data security does not have an

impact on the architectural design. Similarly, the

modality does not have a significant role and the

architectural components are specialized not for

visual or audio but textual data. Query processing is

one of the main functionalities of the system where

supporting optimization strategies are applied to.

Especially real-time query processing is the main

objective of the system while the architecture also

meets the sufficient batch processing requirements.

Besides, the system employs metadata management.

The data integration capability of Twitter is limited.

The first implementation of the Twitter system was

Hadoop-based, which did not meet latency

requirements. Therefore in the second

implementation, a custom in-memory processing

engine is employed. Ingestion is not mentioned in

the architectural descriptions. The Data Processing

feature of Twitter is presented in Figure 11.

In terms of data analysis, besides the querying

functionalities, optimization is also emphasized in

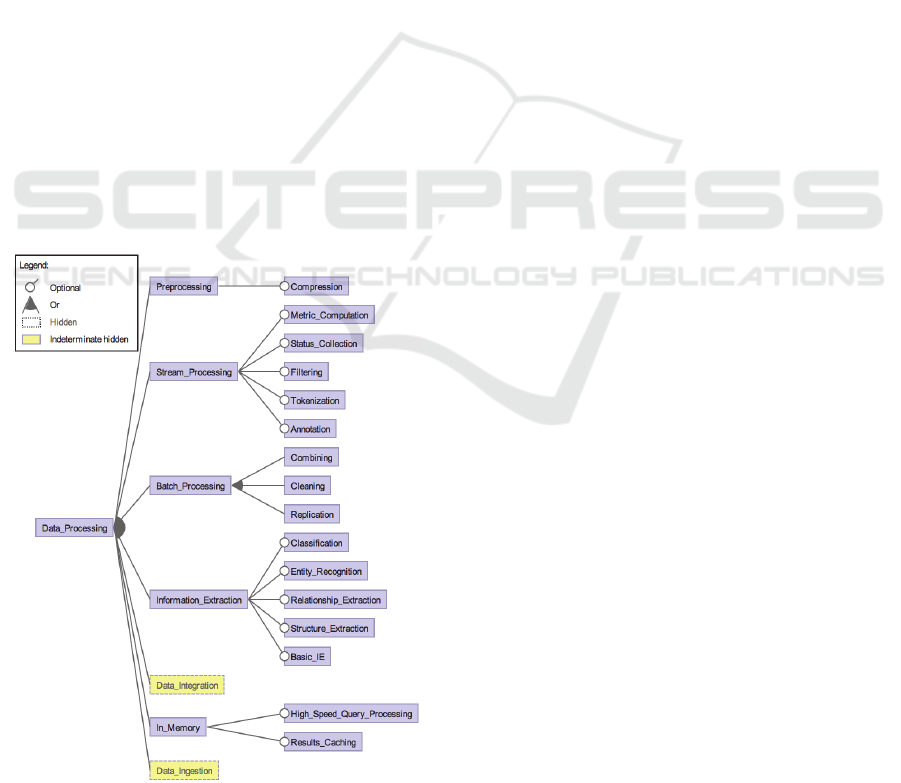

Figure 11: Feature diagram of Data Processing feature of

Twitter.

the Twitter’s software architecture. Moreover, this

architecture is also capable of doing sophisticated ad

hoc analyses that are designed to answer some

specific questions.

As a result, we observed that while all the top

level features are covered by the two systems’

(Facebook & Twitter) archicecture, the big data

security related features could not be derived from

the architectural descriptions of the system.

4 CONCLUSIONS

In this study we have derive a feature model for Big

Data systems using a systematic domain analysis

process. Based on selected relevant papers we have

been able to derive both the common and variant

features of Big Data systems and represent this as a

feature diagram. We have discussed the features

separately and illustrated the adoption of the feature

model for characterizing parts of two different

systems including Facebook and Twitter. The

feature diagram provides a first initial insight in the

overall configuration space of Big Data systems. As

a future work, we plan to illustrate our approach for

deriving the Big Data architectures.

REFERENCES

Araùjo, J., Baniassad, E., Clements, P., Moreira, A.,

Rashid, A., & Tekinerdogan, B., 2005. Early aspects:

The current landscape. Technical Notes, CMU/SEI

and Lancaster University.

Arrango, G., 1994. Domain Analysis Methods in Software

Reusability. Schäfer, R. Prieto-Díaz, and M.

Matsumoto (Eds.), Ellis Horwood, New York, New

York, pp. 17-49.

Ballard, C., Compert, C., Jesionowski, T., Milman, I.,

Plants, B., Rosen, B., & Smith, H., 2014. Information

Governance Principles and Practices for a Big Data

Landscape, IBM Redbooks.

Chapelle, D., 2013. Big Data & Analytics Reference

Architecture, An Oracle White Paper.

Czarnecki, K., Hwan, C., Kim, P., & Kalleberg, K. T.,

2006. Feature models are views on ontologies. In

Software Product Line Conference, 2006 10th

International (pp. 41-51). IEEE.

Geerdink, B., 2013. A reference architecture for big data

solutions introducing a model to perform predictive

analytics using big data technology. In Internet

Technology and Secured Transactions (ICITST), 2013

8th International Conference for (pp. 71-76). IEEE.

Harsu, M., 2002. A survey on domain engineering.

Tampere University of Technology.

Kang, K. C., Cohen, S. G., Hess, J. A., Novak, W. E., &

IoTBD 2016 - International Conference on Internet of Things and Big Data

354

Peterson, A. S., 1990. Feature-oriented domain

analysis (FODA) feasibility study (No. CMU/SEI-90-

TR-21). Carnegie-Mellon Univ. Pittsburgh Pa.

Software Engineering Inst.

Laney, D., 2001. 3D Data Management: Controlling Data

Volume, Velocity and Variety. Meta-Group Report

#949.

Lee, K., Kang, K. C., & Lee, J. (2002). Concepts and

guidelines of feature modeling for product line

software engineering. In Software Reuse: Methods,

Techniques, and Tools (pp. 62-77). Springer Berlin

Heidelberg.

Maier, M., Serebrenik, A., & Vanderfeesten, I. T. P.,

2013. Towards a Big Data Reference Architecture.

Marz, N., & Warren, J., 2015. Big Data: Principles and

Best Practices of Scalable Realtime Data Systems,

Manning Publications Co..

May, W., 2014. Draft NIST Big Data Interoperability

Framework: Volume 6 Reference Architecture.

Mishne, G., Dalton, J., Li, Z., Sharma, A., & Lin, J. 2013.

Fast data in the era of big data: Twitter's real-time

related query suggestion architecture. In Proceedings

of the 2013 ACM SIGMOD International Conference

on Management of Data (pp. 1147-1158). ACM.

Oracle, 2013. Information Management and Big Data A

Reference Architecture, An Oracle White Paper.

Pääkkönen, P., & Pakkala, D., 2015. Reference

Architecture and Classification of Technologies,

Products and Services for Big Data Systems. Big Data

Research.

Sinnema, M., & Deelstra, S., 2007. Classifying variability

modeling techniques. Information and Software

Technology, 49(7), 717-739.

Soares, S., 2012. Big Data Governance. Information

Asset, LLC.

Tekinerdogan, B., & Akşit, M., 2001. Classifying and

Evaluating Architecture Design Methods, in Software

Architectures and Component Technology: The State

of the Art in Research and Practice. M. Aksit (Ed.),

Boston:Kluwer Academic Publishers, pp. 3 - 27.

Tekinerdogan, B., Bilir, S., & Abatlevi, C. (2005).

Integrating platform selection rules in the model

driven architecture approach. In Model Driven

Architecture(pp. 159-173). Springer Berlin

Heidelberg.

Tekinerdogan, B., & Öztürk, K. (2013). Feature-Driven

Design of SaaS Architectures. In Software

Engineering Frameworks for the Cloud Computing

Paradigm (pp. 189-212). Springer London.

Thusoo, A., Shao, Z., Anthony, S., Borthakur, D., Jain, N.,

Sen Sarma, J., Murthy, R. and Liu, H., 2010, June.

Data warehousing and analytics infrastructure at

facebook. In Proceedings of the 2010 ACM SIGMOD

International Conference on Management of data (pp.

1013-1020). ACM.

Feature Driven Survey of Big Data Systems

355
