The Internet of Speaking Things and Its Applications to Cultural

Heritage

Fiammetta Marulli

, Remo Pareschi

and Daniele Baldacci

DIETI, University of Naples Federico II, Via Claudio 21, Naples, Italy

Department of BioScience and Territory, University of Molise, Pesche (IS), Italy

Olosproject Ltd, 7 St. John’s Road, Harrows, Middlesex, U.K.

Keywords: Internet of Things, Cultural Heritage, Multimedia Content Processing, Advanced Human Computer

Interaction, Smart Environments, Holographic Simulations, Speech Recognition, Natural Language

Processing.

Abstract: The initial driver for the development of an Internet of Things (IoT) was to provide an infrastructure capable

of turning anything into a sensor that acquires and pours data into the cloud, where they can be aggregated

with other data and analysed to extract decision-supportive information. The validity of this initial motivation

still stands. However, going in the opposite direction is at least as useful and exciting, by exploiting Internet

to make things communicate and speak, thus complementing their capability to sense and listen. In this work

we present applications of IoT aimed to support the Cultural Heritage environments, but also suitable for

Tourism and Smart Urban environments, that advance the available user-experience based on smart devices

via the interaction with speaking things. In the first place we describe a system architecture for speaking

things, comprehensive of the basic communication protocols for carrying information to the user as well as

of higher-level functionalities for content generation and dialogue management. We then show how this

architecture is applied to make artworks speak to people. Finally, we introduce speaking holograms as a yet

more advanced and interactive application.

1 INTRODUCTION

Internet of Things (IoT) has to date been viewed as an

infrastructure and a project essentially aimed to

massively strengthen the already impressive

capabilities of information acquisition of the Internet.

Let everything, in the broadest sense of the term -

from the household refrigerator to the probe roaming

the immensity of space, from the car that juggles its

way in the metropolitan traffic to the hare that races

carefree through woods and fields - turn into a sensor

capable of acquiring data and of pouring them into the

cloud, where they can be aggregated with other data

and analysed in order to extract decision-supportive

information: such has been so far the mainstream of

IoT evolution.

This approach to IoT fits neatly with the trend of

Big Data, of which it multiplies the capabilities and

potential. Its validity stands on very solid grounds, yet

there is just as much validity in traveling the road

carved by IoT in reverse: namely, given that data and

information are now generated, acquired and made

available in ever larger amounts, can we use IoT as a

way to serve them to users according to modalities

radically more innovative and more accessible with

respect to those in place?

The benefit of doing so is clear and evident, in that

it maximizes the usefulness of the available

information. Equally clear is that there are powerful

and mature technologies that can make the IoT data

outflow fully user accessible, just as proven methods

and algorithms of big data analytics can make

manageable and exploitable the IoT data inflow.

Indeed, stepping beyond dedicated interfaces like

desktops, laptops, tablets, and smartphones, which

are rooted in information technology and

telecommunications, IoT, coupled with existing

capabilities of speech processing and of management

of dialogues in natural language, can create the basic

prerequisites for an ecosystem of speaking things.

This will enable a direct and natural connection

between human users and the information cloud,

thereby making effectively "smart" not only terminals

like computers and mobile phones but also physical

Marulli, F., Pareschi, R. and Baldacci, D.

The Internet of Speaking Things and Its Applications to Cultural Heritage.

DOI: 10.5220/0005877701070117

In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 107-117

ISBN: 978-989-758-183-0

107

environments such as cities, homes, offices, shops

and museums.

We illustrate this possibility by showing how the

Internet of Speaking Things can be applied to the

domain of Cultural Heritage, which fits perfectly well

with our vision: we often say metaphorically that the

past speaks to us, and we translate metaphor into

reality by making it literally speak!

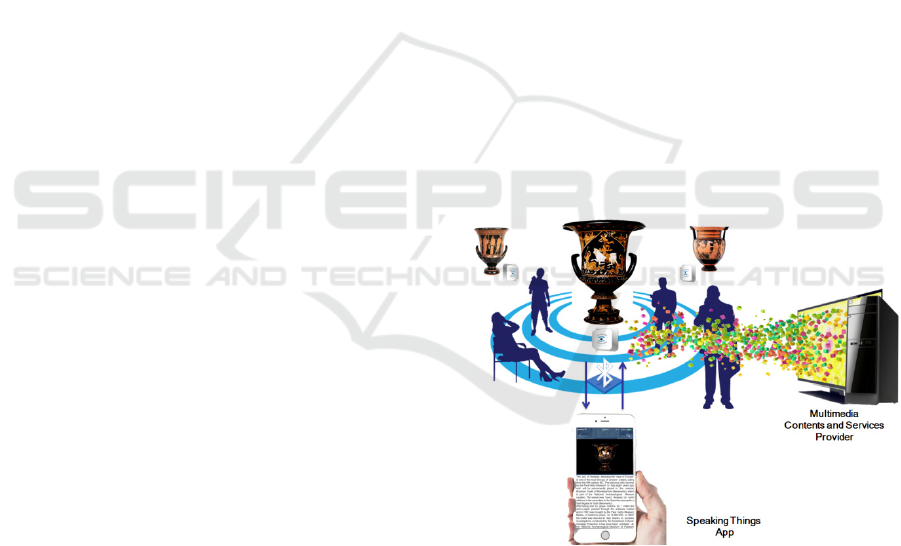

We thus describe an architecture for the Internet

of Speaking Things in this domain and provide a

specific instance of its application through a case

study of “speaking vessels”. We also show how to go

beyond cultural heritage by applying the same

techniques to a fully animated “thing”: the

holographic human being, which originates from the

coupling of the ancient tradition of performing arts

with the most recent advances of 3D cinematic

photography.

2 BACKGROUND AND RELATED

WORKS

Internet of Things (IoT) and Internet of Services (IoS)

are currently paving the way towards unified ICT

solutions that support variety of applications

composing smart environments.

The feasibility of IoT derives from the level of

maturity reached by several enabling technologies

such as wireless sensor networks (WSN), Bluetooth

Low Energy (BLE) and Near Field Communication

(NFC).

A parallel trend to IoT is Big Data, where data

coming at high velocity in high volumes and variety

are increasingly collected, stored and analyzed by

modern organizations. A large bulk of such data

typically describe different dimensions of the daily

social life and are the heart of a knowledge society,

where the understanding of complex social

phenomena is sustained by the knowledge extracted

from the miners of big data across the various social

dimensions by using mining technologies (Zafarani,

2014). Mining Big Data is an emerging and specific

field where there are more problems than ready

solutions, among which the data retrieval.

Remarkable opportunities for acquiring these

data are surely provided by IoT infrastructures,

capable as they are of turning anything into a sensor

that acquires and pours data into the cloud, where

they can be aggregated with other data and analysed

to discover interesting knowledge and to extract

decision-supportive information.

Going in the opposite direction is, however, at

least as useful and exciting, by exploiting IoT to make

things communicate and speak, thus complementing

their capability to sense and listen.

From this perspective, IoT perfectly fits with the

Information-Centric Network (ICN) approach

(Xylomenos, 2014) that has the potential to provide

very natural and efficient solutions for many of

today’s important communication applications

including but not limited to highly scalable and

efficient content distribution (for example, of web

pages, videos, documents, or other pieces of

information), thus motivating the development of

novel Internet architectures based on named data

objects (NDOs). The approach of these architectures,

commonly called ICN, can be contrasted with host-

centric networks where communication is based on

named hosts, for example, web servers, PCs, laptops,

mobile handsets, and other devices (Ahlgren, 2012).

The ICN architectures leverage in-network storage

for caching, multiparty communication through

replication, and interaction models that decouple

senders and receivers. The common goal is to achieve

efficient and reliable distribution of content by

providing a general platform for communication

services.

As discussed at length in (Ahlgren, 2012),

communication is driven by receivers requesting

NDOs. Senders make NDOs available to receivers by

publishing the objects. From a networking

perspective, these objects can be viewed as named

data chunks without semantics, but some ICN designs

have an information abstraction model including

multiple representations, i.e., unique bit patterns, for

the same object.

However, to make the synergy between Big Data

and ICN real, smart systems have to be provided with

information logic and semantics so as to turn a service

infrastructure into an effectively intelligent system.

In (Singh, 2014), authors show how billions of

devices could emerge into a single system and how

raw data can be interpreted through meaningful

inferences. They view IoT as the biggest promise of

technology today, but they evidence that it still lacks

higher-level semantic capabilities.

Cultural Heritage (CH) and Assisted Tourism

(AT) have turned out to be examples of suitable

domains in which such achievements can be

profitably exploited, since they require addressing a

variety of interdependent aspects: sustainability of

interventions, people enjoyment, personalized and

customized interactions, promotion and safeguard of

spaces and cultural objects.

In recent years, several ubiquitous and

multimedia systems for Cultural Heritage that

leverage the IoT paradigm have been proposed and

IoTBD 2016 - International Conference on Internet of Things and Big Data

108

discussed, moving from the premise that IoT (Atzori,

2010) leads to full maturity the concept of intelligent

environment with numerous applicative effects in

everyday life.

Smart cultural sites (Amato, 2012) provide a

relevant application of IoT into CH, aiming to involve

visitors with more amazing and personalized

experiences in living culture. “Talking” museums

(Amato, 2013) exploit a novel approach in the story

telling of an art exhibition. More generally, cultural

objects and sites (sculptures, drawings, buildings, etc..)

can be enabled to support the visitors in the

contextualizing of their exploration and interactions

with cultural objects; if supported by intelligent

infrastructures, objects like statues, paintings, jewels or

bowls, can tell about themselves, their stories, why and

for whom they are born, how they stand in relation with

the other surrounding objects, the “geographical” place

and the historical epoch of origin.

Nowadays, a very common and widespread

example of smart environment implementation,

basing on IoT infrastructures and services, is

represented by the smart guides and the multimedia

content delivery services.

In (Chianese, 2013) the authors describe a

Location Based Service System whose main

components are an indoor positioning system, a

multimedia contents repository server and a smart app

to guide users during an art exhibition visit and help

them in the acquisition of contents. In (Marulli, 2013)

a more advanced location based application,

enhanced by advanced data features extraction and

multimedia contents recommendation strategies is

presented to support cultural events and spaces.

In (Bordoni, 2013), a perspective on the support

of Artificial Intelligence to CH is given, introducing

an ontology based approach to improve the

effectiveness of recommendation systems. In

(Semeraro, 2012), folksonomies are introduced as the

base of a strategy to enhance content based filtering

techniques of multimedia objects, by the exploitation

of semantic annotation (tags) released by users on

cultural digital objects during their web navigation.

In (Valente, 2013), a workflow based approach,

exploiting a semantic enrichment of the cultural

contents system via the integration of Social

Networks pulses as a further knowledge source, is

proposed.

The authors of (Kang, 2012) proposed a network

based ticket reservation system which is a

localization-based smartphone application with

augmented reality. In (Husain, 2012), a Personalized

Location-based Recommender System provides

personalized tourism information to its users.

Most of the constraints to be taken into account,

when designing a system providing pervasive

information, are given by the actual domain where

they are deployed. In this scenario, a not trivial issue

concerns the selection and organization of knowledge

which has to be delivered to users.

Users, coming from diverse cultural and social

background, and of diverse age and sensitivity, have

to be approached in different ways, in order to reach

an effective engagement with the context they are

experimenting.

In (Marulli, 2015), the author proposes an

authoring platform for automatic generation of

tailored and personalized types of profiled textual

artworks biographies (fables for schoolchildren).

Users profiled textual artworks descriptions are

employed to feed a mobile app, as part of an IoT smart

infrastructure, supporting users during a real-life

“talking” sculpture exhibition.

As a matter of fact, IoT enables things to

communicate with each other, but what they should

be able to tell and how they could communicate with

their human interlocutors cannot be taken for granted.

Nowadays, the most recent progresses in IoT

technologies, as evidenced by the newest integrated

solutions like the Smart Beacon (Smart Beacon,

2015) platforms, further simplify and reduce the

effort in the design and implementation of smart

environments. Therefore, effective bottlenecks of IoT

based solutions are no longer located in the

communication infrastructure and its deployment, but

in the quality and the type of provided services, and

in the interaction paradigm.

To better understand the motivations behind our

work, it is important to analyze the relationship that

exists between cultural exhibitions and their visitors:

the purpose of the visitor remains, as it has always

been, to see and learn more, hence the deployed

technology should stay a means rather than become

an end. For these reasons and to better promote an

exhibition or a museum heritage, it appears preferable

to provide exhibition objects with the capability of

telling their story, rather than let users require in first

person (through multimedia guides) more

information about an object as has happened so far in

the majority of smart museum scenarios.

As a matter of fact, visitors are not infrequently

bored by spending their time to look at their devices

to know more about what they are admiring. Studies

performed by logs computation from a multimedia-

enhanced sculpture exhibition (Chianese, 2015)

evidenced that users do not linger to dismiss their

smart devices, and proceed in their visit just as in the

old days by admiring statues or, at most, by reading

The Internet of Speaking Things and Its Applications to Cultural Heritage

109

flyers and paper catalogues. In (Benedusi, 2015), a

further evidence of the still insufficient involvement

of people in cultural topics and events is assessed by

mining Twitter messages produced by users’ during

their participation to cultural events.

These phenomena evidenced that interaction must

be made more interesting and engaging to win users’

appreciation. It’s a pity, as Michelangelo would say,

that such statues or artworks can’t really say a word!

In such a perspective, a more direct and natural

interaction between humans and things could reverse

the situation, by providing a sort of natural human

dialogue between the parts.

Nowadays, an evolution towards more proactive

scenarios is evidenced by the availability of many

applicative and infrastructural solutions, so as to

support more engaging interactions, mainly when the

amount of exhibited objects is very large. A current

limitation of existing smart cultural sites service

infrastructures lies, on the other hand, in the partial or

total lack of support for natural language interactions,

and for the effective dynamic composition of

personalized services.

Indeed, the easiest way for a user to acquire

information and to express needs and preferences

regarding a desired service or condition, is to adopt

natural language. In what is called a “smart

environment” users expect to use natural speaking

processes to drive their interactions with the

surrounding environment and its elements.

Service customization and composition (contents

tailoring and delivery, visit paths recommendations,

etc..) mean to create new services by composing

existent ones. In traditional approaches, this

composition is done by a human expert because the

composition task requires an understanding about the

service semantics.

The main challenge lies in the fact that natural

languages incomplete and ambiguous, while the

service composition process should lead to valid

services. In (Cremene, 2009) authors propose a

natural language service assemblage method based on

composition templates (patterns).

The criteria which has driven the design and

development of the proposed service architecture

derives from the basic concept of trying to shorten the

distance between users and cultural objects, going a

step further than simple smart device support. A

process driven by natural language, so as to make

objects and holograms interact naturally, is needed to

let visitors engage, in front of an artwork, into new

exciting experiences of knowledge.

3 THE APPROACH

In order to provide elements for an effective

comprehension of the proposed approach, we can

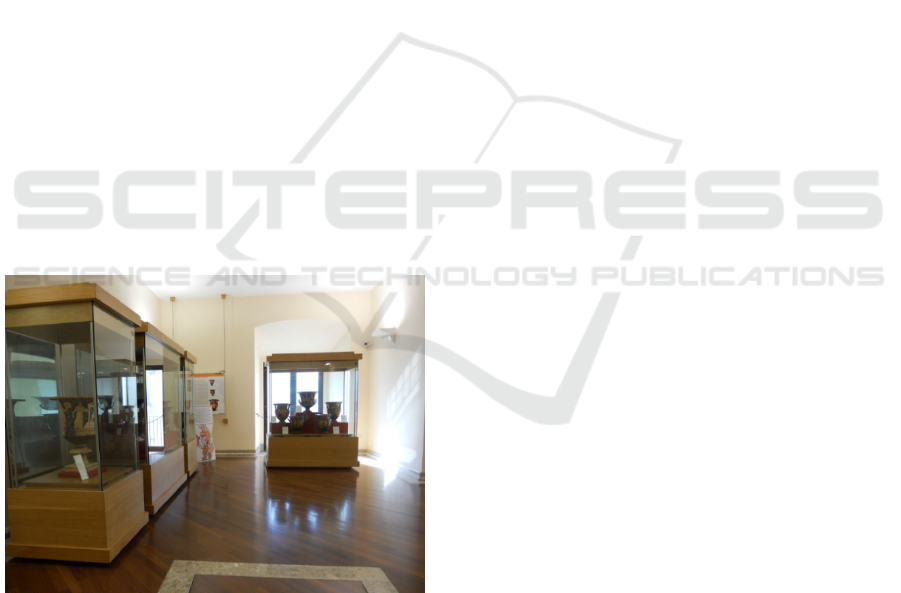

consider the case of a tourist visiting an

Archeological Museum exhibiting ancient Greek

vessels. We assume that this environment offers a

wireless sensors network (Bluetooth technology),

enabling visitors to interact with the cultural things

exposed in the exhibition area, by exploiting their

personal smart device and an appropriate application.

We can image a situation in which the visitor is

walking within a given exhibition room through

several ancient objects (bowls, statues, drawings,

weapons, jewels, utensils, etc.) and when he/she is

particularly close to one of them, its mobile devices

detected by the sensor placed on the basement of such

an object.

Once the user mobile device has been detected

thanks to the WSN technology, the cultural object is

animated and is enabled to talk about itself, its author,

its story and its status. In this way, a “static” art

exhibition is able to transform itself into a “living”

one and the speaking artworks surround the visitor in

a place that is now both “populated” and “animated”.

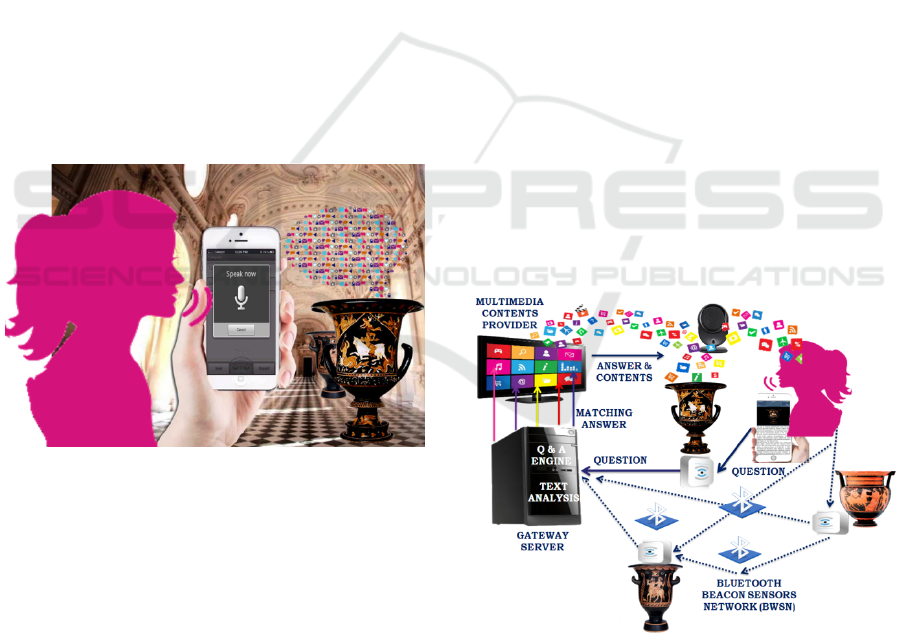

Figure 1 shows, at a glance, the described

environment of speaking things.

Figure 1: The Speaking Things System Environment.

Our approach builds on an existing paradigm of

pro-active interaction but at the same time forces a

significant paradigm shift, where interactions are

effectively driven by natural language.

In fact, in the current, well assessed paradigm,

contents are delivered using multimedia facilities and

taking into account user preferences (e.g., audio, text

and images data). In this case, the object “speaks” by

means of contents delivered via a smart application to

IoTBD 2016 - International Conference on Internet of Things and Big Data

110

the users’ devices; the interaction is mediated by the

massive usage of personal devices. Narrations are

provided as textual documents, audio files and

browsable multimedia contents, hence they have to be

managed and driven by user actions on the smart

device.

In the second and novel approach, when a visitor

is located as close to any art object, a push notification

appears on the screen of the user’s smartphone,

asking to submit a request or a question to the object

in natural language, to meet a possible user’s desire

to know more about the object. Figure 2 depicts, at a

glance, this type of scenario. Users speaking and

submit a question among a set of proposed ones, that

are suggested as tips on the screen of his device.

If the visitor accepts the proposed interaction with

the art object, the latter starts to speak, telling about

its history, suggesting other objects categorized as

similar, according to such criteria as art style,

historical period, shared artist etc. The visitor can thus

interact with the object, interrupting and conversing

with it as in a real human conversation.

Some bookmarks to skip parts of the art object

story telling are suggested to users in a “magic words”

list, provided on the App display.

Figure 2: Speaking Things and Humans Interaction.

Users submits their requests for contents or

explanations, by using the microphone of their

personal device. At the time of the first request, if

correctly delivered to the system (e.g. no noisy

contexts or bad spelling, or unrecognized or

unsupported languages), through the smart

application communicating with sensors equipping

the art objects, the system automatically recognizes

the user’s language request.

In the current implementation of this system,

Italian and English are supported. In the next future,

other three languages as German, French and Spanish

will be integrated in the system. As default choice, the

first interaction is proposed in English, but users can

immediately request to obtain the questions list in

other supported or preferred languages. If a request is

correctly delivered to the backend (Multimedia

Contents and Service Provider Tier) of the Speaking

Things system, it is processed according to Speech to

Text and Text Analysis computation processes, and a

matching answer, if existing, is delivered to user as a

vocal message, through a Text to Speech process.

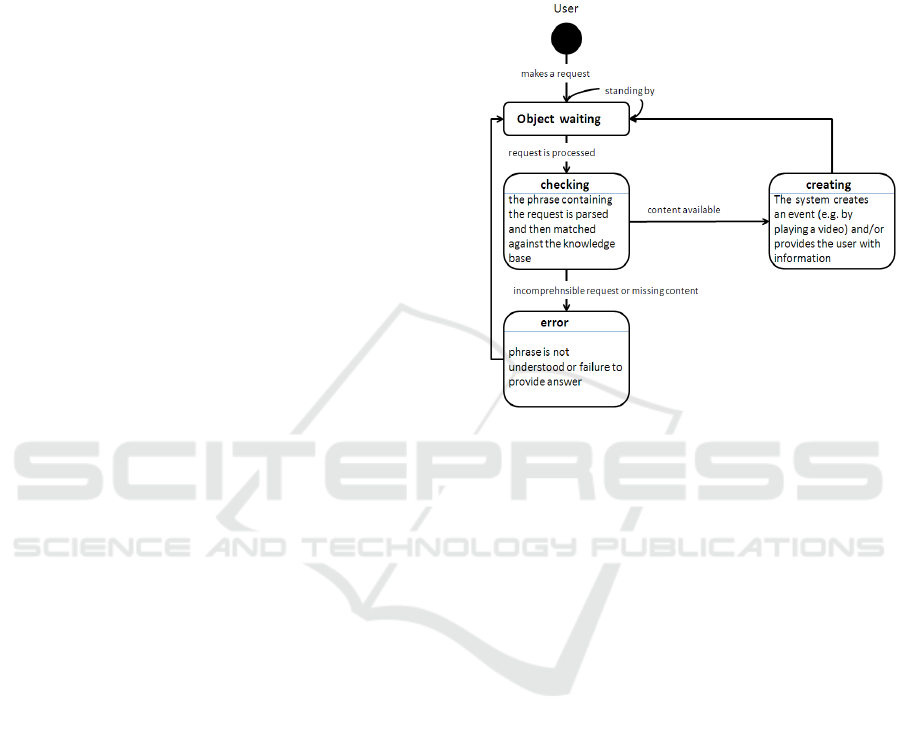

The matching process, as it will be detailed in the

next section, is based on a Question & Answer

engine, and selects the corresponding answer, given a

well identified and recognized question or significant

part of it. If any question can’t be recognized by the

system (too noisy environment, bad spelling,

unsupported languages or questions), the system

produces a message asking the users to re-submit

his/her request.

Otherwise, if a question is correctly recognised

and a matching answer is available, the latter is

emitted and played through a human natural voice,

output either by the speakers equipping the basement

of the art objects or the speakers of the user’s personal

device.

4 SYSTEM ARCHITECTURE

A functional overview of the system architecture

supporting the Speaking Things environment is

shown in Figure 3.

Figure 3: Service System Architecture.

The most advanced Bluetooth 4.0 smart and low

energy consumption technologies have been

exploited to build a robust communication and

service infrastructure. Smart Beacon (Smart Beacon,

2015) devices were employed to identify users’

The Internet of Speaking Things and Its Applications to Cultural Heritage

111

location and deliver specific contents, according to

the art object they were closest to.

The architecture is built from the following main

components:

 A Wireless Sensor Network (WSN) composed

by a set of beacons, each one deployed near a

cultural artefact (e.g. a vessel, a sculpture or any

other object) and communicating with a

Gateway Server (an advanced base station).

Such a component scans, using the Bluetooth

protocol, the areas surrounding sensors in order

to detect possible users that could be interested

in the observed object.

When a device is recognized, the device is effectively

connected to the data network.

 A Gateway Server (GS) hosting a set of services

able to filter and process information coming

from the WSN and implementing the core

computations underlying the Speaking Things

system. It mainly consists of a Natural Language

Processing Service (concerning Speech To Text

and Text To Speech Translations and Advanced

Text Analysis) and a Question-Answer Engine.

It is responsible for users’ question analysis,

matching answers selection, triggering a

Multimedia Contents and Services Provider for

delivering selected answers and suitable

multimedia contents, to enrich the experience of

users. All information about interactions

occurring between users and objects are

properly stored in dedicated logs for further

analysis and system refinement.

 The Multimedia Contents and Services Provider

(MCSP) accepts a request for extracting

contents from the GS (answers and multimedia

collections), so delivering them to users’

devices App. The MCSP manages a multimedia

repository and exploits proper multimedia

delivery techniques to propose users other

object of interest arranged in the shape of

multimedia stories.

 A Smart Assistant App (SAA), leading and

managing connection and communication

between users’ personal smart devices and

Smart Beacons. App layout and other

preferences can be customized via a dedicated

environment for service composition. It enables

users to submit the system requests in natural

language, and to acquire multimedia contents,

thus playing the provided voice answers.

4.1 The Art Things Speaking Process

Figure 4 describes the core process for the natural

language driven interaction. A Question-Answer (Q-

A) engine is employed to find matching answer for

well-formed request.

Figure 4: The Natural Language Based Q&A Process.

At a glance, the processing flow is composed of

the following four steps:

1. Speech to Text Conversion. An instance service

is listening on a communication bus, waiting for

a user’s request. Speech Recognition and

translation into Textual form was implemented

employing Google Speech Recognition API (for

the web application version) and Microsoft

DotNet 4.0 Framework Solution (ASR and TTS

SDKs, for the desktop solution version).

2. Text analysis and Request Categorization:

typical text analysis (parsing, word sense

disambiguation, lexical features extraction, etc.)

and categorization strategies are applied to

incoming textual requests. The output is

represented by lists of relevant terms and

categories useful to match suitable answers and

to select multimedia contents.

3. Question and Answer Matching: Categories and

terms summarizing the request are matched

against a Knowledge base (KB). Cultural

Heritage Experts provided specific domain

ontology, vocabularies and answers to populate

effectively the underlying KB.

4. Text to Natural Language Speech Generation: If

an answer matches against the submitted

IoTBD 2016 - International Conference on Internet of Things and Big Data

112

request, an event consisting in a voice

explanation or in playing an audio or video, is

created and such event is delivered to be

delivered and notified to requesting users.

5 CASE STUDIES

In this section two real case studies are described. The

first one concerns an archeological exhibition held in

an Italian Museum, in which smart technologies

deliver desired multimedia contents driven by a

natural language communication. The second one

deals with an installation of holographic totem at the

Expo 2015, a wide multicultural fair exhibition held

in Italy.

5.1 The Speaking Vessels

As one of the effective examples for our application,

we considered the case of a tourists and local people

visiting The National Archaeological Museum of

Sannio Caudino, within the Bourbon Tower of

Montesarchio (Benevento, Italy). In such a place, one

of the most beautiful vessels from Ancient Greece,

“the Crater of Assteas”, is exposed as the main

attraction for cultural exhibitions and events.

For long times, the bowl was far from its original

location in the Sannio, after being sold by grave

robbers and sold in antiques market.

Only in 2007 the crater was returned to Italy, thus

increasing the attention and expectations for visiting

and looking at it. Other 50 bowls and vessels were

exposed in the same exhibition and provided with the

beacons in order to speak about their story.

In 2015, this cultural site was set up, during an

exhibition organized to celebrate the return back to its

original location of the precious vessel after many

years, with a temporary beacon sensors network, so

enabling the possibility for visitors to interact with the

cultural things arranged in the exhibition area. Every

time a user was close to a vessel, it tried to catch

visitors’ attention starting to tell about their story and

curiosities.

A rich multimedia collection containing textual

documents describing the charming story of the

precious vessels, digital reproductions of the complex

mythological scenes depicted on the vase, narrated by

educational videos, audio guides, and hypermedia

documents for a deeper comprehension, was

proposed to tourists and visitors, driven by natural

language requests and replies. Two different

languages, Italian and English, were available for

natural language interactions and contents

explanations.

5.1.1 Implementation Details

In this section, we report some implementation details

concerning the developed prototype.

As previously said, the WSN has been realized

and tested using Smart Beacons, small devices using

Bluetooth 4.0 smart and low energy consumption

technologies for interacting with users. When placed

in a physical space, such as a museum or an exhibition

area, a smart beacon broadcasts tiny radio signals

around itself at low power consumption, being able to

interact with users’ personal smart devices or any

other device supporting Bluetooth (BLE)

communication.

When a user walks through an area and his

position is detected, s/he will receive custom

notifications and invitations to interact with the

surrounding objects. The micro-location system is

able to locate mobile devices that are as close as four

inches away, or as far as over 200 feet away and even

more.

The Smart Beacon platform solution also offers a

prebuilt but customizable App, useful for typical

interactive museum scenarios. In our case of study for

the National Archaeological Museum of Sannio

Caudino, we have just implemented a customized

application supporting Android and IOS platforms, in

order to craft our specific kind of interactions

(mainly, the Speaking Things Proactive Mode).

In the first place, each deployed smart beacon in

the museum area was assigned a unique identifier

(SB-UID), so as to maintain dedicated links between

each beacon and its corresponding speaking artwork,

and its location over the exhibition area.

On the other hand, when a user’s device is detected

for the first time in the smart beacons network, a unique

user identifier (UUID) is assigned to it.

Each beacon can be combined with more than

one art object. According to our experience, it is

possible to combine up to 5 different objects with the

same beacon, with a precision of about 90% as far the

correct detection of the object is concerned.

This result can be guaranteed under the

assumption that the exhibition layout is designed to

fit such distances, so as to avoid overlapping regions

of beacons inquiry.

When a beacon scans the surrounding area to

detect other BLE devices, a localization algorithm

detects and computes the existing distance (RSSI

value estimation), thus inferring the proximity of the

detected device to the right object.

The Internet of Speaking Things and Its Applications to Cultural Heritage

113

Our choice can be further motivated by taking

into account that such devices allow to control the

Bluetooth inquiry area with seven different power

levels in order to set different coverage zones from 5

to 50m that can be decreased to obtain higher level of

precision in detecting users’ devices in the artworks

surrounding area. The distance of any detected device

is calculated exploiting the RSSI value, received

during the inquiry process slog with the UUID of the

Bluetooth device.

In our case study, we were forced to design a

hybrid solution, because of the unmovable position of

the archaeological art objects. The room, among the

six of the museum, hosting the ancient Greek vessels

was arranged in a set of display cabinets very close to

each other, each containing a different number of

objects (from one to five), as evidenced in Figure 5.

Therefore, we designed a network deploying just one

smart beacon node covering a 2 metres space line

(one beacon for each pair of cabinets); we also

reduced the sensibility for a long range detection, in

order to solve the overlapping situations.

Overlapping areas were also managed by taking

into account the movement direction of the users. A

user localized in an overlapping area covered by two

different beacons and standing at the same distance

from each of them, will be notified by the beacon that

has been detected after in the timeline of the user’s

path. In other words, the winning beacon is the most

recent one detected by the user’s device.

Figure 5: The National Archaeological Museum of Sannio

Caudino artworks layout.

From the user’s device standpoint, the App is

designed to be in a “listening” state, waiting for

invitations from smart speaking objects.

The UUID is used by the App to figure out a

course of actions and to track the user’s path, for

conflict resolution (overlapping areas) and deep post-

processing (users’ log behavioural analysis for

contents and topics recommendation or user’s

profiling). In the future release, the App would check

the phone's default language and automatically use it

in what it displays or plays.

The GS component has been implemented via

several JAVA libraries exploiting multi-threading

facilities, able to inquiry the advanced NLP and Q&A

features provided by the Intelligent Platform Cogito

(Cogito, 2016), in order to identify the matching

contents to be retrieved by MCPS and delivered to

users’ devices and to the output audio infrastructure.

In addition, a proper repository managed by the

NoSQL DBMS MongoDB was employed to store

interaction logs.

The MCSP component exploits ad-hoc JAVA

libraries to build the multimedia story of an artwork

on top of the multimedia collection managed by a

PostgreSQL.

Finally, a user can interact with our system using

at the moment an Android or IOS SAA, implemented

by exploiting Smart Beacon SDK. The presentation

logic is based on apposite widgets. The client requests

are elaborated by JAVA Servlets and the contents are

sent to the client in form of JSON data.

5.1.2 Usability, Enjoyment and Naturalness

Estimation

A number of trials have been performed to assess the

behaviour, the users’ enjoyment and, consequently,

the usability and the utility of the proposed

application. A sample of about 100 visitors were

logged during one of the events organized for

celebrating the return to its original location for the

Crater of Assteas.

These participants were engaged at the entrance

of the exhibition, before starting the visit and were

given a 10-minute presentation about the

infrastructure.

According to the usability dimensions for a

mobile application, as proposed by the literature in

(Baharuddin, 2013), we investigated three of these

dimensions to have an overall estimation for the

proposed approach. We considered the following

dimensions: simplicity (SIM), usefulness (USN) and

enjoyment (satisfaction) (ENJ). For a better

investigation, we added a further dimension, the

naturalness of interaction (NAT).

Participants were asked to fill in a post-visit

questionnaire. These questionnaires stimulated users

to express their level of agreement with a set of

statements, using a 10-point Likert scale, or to make

choices between proposed options.

Table 1 summarizes results extracted from the

users’ answers, showing the most relevant questions

IoTBD 2016 - International Conference on Internet of Things and Big Data

114

related to the four dimensions of the usability

considered and their average ratings.

The overall degree of satisfaction manifested by

participants towards the proposed infrastructure was

positive with an average rating of 8.86 (ENJ08).

Table 1: Post-Visit Questionnaires Results.

ID Description Value

SIM01

It was easy to interact with the

exhibit artworks.

8.56

SIM02

It was easy to obtain useful

multimedia contents.

7.81

SIM03

It was easy to navigate among

the mobile App

functionalities.

8.02

USN01

The infrastructure was overall

useful during the visit.

7.83

USN02

Using the infrastructure was

useful to gain knowledge

about the exhibit artworks.

7.66

USN03

Using the infrastructure was

useful to get a deeper insight

on the museum themes.

7.89

ENJ01

I appreciate the mobile

Assistant App GUI.

8.32

ENJ02

I appreciate the artworks

detection metaphor.

8.45

ENJ03

I appreciate the image

galleries.

7.44

ENJ04

I appreciate reading cultural

information about exhibit

artworks.

7.06

ENJ05

The quality of the sound was

high.

7.52

ENJ06

Using the infrastructure

contributed to increase my

will to visit other art

exhibitions.

8.09

ENJ07

Using the infrastructure

positively contributed to the

enjoyment of my visit.

8.87

ENJ08

I overall appreciated the

infrastructure and the

proposed approach.

8.86

NAT01

I appreciate listening cultural

information about exhibit

artworks.

8.98

NAT02

I appreciate the clearness of

the spoken dialogue.

8.32

NAT03

The waiting time in the

performing interaction

attended my expectations.

7.89

NAT04

I appreciate the naturalness of

the interaction with the

environment

8.45

Furthermore, the overall degree of perceived

naturalness in the proposed interaction modality

(NAT04) and the expected waiting time in the

performing interaction (NAT03) were positive with

an average rating of 7.89 (NAT03) and 8.45

(NAT04), respectively.

Multimedia features such as image-galleries

(ENJ03), texts (ENJ04) and the quality for audio

responses (ENJ05), were rated 7.44, 7.06 and 7.52,

respectively. As for the usefulness dimension, users

agreed that the application was useful overall

(USN01, 7.83), facilitating to a certain degree the

acquisition of a better knowledge (USN02, 7.66) and

a deeper insight (USN03, 7.89) on the artwork on

display.

Additionally, the analysis of the ease of use

dimension pointed out that participants found the

information access about the artworks quite easy

(SIM01, 8.56) as well as the multimedia content

browsing (SIM02, 7.81).

5.2 The Holographic Human Being

Holographic human beings bring one step further the

capabilities of interaction of speaking things, in that

they can provide support for full-fledged dialogues in

natural language. This patented basic technology

allows capturing, in the form of holographic

simulations, sequences of actions performed by

human actors that can be matched with requests

coming from human users through the integration

with technologies for speech processing, natural

language understanding, gesture recognition, linked

data and knowledge representation.

Deployment is through standardized carriers such

as ordinary totems optimized for 3D displays with

very high resolutions (at least 4K UHD), always

maintaining full size reproduction of the holographic

human being so as to make the user experience totally

natural and familiar.

Applications range widely, cultural heritage being

one (as exemplified by the installation at EXPO 2015

where the historical characters of Teodolinda and

Vergil tell the visitor about the history of Lombardy

(https://www.youtube.com/watch?v=dB6wUGG9Oy

s&feature=youtu.be) but include also info-points,

CRM, augmented shops, training, home automation

and robotics (e.g. by providing the coordinating

interfaces for teams of communicating home

appliances and robotic agents).

A fundamental step in supporting interactivity is

to make the holograms cloud-connected and capable

of transferring information back and forth over the

Internet.

In fact, this is a necessary condition for the

holographic human beings to be able to answer the

The Internet of Speaking Things and Its Applications to Cultural Heritage

115

requests of the users providing them with the needed

information. The IoT brokerage services are essential

in this respect, being this a typical case of

communication between the machines maintaining

the information and the “animated thing”, namely the

holographic human being, that would provide them to

the user. Pro-active and reactive event processing,

audio mining, content optimization and context-

aware recommendation can also be exploited

effectively to turn holographic human beings into

revolutionary user experiences and interfaces. A

patent for this application was registered (Patent N.

001416412, June 11, 2015).

6 CONCLUSIONS

We have shown how an Internet of Speaking Things

can become at least as impactful as an Internet of

Sensing Things.

In fact, while one is already widening the

perspectives and the applications of Big Data Analytics

and computer-supported Decision Making, the other

has the potential to open a radically new view on man-

machine interfaces, where things of all kind bring to

users the information residing on the cloud.

A novelty aspect of the proposed approach, when

compared to the state of art in the smart applications

supporting CH field, is the strong human driven

communication strategy. Currently, prototype

versions of the system are able to manage and

automatically recognize two languages (Italian and

English), but extensions for supporting more other

European and Asiatic languages are ready to be

integrated, evenly supported by linguistic specialists.

The adopted approach promises to be scalable and

flexible enough to support extensions for other types

of interfaces or application domains, when specific

domain ontology and lexical resources are available

to manage Natural Language driven interactions.

Open issues concern the robustness of the

technological solutions supporting our approach,

against environment or infrastructural faults.

Refinements, supported by a massive testing action,

have to be introduced in order to assure real-time

interactions, when environment is too noisy or

network latencies are over acceptable rates.

Another open issue, aim of future investigations,

is the absence of a standard evaluation metrics to

establish a human-machine interaction quality

baseline.

In the case studies that we reported we focused

on things full of meanings handed down from the

past, such as speaking statues and interactive

holograms that embody digital resurrection of

historical characters and give them effective

interactive capabilities.

But nothing prevents us from pursuing equally

exciting applications with objects and situations that

belong to everyday life, from the speaking fridge

asking for instructions to shop to the holographic

butler that coordinates appliances within an

automated home. As in all new areas, the sky is the

limit to the possibilities that open up, and there are so

many things that have interesting stories to tell their

users!

REFERENCES

Zafarani, R., Abbasi, M. A. and Liu, H., 2014. Social media

mining: an introduction. Cambridge University Press.

Xylomenos, G., Ververidis, C. N., Siris, V. A., Fotiou, N.,

Tsilopoulos, C., Vasilakos, X., Katsaros, K.V. and

Polyzos, G.C., 2014. A survey of information-centric

networking research. Communications Surveys &

Tutorials, IEEE, 16(2), pp.1024-1049.

Ahlgren, B., Dannewitz, C., Imbrenda, C., Kutscher, D. and

Ohlman, B., 2012. A survey of information-centric

networking. Communications Magazine, IEEE, 50(7),

pp.26-36.

Singh, D., Tripathi, G., Jara, A. J., 2014. A survey of

Internet-of-Things: Future Vision, architecture,

challenges and services. In Internet of Things (WF-IoT),

2014 IEEE World Forum on, vol., no., pp. 287-292,

March 6-8, 2014.

Atzori L., Iera A., and Morabito G., 2010. The Internet of

Things: A survey. In Computer Networks, vol.54,

no.15, pp. 2787-2805.

Amato, F., Chianese, A.,Moscato, V.,Picariello, A., Sperli,

G., 2012. SNOPS: a smart environment for cultural

heritage applications. In proceedings of the 12th

International Workshops on Web Information and Data

Management., pp. 49-56.

Amato F., Chianese A., Mazzeo A., Moscato V., Picariello

A., Piccialli F., 2013. The talking museum project. In

Procedia Computer Science, Vol. 21, pp. 114-121.

Chianese, A., Marulli, F., Moscato, V., Piccialli, F., 2013.

A smart multimedia guide for indoor contextual

navigation in Cultural Heritage Applications.

In proceedings of 2013 Workshop on Location-based

services for Indoor Smart Environments (LISE2013),

collocated in 2013 International Conference on Indoor

Positioning and Indoor Navigation, IPIN2013,

Montbeliard, France, October 28-31, 2013.

Marulli, F., Chianese, A., Moscato, V., Piccialli, F., 2013.

“SmARTweet: A Location-based smart application for

Exhibits and Museums”. In proceedings of Workshop

on Cultural Information Systems (CIS2013), collocated

with the 9th International Conference on Signal Image

Technology & Internet Based Systems (SITIS2013),

Kyoto, Japan, December 2-5, 2013.

IoTBD 2016 - International Conference on Internet of Things and Big Data

116

Bordoni, L., Ardissono, L., Barceló, J. A., Chella, A., de

Gemmis, M., Gena, C., Iaquinta, L., Lops, P., Mele,

F., Musto, C., Narducci, F., Semeraro, G., Sorgente,

A. 2013. The contribution of AI to enhance

understanding of Cultural Heritage. In Intelligenza

Artificiale, vol. 7, no. 2, pp. 101-112, 2013.

Semeraro, G., Lops, P., d, M., Musto, C., Narducci, F,

2012. Folksonomy-based recommender system for

personalized access to digital artworks. In JOCCH, vol.

5, issue 3, no. 11, 2012.

Valente, I., Chianese, A., Marulli, F., Piccialli, F., 2013. “A

novel challenge into Multimedia Cultural Heritage: an

integrated approach to support cultural information

enrichment”. In Proceedings of the 9th International

Conference on Signal Image Technology & Internet

Based Systems (SITIS2013), Kyoto, Japan, December

2-5, 2013.

Kang, S. K., Kang, H. K., Kim, J. E., Lee, H., Lee, J. B.,

2012. A study on the mobile communication network

with smart phone for building of location based real time

reservation system. In IJMUE, vol.7 no.2, pp 17-36.

Husain W., Dih, L. Y., 2012. A framework of a

Personalized Location-based traveler recommendation

system in mobile application. In International Journal

of Multimedia and Ubiquitous Engineering, vol. 7,

no.3, pp. 11-18.

Marulli, F., 2015. IoT to enhance understanding of Cultural

Heritage: Fedro authoring platform, artworks telling

their fables. In proceedings of 1

EAI International

Conference on Future Access Enablers of Ubiquitous

and Intelligent Infrastructures (FABULOUS 2015),

Ohrid, Republic of Macedony, September 23-25, 2015.

Cremene, M., Tigli, J. Y., Lavirotte, S., Pop, F., Riveill, M.,

Rey, G., 2009. Service Composition based on Natural

Languages Requests. In Proceedings of IEEE

International Conference on Services Computing 2009

(SCC ’09), pp. 486-489.

Chianese, A., Marulli, F., Piccialli, F., Benedusi, P., 2015. An

Associative Engines Based Approach supporting

Collaborative Analytics in the Internet of Cultural

Things. In proceedings of the 3rd International

Workshop on Cloud and Distributed System Application

and he 10th International 3PGCIC-2015 Conference,

Krakow, Poland, November, 4-6, 2015.

Benedusi, P., Marulli, F., Racioppi, A., Ungaro, L., 2015.

What’s the matter with Cultural Heritage tweets? An

Ontology–based approach for CH Sensitivity Estimation

in Social Network Activities. In Proceedings of 11th

International Conference on Signal Image Technology

and Internet Based System (SITIS2015), Bangkok,

Thailand, November 23-27, 2015.

Smart Beacon, 2015, http://www.smartbeacon.it/

Cogito, 2016. Cogito Intelligence Platform – Expert

System, http://www.expertsystem.com/cogito/

Baharuddin, R., Singh, D. and Razali, R., 2013. Usability

dimensions for mobile applications—A review. Res. J.

Appl. Sci. Eng. Technol, 5, pp.2225-2231.

The Internet of Speaking Things and Its Applications to Cultural Heritage

117
