A Big Data Analysis System for Use in Vehicular Outdoor

Advertising

Emmanuel Kayode Akinshola Ogunshile

Department of Computer Science, University of the West of England, Bristol, U.K.

Keywords: Big Data Analytics, Outdoor Advertising, Visual Analytics, GPS Analysis, Javascript, Query Algorithm

Optimisation.

Abstract: Outdoor advertising is an old industry and the only reliably growing advertising sector other than online

advertising. However, for it to sustain this growth, media providers must supply a comparable means of

tracking an advertisement’s effectiveness to online advertising. The problem is a continual and emerging area

of research for large outdoor advertising corporations, and as a result of this, smaller companies looking to

join the market miss out on providing clients with valuable metrics due to a lack of resources. In this paper,

we discuss the processes undertaken to develop software to be used as a means of better understanding the

potential effectiveness of a fleet of private car, taxi or bus advertisements. Each of the steps present unique

challenges including big data visualisation, performance data aggregation and the inherent inconsistencies

and unreliabilities produced by tracking fleets using GPS. We cover how we increased the metric aggregation

algorithm performance by roughly 20x, built an algorithm and process to render data heat maps on the server

side and how we built an algorithm to clean unwanted GPS ‘jitter’.

1 INTRODUCTION

Advertising has evolved hugely over the past decade

due to the amount of people that have moved online.

It has become easy to trial different forms of digital

advertising and find a best fit. As a result of this,

advertising has become reliant upon metrics. Through

platforms such as Facebook Adverts and Google

Adwords, advertisers can track the performance and

return on investment (ROI) of their advertisements.

This is not to say that advertisers do not see the value

in outdoor advertising, however their intuition will

lead them to question its accountability.

Through online advertising, advertisers can

monitor their potential gain through metrics such as

impressions (the number of browsers the advert has

been loaded into) and the number of clicks.

As highlighted in a survey carried out on 3000

business executives by MIT Sloan Management

Review and IBM Institute for Business Value it was

discovered that over half said that “improvement of

information and analytics was a top priority in their

organizations” (LaValle et al, 2010). Furthermore,

“more than one in five said they were under intense

or significant pressure to adopt advanced information

and analytics approaches” (LaValle et al, 2010).

Vehicular advertising is a popular and effective

form of outdoor advertising. Throughout this paper,

we discuss how we built a platform and system that

enables advertisers to gain similar metrics as online

advertising, as well as other relevant information

about their fleet of adverts. We combine connected

car (the act of connecting cars to the Internet of

Things) and scalable web application technologies to

produce a web app for use in vehicular advertising.

1.1 Objectives

Advertisers have little means of calculating any form

of ROI when using outdoor advertising, in this case,

car, taxi or bus advertising. We aim to solve this by

building a platform for advertisers to track and

manage their campaigns.

This paper aims to tackle three core areas; firstly

big data visualization – due to the fact that vehicular

advertising requires geographic analysis we focus on

representing the data as a heatmap. Secondly we

cover how we leveraging MongoDB’s aggregation

functionality to return useful metrics without

dramatically reducing the application’s performance

Ogunshile, E.

A Big Data Analysis System for Use in Vehicular Outdoor Advertising.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 319-328

ISBN: 978-989-758-182-3

319

at scale. The challenge is in allowing the client to

generate reports ‘on-the-fly’ for millions of

geographic data points. Finally we discuss a simple

yet effective way of reducing GPS ‘jitter’ from large

datasets.

1.2 Contributions

The resultant contributions of this paper are as

follows:

Fleet Tracking System: The core of all of the

system’s features is the ability to track a fleet of

drivers concurrently using GPS and various web

technologies.

Big Data Metrics Aggregation: We needed a

way of gaining metrics on a large data set of GPS

points and so we built a scalable algorithm using a

native MongoDB method which allows advertisers to

gain metrics on-the-fly.

Geographic Targeting: In speaking to

advertisers they specified that gaining metrics of

specified geographic areas is highly important. As a

result of this we built a way for advertisers to draw

areas on a geographic map and gain metrics in a

negligible time.

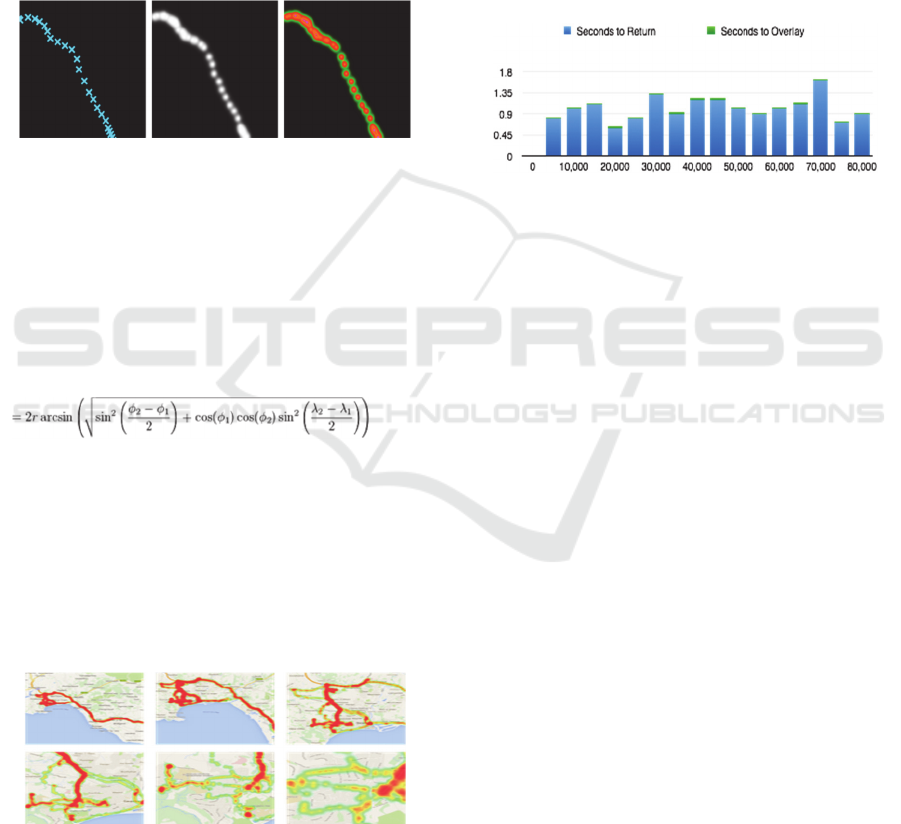

Heat Map Rendering Algorithm and Server:

Having run into performance issues whilst rendering

heat maps on the client-side using the Google Maps

API, we realised that we would need to deploy a

service that would take a set of GPS points and save

rendered heat map tiles. We built and designed the

algorithm that generates the ‘heat’ effect, renders the

data visualisation as images and leverages Base 64

encoding to save the images as strings in a database.

GPS ‘Jitter’ Cleaning: We were unaware prior

to the project of the amount of ‘jitter’ that average

GPS devices produce - as a result we implemented a

service that systematically cleans the GPS dataset.

We leveraged the Google’s ‘Snap-to-Roads’ API,

some simple business logic and linear interpolation to

counteract the problem.

GPS Data Storage Algorithm: The GPS solution

we implemented meant that the system was receiving

GPS points every 10 seconds from each tracker - we

needed a way of reducing the quantity of points saved

to the database without neglecting precision. We

ended up with a simple algorithm that deciphered

whether the car was on a trip or parked, and also

counted for periods of time when it had no signal.

1.3 Paper Organisation

The rest of this paper is organized as follows.

Background and related work in advertising are

presented in Section 2 including a look into the

technology platforms used in the implementation.

Section 3 covers the implementation of the system

and is split into 4 main sub-sections; firstly we discuss

how we managed to reduce the overall dataset by

producing a simple GPS grouping algorithm.

Secondly we cover how we benchmarked and built an

optimized algorithm for GPS metric aggregation. The

following subsection covers how we implemented a

system to render heatmaps using Node.js on the

server. Finaly section 3.4 covers how we

systematically clean the GPS data set of anomalies.

2 BACKGROUND LITERATURE

REVIEW

2.1 Advertising

2.1.1 Why do Advertisers Need to Track

Their Advertisement’s Effectiveness?

Kotler defines advertising as “any paid form of non-

personal presentation and promotion of ideas, goods

and services through mass media such as newspapers,

magazines, television or radio by an identified

sponsor” (Kotler, 1984). Advertising involves

targeting the appropriate message to the relevant end

consumer. For example, an advertiser will place an

advert for a computer in a computing magazine,

rather than in a health and beauty publication. This

process is simple enough in digital or print

advertising, as the profile of the consumer is often

known to the advertiser or advertising platform.

However, in outdoor advertising, advertisers have

little means of planning based on a demographic. This

is why the scientific analysis lies in the tracking

process and less in the planning process. “When the

economic environment becomes difficult, marketers

demand proof of advertising’s effectiveness,

preferably in numerical form.” (Wright-Isak et al,

1997). They wish to compare and contrast different

formats to optimise a campaign, where a campaign

might be a wide spread range of advertising instances,

geographically and/or across different platforms or

mediums. According to Wright-Isak “To understand

effectiveness in a real-world context we need to have

some systematic collection of the facts that tell us the

probability that the intended audience saw the

campaign, what intervening phenomena affected the

campaign’s impact, and the net impact of those

phenomena and the campaign on purchase behaviour.

Combining this collection of facts with data about

specific ad effects may help us understand the

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

320

performance of the campaigns, as well as contribute

to theory development.” (Wright-Isak et al, 1997).

Within the context of vehicular advertising, by

knowing the neighbourhood in which an

advertisement has spent the majority of its time or a

road it’s traveled frequently, will allow the advertiser

to better understand how the effectiveness of the

campaign may have been supplemented by their fleet

of drivers.

2.1.2 How is an Advertisement’s

Effectiveness Quantified?

Bill Dean highlights that “understanding and

quantifying the benefits of advertising is a problem as

old as advertising itself. The problem stems from the

many purposes advertising serves: building

awareness of products, creating brand equity and

generating sales. Each of these objectives is not easily

measured or related to the advertising that may have

affected it.” (Dean, 2006). It seems that directly

quantifying an outdoor advert’s number of views or

impressions is less of the problem, and more that

gaining an understanding of the demographic that

may have seen the branding. Thus a qualitative

understanding is often perceived as more important

than a quantitive understanding. In the context of our

system, providing metrics and visual representations

of the data not directly applied to the context of

advertising and rather the context of the world, towns

or neighbourhoods, i.e providing driving data

visualised on a heat map rather than a prediction of

total impressions.

2.1.3 CPM – Advertising’s Benchmark

Cost per mille (CPM) is the common metric used to

benchmark advertising campaigns in a quantitive

manner. It equates to the financial cost per thousand

impressions of an advert, where an impression is a

potential sighting of the advert. Impressions can often

be confused with views, a good way of differentiating

is in digital outdoor advertising where impressions

can be tracked by using infra-red to determine the

presence of a person and potential viewer. However

eye-ball tracking can be used to determine whether or

not that person has looked at the given advert (view).

Without the use of infra-red, calculating impressions

in outdoor advertising is an approximate projected

calculation using a formula that has been developed

by several outdoor advertising research bodies.

Although outside the scope of this paper we will use

the formula in Listing 1 for providing a planning tool

for advertisers.

1:dailyCirculation = 0.46 *averageAnnualDailyFlow

2: totalDailyCirculation = dailyCirculation *

mediaSpace

3: Impressions = totalDailyCirculation *

campaignDays

4: CPM = Price / (Impressions / 1000)

Listing 1: Outdoor advertising media math (OAAA,

2006)

The formula broken down into its separate

components is as follows:

Average Annual Daily Flow (AADF) - AADF is the

average amount of cars that travel down a road (or set

of roads) each day. The government makes this data

freely available via their website – we take the

average for each city and town rather than down to

road or street level.

Constant (0.46) - This constant is an industry

standard ‘illumination factor’. It is used to take into

consideration whether or not the advertisement is

illuminated (lit up, and so visible at night) and for

how long, 0.46 represents advertisements that are un-

illuminated and thus assumed visible from 6am —

6pm.

Media Space - Media space is the quantity of

advertisements within the campaign. The common

unit of measurement is ‘sheets’, the most common

sizing is a six sheet (1800 mm x 1200 mm). One

car/taxi advertisement roughly equates to two six

sheets.

Campaign Days - This figure is simply the amount

of days the campaign runs for.

CPM (Cost Per Mille) - Cost (in currency) per

thousand impressions.

2.1.4 Route Research

With tracking campaign effectiveness being a well

established challenge in outdoor advertising; it has

become an attractive area of research for large

advertising corporations, notably a London based

company called Route Research. Taken from their

home page - ‘Route is an entirely independent

research organisation, providing audience estimates

to the out-of-home industry in Britain’ (Route

Research, no date). They manage independency by

selling their data to the few large outdoor advertising

corporations for an annual fee. Each of the

subscribers have independent implementations of the

data, however all with the goal of allowing media

planners to effectively calculate the potential

performance of any given outdoor billboard site; as

A Big Data Analysis System for Use in Vehicular Outdoor Advertising

321

opposed to track the effectiveness of their own

existing campaigns.

2.2 Technology

2.2.1 System Technology

We chose the MEAN stack for the implementation of

the proposed system and in this section, we discuss

the how it is mostly a perfect fit for handeling

performance data-driven web services. The MEAN

stack is heavily focused around JavaScript and well

suited for data driven, responsive web applications.

Node.js brings JavaScript to server-side applications

and away from just being a client-side browser

language. Due to JavaScript operating with non-

blocking I/O it results in generally faster applications

that are easily scalable. MEAN is a relatively new

stack but is the go-to platform for most modern web

applications due to its seamlessly integrated layers,

passing data in JSON format from one to the other. It

keeps business logic and large computations to the

back-end server-side code and the Model-view-

controller (MVC) architecture on the front-end. It

comprises of the following layers:

MongoDB - is a NoSQL database that stores its data

in ‘collections’ of JSON formatted ‘documents’ as

opposed to ‘tables’ of ‘rows’. This often means that

the structure is in a more logical format and is less

restrictive.

Express - is a framework for Node.js with a wealth

of Hypertext Transfer Protocol (HTTP) functionality

making it perfect for building Representational State

Transfer (REST)ful application program interface

(API)s. It will be useful for processing requests from

the front-end client, and data sent from the GPS

tracking solution.

AngularJS - is a front-end MVC framework, great

for building powerful data driven Single Page

Applications - ideal for our data dashboard.

Node.js - is a platform that enables network

applications to be built with JavaScript on Google’s

V8 runtime engine. Node.js can be used for a variety

of different purposes, from background processes,

networking, all the way to building APIs.

The MEAN stack has its weaknesses and so in the

following section we cover where exactly the

technology may strike performance issues.

2.2.2 JavaScript

There are a number of distinguishing points that make

JavaScript a perfect fit. The features include non-

blocking IO, one single thread and its primary data

structure is JSON; each of which we define within

this section.

2.2.3 MongoDB

MongoDB is a noSQL (i.e. doesn’t use the common

query language - SQL), schema-less database that

stores its data in a binary representation of JavaScript

Object Notation (JSON), known as BSON. This is

great as it is the primary data structure used in

JavaScript (i.e. Node.js and Angular.js), and so there

is no need to parse any data as it’s returned from

database queries; thus speeding up the development

process and system performance. Being a document

and schema-less based database, it is structurally a lot

more flexible than table based databases such as

MySql. ‘Documents’ are stored in ‘collections’,

whereas in table based databases, ‘rows’ are stored in

‘tables’. As a result of this each document in the

database can take a different form than the next,

meaning that the system can conditionally add or

remove fields throughout its lifecycle. Each

document can comprise of nested documents,

meaning that there is no risk of ending up with a

database with multiple tables to cater for one-to-one

relationships.

Shema-less databases do however have their

drawbacks, if you are able to simply store any JSON

document in a collection it may end up with zero

coherence and as the database scales maintainability

will become a larger challenge. For this reason we

implement a Node.js middleware package called

Mongoose. Mongoose provides a foundation and all

the necessary tools for creating shema/models for

collections. It is a layer between managing data on the

server and the database. Every time a collection is

queried the Mongoose middleware will construct

objects with each of the database records using the

matched Schema. MongoDB also comes with a range

of useful query methods. Each query is made using a

JSON object and completes without blocking - thanks

to Node.js. MongoDB provides a powerful Geo

Query API that allows searching GeoSpatial indexes

relative to a given point or polygon. Queries can be

formed, for example, to search for all coordinates

within five kilometres of a given point, or to find all

points within a given polygon.

As a means of gathering data and querying based

on a matching set of results, MongoDB provides its

aggregation method. It allows you to query a

collection and produce a report of metrics on the

results of the query. As an example, if one wanted to

calculate the average age of males in the user base

stored in a database, an aggregation query can be

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

322

formed to:

 Find all males.

 Add all ages.

 Increment query total.

 Divide ageTotal by queryTotal.

As queries are non-blocking, these potentially

expensive calculations can be offloaded to the

database without blocking the callstack and thus other

requests to the RESTful service. Furthermore, the

queries in MongoDB are made in its native driver by

searching the binary representation, so the speed of

filtering results will likely be dramatically improved.

Due to the demanding computational task of

gathering metrics of driver activity it seems that this

might be a perfect solution, due to the fact it is non-

blocking and queries natively rather than in a

blocking server side algorithm.

3 IMPLEMENTATION

3.1 GPS Data Grouping

Figure 1: UML Activity diagram representing algorithm

used to group inbound GPS data points.

GPS data will be transmitted by each device every ten

seconds and so would result in a maximum of 8,640

data points per car per day. The collection would

quickly grow to an excessive size and so the system

will need to implement an algorithm to reduce the

resultant data size. Arrays of coordinates are

dispatched from the GPS gateway to the end point at

the web app that stores them in the database. At this

endpoint the controller will leverage the following

algorithm, represented using a UML Activity

Diagram:

This logic results in incrementing a ‘weighting’

integer property to a given coordinate. For every ten

seconds spent within the same area (using an arbitrary

radius), the weighting is incremented and thus

assumes it is parked in the same spot. As a result the

total amount of documents in the collection will be

roughly the same as total seconds driving divided by

ten, as opposed to the total seconds in the day divided

by ten.

3.2 Implementing a Metrics

Aggregation Algorithm

Providing statistics on large data sets is an area of

concern in which may have to fallback onto a

background process and saved periodically to the

database, as opposed to being produced on-the-fly by

the client. However our initial thought is that there are

three potential solutions for aggregating the required

metrics. We will compare them by benchmarking

against each other. The required outcomes to the

algorithm are as follows:

For each target/defined polygon/closed array of

coordinates, including a target containing the entire

UK:

 Driving time

o Return as a total

o Return as a total per day

 Total time parked

o Return as a total

o Return as a total per day

 Driving distance

 Average driving speed

The above metrics will be aggregated from the

following input data.

For each coordinate (plotted at 10 second

intervals):

 Time

 Speed

 Coordinate

3.2.1 Benchmarking

In order to test the three solutions we gather a months

worth of test data from a GPS tracker and repeat insert

the collection 60 times, resulting in the equivalent of

running a campaign of 20 cars for three months. We

then repeat the process four times, and thus test with

60 car months, 120 car months, 180 car months, 240

car months and 300 car months. This will hopefully

result in evidence for whether or not each solution

could potentially scale beyond these numbers, for

example, 1000 car months (100 cars for ten months).

For each increase in ‘car months’ we run the test ten

times and take an average. We run the tests from the

AWS instance to cater for the performance difference

between our machine/internet connection and the

hosted application.

A Big Data Analysis System for Use in Vehicular Outdoor Advertising

323

Solution One – Simple Server Side Algorithm.

Perhaps the most simple solution, and a good starting

point, is to run the algorithm on results returned from

the database in one go on the main cloud instance. It

is likely that this solution will have poor performance

when taking into account that it will also block all

other requests to the service, but will allow us to

benchmark solutions two and three. It is also worth

considering that this solution could be used in a

background task so that the main API instance can

remain unblocked and simply add this algorithm to an

asynchronous task queue.

Solution Two – Server Side Algorithm with

Database Streaming.

For this test we compare the

difference in performance when streaming the data

from the database and running the algorithm

alongside the stream of results, rather than waiting to

receive the data and only then running the algorithm.

By running the algorithm in parallel to the streaming

data, we hope for a dramatic performance increase.

Solution Three – MongoDB Aggregation

Method.

The final solution will leverage

MongoDB’s native aggregation method. This already

has three major positives over solutions one and two;

firstly that it remains asynchronous and won’t block

any other requests made to the service, secondly that

it runs the algorithm on the binary representation of

JSON, and thus geo spatial queries will be much

faster. Finally that the amount of code required is

much less, at the same time as being much more

readable/maintainable.

Results.

Below are the results of the test,

interestingly streaming the data from the database had

by far the worst performance with roughly 20x the

time of solution three - the aggregation method. It is

also useful to know that each of the methods increase

in time taken linearly, so we can expect around eight

seconds for 1,000,000 points, which would roughly

equate to 480 car months or for example 40 cars on a

single campaign for one year.

Table 1: Results of three data aggregation methods.

TOTAL

POINTS/

COORDI

NATES

CAR

MONTHS

ONE

(TIME IN

MILLISE

CONDS)

TWO

(TIME IN

MILLISE

CONDS)

THREE

(TIME IN

MILLISE

CONDS)

0 0 0 0 0

125,872 60 3,425.8 21,701.9 919.9

251,744 120 6,817.8 44,468.5 2,036.7

377,616 180 11,232.7 67,446.8 3,233.9

503,488 240 14,480 89,690.4 4,072

629,360 300 17,560.3 106,418.2 5,299.1

3.3 Heat Map Rendering and Big Data

Visualisation

Google Maps provide an easy to use API for

rendering heat map overlays to their maps for

representing datasets, however having scaled the

dataset size and run some tests we realised that the

total time to return the dataset and render on the map

was unfeasible at the scale in which the system will

produce. Having run the system for four weeks on one

car the app saved 8,782 data points and thus for

example would produce 439,100 points for 50 cars

per month. The following graph shows the results of

our test, we measured both the time taken to return

from the API and the time to render.

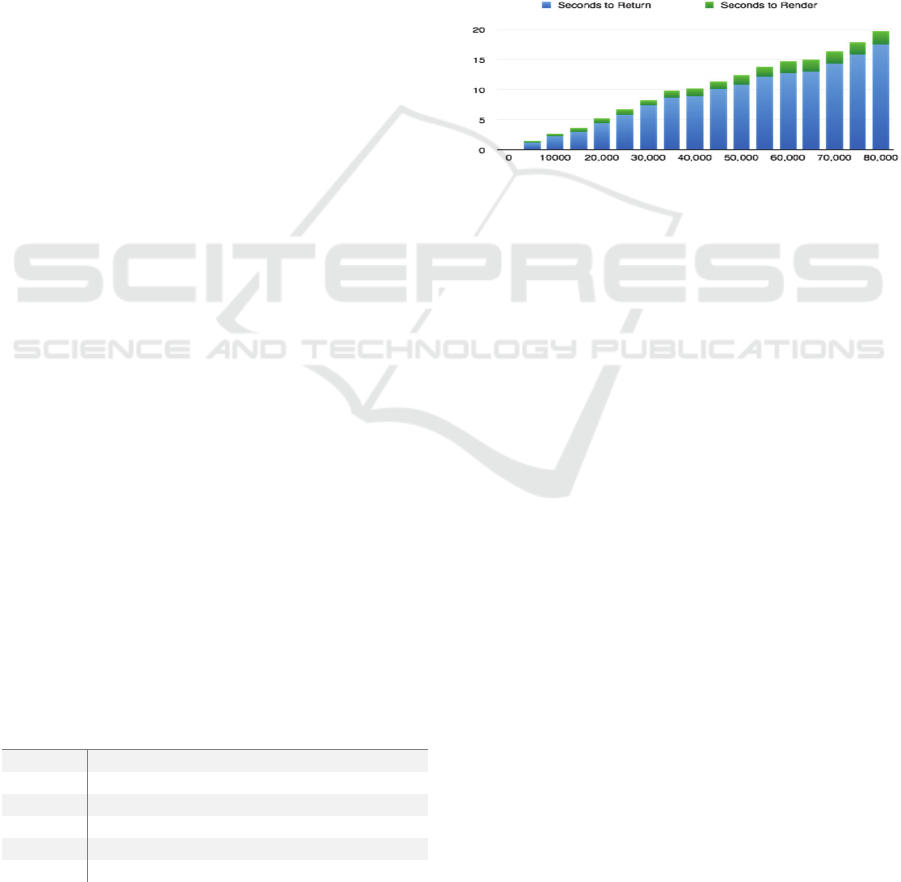

Figure 2: Graph showing time taken to return and render the

heat map on the client side.

The results show that it is unfeasible to scale the

process of rendering a heat map on the client side.

One way around this could be to aggregate the

heat points and group coordinates if they are within a

small distance of each other, and add weighting

accordingly. The problem with this method however

is that the layer would be more ‘blotchy’ when

zoomed in than normal. Furthermore the results to the

tests show that the major lag in performance is in

returning the results from the server to the client and

so to increase the overall performance a solution is to

render the heat map on the server and return only the

heat map images. Tiles can be rendered on a

scheduled process and the images can be saved in the

database. We predict two main reasons why this is a

preferable solution:



Since the data being returned from the

database is standardised and uniform, the

speed in which the tiles are returned is not

increased with the amount of data points in

the database. The background process

performance will decrease, likely at the

same rate as when rendering client side,

however since they will be rendered on a

background process in a separate

environment, the task won’t block any web

requests to the main web application.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

324

 Using this solution there is no other

need for exposing an end point for the API

that returns driving data, so security is

dramatically improved. Although the API

uses authorisation it is important that the

data is as secure as possible and only

managed and analysed within the trusted

network. The worst that could happen is that

an intruder gets hold of the heat map images,

although they would still need to somehow

get past the API’s authorisation.

3.3.1 Map Tiling and Projections

Mapping the world for use on the web follows three

standards; projecting the spherical surface to whats

know as a Mercator projection, splitting the resultant

flat representation of the world into square ‘tiles’ of

dimensions 256px by 256px and finally creating

different tiles for each level of zoom. Since each of

the tiles will be mapped onto a Google Map (which

uses Mercator projection) we can build tiles as if they

are segments of a spherical map. Each tile will have

bounding box coordinates so that we can use the

Google Maps Overlay API to accurately map the

generated tiles onto the projection.

3.3.2 Rendering Images with Node.Js and

WebGL

Although Node.js is perhaps not the go-to language

for server side image manipulation and rendering, for

example most would use a language like Java or

Python. There have been some useful open sourced

projects that have resulted in a suitable and

competitive solution for generating images. The two

dependancies that the system will rely on are Cairo

and Node Canvas. Node Canvas is an implementation

of the HTML5 Canvas element for the server side

which enables access to webGL - a 3D rendering API

for the web. Furthermore, not only does it meet the

standards for image manipulation found in languages

such as Java and Python but it is well documented and

easy to use as it provides the exact same interface as

when rendering images on the client side with the

Canvas element. Each of the tiles will use this

package to render the PNG images and encode as a

base 64 string to be saved in the database along with

meta data including bounding coordinates, zoom

level and heat map identifier.

3.3.3 High Level Tiling Algorithm

At the most abstract level, the process with follow

theses steps for each campaign to build its heat map:

 Get all data points for the campaign from the

database.

 For each zoom level produce a tile grid to

cover the array of point’s Minimum

Bounding Box. The closer the zoom the

smaller the representation of the tile, i.e.

there will be more tiles the closer the zoom.

 For each point and for each heat map/zoom

level find which tile the point falls in.

o In order to optimise this, for each

point, the algorithm checks with

the tile in which the previous point

fell within as well as the one just

after and before it, due to the points

being in order and will most likely

fall close to one and other. Thus

saving the algorithm from

searching each tile (on the nearest

zoom level that makes up 125,824

tiles) for each point, and more often

than not just searching 3 tiles for

each point.

 For each point represented in a tile; find its

relative pixel position.

o Get distance in meters between

south west coordinate of tile’s

bounding box and the given data

point.

o Get angle of given data point from

bounding box’s south west

coordinate.

o Use angle and distance to calculate

percentage of tile north and east

using Pythagorus’ theorem.

o Use percentage north and south to

get pixel x and y position by getting

percentages of 256 (width and

height of tile in pixels).

 Render white radial gradient on tile, at the

radius of the preset zoom levels radius

constant.

 For each tile loop through each pixel

o If the opacity is greater than the

threshold constant.

 Convert the opacity level

to a hue/colour level on an

‘hsl’ (hue, saturation and

lightness) colour wheel. 0

or 360 is red, 120 is green

and 240 is blue, and thus

mapping an opacity level

from an RGBA colour

wheel (‘A’ represents

alpha/opacity) as created

A Big Data Analysis System for Use in Vehicular Outdoor Advertising

325

by the canvas pixels.

o Encode the PNG image as a base 64

string and save in the database

along with meta data.

These three images show how a single tile will

evolve through the algorithm. The reason why the

‘heat’ is applied in white to begin with is so that

intensity is built up where lots of data points fall in

the same place. Each white point has a 50% opacity

from the middle and so as they overlap, the level of

opacity will increase, until it is completely white, and

the whiter the more intense the red colour.

Figure 3: Example of the condition of an individual heat

map tile at each stage of the algorithm.

Haversine Formula

An integral part of the algorithm is to be able to

calculate the distance and angle between two points;

for both of these calculations the system will

implement the Haversine formula (Bell et al, 2011).

The following is used to find the distance between

two points on a sphere.

(1)

The algorithm and process result in a solution that

matches the visual appearance of producing the heat

map using the Google API, as seen below. Although

the process is cumbersome, it has plenty of room to

scale as it has no effect on the end user’s experience

and the size of the image in bytes is not dramatically

increased by the quantity of data points. The

following show the resultant heat map at 6 different

zoom levels.

Figure 4: Visual results of test data plotted using the server-

side heat map algorithm at 6 zoom levels.

Having met the visual requirements we will run a test

on its performance, we expect that the greatest factor

in reducing the performance is the quantity of tiles.

Thus if the drivers travel all over the country there

will likely be a decrease in performance due the the

fact there is more tiles/images. In order to benchmark

against the Google maps solution we simply increase

the amount of data points and calculate the time taken

to retrieve and overlay the images onto the map. As a

means of optimising this solution we only load the

tiles required for the map bounds and the mmediate

surrounding area, and use Google Map’s ‘drag’ and

‘zoom’ event for loading in the new map tiles as the

map is zoomed and dragged. Below are the results of

the test, each of the tests were run at zoom level 11

(half way).

Figure 5: Graph showing the time in seconds to return the

heat map tiles from the server and overlay on a map.

The results show that there is no correlation between

the total data points and the time to render the heat

map and thus proving this is the best solution of the

two, given the quantity of the data. It is also worth

noting that the time taken to render the heat map on

the server for all of the 22 zoom levels, save to the

database and delete the previous map is on average

around one minute, which for the test data results in

around 400 base 64 encoded 256px by 256px images.

3.4 GPS Data Cleaning

GPS ‘jitter’ is a very common problem with GPS

trackers, it is where the data that is produced by the

tracker contains anomalies and slight deviations from

where the actual device has traveled. Stated in a paper

written by R. Zito et al. “Field data collection under

“ideal” GPS conditions indicated that accurate speed

and position data were readily obtained from the GPS.

Under less favourable conditions (e.g. in downtown

networks), data accuracy decreased but useful

information could still be obtained” (Zito et al, 1995).

Having tested the off-the-shelf OBD GPS devices and

mapped all the coordinates onto a map we noticed that

the device produced a number of anomalies both

extreme and small. The larger anomalies will need to

be removed completely from the visualised data,

however the smaller anomalies need to be refined.

Below are examples of both large and small

anomalies.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

326

Extreme anomalies

You can see here that

the GPS has had jitter

causing GPS points to

be displayed as far as

the Netherlands, whilst

the Car has traveled

only as far east as West

London.

Small anomalies

Shown here is a small

amount of deviation

from the road going

from top to bottom of

the image. Points are

grouped around the

road and when zoomed

out, these

imperfections are not

noticeable.

Figure 6: Two classification of GPS ‘jitter’.

The proposed system will need to implement an

algorithm to clean these two classes of anomalies.

The main purpose of the heat map data is to

represent an overall impression of where the fleet of

cars has traveled and spent more of its time. Therefore

maintaining accuracy as to exactly where individual

cars have been remains a secondary requirement and

rather displaying a well presented dataset that gives

the advertiser an understanding of where their advert

has spent most of it’s time is a key requirement.

The algorithm comprises the following three

steps:

 Snap groups of points to their nearest road

using Google’s ‘snap-to-road’ API.

 Loop all snapped points:

o If the distance between the current

and next is small or large (example:

less than 10 meters or greater than

200) – simply add the point to the

resultant dataset.

o If it does not meet the above criteria

linearly interpolate the points at an

interval dictated by the calculated

travelining speed.

The algorithm comprises of three arbitrary values

that have come as a result of tweaking the algorithm

to best represent the given data set. Notably it says

that if the distance between the current point in the

loop and the next is in between ten and 200 meters

then interpolate at three meter intervals linearly. The

hope is that by using the Google Roads API the larger

anomalies will naturally be removed as it will see that

there is no justifiable way that the journey could jump

from a ‘clean’ point to an anomaly.

Linear interpolation can be achived by running the

following:

newLatitude = startPoint.latitude * (1 -

distance) + destinationPoint.latitude *

distance;

newLongitude = startPoint.longitude * (1

- distance) + destinationPoint.longitude

* distance;

Listing 3: Linear interpolation logic.

3.4.1 Results

Figure 7: Results at each stage of the cleaning algorithm.

The results to the algorithm are very positive and as a

result produce a dramatically improved

representation of the data set. The first image shows

the raw data, the second is after the points have been

returned from Google’s snap-to-road API and the

third is after the points have been conditionally

interpolated.

3.5 Implementation Summary

Within this section we’ve discussed the main

challenges faced and overcome in the build phase of

the system. We overcame an array performance based

challenges and have ended with a system that meets

the set out requirements of this project.

It is clear that introducing GPS based systems

incur, in general, a vast amount of boundaries to

building a system such as this. Most of these

challenges however were most definitely not clear

from the outset.

4 CONCLUSIONS

In this paper, we investigated how modern web

technologies can be leveraged to assist in producing

high performance big data analysis systems. Along

with this establishing a foundation to what will be an

ever growing area of research as outdoor advertising

seeks to persist a firm foothold in the advertising

industry. We have designed and implemented a

system that provides a means analysing the potential

A Big Data Analysis System for Use in Vehicular Outdoor Advertising

327

effectiveness of an outdoor vehicular advertising

campaign.

The system produces the expected and required

results in a scalable way. Initially we expected that

the data aggregation would be able to run from

Node’s single thread however it was not feasible with

the quantity of data that was needed to be processed.

Thus we implemented MongoDB’s native

aggregation method and increased performance by

300% meaning that the application can be scaled and

return the metrics on-the-fly for the campaign. It’s

clear that if data is structured well – MongoDB

provides the fundamental building blocks to building

big-data analytics systems.

On a similar theme, visualising the required

quantity of data was not completed in a reasonable

time if processed on the client side and thus we moved

the processed to a scheduled worker that renders map

tiles and saves to the database. Each of the tiles are

then efficiently loaded into the client, based on the

current map zoom level and bounds. The major

benefit of this solution is that the performance on the

client side is not effected by an increase in GPS data

points.

REFERENCES

LaValle, S. Lesser, E. Shockley, E. Hopkins, N. and

Kruschwitz, N. (2010) Big Data, Analytics and the Path

From Insights to Value [blog]. 21 December. Available

from: http://sloanreview.mit.edu/article/big-data-analy

tics-and-the-path-from-insights-to-value/ (Accessed 13

November 2014).

Kotler P. (1984) Marketing Essentials. Northwestern

University: Prentice-Hall.

Wright-Isak, C., Faber,R., and Horner, L. (1997) Measuring

Advertising Effectiveness. Psychology Press.

Dean, B. (2006) Online Exclusive: Quantifying

Advertising's Impact on Business Results. Direct

Marketing News [blog]. 30 January. Available from:

http://www.dmnews.com/online-exclusive-quantifying

-advertisings-impact-on-business-results/article/90091

/(Accessed 13 December 2014).

OAAA, Outdoor Media Math Formulas (2006).

Bell, J. E., Griffis, S. E. Cunningham, W. J., Eberlan, J.

(2011) Location Optimization of strategic alert sites for

homeland defense. Omega, The International Journal

of Management Science, 2011, 39(2), 151-158.

R. Zito, G. D'Este, M.A.P. Taylor. (1995) Big Data,

Analytics and the Path From Insights to Value, p. 1.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

328
