Testing of Web Services using Behavior-Driven Development

Ahmet Furkan Oruç and Tolga Ovatman

Department of Computer Engineering, Istanbul Technical University, 34469, Maslak, Istanbul, Turkey

Keywords: Behavior-Driven Development, Gherkin, JMeter, Software Testing, Testing of Web Services, Web Services.

Abstract: Web services are commonly used in the communication of software over the web. To fully trust a web

service, it should be tested and certified, but testing of web services provoke new challenges. Behavior-

Driven Development (BDD) can be applied to the testing of web services. Gherkin language is used to

define scenarios in BDD. We used Gherkin language to define test cases for web services and we developed

a tool to convert these test cases into JMeter test scripts.

1 INTRODUCTION

A web service is defined as ”a software system

designed to support interoperable machine-to-

machine interaction over a network” by W3C

(World Wide Web Consortium, 2015). Web services

provide a pre-defined web platform, where different

applications can interoperate with each other. Web

services are commonly used in exchanging data over

the internet.

One of the biggest issues about web services is

the trust issue. A web service should work correctly

every time it is executed. This is only achieved via

tests and certification. Since testing of web services

only from client side is not enough to issue the trust,

different solutions should be applied. To test a web

service, following functionalities should be tested:

Basic web service functionality, web service

interoperability, SOA functionalities, quality of

service and load/stress testing (Tsai et. al., 2005).

Behavior Driven Development (BDD) is a

software development process, in which the

requirements and the expected behavior of the

system are specified in a human readable, ubiquitous

language to be able to perform acceptance tests

(Lopez-Pellicer et. al., 2014). According to Evans

(2003), the ubiquitous language is defined as a

common language between developers and domain

experts to understand business specifications. With

the use of such a language, behavior of the system is

specified before development and unit test cycles.

An example to such a language in today’s software

industry is called Gherkin. Gherkin is a business

readable, domain specific language created

specifically for behavior descriptions (Behat, 2016).

Typical Gherkin syntax can be seen in Figure 1.

Feature: Some terse yet descriptive

text of what is desired

In order to realize a named business

value

As an explicit system actor

I want to gain some beneficial outcome

which furthers the goal

Additional text...

Scenario: Some determinable business

situation

Given some precondition

And some other precondition

When some action by the actor

And some other action

And yet another action

Then some testable outcome is achieved

And something else we can check happens

too

Scenario: A different situation

Figure 1: A sample Gherkin document.

Conformance testing is the process to ensure if a

system fulfills the requirements (Gray et. al., 2010).

In addition, web service performance testing is the

process to determine if a web service replies within a

limited time in an environment where many users

access the web service concurrently. There are some

available tools for testing web services like SoapUI

(SmartBear, 2016) and JMeter (Apache Software

Foundation, 2016). These tools provide a GUI to

create test plans, run the tests and view the results.

Variety of these tools and other web service testing

Oruç, A. and Ovatman, T.

Testing of Web Services using Behavior-Driven Development.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 85-92

ISBN: 978-989-758-182-3

approaches are inspected in a survey paper which is

written by Bozkurt et. al. (2013).

There is another paper about Behavior-Driven

Development web service testing approach which is

written by Lopez-Pellicer et. al. (2014), which is

applied to the conformance testing of INSPIRE web

services. However, this work mostly focuses on

INSPIRE web services.

In a survey which inspects the publications

written in behavioral software engineering field, it is

mentioned that there are only two publications

regarding software testing (Lenberg et. al., 2015).

This result proves how software testing field is open

for more studies. In this work, we use the power

of the Gherkin language to define test cases for web

services. These test cases may include either

conformance or performance tests for the given web

service. Then, we develop a tool to convert the

Gherkin language into a test script which can be run

by using one of the most widely used testing tools

which is JMeter (Apache Software Foundation,

2016). JMeter test scripts are easily modified and

may contain different types of tests and scenarios.

As a result, creating and doing the actual test and

observing the results can be done by any domain

expert who does not required to have software

knowledge.

In section II, we have explained basic software

testing, TDD and BDD concepts, in section III, we

presented how we applied BDD to the conformance

and performance testing of web services, in section

IV, we gave a simple application on how to use the

tool we developed and shared a sample test and

results of the test and finally in section V, we

discussed the results of our work.

2 APPLYING BDD APPROACH

TO THE SOFTWARE

DEVELOPMENT CYCLE

According to Sommerville (2007), software testing

process has two distinct goals. First, to ensure that

the software meets its requirements. Second, to

discover parts in the software where the behavior of

the system is wrong. In Figure 2, a standard model

for the software testing process is given.

Test Driven Development (TDD) is a software

development cycle which is defined as writing the

unit tests before writing the production code

(Osherove, 2009). On the other hand, traditional

method for software development emphasizes the

opposite which is testing after development.

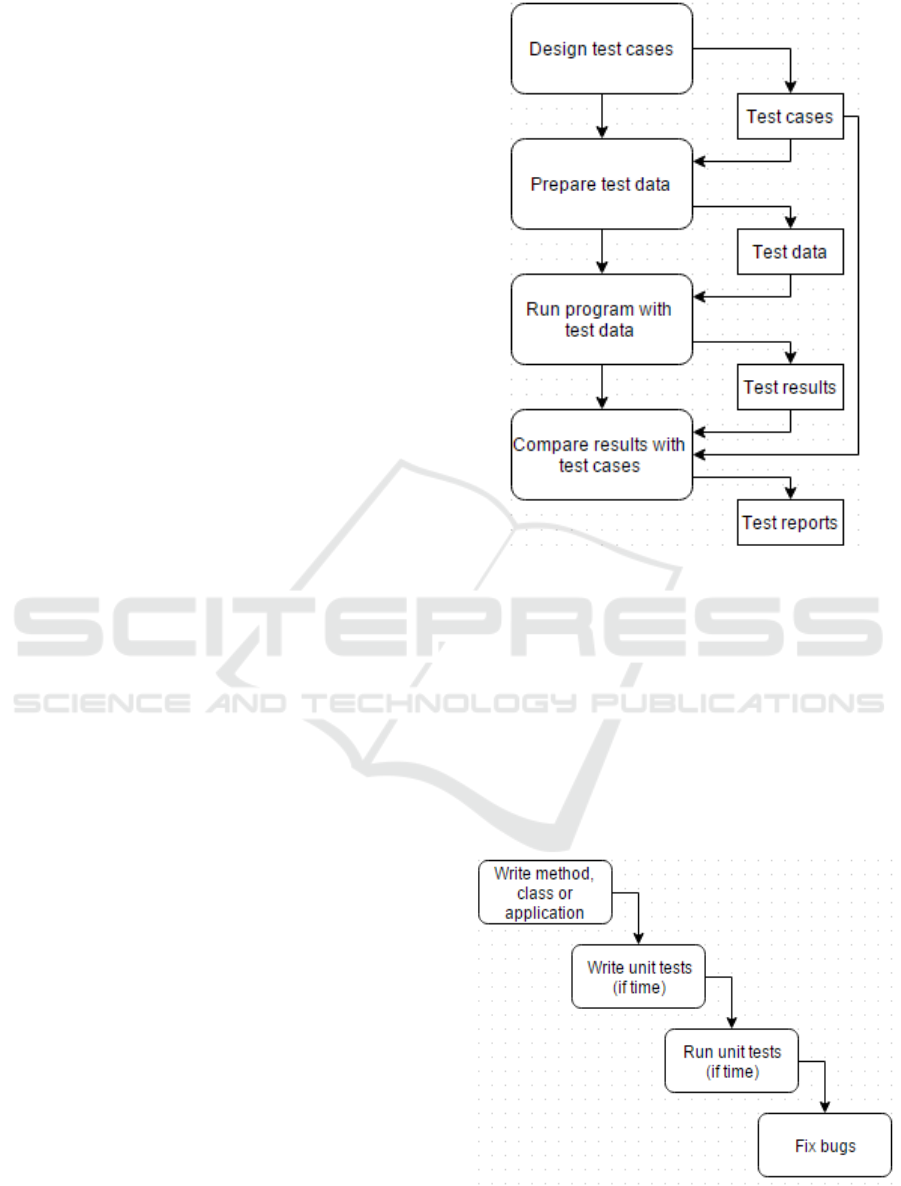

Figure 2: A model of the software testing process

(Sommerville, 2007).

According to Osherove (2009), the traditional way

of writing unit tests is given in Figure 3, while TDD

cycle is given in Figure 4.

Behavior Driven Development (BDD) has

emerged from Test Driven Development (TDD). In

BDD, the requirements and the expected behavior of

the system are specified in a human readable,

ubiquitous language to be able to perform

acceptance tests (Lopez-Pellicer et. al., 2014).

Figure 3: The traditional way of writing unit tests

(Osherove, 2009).

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

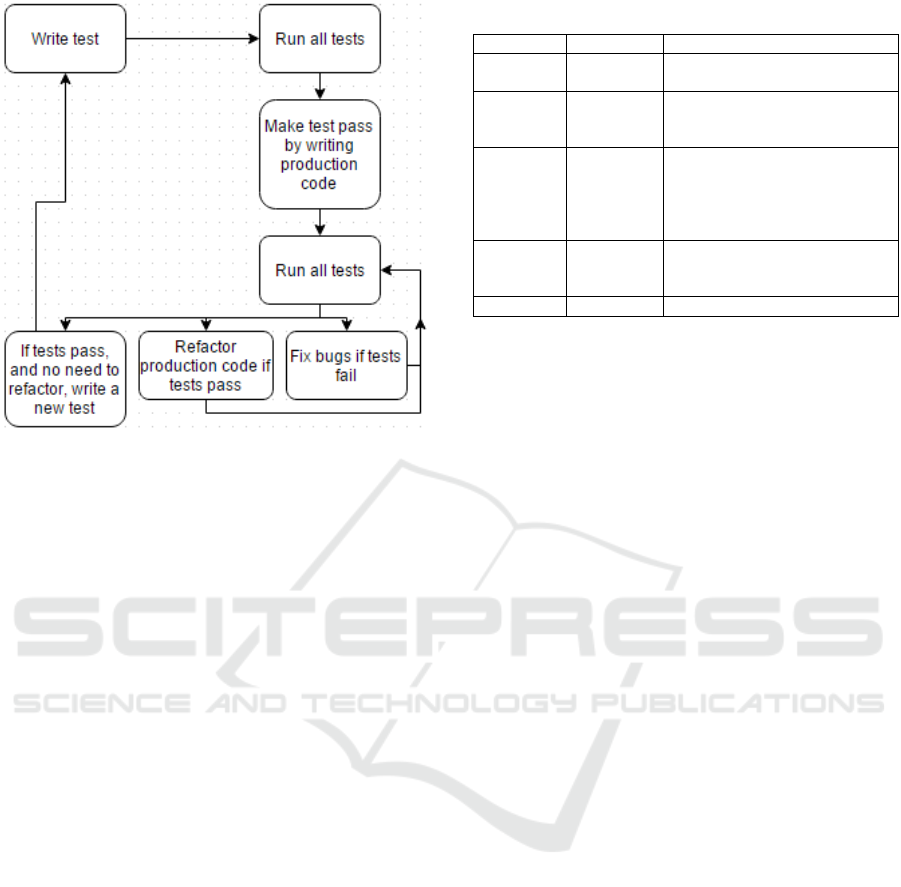

Figure 4: Test Driven Development - A bird's eye view

(Osherove, 2009).

During acceptance tests, the system requirements,

the tests and the actual code may be re-factored. As

a result, domain experts are joined to the software

development cycle and software is written according

to the tests while tests are written according to the

system requirements.

3 CONFORMANCE AND

PERFORMANCE TESTING OF

WEB SERVICES USING BDD

Conformance and performance testing of web

services are achieved by the use of testing tools. One

of the most accepted unit testing tools used in

software industry is JMeter (Apache Software

Foundation, 2016). With using JMeter, many unit

test cases for web services can be completed. To

achieve desired tests, a test plan should be created

from JMeter GUI. Each test plan is saved as a

JMeter script (xml file). These test plans may

contain multiple threads, http requests, response

assertions, response graphs, shell scripts, database

scripts etc. Test plans can run either from GUI or

using a terminal command. Once the test plan is run,

results can be viewed via listener components added

to the plan.

In our work, we used Gherkin language to create

JMeter test plans dynamically. By this, we achieved

two benefits. First; It removes the need of

developing unit testing software, since we are using

Table 1: Gherkin string variable explanations.

Part Variable Explanation

Scenario Operation

Name

Name of the operation which is

stated in the configuration file

Given Some, a Number of threads to be used in

test (Some: stated in

configuration file)

Given With/out With: Existing users are used,

Without: Random users are used

(Both has different jdbc queries

which are stated in the

configuration file)

Then/And Positive/

Negative

Used for response assertion.

Real response values are stated

in the configuration file.

Then/And Duration Used for duration assertion.

JMeter to do the tests. Second; since Gherkin is a

business readable, domain specific language, unit

tests can be created and run by domain experts,

instead of developers. In addition to these benefits,

this method removes the possibility of bugs which

may occur during testing software development.

Generation of JMeter test plans are based on a

Gherkin string and a configuration file. We

developed a Gherkin parser tool which requires a

proper Gherkin string and a configuration file as

inputs and generates JMeter test plan as the output.

Configuration file is a simple xml file which

contains the technical information about related web

service methods. This information includes;

operation name, web service url, web service action,

request xml, number of threads to test, response

assertion key and values, parameters to be used in

request, jdbc configuration and jdbc queries. So, the

configuration file contains the technical information

about the web services to test, while the Gherkin

string contains the test case scenarios written in a

domain specific language.

The Gherkin language format we support with

the tool is given in Figure 5. In the Gherkin string,

the parts which are shown with braces are

considered as variables by the Gherkin parser tool.

During the generation of the JMeter test plan,

variables are mapped to the values which are taken

Scenario: Scenario explanation

{Operation Name}

Given {some, a} user{s} {with/out}

something

When the user asks for present status

Then a {positive, negative} answer

should return

And response time should be lower than

{duration} miliseconds

Figure 5: A sample Gherkin document.

Testing of Web Services using Behavior-Driven Development

from the configuration file. The variables used in

Gherkin string are explained in Table I.

Configuration file contents are also explained in

Table II.

The tool we developed, parses the Gherkin string

and uses the configuration file to create the JMeter

script. It also has the option to run the JMeter script

with a command, print to results to screen and write

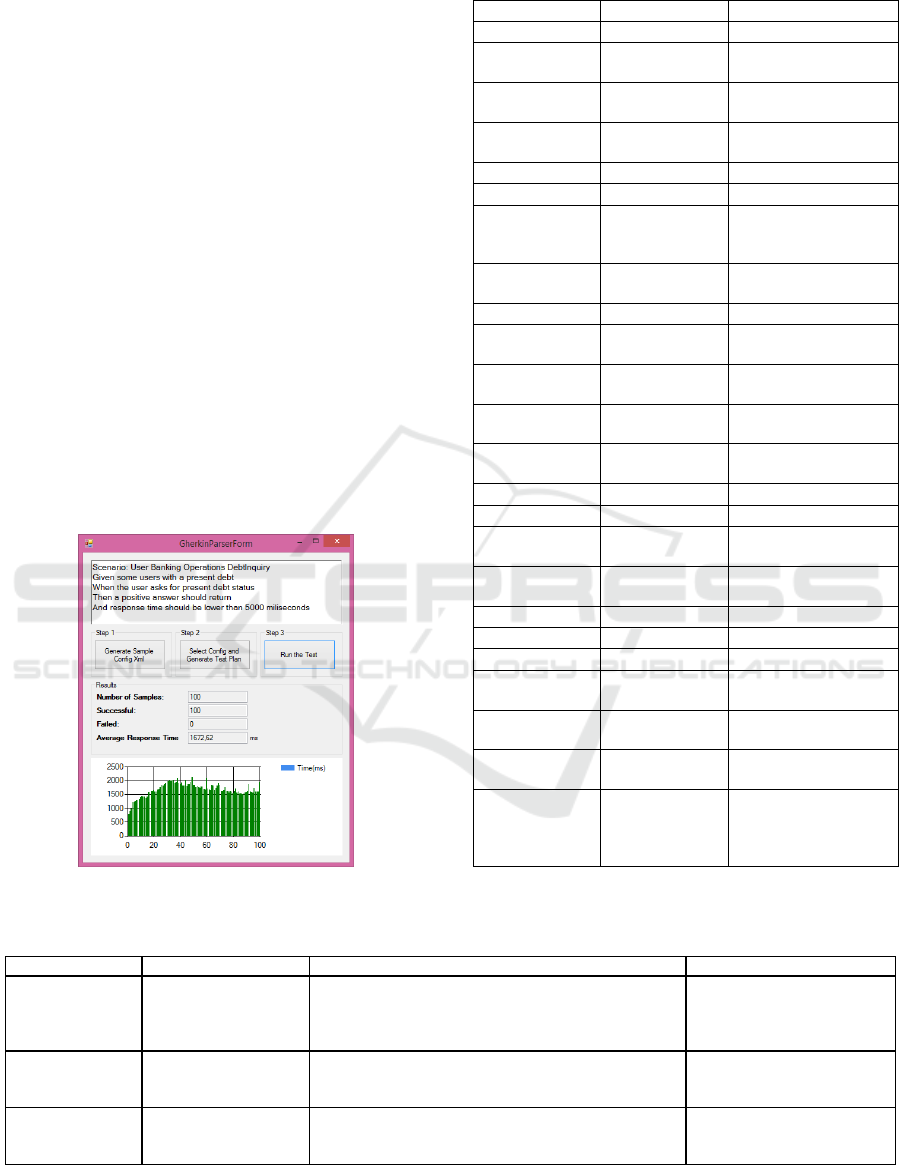

results to a jtl file. The tool GUI can be seen in

Figure 6.

The functionalities of the tool can be inspected in

3 steps. First step is to generate sample configuration

file. The tool generates a sample configuration file,

which should be modified with the technical

information of the web service to test. Second step is

to generate JMeter script. In second step, tool asks

for a configuration file (which is generated in Step

1), and by using the Gherkin stated in GUI, it

generates the JMeter script. After that the script can

be opened using either JMeter GUI or can be tested

directly from our tool which is the third step. After

running the test, results are printed to the GUI and

written to a jtl file for further inspection. JMeter

GUI is also given in Figure 7.

Figure 6: Testing tool GUI.

Table 2: Contents of the configuration file.

Node Parent Node Explanation

TestConfig - Root node

MethodList TestConfig

List of web service

methods

Method MethodList

Contains information

regarding the method

Name Method

Name of the web

service method

Url Method Url of the web service

Action Method Web service action

Request Method

Web service request

body which may also

contain parameters

ThreadCount Method

Number of threads to

be used in test

AssertionList Method List of the assertions

Assertion AssertionList

Created for each

assertion

Key Assertion

Key value used in

Gherkin

Object Name Assertion

Object to do the

assertion

ObjectValue Assertion

Value of the object to

assert

ParameterList Method List of the parameters

String ParameterList Name of the parameter

JDBCConfig Method

Main JDBC

configuration node

Url JDBCConfig

JDBC connection

string

Driver JDBCConfig JDBC driver

Username JDBCConfig JDBC username

Password JDBCConfig JDBC password

JDBCQueryList Method

List of the JDBC

queries

JDBCQuery JDBCQueryList

Created for each

JDBC query

Key JDBCQuery

Either

Random/Existing

Value JDBCQuery

Query to get either

random/existing

record form the

database

Table 3: Invoice WCF service information.

Method Name Request Response Explanation

Debt Inquiry

SubscriptionNo:

User subscription

number

InvoiceInfo: Object containing the invoice

information

IsDebtFound: Flag assigned if any debt found for user

Result: Object to show if the operation is successful

Users inquire their debts

using this method.

Collection

SubscriptionNo:

User subscription

number

IsPaid: Flag assigned if the payment is successful

Result: Object to show if the operation is successful

Users pay their bills using

this method.

Collection

Cancel

SubscriptionNo:

User subscription

number

IsCancelled: Flag assigned if the payment is cancelled

successully

Result: Object to show if the operation is successful

Users cancel their payments

using this method.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

Figure 7: JMeter GUI.

The Gherkin used in this application can be seen

in Figure 8. "Scenario" defines the name of the

operation in the web service to test. Here,

"DebtInquiry" is given as the operation name.

In the "Given" part, two things are taken into

consideration. The keyword "some" indicates that

multiple threads will be used in testing. Number of

threads used is set in the configuration file. The

keywork "with" indicates that the existing users are

used in the test. To obtain an existing user, JBDC

queries are used to select a random user from the

database. JDBC configuration and the query are set

in the confiugration file.

In the "Then" part, "positive" keyword is used to

point out that the response of the web service should

be positive for the case. Any logical response

assertion can be used in this part to achieve

conformance testing.

Scenario: User Banking Operations

DebtInquiry

Given some users with a present debt

When the user asks for present debt

status

Then a positive answer should return

And response time should be lower than

5000 miliseconds

Figure 8: Gherkin file used in application.

In the "And" part, response time assertion is

achieved. Responses which takes more than 5000

miliseconds is marked as failed. This fulfills the

performance testing issue.

The configuration file used in the test is given in

Appendix A.

After writing down the Gherkin string and

creating the required configuration file, JMeter test

script is generated using the tool. Then, actual test

can be completed in two different ways. First, the

test can be run from the tool. This method runs a

command which runs the JMeter test script. Second

method is to open the created JMeter script with the

JMeter GUI and run the test from the GUI. Either

way, test results are written to jtl file on the test

script location. By using JMeter GUI, sample test

request can be written as in Figure 9; sample test

response can be seen in Figure 10. The results of the

JMeter test is given in Figure 11.

4 RESULTS AND EVALUATION

Test results contain multiple outcomes according to

the given scenario. The results may answer the

following questions:

1. Is the web service running? Is it responding to

the requests?

2. Is the web service responding within the

expected period of time? (Performance)

3. Is the response expected? (Conformance)

By the use of our tool, it is easy to re-run all

performance and conformance tests with different

parameters and values. Therefore, it reduces all the

Testing of Web Services using Behavior-Driven Development

time and effort required to create different tests. In

addition, evaluation of the test results are also easy

with the GUI we propose. Also, the same GUI is

used to create different performance and

conformance tests using Gherkin language. So,

creation, running and evaluation of the test results

can all be accessed from the same GUI and it can be

used by all domain experts. We believe this is very

useful in terms of time and effort.

<soapenv:Envelope

>

<soapenv:Header/>

<soapenv:Body>

<tem:DebtInquiry>

<tem:request>

<inv:SubscriptionNo>

222222222

</inv:SubscriptionNo>

</tem:request>

</tem:DebtInquiry>

</soapenv:Body>

</soapenv:Envelope>

Figure 9: JMeter request script.

<s:Envelope

>

<s:Body>

<DebtInquiryResponse

xmlns="http://tempuri.org/">

<DebtInquiryResult

>

<a:InvoiceInfo>

<a:InvoiceAmount>

35.25

</a:InvoiceAmount>

<a:InvoiceDueDate>

2015-05-15T00:00:00

</a:InvoiceDueDate>

<a:InvoiceNo>

</a:InvoiceNo>

<a:NameSurname>

Ali

</a:NameSurname>

</a:InvoiceInfo>

<a:IsDebtFound>

True

</a:IsDebtFound>

<a:Result>

<a:ErrorMessage i:nil="true"/>

<a:IsSuccessful>

True

</a:IsSuccessful>

</a:Result>

</DebtInquiryResult>

</DebtInquiryResponse>

</s:Body>

</s:Envelope>

Figure 10: JMeter response code.

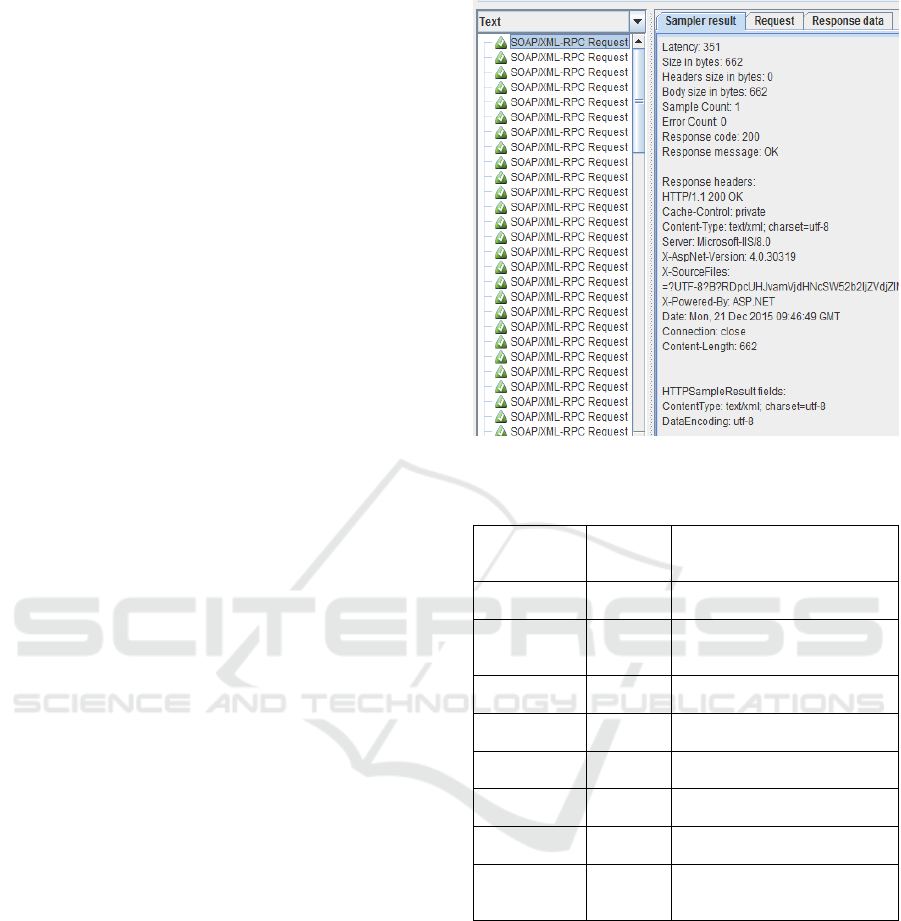

Figure 11: JMeter test result.

Table 4: JMeter unit time requirements.

JMeter

Component

Unit

Time

Required

Explanation

Thread Group 1 Used for creating multiple

thread requests

Soap/

Xml-Rpc

Request

10 Used for preparing web service

request body, parameters,

action and url

Response

Assertion

3 Used for conformance testing

Duration

Assertion

1 Used for performance testing

Assertion

Results

1 Used for monitoring assertion

results

JDBC

PreProcessor

3 Used for generating existing

parameters from a database

View Results

Tree

1 Used for monitoring results

JDBC

Connection

Configuration

5 Used for configuring database

connection

For better understanding of the benefits of the

tool we propose, we have prepared a unit time cost

table which is given in Table 4. This table contains a

symbolic units of work required to create each

component using JMeter. Values given in the table

are only our estimation. By using this table, the time

required to create a test plan using JMeter and using

our tool can be compared.

According to Table 4, 25 units of time is

required to create a single web service test plan in

JMeter. This time might be reduced for similar tests,

but still it should be prepared by some technical

expert. With the tool we propose, this time is greatly

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

reduced and any domain expert may prepare and

apply new acceptance tests. In Table 5, unit time

requirements for the tool we propose is given.

As a result, it takes 12 units of time to create the

first test plan. After that, sequential test plans only

require 2 units of time. In addition, they can be

prepared by any domain expert.

Table 5: Web service testing tool unit time requirements.

Operation

Unit

Time

Required

Explanation

Preparation of

configuration

file

The technical information

about the web service is

prepared by the developer

Preparation of

Gherkin

string

Any domain expert may

prepare the tests using Gherkin

5 CONCLUSIONS

We have presented a new tool to ease the creation of

web service test scenarios and test software. The tool

we presented, uses the Behavior-Driven

Development concept with Gherkin language to

generate test scripts dynamically. First benefit of our

tool is: since Gherkin is a domain specific language,

any domain expert without software knowledge can

create and run web service tests. Second, developers

are not required to write unit tests manually, since

we used the powerful testing tool JMeter. We

believe that similar BDD testing approaches will

become more popular in the near future.

REFERENCES

Apache Software Foundation, 2016. Apache JMeter.

Available at: http://JMeter.apache.org/ (Accessed at:

10 January 2016).

Behat, 2016. Writing Features. Available at:

http://docs.behat.org/en/latest/guides/1.Gherkin.html

(Accessed at: 10 January 2016).

Bozkurt M., Harman M., Hassoun Y., 2013. Testing and

verification in service-oriented architecture: a survey.

In Softw Test Verif Reliab vol. 23 pp. 261–313.

Evans E., 2003. Domain-driven design, Addison-Wesley

Professional, Boston, pp. 123–135.

F. J. Lopez-Pellicer, M. Á. Latre, J. Nogueras-Iso, F. J.

Zarazaga-Soria, J. Barrera, 2014. Behaviour-Driven

Development Applied to the Conformance Testing of

INSPIRE Web Services. In Connecting a Digital

Europe Through Location and Place Lecture Notes in

Geoinformation and Cartography, pp. 325-339.

Gray M., Goldfine A., Rosenthal L., Carnahan L., 2010.

Conformance testing. In Information technology

laboratory, NIST. Available at: http://www.nist.gov/itl

/ssd/is/conformancetesting.cfm (Accessed at: 10

January 2016).

Lenberg, Per, Robert Feldt, Lars Göran Wallgren, 2015.

Behavioral Software Engineering: A Definition and

Systematic Literature Review. In The Journal of

Systems and Software vol. 107 pp. 15-37.

Microsoft Developer Network, 2016. What Is Windows

Communication Foundation. Available at:

https://msdn.microsoft.com/en-us/library/ms731082%

28v=vs.110%29.aspx (Accessed at: 10 January 2016).

SmartBear, 2016. SoapUI. Available at: http://www.soap

ui.org/ (Accessed at: 10 January 2016).

Sommerville, Ian, 2007. Software Engineering. Addison-

Wesley. Harlow, England, 8th ed., pp. 537-540.

Osherove, Roy, 2009. The Art of Unit Testing: With

Examples in .NET. Manning, Greenwich, pp. 42-44.

W. T. Tsai, X. Wei, Y. Chen, and R. Paul, 2005. A robust

testing framework for verifying web services by

completeness and consistency analysis. In SOSE ’05:

Proceedings of the IEEE International Workshop, pp.

151–158.

World Wide Web Consortium, 2015. Web Services

Glossary. Available at: http://www.w3.org/TR/ws-

gloss/ (Accessed at: 10 January 2016).

APPENDIX A

<TestConfig

>

<Name>DebtInquiry</Name>

<Url>

http://localhost:4444/Invoic

eService.svc?wsdl

</Url>

http://tempuri.org/IInvoiceS

ervice/DebtInquiry

</Action>

</Request>

<Key>Positive</Key>

IsDebtFound

</ObjectName>

true

</ObjectValue>

</Assertion>

Testing of Web Services using Behavior-Driven Development

<Key>Negative</Key>

IsDebtFound

</ObjectName>

false

</ObjectValue>

</Assertion>

</AssertionList>

<string>SubscriptionNo</string>

</ParameterList>

<Url>

<Url>

<!—DB Driver -->

</Driver>

</JDBCConfiguration>

<Key>Existing</Key>

<Value>

SELECT

TOP 1 SubscriptionNo

FROM Invoice

WHERE IsPaid = 0

ORDER BY NEWID()

</Value>

</JDBCQuery>

<Key>Random</Key>

<Value>SELECT RAND()</Value>

</JDBCQuery>

</JDBCQueryList>

</Method>

<!--Other web service

methods...-->

</Method>

</MethodList>

</TestConfig>

Figure 12: Configuration file used in the test.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science
