IoT-A and FIWARE: Bridging the Barriers between the Cloud and

IoT Systems Design and Implementation

Alexandros Preventis, Kostas Stravoskoufos, Stelios Sotiriadis and Euripides G. M. Petrakis

Intelligent Systems Laboratory Department of Electronic and Computer Engineering,

Technical University of Crete (TUC), Chania, gr-73100, Greece

Keywords: Cloud Computing, Internet of Things, IoT-A, FIWARE, Cloud Service Interoperability.

Abstract: Today, IoT systems are designed and implemented to address specific challenges based on domain specific

requirements, thus not taking into consideration issues of openness, scalability, interoperability and use-case

independence. As a result, they are less principled, lacking standards, vendor oriented and hardly replicable

since the same IoT architecture cannot be used in more than one use-cases. To address the fragmentation of

existing IoT solutions, the IoT-A project proposes an architecture reference model that defines the principles

and standards for generating IoT architectures and promoting the interoperation of IoT solutions. However,

IoT-A addresses the architecture design problem, and does not focus on whether existing cloud platforms can

offer the tools and services to support the implementation of IoT-A compliant IoT systems. In this work we

propose an architecture based on IoT-A that focuses on the FIWARE open cloud platform that in turn provides

the building blocks of future Internet applications and services. We further correlate FIWARE and IoT-A

projects to identify the key features for FIWARE to support IoT-A compliant system implementations.

1 INTRODUCTION

Over the recent years, Cloud Computing and IoT have

been rapidbly advancing as the two fundamental

technologies of the Future Internet concept. Although

both focus on different domains and have evolved

independently, various works integrate common

solutions and identify significant advantages. These

are as follows:

 The cloud's virtually unlimited resource pool

could be paired with the exponentially growing

demands of the IoT. As enormous amounts of

data is generated, cloud offers the requiring

facility to store and processes as well as to

access for multiple third party users.

 The cloud offers an elastic environment that can

scale on demand and according to the needs of

the user, thus allowing the creation of more

flexible IoT systems that can effectively adapt

to their changing requirements.

 High availability is crucial for any IoT system

and can be currently guaranteed by modern

cloud providers.

 Cloud computing can bridge the gap between

devices and applications by abstracting IoT

management and composition services, acting

as and intermediate layer and by hiding the

complexities and the peculiarities of the IoT

systems.

Thus, it is clear that Cloud Computing and IoT

forming an ideal environment for massive data

storage and manipulation. However, the lack of

standardization in the IoT domain has resulted in the

fragmentation of current IoT systems. Existing IoT

architectures have been designed and implemented to

address specific challenges with specific

requirements, not taking into consideration issues of

openness, scalability, interoperability and use-case

independence. Considering the above and due to the

vast variation of technologies in the IoT domain,

current solutions are vertically closed forming many

“Intranets of Things” rather than an “Internet of

Things”.

To address this problem, the IoT-A project

proposes a Reference Model and Architecture (RMA)

defining the principles and guidelines for generating

IoT architectures, providing the means to connect

vertically closed systems. The adoption of the IoT-A

promotes the interoperation of IoT solutions by

enabling interoperability as follows:

 At the communication layer to support the co-

existence of various communication

technologies (existing or emerging).

146

Preventis, A., Stravoskoufos, K., Sotiriadis, S. and Petrakis, E.

IoT-A and FIWARE: Bridging the Barriers between the Cloud and IoT Systems Design and Implementation.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 146-153

ISBN: 978-989-758-182-3

 At the service layer, thus ensuring smooth

integration into the service layer of Future

Internet applications.

Moreover, IoT-A compliant architectures assure

that generated knowledge will be modular and re-

usable across domain or use-case specific boundaries.

In this work we propose to design FIWARE IoT

systems deriving from IoT-A. We study FIWARE

Generic Enablers (GEs) and investigate whether the

proposed architecture can be implemented on

FIWARE by testing FIWAREs ability to support IoT-

A compliant IoT system implementations. We

compare the functionality of GEs against IoT-A

requirements and guidelines and point out

weaknesses and missing points along with

suggestions.

Having said that, we present the background and

related work in Section2. In Section 3 we discuss the

proposed architecture and then the correlation

between IoT-A and FIWARE. Finally, in Section 4,

we state our conclusions and discuss future research

issues.

2 BACKGROUND WORK

This section presetns the IoT-A project that

introduces standards, guidelines and directions for

generating IoT architectures. We also discuss

FIWARE and its relationship with IoT systems. IoT-

A introduces a Reference Model and a Reference

Architecture that are discussed bellow.

2.1 Architectural Reference Model

ARM is an abstract framework that comprises of a

minimal set of unifying concepts, axioms and

relationships for understanding significant

relationships between the entities of the IoT domain.

It consists of several sub-models that set the scope for

the IoT design space:

 IoT domain model: It is a top-level description

of the IoT domain that introduces the main

concepts of the IoT like Devices, IoT Services

and Virtual Entities (VEs), and it also relations

between these concepts.

 IoT Information model: It defines the structure

(e.g. relations, attributes) of IoT related

information in an IoT system on a conceptual

level.

 IoT Functional model: It identifies groups of

functionalities, grounded in key concepts of the

IoT Domain Model. Functionality Groups (FGs)

provide the functionality for interacting with the

instances of these concepts or managing the

information related to the concepts (e.g.,

information about Virtual Entities or

descriptions of IoT Services). FGs use the

Information Model for structuring any

information they manage.

 IoT Communication model: Introduces

concepts for handling the complexity of

communication in heterogeneous IoT

environments. Constitutes one FG in the IoT

Functional model.

 Trust,Security and Privacy (TSP) model:

Introduces relevant functionality,

interdependencies and interactions. The TSP

model is also one FG in the IoT functional

model.

2.2 Reference Architecture

The IoT-A Reference Architecture is designed to

allow the generation of many, potentially different,

compliant IoT architectures that can be tailored to

specific use cases. The Reference architecture is

based on the concepts of architectural views and

architectural perspectives which are introduced

in~\cite{rozanski-woods-viewpoints}

and~\cite{rozanski-woods-perspectives}

respectively. Architectural views derive from the

concerns of stakeholders (i.e., people, groups, or

entities with an interest in the realization of the

architecture) in actual system design (e.g.,

developers, users, system administrators etc.).

Views are defined as ``representations of one or

more structural aspects of an architecture that

illustrate how the architecture addresses one or more

concerns held by one or more of its

stakeholders''~\cite{woods211} and are used to

achieve the decomposition of the architectural

description with each view addressing one aspect of

the architectural structure. The IoT-A reference

architecture comprises of the following views:

 Physical Entity View It describes all physical

entities and their relations (e.g., sensors,

actuators, environment measurements) in an IoT

system. This view is not covered by IoT-A

because it is use-case independent.

 IoT context View: It provides context

information about physical entities such as the

Physical Entity View, this view is also not

covered by IoT-A as it is use-case independent.

 Functional View: It describes the system’s

runtime Functional Components and, also, their

responsibilities, default functions, interfaces

and primary interactions. The Functional View

IoT-A and FIWARE: Bridging the Barriers between the Cloud and IoT Systems Design and Implementation

147

derives from the Functional Model and reflects

the developers perspectives on the system.

 Information View: It is used to generate an

overview about static information structure and

dynamic information flow. It is based upon the

IoT information model.

 Deployment View: It explains the operational

behaviour of the functional components and the

interplay of them.

 Information View: It shows how the information

flow is routed through the system and what

requests are needed to query for or to subscribe

to information offered by certain functional

components.

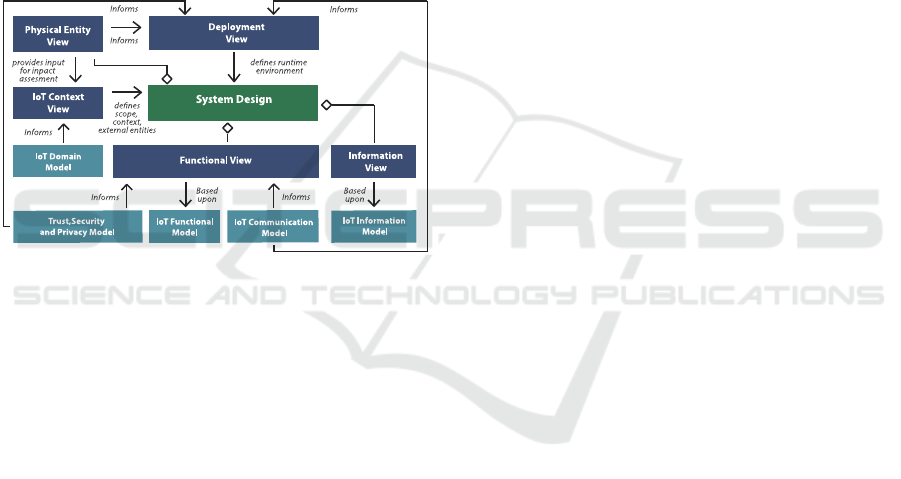

Figure 1 demonstrates the relationship between

IoT-A architectural views and model in the process of

designing an actual system architecture.

Figure 1: Relationship of IoT-A architectural views and

models.

Along with architectural views, IoT-A also

introduces architectural perspectives in IoT system

architectures that are collections of activities,

checklists, tactics and guidelines to guide the process

of ensuring that a system exhibits a particular set of

closely related quality properties (i.e., such as

performance, security, availability etc.) that require

consideration across a number of the system’s

architectural views~\cite{rozanski-woods-

perspectives-2005}. Perspectives are “applied” to

views to ensure acceptable qualities and guide

changes where required. The quality properties that

have been identified by IoT-A as the most important

in the IoT domain are:

 Evolution and Interoperability to enable

communication between devices and services.

 Availability and Resilience as the ability of the

system to stay operational and handle failures.

 Trust, Security and Privacy to handle such

parameters.

 Performance and Scalability related to the

monitor of the system's state and configuration

of perfomance thresholds.

2.3 FIWARE Platform

Today, FI-WARE develops cloud services to build

novel FI applications that use remotely accessible

modules (GEs) on a pay on demand model. FI-WARE

is a leading cloud vendor that offers open

specification for services that could be spread at

different geographically locations (and hosted in

various nodes-namely XIFI nodes), and are available

for utilization over the Internet. In FI-WARE, the

cloud model defines three main roles namely as the

service consumer (the developer), the service

provider (the FI-WARE open specification) and the

service creator (the GE implementer).

Traditionally, the service creator generates a

service that is hosted by FI-WARE and represents the

user requirements. FI-WARE is an innovative, open

cloud-based infrastructure for cost-effective creation

and delivery of Future Internet applications and

services named GEs. GEs are considered as software

modules that offer various functionalities along with

protocols and interfaces for operation and

communication. These include the cloud

management of the infrastructure, the utilization of

various IoT devices for data collection and the

provision of APIs (e.g. tools for data analytics) and

communication interfaces (e.g., gateways, messaging

etc.). GEs are implementations of open specifications

of the most common functionalities that are provided

by FI-WARE and are stored in a public catalogue,

thus developers could easily browse and select

appropriate APIs to use.

3 OPPORTUNITIES FROM THE

CORRELATION BETWEEN

FIWARE AND IoT-A

The role of Reference architectures such as IoT-A in

the process of creating actual systems is to provide

the key building blocks for the generation of the

system's architecture.

The generated architecture can then be used to

guide the process of the actual system

implementation. Reference architectures are

application independent being more abstract than

architecture which are designed with specific

constraints and requirements in mind. On the other

hand, architectures, which are generated by extracting

essentials (parts of existing architectures,

mechanisms, standards) from references

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

148

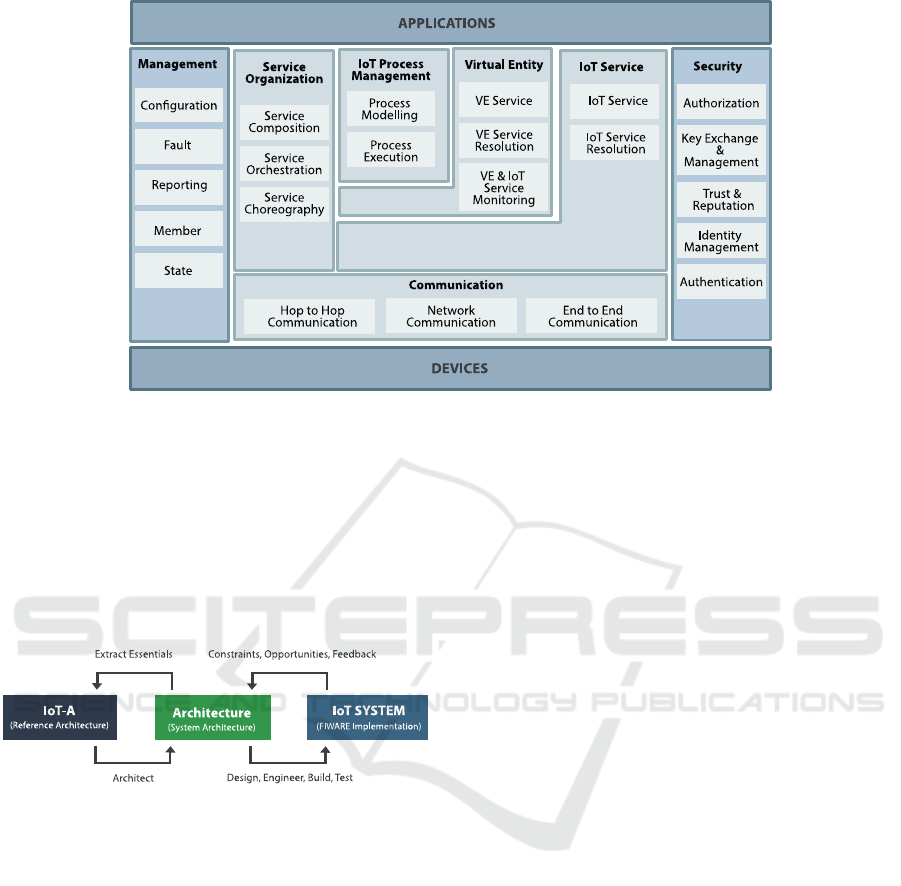

Figure 2: The proposed architecture.

architectures, should be application specific but

platform independent allowing various

implementations across different platforms. Finally

actual system implementations are platform specific

relying on platforms such as FIWARE. The

relationship between Reference architectures (IoT-

A), architectures and actual system implementations

is illustrated in Figure 3.

Figure 3: Relationship between Reference architecture(IoT-

A), architecture and the actual system implementation.

In the following we propose an architecture

deriving from IoT-A and decide whether this

architecture can be implemented on FIWARE.

Although architectures should be composed by

several views, reflecting the concerns of the different

stakeholders on the system, in our study we focus on

the Functional View of IoT-A adopting the

developers’ perspective as our main concern on the

system is the implementation.

3.1 Proposed Architecture

The proposed architecture is illustrated in Figure 2.

The architecture is composed by seven Functionality

Groups (FGs) each of these consisting of several

Functional Components (FCs). Each FCs provides

different and unique functionality and is able to

communicate with the others in a distributed

environment. In the following we present the FGs and

discuss the functionality of their FCs.

3.1.1 IoT Process Management FG

This FG provides the functional concepts necessary

to conceptually integrate the IoT world into

traditional (business) processes. Applications can

utilize the tools and interfaces defined for the IoT

Process Management FG in order to stay on the

(abstract) conceptual level of a (business) process,

while, at the same time, making use of IoT-related

functionality without the necessity of dealing with the

complexities of IoT Services. It consists of two FCs:

The Process Modelling FC provides the tools

required for modelling IoT-aware business processes

that will be serialised and executed in the Process

Execution FC which is responsible for deploying

process models to the execution environments. Also,

the Process Execution FC utilizes components of the

Service Organization FG to align application

requirements with service capabilities.

3.1.2 Service Organisation FG

Acts as a communication hub between several other

Functional Groups by composing and orchestrating

Services of different levels of abstraction. The

Service Orchestration FC resolves the IoT Services

that are suitable to fulfil service requests coming from

the Process Execution FC or from Users while the

Service Composition FC is responsible for creating

services with extended functionality by composing

IoT services with other services. Finally, the Service

IoT-A and FIWARE: Bridging the Barriers between the Cloud and IoT Systems Design and Implementation

149

Choreography FC offers a broker that handles

Publish/Subscribe communication between services.

3.1.3 Virtual Entity FG

Provides all the necessary functionality for the

interaction of VEs with the IoT system, for VE look-

up and discovery and for providing information

concerning VEs. The VE Resolution FC allows

associations between VEs and IoT services providing

discovery and look-up functionalities for these

associations while VE & IoT Service Monitoring FC

is responsible for automatically finding new

associations based on service descriptions and

information about VE’s. Finally, the VE Service FC

handles entity services (for example, services that

provide access to an entity via operations that enable

reading and/or updating the value(s) of the entity's

attributes).

3.1.4 IoT Service FG

This FG contains IoT services as well as

functionalities for discovery, look-up, and name

resolution of IoT Services. The IoT Service FC

exposes IoT resources (e.g., information retrieved

from sensors) making them accessible to other parts

of the IoT system. This FC can also be used for

delivering information to a resource in order to

control actuator devices or to configure the resource

(e.g., manage access control and permissions on the

resource). IoT Services can be invoked either in a

synchronous way by responding to service requests or

in an asynchronous way by sending notifications

according to subscriptions. Finally, the IoT Service

Resolution FC provides service discovery and

resolution functionalities along with service

description management capabilities.

3.1.5 Communication FG

The Communication FG abstracts the interaction

schemes derived from the variety of communication

technologies in IoT systems in order to provide a

common interface to the IoT Service FG. The Hop To

Hop Communication FC provides the first layer of

abstraction from the device’s physical

communication technology, the Network

Communication FC enables communication between

networks and, finally, the End to End Communication

FC offers reliable transfer, transport and, translation

functionalities, proxy/gateway support and setting

configuration parameters when the communication

crosses different networking environments.

3.1.6 Security FG

This is the FG that is responsible for security and

privacy matters in IoT-A-compliant IoT systems.

The Authorization FC is used to provide access

control and access policy management while the

Authentication FC is used for user and service

authentication. The Identity Management FC

addresses privacy by issuing and managing

pseudonyms and accessory information to trusted

subjects so that they can operate anonymously and the

Key Exchange and Management (KEM) FC enables

secure communications ensuring integrity and

confidentiality by distributing keys upon request in a

secure way. Finally, Trust and Reputation FC collects

user reputation scores and calculates service trust

levels.

3.1.7 Management FG

The Management FG is responsible for the

composition and tracking of actions that involve the

other FGs. The Configuration FC is responsible for

initialising the system's configuration (e.g., gathering

applying configurations from FC’s and Devices). It is

also responsible for tracking configuration changes and

planning for future extensions of the system. The Fault

FC is used to identify, isolate, correct and log faults that

occur in the IoT system. The Member FC is responsible

for the management of the membership of any relevant

entity (FG, FC, VE, IoT Service, Device, Application,

User) to an IoT system working in cooperation with the

Authorisation and Identity Management FCs of the

Security FG. The Reporting FC generates reports about

the system and, finally, the State FC can change or

enforce a particular state on the system by issuing a

sequence of commands to the other FCs. Moreover, it

is constantly monitoring the state of the system

notifying subscribers about changes.

3.2 FIWARE Implementaion

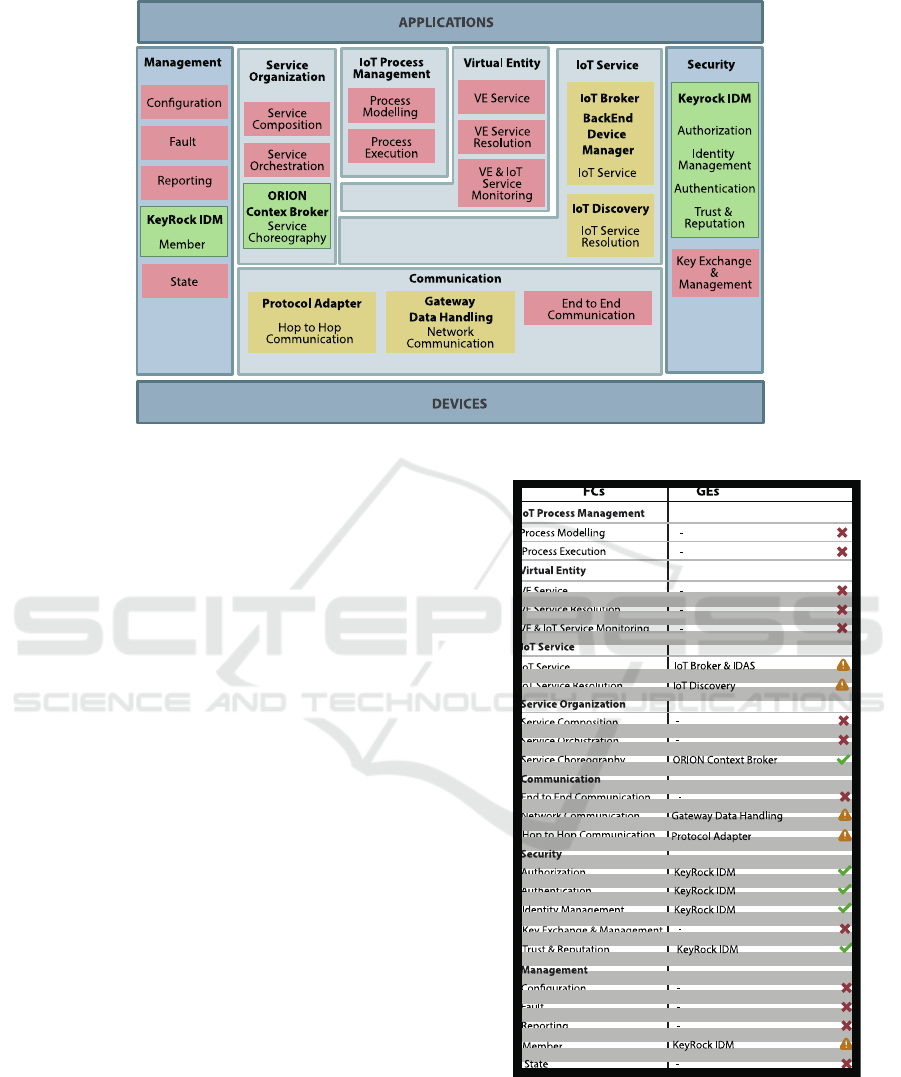

In the following we show how the proposed

architecture can be realized and implemented in

FIWARE using FIWARE GEs. We go through each

FG of the architecture and show which GEs

implement can supply the functionality of FCs

pointing out missing points and weaknesses and

making suggestions.

3.2.1 Service Organization FG

The functionality of the Service Choreography

FCThe is encapsulated by the Orion Context Broker

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

150

GE. The broker offers Publish/Subscribe capabilities,

providing NGSI9/10 interfaces, allowing clients to do

several operations like register context producer

applications, update context information and get

notifications when context information changes take

place or with a given frequency. Finally the broker

allows also to query context information and stores

context information update so queries are resolved

based on that information. The functionalities of the

other two FCs of this FG are not covered by any

FIWARE GE.

3.2.2 Service Organization FG

The functionality of the two FCs in the IoT Service

FG is partially covered by the IoT Discovery, the IoT

Broker and the Backend Device Management (IDAS)

GEs. The IoT Discovery GE allows context producers

to register their IoT Objects in linked-data format and

in turn allows context consumers to discover them

using a set of search techniques. Focuses on

semantically-annotated IoT descriptions to supports

querying via SPARQL. Although the IoT Discovery

GE offers a device discovery mechanism, it does not

offer a service resolution mechanism thus, covers

only partially the functionality of the IoT Service

Resolution FC. A service discovery and resolution

mechanism should be added to this GE. The IoT

Broker GE and the Backend Device Management GE

encapsulate both the functionality of the IoT Service

FC each of them covering different parts of it.

The IoT Broker GE retrieves and aggregates

information from IoT devices acting as a middleware

component that separates IoT applications from

devices. The GE is based on NGSI and closes the gap

between information-centric applications and device-

centric IoT installations by communicating

simultaneously with large quantities of IoT gateways

and devices in order to obtain exactly the information

that is required by the running IoT applications. By

using the broker all IoT devices can be abstracted to

be viewed as NGSI entities on a higher level hiding

the complexity of the Internet of Things from

developers. The IoT broker does not currently support

delivering information to resources in order to control

them or configure them. This is supported by the

Backend Device Management GE. The Backend

Device Management GE, provides an API for M2M

application developers and a device communication

API for device (sensor/actuators/gateways)

communication which currently implements the

SensorML and Lightweight SensorML following

protocols.

The GE Collects data from devices (status etc)

and translates them into NGSI events available at a

context broker. Application developers can use data

and send commands through the broker. An open

source Reference Gateway called "FIGWAY" is also

offered for Raspberry PI and Z-wave devices.

Although this GEs complements the IoT broker

towards supporting the specifications of the IoT

Service FC it does not make a clear separation of the

layers as they are defined by IoT-A and it's

functionality intervenes into the communication

layer. Moreover, The GE currently works only with

FIGWAY meaning that it can collect data and

manage only specific devices controlled by the

Raspberry PI and Z-wave gateways. It should be

extended to support any kind of gateway and support

all protocols other than CoaP (e.g., XMPP, MQTT,

REST).

3.2.3 Communication FG

The Protocol Adapter GE handles low level

communication between devices and the rest of the

IoT system encapsulating the functionality of the Hop

to Hop Communication FC. The GE handles

communication of devices using CoaP over 6LowPan

protocol but currently supports only the IBM Mote

hardware running the Moterunner operating system.

Although it does cover the required functionality, the

protocol Adapter is currently working with specific

devices(Mote) over a specific platform (Moterunner)

and, thus, needs to be extended to be compatible with

all available devices and platforms.

The Network Communication FC functionality is

partially covered by the Gateway Data Handling GE

which is designed to provide a common access in real

time to all data. Using a simple local XML storage,

the GE locally stores relevant processed data and

offers Filtering, aggregating and merging real-time

data from different sources.

Transforms data into events in a way that

applications need only to subscribe to events (data)

which is relevant to them. The GE offers more

functionality of what the Network Communication

FC specifies but goes against the clear separation of

layers as the IoT-A specification does not

contemplate any data processing and handling in the

Communication FG.

3.2.4 Security FG

In the Security FG the KeyRock Identity

Management (IDM) GE provides secure and private

authentication from users to devices, networks and

services, authorization, user profile management and

privacy-preserving disposition of personal data,

IoT-A and FIWARE: Bridging the Barriers between the Cloud and IoT Systems Design and Implementation

151

Figure 4: FIWARE implementation.

encapsulating the functionality of four out of five

FCs. The Key Exchange and Management FC

functionality is not currently supported. Also, as the

KeyRock architecture encapsulates the functionality

of four out of five FCs, the architecture becomes less

modular as there is no clear separation of modules.

3.2.5 Management FG

The functionality of the Member FC is covered by the

KeyRock GE which handles all entities membership

in the IoT system. This way KeyRock encapsulates

functionality of FCs in two different layers of the

architecture demoting modularity and task separation.

The functionality of the remaining Management

FG FCs is not offered by any FIWRARE GE. In

Figure 4 we illustrate the architecture substituting

FCs with FIWARE GEs. Green colour denotes that

the GE can effectively providing the specified

functionality of the FC, yellow that it does so partially

and red denotes there is currently no GE that can

provide the functionality of the FC. Finally, we

provide an array with all FCs and the corresponding

GEs in Figure 5.

Figure 5: IoT-A FIWARE Correlation Table.

4 CONCLUSIONS

Existing IoT architectures have been conceptualized

and implemented to address certain challenges based

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

152

on domain and use case specific requirements not

considering issues of openness, scalability,

interoperability and use-case independence. As a

result they, are less principled, lacking standards and

are vendor or domain specific. More importantly,

they are hardly replicable in the sense that the same

architecture cannot be used in more than one use

cases. The IoT-A project addresses the above

problems by providing the standards and

specifications for designing IoT architectures.

In this work, we focused on the relationship

between FIWARE and IoT-A. We proposed an

architecture based on IoT-A and showed how it can

be implemented on FIWARE using GEs. The results

show that FIWARE cannot currently support IoT

architectures fully compatible with the IoT-A

standards and specifications as it is lacking the tools

(GEs) to do so. New GEs need to be designed and

implemented to provide the required functionality

while a clear distinction of the architecture layers

specified by IoT-A should be made by redesigning

the GEs.

ACKNOWLEDGEMENTS

The research leading to these results has received

funding from the European Unions Seventh

Framework Programme (FP7/2007-2013) under grant

agreement no 604691 (project FI-STAR)

REFERENCES

IoT-A references.

Preventis, A., Stravoskoufos, K., Sotiriadis, S. and Petrakis,

E. (2015), A Future Internet Gesture Recognition Cloud

Service, 14th International Symposium on Parallel and

Distributed Computing, 29 Jun - 01 July, 2015,

Limassol, Cyprus.

Sotiriadis, S., Petrakis, G.M.E., Covaci, S., Zampognaro,

P., Georga, E., Thuemmler, C. (2013) "An architecture

for designing Future Internet (FI) applications in

sensitive domains: Expressing the Software to data

paradigm by utilizing hybrid cloud technology", 13th

IEEE International Conference on BioInformatics and

BioEngineering (BIBE 2013), November 10-13,

Chania, Greece.

IoT-A and FIWARE: Bridging the Barriers between the Cloud and IoT Systems Design and Implementation

153
