Towards Modelling a Cloud Application's Life Cycle

Reginald Butterfield

1,2

, Silia Maksuti

2,3

, Markus Tauber

2,3

, Christian Wagner

and Ani Bicaku

2,3

Management Resource Centre, Vienna, Austria

University of Applied Sciences Burgenland, Eisenstadt, Austria

Austrian Institute of Technology, Vienna, Austria

Keywords: Cloud Application Life Cycle, Security Software Development Life Cycle, Security,

Business Requirements, Risk, Governance, Decision-making.

Abstract: The success of any cloud-based application depends on appropriate decisions being taken at each phase of

the life cycle of that application coupled with the stage of the organisation’s business strategy at any given

time. Throughout the life cycle of a cloud-based project, various stakeholders are involved. This requires a

consistent definition of organizational, legal and governance issues regardless of the role of the stakeholder.

We proffer that currently the models and frameworks that offer to support these stakeholders are

predominantly IT focused and as such lack a sufficient focus on the business and its operating environment

for the decision-makers to make strategic cloud related decisions that benefit their individual business

model. We propose an emerging framework that provides a stronger platform on which to base cloud

business decisions. We also illustrate the importance of this approach through extrapolating the subject of

security from the initial Business Case definition phase, through the Decision Making phase and into the

Application Development phase to strengthen the case for a comprehensive Business-based framework for

cloud-based application decision-making. We envisage that this emerging framework will then be further

developed around all phases of the Application Life Cycle as a means of ensuring consistency.

1 INTRODUCTION

The cloud features (Mell and Grance, 2011) on-

demand self-service, broad network access, resource

pooling, rapid elasticity and measured service makes

cloud computing an attractive infrastructure aid for

modern day applications. Whilst a lot of work has

been invested in engineering issues the overall

processes defining the life cycle of cloud based

applications have not been looked at in great detail.

Such processes or phases involve Business Case-

Definition, Decision Phase, Design Phase, Test-

driven Development Phase, Deployment, Operations

including monitoring, updates, and resource

adaptations until Decommissioning the application.

In this position paper we investigate two major parts

of the life cycle of cloud based applications, as a

starting point: (i) business strategy related phases,

and (ii) secure software development.

We explain details to show the need and how a

framework for guiding the phases of the life cycle

could be supported. This includes, e.g. modelling

issues, which should be dealt with in a consistent

way throughout the life cycle.

Regarding business strategy related phases we

argue that there needs to be a wider business case for

discussion and understanding before any decision is

made whether to move into the cloud environment.

Our argument is based on the notion that the very

promises made about the cloud are, in themselves,

sufficient to bring about unforeseen change in the

whole organisation system. If those changes are not

understood or recognised before entering into any

contractual cloud arrangement, then business owners

and shareholders may rue their decision. Our aim is

to provide a high-level framework to assist decision

makers in coming to terms with the potential impact

of the cloud on their business. The starting point for

our framework is that of the TOE (Technological,

Organizational, and Environmental) framework

researched and developed by Rocco DePietra, et al

(DePietro, et al., 1990). Their framework is

explained in more detail in Section IV through an

overview of the definitions of the TOE framework

constructs. The definitions demonstrate the absence

of the important general business issues that need to

be considered and as such reinforces the need for

further development to be of real assistance to

management in their adoption decision process. In

order to identify and define the additional constructs

310

Butterﬁeld, R., Maksuti, S., Tauber, M., Wagner, C. and Bicaku, A.

Towards Modelling a Cloud Application’s Life Cycle.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 310-319

ISBN: 978-989-758-182-3

of the business model we discuss some of the key

lements of any successful business. This discussion

is followed by a revised TOE framework that we

believe will add further resilience to organisational

decisions about moving to the cloud. Additionally,

we investigate how we can model individual issues

in the individual phases to support creating,

operating and decommission the application.

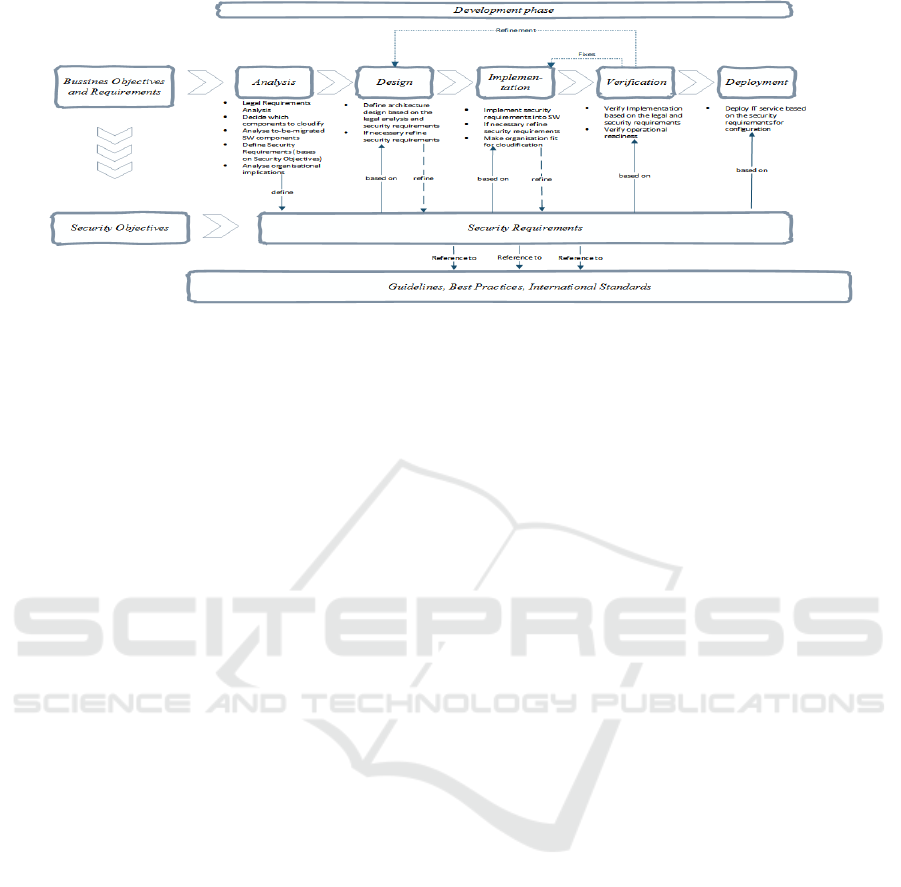

Regarding secure software development we

show the Cloudification Security Development Life

Cycle (CloudSDL) (Wagner, et al., Aug 2015) based

on common security development life cycles

(Howard and Lipner, 2009), (Kissel, et al., 2008),

and (Chandra, 2009). The CloudSDL approach is

built around the security requirements relevant to the

cloudified product. Our approach specifically

considers the software development phase and

allows an integration with the Production /

Maintenance phase.

Our contribution is to show in a discussion of the

two novel approaches how they can be interlinked

with each other, which issues persist in the

individual phases of the life cycle and discuss how

they could be modelled in future work.

The reminder of this paper is as follows: in

Section II, we present the current state of the art. In

Section III, we discuss details about our novel

framework supporting the business strategy related

phase and in Section IV, we provide details about

the CloudSDL. In Section V, we compare both

approaches, discuss how a common approach could

be modelled and give an outlook to our future work.

2 RELATED WORK

2.1 Development Life Cycles for

Cloud-based Applications

Many of the development life cycles only address

technical issues and no such early stages like

business strategy and development are considered,

even though these earlier stages actually define what

should be modelled.

As part of the process-oriented security guideline

in the SECCRIT project (Wagner, et al., Aug 2015),

a Cloudification Security Development Life cycle

(CloudSDL) together with a mapping of security

relevant issues to current best practice guidelines

and standards was developed. At first, to emphasize

the differences between industry and critical

infrastructure providers concerning information

security requirements, two extensive surveys among

regular industry and critical infrastructure provider

experts have been conducted. Based on the result of

the survey analysis a set of 29 relevant security

topics, which have been further mapped to current

best practice guidelines and standards, including

NIST, ENISA, CSA, OPENSAMM, etc. have been

selected. To use such a taxonomy in an effective

way, it has been incorporated into a process

(CloudSDL) that gives attention to the information

security aspects of cloudification. The approach for

CloudSDL has been built around the security

requirements relevant to the cloudified product. The

following use cases for CloudSDL have been

considered: (i) software development for cloud

environment from scratch, (ii) software migration

from legacy system to cloud, and (iii) software

migration from private to public cloud and vice

versa. CloudSDL is composed of five phases:

Analysis, Design, Implementation, Verification and

Deployment. Business strategy has been considered

as a preliminary phase, and so, not detailed in this

work.

With the Cloud Controls Matrix (CCM) (Cloud

Security Alliance (CSA), 2015), CSA provides a set

of fundamental security principles to guide cloud

vendors and assist cloud customers in assessing the

overall security risk of a cloud provider. The matrix

provides a framework in 16 domains that are cross-

walked to other industry-accepted security

standards, regulations, and control frameworks. In

support of this framework, the Consensus

Assessments Initiative Questionnaire (CAIQ) (Cloud

Security Alliance (CSA), s.d.) provides a series of

»yes or no« control assertion questions which can

then be tailored to suit each unique cloud customer’s

requirements. Together, CCM and CAIQ constitute

a comprehensive cloud security control framework.

The library provided by CSA covers different

domains, but does not go into the level of detail we

presented. It also does not explicitly consider a

critical infrastructure use case. Open Security

Architecture (OSA) is a non-profit organization

supported by volunteers for the benefit of the

security community. The main OSA artefacts are

assembled in the OSA Library (Open Security

Architecture (OSA), s.d.). The library contains

security architecture patterns, security controls

(based on NIST SP 800-53) needed to create

security solutions, and a catalogue of related security

threats. Among others, the OSA Library also

contains the Cloud Computing Pattern SP-011,

which comprises a list of applicable security controls

for cloud computing. A complete catalogue of

OSAcontrols is available on-line.

Towards Modelling a Cloud Application’s Life Cycle

311

2.2 Cloud and Organisational Forms

The impact of cloud computing technologies on

management practices and business strategies is not

only an area for investigation, but little research has

been conducted into the extent to which it impacts

on the organisation’s strategy, business model,

structure or management processes.

The business case for organisations moving more

into the cloud is predominantly based on the

financial gains (Armbrust et al., 2009); competitive

advantage (Truong, 2010); flexibility through on-

demand and self-service (Bias, 2010) and reduced

purchasing risks (Leavitt, 2009). At the same time

many risks are identified predominantly around

security and accountability (Greenwood and Khajeh-

Hosseni, 2010), technical business failures (Bisong

and Rahman, 2011) and lack of standards (Leavitt,

2009).

Cloud literature and marketing emphasis tends to

be geared towards technical and financial factors in

the deployment of the technology with limited

reference to the organisation’s supply chain strategy

or the impact on the organisation itself.

In order for a resource to add value to an

organisation and develop its competitive advantage

it must add value, be rare, inimitable and it cannot

be substitutable (Wright and McMahan, 1992).

Equally, the resource based view suggests that new

technologies are more likely to provide a unique

competitive advantage if they are firm specific and

cannot easily be copied by competitors. Cloud

computing models are in many ways the antithesis

of the resource view.

Irrespective of the organizational size, the cloud

arguably permits the purchase of relatively high-

level ICT services from specialist external providers.

Cloud providers will generally supply ICT services

to a number of firms as generic ‘‘off the shelf’’

products and services, rather than firm-specific ICT

services (Ryan and Loeffler, 2010).

The increasing commoditisation of ICT is seen

as ‘‘the twenty-first century vision of computing’’,

as cloud-based ICT providers increasingly mirror

utilities with customers buying ICT services as

required (Buyya et al., 2009). If this is the case, how

does an organisation gain competitive advantage if

everybody is buying cloud technology off-the-shelf

at relatively cheap prices? It is our view, supported

by Ross and Blumenstein that “ Cloud computing

business models therefore require ICT sections to

play a more strategic role within firms, as opposed

to the more isolated ‘‘cost centre’’ role that many

ICT departments have played in the past ” (Ross and

Blumenstein, 2013, p.42). A high risk for business is

that the commoditisation of the cloud will have a

similar impact as the quality and efficiency

programs that organisations follow; they end up as

efficient as one another because they use similar

processes and equipment. The only realistic outcome

is price as the major differentiator. It has long been

understood that the ‘DNA’ of an organisation is the

only real way of having a strategic advantage over

competitors; it is the one thing that they cannot

copy. Most literature relating to business cases for

cloud implementation alludes to the need to consider

the organisation itself, albeit most is focused on the

IT section of the organisation (Ross and

Blumenstein, 2013, p.5). We found none that

discussed in detail the impact on organisations

overall.

2.3 Business Strategy

2.3.1 Organisational Strategy

Business growth is arguably the main objective of

any enterprise and ‘resource management’ is one

parameter of business growth. This is epitomised by

the need to focus on containing costs and increasing

efficiencies in order to generate profits and maintain

competitiveness. Supply chain management (SCM)

and its optimisation is a critical aspect of enterprises

and the IT department plays a major role in this

process of optimisation. The convergence of

business units and the IT department using state-of-

art cloud technology is seen as a solution to optimise

complicated supply chains (Manuel, et al., 2013).

Cloud providers’ publications and journal

articles push for organisations to use their public

cloud facilities as part of their business strategy.

They focus on the argument that public cloud is a

better choice from the perspective of resource

management since it provides the least elasticity.

Whilst resource management is one of the

parameters of the growth business objective and

even though public cloud is an optimal model from

the perspective of resource management, the

question remains if the public cloud is the most

suitable from a business strategy perspective.

Manuel, et al provide a good argument for

adopting the community cloud as the optimal model

in the case of supply driven enterprises (Manuel et

al., 2013, pp. 209-302). According to their study,

and Google and Amazon marketing, it is true that

the public cloud is the choice for optimisation of

resource management; yet business growth is

optimised through community cloud application.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

312

This important study indicates that when

organisations decide on the type of cloud services to

adopt, it is essential to consider the strategy and

objectives of the business before commitment. We

have included the strategic parameters in our

emerging framework.

2.3.2 Business Model

The deployment of cloud facilities in an organisation

is a strategic decision and as such requires a clear

understanding of its impact or potential impact on

the pertaining or future business model. The cloud

can be seen as a “New Market” disruptive

innovation that has led to the servitization of the IT

industry and most importantly, implementing this

innovation is likely to require a fundamental and

cultural change in how organisations view their IT

resources, conduct their business, and prepare for the

future (Sultan, 2014, pp. 375, 385).

The potential opportunities or impact on the

business is clearly set out in a white paper “Above

the Clouds” (Armbrust et al., 2009, pp. 1, 2, 4) as

follows:

 Avoid missed business opportunities from under-

provisioning and over-provisioning

 Responsive service to variable demand

 Pursue emergent and explorative new business

market opportunities hitherto unforecast or

predicted

 Perform cost associative tasks fast and at lower

cost

 Decouple utility services and brokering from

business front end (the “fab-less” chip foundries

example)

 Make more money from amortizing economies

of scale

 Leverage existing investments through hybrid

means

 “Anywhere” services, “border-less” delivery

The opportunities offered through the developments

of the cloud mean that the introduction of the cloud

can have a disruptive potential on an organisation’s

business model. Current discussions around the

business cases to introduce the cloud seldom

indicate that such a strategic understanding is of

importance and benefit to consider before moving to

the cloud. Discussions are predominantly around the

strategic case for the IT element as opposed to the

whole business model. We contend that this is an

important omission and our emerging framework

includes this critical aspect. The relationship

between business model and strategy has been a

matter of debate among strategy and organisation

scholars (Achtenhagen et al., 2013) and the

longitudinal case study of Saeed Khanagha et al.,

sought to understand why and how strategy and

business models are interrelated (Khanagha et al.,

2014). Their study indicates that it can be inferred

that, irrespective of the degree of uncertainty, the

design and implementation of a new business model

is a function of an organisation’s strategy at a given

period in time.

It is our contention that any organisation that is

moving to the Cloud needs to be aware of the impact

on the strategy, business model and the effect that

this will have on the structure of that organisation.

2.3.3 Organisational Structure

When contemplating significant changes to an

organisation’s strategy and business model it is

important to identify the implications of such

changes on the structure of the organisation itself.

Tarabanis et al., state that the organisational

structure consists of values, visions and power,

which influence the development of strategic

processes (Tarabanis et al., 2001). According to

Iyamu, some factors that influence the

institutionalisation of the EA include organisational

structure, economic investment, administrative

processes and politics evident within the

organisation’s structure, technical capabilities and

business buy-in (Iyamu and Mphahlele, 2014).

Morton and Hu (Morton and Hu, 2008, p. 399)

also have identified the importance of considering

the organisational structure and have linked their

findings to five forces:

 the pull exerted by the strategic apex to

centralize and to coordinate by direct supervision

in order to retain control over decision making

 the pull exerted by the techno-structure to

coordinate by standardization

 the pull exerted by the operators to

professionalize

 the pull exerted by middle managers to

Balkanize, or to divide the structure into market-

based units

 the pull exerted by the support staff (and by the

operators as well in the operating adhocracy) for

collaboration in decision-making.

In their case study approach to Enterprise

Architecture (EA) implementation, Iyamu and

Mphahlele identified that “…organisational structure

influences and has impact on the deployment of EA

in the organisation.” (Iyamu and Mphahlele, 2014,

p.18).

Cámara et al., “…highlight the importance of

Towards Modelling a Cloud Application’s Life Cycle

313

aligning IT-enabled capabilities and supply chain

integration to improve the operational performance

of supply chain members. The results specifically

suggest that technological breakthroughs like cloud

computing enable supply chain integration, which in

turn yields greater operational performance.”

(Cámara et al., 2015, p. 443).

It is important to note that cloud computing has a

positive and significant effect on the company’s

operational performance only when it contributes to

greater supply chain integration (Cámara et al.,

2015, p. 446). This reinforces the need for a more

strategic view of the introduction and management

of cloud computing and the associated structural

changes of the organisation because of the potential

to affect the whole organisation and its operations.

The introduction of cross-functional teams is one

way to introduce this strategic role for ITC.

As the product and service markets become more

internet based and/or supported the more important

developing cross-functional teams becomes in order

to link and coordinate the operations side with the

ICT colleagues. Such changes require a new form of

organisation that moves away from the often-found

‘silo’ mind-set and structure. The development and

implementation of resource-based changes requires a

strategic input from the Human Resources (HR)

section. The study by Iyamu and Mphahlele

reinforces the need for HR to align and deliver

appropriate policies, “…In conclusion, the people,

processes and technology are considered important

agents in the deployment of the EA.Without proper

policies, the synchronisation of effort and focus

among the factors (people, processes and

technology) could not be achieved. This could deter

and further disintegrate the strategic alignment (IT

and business) and the EA deployment as a whole.”

(Iyamu and Mphahlele, 2014, p. 17).

2.3.4 Governance

Governance is a critical aspect of organisational

management and responsibility. When considering

change in the technological map of an organisation it

is argued that governance of the IT is becoming a

more difficult aspect to resolve and as such needs

specific attention during any decision-making phase.

Peterson (Peterson, 2004) defined information

technology governance as “…the distribution of IT

decision-making rights and responsibilities among

different stakeholders in the enterprise, and defines

the procedures and mechanisms for making and

monitoring strategic IT decisions.”

Until the beginning of the 21

Century,

governance was more about standards and

centralised management. It then moved from

centralised to federated technology governance

models and then to a more participatory form of

models (Andriole, 2015). Andriole’s analysis

indicates that governance now involves more

stakeholders than ever before with many of them

outside of the organisation itself. It also suggests that

participatory governance is emerging as the

predominant model for the 21

Century and is

accelerating amongst those companies who adopt

cloud computing (Andriole, 2015, p. 50).

Governance is also linked to the legal

responsibilities of an organisation in areas such as

data protection and industry and regulation

compliance. This, coupled with the need to protect

confidential business data, reinforces the need to

include governance as one of the elements of our

emerging framework.

2.3.5 Business Security

Moving IT services to the cloud creates additional

security challenges that need to be considered as part

of the business case for moving to the cloud. A

survey of industry experts by the Cloud Security

Alliance identified nine major areas considered the

most vulnerable (Cloud Security Alliance, 2013).

These are data breaches, account & service

hijacking, insecure interfaces & APIs, denial of

service, malicious insiders, abuse of cloud services,

insufficient due diligence, and shared technology

vulnerabilities. Whilst many of these will be catered

for during the ‘Design phase’ of the Cloud

Application Life-Cycle and discussed later in this

paper, it is important for these areas to be given

consideration at the higher level as part of the

‘Decision phase’. In addition to these nine specific

areas, we propose that corporate decision makers

also need to consider three major business areas

specifically associated with their business operations

and industry when making decisions:

 Data Residency - In many countries there is

legislation that requires specific forms of data to

be located within defined geographical areas;

these may be dictated by the location of the

company itself or the location at which it operates.

 Data Privacy - Business data is often so

sensitive to the business’ operations and survival

that it requires very specific protection than is

required by the less sensitive data.

 Industry and Regulation Compliance - Many

organisations have access to and are responsible

for data that is highly regulated and restricted. In

gaining access to this data, the organisations are

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

314

required to follow defined standards in order to

safeguard the private and business data as well as

comply with relevant laws.

An often overlooked aspect of cloud services is the

ease with which staff in organisations are able to

implement their own activities and cloud storage

without authorisation. An example of this is in a

recent article by Joe Mont (Mont, 2016, p. 49) where

a company of 150,000 employees found out that the

employees were using nearly 900 cloud-based

applications and programmes that relied upon some

form of online storage. The company authorized

only 20 of these applications. The security issues

around such a situation are significant and it is

unlikely that this company is an exception to what is

currently happening across the business world.

We argue that it is absolutely imperative that the

governance issues are discussed and agreed before a

decision to move to the cloud is made and as such is

included in our emerging framework.

2.4 State-of-the-Art TOE Framework

The TOE framework is an organisation-level theory

that represents one segment of the innovation

process, i.e. how the firm context influences the

adoption and implementation of innovations (Baker,

2011). Based on this framework, the technology

innovation adoption process is influenced by three

aspects of an enterprise’s context: Technological,

Organisational and Environmental (Alshamaila and

Papagiannidis, 2013, p. 253).

The TOE framework, shown below in figure 1, is

almost entirely designed from an IT organisational

perspective and as such does not, in its current

format, assist readers to identify the fundamental

issues around the wider organisational business

systems. Limited exceptions to this are the subject of

complexity and, competitive pressure.

Figure 1: TOE framework for SME adaption of on-

demand computing services (DePietro et al., 1990).

Without going into the finite detail of the TOE

framework here, Table 1 provides an overview of

the definitions of the TOE framework construct. The

definitions demonstrate the absence of any of the

important general business issues that need to be

considered and as such reinforces the need for some

further development if it is to be of real assistance to

management in their adoption decision process.

Table 1: Definitions of the TOE framework constructs

(Alshamaila and Papagiannidis, 2013, p. 256).

Refers to

Technological

Relative

advantage

The degree to which an innovation is

perceived as being better than the idea

it supersedes (Rogers, 2003)

Uncertainty

The extent to which the results of

using an innovation are insecure

(Ostlund, 1974); (Fuchs, 2005).

Compatibility

The degree to which an innovation is

perceived as consistent with the

existing values, past experiences, and

needs of potential adopters (Rogers,

2003)

Complexity

The degree to which an innovation is

perceived as relatively difficult to

understand and use (Rogers, 2003)

Trialability

The degree to which an innovation

may be experimented with on a

limited basis (Rogers, 2003)

Organisational

Size The size of the company

Top

management

support

Devoting time to ICT programme in

proportion to its cost and potential,

reviewing plans, following up on

results and facilitating the

management problems involved with

integrating ICT with the management

process of the business (Young and

Jordan, 2008)

Innovativeness

The extent to which a client adopts

innovations earlier than other

members of the same social context

(Rogers and Shoemaker, 1971)

Prior

technology

experience

The extent of a user’s experience with

previous similar technologies (Heide

and Weiss, 1995)

Environmental

Competitive

pressure

The degree of pressure felt by the firm

from competitors within the industry

(Oliveira and Martins, 2010)

Industry

The sector to which the business

belonged (Yap, 1990); (Goode and

Stevens, 2000)

Market scope

The horizontal extent of a company’s

operations

Supplier

computing

support

The supplier activities that can

significantly influence the probability

that an innovation will be adopted

(Frambach et al., 1998)

Towards Modelling a Cloud Application’s Life Cycle

315

3 AN EXAMPLE USE CASE AND

A MODEL/FRAMEWORK

PROTOTYPE

This paper is not an exhaustive study of

organisations and change. It has sought to

demonstrate that whilst the adoption of the cloud

may be a perfect IT solution for many companies it

is also important to take into account the wider

aspects of the business and the reason for its

existence. Operating a successful business is a

continuing struggle to motivate and maintain the

cooperation of the many actors within the

organisation as well as those who are outside, such

as providers, suppliers and customers. The role of IT

in organisations is no longer a standalone function of

supply and maintenance; it is now a strategic partner

enmeshed in the business as a whole at all levels.

Table 2: Definitions of the Adapted Construct of the TOE

framework constructs.

Business Strategy

Strategy

Refers to: the mission, vision and strategy

of the mission, vision and strategy of the

company or organisation – its direction.

Business

model

Refers to: the rationale of how the

organisation creates, delivers, and

captures value in economic, social,

cultural or other contexts.

Governance

Refers to: the distribution of decision-

making rights and responsibilities among

different stakeholders in the enterprise

and its providers, suppliers and

customers.

Structure

Refers to: how activities such as task

allocation, coordination and supervision

are directed toward the achievement of

organisational aims. It can also be

considered as how individuals see their

organisation and its environment.

Security

Refers to: identifying the risks involved

around the areas of data residency, data

privacy and industry & regulation

compliance.

Culture

Refers to: the collective values, beliefs,

behaviours and principles of

organisational members.

Power

structure

Refers to: the way in which power or

authority is distributed between people

within groups: government, institution,

organisation, or a society.

Unique

DNA

Refers to: the combination of formal and

informal traits that determine your

company’s identity and performance.

HRM

Refers to: a function in organisations

designed to maximise employee

performance in the service of an

employer's strategic objectives

We have extended the TOE framework and

included the following elements that we have shown

are important contributors to the decision to adopt

the cloud or not. These constructs are now described

in the style of the original TOE framework:

Figure 2 adds the additional aspect of Business

Strategy to the original TOE framework. In doing

so, we believe that the framework is emerging

towards a suitable set of constructs for management

to use when making the important decisions around

the adoption of cloud technology.

Figure 2: TOE framework for SME adaption of on-

demand computing services – adapted (DePietro et al

1990).

Figure 3 provides a high-level overview of the

Cloud Service Life Cycle including a Change

Management Cycle with the addition of the Business

Strategy construct in location.

Figure 3: The Cloud Application Life Cycle.

4 CloudSDL

Based on literature research and two extensive surveys

among critical infrastructure providers and regular

industry we have built a list of security controls and

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

316

Figure 4: Cloudification Security Development Life Cycle (Wagner, et al., Aug 2015).

linked it to relevant best-practice guidelines and

international standards, in which the topic is

addressed. This security taxonomy can be consulted

during the process of migrating IT systems to the

cloud (Wagner et al., Aug 2015). According to our

literature review there is currently no security

development life cycle that explicitly takes into

account a cloud migration scenario, so we used this

taxonomy as a starting point to build a process

around it, which we named the Cloudification

Security Development Life Cycle (CloudSDL).

As shown in Figure 4 the CloudSDL contains

five phases (Analysis, Design, Implementation,

Verification, and Deployment) with two preliminary

phases: (1) Business Objectives and Requirements,

and (2) Security Objectives.

The CloudSDL is based on well-known security

development life cycles (Howard and Lipner, 2009),

(Kissel et al., 2008), and (Chandra, 2009) for the

secure development of software applications.

During the Analysis phase, a decision is made

upon which service or which part of a service is to

be migrated to cloud. The IT service that is to be

cloudified is analysed for cloud fitness (e.g., risk

assessment), and an initial set of security

requirements relevant for the service is specified. In

this phase, we also suggest an analysis of the

implications that the cloudification of the IT service

has on the organization and the business. In the

Design phase, the software architecture for the to-

be-migrated IT service is constructed based on the

security requirements specified in the analysis phase.

If necessary, refinements to the security

requirements are made. Based on the design, the

software is implemented in the Implementation

phase. Additionally in this phase, the organization is,

where necessary, prepared for the use of the

cloudified IT service. In the Verification phase, the

software is tested against the specified security

requirements. In addition, the readiness of the

organization for the cloudified IT service shall be

verified (e.g., special disaster recovery strategies,

trainings, or revisions of SLAs might be required). If

the verification does not succeed, either further

implementation effort needs to be taken and/or the

design needs to be revised. In the final phase of the

CloudSDL, the IT service is deployed on the cloud

environment, taking into account the security

requirements related to platform configuration.

5 DISCUSSION

The extensive marketing of cloud services adoption

focusses on the IT benefits and that as a result those

services become more cost effective and technically

flexible than traditional solutions. The IT and

management literature and journals show that this

has led to significant discussion amongst the IT

professionals and other organisational stakeholders.

The cloud provider market has expanded

significantly and it makes an overwhelmingly wide

range of technologies available. This is causing

confusion amongst corporate level stakeholders

(Hernandez, 2015). This confusion has led to a lot of

industry effort into explaining the various

terminologies and methodologies of their products

and services; focusing primarily on IT with

emphasis on flexibility, scaling, availability and

associated IT infrastructure cost reduction. Using

this information, the business decision makers are

encouraged to move to the cloud some or all of their

IT. However, there is much more to a business than

the IT infrastructure alone.

We argue that it is critical for the organisational

decision makers to be very clear of their business

case for moving to the cloud and, given the sense of

Towards Modelling a Cloud Application’s Life Cycle

317

confusion amongst the corporate decision makers, a

high-level framework is important to help focus on

the non-IT related aspects as well as the IT itself.

Porter and Heppelmann reinforce this with their

discussion about the wide ranging impact that the

connected technology is starting to have on the way

that businesses are organised and managed, both

internally and externally (Porter and Heppelmann,

2015). We have shown in this paper that the

operational business side of the equation is often

alluded to and yet gets lost amongst the plethora of

cloud providers’ technical marketing reasons for

changing the IT infrastructure.

We have used the TOE framework as the basis

for an emerging framework that includes the crucial,

yet often neglected, business elements that we argue

need to be considered when deciding whether or not

to move to the cloud. In doing so, we are supporting

the recognised IT elements of the decision making

process and reinforcing these with the overall

business model and operational strategy; we have

labelled this as the Business Strategy element of the

framework.

Whilst we have included nine new items into the

extended TOE framework, it is important to

demonstrate that these additional items are not solely

confined to the ‘Decision making phase’ of the

Cloud Application Life Cycle (CALC). Given the

impact of the cloud across the whole organisation,

each of these is to be considered in different ways

during the remainder of the CALC. To illustrate this,

we have taken the issue of Security as an example of

how it links from the ‘Business case definition

phase’ through the ‘Decision phase’ to the ‘Design

phase’. In doing so we show the key aspects of

security that need to be considered from the business

side of the equation as well as those from an IT

perspective. We then use our primary research

results (Wagner et al., Aug 2015) to provide process

based guidelines for critical infrastructure providers

focussing on information security. In doing so, it

supports the critical infrastructure providers in

migrating their services to the cloud.

6 CONCLUSIONS

In this paper we have identified the need for the

decision making process to opt for transition of IT

services to the cloud in some form or another to

include the whole business as opposed to

predominantly the IT case. In response to this need,

we have extended the TOE framework.

Whilst we have extended the TOE framework,

we are aware that it is not exhaustive and will

require further development. For example, we have

not included the Customer. Currently there is limited

research in customer impact, satisfaction and quality

around the provision of cloud services. We suggest

that this is the next important stage of the framework

development. In addition, it is necessary to further

elaborate on the interconnection between the

Decision-making process in the TOE framework and

the technological development of the cloudified IT

system. A first step towards that goal has been made

by introducing the preliminary activities Business

Objectives and Requirements, and Security

Objectives. Also in the Analysis phase of the

CloudSDL, organisational aspects are taken into

account. Nevertheless, a more coherent approach

should be investigated as part of our future work.

ACKNOWLEDGEMENTS

The research presented in this paper has been funded

by the European Union (FP7 project SECCRIT,

Grant No. 312758).

REFERENCES

Achtenhagen, L., Melin, L. & Naldi, L., 2013. Dynamics

of business models – strategizing, critical capabilities

and activities for sustained value creation. Long Range

Planning, 46(6), pp. 427-442.

Alshamaila, Y. & Papagiannidis, S., 2013. Cloud

computing adoption by SMEs in the northeast of

England. Journal of Enterprise Information

Management, 26(3), pp. 250-275.

Andriole, S. J., 2015. Who Owns It?. Communications of

the ACM, 58(3), pp. 50-57.

Armbrust, M. et al., 2009. Above the Clouds: A Berkeley

View of Cloud Computing, Berkeley: s.n.

Baker, J., 2011. The technology-organization-environment

framework. In: Information Systems Theory:

Explaining and Predicting Our Digital Society. New

York (NY): Springer, pp. 231-246.

Bias, R., 2010. The Cloud is not outsourcing. Cloudbook,

1(2), pp. 11-13.

Bisong A & Rahman S, 2011. An Overview of the

Security Concerns in Enterprise Cloud Computing.

International Journal of Network Security & Its

Applications (IJNSA), 3(1).

Buyya, R. et al., 2009. Cloud computing and emerging IT

platforms: vision, hype, and reality for delivering

computing as the 5th utility. Future Generation

Computer Systems, 25(6), pp. 599-616.

Cámara, S. B., Fuentes, J. M. & Marín, J. M. M., 2015.

Cloud computing, Web 2.0, and operational

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

318

performance - The mediating role of supply - chain

integration. The International Journal of Logistics

Management, 26(3), pp. 426-458.

Chandra, P., 2009. The Software Assurance Maturity

Model - A guide to building security into software

development, s.l.: s.n.

Cloud Security Alliance (CSA), 2015. Cloud Controls

Matrix, s.l.: s.n.

Cloud Security Alliance (CSA), s.d. Consensus

Assessments Initiative Questionnaire, s.l.: s.n.

Cloud Security Alliance, 2013. The Notorious Nine Cloud

Computing Top Threats in 2013, s.l.: Cloud Security

Alliance.

DePietro, R., Wiarda, E. & Fleischer, M., 1990. The

context for change: organization, technology and

environment, in Tornatzky, L.G. and Fleischer, M.

(Eds), The Process of Technological Innovation.

Lexington(MA): Lexington Books.

Frambach, R., Barkema, H., Nooteboom, B. & Wedel, M.,

1998. Adoption of a service innovation in the business

market: an empirical test of supply-side variables.

Journal of Business Research, 41(2), pp. 161-174.

Fuchs, S., 2005. Organizational Adoption Models for

Early ASP Technology Stages: Adoption and Diffusion

of Application Service Providing (ASP) in the Electric

Utility Sector, Vienna: s.n.

Goode, S. & Stevens, K., 2000. An analysis of the

business characteristics of adopters and non-adopters

of World Wide Web technology. Information

Technology and Management, 11(2), pp. 129-154.

Greenwood, D. & Khajeh-Hosseni, A., 2010. The Cloud

Adoption Toolkit: Addressing the Challenges of Cloud

Adoption in Enterprise, s.l.: s.n.

Heide, J. & Weiss, A., 1995. Vendor consideration and

switching behavior for buyers in high technology

markets. The Journal of Marketing, 59(3), pp. 30-43.

Hernandez, P., 2015. Path to Digital Business

Transformation Gets Cloudy. eWeek, 11 April.p. 1.

Howard, M. & Lipner, S., 2009. The Security

Development Life Cycle, s.l.: O'Reilly Media.

Iyamu, T. & Mphahlele, L., 2014. The impact of

organisational structure on enterprise architecture

deployment. Journal of Systems and Information

Technology, 16(1), pp. 2-19.

Khanagha, S., Volberda, H. & Oshri, I., 2014. Business

model renewal and ambidexterity: structural alteration

and strategy formation process during transition to a

Cloud business model. R&D Management, 44(3).

Kissel, R. et al., 2008. SP 800-64 Security considerations

in the System Development Life Cycle, s.l.: s.n.

Leavitt, N., 2009. Is Cloud Computing Really Ready for

Prime Time?. Computer, 42(1), pp. 15-20.

Manuel, P., Al-Hamadi, H. & Qureshi, K., 2013.

Challenges, strategies and metrics for supply-driven

enterprises. Annals of Operations Research.,

March.pp. 293-303.

Mell, P. & Grance, T., 2011. The NIST definition of cloud

computing, s.l.: NIST.

Mont, J., 2016. Cloud Security is a Challenge for Users

and Providers. Compliance Week, January, 13(144),

pp. 49-65.

Morton, N. A. & Hu, Q., 2008. Implications of the fit

between organizational structure and ERP: A

structural contingency theory perspective.

International Journal of Information Management,

Volume 28, pp. 391-402.

Oliveira, T. & Martins, M., 2010. Understanding e-

business adoption across industries in European

countries. Industrial Management & Data Systems,

110(9), pp. 1337-1354.

Open Security Architecture (OSA), s.d. OSA Library, s.l.:

s.n.

Ostlund, L., 1974. Perceived innovation attributes as

predictors of innovativeness. The Journal of Consumer

Research, 1(2).

Peterson, R., 2004. Crafting information technology

governance. EDPACS: The EDP Audit, Control, and

Security Newsletter, 32(6), pp. 1-24.

Porter, M. E. & Heppelmann, J. E., 2015. How Smart

connected products are transforming companies.

Harvard Business Review, October, 93(10), pp. 96-

114.

Rogers, E., 2003. Diffusion of Innovations. New York

(NY): Free Press.

Rogers, E. & Shoemaker, F., 1971. Communication of

Innovations: A Cross-Cultural Approach. New York

(NY): Free Press.

Ross, P. & Blumenstein, M., 2013. Cloud computing: the

nexus of strategy and technology. Journal of Business

Strategy, 34(4), pp. 39-47.

Ryan, W. & Loeffler, C., 2010. Insights into cloud

computing. Intellectual Property & Technology Law

Journal, 22(11).

Sultan, N., 2014. Servitization of the IT Industry: The

Cloud Phenomenon. Strategic Change: Briefi ngs in

Entrepreneurial Finance, Volume 23, pp. 375-388.

Tarabanis, K., Peristeras, V. & Fragidis, G., 2001.

Building an enterprise architecture for public

administration: a high level data model for strategic

planning. Bled, s.n.

Truong, D., 2010. How Cloud computing Enhances

Competitive Advantages: A Research Model for Small

Businesses. The Business Review, 15(1), pp. 59-65.

Wagner, C. et al., Aug 2015. Impact of critical

infrastructure requirements on service migration

guidelines to the cloud, s.l.: Future Internet of Things

and Cloud (FiCloud).

Wright, P. & McMahan, G., 1992. Theoretical

perspectives for strategic human resource

management. Journal of Management, 18(2), pp. 295-

320.

Yap, S., 1990. Distinguishing characteristics of

organizations using computers. Information and

Management,

18(2), pp. 97-107.

Young, R. & Jordan, E., 2008. Top management support:

mantra or necessity?. International Journal of Project

Managemen, 26(7), pp. 713-725.

Towards Modelling a Cloud Application’s Life Cycle

319
