Revisiting Arguments for a Three Layered Data Warehousing

Architecture in the Context of the Hadoop Platform

Qishan Yang and Markus Helfert

Insight Centre for Data Analytics, School of Computing, Dublin City University, Dublin, Ireland

Keywords: Data Warehouse Architecture, Three Layers, Hadoop, Hive, HBase.

Abstract: Data warehousing has been accepted in many enterprises to arrange historical data, regularly provide reports,

assist decision making, analyze data and mine potentially valuable information. Its architecture can be divided

into several layers from operated databases to presentation interfaces. The data all around the world is being

created and growing explosively, if storing data or building a data warehouse via conventional tools or

platforms may be time-consuming and exorbitantly expensive. This paper will discuss a three-layered data

warehousing architecture in a big data platform, in which the HDFS (Hadoop Distributed File System) and

the MapReduce mechanisms have been being leveraged to store and manipulate data respectively.

1 INTRODUCTION

As the organizations’ data repository, the data

warehouse was stated that it is a subject oriented,

integrated, non-volatile and time-variant collection of

data in support of management’s decision (Inmon et

al., 2010). The hub-and-spoke model or the top down

approach is used to build a data warehouse in which

each data mart is built on a central data warehouse.

According to Kimball (2002), “data warehouse is the

conglomerate of all data marts within the company.

Information is always stored in the dimensional

model”. It is a bottom-up approach to develop a data

warehouse. Conformed dimensional tables and data

warehouse bus matrixes play vital roles to provide

consistent dimensions for fact tables and guidelines

for implementation of data marts independently and

asynchronously.

A data warehousing architecture can be assorted

into three classifications: the single-layer data

architecture, the two-layer data architecture and the

three-layer data architecture (Devlin and Cote, 1996).

The primary mechanism of the single-layer (real-time

layer) is all data sets are stockpiled once only (Inmon,

1997). An operational system and a data warehousing

system share the completely identical data resources.

The two-layer data architecture adds a derived data

layer which enables operational and informational

requirements to be fulfilled separately. This approach

addresses the single-layer architecture problems, but

it also has some limitations. It has low performance

in inhomogeneous or large volumes of data resources

(Devlin and Cote, 1996). The three-layer data

architecture is comprised of a real-time data layer, a

reconciled data layer and a derived data layer (IBM,

1993). It takes advantages of a reconciled data layer

to clean data, solve inconsistent issues and prepare

data.

Data warehouses and OLAP (Online Analytical

Processing) systems are decision-making support

technologies to analyze large volumes of data online

(Inmon, 1996). A traditional operational database

may contain a few years’ real-time data. A data

warehouse, however, comprises several decades’

datasets from heterogeneous resources. It is possible

that a company has a petabyte sized data warehouse

which may consist of structured data and unstructured

data. Unstructured data is approximately four to five

times as much as structured data (Inmon et al., 2010).

In the age of big data, there are some challenges

to store and operate the vast volume of information

for data mining and analysis in an acceptable period

of time. This situation forces people to build data

warehouses on big data platforms. When reviewing

the relative literature, there is some research which

only developed few parts of DWH architectures on

big data platforms. The motivation of this paper is to

implement a system including all parts and reconsider

the argumentation of the three-layered warehousing

architecture in the context of big data. The main

contribution of this research is to provide a guideline

Yang, Q. and Helfert, M.

Revisiting Arguments for a Three Layered Data Warehousing Architecture in the Context of the Hadoop Platform.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 329-334

ISBN: 978-989-758-182-3

329

to build a data warehousing system from data

resources to OLAP in Hadoop and investigate the

three layered DWH architecture still has many

advantages within a big data framework. The

structure of this paper is organized as follows. Section

2 illustrates the related work in this field. Section 3

describes the three-layered data warehousing

architecture. Then the results description is

demonstrated in section 4. The conclusion is provided

in section 5.

2 RELATED WORK

2.1 The Three-layer Data Architecture

The three-layer data architecture comprises real-time

data, reconciled data and derived data (Devlin and

Cote, 1996). The outline of the architectural

framework and its data flow are depicted in figure 1

below .

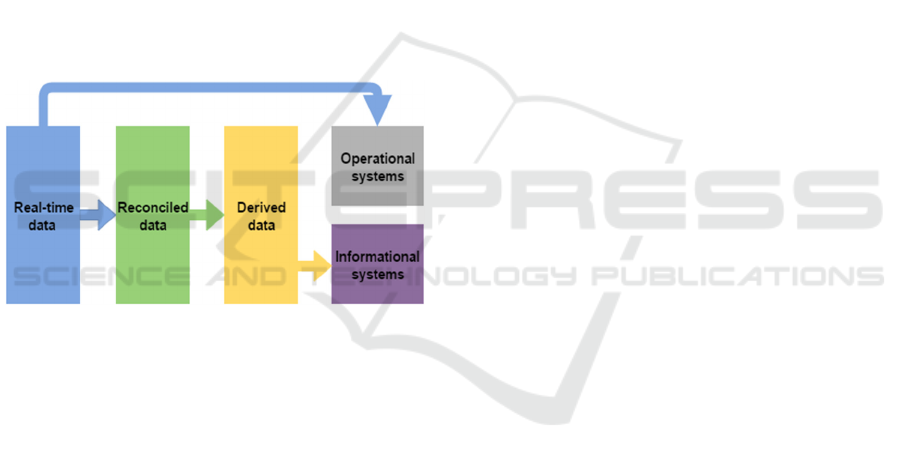

Figure 1: The outline of a three-layer data warehouse

architecture.

 Real-time data is generated by operated or

production applications and it is stored in

operational systems like DBMS or other data

resources;

 Reconciled data is derived from real-time data

and it is placed in data staging and data

warehousing areas in which the data is cleansed

and for further manipulations;

 Derived data is a repository of cleaned,

integrated or even summarized data for

analysis, decision-making, OLAP system etc.

When data resources have physical distances

mutually or have data inconsistent problems, data

warehouse systems could get benefits from the three-

layered data architecture rather than the single-layer

or the two-layer data architecture.

2.2 Hadoop

Hadoop is a system to store and batch large quantities

of data. It has high performance in ad hoc storage and

analysis on petabyte of data (White, 2012). According

to Apache Hadoop (2016), it is a highly throughput,

parallel and fault-tolerant platform, and it has two

critical frameworks, the HDFS and the MapReduce

which play vital roles in storing and operating data.

 HDFS is the acronym of the Hadoop

Distributed File System, which supplies high-

throughput access to operated data;

 MapReduce is a programming system for

parallel processing of large data sets and it

provides two main functions (Mapper and

Reducer) for users to manipulate this

framework.

These mechanisms are being widely used in

corporations like Apple, eBay, LinkedIn, Yahoo and

Facebook (Holmes, 2012).

2.3 Hive

As a data warehouse tool, Hive promotes the

performance of querying and managing large datasets

in distributed storage. It has some significant

characteristics listed below.

 It provides tools to facilitate ETL;

 It has a mechanism to conform data with

diverse formats ;

 It has the ability to query data from HDFS and

other data resources;

 Its jobs are divided and executed on the

MapReduce framework.

Hive offers a SQL-like language named HiveQL

which enables users to query the data with SQL liked

instructions. Moreover, it provides plug-in

functionalities for programmers to create their own

map and reduce to run more complicated analysis.

This tool is good at batching jobs over large sets of

append-only data (Apache Hive, 2016).

2.4 HBase

Apache HBase is a distributed, scalable, big-data

NoSQL database. The main principle of this database

system is based on Google's Bigtable which takes

advantage of a distributed file system named Google

File System. HBase also leverages Bigtable-like

features on top of Hadoop and HDFS (Apache HBase,

2016).

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

330

2.5 Flume

According to the Apache (2016), Flume provides a

distributed service for efficiently collecting,

aggregating and moving large amounts of data. It

utilises data flow stream and recovery mechanisms. It

can be considered as an extraction tool for online

analytic applications.

2.6 HBaseIntegration

HBaseIntegration has the capability to enable

HiveQL statements to access HBase tables for both

reading and writing. It supports Hive HBase

Integration jars for communications between Hive

and HBase. It also has the ability to join or union

HBase tables and Hive tables (Apache

HBaseIntegration, 2016).

2.7 Sqoop

When transferring data between HDFS and external

relational databases, Sqoop is a good choice to fulfil

this job. It can import data from a RDBMS (relational

database management system) into the HDFS or

export the data back into a RDBMS. For instance,

data can be migrated between HDFS and MySQL. It

relies on the mechanism of the MapReduce to do

these tasks, so it has the capability to process data

flow in parallel (Apache Sqoop, 2016).

2.8 Relative Research

There are some papers to illustrate data warehouse

architectures associated with big data platforms rather

than an entire system. What is more, they have not

described the bottom-up architecture of data

warehouses. For instance, According to Abelló et al.

proposal et al. (2011) research, they concentrated on

building cubes with MapReduce, so it can be

classified into derived data layer implementation.

Thusoo et al. (2010) advocated using Scribe, Hadoop

and Hive to build log collection, storage and analytics

infrastructure at Facebook. Their paper only depicted

the reconciled data layer and part of the real-time data

layer. Arres et al. (2011) proposed building OLAP

cubes on a cloud computing environment with

MapReduce, which only referred to the derived data

layer.

3 THE THREE-LAYERED DWH

ARCHITECTURE ON HADOOP

In this system, the DWH architecture, from data

resources to OLAP, has been mainly established on a

Hadoop framework and its subprojects. Its structure

is divided as follows. The website logs could be

considered as data resources and a collection tool

named Flume sent data to HDFS, both of them

constituted the real-time layer; HDFS, Hive and

MySQL composed the reconciled data layer; the

derived data layer comprised the data in HBase and

RDBMS. This architecture was set up on virtual

machines. To be more specific, two of them simulated

data resource servers which offered real-time data

generated by website log systems. Two of them could

be considered as the corresponding data stage servers

for each of the data resources. After the data stage

servers, six virtual machines were employed in order

to establish the Hadoop clusters, in which Hive,

HBase and Sqoop have been installed, leveraged and

run harmoniously. The detailed architecture is

described in figure 2 below.

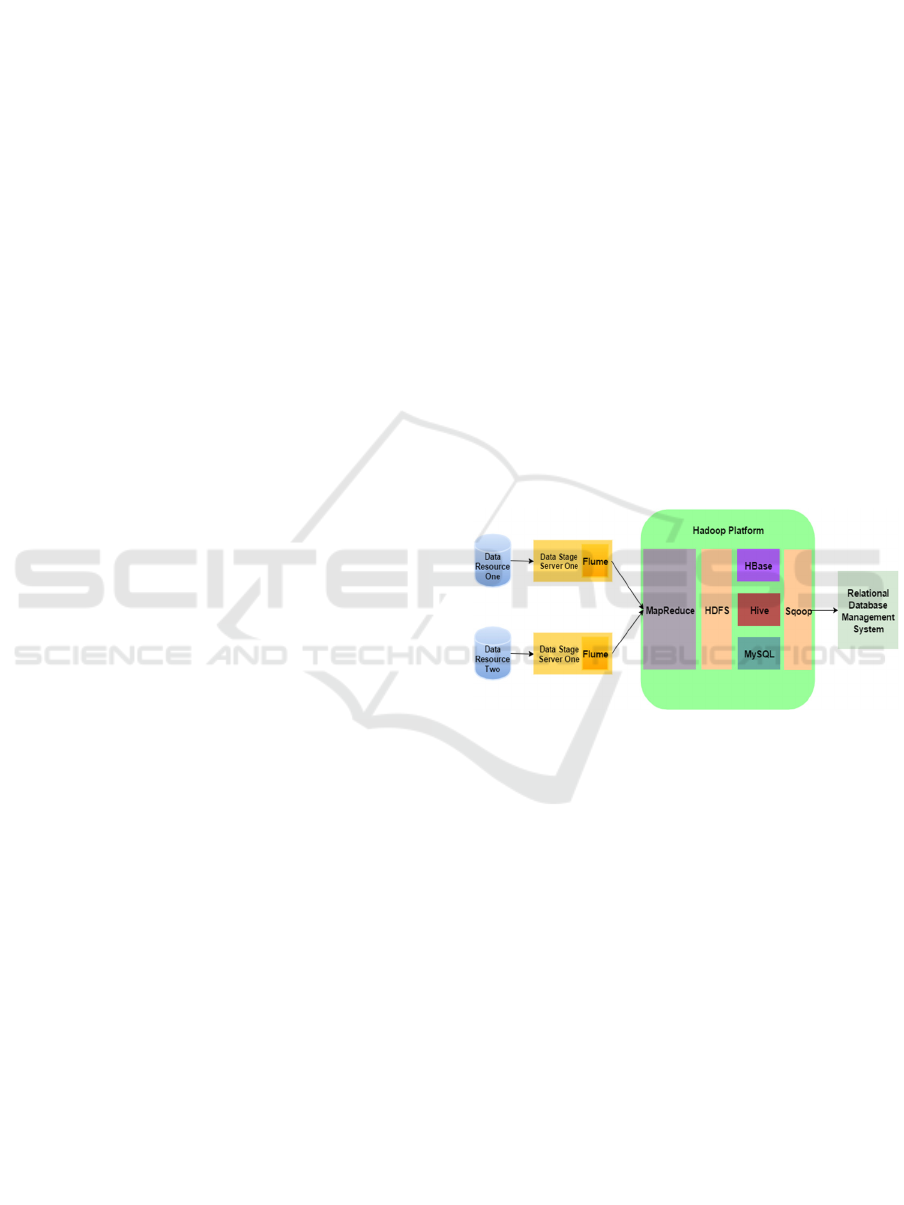

Figure 2: The architecture in the context of Hadoop.

3.1 Real-Time Data Layer

Real-time data can be considered as internal

infrastructural information in an organization for

transaction processing or external supplementary

resources from the third-party vendors to strengthen

business intelligent system. It is normally placed in

the relative Relational Data Base Management

System like Oracle, DB2, MySQL and other data

management systems.

In this system, real-time data was website log files.

There were two virtual machines to act as website

servers for generating web logs. The detailed data

flow processing in real-time layer is presented below.

When new logs were created, the data resource

servers would send the data to their relative data

staging servers whose main job was to store log files

temporarily. A Linux command named SCP was used

in this step to copy data from resource servers to

Revisiting Arguments for a Three Layered Data Warehousing Architecture in the Context of the Hadoop Platform

331

staging servers automatically every day. Before this

step, the public keys and private keys for each server

had been created to allow them to communicate

mutually without passwords. These operations were

indispensable, because Flume could not extract data

from the data resource servers directly in order to

avoid security issues. Then, Flume obtained data and

delivered it to HDFS which acted as the real storage

area in Hadoop clusters. The whole data flow

processing and manipulations above were in the real-

time data layer. After these, map and reduce

approaches would be used to clear, format, integrate,

normalize the data as well as solve quality issues.

3.2 Reconciled Data Layer

Nowadays it is common that a company has a variety

of branches located in different places in a country or

all around the world. There are some circumstances

should be taken into account, when acquiring and

integrating data from independent data resources

which are operated and managed by an organization

but with inconsistent data structure definitions, there

may be some data quality issues must be overcome

before using it. Otherwise the performance of

decision-making systems or OLAP systems is not

guaranteed. The Reconciled data layer is the primary

area to integrate and clean data sets. After data has

been integrated and cleaned, the data in this layer is

read-only resources rather than the operational data

sets which could be updated in daily transactions. The

derived data layer is considered as the central

historical information repository to store treated data

sets.

3.2.1 Data Preparation

The predominant data quality issues in this data

resources were data unformatted problems (the

Common Log Format and the Extended Common

Log Format) and errors made by clients’ side or

website servers. Besides, there were some useless

records needed to be deleted, for instance, picture

query, css files or js files loading. In this experiment,

the unprofitable records were ignored in the Mapper

approach when cleaning data. More precisely, it

filtered the status of the records started with 3, 4 and

5, which mean request redirected and some errors

happened in client-side and server-side. It was also

necessary to find out nonsignificant queries by

analyzing the path of requested resources. For

example, if the file path was /resource/pic/head.png

in a record, it could be identified this was a picture

query, so its corresponding record would be ignored

by Mapper. However, if the file directory was

/php/register.php, it could be considered as an

effective page view, so its relative record would be

manipulated by Mapper and then transferred to

Reducer as valid data. After the processing of reading

these records, Mapper was going to clean data like

deleting special characters and reconciling formats.

For example, each record’s columns were separated

by ‘\t’ in order to fetch data easily through Hive.

Finally the valuable records were delivered to the

reduce method which wrote the records into files.

3.2.2 Data Warehouse Schema

After real-time data was manipulated in MapReduce

processing for cleaning and integrating, the preserved

data would be grasped by Hive to build a data

warehouse. While before this process, it was

necessary to set up a data warehouse schema and

corresponding tables in advance. The metadata of this

schema was stored in the MySQL database which

acted as an auxiliary metadata management system

for Hive. In this system, the star schema based data

warehouse was built straightforward and omitted

other components like data marts. This schema is

shown in figure 3 below.

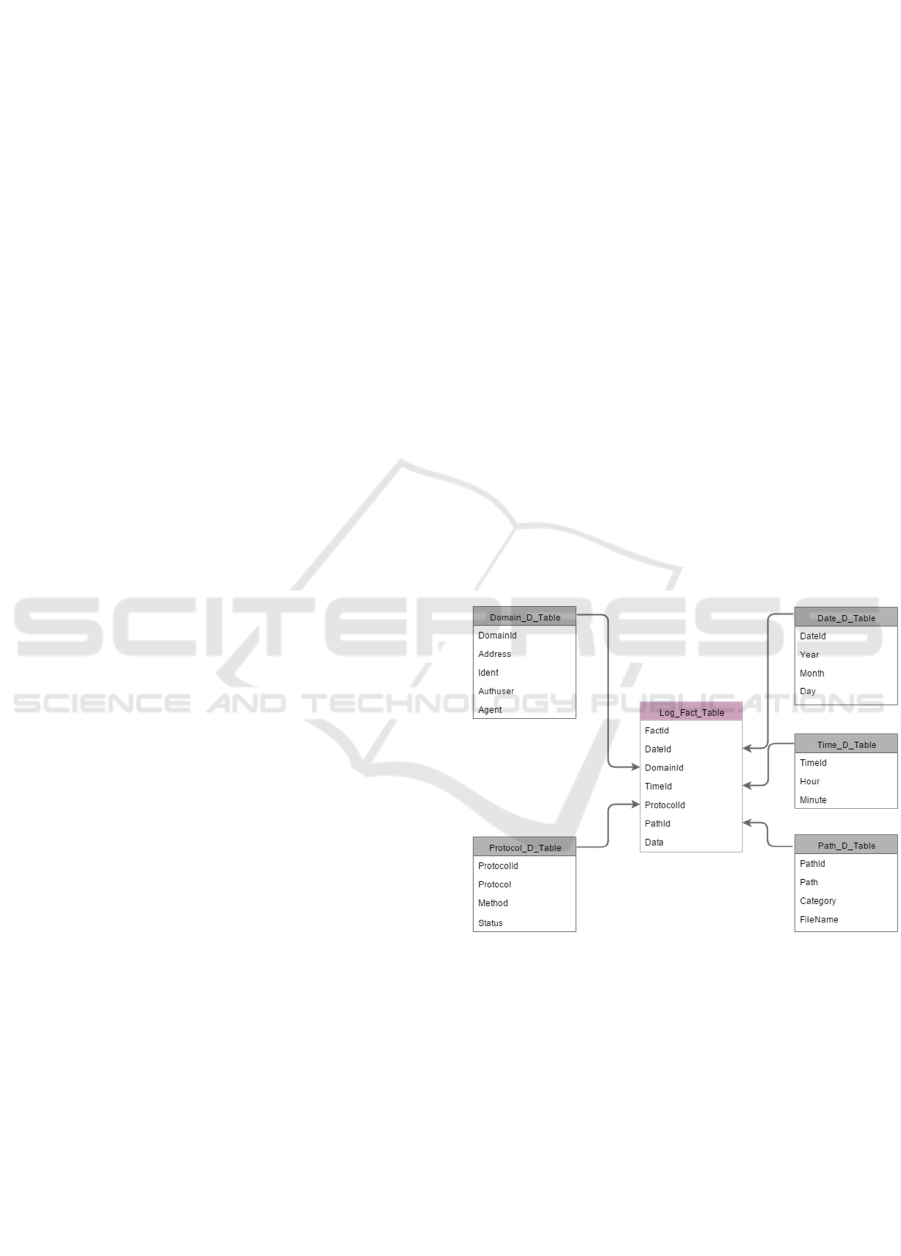

Figure 3: The star schema of a website log data warehouse.

All the information required by the schema could

be extracted from formatted records. For example, a

treated log record likes the format below

XXX.20.38.100 - - 18/11/2015 13:25:11

GET /php/register.php HTTP/1.1 200 1234

http://www.leiviel.com Mozilla/5.0

Windows U Windows NT 5.1 zh-CN rv_1.9b4

Gecko/2008030317 Firefox/3.0b4 -

According to this record, the client IP, the visited

time, the request method, the request resource, the

protocol, the request status, the agent etc. would be

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

332

detached and loaded into this schema. After the data

has been loaded into this central repository, the

following job was how to analyze and exhibit the data

in informational systems.

3.3 Derived Data Layer

The data in the derived data layer has been cleaned,

formatted, aggregated or even summarized for

presentation tools, decision-making applications, ad

hoc query tools etc. The derived data layer in this

system was formed by OLAP cubes in which end-

users’ requirements would be responded

instantaneously. An OLAP system obtains

information from an underlying data warehouse. It is

necessary to calculate results and put them into OLAP

beforehand. Hence, in this experiment, the daily PV

(page views) and UV (unique visitors) have been

counted and stored in HBase and RDBMS in advance

for different purposes.

When evaluating the PV and the UV, join

operations have been taken among the fact table and

dimensional tables by HiveQL commands, in this

process, identical IPs and pages were counted

respectively. For instance, the page views counted in

a certain day is demonstrated in table 1 below.

Table 1: The sample of page views results.

RID PathID Page Count Time

137 1 index.php 1185 18/11/2015

138 2 forum.php 923 18/11/2015

141 5 register.php 13 18/11/2015

The first column was a record ID to identify each

record. PathID was considered as the page

identification number and the attribute of Page was

the name of this page. The column of Count was

calculated by grouping PathID. The last column

stored the time of this operation happened. According

to this table, the data analysis operations could be

taken. For example, it can be seen that index.php has

been visited 1185 times at that day. Majority of

clients preferred to visit the forum.php page. What is

more, not more than 13 people registered at this day.

The results could be stored in the HBase via

HBaseIntegration. Hence, it was convenient to load

data into HBase only by using HiveQL commands.

The results were alternatively transferred to external

RDBMS via Sqoop. These jobs were invoked every

day under shell commands control. Therefore, when

weekly or monthly even annual PV and UV statistical

results were requested by end-users to estimate

performance of a website, it was possible to get the

results in a short period of time. Otherwise, the raw

data which was placed in HDFS would be calculated

by Hive.

4 RESULTS DESCRIPTION

All frameworks and tools were working

harmoniously in the operations of data transferring,

data cleaning, data manipulating etc. The outline of

processing occurred in each layer is described as

follows. The website log files acted as real-time data

which recorded clients’ actions. In real-time layer,

Flume gathered log files from data stage servers and

sent them to HDFS in parallel. The reconciled data

layer was the key manufacturing site to gather data,

clean data, integrate data and deal with data quality

issues via Mapper and Reducer functions in Hadoop.

Hive took a responsibility to establish data warehouse.

The main purpose of the derived data layer was

considered to display data or make preparation for

data analysis. The OLAP cubes were stored in HBase

and RDBMS for data presentation. Most of the

operations and OLAP cubes constructing processing

were invoked by shell commands automatically. Most

of the data flow processing tasks were fulfilled in

parallel, which meant serval nodes were running a

same job but different parts at the same time. In

addition, this system was a low-cost synthesized data

warehouse architecture but with highly throughput

and big data analysis capability. Most of platforms

and tools were open-source, which could be

conducive to reduce the start-up cost of deploying a

data warehouse.

5 CONCLUSIONS

The emerging software and platforms like Hadoop

and its subprojects have been exploited to achieve the

goals in this experiment. Decades passed,

technologies have been evolving all the time, the

three layered architecture is still very beneficial to

build a data warehouse within the big data context.

From the perspective of this experiment, this system

only has a simple warehousing schema and an OLAP

system. The Hadoop platform worked on a computer

in independent virtual machines which shared

hardware. Therefore there are some aspects can be

ameliorated in this system. In the following work, the

Hadoop platform would be established on physically

independent commodities. It is necessary to design a

stable and robust data warehousing schema in order

to fulfill more sophisticated requests from end-users.

Revisiting Arguments for a Three Layered Data Warehousing Architecture in the Context of the Hadoop Platform

333

ACKNOWLEDGEMENTS

This publication was supported by Science

Foundation Ireland grant SFI/12/RC/2289 to Insight-

Centre for Data Analytics (www.insight-centre.org).

REFERENCES

Devlin, B. and Cote, L. D., 1996. Data warehouse: from

architecture to implementation. Addison-Wesley

Longman Publishing Co., Inc..

Inmon, W. H., 1997. What is a data warehouse? Prism

Tech. Topic 1(1).

IBM, 1993. Information Warehouse Architecture I. IBM

Corporation.

Inmon, W. H., Strauss, D. and Neushloss, G., 2010. DW

2.0: The architecture for the next generation of data

warehousing: The architecture for the next generation

of data warehousing. Morgan Kaufmann.

Kimball, R. and Ross, M., 2002. The data warehouse

toolkit: the complete guide to dimensional

modelling. Nachdr.]. New York [ua]: Wiley.

Inmon, W. H., 1996. Building the Data Warehouse. Wiley.

New York, USA.

Apache Hadoop, (2016) Welcome to Apache Hadoop.

Available at: https://hadoop.apache.org/ [Accessed 18

February 2016].

Holmes, A., 2012. Hadoop in practice. Manning

Publications Co..

Apache Hive, (2016) Apache Hive TM. Available at:

https://hive.apache.org/ [Accessed 18 February 2016].

White, T., 2012. Hadoop: The definitive guide. " O'Reilly

Media, Inc.".

Apache Hive, (2016) Welcome to Apache HBase.

Available at: https://hbase.apache.org/ [Accessed 18

February 2016].

Apache Flume, (2016) Welcome to Apache Flume.

Available at: https://flume.apache.org/ [Accessed 18

February 2016].

Apache HBaseIntegration, (2016) Hive HBase Integration.

Available at: https://cwiki.apache.org/confluence/

display/Hive/HBaseIntegration#HBaseIntegration-

HiveHBaseIntegration [Accessed 18 February 2016].

Apache Sqoop, (2016) Sqoop User Guide. Available at:

https://sqoop.apache.org/docs/1.4.6/SqoopUserGuide.

html#_introduction [Accessed 18 February 2016].

Thusoo, A., Shao, Z., Anthony, S., Borthakur, D., Jain, N.,

Sen Sarma, J., Murthy, R. and Liu, H., 2010, June. Data

warehousing and analytics infrastructure at facebook.

In Proceedings of the 2010 ACM SIGMOD

International Conference on Management of data (pp.

1013-1020). ACM.

Abelló, A., Ferrarons, J. and Romero, O., 2011, October.

Building cubes with MapReduce. In Proceedings of the

ACM 14th international workshop on Data

Warehousing and OLAP (pp. 17-24). ACM.

Arres, B., Kabbachi, N. and Boussaid, O., 2013, May.

Building OLAP cubes on a Cloud Computing

environment with MapReduce. In Computer Systems

and Applications (AICCSA), 2013 ACS International

Conference on (pp. 1-5). IEEE.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

334
