Engineering Real-Time Communication Through Time-triggered

Subsumption

Towards Flexibility with INCUS and LLFSMs

David Chen, Ren

e Hexel and Fawad Riasat Raja

School of Information and Communication Technology, Grifﬁth University, Nathan QLD, Australia

Keywords:

Time-triggered Communication, Safety-critical Systems, Software Modelling, Subsumption Architecture,

Logic-Labelled Finite State Machines.

Abstract:

Engineering real-time communication protocols is a complex task, particularly in the safety-critical domain.

Current protocols exhibit a strong tradeoff between ﬂexibility and the ability to detect and handle faults in a

deterministic way. Model-driven engineering promises a high level design of veriﬁable and directly runnable

implementations. Arrangements of logic-labelled ﬁnite-state machines (LLFSMs) allow the implementation

of complex system behaviours at a high level through a subsumption architecture with clear execution seman-

tics. Here, we show that the ability of LLFSMs to handle elaborate hierarchical module interactions can be

utilised towards the implementation of testable, safety-critical real-time communication protocols. We present

an efﬁcient implementation and evaluation of INCUS, a time-triggered protocol for safety-critical real-time

communication that transcends the rigidity imposed by existing real-time communication systems through the

use of a high-level subsumption architecture.

1 INTRODUCTION

Nowadays, a model-driven software development ap-

proach is widely used by developers in contrast to

lower level implementation approaches, as it assists

in developing, faster and simpler modules and ap-

plications (Estivill-Castro and Hexel, 2013b). Fi-

nite State Machines (FSMs) or behaviour trees are

used to represent high level speciﬁcations of be-

haviours. This kind of modelling approach fulﬁlls

the agenda of Model Driven Engineering (Schmidt,

2006) for software development. In contrast to other,

more traditional implementation approaches, Logic-

Labelled Finite-State Machines (LLFSMs) (Estivill-

Castro and Hexel, 2014) allow translating require-

ments into high-level, executable models (Billington

et al., 2011a). These are less susceptible to implemen-

tation errors as models can be directly interpreted,

simulated, veriﬁed, and executed on a large num-

ber of platforms, including embedded control sys-

tems (Estivill-Castro et al., 2012).

In control systems, where different modules are

interacting with each other, it becomes very impor-

tant to predict the results and shield the details of one

module from others. To solve this problem, the sub-

sumption architecture (Brooks et al., 1986) has pro-

posed behaviour based decomposition of such com-

plex systems into layers of increasing level of abstrac-

tion, where high level layers can subsume the lower

level layers. Several other similar approaches (Kael-

bling, 1987; Payton, 1986; Arkin, 1987) were de-

veloped but one big advantage of the subsumption

architecture is the ability to cater for the evolution

of the complexity of a control system by accretion

of higher-level layers. This approach allows the in-

cremental development of a control system, as addi-

tion of each new layer provides a new additional be-

haviour to the controller. Further layers can be added

on top of the existing layers without affecting their be-

haviours. This way, we can always have a functional

controller with each new behaviour throughout the de-

velopment process. So far, the subsumption architec-

ture has largely been used to build robotic control sys-

tems (Connell, 1987; Brooks et al., 1988; Mataric,

1990; Brooks, 1987).

In this paper, we use LLFSMs as a modelling tool,

where transitions from one state to another state are

based on expressions in logic rather than events. This

not only reduces the overhead signiﬁcantly as, for ex-

ample, no memory allocations are required for event

queues, but also makes system performance more pre-

dictable. Although modelling with LLFSMs is a very

272

Chen, D., Hexel, R. and Raja, F.

Engineering Real-Time Communication Through Time-triggered Subsumption - Towards Flexibility with INCUS and LLFSMs.

In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 272-281

ISBN: 978-989-758-189-2

effective approach as shown in the literature (Billing-

ton et al., 2011b; Estivill-Castro and Hexel, 2013a),

to our knowlege, no attempts have been made to date

to use them towards the implementation of a safety-

critical, hard real-time system. We not only discuss

the implementation of INCUS (Chen et al., 2014) us-

ing LLFSMs, but we also show how the subsump-

tion architecture helps prevent design issues and how

an arrangement of LLFSMs has proven a better tech-

nique that enables to design and develop a more com-

plex protocol faster.

2 REAL-TIME

COMMUNICATION FOR

SAFETY-CRITICAL SYSTEMS

INCUS (Chen et al., 2014) is a communication proto-

col for distributed safety-critical real-time systems. A

real-time system distinguishes itself from other sys-

tems in that it is required to provide services within

deﬁned time frames, which means it must meet cer-

tain deadlines. A deadline is the time limit by which

a task must be completed. Results delivered after

their deadlines lose some (in the case of soft dead-

lines) or all (in the case of ﬁrm deadlines) of their util-

ity. Safety-critical systems are systems where a fault

or missing a deadline can have severe consequences

such as injury or death, i.e., they are hard real-time

systems where missing a ﬁrm deadline can poten-

tially have catastrophic outcomes (Kopetz, 2011). To

prevent faults, safety-critical systems typically use

means of redundancy, such as replication and distri-

bution to tolerate or recover from these faults.

In distributed safety-critical real-time systems,

different nodes are connected with each other through

a shared communication channel such as bus. They

coordinate their actions through message passing,

therefore, timely and reliable message delivery is crit-

ical. Communication errors and unpredictable delays

in transmission may lead to unpredictable behaviour

of distributed real-time systems. For instance, con-

sider a brake-by-wire system in a car. When the driver

hits the brake pedal, then, based on physical parame-

ters such as the speed of the car and its wheels, a brake

force is calculated and transmitted to each wheel for

stopping the car. A slight delay or error in com-

munication may lead to a longer stopping distance

or even complete brake failure, potentially causing

harm. When nodes are sharing a single communica-

tion channel, generally one node at a time, is allowed

to transmit over this channel. Otherwise, simultane-

ous transmission by multiple nodes would interfere

with each other. This is known as a transmission col-

lision and all the nodes involved in the transmission

can lose their messages. Typical recovery techniques

such as positive acknowledgement and retransmission

(PAR) signiﬁcantly differ in their performance be-

tween the best and the worst case and therefore ap-

proaches that do not impose different timing in the

case of faults (Lamport, 1984).

In light of these issues, the Time-Triggered Ar-

chitecture (TTA) (Scheidler et al., 1997; Kopetz and

Bauer, 2003) was introduced, which uses a Time Di-

vision Multiple Access (TDMA) scheme for chan-

nel access. Communication time slots used by the

nodes that make up the distributed system are de-

terministic and scheduled ofﬂine (Scheidler et al.,

1997). Therefore, all nodes know exactly at what

point of time each node will transmit its message

and this guarantees that channel access will be free

of collision. Well known communication protocols

for safety-critical real-time systems such as the Time-

Triggered Protocol (TTP) (Kopetz and Gr

unsteidl,

1994) and FlexRay (Berwanger, 2001) use this ap-

proach for safety-critical real-time communication.

To this end, they use a scheme where nodes are al-

located static and equal length time slots to transmit

their information in each TDMA round of a cluster

cycle. However, this static scheme comes at the ex-

pense of ﬂexibility. Unfortunately, in traditional ap-

proaches towards designing real-time communication

protocols, this tradeoff cannot be easily avoided and

so far, approaches that attempted to introduce a sig-

niﬁcant amount of ﬂexibility (Andersson et al., 2005;

Li et al., 2009) have failed to offer the same levels of

dependability or only offer ﬂexibility for non-safety-

critical messages (Berwanger, 2001). We now show

how this tradeoff can be minimised in INCUS.

3 INCUS

Before discussing the implementation details of the

communication protocol using LLFSMs, we will

brieﬂy discuss here the principles of operation of IN-

CUS.

INCUS is building on previous TTA proto-

cols (Kopetz and Gr

unsteidl, 1994; Berwanger, 2001)

and is using a TDMA approach for channel access,

but unlike other TTA communication protocols, it

supports variable length node slots based on the trans-

mission payload of each node in each TDMA round

of a cluster cycle (Chen et al., 2014). In contrast

to protocols such as TTP and FlexRay, this offers

a higher degree of ﬂexibility for each node to only

For reasons of space, the full speciﬁcation of INCUS is

not replicated here, but can be found in Chen et al. (2014).

Engineering Real-Time Communication Through Time-triggered Subsumption - Towards Flexibility with INCUS and LLFSMs

273

transmit as much information as necessary, but in-

creases the complexity of the implementation. The

length of each message slot is conﬁgured in a data

structure called Message Descriptor List (MEDL).

To support deterministic communication, each IN-

CUS node has a replicated copy of the MEDL. The

MEDL not only stores the length of the individual

time slot, but also holds the time schedule for all

nodes, i.e., the exact time within the TDMA cycle

when a node can transmit and receive data to and from

other nodes is deﬁned in advance. INCUS uses three

types of frames for communication, Normal frames

(N-frames), Initialisation frames (I-frames) and and

Coldstart frames (CS-frames). N-frames carry appli-

cation data, I-frames carry information for reintegra-

tion of lost/recovering nodes and CS-frames carry in-

formation for integration of all nodes during system

start-up.

As INCUS is designed to be used as a communi-

cation protocol for safety-critical real-time systems,

it provides fault tolerance mechanism in order to stay

operational in the presence of faults and maintain the

reliability and safety of the protocol (Chen et al.,

2014). A key criterion for fault tolerance, clique

avoidance, and the ability to form the basis of a fail-

operational system, the protocol uses a membership

service in following the principles of the TTA (Kopetz

and Bauer, 2003) to keep track of active and inac-

tive nodes after each TDMA round. Correspondingly,

each node stores its view of the fault-free operation of

other nodes (as perceived when receiving messages

from these nodes) in its membership vector. This

membership service also acts as an acknowledgement

scheme without the overhead of explicit membership

transmission during normal operation or the require-

ment for acknowledgments from receiver nodes. Im-

plicit transmission of the membership vector of each

node is done through frame CRC calculation, by in-

corporating the membership vector (and other vital

controller state information such as the current MEDL

position) in the CRC calculation of the sending and

receiving nodes, without actually transmitting this in-

formation. State agreement therefore is conﬁrmed

through a CRC match, and nodes that have a different

point of view from the sender will detect a CRC error

and remove the sender from the membership vector.

Clique avoidance (Kopetz and Gr

unsteidl, 1994) en-

sures that these minority nodes will no longer receive

frames from majority nodes until they restart and re-

integrate into the cluster again. Minority nodes are

able to detect that they are in the minority through a

membership vector that indicates that no more than

half the nodes are active. In other words, if fewer

than half of the nodes agree with a node, that node

knows that it no longer is part of a majority, causing

it to restart and re-integrate into the system based on

I-frames transmitted by other nodes.

Clock synchronisation is a core requirement of the

TTA and thus, INCUS uses a robust clock synchro-

nisation mechanism following the principles estab-

lished with TTP (TTTech, 2004). To maintain time,

all the nodes have physical clocks and a predeﬁned

time schedule. Each node operating in the system

must synchronise its transmit or receive actions ac-

cording to the predeﬁned time slots. This is only pos-

sible if the nodes’ clocks are synchronised. A differ-

ence between the expected arrival time (deﬁned in the

MEDL) and the actual arrival time of a frame at re-

ceiver node is measured and then used to compensate

for the clock skew between the clocks of sender and

receiver nodes. The Fault Tolerant Average (FTA) al-

gorithm (Kopetz and Ochsenreiter, 1987) is then used

to correct the clock of each node based on the mea-

sured deviations.

4 EXECUTABLE

COMMUNICATION MODEL

When implementing a communication protocol, a key

design decision is the choice of tools and the level

of modelling for this implementation. The prototype

software for TTP/C, for example, was designed at a

low, procedural level and implemented using a mix

of C++ and assembly language (Kopetz et al., 1997).

While this approach certainly offers predictable, high

performance (short only, perhaps, of a direct hard-

ware implementation), a key disadvantage is the de-

sign and development effort (several man years) re-

quired by such an approach. Moreover, low-level

software is often wedded to a speciﬁc hardware and

difﬁcult to port to a different platform. Neverthe-

less, to date, the rigorous timing requirements that

need to be modelled early on in the design process

has made it difﬁcult to model veriﬁable executable

real-time behaviour at a high level (Estivill-Castro

and Hexel, 2015). These and other difﬁculties of-

ten encountered with high level engineering of soft-

ware has often prompted the question of whether it

makes sense to engineer software, and hence, there

is now a trend to view engineering as craft supported

by theory, leading to best practices in software en-

gineering (Jacobson and Seidewitz, 2014). A com-

mon element in software architectures in general, but

particularly in control software, are ﬁnite-state ma-

chines. In fact, the most commonly used artefact

for the description of software behaviour in UML

are state diagrams (Erickson and Siau, 2007; Reg-

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

274

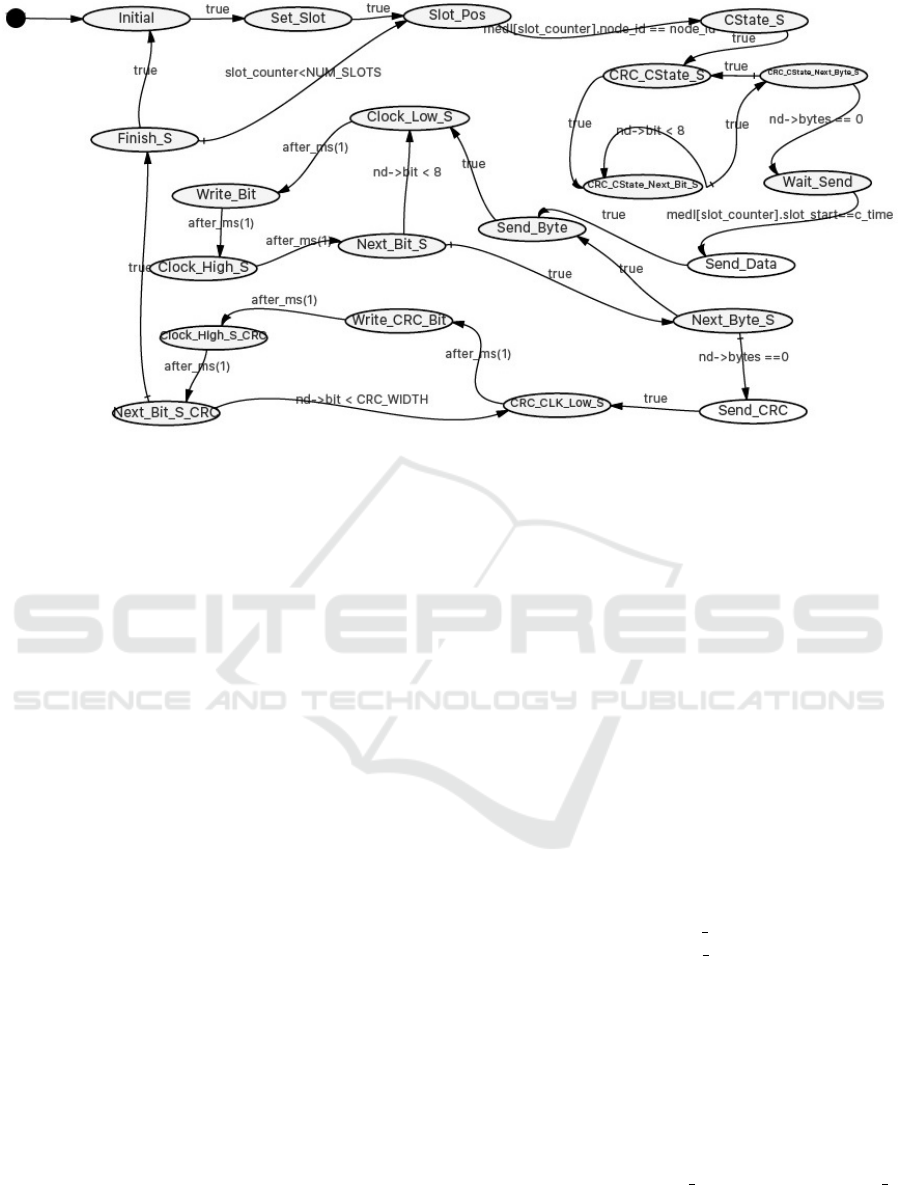

Figure 1: Transmission behaviour of INCUS using an individual LLFSM.

gio et al., 2013). Logic-labelled ﬁnite-state machines

(LLFSMs) are turing complete, making them funda-

mentally equivalent to any mechanism to model sys-

tem behaviour, with key advantages (Estivill-Castro

and Hexel, 2015) that shall make them the preferred

model here. First, they offer a very clear semantics of

concurrency, tremendously simplifying the cognitive

burden for the developer (Estivill-Castro and Hexel,

2015). Importantly, though, their execution seman-

tics much more closely resembles the principles of the

TTA (Kopetz and Bauer, 2003) and is in direct con-

trast with the optimistic best-effort approach of event-

driven systems (Estivill-Castro and Hexel, 2015). We

implemented INCUS through executable models us-

ing LLFSMs, and to our knowledge, this is the ﬁrst

attempt at implementing software suitable for safety-

critical hard real-time systems using this approach.

4.1 LLFSM Design of INCUS

In our ﬁrst iteration, we embedded all the lower level

and higher level implementation details in a single

LLFSM. To this end, we modelled INCUS in stages,

starting from the very basic functionality of the pro-

tocol, i.e., transmit and receive message at a pre-

deﬁned point of time, following the time-triggered

approach (Chen et al., 2014) of the speciﬁcation.

Then, we added the basic fault tolerance algorithms

and mechanisms (FTAMs), e.g. the Cyclic Redun-

dancy Check (CRC) whether a received message is

corrupted. Step by step, we incrementally added ad-

ditional behaviours required by the protocol to take it

towards the full speciﬁcation. Each of the steps was

designed using MiCASE (Estivill-Castro et al., 2014)

and compiled to an executable that was run, tested,

and veriﬁed using clfsm (Estivill-Castro et al., 2014).

What is important to note is that, since LLFSMs rep-

resent executable models, each of these steps, despite

not yet implementing the full speciﬁcation, gave us a

fully functioning, executable prototype that we were

able to simulate, exectute, test, and validate.

The complete INCUS speciﬁcation is described in

Chen et al. (2014) but here, we will focus on one

key aspect and brieﬂy discuss the implementation of

the transmission behaviour of INCUS using a single

LLFSM as shown in Figure 1. In the Initial state,

all the necessary parameters are initialised such as

the Message Descriptor List (MEDL) that holds the

time schedule for the data transmission and recep-

tion phase for all nodes. Each node has an identical

copy of the MEDL. All nodes starts from slot zero

as their ﬁrst slot in the Set Slot state, then transi-

tioning straight to the Slot Pos state. In this slot,

each node will check the MEDL to ﬁgure out whether

it needs to act as a sender node or receiver node ac-

cording to the current slot position. Note that, since

we are discussing the message transmission mecha-

nism of INCUS, we are ignoring the receiver part (as

a receiver node) of INCUS in this example, but the

receiver follows analog steps to the transmitter states

discussed below. So if in the current slot, the node is

meant to act as a sender node, a corresponding transi-

tion is made from the Slot

Pos state to the CState S

state. The Controller State (C-State) is initialised in

this state so that CRC value can be calculated over

the C-State. This allows a message to be rejected as

Engineering Real-Time Communication Through Time-triggered Subsumption - Towards Flexibility with INCUS and LLFSMs

275

incorrect, not only if there is a physical transmission

error, but also if there is any other fault that causes

C-State disagreement (Kopetz et al., 1997).

After initialisation of the C-State, the node tran-

sitions to the next state CRC CState S. From there,

it takes a byte at a time and calculates the CRC

on each individual bit of that byte and when ﬁn-

ished, takes the next byte. This continues until there

are no more data left for transmission. This whole

procedure is achieved through the state transitions

from the CRC CState S, CRC CState Next Bit S,

and CRC CState Next Byte S states. The next state

after CRC calculation is the Wait Send state, from

which a transition is made to the Send Data state,

only once the time at sender node is equal to the time

deﬁned in the MEDL for the actual message trans-

mission. This time is termed the slot start time and

implements the essential time trigger for the sender

node.

It is important to note that, other than the con-

ditional transitions shown in the ﬁgure, there is no

conditional code here, making, together with the de-

terministic scheduling of clfsm (Estivill-Castro and

Hexel, 2015), the execution time of the compiled

code extremely predictable in correspondence with

the structure of the high-level model. In fact, the

worst-case execution time (WCET) is essentially the

same as the best-case execution time, minimising the

temporal jitter of the transmission start state. In this

state, the Send Data state, the original message and

number of bytes of the message are fetched from the

MEDL and then the next state is the Send Byte state.

This state takes one byte of the message at a time,

and transmits it bit by bit (through the Clock Low S,

Write Bit, and Clock High S states, also updating

the CRC at each step), and then looks for the next

byte (Next Byte S).

Once no bytes are left to transmit (nd->bytes ==

0), the sender transitions to the Send CRC state, where

all the bytes of the CRC are transmitted. The mecha-

nism of CRC transmission is same as the transmission

of the original message and the states used for trans-

mitting CRC value (CRC CLK Low S, Write CRC Bit,

Clock High S CRC, and Next Bit S CRC), have anal-

ogous functionality to the data transmission states

above, but transmit the CRC instead. The Finish S

state concludes the cycle, incrementing the MEDL

slot position and transitioning straight back to

Slot Pos if there are more MEDLs slots to operate

on, or back to Initial, if the end of the TDMA cy-

cle has been reached and the above steps repeat from

the beginning of the MEDL (slot zero).

One pattern that becomes apparent in this initial

design is a replication of concerns. In other words,

despite the fact that the above description only de-

tails the transmission phase of the protocol, we al-

ready have replicated the relevant states used in mes-

sage transmission, i.e., the states required for trans-

mitting the CRC essentially mirror the states used for

transmitting the message payload. The states repre-

senting the receiver very much mirror the sequence

described above, with only minor differences, such

as the provision of a small receive window to com-

pensate for clock drift and jitter. Up to this point,

the complete LLFSM, including the receiver, already

contains ﬁfty states and we have not yet implemented

important parts of the communication protocol spec-

iﬁcation, such as the behaviour for the node start-up

and reintegration, clock synchronisation, the member-

ship service, mode changes, and other FTAMs such

as the detection of transmit and receive errors on the

basis of different timeout parameters. As this single

LLFSM grows bigger, it becomes more complex and

was nearly impossible to add remaining behaviours of

the protocol by adding and replicating more states.

Nevertheless, this initial implementation already

serves as a very important proof that it is not only

possible to implement a protocol for safety-critical

real-time systems using LLFSMs, but also that it

can be done much more rapidly (several weeks vs.

a few man-years) at a high level, yet yielding fully

executable models at every stage. This leads us to

the next stage of considering a reﬁned approach that

greatly enhances the modularity of the design.

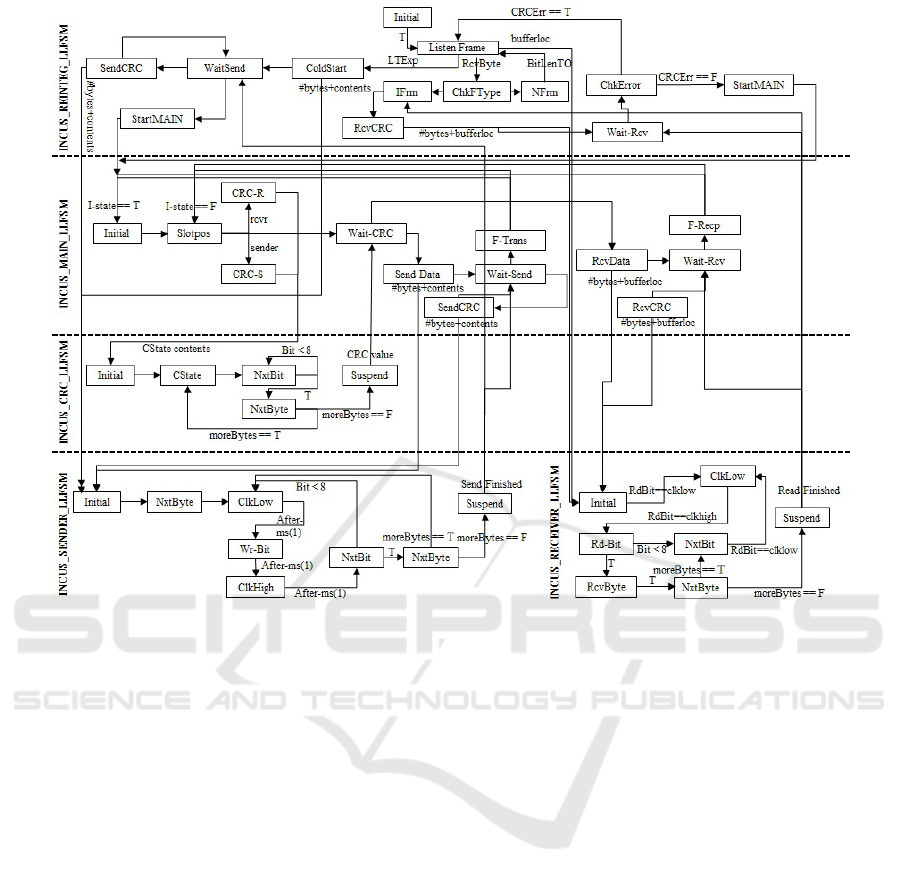

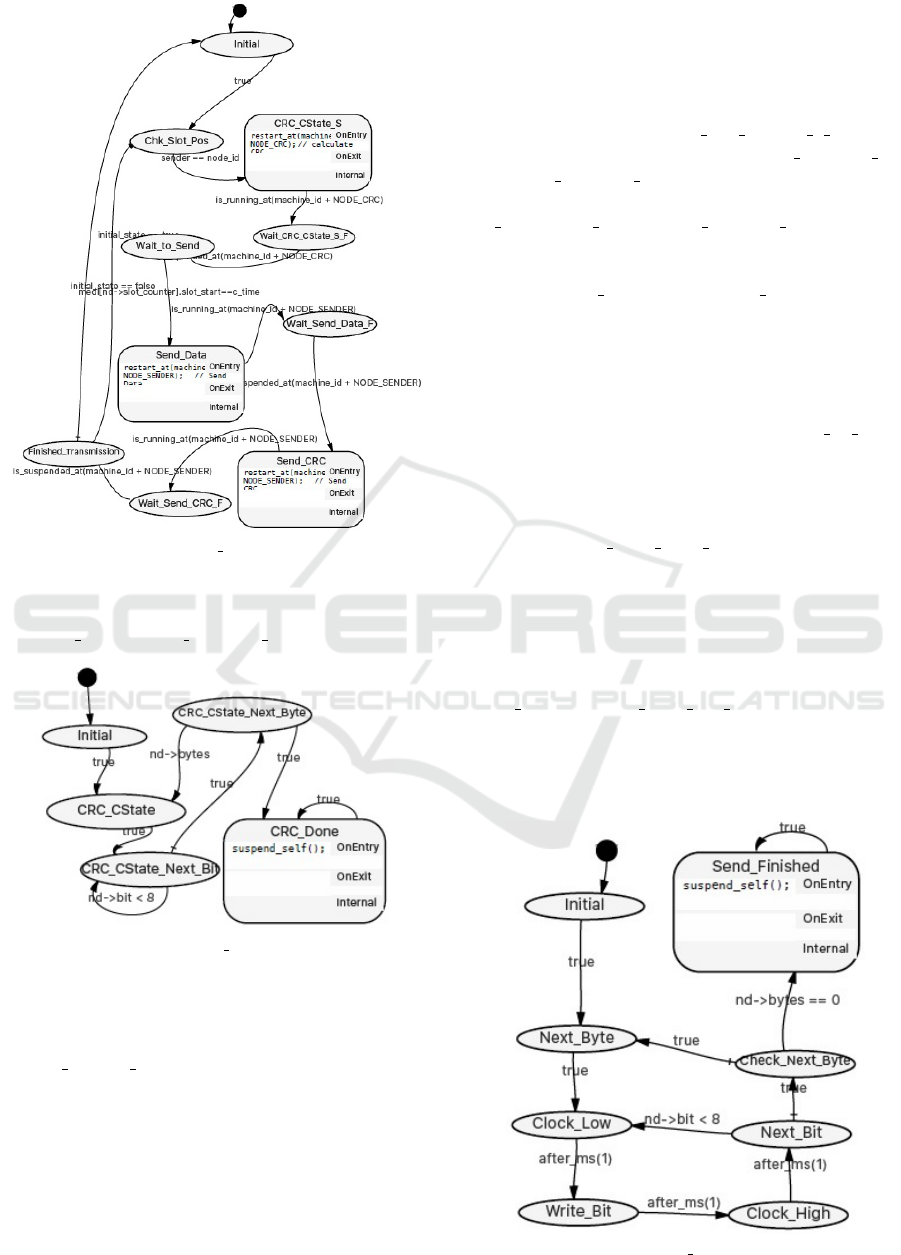

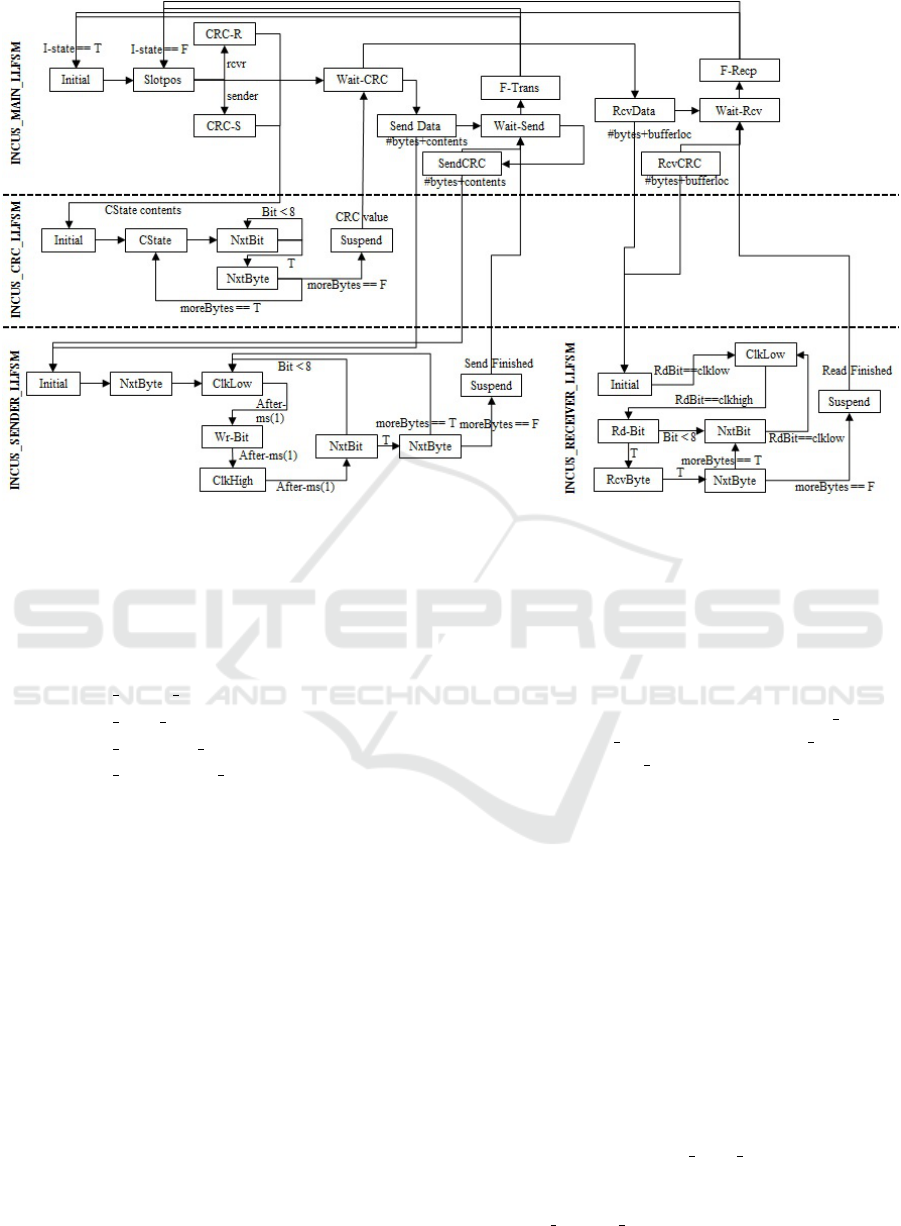

5 INCUS SUBSUMPTION

To reduce the complexity of the overall design and

increase the modularity, we follow the principles of

the subsumption architecture (Brooks et al., 1986),

allowing us to split out functionality into modules

that can hierarchically be subsumed by higher level

modules. Arrangements of LLFSMs allow the imple-

mentation of a subsumption architecture by integrat-

ing a number of different ﬁnite-state machines, each

forming a component or module that can be deacti-

vated using a suspend operation or activated using

a resume or restart operation

(Estivill-Castro and

Hexel, 2013a).

State machine vectors formed by an arrange-

ment of LLFSMs make the decomposition of sub-

behaviours into modules particularly straightforward.

We already identiﬁed repetitive the sub-behaviours,

such as the transmission of CRC vs. payload data, and

With LLFSMs, the restart operation simply restarts

the machine from its Initial state, while the resume op-

eration resumes from the previously active state.

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

276

Figure 2: The Subsumption Architecture of INCUS.

splitting these elements out into individual modules

is as simple as factoring out those states into an indi-

vidual sub-machine. A decomposition of our earlier,

single LLFSM implementation of INCUS into the fol-

lowing four sub-LLFSMs is shown in Figure 2:

1. INCUS MAIN LLFSM

2. INCUS CRC LLFSM

3. INCUS SENDER LLFSM

4. INCUS RECEIVER LLFSM

The INCUS-MAIN-LLFSM module acts as a high-

level master-LLFSM that actually controls the be-

haviour of the other sub-LLFSMs. These sub-

machines are composed of the CRC-LLFSM,

SENDER-LLFSM, and RECEIVER-LLFSM ma-

chines. The Main LLFSM runs concurrently with

the sub-LLFSMs and only has the principle purpose

of implementing the high-level stages of the protocol

and to suspend and restart the sub-machines. These

sub-machines are the modules in the subsumption ar-

chitecture that implement the corresponding underly-

ing behaviours, when required.

In the previous section 4.1, we took the exam-

ple of message transmission in INCUS using a sin-

gle LLFSM to highlight the issue of design complex-

ity. In the following section, we will demonstrate how

we tackle this complexity issue by implementing the

message transmission behaviour of INCUS using the

subsumption architecture.

5.1 Tackling Design Complexity using

Subsumption

The implementation of the transmission behaviour of

INCUS using the subsumption architecture is done

by decomposing the single LLFSM from Figure 1

into the three sub-LLFSMs 1–4, i.e., INCUS MAIN-

LLFSM, INCUS CRC-LLFSM, INCUS SENDER-

LLFSM, and INCUS RECEIVER-LLFSM. Figure 3

shows the main machine. The main machine acts

as a master LLFSM and can run concurrently with

the sub-LLFSMs. While the subsumption architec-

ture allows multiple sub-machines to operate concur-

rently, and while the execution semantics of LLF-

SMs is clearly deﬁned to avoid concurrency issues or

temporal inconsistencies (Estivill-Castro and Hexel,

2015), we deliberately kept the design of the INCUS

implementation simple, not requiring the concurrent

operation of multiple sub-machines at the same time.

This greatly simpliﬁes WCET measurement and fur-

ther reduces the design and validation complexity of

the system.

The overall transmission mechanism follows the

steps discussed in Section 4.1. After initialising

the relevant protocol parameters in its Initial state

and verifying, in the Chk Slot Pos state, whether

the current node is the sender node. If the node

is the current transmitter, it transitions to the new

state CRC CState S. To perform the CRC calcula-

tions over the local C-State preﬁxing the payload

Engineering Real-Time Communication Through Time-triggered Subsumption - Towards Flexibility with INCUS and LLFSMs

277

Figure 3: INCUS MAIN LLFSM.

transmitted in the message, the main LLFSM will

now activate the CRC module (Figure 4) by using

restart at(machine id+NODE CRC).

Figure 4: INCUS CRC LLFSM.

The CRC LLFSM runs concurrently with the main

machine and performs the CRC calculation over the

data referenced by the main LLFSM. In the case of

the CRC CState S state of the main machine, the CRC

data reference points to the C-State that the CRC shall

be calculated over. The states of the CRC LLFSM

are same the ones described in Section 4.1, but the

clear advantage here is that we do not need to replicate

these states multiple times, whenever we are required

to perform a CRC calculation. In fact, this calculation

is irrespective of the node’s current role as a sender or

receiver, and thus, unlike in the previous implementa-

tion, no further replication is necessary.

While the main machine technically runs

concurrently with the CRC module, activating

the CRC module does not require any con-

current operation, so the main LLFSM simply

transitions to the Wait CRC CState S F state

(through the transition labelled is running at

(machine id+NODE CRC)) where it waits for

sub-machine completion through use of the

is suspended at(machine id+NODE CRC) predi-

cate. To notify completion through this predicate,

the CRC LLFSM will simply suspend itself by

using suspend self() in its CRC Done state after

having completed calculating the CRC value. This

is semantically equivalent to subsumption akin to

the UML sub-machine notation (Estivill-Castro and

Hexel, 2013a).

As soon as the CRC calculation has concluded,

the main machine transitions to the Wait to Send

state, where it waits for the arrival of the transmission

slot action time. To transmit the message, the main

LLFSM now activates the sender LLFSM (Figure 5),

while again simply waiting for completion by sitting

idle in the Wait Send Data F state until the sender

LLFSM has completed and suspended itself. Unlike

the example from Section 4.1, where the transmission

logic had to be replicated for transmitting the mes-

sage CRC, the same sender LLFSM can now be used

and will be restarted by the main machine when in

order to send the CRC value as implemented by the

Send CRC and Wait Send CRC F states in the main

LLFSM. So contrary to the implementation of trans-

mission behaviour using the single LLFSM, the sub-

sumption architecture eliminates the complexity im-

posed by state-replication, while maintaining the abil-

Figure 5: INCUS Sender LLFSM.

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

278

ity to implement real-time behaviour following the

same, conceptual design principles.

5.2 Adding New Behaviours using the

Subsumption Architecture

We will now brieﬂy describe the subsequent, iterative

steps that were conducted using the subsumption ap-

proach. It would have been hard to continue the mod-

elling of INCUS using a single LLFSM due to the

complexity explosion alluded to earlier. In the fol-

lowing analysis we will show how straightforward it

now is to add a new behaviour while retaining all the

functionality of the existing behaviours of INCUS us-

ing the subsumption architecture and arrangements of

LLFSMs.

5.2.1 Start-up and Re-integration of Nodes

So far, we assumed in our implementation that all

nodes successfully resolved their start-up collision

scenario (TTTech, 2004) and they are in the state

where they have synchronised clocks and ready to

transmit/receive messages. To implement system

startup and reintegration in accordance with the IN-

CUS speciﬁcation (Chen et al., 2014), we need to add

add another sub-LLFSM as shown in Figure 6. We

named this machine RE INTEGRATION LLFSM in

a sense that this LLFSM is, in the fault-free case,

used only once to run the start-up scenario when all

the nodes are turned-on initially. After this, the main

LLFSM is used most of the time, but has the abil-

ity to trigger a restart to re-integrate a lost node to

the cluster of nodes in case of a fault that requires

re-integration. The re-integration LLFSM acts as a

master-LLFSM only when all nodes are turned-on the

ﬁrst time. It will suspend all other sub-LLFSMs and

runs the node start-up algorithm. Once all the nodes

are up, the RE INTEGRATION-LLFSM will suspend

itself after starting the main LLFSM. Now the sphere

of control shifts to the main machine as above, which

will perform the normal operation of the protocol as

described. Importantly, a comparison between Fig-

ure 2 and Figure 6 shows that addition of this new be-

haviour has been achieved by just adding a single new

layer on top of INCUS MAIN LLFSM. Most impor-

tantly, the main machine did not require any modi-

ﬁcation or change to the structure of the previously

existing layers of LLFSMs.

6 CONCLUSION AND FUTURE

WORK

In summary, we have shown that a high-level imple-

mentation of a communication protocol for safety-

critical real-time systems based on the subsumption

architecture is not only possible, but facilitates the

incremental development of the system using exe-

cutable models throughout. We have shown that with

an INCUS implementation based on the arrangement

of LLFSMs, the scope of the subsumption architec-

ture is not limited to modelling the behaviours of tra-

ditional control systems, but we can also use it to de-

velop ﬁnite-state machines with predictable execution

semantics and timing. We have demonstrated that

LLFSMs support system development of INCUS in

an iterative way or in stages, where we can execute,

test and reﬁne a safety-critical real-time system at a

given level before starting a new level. This allowed

us to ultimately implement a more ﬂexible commu-

nication protocol in comparison with existing TTA

based communication protocols, where the imple-

mentation, reﬁnement, and validation was a lot more

complex. Our modelling technique has been shown to

make feasible designing ﬂexibility into communica-

tion protocols with the strict predictability and timing

required by dependable real-time systems. Further-

more, we have shown that the complexity of state-

replication can be avoided very effectively by using

the subsumption architecture provided by arrange-

ments of LLFSMs when developing a communication

system, without losing the fundamental properties of

predictable real-time performance. The subsumption

architecture made it possible to incrementally reﬁne

our implementation by adding, modifying, or chang-

ing the behaviour of a sub-system without interfering

with unaffected components of the system.

So far, we modelled and implemented a safety-

critical cluster of INCUS using LLFSMs. In future,

we are aiming to design a more ﬂexible and rather

more complex model of INCUS where more than one

safety-critical clusters will be linked through a net-

work that also carries a non real-time trafﬁc. We ex-

pect that this will allow us, for example, to connect

safety-critical sub-systems over the internet or other

unreliable networks. We intend to adopt the same

modelling approach discusses in this paper and we

will evaluate the effectiveness of this approach i.e.

subsumption through LLFSMs for designing this hy-

brid and more complex real-time communication. In

this case, the mechanisms of the protocol regarding

timing requirements and fault-tolerance for safety-

critical trafﬁc will be highly complex, but based on

the results presented here, we expect this approach to

Engineering Real-Time Communication Through Time-triggered Subsumption - Towards Flexibility with INCUS and LLFSMs

279

Figure 6: Addition of new behaviour using Subsumption Architecture.

demonstrate that even highly-complex systems can be

implemented using our technique while maintaining

system dependability.

REFERENCES

Andersson, B., Tovar, E., and Pereira, N. (2005). Analysing

TDMA with slot skipping. In Proc. 26th IEEE Inter-

national Real-Time Systems Symposium (RTSS).

Arkin, R. C. (1987). Motor schema based navigation for a

mobile robot: An approach to programming by behav-

ior. In Robotics and Automation. Proceedings. 1987

IEEE International Conference on, volume 4, pages

264–271.

Berwanger (2001). et al. FlexRay the communication sys-

tem for advanced automotive control systems. SAE

Transactions, Vol. 110(7):SAE Press, pp. 303–314.

Billington, D., Estivill-Castro, V., Hexel, R., and Rock,

A. (2011a). Requirements engineering via non-

monotonic logics and state diagrams. In Evaluation of

Novel Approaches to Software Engineering (ENASE

selected papers), volume 230 of Communications in

Computer and Information Science, pages 121–135,

Athens, Greece. Springer Verlag.

Billington, D., Estivill-Castro, V., Hexel, R., and Rock,

A. (2011b). Requirements engineering via non-

monotonic logics and state diagrams. In Evaluation

of Novel Approaches to Software Engineering, pages

121–135. Springer.

Brooks, R. et al. (1986). A robust layered control system

for a mobile robot. IEEE Journal of Robotics and Au-

tomation, 2(1):14–23.

Brooks, R. A. (1987). Micro-brains for micro-brawn: Au-

tonomous microbots. In IEEE Micro Robots and Tele-

operators Workshop: An investigation of microme-

chanical structures, actuators and sensors, Hyannis,

MA.

Brooks, R. A., Connell, J., and Ning, P. (1988). Herbert: A

second generation mobile robot. MIT AI Memo 1016.

Chen, D., Hexel, R., and Raja, F. R. (2014). INCUS: A

communication protocol for safety-critical distributed

real-time systems. In proceedings of 20th Asia-

Paciﬁc Conference on Communications (APCC), Pat-

taya, Thailand.

Connell, J. (1987). Creature design with the subsumption

architecture. In IJCAI, volume 87, pages 1124–1126.

Erickson, J. and Siau, K. (2007). Can UML be simpliﬁed?

practitioner use of UML in separate domains. In pro-

ceedings EMMSAD, volume 7, pages 87–96.

Estivill-Castro, V. and Hexel, R. (2013a). Arrangements

of ﬁnite-state machines semantics, simulation, and

model checking. In Hammoudi, S., Ferreira Pires, L.,

Filipe, J., and C

esar das Neves, R., editors, Interna-

tional Conference on Model-Driven Engineering and

Software Development MODELSWARD, pages 182–

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

280

189, Barcelona, Spain. SCITEPRESS Science and

Technology Publications.

Estivill-Castro, V. and Hexel, R. (2013b). Module isola-

tion for efﬁcient model checking and its application

to FMEA in model-driven engineering. In ENASE

8th International Conference on Evaluation of Novel

Approaches to Software Engineering, pages 218–225,

Angers Loire Valley, France. INSTCC.

Estivill-Castro, V. and Hexel, R. (2014). Correctness by

construction with logic-labeled ﬁnite-state machines

– comparison with Event-B. In Proc. 23rd Australian

Software Engineering Conference (ASWEC), pages

38–47. IEEE.

Estivill-Castro, V. and Hexel, R. (2015). Simple, not

simplistic — the middleware of behaviour models.

In ENASE 10 International Conference on Evalua-

tion of Novel Approaches to Software Engineering,

Barcelona, Spain. INSTCC.

Estivill-Castro, V., Hexel, R., and Lusty, C. (2014). High

performance relaying of C++11 objects across pro-

cesses and logic-labeled ﬁnite-state machines. In Bru-

gali, D., Broenink, J. F., Kroeger, T., and MacDonald,

B. A., editors, Simulation, Modeling, and Program-

ming for Autonomous Robots - 4th International Con-

ference, SIMPAR 2014, volume 8810 of Lecture Notes

in Computer Science, pages 182–194, Bergamo, Italy.

Springer.

Estivill-Castro, V., Hexel, R., and Rosenblueth, D. A.

(2012). Efﬁcient modelling of embedded software

systems and their formal veriﬁcation. In Leung,

K. R. and Muenchaisri, P., editors, The 19th Asia-

Paciﬁc Software Engineering Conference (APSEC

2012), pages 428–433, Hong Kong. IEEE Computer

Society, Conference Publishing Services.

Jacobson, I. and Seidewitz, E. (2014). A new software en-

gineering: What happened to the promise of rigorous,

disciplined, professional practices for software devel-

opment? ACM-Queue, 12(10).

Kaelbling, L. P. (1987). An architecture for intelligent re-

active systems. In Morgan Kaufmann, Proceedings

of the 1986 Workshop: Reasoning about Actions and

Plans, Editors: Georgeff, M, Lansky, A, volume 30,

pages 395–410.

Kopetz, H. (2011). Real-Time Systems - Design Principles

for Distributed Embedded Applications. Real-Time

Systems Series. Springer, second edition.

Kopetz, H. and Bauer, G. (2003). The time-triggered archi-

tecture. Proceedings of the IEEE, 91(1):112–126.

Kopetz, H. and Gr

unsteidl, G. (1994). TTP – a protocol for

fault-tolerant real-time systems. Computer, 27(1):14–

23.

Kopetz, H., Hexel, R., Kr

uger, A., Millinger, D., Nossal,

R., Steininger, A., Temple, C., F

uhrer, T., Pallierer, R.,

and Krug, M. (1997). A prototype implementation of a

TTP/C controller. In Proc. of the SAE Congress 1997,

Detroit, MI, USA. Society of Automotive Engineers,

SAE Press. SAE Paper No. 970296.

Kopetz, H. and Ochsenreiter, W. (1987). Clock synchro-

nization in distributed real-time systems. Computers,

IEEE Transactions on, 100(8):933–940.

Lamport, L. (1984). Using time instead of timeout for fault-

tolerant distributed systems. ACM Transactions on

Programming Languages and Systems, 6:254–280.

Li, C., Nicholas, M., and Zhou, Q. (2009). A new real-time

network protocol - node order protocol. In Proceed-

ings of 11th Real Time Linux Workshop.

Mataric, M. J. (1990). Qualitative sonar based environment

learning for mobile robots. In Proc. Advances in Intel-

ligent Robotics Systems Conference, pages 305–315.

International Society for Optics and Photonics.

Payton, D. W. (1986). An architecture for reﬂexive au-

tonomous vehicle control. In Proc. IEEE Interna-

tional Conference on Robotics and Automation., vol-

ume 3, pages 1838–1845. IEEE.

Reggio, G., Leotta, M., Ricca, F., and Clerissi, D. (2013).

What are the used UML diagrams? A preliminary sur-

vey. In Chaudron, M. R. V., Genero, M., Abrah

ao,

S., and Pareto, L., editors, Proceedings of the 3rd In-

ternational Workshop on Experiences and Empirical

Studies in Software Modeling co-located with 16th In-

ternational Conference on Model Driven Engineer-

ing Languages and Systems (MoDELS 2013), volume

1078 of CEUR Workshop Proceedings, pages 3–12.

Scheidler, C., Heiner, G., Sasse, R., Fuchs, E., Kopetz, H.,

and Temple, C. (1997). Time-triggered architecture

(TTA). In Proceedings of EMMSEC’97, Advances in

Information Technologies: The Business Challenge,

pages 758–765.

Schmidt, D. C. (2006). Guest editor’s introduction: Model-

driven engineering. IEEE Computer, 39(2):25–31.

TTTech (2004). Time-triggered protocol TTP/C high-level

speciﬁcation, document protocol version 1.1, TTTech

document number d-032-s-10-028.

Engineering Real-Time Communication Through Time-triggered Subsumption - Towards Flexibility with INCUS and LLFSMs

281
