Sales Forecasting as a Service
A Cloud based Pluggable E-Commerce Data Analytics Service
Fabian Aulkemeier
1
, Roman Daukuls
2
, Maria-Eugenia Iacob
1
, Jaap Boter
2
, Jos van Hillegersberg
1
and Sander de Leeuw
2,3
1
Centre for Telematics and Information Technology, University of Twente, Enschede, The Netherlands
2
Faculty of Economics & Business Administration, VU University, Amsterdam, The Netherlands
3
Nottingham Business School, Nottingham Trent University, Nottingham, U.K.
Keywords: Data Analytics, Sales Forecasting, Cloud Service, Platform Architecture.
Abstract: Data analysts are increasingly important for companies to extract critical information from their vast amount
of data in order to be competitive. Data analytics specialists or data scientists develop statistical models and
make use of dedicated software components for example to categorize products and forecast future sales.
Their unique skill set is among the most sought after in the current job market. Cloud computing on the other
hand helps companies to acquire services in the cloud and share the required expertise for delivery among
service users. In this paper we take a cross disciplinary approach to develop a data analytics technique and a
platform based IT architecture that allows to outsource sales forecasting analytics into the cloud.
1 INTRODUCTION
In this information age, the expertise of data analytics
specialists or data scientists has become a critical
success factor for organizations to understand and
react to their environment. The shortage in skilled
professionals and the resulting high cost causes a
deficit of such experts in many domains (Davenport
and Patil, 2012). As a consequence, notably small and
medium enterprises (SME) often miss the potential
that lies in unexploited information.
In the domain of e-commerce, sales forecasts
provide an example of such critical information.
Online retailers that are able to compute reliable
forecasts, based on existing sales transactions can
reduce losses caused by out of stock or non-selling
items. Especially in short series product life cycle
fields such as fashion, it is crucial to have accurate
figures on upcoming sales even before production.
Among SMEs cloud computing in general and
software as a service (SaaS) in particular are popular
solutions to share the costs for IT service
development and operation (Danaiata and Hurbean
2010). Therefore, the task of data analytics for
product sales forecasting is a promising application
for the new cloud service model.
With the current system landscape of most online
retailers, transactional data is scattered across various
application system components and has to be
preprocessed before it may be used. Data
preprocessing consists of data cleaning, record
selection, summarization, denormalization, variable
creation and coding. It is considered as the most time-
consuming task in data analytics projects (Ordonez
2011). However, collecting and cleansing data from
various sources is a very customer specific task and
therefore difficult to implement as a cloud service.
The CATeLOG project which is financed by
Dutch institute for advanced logistics (Dinalog) aims
amongst others at the development of innovative,
pluggable e-commerce services as well as a suitable
platform architecture to facilitate the adoption of such
services. For this work we have combined two areas
of expertise within our research project to come up
with a solution to develop state of the art sales
forecasting logic and integrate it into a pluggable
platform architecture. The research goal was to
design and develop a cloud based sales forecasting
service to allow small and medium enterprises to
make use of advances in data analytics techniques.
In section 2 we present the current research in
sales forecasting and present a forecasting module
which is the core component of the solution. In the
third section we outline the concept of service
pluggability and present the architecture for a
pluggable service platform. In section 4 we present
Aulkemeier, F., Daukuls, R., Iacob, M-E., Boter, J., Hillegersberg, J. and Leeuw, S.
Sales Forecasting as a Service - A Cloud based Pluggable E-Commerce Data Analytics Service.
In Proceedings of the 18th International Conference on Enterpr ise Information Systems (ICEIS 2016) - Volume 2, pages 345-352
ISBN: 978-989-758-187-8
Copyright
c
 2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
345

the prototype of a cloud based forecasting service and
evaluate its pluggability.
2 NEW SALES FORECASTING
MODULE
New product sales forecasts are valuable for
managers in supporting important decisions in
operations planning (Cohen et al. 2000). For example,
managers need to know how sales will evolve in the
future in order to determine purchasing quantities and
inventory. The number of new product introductions
has been increasing over the past decade. As a
consequence, managers need to perform new product
sales forecasting tasks more frequently than in the
past.
Despite the importance and prevalence of new
product forecasts, these forecasts are seldom
accurate. Kahn (2002) found that new product
forecast accuracy was 58%, based on interviews with
managers. Moreover, there are numerous approaches
to forecast new product sales, and these approaches
may perform differently under different
circumstances. Hence, managers would benefit from
a tool that can incorporate multiple approaches to
forecast new product sales and pick the most accurate
approach.
In what follows, we briefly discuss new product
forecasting approaches and describe the development
and implementation of the new product sales
forecasting module.
2.1 New Product Sales Forecasting
Approaches
Goodwin et al. (2014) distinguish three categories of
new product forecasting approaches: managerial
judgement, judgement by potential customers and
formal models. Managerial judgement relies on
managers providing estimates 1of sales expected,
typically using experience. Judgement by potential
customers may involve for example expert panels.
Formal models make quantitative projections using
mathematical formulations of relationships between
relevant variables. Since our goal is to provide a
forecasting tool that is modular and can be used by
multiple clients, we focus on formal models.
There are numerous formal models that can be
used to forecast new product sales. These formal
models come from both Statistics and Machine
Learning areas. Some models have roots in marketing
or economic theory, while others are purely data-
driven. We will use a commonly used statistical
model based on Marketing theory (the Bass model),
and one more data-driven model (latent-class
regression).
2.1.1 Bass Model
Originally proposed by Bass (2004), the Bass model
and its derivatives are widely used in Marketing to
characterize the life cycle of a product. It has the
following formulation:

()
1−()
=+()
(1)
where () is the probability density function of
adoption time  and () is the cumulative
distribution function of . The model postulate that
the hazard of adoption depends on two forces:
external influence  and internal influence ().
The model can be rewritten in the cumulative sales
domain as:


(

)
=



+
(


−

)


(

)
−




[

(

)
]

(2)
where 

(

)
i4s new product sales of product  at time
, 

(

)
is cumulative sales of product at time ,
and 

is the market potential. This equation can be
estimated on historical data using ordinary least
squares, and parameter estimates for 

, 

and 

can
be obtained.
In order to forecast new product sales before
launch, the parameters of the Bass curve for the new
product can be estimated using analogy by
considering “similar” products introduced in the past
(Bass 2004).
2.1.2 Latent-class Regression Model
We furthermore consider a latent-class Poisson
regression model (Wedel et al. 1993) in combination
with concomitant variables (Grün and Leisch 2008).
The advantage of this model is that it estimates the
two models simultaneously: one model for clustering
product life cycles and one model for assigning
cluster probabilities to each instance based on
concomitant variables. The formulation of this model
is as follows:
ℎ
(


|
,,,
)
=

(,)
|
(

|

,)


(3)
where ℎ denotes the mixture density,  is the class
index ( classes in total), 

is sales of product  at
time ,  is the matrix of independent variables
influencing the product life cycle pattern,  is the
matrix of independent variables influencing cluster
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
346

membership (concomitant variables); ,, and 

are
parameters to be estimated.
Further, we assume that the number of products
sold follows the Poisson distribution with rate
parameter that depends on 

and  in each cluster.
2.2 Algorithms and Implementation
We build our forecasting module using the R software
(R Development Core Team 2014). It has a number
of advantages, including the fact that it is free, open-
source, and contains a large number of statistical
packages that facilitate rapid model development.
Before the sales forecasting module can be
utilized, it is very important to supply clean data to
the module in the format that it requires. In our
application (cf. 2.4), data had to be aggregated,
cleaned, and new features had to be derived. Some of
these procedures require domain-specific knowledge.
It can therefore be expected that data preprocessing
may encompass different procedures for different
clients. R data management libraries, such as plyr
(Wickham 2011) or caret (Kuhn and Johnson 2013),
may greatly facilitate the development of client-
specific data handling procedures.
There are three key functions in the sales
forecasting module: (1) model tuning, (2) best model
selection and (3) forecasting. Model tuning refers to
finding the best model-specific setting. For example,
in the case of latent-class regression, model tuning
implies selecting the number of clusters that
minimizes cross-validation error. Selecting among
models is done based on cross-validation errors – we
select the model with the least error. This model is
used to perform the forecasting task. For more details
on model tuning and selection, we refer the reader to
Kuhn and Johnson (2013).
Both forecasting models described in section 2.1
were implemented in R using the stats (R
Development Core Team 2014) and the flexmix
(Grün and Leisch 2008) packages.
2.3 Case Description
We demonstrate the functionality and performance of
our forecasting module by using sales data of a large
Dutch apparel retailer. In apparel retailing,
assortments are renewed at least two times per year,
and new item introductions are common.
Our data includes monthly sales of 43 brands in
the period between 05-02-2009 and 21-02-2013. A
brand can have multiple collections, styles, colours
and sizes. We aggregate across these variables to
arrive at brand sales data. We observe average prices,
discounts, inventory levels and number of unique
stock-keeping units within each brand. Each brand is
characterized by its functionality (an internal
company classification variable) and average non-

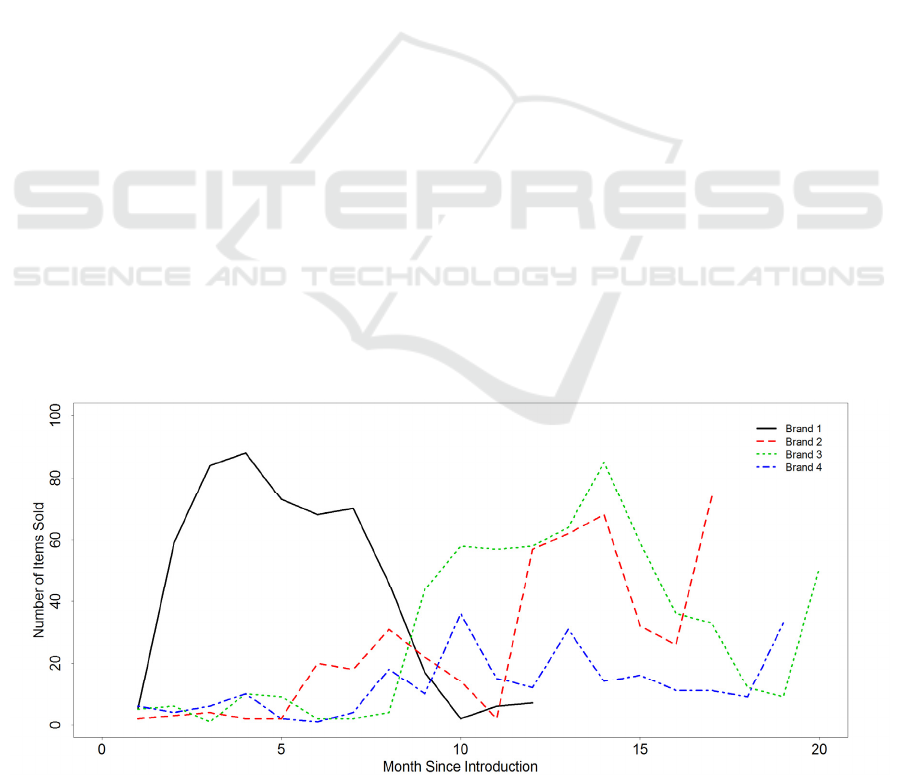

discounted price. Sales series of four selected brands
are shown in Figure 1.
We can see that brands exhibit different life cycle
patterns and that sales peak at different moments.
2.4 Capabilities and Output of the New
Product Forecasting Module
Our objective is to forecast sales of new brands in a
given category prior to their launch. We split the data
into a training set and a test set, where training set data
include observations until 01-01-2011, and the test set
Figure 1: Sales series of selected brands.
Sales Forecasting as a Service - A Cloud based Pluggable E-Commerce Data Analytics Service
347

includes sales data on new products that are launched
after this date. The splitting procedure resulted in 22
brands in the training set and 21 brands in the test set.
We tune the models and select the best-performing
model on the training set, and evaluate forecasting
performance on the test set. Therefore, we imitate a
real-life scenario of a pre-launch forecast.
2.4.1 Training Set Results
We used leave-one-out cross-validation to tune and
evaluate the Bass model and the latent class
regression. For the Bass model, we first fit the Bass
curve to each brand separately and obtain the
parameters. Next, to predict the sales curve of a new
brand, we use its attributes to compute the “distance”
between the current brand and all brands in the
training set. We use  closest brands and computed
the average , and  values. Next, based on these
average values, we predict the sales of the new brand.
Hence, , the number of closest brands to consider, is
our tuning parameter. For the latent-class regression,
we used leave-one-out cross-validation to fit the
model with  different clusters. Hence,  is the
tuning parameter for the latent-class regression
model. The optimal configuration, giving the lowest
mean absolute percentage error (MAPE) turned out to
be =2 and =3.
We compare the MAPEs of both models with the
best configurations using the t-test. We reject the null
hypothesis that the mean performance of the Bass
model is better than that of latent-class model with p-
value of 0.01. Thus, we expect the latent-class model
to perform better on the test set.
2.4.2 Forecasting Performance
We use both models to predict the sales of new
products in the test set. Table 1 provides MAPEs,
aggregated across brands, for each month since new
brand introduction. It is important to note that the
results described in this section are preliminary and
should be interpreted with care.
We can see that the latent class regression
performs better than the Bass model. This is due to
the fact that it incorporates decision variables
(pricing, discounts and stock levels). The forecast
errors are rather high for both models. This is

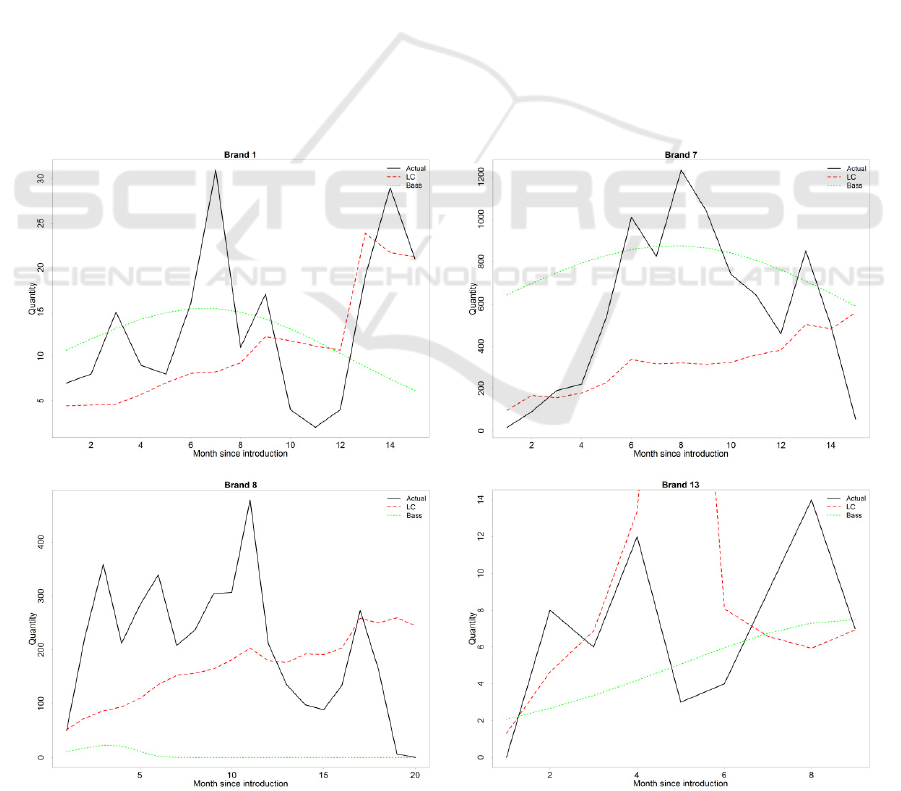

Figure 2: Forecast vs. actual sales for selected items.
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
348

Table 1: Performance on test set.
Months since
introduction
MAPE
Bass model
MAPE Latent
class regression
1 1119 158
2 1036 115
3 3886 156
4 2037 99
5 1005 78
6 2405 100
7 4751 261
8 900 157
9 2122 103
10 1695 131
11 360 153
12 449 217
possibly due to the fact that we do not have data on
many brand attributes, and it is difficult to establish
similarity between brands based on current attributes
alone. Figure 2 provides several plots with actual and
forecast sales for several brands.
3 PLUGGABLE
ARCHITECTURES
In section 2 we have shown how past sales
transactions can help retailers to predict future sales.
However, to obtain a complete, ready to use cloud
based forecasting solution, architectural questions
arise and will be discussed in the following. First, we
introduce the concept of pluggability, which will help
us to understand the issues of the forecasting module
and later on, to evaluate the solution proposed in this
paper. Secondly, we present a platform architecture
which forms the base of the implemented prototype
in section 4.
3.1 Pluggability
The requirements for software components usually go
beyond their pure functionality. Such non-functional
requirements are also known as software quality
characteristics. While the practice of software quality
goes back to the 70s (McCall et al. 1977), specific
quality characteristics for service-oriented systems
have evolved recently and mostly aim at a higher
agility of the resulting system (Lankhorst et al. 2012).
For cloud services, pluggability is one of such quality
characteristics. It focuses on limiting the efforts of
adopting new services (Aulkemeier et al. 2015). In
order to transform the core forecasting module into a
pluggable cloud service, six criteria have to be met.
In the following we are discussing the forecasting
module with regards to the criteria.
Ease of Provisioning (EOP) is the ability of the
service to support the user in selecting a suitable
service and to anticipate the costs, efforts and benefits
of its use. In case of the forecasting module, it is not
possible to oversee the capabilities of the module
from a business user perspective. Thus, it is difficult
to predict the costs, associated with the
transformation of the module into a ready to use
business application.
Ease of Deployment (EOD) means to minimize
the efforts for installing the service, including the
allocation of hardware and system software
resources. If the forecasting module would be
distributed as is, the user would have to deploy
suitable hardware and software as well as to provide
suitable application components in order to support
the end user.
Ease of Adaptation (EOA) has two different
aspects. The adaptation through configuration by a
business user as well as the adaptation of the service
by technical experts. The forecasting service offers a
maximum flexibility for software developers to reuse
the forecasting functionality. However, it does not
support a configuration by a non-technical business
user.
Ease of Integration (EOI) describes the
capability of a service to interact with other IT
components. The data gathering and preprocessing
tasks mentioned earlier can be considered as aspects
of integration. The forecasting module requires the
preprocessed data as input and does not support the
user with gathering and cleansing the data from other
services.
Ease of Operation (EOO) encompasses all
continuous tasks after setting up the service.
Maintenance of services includes, for example, bug
fixing, functional enhancements, security updates,
and end user support. While bug fixes and
enhancements could be distributed in an automatic
fashion, the maintenance of potential additional
application components and end user support needs to
be carried out by the consumer.
Ease of Exchange (EOE) of a service often
relates to the dependencies with other components. If
services depend on each other, the process of
exchange is getting more complex. Services such as
the forecasting module that only serve reporting
purposes can usually be removed without affecting
the rest of the landscape.
It is clear that the forecasting module described
above does not cover all quality criteria of a pluggable
service. Thus, in the following section, we present an
Sales Forecasting as a Service - A Cloud based Pluggable E-Commerce Data Analytics Service
349

architecture for a pluggable forecasting service with
the module at its core.
3.2 Architecture
In order to support retailers with the adoption of
innovative e-commerce services we created the
CATeLOG platform. At its core the platform contains
a canonical data model (CDM) to share e-commerce
related information across services. Furthermore, it
provides an application programming interface (API)
to give service providers access to the shared
resources. It allows the platform clients to implement
e-commerce services in a federated fashion (Busse et
al. 1999). The CDM and the federated nature of the
platform help to reduce the efforts in data gathering
and preprocessing required for the forecasting
service.
The architecture of the forecasting service and the
interaction with the platform is shown in Figure 3.
The forecasting service component has four
application functions. It interacts with the platform
through the same API as order management, online
store, product information management and other
services. It provides a wrapper around the core
forecasting module, which transforms the data from
the platform into the suitable format, triggers the
prediction module generation and requests individual
forecasts. The subscription mechanism uses the
standard authentication flow provided by the
CATeLOG platform. It allows potential users to
subscribe to the service by entering its platform
credentials and granting the service access to the
shared resources. The web application allows the user
to configure the service and displays the output of the
forecasts. Finally the scheduler is available for long
running jobs. As the generation of the prediction
models usually takes a longer time it has to be done
in the background. Users can schedule the model
generation periodically or on demand.
4 A PLUGGABLE SALES
FORECASTING SERVICE
In order to evaluate the architecture we created a
prototype of the platform as well as the forecasting
service. In the following we provide a description of
the prototype and evaluate the pluggability of the
implemented forecasting service.
4.1 Prototype
A prototype has been developed using standard web
application technologies, an SQL database for storing
data within and outside the scope of the platform as
well as various common libraries for web APIs,
OAuth authentication flow between the platform and
the service, interfacing the R module, and job
scheduling.
Figure 4 shows the web application user interface.
The user has the option to choose between various
forecasts and to schedule the prediction model and
forecast generation jobs.
Figure 3: Forecasting service architecture.
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
350

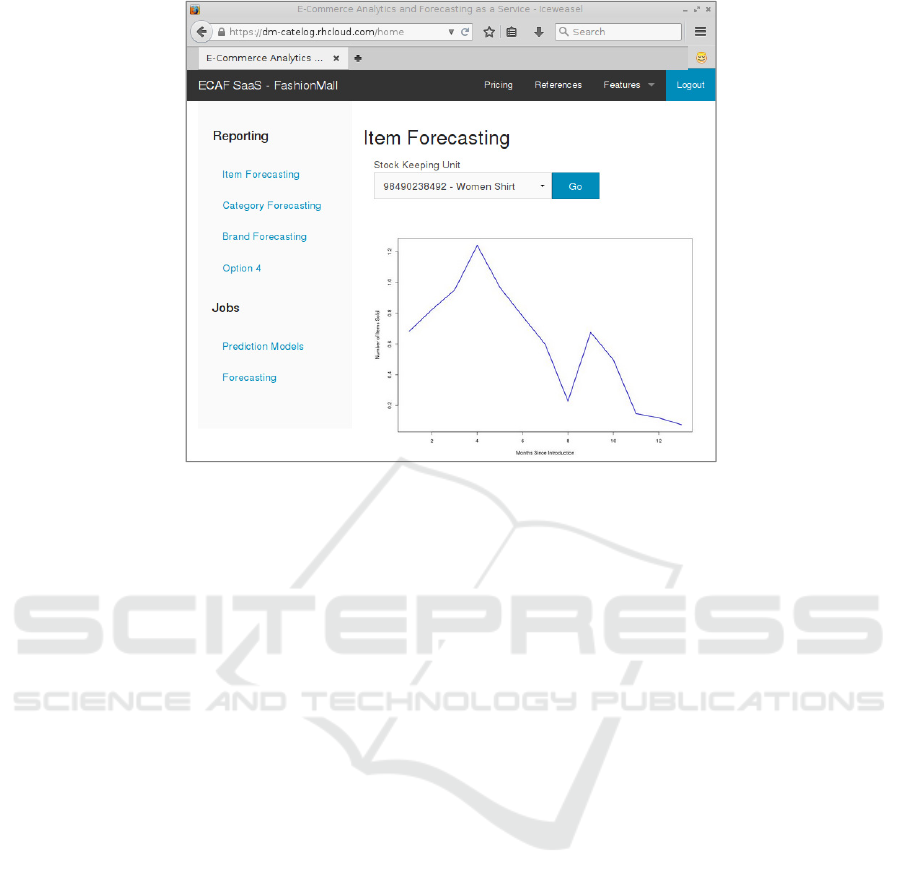

Figure 4: “e-Commerce analytics and forecasting SaaS” web application.
4.2 Evaluation
The goal of the architectural design and prototype
was to transform the state of the art forecasting
module into a pluggable cloud service. According to
prevailing design science research methodologies
(Peffers et al. 2007) the design and demonstration of
a design artefact should be evaluated by observing if
the artefact provides a solution to the design goals. In
the following, we do so by comparing the pluggability
of the implemented service with the pluggability of
the forecasting module in section 3.1.
• EOP: By introducing the service with the
forecasting module at its core, we can achieve a
higher abstraction of service. While the forecasting
module is providing functionality, the service is
providing business value (Haesen et al. 2008). Thus,
for the potential user, it gets easier to map the service
features to the business requirements, eventually
improving the EOP. Furthermore, if the service is
offered as a platform based artefact, it is possible to
discover and compare the services in a marketplace
fashion. This could further improve the EOP of the
service over the plain module.
• EOD: As the forecasting service is cloud based
the user does not need to deploy any software or
hardware. The service offers a subscription by using
the platform credentials. Directly after subscribing to
the service, the user can go over to the adaptation
phase.
• EOA: Similar to the aspects of the provisioning
phase, the service also supports the user in terms of
service adaptation. The configuration and setup can
be done within the web interface, resulting in a higher
EOA. However, the possibilities of service
customization through developers are very limited,
resulting in less flexibility in adaptation. This is a
common disadvantage of cloud services compared to
custom or packaged solutions.
• EOI: The EOI depends on the work that is
necessary to connect the service with other
components. In order to operate accurately, the
forecasting module requires a preprocessed data set
that contains the right data fields and records. In current
e-commerce architectures, sales transactions and
product information are stored across different systems
such as product information management, order
management or online shop frontend. By relying on the
platform architecture the service provider can pre-
integrate the service with the CDM. Thus, the service
user does not have any additional tasks with regards to
service integration and the EOI could be improved
significantly by using the platform.
• EOO: By making the service cloud based, the
service operation is shifted from the user to the
service provider. The EOO is higher as the user does
not have to carry out any maintenance tasks.
• EOE: As mentioned earlier the EOE has limited
relevance for reporting services. However, the shared
backend of all services in the platform guarantees that
exchanging the service may not affect the integration
points with other components.
Sales Forecasting as a Service - A Cloud based Pluggable E-Commerce Data Analytics Service
351

5 CONCLUSIONS
In the previous sections we have shown how a cloud
based forecasting service can be designed and
implemented based on a state of the art forecasting
module. Furthermore, we verified the pluggability of
the prototype with regards to the six criteria. It was
shown that the pluggability of the service exceeds the
pluggability of the plain forecasting module, and
offers the user a solution that is easy to adopt. The
solution can be particularly interesting for SMEs that
do not have the resources for a comparable on
premise solution. However, it is required that the
platform is in place and an ecosystem of services and
service providers has been established.
In this paper we have only given a short
description of the CATeLOG platform as the focus of
this work was on the transformation of the forecasting
module into a pluggable service. In parallel and future
publications we concentrate on the architecture of the
platform, its functional requirements, and further
benefits.
REFERENCES
Aulkemeier, F., Iacob, M.-E. & Hillegersberg, J. van, 2015.
Pluggable SaaS Integration: Quality Characteristics for
Cloud Based Application Services. In Enterprise
Systems Conference (ES). Basel.
Bass, F. M., 2004. Comments on “A New Product Growth
for Model Consumer Durables The Bass Model.”
Management Science, 50(12_supplement), pp.1833–
1840.
Busse, S. et al., 1999. Federated information systems:
Concepts, terminology and architectures, Technische
Universität Berlin, Fachbereich 13-Informatik.
Cohen, M. A., Ho, T. H. & Matsuo, H., 2000. Operations
Planning in the Presence of Innovation-Diffusion
Dynamics. New-Product Diffusion Models.
Danaiata, D. & Hurbean, C., 2010. SaaS–Better solution for
small and medium-sized enterprises. In 2nd
Multiconference on Applied Economics, Business and
Development (AEBD ’10). Kantaoui, Sousse, Tunisia.
Davenport, T. H. & Patil, D.J., 2012. Data Scientist: The
Sexiest Job of the 21st Century. Harvard Business
Review, p.70.
Goodwin, P., Meeran, S. & Dyussekeneva, K., 2014. The
challenges of pre-launch forecasting of adoption time
series for new durable products. International Journal
of Forecasting, 30(4), pp.1082–1097.
Grün, B. & Leisch, F., 2008. FlexMix version 2: finite
mixtures with concomitant variables and varying and
constant parameters. Journal of Statistical Software,
28(4), pp.1–35.
Haesen, R. et al., 2008. On the Definition of Service
Granularity and Its Architectural Impact. In Z.
Bellahsène & M. Léonard, eds. Advanced Information
Systems Engineering. Lecture Notes in Computer
Science. Springer Berlin Heidelberg, pp. 375–389.
Kahn, K. B., 2002. An exploratory Investigation of new
product forecasting practices. Journal of Product
Innovation Management, 19(2), pp.133–143.
Kuhn, M. & Johnson, K., 2013. Applied predictive
modeling, New York: Springer.
Lankhorst, M. M. et al., 2012. Agility. In M. Lankhorst, ed.
Agile Service Development. The Enterprise
Engineering Series. Springer Berlin Heidelberg, pp.
17–40.
McCall, J. A., Richards, P. K. & Walters, G. F., 1977.
Factors in software quality. Volume I. Concepts and
Definitions of Software Quality, Sunnyvale, CA:
General Eletctric Company.
Ordonez, C., 2011. Data Set Preprocessing and
Transformation in a Database System. Intell. Data
Anal., 15(4), pp.613–631.
Peffers, K. et al., 2007. A Design Science Research
Methodology for Information Systems Research.
Journal of Management Information Systems, 24(3),
pp.45–77.
R Development Core Team, 2014. R: A language and
environment for statistical computing the R Foundation
for Statistical Computing., Vienna, Austria.
Wedel, M. et al., 1993. A latent class poisson regression
model for heterogeneous count data. Journal of Applied
Econometrics, 8(4), pp.397–411.
Wickham, H., 2011. The Split-Apply-Combine Strategy for
Data Analysis. Journal of Statistical Software, 40(1),
pp.1–29.
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
352
