Business Opportunity Detection in the Big Data

Lyes Limam, Jean Lecouffe and Stéphane Chau

Altran Research, Région Sud Est, Division IIS, Altran, 1 Place Verrazzano, Lyon, France

Keywords: Big Data, Business Intelligence, Text Mining, Graph Databases.

Abstract: Modern enterprise information systems are characterized by large amounts of data issued from various

internal and external business applications, often stored and archived in different supports (databases,

documents, etc. The nature of this data (voluminous, unstructured, heterogeneous, inconsistent, etc.) makes

them difficult to use for analysis. In fact, it is typically an issue of big data analytics.

The main objective of our research project is to design a solution to detect opportunities (projects, new

markets, skills, tenders, etc.) in the continually growing data, while adapting to its constraints. The extracted

information should help users to take proactive actions to improve their business (e.g., identify a consultant

skill that can be aligned with a given tender).

In this project we are interested in text data. There are two main reasons. The first reason is that text data is

the most difficult to analyse by humans, especially when it is voluminous. The second reason is that we are

convinced that valuable information is usually textual. Therefore, we define six research axes:

• Intelligent Information Sensing

• Text Mining

• Knowledge Representation (semantics)

• Querying the knowledge

• Results Interpretation

• Self-learning.

1 INTRODUCTION

Big Data mining is a recent and actual research trend

(Diebold, 2012). Several approaches were

experimented in several domains like: mobile

communications (Laurila, et al., 2012), biology

(Howe, et al. 2008), economics (World Economic

Forum, 2012), (Letouzé, 2012), marketing (Fan, et

al., 2015), decision making (Probst, et al., 2013), etc.

In Big Data mining, it is usual to deal with 3V

problems: Volume, Variety, and Velocity. Recently,

two more Vs were proposed: Variability and Value

(Fan and Bifet, 2012). This last V is very important in

a business-oriented mining, which has for objective

to valuate internal and/or external data through

mining.

In our case, the values we want to highlight are:

• Fast answer to customer’s requests

• Understand customer’s problems and

determine new proposals to help solving it

• Find new business opportunities through new

projects, new markets, skills, tenders, etc.

Some papers propose to use graph-oriented

databases (Lin, 2014), which allow much faster

responses than classical relational databases, due to

local dependencies of data. A particular model of

graph based on RDF (Resource Description

Framework) retained our attention. RDF based model

consists of “triples” [subject] -> [predicate] ->

[object], which define conceptually a labelled graph

(Bönström, 2003). That allows representing data

dependencies in a clear, simple and efficient way, and

allows fast access to data in graph-oriented databases.

One of the main problems is: how to build this

graph? I.e. what are the data sources and how is

extracted pertinent information. Some documents are

relatively structured, like competencies records, but

the most are non-structured and thus need to be

threated specifically. Research axes to answer this

question are crawling and text mining.

Another problem leads in graphs gathering: the

objective is to build a global graph by combination of

graphs extracted from documents. This problem is not

trivial, as simply gathering graphs on their common

nodes and links could lead to mistakes, mainly false

250

Limam, L., Lecouffe, J. and Chau, S.

Business Opportunity Detection in the Big Data.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 1, pages 250-254

ISBN: 978-989-758-187-8

positive answers. This is a new research axe: the

knowledge representation using graphs.

The interest of such a representation is to

efficiently querying it. The issue of query formulation

and searching in a global graph is not trivial. The

objective is to propose a friendly-user interface for

query building, and to give an understandable result:

obviously, answer a sub-graph based on triple is not

allowed for non-expert users; this becomes a problem

of Human Machine Interface. This topic is covered by

the axe of querying the knowledge.

After a query session, results have to be

interpreted. A graphical representation with nodes

and edges of the resulting graph is not adapted for a

non-expert user. To allow a more efficient

interpretation of the result it is needed to transform

the resulting graph to a more user friendly

representation. The research axe of result

interpretation addresses this topic.

Last but not least, the results may be judged by the

requestor more or less suitable. This feedback is

necessary to increase efficiency of queries and

accuracy of results. The last research axe called self-

learning has the subject to consider how self-learning

can be implemented in the query engine.

We choose to support this research a test case

taken from an Altran’s

need: how to match a business

opportunity with the suitable consultant and in

reverse, how to match a given consultant with a

business opportunity.

When a customer asks our company for some

skills, it is important to be able to find consultants that

can answer its wishes in the best time. Internal data

are very useful to retrieve consultants in the field of

required qualifications: well-structured consultant

skills and knowledge records, database of CVs that

are also relatively well structured documents. But

several external data sources are also very useful in

skills search, like viadeo, linkedin, etc.

Matching request with the global graph will give

us the possibility to have a look on nodes close to the

request in order to retrieve additional information that

can help to describe a context like new markets, skills,

tenders, etc.

2 SYSTEM ARCHITECTURE

The main objective of Big Data technology is to

integrate all data, then to analyze and represent this

____________________________________

Altran Technologies, SA is a global innovation and

engineering consulting firm

data in the unified schema. To reach this objective,

we propose the following architecture (cf. Figure 1):

This architecture is composed of three Parts:

Data Sources

It contains all data provided by Altran's tools. Data

are extracted either from the enterprise databases or

from flat files which can be structured or not

structured.

These data were sorted and collected exhaustively

to obtain relevant information that can be used to

manage the Big Data System. The idea is to study and

find a solution that allows to:

- Identify opportunities (projects, markets,

skills, etc.)

- Improve transparency of existing data flow in

the internal tools Altran

- Centralize existing information

Big Data Engine

The challenge of big data is to manage a large volume

of data with optimal processing time.

We propose a big data engine based on Hadoop.

Its HDFS file system allows the processing of very

large amounts of data over several discs multiple

machines as if it was a single storage volume.

In addition, the use of tools such as Storm can

perform calculations and processing on graphs.

Implementing these two packages in Hadoop will

reduce the time to treatment and process large

volumes of data.

Other tools can also improve performance of

process. For example, Kafka tool is used to enable the

processing of queued messages.

Representation / Analyse / Compute:

The use of graphs databases (for example: Giraph,

Neo4j) to represent the big data provides a unifying

representation.

This offers a visual representation, easy to

understand by the business. In addition, the use of

graphs gives much better performance than relational

databases, whether for the graph traversal or to

load/import large data volumes.

3 OUR RESEARCH AXES

The objective of this section is to present the global

framework of the solution to opportunity detection

and its components which are the next research axis

(cf. figure 2).

Business Opportunity Detection in the Big Data

251

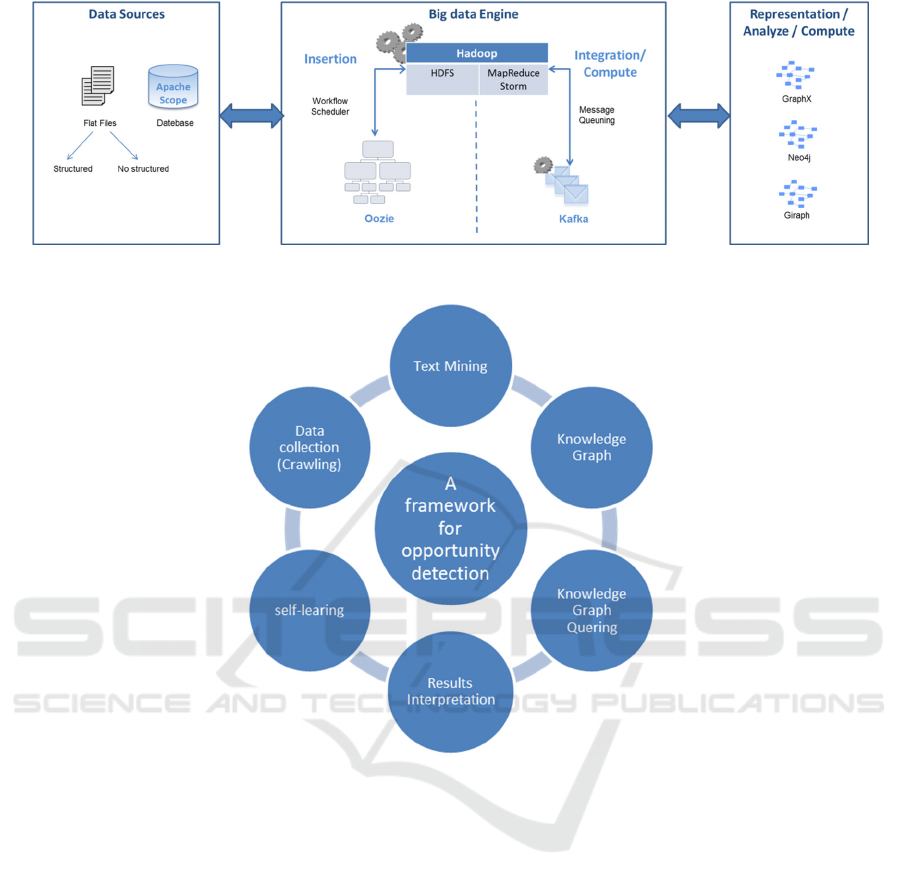

Figure 1: Representation of system architecture.

Figure 2: The Components of a Framework for Opportunity Detection.

3.1 Crawling

A crawler is software that explores recursively links

found within a web page, from a pivot page, in order

to collect and index the resources (web pages, images,

videos, documents, etc.).

To enable the crawler to do its job correctly, one

must define:

• A selection policy that identify the pages to

download;

• A re-visit policy that defines when to check

changes in the pages;

• A politeness policy that defines how to avoid

overloads pages;

• A Parallelization policy that defines how to

coordinate the crawlers in a distributed indexing.

With the introduction of the new Semantic Web

research principles have been defined to allow

crawlers to operate indexing methods involving more

intelligent human-computer combinations as are

practiced today.

The goal of this research axis is mainly to catch

relevant pages in an intelligent manner. The ideal

crawler should allow identifying pertinent data

without drilling down the sources.

3.2 Text Mining

The crawling allows extracting from the WEB a set of

sources which may have pertinent information. The

second step is to inspect these sources to extract the

information. It is the purpose of the text mining axis.

There are various types of sources that can be

processed, but the large majority of them are textual:

it is why we focus on text mining in this work.

Text mining is a complex process which deals

with natural languages. The main difficulty is that a

natural language is ambiguous, redundant and

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

252

implicit. Identifying new keywords and semantic

links in a text need to use ontologies, heuristics and

other sophisticated algorithms.

We choose to represent textual information as a

global graph, where nodes are keywords, and edges

are property links between these nodes. Edges are

wearing semantic.

The nodes are found by keyword mining in the

various structured and non-structured documents

available in the company, like CVs, skill’s records,

etc. Using ontology based on business rules, enables

us to categorize the identified keywords into different

abstract levels, and to discover the semantic links

existing between them. For example, the global graph

should contain the consultants and their respective

skills. This allows, for instance, retrieving the

consultants that match a client request.

New keywords can be identified using a count of

words and retaining only those which have a real

sense. However for some structured documents like

competency files, it is affordable to use the structure

of the document to extract the relevant information.

Anyway it is important that keyword extraction

algorithms be able to adapt to the type of document.

Semantic links needs in many cases a certain

degree of understanding of the analyzed document.

This involves language treatments, using language

tools enabling a more or less detailed analysis of the

document content through content analysis techniques.

3.3 Graph based Knowledge

Representation

As previously introduced, we choose to represent the

extracted knowledge as an oriented and labeled graph

where nodes are extracted keywords and links are

semantic links between keywords.

Each analyzed document is resulting in a small

graph representing the semantics extracted from the

document. At this point we use RDF language to

represent semantic graphs and to operate on them.

In order to form the global graph, we need to gather

the different graphs coming from each analyzed

document. As said before, this point is not trivial,

because of the need to keep data dependencies from each

to other; for example, assume A related to E related to

B, and X related to E related to Y: a basic gathering will

give A and X related to E related to B and Y, leading

potentially to false positive answers A related to E

related to Y, and X related to E related to B.

In order to deal with this constraint, we add an

instance number in nodes: when such confusion may

happen, the node is duplicated and a new instance

number is given for each created node. In previous

example, the node E is duplicated in two instances

E[1] and E[2], thus we have A related to E[1] related

to B and X related to E[2] related to Y; even if

graphically the nodes are gathered, they are

differentiated while analyzing the graph.

Another way may be to consider transitivity

between links of different semantics, where A related

to E and E related to B involves a potential transitive

link A to B with a more precise meaning.

The global graph will first be built using well-

structured documents like skills reports and CVs. It will

be improved next by client requests and ontologies.

Indeed, requests can enlarge application domains, add

and refine skills, while ontologies will give abstraction

levels that can extend or refine contexts.

3.4 Knowledge Graph Querying

Queries are given as small graphs similar to the global

graph. A user interface will help to build queries in an

understandable way, proposing refinements or

contextual information that can give more precise

formulations.

The graph of a query can be used, in active way,

to quickly retrieve consultant that can satisfy a client

request. It can be used also in a proactive way by

augmenting the answer with neighborhood states or

taking into account more general points of view,

giving an extended view on client’s needs, and thus

allowing proposing complementary services. In a

general active way, the sub-graph can be also used to

determine market’s trends, and identifying new

relevant proposals of collaboration with new

customers.

Some nodes of the query shall be “asking nodes”:

it will match any node of the global graph satisfying

its relation links; thus, the entire query can match all

the solutions of the need: for example, building a

query on competencies with a “consultant asking

node” will return all the consultants having these

competencies.

An answer is thus a sub-graph deduced from

global graph by matching query’s nodes and links,

with potentially several nodes for each “asking node”.

Practically, the query graph construction could be

not trivial: asking nodes could cover different

information. For example, we could have consultants

and enterprises skilled in programming languages:

searching with an “empty asking node” will keep

back consultants and enterprises. In order to reduce

the field of answer, we decided to add a type to nodes;

in such an example, consultants could be typed as

person and enterprises as society. The query graph

could then have a “typed empty asking node” in order

Business Opportunity Detection in the Big Data

253

to retrieve only consultants.

Types are very important for query building, as

we can propose to the user the list of types in which

he can pick to refine its query.

Extracting the answer is not trivial too, as user

could skip several intermediary nodes, because of not

knowing it or simply to have a simpler query. Thus

asking for a consultant skilled in java programming

language could return a graph containing a node

“object languages” that gather several languages like

java, c++, c#, etc. More generally, simple queries

could return complex chains of dependencies: the

graph matching algorithm has to deal with this.

3.5 Result Interpretation

The query’s result is a set of sub-graphs extracted

from the global graph and matching the query graph.

Representing this result in a human readable manner

is not so trivial. It is easy to use a graphical

representation where nodes are boxes and links are

arrows. This form is acceptable for a human reading

as long as the result set is not too big, but becomes

unusable if there are hundreds or thousands of nodes.

Addressing this issue is not quite simple. Many

studies have been done to try to solve it and many

approaches exist (Shengqi et al., 2014), (

Bergmann et

al., 2014) with different approaches. However there is

not any universal good approach. Each need may

have own adapted representation. The goal is here to

determine a good representation in existing tools, and

if needed (and possible), adapt it to closely cover the

specific need of our project.

3.6 Self-learning

Automatic learning concerns the design, analysis,

development and implementation of methods

allowing to a machine to evolve in a systematic

process, and so fulfill the tasks difficult or impossible

to fill by more conventional algorithmic means.

There are some kinds of self-learning algorithms.

In our project we develop a self-learning method

based on the user feedback. This method refers to a

class of automatic learning problems, where the aim

is to learn from experience, to optimize a quantitative

reward over time.

The user feedback acts as a reward, and is used to

improve the search algorithm, which in turn will be

able to provide more accurate results.

4 CONCLUSION

Most of the techniques described above to achieve the

goal of opportunity detection are recent research

subjects. Some partial answers already exist, but it

remains a lot of issues, difficulties and weakness in

the big data mining and in the graph based knowledge

representation. This research will try, using a test case

of business opportunity detection, to address some of

them and to propose original solutions to increase the

efficiency and accuracy of the knowledge mining and

restitution in the big data.

REFERENCES

Bergmann, G., Hegedüs, Á., Gerencsér, G., & Varró, D.,

2014, ‘Graph Query by Example’, in CMSEBA in

conjunction with MoDELS, pp. 17-24.

Ching-Yung Lin., 2014. ‘Graph Computing and linked big

data’, Keynote speech at International Conference on

Semantic Computing.

Diebold, F. X., 2012, ‘A Personal Perspective on the

Origin(s) and Development of Big Data: The

Phenomenon, the Term, and the Discipline’, Penn

Institute for Economic Research, Department of

Economics, University of Pennsylvania.

Fan, S., Lau, R. Y. & Zhao, J. L., 2015, ‘Demystifying big

data analytics for business intelligence through the lens

of marketing mix’, Big Data Research, vol. 2, no 1, pp.

28-32.

Fan, W. & Bifet, A., 2012, ‘Mining big data: Current status,

and forecast to the future’, ACM SIGKDD

Explorations Newsletter, Vol. 14, no 2, pp. 1-5.

Howe, A. D., Costanzo, M., Fey, P., Gojobori, T., Hannick,

L., Hide, W., Rhee, S. Y., 2008, ‘Big data: The future

of biocuration’. Nature, Vol. 455, no 7209, pp. 47–50.

Laurila, J. k. et al., 2012, ‘The Mobile Data Challenge: Big

Data for Mobile Computing Research’, Nokia

Workshopp, in conjunction with Int. Conf. on Pervasive

Computing, no EPFL-CONF-192489

Letouzé, E., 2012. Big data for development: Challenges

and opportunities, UN Global Pulse.

Probst, L. et al., 2013, ‘Big data Analytics and decision

making’, Business Innovation Observatory, European

Commission.

Shengqi Yang, Yinghui Wu, Huan Sun, and Xifeng Yan,

2014, ‘Schemaless and structureless graph querying’,

Proc. VLDB Endow. Vol. 7, no 7 pp. 565-576.

Trelles, O., Prins, P., Snir, M. & C.Jansen, R., 2011, ‘Big

data, but are we ready?’, Nature, Vol. 12, no 224.

Valerie Bönström, Annika Hinze, Heinz Schweppe, 2003.

‘Storing RDF as a Graph’, 1st Latin American Web

Congress, pp.27-36

World Economic Forum, 2012. Big Data, Big Impact: New

Possibilities for International Development.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

254
