On Source Code Optimization for Interpreted Languages using State

Models

Jorge López

1,2

, Natalia Kushik

and Nina Yevtushenko

Department of Information Technologies, Tomsk State University, Lenin str. 36, Tomsk, Russia

SAMOVAR, Télécom SudParis, CNRS, Université Paris-Saclay, 9 rue Charles Fourier 91000, Évry, France

Keywords: Source Code Optimization, Quality of Software, State Models.

Abstract: The paper is devoted to code optimization techniques with respect to various criteria. Code optimization is

well studied for compiled languages; however, interpreted languages can also benefit when using

optimization approaches. We provide a work in progress of how the code optimization can be effectively

performed for the applications developed with the use of interpreted languages. Methods and techniques

proposed in the paper rely on the use of formal models, and in particular state models. We propose some

code optimization based on two different state models, namely weighted tree automata, and extended finite

automata. The problem of extraction of such models is known to be hard, and in both cases we provide

some recommendations of how such models can be derived for a code in an interpreted language. All the

optimization techniques proposed in the paper are followed by corresponding illustrative examples.

1 INTRODUCTION

As the complexity of information systems increases,

novel techniques for software optimization are

highly needed. Such optimization criteria can refer

to different non-functional properties and

requirements ranging from performance to some

specific features, such as, for example, energy

consumption for a given application under certain

environment (Ivan et al., 2007).

Various optimization techniques based on the

source code of an application have been well studied

during the last decades. Many of these techniques

have been implemented in well-known compilers,

see for example (Stallman et al., 2009), and

nowadays it is even possible to choose specific

optimizations performed when producing the binary

code.

On the other hand, interpreted languages such as

PHP (Bakken et al., 2000), Perl (Wall et al., 2000),

etc., have grown in popularity (especially in web

applications). However, optimization techniques for

compiled languages are not directly applicable for

interpreted languages, given the fact that interpreted

languages execute statements (one by one) as they

appear in the code, i.e. there is no compilation stage

of the source code as a whole. The latter therefore,

motivates researchers to study methods and

techniques for optimizing applications written in

interpreted languages. More precisely, the problem

of interest is stated as follows: given a source code

in an interpreted language, one should replace this

code with another sharing the same functionality,

but being ‘better’ with respect to some non-

functional properties. In order to solve this problem

we utilize appropriate formal models and propose to

perform all the optimization procedures over the

formal model rather than on the code itself.

In this paper, we discuss how various classes of

Finite State Automata (FSA) can be applied to code

optimization for interpreted languages. In particular,

we study weighted tree-like automata (Fülöp and

Vogler, 2009) and extended finite automata (Smith

et al., 2008) as relative code representations. In the

first case, we assume that each instruction of the

code under optimization is augmented with

appropriate weights, that can represent the

normalized time needed for the instruction

execution, the percentage of a disk load while it is

being executed, energy consumption or any other

non-functional countable feature. Correspondingly,

we provide an idea of how a code can be optimized

such that the total cost / weight of the automaton is

(close to) minimal. For extended finite automata, we

discuss how such model can be extracted from the

code under investigation and which analysis can be

282

López, J., Kushik, N. and Yevtushenko, N.

On Source Code Optimization for Interpreted Languages using State Models.

In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 282-287

ISBN: 978-989-758-189-2

performed using the available flexibility. In

particular, we discuss certain heuristics, to identify

properties of the model that allow providing some

benefit for the source code under optimization.

In fact, this short paper presents a work in

progress of using state (trace) models for interpreted

code optimization. Therefore, the main contribution

of the paper is the discussion of how the above

models can be derived and which kind of

optimization techniques can be applied when using

these models. Both cases of weighted and extended

automata are followed by small (due to space

limitation) examples of illustrative code in PHP.

The structure of the paper is as follows. Section 2

presents approaches of how the previously

mentioned state models can be extracted from source

code, and the optimization criteria for such models.

Section 3 is divided into two parts regarding the use

of weighted tree-like automata and extended

automata for the code optimization. For each

subsection, a discussion of how to perform the

corresponding optimization is provided. Section 4

concludes the paper.

2 USING STATE MODELS FOR

SOURCE CODE

OPTIMIZATION

2.1 Source Code Representation

Source code is considered as a text listing of

computer commands (or instructions). This text

representation of source code has a formal language

definition, designed to supply instructions to the

computer; instructions that it must execute. We

propose the notion of a state model representation of

a given source code. In this paper, we use the

previously mentioned state models, i.e., Extended

Finite Automata (EFA) and Weighted Tree-like

Automata (WTA) for code representation and

optimization. In this subsection we discuss how to

extract both models from the source code and how to

come back to source code from each model.

The basic idea of source code extraction comes

to the well-known Abstract Syntax Tree (AST)

representations generated by parsing code (Jones,

2003). For interpreted languages there exist a

number of open source implementations developed

for such purpose, see for example (Popov, 2016).

We propose to derive the appropriate state models

by traversing the AST data structure that is obtained

from a given source code.

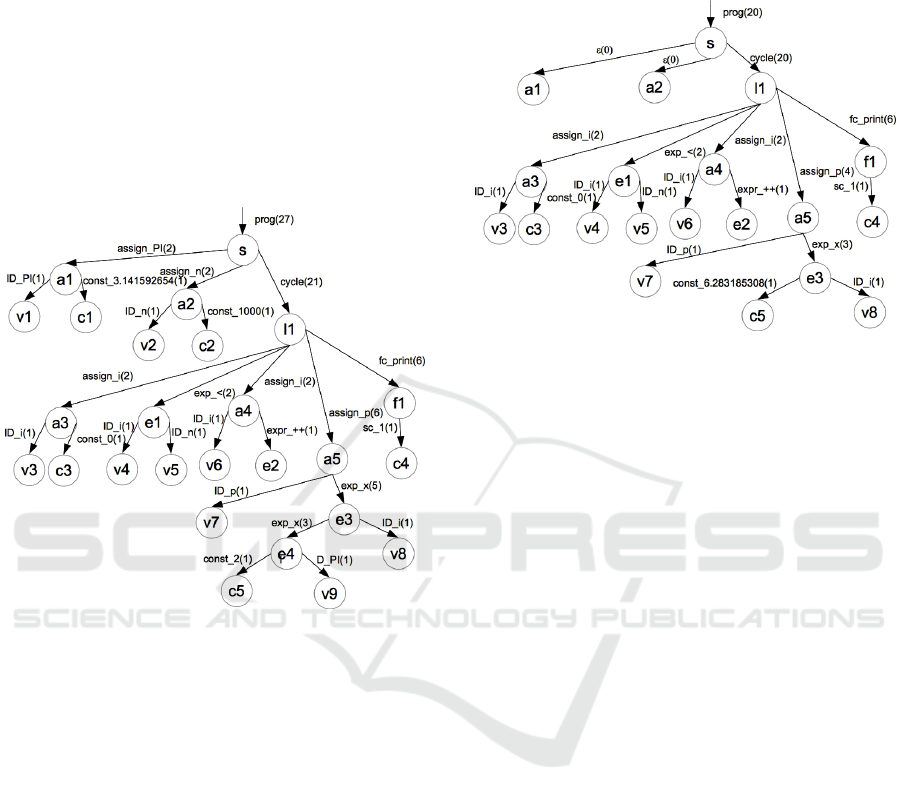

Given the fact that a WTA and an AST both have

a tree-like structure, the generation of a WTA is

mostly straightforward. Starting from the root node

of the AST and the initial state of the WTA, we

traverse the AST and for each member of the current

AST node structure we create a corresponding state

in the WTA. The AST nodes’ data structures have

different members. For example, a while loop node

has an expression (for the corresponding condition)

and a list of statements (the statements to execute

form the loop’s body). For each of those members

we add a transition with the action labeled as the

object type of the node member. The successor of a

current WTA state is created with respect to the

corresponding AST state, and this generation

process is done recursively for the successor state

and current node structure member.

In order to produce source code from a WTA

representation, the pre-order tree transversal

algorithm can be used. With this simple algorithm,

source code can be obtained from the WTA

representation.

On the other hand, the generation of an EFA

from an AST data structure is different. The

approach also starts from the root of the AST data

structure and the initial EFA state. Later on, for each

expression or assignation statement we add the

corresponding context variables and updating

functions for the corresponding expressions. New

states are created when control-flow statements are

encountered (function calls, loops, conditions, etc.).

A function call, however, is processed in a special

manner, since the added state can be unrolled

(expanded) in accordance to the proper function

statements (sub-machine). When adding new states

with control-flow, the control flow conditions are

added to the predicates of the corresponding

transitions. Intuitively, inputs and outputs are

encoded (labeled) in the EFA respectively.

The process of generating source code back from

an EFA representation follows the reverse procedure

from the generation.

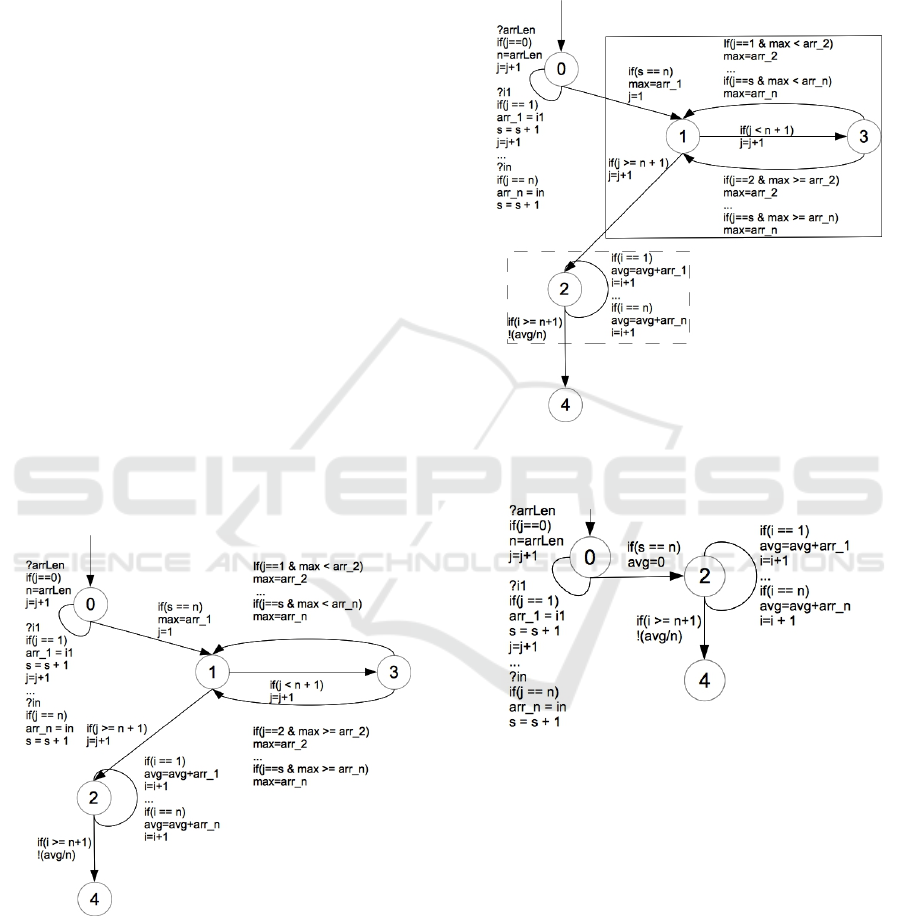

Even if the EFA structure does not appear to be

close to an AST, the correspondence between the

source code and the EFA is very close as it can be

seen in Figure 3.

2.2 Source Code Optimization Criteria

Typical criteria for source code optimization include

reducing the number of lines in the code. Since we

use state models to represent the source code, this is

equivalent to reduce either: i) the number of states;

On Source Code Optimization for Interpreted Languages using State Models

283

ii) the number of transitions; or iii) the number of

context variables in the model.

Other non-functional optimization criteria can

also be considered, such as, for example, avoiding

the use of costly operations or specific function

calls. As an example, one might prefer using three

additions of a variable instead of multiplying it by

three or avoiding input/output operations in favor of

in-memory operations. This will result in less

expensive operations which can imply less energy

consumption, for instance. Calling reliable or secure

functions can be another non-functional

requirement, for example, one can consider

sanitizing inputs (e.g., htmlspecialchars function in

PHP) to avoid potential Cross-Site Scripting

(Nentwich et al., 2007) or SQL Injection attacks

(Halfond and Orso, 2005). These requirements

provide other optimization criteria that can be also

modeled by an addition of ‘big’ weights to all non-

reliable instruction representations (transitions, for

instance) of the corresponding state model.

3 OPTIMIZATION METHODS

3.1 Code Optimization for Tree-like

Automata

Different sets of instructions written in the same

language can be equivalent. However one of them

can be better than others, w.r.t. specific non-

functional properties or requirements of the

corresponding software. For example, equivalent

(from the functional point of view) applications can

differ in terms of their performance, energy

consumption, disk load, etc. Correspondingly, for

the source code, there is a list Sub of substitutions

which can replace some instructions / sequences of

actions. For example, a sequence ab can represent

the code that is equivalent to the code represented by

an action d; however, the weight of d can be bigger

than the sum of weights of a and b and thus, the d–

code can be slower or can be more energy

consuming than the code represented by the

sequential execution of a and b. We can also use

regular expressions, which in fact, correspond to the

replacement of a sub-tree in the initial weighted tree

automaton. Such regular expressions are well known

(Smith et al., 2008) and we do not describe them in

detail due to the page limit of this work.

Given a list Sub of possible substitutions of

traces over the alphabet A with traces over alphabet

B, a trace α = α

… α

over alphabet A is equivalent

to trace β = β

… β

over alphabet A ∪ B if for each

i = 1, …, l, α

= β

or β

is a possible substitution for

of the list Sub. The list of substitutions Sub

contains only possible substitutions that guarantee

that after applying any of such substitutions to a

given WTA S, an equivalent WTA S′ is obtained.

An equivalent WTA S′ refers to a WTA obtained

after applying a sub-set of substitutions in the Sub

list to the original WTA S. S′ represents the source

code, which is equivalent w.r.t. the overall

functional specification of the source code that is

represented by S.

Example. Let A = {a, b, c}, B = {a, d} and Sub =

{aba → bc; bcb → d; bab → cd}. Consider the trace

abababa. If we consider abababa as aba bab a then

we get an equivalent trace bc baba that can be

considered as bcb aba. Thus, the trace dbc is

equivalent to abababa. If each action in the

corresponding automaton has a weight one, then the

sequence of the weight 7 can be minimized to the

one of weight 3. However, if we partition the trace

abababa in another way as a bab aba then an

equivalent trace acdbc will be obtained that cannot

be minimized w.r.t the given set Sub of available

substitutions.

An important semantic note on the regular

expression usage is in the context of replacements.

The regular expression replacement actions

represent the set of original actions matched by the

regular expression over the alphabet

A. As an

example, for the replacement a.*b

→

db.* the

matched sequence of actions is axazb, the

replacement is dbxaz, due to the fact that xaz was the

matched set of actions in the replacement.

Given a finite list L of traces over the alphabet A

where each action is a weighted action, the problem

is to derive traces of minimal weight using

substitutions of a list Sub over alphabet B.

WTA Code Optimization Example. Consider the

following simple PHP code that outputs the

perimeters for the first 1000 circles with integer

radius (later referenced as the perimeters code):

<?php

$PI = 3.141592654;

$n = 1000;

for($i = 0; $i < $n; $i++)

{

$p = 2 * $PI * $i;

print("R = $i, P = $p \n");

}

A WTA model shown in Figure 1 was derived

manually based on the code listed above.

The weights of the automaton S presented in

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

284

Figure 1 are assigned under the assumption that

many assignations and expressions of PHP source

code have the same cost, which equals one.

Therefore, for each node of the corresponding tree,

the weight of the incoming edge equals the sum of

those for all the outgoing edges plus a penalization

constant. The penalization constant, in the running

example, adds five to each function call, three to

each loop, and one to multiplications.

Weights can favor certain instructions, for

instance, to prefer shift left operations instead of

multiplications by a power of two.

Figure 1: A WTA representation of the perimeters code.

Let the substitution list Sub be as follows:

{assign_PI(2)A* → ε(0); assign_n(1)A* → ε(0);

ID_n(1)→ const_1000; exp_x(3)exp_(2)A* →

const_6.283185308(1)} .

By an application of the substitutions in Sub to

the WTA in Figure 1 an optimized WTA in Figure 2

is obtained. By following the pre-order tree

transversal algorithm for code generation the

following optimized code is obtained:

<?php

for($i = 0; $i < 1000; $i++)

{

$p = 6.283185308 * $i;

print("R = $i, P = $p \n");

}

Please note that, the minimization of the overall

weight of the edges at the first level of the

corresponding tree, which is the sum of weights of

the outgoing edges from the root can be another

optimization criterion. If each such outgoing

instruction has weight one, then for replacing we can

choose an equivalent tree with the minimal number

of root transitions.

Figure 2: An optimized WTA representation of the

perimeters code.

3.2 Code Optimization using Extended

Finite Automata

The EFA representation is widely used for code

representation since such representations are

compact and intuitively very close to code

instructions. We have identified some heuristics over

the components of the EFA such that after applying

these heuristics, an optimized and functionally

equivalent EFA is obtained. As an example, consider

the heuristic for finding and suppressing a non-

significant sub-automaton.

Given an EFA E extracted from the code, we

propose to decompose the automaton E into two

parts E1 and E2, such that, for a sub-automaton E1 it

holds the following: i) each transition of E1 does not

contain any input or ii) an output. The latter means

that the automaton E1 is “responsible only” for the

internal calculations, i.e. for updating the context

variable values. If it holds that for each context

variable c

, that is updated in one of the transitions of

the sub-automaton E1, c

does not appear in any

predicate included into the sub automaton E2 nor in

any function that calculates the value of an output

parameter, then the sub automaton E1 is not

significant for the whole behavior of the

composition of the machines E1 and E2. In this case,

the automaton E1 can be ignored, i.e., can be deleted

from the composition.

Consider an example of representing a source

code as an EFA. We further illustrate how the EFA

can be optimized with the help of the ‘non-

significant’ sub-automaton described above.

On Source Code Optimization for Interpreted Languages using State Models

285

Extended Finite Automata Code Optimization

Example. For a better understanding of how an EFA

model can be used for code optimization, consider

the following PHP function:

function mean($iarr, $n)

{

$max = $iarr[0];

for($j=1; $j<$n; $j++)

if($max < $iarr[$j])

$max = $iarr[$j];

for($i=0; $i<$n; $i++)

$avg += $iarr[$i];

return $avg / $n;

}

The function input parameters are an array, and its

length. The output is the mean value of the array.

The EFA representation of the code listed above was

manually derived and it is shown in Figure 3. We

note that the following set of context variables is

considered: {j, i, s, arr_1, …, arr_n}; all context

variables are assumed to be initialized to 0, except of

i which is initialized to 1.

In the running example, the automaton E1 is

shown in Figure 4 enclosed in a box with a

continuous line; the automaton E2 is depicted in a

box with a dashed line. After applying the above

heuristic process, the resulting EFA is obtained

(Figure 5).

Figure 3: EFA representation of the PHP mean function.

By direct inspection, one can assure that the

optimized EFA is simpler than the initial, and the

corresponding source code has less number of

instructions. The code that corresponds to the

optimized EFA is the following:

function mean($iarr, $n)

{

for($j=0; $j<$n; $j++)

$avg += $iarr[$j];

return $avg / $n;

}

Figure 4: Component identification for the EFA model of

the PHP mean function.

Figure 5: An optimized EFA via ‘non-significant’ sub-

automaton heuristics for the PHP mean function.

4 CONCLUSION

In this paper, we have discussed how finite state

models can be used for code optimization. As this

problem is well-studied and effective methods and

tools are well developed in current compilers, we

focused on the problem of such optimization for

interpreted languages. In particular, we have

discussed how state models can be efficiently used

to derive another interpreted code, which is better

than the original one, according to some criteria (in

some sense).

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

286

Among the known state models we chose

weighted tree-like automata and extended finite

automata for code optimization. We provided

several heuristics of how the original models can be

changed in such a way that substituting / deleting a

submachine of the corresponding automaton can

lead to a code with a better performance, disk load,

energy consumption, etc. As the extraction of

original weighted / extended automaton is a hard

problem by itself, we briefly describe how the

corresponding automata can be derived.

We mention that optimization techniques

discussed in the paper are mostly based on the

flexibility of the original model and extracting a sub-

model that can be substituted or simply, deleted.

Such flexibility can be effectively preserved as a

largest solution of the corresponding FSM/automata

equation (Villa et al., 2015). Therefore, as a future

work we would like to apply this theory of equation

solving for code optimization. However, such

perspective arises new theoretical issues such as

solving equations over weighted / extended

automata, establishing (necessary and) sufficient

conditions for the existence of solutions to such

equations, etc. These questions are out of the scope

of this position paper and are left for the future

work. On the other hand, given the fact that state

models are known to be effective for code

generation (Giegerich and Graham, 1992), we are

also interested in the application of FSM / Automata

equation solving for an optimal synthesis of an

‘unknown’ code component.

Certainly, the efficiency of proposed techniques

needs to be experimentally evaluated over larger test

cases (larger source code) and this is another

direction of our future work. We also plan to

experiment in different environments (including

compiled languages) given the fact that the proposed

approach seems to be applicable for any language

parse trees.

ACKNOWLEDGEMENTS

The work was partially supported by the ITEA3

project 14009, MEASURE (http://measure.softeam-

rd.eu, https://itea3.org/project/measure.html).

REFERENCES

Villa, T., Petrenko, A., Yevtushenko, N., Mishchenko, A.

and Brayton, R., 2015. Component-Based Design by

Solving Language Equations. Proceedings of the

IEEE, DOI: 10.1109/JPROC.2015.2450937, Volume:

103, Issue: 11, P: 2152-2167, 2015.

Jones, J., 2003. Abstract syntax tree implementation

idioms. In the proceedings of the 10th conference on

pattern languages of programs.

Nentwich, F., Jovanovic, N., Kirda, E., Kruegel, C.,

Vigna, G., 2007. Cross-Site Scripting Prevention with

Dynamic Data Tainting and Static Analysis. In the

proceedings of the Network and Distributed System

Security Symposium (NDSS’07).

Halfond, W. G. J.,Orso, A., 2005. AMNESIA: Analysis

and Monitoring for NEutralizing SQL-injection

Attacks. In the proceedings of the 20th IEEE/ACM

International Conference on Automated Software

Engineering. P: 174-183.

Smith, R., Estan, C.,Jha, S., Kong, S., 2008. Deflating the

Big Bang: Fast and Scalable Deep Packet Inspection

with Extended Finite Automata. In the proceedings of

the ACM SIGCOMM 2008 Conference on Data

Communication, P:207-218.

Ivan, I., Boja, C., Vochin, M., Nitescu, I., Toma, C., Popa,

M., 2007. Using Genetic Algorithms in Software

Optimization. In WSEAS’07, 6th Int. Conference on

TELECOMMUNICATIONS and INFORMATICS,

Dallas, Texas, USA.

Stallman, R. M. and GCC Developer Community, 2009.

Using The Gnu Compiler Collection: A Gnu Manual

For Gcc Version 4.3.3, CreateSpace, Paramount, CA,

First Edition.

Bakken, S. S., Suraski, Z., Schmid, E., 2000. PHP Manual:

Volume 2, iUniverse, Incorporated.

Wall, L., 2000. Programming Perl, O'Reilly & Associates,

Inc. 3rd edition. Sebastopol, CA, USA.

Popov N., 2016 PHP Parser, URL:

https://github.com/nikic/PHP-Parser, Last visited:

2016-01-14.

Fülöp, Z., Vogler, H., 2009. Weighted Tree Automata and

Tree Transducers, P: 313-403, Handbook of Weighted

Automata, Springer, Berlin Heidelberg

Giegerich, R., and Graham, S L., 1992. Code Generation

— Concepts, Tools, Techniques, the proceedings of

the International Workshop on Code Generation,

Dagstuhl, Germany, Springer –Verlag London

On Source Code Optimization for Interpreted Languages using State Models

287
