A Systematic Assessment of Operational Metrics for Modeling

Operator Functional State

Jean-François Gagnon

, Olivier Gagnon

, Daniel Lafond

, Mark Parent

and Sébastien Tremblay

Thales Research and Technology, Thales Canada, Québec, Canada

Department of Electrical and Computer Engineering, Université Laval, Québec, Canada

School of Psychology, Université Laval, Québec, Canada

Keywords: Operator Functional State, Psychophysiological Modeling, Machine Learning, Data Processing.

Abstract: This paper addresses critical issues and reports key findings with regards to the development of participant-

generic operator functional state (OFS) models in the context of cognitive work. Conceptually, this research

is concerned with the nature of the relationship between the physiological state of individuals and human

performance. Participants were physiologically monitored (cardiac, respiratory, and eye activity) during the

execution a set of two cognitive tasks – n-back and visual search – for which there were two levels of

difficulty. Levels of difficulty were associated with levels of mental workload. Performance on the tasks

was also monitored and linked with OFS. Modeling of the relationship between physiological state and OFS

involved systematic manipulation of three parameters: (1) size of smoothing window for performance, (2)

performance decrement threshold for labelling functional and sub-functional states, and (3) the mode of

classification being either prospective or descriptive. Modeling was performed using two types of

classifiers. Results show that (1) models that use bio-behavioral data were capable of classifying

performance on new participant data above chance, (2) levels of mental workload were better classified than

OFS, (3) size of smoothing window had a significant impact on classifier performance, and (4) size of

smoothing window, threshold values, and classifier type had a significant impact on sensitivity and

specificity. Implications for the use of OFS models in operational contexts are discussed.

1 INTRODUCTION

The recent development of low cost and mobile

devices capable of sensing human bio-behavioral

activities has sparked a series of research efforts

aiming to use such data for the assessment of

operator functional state (OFS) in various contexts.

OFS refers to “The multidimensional pattern of

human psychophysiological condition that mediates

performance in relation to physiological and

psychological costs” (Carter et al., 2004).

Assessment of OFS has great value, especially in

safety critical systems where information about the

state of operators could support decision makers or

closed loop automated systems (Bracken et al.,

2014; Dirican and Göktürk, 2011).

There has been significant progress in the

development of models of OFS, but it still faces

several challenges before such models are used in

the field, especially in safety-critical applications.

Indeed, transitioning models to uncontrolled

conditions has been identified as an important

challenge by many (Durkee et al., 2015; Yin and

Zhang, 2014). Specifically, two challenges need to

be addressed. The first one concerns the constraints

associated with the data, both in terms of quality and

availability. The second challenge is at the other end

of the spectrum and concerns the formalization of

the concept of OFS itself. This paper aims to help

address these issues.

1.1 Data

In safety critical contexts, several constraints will

impede the use of sensors or degrade the quality of

the sampled data. It is not always possible to wear

something on the head, or the task may be

ambulatory by nature which may introduce motion

artefacts in the signals. Consequently, and despite

the demonstrated benefits of central nervous system

Gagnon, J-F., Gagnon, O., Lafond, D., Parent, M. and Tremblay, S.

A Systematic Assessment of Operational Metrics for Modeling Operator Functional State.

DOI: 10.5220/0005921600150023

In Proceedings of the 3rd International Conference on Physiological Computing Systems (PhyCS 2016), pages 15-23

ISBN: 978-989-758-197-7

sensors in the modeling of OFS and similar concepts

(e.g., Hogervorst et al., 2014; Durantin et al., 2013),

some contexts will only allow for the collection of

peripheral nervous system measures. Even though it

may eventually be possible to remove motion

artefacts from the signals using novel techniques

(e.g., Tobon et al., 2013), there is a value in

investigating the possibility to model OFS using

only behavioral and peripheral nervous system

sensors. But are they sufficient? Is there really OFS

information in the data collected by these sensors?

Indeed, the vast majority of studies that model OFS

in near real-time rely at least if not only on central

nervous system sensors.

Previous work has shown that perceptual

attention tasks elicited a small but significant

increase in breathing rate (Overbeek et al., 2014).

Also, in applied settings, such as office-like

situations, breathing rate has shown to be positively

associated with stress (Wijsman et al., 2013).

Heart rate variability (HRV) is the (ir)regularity

of consecutive heartbeats, and has been widely

associated with the balance between sympathetic

and parasympathetic systems. Among others, HRV

was associated with mental overload in a simulated

piloting task (Durantin et al., 2013) and stress in

musical performance (Williamon et al., 2013).

Eye-related activity may also provide

information associated with OFS. Eye-related

attributes should however not require a priori

knowledge about the visual scene to facilitate use of

the model in new contexts. Such attributes include

eye velocity, pattern of saccadic and fixation activity

(Régis et al., 2012), blink frequency and blink

duration.

Altogether, such attributes have shown to be

sensitive to levels of workload, but divergent

(Matthews et al., 2015). One potential approach to

increase specificity is to combine attributes through

machine learning techniques in order to discover

multi-modal classification rules.

1.2 OFS Ground Truth

But what exactly is this information about the

operator that such models attempt to provide?

Gaillard (2003) argued that the goal of OFS

assessment “is to detect significant deviations from

the optimal bio behavioral state that may indicate an

enhanced risk for performance degradation”. This

conceptualization disentangles performance from

OFS by introducing the notion of enhanced risk,

which is reasonable since performance greatly

depends on contextual factors. Indeed, the concept

of performance is arguably further away from the

bio-behavioral state than the level of workload or

fatigue. It is a multi-determined concept that

involves a complex combination of psycho-

physiological state, task difficulty, and other

contextual factors.

Because of this, one of the most studied

components of OFS is mental workload (e.g.,

Durkee et al., 2013; Eggemeier et al., 1991; Wilson

and Russell, 2003), which refers to the portion of

operator information processing capacity or

resources that is actually required to meet system

demands. From a theoretical standpoint, the

assessment of mental workload is critical since

excessive demand on cognitive resources may result

in performance degradation (Nourbakhsh et al.,

2013). Still, the relationship between mental

workload and performance is not straightforward as

other factors come into play, such as level of

expertise, fatigue, and motivation. Because the

relationship between mental workload and

performance is not direct, we might be missing the

target. Are the predicted levels of workload really

associated with enhanced risk of performance

degradation?

This raises the question of how to obtain a valid

and reliable ground truth of “enhanced risk for

performance degradation”. One way to achieve this

might be to collect data on standardized fundamental

tasks and maximize control of contextual factors. In

this context, observed performance degradations

should mostly be due to individual as opposed to

contextual factors and may therefore be used as a

ground truth for OFS. Nevertheless, there are still

pending issues we discuss and address here.

1.3 Objectives

The main objectives of this study are (1) to

demonstrate the feasibility of modeling OFS without

the use of central nervous system sensors and (2) to

evaluate various operationalization of OFS ground

truth and evaluate how OFS models fare in

comparison to models of mental workload. Three

specific research questions are addressed.

First, performance and physiology may vary on

asynchronous time scales. Indeed, a performance

decrement can happen very fast, within seconds,

whereas some physiological responses may have a

slower onset. For instance, it is usually

recommended measuring HRV over five-minute

time windows (Mendez et al., 2014). Therefore, is

the OFS better conceptualized (and classified) as a

punctual or a longer term general state?

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

Second, it is unclear whether physiological

responses cause performance decrements, or if it is

the other way around (Brouwer et al., 2015). Are the

physiological signals able to predict performance

decrements (i.e., prospective mode) or are they

limited to describing an ongoing state? If the

performance decrement causes a physiological

response, it may be hard to predict decrements in

advance. Conversely, if physiological patterns lead

to performance decrements, it may be reasonable to

have some level of predictability.

Finally, to be reliably detectable, a physiological

response must have some level of amplitude. It is

unclear however if there is a relationship between

the amplitude of the performance decrement and the

physiological response. Is there a performance

decrement threshold that can be associated with

physiological patterns regardless of the task? In

other words, what is the magnitude of change

necessary in performance to be reflected in

physiological response, if any? This paper reports a

systematic assessment of these issues.

2 METHOD

This study investigates the aforementioned questions

using an experimental design that manipulates task

difficulty in order to foster performance decrements.

Participants perform the tasks while peripheral bio-

behavioral data is collected. Then, a series of models

was developed to map the relationship between bio-

behavioral data and performance. For each model, a

new set of parameters was manipulated for the

operationalization of performance. Models are tested

on new participants in order to assess cross-subject

generalization. This section details the key elements

of the method, including data collection, parameter

selection, and modeling procedure.

2.1 Experiment

2.1.1 Participants

Seventeen volunteers - 9 males, mean age (sd) =

24.58 (3.74) - participated in the experiment. They

were recruited on the university campus and

received a financial compensation for their

participation. Inclusion criteria were having normal

or corrected vision and no known health issues.

2.1.2 Design

The experimental design involved two tasks: visual

search and N-Back. Each participant completed

eight consecutive experimental sessions separated by

five-minute breaks to avoid carry over effects of

physiological response. Each task comprised two

conditions, easy and hard. This was done to ensure

variability in performance data of the participants.

These conditions were counterbalanced across

participants and played twice. Total duration of the

experimental sessions including practice sessions

and breaks was approximately 90 minutes. Prior to

the experimental sessions, participants were trained

on each of the two tasks.

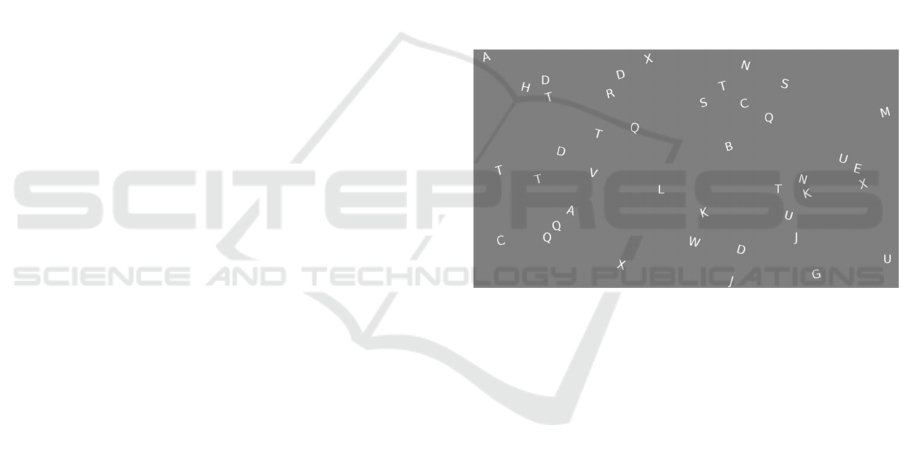

Visual Search. Visual search is a computerized

task that requires the participants to identify a target

letter among a series of distractors (Figure 1). The

task requires visually scanning the screen to search

for the target letter. The participants select the target

by clicking on the letter. Participants performed 60

trials in each experimental session resulting in 240

trials overall.

Figure 1: Visual search is an attentional task that involves

an active visual scan of the environment for a specific

target (e.g., unrotated vowel [U]) among distractors (e.g.,

consonant and rotated vowels).

Task difficulty is manipulated by varying the

complexity of the rule of the target letter. In the easy

condition, the target is a vowel. In the hard

condition, the target is an unrotated vowel. Response

times are recorded and represent the measure of

performance.

N-Back. The N-Back is a computerized task that

requires participants to identify a target letter among

a series of distractors presented sequentially in time

(one every 2 seconds). The participants are

presented a series of letters and must tell whether the

actual letter is the same (target) or a different one

(distractor) from the N previous letter. Participants

must answer with the keyboard (i.e., “M” = same,

“Z” = different). Participants performed 60 trials in

each experimental session resulting in 240 trials

overall. See Figure 2 for a schematic representation

of the task.

A Systematic Assessment of Operational Metrics for Modeling Operator Functional State

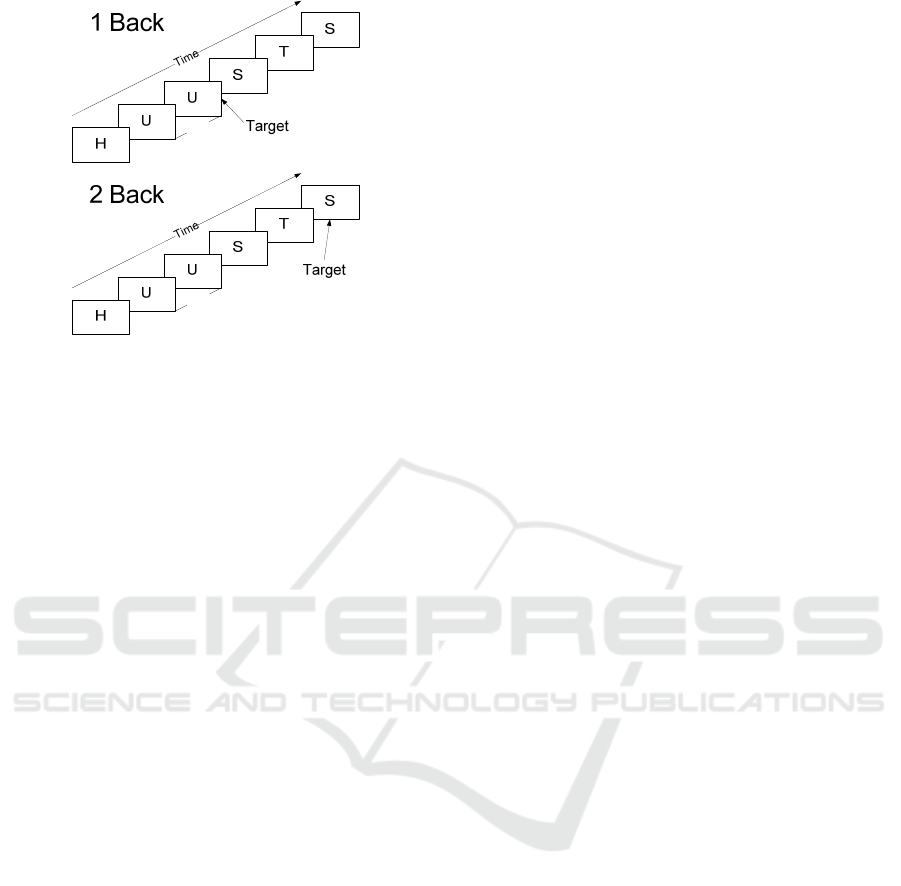

Figure 2: The N-Back task is a working memory task in

which the participants must preserve, manipulate and

update information in active memory.

Difficulty is operationalized by varying the

number of elements to retain, manipulate, and

update in memory (i.e., N = 1 [easy] and N = 2

[hard]). Response times are recorded and represent

the measure of performance. Accuracy was also

recorded; however, we used response times as the

principal measure of performance for comparison

purposes with the visual search task.

2.1.3 Sensing and Data

During the completion of these tasks, participants

were equipped with two devices for bio-behavioral

sensing. The Zephyr Bio Harness 3 was used for

electrocardiography (ECG) and respiratory induced

plethysmography (RIP). ECG was sampled at 250Hz,

and RIP was sampled at 18Hz. Data were wirelessly

transmitted to the logging device through Bluetooth.

The ASL Mobile Eye system was used for eye-

tracking. It sampled the position and the dimension of

the pupil of the right eye at approximately 30Hz.

Sampled signals were then validated in terms of

quality. All data were compared to theoretical

boundaries and were investigated further if different

from the expected range. Some levels of invalid data

were tolerated (up to 20% over a moving window of

10 seconds) to reflect operational conditions. This

resulted in approximately 8% of the data removed

for model training, validation, and testing.

From the remaining validated signals, a series of

attributes were calculated. These attributes are

associated with the behavior of the eyes, cardiac

activity or respiratory activity.

Eye-related attributes included velocity,

proportion of fixations, proportion of involuntary

fixations, proportion of saccades, blink frequency,

and blink duration.

Several implementations of HRV measures exist

and are typically categorized as being either in the

temporal, frequency, or non-linear domains

(Boonnithi and Phongsuphap, 2011). Since the

frequency and temporal domains allow for precise

analyses of the variability and was previously

associated with mental effort, we adopted these two

types. Attributes associated with HRV were

extracted using the default values of the RHRV

package (Mendez et al., 2014). The frequency bands

were extracted over a short window of five minutes

and a very short window of two minutes.

In the present study, breathing rate and breathing

amplitude were used as the attributes for respiratory

activity.

Since the signals were originally sampled at

asynchronous rates, we interpolated the values of the

attributes with the last valid value between two

consecutive samples. The last valid value was used

to replicate the functional constraint of the device

used for wireless data collection and integration. In

fact, all processing is feasible in real-time to

acknowledge for operational requirements. All the

attributes were then sampled down to 1Hz. The

resulting data set was composed of roughly 28,000

observations of 41 attributes.

2.2 Ground Truth Parameters

Decontextualized dynamic performance (DDP) was

adapted from previous research and consists of a

dynamic standardization of the median response

times over the last N seconds (Gagnon et al., 2016).

The median response times are standardized so that

the resulting score is comparable across tasks. DDP

represents the formalization of OFS and allows the

direct comparison of multiple tasks in terms of

performance.

Aligned with the objectives of the paper, three

parameters associated with the calculation (and

prediction) of the DDP were manipulated (these

parameters are reported in Table 1):

(1) Length in seconds of the median response

time window. Two windows were compared: 10 vs.

70 seconds. The shortest window reflects a

“punctual” state whereas the longest one represents a

“general” state.

(2) Threshold of the z score at which the sub

functional level is specified. Three levels were

tested: 0, -1 and -1.5. In Gagnon et al. (2016), this

parameter was estimated with Yen and colleagues’

method (1995), but its impact was not systematically

assessed.

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

(3) Finally, two types of classification modes

were compared: Descriptive of actual state (bio-

signals and performance metrics come from the

same time window) versus prospective (bio-signals

come from a first time window, and performance is

assessed using the subsequent time-window).

The manipulation of these parameters results in

12 versions of OFS ground truth which will be

systematically assessed in the results section.

Table 1: OFS Parameters.

Window

Sub

functional

threshold

(z score)

Punctual

(10 sec)

General

(70 sec)

Descriptive vs.

Prospective

Descriptive vs.

Prospective

-1

Descriptive vs.

Prospective

Descriptive vs.

Prospective

-1.5

Descriptive vs.

Prospective

Descriptive vs.

Prospective

Mental workload, as operationalized by task

difficulty (easy vs. hard) was used as an additional

ground truth. This ground truth is used to assess the

additional difficulty associated with classification of

OFS when compared to intermediate psychological

states such as mental workload.

2.3 Modeling

In previous work, many classes of models have been

used, including support vector machines, decision

trees, and linear discriminant analysis, but none have

been granted with superior performances (e.g.,

Gagnon et al., 2016). Because of this, we restrained

the classifiers to two types: stochastic gradient

boosting machine (GBM) and generalized linear

model (GLM). Ensemble methods such as GBM

have been used with success in similar contexts (Oh

et al., 2015). We compare their performance with

GLM, a classic modeling framework that is also

known to be resilient to overfitting.

GBM model training was performed using a

cross validation procedure implemented in the R

caret package (Kuhn et al., 2015). The procedure

involved leaving out the data of one participant at a

time for training. Data were shuffled prior to input.

The procedure was performed for 4620 (2 X 154

X 3 X 5) iterations: manipulated parameters were

interaction depth (2), number of trees (154),

shrinkage (3), and minimal observations in node (5).

The threshold used for labelling the data

generated imbalanced classes. For instance, the -1

and -1.5 Z score threshold generates sub-functional

vs. functional classes comprising ~16% vs. 84% and

~7%vs. 93% of samples, respectively. In order to

minimize complications associated with class

imbalance, we performed a SMOTE procedure

(Torgo, 2010) and classifiers were evaluated using

balanced accuracy:

 . =

( + )

(1)

This statistic measures classifier accuracy while

correcting for class imbalance. It therefore

represents a good impartial measure when

comparing several scenarios with different class

distributions.

For each ground truth (i.e., combination of OFS

time window, sub-functional threshold, and mode,

and mental workload levels), the best set of

parameters was used to train a final model with the

data of the 15 training participants. Results report

statistics on the testing sample. The test set was

divided into eight data bins for each of which

balanced accuracy values, sensitivity, and specificity

were calculated.

3 RESULTS

Before the development of the psychophysiological

models, we first validated that the experimental

conditions did have a significant impact on

performance of the participants. Analyses revealed

that responses times were statistically different

between low and high workload conditions for both

N-Back t(16) = 8.29, p < .001 and visual search

t(16) = 10.63, p < .001. The distributions are

visually represented in Figure 3 and Figure 4.

Figure 3: Distribution of response times for the N-Back

task by condition.

A Systematic Assessment of Operational Metrics for Modeling Operator Functional State

Figure 4: Distribution of response times for the Visual

Search task by condition.

Results showed that balanced accuracy was

significantly higher for the best mental workload

classifier compared to the best OFS classifier

t(15)= 4.85, p < .001. Indeed, the best average

balanced accuracy values on the test set was of

.77 (.05) for mental workload whereas it was of

.66 (.04) for OFS. Moreover, for the best

combination of parameters, both mental workload

t(7) = 14.58, p < .001 and OFS t(7) = 11.29, p < .001

predictive accuracy was significantly superior to

chance.

A repeated measures analysis of variance

(ANOVA) was carried out to test the effect of

classifiers (GBM vs. GLM), time frame (punctual

vs. general), mode (descriptive vs. prospective), and

threshold (-1.5, -1, 0) on balanced accuracy,

specificity, and sensitivity. Statistics are reported in

Table 2, 3 and 4 for balanced accuracy, sensitivity

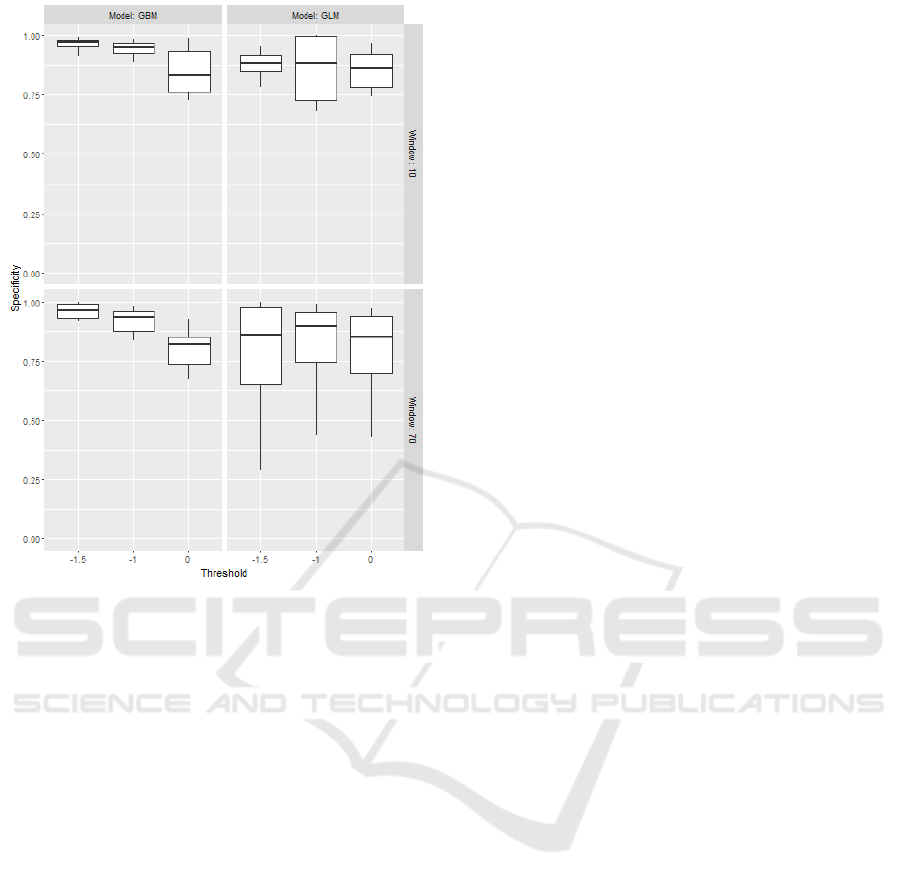

and specificity respectively. Data for sensitivity and

specificity are reported in Figure 5 and Figure 6

respectively.

Table 2: ANOVA - Effect of threshold, window, mode,

and classifier on balanced accuracy.

df F p

Threshold 2 1.1745 0.3112

Window 1 27.5743 < .001***

Mode 1 3.8706 0.0506

Classifier 1 0.2908 0.5903

Residuals 186

Table 3: ANOVA - Effect of threshold, window, mode,

and classifier on sensitivity.

df F p

Threshold 2 3.9429 0.0210*

Window 1 3.2754 0.0719

Mode 1 3.349 0.0688

Classifier 1 5.9328 0.0158*

Residuals 186

Table 4: ANOVA - Effect of threshold, window, mode,

and classifier on specificity.

df F p

Threshold 2 5.2295 0.0061**

Window 1 7.2587 0.0077**

Mode 1 0.4965 0.4819

Classifier 1 17.4499 < .001***

Residuals 186

Balanced accuracy was not statistically different

across OFS classifiers. However, classifiers had an

effect on both sensitivity and specificity. Indeed,

mean sensitivity was higher for GLM than GBM,

and conversely for specificity.

The effect of time window on balanced accuracy

was statistically significant. Indeed, observed

balanced accuracy on test set was higher for

punctual window (M = .59, SD = .07) than general

window (M = .54, SD = .07). The time window also

had an effect on specificity, but not sensitivity.

Indeed, specificity was lower when OFS was

conceptualized with a general window than when

compared to a punctual window.

Figure 5: Sensitivity by classifier (left: GBM, right: GLM)

and threshold on test data.

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

Figure 6: Specificity by classifier (left: GBM, right:

GLM), threshold, and time window (top: 10s., bottom: 70

s.) on test data.

There was no effect of threshold on balanced

accuracy, but its impact was significant on both

sensitivity and specificity. Lower thresholds were on

average associated with higher specificity, but lower

sensitivity.

Finally, the effect of the classification mode

(descriptive vs. prospective) on balanced accuracy

was marginally significant. Indeed, balanced

accuracy in descriptive mode (M = .58, SD = .07)

was almost higher than in the prospective mode

(M = .56, SD = .07). There was no effect on

specificity and sensitivity.

4 DISCUSSION

This study investigated the potential link between

bio-behavioral state of individuals and the likelihood

of performance decrements (i.e., OFS). First, we

compared model accuracy when classifying

performance vs. mental workload. Second, we

assessed the impact of key parameters that must be

selected when operationalizing an OFS ground truth

metric to support supervised learning. Namely, this

study investigated if OFS is better conceptualized as

a punctual or a general state, as a small or a large

variation of performance, and whether a prospective

approach can lead to results comparable to the

descriptive mode.

As anticipated, results show that the link between

the bio-behavioral state of individuals and

performance is less strong than the link between that

state and intermediate variables such as level of

mental workload. Indeed, classifier performance is

higher when discriminating workload level

compared to OFS level (functional vs. sub-

functional). This is not surprising as it was

hypothesized before that the concept of performance

is dependent on contextual factors not captured in

bio-behavioral signals. Moreover, because results

show that it is possible to classify workload

relatively well, we can affirm that the collected data

does in fact carry valid information about the state of

the operator.

Results show that it is possible to classify OFS

above chance level but that more information is

needed to achieve high levels of accuracy. This

suggests that if such models are to be used in

operational contexts, they should be complemented

with other sensor data or contextual information to

increase their accuracy. Notably, in this context, we

did not provide as inputs the time of the day nor the

gender or the age of the participants, which are all

known to have an impact on physiological patterns

(e.g., Carter et al., 2004). Indeed, without a larger

sample and sufficient counterbalancing of these

factors, such information will lead to model that

overfit the data (e.g., learn the experimental design

and idiosyncrasies in the dataset) and that generalize

poorly on new data. Still, OFS classifiers with

moderate accuracy can be valuable assets since they

provide unique information about the individual’s

state that could help prevent major errors. On the

other hand, results also indicate that more work

needs to be carried out to boost model

generalization. Specifically, while out-of-sample

generalization was the priority here, a limiting factor

of the current work is that it did not address cross-

task generalization even though it is known to be a

challenging issue (Wang et al., 2012).

From a theoretical standpoint, results show that

OFS is better conceived as a punctual than a general

state. Indeed, the short time window has shown to be

more easily classified than the long window. This

replicates a previous finding observed on a different

data set (Gagnon et al., 2016) and suggests that the

bio-behavioral signals used for this study (which

were all peripheral sensors) are capturing

A Systematic Assessment of Operational Metrics for Modeling Operator Functional State

physiological dynamics that operate on relatively

short time scales. Further work should focus on

quantifying the prominence of different attributes

and their origin (i.e., cardiac, eye, respiratory) with

respect to the time window used.

Interestingly, there was no effect of threshold on

balanced accuracy. However this parameter, as well

as time window and classifier type, had significant

impacts on specificity and sensitivity. This is very

important, especially in the context of safety critical

systems, since you may want to boost one of these

metrics over the other. As such, the present findings

provide useful insights about parameter tradeoffs

and how to prioritize true-positives or true-negatives

without compromising balanced accuracy.

Future work will concern training and validation

of OFS models in ambulatory contexts, another key

challenge to address in order to transit models from

the laboratory to the field.

ACKNOWLEDGEMENTS

This research was supported by a Mitacs internship

awarded to Mark Parent, funded by NSERC and

Thales Canada. The authors would also like to thank

Margot Beugniot for her participation in data

collection.

REFERENCES

Boonnithi, S., Phongsuphap, S., 2011. Comparison of

heart rate variability measures for mental stress

detection, in: Computing in Cardiology, 2011. pp. 85–

88.

Bracken, B.K., Palmon, N., Romero, V., Pfautz, J., Cooke,

N.J., 2014. A Prototype Toolkit for Sensing and

Modeling Individual and Team State. Proceedings of

the Human Factors and Ergonomics Society Annual

Meeting 58, 949–953. doi:10.1177/154193121458

1199.

Brouwer, A.-M., Zander, T.O., van Erp, J.B.F., Korteling,

J.E., Bronkhorst, A.W., 2015. Using

neurophysiological signals that reflect cognitive or

affective state: six recommendations to avoid common

pitfalls. Frontiers in Neuroscience 9.

doi:10.3389/fnins.2015.00136.

Carter, R., Cheuvront, S. N., and Sawka, M. N., 2004.

Operator Functional State Assessment (l'évaluation de

l'aptitude opérationnelle de l'opérateur humain). Army

research institute.

Dirican, A.C., Göktürk, M., 2011. Psychophysiological

measures of human cognitive states applied in human

computer interaction. Procedia Computer Science,

World Conference on Information Technology 3,

1361–1367. doi:10.1016/j.procs.2011.01.016.

Durantin, G., Gagnon, J.-F., Tremblay, S., Dehais, F.,

2014. Using near infrared spectroscopy and heart rate

variability to detect mental overload. Behavioural

Brain Research 259, 16–23. doi:10.1016/j.bbr.20

13.10.042.

Durkee, K.T., Pappada, S.M., Ortiz, A.E., Feeney, J.J.,

Galster, S.M., 2015. System Decision Framework for

Augmenting Human Performance Using Real-Time

Workload Classifiers. Presented at the 2015 IEEE

International Multi-Disciplinary Conference on

Cognitive Methods in Situation Awareness and

Decision Support (CogSIMA), Orlando, FL.

Eggemeier, F.T., Wilson, G.F., Kramer, A.F., Damos,

D.L., 1991. Workload assessment in multi-task

environments. Multiple-task performance 207–216.

Gagnon, O., Lafond, D., Gagnon, J-F., and Parizeau, M.,

2016. Comparing Methods for Assessing Operator

Functional State. Proceedings of the 2016 IEEE

International Inter-Disciplinary Conference on

Cognitive Methods in Situation Awareness and

Decision Support (CogSIMA), San Diego, CA, USA,

March 21-25.

Gaillard, A.W., 2003. Fatigue assessment and

performance protection, NATO Science Series Sub

Series I Life and Behavioural Sciences 355, 24–35,.

Hogervorst, M.A., Brouwer, A.-M., van Erp, J.B.F., 2014.

Combining and comparing EEG, peripheral

physiology and eye-related measures for the

assessment of mental workload. Frontiers in

Neuroscience 8. doi:10.3389/fnins.2014.00322.

Kuhn, M., 2015. caret: Classification and regression

training. Astrophysics Source Code Library 1, 05003.

Matthews, G., Reinerman-Jones, L.E., Barber, D.J., Abich,

J., 2015. The Psychometrics of Mental Workload

Multiple Measures Are Sensitive but Divergent.

Human Factors: The Journal of the Human Factors

and Ergonomics Society 57, 125–143.

doi:10.1177/0018720814539505.

Nourbakhsh, N., Wang, Y., and Chen, F., 2013. GSR and

blink features for cognitive load classification. In

Human-Computer Interaction–INTERACT, pp. 159-

166. Springer Berlin Heidelberg.

Oh, H., Hatfield, B.D., Jaquess, K.J., Lo, L.-C., Tan, Y.Y.,

Prevost, M.C., Mohler, J.M., Postlethwaite, H.,

Rietschel, J.C., Miller, M.W., Blanco, J.A., Chen, S.,

Gentili, R.J., 2015. A Composite Cognitive Workload

Assessment System in Pilots Under Various Task

Demands Using Ensemble Learning, in: Schmorrow,

D.D., Fidopiastis, C.M. (Eds.), Foundations of

Augmented Cognition, Lecture Notes in Computer

Science. Springer International Publishing, pp. 91–

100.

Overbeek, T. J., van Boxtel, A., and Westerink, J. H.,

2014. Respiratory sinus arrhythmia responses to

cognitive tasks: Effects of task factors and RSA

indices. Biological psychology 99, 1-14.

Régis, N., Dehais, F., Rachelson, E., Thooris, C., Pizziol,

S., Causse, M., and Tessier, C., 2014. Formal

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

Detection of Attentional Tunneling in Human

Operator–Automation Interactions. IEEE Transactions

on Human-Machine Systems 44(3), 326-336.

Rodríguez-Liñares, L., Vila, X., Mendez, A., Lado, M.,

and Olivieri, D., 2008. RHRV: An R-based software

package for heart rate variability analysis of ECG

recordings. In 3rd Iberian Conference in Systems and

Information Technologies (CISTI 2008), Vigo, Spain.

Tobon D.V., Falk, T., and Maier, M., 2014. MS-QI: A

Modulation Spectrum-Based ECG Quality Index for

Telehealth Applications. IEEE Transactions on

Biomedical Engineering. 99, pp. 1–1.

Torgo, L. 2010. Data Mining with R, learning with case

studies Chapman and Hall/CRC. URL:

http://www.dcc.fc.up.pt/~ltorgo/DataMiningWithR.

Wang, Z., Hope, R.M., Wang, Z., Ji, Q., Gray, W.D.,

2012. Cross-subject workload classification with a

hierarchical Bayes model. NeuroImage,

Neuroergonomics: The human brain in action and at

work 59, 64–69. doi:10.1016/j.neuroimage.2011.0

7.094.

Wijsman, J., Grundlehner, B., Liu, H., Penders, J.,

Hermens, H., 2013. Wearable Physiological Sensors

Reflect Mental Stress State in Office-Like Situations,

in: 2013 Humaine Association Conference on Affective

Computing and Intelligent Interaction (ACII). pp.

600–605. doi:10.1109/ACII.2013.105.

Williamon, A., Aufegger, L., Wasley, D., Looney, D.,

Mandic, D.P., 2013. Complexity of physiological

responses decreases in high-stress musical

performance. Journal of The Royal Society Interface

10. doi:10.1098/rsif.2013.0719.

Wilson, G. F.and Russell, C. A., 2003. Real-Time

Assessment of Mental Workload Using

Psychophysiological Measures and Artificial Neural

Networks. Human Factors, 45, 635-643.

Yin, Z., Zhang, J., 2014. Operator functional state

classification using least-square support vector

machine based recursive feature elimination technique.

Computer Methods and Programs in Biomedicine 113,

101–115. doi:10.1016/j.cmpb.2013.09.007.

A Systematic Assessment of Operational Metrics for Modeling Operator Functional State
