AutoCRUD

Automating IFML Specification of CRUD Operations

Roberto Rodriguez-Echeverria, José M. Conejero, Juan C. Preciado and Fernando Sanchez-Figueroa

School of Technology, University of Extremadura, Av. Universidad, Caceres, Spain

Keywords: Model Driven Web Engineering, Cost Reduction, CRUD, Model Driven Software Development.

Abstract: Development and deployment technologies for data-intensive web applications have considerably evolved

in the last years. Domain specific frameworks or Model-Driven Web Engineering approaches are examples

of these technologies. They have made possible to face implicit problems of these systems such as quick

evolving business rules or severe time-to-market requirements. Both approaches propose the automation of

redundant development tasks as the key factor for their success. The implementation of CRUD operations is

a clear example of repetitive and recurrent task that may be automated. However, although web application

frameworks have provided mechanisms to automate the implementation of CRUD operations, Model-

Driven Web Engineering approaches have generally ignored them and its automation has not been properly

faced yet. This paper presents AutoCRUD, a WebRatio plug-in that automates the generation of CRUD

operations in OMG IFML (Interaction Flow Modelling Language) standard. The suitability of this tool has

been evaluated by its application into several real projects developed by a software company specialized in

model-driven web application development. The results obtained present evidences of the significant

productivity improvement obtained by the tool, which almost completely removes the developer time

dedicated to CRUD operation implementation.

1 INTRODUCTION

Model-Driven Web Engineering (MDWE) (Koch et

al., 2008) approaches provide methodologies and

tools for the design and development of most kinds

of web applications. They address different concerns

by using separate models (navigation, presentation,

data, etc.), and are supported by model compilers

that automatically produce most of the application’s

Web pages and logic code. The benefits of using

MDWE are clear from different points of view such

as team productivity, software quality or adaptation

to evolving technologies (Rossi et al., 2007)

(Vuorimaa et al., 2015).

Among the different MDWE approaches, it is

worth mentioning IFML (Interacting Flow

Modelling Language) (Brambilla and Fraternali,

2015), an OMG standard for the development of

data-intensive applications that has become a

reference in industrial developments (Casteleyn et

al., 2014); (Toffetti et al., 2011). Its successful

development tool, WebRatio, allows the edition and

validation of IFML models but also, and even more

important, allows the generation of the final

application code for a specific technological

deployment platform, reducing the time-to-market

and the development effort for these applications.

Focusing on the development effort, one of the

most redundant tasks in data-intensive web

application development is the implementation of

CRUD operations. As Martin Fowler argued,

“disappointing as it is, many of the use cases in an

enterprise application are fairly boring ‘CRUD’

(create, read, up-date, delete) use cases on domain

objects” (Fowler, 2002).

However, and surprisingly, while several

frameworks such as Ruby on Rails

(http://rubyonrails.org/), Django (https://www.

djangoproject.com/), MonoRail (http://www.castle

project.org/projects/monorail/), or Catalyst (http://

www.catalystframework.org/), just to cite a few,

have adopted solutions to optimize CRUD

operations, MDWE approaches (i.e.,

IFML/WebRatio) have not provided yet an

automatic tool to perform these tasks; even though

there are works claiming a significant productivity

gain (more than 90%) when these tasks are

automated by model-driven techniques (Mbarki and

Rodriguez-Echeverria, R., Conejero, J., Preciado, J. and Sanchez-Figueroa, F.

AutoCRUD - Automating IFML Speciﬁcation of CRUD Operations.

In Proceedings of the 12th International Conference on Web Information Systems and Technologies (WEBIST 2016) - Volume 1, pages 307-314

ISBN: 978-989-758-186-1

307

Erramdani, 2008); (Papotti et al., 2013).

This paper presents AutoCRUD, a WebRatio

plug-in developed for the automatic IFML

specification of CRUD operations. The objective of

this paper is twofold. On one hand, presenting the

development of the plug-in and its main features,

and, on the other hand, showing how it impacts on

the effort optimization in the development of real

projects. For the latter purpose, we have relied on

the collaboration of an external company specialized

in the development of data-intensive web

applications by means of WebRatio, obtaining

improvements of 95% and more in the time

dedicated to CRUD specification. The AutoCRUD

plug-in can be freely downloaded at

http://www.homeria.com/autocrud. WebRatio can be

freely downloaded at http://www.webratio.com.

The rest of the paper is organized as follows.

Section 2 presents motivation and related work,

highlighting both, studies about optimization in

MDWE and proposals for automatic generation of

CRUD operations. Section 3 introduces AutoCRUD

development, its main features and its main use

cases. Section 4 shows the main results obtained

when applying the plug-in to real projects. Finally,

Section 5 summarizes the main contributions of this

work.

2 MOTIVATION AND RELATED

WORK

Optimization of development effort in the Web

Engineering domain has been addressed by several

works. In (Fatolahi and Somé, 2014) the authors

focused on the assessment of the impact of using a

Model Driven Web methodology with respect to

traditional web developments. They observed an

important productivity gain by using their Model

Driven approach. In (Martinez et al., 2014) the

authors also compared the use of a Model-Driven

Web Engineering approach - OOH4RIA (Melia et

al., 2008) - in web information systems development

with a code-centric one (implementation in .NET).

In particular, they focused on maintainability

characteristics of these systems. This work was an

extension of the work presented in (Martinez et al.,

2011), where authors performed a similar study but

focusing on WebML (Ceri et al., 2000); (Ceri et al.,

2002) as MDWE approach and PHP as code-centric

alternative. In both works, authors observed that the

utilization of the MDWE approach provided

important maintainability improvements with

respect to the code-centric implementation, e.g.,

OOH4RIA improved the actual efficiency of the

changeability tasks in 317 times and also improved

the effectiveness of the changeability by up to 27%.

Nevertheless, although all these works reveal a clear

optimization of development effort, they do not

address CRUD operations specifically, which is the

main objective of other works such as (Mbarki and

Erramdani, 2008) and (Papotti et al., 2013).

In (Mbarki and Erramdani, 2008) the authors

presented an approach based on model

transformations that automatically generates the

CRUD operations for a web system taking as input

class diagrams based on UML profiles. In (Papotti et

al., 2013) the authors also evaluated the productivity

improvements obtained by a model-driven approach

that automatically generates the CRUD operations

source code for a Web information system. This

approach also takes as input the UML class

diagrams for the system. By using the model-driven

approach, the authors observed an important

development time reduction (up to 90,98%). They

also surveyed the developers about the difficulties

found compared to the manual coding approach and

obtained better results for the model-driven

approach. However, neither (Papotti et al., 2013) nor

(Mbarki and Erramdani, 2008) do integrate with an

MDWE approach.

Finally, the automatic generation of CRUD

operations has been the focus of different works at

different levels of abstraction: code (e.g., grocery

CRUD for PHP, http://www.grocerycrud.com) or

frameworks (Ruby on Rails, Django, MonoRail, or

Catalyst). These frameworks provide specific tools

to optimize CRUD operations, like software

scaffolding toolkits that allow generating the

structural parts of the applications expressed in some

simplistic specification language (normally XML or

YAML). Once the code is generated, it has to be

manually refined by developers, discarding the

initial specifications. Such approaches force a

specific platform and architecture with the

advantages of automatic code generation to speed-up

the initial stages of the development. However, these

proposals are at a lower level of abstraction than

Model-Driven approaches, losing the benefits

obtained by these ones, such as the independence of

specific platforms and, in general, the optimization

of development efforts outlined at the beginning of

this section.

To our knowledge, and although the advantages

are clear, there is not a MDWE approach

incorporating the automatic generation of CRUD

operations and this is the rationale for this work.

APMDWE 2016 - International Workshop on Avanced practices in Model-Driven Web Engineering

308

3 AutoCRUD

In this section, we first briefly provide an overview

of the OMG IFML standard and, then, AutoCRUD

is introduced by means of illustrative examples

resembling its behaviour.

3.1 IFML Overview

IFML is a modelling language standardized by the

OMG (Object Management Group) to represent an

application front-end independently of the

implementation technology or target device.

Basically, IFML defines a set of visual elements to

represent the user interaction and the front-end

behaviour. WebRatio has led the language definition

and WebML has been used as the conceptual base,

which benefited its definition thanks to the

experience of WebRatio using WebML. The

language was adopted as a standard by the OMG in

March 2013 (changing its name to IFML). And in

March 2014, OMG Architecture Board formally

adopted the specification of IFML 1.0 (Brambilla

and Fraternali, 2015). Among other improvements, it

is worth to note that the binding with the business

and content models has been generalized to allow

the usage of non-UML models. The IFML language

defines the following core elements: View

Container, View Component, Binding, Parameter,

Event, Action, Navigation Flow, and Data Flow.

3.2 AutoCRUD Overview

Herein, based on the main functionality of

scaffolding tools in web application frameworks, a

new tool has been developed, as a plug-in for

WebRatio, to considerably reduce the specification

effort of CRUD operations from data entities in

IFML. This plug-in provides the engineer with the

proper functionality to automatically generate any

CRUD operation in IFML from concrete data

entities. Actually AutoCRUD has been defined to

behave as an orchestrator of the different

functionalities of WebRatio by calling the right

components in the right moment for such generation.

The benefits of that approach are two-fold: (1) it

allows a more durable integration with

WebRatio/IFML functionalities; and (2) the engineer

can use AutoCRUD in any moment of the

development lifecycle seamlessly.

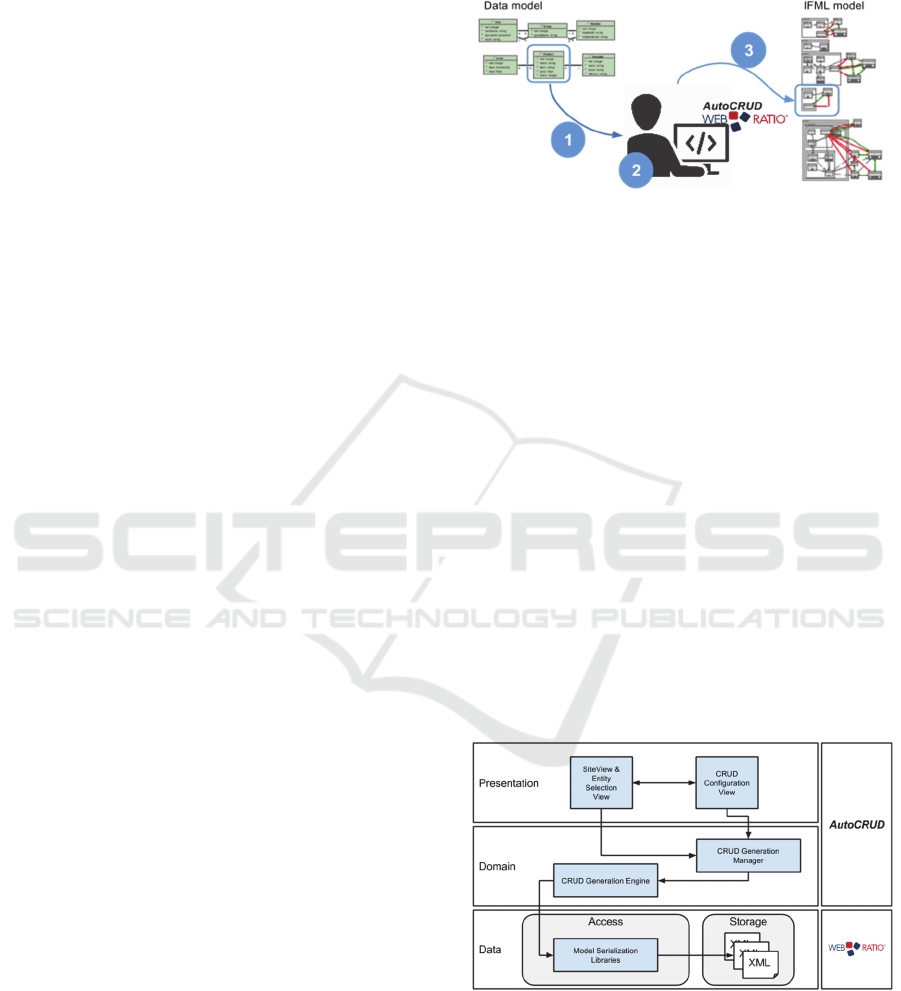

As depicted in Figure 1, basically, the engineer

must simply follow the next 3 steps: (1) selecting a

concrete entity from the data model; (2) choosing

the desired CRUD operations (create, read, update,

delete or all-in-one); and (3) providing the proper

binding for the parameters of the CRUD operation

(e.g., what is the element to be deleted).

Figure 1: AutoCRUD functionality.

3.2.1 AutoCRUD Architecture

As Figure 2 presents, AutoCRUD is a tool built on

top of WebRatio. According to traditional 3-layer

software architecture, the tool has been defined

inside domain and presentation layers. Concerning

the presentation, the user interface is basically

organized in a few dialogs allowing data entity and

site view selection, on one hand, and CRUD

operation management, on the other hand.

Regarding the domain layer, a facade layer has been

defined on top of WebRatio API to orchestrate its

functionality in order to generate the IFML

specification of the CRUD operations. This facade is

formed by two main components: the manager and

the engine. The manager is responsible for storing

the configuration of the CRUD operation to be

generated. The engine, invoked by the manager, is in

charge of translating such configuration to a

concrete sequence of WebRatio functionality calls

that eventually generates the IFML specification.

Figure 2: AutoCRUD architecture.

3.2.2 Categorization of Use Cases

In order to simplify the presentation of all the

different use cases supported by the tool, a previous

categorization has been defined based on two

AutoCRUD - Automating IFML Speciﬁcation of CRUD Operations

309

orthogonal dimensions:

 Type of CRUD operation whose IFML

specification must be generated. This dimension

has the following possible values: create, read,

update, delete or all-in-one. The last one is a

special compact case whose specification does

not match exactly to the join of the specification

of every CRUD operation individually.

 Cardinality of the relationship between the data

entities involved in the CRUD operation.

Although just one data entity is required to start

the generation process, it may be interesting to

consider other data entities related to the first

one. This dimension represents then such

possibility. The possible values of this dimension

are the following: no relationship (the data entity

is considered in isolation or it has not been

defined any relationship), onetomany

relationship (1-N), and manytomany relationship

(N-M). Obviously, inside a single case, this

dimension may get different values, e.g., a data

entity A holds an onetomany relationship with a

data entity B and, at the same time, it holds an

onetomany relationship with a data entity C. In

such cases, the tool allows selecting any of those

relationships or both of them. In the rest of the

paper, the tool behavior is illustrated just

considering the single cases because the complex

ones are just composition of those ones.

Table 1 shows the collection of use cases supported

by the tool and organized according to the

dimensions explained before. For the sake of

brevity, just one of them is next detailed in order to

illustrate the actual extension of the approach, which

appears in Table 1 in bold font (in the first row C

stands for Create, R for Read, U for Update and D

for Delete). The interested reader may find the

details of every specific case in

http://www.homeria.com/autocrud.

Table 1: AutoCRUD use cases.

C R U D All

No C-no R-no U-no D-no All-no

1-N C-1N R-1N U-1N D-1N All-1N

N-M

C-nM

R-nM U-nM D-nM All-nM

Following the selected use cases are explained

with detail. And, at the end of the section, a

summary table collecting the total number of

elements needed to specify all the use cases is

presented.

3.2.3 Illustrative Example

Before describing the selected use cases, it is

mandatory to explain the sample data model used,

shown in Figure 3. As it can be noted, an excerpt of

the data model of a real application has been used to

illustrate the explanation of the different use cases.

This sample data model contains common entities of

an e-commerce application: The document margins

must be the following:

 Product. It holds one relationship with each of

the other two entities.

 Provider. It holds an onetomany relationship

with Product, hence each product has only one

provider while a provider may provide several

products.

 Order. It holds a manytomany relationship with

Product, hence an order may contain several

products and a product may appear in different

orders.

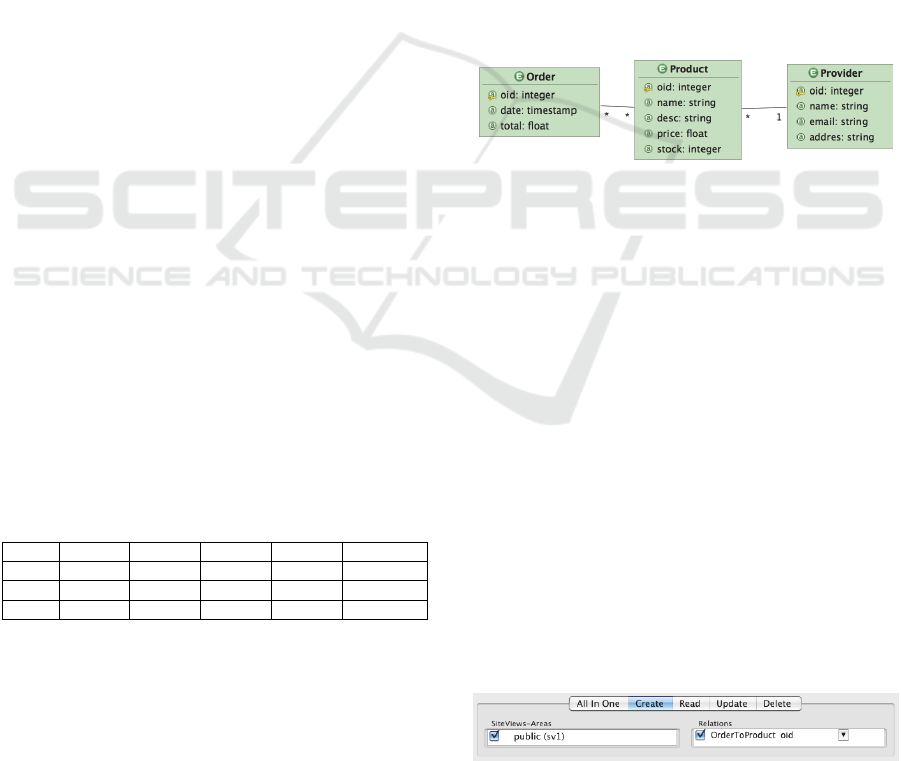

Figure 3: Sample data model.

3.2.4 C-nM Case

This case allows illustrating the elements involved in

a Create operation, defined over a data entity

(Order), which keeps a manytomany relationship

with another data entity (Product) and this relation

must be considered in the specification of such

operation.

Figure 4 shows the tool configuration for this

particular case. Once the Order data entity has been

selected, the user just needs to navigate to the Create

tab to generate the corresponding operation. This tab

allows the user to select the SiteView or Area in

which the create operation specification for the

Order entity will be generated. Moreover, the

OrderToProduct relationship may be selected by the

user to be considered by the tool in the specification

generation. Note that the involved OrderToProduct

relationship is derived from the data model (see

Figure 3).

Figure 4: AutoCRUD set-up for C-nM case.

APMDWE 2016 - International Workshop on Avanced practices in Model-Driven Web Engineering

310

The IFML specification generated by the tool for

this case is shown in Figure 5. As main container, a

new Page (CreateOrder) has been generated. This

page contains 3 different IFML units: a selector unit

(EntityOrder), an entry unit (FormOrder) and a

message unit (MessageOrder). The form (entry unit)

collects the data of every product involved in a

specific order, as well as other general attributes as

the date and the total price. Note that the form is

connected to a selector unit that provides the form

with the data of the available products. Once all the

data is collected the form submission may trigger the

execution of a create operation unit (CreateOrder)

and a connect operation unit (OrderToProductOrder)

that stores the new order in the database.

Additionally, the message unit is used to show the

user any message steaming from the process.

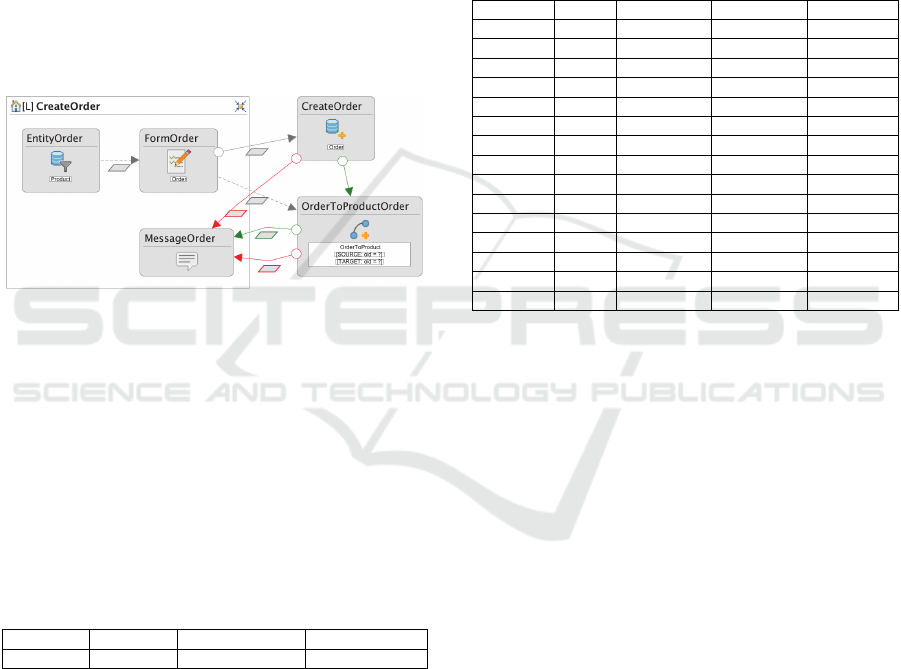

Figure 5: IFML specification of the C-nM case.

Table 2 shows the number of every type of IFML

elements generated for the specification of this

operation in this specific case. For the sake of this

work, IFML elements have been classified into three

main groups: links, units and couplings. The tool

uses 15 different IFML elements for this case. As it

may be observed, most of the considered IFML

elements have been used for the specification of the

Create operation.

Table 2: Aggregated numbers of IFML elements for the C-

nM case.

Links Units Couplings

C-nM 7 5 3

3.2.5 Summary of IFML Generation

Concerning the rest of the previously identified

cases, the generation of the IFML elements follows a

similar process. Although concrete details of their

generation are not discussed in this work, Table 3

presents a summary of the total number of IFML

elements generated for the specification of each

CRUD operation in every use case considered. A

developer has to use more than 18 elements in

average to specify a CRUD operation with IFML. In

other words, AutoCRUD is saving him the average

cost of 18 elements per CRUD operation in the

specification of a web application with IFML.

Additionally, as shown, leaving apart AllinOne

cases, create and update operations present a more

complex specification than remove and display

operations. In fact, AutoCRUD always produce the

same specification for remove and display

operations independently of the cardinality

dimension, basically, because relationships are not

relevant for those kind of operations at this level.

Table 3: Number of IFML elements for all the cases.

Links Units Couplings Total

C-no 3 4 1 8

R-no 1 3 1 5

U-no 5 6 3 14

D-no 3 4 1 8

All-no 16 19 6 37

C-1N 4 5 2 11

R-1N 1 3 1 5

U-1N 6 7 4 18

D-1N 3 4 1 8

All-1N 19 16 9 44

C-nM 7 5 3 17

R-nM 1 3 1 5

U-nM 13 10 7 30

D-nM 3 4 1 8

All-nM 27 18 13 58

4 INDUSTRIAL VALIDATION

In order to validate the utility and applicability of the

plug-in presented, this section shows an evaluation

of its application to different projects developed by a

Spanish software company, Homeria SL. This

company is an official partner of WebRatio

(http://www.webratio.com/site/content/es/partners)

and has developers certified in the development of

web applications by using the technologies and

methodologies provided by IFML and, in particular,

WebRatio. It has developed more than 100 projects

in the last 9 years and it relies on an important set of

clients.

The main goal of this evaluation is to analyse the

cost saving obtained by incorporating the tool

presented here into the development process of real

projects implemented by the company. In this

analysis, the developer time has been considered as

the cost measurement unit so that the minor the

development time is, the lower cost the Web system

has. In order to obtain some base time

measurements, the next procedure has been

followed:

AutoCRUD - Automating IFML Speciﬁcation of CRUD Operations

311

 A group of developers of the company was

selected for the analysis. All these developers

had a similar experience in developing data

intensive web applications with WebRatio.

 The developers were responsible for developing

the CRUD operations over different data entities

(and in different situations) in the projects that

the company was involved at the moment of

performing this study.

 The time spent in the specification of the needed

IFML entities for each CRUD operation was

measured.

 Considering similar development times, as

aforementioned, the IFML elements were

classified into three main groups: links, units and

couplings.

The average of the development time for the

different groups was obtained. These values are

shown in Table 4 and are used as a reference in the

measurements performed during the study. Note

that, although these values could vary in terms of

developers’ expertise, it has been estimated that the

proportions among them would keep constant. Thus,

this study could be replicated in other companies

just by adapting the base time values for the

development time to the expertise of the particular

development team.

Table 4: Developer time average per group of IFML

elements.

Group Link Unit Coupling

Dev. Time (secs.) 24 112 66

According to these times and the values shown in

Table 3, Table 5 presents, on one hand, the costs

related to the manual specification of each case

considered for the CRUD operations, and on the

other hand, shows the time (in average) spent by a

developer in specifying each case for the CRUD

operations by means of the plug-in. Note that the

times spent by the plug-in in automatically

generating the final code are not shown since they

are insignificant (once the operations have been

specified).

Once the base time measurements were obtained,

the study was focused on the analysis of projects

previously developed by the company and with the

source models available. To this purpose, a

quantitative analysis was carried out where the

needed IFML elements for the specification of the

CRUD operations in the different projects were

identified.

As an example of the obtained data, Table 6

shows an excerpt for a reduced set of 6 real projects

recently developed in the company. This table shows

for each project: 1) the size; 2) the number of CRUD

operation cases; 3) the total number of CRUD

operations; 4) the total number of data entities in the

data model; 5) the total number of IFML elements

used to specify all the CRUD operations (classified

as links, units and couplings); 6) the total time (in

hours) dedicated to the project. Based on row 5)

(number of elements needed for representing the

CRUD operations) and the time spent in specifying

each operation (shown in table 7), the total time

spent in manually implementing these operations has

been calculated for each project (7). Based on row 6)

and 7) the percentage of time dedicated to the

CRUD operations for each project is shown in row

8). Likewise, considering the time spent in

specifying each CRUD operation by using the plug-

in, the time employed in automatically generating all

the CRUD operations for each project has been

calculated (9). Finally, the table shows the difference

(10) between both costs -manually developed vs.

automatically generated- showing the benefits in

both hours and percentage.

As it may be observed in Table 6, the benefit

(and, thus, the saved time) by using the plug-in is

higher than 95% of the time dedicated to CRUD

operations in all the projects. These data show a

clear evidence of the great productivity

improvement provided by the tool presented here,

which almost completely removes the time

dedicated to the specification of CRUD operations

from the projects. Moreover, Table 6 shows how this

improvement seems to be correlated with project

size. In other words, the bigger the project is, the

higher the improvement obtained. As an example,

the improvement obtained in the biggest project is

99,88% that suggests that the time dedicated to

CRUD specification is insignificant with respect to

the total time of the project.

However, obviously, these data must be

considered also taking into account the percentage of

time dedicated to CRUD operations in each project.

Observe that, in the projects analysed, these

percentages range from 6,14% to 9,69% of the total

time (row 8 in Table 6). That means that, for

instance, the plugin is able to provide a reduction of

the total time of the project of almost 10% in the

biggest project. In addition, this conclusion becomes

even more important if we consider that the total

time of the project involves many tasks that are not

directly related with the IFML specification, such as

user interface design or scripting implementation. To

put in another way, the total time of CRUD

APMDWE 2016 - International Workshop on Avanced practices in Model-Driven Web Engineering

312

specification saved in the project may be compared

with the total time dedicated to IFML specification

and, then, the results obtained are even more

promising. In particular, the percentage of time

dedicated to the IFML specification in each project

has been presented in Table 7. This table also shows

the percentage of the IFML specification dedicated

to CRUD operations so that the reduction of the time

dedicated to IFML in each project has been

calculated. This reduction varies from 14,99% to

28,15%. That implies that, considering that the time

dedicated to CRUD specification is practically

removed from the projects, an average reduction of

the 19,75% of the time dedicated to IFML

specification is achieved in these projects.

5 CONCLUSIONS

This paper has presented AutoCRUD, a tool that

automates the specification of CRUD operations in

IFML. The tool has been developed as a WebRatio

plug-in so that it may be easily integrated into

industrial developments, bridging a gap that MDWE

approaches had not deal with yet, i.e., the

optimization of the specification of repetitive and

recurrent CRUD operations. The benefits obtained

by the tool have been evaluated by applying it to real

projects developed by an external software

company. By this analysis, we observed important

evidences of the optimization gain obtained by the

tool but also of its scalability since the results are

even better when biggest projects are considered.

Moreover, the number of errors usually introduced

during the specification of these operations has been

dramatically reduced.

As further work, we plan to follow several

research lines. Firstly, we want to apply a similar

approach to other repetitive development tasks that

are being identified in WebRatio. Secondly, we are

working on the development of some heuristics to

guide an algorithm on the automatic generation of

the most likely useful CRUD operations for every

data entity.

ACKNOWLEDGEMENTS

This work has been funded by Junta de Extremadura

(Consejería de Economía e Infraestructuras -

GR15098) and European Regional Development

Fund (ERDF).

REFERENCES

Brambilla, M, Fraternali, P., 2015. Interaction Flow

Modeling Language – Model Driven UI Engineering

of Web and Mobile Apps with IFML, Morgan

Kaufmann / OMG Press.

Casteleyn, S., Garrigós, I., Mazón, J., 2014. Ten Years of

Rich Internet Applications: A Systematic Mapping

Study, and Beyond. In ACM Transactions on the Web

8, 3, 1-46.

Ceri, S, Fraternali, P, Bongio, A, Brambilla, M, Comai, S,

Matera, M, 2002. Designing Data-Intensive Web

Applications. Morgan Kaufmann Publishers Inc.

Ceri, S., Fraternali, P., Bongio, A., 2000. Web modeling

language (WebML): a modeling language for

designing Web sites. In the International Journal of

Computer and Telecommunications Networking, 33, 1,

137–157.

Fatolahi, A, Somé, A., 2014. Assessing a Model-Driven

Web Application Engineering Approach. In Journal of

Software Engineering and Applications 7, 360-370.

Fowler, M., 2002. Patterns of Enterprise Application

Architecture. Addison Wesley Signature Series.

Koch, N, Meliá-Beigbeder, S, Moreno-Vergara, N,

Pelechano-Ferragud, V, Sánchez-Figueroa, F, Vara-

Mesa, JM, 2008. Model Driven Web Engineering. In

the European Journal of the Informatics Professional,

9, 2, 40-45.

Martinez, Y, Cachero, C, Matera, M, Abrahao, S, Luján,

S. 2011. Impact of MDE approaches on the

maintainability of web applications: an experimental

evaluation. In Lecture Notes in Computer Science.

Martínez, Y, Cachero, C, Meliá, S. 2014. Empirical study

on the maintainability of Web applications: Model-

driven Engineering vs Code-centric. In Empirical

Software Engineering.

Mbarki, S, Erramdani, M., 2008. Toward automatic

generation of mvc2 web applications. In Infocomp

Journal of Computer Science, 7, 4: 84-91.

Melia, S, Gómez, J, Pérez, S, Díaz, O., 2008. A Model-

Driven Development for GWT-Based Rich Internet

Applications with OOH4RIA. In ICWE’08, 8th

International Conference on Web Engineering (2008).

Papotti, P. E., do Prado, A. F., Lopes, W., Cirilo, C. E.,

Ferreira, L., 2013. A Quantitative Analysis of Model-

Driven Code Generation through Software

Experimentation. In Lecture Notes in Computer

Science, 7908, 321-337.

Rossi, G, Pastor, O, Schwabe, D, Olsina, L., 2007. Web

Engineering: Modelling and Implementing Web

Applications. Human-Computer Interaction Series,

Springer-Verlag, London.

Toffetti, G., Comai, S., Preciado, J. C., Linaje, M., 2011.

State-of-the Art and trends in the Systematic

Development of Rich Internet Applications. In

Journal

of Web Engineering, 10, 1, 70-86.

Vuorimaa, P., Laine, M., Litvinova, E., Shestakov, D.,

2015. Leveraging Declarative Languages in Web

Application Development. In World Wide Web

Journal.

AutoCRUD - Automating IFML Speciﬁcation of CRUD Operations

313

Table 5: Developer time (secs.) for the specification of every considered case in AutoCRUD.

Time

(secs.)

C-

R-

U-

D-

All-

C-

R-

U-

D-

All-

C-

R-

U-

D-

All-

Manual 586 426 990 586 2908 5496 788 426 426 1192 2842 5674 926 426 1894

AutoCRUD 1 1 1 1 2 2 1 2 1 3 3 1 3 1 5

Table 6: Results of the 6 projects under evaluation.

Projects P1 P2 P3 P4 P5 P6

1) Size Big

Mediu

Medium Medium Small Small

2) Different CRUD cases C-no 115 8 5 3 2 2

R-no 107 9 4 3 1 1

U-no 116 7 5 4 2 1

D-no 112 7 5 5 1 1

All-no 116 9 5 3 2 2

C-1N 97 5 4 4 2 1

R-1N 94 7 4 3 2 1

U-1N 92 4 4 3 2 1

D-1N 95 6 3 3 1 1

All-1N 97 10 4 4 2 2

C-nM 26 6 3 4 3 3

R-nM 42 8 2 2 2 2

U-nM 42 9 6 4 3 2

D-nM 24 6 3 3 1 1

All-nM 83 7 6 5 4 2

3) Total CRUD operations 1.258 108 63 63 38 33

4) Entities in the data model 193 84 36 27 14 10

5) Total IFML units Total Links 11.259 874 512 404 224 177

Total Units 11.285 848 533 391 222 168

Total

Couplings

5.387 414 250 194 108 109

6) Project total time Hours 5.380 650 350 230 125 80

7) CRUD operations cost

(manually developed)

Secs 1.876.777 143.848 77.388 65.812 34.258

28.38

Hours 521,33 39,96 21,5 18,28 9,52 7,88

8) Time dedicated to CRUD % 9,69 6,15 6,14 7,95 7,61 9,85

9) CRUD operations cost

(automated with plug-in)

Secs 2.225 1.370 1.339 1.330 1.317 1.307

Hours 0,62 0,38 0,37 0,37 0,37 0,36

10) Benefit obtained in the time

dedicated to CRUD (Manual -

Automatic)

Hours 520,71 39,58 21,12 17,91 9,15 7,52

% 99,88 99,05 98,27 97,98 96,16 95,39

Table 7: Time dedicated to IFML and CRUD specification in each project.

Projects P1 P2 P3 P4 P5 P6

1) Size Big Medium Medium Medium Small Small

2) Project total time Hours 5.380 650 350 230 125 80

3) Time for IFML Specification % 51 41 40 40 36 35

4) Time for CRUD operations % 9,69 6,15 6,14 7,95 7,61 9,85

5) Time for CRUD operations of the

IFML specification

% 19 14,99 15,35 19,87 21,14 28,15

APMDWE 2016 - International Workshop on Avanced practices in Model-Driven Web Engineering

314
