Design and Implementation of the CloudMdsQL Multistore System

Boyan Kolev

, Carlyna Bondiombouy

, Oleksandra Levchenko

, Patrick Valduriez

Ricardo Jimenez

, Raquel Pau

and Jose Pereira

Inria and LIRMM, University of Montpellier, Montpellier, France

LeanXcale and Universidad Politécnica de Madrid, Madrid, Spain

Sparsity Technologies, Barcelona, Spain

INESC TEC and University of Minho, Braga, Portugal

Keywords: Cloud, Multistore System, Heterogeneous Data Stores, SQL and NoSQL Integration.

Abstract: The blooming of different cloud data management infrastructures has turned multistore systems to a major

topic in the nowadays cloud landscape. In this paper, we give an overview of the design of a Cloud

Multidatastore Query Language (CloudMdsQL), and the implementation of its query engine. CloudMdsQL

is a functional SQL-like language, capable of querying multiple heterogeneous data stores (relational,

NoSQL, HDFS) within a single query that can contain embedded invocations to each data store’s native

query interface. The major innovation is that a CloudMdsQL query can exploit the full power of local data

stores, by simply allowing some local data store native queries (e.g. a breadth-first search query against a

graph database) to be called as functions, and at the same time be optimized.

1 INTRODUCTION

The blooming of different cloud data management

infrastructures, specialized for different kinds of data

and tasks, has led to a wide diversification of DBMS

interfaces and the loss of a common programming

paradigm. This makes it very hard for a user to

integrate and analyze her data sitting in different

data stores, e.g. RDBMS, NoSQL, and HDFS. For

example, a media planning application, which needs

to find top influencers inside social media

communities for a list of topics, has to search for

communities by keywords from a key-value store,

then analyze the impact of influencers for each

community using complex graph database traversals,

and finally retrieve the influencers’ profiles from an

RDBMS and an excerpt of their blog posts from a

document database. The CoherentPaaS project

(CoherentPaaS, 2013) addresses this problem, by

providing a rich platform integrating different data

management systems specialized for particular tasks,

data and workloads. The platform is designed to

provide a common programming model and

language to query multiple data stores, which we

herewith present.

The problem of accessing heterogeneous data

sources has long been studied in the context of

multidatabase and data integration systems (Özsu

and Valduriez, 2011). More recently, with the

advent of cloud databases and big data processing

frameworks, the solution has evolved towards

multistore systems that provide integrated access to

a number of RDBMS, NoSQL and HDFS data stores

through a common query engine. Data mediation

SQL engines, such as Apache Drill, Spark SQL

(Armbrust et al., 2015), and SQL++ provide

common interfaces that allow different data sources

to be plugged in (through the use of wrappers) and

queried using SQL. The polystore BigDAWG

(Duggan et al., 2015) goes one step further by

enabling queries across “islands of information”,

where each island corresponds to a specific data

model and its language and provides transparent

access to a subset of the underlying data stores

through the island’s data model. Another family of

multistore systems (DeWitt et al., 2013, LeFevre et

al., 2014) has been introduced with the goal of

tightly integrating big data analytics frameworks

(e.g. Hadoop MapReduce) with traditional RDBMS,

by sacrificing the extensibility with other data

sources. However, since none of these approaches

supports the ad-hoc usage of native queries, they do

not preserve the full expressivity of an arbitrary data

store’s query language. But what we want to give

the user is the ability to express powerful ad-hoc

queries that exploit the full power of the different

352

Kolev, B., Bondiombouy, C., Levchenko, O., Valduriez, P., Jimenez-Peris, R., Pau, R. and Pereira, J.

Design and Implementation of the CloudMdsQL Multistore System.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 352-359

ISBN: 978-989-758-182-3

data store languages, e.g. directly express a path

traversal in a graph database. Therefore, the current

multistore solutions do not directly apply to solve

our problem.

In this paper, we give an overview of the design

of a Cloud multidatastore query language

(CloudMdsQL) and the implementation of its query

engine. CloudMdsQL is a functional SQL-like

language, capable of querying multiple

heterogeneous databases (e.g. relational, NoSQL and

HDFS) within a single query containing nested

subqueries (Kolev et al., 2015). Thus, the major

innovation is that a CloudMdsQL query can exploit

the full power of local data stores, by simply

allowing some local data store native queries (e.g. a

breadth-first search query against a graph database)

to be called as functions, and at the same time be

optimized based on a simple cost model, e.g. by

pushing down select predicates, using bind join,

performing join ordering, or planning intermediate

data shipping. CloudMdsQL has been extended

(Bondiombouy et al., 2015) to address distributed

processing frameworks such as Apache Spark by

enabling the ad-hoc usage of user defined

map/filter/reduce operators as subqueries, yet

allowing for pushing down predicates and bind join

conditions.

2 LANGUAGE OVERVIEW

The CloudMdsQL language is SQL-based with the

extended capabilities for embedding subqueries

expressed in terms of each data store’s native query

interface (Kolev et al., 2015). The common data

model respectively is table-based, with support of

rich datatypes that can capture a wide range of the

underlying data stores’ datatypes, such as arrays and

JSON objects, in order to handle non-flat and nested

data, with basic operators over such composite

datatypes.

Queries that integrate data from several data

stores usually consist of subqueries and an

integration

SELECT statement. A subquery is defined

as a named table expression, i.e. an expression that

returns a table and has a name and signature. The

signature defines the names and types of the

columns of the returned relation. Thus, each query,

although agnostic to the underlying data stores’

schemas, is executed in the context of an ad-hoc

schema, formed by all named table expressions

within the query. A named table expression can be

defined by means of either an SQL

SELECT

statement (that the query compiler is able to analyze

and possibly rewrite) or a native expression (that the

query engine considers as a black box and delegates

its processing directly to the data store). For

example, the following simple CloudMdsQL query

contains two subqueries, defined by the named table

expressions

T1 and T2, and addressed respectively

against the data stores

rdb (an SQL database) and

mongo (a MongoDB database):

T1(x int, y int)@rdb =

(SELECT x, y FROM A)

T2(x int, z array)@mongo = {*

db.B.find({$lt: {x, 10}}, {x:1, z:1})

SELECT T1.x, T2.z

FROM T1, T2

WHERE T1.x = T2.x AND T1.y <= 3

The purpose of this query is to perform relational

algebra operations (expressed in the main

SELECT

statement) on two datasets retrieved from a

relational and a document database. The two

subqueries are sent independently for execution

against their data stores in order the retrieved

relations to be joined by the common query engine.

The SQL table expression

T1 is defined by an SQL

subquery, while

T2 is a native expression (identified

by the special bracket symbols

{* *}) expressed as

a native MongoDB call. The subquery of expression

T1 is subject to rewriting by pushing into it the filter

condition

y <= 3, specified in the main SELECT

statement, thus reducing the amount of the retrieved

data by increasing the subquery selectivity. Note that

subqueries to some NoSQL data stores can also be

expressed as SQL statements; in such cases, the

wrapper must provide the translation from relational

operators to native calls.

CloudMdsQL allows named table expressions to

be defined as Python functions, which is useful for

querying data stores that have only API-based query

interface. A Python expression yields tuples to its

result set much like a user-defined table function. It

can also use as input the result of other subqueries.

Furthermore, named table expressions can be

parameterized by declaring parameters in the

expression’s signature. For example, the following

Python expression uses the intermediate data

retrieved by

T2 to return another table containing the

number of occurrences of the parameter

v in the

array

T2.z.

T3(x int, c int

WITHPARAMS v string)@python =

for (x, z) in CloudMdsQL.T2:

yield( x, z.count(v) )

Design and Implementation of the CloudMdsQL Multistore System

353

A (parameterized) named table can then be

instantiated by passing actual parameter values from

another native/Python expression, as a table function

in a

FROM

clause, or even as a scalar function (e.g. in

the

SELECT

list). Calling a named table as a scalar

function is useful e.g. to express direct lookups into

a key-value data store.

Note that parametrization and nesting is also

available in SQL and native named tables. For

example, we validated the query engine with a use

case that involves the Sparksee graph database and

we use its Python API to express subqueries that

benefit from all of the features described above

(Kolev et al., 2015). In fact, our initial query engine

implementation enables Python integration; however

support for other languages (e.g. JavaScript) for

user-defined operations can be easily added.

In order to also address distributed processing

frameworks (such as Apache Spark) as data stores,

we introduce a formal notation that enables the ad-

hoc usage of user-defined Map/Filter/Reduce (MFR)

operators as subqueries in CloudMdsQL to request

data processing in an underlying big data processing

framework (DPF) (Bondiombouy et al., 2015). An

MFR statement represents a sequence of MFR

operations on datasets. In terms of Apache Spark, a

dataset corresponds to an RDD (Resilient

Distributed Dataset – the basic programming unit of

Spark). Each of the three major MFR operations

(

MAP

FILTER

and

REDUCE

) takes as input a dataset

and produces another dataset by performing the

corresponding transformation. Therefore, for each

operation there should be specified the

transformation that needs to be applied on tuples

from the input dataset to produce the output tuples.

Normally, a transformation is expressed with an

SQL-like expression that involves special variables;

however, more specific transformations may be

defined through the use of lambda functions. Let us

consider the following simple example inspired by

the popular MapReduce tutorial application “word

count”. We assume that the input dataset for the

MFR statement is a text file containing a list of

words. To count the words that contain the string

‘cloud’, we write the following composition of MFR

operations:

T4(word string, count int)@hdfs = {*

SCAN(TEXT,'words.txt')

.MAP(KEY,1)

.FILTER( KEY LIKE '%cloud%' )

.REDUCE(SUM)

.PROJECT(KEY,VALUE)

This MFR subquery is also a subject to rewriting

according to rules based on the algebraic properties

of the MFR operators. In the example above, the

MAP

and

FILTER

operations will be swapped, thus

allowing the filter to be applied earlier. The same

rules apply for any pushed down predicates.

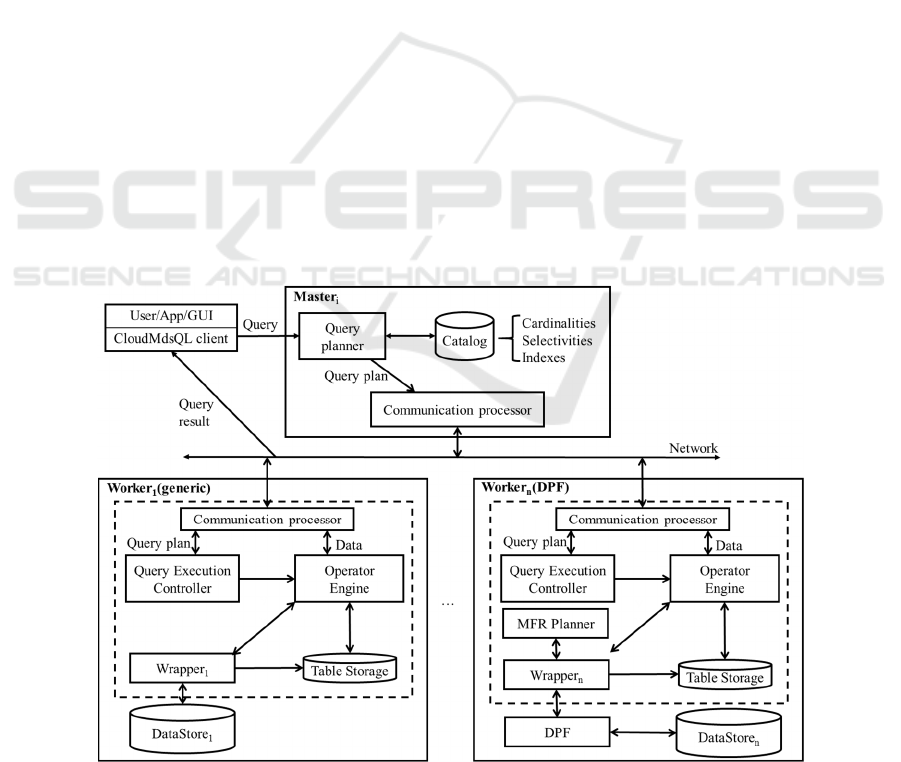

Figure 1: Architecture of the query engine.

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

354

3 SYSTEM OVERVIEW

In this section, we introduce the generic architecture

of the query engine, with its main components. The

design of the query engine takes advantage of the

fact that it operates in a cloud platform, with full

control over where the system components can be

installed. The architecture of the query engine is

fully distributed (see Figure 1), so that query engine

nodes can directly communicate with each other, by

exchanging code (query plans) and data.

Each query engine node consists of two parts –

master and worker – and is collocated at each data

store node in a computer cluster. Each master or

worker has a communication processor that supports

send and receive operators to exchange data and

commands between nodes. To ease readability in

Figure 1, we separate master and worker, which

makes it clear that for a given query, there will be

one master in charge of query planning and one or

more workers in charge of query execution. To

illustrate query processing with a simple example,

let us consider a query Q on two data stores in a

cluster with two nodes (e.g. the query introduced in

Section 2). Then a possible scenario for processing

Q, where the node id is written in subscript, is the

following:

• At client, send Q to Master

• At Master

, produce a query plan P (see Figure

2) for Q and send it to Worker

, which will

control the execution of P.

• At Worker

, send part of P, say P

, to Worker

and start executing the other part of P, say P

, by

querying DataStore

• At Worker

, execute P

by querying DataStore

and send result to Worker

• At Worker

, complete the execution of P

(by

integrating local data with data received from

Worker

), and send the final result to the client.

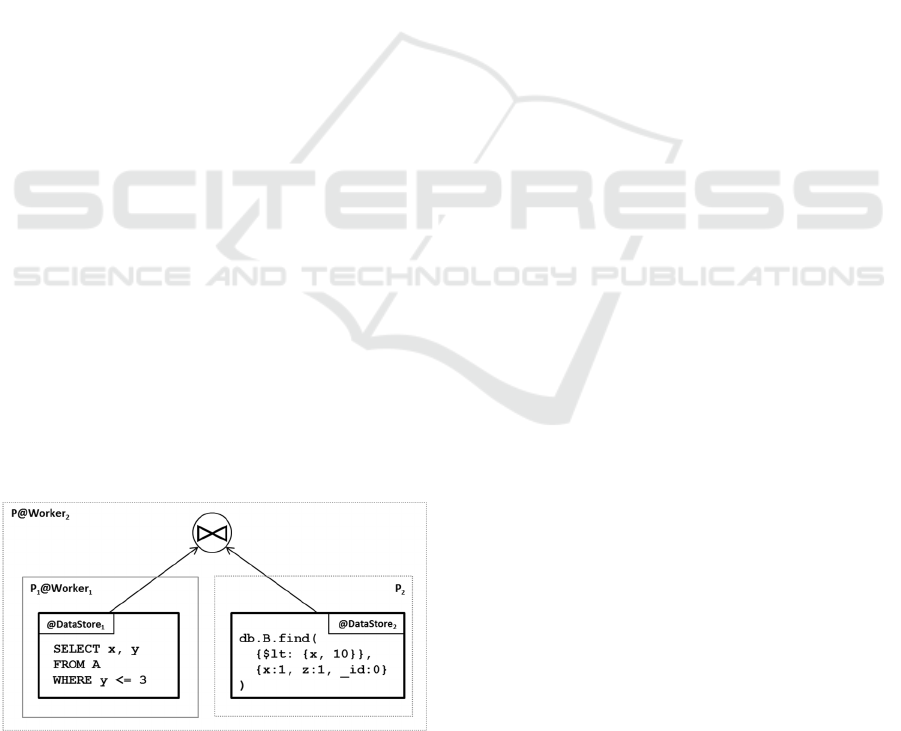

Figure 2: A simple query plan.

This simple example shows that query execution

can be fully distributed among the two nodes and the

result sent from where it is produced directly to the

client, without the need for an intermediate node.

A master node takes as input a query and

produces a query plan, which it sends to one chosen

query engine node for execution. The query planner

performs query analysis and optimization, and

produces a query plan serialized in a JSON-based

intermediate format that can be easily transferred

across query engine nodes. The plan is abstracted as

a tree of operations, each of which carries the

identifier of the query engine node that is in charge

of performing it. This allows us to reuse query

decomposition and optimization techniques from

distributed query processing (Özsu and Valduriez,

2011), which we adapt to our fully distributed

architecture. In particular, we strive to:

• Minimize local execution time in the data stores,

by pushing down select operations in the data

store subqueries and exploiting bind join by

subquery rewriting;

• Minimize communication cost and network

traffic by reducing data transfers between

workers.

To compare alternative rewritings of a query, the

query planner uses a simple catalog, which is

replicated at all nodes in primary copy mode. The

catalog provides basic information about data store

collections such as cardinalities, attribute

selectivities and indexes, and a simple cost model.

Such information can be given with the help of the

data store administrators or collected by wrappers in

local catalogs which are then merged into the global

catalog. The query language provides a possibility

for the user to define cost and selectivity functions

whenever they cannot be derived from the catalog,

mostly in the case of using native subqueries.

The query engine is designed to verify the

executability of rewritten subqueries to data stores,

e.g. due to selection pushdowns or usage of bind

join. For this reason, each wrapper may provide the

query planner with the capabilities of its data store to

perform operations supported by the common data

model.

Workers collaborate to execute a query plan,

produced by a master, against the underlying data

stores involved in the query. As illustrated above,

there is a particular worker, selected by the query

planner, which becomes in charge of controlling the

execution of the query plan. This worker can

subcontract parts of the query plan to other workers

and integrate the intermediate results to produce the

final result.

Design and Implementation of the CloudMdsQL Multistore System

355

Each worker node acts as a lightweight runtime

database processor atop a data store and is composed

of three generic modules (i.e. same code library) -

query execution controller, operator engine, and

table storage - and one wrapper module that is

specific to a data store. These modules provide the

following capabilities:

• Query execution controller: initiates and controls

the execution of a query plan (received from a

master or worker) by interacting with the operator

engine for local execution or with one or more

workers (through communication processors).

• Operator engine: executes the query plan

operators on data retrieved from the wrapper,

from another worker, or from the table storage.

The operator engine may write an intermediate

relation to the table storage, e.g. when it needs to

be consumed by more than one operator or when

it participates in a blocking operation.

• Table Storage: provides efficient, uniform storage

(main memory and disk) for intermediate and

result data in the form of tables.

• Wrapper: interacts with its data store through its

native API to retrieve data, transforms the result

in the form of table, and writes the result in table

storage or delivers it to the operator engine.

In addition to the generic modules, which are

valid for all the workers, the components of a

worker collocated with a data processing framework

as data store, have some specifics. First, the worker

implements a parallel operator engine, thus

providing a tighter coupling between the query

processor and the underlying DPF and hence taking

more advantage of massive parallelism when

processing HDFS data. Second, the wrapper of the

distributed data processing framework has a slightly

different behavior as it processes MFR expressions

wrapped in native subqueries. It parses and

interprets a subquery written in MFR notation; then

uses an MFR planner to find optimization

opportunities; and finally translates the resulting

sequence of MFR operations to a sequence of DPF’s

API methods to be executed. The MFR planner

decides where to position pushed down filter

operations to apply them as early as possible, using

rules for reordering MFR operators that take into

account their algebraic properties.

4 IMPLEMENTATION

For the current implementation of the query engine,

we modified the open source Derby database to

accept CloudMdsQL queries and transform the

corresponding execution plan into Derby SQL

operations. We developed the query planner and the

query execution controller and linked them to the

Derby core, which we use as the operator engine. In

this section, we focus on the implementation of the

components, which each query engine node consists

of (Figure 3).

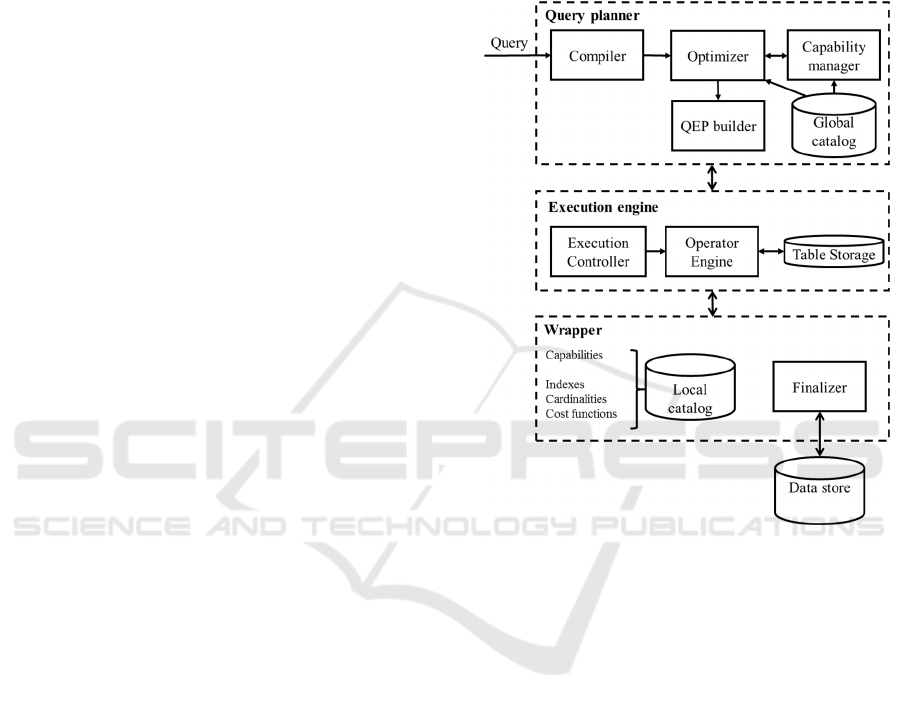

Figure 3: Query engine implementation components.

4.1 Query Planner

The query planner is implemented in C++; it

compiles a CloudMdsQL query and generates a

query execution plan (QEP) to be processed by the

query execution engine. The result of the query

planning is the JSON serialization of the generated

QEP, which is represented as a directed acyclic

graph, where leaf nodes are references to named

tables and all other nodes represent relational

algebra operations. The query planning process goes

through several phases, which we briefly focus on

below.

The query compiler uses the Boost.Spirit

framework for parsing context-free grammars,

following the recursive descent approach.

Boost.Spirit allows grammar rules to be defined by

means of C++ template metaprogramming

techniques. Each grammar rule has an associated

semantic action, which is a C++ function that should

return an object, corresponding to the grammar rule.

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

356

The compiler first performs lexical and syntax

analyses of a CloudMdsQL query to decompose it

into an abstract syntax tree (AST) that corresponds

to the syntax clauses of the query.

At this stage the compiler identifies a forest of

sub-trees within the AST, each of which is

associated to a certain data store (labelled by a

named table) and meant to be delivered to the

corresponding wrapper to translate it to a native

query and execute it against the data store. The rest

of the AST is the part that will be handled by the

common query engine (the common query AST).

Furthermore, the compiler performs a semantic

analysis of the AST by first resolving the names of

tables and columns according to the ad-hoc schema

of the query following named table signatures.

Datatype analysis takes place to check for datatype

compatibilities between operands in expressions and

to infer the return datatype of each operation in the

expression tree, which may be further verified

against a named table signature, thus identifying

implicit typecasts or type mismatches. WHERE

clause analysis is performed to discover implicit

equi-join conditions and opportunities for moving

predicates earlier in the common plan. The cross-

reference analysis aims at building a graph of

dependencies across named tables. Thus the

compiler identifies named tables that participate in

more than one operation, which helps the execution

controller to plan for storing such intermediate data

in the table storage. In addition, the optimizer avoids

pushing down operations in the sub-trees of such

named tables. To make sure that the dependency

graph has no cycles, hence the generated QEP will

be a directed acyclic graph, the compiler implements

a depth-first search algorithm to detect and reject

any query that has circular references.

Error handling is performed at the compilation

phase. Errors are reported as soon as they are

identified (terminating the compilation execution),

together with the type of the error and the context,

within which they were found (e.g. unknown table

or column, ambiguous column references,

incompatible types in expression, etc.).

The query optimizer uses the cost information in

the global catalog and implements a simple

exhaustive search strategy to explore all possible

rewritings of the initial query, by pushing down

select operations, expressing bind joins, join

ordering, and intermediate data shipping.

Furthermore, it uses the capability manager to

validate each rewritten subquery against its data

store capability specification, which is exported by

the wrapper into the global catalog in the form of a

JSON schema. Thus, the capability manager simply

serializes each sub-tree of the AST into a JSON

object and attempts to validate it against the

corresponding JSON schema. This allows a

rewritten sub-plan to a data store to be validated by

the query planner before it is actually delivered to

the wrapper for execution; and in case the validation

fails, the rewriting action (e.g. selection pushdown)

is reverted.

The QEP builder is responsible for the

generation of the final QEP, ready to be handled by

the query execution engine, which also includes:

resolving attribute names to column ordinal

positions considering the named table expression

signatures, removing columns from intermediate

projections in case they are no longer used by the

operations above (e.g. as a result of operation

pushdown), and serializing the QEP to JSON.

4.2 Operator Engine

The main reasons to choose Derby database to

implement the operator engine are because Derby:

• Allows extending the set of SQL operations by

means of

CREATE FUNCTION statements. This

type of statements creates an alias, which an

optional set of parameters, to invoke a specific

Java component as part of an execution plan.

• Has all the relational algebra operations fully

implemented and tested.

• Has a complete implementation of the JDBC API.

• Allows extending the set of SQL types by means

CREATE TYPE statements. It allows working

with dictionaries and arrays.

Having a way to extend the available Derby SQL

operations allows designing the resolution of the

named table expressions. In fact, the query engine

requires three different components to resolve the

result sets retrieved from the named table

expressions:

•

WrapperFunction: To send the partial

execution plan to a specific data store using the

wrappers interfaces and retrieve the results.

•

PythonFunction: To process intermediate

result sets using Python code.

•

NestedFunction: To process nested

CloudMdsQL queries.

Named table expressions admit parameters using

the keyword

WITHPARAMS. However, the current

implementation of the

CREATE FUNCTION statement

is designed to bind each parameter declared in the

statement with a specific Java method parameter. In

fact, it is not designed to work with Java methods

Design and Implementation of the CloudMdsQL Multistore System

357

that can be called with a variable number of

parameters, which is a feature introduced since Java

6. To solve this gap, we have modified the internal

validation of the

CREATE FUNCTION statement and

how to invoke Java methods with a variable number

of parameters during the evaluation of the execution

plan. For example, imagine that the user declares a

named table expression

T1 that returns 2 columns (x

and

y) and has a parameter called a as follows:

T1(x int, y string

WITHPARAMS a string)@db1 =

( SELECT x, y FROM tbl WHERE id = $a )

The query execution controller will produce

dynamically the following

CREATE FUNCTION

statement:

CREATE FUNCTION T1 ( a VARCHAR( 50 ) )

RETURNS TABLE ( x INT, y VARCHAR( 50 ))

LANGUAGE JAVA

PARAMETER STYLE DERBY_JDBC_RESULT_SET

READS SQL DATA

EXTERNAL NAME 'WrapperFunction.execute'

It is linked to the following Java component,

which will use the wrapper interfaces to establish a

communication with the data store

db1:

public class WrapperFunction {

public static ResultSet execute(

String namedExprName,

Long queryId,

Object... args

/*dynamic args*/

) throws Exception {

//Code to invoke the wrappers

}

Therefore, after accepting the execution plan in

JSON format, the query execution controller parses

it, identifies the sub-plans within the plan that are

associated to a named table expression and

dynamically executes as many

CREATE FUNCTION

statements as named table expressions exist with a

unique name. As a second step, the execution engine

evaluates which named expressions are queried

more than once and must be cached into the

temporary table storage, which will be always

queried and updated from the specified Java

functions to reduce the query execution time.

Finally, the last step consists of translating all

operation nodes that appear in the execution plan

into a Derby specific SQL execution plan. Once the

SQL execution plan is valid, the Derby core (which

acts as the operator engine) produces a dynamic byte

code that resolves the query that can be executed as

many times as the application needs.

Derby implements the JDBC interface and an

application can send queries though the Statement

class. So, when the user has processed the query

result and closed the statement, the query execution

controller drops the previously created functions and

cleans the temporary table storage.

To process data in distributed data stores we

used a specific implementation of the Operator

Engine and the MFR wrapper, adapting the parallel

SQL engine Spark SQL (Armbrust et al., 2015) to

serve as the operator engine, thus taking full

advantage of massive parallelism when joining

HDFS with relational data. To do this, each

execution (sub-)plan is translated to a flow of

invocations of Spark SQL’s DataFrame API

methods.

4.3 Wrappers

The wrappers are Java classes implementing a

common interface used by the operator engine to

interact with them. A wrapper may store locally

catalog information and capabilities, which it

provides to the query planner periodically or on

demand. Each wrapper also implements a finalizer,

which translates a CloudMdsQL sub-plan to a native

data store query.

We have validated the query engine using four

data stores – Sparksee (a graph database with Python

API), Derby (a relational database accessed through

its Java Database Connectivity (JDBC) driver),

MongoDB (a document database with a Java API),

and unstructured data stored in an HDFS cluster and

processed using Apache Spark as big data

processing framework (DPF). To be able to embed

subqueries against these data stores, we developed

wrappers for each of them as follows.

The wrapper for Sparksee accepts as raw text the

Python code that needs to be executed against the

graph database using its Python client API in the

environment of a Python interpreter embedded

within the wrapper.

The wrapper for Derby executes SQL statements

against the relational database using its JDBC driver.

It exports an

explain() function that the query

planner invokes to get an estimation of the cost of a

subquery. It can also be queried by the query planner

about the existence of certain indexes on table

columns and their types. The query planner may

then cache this metadata information in the catalog.

The wrapper for MongoDB is implemented as a

wrapper to an SQL compatible data store, i.e. it

performs native MongoDB query invocations

according to their SQL equivalent. The wrapper

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

358

maintains the catalog information by running

probing queries such as

db.collection.count()

to keep actual database statistics, e.g. cardinalities of

document collections. Similarly to the Derby

wrapper, it also provides information about available

indexes on document attributes.

The MFR wrapper implements an MFR planner

to optimize MFR expressions in accordance with

any pushed down selections. The wrapper uses

Spark’s Python API, and thus translates each

transformation to Python lambda functions. Besides,

it also accepts raw Python lambda functions as

transformation definitions. The wrapper executes the

dynamically built Python code using the reflection

capabilities of Python by means of the

eval()

function. Then, it transforms the resulting RDD into

a Spark DataFrame.

5 CONCLUSIONS

In this paper, we presented CloudMdsQL, a common

language for querying and integrating data from

heterogeneous cloud data stores and the

implementation of its query engine. By combining

the expressivity of functional languages and the

manipulability of declarative relational languages, it

stands in “the golden mean” between the two major

categories of query languages with respect to the

problem of unifying a diverse set of data

management systems. CloudMdsQL satisfies all the

legacy requirements for a common query language,

namely: support of nested queries across data stores,

data-metadata transformations, schema

independence, and optimizability. In addition, it

allows embedded invocations to each data store’s

native query interface, in order to exploit the full

power of data stores’ query mechanism.

The architecture of CloudMdsQL query engine is

fully distributed, so that query engine nodes can

directly communicate with each other, by

exchanging code (query plans) and data. Thus, the

query engine does not follow the traditional

mediator/wrapper architectural model where

mediator and wrappers are centralized. This

distributed architecture yields important

optimization opportunities, e.g. minimizing data

transfers by moving the smallest intermediate data

for subsequent processing by one particular node.

The wrappers are designed to be transparent, making

the heterogeneity explicit in the query in favor of

preserving the expressivity of local data stores’

query languages. CloudMdsQL sticks to the

relational data model, because of its intuitive data

representation, wide acceptance and ability to

integrate datasets by applying joins, unions and

other relational algebra operations.

The CloudMdsQL query engine has been

validated (Kolev et al., 2015; Bondiombouy et al.,

2015) with four different database management

systems – Sparksee (a graph database with Python

API), Derby (a relational database accessed through

its JDBC driver), MongoDB (a document database

with a Java API) and Apache Spark (a parallel

framework processing distributed data stored in

HDFS, accessed by Apache Spark API). The

performed experiments have evaluated the impact of

the used optimization techniques on the overall

query execution performance (Kolev et al., 2015;

Bondiombouy et al., 2015).

REFERENCES

Armbrust, M., Xin, R., Lian, C., Huai, Y., Liu, D.,

Bradley, J., Meng, X., Kaftan, T., Franklin, M.,

Ghodsi, A., Zaharia, M. 2015. Spark SQL: Relational

Data Processing in Spark. In ACM SIGMOD (2015),

1383-1394.

Bondiombouy, C., Kolev, B., Levchenko, O., Valduriez,

P. 2015. Integrating Big Data and Relational Data

with a Functional SQL-like Query Language. Int.

Conf. on Databases and Expert Systems Applications

(DEXA) (2015), 170-185.

CoherentPaaS, http://coherentpaas.eu (2013).

DeWitt, D., Halverson, A., Nehme, R., Shankar, S.,

Aguilar-Saborit J., Avanes, A., Flasza, M., Gramling,

J. 2013. Split Query Processing in Polybase. In ACM

SIGMOD (2013), 1255-1266.

Duggan, J., Elmore, A. J., Stonebraker, M., Balazinska,

M., Howe, B., Kepner, J., Madden, S., Maier, D.,

Mattson, T., Zdonik, S. 2015. The BigDAWG

Polystore System. SIGMOD Rec. 44, 2 (August 2015),

11-16.

Kolev, B., Valduriez, P., Bondiombouy, C., Jiménez-Peris,

R., Pau, R., Pereira, J. 2015. CloudMdsQL: Querying

Heterogeneous Cloud Data Stores with a Common

Language. Distributed and Parallel Databases, pp 1-

41, http://hal-lirmm.ccsd.cnrs.fr/lirmm-01184016.

LeFevre, J., Sankaranarayanan, J., Hacıgümüs, H.,

Tatemura, J., Polyzotis, N., Carey, M. 2014. MISO:

Souping Up Big Data Query Processing with a

Multistore System. In ACM SIGMOD (2014), 1591-

1602.

Özsu, T., Valduriez, P. 2011. Principles of Distributed

Database Systems – Third Edition. Springer, 850

pages.

Design and Implementation of the CloudMdsQL Multistore System

359
