The Validation Possibility of Topological Functioning Model using

the Cameo Simulation Toolkit

Viktoria Ovchinnikova and Erika Nazaruka

Department of Applied Computer Science, Riga Technical University, Setas Street 1, Riga, Latvia

Keywords: Topological Functioning Model, Execution Model, Foundational UML, UML Activity Diagram.

Abstract: According to requirements provided by customers, the description of to-be functionality of software systems

needs to be provided at the beginning of the software development process. Documentation and

functionality of this system can be displayed as the Topological Functioning Model (TFM) in the form of a

graph. The TFM must be correctly and traceably validated, according to customer’s requirements and

verified, according to TFM construction rules. It is necessary for avoidance of mistakes in the early stage of

development. Mistakes are a risk that can bring losses of resources or financial problems. The hypothesis of

this research is that the TFM can be validated during this simulation of execution of the UML activity

diagram. Cameo Simulation Toolkit from NoMagic is used to supplement UML activity diagram with

execution and allows to simulate this execution, providing validation and verification of the diagram. In this

research an example of TFM is created from the software system description. The obtained TFM is

manually transformed to the UML activity diagram. The execution of actions of UML activity diagrams was

manually implemented which allows the automatic simulation of the model. It helps to follow the

traceability of objects and check the correctness of relationships between actions.

1 INTRODUCTION

Development of the software system is a complex

and stepwise process. At the beginning an analyst

needs to ensure the description of functionality of

the software system. Generally, this description is

represented as a large amount of documents, which

consist of text with figures, tables and multiple links

to other documents. The description and

requirements of functionality can be represented as a

formal Topological Functioning Model (TFM) in the

form of oriented graph with vertices (functional

characteristics of the system) and causal

relationships between them. The TFM can be

constructed, using the TFM Editor in the Integrated

Domain Modeling (IDM) toolset, implemented by

Armands Slihte and provided in (Slihte, 2015).

During manual validation of the TFM mistakes

can be made - important functional features,

relationships between them or logic of TFM can be

unnoticed or used incorrectly. It can happen, because

the TFM is represented as a figure of an oriented

graph, without any traceable execution and

simulation. Generally, this graph consists of a large

amount of vertices and relationships between them.

It represents the full scenario of system functionality

and its relationships.

The simulation of models can help to see some

incorrect places in the model and to fix these places

in the early stage of development of a software

system. The simulation of execution models is more

traceable and understandable than manual

validation. The foundational subset for the execution

UML models (fUML) standard is provided for

modeling each behavior as an activity in the

execution model. Currently, this standard ensures

only UML activity diagrams for modeling of an

activity, and each activity can be represented as the

UML activity diagram in the execution model

(OMG, 2015b). Cameo Simulation Toolkit from

NoMagic uses the fUML standard for representing

the execution model.

The TFM can be manually transformed to the

Unified Modeling Language (UML) activity

diagram following to mappings between elements of

the TFM and the UML activity diagram, provided in

(Donins, 2012). After that the execution of actions

need to be ensured in the UML activity diagrams.

The simulation of executions of UML activity

diagrams can be provided using the Cameo

Simulation Toolkit (NoMagic, 2015). The UML

Ovchinnikova, V. and Nazaruka, E.

The Validation Possibility of Topological Functioning Model using the Cameo Simulation Toolkit.

In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 327-336

ISBN: 978-989-758-189-2

327

activity diagram can be validated during simulation

of execution of actions. The hypothesis is that the

TFM also can be validated, according to simulation

of execution of UML activity diagrams.

The UML activity diagram is chosen, because its

visual structure and vertices names are similar to the

TFM. But TFM has more information of software

system, simple structure of the oriented graph and it

is the formal model as compared with the UML

activity diagram. The UML activity diagram

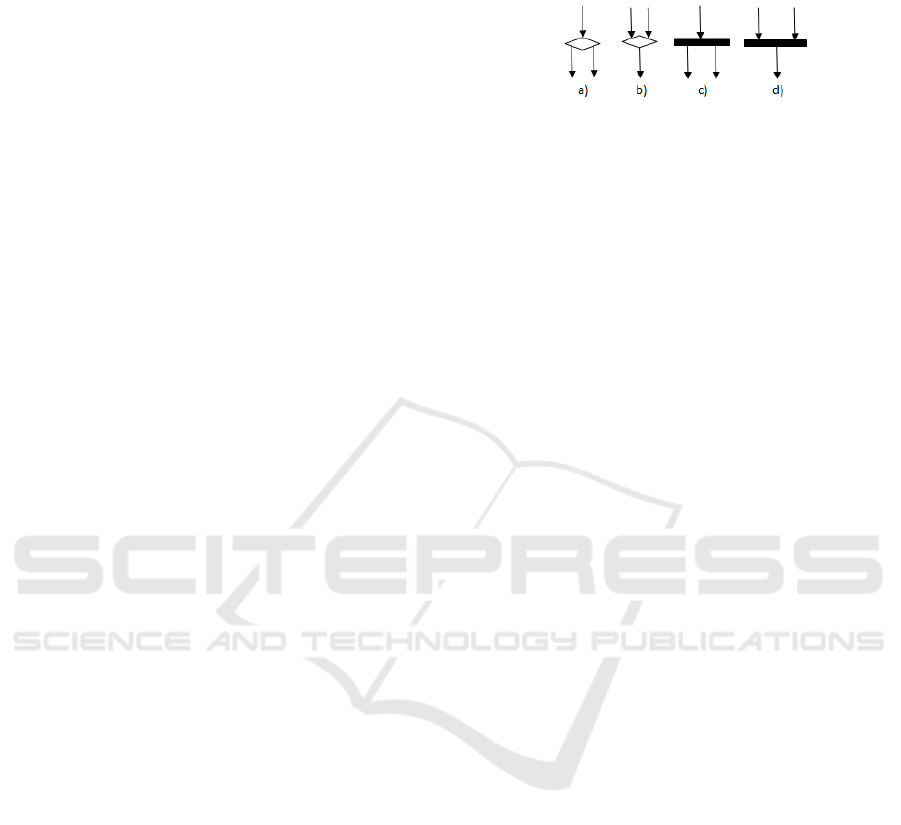

includes decision-making nodes (such as decision,

merge, fork and join nodes), data flows and

concurrences (OMG, 2015a) and its execution rules

are based on principles of Petri nets. Dynamic of the

activity diagram is similar to a state chart diagram:

- Edges with its guards in the activity diagram

are similar to signals in the state chart diagram;

- Initial and final nodes are equal;

- State chart diagram is represented without Petri

nets similar decision-making nodes.

The main goal of this research is to assess the

possibility of TFM validation in the Cameo

Simulation Toolkit for not losing important

information of functionality. To accomplish this goal

it is necessary to perform the following tasks:

- Obtain the TFM from the system descriptions;

- Manually obtain the activity diagram from the

TFM, using mappings rules;

- Add necessary functionality to the activity

diagram for its execution;

- Provide execution and simulation of the

activity diagram;

- Validate the activity diagram and bind results

with the TFM.

The main sources of information are scientific

papers, UML and Cameo Simulation Toolkit

specification and notifications.

The paper is structured as follows. Section 2

describes Topological Functioning Model, fUML,

and Cameo Simulation Toolkit in brief, as well as

related work. Section 3 illustrates the example and

results of execution of the UML activity diagram.

Section 4 provides discussions, conclusion and

future work.

2 BACKGROUND

2.1 TFM in Brief

The TFM has been invented at Riga Technical

University (RTU) by Janis Osis in 1969. At that time

a topological model was used for mathematical

definition of functionality of complex mechanical

systems in a holistic way (Osis and Asnina, 2011).

The formal TFM can be represented as a

Computation Independent Model (CIM) in Model-

Driven Architecture (MDA) (Asnina and Osis,

2011c). It can describe the functionality and

structure of the software system in the form of the

oriented graph. The figure of the graph with vertices

that depict functional characteristics of the system

named in human understandable language, and

causal relationships between them provided as

oriented arrows is more perceived, precise and clear

then the large text of description of the software

system.

A TFM is provided as a topological space (X,

Q), where X is a set of functional features and Q is a

set of relationships between elements in X (Osis and

Asnina, 2011b). The obtainment of TFM is

performed by the followings steps (Osis and Asnina,

2011):

- Provide descriptions of functional features;

- Provide the cause-and-effect relations between

them;

- Separate the TFM from the created topological

space.

The functional feature represents business

process, task execution or activity in the software

system (Osis and Asnina, 2011a). It is a unique

cortege <A, R, O, PrCond, PostCond, Pr, Ex>,

where A denotes the object’s action, R is the set of

results of the object’s action, O denotes the object

set, PrCond and PostCond represent the pre- and

post-conditions respectively, Pr is the provider, Ex is

the set of executors (Osis and Asnina, 2011b).

The relationships between functional features

define the cause from which the execution of the

effect is depended. Therefore, the relationships

between functional features are named the cause-

and-effect relations. Cause-and-effect relations may

be in logical relationships using logical operators

AND, OR and eXclusive OR.

The TFM is characterized by the topological and

functioning properties (Osis and Asnina, 2011a).

The topological properties are connectedness,

neighborhood, closure and continuous mapping. The

functioning properties are cause-and-effect relations,

cycle structure, inputs and outputs.

Rules of derivation and the obtainment process

of the TFM from the software system description is

provided by examples and described in detailed in

(Asnina, 2006), (Osis et al., 2007), (Osis et al.,

2008) and (Osis et al., 2008). Construction of the

TFM with attention put on continuous mappings

between problem and solution domain is provided in

MDI4SE 2016 - Special Session on Model-Driven Innovations for Software Engineering

328

(Asnina and Osis, 2010). The TFM can be obtained

automatically from the business use case

descriptions, which can be created in the IDM

toolset (Osis and Slihte, 2010), (Slihte et al., 2011),

(Slihte and Osis, 2014). It also can be manually

created in the TFM Editor from the IDM toolset.

The UML use case diagram can be obtained from

the TFM, according to (Osis and Asnina, 2011d),

(Donins, 2012). According to (Osis and Donins,

2010), (Donins et al., 2011) topological class

diagram, manually derived from the TFM, can be

represented as a Platform Independent Model (PIM)

in MDA.

2.2 Executable UML in Brief

Executable UML (xUML) is an earlier name of

Executable and translatable UML (xtUML) (Mellor

and Balcer, 2002), (J.Mellor, 2003), (xtUML, 2015).

It is a methodology that is fully automated with rules

for execution and it uses the UML notation. xtUML

is a programming language, but UML is a set of

object-oriented notations (xtUML, 2015). xtUML

helps to create detailed specifications of software

system requirements and execute these

specifications. The model figure can only be created

with UML notation, but xtUML provides creation of

models that are the templates of executed systems

(xtUML, 2012). The testing, independent of system

implementation and design, and validation,

according to system requirements, processes of

software system can be done and be traceable before

implementation of the software system. In such a

way defects or some unused objects can be noticed

and resolved. The 100% target source code can be

obtained and translated from this executable model

with its provided behavior (xtUML, 2012), but this

target source code will not be complete

implementation of the software system. xtUML

modeling can be used as agile modeling.

xtUML is designed for modeling control, data

and processing. Control and data can be modeled

using graphical diagrams – class, component and

state machine. The Object Action Language (OAL)

is used for modeling the processing (xtUML, 2016).

This language is similar to Java, Python, C++ and

Very High Speed Integrated Circuit (VHSIC)

Hardware Description Language (VHDL) languages.

The difference is that OAL tries to be an abstract,

simple, translatable and model-aware language as it

is suggested in (xtUML, 2016). The OAL is

independent of the target language and can be

translated to it using a model compiler (xtUML,

2016). The main tool for modeling, execution and

translation xtUML models is BridgePoint.

2.3 The Foundational Subset for

Execution UML Models in Brief

The fUML standard encompasses most activity and

object-oriented modeling. The fUML specification

(OMG, 2015b) does not change OMG specification.

The semantics for a subset of UML is refined by this

standard (OMG, 2015a). It simplifies the model

structure of the execution UML, some elements

from the UML superstructure specification are

excluded in the fUML (OMG, 2015b). The fUML

standard is aimed at xtUML modeling standard and

strongly influenced by it.

The execution model must fully designate its

own behavior, it means that all classifier behavior

and operation method need to be fully specified in it.

The fUML supports only activity as a user-defined

behavior. Each behavior of the model needs to be

modeled as an activity, using fUML specification

(OMG, 2015b). Currently, the fUML specification

provides graphical UML activity diagrams for

modeling each activity in the execution model

(OMG, 2015b). It means that for each behavior (e.g.

method of an operation of a class or an effect

behavior of a transition on a state machine) needs to

be provided an additional graphical activity diagram

(Cabot, 2011). Drawing these additional diagrams is

time-consuming and errors can be made in the

process (Cabot, 2011).

It provides the library fuml-1.1.0.jar file that is

freely available (java2s, 2015) and can be used

during modeling of the execution model. The

specification of this library and all included elements

are discussed and provided in (OMG, 2015b).

The action language for fUML (Alf) is used for

fUML with the similar goal as the OAL language is

used for xtUML (OMG, 2013). The UML modeling

elements are represented in a textual type using Alf

language. The mappings between Alf and fUML

syntax exist that provides the execution semantics

for Alf (OMG, 2013). It is similar to C or Java

programming languages. The main tool for this

language is called Alf.

2.4 Cameo Simulaton Toolkit in Brief

The tool MagicDraw is a commercial tool produced

by NoMagic. The Cameo Simulation Toolkit is a

MagicDraw plug-in for modeling the complete

execution model based on fUML standard

(NoMagic, 2015). The tool MagicDraw version

The Validation Possibility of Topological Functioning Model using the Cameo Simulation Toolkit

329

18.1, Professional Java edition and Academic Seat

license is used in the research.

It provides the simulation of the execution UML

model. The Cameo Simulation Toolkit for

executions of models uses different kind of engines,

such as (NoMagic, 2014):

- Behaviors – interaction (sequence diagram),

state machine (state machine diagram) and

activity (activity diagram). The sequence

diagram can be simulated based on UML

semantics, the state machine can be simulated

based on the (World Wide Web Consortium)

W3C (State Chart XML) SCXML standard and

the activity based on fUML standard. W3C

SCXML is an event-based state machine

language (W3C, 2015);

- Classes – the tool creates a simulation where

the class can be executed and the runtime value

of the type of this class is created. If a classifier

behavior is defined, then it also executes. If the

selected class is the SysML Block and contains

Constraint Properties, then parametric will be

executed;

- Instance Specifications – values and the

runtime object need to be created and used for

the execution of the model. These objects and

values can be automatically changed during

execution and simulation.

It is necessary to write a script in the provided

scripting languages (Ruby, Groovy, Python,

JavaScript and BeanShell) for representing the

behavior of one action. The execution of these

models can be traceable and the entire process of

simulation is documented in the console and log file

during simulation. There are four kinds of colors

(green - visited, red - active, yellow - breakpoint and

orange – last visited), which are used during

simulation (if necessary, the colors can be changed).

The simple user interface of the software system can

be developed using provided components (buttons,

text fields and so on) and supplying each component

with the activity that is provided by a feature in tool

MagicDraw. It will be executed with simulation of

the execution model in parallel. The verification and

validation of the model, as well as user guides with

stepwise examples and its descriptions are provided

in this tool.

The MagicDraw supports imports of UML v. 1.4,

XML Metadata Interchange (XMI) (v. 1.0, 1.2 and

1.4), Eclipse Modeling Framework (EMF) UML

2.2.x, custom diagrams, provides dynamical import

of Rich Text Format (RTF) (or parts of them)

documents into reports, data from excel and

Comma-separated values (.csv) file.

It exports EMF UML 2.2.x, custom diagrams,

data into excel and .csv files. It also provides export

of the current diagram, selected elements of the

diagram or all diagrams as bitmap (Portable

Network Graphics (.png), Joint Photographic

Experts Group (.jpeg)) or vector (Scalable Vector

Graphics (.svg) and others) and the export of the

UML state machine diagram to the standard

SCXML file.

2.5 Related Work

Authors in (Abdelhalim et al., 2012) provide

simulation of their system “CubeSats”, using the

execution of the behavior diagram in Cameo

Simulation Toolkit. This diagram is related to

parametric diagrams in ModelCenter, which is

related to the analytical diagram in Matlab. It is

necessary to find a way to increase the storing of

energy and collect the necessary data. Authors in

(Panthithosanyu et al., 2014) provide external device

execution, by using opaque behavior with JavaScript

for supporting communication between the

simulated model and the device. The model is

obtained with System Modeling Language (SysML)

and executed in Cameo Simulation Toolkit. Authors

in (Berardinelli et al., 2015) provide the execution of

communication between nodes in Wireless Sensor

Networks (WSN) for testing the consumption of

energy and improve the power of nodes.

The mentioned authors use the SysML, UML

class diagram, state machine diagram and activity

diagram for providing the execution. They describe

the functionality of the system or device (as a

description) and then create diagrams in Cameo

Simulation Toolkit. It is the same as transformation

from text to the UML diagram. In our case the

description is provided as TFM and transformation

is from TFM to UML diagram for its further

execution in tool.

3 RESULTS OF EXECUTION OF

UML ACTIVITY DIAGRAM

3.1 TFM of the Problem Domain

A part of a sport event organization process is taken

as an example. A short version of the system

“Registration at the sport event” description is as

follows: “The visitor can visit and leave the sport

event website after doing some tasks in the sport

event website.

MDI4SE 2016 - Special Session on Model-Driven Innovations for Software Engineering

330

Table 1: Functional features of the problem domain.

Id Name Result Executer Precondition

1 Visiting sport event website Visitor

2 Requesting sport event data Visitor

3 Providing a sport event data Sport event data Sport event website

4 Leaving sport event website Visitor

5 Requesting participants list Visitor

6 Providing participants list Participants list Sport event website

7 Requesting registration form Visitor

8 Providing registration form Registration form Sport event website

9 Filling participants data Participant data Visitor (If registration is

available)

10 Checking participants data Sport event website

11 Determining of a price Price Sport event website (All mandatory fields are

filled)

(Entered data are correct)

12 Providing a price Sport event website

13 Sending a payment for participation Payment Visitor

14 Receiving payment Sport event website

15 Adding participants to participants list Sport event website (If payment is received)

16 Assigning identifiers to participants Participant id Sport event website

17 Assigning groups to participants Participant group Sport event website

18 Sending registration confirmation Registration

confirmation

Sport event website

19 Receiving registration confirmation Participant

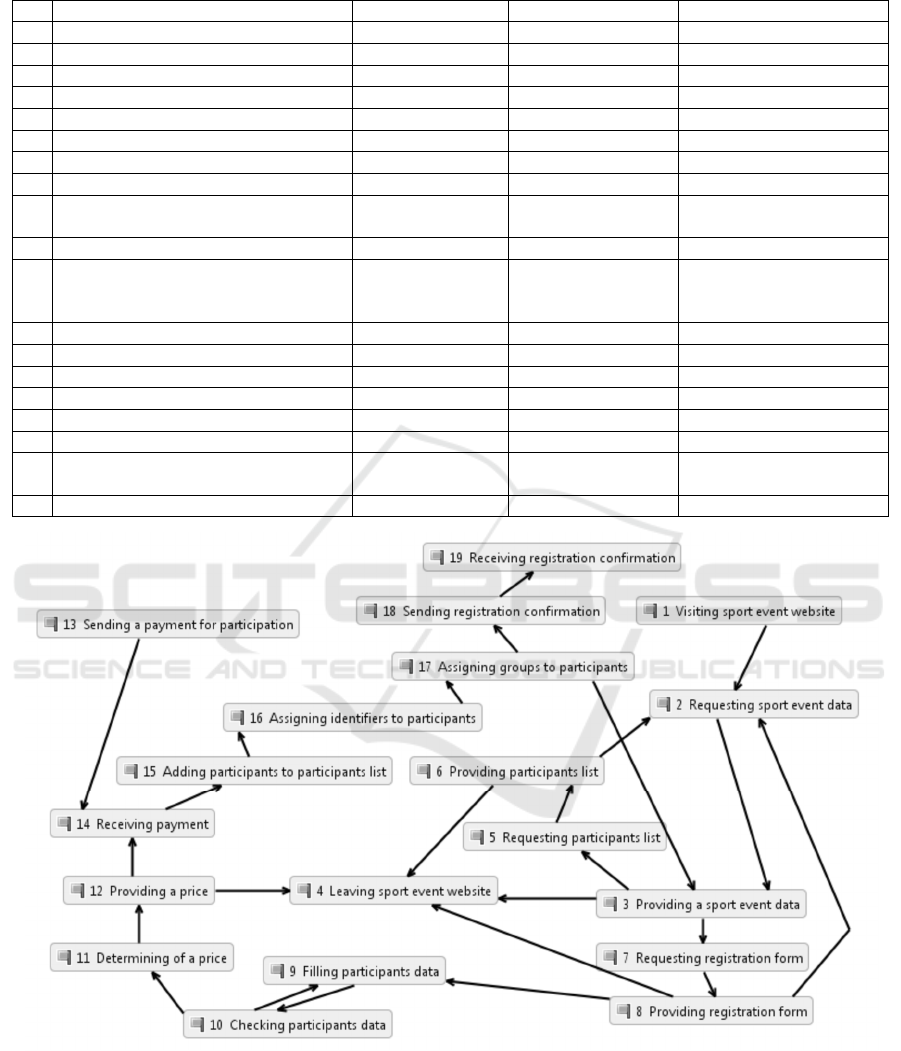

Figure 1: TFM of the problem domain.

He can request sport event data and after that the

website returns the requested data (price, date,

description and place) to the visitor. The visitor can

request the list of participants and see all participants

in the list or can request a registration form, register

to the sport event and fill participant data (name,

surname, gender, birthday, e-mail, mobile phone

number, country, name of the team, distance). When

participant’s data is added it needs to be checked. If

participant’s data is correct and all mandatory fields

The Validation Possibility of Topological Functioning Model using the Cameo Simulation Toolkit

331

are filled, then the price of participation needs to be

automatically determined and provided, according to

the distance, count of participants and the date of

registration. After that the visitor needs to pay for

participation. When the sport event website receives

the payment, the visitor becomes a participant. The

participants are added to the participants list, unique

identifiers and existing groups are assigned for each

participant. Registration confirmation is send by the

e-mail. After that the visitor receives the registration

confirmation”. Table 1 represents functional features

information. Others unique cortege elements are

empty or similar (Postcond is empty, Action is

similar to functional feature name, Object is similar

to result, Provider for 1 and 4 functional feature is

Visitor and for others Sport event website).

Figure 1 provides the TFM with functional

features and cause-and-effect relationships between

them. The TFM is separated from the created

topological space, where external functional features

(some inputs and outputs), without direct relations

(cause-and-effect) with internal functional features is

considered, but not considered in the TFM.

The cycles in the TFM are the following:

- checking data (9 – 10 - 9);

- requesting sport event website information (2 –

3 – 5 – 6 – 2 and 2 – 3 – 7 – 8 - 2);

- and the main one is registration process (3 – 7

– 8 – 9 – 10 – 11 – 12 – 14 – 15 – 16 – 17 - 3).

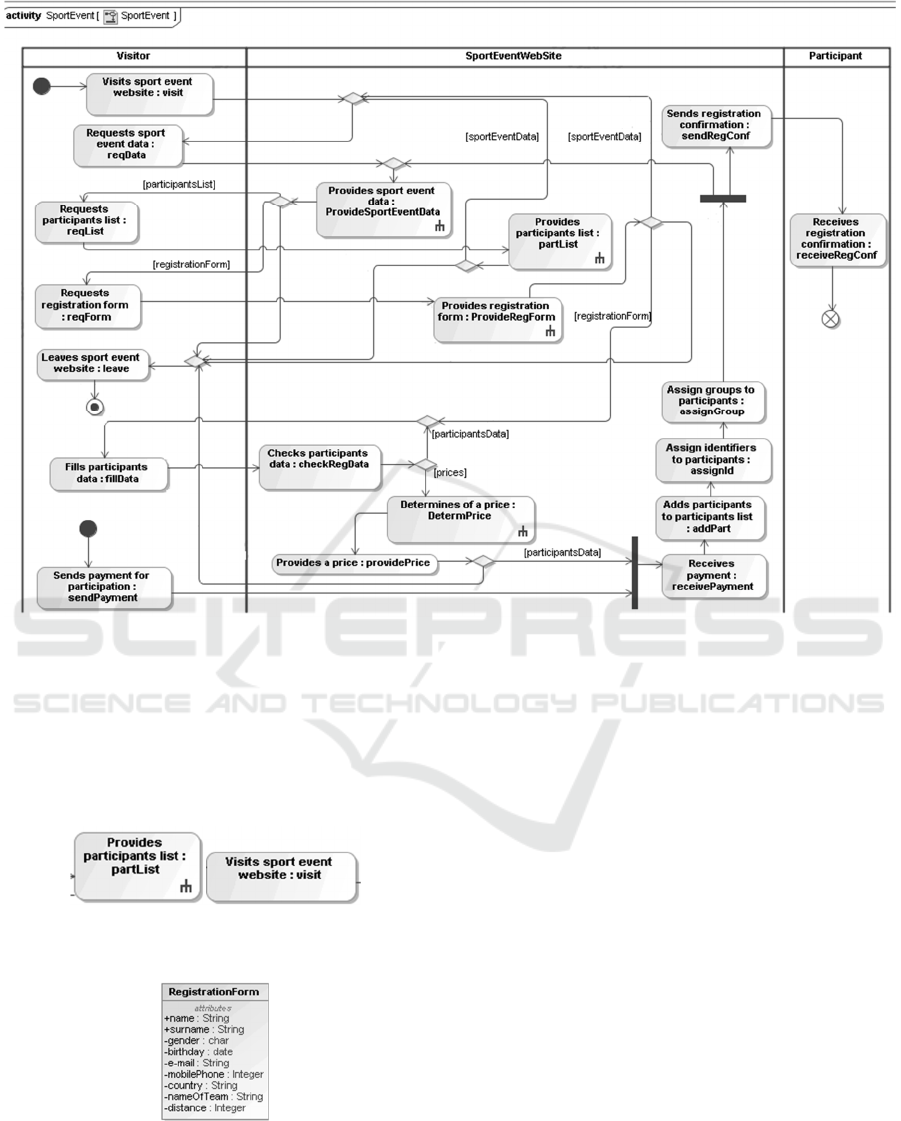

3.2 TFM to UML Activity Diagram

Uldis Donins in his Doctoral Thesis (Donins, 2012)

provided mappings between elements of TFM and

elements of the UML activity diagram. The

following mappings exist:

- Action in functional feature (TFM) is provided

as an action (UML activity diagram);

- Cause-and-effect relationship (TFM) is

provided as an edge (UML);

- Preconditions of the functional feature (TFM)

is provided as guards on edges outgoing from

the decision node (UML);

- Logical relationship (TFM) is provided as

decision (Figure 2 a), merge (Figure 2 b), fork

(Figure 2 c) or join nodes (Figure 2 d) and their

combination (UML);

- Input and output functional features (TFM) are

provided as initial and final nodes (UML)

correspondingly.

Uldis Donins suggests that TFM can be split up

in several parts in more advanced scenarios. Each

part provides UML activity diagrams. In our case the

TFM is represented as one UML activity diagram. It

Figure 2: UML activity diagrams nodes.

is not divided into different activity diagrams. But it

is necessary to define the main entry (initial node),

main exit (final node) and end of flows (if exist) in

the UML activity diagram.

Additionally to mappings provided by Uldis

Donins, new mapping – end of flow - is added

between elements of the TFM and elements of the

UML activity diagram. It is necessary when a flow

is divided to two or more different flows and one of

them goes outside and must not to interrupt the work

of other(s) flow(s). The result of functional features

(instead of preconditions) is provided as guards on

edges outgoing from the decision node in our case.

Figure 3 represents the activity diagram

manually obtained UML from the TFM with added

opaque behavior and behavior, represented by

another inside activity diagram (it will be more

discussed in the next subsection). The UML activity

diagram is obtained following the mappings and

after that the execution is added. Almost all logical

relationships are provided as decision and merge

nodes in the UML activity diagram in our case. Two

logical relationships are provided as join and fork

nodes when a new flow is appeared and one flow is

divided into two flows accordingly.

3.3 Execution of UML Activity

Diagram

In the first section is described why is chosen UML

activity diagram. The more information of state

chart diagram execution is provided in the Cameo

Simulation user guide (NoMagic, 2014). States of

the state chart diagram are executed within the

inside activity diagram, which describes behavior of

this state.

In our case the same method is taken for the

UML activity diagram – some activities behavior is

provided with another inside activity diagram and

others with opaque behavior as it is represented in

Figure 3.

MDI4SE 2016 - Special Session on Model-Driven Innovations for Software Engineering

332

Figure 3: The obtained UML activity diagram with provided behavior.

In Figure 3 activities with inside activity

diagrams are represented with the activity diagram

name after “:” (partList) and special symbol (Figure

4 on the left). Activities with opaque behavior are

represented with opaque behavior name after “:”

(visit) (Figure 4 on the right).

Figure 4: Activity with the inside activity diagram (on the

left side) and opaque behavior (on the right side).

Figure 5: Class RegistrationForm attributes.

It is necessary to write scripts for execution of all

activities. For this task BeanShell language was

chosen. For all opaque behaviors is written “print

(“Information”)” in this language. All output

information is provided in the console, while UML

activity diagram executes. It is also necessary to

create an inside activity for getting information from

objects, its instance and for doing manipulations

(e.g. create, edit, delete) with them.

Figure 5 represents class RegistrationForm and

its attributes. It is necessary for managing objects

during execution of the UML activity diagram. Next

Figure 6 illustrates instances “maya” and “jack” of

class RegistrationForm. Figure 7 on the left

represents class ParticipantsData that has an attribute

that is the list of RegistrationForm instances. Figure

7 on the right illustrates instance “participantsData”

of class ParticipantsData.

Figure 8 represents the inside activity diagram in

“Provides participants list” (Figure 4). Activity

“readParticipants” provides getting of necessary and

existing instances. It is needed to define the type (it

is ParticipantsData in our case, see Figure 7) of this

instance.

Figure 9 represents activity “participantsData”

(in Figure 8) input and output objects. In this activity

it is possible to read the instance’s attribute data.

The Validation Possibility of Topological Functioning Model using the Cameo Simulation Toolkit

333

Input (object) is object ParticipantsData and output

(result) is the list of RegistrationForm.

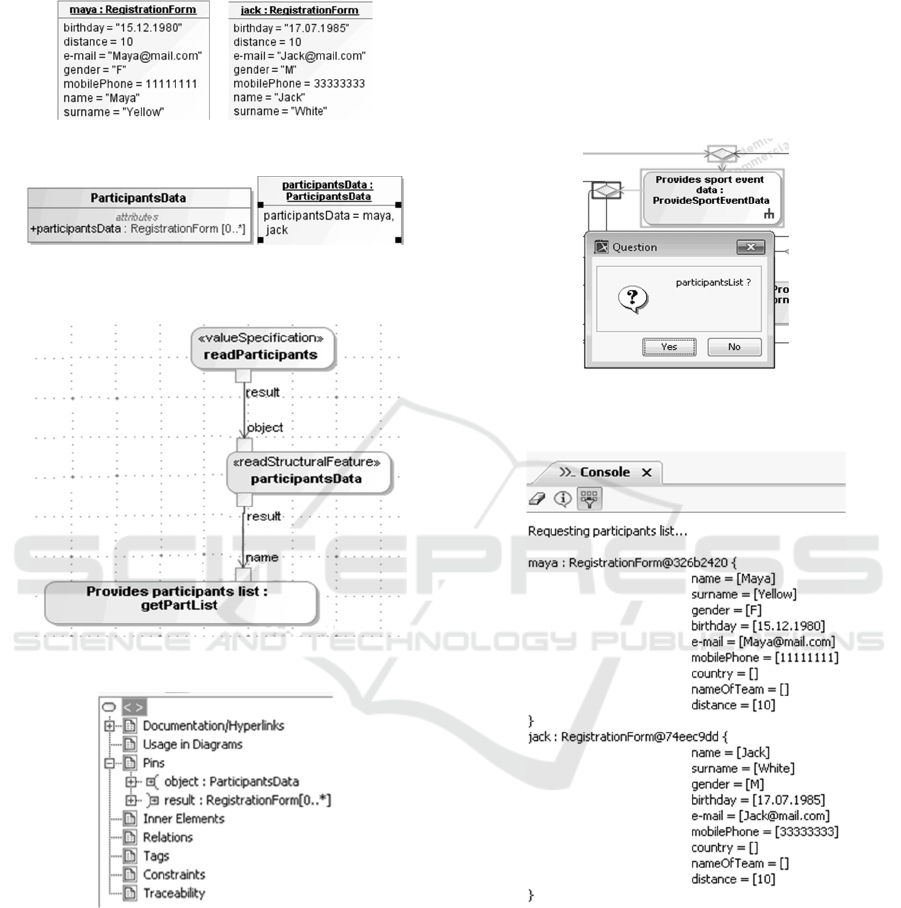

Figure 6: Class RegistrationForm instances.

Figure 7: Class ParticipantsData’s attribute (on the left)

and

instance (on the right).

Figure 8: Inside activity diagram.

Figure 9: Activity “participantsData” input and output.

Activity “Provides participants list” in Figure 8

has opaque behavior. The object name with type

RegistrationForm[0..*] is the input object to this

activity (as a parameter sent to the method). The

following script is written for printing results in the

console, using BeanShell language:

for (i : name)//parameter in method

print(i);//one record from list

Figure 10 represents the choice option during

execution of UML activity diagram, which provides

traceability. It is possible to choose the necessary

guard. The window with a question appears and if

the guard name shown is chosen by clicking the

“yes” button then the execution will continue (going

to edge with chosen guard). If button “no” is clicked

then the next available guard is offered.

Figure 10: Decision example during activity diagram

execution.

Figure 11: Console output during activity diagram

execution.

Figure 11 illustrates part of console outputs. It is

the result of execution of activity “Provides

participants list” that is provided in Figure 4 and

instances data from Figure 6.

In summary, the execution model is obtained

with objects described as classes and its instances,

and with activities, where management occurs with

these objects. The model is executed manually by

choosing the next possible step (the guard in the

MDI4SE 2016 - Special Session on Model-Driven Innovations for Software Engineering

334

activity diagram) if it exists. Derivation of results is

traceable during simulation of the model. All results

are represented in the console as a text in our case.

4 DISCUSSIONS AND

CONCLUSION

The obtained results in this research represent the

manual validation and traceability during execution

of the UML activity diagram by choosing the

necessary guards. At first, the full TFM is

transformed to the UML activity diagram. The main

input, main output and flow end are additionally

detected and are marked in the UML activity

diagram. It is necessary to create the class diagram

and its instances for providing the object

management feature. Simulation of this diagram

helps to test and validate the software system in its

initial state of development. It allows going through

all possible paths (or scenarios) from inputs to

outputs, checking needed functional characteristics

and input/output sets. It helps to prevent mistakes

and ensures that no vital information is lost. Authors

have come to the conclusion that it is possible to

validate TFM using UML activity diagram

execution, but only partially. This is due to the fact,

that information can be lost during manual

transformation from TFM to the UML activity

diagram.

The Cameo Simulation Toolkit is a tool that

provides execution of UML activity or state chart

diagrams by defining each activity as the inside

activity diagram with extended opportunity (special

activities with their already defined tasks). This tool

provides the management with objects during

execution. The execution of diagrams can be

simulated and outputs results can be shown in

console. It also extends possibility from MagicDraw

to visualize the execution process by creating forms

and binding it with the activity.

One of disadvantages is that the transformation

from TFM to UML activity diagram is manual.

Some necessary information and relationships can

be lost during transformation. It is planned to

automate this transformation in the future.

Synchronization between TFM and the generated

UML activity diagram is also planned.

Another disadvantage is that it is necessary to

create inside activity diagrams for execution of

activities and write scripts for each activity. It is a

time-consuming process. Authors were not able to

write complex scripts for managed objects, because

the functionality of implementation of the chosen

script language was limited. Future validation of this

tool requires assessment of other language

implementations. The TFM currently does not store

information of objects such as object characteristics

(attributes). It is necessary to analyze the necessity

of providing such information in the TFM in the

future. Compared to TFM, the UML activity

diagram increases the count of diagram elements due

to using decision, join, merge and fork nodes. It also

complicates the reading of the diagram.

Future work is related to analyzing the

possibility of automating the simulation of all

possible paths and of documenting the results (e.g.

listing all errors) of these paths and object

management (and the input and output object

counters) in it. The direct simulation of TFM

execution (omitting the transformation to UML) is

planned in the future for its validation according to

software system functionality requirements.

REFERENCES

Abdelhalim, I., Schneider, S. and Treharne, H., 2012. An

Optimization Approach for Effective Formalized

fUML Model Checking. In 10th International

Conference on Software Engineering and Formal

Methods (SEFM 2012). Thessaloniki, 2012. pp. 248-

262.

Asnina, E., 2006. The Computation Independent

Viewpoint: a Formal Method of Topological

Functioning Model Constructing. Applied computer

systems, 26, pp.21-32.

Asnina, E. and Osis, J., 2010. Computation Independent

Models: Bridging Problem and Solution Domains. In

Proceedings of the 2nd InternationalWorkshop on

Model-Driven Architecture and Modeling Theory-

Driven Development (MDA & MTDD 2010), in

conjunction with ENASE 2010. Lisbon: SciTePress.

pp.23-32.

Asnina, E. and Osis, J., 2011c. Topological Functioning

Model as a CIM-Business Model. In Model-Driven

Domain Analysis and Software Development:

Architectures and Functions. Hershey - New York: IGI

Global. pp.40 - 64.

Berardinelli, L. et al., 2015. Energy Consumption Analysis

and Design of Energy-Aware WSN Agents in fUML.

In 11th European Conference on Modelling

Foundations and Applications 2015. L’Aquila, 2015.

pp. 1-17.

Cabot, J., 2011. The New Executable UML Standards:

fUML and Alf. [Online] Available at: http://modeling-

languages.com/new-executable-uml-standards-fuml-

and-alf/ [Accessed 17 January 2016].

Donins, U., 2012. Topological Unified Modeling Language:

Development and Application. PhD Thesis. Riga: RTU.

The Validation Possibility of Topological Functioning Model using the Cameo Simulation Toolkit

335

Donins, U. et al., 2011. Towards the Refinement of

Topological Class Diagram as a Platform Independent

Model. In Proceedings of the 3rd International

Workshop on Model-Driven Architecture and

Modeling-Driven Software Development (MDA &

MDSD 2011). Lisbon: SciTePress. pp.79-88.

J.Mellor, S., 2003. Executable and Translatable UML.

[Online] Available at: http://www.embedded.com/desi

gn/prototyping-and-development/4024510/Executable-

and-Translatable-UML [Accessed 17 January 2016].

java2s, 2015. Download fuml-1.1.0.jar. [Online] Available

at: http://www.java2s.com/Code/Jar/f/Downloadfuml1

10jar.htm [Accessed 30 November 2015].

Mellor, S. and Balcer, M., 2002. Executable UML: A

Foundation for Model-Driven Architectures. Boston:

Addison-Wesley Longman Publishing Co.

NoMagic, 2014. Cameo Simulation Toolkit 18.1 user

guide. [Online] Available at: http://www.nomagic.com

/files/manuals/Cameo%20Simulation%20Toolkit%20

UserGuide.pdf [Accessed 30 November 2015].

NoMagic, 2015. Cameo Simulation Toolkit. [Online]

Available at: http://www.nomagic.com/products/magi

cdraw-addons/cameo-simulation-toolkit.html

[Accessed 30 November 2015].

OMG, 2013. Action Language for Foundational UML

(Alf). [Online] Available at: http://www.omg.org/spec/

ALF/1.0.1/ [Accessed 17 January 2016].

OMG, 2015a. OMG Unified Modeling Language. Version

2.4.1. [Online] Available at: http://www.omg.org/spec/

UML/2.4.1/ [Accessed 30 November 2015].

OMG, 2015b. Documents Associated With Semantics Of

A Foundational Subset For Executable UML Models.

[Online] Available at: http://www.omg.org/spec/FUM

L/1.1/ [Accessed 30 November 2015].

Osis, J. and Asnina, E., 2011a. Is Modeling a Treatment

for the Weakness of Software Engineering? In Model-

Driven Domain Analysis and Software Development:

Architectures and Functions. Hershey - New York: IGI

Global. pp.1-14.

Osis, J. and Asnina, E., 2011b. Topological Modeling for

Model-Driven Domain Analysis and Software

Development: Functions and Architectures. In Model-

Driven Domain Analysis and Software Development:

Architectures and Functions. Hershey - New York: IGI

Global. pp.15-39.

Osis, J. and Asnina, E., 2011d. Derivation of Use Cases

from the Topological Computation Independent

Business Model. In Model-Driven Domain Analysis

and Software Development: Architectures and

Functions. Hershey - New York: IGI Global. pp.65 -89.

Osis, J. and Asnina, E., 2011. Model-Driven Domain

Analysis and Software Development: Architectures

and Functions. Hershey - New York: IGI Global.

Osis, J., Asnina, E. and Grave, A., 2007. MDA Oriented

Computation Independent Modeling of the Problem

Domain. In Proceedings of the 2nd International

Conference on Evaluation of Novel Approaches to

Software Engineering (ENASE 2007). Barselona:

INSTICC Press. pp.66-71.

Osis, J., Asnina, E. and Grave, A., 2008. Computation

Independent Representation of the Problem Domain in

MDA. e-Informatica Software Engineering Journal,

2(1), pp.29-46.

Osis, J., Asnina, E. and Grave, A., 2008. Formal Problem

Domain Modeling within MDA. In Software and Data

Technologies, Communications in Computer and

Information Science. Berlin: Springer-Verlag Berlin

Heidelberg. pp.387-98.

Osis, J. and Donins, U., 2010. Formalization of the UML

Class Diagrams. In Evaluation of Novel Approaches

to Software Engineering. Berlin, 2010. Springer-

Verlag. pp. 180-192.

Osis, J. and Slihte, A., 2010. Transforming Textual Use

Cases to a Computation Independent Model. In Osis,

J. and Nikiforova, O., eds. Model-Driven Architecture

and Modeling Theory-Driven Development :

Proceedings of the 2nd International Workshop (MDA

& MTDD 2010). Lisbon, 2010. SciTePress. pp. 33-42.

Panthithosanyu, K. et al., 2014. Technology. [Online]

Available at: http://www.technology.org/2014/05/05/c

ollaboration-simulated-model-external-system-

controlling-lego-mindstorms-cameo-simulation-

toolkit/ [Accessed 23 January 2016].

Slihte, A., 2015. The integrated domain modeling: an

approach & toolset for acquiring a topological

functioning model. PhD Thesis. Riga: RTU.

Slihte, A. and Osis, J., 2014. The Integrated Domain

Modeling: A Case Study. In Databases and

Information Systems: Proceedings of the 11th

International Baltic Conference (DB&IS 2014),

Estonia, Tallinn, 8-11 June, 2014. Tallinn: Tallinn

University of Technology Press. pp. 465-470.

Slihte, A., Osis, J. and Donins, U., 2011. Knowledge

Integration for Domain Modeling. In Osis, J. and

Nikiforova, O., eds. Proceedings of the 3rd

International Workshop on Model-Driven Architecture

and Modeling-Driven Software Development (MDA

& MDSD 2011). Lisbon, 2011. SciTePress. pp. 46-56.

Spangelo, S., Kim, H. and Soremekun, G., 2013.

Simulation of CubeSat Mission. [Online] Available at:

http://www.omgsysml.org/Modeling-and-

Simulation_of_CubeSat_Mission_v15-May_2013-

Spangelo-Kim_Soremekun.pdf [Accessed January 23

2016].

W3C, 2015. State Chart XML: State Machine Notation for

Control Abstraction. [Online] Available at:

http://www.w3.org/TR/scxml/ [Accessed 30

November 2015].

xtUML, 2012. Executable and Translatable UML

Summary. [Online] Available at: https://xtuml.org/wp-

content/uploads/2012/09/xtUML_Summary.pdf

[Accessed 17 January 2016].

xtUML, 2015. What is xUML? [Online] Available at:

http://xtuml.nrt.se/index.php?section=17 [Accessed 17

January 2016].

xtUML, 2016. Action Language (OAL) Tutorial. [Online]

Available at: https://xtuml.org/learn/action-language-

tutorial/ [Accessed 17 January 2016].

MDI4SE 2016 - Special Session on Model-Driven Innovations for Software Engineering

336
