Integrated Energy Efficient Data Centre Management for Green

Cloud Computing

The FP7 GENiC Project Experience

J. Ignacio Torrens

, Deepak Mehta

, Vojtech Zavrel

, Diarmuid Grimes

, Thomas Scherer

Robert Birke

, Lydia Chen

, Susan Rea

, Lara Lopez

, Enric Pages

and Dirk Pesch

Building Physics and Services, TU Eindhoven, Eindhoven, The Netherlands

Insight Centre for Data Analytics, University College Cork, Cork, Ireland

IBM Research – Zurich, Rüschlikon, Switzerland

Nimbus Centre for Embedded Systems Research, Cork Institute of Technology, Cork, Ireland

ATOS Spain SA., Madrid, Spain

Keywords: Energy Efficient Data Centres, Workload Management, Thermal Management, Integrated Energy

Management Platform.

Abstract: Energy consumed by computation and cooling represents the greatest percentage of the average energy

consumed in a data centre. As these two aspects are not always coordinated, energy consumption is not

optimised. Data centres lack an integrated system that jointly optimises and controls all the operations in order

to reduce energy consumption and increase the usage of renewable sources. GENiC is addressing this through

a novel scalable, integrate energy management and control platform for data centre wide optimisation. We

have implemented a prototype of the platform together with workload and thermal management algorithms.

We evaluate the algorithms in a simulation based model of a real data centre. Results show significant energy

savings potential, in some cases up to 40%, by integrating workload and thermal management.

1 INTRODUCTION

Data centres have become a critical part of modern

life with the huge penetration of software as a service,

mobile cloud applications, digital media streaming,

and the expected growth in the Internet of Everything

all relying on data centres. However, data centres are

also a significant primary energy user and now

consume 1.3% of worldwide electricity. With the

increasing move towards cloud computing and

storage as well as everything as a service type

computing, energy consumption is expected to grow

to 8% by 2020 (Greenpeace, 2011; Gao, 2012). While

data centres of large cloud service providers have

been consuming many megawatts of power with

corresponding annual electricity bills in the order of

tens of millions of dollars, e.g. Google with over

260MW and $67M and Microsoft with over 150MW

and $36M in 2010 (Qurush, 2010), the large cloud

service providers are also investing heavily in energy

efficiency and green data centres, e.g. Google and

Microsoft have invested over $900M in energy

reduction measures since 2010. However, smaller

operators and independent data centres have not yet

been able to deploy many of the energy efficiency

technologies that are available. This is due to lack of

integrated technology solutions and uncertainty about

costs and the use of renewable energy solutions.

On average, computing consumes 60% of total

energy in data centres while cooling consumes 35%

(Uptime Institute, 2011). New technologies have the

potential to lead to a 40% reduction of energy

consumption, but computation and cooling typically

operate without joint coordination or optimisation.

While server energy management can reduce energy

use at CPU, rack, and overall data centre level,

dynamic computation scheduling is not integrated

with cooling. Data centre cooling typically operates

at constant cold air temperature to protect the hottest

server racks while local fans distribute the

temperature across racks. However, these local server

controls are typically not integrated with room

Torrens, J., Mehta, D., Zavrel, V., Grimes, D., Scherer, T., Birke, R., Chen, L., Rea, S., Lopez, L., Pages, E. and Pesch, D.

Integrated Energy Efﬁcient Data Centre Management for Green Cloud Computing - The FP7 GENiC Project Experience.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 375-386

ISBN: 978-989-758-182-3

375

cooling systems, which means that it is not possible

to optimise chillers, air fans and server fans as a

whole system.

The integration of renewable energy sources

(RES) has received limited interest from the data

centre community due to lack of interoperability of

generation, storage and heat recovery and current

installation and maintenance costs versus payback

(Deng, 2014). By and large, data centre operators,

who want to be green and use renewable energy buy

electricity that has been given a green label by their

respective supplier without often being able to fully

verify this. The intermittency of renewable energy

generation is also a critical factor in an environment

with very strict service level agreements and

essentially 100% uptime requirements. The adoption

of new technologies related to computing, cooling,

generation, energy storage, and waste heat recovery

individually requires sophisticated controls, but no

single manufacturer provides a complete system so

integration between control systems does not exist.

Funded by the European Commission, the GENiC

project (http://www.projectgenic.eu) develops

integrated cooling and computing control strategies in

conjunction with innovative power management

concepts that incorporate renewable electrical power

supply and waste heat management. The GENiC

project’s aim is to address the issue mentioned above

by developing an integrated management and control

platform for data centre wide optimisation of energy

consumption, reduction of carbon emissions and

increased renewables usage through integrating

monitoring and control of computation, data storage,

cooling, local power generation, and waste heat

recovery. The proposed platform defines interfaces

and common data formats, includes control and

optimisation functions and decision support. We aim

to verify the energy savings potential through

simulation based assessment and demonstration of

reduction in energy consumption through deployment

of the platform in a demonstration data centre. A

further premise of GENiC is that the energy

consuming equipment in data centres must be

supplemented with renewable energy generation and,

where possible, energy storage equipment, and

operated as a complete system to achieve an optimal

energy and emissions outcome. This vision is centred

on the development of a hierarchical control system

to operate all of the primary data centre components

in an optimal and coordinated manner.

In this paper we present the overall GENiC

system architecture for an integrated approach to

data centre management, discuss the first prototype

implementation, and present use cases and a

simulation based assessment of some of the energy

management algorithms. The paper is structured as

follows, Section 2 presents some challenges for data

centre energy management, the GENiC architecture

is presented in Section 3 and the prototype

implementation in Section 4. Section 5 introduces the

simulation models that represent a real physical data

centre and their boundary conditions. Section 6

presents the simulation flow and boundary

conditions. Section 7 presents and discusses

simulation results and Section 8 concludes the paper.

2 CHALLENGES IN DATA

CENTRE ENERGY

MANAGEMENT

Data centres have evolved into critical information

technology (IT) infrastructure and much of today's IT

services, both for businesses and consumers, depend

on their operation. Data centres consume an

increasing amount of energy and contribute

significantly to CO

emissions. However,

opportunities exist to enhance the energy and power

management of data centres in conjunction with

renewable energy generation and integration with

their surrounding infrastructure. Work has been done

on powering of data centres by renewable energy

(Cioara, 2015), but this has not been fully integrated

into a complete energy management system

considering coordinated workload management,

cooling, powering, and heat recovery management.

While much work has focused on integrated energy

management for data centres (Das, 2011; Jiang, 2015)

there is still a lack of an overall consideration of

energy usage and powering with the recovery of

waste heat as part of an overall thermal management

approach. In order to bring the elements of workload

management, cooling, powering and heat recovery

together in such a way that it will be possible to

achieve a high level of renewable energy powering of

data centres, a comprehensive integrated energy

management system is needed. The challenges that

such a system needs to address are

• Comprehensive, scalable integration of workload

management with cooling approaches.

• Effective power management with a high level of

renewable energy supply integration while

meeting service level agreements. For example,

managing service level agreements while dealing

with energy price fluctuations and demand

response requirements.

TEEC 2016 - Special Session on Tools for an Energy Efﬁcient Cloud

376

• Strategies for waste heat recovery in conjunction

with the heating needs of surrounding areas.

• Design and decision support tools assisting data

centre operators with data centre energy

management. Effective monitoring and fault

management.

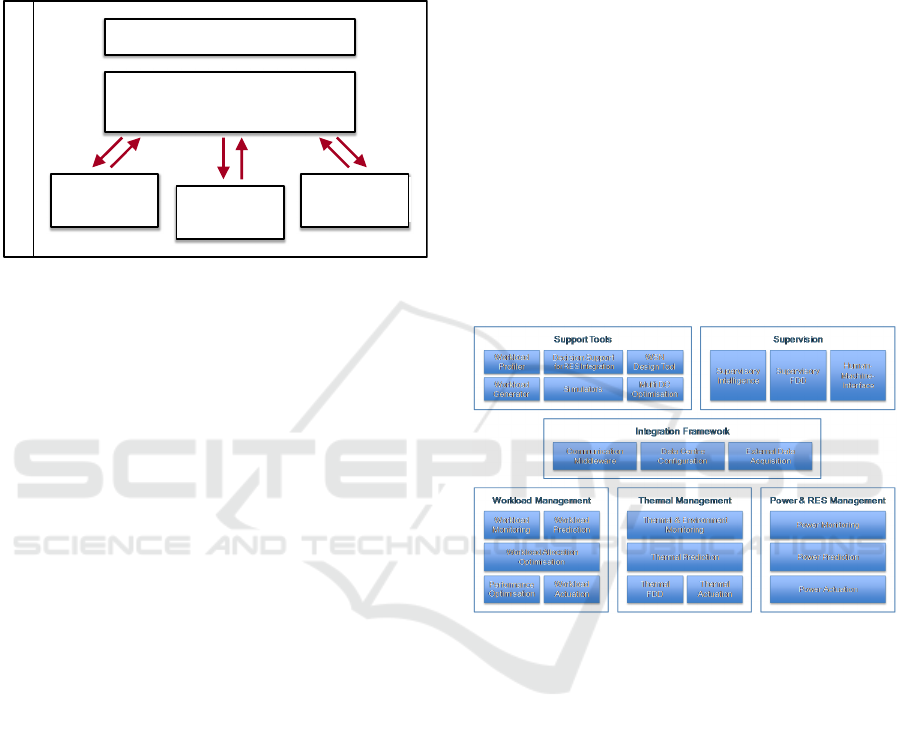

Figure 1: High level overview of the GENiC architecture

(from (GENIC, 2015)).

3 GENiC ARCHITECTURE

To address the challenges outlined above, the GENiC

project has developed a high level architecture for an

integrated design, management and control platform

(Pesch, 2015). This platform targets data centre wide

optimisation of energy consumption by encapsulating

monitoring and control of IT workload, data centre

cooling, local power generation and waste heat

recovery. In the following, a functional specification

of the GENiC architecture is presented and an

overview of the integration framework is provided.

More detailed information can be found in (GENIC,

2015).

The GENiC system integrates workload

management, thermal management and power

management by using a hierarchical control concept

to coordinate the management sub-systems in an

optimal manner with respect to the cost of energy

consumption and environmental impact, and cost

policies. Figure 1 provides a high level overview of

the proposed GENiC system architecture, which

consists of six functional groups known as GENiC

Component Groups (GCGs):

• The Workload Management GCG is

responsible for monitoring, analyzing, predicting,

allocating, and actuating IT workload within the

data centre.

• The Thermal Management GCG is responsible

for monitoring the thermal environment and

cooling systems in the data centre, predicting

temperature profiles and cooling demand, and

optimally coordinating and actuating the cooling

systems.

• The Power & RES Management GCG is

responsible for monitoring and predicting power

supply and demand, and for actuating the on-site

power supply of the data centre.

• The Supervision GCG includes the supervisory

intelligence which provides optimal IT power

demand, power supply, and thermal policies to the

individual sub-systems based on monitoring data,

predicted systems states, and actuation feedback.

• The Support Tools GCG includes a number of

tools that provide decision support for data centre

planners, system integrators, and data centre

operators.

• The Integration Framework GCG provides the

communication infrastructure and data formats

that are used for interactions between all

components of the GENiC system.

Figure 2: Components of the GENiC functional architecture

(from (GENIC, 2015)).

Each GCG is composed of a number of functional

components which we call GENiC Components

(GCs). The individual GCs are shown in Figure 2.

The core function of the GENiC system for

integrated, optimised data centre management can be

divided into four basic elements:

1. Monitoring components within the management

GCGs collect data about IT workload, thermal

environment, cooling systems, power demand and

on-site power supply.

2. Prediction components within the management

GCGs update their internal models and estimate

future system states based on the collected

monitoring data.

3. Optimisation components determine optimal

policies based on the collected monitoring data

Integration Framework

Workload

Management

Thermal

Management

Power & RES

Management

Supervision

Supervisory Intelligence

Support Tools

Integrated Energy Efﬁcient Data Centre Management for Green Cloud Computing - The FP7 GENiC Project Experience

377

and calculated prediction data. These policies are

provided to the management GCGs

4. Actuation components within the individual

management GCGs implement the policies

provided by the optimisation components in the

data centre and at the renewable energy sources

facilities.

These elements are complemented by components

for external data acquisition and fault detection and

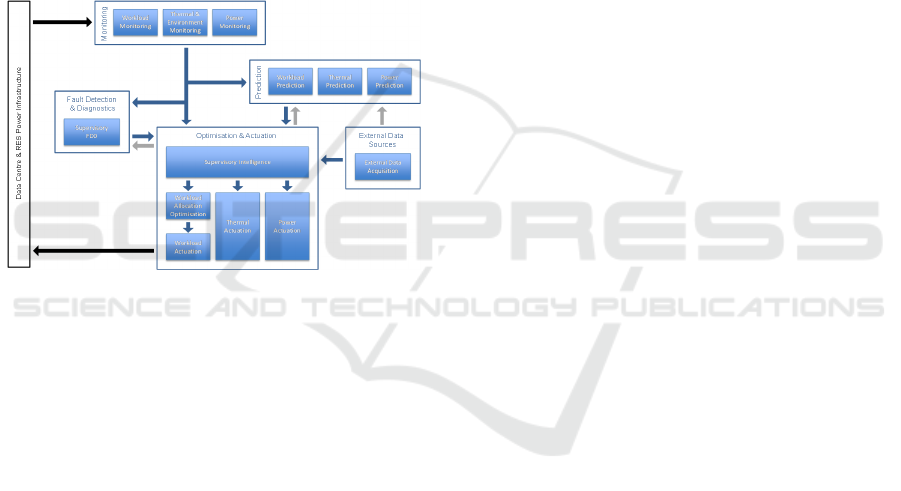

diagnostics. The basic information flow for

coordinating workload, thermal and power

management is illustrated in Figure 3. For the

simulation based assessment, the data centre and

power infrastructure in the loop are replaced with

their respective virtual models provided by the

Simulators GC.

Figure 3: Information flow (simplified) within the GENiC

platform for coordinating workload, thermal and power

management (GENIC, 2015).

In the following, we take a closer look at the

GCGs and their individual components:

Workload Management GCG: The primary

objective of this GCG is to allocate virtual machines

(VMs) to physical machines (PMs) such that service

level objectives (SLOs) are satisfied with low

operational cost. Monitoring data from the IT

resources deployed within the data centre is collected

by the Workload Monitoring GC. The Workload

Prediction GC uses this information to provide short-

and long-term predictions about the resource

utilization. The allocation and migration of VMs to

PMs is determined by the Workload Allocation

Optimisation GC, which solves a constrained

optimisation problem, taking the predicted workload

as well as constraints provided by the Supervisory

Intelligence GC, Thermal Prediction and

Performance Optimisation GC into consideration.

The Performance Optimisation GC defines

colocation and anti-colocation constraints for

individual VMs and modifies the individual VMs’

priorities to fulfil application specific SLOs. The VM

allocation plan is finally applied by the Workload

Actuation GC, which provides an interface to the data

centre specific virtualization platform.

Thermal Management GCG: The Thermal &

Environment Monitoring GC integrates monitoring

of cooling systems and wireless sensor network

infrastructure for collecting temperature and other

environmental data in the data centre room. The

collected data is used by the Thermal Prediction GC

to provide short-term and long-term predictions to

support supervisory control decisions, thermal

actuation and workload allocation. Long-term

predictions obtained with mathematical models are

used for making decisions at the supervisory level.

Short-term thermal predictions based on a discrete

time mathematical model are required by the Thermal

Actuation GC along with real-time sensor

measurements to determine optimal set points for the

cooling system in order to achieve the targets set by

the Supervisory Intelligence GC. These short-term

thermal predictions are also necessary input to the

Workload Allocation GC, as they include temperature

models for the thermal contribution of IT server

workload to the server inlets, and the Supervisory

Intelligence GC. Furthermore, short-term predictions,

combined with equipment fault information from the

Thermal Fault Detection & Diagnostics (FDD) GC,

are used for fault detection and diagnostics at the

supervisory level.

Power & RES Management GCG: The Power

Monitoring GC integrates monitoring of the RES

infrastructure for local energy generation and storage

and of the data centre power consumption. This data

is used by the Power Prediction GC to provide long-

term predictions to support supervisory control

decisions and power actuation. The Power Actuation

GC determines set points for the power systems based

on measured data, operational conditions, restrictions

and limitations and the power profiles provided by the

Supervisory Intelligence GC.

Supervision GCG: The Supervisory Intelligence

GC is responsible for the overall coordination of

workload, thermal, power management and heat

recovery. It considers power demand and supply, grid

energy price, energy storage model and determines

how much power should be supplied from the

electricity grid, RES and energy storage to minimize

energy cost/maximize RES/minimize carbon

emission accordingly over a given horizon. To this

end, it provides policies for the actuation components

in the Workload Management, Thermal

Management, and Power & RES Management GCGs

based on information from monitoring and prediction

TEEC 2016 - Special Session on Tools for an Energy Efﬁcient Cloud

378

components. The Supervisory Intelligence GC

provides these high-level policies to the Management

GCGs for the purpose of guiding these component

groups towards the Supervisory Intelligence GC

strategy that has been chosen as a driver for current

data centre operations; the key strategies available for

selection are minimization of financial cost,

minimization of carbon emissions and maximization

of renewables. To detect and diagnose system

anomalies, the Supervisory FDD GC compares

predicted values with measurement data and collects

and evaluates fault information. In appropriate

situations, the Supervisory FDD GC informs the

Supervisory Intelligence GC when a deviation

becomes substantial enough to negatively impact

system operation so that mitigation action can be

taken by the platform until the fault has been

corrected. The Human-Machine-Interface GC

provides a framework for the user interfaces that

allow data centre operators to monitor and evaluate

aggregated data provided by the individual GCs.

Support Tools GCG: The GENiC platform

includes a number of tools to assist data centre

planners, system integrators and data centre

operators:

• The Workload Profiler GC consists of a set of

tools to capture application profiles that can be

used by data centre operators to improve

application performance.

• The Decision Support for RES Integration GC is

a tool for data centre planners to determine the

most cost-efficient renewable energy systems to

install at a data centre facility.

• The Wireless Sensor Network (WSN) Design

Tool GC is a tool to capture system and

application level requirements for data centre

wireless monitoring infrastructure deployments.

• The Workload Generator GC provides recorded

and synthetic VM resource utilization traces for

the simulation-based assessment of a GENiC

based system and its implemented algorithms and

policies.

• The Simulators GC supports the testing of

individual and groups of GCs as well as the

(virtual) commissioning of a GENiC platform

before its deployment in an actual data centre.

• The Multi Data Centre (DC) Optimisation GC is

tool that exploits the differences in time-zones,

energy tariff plans, outside temperatures,

performances of geographically distributed data

centres to allocate workload amongst them in

order to minimise global energy cost and related

metrics.

Integration Framework GCG: The

Communication Middleware GC provides the

communication infrastructure used within the GENiC

platform. The Data Centre Configuration GC uses a

centralized data repository to store all information

related to the data centre configuration, including

information on data centre layout, cooling equipment,

monitoring infrastructure, IT equipment, and virtual

machines running in the data centre. Finally, the

External Data Acquisition GC provides access to data

that is not collected by existing components,

including weather data, grid energy prices, and grid

energy CO

indicators.

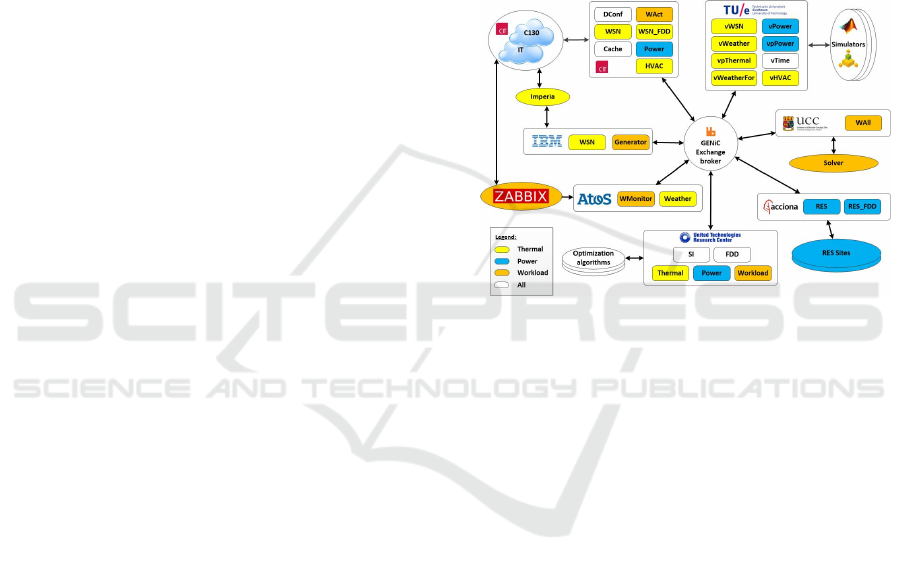

Figure 4: GENiC architecture implementation for

simulation based assessment.

4 GENiC PROTOTYPE

IMPLEMENTATION

Figure 4 illustrates a prototype implementation of the

GENiC architecture presented in Section 3. The

GENiC distributed architecture approach with clearly

defined interfaces simplifies integration of a diverse

set of software components from multiple

manufacturers and service providers. The architecture

is scalable, flexible and based on micro service

architecture principles.

A central element of the implementation of the

GENiC prototype is the use of the RabbitMQ

(RabbitMQ, 2015) messaging system for the GENiC

exchange broker. RabbitMQ provides a range of

client implementations in a wide range of

programming languages, which avoids

compromising the integrity of the overall platform.

The individual components are implemented as

individual services that communicate via the

RabbitMQ message broker. A generic client

architecture has been developed to allow each

component provider to expose their components in a

Integrated Energy Efﬁcient Data Centre Management for Green Cloud Computing - The FP7 GENiC Project Experience

379

distributed manner in the GENiC platform. The

platform will be implemented in a real world demo

site, a data centre on the campus of Cork Institute of

Technology in Ireland (C130 DC), which has also

been modelled in the Simulators GC (see below). We

also use two renewable energy micro-grids that

provide data real-time data via the GENiC platform

on renewable energy generation capacity for the

simulation models.

In order to enable holistic optimisation of the data

centre energy consumption, the GENiC platform

implementation contains a monitoring systems to

guarantee that the information needed to optimise

workloads and thermal distribution is collected. The

monitoring components collect data with respect to IT

workload (generated by both physical and virtual

resources), thermal environment, cooling systems,

power demand and power supply (including

renewables). The correct monitoring of each

management group within the platform is essential to

properly operate the data centre.

5 SIMULATION MODEL -

VIRTUAL C130 DATA CENTRE

GENiC has developed a Simulators GC, which is part

of the Support Tools GCG. The simulator component

includes energy models that emulate the performance

of a data centre and its systems, supporting the

development and testing of GENiC components (GC)

as well as the commissioning of the overall GENiC

platform, prior to its physical deployment in a real

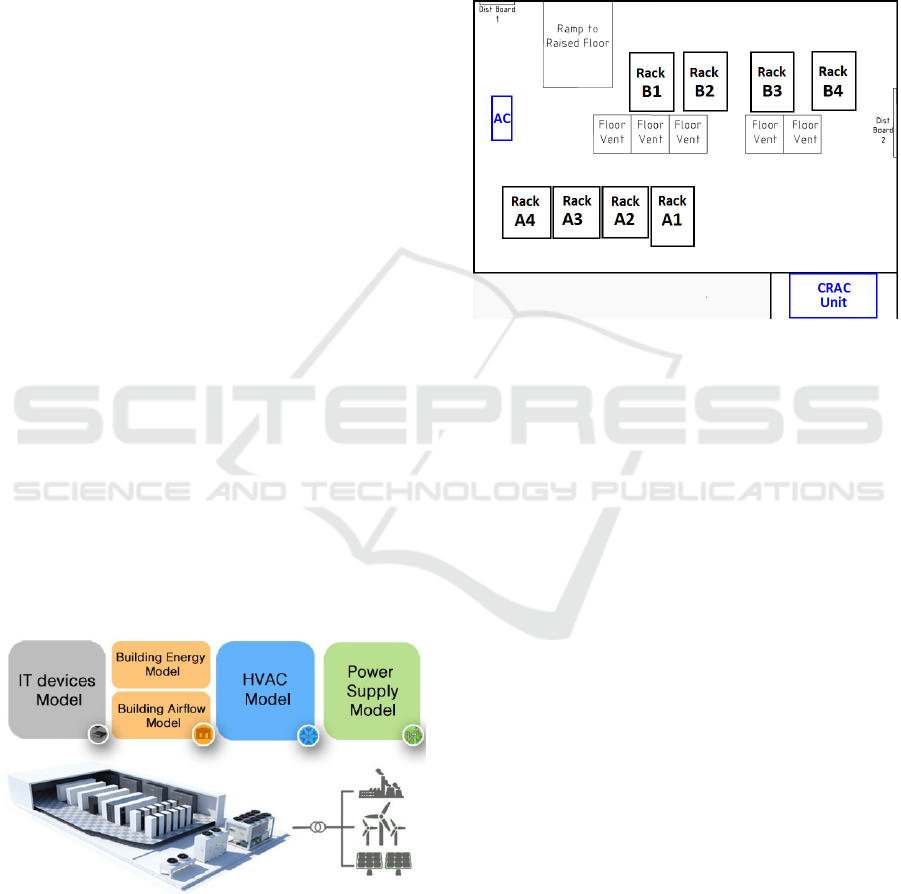

data centre. The Simulators GC consists of the

following energy, space and system models as shown

in Figure 5:

Figure 5: Types of energy models in the Simulator GC.

Demand Side - Data centre space (Building

Energy Model + Building Airflow Model), IT devices

model, and Heating, ventilation and air conditioning

(HVAC) systems model

Supply Side - Power supply

The Simulator implements a virtual data centre

model used for this study that is based on the actual

GENiC demonstration site, the C130 data centre- at

CIT. The data centre room is cooled by one main

computer room air conditioning unit (CRAC) and one

backup air conditioning unit (AC) as illustrated in the

floor plan depicted in Figure 6.

Figure 6: Floor plan of the data centre room used for the

simulation based assessment.

5.1 IT Equipment and DC Whitespace

Characteristics

To emulate the server workload in the data centre, a

set of virtual machine (VM) configurations and the

VMs' resource utilization traces are required. The

traces used for this study have been collected from an

IBM data centre production environment and reflect

typical enterprise workload seen in a private cloud

environment. The traces comprise resource utilization

data for 2400 different VMs hosted on 132 servers.

The key parameters of these servers are summarized

in Table 1. The last column shows the number of

servers of each specific type. Each server's dynamic

power consumption is modelled as follows:

server

= (P

max

- P

idle

)·u + P

idle

where u is the CPU utilization, P

max

is the server's

power consumption at full load (i.e. u=1.0), and P

idle

is the server's power consumption at idle state (i.e.

u=0.0 The total power consumption of all 132 servers

is 24.5 kW if all of these servers operate at full load.

TEEC 2016 - Special Session on Tools for an Energy Efﬁcient Cloud

380

Table 1: Server parameters.

Type CPU

Size

CPU

Speed

Mem.

Max.

Power

Idle

Power

Servers

[vcores] [MHz] [GB] [W] [W]

S1 8 3'200 16 90 30 3

S2 8 3'200 32 95 35 8

S3 8 3'200 64 105 45 48

S4 12 2'000 64 130 70 2

S5 12 2'000 128 140 80 12

S6 12 2'000 256 160 100 23

S7 24 2'700 128 300 140 19

S8 32 2'000 128 400 270 14

S9 32 2'900 128 460 300 3

For the simulation based assessment, each server

has been mapped to specific rack slot in the virtual

data centre. Table 2 provides a summary of this

mapping.

Table 2: Mapping of servers to racks in the virtual data

centre.

Rack Servers (top to bottom) ∑P

max

A1 2

S5, 6

S3, 6

S6, 6

S8 4.3 kW

A2 no active equipment; patch panels only 0 kW

A3 10

S3, 6

S3, 3

S6, 4

S7, 2

S8 4.2 kW

A4 no active equipment; patch panels only 0 kW

B1 2

S4, 3

S1, 8

S3, 8

S7, 2

S5 4.1 kW

B2 4

S3, 2

S2, 4

S5, 5

S7, 2

S8, 3

3.8 kW

B3 4

S8, 4

S6, 7

S3, 4

S5, 4

S6 4.2 kW

B4 3

S9, 6

S6, 4

S3, 6

S2, 2

S7 3.9 kW

5.2 HVAC System Characteristics

The indoor environment of the DC is maintained at

18 - 27 ˚C with a relative humidity of 30-60% as

recommended by ASHRAE (ASHRAE, 2011). A

CRAC unit ensures the required indoor climate.

Supply air is distributed through a raised floor and

goes to front side of IT devices through floor-

performed tiles. Return air is drawn by the CRAC unit

below the ceiling (Figure 7).

The conditions of circulating air are controlled in

the CRAC unit by a direct expansion system. A

condenser coil of the direct expansion system is

cooled by glycol and heat is rejected to ambient in a

roof-mounted drycooler. The process and devices

involved are depicted in Figure 8.

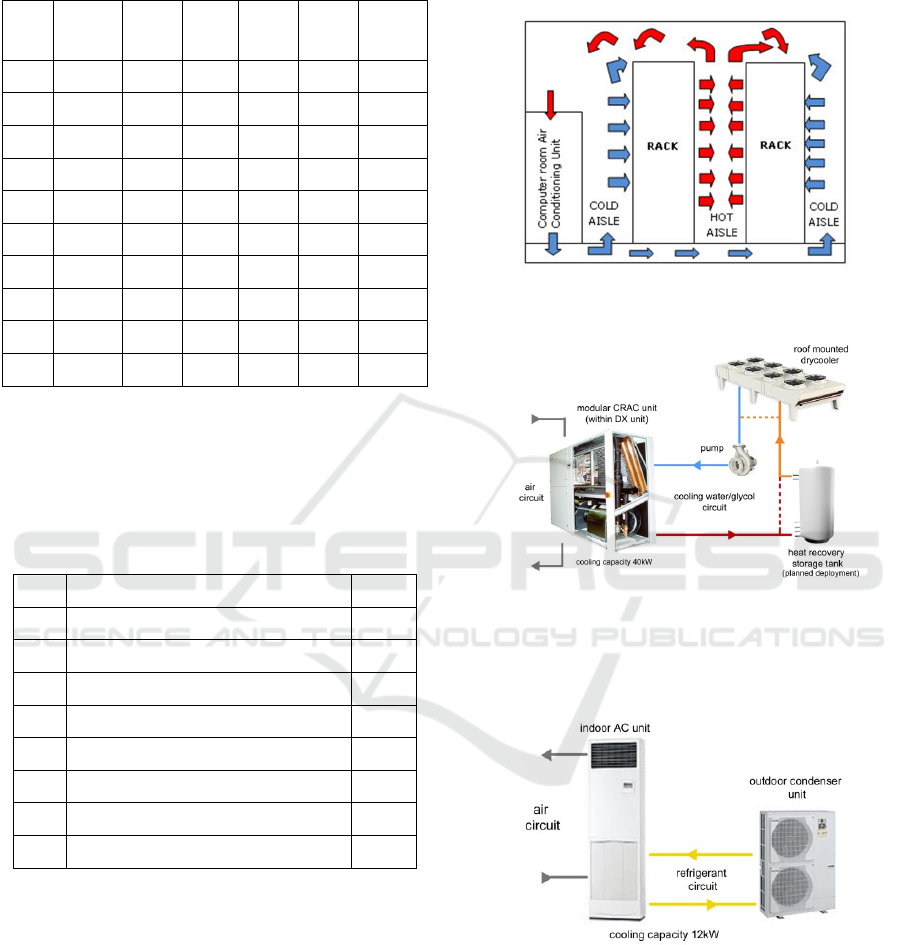

Figure 7: Schematic of hot and cold aisle arrangements

without containments.

Figure 8: Main cooling system.

There is also an auxiliary floor standing air

conditioning (AC) unit placed in the room, as shown

in Figure 9.

Figure 9: Auxiliary air conditioning unit.

6 SIMULATION-BASED

ASSESSMENT OF ENERGY

MANAGEMENT

The simulation based assessment of the GENiC

energy management (EM) platform tests the

Integrated Energy Efﬁcient Data Centre Management for Green Cloud Computing - The FP7 GENiC Project Experience

381

interaction of short-term (S-T) actuation and long-

term (L-T) decision making on a developed virtual

testbed that replicates the physical processes

occurring in the data centre facility. This interaction

and the components involved are shown in Figure 10.

A key component in all evaluations reported in

this paper (and shown in Figure 10 via the arrows

between components) is the Communication

Middleware GC, which provides the glue between all

the different GENiC components and enables

message exchange between components via the

RabbitMQ broker (see above). The details which

components are relevant to a particular evaluation are

discussed in the following.

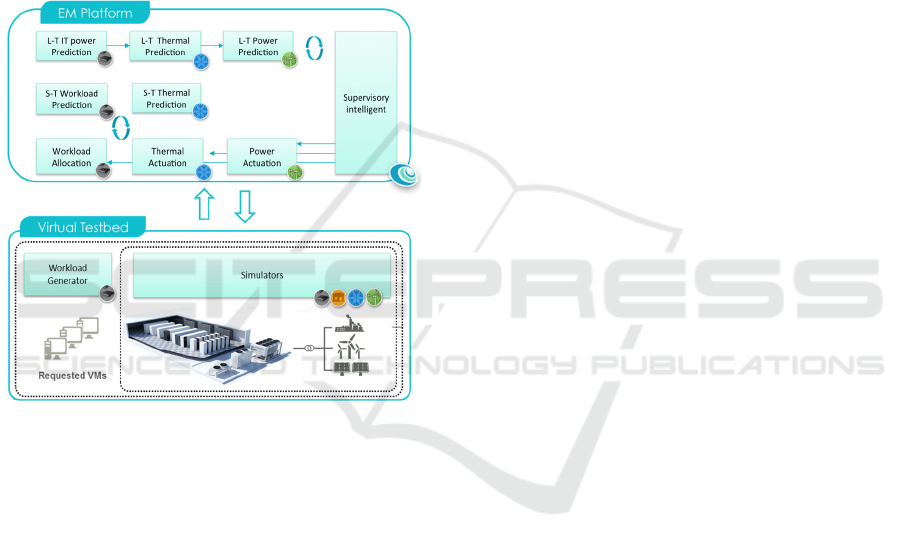

Figure 10: Schematic of interaction between EM platform

GENiC components and Virtual Testbed.

6.1 Boundary Conditions for the

Simulation-based Assessment

All use cases are tested based on identical boundary

conditions so that the different operating strategies

can be compared to each other. The following

external factors are considered as boundary

conditions:

• Requested VMs are related with the type of

services and end-user behaviour.

• Electrical Grid Info is related with electricity

market and the ratio of RES (CO

emission factor)

in the grid.

• Weather conditions are specific to the DC

location.

• DC Operator Strategy represents the baseline

control strategy that establishes the reference

baseline to assess the energy management saving

potential.

6.2 Workload Management GCG

We test the Workload Allocation GC algorithm under

the following scenarios (experiments):

• Workload Allocation – VM migration limits

• Workload Allocation – Thermal preferences

The test with VM migration limits refers to the

testing of Workload Allocation GC with different

values for the maximum number of VM migrations

allowed per time period. The test with thermal

preferences refers to the testing of Workload

Allocation GC considering a static thermal server

preference. This experiment represents a thermal-

aware workload allocation strategy (Tang, 2007).

This experiment assesses the performance of the

Workload Allocation GC when it considers thermal

actuation preferences. For the simulation based

assessment, a static thermal preference matrix for

each of the servers is developed based on Supply Heat

Index (SHI) analysis (Sharma, 2002) of the C130 DC

white space from the baseline inputs.

These scenarios compare against each other and

against a baseline allocation strategy. This

comparison is assessed based on i) the thermal

behaviour in the white space (e.g. temperature

distribution, hot spots), and ii) energy consumption

6.2.1 GENiC Components Involved and

Testing Process

The GCs involved in this workload management

evaluation are a subset of those that form the

Workload Management GCG. The experiments for

this evaluation follow these steps:

1. The Simulators GCs publishes the virtual time

that will serve for the different GCs in the testing

loop to synchronise their actions.

2. The Workload Generator GC publishes the VMs

profile for the current time stamp

3. The Workload Allocation GC optimizes the

allocation strategy for the given arrangement in

the virtual C130 DC.

4. The Workload Allocation GC is able to consider

thermal priority for each box (where each box

represents one third of a rack). Static thermal

priority will be used to test a thermal awareness-

based workload allocation strategy.

5. The Sever Configuration component translates

VM allocation to power consumption per box

(1/3 of a rack).

TEEC 2016 - Special Session on Tools for an Energy Efﬁcient Cloud

382

The Simulators GC captures all the data relevant

to this process for its analysis and post-processing.

The focus of this use-case it to analyse the influence

of workload allocation strategies in the temperature

distribution of the white space as well as in the total

DC energy consumption.

6.3 Thermal Management GCG

We tested the performance of the Thermal

Management GCG algorithms with optimal thermal

actuation. We will compare this scenario against a

baseline operation strategy. This comparison will be

assessed based on data centre energy consumption

and white space temperature.

6.3.1 GENiC Components Involved and

Testing Process

The GCs involved in this thermal management

evaluation are a subset of those that form the Thermal

Management GGCs. The experiments for the

Thermal Management evaluation follow these steps:

1. Virtual synchronization time and current white

space temperatures are published for the given

timestamp.

2. The S-T thermal prediction GC predicts the

thermal states of the white space for the next hour.

This prediction supports the decision making

process that takes place in the Thermal Actuation

3. Optimal temperature set points for the CRAC and

AC units for the next timestamp are sent back to

the HVAC systems model part of the Simulators

The Simulators GC captures all the data relevant

to this process for its analysis and post-processing.

The focus of this use-case it to analyse the influence

of S-T Prediction and Thermal Actuation strategies in

the temperature distribution of the white space as well

as in the total DC energy consumption.

6.4 Power Management GCG

The aim of this evaluation is to test the Power

Management GCG algorithms under the following

scenarios (experiments) – i) Power Actuation Logic,

and ii) Power Actuation Logic + SI static constraints

These scenarios will be compared against each other

and against the baseline operation. This comparison

will be assessed based on – i) energy demand vs

supply (Broken down per source)

6.4.1 Genic Components Involved and

Testing Process

The GCs involved in this use-case is a subset of those

that form the Power Management GGCs. The

experiments for the Power Management evaluation

follow these steps:

1. The Simulators GC generate the virtual time

stamp and the current status of power metering in

all equipment at the demand-side (DC) and at the

supply-side (on-site).

2. The Power Actuation GC generates optimal set

points for the electricity batteries and the ORC

plant for the next time step

3. The Power Actuation GC receives a power policy

(24h profile) from the Supervisory Intelligence

GC. A static SI constraint was used for the testing.

The Simulators GC captures all the data relevant

to this process for its analysis and post-processing.

The focus of this evaluation it to analyse the Power

Actuation operation strategies to satisfy the total DC

demand. The power actuation real time adjustments

are defined to assure the renewable energy supply

contribution, balancing the lack or excess of weather

dependent generation using the controllable unit

characterized with “unlimited” energy (kWh)

capacity which is the ORC that will never end the

energy capacity if the biomass storage is continuously

refilled. It has to be understood that electrical

batteries are characterised by limited energy capacity

(around 10 kWh) and limitations for the operation

according to the definition of FSoC (fractional state

of charge: between 0 and 1) upper and lower limits.

As stated before, according to the difference between

RES weather dependent units prediction and real

production, the ORC generation is adjusted taking

into account the upper and lower power available

referred to the maximum and minimum generation

capacity of the ORC (4kW minimum and 7 kW

maximum).

7 EVALUATION RESULTS

In the following we present in the first instance

evaluation results from the Workload Management

GCG. The simulation-based experimental setup

involved allocating workload over a 48 hour period in

a data centre using real VM resource utilization

traces. Each VM was initially assigned to the server

indicated in the real traces. Therefore the Workload

Allocator GC did not control the initial assignment

Integrated Energy Efﬁcient Data Centre Management for Green Cloud Computing - The FP7 GENiC Project Experience

383

and could only influence power consumption through

VM migrations and server consolidation.

7.1 Workload Allocation – VM

Migration Limits

We first tested the impact of the migration limit on

the workload allocator (without thermal priorities for

servers). The baseline is a migration limit of 0, i.e.

each VM was run on the server it was initially

assigned to. We then tested various migration limits

(from 1 to 100) as shown in Figure 11.

We observe that, as expected, increasing the

migration limit resulted in a reduction in power

consumption (see Figure 11). The largest migration

limit tested (100 migrations per 10 minute time

period) required just a few time periods to achieve a

reduction from approximately 11kW to just over

4kW. Indeed, the average hourly energy consumption

of the IT equipment was 6.71kWh less with a

migration limit of 100 than with the baseline.

The figure for IT power consumption (see Figure 11)

further illustrates that all positive migration limits

tended to this equilibrium state, with a migration limit

of 10 reaching the 4kW mark in less than 9 hours and

the limit of 5 requiring approximately 24 hours. Once

reached, the variations in power consumption

between the migration limits were minor. This means

that if the workload allocator had controlled the initial

assignment of VMs to servers, then a migration limit

of 10 or even 5 would have been sufficient to achieve

similar savings as with a limit of 100.

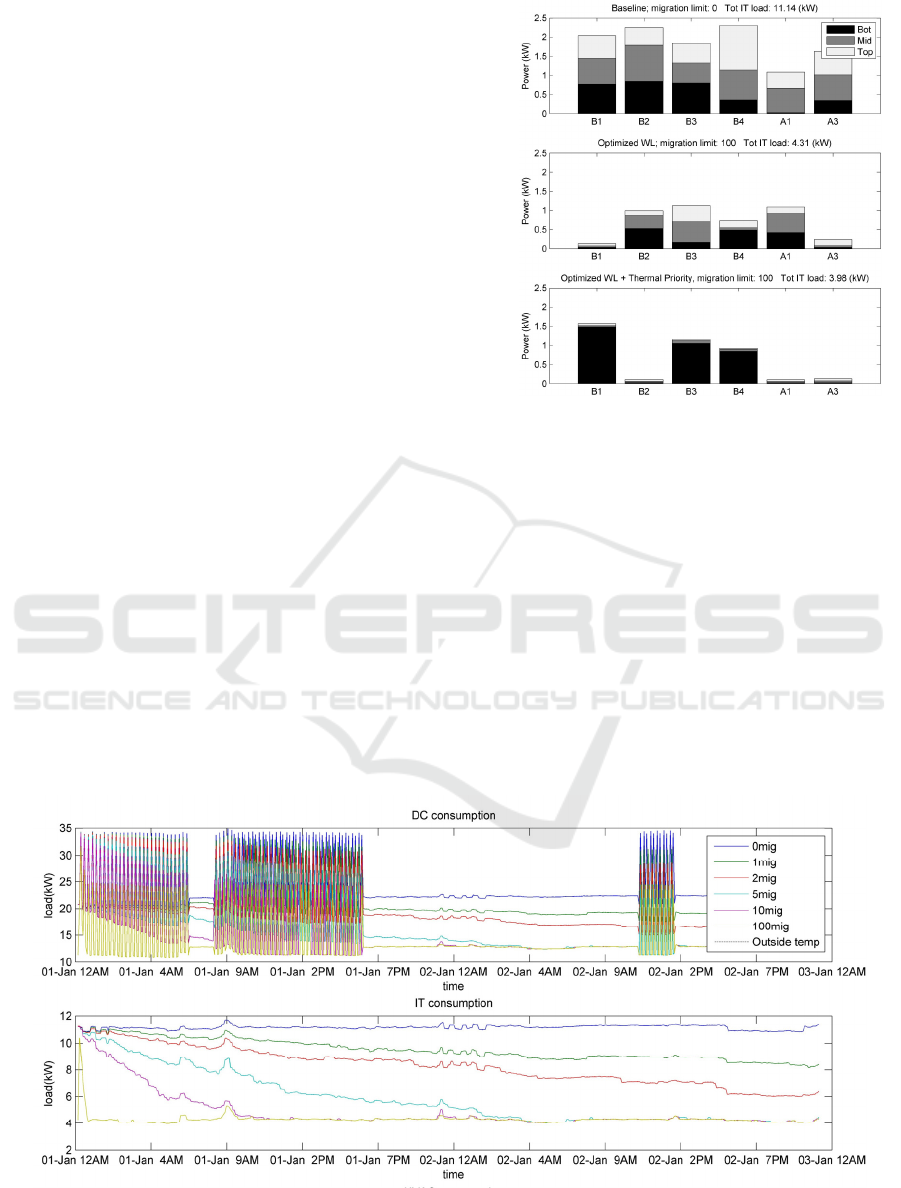

Figure 12: Workload distribution per third of rack.

7.2 Workload Allocation – Thermal

Preferences

The following experiments were performed under

identical settings to those previously discussed with

the exception that each server had an associated

thermal preference thereby allowing a proper ranking

of servers. The thermal preference was used to rank

the servers for consolidation.

In addition to the baseline described in the

previous section, we tested with and without thermal

preferences for migration limits of 10 and 100. The

experiments showed there to be little difference in the

total IT power consumption for the thermally ranked

Figure 11: Power consumption with different migration limits over 48 hour horizon.

TEEC 2016 - Special Session on Tools for an Energy Efﬁcient Cloud

384

server consolidation, while HVAC energy

consumption was reduced by approximately 20kWh

over the 48-hour period relative to the baseline

approach, and by 6.5kWh compared to the scenario

with 100 migrations and no thermal preference.

The behaviour of the scenarios with thermal

preference can be better understood when analysed at

the third of rack level (top, middle and bottom boxes)

as shown in Figure 12. We observe that the only

servers used were the bottom level of three racks: B1,

B3, and B4. The loads from all the other servers were

migrated and the servers powered off, as can be seen

from the power value for the scenario with thermal

preference and limit of 100 migrations

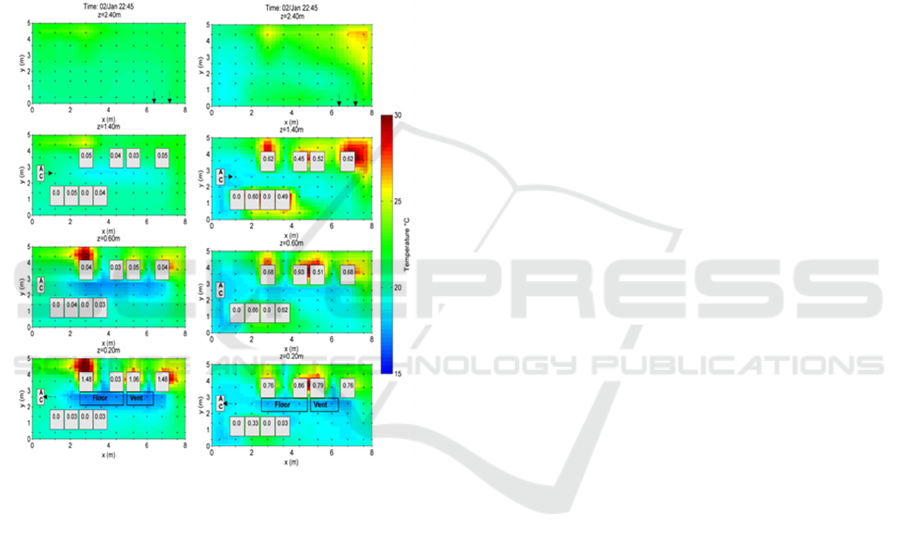

Figure 13: Temperature distribution for (a) thermal

preference and (b) baseline.

Finally, Fig. 13 presents the temperature

distribution of the DC for (a) the thermal preference

with 100 migrations and (b) the baseline. The baseline

study indicates risks of a hot spot at top layer of the

last rack in row B. The supply air temperature is

around 18°C, however the inlet temperature of the

particular box is approximately 23°C. The rise of

temperature is due to infiltration of hot air from the

hot aisle to the cold aisle space. The optimized

workload allocation with thermal preference scenario

ensures that the airflow will use the shortest path from

the cold air supply to the heat source. The cold air is

taken by preferable servers in the bottom boxes. The

typical cold aisle-hot aisle distribution can be

observed in this case. The inlet temperature of all

active servers is approximately 18°C.

8 CONCLUSIONS

In this paper we present and architecture for an

integrated energy management system for data

centres proposed by the FP7 GENiC project. The

proposed system combines optimisation of energy

consumption by encapsulating monitoring and

control of IT workload, data centre cooling, local

power generation and waste heat recovery. We also

present initial results from a simulation based

assessment of some of the energy management

algorithms. The initial simulation based assessment

was chosen by the project for a number of reasons.

Firstly, it allows to evaluate the performance of

management and control algorithms before

deployment in the real data centre space. Secondly,

the architecture of the platform is designed such that

the system interacts with the simulated data centre in

the same manner as it interacts with the components

in a real data centre, allowing also the testing and

commissioning of novel management and control

concepts before deployment in target space. The

specific algorithms developed in GENiC attempt to

optimise strategies focused on Workload, Thermal

and Power management in a data centre. The

optimisation occurs at different time horizons, short

term predictions are generated to support actuation

decisions that are made within each of the mentioned

Management groups, and long-term predictions

supporting decision making at the supervisory level

(coordinating Management groups). Here we have

focused on an initial analysis of workload and thermal

management techniques. The operation strategies

applied by the Workload Allocation GC prove

significant savings potential (of up to 40%) in terms

of total energy consumption. This reduction is

achieved through the optimization of the allocation

strategy of Virtual Machines (VMs) while switching

off unused servers. The performance of the Workload

Allocation GC shows a more effective utilization of

the DC with the same number of processed IT jobs.

In the final year of the GENiC project we will replace

the simulation environment by a real physical data

centre for the evaluation and demonstration of the

developed management algorithms and strategies in a

real world setting.

ACKNOWLEDGEMENTS

The authors acknowledge the contribution of the

whole GENiC consortium. We also acknowledge the

financial contribution of the EC under framework

programme contract no. 608826.

Integrated Energy Efﬁcient Data Centre Management for Green Cloud Computing - The FP7 GENiC Project Experience

385

REFERENCES

Greenpeace. 2011. How Dirty is Your Data? A Look at the

Energy Choices that Power Cloud Computing.

Greenpeace Report. http://www.greenpeace.org/

international/en/publications/reports/How-dirty-is-

your-data/. May 2011.

Gao, P. X., Curtis, A. R., Wong, B., Keshav S. 2012. It's

Not Easy Being Green. Proc. ACM SIGCOMM,

Helsinki, Finland, pp. 211-222.

Qurush, A. 2010. Power-demand routing in massive geo-

distributed systems, Ph.D. thesis, MIT.

Uptime Institute, 2011. http://uptimeinstitute.com.

Deng, W., Liu, F., Jin, H., Li, B., Li, D. 2014. Harnessing

renewable energy in cloud datacenters: opportunities

and challenges. IEEE Network, vol. 28, no. 1, Jan-Feb

2014.

Cioara, T., Anghel, I., Antal, M., Crisan, S., Salomie, I.

2015. Data center optimization methodology to

maximize the usage of locally produced renewable

energy. Sustainable Internet and ICT for Sustainability

(SustainIT). Madrid, Spain, April 2015.

Das, R., Yarlanki, S., Hamann, H., Kephart, J. O., Lopez,

V. 2011. A unified approach to coordinated energy-

management in data centers. Proceedings of the 7th

International Conference on Network and Services

Management (CNSM '11), pp. 504-508.

Jiang, T., Yu, L., Cao, Y. 2015. Energy Management of

Internet Data Centers in Smart Grid. Springer Verlag.

Pesch. D., et al. 2015. The GENiC Architecture for

Integrated Data Centre Energy Management. in 1st Intl.

Workshop on Sustainable Data Centres and Cloud

Computing (in conjunction with IEEE UCC 2015).

Cyprus, December 2015.

GENIC. 2015. GENiC public deliverable D1.4 - Refined

GENiC Architecture. http://www.projectgenic.eu/

RabbitMQ. 2016. http://www.rabbitmq.com/

ASHRAE. 2011. TC 9.9 Thermal Guidelines for Data

Processing Environments – Expanded Data Center

Classes and Usage Guidance. Data Processing: 1–45.

Tang, Q., Gupta, S. K. S., Varsamopoulos, G. 2007.

Thermal-Aware Task Scheduling for Data Centers

through Minimizing Heat Recirculation. In Proc. IEEE

International Conference on Cluster Computing (ICCC

2007). Austin, TX, USA, Sept. 2007.

Sharma, R. K., Bash, C. E., Patel, C. 2002. Dimensionless

Parameters for Evaluation of Thermal Design and

Performance of Large-Scale Data Centers. In 8th

AIAA/ASME Joint Thermophysics and Heat Transfer

Conference. St. Louis, MO, USA, June 2002.

TEEC 2016 - Special Session on Tools for an Energy Efﬁcient Cloud

386
