Comparison of Topological Functioning Model for Software

Engineering with BPMN Approach in the Context of Model Driven

Architecture

Janis Osis and Arturs Solomencevs

Department of Applied Computer Science, Riga Technical University, Riga, Latvia

Keywords: Topological Functioning Model, Model Driven Architecture, Formal CIM, CIM to PIM Transformation.

Abstract: OMG’s Model Driven Architecture (MDA) proposes a computation independent view on the information

system. It is used to specify the requirements and to describe how the system works within its environment.

The key part of MDA is model transformation. Computation independent model (CIM) must be transformed

to a platform independent model (PIM). The problem is that software development approaches that hold by

MDA principles have informal models on CIM level. Without mathematical formalism, it is not possible to

properly transform CIM to PIM. Topological Functioning Model for Software Engineering (TFM4SE)

approach addresses this issue, and applies Topological Functioning Model (TFM) as a formal CIM. In this

paper, TFM4SE is compared to approach that uses Business Process Model and Notation for CIM modeling.

The comparison focuses on CIM modeling and on transformation to class diagram on PIM level. The results

show what advantages and drawbacks does the formalism of TFM bring into the software development.

1 INTRODUCTION

OMG’s Model Driven Architecture (MDA) is an

approach to system development, which increases the

power of models in this work. The purpose of MDA

is to separate the views and concerns. MDA has three

viewpoints on the system and their corresponding

models: a computation independent model (CIM)

describes system requirements and the way the

system works within its environment, while details of

the application structure and realization are hidden;

platform independent model (PIM) focuses on the

operation of a system while hiding the details

necessary for a particular platform; and platform

specific model (PSM) (Miller and Mukerji, 2003).

Model transformation forms a key part of MDA. To

get the software source code we need to go by the path

CIM → PIM → PSM → source code.

We believe that it is essential to start software

development with modeling the business system, or

in other words with modeling the environment of the

planned information system (Osis, 2004), (Osis and

Asnina, 2011 a). Understanding of how the

information system will interact with the business

system leads to an appropriate design. So CIM needs

to be created in the beginning of the development

process – this assertion is the basis of this article.

The problem domain is the part of the world in

which the software is required to bring about some

effect desired by the customer (Osis, 2004). The

solution domain is a system (e.g., business system)

which is supported by the planned information

system. Both problem domain and solution domain

can be specified by CIM (Asnina and Osis, 2010).

The solution domain CIM must conform to the

problem domain CIM. It is possible to transform the

solution domain CIM to PIM level design models

(Osis, Asnina and Grave, 2007).

There is a shortcoming in MDA guide (Miller and

Mukerji, 2003). OMG says nothing essential about

the computation independent view and accordingly

about the CIM. The weakness of MDA is that there is

nothing well formalized and/or transformable at the

beginning of the software development life cycle

(Osis and Asnina, 2011 a).

Our group works on dealing with the mentioned

issue, and develops an approach called “Topological

Functioning Model for Software Engineering”

(TFM4SE). This approach uses Topological

Functioning Model (TFM) as a formal CIM.

TFM is a mathematically formal model which

describes the functioning of a system. TFM has a

solid mathematical base. It is represented in a form of

a topological space (X, Θ), where X is a finite set of

Osis, J. and Solomencevs, A.

Comparison of Topological Functioning Model for Software Engineering with BPMN Approach in the Context of Model Driven Architecture.

In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 337-348

ISBN: 978-989-758-189-2

337

functional features of the system under consideration,

and Θ is topology that satisfies axioms of topological

structures and is represented in a form of a directed

graph. The TFM’s functional features describe the

system’s physical or biological characteristics that are

relevant for the normal functioning of the system. The

TFM’s topology consists of cause-effect relations

between functional features. Cause-effect relation

exists between two functional features, if appearance

of one functional feature is caused by appearance of

the other without participation of any intermediate

functional feature. Cause-effect relations form causal

chains. Causal chains must form at least one

functioning cycle within TFM. All the cycles and

subcycles should be carefully analyzed in order to

completely identify existing functionality of the

system. TFM views system as a whole and not as a

collection of parts – the model is holistic (Osis, 1969).

In our opinion, the improvement of the results of

object-oriented system analysis and modelling lays in

using formal methods. Formal approaches allow

defining formal or semi-formal model

transformations (the key part of MDA) and formal

tracing of modeling artifacts. Formalism helps

finding inconsistencies in the domain model. In TFM,

for example, analysis of cycles helps with this task.

Furthermore, the power of traditional engineering is

that engineers do trust in theory, mathematics and

formal methods (Osis and Asnina, 2011 a), and this

power can be used in software development.

TFM4SE is a formal method, which has a

mathematical model – TFM – in its core.

The goal of the current research is to compare

TFM4SE with other model-driven approaches that

suggest creating CIM level models which can be

transformed to PIM. For this paper, we narrow the

scope and review approaches that use BPMN models

(OMG BPMN, 2013) on CIM level. BPMN is widely

used in software development for business modeling.

This notation is easy to work with and is

understandable for business people and software

developers (training is required to freely use it).

BPMN does not have mathematical background, so it

is a mathematically informal notation. Therefore we

are interested in comparing CIM-TFM to CIM-

BPMN, and find out what benefits and what

drawbacks brings the formalism of TFM comparing

to informal BPMN business model in the field of

software development.

The paper is structured as follows. In Section 2 we

briefly review approaches that provide CIM → PIM

transformation, that were discovered during the

research; and we represent the major opportunities of

TFM4SE. In Section 3 the comparison of TFM4SE

with one of the CIM-BPMN approaches on basis of

an example is made. In Section 4 conclusions are

presented.

2 RELATED WORK

There are different software developments

approaches that use BPMN for CIM modeling and

provide CIM → PIM transformation. Approach

described in (Rhazali, Hadi and Mouloudi, 2014)

applies BPMN collaboration and business process

diagrams on CIM level, and defines rules for

transformation to UML Class diagram and Use case

diagram on PIM level. Service-oriented approach

(Fazziki et al., 2012) proposes to transform BPMN

models into SoaML model (OMG SoaML, 2012) and

into UML Component model. Method of (Hahn,

Panfilenko and Fischer, 2010) is also service-

oriented, and also uses SoaML for PIM modeling.

Another service-oriented approach – (Castro, Marcos

and Vara, 2011) – applies use case model and activity

diagram on PIM level. Research of (Rodriguez et al.,

2010) focuses on security requirements, and models

security along with business processes. (Bousetta, El

Beggar and Gadi, 2013 a) approach provides ways of

getting class diagram and sequence diagrams from

BPMN business process models.

Not only BPMN is applied for CIM modeling. An

approach represented in (Zhang et al., 2005) adopts

features and components as the key elements of CIM

and PIM, respectively. Paper (Gutierrez et al., 2008)

proposes to automatically generate an activity

diagram from a use case description. Data warehouse

development method (Mazon, Pardillo and Trujillo,

2007) uses a UML profile for the i* modeling

framework (Yu, 1995) for CIM modelling, and

provides transition to conceptual model on PIM level.

Research of (Kherraf, Lefebvre and Suryn, 2008)

proposes to use UML activity diagram to model the

business processes and to specify the system

requirements, and to transform CIM into PIM. Data

flow diagrams are used on CIM level by (Kardos and

Drozdova, 2010) approach which also provides the

obtaining of PIM models.

Finally, we briefly review TFM4SE. The

approach provides ways of obtaining TFM from the

knowledge about a business system (Asnina and Osis,

2011), (Osis and Slihte, 2010), (Slihte, Osis and

Donins, 2011), (Slihte et al., 2011); derivation of use

case diagrams from TFM (Osis and Asnina, 2011 b);

transformations of TFM to the most popular UML

(OMG UML, 2015) design models on PIM level, e.g.,

Class diagram, Sequence diagram, Communication

MDI4SE 2016 - Special Session on Model-Driven Innovations for Software Engineering

338

diagram (Osis et al., 2014), (Osis, Asnina and Grave,

2008 a), (Osis, Asnina and Grave, 2008 b);

formalizing tracing links between modeling artifacts

(Asnina et al., 2011); and other opportunities for

formalized software development.

3 COMPARISON OF TFM4SE

WITH CIM-BPMN APPROACH

ON BASIS OF AN EXAMPLE

In the previous section we have reviewed approaches

that use BPMN in CIM modeling and provide CIM

→ PIM transformation. We find that the approach

represented in (Bousetta, El Beggar and Gadi, 2013

a) is the most well-elaborated of them, because the

article is deep and is of good quality. Also, the

approach is wide enough that its parts are covered by

other articles: (El Beggar, Bousetta and Gadi, 2012

a), (El Beggar, Bousetta and Gadi, 2012 b), (Bousetta,

El Beggar and Gadi, 2013 b) and (Bousetta, El Beggar

and Gadi, 2013 c). That is why we chose to compare

TFM4SE to this approach. For convenience, from

now on we call this approach “CIM-BPMN

approach”.

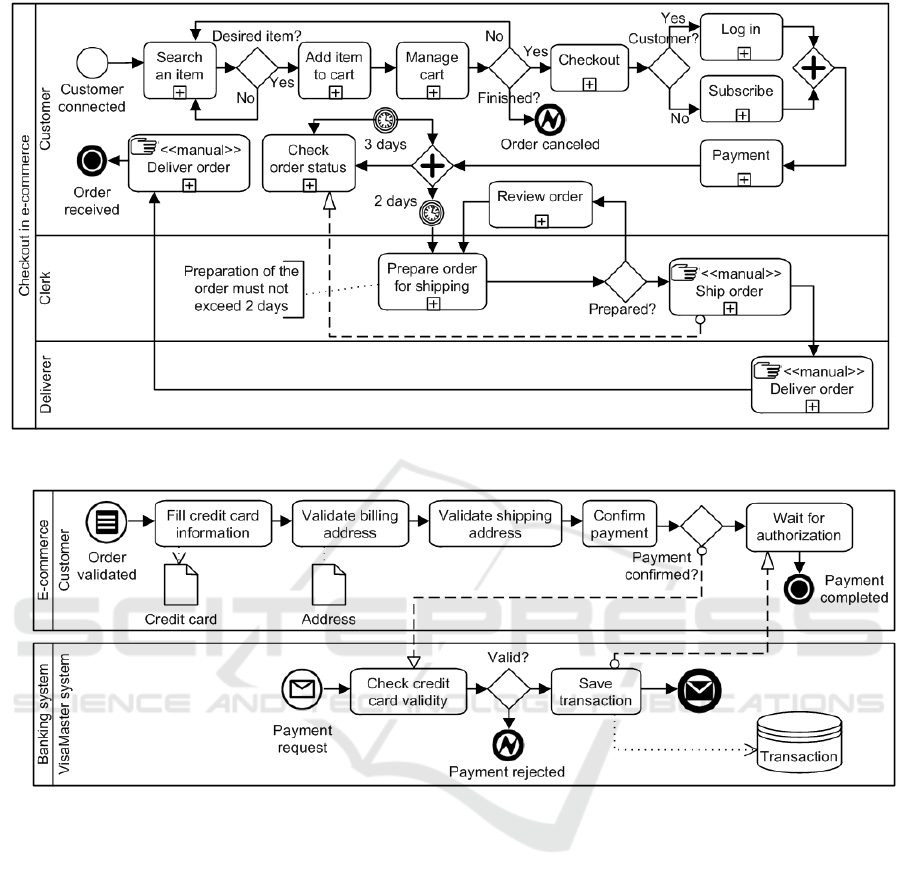

In CIM-BPMN approach, there are the following

models on CIM level: Business process models

(BPM) that are based on BPMN and a Business use

case model. High level BPMs are distinguished from

low level BPMs. High-level models are more

abstract, and contain collapsed sub-processes. Low-

level models describe in detail the expanded sub-

processes from the high-level models. PIM level

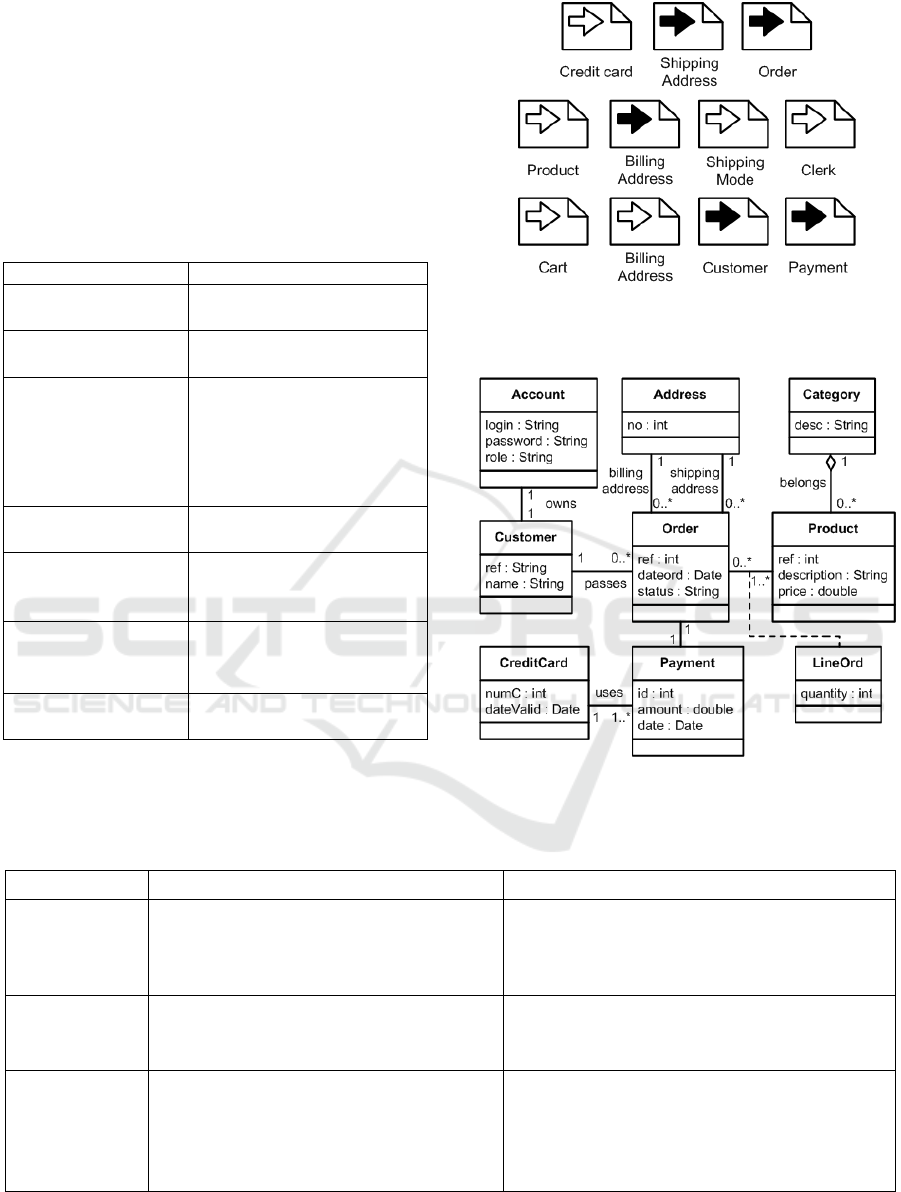

contains three models: Domain class diagram;

Business rules; and Sequence diagram of system’s

external behavior. Domain class diagram is a UML

Class diagram with attributes and relations, but

without methods. Business rules focus on structural

assertions and define structure, relationships and

integrity constraints on data. Sequence diagram of

system’s external behavior is a UML Sequence

diagram that shows interactions between actors and

the whole system as unique entity. The approach also

proposes a way to obtain the Sequence diagram of

system’s internal behavior (Bousetta, El Beggar and

Gadi, 2013 b). However, this transformation requires

developing additional descriptions.

CIM-BPMN approach provides construction of

the following UML models from BPMN business

model: use case diagram; sequence diagram; and

class diagram. TFM4SE also supports obtaining of

these models from TFM. However, it is not possible

to review the creation of all the mentioned models in

one article. Therefore, we narrow the scope and focus

on CIM modeling, and on transformation to PIM class

diagram. The article of CIM-BPMN (Bousetta, El

Beggar and Gadi, 2013 a) represents an example (a

case study) of BPMN modeling and of acquiring the

mentioned models. We take this example as basis for

the comparison.

3.1 Verbal Description of the System

Verbal description is given in (Bousetta, El Beggar

and Gadi, 2013 a). It is a description of an e-

commerce web site. It describes a solution domain

(system “to-be”), i.e., a business system that is

supported by the planned information system.

Normally, a problem domain would be described, i.e.,

a business system that is not supported by the planned

information system yet. However, e-commerce’s

specific feature is that there is no business without the

information system; hence, there is no problem

domain. By studying BPMN models of the example

from the article, we concluded that the verbal

description is not complete. We refined the

description so that it corresponds to the mentioned

BPMN models. Comprehensive verbal description is

needed for creation of TFM. The description is given

below.

Designations used in the description are the

following. Italic – nouns, real world objects and their

attributes. Bold – verbs and conditions that define the

appropriate actions.

Any web surfer can access the web site and

search for product of different categories (Book,

informatics….) and collect them in web surfer’s cart.

Web surfer can manage this cart at any time to

add/remove products or to change the quantity of

product. When web surfer is convinced, web surfer

can check out the order and pay for the order that

will be shipped (delivered) to web surfer’s shipping

address. Web surfer must login with web surfer’s

account or register a new account

if web surfer’s

does not have an account for the web site.

When clerk receives the payment, he prepares

order for shipping. Web surfer can check the order

status and review the order. Clerk sends the

prepared order, and delivery company delivers the

order to web surfer’s shipping address. Finally, the

web surfer receives his order.

Web surfer can leave the web site.

Order Checkout Expansion. All products in the

web surfer’s cart are shown to the web surfer. Web

surfer validates the cart, and if he is not satisfied, he

cancels the order. Otherwise, the web surfer fills in

customer information. Web surfer fills in his shipping

Comparison of Topological Functioning Model for Software Engineering with BPMN Approach in the Context of Model Driven

Architecture

339

address. The information system checks whether

web surfer’s shipping address is deliverable. If web

surfer’s shipping address is not deliverable, web

surfer is asked to fill in another shipping address,

and information system checks it the same way. If the

web surfer’s shipping address is deliverable, then

web surfer fills in web surfer’s billing address. Web

surfer selects shipping mode. Information system

checks whether shipping mode is available for web

surfer’s shipping address; if it is not available, web

surfer is asked to select another shipping mode, and

information system checks it the same way. If the

shipping mode is available for web surfer’s shipping

address, then web surfer validates the order. If order

validation is unsuccessful, web surfer cancels the

order.

If order validation is successful, web surfer

pays for the order (Payment sub-process is expanded

later). Information system registers order as a paid

order, and notifies clerk about the new paid order.

Payment Expansion. Web surfer fills in his credit

card information. Web surfer validates his billing

address, then validates his shipping address, then

confirms payment. Banking system checks whether

web surfer’s credit card is valid. If web surfer’s

credit card is not valid, the banking system rejects

the payment. Otherwise, the banking system makes

the payment transaction and saves it, and notifies

web surfer about the successful payment transaction.

3.2 Functional Features and

High-level Business Models

According to the formal method of TFM construction

(Asnina and Osis, 2011), in order to define functional

features, verbs denoting actions, their preconditions

and business rules are to be found in informal

description of the system. Preconditions specify a set

of conditions that allows triggering a functional

feature. A business rule usually prevents, provokes or

allows triggering certain processes, and defines or

constrains some business process aspects. Each

action, precondition or business rule either has to

introduce a new appropriate functional feature or it

should be attached to the already defined one. Besides

that, entities that are responsible for performing an

action of the functional feature are defined.

Functionality can be subordinated to the system under

consideration (inner) or to other systems (external).

The functional feature is expressed in the

following form (Asnina and Osis, 2011):

<action>-ing the <result> [to, into, in, by, of, from]

a(n) <object>

e.g., Adding the product to a cart.

Object gets the result of the action. We got a list

of TFM’s functional features that correspond to the

verbal description of the system (see Table 1).

After definition of functional features we

introduce topology Θ (cause-and-effect relationships)

between them. At first, we construct topological

space on a higher abstraction level (see Figure 1). Not

all functional features from Table 1 are present since

the table also includes functional features from higher

level of detail.

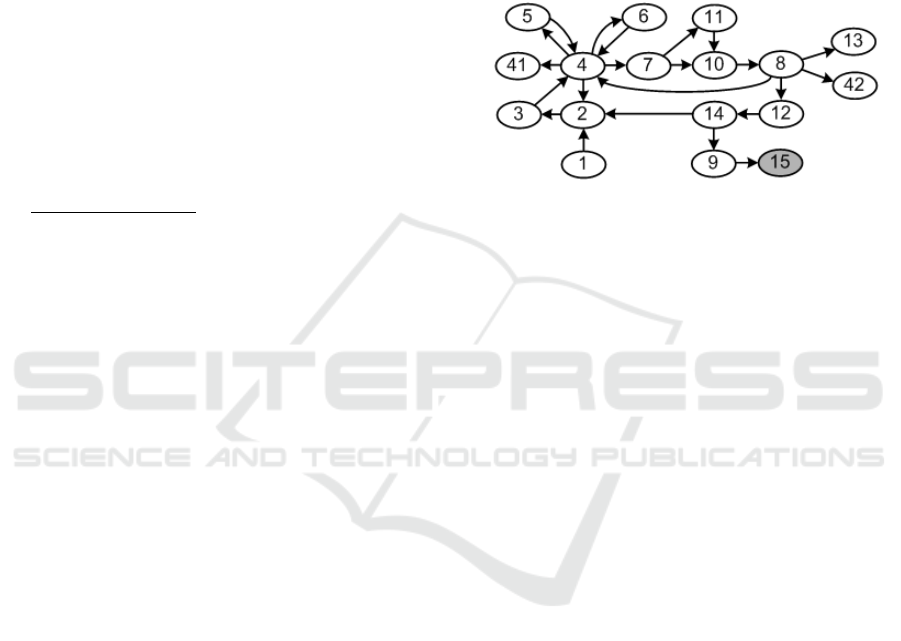

Figure 1: Topological space of the solution domain on high

level of abstraction.

Topological space of the solution domain (Figure

1) represents both web shop’s inner functional

features – set N, and functional features of other

systems – set M. In the case of our example, set M =

{1, 9, 13, 15, 41, 42}; set N = {2, 3, 4, 5, 6, 7, 8, 10,

11, 12, 14}. To separate TFM of the web shop from

the topological space, the closure operation over the

set N is applied (Asnina and Osis, 2011), (Osis,

1969):

∪

XNX

][

(1)

X is a set of functional features of web shop’s

TFM; X

is an adherence vertex of the set N; and k is

a number of adherence vertices of N, i.e. capacity of

X (1). An adherence vertex of the set N is a vertex,

each neighborhood of which includes at least one

vertex from the set N. However, we introduce new

definition of neighborhood. The neighborhood of a

vertex is a subset which contains this vertex and all

vertices that are adjacent to it. This new definition

positively affects the result of the closure operation.

So to perform closure of set N, at first,

neighborhood of each vertex of N should be found.

For example:

[2] = {2, 1, 3, 4, 14} [12] = {12, 8, 14}

[3] = {3, 2, 4}… [14] = {14, 2, 9, 12}

MDI4SE 2016 - Special Session on Model-Driven Innovations for Software Engineering

340

Table 1: Functional features of e-commerce web shop system.

ID Functional feature Preconditions Entity Inner /

External

1 Accessing a web site web surfer external

2 Searching for a product web surfer inner

3 Adding the product to a cart web surfer inner

4 Managing a cart web surfer inner

5 Removing the product from a cart web surfer inner

6 Changing the quantity of a product web surfer inner

7 Checking out an order [when web surfer is convinced] web surfer inner

8 Paying for an order [if order validation is successful] web surfer external

9 Delivering the order to a web surfer’s

shipping address

delivery

company

external

10 Logging in with a web surfer’s account [if web surfer has an account] web surfer inner

11 Registering a new web surfer’s account [if web surfer does NOT have an account] web surfer inner

12 Preparing for shipping an order [when clerk is notified about receiving the

payment]

clerk inner

13 Checking the status of an order web surfer external

14 Sending the prepared order to a delivery

company

[when order is prepared for shipping] clerk inner

15 Receiving an order web surfer external

16 Showing the contents of cart to a web surfer information

system

inner

17 Validating a cart web surfer inner

18 Canceling an order [if web surfer is NOT satisfied with the

contents of the cart]

web surfer inner

19 Filling in customer information [if web surfer is satisfied with the contents of

the cart]

web surfer inner

20 Filling in a shipping address web surfer inner

21 Checking a shipping address information

system

inner

22 Asking to fill in another shipping address [if web surfer’s shipping address is NOT

deliverable]

information

system

inner

23 Filling in a billing address [if web surfer’s shipping address is

deliverable]

web surfer inner

24 Selecting the shipping mode of an order web surfer inner

25 Checking a shipping mode of an order information

system

inner

26 Asking to select another shipping mode [if shipping mode is NOT available for web

surfer’s shipping address]

information

system

inner

27 Validating an order [if shipping mode is available for web surfer’s

shipping address]

web surfer inner

28 Canceling an order [if order validation is unsuccessful] web surfer inner

29 Registering a paid order [if payment was successful] information

system

30 Notifying clerk about a new paid order information

system

31 Filling in the information of a credit card web surfer inner

32 Validating a billing address web surfer inner

33 Validating a shipping address [if billing address validation is successful] web surfer inner

34 Confirming a payment [if shipping address validation is successful] web surfer inner

35 Checking a credit card banking system external

36 Rejecting a payment [if web surfer’s credit card is NOT valid] banking system external

37 Making a payment transaction [if web surfer’s credit card is valid] banking system external

38 Saving a payment transaction banking system external

39 Notifying web surfer about a successful

payment transaction

banking system external

40 Notifying information system about a

successful payment transaction

banking system external

41 Leave a web site web surfer external

42 Reviewing an order web surfer external

Comparison of Topological Functioning Model for Software Engineering with BPMN Approach in the Context of Model Driven

Architecture

341

Figure 2: BPMN Business process model on high abstraction level, adapted from (Bousetta, El Beggar and Gadi, 2013 a).

Figure 3: BPMN expanded payment sub-process, adapted from (Bousetta, El Beggar and Gadi, 2013 a).

Then, a union of neighborhoods is get. This union

is the set X = [N] = {1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,

13, 14, 41, 42}. So TFM does not contain functional

feature 15, and this functional feature is considered to

be out of bounds of web shop’s system.

The set M is contains inputs and outputs (Asnina

and Osis, 2011). Set of inputs = {1}. Set of outputs =

{9, 13, 41, 42}. In this TFM, the main functional

cycle is as follows: 2-3-4-7-10-8-12-14-2 (Figure 1).

Figure 2 represents the BPMN business process

model on high level of abstraction that is given in

CIM-BPMN approach case study. This model

corresponds to topological space shown in Figure 1.

3.3 Increasing the Level of Detail

We need to expand functionality of the following

processes: order checkout and payment. To do this,

we can use a formal mechanism provided by

topological modeling – continuous mapping. If some

more detailed functioning system is formed by

substitution of a subset of specialized functional

features for some functional feature, then continuous

mapping exists between a detailed model and a

simplified parent topological model. In the

topological digraph G* (X*, U*), the direction of

arcs, which join the specialized point subset nodes

with other nodes, is determined by the direction of the

arcs, which join the replaced point with the

corresponding nodes of the digraph G (X, U) (Osis

and Asnina, 2011 c), (Osis, 1969). To put it simply,

continuous mapping allows substituting a subset of

functional features with a more detailed subset, and

vice versa.

MDI4SE 2016 - Special Session on Model-Driven Innovations for Software Engineering

342

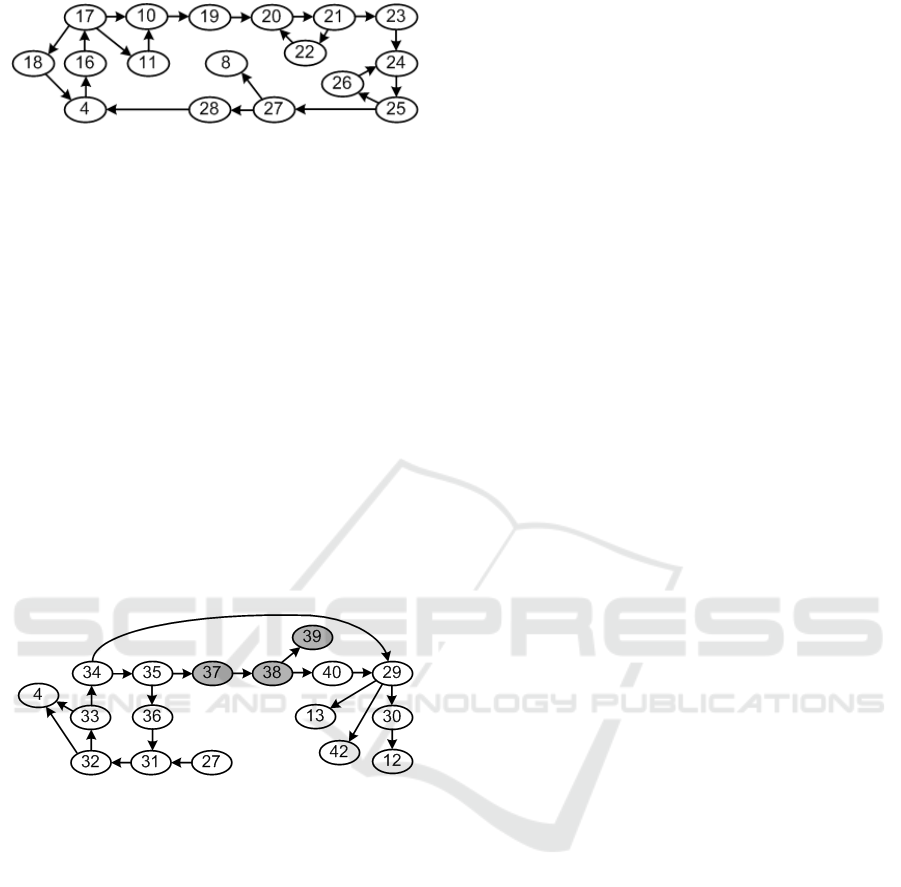

Figure 4: Topological space part that represents detailed

functionality of checkout sub-process.

Figure 4 shows the part of topological space that

represents detailed functionality of checkout. This

part of TFM has been obtained by applying

continuous mapping. A subset of functional features

“7 Checking out an order”, “10: Logging in with a

web surfer’s account” and “11: Registering a new

web surfer’s account” is continuously mapped onto

the set of functional features that is represented in

Figure 4. Also, all cause-effect relations with

surrounding functional features, i.e., “4: Managing a

cart” and “8: Paying for an order”, are retained. Since

all functional features in Figure 4 belong to system’s

inner functional features, they also belong to set X of

web shop’s TFM. By increasing the level of detail, we

came up with a new precondition for functional

feature “8: Paying for an order” – [if order validation

is successful].

Figure 5: Topological space part that represents detailed

functionality of payment sub-process.

Figure 5 illustrates the part of topological space

that represents detailed functionality of payment.

Functional feature “8: Paying for an order” is

continuously mapped to the represented set.

Functional feature “27: Validating an order” is used

instead of “10: Logging in with a web surfer’s

account” to conform to the more detailed

functionality description of the checkout (see Figure

4). Not all functional features belong to the set of

system’s inner functional features (set N

Payment

= [N

Payment

] = {4, 12, 13, 27, 29, 30, 31, 32,

33, 34, 35, 36, 40, 42}. So TFM does not contain

functional features {37, 38, 39}, and they are

considered to be out of bounds of web shop’s system

(they are realized by a banking system).

Figure 3 displays a BPM of the expanded payment

sub-process. (Bousetta, El Beggar and Gadi, 2013 a)

also contains a BPM of the expanded checkout sub-

process. We do not include it since it is not required

for the comparison and to save space.

The main difference between the approaches

concerning the expansion of sub-processes is the

following. In TFM, the formal operation is used –

continuous mapping. The new subset must keep all

cause-effect relations that the substituted subset had

with other functional features in TFM. In BPMN,

there is no such strict rule. Therefore an ambiguity

may arise in BPMN model. Let’s consider a case

when the payment is rejected by banking system

(payment expansion). Low-level BPM model (see

Figure 3) does not make it clear what should happen

after the payment rejection, and high-level BPM (see

Figure 2) also does not help. In TFM there is no such

ambiguity. High-level TFM (see Figure 1) tells us

nothing about payment rejection, so the rejection

must be handled by a subset of functional features that

substitutes “8: Paying for an order”. Figure 1 shows

us a cause-effect relation between “8: Paying for an

order” and “4: Managing a cart”, and this relation

must be retained in the expanded TFM. After the

payment rejection, it makes sense to give web surfer

an opportunity to fill credit card information once

again, or to go back to cart management. In Figure 5,

after “36: Rejecting a payment” an execution goes to

“31: Filling in the information of a credit card”. Web

surfer can refill data or skip this step. During

validation of billing and shipping addresses (features

32 and 33) web surfer can go back to “4: Managing a

cart”. Therefore, processing of payment will be

cancelled. So dealing with the payment rejection is

explicitly and unambiguously described. We see that

formalism of TFM helps to achieve consistency

between abstract and detailed models.

3.4 Transformation to PIM: Class

Diagram

TFM4SE defines formal transformation from TFM to

Topological class diagram. It is called “topological”

because the UML metamodel of this diagram is

extended by integrating topological relations. By

adding topological relations mathematical formalism

is introduced to UML Class diagram (Osis and

Donins, 2010).

The main idea of the transformation is that the

functionality of each functional feature must be

realized by an individual class method. Before

executing the transformation, for each functional

feature we must come up with name of a class and

name of a method which will realize the functional

feature (Osis and Donins, 2010). We do not assign

Comparison of Topological Functioning Model for Software Engineering with BPMN Approach in the Context of Model Driven

Architecture

343

classes and methods to functional features that are not

realized by the information system. Examples are

given in Table 2.

Table 2: Examples of class and method names.

ID Class Method

1 Cart accessWebSite()

2 ProductSearcher searchForProduct()

19 WebSurferAccount fillInInformation()

30 OrderRegistry notifyClerk()

Then, the formal transformation is executed (Osis

and Donins, 2010). All vertices of TFM with the same

class names should be merged, and while merging all

relationships between vertices should be kept. Since

this transformation is completely formal and does not

require participation of the architect, its automation

was proposed in (Solomencevs and Osis, 2015). The

resulting Topological class diagram is represented in

Figure 6. The arrows in the diagram are topological

relations. Guidelines for increasing the level of detail

of the obtained Topological class diagram are

published in (Donins et al., 2011).

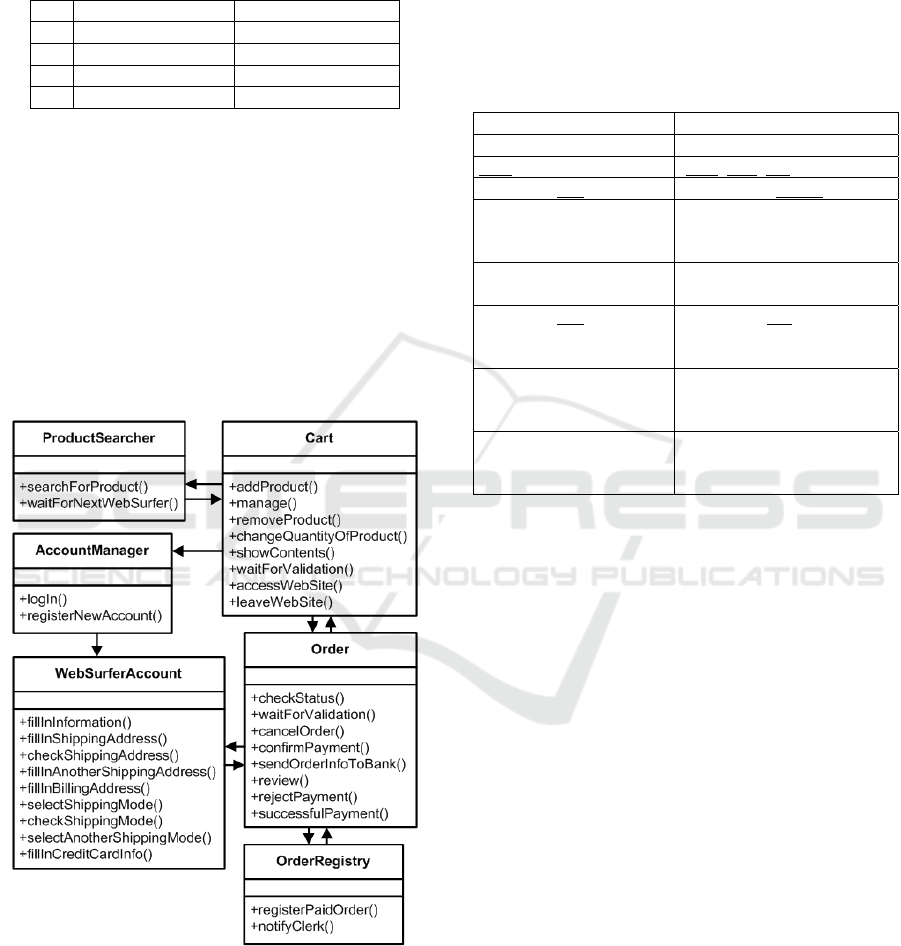

Figure 6: Topological class diagram obtained from TFM.

In CIM-BPMN approach, the list of Business

rules needs to be defined. Business rules should focus

only on structural assertions: define structure,

relationships and the integrity constraints on data.

This type of Business rules is based on two concepts:

Term and Fact. A term is a word, phrase, or

sentence(s) which has a specific meaning for the

business. Facts are used for asserting an association

between two or more terms 'fact relating term'. Facts

connect things in the business (Bousetta, El Beggar

and Gadi, 2013 a). Authors introduce a template how

to formally describe a business rule (see Table 3).

Table 3: The proposed template for businesses rules,

adapted from (Bousetta, El Beggar and Gadi, 2013 a).

Template Example(s)

Term

Exam, Student, Response

Fact pass, own, use

<Term> <fact> <term> The student passes an exam

<Term> is characterized

by its <term>, <term>…

An exam is characterized by

a date of exam, a duration

and a set of questions

<Term> belongs to

one/many <term>

An exam belongs to one

category

a/an/many/number

<term>

A question has four

responses.

<Term> may/can be a

An exam can be Multiple

Choice Question or a

direct questions

<Term> has number/ is

types: <term1>,

<term2>…

An exam has two types:

Multiple Choice Question,

direct questions

Concerning the case study, the following business

rules are defined (Bousetta et al., 2013a).

BR1: A customer passes many orders.

BR2: An order concerns at least one product.

BR3: An order has a billing address and a

shipping address.

BR4: Product belongs to one category.

BR5: Product is characterized by a reference,

description and a price.

BR6: A customer is characterized by a code, first

name, last name, an email address.

BR7: An order has a status.

BR8: An order is characterized by a date and

reference.

BR9: For each item in the cart we specify the

quantity.

BR10: A customer has an account.

BR11: An account is characterized by a login,

password and role.

BR12: An order has a payment.

BR13: A payment indicates a credit card and an

amount.

BR14: A credit card is characterized by a number,

validity date.

BR15: An order has a shipping mode.

BR16: A customer can review order.

BR17: A customer can cancel the order.

MDI4SE 2016 - Special Session on Model-Driven Innovations for Software Engineering

344

When business rules are defined, it is possible to

obtain the Domain class diagram.

Data objects from low-level BPMs (see Figure 7)

are considered to be terms and are mapped to classes

or attributes in Domain class diagram. This diagram

is completed with the different terms and facts

deduced from the Business rules according to the

mapping rules presented in Table 4.

Table 4: Mapping of Business rules to Domain class

diagram, adapted from (Bousetta et al., 2013 a).

Expression Meaning

Nouns, roles, concepts

…are considered as terms =>

Class.

This, these, that, those,

… and synonyms

Same term.

Its, his, her, their…

Express a relation between

two concepts. The term is an

attribute of the owner term if

it is a simple property

(atomic); otherwise it is a

class (if it is not simple)

List, set of

An ordered constrains in

OCL.

The verbs: belongs,

composed, contains,

include…

…are considered as a fact that

means an association of

composition or aggregation.

Many, a, an, any,

several, a lot of, one,

numbers, plural …

Multiplicity in an association.

Is..., Or…, may/can

be..., or…

Express a generalization /

specialization relationship.

Figure 8 shows the obtained Domain class diagram

after the transformation.

Figure 7: Input/output data objects of the case study,

adapted from (Bousetta, El Beggar and Gadi, 2013 a).

Figure 8: Domain class diagram, adapted from (Bousetta,

El Beggar and Gadi, 2013 a).

Table 5: Comparison summary between TFM4SE and CIM-BPMN approaches.

TFM4SE (Osis et al.) CIM-BPMN (Bousetta et al.)

Business model

TFM.

Formal guidelines how to get TFM from

system's verbal description. Comprehensive

verbal description is needed.

BPMN high-level and low-level BPMs.

No formal guidelines for creating the model.

Comprehensive verbal description is not needed,

but knowledge is still required.

Increasing the

level of detail of

business model

Formal operation – continuous mapping –

ensures consistency between abstract and

detailed models.

Expanding the sub-process is done rather intuitively

which may lead to inconsistency with more abstract

model.

Transformation

to class diagram

Model has topological relations and methods;

does not have attributes.

Requires coming up with names for classes and

methods for each TFM’s functional feature.

Participation of architect is not required.

Model has standard UML relations (associations,

generalizations, aggregations and compositions),

multiplicities and attributes; does not have methods.

Requires formal definitions of Business rules.

Partial participation of architect is required.

Comparison of Topological Functioning Model for Software Engineering with BPMN Approach in the Context of Model Driven

Architecture

345

The differences between the approaches

concerning the obtaining of class diagram are the

following. TFM4SE requires additional effort in

coming up with names of classes and methods that

will realize the functional features. Additional effort

in CIM-BPMN approach is expressed in defining

Business rules. In TFM4SE, the transformation does

not require user participation and can be fully

automated. In CIM-BPMN, as we understood from

studying the examples, it partly requires user

participation, and can be semi-automated. The

obtained resulting models differ. In case of TFM4SE,

classes with methods and without attributes are

created. There are topological relations between

classes. In its turn CIM-BPMN provides creation of

classes with attributes and without methods, and there

are standard UML relations between classes:

associations, generalizations, aggregations,

compositions, and also multiplicities. So, Topological

class diagram focuses on separation of

responsibilities between classes, and Domain class

diagram reflects the structure in more detail.

4 CONCLUSIONS

The discussion in this paper was directed to the

comparison of TFM4SE with model driven

approaches that use BPMN for CIM modeling and

provide CIM → PIM transformation. From the

discovered ones we have chosen the most well-

elaborated to compare it with TFM4SE concerning

CIM modeling and transformation to class diagram

on PIM level. The comparison was performed on

basis of an example (case study). The result of the

work is summarized in Table 5.

As we emphasized in the introduction, the main

difference between TFM and BPMN model is that

TFM is a mathematically formal model, and BPMN

is not. We believe that the improvement of the object-

oriented system analysis and modelling lays in using

formal methods. We were interested in finding out

what benefits and what drawbacks does the formalism

of TFM bring in comparison to CIM-BPMN

approach. Let’s start with the drawbacks. More effort

must be put in the very early stage of software

development – the analysis. The comprehensive

description of the system must be developed.

Concerning transformation to PIM, the class diagram

lacks standard relations, multiplicities and attributes.

On the other hand, the advantages of TFM4SE are the

following. On CIM level, the consistency between

abstract and detailed models is ensured, because

formal operation for manipulating the level of detail

is applied. CIM → PIM class diagram transformation

is done rather easily. Besides TFM, it requires only

the names for classes and methods. Transformation

can be executed fully automatically. The obtained

class diagram contains methods and topological

relations.

Roughly simplifying the comparison results,

formalism of TFM brings more consistency between

models and allows obtaining class diagram that

divides the responsibilities between classes. These

advantages come at the cost of putting more effort

into CIM modeling.

In this paper we concentrated on approaches that

use BPMN, and on construction of class diagram. The

future research will cover transformations to other

models on PIM level; and approaches that also

provide CIM → PIM transformation, but use other

models on CIM level.

REFERENCES

Asnina, E., Gulbis, B., Osis, J., Alksnis, G., Donins, U.,

Slihte, A. 2011, Backward Requirements Traceability

within the Topology-based Model Driven Software

Development. In: Proceedings of the 3rd International

Workshop on Model-Driven Architecture and

Modeling-Driven Software Development (MDA &

MDSD 2011), China, Beijing, 7-11 June, 2011. Lisbon:

SciTePress, pp.36-45. ISBN 9789898425591.

Asnina, E., Osis, J. 2010, Computation Independent

Models: Bridging Problem and Solution Domains. In:

Proceedings of the 2nd InternationalWorkshop on

Model-Driven Architecture and Modeling Theory-

Driven Development (MDA & MTDD 2010), in

conjunction with ENASE 2010, Greece, Athens, 22-24

July, 2010. Lisbon: SciTePress, pp.23-32. ISBN

9789898425164.

Asnina, E., Osis, J. 2011, Topological Functioning Model

as a CIM-Business Model. In: Model-Driven Domain

Analysis and Software Development: Architectures and

Functions. Hershey, New York: IGI Global, pp. 40-64.

Available from: doi: 10.4018/978-1-61692-874-

2.ch003.

Bousetta, B., El Beggar, O., Gadi, T. 2013 a, A

methodology for CIM modelling and its transformation

to PIM. In: Journal of Information Engineering and

Applications, Vol.3, No.2, pp 1-21. ISSN 2224-5782

(print). ISSN 2225-0506 (online).

Bousetta, B., El Beggar, O., Gadi, T. 2013 b, Automating

Software Development Process: Analysis-PIMs to

Design-PIM Model Transformation. In: International

Journal of Software Engineering and Its Applications,

Vol.7, No.5, SERSC, pp. 167-196. ISSN 1738-9984.

Bousetta, B., El Beggar, O., Gadi, T. 2013 c, Generating

operations specification from domain class diagram

using transition state diagram. In: International Journal

MDI4SE 2016 - Special Session on Model-Driven Innovations for Software Engineering

346

of Computer and Information Technology (IJCIT).

Volume 2, Issue 1, January 2013, pp. 29-36. ISSN:

2279 – 0764.

Castro, V.D., Marcos, E., Vara, J.M. 2011, Applying CIM-

to-PIM model transformations for the service-oriented

development of information systems. Information and

Software Technology. January 2011, Volume 53, Issue

1, pp. 87-105.

Donins, U., Osis, J., Slihte, A., Asnina, E., Gulbis, B. 2011,

Towards the Refinement of Topological Class Diagram

as a Platform Independent Model. In: Proceedings of

the 3rd International Workshop on Model-Driven

Architecture and Modeling-Driven Software

Development (MDA & MDSD 2011), China, Beijing, 8-

11 June, 2011. Lisbon: SciTePress, pp.79-88. ISBN

9789898425591.

El Beggar, O., Bousetta, B., Gadi, T. 2012 a, Generating

methods signatures from transition state diagram: A

model transformation approach. In: Information

Science and Technology (CIST), 22-24 Oct. 2012. pp.4-

9. Available from: doi: 10.1109/CIST.2012.6388054.

El Beggar, O., Bousetta, B., Gadi, T. 2012 b, Automatic

code generation by model transformation from

sequence diagram of system’s internal behavior. In:

International Journal of Computer and Information

Technology (IJCIT), November 2012, Volume 1, Issue

2, pp. 129-146. ISSN: 2279 – 0764.

Fazziki, A.E., Lakhrissi, H., Yetognon, K., Sadgal, M.

2012, A Service Oriented Information System: A

Model Driven Approach. In: The Eighth International

Conference on Signal Image Technology and Internet

Based Systems (SITIS), Naples, 25-29 November, 2012,

IEEE, pp.466-473,. ISBN 978-1-4673-5152-2.

Gutierrez, J.J., Nebut, C., Escalona, M.J., Mejias, M.,

Ramos, I.M. 2008, Visualization of Use Cases through

Automatically Generated Activity Diagrams. In:

Proceedings of 11th International Conference,

MoDELS 2008, Toulouse, France, September 28 -

October 3, 2008. Berlin, Heidelberg: Sprienger, pp. 83-

96. ISBN 978-3-540-87874-2. e-ISBN 978-3-540-

87875-9.

Hahn, C., Panfilenko, D., Fischer, K. 2010, A Model-

Driven Approach to Close the Gap between Business

Requirements and Agent-Based Execution. In:

Proceedings of the 4th Workshop on Agent-based

Technologies and applications for enterprise

interOPerability, Toronto, Canada, 10 May 2010.

AAMAS 2010, Toronto, Canada, pp. 13-24.

Kherraf, S., Lefebvre, E., Suryn, W. 2008, Transformation

from CIM to PIM Using Patterns and Archetypes. In:

19th Australian Conference on Software Engineering,

ASWEC 2008, Perth, Australia, 26-28 March 2008.

IEEE, pp.338-346. ISBN 978-0-7695-3100-7. ISSN

1530-0803. Available from: doi:

10.1109/ASWEC.2008.4483222.

Kardos, M., Drozdova, M. 2010, Analytical method of CIM

to PIM transformation in Model Driven Architecture

(MDA). Journal of Information and Organizational

Sciences (JIOS). Vol. 34, Issue 1, pp 89-99. ISSN 1846-

3312. e-ISSN 1846-9418.

Mazon, J., Pardillo, J., Trujillo, J. 2007, A Model-Driven

Goal-Oriented Requirement Engineering Approach for

Data Warehouses. In: Proceedings of ER 2007

Workshops CMLSA, FP-UML, ONISW, QoIS,

RIGiM,SeCoGIS, Auckland, New Zealand, November 5-

9, 2007

. Berlin, Heidelberg: Sprienger, pp. 255-264.

ISBN 978-3-540-76291-1. e-ISBN 978-3-540-76292-8.

Miller, J., Mukerji, J. 2003, MDA Guide Version 1.0.1,

OMG, viewed 10 September 2015,

<www.omg.org/cgi-bin/doc?omg/03-06-01>OMG

(Object Management Group) 2012, Service oriented

architecture Modeling Language (SoaML)

Specification, Version 1.0.1, viewed 10 January 2016,

<www.omg.org/spec/SoaML/1.0.1/PDF/>

OMG (Object Management Group) 2013, Business Process

Model and Notation (BPMN), Version 2.0.2, viewed 8

January 2016, <www.omg.org/spec/BPMN/2.0.2/PDF>

OMG (Object Management Group) 2015, OMG Unified

Modeling LanguageTM (OMG UML), Version 2.5,

viewed 8 January 2016, <www.omg.org/spec/UML/2.5

/PDF>

Osis, J. 1969, Topological Model of System Functioning (in

Russian). In: Automatics and Computer Science, J. of

Academia of Siences, Riga, Latvia, Nr. 6, pp. 44-50.

Osis, J. 2004, Software Development with Topological

Model in the Framework of MDA. In: Proceedings of the

CAiSE/IFIP8.1/EUNO International Workshop on

Evaluation of Modeling Methods in Systems Analysis and

Design (EMMSAD’2004) in connection with the

CAiSE’2004. Volume 1, RTU, Riga, pp. 211-220.

Osis, J., Asnina, E. 2011 a, Is Modeling a Treatment for the

Weakness of Software Engineering? In: Model-Driven

Domain Analysis and Software Development:

Architectures and Functions. Hershey, New York: IGI

Global, pp. 1-14. Available from: doi: 10.4018/978-1-

61692-874-2.ch001.

Osis, J., Asnina, E. 2011 b, Derivation of Use Cases from

the Topological Computation Independent Business

Model. In: Model-Driven Domain Analysis and

Software Development: Architectures and Functions.

Hershey, New York: IGI Global, pp. 65-89.

Osis, J., Asnina, E. 2011 c, Topological Modeling for

Model-Driven Domain Analysis and Software

Development: Functions and Architectures. In: Model-

Driven Domain Analysis and Software Development:

Architectures and Functions. Hershey, New York: IGI

Global, pp. 15-39.

Osis, J., Asnina, E., Donins, U., Garcia-Diaz, V. 2014,

Dependencies among Architectural Views Got from

Software Requirements Based on a Formal Model. In:

Applied Computer Systems. Vol.16, pp.5-12. ISSN

2255-8683. e-ISSN 2255-8691.

Osis, J., Asnina, E., Grave, A. 2007, MDA Oriented

Computation Independent Modeling of the Problem

Domain. In: Proceedings of the 2nd International

Working Conference on Evaluation of Novel

Approaches to Software Engineering (ENASE 2007),

Spain, Barcelona, 23-25 July, 2007. Barcelona:

INSTICC Press, pp.66-71. ISBN 978-989-8111-10-4.

Comparison of Topological Functioning Model for Software Engineering with BPMN Approach in the Context of Model Driven

Architecture

347

Osis, J., Asnina, E., Grave, A. 2008 a, Formal Problem

Domain Modeling within MDA. In: Communications in

Computer and Information Science (CCIS). Software

and Data Technologies: Second International

Conference ICSOFT/ENASE 2007: Revised Selected

Papers, Germany, Berlin, 22-25 July, 2007. Berlin:

Springer-Verlag Berlin Heidelberg, pp.387-398. ISBN

9783540886549. e-ISBN 9783540886556. ISSN 1865-

0929.

Osis, J., Asnina, E., Grave, A. 2008 b, Computation

Independent Representation of the Problem Domain in

MDA. In: e-Informatica Software Engineering Journal,

Vol.2, Iss.1, pp. 29-46. ISSN 1897-7979.

Osis, J., Donins, U. 2010, Formalization of the UML Class

Diagrams. In: Evaluation of Novel Approaches to

Software Engineering: 3rd and 4th International

Conferences ENASE 2008/2009: Revised Selected

Papers, Italy, Milan, 9-10 May, 2009. Berlin: Springer-

Verlag, pp.180-192. ISBN 9783642148187. e-ISBN

9783642148194. ISSN 1865-0929.

Osis, J., Slihte, A. 2010, Transforming Textual Use Cases

to a Computation Independent Model. In: Model-

Driven Architecture and Modeling Theory-Driven

Development: Proceedings of the 2nd International

Workshop (MDA & MTDD 2010), Greece, Athens, 22-

24 July, 2010. Lisbon: SciTePress, pp.33-42. ISBN

9789898425164.

Rhazali, Y., Hadi, Y., Mouloudi, A. 2014, Transformation

Method CIM to PIM: From Business Processes Models

Defined in BPMN to Use Case and Class Models

Defined in UML. In: World Academy of Science,

Engineering and Technology – International Journal of

Computer, Electrical, Automation, Control and

Information Engineering, Vol:8, No:8.

Rodriguez, A., Garcia-Rodriguez de Guzman, I., Fernandez

Medina, E., Piattini, M. 2010, Semi-formal

transformation of secure business processes into analysis

class and use case models: An MDA approach.

Information and Software Technology. September 2010,

Volume 52, Issue 9, pp. 945-971. ISSN 0950-5849.

Slihte, A., Osis, J., Donins, U. 2011, Knowledge Integration

for Domain Modeling. In: Proceedings of the 3rd

International Workshop on Model-Driven Architecture

and Modeling-Driven Software Development (MDA &

MDSD 2011), China, Beijing, 8-11 June, 2011. Lisbon:

SciTePress, pp.46-56. ISBN 9789898425591.

Slihte, A., Osis, J., Donins, U., Asnina, E., Gulbis, B. 2011,

Advancements of the Topological Functioning Model

for Model Driven Architecture Approach. In:

Proceedings of the 3rd International Workshop on

Model-Driven Architecture and Modeling-Driven

Software Development (MDA & MDSD 2011), China,

Beijing, 7-11 June, 2011. Lisbon: SciTePress, pp.91-

100. ISBN 9789898425591.

Solomencevs, A., Osis, J. 2015, The Algorithm for Getting

a UML Class Diagram from Topological Functioning

Model. In: Proceedings of 10th International

Conference on Evaluaton of Novel Approaches to

Software Engineering, Spain, Barcelona, 29-30 April,

2015. Portugal: SciTePress, pp.341-351. ISBN 978-

989-758-100-7.

Yu, E. 1995, Modelling Strategic Relationships for Process

Reengineering. PhD thesis. University of Toronto,

Canada. 124 p.

Zhang, W., Mei, H., Zhao, H., Yang, J. 2005,

Transformation from CIM to PIM: A Feature-Oriented

Component-Based Approach. In: Proceedings of 8th

International Conference, MoDELS 2005, Montego

Bay, Jamaica, October 2-7, 2005. Berlin, Heidelberg:

Sprienger, pp. 248-263. ISBN 978-3-540-29010-0. e-

ISBN 978-3-540-32057-9.

MDI4SE 2016 - Special Session on Model-Driven Innovations for Software Engineering

348
