Towards Design-time Simulation Support for Energy-aware Cloud

Application Development

Christophe Ponsard, Renaud De Landtsheer, Gustavo Ospina and Jean-Christophe Deprez

CETIC Research Centre, Avenue Jean Mermoz 28, 6041 Gosselies, Belgium

Keywords:

Energy Efﬁciency, Cloud, Sustainability, Green-IT, Discrete Event Simulation, Self-adaptation.

Abstract:

Cloud application deployment is becoming increasingly popular for the removal of upfront hardware costs,

the pay-per-use cost model and their ability to scale. However, deploying software on the Cloud carries both

opportunities and threats regarding energy efﬁciency. In order to help Cloud application developers learn and

reason about the energy consumption of their application on the server-side, we have developed a framework

centred on a UML proﬁle for relating energy goals, requirements and associated KPI metrics to application

design and deployment elements. Our previous work has focused on the use of such a framework to carry out

our run-time experiments in order to select the best approach. In this paper, we explore the feasibility of a

complementary approach for providing support at design time based on ﬁner grained deployment models, the

speciﬁcation of Cloud and energy adaptation policies and the use of a discrete event simulator for reasoning

on key performance indicators such as energy but also overall performance, delay and costs. The goal is to

support the Cloud developer in pre-selecting the best trade-off that can be further tuned at run-time.

1 INTRODUCTION

The expansion of ICT both at professional and per-

sonal levels induces the processing and exchange of

increasingly larger amounts of data, increasing con-

nectivity of all devices (mobile devices, Internet of

Things) and higher penetration in all domains. This

would raise the energy required to run ICT to a dra-

matic level if ICT energy efﬁciency was not improv-

ing simultaneously. However, because of this contin-

uous increasing of energy consumption (Internet Sci-

ence NoE, 2013) and in order to reach another level of

energy saving, it is required to consider the software

layer. Several initiatives have already studied how to

reduce energy consumption of mobile or embedded

devices. For the Cloud Computing domain, an impor-

tant amount of work has focused on lower layers such

as the physical infrastructure (Dougherty et al., 2012)

or on the infrastructure virtualisation layer (Mastelic

et al., 2014). A systematic survey of sustainability

showed a dedicated attention to Cloud as well as a

number of proposals turned to the energy efﬁciency

of software application (Penzenstadler et al., 2014).

However much remains to be done, especially to help

developers to learn how much energy is consumed by

their application on the server-side.

In order to structure our work we will refer to

the previously deﬁned reference framework detailed

in (Deprez et al., 2012). This framework is composed

of three levels:

Requirements Level - We use the Goal-Question-

Metric (GQM) paradigm (Basili et al., 1994). In pre-

vious work (Deprez and Ponsard, 2014), we have

shown how developers can formulate energy-related

goals and questions in order to gain a more precise

knowledge of the energy consumed by various fea-

tures/components of their application. We also make

the link with a number of already identiﬁed energy-

related metrics (Bozzelli et al., 2013).

Design Level - To capture the information in a

way that is both standard for the analyst and easy

to process in further steps, a UML proﬁle was de-

ﬁned (Ponsard et al., 2015). This proﬁle enhances the

analysis process of a Cloud application with energy

awareness both for the development of a new appli-

cation or the migration of an existing application to

the Cloud. It also enables the automated deployment

of measurement probes to monitor the speciﬁed Key

Performance Indicators (KPI) and report them at the

GQM level.

Run-time Level - Probes collect the speciﬁed data

and report them to a monitoring infrastructure part of

the energy-aware Cloud stack. For this purpose we

currently use the ASCETiC Cloud stack deployed in

speciﬁc test beds (ASCETIC, 2013).

So far, our work has mostly been oriented towards

398

Ponsard, C., Landtsheer, R., Ospina, G. and Deprez, J-C.

Towards Design-time Simulation Support for Energy-aware Cloud Application Development.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 398-404

ISBN: 978-989-758-182-3

run-time approach to collect data about the energy

behavior as well as other key non-functional require-

ments such as performance and response time that re-

quire some form of trade-off. While this approach is

the most precise given it collects real data, it suffers

from some drawbacks. First, it is necessary to reach

the deployment phase to collect data: although Cloud

architectures are quite ﬂexible, this arrives quite late

in the process and it reduces the set of alternatives

for deployment conﬁguration and might rule out more

fundamental design alternatives. Second, it is difﬁ-

cult to experiment with self-adaptation policies, espe-

cially when considering the most abstract SaaS level.

Third, collecting data might also be difﬁcult and be

subject to some measurement bias. Given that our ap-

proach already proposed a strong design-level mod-

elling, we felt that it might be interesting to propose

complementary tools supporting the assessment of ar-

chitectural alternatives directly at the design level.

Our approach does not aim at being very precise; it

only aims at reducing the design space for the SaaS

level developer. At the technical level, the idea is

to rely on simple Cloud simulations not requiring

a full blown Cloud simulation like CloudSim (Cal-

heiros et al., 2011) or GreenCloud (Kliazovich et al.,

2010).

Figure 1: Extended design-time approach.

Our extended approach is highlighted in Figure 1,

where the contribution discussed in this paper is high-

lighted in gray. It includes a new simulation tool and

relies on an extended UML model. This extension

mainly consists of reﬁnement of the existing deploy-

ment view with:

• more information enabling the estimations of dif-

ferent kinds of requirements (throughput, delay,

energy per requests). Those can be produced by

the run-time layer through unit tests.

• self-adaptation policies, in order to determine the

dynamic behavior, e.g. to scale but also to pre-

serve energy.

• variability points, enabling to compare different

alternatives. Such variability points can be struc-

tural ones or related to adaptation policies.

The purpose of this paper is mainly to assess the

feasibility of the approach which relies on three tech-

nological locks. First it is necessary to map the de-

ployment model into a realistic simulation model.

Second it is necessary to deﬁne queries on this model

and evaluate them efﬁciently. Third the results should

be precise enough, compared to run-time simulation,

to be useful.

This paper aims at partially solving these three

technological locks. Section 2 details the ﬁner

grained simulation model and engine on which our

UML deployment model is mapped. Section 3

describes the query language that is used to efﬁ-

ciently express the targeted non-functional require-

ments. Section 4 details the ﬁrst experiments we con-

ducted so far using an Open Source discreet event

simulator (DES) and a Photo Album web-application.

Section 5 discusses some related work. Finally, sec-

tion 6 draws some conclusions about our experience

so far and identiﬁes further work.

2 FROM UML TO SIMULATION

MODEL

The main elements of Cloud application are repre-

sented in a simulation meta-model which allows us

to deﬁne concrete models that are simulated in a Dis-

crete Event Simulation engine. This model is close

to a UML deployment diagram and maps easily with

it. It introduces some reﬁnement needed for the sim-

ulation such as the need to deﬁne interfaces between

processes, either as buffers of storage devices. Those

can be made transparent in the mapping process but

are still explicit in our current version of the engine.

We detail two main elements: structural parts and dy-

namic parts (policies driving speciﬁc behaviors such

as scaling up and down).

2.1 Structural Modelling

In our approach, a Cloud application is modeled as

ﬂows of requests through processes and buffers/data

stores. We do not specialise further our description

although there are well-known classes of architectural

processes in Cloud application such as load balancers,

authentication gateways, workload schedulers, etc.

We let those be organised at a higher ”pattern” layer.

Batch Processes are data processing services

working as much as they can as they are fed by input

Towards Design-time Simulation Support for Energy-aware Cloud Application Development

399

data (or requests) to produce some output results. In-

put data is received from one or different sources (and

possibly requiring to wait for a speciﬁc resource),

processed for some time that can be deﬁned using a

stochastic function, and ﬁnally the produced outputs

are dispatched to their respective destinations, either

an input buffer of another process or a data store.

Continuous Processes are pipelined processes: re-

quests are continuously picked from input data stores

and pass through a number of steps before being out-

put.

Splitting Processes are similar to batch processes,

except that they have several sets of outputs and when

it completes, one set of output is selected and the pro-

duced items are dispatched to associated output. A

splitting process can also represent a batch process

that has a failure rate.

Parallel Processes are a variant of the above pro-

cesses where several lines of the same process are

running in parallel (either as threads or in different

machines but with a dedicated processing resource).

Speciﬁc adaptation policies can also be associated to

dynamically change the level of parallelism of a pro-

cess.

Buffers and Stores represent any kind of memory

device able to store data. They have a maximum ca-

pacity. When this capacity is reached, they either

overﬂow and lose data (e.g. rotating buffer), or block

the upfront processes until it is able to cope with the

request. Processes should always be isolated either

by a store (indirect coupling) or a buffer (direct cou-

pling).

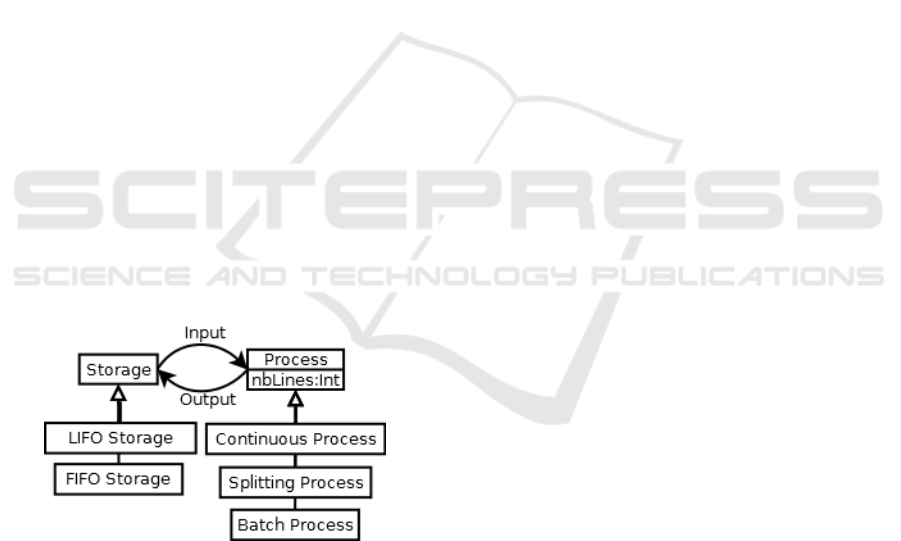

Figure 2: Concepts of our process modelling languages.

Data items ﬂowing in processes and stores are

indistinguishable at a given point of the processing

chain. Yet, they have some intrinsic features: some

items might come from a given process, others might

have higher priority, etc. These intrinsic features can

inﬂuence on the behavior of some processes, such

as processing higher priority items ﬁrst. This notion

of intrinsic features also leads to the natural distinc-

tion between two different types of stores, namely:

First In-First Out (FIFO) stores and Last In-First Out

(LIFO) stores.

2.2 Process Activation and

Self-adaptation Policies

Policies are also integrated in our model, together

with activation policies that are able to turn a process

on or off. To model these two concepts, we introduce

the notion of activable and activation. An activable

is something that can be enabled through an activa-

tion. We also associate a magnitude with the activa-

tion, that is, an integer. An activable can be a process

or an external request. In the case of a process, the ac-

tivation represent the number of batches that the pro-

cess is allowed to execute. In the case of an order, the

magnitude represent the number of requests.

Activable entities can be activated based on three

types of rules that are also part of our modelling

framework:

• regular activations, that perform the activation on

a regular basis, based on a period of time;

• request-based activations, that perform the activa-

tion when a request is received;

• monitoring activations, that perform the activation

when some conditions are met, possibly in a fu-

ture time.

While the ﬁrst and second class are useful to sim-

ulate loads, the later is the most interesting to specify

the dynamic behaviour of the Cloud application as de-

scribed later.

3 TRANSLATING ENERGY

RELATED REQUIREMENTS

INTO MODEL QUERIES

The goal of our approach is to perform queries related

to non-functional requirements (NFR) on factory sim-

ulations, especially to measure energy and speciﬁc

trade-offs e.g. related to performance. These queries

are meant to be performed on single runs of simu-

lation occurring inside the Monte-Carlo engine which

aggregates the queries results over the runs, which can

then be queried afterwards to obtain statistics like the

mean, median, extremes, and variance.

Our query language can roughly be split into

six sets of primitives, namely: probes on processes,

probes on stores, logic operators, temporal logic op-

erators, arithmetic operators, and temporal arithmetic

operators. Arithmetic and logic operators differ by

their return types; they return numeric and boolean

values, respectively. Since this query language runs

over simulated time, we take the convention that the

value of the queries are computed at the end of the

TEEC 2016 - Special Session on Tools for an Energy Efﬁcient Cloud

400

trace on which they are evaluated. The full semantics

of our query languages has been reported for an appli-

cation in the supply chain domain in (De Landtsheer

et al., 2016). It relies on the |= notation: t |= P is

the value of expression P when evaluated at position

t of the current trace. In this section, we highlight the

adaptation of this language to the Cloud model ele-

ments presented in the previous section.

3.1 Probes for Processes

The probes on processes are atomic operators that ex-

tract basic metrics from processes of the simulation

model. Suppose that p is such a process, the follow-

ing probes are supported:

• t |= total(p) the total number of instances in the

process pool at time t.

• t |= running(p) the number of running instances

in the process pool at time t.

• t |= processedRequests(p) the total number of re-

quests processed by the process between the be-

ginning of the trace, and time t.

• t |= incommingRequests(p) the number of incom-

ing requests to the process between the beginning

of the trace, and time t. For a process with mul-

tiple lines, it sums up the started batches of each

line.

• t |= totalWaitDuration(p) the total duration where

the process was not running between the start of

the trace, and time t. for a process with multiple

lines, it sums up the waiting time of each line.

3.2 Probes for Buffers and Stores

The probes on stores are atomic operators that extract

basic metrics from stores of the simulation model.

Suppose that s is such a store:

• t |= empty(s) true if the store s is empty at time t,

false otherwise.

• t |= content(s) the number of items in the store s

at time t.

• t |= capacity(s) the maximal capacity of s. This is

invariant in time.

• t |= relativeCapacity(s) the relative content of

store s at time t, that is: the content of the stock

divided by the capacity of the store.

• t |= totalPut(s) the number of items that have been

put into s between the beginning of the simulation

and time t, not counting the initial ones.

• t |= totalFetch(s) the number of items that have

been fetched from s between the beginning of the

simulation and time t.

• t |= totalLostByOverﬂow(s) the number of items

that have been lost by overﬂow from s between

the beginning of the trace, and time t. If s is a

blocking store, this number will always be zero.

3.3 Operators

Complex queries can be built using queries in Object

Constraint Language (OCL) enriched with the follow-

ing operators, some of them also referring to one or

more states of the considered trace:

• logical: true,false,not(!), and(&),or(k),<,>,...

• temporal logic: hasAlwaysBeen,hasBeen,since,...

• arithmetic: +,−, ∗,/, sum,...

• temporal arithmetic: delta,cumulatedDuration,

time,min,max,avg,integral...

4 FIRST EXPERIMENTS ON A

CASE STUDY

Our ﬁrst validation experiments have consisted in

checking the ability to model our photo album case

study in our simulation framework. This includes:

using the given structural primitives, precisely de-

scribing queries related to speciﬁc requirements (es-

pecially energy and performance related), modelling

some dynamic policies, and running a simulation

based on an Open Source simulation engine.

4.1 Case Study Description

Figure 3: Extended design-time approach.

Photo Album is a 3-tier web application that is de-

signed to be desktop-like on-line photo manager (Tse-

bro et al., 2009). It provides social services for up-

loading photos, storing and previewing them, creating

albums and sharing them with other users. The visu-

alisation layer is implemented in JavaScript while the

business logic in Java runs on the server-side and a

database for storing issue data can run on the same

server or on a different machine. It is very represen-

tative of applications that can be deployed on a Cloud

by SaaS models that can beneﬁt of the PaaS and IaaS

layers elasticity/reconﬁgurability features. Figure 3

Towards Design-time Simulation Support for Energy-aware Cloud Application Development

401

present two typical (and related) use cases on this sys-

tem: uploading a media item and compiling an album.

4.2 Structural Modelling

In order to model the Photo Album, we introduced the

following model elements which are also depicted in

Figure 4:

• an external user pool simulating an external load

on the system with some stochastic behavior

• a FRONT process responsible of authentication

and redirecting the request to the relevant service

with a non-blocking buffer in front of it to cope

with peak requests.

• an UPLOAD process simulates the media upload.

It features high delay (between 1 and 2 min to

complete to upload).

• a COMPILE process to compile an album which

is triggered on demand or when a new media up-

load as occurred.

• an overﬂowing store is used to simulate an inﬁnite

storage space available for the two previous pro-

cessed (no matter whether it overﬂows, this fact

can be discarded in the analysis). The energy cost

to write in the store is related to the size attribute

of the data transferred to it.

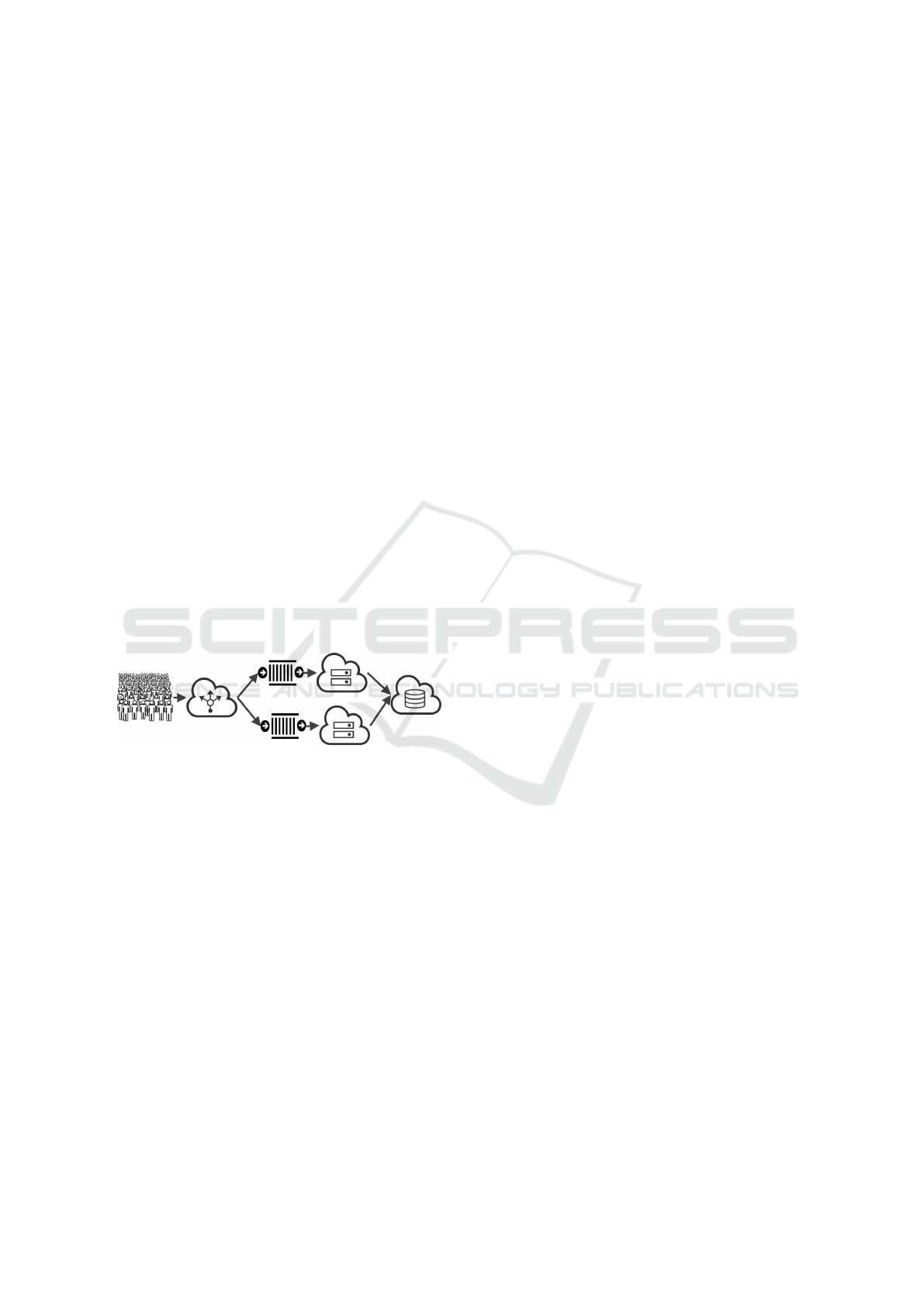

Figure 4: Photo album model.

4.3 Implementation

The described model was implemented using the Dis-

crete Event Simulation (DES) engine of the Open

Source OscaR library (OscaR, 2012). OscaR is a

multi-purpose library completely written in Scala and

composed of several complementary tools for opera-

tional research. The OscaR.DES engine is very efﬁ-

cient at computing the evolution of a system by eval-

uating changes only when they occur and updating

complex expressions on the system. The engine can

also be encapsulated into a web server and also fea-

tures a graphical web-client initially developed for

simulating supply chains (De Landtsheer et al., 2016).

Note that the server time granularity is arbitrary and

that simulators can dynamically adapt to the lowest

granularity. The overall performance is related to the

frequency of ﬁned grained events.

4.4 Expressiveness

In order to assess the expressiveness we considered

the capture of the following speciﬁc energy, perfor-

mance and responsiveness requirements:

• total energy (on whole system):

sum(Process.allInstances()

->select(p:Process|p.energy*p.processedRequests))

• missed request ratio (on the FRONT process):

FRONT.processedRequests/FRONT.incommingRequests

• average response time (on a chain):

avg(sum(ProcessChain.allInstances()

->select(p:Process | p.runtime)))

We also assessed how self-adaptation policies

could be captures in the model. Such policies are cap-

tured using activation policies associated with speciﬁc

model elements. Policies are expressed in the form

W HEN condition THEN action. The condition part

is a query on the model while the action part is some

modiﬁcation on the model instances such as changing

some parameter (Process.add/removeInstance). We

considered the following policies:

• Scale up the pool of UPLOAD processed when its

buffers are ﬁlling up:

WHEN MEDIA_buf.capacity\>0.8*MEDIA_buf.MAX

THEN MEDIA.addInstance(1)

• Scale down for energy efﬁciency:

WHEN HasAlwaysBeen(MEDIA.running\<0.8*MEDIA.total,10min)

$THEN MEDIA.removeInstance(1)

• Enforce maximal update frequency of album com-

pilation:

WHEN HasBeen(changed(STORE.data(album)),3min)

THEN AVOID COMPILE(album)

Most of the policies can be supported out of the

box by the DES engine except for negative activation

policies (AVOID keyword in the last policy). We feel

it is important to be able to capture such policies for

enforcing energy behavior restrictions.

4.5 Simulation Run

Some simulations were executed based on the model

described before. At this stage we could successfully

encode the previously described probes. A number of

default probes can also automatically generated from

speciﬁc templates (including energy related). Figure

5 shows the results for an energy probe over 100 sim-

ulations, gathered using Monte Carlo with some vari-

ability in the delays between incoming requests. The

TEEC 2016 - Special Session on Tools for an Energy Efﬁcient Cloud

402

Figure 5: Monte Carlo simulation run with energy probe.

simulation takes a few seconds with about 10 percent

overhead for the set of about 20 measured probes.

At this point, we are able to simulate and compare

different design alternatives, either based on distinct

models or using parameters available as variability

point (for example, a load balancing component can

have some threshold to trigger new client or to per-

form request aggregation). However at this point, the

exploration of the design space is not yet automated:

each alternative needs to be simulated manually. For

example, Table 1 shows the impact of a buffer size to

optimize energy in a context similar to Figure 4.

Table 1: Exploration of buffer size parameter to minimize

energy consumption.

Buffer

size

CPU

Load

Network

Trafﬁc

Energy

Cost

0 30% 1000 67

10 64% 100 19

20 95% 50 11.6

30 99% 33 11.1

40 100% 25 11

CPU load should be maximized as it is more ef-

ﬁcient at high load and network trafﬁc should be

minimized. The simulation results conﬁmrs this and

shows the buffer size can safely be set around 30 re-

quests to minimize energy consumption. However,

beyond that limit, there is no gain because the bottle-

neck becomes the process itself.

5 RELATED WORK

There are a number of Cloud simulators available on

the market and some of them are more speciﬁcally

dedicated to energy efﬁciency. CloudSim (Calheiros

et al., 2011) is one of the most popular cloud simula-

tors. It operated at IaaS level and supports the simu-

lation of virtualised data centres mostly focusing on

computational intensive tasks, data interchanges be-

tween data centres. GreenCloud (Kliazovich et al.,

2010) and iCanCloud (N

nez et al., 2012) are two

other popular IaaS simulators based on network sim-

ulators, allowing greater precision at this level but are

also more heavyweight. GreenCloud supports precise

energy estimation of computation and network opera-

tions. Overall, all those simulator are hard to employ

and often suffer from performance issues. DISSECT-

CF (Kecskemeti, 2015) is a more recent simulator

build to support easy extensibility, energy evaluation

of IaaS and fast evaluation of many simulation scenar-

ios. However, compared with our approach, all those

simulators are limited to the IaaS layers and do not

allow to reason on higher level abstractions deﬁned at

PaaS or SaaS layers, e.g. the use of Cloud Computing

patterns (Fehling et al., 2014) and to experiment with

self-adaptation strategies at that level. Our approach

sacriﬁces the precision in order to gain such capabili-

ties.

There are some SaaS level simulators closer to our

work. AppSim (app, 2012) is an application simu-

lator that models multi-tenant SaaS applications fea-

tures. However it does only cope with that scenario

and only focus on performance and not yet on energy

efﬁciency. EffSim (Prabhakar et al., 2011) features

a DES approach to tackle energy efﬁciency aspects

but considers the more speciﬁc problem of large scale

storage systems. On a more practical side, NICTA

has developed a technology for modeling the perfor-

mance and scalability of Cloud applications (?). In-

depth empirical evaluations were conducted on a va-

riety of real cloud infrastructures, including Google

App Engine, Amazon EC2, and Microsoft Azure to

predict the resource requirements in terms of cost, ap-

plication performance, and limitations of a realistic

application for alternative deployment scenarios.

6 CONCLUSIONS AND FUTURE

WORK

In this short paper, we proposed an extension to

our framework to better support Cloud developers in

producing energy-aware applications. Our extension

aims at providing more design time support based on

the already present modelling artefacts and enabling

early simulation of possible design alternatives di-

rectly at the SaaS level of abstraction. The drawback

is to accept sacriﬁce in precision. Thus the proposed

approach does not aim at replacing more precise sim-

ulations or run-time experiments, but we feel it could

complement such approaches nicely by helping the

Cloud architect to focus on the right design choices.

Towards Design-time Simulation Support for Energy-aware Cloud Application Development

403

Our preliminary experiments carried out so far are

encouraging as they can capture interesting interact-

ing requirement and model adaptation policies and

thus support the exploration of design trade-offs. The

simulations are also very reactive but were not yet ap-

plied to very large models. Our next step is to vali-

date how precise are the results and how key parame-

ters required for the simulation can be estimated, es-

pecially in cooperating with our run-time approach.

The DES model also needs to be elaborated: it is

still partial and not fully aligned with the Cloud do-

main: more speciﬁc attributes needs to be identiﬁed

and captured, e.g. for also reasoning on some secu-

rity impacts. The model mapping also needs to be

automated either through a domain speciﬁc graphical

editor or the transformation of the existing UML de-

ployment model, enriched with speciﬁc annotations.

ACKNOWLEDGEMENTS

This work was partly funded by the European Com-

mission under the FP7 ASCETiC (nr 610874) and the

CORNET SimQRi (nr 1318172) projects.

REFERENCES

(2012). AppSIM: An Application Simulator for Software

as a Service (SaaS). In Int. Conf. on Computational

Techniques and Mobile Computing.

ASCETIC (2013). Adapting Service lifeCycle towards Ef-

ﬁcienT Clouds. http://www.ascetic.eu.

Basili, V. R., Caldiera, G., and Rombach, D. H. (1994). The

Goal Question Metric Approach, volume I. John Wi-

ley & Sons.

Bozzelli, P., Gu, Q., and Lago, P. (2013). A systematic

literature review on green software metrics. Technical

report, Technical Report: VU University Amsterdam.

Calheiros, R. N., Ranjan, R., Beloglazov, A., De Rose, C.

A. F., and Buyya, R. (2011). Cloudsim: A toolkit for

modeling and simulation of cloud computing environ-

ments and evaluation of resource provisioning algo-

rithms. Softw. Pract. Exper., 41(1):23–50.

Deprez, J.-C. and Ponsard, C. (2014). Energy related

Goals and Questions for Cloud Services. In Measure-

ment and Metrics for Green and Sustainable Software

(MeGSuS).

Deprez, J.-C., Ramdoyal, R., and Ponsard, C. (2012). In-

tegrating Energy and Eco-Aware Requirements Engi-

neering in the Development of Services-Based Appli-

cations on Virtual Clouds. In First Int. Workshop on

Requirements Engineering for Sustainable Systems.

Dougherty, B., White, J., and Schmidt, D. C. (2012).

Model-driven auto-scaling of green cloud comput-

ing infrastructure. Future Generation Comp. Syst.,

28(2):371–378.

Fehling, C., Leymann, F., Retter, R., Schupeck, W., and

Arbitter, P. (2014). Cloud Computing Patterns - Fun-

damentals to Design, Build, and Manage Cloud Ap-

plications. Springer.

Internet Science NoE (2013). D8.1. Overview of ICT en-

ergy consumption. http://www. internet-science.eu

Kecskemeti, G. (2015). Dissect-cf: A simulator to fos-

ter energy-aware scheduling in infrastructure clouds.

Simulation Modelling Practice and Theory, 58, Part

2:188 – 218. Special issue on Cloud Simulation.

Kliazovich, D., Bouvry, P., and Khan, S. (2010). Green-

cloud: a packet-level simulator of energy-aware cloud

computing data centers. The Journal of Supercomput-

ing, pages 1–21.

De Landtsheer, R., Ospina, G., Massonet, P., Ponsard, C.,

Printz, S., Hartel, L., and von Cube, J. P. (2016). A

Discrete Event Simulation Approach for Quantifying

Risks in Manufacturing Processes. In International

Conference on Operations Research and Enterprise

Systems (ICORES16).

Mastelic, T. et al. (2014). Cloud computing: Survey on

energy efﬁciency. ACM Comput. Surv., 47(2):33:1–

33:36.

nez, A. et al. (2012). iCanCloud: A Flexible and Scal-

able Cloud Infrastructure Simulator. J. Grid Comput.,

10(1):185–209.

OscaR (2012). OscaR: Scala in OR. https://bitbucket

.org/oscarlib/oscar.

Penzenstadler, B. et al. (2014). Systematic mapping study

on software engineering for sustainability (SE4S). In

18th Int. Conf. on Evaluation and Assessment in Soft-

ware Engineering, EASE ’14, London, UK, May 2014,

pages 14:1–14:14.

Ponsard, C., Deprez, J.-C., and Flamand, J. (2015). A UML

KPI Proﬁle for Energy Aware Design and Monitoring

of Cloud Services. In 10th Int. Conf. on Software En-

gineering and Applications (ICSOFT-EA).

Prabhakar, R., Kruus, E., Lu, G., and Ungureanu, C. (2011).

Eeffsim: A discrete event simulator for energy ef-

ﬁciency in large-scale storage systems. In Energy

Aware Computing (ICEAC), 2011 International Con-

ference on, pages 1–6.

Tsebro, A., Mukhina, S., Galkin, G., and Sorokin,

M. (2009). Rich faces photo album application.

http://docs.jboss.org/richfaces/latest 3 3 X/en/realwo

rld/html single.

TEEC 2016 - Special Session on Tools for an Energy Efﬁcient Cloud

404
