Big IoT and Social Networking Data for Smart Cities

Algorithmic Improvements on Big Data Analysis in the Context of RADICAL City

Applications

Evangelos Psomakelis

1,2

, Fotis Aisopos

, Antonios Litke

, Konstantinos Tserpes

2,1

Magdalini Kardara

and Pablo Martínez Campo

Distributed Knowledge and Media Systems Group, National Technical University of Athens,

Zografou Campus, Athens, Greece

Informatics and Telematics Dept., Harokopio University of Athens, Athens, Greece

Communications Engineering Department, University of Cantabria, Santander, Spain

Keywords: Internet of Things, Social Networking, Big Data Aggregation and Analysis, Smart City Applications,

Sentiment Analysis, Machine Learning.

Abstract: In this paper we present a SOA (Service Oriented Architecture)-based platform, enabling the retrieval and

analysis of big datasets stemming from social networking (SN) sites and Internet of Things (IoT) devices,

collected by smart city applications and socially-aware data aggregation services. A large set of city

applications in the areas of Participating Urbanism, Augmented Reality and Sound-Mapping throughout

participating cities is being applied, resulting into produced sets of millions of user-generated events and

online SN reports fed into the RADICAL platform. Moreover, we study the application of data analytics

such as sentiment analysis to the combined IoT and SN data saved into an SQL database, further

investigating algorithmic and configurations to minimize delays in dataset processing and results retrieval.

1 INTRODUCTION

Modern cities are increasingly turning towards ICT

technology for confronting pressures associated with

demographic changes, urbanization, climate change

(Romero Lankao, 2008) and globalization.

Therefore, most cities have undertaken significant

investments during the last decade in ICT

infrastructure including computers, broadband

connectivity and recently sensing infrastructures.

These infrastructures have empowered a number of

innovative services in areas such as participatory

sensing, urban logistics and ambient assisted living.

Such services have been extensively deployed in

several cities, thereby demonstrating the potential

benefits of ICT infrastructures for businesses and the

citizens themselves. During the last few years we

have also witnessed an explosion of sensor

deployments and social networking services, along

with the emergence of social networking (Conti et

al., 2011) and internet‐of‐things technologies (Perera

et al., 2013; Sundmaeker et al., 2010). Social and

sensor networks can be combined in order to offer a

variety of added‐value services for smart cities, as

has already been demonstrated by various early

internet‐of‐things applications (such as WikiCity

(Calabrese et al., 2007), CitySense (Murty et al.,

2007), GoogleLatitude (Page and Kobsa, 2010)), as

well as applications combining social and sensor

networks (as for example provided by (Breslin and

Decker, 2007; Breslin et al., 2009) and (Miluzzo et

al., 2007). Recently, the benefits of social

networking and internet‐of‐things deployments for

smart cities have also been demonstrated in the

context of a range of EC co‐funded projects

(Hernández-Muñoz et al., 2011; Sanchez, 2010).

Current Smart City Data Analysis implies a wide

set of activities aiming to turn into actionable data

the outcome of complex analytics processes. This

analysis comprises among others: i) analysis of

thousands of traffic, pollution, weather, waste,

energy and event sensory data to provide better

services to the citizens, ii) event and incident

analysis using near real-time data collected by

citizens and devices sensors, iii) turning social

media data related to city issues into event and

sentiment analysis , and many others. Combining

396

Psomakelis, E., Aisopos, F., Litke, A., Tserpes, K., Kardara, M. and Campo, P.

Big IoT and Social Networking Data for Smart Cities - Algorithmic Improvements on Big Data Analysis in the Context of RADICAL City Applications.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 396-405

ISBN: 978-989-758-182-3

data from physical (sensors/devices) and social

sources (social networks) can give more complete,

complementary data and contributes to better

analysis and insights. In overall, smart cities are

complex social systems and large scale data

analytics can contribute into their sustainability,

efficient operation and welfare of the citizens.

Motivated by the modern challenges in smart

cities, the RADICAL approach (RADICAL, 2016)

opens new horizons in the development, deployment

and operation of interoperable social networking and

Internet of Things services in smart cities, notably

services that could be flexibly and successfully

customized and replicated across multiple cities. Its

main goal is to provide the means for cities and

SMEs to rapidly develop, deploy, replicate, and

evaluate a diverse set of sustainable ICT services

that leverage established IoT and SN infrastructures.

Application services deployed and piloted involve: i)

Cycling Safety Improvement, ii) Products Carbon

Footprint Management, iii) Object‐driven Data

Journalism, iv) Participatory Urbanism, v)

Augmented Reality, vi) Eco‐ consciousness, vii)

Sound map of a city and viii) City-R-Us: a

crowdsourcing app for collecting movement

information using citizens smartphones.

The RADICAL platform is an open platform

having as added value the capability to easily

replicate the services in other smart cities, the ability

to co-design services with the involvement of cities'

Living Labs, and the use of added value services that

deal with the application development, the

sustainability analysis and the governance of the

services.

The RADICAL approach emphasizes on the

sustainability of the services deployed, targeting

both environmental sustainability and business

viability. Relevant indicators (e.g., CO2 emissions,

Citizens Satisfaction) are established and monitored

as part of the platform evaluation. End users

(citizens) in modern smart cities are increasingly

looking for media‐rich services offered under

different space, context, and situational conditions.

The active participation and interaction of citizens

can be a key enabler for successful and sustainable

service deployments in future cities. Social networks

hold the promise to boost such participation and

interaction, thereby boosting participatory connected

governance within the cities. However, in order to

enable smart cities get insight information on how

citizens think, act and talk about their city it is

important to understand their opinion and sentiment

polarity on issues related to their city context. This is

where sentiment analysis can play a significant role.

As social media data bring in significant Big Data

challenges (especially for unstructured data streams)

it will be important to find effective ways to analyse

sentimentally those data for extracting value

information and within specific time windows.

This paper has the following contributions:

 Innovative smart city infrastructure for

uniform social and IoT big data aggregation

and combination.

 Comperative study over Sentiment Analysis

techniques efficiency, to reduce record,

retrieval, update and processing time.

 A novel technique for n-grams storage and

frequency representation in the context of

big data Sentiment Analysis.

The rest of the paper is structured as follows:

Section 2 gives an overview of related and similar

works that can be found in the international

literature and in projects funded by the European

Commission. Section 3 presents the RADICAL

architecture and approach. Section 4 presents details

about the Sentiment Analysis problem and related

experiments, while in section 5 we provide the

future work to be planned in the context of

RADICAL and the conclusions we have come into.

2 RELATED WORK

Recently, various analytical services such as

sentiment analysis found their way into Internet of

Things (IoT) applications. With the devices that are

able to convey human messages over the internet

meeting an exponential growth, the challenge now

revolves around big data issues. Traditional

approaches do not cope with the requirements posed

from applications for analytics in e.g. high velocity

rates or data volumes. As a result, the integration of

IoT with social sensor data put common tasks like

feature extraction, algorithm training or model

updating to the test.

Most of the algorithms are memory-resident and

assume a small data size (He et al., 2010) and once

this threshold is exceeded, the algorithms’ accuracy

and performance degrades to the point they are

useless. Therefore even if we focused solely on

volume challenges, it is intuitively expected that the

accuracy of the supervised algorithms will be

affected. An attempt from (Liu et al., 2013) to use

Naïve Bayes in an increasingly large data volume,

showed that a rapid fall of the algorithms accuracy is

followed by a continuous, smooth increase

asymptotically tending from the lower end to the

baseline (best accuracy under normal data load).

Big IoT and Social Networking Data for Smart Cities - Algorithmic Improvements on Big Data Analysis in the Context of RADICAL City

Applications

397

Rather than testing the algorithm’s limitations,

most of the other approaches are focusing on

implementing parallel and distributed versions of the

algorithms such as (He et al., 2010; Read et al.,

2015). In fact most of them rely on the Map-Reduce

framework so as to achieve high throughput

classification (Amati et al., 2014; Sakaki et al.,

2013; Wang et al., 2012; Zhao et al., 2012) whereas

a number of toolkits have been presented with

implementations of distributed or parallel versions

of machine learning algorithms such as (“Apache

Mahout: Scalable machine learning and data

mining,”, “MEKA: A Multi-label Extension to

WEKA,”; Bifet et al., 2010). While these solutions

put most of the emphasis in the model and the

optimization of the classification task in terms of

accuracy and throughput, there is a rather small body

of research dealing with the problem of feature

extraction in high pace streams. The standard

solution that is considered is the use of a sliding

window and the application of standard feature

extraction techniques in this small set. In cases

where the stream’s distribution is variable, a sliding

window kappa-based measure has been proposed

(Bifet and Frank, 2010).

As reported in (Strohbach et al., 2015), another

domain of intense research in the area of scalable

analytics is for an architecture that combines both

batch and stream processing over social and IoT data

while at the same time considering a single model

for different types of documents (e.g. tweets Vs

blogposts). Sentiment analysis is a typical task that

requires batch modeling in order to generate the

golden standards for each of the classes. This

process is also the most computationally intense, as

the classification task itself is usually a CPU bound

task (i.e. run the classification function). In a data

streaming scenario the golden standards must be

updated in a batch mode, whereas the feature

extraction and classification must take place in real

time.

Perhaps the most prominent example of such an

architecture is the Lambda Architecture (Marz and

Warren, 2015) pattern which solves the problem of

computing arbitrary functions on arbitrary data in

realtime by combining a batch layer for processing

large scale historical data and a streaming layer for

processing items being retrieved in real time from an

input queue or analytics in e.g. high velocity rates or

data volumes. As a result, the integration of IoT with

social sensor data put common tasks like feature

extraction, algorithm training or model updating to

the test.

3 THE RADICAL APPROACH

The RADICAL platform integrates components and

tools from (SocIoS, 2013) and (SmartSantander,

2013) projects, in order to support innovative smart

city services, leveraging information stemming from

Social Networks (SN) and Internet of Things

devices. Using the aforementioned tools, it can

collect, combine, analyze, process, visualize and

provide uniform access to big datasets of Social

Network content (e.g. tweets) and Internet of Things

information (e.g. sensor measurements or citizen

smartphone reports).

The architecture of the RADICAL platform is

depicted in Figure 1. As can be observed, all IoT

data are pushed into the platform through the

respective Application Programming Interfaces (IoT

API and Repository API) and are forwarded to the

RADICAL Repository, comprised by a MySQL

database, formed based on the RADICAL Object

Model. The device-related data, as dictated by this

object model, are saved in the form of Observations

and Measurements. Observations correspond to

general IoT events reported (e.g. a sensor report or

bicycle "check-in" event), while Measurements to

more specific metrics included in an Observation

(e.g. Ozone measurements (mpcc) or bicycle current

speed (km/h)). On the other hand, SN data are

accessed in real time from the underlying SN

adaptors, by communicating with the respective

Networks’ APIs. In cases of Social Networks like

Foursquare that provide plain venues and statistics,

the adaptor-like data structures do not make sense,

thus relevant Social Enablers are used to retrieve

venue-related information data.

On top of the main platform, RADICAL

delivers a set of tools (Application Management

layer) that allow end users to make better use of the

RADICAL platform, such as configuring the

registered IoT devices or extracting general activity

statistics, through the RADICAL Configuration API.

Lastly, the RADICAL Data API allows smart city

services to access the different sources of

information (social networks, IoT infrastructures,

city applications), combine data and perform data

analysis by using the appropriate platform tools.

As can be seen in the Service Application Layer,

in the context of RADICAL a wide range of Smart

City services of various scopes has been developed:

 Citizen Journalism and Participatory

Urbanism: Those two interrelated services

allow citizens reporting events of interest in

the city, by posting images, text and metadata

through their smartphones.

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

398

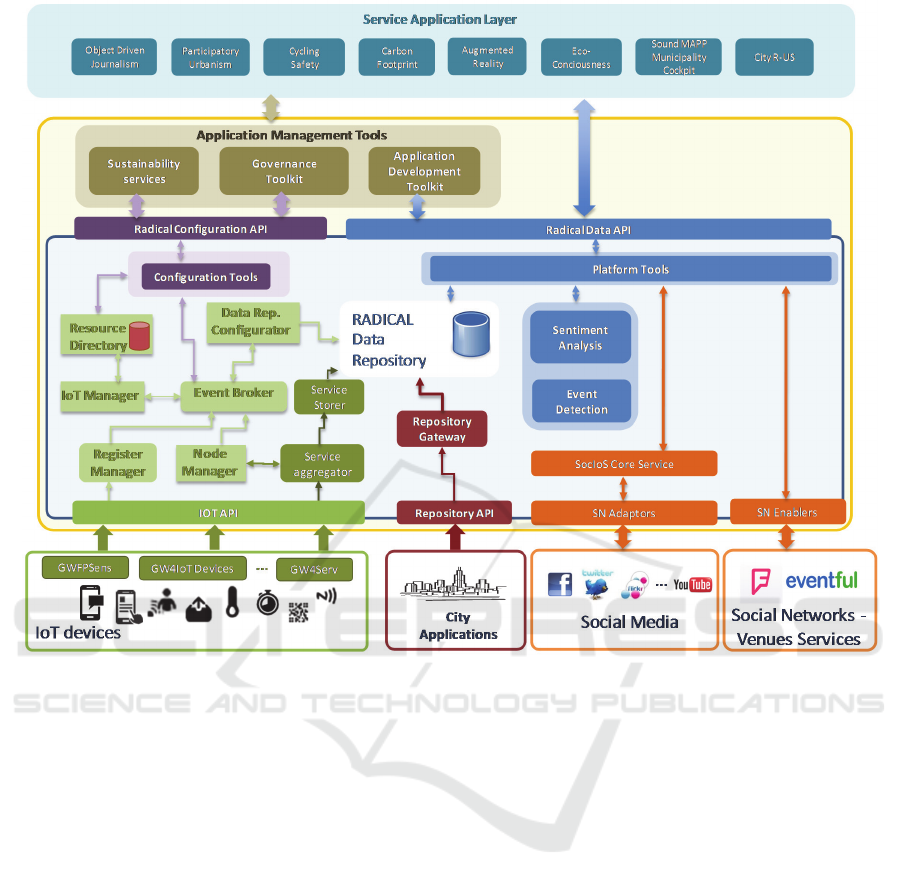

Figure 1: RADICAL Platform Architecture.

 Cycling Safety: Cyclists, acting as human

sensors can report the situation in the city

streets through their smartphones.

 Monitoring the Carbon Footprint of

Products, People and Services: By using a

range of sensors, the CO2 emissions in

specific places in a city may be monitored.

 Augmented Reality in Points of Interest

(POI): Tourists use their smartphones to

identify and receive information about points

of interest in a city.

 Propagation of Eco-consciousness:

Leverages on the viral effect in the

propagation of information in the social

networks as well as the recycling policy of a

city, through monitoring and reporting

relevant actions on citizens' smartphones.

 Social-orientated Urban Noise Decibel

Measurement Application: Noise sensors are

employed throughout the city and citizens are

able to report and comment noise-related

information through SNs under a hashtag.

 City Reporting Application for the use of

Urban Services: This service gathers sensory

data along with SN check-ins in city venues,

to construct a traffic map throughout the city,

leveraging the process load of anycentralized

decision making process.

The aforementioned services are piloted in six

European participating cities: Aarhus, Athens,

Genoa, Issy les Moulineaux, Santander and the

region of Cantabria. Figure 2 illustrates a screenshot

example of the RADICAL Cities' Dashboard, where

general statistics on device registration and activity

for a service throughout different cities in a specific

time period is provided. In overall, during the last

pilot iteration, RADICAL Repository had captured a

total of 5.636 active IoT devices sending 728.253

Observations and 5.461.776 Measurements.

Most of the services above depend on the

aggregation of those IoT data with social data

stemming from online Social Network sites. E.g. in

the Participatory Urbanism service, citizens' reports

sent through smartphones and saved in RADICAL

Repository are combined with relevant tweets (under

Big IoT and Social Networking Data for Smart Cities - Algorithmic Improvements on Big Data Analysis in the Context of RADICAL City

Applications

399

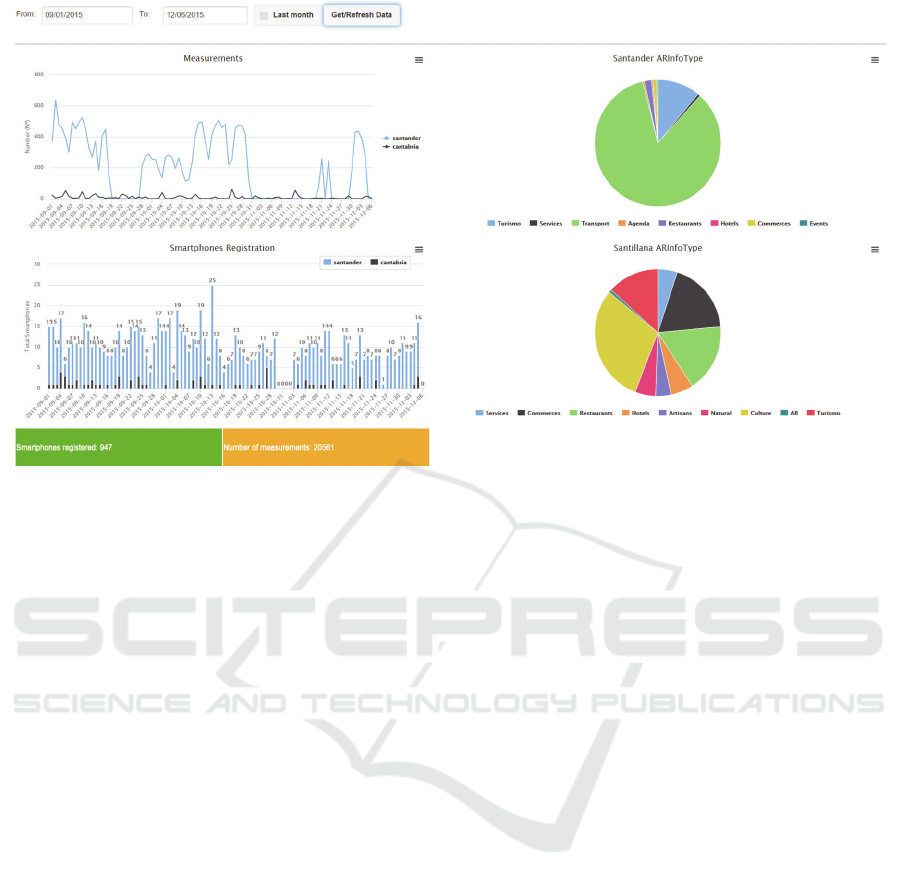

Figure 2: RADICAL Cities Dashboard presents smartphone registrations and measurements for the AR service in the cities

of Santander and Cantabria over a period.

that can be collected from similar SNs.

Thus, given the size of the datasets acquired by

smart city services, along with the rich social media

content that can be retrieved through the RADICAL

platform adaptors, big data aggregation and analysis

challenges arise. Data Analysis tools are the ones

that further process the data in order to provide

meaningful results to the end user, i.e. Event

Detection or Sentiment Analysis.

When it comes to Big Data, as in the RADICAL

case, where millions of user-reported events are

aggregated along with millions of SN posts and an

extraction of general results is required, the

challenge accrued is two-fold: First, the tool must

ensure the accuracy of the analysis, in the sense that

data classification is correct to a certain and

satisfactory extent, and second, processing time

must be kept under certain limits, so that results

retrieval process delay is tolerable by end-users.

Moreover, it is apparent in such analysis that a trade-

off between effectiveness and efficiency exists. The

latter is a most crucial issue in Big Data analysis and

apart from the policy followed in data querying (e.g.

for queries preformed in an SQL database), it is also

related to the algorithmic techniques employed for

analysing those datasets.

In the context of this work, we focus on the

Sentiment Analysis on the big IoT and SN related

datasets of RADICAL, as this was the most popular

functionality among participating cities and almost

all of the RADICAL Smart City services presented

above make use of it. The goal of the Sentiment

Analysis service is to extract sentiment expressive

patterns from user-generated content in social

networks or IoT-originated text posts. The service

comes to the aid of the RADICAL city

administrators, helping them to categorize polarized

posts, meaning sentimentally charged text, e.g.

analyse citizens’ posts to separate subjective from

objective opinions or count the overall positive and

negative feedback, concerning a specific topic or

event in the city.

4 SENTIMENT ANALYSIS

EXPERIMENTS AND

PERFORMANCE

IMPROVEMENT

4.1 Introduction

The term Sentiment Analysis refers to an automatic

classification problem. Its techniques are trying to

distinguish between sentences of natural language

conveying positive (e.g. happiness, pride, joy),

negative (e.g. anger, sadness, jealously) or even

neutral (no sentiment texts like statements, news,

reports)emotion (called sentiment for our purposes)

(Pang et al., 2002).

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

400

A human being is capable of understanding a

great variety of emotions from textual data. This

process of understanding is based on complicated

learning procedures that we all go through while

using our language as a means of communication, be

it actively or passively. It requires imagination and

subjectivity in order to fully understand the meaning

and hidden connections of each word in a sentence,

two things that machines lack.

The most common practice is to extract

numerical features out of the natural language

(Godbole et al., 2007). This process translates this

complex means of communication into something

the machine can process.

4.2 Natural Language Processing

In order to process the natural language data, the

computer has to take some pre-processing actions.

These actions include the cleansing of irrelevant,

erroneous or redundant data and the transformation

of the remaining data in a form more easily

processed.

Cleansing the data has become a subjective task,

depending on the purposes of each researcher and

the chosen machine learning algorithms. The

transformation of the sentences in another form now

is clearly studied and each approach has some

advantages and disadvantages. This paper will detail

three approaches, two widely used and one that had

some success in improving the accuracy of the

algorithms: the bag of word, N-Grams and N-Gram

Graphs (Aisopos et al., 2012; Fan and Khademi,

2014; Giannakopoulos et al., 2008; Pang and Lee,

2008).

The bag of words approach is perhaps the most

simple and common one. It regards each sentence as

a set of words, disregarding their grammatical

connections and neighbouring relations. It splits

each sentence based on the space character (in most

languages) and then forms a set of unrelated words

(a bag of words as it is commonly called). Then each

word in this bag can be disregarded or rated by a

numerical value, in order to create a set of numbers

instead of words.

The N-Grams are a bit more complex. They also

form a bag of words but now each sentence is split

into pseudo-words of equal length. A sliding

window of N characters is rolling on the sentence

creating this bag of pseudo-words. For example if

N=3 the sentence “This is a nice weather we have

today!” will be split in the bag {‘Thi’, ‘his’, ‘is ’, ‘s

i’, ‘ is’, ‘is ’, ‘s a’, ‘ a ’, ‘a n’, ‘ ni’, ‘nic’, ‘ice’, ‘ce ’,

‘e w’, ‘ we’, ‘wea’, ‘eat’, ‘ath’, ‘the’, ‘her’, ‘er ’, ‘r

w’, ‘ we’, ‘we ’, ‘e h’, ‘ ha’, ‘hav’, ‘ave’, ‘ve ’, ‘e t’,

‘ to’, ‘tod’, ‘oda’, ‘day’, ‘ay!’}.

This technique takes into regard the direct

neighbouring relations by creating a continuous

stream of words, it still ignores the indirect relations

between words and even the relations between the

produced N-Grams. Of course it is impossible to

have a predefined set of numerical ratings for each

one of these pseudo-words because each sentence

and each N number (which is defined arbitrarily by

the researcher) produces a different set of pseudo-

words (Psomakelis et al., 2014). So machine

learning is commonly used to replace these words

with numerical values and create sets of numbers

which can be aggregated to sentence level.

An improvement on that approach aims to take

into consideration the neighbouring relations

between the produced N-Grams. This approach is

called N-Gram Graphs and its main concept is to

create a graph connecting each N-Gram with its

neighbours in the original sentence. So each node in

this graph is an N-Gram and each edge is a

neighbouring relation (Giannakopoulos et al., 2008).

This approach gives a variety of new information to

the researchers and to the machine learning

algorithms, including information about the context

of words, making it a clear improvement of the

simple N-Grams (Aisopos et al., 2012). The only

drawbacks are the complexity it adds to the process

and the difficulties of storing, accessing and

updating a graph of textual data.

4.3 Dataset Improvements

At the core of sentiment analysis is its dataset. We

are gathering and employing bigger and bigger

datasets in order to better train the algorithms to

distinguish what is positive and what is negative.

Classic storage techniques are proving more and

more cumbersome for large datasets. ArrayLists and

most Collections are adding a big overhead to the

data so they are not only enlarging the space

requirements for its storage but they are also

delaying the analysis process. So new techniques for

data storage and retrieval are needed, techniques that

will enable us to store even bigger datasets and

access them with even smaller delays.

The most commonly used such technique is the

Hash List (Fan and Khademi, 2014), which first

hashes the data in a certain, predefined amount of

buckets and then creates a List in each bucket to

resolve any collisions. This method’s performance is

heavily dependent on the quality of the hash

function and its ability to equally split the data into

Big IoT and Social Networking Data for Smart Cities - Algorithmic Improvements on Big Data Analysis in the Context of RADICAL City

Applications

401

the buckets. The target is to have as small lists as

possible. That is the case because finding the right

bucket for a certain piece of data is done in O(1)

time but looking through the List in that bucket for

the correct spot to store the piece of data is done in

O(n) time where n is the number of data pieces in

the List.

Moreover, in Java which is the programming

language that we are using, each List is an object

containing one object for each data piece. All these

objects create an overhead that is not to be ignored.

In detail the estimated size that a hash list will

occupy is calculated as:

12



BE



∗12 



E∗4



U∗



N∗272





Equation 1: Size estimation of Hash List where N=NGram

Length, U=Unique NGrams, B=Bucket Size, E=Empty

Buckets.

The constant values in Equations 1 and 2 are the

approximated sizes of the used objects in bytes. The

exact sizes depend on the java virtual machine used

so they cannot be pre-calculated. The worst case for

storage but best for access time is when almost each

data piece has its own bucket. In this case, if S is the

number of samples, for N=5, S=11881376, U=S,

B=(26^N)*2, E=11914220, we have a storage size

of 1110 MB. The best case for storage but worse for

access time is when all data pieces are in a small

number of buckets, in big lists. In this case for N=5,

S=11881376, U=1, B=(26^N)/2, E=200610 we have

a storage size of 23 MB. In an average case of N=5,

S=11881376, U=7510766, B=26^N, E=2679046 we

have 682 MB of storage space needed. The sample

for the above examples was the complete range of 5-

Grams for the 26 lowercase English characters

which are 26^5 = 11881376.

Our proposed technique now, the one that we

call Dimensional Mapping, has a standard storage

space, depending only on the length of the N-Grams.

The idea is to store only the weight of each N-Gram

with the N-Gram itself being the pointer to where it

is stored. That is achieved by creating an N-

dimensional array of integers where each character

of the N-Gram is used as an index. So, in order to

access the weight of the 5-Gram ‘fdsgh’ in the table

DM we would just read the value in cell

DM[‘f’][‘d’][‘s’][‘g’][‘h’]. A very simple mapping

is used between a character and an integer: after a

very strict cleansing process where we convert all

characters in lowercase and discard all characters but

the 26 in the English alphabet, we are just

subtracting the ASCII value of ‘a’. Due to the serial

nature of the characters that gives us an integer

between 0 and 26 that we can use as an index. A

more complex mapping can be used in order to

include more characters or even punctuation that we

now ignore.

The Dimensional Mapping has a standard storage

size requirement, dependent only on the length of

the N-Grams as we mentioned before. The size it

occupies can be estimated by the following formula:







∗4







∗12





Equation 2: Dimensional Mapping size estimation with N

being the length of N-Grams.

This may seem large but for the 5-Grams the

estimated size is just 51 MB. Compared to the worst

case of Hash Lists (1110 MB) or even the average

case (682 MB) it seems like a huge improvement.

This is caused due to the fact that the

multidimensional array stores primitive values and

not objects, which reduces the overhead greatly.

Moreover, we can now say that accessing and

updating a certain data piece can be done in O(1)

time with absolute certainty, with no dependency on

the data itself or a hash function. This had

significant results in speeding up the execution times

of the analysis, enabling us to look into streaming

data and semi-supervised machine learning

algorithms.

4.4 Results

We measured three main KPIs for the result

comparison. Two of them (success ratio, kappa

variable) were measuring the success ratio of

classification and one (execution time) the

algorithmic improvement. We present them below.

We run experiments on 5-Grams stored in classic

ArrayList format, in Hash Lists and in Dimensional

Mapping. After storing the N-Grams in these

formats we applied a 10-fold cross validation on

each one of the seven machine learning algorithms

we chose: Naïve Bayesian Networks, C4.5, Support

Vector Machines, Logistic Regression, Multilayer

Perceptrons, Best-First Trees and Functional Trees.

Then we recorded the three KPIs for each one of

these 21 experiments. The results for the first two

KPIs are shown in Figure 3. In the same chart we

have included the KPIs for a threshold based

classification, using an arbitrarily set threshold.

In Figure 3 we can see five sets of columns

forming. The first one, titled Kappa, shows us the

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

402

Figure 3: A comparison of the three KPIs as shown in the sentiment analysis experiments.

kappa variable for each algorithm tested. The

second, third and fourth show us the success rates in

positive, neutral and negative tweets respectively for

each algorithm tested. The final set shows us the

overall success rate achieved by each algorithm. As

of the execution times the following table (Table 1)

contains a summary of the results. We can see the

execution times in seconds of each algorithm tested

using the same machine and dataset with the only

difference being the method of storing the N-grams

to memory. The first column shows us the results of

the traditional ArrayList storing, the second column

shows us the more advanced Hash Lists and the third

one shows us the results of Dimensional Mapping.

Table 1: Execution time in seconds summary - comparing

for the various algorithms and techniques.

ArrayLists Hash

List

Dimensional

Mapping

Thresholds

1691 5 4

Naïve Bayes

12302 7 7

C4.5

21535 9 8

SVM

20662 147 177

Logistic

Regression

22251 9 11

MLP

21224 41 48

BFTree

23319 25 19

FTree

22539 16 16

Big IoT and Social Networking Data for Smart Cities - Algorithmic Improvements on Big Data Analysis in the Context of RADICAL City

Applications

403

5 CONCLUSIONS

RADICAL platform, as presented in the current

work, successfully combines citizens' posts retrieved

through smartphone applications and Social

Networks in the context of smart city applications, to

produce a testbed for applying multiple analysis

functionalities and techniques. The exploitation of

resulting big aggregated datasets pose multiple

challenges, with timely-efficient analysis being the

most important. Focusing on data storage and

representation, multiple techniques were examined

in the experiments performed, in order to come up

with the optimal algorithmic approach of

Dimensional Mapping. In the future the authors plan

to use even larger and more complex datasets,

further leveraging on the effectiveness of these

social networking services.

ACKNOWNLEDGEMENTS

This work has been supported by RADICAL and

Consensus projects and has been funded by the

European Commission's Competitiveness and

Innovation Framework Programme under grant

agreements no 325138 and 611688 respectively.

REFERENCES

Aisopos, F., 0001, G.P., Tserpes, K., Varvarigou, T.A.,

2012. Content vs. context for sentiment analysis: a

comparative analysis over microblogs., in: Munson,

E.V., Strohmaier, M. (Eds.), HT. ACM, pp. 187–196.

Amati, G., Angelini, S., Bianchi, M., Costantini, L.,

Marcone, G., 2014. A scalable approach to near real-

time sentiment analysis on social networks. Inf. Filter.

Retr. 12.

Apache Mahout: Scalable machine learning and data

mining [WWW Document], n.d. URL

http://mahout.apache.org/ (accessed 4.8.15).

Bifet, A., Frank, E., 2010. Sentiment Knowledge

Discovery in Twitter Streaming Data, in: Proceedings

of the 13th International Conference on Discovery

Science, DS’10. Springer-Verlag, Berlin, Heidelberg,

pp. 1–15.

Bifet, A., Holmes, G., Kirkby, R., Pfahringer, B., 2010.

MOA: Massive Online Analysis. J. Mach. Learn. Res.

11, 1601–1604.

Breslin, J., Decker, S., 2007. The Future of Social

Networks on the Internet: The Need for Semantics.

IEEE Internet Comput. 11, 86–90.

doi:10.1109/MIC.2007.138.

Breslin, J.G., Decker, S., Hauswirth, M., Hynes, G.,

Phuoc, D.L., Passant, A., Polleres, A., Rabsch, C.,

Reynolds, V., 2009. Integrating Social Networks and

Sensor Networks, in: Proceedings on the W3C

Workshop on the Future of Social Networking.

Calabrese, F., Kloeckl, K., Ratti, C., 2007. Wikicity: Real-

time location-sensitive tools for the city IEEE

Pervasive Computing, 390–413.

Conti, M., Passarella, A., Pezzoni, F., 2011. A model for

the generation of social network graphs., in:

WOWMOM. IEEE Computer Society, pp. 1–6.

Fan, M., Khademi, M., 2014. Predicting a Business Star in

Yelp from Its Reviews Text Alone. CoRR

abs/1401.0864.

Giannakopoulos, G., Karkaletsis, V., Vouros, G.A.,

Stamatopoulos, P., 2008. Summarization system

evaluation revisited: N-gram graphs. TSLP 5.

Godbole, N., Srinivasaiah, M., Skiena, S., 2007. Large-

Scale Sentiment Analysis for News and Blogs, in:

Proceedings of the International Conference on

Weblogs and Social Media (ICWSM).

GrowSmarter, 2016. Grow Smarter project [WWW

Document]. URL http://www.grow-smarter.eu/home/

Gubbi, J., Buyya, R., Marusic, S., Palaniswami, M., 2012.

Internet of Things (IoT): A Vision, Architectural

Elements, and Future Directions. CoRR

abs/1207.0203.

He, Q., Zhuang, F., Li, J., Shi, Z., 2010. Parallel

Implementation of Classification Algorithms Based on

MapReduce, in: Yu, J., Greco, S., Lingras, P., Wang,

G., Skowron, A. (Eds.), Rough Set and Knowledge

Technology, Lecture Notes in Computer Science.

Springer Berlin Heidelberg, pp. 655–662.

Hernández-Muñoz, J.M., Vercher, J.B., Muñoz, L.,

Galache, J.A., Presser, M., Gómez, L.A.H., Pettersson,

J., 2011. Smart Cities at the Forefront of the Future

Internet., in: Domingue, J., Galis, A., Gavras, A.,

Zahariadis, T.B., Lambert, D., Cleary, F., Daras, P.,

Krco, S., Müller, H., Li, M.-S., Schaffers, H., Lotz, V.,

Alvarez, F., Stiller, B., Karnouskos, S., Avessta, S.,

Nilsson, M. (Eds.), Future Internet Assembly, Lecture

Notes in Computer Science. Springer, pp. 447–462.

Liu, B., Blasch, E., Chen, Y., Shen, D., Chen, G., 2013.

Scalable sentiment classification for Big Data analysis

using Na #x00EF;ve Bayes Classifier, in: Big Data,

2013 IEEE International Conference on. pp. 99–104.

doi:10.1109/BigData.2013.6691740.

Marz, N., Warren, J., 2015. Big Data: Principles and best

practices of scalable realtime data systems, 1 edition.

ed. Manning Publications, Westampton.

MEKA: A Multi-label Extension to WEKA [WWW

Document], n.d. URL http://meka.sourceforge.net/

(accessed 3.27.15).

Miluzzo, E., Lane, N.D., Eisenman, S.B., Campbell, A.T.,

2007. CenceMe - Injecting Sensing Presence into

Social Networking Applications., in: Kortuem, G.,

Finney, J., Lea, R., Sundramoorthy, V. (Eds.),

EuroSSC, Lecture Notes in Computer Science.

Springer, pp. 1–28.

Murty, R., Gosain, A., Tierney, M., Brody, A., Fahad, A.,

Bers, J., Welsh, M., 2007. Harvard University

Technical Report. TR1307.

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

404

Page, X.W., Kobsa, A., 2010. Navigating the social terrain

with google latitude. iConference Urbana

Champaign, p.174178.

Pang, B., Lee, L., 2008. Opinion mining and sentiment

analysis. Found. Trends Inf. Retr. 2, 1–135.

Pang, B., Lee, L., Vaithyanathan, S., 2002. Thumbs up?

Sentiment Classification Using Machine Learning

Techniques, in: emnlp2002. Philadelphia,

Pennsylvania, pp. 79–86.

Perera, C., Zaslavsky, A.B., Christen, P., Georgakopoulos,

D., 2013. Sensing as a Service Model for Smart Cities

Supported by Internet of Things. CoRR

abs/1307.8198.

Psomakelis, E., Tserpes, K., Anagnostopoulos, D.,

Theodora, V., 2014. Comparing Methods for Twitter

Sentiment Analysis. Proc. 6th Int. Conf. Knowl.

Discov. Inf. Retr. - KDIR 2014 225–232.

RADICAL, 2016. Rapid Deployment for Intelligent Cities

and Living, FP7 EU funded Research project [WWW

Document]. URL http://www.radical-project.eu.

Read, J., Martino, L., Olmos, P.M., Luengo, D., 2015.

Scalable multi-output label prediction: From classifier

chains to classifier trellises. Pattern Recognit. 48,

2096–2109. doi:10.1016/j.patcog.2015.01.004.

Romero Lankao, P., 2008. Urban areas and climate

change: Review of current issues and trends. Issues

Pap. 2011 Glob. Rep. Hum. Settl.

Sakaki, T., Okazaki, M., Matsuo, Y., 2013. Tweet analysis

for real-time event detection and earthquake reporting

system development. Knowl. Data Eng. IEEE Trans.

On 25, 919–931.

Sanchez, L., 2010. SmartSantander: Experimenting The

Future Internet in the City of the Future. Presented at

the PIMRC2010, Istanbul, Turkey.

SmartSantander, 2013. SmartSantander, FP7 EU funded

Research project [WWW Document]. URL

http://www.smartsantander.eu/

SocIoS, 2013. Exploiting Social Networks for Building

the Future Internet of Services, FP7 EU funded

Research project [WWW Document]. URL

http://www.sociosproject.eu/

Strohbach, M., Ziekow, H., Gazis, V., Akiva, N., 2015.

Towards a big data analytics framework for IoT and

smart city applications, in: Modeling and Processing

for Next-Generation Big-Data Technologies. Springer,

pp. 257–282.

Sundmaeker, H., Guillemin, P., Friess, P., Woelfflé, S.

(Eds.), 2010. Vision and Challenges for Realising the

Internet of Things. Publications Office of the

European Union, Luxembourg.

Wang, H., Can, D., Kazemzadeh, A., Bar, F., Narayanan,

S., 2012. A System for Real-time Twitter Sentiment

Analysis of 2012 U.S. Presidential Election Cycle., in:

ACL (System Demonstrations). The Association for

Computer Linguistics, pp. 115–120.

Zhao, J., Dong, L., Wu, J., Xu, K., 2012. MoodLens: an

emoticon-based sentiment analysis system for chinese

tweets., in: 0001, Q.Y., Agarwal, D., Pei, J. (Eds.),

KDD. ACM, pp. 1528–1531.

Big IoT and Social Networking Data for Smart Cities - Algorithmic Improvements on Big Data Analysis in the Context of RADICAL City

Applications

405
