PaaS-CEP

A Query Language for Complex Event Processing and Databases

Ricardo Jiménez-Peris

, ValerioVianello

and Marta Patiño-Martinez

LeanXcale, Madrid, Spain

Universidad Politécnica de Madrid, Madrid, Spain

Keywords: CEP, DBMS, SQL.

Abstract: Nowadays many applications must process events at a very high rate. These events are processed on the fly,

without being stored. Complex Event Processing technology (CEP) is used to implement such applications.

Some of the CEP systems, like Apache Storm the most popular CEPs, lack a query language and operators

to program queries as done in traditional relational databases. This paper presents PaaS-CEP, a CEP

language that provides a SQL-like language to program queries for CEP and its integration with data stores

(database or key-value store). Our current implementation is done on top of Apache Storm however, the

CEP language can be used with any CEP. The paper describes the architecture of the PaaS-CEP, its query

language and the algebraic operators. The paper also details the integration of the CEP with traditional data

stores that allows the correlation of live streaming data with the stored data.

1 INTRODUCTION

Nowadays, enterprises face the problem of

processing large amount of unstructured data almost

in real time. Complex event processing is an

emerging technology that has the potential to

process huge amounts of data in real time. In the last

decade several implementations of CEP came out on

the market from both academia and industry

(Borealis, 2007), (Flink, 2015), (Spark, 2016).

Among those, Apache Storm (Storm, 2015) is

considered state of the art in distributed complex

event processing. Storm is a distributed, reliable and

fault-tolerant computation system currently released

as an open source project by the Apache foundation.

Storm is a distributed stream processing engine that

can process on-the-fly data coming from different

data sources to produce new streams of data as

output. However, Storm does not provide a language

for describing queries and operators on the streams.

Everything is done programmatically. This approach

although flexible, it is error prone and time

consuming. More over, the integration of the CEP

with data stores (relational databases or key-value

data stores) is not fully addressed by CEP systems.

This paper presents the complex event processing

language available in the CoherentPaaS suite

(CoherentPaaS, 2013) used in other settings like the

LeanBigData project (LeanBigData, 2014). Paas-

CEP language provides:

• A query language for the creation of CEP

queries.

• A set of algebraic operators.

• Integration with external data stores.

• Pluggable CEP language for any CEP.

The current implementation of PaaS-CEP is

based on Storm although, other CEPs can be

plugged-in PaaS-CEP.

The rest of the paper presents the architecture of

PaaS-CEP (Section 2), then the algebraic operators

are presented in Section 3. Section 4 is devoted to

the interaction with data stores. Section 5 presents

the query language and query compiler. Section 6

concludes the paper.

2 ARCHITECTURE

PaaS-CEP is a parallel-distributed engine able to read

and write raw data from/to external data stores and to

materialize the results of continuous queries in such

data stores. One of the main issues in the integration

of the CEP with external data stores is the impedance

mismatch between CEP queries that are continuous

and SQL queries that are point-in-time. A CEP query

is deployed and then, it is delivering results

continuously till it is decommissioned. However, a

406

Jiménez-Peris, R., Vianello, V. and Patiño-Martinez, M.

PaaS-CEP - A Query Language for Complex Event Processing and Databases.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 406-411

ISBN: 978-989-758-182-3

SQL query is a point-in-time query that processes

existing data and delivers the result.

In order to solve this impedance mismatch

PaaS-CEP integrates two new mechanisms. The first

one enables CEP queries to correlate events in real-

time with data stored in external data stores, for

example to enrich the event with stored information,

or to check whether there is related information in a

data store or for storing some events. That is, the

output of a CEP query can be used by the data stores

queries. For this to happen, it materialization

operators are needed. These operators can store the

output of a CEP query in external data store.

Furthermore, in order to ease the use of the CEP,

PaaS-CEP also offers a SQL-like language to

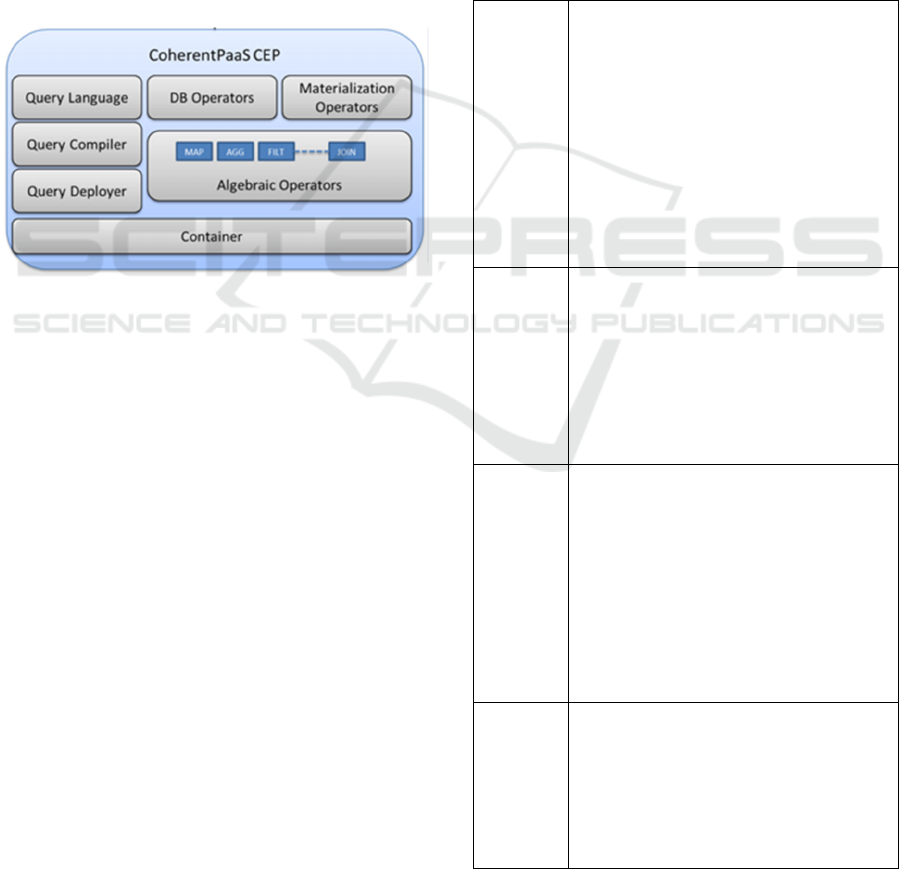

formulate CEP query. Figure 1 shows the main

components of PaaS-CEP using a block diagram.

Figure 1: PaaS-CEP components.

The query language, together with the query

compiler and deployer, allows programmers to

define a query in a SQL-like language, translate it

into the corresponding CEP query and deploy the

resulting query in the container. The container can

be any CEP, in this case we are using Storm

although other CEPs can be used. Operators are the

building blocks of the CEP continuous queries and

they are classified in three main categories:

• CEP algebraic operators. They provide the

basis for supporting CEP queries.

• CEP database operators. They enable to

correlate events with information stored in

external data stores.

• CEP materialization operators. They allow

storing the output of CEP queries in external

data stores.

3 ALGEBRAIC OPERATORS

CEP continuous queries are modelled as an acyclic

graph where the nodes are streaming operators and

arrows are streams of events. Streaming operators

are computational boxes that process events received

over the incoming stream and produce output events

on the outgoing streams. Algebraic operators can be

either stateless or stateful, depending on whether

they operate on the current event (tuple) or on a set

of events (window).

Stateless operators process incoming events one

by one. The output of these operators, if any, only

depends on the last received event. Stateless operators

provide basic processing functionalities such as

filtering and projection transformations. The stateless

operators in PaaS-CEP are: map, filter, multi-filter

and union. Their definition is presented in Table 1.

Table 1: Stateless operators.

Map

it is a generalized projection operator

defined as:

Map(S) = { A’

= f

(t), A’

= f

(t), . . . , A’

= f

(t) , O}

It requires one input stream and one output

stream. The schema of these two streams

may be different. The map operator

transforms each tuple t on the input stream

S by applying a boolean and/or arithmetic

expression (f

). The resulting tuple has

attributes A’

, . . . , A’

where, A’

= f

(t),

and is sent through the output stream O.

Filter

it is a selection operator defined as:

Filter(S) = {(P(t)

, O

)}

The filter operator requires one input stream

and one output stream with the same

schema. It verifies the match of tuples t on

the input stream S with the user defined

predicate P. When P(t) is satisfied the tuple

is emitted on the output stream O.

MultiFilter

it is a selection and semantic routing

operator defined as:

MultiFilter(S) = {( P

(t)

, O

), ( P

(t)

, O

. . . , ( P

(t)

, O

)}

The multiFilter operator requires one input

stream and at least one output stream, all

with the same schema. The multiFilter

emits a tuple t

on all the output streams O

for which the user defined predicate, P

(t) is

satisfied.

Union it is a merger operator defined as:

Union(S

, S

, . . ., S

){O}

The union operator requires at least one

input stream and only one output stream, all

with the same schema. It is used to merge

different input streams S

with the same

schema into one output stream O.

PaaS-CEP - A Query Language for Complex Event Processing and Databases

407

Stateful operators perform operations over a set

of incoming events called sliding window. A sliding

window is a volatile memory data structure. PaaS-

CEP defines three types of sliding windows:

• Tuple-based window: it stores up to n tuples.

• Time-based window: it stores the tuples

received in the last t seconds.

• Batch-based window: it stores all the tuples

received between a start and stop conditions.

Tuple and time based windows must be

configured with the size and advance parameters.

The size parameter defines the capacity of the

window (number of events/time in seconds) and the

advance parameter defines which events must be

removed from the window when the window is full.

Two statefull operators are defined in PaaS-CEP :

aggregate and join. Table 2 presents the definition

of these operators.

Table 2: Stateful operators.

Aggregate It computes aggregate functions (e.g.,

sum, average, min, count, ...) on a

window of events. It is defined as:

Aggregate(S) = { A’

= f

,W), . . . , A’

,W) , s, adv, t, Group-by(A

, . . . , A

)

The aggregate operator accepts only one

input stream and defines one output

stream. It supports both time based sliding

windows and tuple based sliding

windows. Parameters s, adv and t define

the size, the advance and the type of the

sliding window. The Group-by parameter

indicates how to cluster the input events;

that is, the operator keeps a separate

window for each of cluster defined by the

attributes (A

, . . . , A

). Any time a new

event t

arrives on the input stream and the

sliding window of the corresponding

cluster is full, the set of aggregate

functions {f

}

i1≤i≤n

are computed over the

events in that sliding window W. The

resulting tuple with attributes A’

, . . . ,

A’

where, A’

= f

,W), is inserted in the

output stream O. Finally, after producing

the output tuple, all the windows are slid

according with the advance adv

parameter.

Join It joins events coming from two input

streams. It is defined as:

Join(S

) = {A’

= f

),.. , A’

, W

) , P, w

, w

, Group-by(A

, ..,

)

The join operator accepts two input

streams and define one output stream. S

identifies the left input stream and S

identifies the right input stream. P is a

user defined predicate over pairs of events

and t

belonging to input streams S

and

, respectively; w

and w

define the size

and the advance of the left and right

sliding windows while de group-by

defines the clustering as in the aggregate

operator. In order to be deterministic the

join operator only supports time based

sliding windows. In the following we

consider the simplified situation where the

group-by parameter is empty and there is

only one sliding window per stream. For

each event t

received on the input stream

(respectively t

from stream S

) the

concatenation of events t

is emitted on

the output stream O, if these conditions

are satisfied:

(1) t

is a tuple currently stored in W

(respectively in W

)

(2) P is satisfied for the pair t

and t

(respectively t

and t

)

The attributes A’

, . . . , A’

of tuples that

are indeed inserted in the output stream O

are a subset of the concatenation of events

where, A’

= f

). After that all

the output tuples triggered by the tuple t

(respectively t

) received on the input are

produced, the sliding window W

(respectively in W

) is slid according with

the advance parameter.

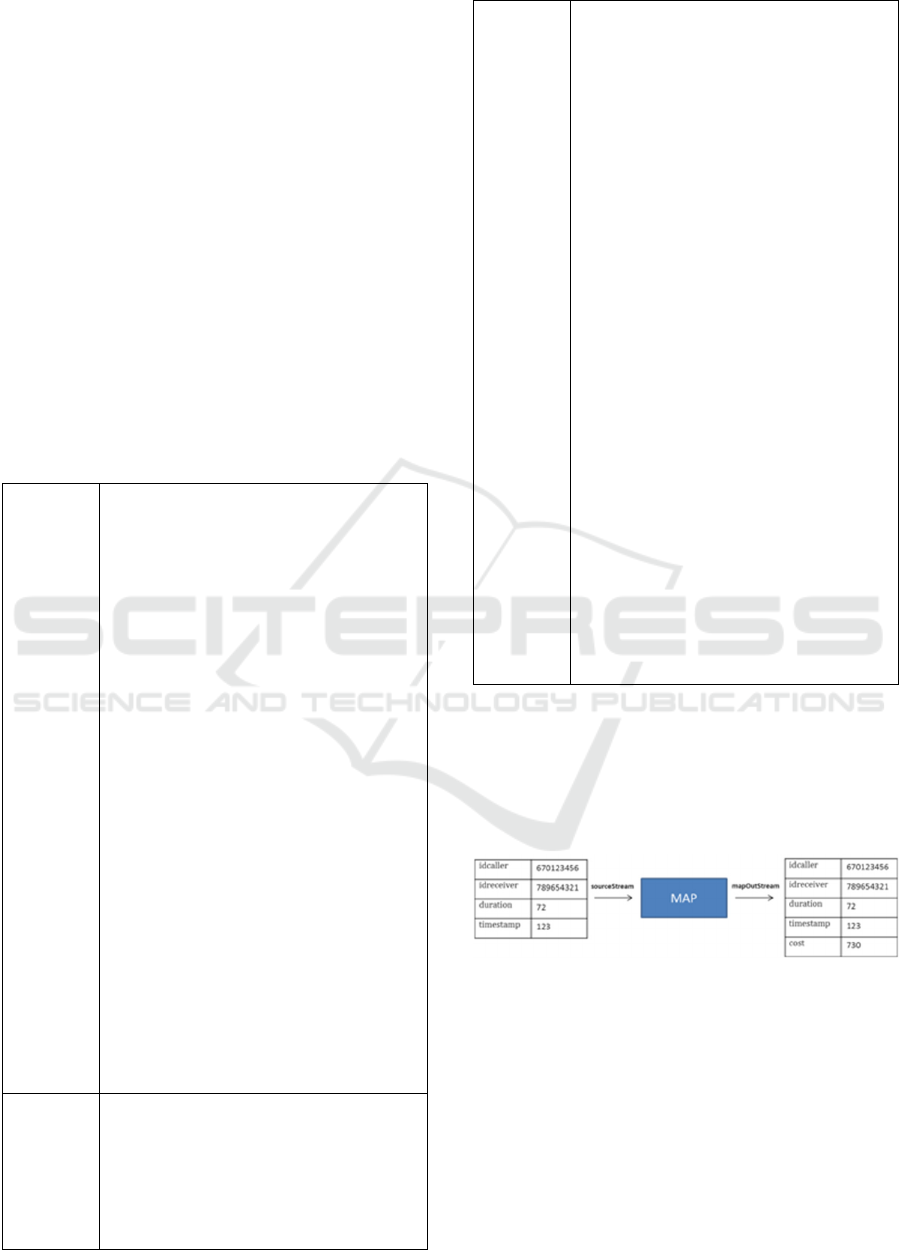

Figure 2 shows an example of the Map operator.

In the example the Map is used to transform the input

tuples, with the schema [idcaller, idreceiver, duration,

timestamp] representing a simplified Call Description

Record (CDR) by adding a new field cost evaluated

with the expression cost=duration*10 + 10

Figure 2: Example of Map operator.

4 CEP INTEGRATION WITH

DATA STORES

CEP systems, since are in-memory processing

systems, do not have the notion of transactions.

Additionally, tuples are handled fully independently

which makes difficult to define the notion of a

transaction. However, CEP queries need many times

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

408

to access transactional data stores for correlating the

incoming data with the stored data. Relational

databases provide to ways to interact with them: the

so called auto-commit mode, where each SAL

sentence executed on the database is a transaction, or

bracketing mode, where a set of sentences is

executed as a transaction. In this paper we only

address the auto-commit mode and define operators

for accessing a data store in that mode.

4.1 Database Operators

Data store operators provide the CEP with the

capability of reading and writing tuples from/to an

external data store. PaaS-CEP accesses the data

stores using operators that issue queries written in

SQL. Operators that access the data stores must be

able to retrieve data at high rates in order to correlate

stored data with the large amount of events produced

by the CEP. At the same time the data stores must be

able to store the results produced by the CEP at very

high rates. The available data store operators are

described in Table 3.

Table 3: Data store operators.

ReadSQL The ReadSQL operator requires one

input stream, S, and one output stream.

The schema of these two streams may

be different. The operator is

configured with a parameterized query

to be run against a data store. The

parameterized query must be a

SELECT statement. For each tuple, t,

received on the input stream, S, the

operator replaces the parameters in the

query with the values read from the

corresponding fields in the input tuple

t and then, it executes the query. The

operator produces as many tuples on

the output stream as tuples has the

result set of the query executed on the

data store. Each output tuple is created

either using fields of the incoming

tuple, t, or fields of the result set row

or a combination of them.

UpdateSQL The UpdateSQL operator is in charge

of storing results of the CEP query in a

data store. It requires one input and

one output stream. The schema of

these two streams may be different.

This operator is also configured with a

parameterized query that must be an

update statement, that is, it modifies,

inserts or deletes data in the data store.

For each tuple, t, received on the input

stream S, the UpdateSQL operator

replaces the parameters in the query

with the values from the corresponding

fields in the input tuple and then, it

executes the query updating the data

store. The UpdateSQL operator creates

one output tuple for each input tuple.

The output tuple can be either a copy

of the input tuple or the number of

modified rows in the data store or a

concatenation of the two.

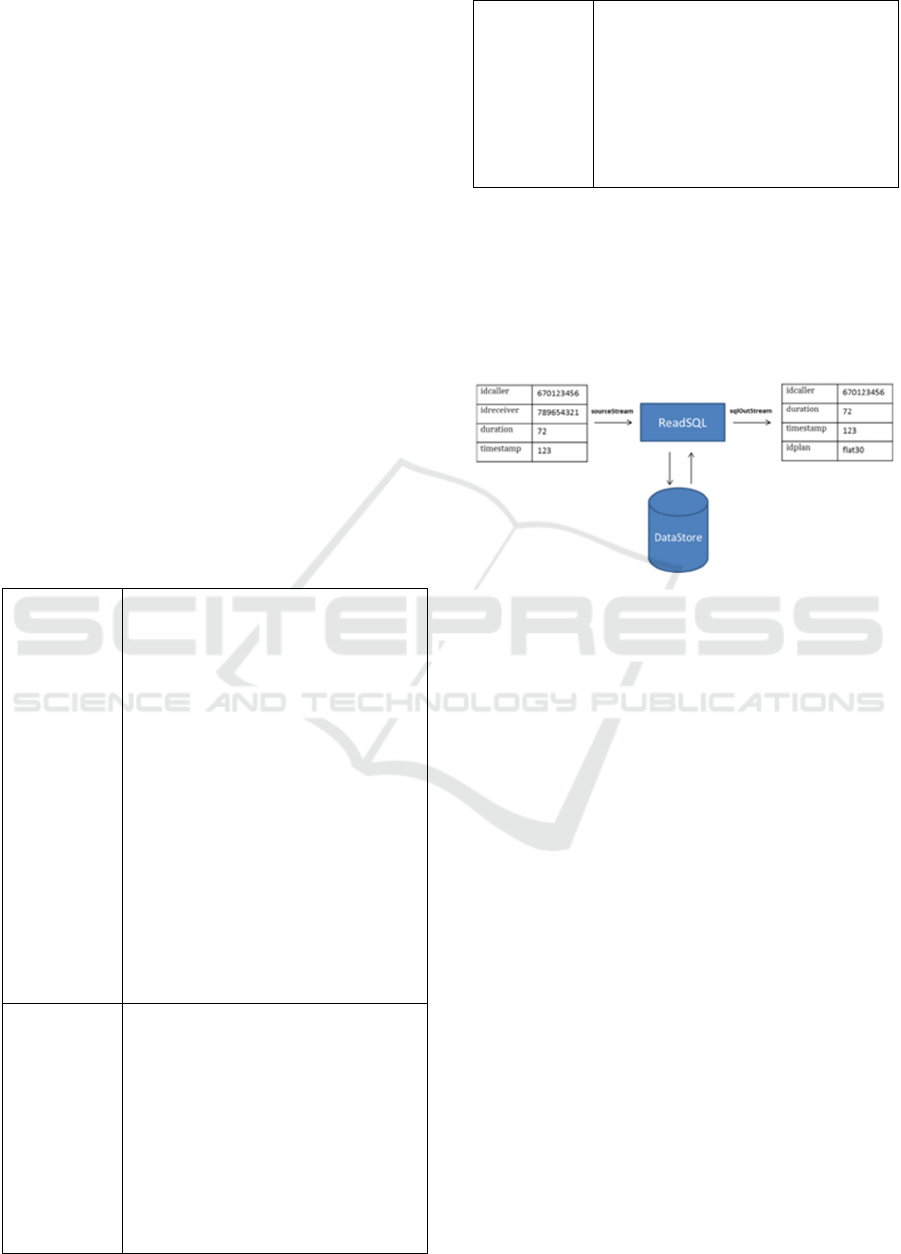

Figure 3 shows an example of the ReadSQL

operator. The operator receives CDRs and fetches

from an external data store the monthly plan (idplan)

of the user making the phone call. The output tuple

is composed by the fields idcaller, duration and

timestamp of the input tuple plus the idplan field

read from the data store.

Figure 3: Example of ReadSQL operator.

5 QUERY LANGUAGE

Programmers can use the operators to generate

continuous queries however, most programmers are

familiar with SQL language. Our proposal is to

provide CEPs with a SQL-like language to ease the

programmer task. PaaS-CEP Query Language (CPL)

is defined as a subset of the traditional SQL

language where tables are replaced by continuous

streams.

It allows to feed and filter events from one

stream to another one, to aggregate information of a

stream, to join or merge events from different

streams. The query language is similar to the one of

Esper (Esper, 2006) however, Esper is a centralized

CEP while our approach is generic and can be

plugged into any available CEP, and targets

distributed CEP.

CPL queries always start with the declaration of

streams and windows structures followed by the

definition of one or more statements over these

streams and windows. Each statement requires at

least one input and one output stream. Input streams

must be defined either before any statements or as

output stream of previous statements. Streams can

PaaS-CEP - A Query Language for Complex Event Processing and Databases

409

be defined at the beginning of a CPL query using the

CREATE STREAMSCHEMA clause and they can

have an arbitrary number of fields:

CREATE STREAMSCHEMA s1 WITH fieldname

fieldType [, fieldname fieldType] [, …. ]

FieldTypes can be chosen among several

common types such as boolean, integer, double,

char, varchar, etc. Each statement must include the

three mandatory clauses INSERT INTO, SELECT

and FROM. INSERT INTO is used to name the

output stream of a statement:

INSERT INTO streamName

streamName is the name to give to the output

stream and it can be any literal string. The FROM

clause specifies the source streams for a statement

and its syntax is:

FROM streamName [, streamName] [, …]

streamName is the name of the input stream of

the statement. The number of parameters in a FROM

clause depends on the number of input streams of

the statement. If the statement is doing a projection,

transformation or aggregation then, there is only one

parameter. The SELECT clause is used to picking

data from streams. Depending on the number of

source streams defined in the statement, the SELECT

clause is used to (i) select or (ii) rename fields, (iii)

evaluate expressions over multiple fields and (iv)

compute aggregation functions over single fields. As

an example, the syntax to evaluate aggregation

function over an input stream is:

SELECT aggFunc(fieldname) AS newFieldname

[, aggFunc(fieldname) AS newFieldname] [, … ]

where aggFunc is an aggregation function

(maximum, minimum, sum, average, etc) and AS is

the clause used to name the result of the function in

the output stream. Some other clauses available in

CPL language are: WHERE, HAVING, GROUP-BY

and ON SQL. In particular, the ON SQL clause is

used to execute a classical SQL query against an

external data store. The syntax for ON SQL clause

is:

ON SQL queryName, tableName, fieldname1

[,fieldname2][,..],outfieldname1[,

outfieldname2][,..]

queryName is a variable with the SQL statement

to be executed. tableName is the name to give to the

result set of the SQL query. fieldnames are fields

belonging to the input stream used as parameter for

the SQL statement.outfieldname is used to identify

the fields of the result set in order to be used in other

clauses such as SELECT or WHERE.

As an example of a whole CQL query let us

consider a simple scenario where there are two

streams with Call Description Records (CDR) events

into the CEP and we want to calculate the daily bill

of each phone number. We assume that:

• A CDR event has the following fields:

idcaller (id of the caller),

idreceiver (id of the

receiver), duration (duration of the phone call

in seconds), timestamp (timestamp of the

phone call).

• Calls with a duration less than 10 seconds are

free.

• The cost of the call is calculated with the

formula: cost=duration*10 +10

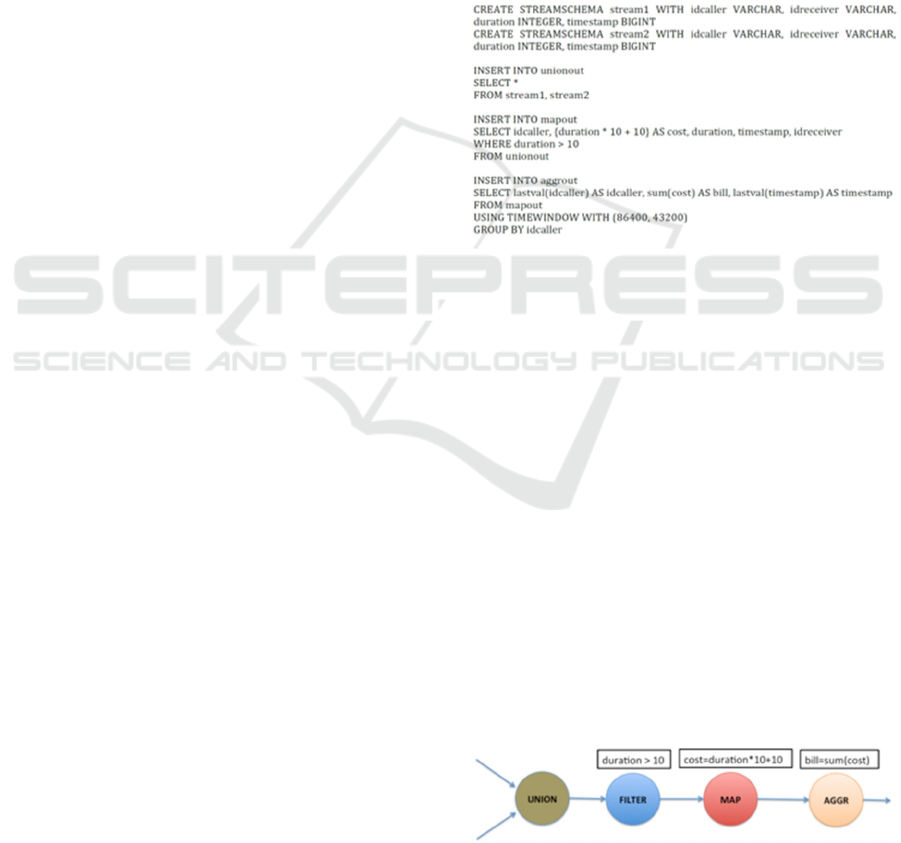

Figure 4: Query written using the CEP query language.

The query for billing clients is shown in Figure

4. First, the schema of the two input streams is

declared. Then a first statement (INSERT) is used to

merge the two streams into one output stream named

unionout. A SELECT statement is used to calculate

the cost of each phone call and to filter out all these

calls whose duration in shorter than 10 seconds.

Finally, the last SELECT statement calculates the

daily bill for each user.

5.1 Compiler

The query compiler is the component in charge of

translating queries written using the declarative

language (SLQ like) into continuous queries made

by algebraic operators. As an example the query

compiler can transform the CQL query from Figure

4 into the graph of algebraic operator depicted in

Figure 5

Figure 5: Query translated into graph of algebraic

operators.

DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP

and OLAP

410

6 CONCLUSIONS

This paper presented PaaS-CEP, a complex event-

processing engine that provides a SQL-like language

for programming queries over streaming data. The

main features PaaS-CEP provides are:

1. Algebraic operators.

2. Integration the CEP with external data

stores allowing the correlation of streaming

data with historical data in an ACID way.

3. Definition of a query language to ease the

definition of continuous CEP query

ACKNOWLEDGEMENTS

This research has been partially funded by the

European Commission under projects CoherentPaaS

and LeanBigData (grants FP7-611068, FP7-

619606), the Madrid Regional Council, FSE and

FEDER, project Cloud4BigData (grant S2013TIC-

2894), and the Spanish Research Agency MICIN

project BigDataPaaS (grant TIN2013-46883)

REFERENCES

CoherentPaaS, 2013. CoherentPaaS project web site

http://www.coherentpaas.eu Last visited 20/01/2016.

Storm, 2015. Aoache Strom web page

http://www.coherentpaas.eu Last visited 20/01/2016.

Esper, 2006. Esper EQL documentation. http://www.es

pertech.com/esper/documentation.php Last visited

20/01/2016.

LeanBigData, 2014. LeanBigData project web site

http://leanbigdata.eu/ Last visited 20/01/2016.

Borealis, 2007. The Borealis project, http://cs.brown

.edu/research/borealis/public/ Last visited 20/01/2016.

Flink, 2015. Apache Flink web page,

https://flink.apache.org/ Last visited 20/01/2016.

Spark, 2016. Apache Spark streaming web page,

http://spark.apache.org/streaming/

PaaS-CEP - A Query Language for Complex Event Processing and Databases

411
