ISE: A High Performance System for Processing Data Streams

Paolo Cappellari

, Soon Ae Chun

and Mark Roantree

City University of New York, New York, U.S.A.

Insight Centre for Data Analytics, School of Computing, Dublin City University, Dublin, Ireland

Keywords:

Data Stream Processing, High-performance Computing, Low-latency, Distributed Systems.

Abstract:

Many organizations require the ability to manage high-volume high-speed streaming data to perform analysis

and other tasks in real-time. In this work, we present the Information Streaming Engine, a high-performance

data stream processing system capable of scaling to high data volumes while maintaining very low-latency.

The Information Streaming Engine adopts a declarative approach which enables processing and manipulation

of data streams in a simple manner. Our evaluation demonstrates the high levels of performance achieved

when compared to existing systems.

1 INTRODUCTION

Processing data originating from streaming sources

has become a requirement for modern organizations.

Driven by the need for more timely results, and hav-

ing to deal with an increasing availability of real-time

information, companies are looking at ways of in-

cluding data stream processing into daily operations,

including real-time alerts, real-time analytics and as

support for data integration. To develop a robust plat-

form for streaming applications, there are three broad

requirements:

• The system must be capable of managing high

volumes of streaming data even when the rate at

which data generated is extremely high;

• results of steaming calculations, on which organi-

zation base decisions, should be available as soon

as possible, ideally in real-time;

• designers must be proﬁcient in parallel computa-

tion or high-performance programming.

Existing streaming systems mainly focus on the

problems of scalability, fault-tolerance, ﬂexibility,

and on the performance of individual operations, e.g.

(Akidau et al., 2013; Zaharia et al., 2012; Balazin-

ska et al., 2008; Teubner and Müller, 2011). Our

contribution is the delivery of a scalable, low-latency

data stream processing system. Unlike other research

in this area, we focus on the provision of a com-

plete and comprehensive solution for the rapid devel-

opment and execution of scalable high-performance,

low-latency, real-time data stream processing applica-

tions. We provide a declaration-based application de-

velopment environment that requires no prior knowl-

edge of parallel computation or high-performance

programming. A comprehensive evaluation is pro-

vided to demonstrate the performance of our system.

In the reminder of this paper, we will refer to our

proposed solution as Information Streaming Engine,

or ISE. ISE follows a similar design philosophy of

other distributed stream processing systems. As with

other approaches, ISE can scale seamlessly to use

available computational resources, parallelizing the

data processing, but it differentiates from other ap-

proaches in a number of ways: (i) it offers built-in op-

erators optimized for high-performance environments

that go beyond the semantics of relational operators;

(ii) targets high-performance both in terms of hard-

ware and software, by supporting the best perform-

ing hardware while reducing the software layers sep-

arating the computation from the execution; (iii) al-

lows rapid development of high-performance stream-

ing application by shielding users from the (tricky)

details of the parallel computing paradigm and the

high-performance environments, and (iv) application

and cluster speciﬁcation details are exposed and visi-

ble as simple text ﬁles (rather than code in some pro-

gramming language).

The paper is organized as follows. In Sec. 2, we de-

ﬁne the constructs and properties of our approach.

In Sec. 3, we present the architecture of system. In

Sec. 4, we illustrate how to specify data processing.

In Sec. 5, we discuss the experimental setting and the

performance results. In Sec. 6, we provide a compar-

Cappellari, P., Chun, S. and Roantree, M.

ISE: A High Performance System for Processing Data Streams.

DOI: 10.5220/0005938000130024

In Proceedings of the 5th International Conference on Data Management Technologies and Applications (DATA 2016), pages 13-24

ISBN: 978-989-758-193-9

ison of our approach against other works. Finally, in

Sec. 7 we present our conclusions.

2 STREAMING MODEL

Streaming sources generate a (potentially inﬁnite) se-

quence of data elements, comprising the data stream.

A data element describes a single event from the in-

put source point of view, such as a sensor reading, a

social media post, a stock price change, etc.

In this section, we describe the ISE model through

its constructs, operators and properties. Data stream

processing systems run continuously: once data pro-

cessing is launched it never ends, indeﬁnitely wait-

ing for (new) data to be available for processing (Car-

ney et al., 2002; Chandrasekaran and Franklin, 2002;

Madden et al., 2002). Results are also generated con-

tinuously. For example, an organization may want to

monitor posts on social media mentioning their prod-

ucts (e.g. Twitter) and retain (i.e. ﬁlter) only those

posts containing one of their products in the post text;

then further data manipulation can be applied to real-

ize products’ statistics, real-time alerts, analytics, etc.

2.1 Model Constructs

In general, stream data applications consist of a se-

quence of data manipulation operations, where each

operation performs a basic transformation to a data

element, and passes results to the operation next in

the sequence. Examples of basic transformations

are: ﬁltering data elements outside our scope of in-

terest, calculating data aggregates over time, corre-

lating data from different streams, or enriching data

elements with contextual information from a local

repository. When multiple basic transformations are

chained together in a pipeline fashion, they create so-

phisticated, complex, transformations. More gener-

ally, a complex transformation is a workﬂow, where

multiple pipelines coexist and are combined. These

workﬂows can be represented as direct acyclic graphs

(DAGs) and are also referred to as data ﬂow diagrams

or topologies (Carney et al., 2002). The ISE model

was developed using the following constructs:

Tuple. A tuple is used to model any data element in

a stream. It is composed of a list of values de-

scribing the occurrence of an event. For instance,

in the Twitter stream, a status update is an event;

each status update has multiple values associated

with it, including: the status update text, the user-

id of the author, the location, and others

Twitter object ﬁeld guide: https://dev.twitter.com/over

Stream. A stream is a sequence, potentially inﬁnite,

of events described in data elements, that is, tu-

ples. Tuples in a stream conform to a (known)

schema, that is: the values in each tuple in the

same stream are instances of a known set of at-

tributes, each having a speciﬁc data type. For

instance, tuples generated from the status update

stream on Twitter have all the same structure, al-

though different values.

Operator. An operator is a data processing step that

processes each tuple received from one (or more)

input stream(s) by applying a transformation to

the tuple’s data to generate a new tuple in the out-

put stream. The operators offered in ISE are de-

tailed later in this section. For now, we discuss

two important parameters that are associated with

each operator: parallelism and protocol.

Parallelism. The parallelism deﬁnes how many in-

stances of an operator collaborate to realize a data

processing step. In order to process large amounts

of data, the processing must be distributed across

multiple computational resources (cores, CPUs,

machines). In a topology, each operator has its

own degree of parallelism.

Protocol. The protocol deﬁnes how tuples are

passed between the instances of contiguous opera-

tors in a topology. For instance, depending on the

nature of the transformation, a tuple can be passed

to just one instance or to all instances of the next

operator in the topology. ISE supports four rout-

ing modes for protocol: round-robin, direct, hash

and broadcast. In round-robin mode, tuples from

an upstream node’s output port are distributed to

all instances of the downstream node in a round-

robin fashion. Round-robin distributes the data

evenly across all the downstream resources. Di-

rect mode deﬁnes a direct and exclusive connec-

tion between one instance of the upstream node

and one instance of the downstream node. This

routing strategy is effective when pipelined oper-

ators require the same degree of parallelism. The

hash mode routes tuples on the basis of a (key)

value within the tuple itself. This permits an ap-

plication to collect data having the same key in the

same resource. However, it may lead to uneven

usage of downstream resources. With the broad-

cast routing strategy, every output tuple from a

single instance of an upstream node, is copied

to all instances of the downstream node. This

mechanism is useful in multiple scenarios, such

as synchronizing or sharing speciﬁc pieces of data

view/api/tweets

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

among all processes. Details on topology speciﬁ-

cation and implementation are provided in Sec. 4.

Topology. A topology describes how the data stream

ﬂows from the input source(s) through the op-

erators to the output. It is modeled as a DAG,

where nodes represent operators, and edges de-

scribes how tuples move between operators.

ISE provides a declaration-based approach to data

stream processing development using the constructs

listed above. Users create a topology speciﬁcation

using a set of built-in operators optimized for high-

performance distributed environments. Specifying a

transformation or a topology does not require any pro-

gramming. Furthermore, all details of a topology,

its transformations, parallelism and resources are ex-

posed in speciﬁcation (text) ﬁles. Higher level tools,

such as GUI or languages (e.g. (Falt et al., 2014)), can

be used to generate, edit and maintain such speciﬁca-

tions. The objective of this section is not to propose

another language, but to expose the lower-level de-

tails of how topologies are speciﬁed when provided

as input to an data streaming processing engine.

2.2 Operators

This section presents some of the operators offered

in ISE. The portfolio of operators is wide enough to

enable designers to realize very complex transforma-

tions. The rationale for providing a set of built-in

operators is: (i) application designers can focus on

the transformation workﬂow and ignore the operator’s

implementation details; (ii) the operator semantic is

guaranteed and consistent across the whole system,

and (iii) each operator’s implementation delivers the

best possible performance; and (iv) new operators can

be developed and added to the system, if and when

necessary. ISE currently offers the following opera-

tors: Functor, Aggregate, Join, Sort, Interface, Format

Converter, Datastore, Control and Utility.

The Functor operator applies a transformation

that is conﬁned and local to the tuple currently be-

ing processed. Many transformations can be thought

as specializations of the Functor operator. Examples

included in ISE are:

• Projection: Reduces the stream to a subset of its

attributes; similar to the SQL projection operator.

• Selection: Using a potentially complex condition,

it splits the input stream in two: one stream con-

taining tuples satisfying the condition, the other

stream with those not satisfying the condition.

• Function: Implements multiple operations includ-

ing: adding constants or a sequence attribute to

the stream; text-to/from-date conversion; math

(addition, division, modulo, etc.) and string func-

tions (ﬁnd, contains, index-of, etc.) between one

or more attributes in the tuple.

• Tokenizer: Breaks a value from an input tuple into

multiple parts (tokens) based on a pattern used for

matching. It creates a new output tuple for each

token where the output tuple is a copy of the input

tuples and the matched tuple.

• Delay: Holds each tuple for a speciﬁed interval

before forwarding it unaltered.

The Aggregate operator groups and summarizes

tuples from the input stream. It implements the SQL-

like aggregations: average, sum, max, min and count.

The operator requires a window deﬁnition that speci-

ﬁes when and for how long (or how many) tuples from

the stream to include in the aggregation.

The Join operator correlates tuples from two

streams according to a join condition. This is simi-

lar to the relational join: when values from two tu-

ples, each from a different stream, satisfy a (poten-

tially complex) condition, the input tuples are merged

to produce a new tuple in the output stream. Similar

to Aggregate, this operator requires the deﬁnition of

a window specifying what tuples from each stream to

include in the join evaluation.

The Sort operator sorts the tuples within a

“chunk” of the input stream in lexicographical order

on the speciﬁed set of attributes. The number of tu-

ples that comprise the chunk, is speciﬁed in a window

deﬁnition.

The Datastore operator enables the stream to in-

teract with a repository to retrieve, lookup, store and

update data. The repository can be a database, a text

ﬁle or an in-memory cache. Currently, ISE supports

the following:

• DB_Statement: executes an arbitrary SQL state-

ment against a database.

• Lookup: retrieves data matching a key value from

the current tuple from a lookup datastore (either a

ﬁle or a database).

The Interface operator enables ISE to create

streams of data from external data sources to gen-

erate into topologies and to create end-points where

processed data can be accessed by consumer appli-

cations. Consumer applications can be external or

within ISE (e.g. other topologies). Currently, ISE

provides:

• Twitter_Connector: Receives data from the Twit-

ter stream.

• Salesforce_Connector: Receives data from an or-

ganization’s Salesforce stream.

ISE: A High Performance System for Processing Data Streams

• Http_Connection: Retrieves data from a generic

HTTP end-point.

• ZMQ_in, ZMQ_out: Receives/Delivers streams

from/to ZeroMQ

end-points, a brokerless high-

performance message passing system. ZeroMQ

end-points are used to expose result data from

a topology to consumer applications, including

other topologies.

The FormatConverter provides data format con-

version between the tuple and other formats when

processing data within a topology. ISE offers XML

and JSON conversion, where values to extract or to

format in either XML or JSON can be speciﬁed via

an XPath-like syntax.

The Control operator is used to control the sta-

tus and perform administrative actions on individual

operators or on the a whole topology. Some of the

control messages are: sync all operators, get operator

status, force operator cache ﬂush, etc.

Additional operators can be added as part of a

Utility category to support special operations. Cur-

rently, the ISE has the geo-coding operator, to trans-

form a location name into latitude and longitude.

2.3 ISE Sample Application

Fig. 1 illustrates a sample topology analyzing Twitter.

Here, the rounded rectangles represent the nodes in

the topology. Edges between nodes describe how the

stream’s tuples ﬂow from one transformation to the

next. The operator applied by each node is depicted

with a symbol (see the legend) within the rectangle,

along with its degree of parallelism (within parenthe-

sis). The speciﬁc operation performed by the operator

is detailed with bold text just below each node. On top

of each node, an italic text provides a brief explana-

tion of the operation applied in the node. Note that

the Selection operator outputs two streams: the solid

edge denotes the stream of tuples satisfying the con-

dition; the dashed edges are the stream of tuples not

satisfying the condition. When one or the other out-

put stream from Selection is not used, the edge is not

shown in the illustration.

The topology in Fig. 1 describes a streaming ap-

plication that analyzes the Twitter stream by produc-

ing three output streams: one providing tweets gener-

ated by users from a known list, a second providing

tweets mentioning products (from a known list) en-

riched with geo-location information, and a third pro-

viding the number of times the product is mentioned,

grouped by category. Data ﬂows into the topology

by the Twitter Connector operator that connects

ZeroMQ http://zeromq.org/

to the Twitter stream and delivers each tweet to the

next operator in the chain. Tweets are provided in

JSON format and thus, tuples are passed to the JSON

Parser operator that convert data from JSON into a

tuple format. The next step removes some attributes

that are not necessary for the application, before cre-

ating two replicas of the stream: one stream focusing

on user identiﬁers, the other with products.

On the user identiﬁcation stream, additional steps

are required. The selection step ﬁlters tweets (tuples)

not authored from the users provided in a list; the

JSON encoder converts each tuple into a JSON for-

mat; and ﬁnally, the ZMQ-Endpoint makes the stream

available to consumer applications via ZeroMQ.

On the product stream, additional transformations

also occur. It is worth noting the lookup, aggrega-

tion and geo-coding functions. The lookup function

enriches each tuple by adding the category a prod-

uct belongs to; where a mapping product-to-category

must be provided. The aggregation function counts

how many times a product is mentioned at regular in-

tervals; the geo-tagging function converts a location

name into latitude and longitude where they are not

already present in the tuple.

3 THE ISE ARCHITECTURE

ISE was conceived with high-performance environ-

ments in mind. Nevertheless, ISE can run on a wide

variety of computational resources, from a standard

desktop to a shared memory or shared nothing system

to a geographically distributed cluster. Fig. 2 shows

the main ISE components: the Resource Manager,

Clustering, the Data Operators, Monitoring, the Sys-

tem Interface, the Application Speciﬁcation and the

Resource Conﬁguration repositories.

The transformation operators as well as the user

space components have been developed from scratch

in c/c++. Components such as the resource man-

ager, the computation clustering and the monitoring

tool, are based on the following open source libraries:

Slurm(Slurm, 2015), MVAPICH2(MVAPICH2, The

Ohio State University, 2015), and Ganglia(Ganglia,

2015), all of which are well established projects in

high-performance computing.

At the core of the system there is the Clustering

component, which can be decomposed in two sub-

components: (i) parallelism and data movement, and

(ii) data operations. The ﬁrst takes care of manag-

ing parallel processes and moving data between them;

the second implements the data processing operation,

enforcing the semantics of these operations across

the parallel processes. With regards to the former,

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

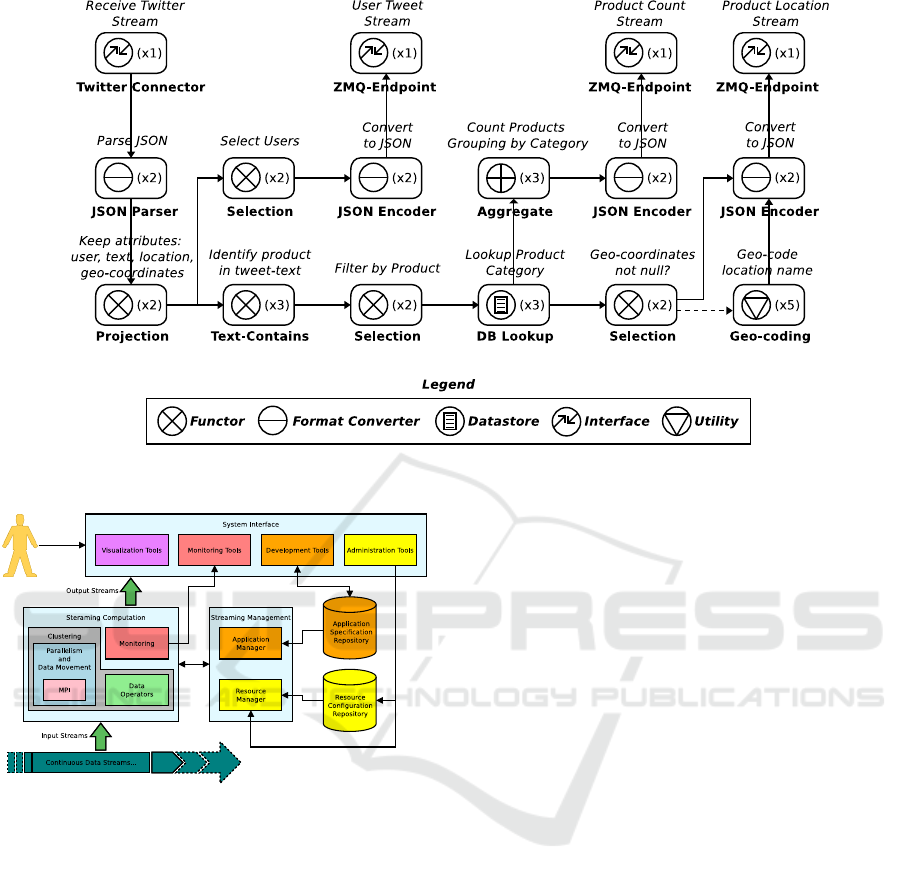

Figure 1: Topology for Twitter Case Study.

Figure 2: Architecture: Logical View.

we adopt an implementation of the Message Pass-

ing Interface (MPI), speciﬁcally MVAPICH2, in or-

der to optimize the advantage of using these high-

performance environments. MPI is a message pass-

ing system designed to support the development of

parallel distributed applications. MPI is designed to

achieve high performance, scalability, and portability.

MVAPICH2 distinguishes itself from the other MPI

implementations because it is one of the best perform-

ing and because of its support for the most recent and

performing hardware, such as Inﬁniband(Inﬁniband,

2015), a high-performance inter-connector, designed

to be scalable and featuring high throughput and low

latency. More precisely, the Parallelism and Data

Movement component builds on top of Phish (Plimp-

ton and Shead, 2014), that in turns uses MPI. Phish

is library to develop topologies composed of executa-

bles, providing an abstraction on parallelism and mes-

sage delivery. Together with Phish, ISE has a Data

Operators component which offers a set of built-in op-

erations, including selection, projection, join, etc.

In general, multiple streaming topologies run on a

cluster. A clusters can accommodate multiple topolo-

gies that run concurrently. However, since resources

are limited, there is the need for managing and mon-

itoring such resources. Components Resource Man-

ager and Resource Monitoring achieve these goals.

The Resource Manager is built on top of Slurm

(Slurm, 2015). Slurm is a high-performance, scalable

and fault-tolerant cluster resource manager. Slurm

provides functionality to execute, manage and mon-

itor distributed parallel applications and is used in

many of the most powerful computers in the world.

It facilitates the management of available computa-

tional resources and the allocation and deployment of

streaming topologies. Among the features it provides,

is topology relocation to other resources and a fault-

tolerance mechanism. Ganglia (Ganglia, 2015) is our

resource monitoring system: it is highly scalable and

works in high-performance computing settings.

The System Interface component includes tools

such as: the development environment, the result vi-

sualization, and monitoring and administrative tools.

The Application Speciﬁcation repository maintains

all deﬁned topologies, allowing users to store, retrieve

and update topology speciﬁcations. The Resource

Conﬁguration maintains the conﬁguration of the re-

sources available on the computational cluster.

ISE: A High Performance System for Processing Data Streams

4 TOPOLOGY SPECIFICATION

This section illustrates how topologies are speciﬁed

in ISE. The speciﬁcation is composed of three main

parts: the speciﬁcation of the DAG composing the

topology; the operator conﬁguration for each node in

the topology; and a set of deployment options to spec-

ify the execution model. ISE accepts topology speci-

ﬁcation as text ﬁles. These ﬁles are exposed, thus can

be edited directly or via higher level tools.

4.1 Topology Syntax

A topology is modeled as a DAG. To deﬁne a DAG

composing a topology in ISE we need to specify: (i)

the list of all nodes in the DAG, each with its associ-

ated operator, (ii) the connections between the nodes,

and the associated protocol; and (iii) the degree of

parallelism of each node.

With reference to Fig. 1, Listing 1 shows

an excerpt of the topology speciﬁcation to illus-

trate how nodes in a DAG are declared in ISE.

The excerpt focuses on the bottom right part of

Fig. 1, speciﬁcally on nodes: Geo-coordinates

not null?, Lookup Product Category, Geo-code

location name, and the right-most Convert to

JSON. For convenience, above nodes are re-

named to add_product_category, has_geo_info,

geo_code, and product_json_encode, respectively.

# # Pr odu ct stream , no de s

...

op era to r

ad d _ p ro d u c t_ c a t eg o r y

datas to re - m pi

$ { pr o du c t _ c at e g o r y_ l o o k up _ c o n f }

op era to r

ha s _ge o _i n fo

fun cto r - m pi

$ { ha s_ g e o_i n f o_ c o nf }

op era to r

ge o_c od e

geo cod e - m pi

$ { geo_ c od e _ co n f }

op era to r

pr o d u ct _ j son _ e nc o d e

fo rma t_ c on ve r te r - mpi

$ { pr o du c t _ js o n _ enc o d e _c o n f }

...

Listing 1: List of Nodes in a Topology.

Each instruction in the topology speciﬁcation follows

the expression syntax outlined in Deﬁnition 1.

Deﬁnition 1 (Node).

ope rator

<node-label>

<operator-executable-path>

<node-configuration-path>

This can be explained as follows:

• operator is a ISE keyword that declares the pres-

ence of a node in the DAG, and indicates the be-

ginning of the deﬁnition of such node;

• node-label speciﬁes the mnemonic name to as-

sociate with the node being deﬁned. A node name

is used within the topology speciﬁcation to refer

to the speciﬁc node when deﬁning connections

with other nodes and parallelism;

• operator-executable speciﬁes the operator as-

sociated with the node; speciﬁcally, it indicates

the (relative) path to the operator’s executable;

• node-configuration speciﬁes the behaviour of

the operator, that is the operator’s conﬁguration;

speciﬁcally, it is the (relative) path to a ﬁle con-

taining the operator’s conﬁguration details for the

node being deﬁned.

Details on how to specify an operator’s conﬁguration

are presented in the Sec. 4.2. In Listing 1, line 3 de-

ﬁnes a node with label add_product_category, that

is associated with operator Datastore, whose conﬁgu-

ration is in ﬁle product_category_lookup_conf. It

implements a lookup from a database, retrieving the

product category associated with a particular prod-

uct, that enriches each tuple by adding the category

a product belongs to. Similarly, line 5 deﬁnes node

has_geo_info that implements a Functor operator

whose conﬁguration is in ﬁle has_geo_info_conf.

This node corresponds to Geo-coordinates not

null?, and it routes tuples to the geo-coding opera-

tion or to the JSON converter, depending on whether

the tuple has geo-information already or not.

The second part of the topology speciﬁcation de-

ﬁnes how tuples are routed from one node to the other

in the topology, that is the edges in the topology DAG.

Listing 2 shows an excerpt of the speciﬁcation illus-

trating the linking of the nodes in Listing 1.

Deﬁnition 2 (Route).

rou te

<upstream-node-label:port>

<downstream-node-label:port>

Each expression follows the syntax in Deﬁnition 2,

where:

• route is the ISE keyword that denotes the begin-

ning of an edge declaration that will directly con-

nect two nodes in the topology;

• upstream-node-label is the label of one node

participating in the connection, speciﬁcally the

upstream node;

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

• protocol speciﬁes a routing strategy between the

nodes being connected: direct, round-robin, hash

or broadcast;

• downstream-node-label is the label of the other

node participating in the connection, speciﬁcally

the downstream node; node;

• port speciﬁes which port each node will use to

send/receive tuples.

The speciﬁcation in Listing 2 shows the part

of the topology in Fig. 1 that links the product

category lookup and the geo-coding steps. Specif-

ically, all tuples from the add_product_category

node are passed to has_geo_info via port number

1 (for each). Then, node has_geo_info splits

the stream in two: those tuples having geo-data

(i.e. latitude and longitude) are passed to node

product_json_encode via port 1, for the JSON

conversion. All remaining tuples are passed to

node geo_code via port 2, to evaluate the latitude

and longitude from a location name (then tuples

are sent to the same JSON conversion step). For

simplicity of presentation, all edge declarations use

the protocol roundrobin to exchange tuples between

the instances of the involved nodes.

# # Pr odu ct stream , con n e ct i on s

...

ro ute

ad d _ p ro d u c t_ c a t eg o r y :1

ro u nd r ob i n

ha s _ge o _i n fo :1

ro ute

ha s _ge o _i n fo :1

ro u nd r ob i n

pr o d u ct _ j son _ e nc o d e :1

ro ute

ha s _ge o _i n fo :2

ro u nd r ob i n

ge o_c od e :1

ro ute

ge o_c od e :1

ro u nd r ob i n

pr o d u ct _ j son _ e nc o d e :1

...

Listing 2: Connections Between Nodes in a Topology.

Listing 3 illustrate the ﬁnal part of a topology

speciﬁcation: the parallelism of each operator (node).

Deﬁnition 3 (Parallelism).

parallelism <node-label> <degree>

The syntax for parallelism is shown in Deﬁnition 3,

where:

• parallelism is the ISE keyword indicating the

beginning of a parallelism declaration for a node

in the topology;

• node-label indicates the node to which the par-

allelism is applied;

• degree speciﬁes how many instances (i.e. runtine

processes) to instantiate for the target node.

From Listing 3, we can see that nodes

add_product_category, has_geo_info,

geo_code, and product_json_encode have

parallelism 3, 2, 5, 2, respectively. The rationale in

choosing a degree of parallelism is based on the

amount of data to process and on the cost of the

operation. In this example, because the lookup and

the geo-code operation are expected to be heavier

(i.e. slower) than the others, a higher degree of

parallelism is required. Note that values in Listing 3

are for illustration purpose. Real-world deployments

these values have, in general, much higher values.

# # Pr odu ct stream , dist r ib u tio n

...

pa r al l eli s m a d d _p r o d uc t _ c at e g o ry 3

pa r al l eli s m h a s_ g eo _ i nf o 2

pa r al l eli s m g eo _ co de 5

pa r al l eli s m p r o du c t _ js o n _en c o de 2

...

Listing 3: Parallelism of Nodes in a Topology.

4.2 Operator Conﬁguration

This section focuses on how to provide a conﬁgura-

tion to a node in a topology. Each operator has a

different signature, meaning its executable expects a

different set of arguments to represent the operator’s

behavior at runtime. The ﬁrst part of the signature is

common to all operators: it represents the metadata of

the input and output streams. The second part of the

signature is operator dependent: each operator has a

different set of parameters. Listings 4 and 5 shows

snippets of an operator’s conﬁguration ﬁle for the Ag-

gregate node example in Fig. 1. Listing 4 shows the

schema of tuples for the input and the output streams.

In this case, the stream is “reduced” from four input

attributes to just two in output.

Listing 5 shows how the aggregation is speci-

ﬁed. The ﬁrst part speciﬁes the grouping criteria:

values from the input streams are grouped on the

attribute ProductCategory. The second part spec-

iﬁes the aggregate to run; the input attribute; and

the output attribute generated. In the case, the node

will count the occurrences of ProductName for each

category group, and provide the result in attribute

count_products.

ISE: A High Performance System for Processing Data Streams

" in " : [

{ " n ame ": " T wee t C re a t io n D ate "

, " type ": " St ri ng " }

,{ " na me ": " Pr o duc t Na m e "

, " type ": " St ri ng " }

,{ " na me ": " Pro d uct C a te g o ry "

, " type ": " St ri ng " }

,{ " na me ": " Tw e e tL o c at i on "

, " type ": " St ri ng " }

]

," out " : [

{ " n ame ": " P ro d u ct C a te g o ry "

, " type ": " St ri ng " }

,{ " na me ": " cou n t_ p r od u c ts "

, " type ": " In t eg er " }

]

...

Listing 4: A Node Input and Ouput Stream Metadata.

...

," gr ou pb y ": [

{ " att r ib ute ": " P ro d u ct C a te g o ry "}

]

," ag gr e ga t e ": [

{ " in put _ a tt r i b ut e _ n am e " :

" Pro d u ct N am e "

," op er a ti o n ": " cou nt "

," ou t p u t_ a t t ri b u t e_ n a m e ":

" co un t _ pr o d uc t s "}

]

...

Listing 5: An Operator Conﬁguration.

For operators requiring a window deﬁnition, there is

an additional part in the conﬁguration ﬁle, not shown

here for the sake of brevity. ISE supports arbitrarily

complex windows, including those based on: wall-

clock intervals, number of observed tuples, desig-

nated progressing attribute in the stream, and exter-

nal events (e.g. control messages). Designers can use

conditions to specify how often to open a window and

when to close a window; multiple conditions can be

speciﬁed and grouped where required.

4.3 Topology Deployment

Once a topology is deﬁned at the logical level, it must

be associated with the physical resources to use at

runtime (CPUs, cores, amount of memory, etc.) and

how such resources should be used. For instance, it

is possible to declare whether a resource should be

allocated exclusively or not; what policy to use to dis-

tribute the workload over the cluster; how much mem-

ory to use, etc. Listing 6 illustrates a snippet of a de-

ployment speciﬁcation. Directives are preﬁxed with

#ISE_ and sufﬁxed with either RM or MPI: the ﬁrst suf-

ﬁx is a directive to the resource manager; the second

is a directive to the MPI library.

# Top olo gy nam e

2 #I SE _RM - - job - nam e = U se r s An d P rod u c ts

4 # Cl us t er pa r ti t io n to us e

#I SE _ RM - - p a rt i ti o n = d ev e l op m en t

# Cl u st er no de s to a ll oc a te

8 #I SE _RM - - n od es =3

10 # Pr o ce s se s to al lo c at e

#I SE _ RM - - n ta sk s =13

# Nod e sha ri ng po li cy

14 #I SE _RM - - s ha re

16 # C ore sh ar i ng po li cy

#I SE _ RM - - o v er c omm it

# Me s sa ge pa ssi ng po li cy

20 #I SE_ MP I - - i n te r ru pt

...

Listing 6: Topology Deployment Speciﬁcation.

The Node sharing policy, Listing 6 line 15, spec-

iﬁes if a node should be allocated exclusively to a

topology. This type of conﬁguration is useful where

topologies have operators that can exploit the intra-

node communication mechanism which is faster. It is

also useful when the computation should not be af-

fected by external factors such as another topology

taking part of the machine resources. The Core shar-

ing policy, Listing 6 line 18, deﬁnes whether a CPU

core should run a single process exclusively or not.

In high-performance settings, many application de-

fault to exclusively allocating one process per core, in

order to extract the maximum possible performance.

There are many scenarios where such a policy is not

ideal, perhaps because it is known that the stream will

not require all resources or because computational re-

sources are limited. In such cases, it is preferable to

share the core with multiple processes, perhaps be-

longing to multiple topologies. Note that when re-

source sharing is enabled in ISE, topologies are not

suspended and queued, as in some supercomputing

environments: they are always active. However, shar-

ing resources implies that the CPU is subject to the

context switch overhead. Note also that ISE does not

spawn threads: it only uses processes. This greatly

simpliﬁes the computation distribution and manage-

ment and does not impact performance in Linux en-

vironments, where the cost of managing a thread or

process is basically equivalent.

The message passing policy, Listing 6 line 21, de-

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

ﬁnes how a receiving process should check whether

new data is available for processing. At the concep-

tual level, message passing can be thought of as a

queuing mechanism. This policy speciﬁes if the re-

ceiving process should actively check the queue, thus

consuming resources, or if it must rely on an inter-

rupt mechanism for notiﬁcation. In general, the ac-

tive polling mechanism is more convenient when new

messages arrive at a rate that is close to or matching

the process maximum throughput. When the num-

ber of messages is relatively low compared to the

throughput, one may want rely on an interrupt mech-

anism so that the resources are temporarily released

and are utilizable by some other process.

5 EVALUATION

The evaluation of our system focuses on latency and

scalability Latency is the interval of time elapsing

between the input (solicitation) and the output (re-

sponse) of a system, a critical metric for real-time

data processing systems. For systems like ISE, it is

important to scale to large numbers of computational

resources while maintaining latency as low as possi-

ble.

We compare our performance to Google’s Mill-

Wheel(Akidau et al., 2013). MillWheel is the most

performing system among those providing a complete

data streaming processing solution. We have created

a replica of the test scenario used in MillWheel, pro-

vided the differences between the platforms. This is

a simple two step processing topology where: the

ﬁrst step implements a basic operation; and the sec-

ond step collects the processed records. We tested

the topology with multiple state-less operators, in-

cluding: projection (drop some attributes from the

stream), selection (evaluate stream values against

conditions), addition of a constant to the stream

(e.g. timestamp), etc. At a minimum, each step per-

forms the following operations:

• Access all the input ﬁelds in the incoming record

in order to simulate a generic scenario where the

designer can pick any value in the stream.

• Perform a basic operation on at least one ﬁeld of

the input record.

• Assemble the output record (each received ﬁeld)

plus a new one if it exists and forward the new

record to next step in the topology.

Latency is measured as the time that elapses from

when a record is received by the processing step to

when a processed record is received by the subsequent

collector process. Note that the collector processes

are also distributed, thus latency accounts for both the

time to process a record and for the time that it takes

to the processed record to reach the next step in the

topology. Experiments have been conducted on the

CUNY’s High Performance Computing center. Each

node is equipped with 2.2 GHz Intel Sandybridge pro-

cessors with 12 cores, has 48GB of RAM and uses the

Mellanox FDR interconnect.

Fig. 3 shows the latency distribution for record

processing and delivery when running over 100

CPUs. Input data is evenly distributed across all

CPUs and scaled up as the topology parallelism

scales. An analysis of the experimental results shows

that the median record latency is 1.2ms, and 95% of

the records are processed and delivered within 3 mil-

liseconds.

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8 3 3.2 3.4 3.6 3.8 4

10%

15%

20%

25%

Record Percentage

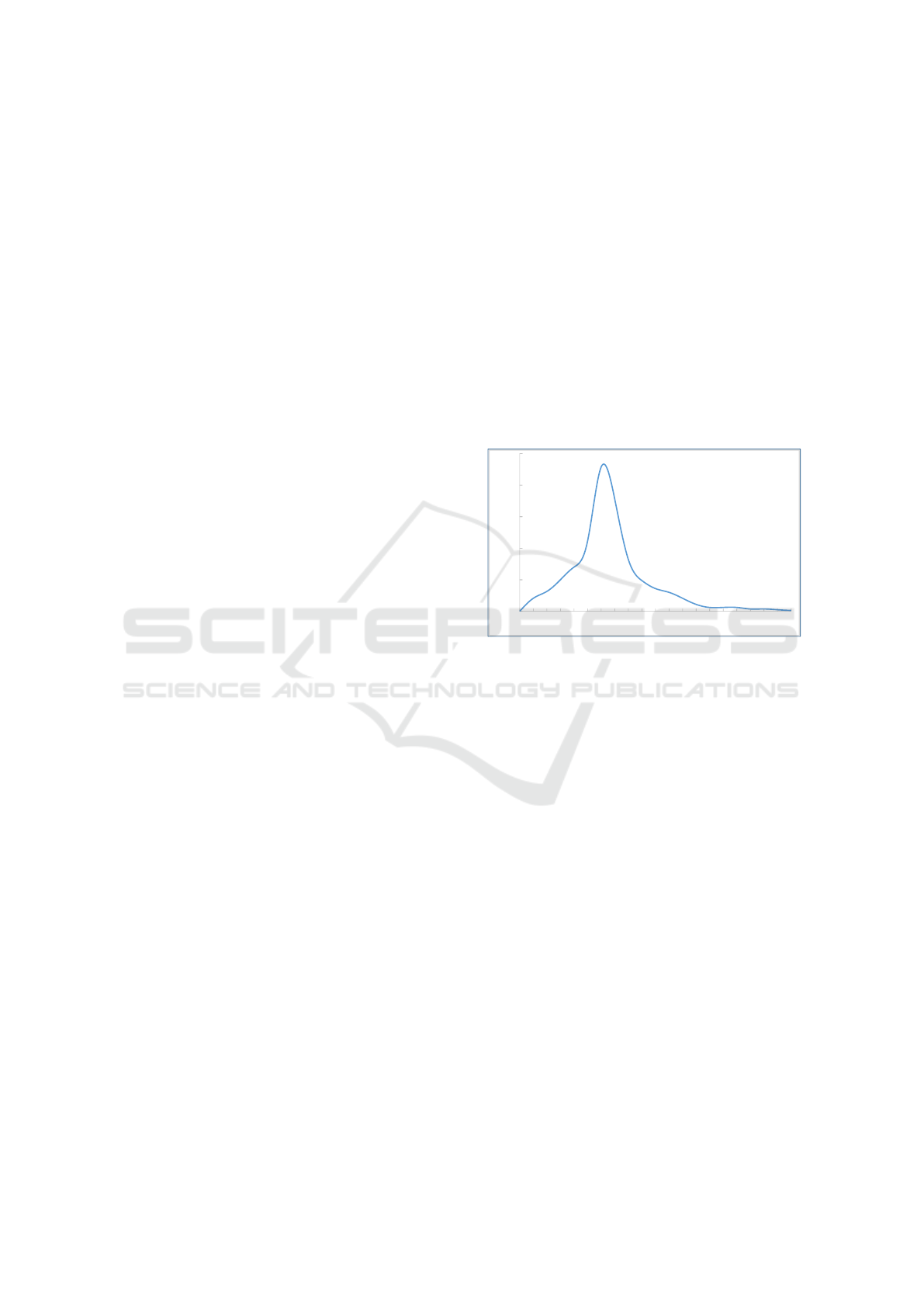

Figure 3: Record Processing and Delivery Latency Percent-

age.

Compared to Google’s MillWheel (Akidau et al.,

2013), ISE delivers better performance. In fact, with

strong productions and exactly-once disabled in Mill-

Wheel, the median record processing time in Mill-

Wheel is 3.6 milliseconds (ms) compared to 1.2ms

in ISE, approximately one third of the time. Also,

if we look at the 95th-percentile latency, MillWheel

exhibits a 30ms latency, while ISE requires just 3ms.

Basically, ISE performs 3x better than MillWheel (a

200% performance increase) on the median latency

test and 10x better on the 95th percentile test (a 900%

performance increase).

In cluster environments, the same number of pro-

cesses can be distributed over a fewer number of ma-

chines, each with many cores, or over many machines

with fewer cores. Fig. 4 shows the results of studying

how the number of machines affects record latency.

We have set up a test to run 4 sets of distributed pro-

cessing, using 8, 24, 48 and 96 CPUs. Let us refer

to these sets as Set8, Set24, Set48 and Set96, respec-

tively. Each of the above sets has been run multiple

times over a different number of machines, with the

condition that as the number of machines increases,

the number of cores per machine decreases. For in-

ISE: A High Performance System for Processing Data Streams

stance, Set8 (distribution over 8 CPUs), has been run

with the following conﬁgurations: 1 machine with

8 cores, 2 machines with 4 cores, 4 machines with

2 cores, and 8 machines with 1 core. The mecha-

nism is similar for the other sets. As illustrated in

Fig. 4, the best conﬁguration is when all processes

are grouped together on the same machines or when

they are highly distributed across different machines.

0 10 20 30 40 50 60 70 80 90 100

0.5

1.5

2.5

Nodes

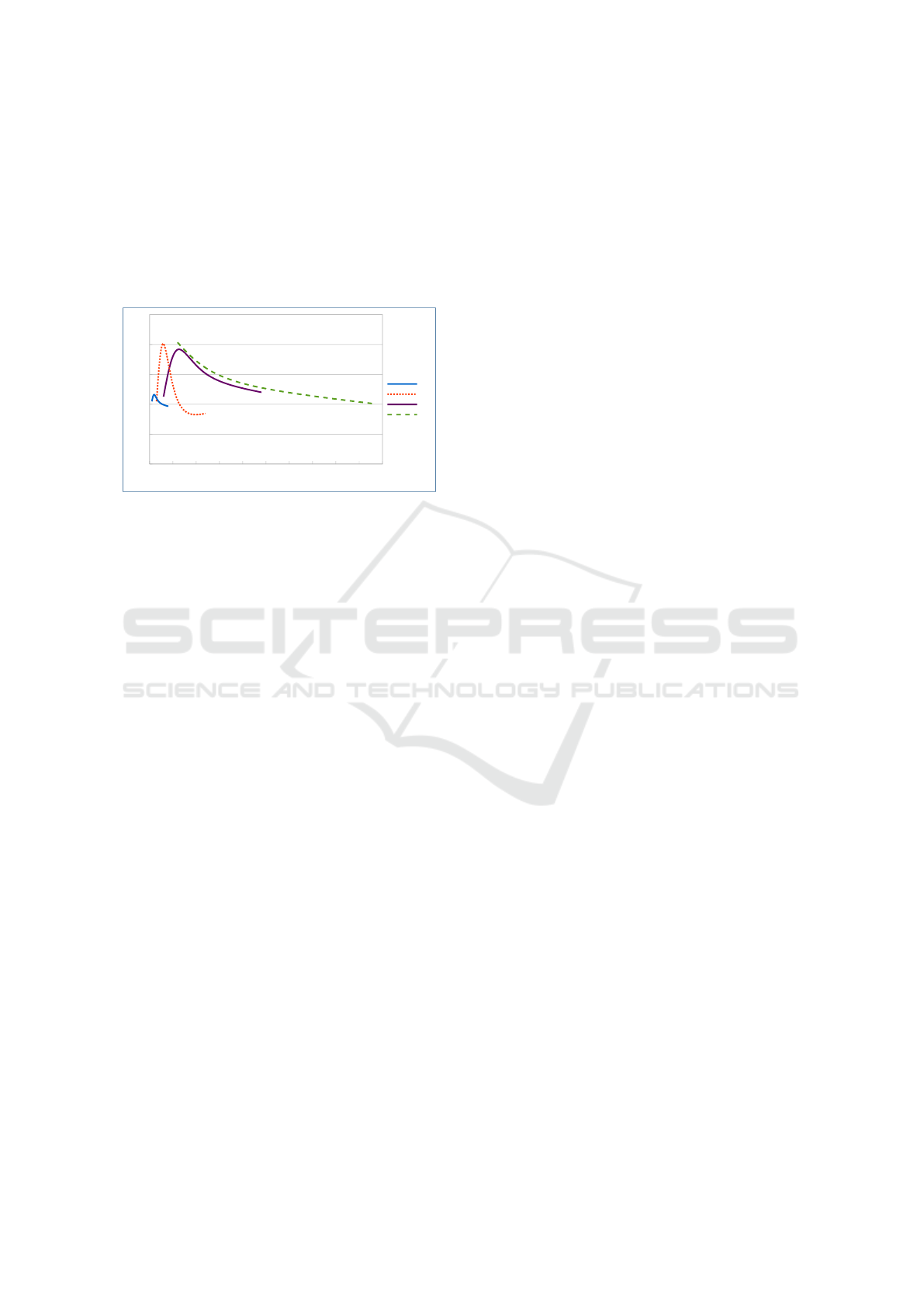

Figure 4: Record Processing and Delivery Latency Time by

Number of Nodes Used.

There are many situations in which a streaming

topology under-utilizes resources. ISE adapts very

well in this scenario, allowing users to specify if and

how to share resources at run time. To test resource

sharing, we launched multiple instances of the same

topology on a single machine, a consumer grade lap-

top, with an Intel i7 i7-4810MQ, with 4 physical cores

and multi-threading (8 threads in total). We were able

to run up to 5000 concurrent processes. Sharing re-

sources is useful for low rate data processing sce-

narios, where multiple topologies can co-exist on the

same machines, thus minimizing the amount of hard-

ware resources required.

All performance comparison with MillWheel have

been carried out on the basis of the reports from the

MillWheel’s authors: MillWheel has not been made

available, so we were not able to deploy it on the

CUNY’s HPCC to run direct a comparison.

6 RELATED RESEARCH

Real-time analytic systems are a requirement for most

modern organizations, the goals of which are two-

fold: provide valuable insights in real-time, and sup-

port batch-oriented and data integration tasks.

Examples of recent real-time analytical systems

include Google Percolator (Peng and Dabek, 2010),

and Limmat (Grinev et al., 2011). The core ap-

proach of these systems is to extend the map-reduce

paradigm with push-based processing. Basically, new

data can be pushed into the process and new output

can be computed incrementally on top of the cur-

rent process state, e.g. aggregates for current win-

dows. A more direct modiﬁcation of Hadoop is

the Hadoop Online Prototype (HOP) (Condie et al.,

2010). This approach modiﬁes the Hadoop archi-

tecture to allow the execution of pipelined operators.

While improving real-time analytic support on map-

reduce based solutions, these works still rely on the

batch processing paradigm and are thus, inherently

limited in pursuing low latency processing. Projects

Spark-Streaming(Zaharia et al., 2012) and Twitter

Trident(Trident, 2012) can be considered to be in this

category as well since they are both micro-batch ori-

ented. However, our ISE approach focuses instead

on low-latency and a high-performance environment,

neither of which is tackled in these research projects.

Spark-Streaming and Trident both offer a set of pre-

deﬁned operators. However, topology design still re-

quires program code development. ISE offers rela-

tional and ETL-like operations exposed so that de-

signers do not have to develop programming code

which leads to a far quicker deployment of topolo-

gies. In addition, ISE supports complex window def-

initions which are not available in these projects.

S4 (Neumeyer et al., 2010), IBM InfoSphere

Streams (InfoSphere streams, 2015), and Twitter

Storm (Toshniwal et al., 2014) are systems that specif-

ically target event-based data streaming processing.

Unlike the systems described above, these do not rely

on batch processing. The S4 streaming system devel-

oped at Yahoo!, offers a programming model similar

to Map-Reduce. In S4, data is routed from one op-

eration to the next on the basis of key values. IBM

InfoSphere Streams offers a set of predeﬁned opera-

tion that designers assemble in workﬂows, similar to

ISE. The focus, however, is developing applications

where designers have direct control over the quality

of the service. Twitter Storm offers a framework to

route data through processes, similarly to Phish. ISE

offers additional abstractions, such as the data trans-

formation operators, that speed-up topology develop-

ment time while avoiding the introduction of errors in

the operators’ implementation and guaranteeing best

possible performance.

MillWheel(Akidau et al., 2013) is a Google

project for real-time steam processing that speciﬁ-

cally targets low-latency performance. This approach

relies on a key-based computational model where

streams are abstracted as triples composed of a key, a

content and a timestamp. Computation is centralized

on keys but can be parallelized over different keys.

ISE offers greater ﬂexibility in these areas because

the designer can choose whether to base the computa-

tion on keys or not. Moreover, as shown in our evalu-

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

ation, ISE delivers better performance.

There is a large collection of work focusing on

improving the performance of individual operators.

In particular, the join (Carney et al., 2002; Chan-

drasekaran and Franklin, 2002; Madden et al., 2002;

Kang et al., 2003; Motwani et al., 2003; Teubner and

Müller, 2011; Gedik et al., 2007) and the aggregate

(Li et al., 2005). In contract, the aim of ISE is to de-

velop a platform for deﬁning general streaming com-

putations to be executed in high performance envi-

ronments. Other research efforts address the broader

picture by proposing novel techniques for operators

as part of the development of streaming computation

frameworks (Abadi et al., 2005; Zaharia et al., 2012).

In (Gui and Roantree, 2013b; Gui and Roantree,

2013a), the approach used for optimizing XML data

streams was to build a tree-like topology to model

the structure of the incoming XML stream. It in-

troduced a topological cube methodology, built on

a multidimensional metamodel for building XML

cubes. This research included the ability for recur-

sive analytics, demonstrated using two different forms

of recursive structures with both direct recursion and

indirect recursion. While this approach has simi-

lar goals and approach, the ISE system is designed

to scale, adopts an easier to use scripting approach,

and can facilitate JSON sources unlike their approach

which only uses XML. Systems such as Borealis

(Abadi et al., 2005; Balazinska et al., 2008) Medusa

(Cherniack et al., 2003), and TelegraphCQ (Chan-

drasekaran et al., 2003) focus on distributed data pro-

cessing. However, the workload distribution strat-

egy is at the granularity of query: these systems dis-

tribute the workload by allocating queries to individ-

ual nodes. While this approach achieves scalability

with the number of queries, it is limited in the amount

of data an individual query can support, i.e. the par-

allelism. In recent years, systems have been proposed

that address the intra-query scalability problem, such

as StreamCloud (Gulisano et al., 2010). While ISE

follows a similar design philosophy to that of dis-

tributed stream processing systems, it is different in

many aspects: it is not limited to relational operators;

besides a single query scalability, ISE embraces scal-

ability also from the resource management and mon-

itoring perspective; it targets high-performance envi-

ronments; and empowers non-expert users to rapidly

develop streaming applications.

7 CONCLUSIONS

In this paper, we presented ISE, a high performance

framework for developing scalable, low-latency, data

streaming applications. Our research provides a

high-performance environment and a declarative lan-

guage for application development based on ISE. The

declarative approach allows developers to expose the

details of both data processing and resource allocation

at both logical and physical levels.

ISE targets high-performance requirements but is

also portable to commodity clusters. The framework

was tested in terms of latency and scalability perfor-

mance and compared with other real time process-

ing approaches and our evaluation demonstrated the

high performance of ISE when compared to existing

streaming environments.

ISE is currently in use in both academic and real-

world scenarios. There are a number of topologies

analyzing the Twitter stream, ranging from keyword

monitoring to searches for speciﬁc users, from alerts

based on conditions to more classic word counting,

word frequency and sentiment analysis. Other topol-

ogy examples include trafﬁc data monitoring using

the numerous bike sharing systems in various cities

throughout the world. Trafﬁc data is then used to an-

alyze patterns and make predictions. For instance, we

have a topology that in real-time predicts the number

of bikes (or available docks for parking) for all sta-

tions in the bike sharing network. Such prediction is

updated in real-time as fresh data is collected, that is

every minute: bikers can decide to reroute depending

on their position relative to their destinations.

REFERENCES

Abadi, D. J., Ahmad, Y., Balazinska, M., Çetintemel, U.,

Cherniack, M., Hwang, J., Lindner, W., Maskey, A.,

Rasin, A., Ryvkina, E., Tatbul, N., Xing, Y., and

Zdonik, S. B. (2005). The design of the borealis

stream processing engine. In CIDR, pages 277–289.

Akidau, T., Balikov, A., Bekiroglu, K., Chernyak, S.,

Haberman, J., Lax, R., McVeety, S., Mills, D., Nord-

strom, P., and Whittle, S. (2013). Millwheel: Fault-

tolerant stream processing at internet scale. PVLDB,

6(11):1033–1044.

Balazinska, M., Balakrishnan, H., Madden, S., and Stone-

braker, M. (2008). Fault-tolerance in the borealis

distributed stream processing system. ACM Trans.

Database Syst., 33(1).

Carney, D., Çetintemel, U., Cherniack, M., Convey, C.,

Lee, S., Seidman, G., Stonebraker, M., Tatbul, N.,

and Zdonik, S. B. (2002). Monitoring streams - A

new class of data management applications. In VLDB

2002, Proceedings of 28th International Conference

on Very Large Data Bases, August 20-23, 2002, Hong

Kong, China, pages 215–226.

Chandrasekaran, S., Cooper, O., Deshpande, A., Franklin,

M. J., Hellerstein, J. M., Hong, W., Krishnamurthy,

S., Madden, S., Reiss, F., and Shah, M. A. (2003).

ISE: A High Performance System for Processing Data Streams

Telegraphcq: Continuous dataﬂow processing. In Pro-

ceedings of the 2003 ACM SIGMOD International

Conference on Management of Data, San Diego, Cal-

ifornia, USA, June 9-12, 2003, page 668.

Chandrasekaran, S. and Franklin, M. J. (2002). Streaming

queries over streaming data. In VLDB 2002, Proceed-

ings of 28th International Conference on Very Large

Data Bases, August 20-23, 2002, Hong Kong, China,

pages 203–214.

Cherniack, M., Balakrishnan, H., Balazinska, M., Carney,

D., Çetintemel, U., Xing, Y., and Zdonik, S. B. (2003).

Scalable distributed stream processing. In CIDR.

Condie, T., Conway, N., Alvaro, P., Hellerstein, J. M.,

Gerth, J., Talbot, J., Elmeleegy, K., and Sears, R.

(2010). Online aggregation and continuous query

support in mapreduce. In Proceedings of the ACM

SIGMOD International Conference on Management

of Data, SIGMOD 2010, Indianapolis, Indiana, USA,

June 6-10, 2010, pages 1115–1118.

Falt, Z., Bednárek, D., Krulis, M., Yaghob, J., and Zavoral,

F. (2014). Bobolang: a language for parallel streaming

applications. In The 23rd International Symposium on

High-Performance Parallel and Distributed Comput-

ing, HPDC’14, Vancouver, BC, Canada - June 23 - 27,

2014, pages 311–314.

Ganglia (2015). Ganglia. http://ganglia.sourceforge.net/.

[Online; accessed 24-November-2015].

Gedik, B., Yu, P. S., and Bordawekar, R. (2007). Executing

stream joins on the cell processor. In Proceedings of

the 33rd International Conference on Very Large Data

Bases, University of Vienna, Austria, September 23-

27, 2007, pages 363–374.

Grinev, M., Grineva, M. P., Hentschel, M., and Kossmann,

D. (2011). Analytics for the realtime web. PVLDB,

4(12):1391–1394.

Gui, H. and Roantree, M. (2013a). Topological xml data

cube construction. International Journal of Web En-

gineering and Technology, 8(4):347–368.

Gui, H. and Roantree, M. (2013b). Using a pipeline

approach to build data cube for large xml data

streams. In Database Systems for Advanced Appli-

cations, pages 59–73. Springer Berlin Heidelberg.

Gulisano, V., Jiménez-Peris, R., Patiño-Martínez, M., and

Valduriez, P. (2010). Streamcloud: A large scale

data streaming system. In 2010 International Con-

ference on Distributed Computing Systems, ICDCS

2010, Genova, Italy, June 21-25, 2010, pages 126–

137.

Inﬁniband (2015). Inﬁniband. http://www.inﬁnibandta.org/.

[Online; accessed 24-November-2015].

InfoSphere streams (2015). InfoSphere streams. http://

www-03.ibm.com/software/products/en/infosphere-

streams. [Online; accessed 19-October-2015].

Kang, J., Naughton, J. F., and Viglas, S. (2003). Evaluating

window joins over unbounded streams. In Proceed-

ings of the 19th International Conference on Data En-

gineering, March 5-8, 2003, Bangalore, India, pages

341–352.

Li, J., Maier, D., Tufte, K., Papadimos, V., and Tucker, P. A.

(2005). Semantics and evaluation techniques for win-

dow aggregates in data streams. In Proceedings of the

ACM SIGMOD International Conference on Manage-

ment of Data, Baltimore, Maryland, USA, June 14-16,

2005, pages 311–322.

Madden, S., Shah, M. A., Hellerstein, J. M., and Raman,

V. (2002). Continuously adaptive continuous queries

over streams. In Proceedings of the 2002 ACM SIG-

MOD International Conference on Management of

Data, Madison, Wisconsin, June 3-6, 2002, pages 49–

60.

Motwani, R., Widom, J., Arasu, A., Babcock, B., Babu,

S., Datar, M., Manku, G. S., Olston, C., Rosenstein,

J., and Varma, R. (2003). Query processing, approx-

imation, and resource management in a data stream

management system. In CIDR.

MVAPICH2, The Ohio State University (2015). MVA-

PICH2, The Ohio State University. http://

mvapich.cse.ohio-state.edu/. [Online; accessed 24-

November-2015].

Neumeyer, L., Robbins, B., Nair, A., and Kesari, A. (2010).

S4: Distributed stream computing platform. In Pro-

ceedings of the 2010 IEEE International Conference

on Data Mining Workshops, ICDMW ’10, pages 170–

177, Washington, DC, USA. IEEE Computer Society.

Peng, D. and Dabek, F. (2010). Large-scale incremental

processing using distributed transactions and notiﬁca-

tions. In 9th USENIX Symposium on Operating Sys-

tems Design and Implementation, OSDI 2010, Octo-

ber 4-6, 2010, Vancouver, BC, Canada, Proceedings,

pages 251–264.

Plimpton, S. J. and Shead, T. M. (2014). Streaming data an-

alytics via message passing with application to graph

algorithms. J. Parallel Distrib. Comput., 74(8):2687–

2698.

Slurm (2015). Slurm. http://slurm.schedmd.com/. [Online;

accessed 24-November-2015].

Teubner, J. and Müller, R. (2011). How soccer players

would do stream joins. In Proceedings of the ACM

SIGMOD International Conference on Management

of Data, SIGMOD 2011, Athens, Greece, June 12-16,

2011, pages 625–636.

Toshniwal, A., Taneja, S., Shukla, A., Ramasamy, K., Pa-

tel, J. M., Kulkarni, S., Jackson, J., Gade, K., Fu, M.,

Donham, J., Bhagat, N., Mittal, S., and Ryaboy, D. V.

(2014). Storm@twitter. In International Conference

on Management of Data, SIGMOD 2014, Snowbird,

UT, USA, June 22-27, 2014, pages 147–156.

Trident (2012). Trident. http://storm.apache.org/

documentation/Trident-tutorial.html. [Online; ac-

cessed 24-November-2015].

Zaharia, M., Das, T., Li, H., Shenker, S., and Stoica, I.

(2012). Discretized streams: An efﬁcient and fault-

tolerant model for stream processing on large clus-

ters. In 4th USENIX Workshop on Hot Topics in Cloud

Computing, HotCloud’12, Boston, MA, USA, June 12-

13, 2012.

DATA 2016 - 5th International Conference on Data Management Technologies and Applications
