BiPS – A Real-time-capable Protocol Framework

for Wireless Sensor Networks

Dennis Christmann, Tobias Braun, Markus Engel, and Reinhard Gotzhein

Computer Science, University of Kaiserslautern, 67653, Kaiserslautern, Germany

Keywords:

Real-time, Wireless Networks, Communication Protocols, Implementations, Operating Systems.

Abstract:

Distributed real-time systems present a particular challenge, because two key problems have to be solved dur-

ing their development: First, deployed protocols must provide deterministic behavior to enable a predictable

outcome. Second, the implementations of the protocols have to be in compliance with the stringent timing

constraints stated by the protocols to ensure that their runtime behavior remains deterministic. This, particu-

larly, requires an adequate isolation of time-critical protocols from less preferential applications installed on

the same node. In this paper, we present the protocol framework BiPS, which tackles these challenges for

wireless sensor networks and Imote 2 hardware platforms. Besides summarizing the various MAC protocols

– both best effort and real-time-capable protocols – and operating system functionalities provided by BiPS,

this paper presents comparative evaluations with TinyOS, a state-of-the-practice operating system for wire-

less sensor networks, and the real-time operating system RIOT. The results show that protocols realized with

BiPS outperforms these solutions w.r.t. predictability of execution times, thereby providing evidence of the

advantages of BiPS for real-time systems.

1 INTRODUCTION

In a real-time system, correctness does not only de-

pend on logically correct results, but also on the point

in time when the results are produced (Kopetz, 1997).

In distributed applications where the system is com-

posed of several interacting nodes, this fundamental

requirement does not only make demands on the sin-

gle nodes and their implementations, but also on the

communication system, which has to provide reliable

and delay-constrained data transfer. To meet both de-

mands, the realization of distributed real-time systems

should be a holistic approach, where protocols are

designed w.r.t. the real-time properties they have to

fulﬁll as well as implemented in compliance with re-

quired time constraints and in harmony with less time-

critical components. This, in turn, makes demands on

the used operating systems (OSs), which are respon-

sible for the compliance with local deadlines.

In this paper, we present the Black burst-

Integrated Protocol Stack (BiPS), a real-time-capable

protocol framework for wireless networks, which is

used in an industrial project, in which sensor values

of a production plant have to be sent over a wireless

communication medium with bounded delay. The

various protocols provided by BiPS are activated in

so-called virtual slot regions, which enable the usage

of best effort and real-time-capable protocols within

one scenario. To guarantee compliance with time con-

straints stated by the protocols, the framework runs on

top of the hardware – in our case, the sensor platform

Imote 2 (MEMSIC Inc., 2013) – without further OS.

As consequence, all functionalities of a typical OS

– like application schedulers (time- or event-driven)

and hardware drivers – are provided by BiPS. Thus,

BiPS does not only consist of a set of protocols but

also represents a light-weight, tailored, and layered

OS (Farooq and Kunz, 2011). It comes with ﬂexible

application interfaces to enable abstraction and tem-

poral decoupling between the time-critical protocols

of BiPS and higher layers with less stringent time con-

straints.

Compared to state-of-the-practice protocol imple-

mentations, BiPS differs in two points: First, BiPS

does not include a single protocol but consists of var-

ious MAC (Medium Access Control) protocols, ab-

stract interfaces to integrate new ones, and an ar-

chitecture to apply various protocols in one sce-

nario. Thereby, BiPS is much more ﬂexible than

existing communication solutions like IEEE 802.11

or IEEE 802.15.4, where the combination of sev-

eral MAC schemes is not possible or severely re-

Christmann, D., Braun, T., Engel, M. and Gotzhein, R.

BiPS – A Real-time-capable Protocol Framework for Wireless Sensor Networks.

DOI: 10.5220/0005938300170027

In Proceedings of the 6th International Joint Conference on Pervasive and Embedded Computing and Communication Systems (PECCS 2016), pages 17-27

ISBN: 978-989-758-195-3

 2016 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

stricted. Second, in common implementations, pro-

tocols are realized as components of a generic (real-

time) OS like TinyOS (e.g., IEEE 802.15.4 (Cunha

et al., 2007; Hauer, 2009) or 6LoWPAN (Harvan

and Sch

onw

alder, 2008)), Contiki (e.g., IEEE 802.11

(Glaropoulos et al., 2014) or LOADng (Elyengui

et al., 2015)), or Nano-RK (e.g., WiDom (Pereira

et al., 2007)), whereas BiPS is protocol-centric, i.e.,

the OS functionalities have been built as auxiliary ser-

vices around the communication protocols. Hence,

BiPS is highly-optimized for the execution of real-

time protocols. Since compared to generic OSs, BiPS

has some limitations like missing support of syn-

chronization mechanisms (e.g., semaphores), the real-

time OS FreeRTOS has been integrated into BiPS

in terms of a subordinated application scheduler.

Thereby, multi-threading and priority-based preemp-

tive scheduling is supported for higher layers like

routing protocols or applications, while the execution

of time-critical components remains under control of

the BiPS core.

Different from our previous work on BiPS (Braun

et al., 2014a), in which the focus was on the interfac-

ing of implementations derived from SDL (Speciﬁca-

tion and Description Language, (ITU-T, 2012)) mod-

els, this paper presents core functionalities of BiPS

w.r.t. its application in real-time systems. In this re-

gard, the paper gives special attention to implementa-

tion aspects, predictability at runtime, and compliance

with timing constraints.

The paper is structured as follows: Section 2 out-

lines BiPS. Details of the framework and integrated

protocols are presented in Sect. 3, and OS functionali-

ties together with implementation details in Sect. 4. In

Sect. 5, results of a comparison study between BiPS,

TinyOS, and RIOT are presented. Section 6 provides

a survey on related work. Finally, Sect. 7 concludes

the paper.

2 AN OUTLINE OF BiPS

BiPS is a protocol framework for wireless sensor

nodes tailored for the Imote 2 platform (MEMSIC

Inc., 2013). This platform is based on an Intel XS-

cale PXA271 controller with 256 KiB SRAM, 32 MiB

SDRAM, and 32 MiB FLASH. It supports clock

rates up to 416 MHz and integrates the widely used

IEEE 802.15.4-compliant CC2420 transceiver (TI,

2013).

The architecture of BiPS is presented in Fig. 1.

Besides included protocols like the synchroniza-

tion protocol Black Burst Synchronization (BBS;

(Gotzhein and Kuhn, 2011)) and several MAC proto-

sensor application, control algorithm, ...

HW timers, GPIO, DMA,...

transceiver (cc2420)

UART,LED,...

routing, middleware, ...

MAC

BBS ACTP

black burst

1 - drivers

0 - system software

2 - MAC protocols

4 - applications

3 - higher-layer

protocols

schedulers

app

(BAS)

communication

(BCS)

multiplexer

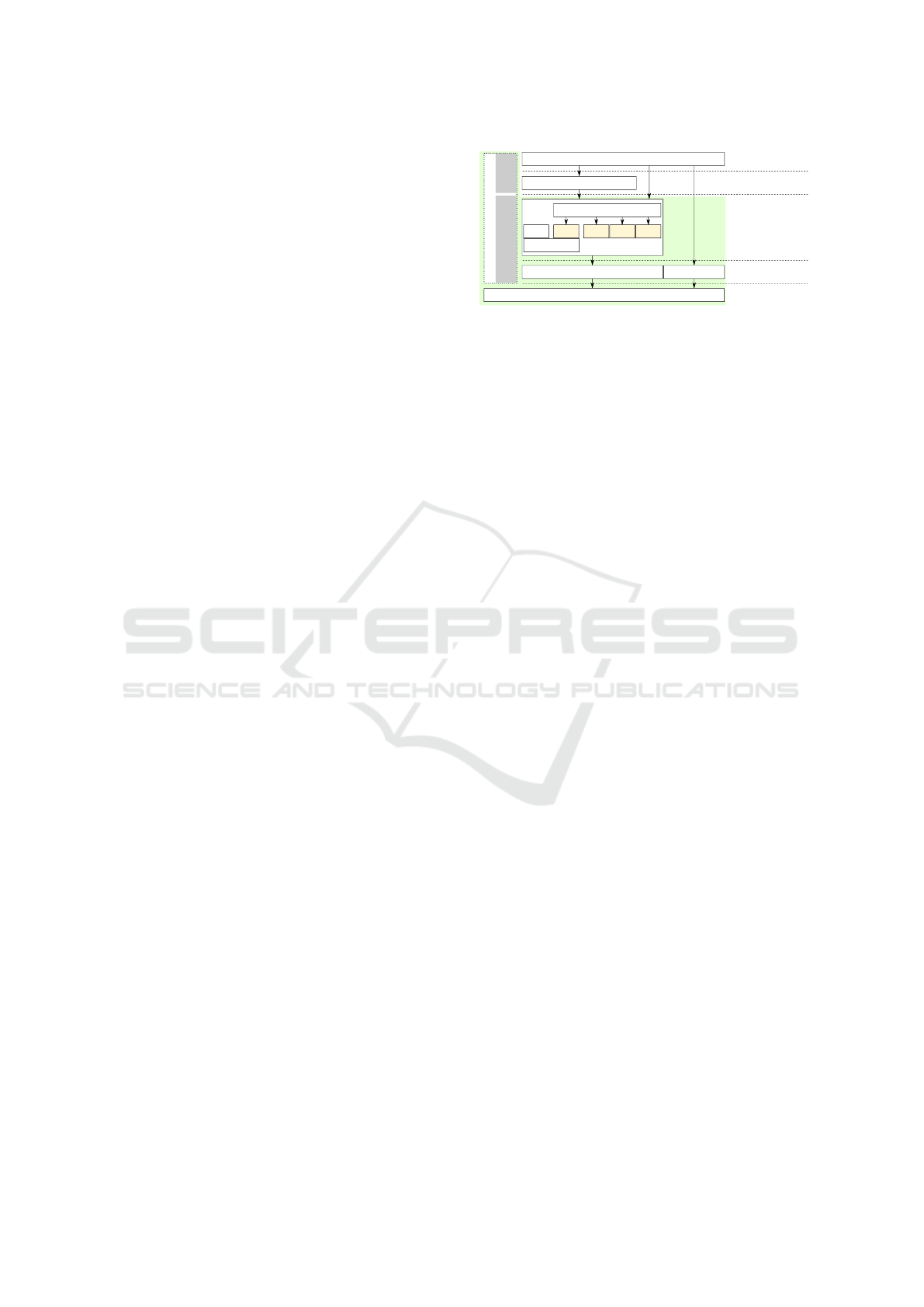

Figure 1: Architecture of BiPS.

cols, the ﬁgure additionally shows the communication

and application scheduler of BiPS and the application

interface to decouple time-critical protocol function-

alities from higher-layer protocols.

The overall structure of BiPS follows a layered

approach, where higher layers can abstract from the

realization of lower layers by providing abstract inter-

faces: In layer 0, BiPS implements low level function-

ality to interact with the hardware, such as access to

hardware timers. Layer 1 comprises hardware drivers

for peripheral devices, such as an optimized driver for

the CC 2420 transceiver using DMA (Direct Memory

Access). While layer 0 and 1 are hardware-speciﬁc by

nature, the protocols in layer 2 abstract from hardware

details in most instances. However, full abstraction is

not possible, because some limitations of the hard-

ware – e.g., transfer rates and switching delays of the

transceiver – must be considered. Currently, layer 2

includes the synchronization protocol BBS providing

network-wide synchronization in multi-hop networks

and four MAC protocols (see Sect. 3.1). To access the

MAC protocols from higher-layer protocols (layer 3)

or applications (layer 4), a multiplexer has been intro-

duced, providing a unique interface to all MAC proto-

cols and decoupling time-critical protocols from less

time-critical applications (see Sect. 3.3).

The execution of all components – MAC proto-

cols on layer 2 as well as higher-layer protocols and

applications on layer 3 and 4 – are controlled by

two schedulers: The BiPS Communication Scheduler

(BCS), developed and optimized for the execution of

time-critical MAC protocols, and the BiPS Applica-

tion Scheduler (BAS) for less time-stringent applica-

tions. More details on this topic are given in Sect. 4.

3 BiPS AS PROTOCOL

FRAMEWORK

The objective of BiPS is to provide an extensible

framework for (real-time-capable) MAC protocols

and homogeneous and easy-to-use interfaces to ac-

cess them. In this section, we describe already in-

PEC 2016 - International Conference on Pervasive and Embedded Computing

corporated MAC protocols (Sect. 3.1), mechanisms to

run them in parallel in a compatible way (Sect. 3.2),

and the multiplexer providing the upper interface to

them (Sect. 3.3).

3.1 Available MAC Protocols

Currently, BiPS supports four MAC protocols (see

Fig.1): One best effort protocol and three real-time-

capable protocols.

The best effort protocol is called Contention-

Based protocol (short: CB) and realizes a classi-

cal CSMA/CA-based (Carrier Sense Multiple Ac-

cess with Collision Avoidance) communication solu-

tion. Since backoff times are calculated by means

of conﬁgurable contention windows, CB allows

priority-based frame transmissions and slightly sup-

ports Quality-of-Service (QoS), yet without guaran-

tees w.r.t. collisions and delays.

The real-time-capable MAC protocols are called

Reservation-Based Protocol (short: RB), Arbi-

trating and Cooperative Transfer Protocol (short:

ACTP, (Christmann et al., 2012)), and Mode-Based

Scheduling with Fast Mode-Signaling (short: MB,

(Braun et al., 2014b)). RB is a TDMA-based (Time

Division Multiple Access) protocol with exclusive

slot reservations, hence enabling deterministic guar-

antees. ACTP is a so-called binary countdown pro-

tocol

for multi-hop networks, which provides deter-

ministic priority-based medium arbitration with con-

ﬁgurable arbitration radius and (network-wide) trans-

missions of bit sequences within guaranteed delay

bounds. For this purpose, it incorporates a collision-

resistant communication primitive called black burst,

which realizes dominant bits by the transmission of a

busy tone and recessive bits by the absence of trans-

mission. MB allows, different from RB, a well-

controlled amount of dynamic contention for time

slots, while still supporting deterministic guarantees

and, therefore, enables an efﬁcient usage of the avail-

able network resources especially for sporadic mes-

sages. To establish the synchronization required by

the protocols, BiPS incorporates the synchronization

protocol BBS (Gotzhein and Kuhn, 2011), which is

designed for dense multi-hop networks and provides

network-wide synchronization with low and bounded

offset.

Selecting the best MAC protocol depends on a sce-

nario’s concrete message characteristics and require-

ments regarding timing and determinism: If, for in-

stance, messages are strictly periodic, RB is the best

A famous wired representative of this protocol class is

CAN – the Controller Area Network (ISO, 2004).

choice w.r.t. bandwidth usage and absence of colli-

sions.

3.2 Medium Slotting and Virtual Slot

Regions

Since large distributed systems realize various ap-

plications sending messages with different commu-

nication requirements (periodic/sporadic messages

with/without timing requirements), it is often not suf-

ﬁcient to run a single MAC protocol only. Instead, the

communication system should provide suitable MAC

protocols for each application and corresponding in-

terfaces to use them.

In BiPS, this is solved by the possibility to com-

bine all MAC protocols in one scenario by multiplex-

ing their activation in time. For this purpose, BiPS

divides time into periodically repeated super slots

consisting of a conﬁgurable number of macro slots.

Macro slots start with a synchronization phase

and

have a conﬁgurable length, determining the resyn-

chronization interval. Macro slots are further sub-

divided into so-called virtual slot regions with con-

ﬁgurable and node-speciﬁc positions and durations.

Each virtual slot region is self-contained and assigned

to one of the MAC protocols, which organizes the

medium access within the slot region. The BCS (see

Sect. 4.1) is responsible to activate the assigned MAC

protocol based on the node’s local (but synchronized)

clock and to prevent interference between neighbor-

ing slot regions. In contrast to the periodically re-

peated super slot, each macro slot of the super slot

may have an individual structure of virtual slot re-

gions with different lengths and assigned protocols.

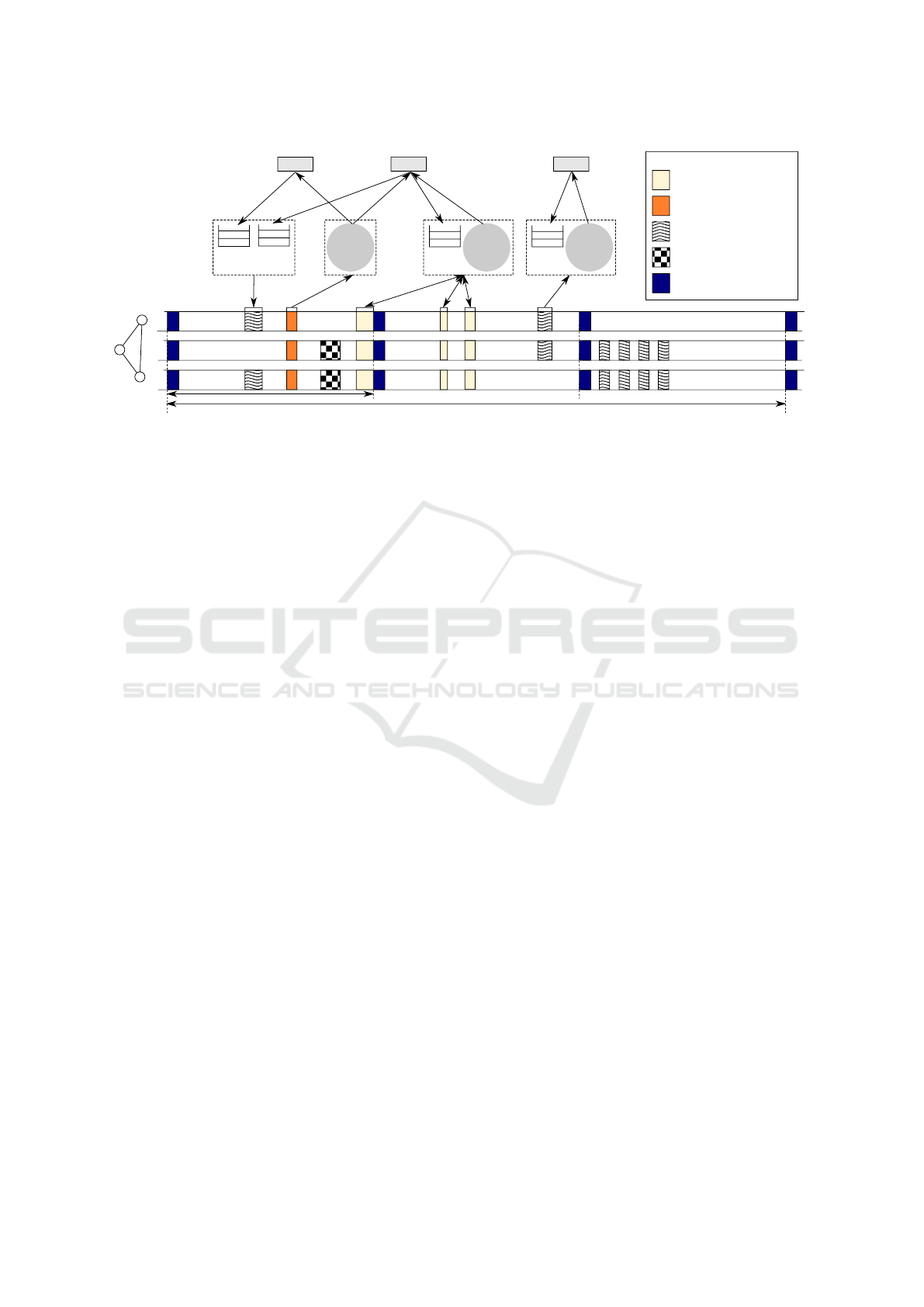

Figure 2 shows an example of a super slot con-

ﬁguration for three nodes. In the example, a super

slot consists of three macro slots with different con-

ﬁgurations of virtual slot regions for each of the three

nodes. The slot regions have been assigned to differ-

ent MAC protocols, according to the scenario’s com-

munication characteristics. The access to a virtual

slot region – and, hence, to a particular MAC pro-

tocol – is managed by so-called Transmission Op-

portunities (TOs), which are responsible for the (de-

)multiplexing of transmissions (see Sect. 3.3).

The conﬁgurable length of slot regions as well as

the ﬂexible assignment to MAC protocols enables tai-

loring of the communication schedule to a speciﬁc

scenario. Unassigned time slices of macro slots are

automatically joined to idle regions (white areas be-

tween virtual slot regions in Fig. 2). Since a node

We apply BBS but actually, any synchronization proto-

col realizing network-wide synchronization with bounded

offset and convergence delay could be used.

BiPS – A Real-time-capable Protocol Framework for Wireless Sensor Networks

app V

a,1

app V

a,2

TX TO

id = 10

prio = 0

TX TO

id = 3

prio = 1

TX TO

id = 4

prio = 0

RX TO

id = 2

setData()

RX TO

id = 0

rxCallback()

setData() /

rxCallback()

enqueue()

callback()

enqueue()

callback()

enqueue()

ACTP: Arbitrating and Cooperative

Transfer Protocol

CB: Contention-based Protocol

(CSMA/CA)

Types of virtual slot regions

MB: Mode-based Scheduling with

Fast Mode Signaling

RB: Reservation-based Protocol

TX TO

id = 5

prio = 2

RX TO

id = 6

app V

a,3

rxCallback()

callback()

enqueue()

super slot

macro slot

FIFO

EDF

FIFO

BBS: (Re-)synchronization phase

Figure 2: Conﬁguration of virtual slot regions of three nodes and associated transmission opportunities.

is not involved in communication during idle regions,

the BCS automatically disables the transceiver to save

energy. Therefore, BiPS inherently incorporates a

transparent and application-independent duty cycling

model on communication level, which is a precondi-

tion for wireless sensor networks (WSNs).

3.3 Multiplexing of Applications and

Access to MAC Protocols

In BiPS, applications and higher-layer protocols (lay-

ers 4 and 3) do not directly interact with the MAC

protocols but via TOs, which are located in the

multiplexer (see Fig. 1). This has several reasons:

First, MAC protocols have time-critical functionali-

ties, whereas applications and higher-layer protocols

have less requirements. Second, a direct interaction

with MAC protocols would require the protocols to

implement queueing facilities, which would increase

the complexity of the protocol. Furthermore, directly

interacting with a MAC protocol would complicate

the exchange of the protocol if a different protocol

seems to be more suitable for an application later.

To achieve that the usage of a MAC protocol is,

from an application’s perspective, transparent, easy,

and independent from the concrete protocol, BiPS in-

troduces the multiplexer, realizing a temporal decou-

pling and loose coupling between MAC protocols and

components on higher layers. This multiplexer pro-

vides a homogeneous interface to all MAC protocols,

though properties of a single transmission may differ.

The multiplexer comprises a set of TX queues –

called TX TOs – to store outgoing transmissions until

they are ready to be sent. If an application or higher-

layer protocol intends to transmit a frame, it enqueues

the frame in a TX TO, which is associated with a set

of virtual slot regions and owns a priority. When a

new virtual slot region begins, the ﬁrst frame of the

associated TX TO with highest priority is transferred

to the MAC protocol responsible for this slot region.

This protocol then tries to send the frame and informs

the multiplexer about success or failure afterwards,

which, in turn, informs the initiator of the transmis-

sion or – depending on a conﬁguration – triggers re-

transmissions. Further conﬁguration options of TX

TOs allow a limit on the queue size and the selec-

tion of a queueing strategy, where currently First-In-

First-Out (FIFO) and Earliest-Deadline-First (EDF)

are supported. Since a TX TO implements queue-

ing facilities and multiple applications can share a

TX TO, the same MAC protocol can be used by sev-

eral applications executed on the same node. In this

case, the TX TO also guarantees the correct delivery

of transmission conﬁrmations.

Similar to TX TOs, the multiplexer provides RX

TOs, where applications can register a function call-

back, which is invoked whenever data is received in

an associated slot region. In this regard, multiple call-

backs can be registered in one RX TO to inform sev-

eral applications about the reception of a data frame.

The interplay of TX/RX TOs and applications,

and the association of TOs to virtual slot regions is

illustrated in Fig. 2. In this example, three applica-

tions installed on node V

access the multiplexer of

BiPS, which comprises four TX TOs and three RX

TOs, each identiﬁed with a unique identiﬁer. The ex-

ample, particularly, highlights the following proper-

ties: First, one application can use several TX and

RX TOs. Second, several TX TOs can be assigned to

one virtual slot region, where priorities enforce a lo-

cal preference order. Third, TX TOs can be associated

with several slot regions to give a frame several trans-

mission chances per super slot. A similar association

holds for RX TOs.

PEC 2016 - International Conference on Pervasive and Embedded Computing

4 OPERATING SYSTEM

FUNCTIONALITIES IN BiPS

To run real-time-capable protocols, time-critical pro-

tocol functionality must be executed in time and with

minimal delays. Therefore, BiPS is specially tai-

lored to its target platform Imote 2 and implemented

as bare-metal solution. Instead of extending an OS by

protocols, which is actually state-of-the-practice (see

e.g, (Basmer et al., 2011)), BiPS provides a subset of

OS functions while simultaneously focusing on the

needs of real-time-capable protocols. Hence, BiPS

combines handcrafted optimized code for the Imote 2

platform (e.g., an interrupt handler written in assem-

bler and optimized hardware drivers using DMA)

with abstract interfaces and schedulers for MAC pro-

tocols as well as less time-critical applications.

According to the design of BiPS, we distinguish

between core functionalities with high requirements

w.r.t. timeliness and components with lower require-

ments. To reﬂect this, BiPS incorporates two sched-

ulers: The BiPS Communication Scheduler (BCS,

Sect. 4.1) responsible for the execution of time-

critical components (MAC protocols, core functions

of BiPS), and the BiPS Application Scheduler (BAS,

Sect. 4.2) executing applications and higher-layer

protocols. Both beneﬁt from core services regarding

memory management and fault handling (Sect. 4.3).

4.1 The BiPS Communication

Scheduler

The main task of the BCS is the timely (de-)activation

of MAC protocols at the start and end of associated

virtual slot regions, respectively. In order to prior-

itize BCS over BAS, BCS and its managed compo-

nents run in the interrupt mode of the microcontroller.

To ensure timeliness when (de-)activating MAC pro-

tocols, the BCS uses a dedicated hardware timer of

the Imote 2 platform.

Execution of MAC protocols is controlled by the

BCS via a uniform interface, which has to be imple-

mented by each MAC protocol and prescribes func-

tions to be implemented to exchange data with the

multiplexer. Thereby, the extension of the frame-

work with a new protocol is straightforward. Vir-

tual slot regions are structured by the BCS in a

protocol-independent way, which ensures the isola-

tion of neighboring slot regions. In this regard, guard

times between subsequent slot regions are introduced

to compensate synchronization inaccuracies, which

have to be bounded by a maximal offset d

maxOffset

, and

other transceiver-related factors. Transceiver-related

factors include, for instance, switching delays of the

:MB-MAC

:BCS

setData(m,cB)

switchToRX

t2: TimerInterrupt

stop( )

t3: TimerInterrupt

start(t1, slotDuration)

t1: TimerInterrupt

t0: TimerInterrupt

conﬁgure(t0, conﬁg)

:MPX

maxOﬀset

stop

slotDuration

virtual slot region

Figure 3: Structure of virtual slot regions and activation of

the MAC protocol by the BCS.

CC 2420 transceiver to guarantee that every node with

an assigned RX TO is in reception mode at the start

of a virtual slot region. In this context d

CC2420

T X→RX

de-

notes the maximal switching delay from transmission

(TX) to reception (RX) mode, as speciﬁed by the data

sheet.

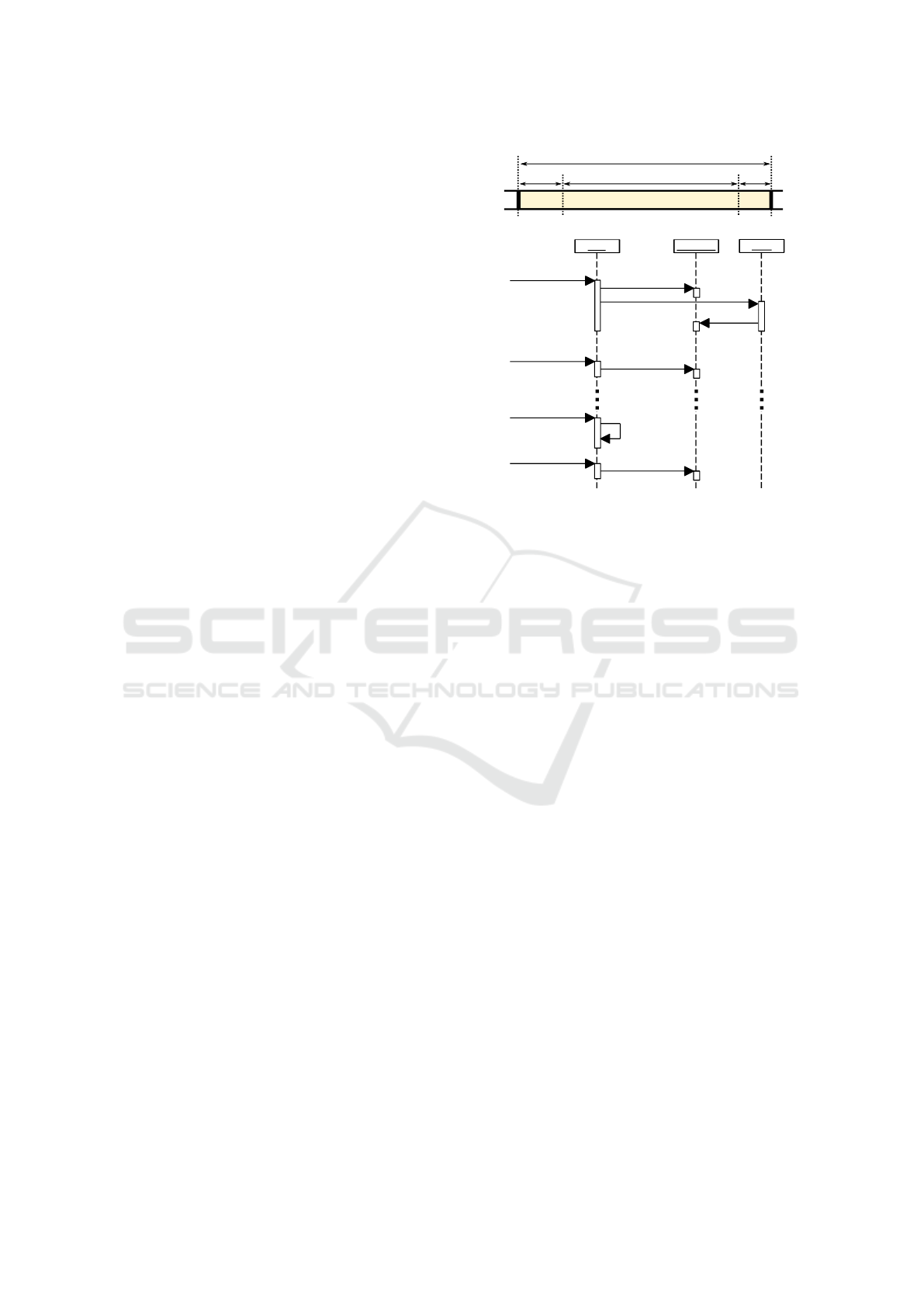

Figure 3 shows the layout of a virtual slot region

and the interface used by the BCS to control the ex-

ecution of a MAC protocol. The duration of the re-

gion d

slotDuration

depends on the speciﬁc virtual slot

region as conﬁgured in the macro slot conﬁguration

and may allow several transmissions within one re-

gion. At t0, the slot region starts (according to the

node’s local clock). At this point, the BCS ﬁrst calls

the configure function of the protocol and then exe-

cutes the multiplexer (MPX), which checks for frames

to be transmitted. Since the synchronization offset

is bounded by d

maxOffset

, all nodes have reached the

start of the slot region not later than at t1, when the

control over the medium is passed on to the MAC

protocol, which now may start transmissions. At t2,

the BCS switches the transceivers back to reception

mode, to guarantee that all nodes perceive the trans-

missions within the bounds of the assigned slot re-

gion. Thus, all MAC protocols have to ensure that

their transmissions are ﬁnished at this point in time.

Therefore, the guard time d

stop

between t2 and t3 (the

locally perceived end of the slot region), is deﬁned

as d

stop

= max(d

maxOffset

, d

CC2420

T X→RX

). By considering

the maximal synchronization offset d

maxOffset

and the

transceiver’s switching delay d

CC2420

T X→RX

from TX to RX

mode, this guarantees not only that every node re-

BiPS – A Real-time-capable Protocol Framework for Wireless Sensor Networks

ceives the end of a transmission within the slot re-

gion’s bounds, but also that a node sending in the cur-

rent slot region is ready to receive new frames at the

start of the subsequent slot region.

Using a beacon-based synchronization protocol

(limited to single-hop networks) instead of BBS in

conjunction with a macro slot duration of 1 s, an upper

bound for the synchronization offset can be derived

with d

maxOffset

= 100 µs. Together with the maximal

switching delay d

CC2420

T X→RX

= 192µs, the resulting guard

time is d

stop

= 192 µs and the minimal virtual slot re-

gion duration is about 5.5 ms (for the MB protocol).

If BBS is used to synchronize a three hop network,

the maximal offset is bounded by d

maxOffset

= 338 µs.

Hence, the guard time is d

stop

= 338µs and the min-

imal length of the virtual slot region is exemplarily

6.8ms for the MB protocol.

4.2 The BiPS Application Scheduler

The BAS is responsible for the execution of less time-

stringent applications and higher-layer protocols and

is classiﬁed as cooperative, event-based, and non-

preemptive. It is small-scale, since it does not manage

processes or threads but handles function callbacks

to execute components. To be executed by the BAS,

components have to register for relevant events, such

as frame receptions or timer expirations. The events

are identiﬁed by unique identiﬁers, which are used to

request the event’s execution at the next scheduling

decision. Since the execution of events can be re-

quested in interrupt mode but the BAS runs in non-

interrupt mode, events, which are announced in inter-

rupt mode, can be continued after leaving this mode.

This is, for instance, used in BiPS after the reception

of a frame, which is indicated by a MAC protocol

running in interrupt mode, but must not entirely be

handled in interrupt mode due to its possibly costly

processing.

Synchronization primitives between components

managed by the BAS are not required, since they

work cooperatively and their execution can only be

interrupted by hardware interrupts. There are, how-

ever, critical sections in which a component needs to

interact with low level functions, e.g., if a message

is sent via UART (Universal Asynchronous Receiver

Transmitter). To prevent data races, access to shared

memory has to be exclusive in these cases, which is

obtained by temporarily disabling interrupts, which,

in turn, can have a negative impact on time-critical

protocols. To mitigate this effect, we measured the

worst-case processing duration d

max

intr

of all interrupt

routines of the device drivers. Then, we let BCS take

over control d

max

intr

before a time-critical event is about

to happen, which disables all non-relevant interrupts,

thereby deferring the execution of less prior compo-

nents. In order to keep d

max

intr

low, we demand the in-

terrupt routines to consume the shortest duration pos-

sible, which could be achieved by e.g. using direct

memory access (DMA) to transfer data between main

memory and devices. To further avoid undesired de-

lays, the Imote 2’s CPU provides nesting interrupts

on two levels, so lower prioritized hardware drivers,

e.g., the UART, can be interrupted by higher priori-

tized events, such as the expiration of a timer.

Though the BAS is sufﬁcient in most instances,

the absence of tasks and preemption can limit its ap-

plicability. Thus, it is also possible to remove BAS

completely and replace it by another operating sys-

tem which can in general be ported to the Imote 2 plat-

form. This enables the development of multi-threaded

applications and higher-layer protocols without be-

ing limited by the event system of BAS and cooper-

ative scheduling. In detail, we integrated RIOT and

FreeRTOS, both classical real-time OS with support

for tasks, task priorities, synchronization primitives,

and task preemption, into BiPS. The port of an inte-

grated OS can be seen as a virtualization, because it

has only limited access to the hardware and its exe-

cution is controlled. Since interrupts destined for the

inner OS are assigned a lower priority than those used

by the BCS, not only user level tasks can be inter-

rupted by the BCS but also the kernel functionality of

the inner OS. Therefore, timeliness and prioritization

of MAC protocols over applications and higher-layer

protocols is still guaranteed. The tasks running in-

side the OS can interact with the communication sub-

system of BiPS using the multiplexer, as explained in

section 3.3. The effort of porting an OS into BiPS can

be compared to porting it to bare metal, except that

drivers for peripheral devices are already provided by

BiPS and only need an adaption layer in the port.

4.3 Memory Management and Fault

Handling

The core hardware of the Imote 2 platform offers

many features that can be used to speed up execu-

tion and to facilitate debugging of applications. In

this regard, the availability of instruction and data

caches and a Memory Management Unit (MMU) is

fundamental. In BiPS, we use the MMU for detecting

and analyzing common faults and provide tools to ex-

amine error situations. In particular, we can detect

overwriting of code and read-only data, accidental

writes to system memory such as page tables, access-

ing NULL pointers (by data access or jumping), and

execution of invalid code (provoked by illegal jumps).

PEC 2016 - International Conference on Pervasive and Embedded Computing

If a fault is detected, the in-system fault handler of

BiPS gives information about possible reasons. It also

prints a backtrace and offers a shell to examine mem-

ory content and to print the current virtual memory

layout, physical memory allocations, and information

about heap and stacks. There is also a GDB server

included, so the GNU debugger can be invoked on a

PC attached to the Imote 2 via serial line. This can

give even more insight, since GDB can enrich pointer

addresses by debug information.

By enabling the MMU, we can also enable the

data cache of the Imote 2, which signiﬁcantly speeds

up the average execution time. On the downside,

caches introduce jitter, which is conﬂicting with time-

critical protocols and real-time systems. However,

in BiPS, this jitter is greatly reduced for time-critical

functions by using cache locking, a feature preventing

individual data and instructions from being evicted

from the caches.

Using the MMU also allows for shorter develop-

ment times, as BiPS and its applications work on a

common virtual memory layout and are therefore in-

dependent of their physical memory location. As re-

sult, an image with BiPS can be stored on non-volatile

memory, but it can also be executed from SDRAM,

which is much faster and saves write cycles of the

ﬂash memory.

5 EVALUATION

In this section, experiments are presented comparing

BiPS with state-of-the-practice implementations for

WSNs. In this regard, the focus is not on the individ-

ual protocols in BiPS, since deterministic protocols

are predictable by design and CSMA/CA protocols

are well studied (see, e.g., (Ziouva and Antonakopou-

los, 2002; Wang and Kar, 2005; Koubaa et al., 2006)).

Instead, the objective is to evaluate BiPS as frame-

work for real-time-capable protocols. In this regard,

resource usage (Sect. 5.1) and predictability of timer

delays (Sect. 5.2) and delays to detect Start-Frame-

Delimiters (SFDs, Sect. 5.3) are of interest.

Since there are only few OSs supporting the X-

Scale PXA271 controller of the Imote 2, quantita-

tive comparisons are severely restricted. In partic-

ular, we only found direct support for this micro-

controller in TinyOS, which we used in version 2.1.2.

To compare BiPS with a classical real-time OS, we

added a port for the Imote 2 to RIOT (Hahm et al.,

2013a). But since RIOT does not provide a driver for

the CC2420 transceiver, comparisons are restricted to

communication-independent aspects. In all experi-

ments, the Imote 2 runs with 104 MHz.

5.1 Memory Usage

In general, memory usage of a program can be divided

into static and dynamic memory. Static memory is the

amount of memory that is needed by the application

image and consists of code plus read-only and pre-

initialized read-write data. It can be measured by tak-

ing the ﬁle size of the image after linking all object

ﬁles. Dynamic memory is the memory needed while

executing the program. It covers all read-write data

that can be seen by static analyzes of the program,

such as global variables, but there are also data, whose

size cannot be determined in advance, such as heap

and stack. It is, therefore, not trivial to give meaning-

ful numbers for dynamic memory, but one can pro-

vide minimal requirements.

The Imote 2, compared to other sensor platforms,

is very powerful: It offers 32 MiB ﬂash memory,

which is an upper limit for static memory usage, as

well as 256 KiB SRAM and 32 MiB SDRAM, which

are upper limits for dynamic memory usage. Be-

cause of this large amount, optimizing our applica-

tions for size was a minor objective. The features

we employed, such as virtual memory handling and

a comprehensive fault handler (see Sect. 4.3), con-

sume about 59 KiB static memory and 26 KiB dy-

namic memory, of which 16 KiB are contributed to

the MMU table alone.

As minimum requirement, a BiPS application

needs 140 KiB static and 26 KiB dynamic memory.

An application using BiPS excessively requires about

350 KiB static and 35 KiB dynamic memory. Note,

however, that by compiling for size instead of per-

formance, the static size of applications can already

be reduced by 20%. If size should matter (remem-

ber: even with a large application, we only use 1% of

static and 0.1% of dynamic memory), we could also

drop features or compile the application using an al-

ternative size-optimized instruction set offered by the

processor.

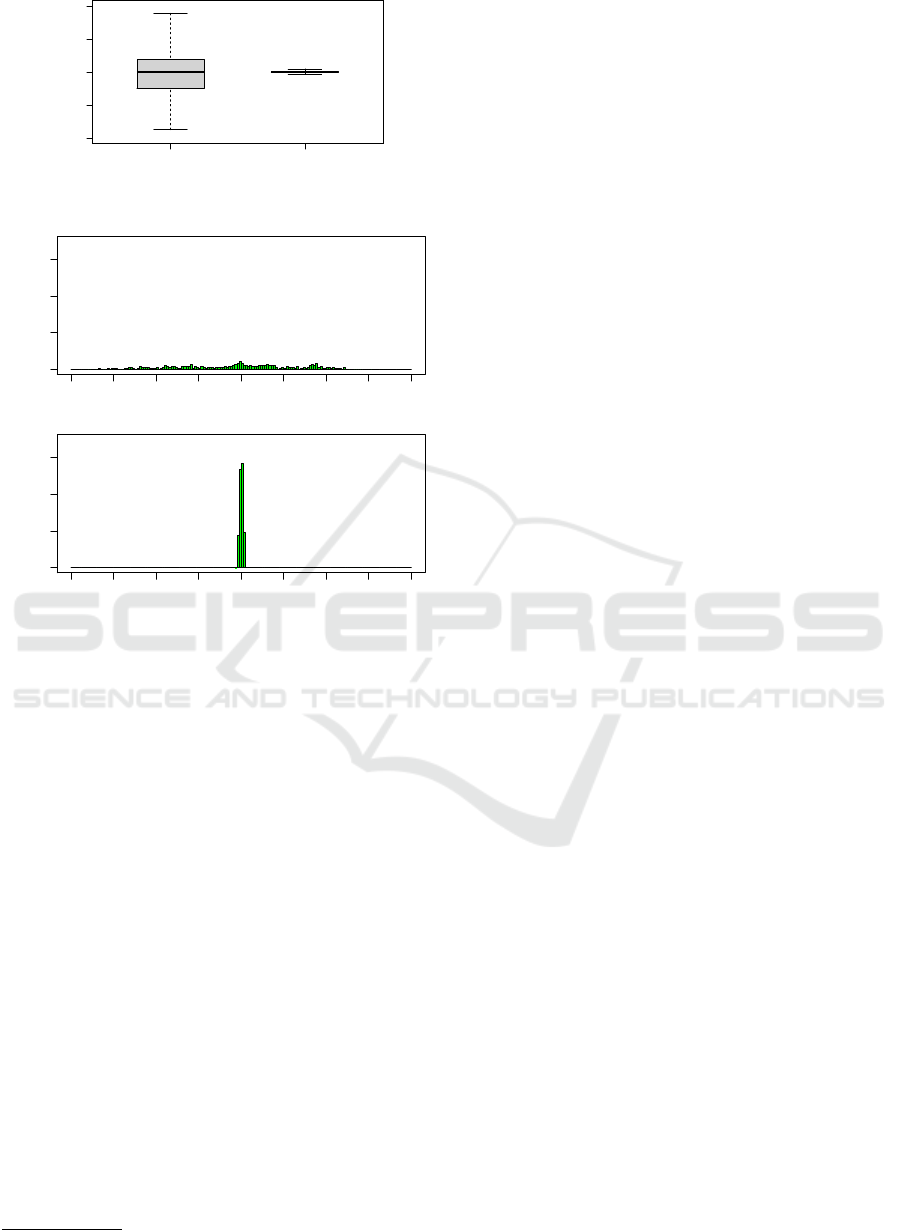

5.2 Timer Delays

In real-time systems, delays to react to external events

must be low and predictable. At best, these delays are

bounded and load-independent. In the following, we

assess delays to process timers, whose expiration is a

special type of event. They are used representative for

other types of events, e.g., caused peripheral devices.

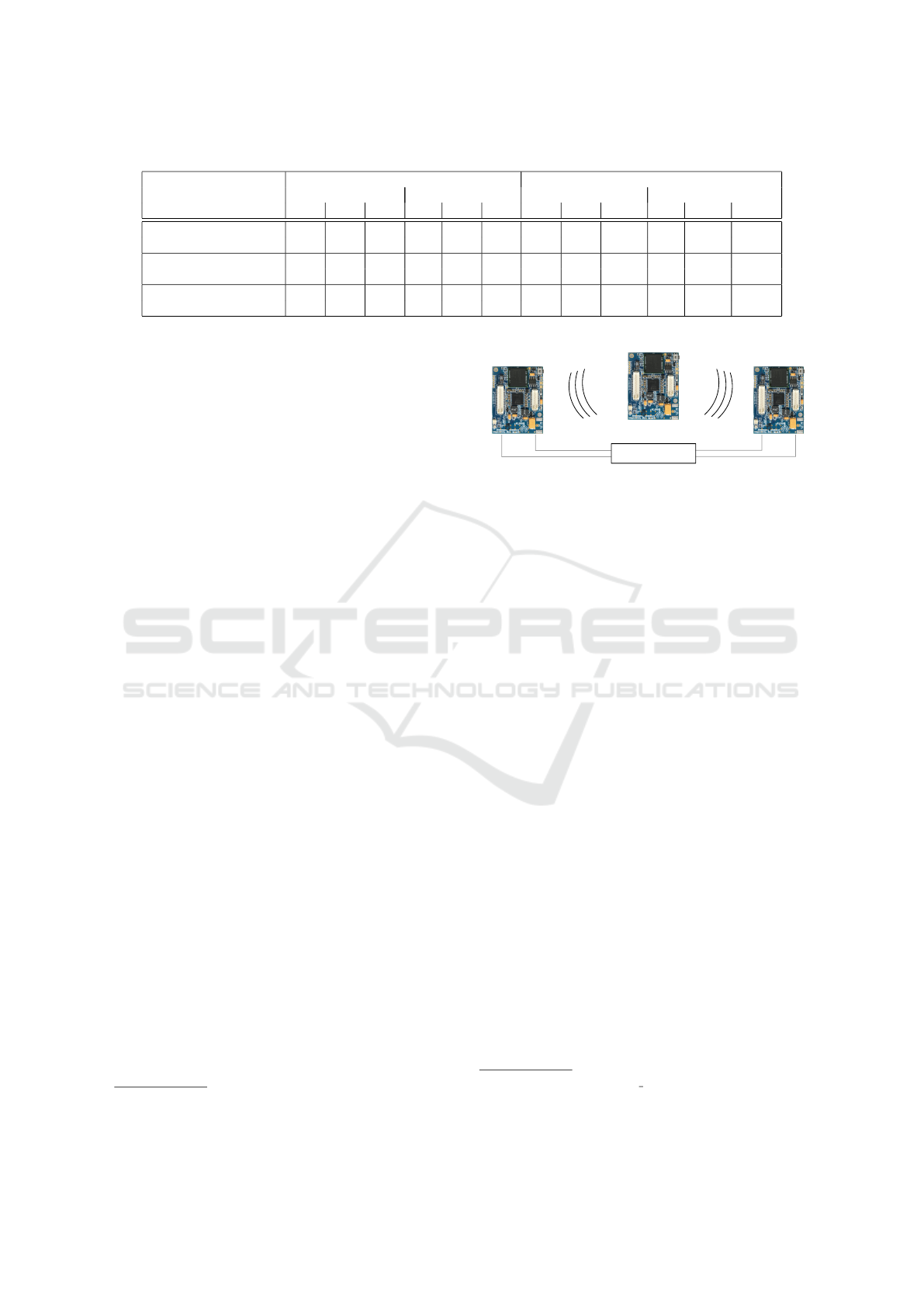

The experiment’s setup consists of one Imote 2, on

which TinyOS, RIOT, and BiPS are installed consec-

utively. In each case, there is support for (at least) two

timer variants, which are evaluated independently:

One variant, where the expiration is processed in in-

BiPS – A Real-time-capable Protocol Framework for Wireless Sensor Networks

Table 1: Timer delays.

w/o load with load

time [µs] instructions time [µs] instructions

min avg max min avg max min avg max min avg max

TinyOS Timer 18.1 18.3 18.6 177 177 177 19.3 46.2 1316 192 497.2 15382

Alarm 13.5 13.6 13.7 112 112 112 13.5 16.8 18.4 112 112 112

RIOT virtual timer 22 22 22 663 663 663 26.7 49.9 63.4 933 933.1 1254

hw timer 2.3 2.4 2.4 49 49 50 2.3 3.5 7.6 49 49.3 50

BiPS event timer 2.3 3.3 7.9 49 49.3 50 5.3 8.8 594.2 53 86.9 13260

hw timer 1.5 1.6 1.6 13 13 13 1.5 1.7 2.5 13 13.3 14

terrupt context – called Alarm (TinyOS) or hw timer

(RIOT, BiPS) –, and one variant with execution in

non-interrupt mode – called Timer (TinyOS), virtual

timer (RIOT), or event timer (BiPS). The time to pro-

cess a timer is measured by performance counters of

the Imote 2. For each OS and timer variant, experi-

ments are done without and with background load and

repeated 10,000 times.

The results are shown in Table 1. Without load,

there is no concurrency. The results show that the

processing of timers in interrupt mode is, in general,

faster and less variable than in non-interrupt mode.

Due to the costly runtime model and its distinctive ab-

straction layers, hardware timer delays with TinyOS

are in general larger than with RIOT and BiPS. The

lowest and most stable delays are achieved by hard-

ware timers of RIOT and BiPS, since they beneﬁt

from optimized implementations. Perhaps most sur-

prising are the virtual timers of RIOT, whose execu-

tion implies the preemption of an idle task and a con-

text switch, which sums up to 22µs on average.

When additional random background load is gen-

erated by a second timer

, evictions of data from the

Imote 2’s instruction and data caches are provoked.

Corresponding results show a deterioration of delays;

in particular, for timers processed in non-interrupt

mode. In this regard, processing delays in RIOT in-

crease the least due to the priority-based and preemp-

tive scheduling strategy. On the other hand, non-

interrupt timers of TinyOS and BiPS suffer from the

cooperative scheduling strategies, yet BiPS outper-

forms TinyOS due to better exploitation of hardware

features like data caches. In contrast to timers pro-

cessed in non-interrupt mode, the increase of delays

with hardware timers is much lower. Here, the small-

est and less variable times are achieved with BiPS due

to the usage of cache locking. Thus, reactions to timer

events are most predictable with BiPS and hardware

timers, which are therefore the best choice for the ex-

ecution of protocols with time-critical behavior.

This timer is processed in non-interrupt mode and with

lowest priority (if priorities are supported by the OS).

sender

receiver

logic analyzer

slot

sfd

slot

sfd

Figure 4: Experiment setup with three Imote 2 (one sender

and two receivers) to evaluate the accuracy of SFD-based

synchronization and medium slotting.

5.3 SFD-based Synchronization

According to the CC 2420’s datasheet, the process-

ing delay at receivers when detecting an SFD is typ-

ically 3 µs (TI, 2013). However, this time does not

include the delay until an SFD is recognized in soft-

ware, which additionally worsens the accuracy if ex-

ecution delays differ. To detect an SFD with low la-

tency, the CC 2420 provides an output pin signaliz-

ing the detection of an SFD. This pin is connected

to a GPIO (General Purpose Input/Output) pin of the

microcontroller, thereby enabling the triggering of

hardware interrupts.

In the following, the time difference in detecting

an SFD between several nodes is evaluated, where the

comparison is restricted to BiPS and Tiny OS, since

RIOT does not provide a CC 2420 driver. By compar-

ing delays at two receivers, we ensure that the same

piece of code is executed on all nodes of interest and

all results can be ascribed to different detection delays

in the nodes’ transceiver and variations in execution

times.

The conducted experiment consists of three

Imote 2 (see Fig. 4): One sender and two receivers.

The receivers are connected via two GPIO pins with a

Sigma2 logic analyzer

running with a sampling rate

of 100 MHz. After detecting a rising edge at the SFD

pin of the transceiver, the receivers raise the GPIO pin

sfd

and sfd

, respectively.

The second GPIO pin

http://www.asix.net/dbg sigma.htm

In Tiny OS, we extended the CC2420ReceiveP and

CC2420TransmitP component for this purpose.

PEC 2016 - International Conference on Pervasive and Embedded Computing

TinyOS BiPS

−4 −2 0 2 4

difference [µs]

Figure 5: Accuracy of SFD detection between both re-

ceivers.

difference [µs]

frequency

Mean: −1.01 µs

Median: −0.13 µs

SD: 14.21 µs

TinyOS

−40 −30 −20 −10 0 10 20 30 40

0 200 400 600

difference [µs]

frequency

Mean: 0.02 µs

Median: 0.02 µs

SD: 0.41 µs

BiPS

−40 −30 −20 −10 0 10 20 30 40

0 200 400 600

Figure 6: Accuracy of the detection of slot starts between

both receivers.

(slot

, slot

) is raised 10 ms after the detection of the

SFD to emulate virtual medium slotting and to eval-

uate the accuracy of slot bounds. For this purpose, a

timer is activated whose expiration time is based on

a timestamp, which was stored when detecting the

SFD.

Besides the control of GPIO pins, no further

application is running. In total, 1500 observations are

made with BiPS as well as TinyOS.

The results are shown in Figs. 5 and 6. In Fig. 5,

the accuracy of detecting SFD events in software is

presented. Here, the median of difference is for BiPS

as well as TinyOS almost 0µs; as expected due to the

usage of identical receivers. However, the variation

with TinyOS is much larger than with BiPS (standard

deviations 1.5µs vs. 0.06µs), thereby indicating that

the detection accuracy of SFDs with TinyOS suffers

from diverging execution delays. With BiPS, on the

other hand, delays are almost constant.

Figure 6 presents the differences in the perception

of slot starts 10 ms after the SFD event. Here, the dif-

ferences with TinyOS are very large and spread within

a range of [−36.23µs, 30.58µs], where differences

Timestamp is taken early at driver level.

with BiPS are almost constant. Besides the more inac-

curate detection of SFDs, the signiﬁcant deterioration

with TinyOS is mainly caused by the missing usage

of the Imote 2’s µs-hardware timers, which are fully

exploited by BiPS but not by TinyOS.

5.4 Portability

Since BiPS is a tailored OS for the Imote 2 platform

and highly optimized for the PXA271 processor, it is

compartively hard to port it to another platform. More

precisely, the effort depends on the features, which the

target platform can offer. If e.g., the platform does not

provide an MMU, the whole protection and debug-

ging facility of BiPS cannot be ported. On the other

hand, if an MMU is provided, a deep knowledge of

the core hardware is needed to port the memory man-

agement of BiPS to the target.

Also, if caches are provided but cache locking is

missing, the jitter of time-critical events will worsen

due to cache eviction. On the other hand, if there are

no caches at all, jitter will reduce, but the overall ex-

ecution time will rise. Thus, the results obtained in

Table 1 cannot easily be assumed for all platforms.

However, since the modularity of the architecture,

as seen in Fig. 1, is retained in the source code struc-

ture, it is possible to omit or replace the parts, which

are needed to adapt the framework to a new platform.

6 RELATED WORK

In the literature, several evaluations can be found

(e.g., in (Harvan and Sch

onw

alder, 2008; Silva et al.,

2009; Basmer et al., 2011)) showing that the behav-

ior and performance of a protocol highly-depends on

the implementation. In this regard, the used OS,

which is in the WSN domain often TinyOS or Con-

tiki (Dunkels et al., 2004), is crucial. However, most

protocol implementations do not scrutinize the han-

dling of concurrency in the used OS. Thus, it is often

unclear – in particular, if a protocol is announced to

support real-time guarantees – how timing constraints

of the protocol are satisﬁed and if provided prioritiza-

tion measures are actually sufﬁcient. In the following,

our outline of related work ﬁrst covers common OSs

used for protocol implementations and compares their

suitability for real-time applications. Afterward, we

relate the capabilities of BiPS as protocol framework

with various MAC protocols with existing solutions.

The most common OS for WSNs is probably

TinyOS, an extensive and popular OS ported to many

hardware platforms. TinyOS is event-driven and tasks

are scheduled cooperatively in FIFO or EDF order.

BiPS – A Real-time-capable Protocol Framework for Wireless Sensor Networks

Tasks are not preempted by other tasks, although in-

terrupt handlers, commands, and events can preempt

a task. Since version 2, there is also support for

full multi-threading and synchronization primitives,

yet w.r.t. the Imote 2 platform, some features like

MMU and data caches are no longer used. TinyOS

does not offer a mechanism to run the communication

stack in a privileged context, such that protocols with

stringent timing constraints are not easy to imple-

ment. Additionally, the modular structure of TinyOS

increases the amount and variance of execution delays

(see Sect. 5.2). Applications for TinyOS are written

in a specialized C dialect, called nesC, rendering the

learning curve steeper for C/C++ programmers.

Another OS, RIOT, was designed for the Internet

of Things, with a special focus on real-time commu-

nication (Hahm et al., 2013b). RIOT comes with full

multi-threading support and uses IPC (Inter-Process

Communication) to pass messages between modules,

but does not offer memory protection or advanced

measures on fault detection. The implementation of

time-critical protocols still demands some program-

ming tricks. Though there is no native port of RIOT

for the Imote 2, it can run on this platform as exten-

sion of BiPS, where all RIOT processes are scheduled

by the BAS of BiPS. Like BiPS, RIOT offers support

for C(++).

Another well-known OS is Contiki (Dunkels et al.,

2004), focused on heavily resource-constrained de-

vices. Processes are scheduled cooperatively, al-

though there is a mechanism for light-weight multi-

threading, called Protothreads, and also an additional

library offering full multi-threading support. Real-

time tasks can be employed for time-critical code and

a lot of additional functionalities are given. However,

memory protection has never been a goal of Contiki.

Programs for Contiki are written in constrained C,

i.e., not the full language is supported, with a heavy

use of C macros.

W.r.t. BiPS’s contribution as protocol framework,

there is up to our knowledge no approach with a sim-

ilar ﬂexible integration of multiple MAC protocols.

Existing approaches are instead severely restricted

in the number and activation of supported proto-

cols. This holds both for established communication

standards like IEEE 802.15.4 (IEEE, 2011), Wire-

lessHART (IEC, 2010), and ISA 100.11a (IEC, 2012),

and for proposals from research like Z-MAC (Rhee

et al., 2008), ER-MAC (Sitanayah et al., 2010), and

(Gilani et al., 2013). In general, all proposals es-

tablish some kind of time frame (often called super-

frame) and combine TDMA- with CSMA/CA. The

pattern of allocated contention-based/-free regions is

often ﬁxed or time slots have constant length. Thus,

compared to virtual slot regions in BiPS, the individ-

ual protocols’ application is highly constrained. Fur-

thermore, they are limited to one reservation-based

and one best effort protocol, and do not support fur-

ther classes of protocols.

7 CONCLUSION

This paper presents BiPS, a real-time-capable proto-

col framework for WSNs based on the Imote 2 plat-

form. The key contributions of BiPS are twofold:

First, from a protocol design perspective, it provides

various MAC protocols, interfaces for the ﬂexible us-

age of them, and an infrastructure to add further MAC

protocols. Thereby, BiPS enables the usage of differ-

ent MAC protocols for different message types in one

scenario. This helps to ﬁt the communication require-

ments and characteristics in an optimal way with min-

imal overhead (e.g., reserved bandwidth). Second,

from an implementation perspective, it brings support

for OS functionalities to run real-time-capable proto-

cols and less time-critical applications in compliance

with time constraints of the protocols. In a series of

experiments, this paper shows that with BiPS, the pre-

dictability of delays to process external events is sig-

niﬁcantly improved. Thereby, evidence is provided

that BiPS outperforms existing solutions w.r.t. the

suitability for real-time systems.

Different from state-of-the-practice protocol im-

plementations, our approach is not based on a univer-

sal (real-time) OS but on a specially developed light-

weight and protocol-centric OS. We justify this de-

cision by the experience that compliance with time

constraints is one of the most crucial tasks of imple-

mentations in distributed real-time systems and that

the support of multiple processes/tasks with extensive

synchronization measures is less important and is ac-

tually often not needed in typical WSN applications.

However, we also admit that this makes BiPS a very

speciﬁc solution, dedicated to applications with strict

real-time requirements regarding communication and

reaction time. This also holds for the required tailor-

ing for the used hardware platform needed to meet the

real-time constraints, which on the other hand implies

drawbacks and additional efforts regarding the porta-

bility.

In our future work, we are going to exploit the us-

age of multiple channels. Furthermore, we will shift

the focus to higher layers (e.g., a QoS routing proto-

cols and service-based middleware) for which BiPS

will serve as fundament.

PEC 2016 - International Conference on Pervasive and Embedded Computing

REFERENCES

Basmer, T., Schomann, H., and Peter, S. (2011). Implemen-

tation Analysis of the IEEE 802.15.4 MAC for Wire-

less Sensor Networks. In Mobile and Wireless Net-

working (iCOST), Int. Conference on Selected Topics

in.

Braun, T., Christmann, D., Gotzhein, R., and Mater, A.

(2014a). SDL Implementations for Wireless Sen-

sor Networks - Incorporation of PragmaDev’s RTDS

into the Deterministic Protocol Stack BiPS. In Sys-

tem Analysis and Modeling: Models and Reusability

- 8th International Conference, SAM 2014, Valencia,

Spain, September 29-30, 2014. Proceedings, volume

8769 of Lecture Notes in Computer Science, pages

271–286. Springer.

Braun, T., Gotzhein, R., and Kuhn, T. (2014b). Mode-based

Scheduling with Fast Mode-Signaling – A Method for

Efﬁcient Usage of Network Time Slots. Journal of

Advances in Computer Networks (JACN), 2:48–57.

Christmann, D., Gotzhein, R., and Rohr, S. (2012). The Ar-

bitrating Value Transfer Protocol (AVTP) - Determin-

istic Binary Countdown in Wireless Multi-Hop Net-

works. In Computer Communications and Networks

(ICCCN), 21st International Conference on.

Cunha, A., Koubaa, A., Severino, R., and Alves, M.

(2007). Open-ZB: an Open-source Implementation of

the IEEE 802.15.4/ZigBee Protocol Stack on TinyOS.

In IEEE 4th Int. Conference on Mobile Adhoc and

Sensor Systems, MASS 2007, 8-11 October 2007,

Pisa, Italy, pages 1–12. IEEE Computer Society.

Dunkels, A., Gronvall, B., and Voigt, T. (2004). Contiki - a

lightweight and ﬂexible operating system for tiny net-

worked sensors. In Local Computer Networks, 2004.

29th Annual IEEE Int. Conference on, pages 455–462.

Elyengui, S., Bouhouchi, R., and Ezzedine, T. (2015).

LOADng Routing Protocol Evaluation for Bidirec-

tional Data ﬂow in AMI Mesh Networks. CoRR,

abs/1506.06357.

Farooq, M. O. and Kunz, T. (2011). Operating Systems

for Wireless Sensor Networks: A Survey. Sensors,

11(6):5900–5930.

Gilani, M. H. S., Sarraﬁ, I., and Abbaspour, M. (2013).

An Adaptive CSMA/TDMA Hybrid MAC for Energy

and Throughput Improvement of Wireless Sensor Net-

works. Ad Hoc Networks, 11(4):1297–1304.

Glaropoulos, I., Vukadinovic, V., and Mangold, S. (2014).

Contiki80211: An IEEE 802.11 Radio Link Layer

for the Contiki OS. In High Performance Com-

puting and Communications, 2014 IEEE 6th Intl

Symp on Cyberspace Safety and Security, 2014 IEEE

11th Intl Conf on Embedded Software and Syst

(HPCC,CSS,ICESS), pages 621–624.

Gotzhein, R. and Kuhn, T. (2011). Black Burst Syn-

chronization (BBS) – A Protocol for Deterministic

Tick and Time Synchronization in Wireless Networks.

Computer Networks, 55(13):3015–3031.

Hahm, O., Baccelli, E., G

unes, M., W

ahlisch, M., and

Schmidt, T. C. (2013a). RIOT OS: Towards an OS

for the Internet of Things. In INFOCOM.

Hahm, O., Baccelli, E., G

unes, M., W

ahlisch, M., and

Schmidt, T. C. (2013b). RIOT OS: Towards an OS

for the Internet of Things. In 32nd IEEE Int. Con-

ference on Computer Communications (INFOCOM),

Poster Session.

Harvan, M. and Sch

onw

alder, J. (2008). TinyOS Motes on

the Internet: IPv6 over 802.15.4 (6lowpan). Praxis

der Informationsverarbeitung und Kommunikation,

31(4):244–251.

Hauer, J.-H. (2009). TKN15.4: An IEEE 802.15.4 MAC

Implementation for TinyOS 2. Technical Report

TKN-08-003, Technical University Berlin.

IEC (2010). Industrial Communication Networks - Wireless

Communication Network and Communication Pro-

ﬁles - WirelessHART (IEC 62591 ed 1.0).

IEC (2012). Industrial Communication Networks - Wireless

Communication Network and Communication Pro-

ﬁles - ISA 100.11a (IEC 62734 ed 1.0).

IEEE (2011). IEEE Standard 802 Part 15.4: Low-Rate

Wireless Personal Area Networks (LR-WPANs). IEEE

Computer Society, New York, NY, USA.

ISO (2004). Controller Area Network (CAN), ISO 11898.

ITU-T (2012). ITU-T Recommendation Z.100 (12/11) -

Speciﬁcation and Description Language - Overview

of SDL-2010.

Kopetz, H. (1997). Real-Time Systems – Design Principles

for Distributed Embedded Applications. Kluwer Aca-

demic Publishers.

Koubaa, A., Alves, M., and Tovar, E. (2006). A Compre-

hensive Simulation Study of Slotted CSMA/CA for

IEEE 802.15.4 Wireless Sensor Networks. In Factory

Communication Systems, IEEE Int. Workshop on.

MEMSIC Inc. (2013). Imote2 datasheet.

Pereira, N., Andersson, B., Tovar, E., and Rowe, A.

(2007). Static-Priority Scheduling over Wireless Net-

works with Multiple Broadcast Domains. In RTSS

’07: Proceedings of the 28th IEEE International Real-

Time Systems Symposium, pages 447–456, Washing-

ton, DC, USA. IEEE Computer Society.

Rhee, I., Warrier, A., Aia, M., Min, J., and Sichitiu, M. L.

(2008). Z-MAC: a Hybrid MAC for Wireless Sensor

Networks. IEEE/ACM Trans. Netw., 16(3):511–524.

Silva, R., Silva, J. S., and Boavida, F. (2009). Evaluating

6LowPAN Implementations in WSNs. Proceedings of

9th Conferncia sobre Redes de Computadores Oeiras,

Portugal, 21.

Sitanayah, L., Sreenan, C. J., and Brown, K. N. (2010).

Emergency Response MAC Protocol (ER-MAC) for

Wireless Sensor Networks. In Abdelzaher, T. F.,

Voigt, T., and Wolisz, A., editors, Proceedings of the

9th Int. Conference on Information Processing in Sen-

sor Networks, IPSN, Stockholm, Sweden. ACM.

TI (2013). CC2420 Datasheet. Revision SWRS041c.

Wang, X. and Kar, K. (2005). Throughput Modelling

and Fairness Issues in CSMA/CA-based Ad-hoc Net-

works. In INFOCOM 2005. 24th Annual Joint Con-

ference of the IEEE Computer and Communications

Societies. Proceedings IEEE, volume 1, pages 23–34.

Ziouva, E. and Antonakopoulos, T. (2002). CSMA/CA Per-

formance under High Trafﬁc Conditions: Through-

put and Delay Analysis. Computer Communications,

25(3):313 – 321.

BiPS – A Real-time-capable Protocol Framework for Wireless Sensor Networks
