SLAaaS: an OCCI Compliant Framework for Cloud SLA

Provisioning and Violation Detection

Gregory Katsaros, Thijs Metsch and John Kennedy

Intel Corporation, Cloud and Service Lab, Intel Labs Europe, Leixlip, Ireland

Keywords: Service Level Agreements, OCCI, Cloud, Violations, Open Source.

Abstract: SLAs are an integral part of all modern service provisioning operations. They have been a topic of discussion,

research and development for many years but still the norm is the use of rigid, complex and not easy to

automate Service Level Agreements. In this paper we are presenting a service framework that is leveraging

the OCCI specification in order to facilitate standardized SLA provisioning and violation detection. This SLA

as a Service (SLAaaS) offering is provided as an open source framework to any Service Provider that wants

to efficiently enhance his infrastructure with SLA support.

1 INTRODUCTION

A Service Level Agreement (SLA) is a set of

guaranteed terms and conditions that a customer

agrees upon related to a service that a Service

Provider (SP) is offering. This contractual

relationship between the user and the provider of a

service is something that both parties appreciate for

different reasons. On the one end, the customer

demands the existence of a SLA in order to ensure the

minimum quality of the service that he receives. On

the other side, the provider uses the SLA in order to

define and classify the provided offerings, use it as an

accounting and billing toolkit or even exploit it for

demonstrating the reliability of their provided

services.

To this end, cloud SLAs between service

consumers and providers about their offerings must

be negotiated, stored, modified and monitored in

order to ensure the agreed terms and facilitate the

service provisioning operations. To this point, a

reason that many customers and enterprises are

holding off migrations to cloud computing services

are the rigid and static SLAs and supported operations

that the providers are exposing. These agreements are

usually presented as a static text, non-machine

readable and non-negotiable (e.g. Amazon EC2’s

SLA (Amazon, 2015a), S3’s SLA (Amazon, 2015b)

etc.). Often those contracts are long legal documents

or abstract definitions of guarantees that cannot be

related with the real needs of the customer.

Such cloud services usually provision a single

type of SLAs to all customers, but enterprise users are

willing to pay more for individual SLAs with custom

terms and more control. On the other hand, some

cloud service providers do not have the infrastructure

to guarantee their offerings or building such

infrastructure is expensive and customized to the

technologies they are using. In that context, the OCCI

SLA as a Service (SLAaaS) is an open source

framework that aims at facilitating the SLA provision

process as well as the monitoring and violation

detection. It leverages the OCCI (OCCI OGF, 2015)

specification and implements an extension which will

allow the software defined SLA provisioning.

2 RELATED WORK

There have been in the past several initiatives and

effort spend into developing structures and languages

that capture the SLA relationship between customers

and providers. WSLA (IBM, 2003), WS-Agreement

(GRAAP-OGF, 2007) and WS-Policy (W3C, 2007b)

are some examples of them that became relatively

known in that sector. These languages are focused on

the specification of functional and quality properties

of web services. WS-Agreement is an OGF

recommendation, which is independent from the

content of the agreement and does not provide any

negotiation features. It is the related OGF

specification WS-Negotiation that provides

mechanisms for standardized negotiations. These

OGF specifications do not cover the establishment of

Katsaros, G., Metsch, T. and Kennedy, J.

SLAaaS: an OCCI Compliant Framework for Cloud SLA Provisioning and Violation Detection.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 355-362

ISBN: 978-989-758-182-3

355

an overarching SLA in multiple service domains

though. Other specifications that seek to address

explicitly specified semantics include SAWSDL

(W3C, 2007a) and OWL-S (DAML-Services, 2008)

for service descriptions. Notably an extension for

WS-Agreement named Semantic WS-Agreement

Partner Selection (SWAPS) has been suggested in

(Oldham et al., 2006). On top of all these definitions

there have been numerous research projects that built

SLA functionalities within service oriented and cloud

platforms (e.g. (Georgina Gallizo, 2010)

(Mavrogeorgi et al., 2012)), as well as other that tried

to contribute towards modelling or machine readable

syntaxes (Happe et al., 2011). The report in

(Dimosthenis Kyriazis, 2013) captures a big number

of European initiatives that dealt with SLAs in

manifold ways during the last 10 years.

In the specific case of IaaS, the OGF OCCI

working group has suggested a specification on how

SLAs can be negotiated and related to IaaS

provisioning. This extension to the OCCI has been

already proposed and is available for public comment

(Gregory Katsaros, 2015) before it becomes a part of

the OCCI v1.2 release later this year.

The framework presented in this paper is an

implementation of the OCCI SLA specification. It is

provided as an open source toolkit through Github

under Apache 2.0 license that aims at automating,

simplifying and standardizing the SLA provisioning

and enforcing process.

3 OCCI SLAaaS FRAMEWORK

SLA as a Service (SLAaaS) is a framework of service

components which is offering capabilities of SLA

provisioning, SLA template and Service Level

Objectives (SLOs) definition, SLA monitoring and

agreement violation detection. A Service Provider

(SP) can use the framework to setup his own SLA

management service or he can collaborate with an

independent SLAaaS provider. A service customer

can therefore interact with the SLAaaS using proper

credentials (related with the SP) using the exposed

API in order to discover the available SLA templates,

instantiate a SLA and observe whether a term is

fulfilled or violated during the service runtime.

The innovations introduced by the SLAaaS are

related with the following topics:

• Machine readable and software defined SLAs:

through the interfaces exposed by the SLAaaS one

could define agreement templates and provision

SLAs expressing all the high-level terms as well

as the low-level metrics associated with the

evaluation of those terms. A structured data

format has been introduced to capture those

definitions and allow the internal components of

the framework to evaluate the terms of each

service automatically.

• Standards compliance (OCCI): the interface

protocol and data structure of the SLA definitions

are compliant with the OCCI and OCCI SLAs

extension specification. The standardization of

the protocol and interface of the SLAaaS will

facilitate the adoption and strengthen the impact

of the framework on the cloud community.

• Automated SLA lifecycle process: an important

feature of the SLAaaS framework is that it does

not only offer provisioning capabilities but a full

lifecycle SLA management and violation

detection. Upon creation of a SLA resource the

monitoring process begins through which the

agreement terms are being transformed into

policies and actions which are automatically

being enforced and triggered.

• Open source and highly configurable software:

The overall framework is available as an open

source project which with appropriate

configuration could serve any kind of service

offering and underlying infrastructure.

The SLAaaS framework is a set of components

with distinctive responsibilities and operation. The

architecture (Figure 1) can be conceptually split into

the Provisioning, the SLA Monitoring and Violation

Detection and the Data Collection parts. In the

following subsections we elaborate on the design and

operation of each part of the architecture.

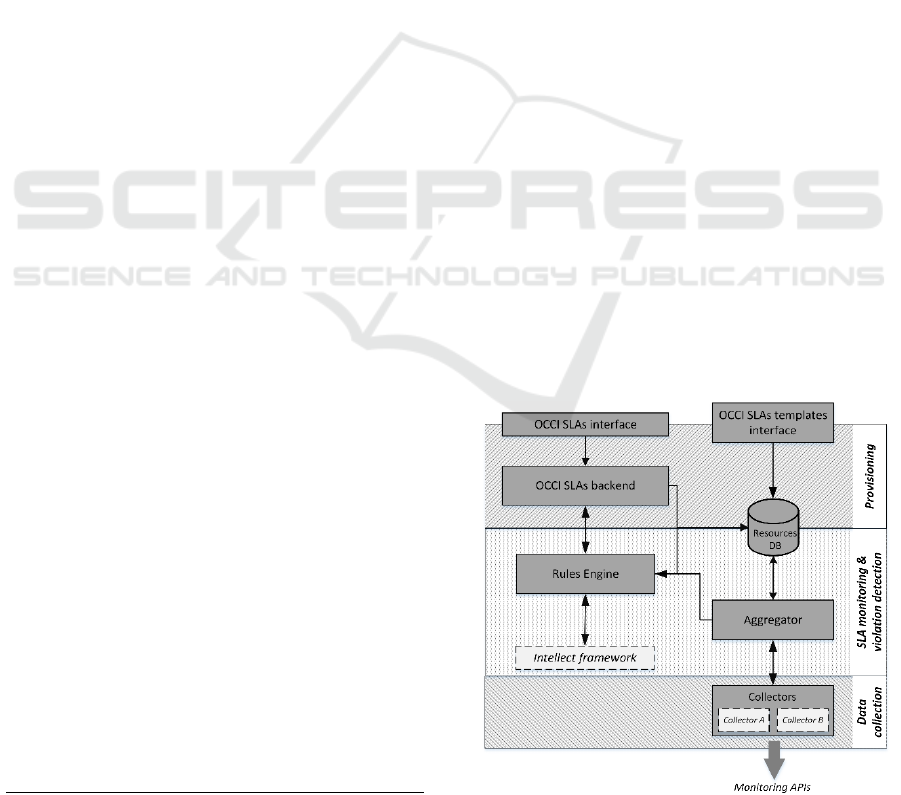

Figure 1: Internal architecture of SLAaaS framework.

https://github.com/IntelLabsEurope/OCCI-SLAs

OCCI 2016 - Special Session on Experiences with OCCI

356

3.1 OCCI SLA Provisioning

The core capability of the SLAaaS is to provision

OCCI compliant service level agreements. To this

end, this process follows the rules and principles

defined by the OCCI specification (OCCI OGF,

2015). Therefore the framework has an OCCI enabled

boundary interface that supports HTTP POST, PUT,

GET and DELETE operations for creating, updating,

acquiring and removing a SLA resource. The backend

structure of the OCCI SLAs has been realized using

the Kinds and Mixins mechanism offered by the

OCCI specification and has been described in detail

in the OCCI SLAs extension specification document.

The implementation of the OCCI SLAs extension is

based on the open source Python framework Pyssf

Our implementation defines all the core entities and

mixins of the OCCI SLA mechanism and exposes the

necessary RESTful, OCCI enabled interfaces for the

management of the resources. In addition, all

instances are being stored persistently in a key-value

database upon creation.

Table 1: JSON format for definition of a SLA template.

{

"name": "Name of the service provider",

"scheme": "URI scheme of the service",

"templates": {

"name-of-template": {

"terms": {

"term-name": {

"desc": "This is a brief description of the term.",

"type": "SERVICE-TERM or SLO-TERM",

"metrics": {

"metric-1": {

"value": X

}

"remedy": Y

}

An important feature of this SLA framework is the

definition of OCCI SLA templates based on the

features of a service and the SLOs that a provider

wants to introduce. The mechanism that realizes that

functionality is based on a custom JSON

representation of the SLA template which is being

parsed by the SLAaaS and becomes available for the

instantiation of OCCI-enabled agreements. In the

following table the JSON format for the definition of

a template for a service provider is presented (Table

1). The exact structure and words in bold must be

used in order for the SLAaaS to effectively parse and

introduce the defined SLA template. The rest of the

information cover:

• the name of the service provider and URI scheme

of the service

• the name of the template

• the terms included in a template the metrics that

each term is consisted of

• the remedy represents the cost that the service

provider has to pay in case a SLA violation of the

specific service and template is being triggered.

Based on that structure, each service can have

multiple templates, each template can have multiple

terms, and each term can have multiple metrics. As

far as the terms definition concerns, the type of one

can be either SERVICE-TERM or SLO-TERM. This

naming convention follows the suggested structure of

the OCCI SLAs specification introduced in the OCCI

1.2. A service term defines the configuration metrics

that characterize a service, while a SLO term captures

the metrics that define the guaranteed quality of

service through a set of metric values. Only the SLO

term and its metrics are being monitored during

runtime. In order for a SLO term to become violated,

all defined metrics of it needs to be violated too. A

metric under a SLO term, apart from the value

attribute, contains also the attribute limiter type. The

limiter type defines whether the declared value is the

maximum allowed (limiter type: max), minimum

allowed (limiter type: admin) or an average value

with a certain margin (limiter type: margin). In the

last case an addition attributed is needed to declare

the marginal percentage (limiter value: X).

The OCCI SLAs templates interface parses the

pre-mentioned structure and creates the appropriate

agreement template and agreement terms mixins,

which are stored in the persistent database. Those are

being later used during the Agreement instantiation

process (OCCI SLAs backend).

This OCCI SLA service framework provides a

layer of authentication for each request which is

achieved through the use of tokens. Initially a user

must request a token from the SLA service by

providing a username and password which are then

validated against a keystone database. If the username

and password are valid then a token is returned. This

token is then used in subsequent requests to OCCI

SLA (Table 2).

Table 2: Example of a request for an authentication token.

Curl –i –X GET \

-H “Authorization:Basic aW9saWU6aW9saWUh” \

-H “Content-Type:text/occi” \

‘https://sla.mobile-cloud-networking.eu/auth/token’

The username and password are encoded in base64

and added to the Authorization header. The token

typically expires in 50 minutes and a new token will

https://pypi.python.org/pypi/pyssf

SLAaaS: an OCCI Compliant Framework for Cloud SLA Provisioning and Violation Detection

357

need to be generated. In the next sections the

authentication token is being passed in a request to

create an SLA agreement.

3.2 SLA Monitoring and Violation

Detection

The instantiation of a SLA is based on the OCCI

protocol and is achieved by an HTTP invocation like

the curl command in Table 3.

In the previous example, the SLAaaS is being

hosted in the localhost and an agreement of the

template medium bronze will be created. The validity

period of the agreement is also being specified

through the appropriate attributes (effectiveFrom,

effectiveUntil). At this point, the SLA instance has

been created and there are two additional steps before

the monitoring and detection process begins: (a) the

agreement instance needs to be associated with the

appropriate service resources, and (b) the customer

needs to accept the agreement. For the relation of the

agreement resource to the service resource an

agreement link is being created (Table 4). The

contents of the agreement headers are shown in Table

Table 3: OCCI SLA instantiation curl command.

curl -i -X POST \

-H "Category:agreement;

scheme=\"http://schemas.ogf.org/occi/sla#\"" \

-H "Category: medium_bronze; scheme=

\"http://sla.ran.org/agreements#\"" \

-H "Content-Type:text/occi" \

-H "X-OCCI-Attribute: occi.agreement.effectiveFrom =

\"2014-11-02T02:20:26Z\"" \

-H "X-OCCI-Attribute: occi.agreement.effectiveUntil =

\"2015-11-02T02:20:27Z\"" \

-H “X-AUTH-TOKEN:

851bff66a097451e84fb39a828ecbccd” \

-d 'http://localhost:8888/agreement/'

Where AGREMENT ID and SERVICE

RESOURCE ID are the respective URI identifier of

the agreement and service instances. For the

acceptance of the SLA and initiation of the

monitoring phase the command in Table 6 is being

executed.

Table 4: OCCI Agreement Link instantiation curl

command.

curl -v -X POST localhost.:8888/agreement_link/ -H "$(cat

agreement_headers)"

Table 5: Agreement headers for the Agreement Link

instantiation.

Category: agreement_link;

scheme="http://schemas.ogf.org/occi/sla#"; class="kind"

X-OCCI-ATTRIBUTE: occi.core.source='AGREEMENT_ID'

X-OCCI-ATTRIBUTE:

occi.core.target='SERVICE_RESOURCE_ID'

X-AUTH-TOKEN: 851bff66a097451e84fb39a828ecbccd

Content-Type: text/occi

As soon as the SLA instance enters the validity

period and is linked (via an OCCI Link) with a

resource, the Rules Engine component will identify it,

parse all the information related with the defined

terms and create a policy file that capture those terms

and the appropriate actions to be taken. The time

interval which the component searches for valid

SLAs is defined within the Rules Engine and

represents the time granularity of the SLAaaS

operation.

Table 6: Acceptance of OCCI SLA instance.

curl -i -X POST \

-H "Category: accept; scheme =

\"http://schemas.ogf.org/occi/sla#\"" \

-H "Content-Type:text/occi" \

-H “X-AUTH-TOKEN:

851bff66a097451e84fb39a828ecbccd” \

-d

'http://localhost:8888/AGREEMENT_ID?action=accept'

The policy mechanism of the SLAaaS system has

been developed based on the open source, Python

framework Intellect

. Using Intellect’s syntax, the

Rules Engine creates one policy file for each active

Agreement instance, which includes one rule for each

SLO term in the Agreement template. In order for the

Intellect rule to be triggered, at least one of the term’s

metrics needs to be breached. The Aggregator

components takes care of the data acquisition for all

the metrics of a SLO term that needs to be assessed.

In case a metric included in a SLO breaches the

defined threshold, a violation is triggered by the

internal policy mechanism of the SLAaaS Rules

Engine. To this end, an OCCI Violation resource is

being instantiated to the OCCI SLAs backend and is

being linked to the respective Agreement resource.

The Rules Engine will continue checking the violated

term and as soon as it becomes valid again will restore

the state of the term (from violated to fulfilled),

remove the Violation instance and continue the

normal operation of SLA monitoring and detection.

In addition to the creation of the OCCI Violation

resource, the Rules Engine registers an event to a

message queue in order for any

https://pypi.python.org/pypi/Intellect

OCCI 2016 - Special Session on Experiences with OCCI

358

actuation component (e.g. infrastructure orchestrator

etc.) to be able to detect the violation event. The

current implementation supports the RabbitMQ

system and the message has the format shown in

Table 7.

Table 7: JSON representation of OCCI Violation message.

{

'agreement_id':agreement_id ,

'timestamp': epoch_timestamp,

'resource': related_resourece_id,

'term': term_name,

'penalty' :remedy_value_from_template

}

3.3 Data Collection

SLAaaS is designed to consume different collector

for each metric that needs to be monitored. The

rationale is that every metrics in an SLO term can be

provided by different monitoring systems, thus the

API providing the value could vary. In that context,

every time that the Aggregator component subscribes

a SLO term it invokes the Resources DB in order to

acquire the Collector name that each metric is related

with. Following that it subscribes each metric against

the appropriate collector class. The Collectors

components provide the interface definitions for the

monitoring collectors. Every metric of a SLO term is

being subscribed to the related monitoring API using

the limiters threshold defined in the agreement. In

case a monitoring system does not provide a

subscription/notification mechanism, the collector

class will have to raise a thread which will poll the

monitoring API for the metrics value and check

whether the metrics threshold has been breached.

This monitoring interval is defined within the code of

each collector and represents the granularity of the

violation detection frequency.

4 VALIDATION

4.1 Performance Evaluation

The SLAaaS is a Python-based, WSGI application

based on the Pyssf framework for OCCI applications.

The internal operation of the mechanism is using

threads with a configurable time interval for the

detection of the valid SLAs and the monitoring of the

terms included in each one of them. In the following

charts the performance of the SLAaaS process is

being presented in terms of CPU and memory

utilization in various frequencies of operation time

interval.

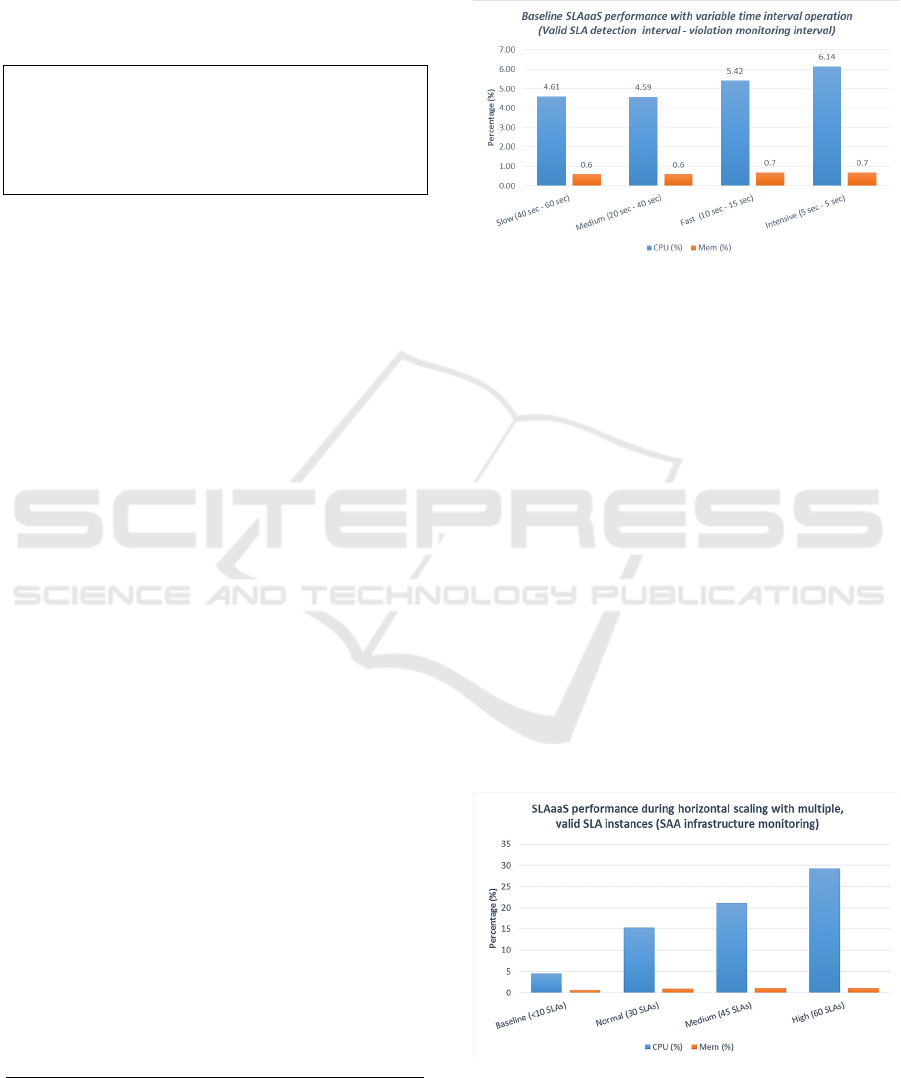

Figure 2: Baseline SLAaaS performance with variable time

interval.

Specifically, Figure 2 presents the baseline

performance of the SLAaaS when configuring the

operational time interval for the valid SLA detection

and the violation monitoring to different values. As

expected, as the time interval shortens the baseline

CPU utilization increases. Overall, the baseline

performance, which is defined when hosting less than

10 SLA instances, is relatively stable with a slight

peak in the intensive configuration (5 sec - 5 sec).

Being a RESTful, OCCI-based application, the

SLAaaS is a highly scalable web application that can

provision multiple SLA instances and enable the

monitoring capabilities over them. Moreover, the use

of python for the implementation results in an

efficient execution with small memory and CPU

consumption in general. In the following chart

(Figure 3) the performance of the framework is being

demonstrated while is horizontally scaled by multiple

SLA instances.

Figure 3: Performance during horizontal scaling using live

monitoring data.

At this experiment we used Intels Service Assurance

Administrator plugin (http://www.intel.com/content/www/

us/en/software/intelservice-assurance-administrator.html).

SLAaaS: an OCCI Compliant Framework for Cloud SLA Provisioning and Violation Detection

359

In that experiment the CPU and memory

utilization of the SLAaaS python process is captured

while multiple SLA instances are monitored by the

framework. It is worth mentioning that the instances

are linked with real VM hosted in the Openstack

testbed. To this end, the infrastructures monitoring

plugin

introduces performance constraints that affect

the performance of the SLAaaS framework. The

variations of response time of the SAA under multiple

and simultaneous invocations by the SLAaaS

monitoring collector leads to thread execution delay,

therefore increased CPU utilization of the python

process.

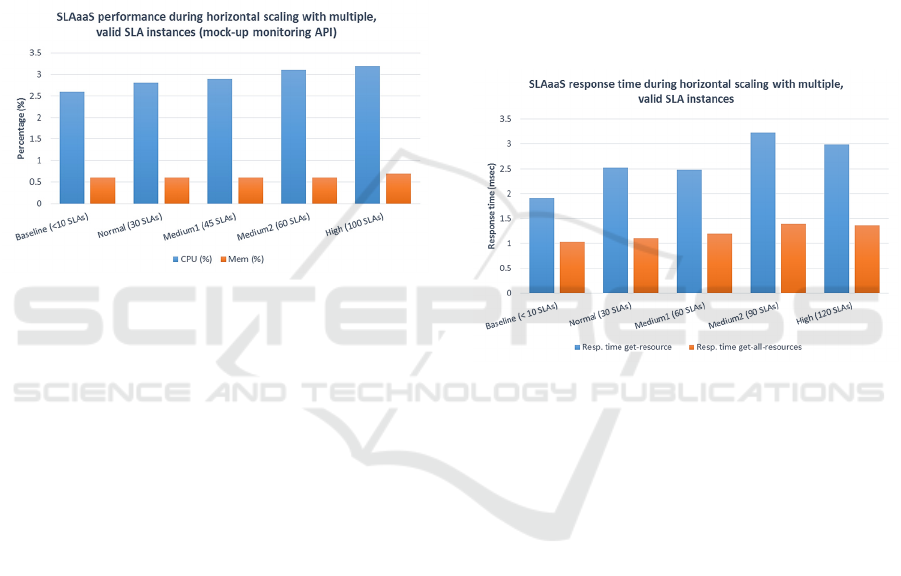

Figure 4: Performance during horizontal scaling using

mock-up monitoring API.

In order to evaluate the performance of the SLAaaS

without the bottleneck and impact of the monitoring

API, we repeated the scalability experiment by

replacing the monitoring collector with an efficient

mock-up monitoring interface (Figure 4).

The results collected by this experiment

demonstrate again the increase of the CPU utilization

during the scalability of the framework in a much

more gradual rate and with very small captured

values. The observed results indicate that the SLAaaS

as a standalone application is highly efficient in terms

of resources consumed.

This shows normal scalable behaviour which can

be effectively managed by allocating more resources

(e.g. CPU cores) to the VM instance that hosts the

framework. Finally, the SLAaaS python application

is affected by the external interfaces that it consumed,

specifically the monitoring APIs that it consumes.

This is a reasonable finding while the external APIs

and interactions cannot be whatsoever controlled or

optimized.

The final evaluation experiment of the SLAaaS

framework aims at capturing the response time of the

RESTfull API and specifically when we request a

single resources and when we request all the available

resources. This action has been repeated in different

SLA workload situations, from a few monitored

SLAs (<10) to a high workload of 120 monitored

SLAs. In Figure 5 the average response time of 100

GET invocations are being presented, for the single

and all of the resources in the running system. A slight

increase on the values can be recognised as the

number of the monitored load increases. Overall, the

values of the response time are very small between

one and three milliseconds. The increased response

time at the case of the single resources acquisition is

because all of the SLA information need to be

extracted from the persistent storage, parsed and

returned to the client. The GET all invocation returns

only the location identifiers of the available resources

and not the complete contents of the resources, thus it

is being executed quicker.

Figure 5: Average response of SLAaaS during horizontal

scaling.

4.2 SLA Federation in Multi-Provider

Scenario

The ability of effectively capturing the SLA

conditions of federated services was a major

requirement of the design and implementation of the

SLAaaS framework. To this end, the federation of

services and consequently of the SLAs that each

service provider offers is realized through the

Agreement Links feature of the OCCI SLAaaS. Each

SLA that is being instantiated has to be linked (with

an Agreement Link) with an appropriate resource that

represents the offered service. In case of an

infrastructure provider such resource could be the

compute node identifier or in case of an

application/service provider that could be the

identifier of a representation of the service instance.

In order to realize the federation scenario between

two services (e.g. RAN and EPC), an Agreement Link

has to be created from the one SLA instance to the

other. In Figure 6 the SLA of a RAN service instance

OCCI 2016 - Special Session on Experiences with OCCI

360

is being presented which is linked through an

Agreement Link to an EPC SLA instance.

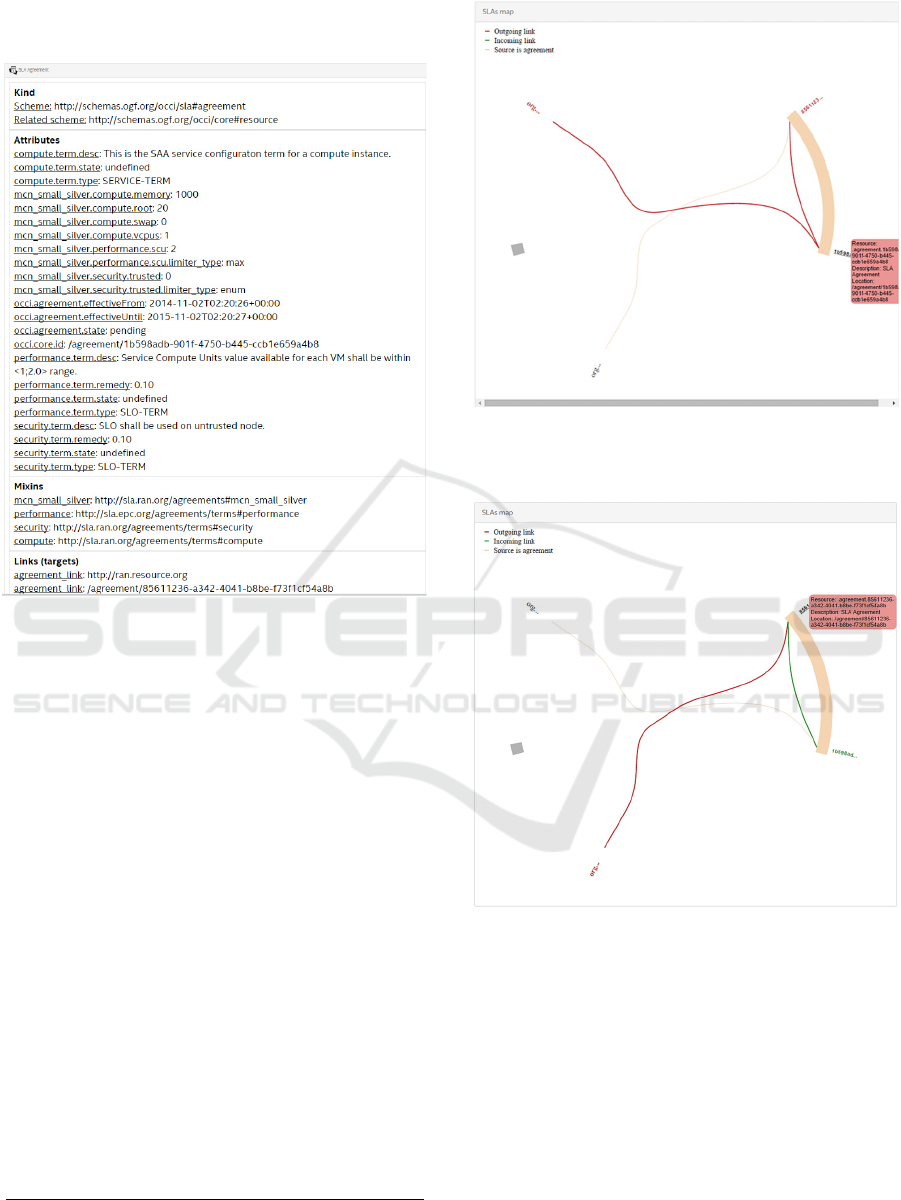

Figure 6: Attributes list of a federated SLA resource.

The target agreement (in this example the EPC

service agreement with ID 85611236-a342-4041-

b8be-f73f1cf54a8b) is independent from the source,

RAN agreement. It can be instantiated and monitored

by the SLAaaS as presented previously. On the other

hand, the federated SLA instance (of the RAN

service) that incorporates the link to the EPC

agreement will begin to be monitored when all the

associated SLAs will be accepted and valid (in terms

of validity dates). Even if the RAN SLA instance is

valid, the RAN-EPC federated service will not start to

be monitored unless both of the related SLAs are

accepted and valid (shows the log of the SLAaaS

when it detects a federation SLA with an invalid

related SLA).

As soon as both SLAs are being accepted the

SLAaaS will subscribe the included terms to the

monitoring system and begin the detection and

evaluation process. During the latter, when a violation

is detected in a term of one of the two related SLAs

then the complete federation SLA is considered to be

violated.

In Figure 7 and Figure 8 the OCCI Viz

application

Figure 7: Representation of the federated SLA with two

outgoing links towards another SLA and a resource (e.g.

compute).

Figure 8: Representation of an SLA with an outgoing link

towards a resource (e.g. compute) and an incoming link

from an SLA resource.

is used to demonstrate the relation of the federation

SLA. In circular graph the SLA entities are

represented as points in the coloured arc. Those points

are linked through a coloured line to other resources

such as infrastructure nodes, services or other SLA

instances. The direction of the links and therefore the

service federation is demonstrated through the

different colours of the depicted links. With red

colour an outgoing link is presented while with green

colour an incoming link.

https://github.com/IntelLabsEurope/OCCIViz

SLAaaS: an OCCI Compliant Framework for Cloud SLA Provisioning and Violation Detection

361

5 CONCLUSIONS

In any kind of service provisioning operation Service

Level Agreements are and will the means for

guaranteeing the quality of the offered service. The

Software as a Service (SaaS) revolution will only

highlight the immediate need for effective and easy to

use SLA assurance systems. In addition, the

developments in Software Defined Infrastructures

(SDI) demand the automation of all features within

the service provisioning and deployment.

In that context, the SLAaaS framework presented

in this paper is an effective, open source solution that

offer SLA and SLA templates provisioning as well as

violation detection features. It is based on the OCCI

specification, thus, exposes a simple but standardized

boundary interface over common HTTP RESTful

operations. It is configurable in order to be plugged

into any monitoring API by adding custom collectors’

implementations. The successful instantiation of an

Agreement resource leads to the enabling of the SLA

monitoring process which automatically detects any

violation, instantiates a respective OCCI resource and

notifies a message queue for that specific event.

Overall, the SLAaaS is a powerful toolkit that can

be easily integrated with any type of infrastructure

and enhance the operations and offerings of a Service

Provider.

ACKNOWLEDGEMENTS

This work has been supported by the Mobile Cloud

Networking project (MCN, 2015) has been partly

funded by the European Commission’s ICT activity

of the 7th Framework Programme (FP7/2007- 2013)

under contract number 318109 as well as by the

CloudWave FP7 project (contract number 610802)

(CloudWave, 2015).

REFERENCES

Amazon (2015a). Amazon EC2 Service Level Agreement.

http://aws.amazon.com/ec2-sla/.

Amazon (2015b). Amazon S3 Service Level Agreement.

http://aws.amazon.com/s3-sla/.

CloudWave (2015). CloudWave FP7.

http://cloudwavefp7.eu/.

DAML-Services (2008). DAML Services.

http://www.daml.org/services/owl-s/.

Dimosthenis Kyriazis (2013). Cloud computing. SLAs

Expoitation of research results.

http://ec.europa.eu/newsroom/dae/document.cfm?doc

id=2496.

Georgina Gallizo, Roland Kbert, G. K. K. O. K. S. S. G.

E. O. (2010). A service level agreement management

framework for real-time applications in cloud

computing environments. In Proceedings of the 2nd

International ICST Conference on Cloud Computing,

Cloud Com 2nd, pages 26–28, Barcelona, Spain. ACM.

GRAAP-OGF (2007). Web Services Agreement

Specification. http://www.ogf.org/documents/GFD.10

7.pdf.

Gregory Katsaros (2015). OCCI SLAs extension

specification. https://redmine.ogf.org/issues/276.

Happe, J., Theilmann,W., Edmonds, A., and Kearney, K. T.

(2011). Service Level Agreements for Cloud

Computing, chapter A Reference Architecture for

Multi-Level SLA Management, pages 13–26. Springer

New York, New York, NY.

IBM (2003). IBM Web Service Level Agreements.

http://www.research.ibm.com/people/a/akeller/Data/W

SLASpecV1-20030128.pdf.

Mavrogeorgi, N., Gogouvitis, S., Voulodimos, A.,

Katsaros, G., Koutsoutos, S., Kiriazis, D., Varvarigou,

T., and Kolodner, E. K. (2012). Content based slas in

cloud computing environments. In Proceedings of the

2012 IEEE Fifth International Conference on Cloud

Computing, CLOUD ’12, pages 977–978, Washington,

DC, USA. IEEE Computer Society.

MCN (2015). Mobile Cloud Networking FP7.

https://www.mobile-cloud-networking.eu/.

OCCI OGF (2015). Open Cloud Computing Interface Core.

https://www.ogf.org/documents/GFD.183.pdf.

Oldham, N., Verma, K., Sheth, A., and Hakimpour, F.

(2006). Semantic ws-agreement partner selection. In

Proceedings of the 15th International Conference on

World Wide Web, WWW ’06, pages 697–706, New

York, NY, USA. ACM.

W3C (2007a). Semantic Annotations for WSDL and XML

Schema. http://www.w3.org/TR/sawsdl/.

W3C (2007b). Web Services Policy 1.5 Framework.

http://www.w3.org/TR/ws-policy/.

OCCI 2016 - Special Session on Experiences with OCCI

362
