Effect of a Real-Time Psychophysiological Feedback, Its Display

Format and Reliability on Cognitive Workload and Performance

Sami Lini

, Lise Hannotte

and Margot Beugniot

Akiani, Talence, France

ENSC, Talence, France

Keywords: Cognitive Load, Pupil Dilation, Intervention Feedback, Multiple Object Tracking.

Abstract: For a long time, literature has identified some psychophysiological metrics that proved reliable to assess

cognitive states in controlled conditions. Smaller, more reliable and more affordable sensors made the

industrial community plan to design systems that would adapt themselves to the ability of their users to

operate them. Thus an important human factors question must be asked: what is the impact of such a

feedback on users’ performance and cognitive workload? Does the display format of this feedback have an

influence over subjects? What if the feedback provides erroneous data?

We designed a protocol to compare the influence of providing a cognitive load assessment gauge versus raw

data versus no feedback in a Multiple Objects Tracking task. Reliability of this feedback was also evaluated.

Performance in a dual task paradigm, pupil dilation and questionnaire were used to assess cognitive load.

Trials duration and learning effect were used as control results. Raw feedback showed a negative effect

while low reliability showed inconsistent results.

1 INTRODUCTION

Human monitoring issues (i.e. measuring the

psychophysiological state of operators to assess their

cognition) are getting more attention from the

industrial community every day. Literature has, for

some time now, identified several metrics that have

proven reliable in controlled and operational

conditions, such as heart rate variability (Egelund,

1982) or pupil dilation (Beatty and Lucero-Wagoner,

2000).

Physiological data are getting more and more

accessible due to smaller, more reliable and more

affordable sensors. Due to considerable scientific

progress for real-time evaluation of cognitive

workload (Afergan et al., 2014; George and

Lécuyer, 2010; Kohlmorgen et al., 2007), the

industrial field is planning to design systems that

would adapt themselves to the ability of their users

to operate them: for example, a cockpit display

which would only show relevant information if the

system has assessed pilots are suffering cognitive

overload. In such a case, pilot would probably notice

his display is decluttering and would be able to come

to the conclusion that the system “thinks” he is not

fully able to perform his duty.

Psychophysiological feedbacks have been used

for decades in behavioral therapies, and some

studies proved they have a significant effect on fear

(Valins and Ray, 1967) or anxiety (Story and

Craske, 2008). Feedback intervention is defined by

Kluger and DeNisi (1996) as “actions taken by (an)

external agent(s) to provide information regarding

some aspect(s) of one's task performance". Their

meta meta-analysis showed that over 1/3 of these

feedbacks have a negative effect on performances.

Cognitive workload feedback, i.e. a real-time

feedback about one’s cognitive load, can be

considered as a feedback intervention. Thus, an

important question must be addressed: what is the

impact of such a feedback on a user’s performance

and cognitive state? Does the way this feedback is

displayed have an influence on the users’

performance?

In order to answer these questions, we designed

an experimental protocol using a Multiple Objects

Tracking (MOT) task (Pylyshyn and Storm, 1988).

In this task subjects are asked to track a defined

number of moving targets among identical

distractors and identify them after a few seconds.

We chose this task as it is a highly engaging visual

attention task, widely used in the literature and

Lini, S., Hannotte, L. and Beugniot, M.

Effect of a Real-Time Psychophysiological Feedback, Its Display Format and Reliability on Cognitive Workload and Performance.

DOI: 10.5220/0005939500750079

In Proceedings of the 3rd International Conference on Physiological Computing Systems (PhyCS 2016), pages 75-79

ISBN: 978-989-758-197-7

which can be compared to the monitoring tasks

fighter pilots or radar operators are expected to

perform (Allen, McGeorge, Pearson, and Milne,

2004).

In order to assess the impact of the display

format of the cognitive workload feedback, three

conditions were implemented: in one condition, raw

feedback was provided showing heart rate data, in a

second condition a gauge gave an assessment of the

cognitive load. The control condition displayed no

feedback at all.

Data unreliability has been identified for a long

time as a major cause of distrust in systems

(Wickens, Gempler, and Morphew, 2000) and is

known to influence decision making processes. In

order to evaluate the impact of data quality over

users’ cognition, half of the trials showed obviously

erroneous random data.

Results of a dual tasks paradigm, pupil dilation

recorded from an eye tracking system and a

questionnaire were used to assess cognitive load in

each trial.

Hypotheses were as follow:

• (H1) A cognitive feedback has an effect on

cognitive load and performance;

• (H2) The display format of feedback has an

influence over performances and cognitive

workload;

• (H3) An erroneous feedback leads to an

increased cognitive workload and decreased

performances.

2 METHOD

2.1 Participants

31 subjects (M = 21,6 years old,  = 1,3 y.o., 20

males) took part to the study. They were recruited

among the students of the National Cognitive

Engineering School (Bordeaux, France).

Any text or material outside the aforementioned

margins will not be printed.

2.2 Apparatus

Participants were tested individually. The procedure

was explained, and ethical consent obtained.

Participants then completed 96 trials of an MOT

task, lasting approximately 45 min.

An Eye Tribe eye tracking system sampled

subjects’ data at 30 Hz (Lopez, Hansen, Sztuk, and

Tall, 2014). Stimuli were displayed on a 24 inch

16:9 LCD screen. Luminosity was controlled during

each session. Prior to the experiment subjects were

familiarized with the task.

Ogama (Voßkühler, 2009) software was used to

collect eye tracking data.

2.3 Apparatus

2.3.1 Multiple Object Tracking Task

Our experimental protocol is based upon a Multiple

Object Tracking (MOT) task (Pylyshyn and Storm,

1988). In this well documented experimental task,

subjects are asked to track a defined number (3 in

our protocol) of moving targets among identical

distractors (6 in our protocol).

At the beginning of each trial 9 identical balls

appeared randomly placed within the display.

Three

of those balls were displayed in red for 1 second,

which assigned them as targets to track.

Then all 9 balls started to move along

independent trajectories with constant speed for a

variable time (five or nine seconds). After 1 second,

the targets turn white, making them less

distinguishable from the distractors. When the balls’

trajectories crossed, they collided in a predictable

way (Drew, Horowitz, and Vogel, 2013).

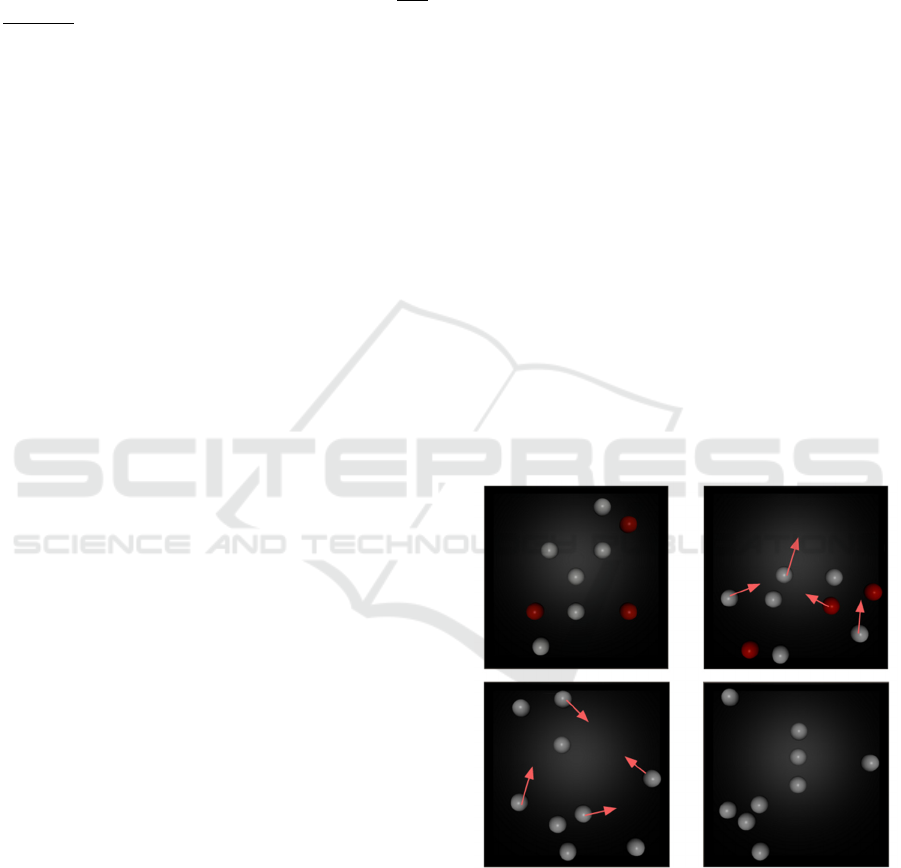

Figure 1: Multiple object tracking.

Immediately after each trial, subjects were

instructed to identify, as quickly as possible, the

three targets among all items in a “Mark all” manner

(Hulleman, 2005) by clicking on them.

Each participant undertook one practice trial

prior to completing the task.

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

2.3.2 Independent Variables

• Task Difficulty

We hypothesize that cognitive overload situations

are not regulated with a cognitive feedback.

Increasing the duration of the tracking task has been

proven to decrease tracking performances (Oksama

and Hyönä, 2004; Pylyshyn, 2004) thus making it

more difficult. Subjects were asked to track the

targets in two different conditions: for 5 seconds in

the easy condition and for 9 seconds in the hard

condition following Oksama and Hyönä (2004)

results.

• Feedback Display Format

Given that no actual cognitive workload gauge exists

yet, we decided to provide users with a fake

feedback using the estimated difficulty of each trial

and of the previous one. In order to assess the impact

of the display format, two conditions were designed.

Subjects were wearing a heart rate belt and facing an

eye tracking system. In the first condition (raw), a

raw display of the subject heart rate and pupil

diameter is provided. In the second condition

(interpreted), a colored gauge displayed a color

gradient from green to red (the warmer the gauge,

the higher the cognitive workload). Color was used

in order to offer instantaneous visual information to

the subject. In a control condition no feedback was

given at all.

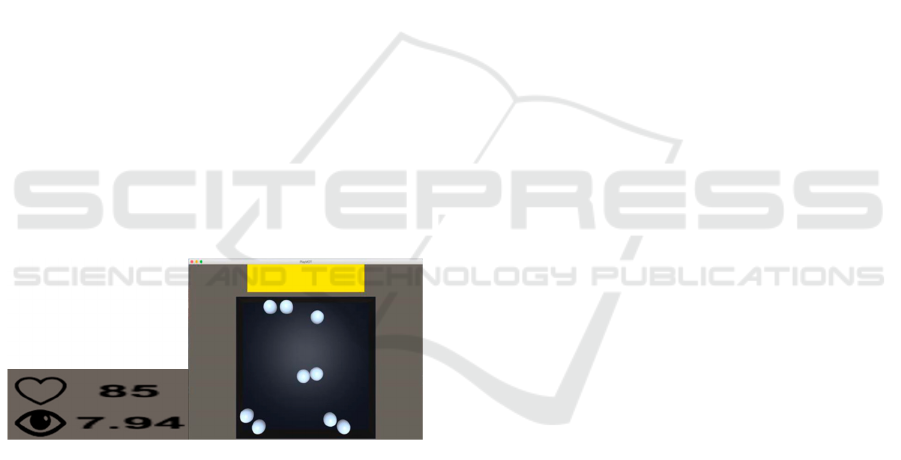

Figure 2: Raw and interpreted (coloured gauge)feedback.

• Reliability of the Feedback

As we wanted to evaluate the impact of an obviously

erroneous cognitive feedback, we designed two

different conditions. In the reliable control

condition, a realistic feedback was provided to the

user, taking into account the difficulty of both the

current trial and the previous one. In the erroneous

condition, feedback evolved in an obviously random

way.

The task consisted of twelve (2x3x2) blocks of

trials, with each block of trials consisting of eight

trials (ninety-six trials total) in order to reach

statistical thresholds.

Subjects were told that the feedback was

displayed to give them information about a lack of

focus and to help them achieve better performance.

2.3.3 Dependent Variables

• Dual Task

A dual task paradigm was implemented to increase

cognitive load and collect more performance data.

Subjects were asked to press on the “A” key of a

keyboard when they heard a klaxon sound and the

“E” key when it was a bell ring. Subjects were

instructed to answer as fast as possible.

Both reaction time and answer were recorded as

performance indexes.

• MOT Results

After each trial subjects were instructed to identify

the three targets using a mouse. The number of

correct answers is used as a performance index.

• Pupil Dilation

Pupil dilation was recorded using an Eye Tribe

system with a sampling rate of 30Hz. Due to data

loss, 9 subjects were excluded from the analysis.

Pupil dilation has been well known to correlate to

performances in memory span tasks (Kahneman and

Beatty, 1966) and in attention tasks (Beatty, 1988)

• Questionnaire

Following the China Lake questionnaire approach

(Gawron, 2008), we asked the subjects to self-assess

their cognitive load on a scale from 0 (low

workload) to 100 (high workload) at the end of each

trial.

3 RESULTS

Non-parametrical paired statistical tests (Wilcoxon,

Friedman) were performed using R, Matlab and

XLStat.

In order to evaluate our setup, we first study

effects that have been validated by the literature on

Multiple Object Tracking: duration as a factor of

difficulty (Oksama and Hyönä, 2004) and learning

effect (Makovski, Vázquez, and Jiang, 2008).

3.1 Control Conditions

3.1.1 Effect of the Difficulty (Trial Duration)

One-tailed analysis of reaction time during the dual

task showed significant differences (p = 0.02): lower

values are recorded for the the easy condition.

Performance for the auditory task did not show

any difference.

Effect of a Real-Time Psychophysiological Feedback, Its Display Format and Reliability on Cognitive Workload and Performance

Tracking results at the MOT task showed a trend

(p=0,08) in favor of the easy condition: more targets

are retrieved in the easy condition.

One-tailed analysis of the questionnaire’s

answers showed a significant difference in favor of

the easy condition (p=1.6e-05): lower results are

shown for this condition.

Pupil dilation showed a significant difference in

favor of the easy condition (p=0,008). Mean pupil

dilation is lower for the easy condition.

3.1.2 Learning Effect

One-tailed analysis of reaction time during the dual

task showed significant differences (p = 0.04): lower

values are recorded for the first trials compared to

the last ones.

Performance for the auditory task did not show

any difference.

Tracking results at the MOT task showed a

significant difference (p=0,01) in favor of the latest

trials: the later the trial, the higher the number of

items retrieved.

One-tailed analysis of the questionnaire’s

answers showed a significant difference in favor of

the easy condition (p = 0,01).

Pupil dilation shows significant differences

between the first and the last trials.

3.2 Display Format of the Feedback

Analysis of reaction time using Friedman’s test

during the dual task showed no significant

differences between the ‘no feedback,’ ‘raw value’

and the ‘colored gauge’ conditions.

Performance at the auditory task did not show

any difference.

Tracking results at the MOT task did not show

any significant difference.

Questionnaire’s answers showed no significant

results.

Analysis using Friedman test of pupil dilation

between conditions showed a trend (p=0,055). Trend

differences (p=0,02) were found using a Wilcoxon

test between the no feedback condition and the raw

condition in favor of the no feedback condition as

well as between the interpreted feedback and no

feedback (p=0,046). A trend (p = 0,08) was found

between the two kinds of feedbacks in favor of the

interpreted feedback.

3.3 Reliability of the Feedback

Reaction time during the dual task showed no

significant differences. Performance at the auditory

task did not show any difference either.

Tracking results for the MOT task did show a

trend (p=0,07) in favor of the unreliable condition.

The questionnaire responses did not show any

statistical difference.

Pupil dilation showed a trend in favor of the

reliable condition (p=0,07): pupil dilation is lower

when data are consistent with the difficulty of the

task.

4 DISCUSSION

Retrieval performances, reaction times, subjective

evaluation and pupil dilation are consistent with the

literature on the learning effect and the effect of trial

duration as a difficulty factor. This validates our

experimental setup.

Regarding our first hypothesis (H1), we found

differences for the display format of the feedback.

Pupil dilation results indicate that a physiological

feedback seems to have a negative effect cognitive

workload. We can explain this result by stating that

a feedback needs resources from the subject.

Subjects try to use this information while performing

the task. The overall cognitive effort is then higher.

This validates partially our H1 hypothesis: a

psychophysiological feedback has a negative effect

on cognitive workload not improving it in the MOT

task.

Our second hypothesis (H2), that display format

will show an influence over cognitive workload, was

partially confirmed by higher mean pupil dilation

with the raw feedback results. This result can be

explained by the fact that raw data needs user’s

interpretation, which, therefore, increases the

cognitive effort. This validates partially our H2

hypothesis.

Finally, our third hypothesis (H3) that erroneous

feedback leads to increased cognitive workload and

decreased performance was not validated, as the

results only showed trends and are not consistent.

When the feedback is not reliable, pupil dilation

shows a trend toward a higher workload but retrieval

performances are also better. We can explain this

result by assuming that subjects noticed that the

feedback was not usable and consequently invested

more resources in focusing on the task while

ignoring the feedback.

PhyCS 2016 - 3rd International Conference on Physiological Computing Systems

5 CONCLUSIONS

The present study investigated the effect of a

psychophysiological feedback, its display format

and its reliability on performance and cognitive

workload during a Multiple Object Tracking task.

This feedback was presented to the subjects as a

means to improve their focus on the task in order to

reach better levels of performance.

This task was chosen as it is a visual attention

task which can be compared to the attention tasks

fighter pilots or air traffic controllers are regularly

expected to perform. Results on duration and

difficulty are consistent with the literature

(Makovski et al., 2008; Oksama and Hyönä, 2004).

In a highly engaging task such as the Multiple

Object Tracking, displaying a psychophysiological

feedback has a significant effect on subjects. More

specifically, a psychophysiological feedback leads to

higher cognitive workload compared to no feedback

at all. Raw data increases cognitive workload

compared to an interpreted colored gauge.

Reliability of the feedback showed inconsistent

results: better performance with higher workload.

We made the assumption that the feedback being

ignored could explain this result.

As the MOT needs a lot of attention, eye tracking

data should be investigated further in order to

evaluate links between results and gaze patterns,

particularly the attention provided to the feedback.

We believe the next logical step would be to

evaluate effects of direct and psychophysiological

measures as feedback intervention on users’

cognition and performance.

REFERENCES

Afergan, D., Peck, E. M., Solovey, E. T., Jenkins, A.,

Hincks, S. W., Brown, E. T., … Jacob, R. J. K. (2014).

Dynamic difficulty using brain metrics of workload. In

Proceedings of the SIGCHI Conference on Human

Factors in Computing Systems (pp. 3797–3806). ACM.

Allen, R., McGeorge, P., Pearson, D., and Milne, A. B.

(2004). Attention and expertise in multiple target

tracking. Applied Cognitive Psychology, 18(3), 337–

347. doi:10.1002/acp.975.

Beatty, J. (1988). Pupillometric signs of selective attention

in man. In E. Donchin, G. Galbraith, and M. L.

Kietzman (Eds.), Neurophysiology and

psychophysiology: Experimental and clinical

applications (pp. 138–143).

Beatty, J., and Lucero-Wagoner, B. (2000). The pupillary

system. In Handbook of psychophysiology (2nd ed.,

pp. 142–162). New York, NY, US: Cambridge

University Press.

Drew, T., Horowitz, T. S., and Vogel, E. K. (2013).

Swapping or dropping? Electrophysiological measures

of difficulty during multiple object tracking.

Cognition, 126(2), 213–223.

Egelund, N. (1982). Spectral analysis of heart rate

variability as an indicator of driver fatigue. Ergonomics,

25(7), 663–672. doi:10.1080/00140138208925026.

Gawron, V. J. (2008). Human performance, workload, and

situational awareness measures handbook. CRC Press.

George, L., and Lécuyer, A. (2010). An overview of

research on“ passive” brain-computer interfaces for

implicit human-computer interaction. In International

Conference on Applied Bionics and Biomechanics

ICABB 2010-Workshop W1“ Brain-Computer

Interfacing and Virtual Reality.”

Hulleman, J. (2005). The mathematics of multiple object

tracking: From proportions correct to number of

objects tracked. Vision Research, 45(17), 2298–2309.

Kahneman, D., and Beatty, J. (1966). Pupil diameter and

load on memory. Science, 154(3756), 1583–1585.

Kluger, A. N., and DeNisi, A. (1996). The effects of

feedback interventions on performance: a historical

review, a meta-analysis, and a preliminary feedback

intervention theory. Psychological Bulletin, 119(2), 254.

Kohlmorgen, J., Dornhege, G., Braun, M., Blankertz, B.,

Müller, K.-R., Curio, G., … Kincses, W. (2007).

Improving human performance in a real operating

environment through real-time mental workload

detection. Toward Brain-Computer Interfacing, 409–422.

Lopez, J. S. A., Hansen, J. P., Sztuk, S., and Tall, M. H.

(2014, February). Systems and methods of eye

tracking calibration. Google Patents.

Makovski, T., Vázquez, G. A., and Jiang, Y. V. (2008).

Visual learning in multiple-object tracking. PLoS One,

3(5), e2228.

Oksama, L., and Hyönä, J. (2004). Is multiple object tracking

carried out automatically by an early vision mechanism

independent of higherorder cognition? An individual

difference approach. Visual Cognition, 11(5), 631–671.

Pylyshyn, Z. (2004). Some puzzling findings in multiple

object tracking: I. Tracking without keeping track of

object identities. Visual Cognition, 11(7), 801–822.

Pylyshyn, Z., and Storm, R. W. (1988). Tracking multiple

independent targets: Evidence for a parallel tracking

mechanism*. Spatial Vision, 3(3), 179–197.

Story, T. J., and Craske, M. G. (2008). Responses to false

physiological feedback in individuals with panic

attacks and elevated anxiety sensitivity. Behaviour

Research and Therapy, 46(9), 1001–1008.

Valins, S., and Ray, A. A. (1967). Effects of cognitive

desensitization on avoidance behavior. Journal of

Personality and Social Psychology, 7(4p1), 345.

Voßkühler, A. (2009). OGAMA description (for Version

2.5). Berlin, Germany: Freie Universität Berlin,

Fachbereich Physik.

Wickens, C. D., Gempler, K., and Morphew, M. E. (2000).

Workload and Reliability of Predictor Displays in

Aircraft Traffic Avoidance. Transportation Human

Factors, 2(2), 99–126. doi:10.1207/STHF0202_01.

Effect of a Real-Time Psychophysiological Feedback, Its Display Format and Reliability on Cognitive Workload and Performance
