Supporting the Standardization Process of Smart City Systems

Marion Gottschalk

OFFIS - Institute for Information Technology, Escherweg 2, 26121 Oldenburg, Germany

1 RESEARCH PROBLEM

The continuous development in information and com-

munication technologies (ICT) and the resulting re-

search area Internet of Things (IoT) enable the con-

nection of more and more hardware and software sys-

tems (DaCosta, 2013). IoT describes a global infras-

tructure for the information society to enable inter-

connecting physical and virtual things based on exist-

ing and evolving ICT (ITU-T, 2012). Regarding the

development of smart cities that constitutes a system

of systems concept using ICT (DKE, 2015), a deﬁned,

or, better still, a standardized way to deﬁne and to link

various systems is necessary.

Smart cities are innovative cities that use ICT to

make urban operations and services more efﬁcient for

improving the quality of life (ITU-T FG-SSC, 2014).

An example or rather a use case of a smart city sys-

tem can be “Supporting the trafﬁc ﬂow in cities” (Tra-

gos et al., 2014). The use case describes relevant re-

quirements for all involved components and systems

as well as the communication between different ICT

that can be used for a real time trafﬁc estimation in

cities. For example, trafﬁc cameras can be used for

recording the current trafﬁc volume and analyzing the

data with an analysis software. This data has to be

sent within two seconds from the trafﬁc cameras to

the analysis software for switching lights in time to

keep the trafﬁc ﬂowing.

Nowadays, various companies are developping

new components or systems that can be part of a smart

city. However, components from different companies

are often incompatible with each other. For exam-

ple, Siemens developed a trafﬁc control system on

the basis of their private cloud. The system uses con-

trol units that are installed on single lights to control

these with smart phones or tablets via a secure con-

nection (Wagner, 2014). Another example is the traf-

ﬁc incident management solution by Cisco and AGT

International (CISCO and AGT International, 2014).

They use various sensors (e.g. trafﬁc cameras and in-

pavement vehicle sensor) to analyze the current trafﬁc

volume and to enable a smooth trafﬁc ﬂow as well as

to detect incidents. These companies are likely to de-

ﬁne their own interfaces for single components, e.g.

for their software systems like the Siemens private

cloud. These interfaces enable the interconnection

of their components and software. Reasons for di-

versity are e.g. market power, protection of ideas, or

delimitation to other products. Standardization orga-

nizations try to unify the development of smart city

components and systems by deﬁning and standard-

izing interfaces. For example, it is helpful to create

generic use cases for describing functional require-

ments that show the general interaction between two

components, such as city buses and trafﬁc lights (Tra-

gos et al., 2014), and their interfaces needed. This

kind of use cases can be created by summarizing indi-

vidual use cases, like the functional description by the

Siemens trafﬁc control system and the Cisco and AGT

International trafﬁc incident management system, to

get one generic use case for supporting the trafﬁc ﬂow.

If the generic use cases are public, this approach will

support other companies to adapt their components

and systems for existing implementations.

Smart cities are difﬁcult to realize because they

are complex based on their system of systems con-

cept. They are not implemented in one step, be-

cause cities have to be evolve slowly to smart cities

(DKE, 2015). It already starts with the speciﬁca-

tion process. Each smart city component or sys-

tem has many functional and non-functional require-

ments that have to be matched with each other and

have to be complemented with further requirements

to connected components so-called interface require-

ments. One aim for standardization organizations is

the consistent description of smart city requirements

to get components and systems by different vendors

that are interoperability (DKE, 2015). On the ba-

sis of these requirements, smart city components and

systems can be implemented. If errors occurred or

are detected during the implementation process, it

can be very time consuming and expensive to cor-

rect them (Sommerville, 2009). On the one hand, it

costs much time to detect the reason for errors. On

the other hand, errors frequently inﬂuence other func-

tions maybe other components which cause further er-

rors. In addition, experiences on prior projects have

Gottschalk, M.

Supporting the Standardization Process of Smart City Systems.

In Doctoral Consortium (DCSMARTGREENS 2016), pages 17-27

shown that errors during the implementation process

often base on faulty requirements and using formal

methods in the requirements speciﬁcation process can

reduce them (Sommerville, 2009). Hence, it is im-

portant and sensible for standardization organizations

to invest time and money in the speciﬁcation process

of smart cities to get consistent requirements and to

prevent errors. The following research question was

identiﬁed: “How can the management and collection

of complex hardware and software requirements be

supported to get syntactically correct and consistent

requirement speciﬁcations?”

Therefore, the research problem is to check the

described requirements for their syntactical correct-

ness and consistency automatically or at least semi-

automatically. Therefore, various techniques from

the requirements speciﬁcation process can be used;

however, which techniques are suitable for the stan-

dardization process, and for the complex requirement

speciﬁcation of smart cities in general. In Section 2,

the resulting objectives for this work are described in

more detail. Section 3 gives an overview of require-

ments techniques and further basics, which are impor-

tant for this work. Building on this, the procedure and

methodology for the PhD project follows in Section 4.

The evaluation process and the expected results are

demonstrated in Section 5. Finally, the stage of the

PhD project is shown in Section 6.

2 OUTLINE OF OBJECTIVES

Aim of the PhD project is to review different tech-

niques for checking requirements syntactical correct-

ness and consistency as well as to apply these on com-

plex requirement speciﬁcations. According to the re-

search question and the main goal, following objec-

tives for the PhD project can be deﬁned:

• visualizing requirements: the graphical represen-

tation of requirements and their relations supports

requirement engineers to get a better overview of

existing requirements. hence, visualization tech-

niques are also considered to create consistent re-

quirement speciﬁcations.

• reducing syntactically incorrect requirements: an

analysis on requirement speciﬁcations only works

if the syntax of textual and formal requirements is

correct; therefore, the analysis starts with an syn-

tax check.

• reducing inconsistent requirements: the develop-

ment of a system with inconsistent requirements

often fails and leads to high costs for correcting

them; thus, projects should be supported from the

beginning of the speciﬁcation process.

• implementing an approach for consistency

checks: considered techniques for creating syn-

tactically correct and consistent requirements are

used to implement a new approach or combine

known approaches for checking requirement

speciﬁcations.

• evaluating the approach: the implemented ap-

proach should be checked in the context of smart

city, smart grid, and electrical mobility; there-

fore, described requirements in various project

and standardization groups are used.

If these objectives are reached, the work will have

beneﬁts and relevance for various people and groups.

A syntactically correct and consistent requirements

speciﬁcation supports the full development process

for each system and improves its quality from the be-

ginning. It supports requirement engineers, system

architects, and customers or experts who set require-

ments for creating a good basis for system designs.

Additionally, costs for developing systems are lower

when errors are avoided during the requirements spec-

iﬁcation process.

3 STATE OF THE ART

The research problem comprises two main research

ﬁelds: smart cities and requirement speciﬁcations for

a consistent description of future cities. In addition,

the use case methodology from the IEC and related

work are presented to demonstrate the current devel-

opment in these ﬁelds.

3.1 Smart Cities

As mentioned above, smart cities are systems of sys-

tems (SoS); they include sub-systems like facility

management, smart home, as well as mobility and

logistics (DKE, 2015). Figure 1 shows an overview

of a smart city concept. It demonstrates the men-

tioned sub-systems, which are based on the devel-

opment of the smart city infrastructure architecture

model (SCIAM) (DKE, 2014). An architecture model

is a graphical representation of a use case that shows

business and technical aspects at a glance. The con-

nection of smart city sub-systems have to be done in a

step-by-step implementation to exchange pre-existing

systems by new ones. Urban operations and services

are more efﬁcient and the quality of life is improved

after interconnecting these systems (ITU-T FG-SSC,

2014). The International Telecommunications Union

(ITU) deﬁnes a smart city as “an innovative city that

uses ICTs and other means to improve quality of life,

DCSMARTGREENS 2016 - Doctoral Consortium on Smart Cities and Green ICT Systems

efﬁciency of urban operation and services, and com-

petitiveness, while ensuring that it meets the needs of

present and future generations with respect to eco-

nomic, social, environmental as well as cultural as-

pects” (ITU-T FG-SSC, 2014). This deﬁnition in-

cludes technical, connecting sub-systems via ICT, as

well as external aspect, the comprehension of eco-

nomic, social, environment, and culture topics, that

should increase the acceptance of all participants in

smart cities. Thus, the planning and implementation

of smart cities shall comply with this deﬁnition.

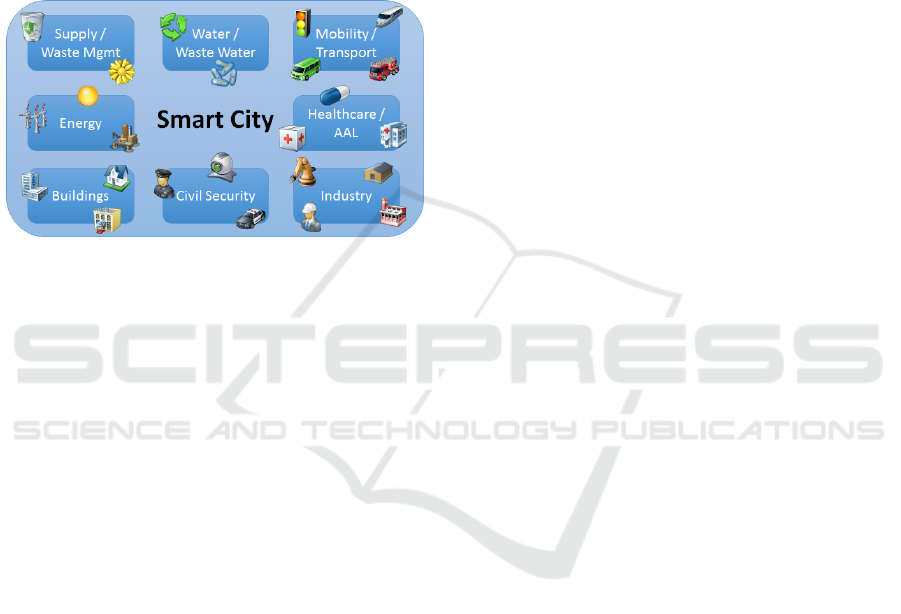

Figure 1: Smart City Concept.

However, the complexity, step-by-step implemen-

tation, and interconnection with external aspects re-

sults in difﬁculties, such as connecting with exist-

ing systems and matching data protection laws, that

have to be solved before systems like smart cities

can be implemented. Such difﬁculties are already de-

scribed by Rittel and Weber (Rittel and Webber, 1973)

as dilemmas in a general theory of planning in the

year 1973. They describe the importance for plan-

ing systems and their desired behavior in detail. In

addition, they consider changing systems and laws

that make it difﬁcult to describe and design a future

SoS like smart cities completely, i.e. functionalities

and difﬁculties have to be described and re-solved

repeatedly during the implementation process (Rit-

tel and Webber, 1973). Thus, this dilemma should

be taken into account for the planning and develop-

ment process of smart cities, and requirements as well

as standards should be described in a way which al-

lows adjustments and simple checks. Considering

the smart city sub-systems and the involvement of

humans, smart cities can be also seen as security-

critical systems (DKE, 2014; Johnson, 2011), as well

as cyber-physical systems from the view of the inter-

connected sub-systems (Wiesner et al., 2015).

3.2 Standards in the Context of Smart

Cities

Various organizations, not only standardization orga-

nizations, address the planning and development of

standards (DKE, 2015). Standardization organiza-

tions on different levels (international and national

level) organize various working groups to discuss sin-

gle topics in the smart city context. Some of the inter-

national standardization organizations are the Inter-

national Organization for Standards (ISO), the Inter-

national Electrotechnical Commission (IEC), and the

International Telecommunication Union (ITU). The

three organizations consider the development of smart

cities from different views, the ISO addresses techni-

cal and economic aspects, the IEC deals with elec-

trical, electric and related technologies, and the ITU

considers telecommunication aspects. All these parts

are important for the development of smart cities, and

thus, it is necessary to arrange their experience that

is already done in the Smart City Study Group (SG 1)

(DKE, 2015). Further standardization organizations

on European (e.g. European Committee for Standard-

ization (CEN), European Telecommunication Stan-

dards Institute (ETSI)) or US (e.g. National Insti-

tute of Standards and Technology (NIST)) level deal

with the topic smart cities and provide their results

for the international organizations. The same applies

for national organizations (e.g. The German Institute

for Standardization (DIN) and The German standard-

ization organization for Electrical, Electronic, and In-

formation Technology (DKE)), their ﬁndings are also

discussed on the next higher level. Another organiza-

tion, involved in the standardization process, is the In-

stitute of Electrical and Electronic Engineers (IEEE),

which deﬁnes speciﬁcations regarding various topics

that are referenced or used by standardization orga-

nizations. These organizations are examples, further

exist. Due to the high number of various organi-

zations, collecting consistent requirements and stan-

dards is difﬁcult and have to be supported.

The importance for describing well-deﬁned re-

quirements to standardize smart city functionalities

can be compared with the requirements speciﬁcation

process for SoS. Moreover, Sommerville et al. (Som-

merville et al., 2011) deﬁne SoS according to the

US Department of Defense (DoD) deﬁnition (Sys-

tems and Software Engineering Directorate, 2008) as

“a set or arrangement of systems that results when

independent and useful systems are integrated into a

larger system that delivers unique capabilities”. The

smart city deﬁnition by the ITU is similar to this one,

they differ in their accuracy, because a smart city is

only a special kind of SoS. Based on the deﬁnition of

smart cities as SoS, techniques from the requirements

speciﬁcation process in software systems should be

adaptable and are considered here.

Supporting the Standardization Process of Smart City Systems

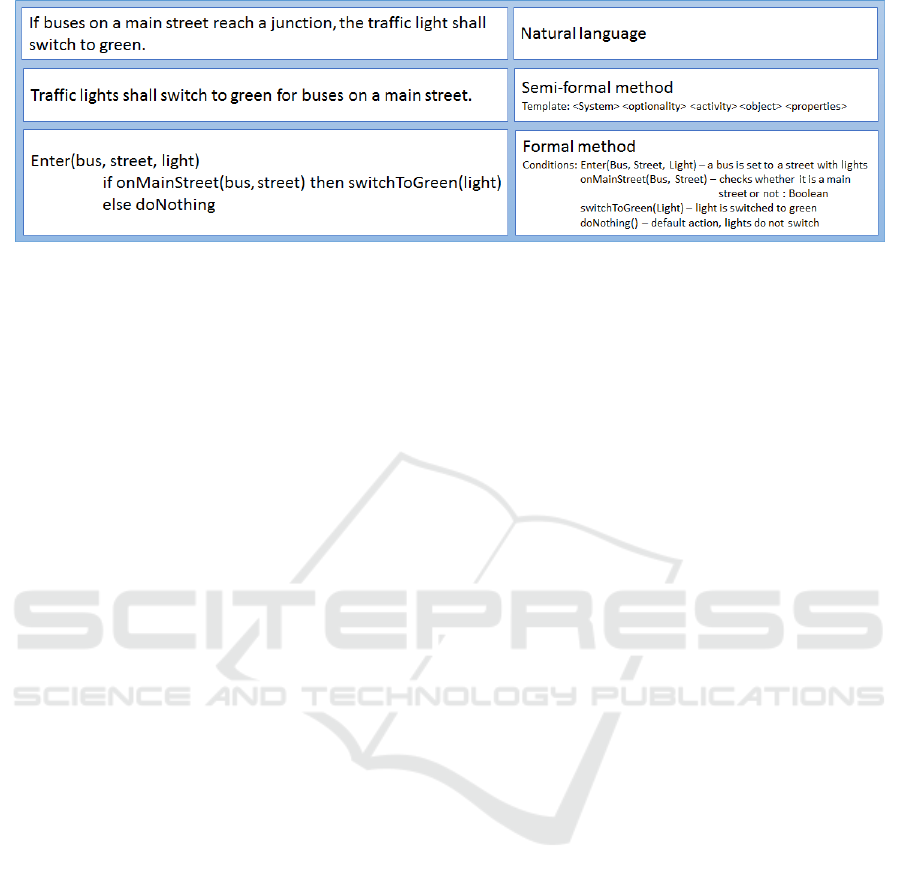

Figure 2: Smart City - Requirement Example.

3.3 Requirements Speciﬁcation

The high relevance for well-deﬁned requirements in

SoS requires the viewing on various requirements’

deﬁnitions and techniques. First, a general deﬁnition

for requirements and possibilities is presented. Sec-

ond, quality criteria for requirements are pointed out

for demonstrating relevant aspects in the requirements

speciﬁcation process. One of these quality criteria is

consistency. How to reach this is described in detail.

3.3.1 Deﬁnition and Examples

The term requirements is deﬁned by the IEEE (IEEE,

1990) as follows: “requirements are conditions or

capabilities needed by a user to solve a problem or

achieve an objective. These conditions and capabil-

ities have to be met or possessed by a component or

system to satisfy a contract, standard, speciﬁcation or

other formally imposed documents.” Thus, require-

ments describe functionalities and rules that are im-

plemented by a component or system to meet user

needs. A requirements list of a system should consti-

tute its complete functionalities, but, it does not con-

tain how these functionalities are implemented.

Requirements have to be written down to com-

municate different viewpoints of users, to check their

consistency, and later, to proof whether the require-

ments are fulﬁlled. Therefore, various techniques ex-

ist that can be distinguished in three types: natural

language, semi-formal methods, and formal methods

(IEEE, 1990; Rupp, C. and die SOPHISTen, 2014).

For each of these types, an example, based on the

mentioned use case in Section 1 Supporting the trafﬁc

ﬂow in cities, is shown in Figure 2. The requirement

demonstrated is always the same. The natural lan-

guage is the most frequently used method to describe

requirements (Rupp, C. and die SOPHISTen, 2014),

its rules are only based on the usage rather than be-

ing pre-established to the languages use (IEEE, 1990).

The ﬁrst requirement in Figure 2 shows the usage

of natural language. Semi-formal methods are used

for structuring natural language to facilitate its under-

standing; therefore, text pattern or templates can be

used (Rupp, C. and die SOPHISTen, 2014). A simple

template and an example for the semi-formal method

is also shown in Figure 2. Formal methods often rely

on mathematical, algebraic, or model-based represen-

tations to explain system functionalities (IEEE, 1990;

Sommerville, 2009); therefore, variables for compo-

nents, systems, and activities deﬁned that are set in

relation to each other. The last example in Figure 2

shows an algebraic representation of the requirement.

Which kind of requirements speciﬁcation is used

has to be decided for every project. The decision

bases on the kind of system for which the require-

ments are deﬁned. Security-critical systems are often

described with formal methods to be sure whether all

states of the system were considered and automatized

analyses were executed. However, formal methods

are hard to learn and time consuming, and thus not

appropriately used (Sommerville, 2009; IEEE, 1998).

Using natural language or semi-formal methods is

easier for describing requirements, but, they are often

ambiguous, which leads to mistakes in the develop-

ment process (Rupp, C. and die SOPHISTen, 2014;

IEEE, 1998). For describing requirements of smart

cities as security- and safety-critical systems in detail,

formal methods are useful for identifying interfaces

and system states. However, general requirements on

smart cities are often deﬁned by experts without an

ICT background, and thus, formal methods are undis-

closed. Though, semi-formal methods like the use

case methodology (IEC, 2015) are used for structur-

ing requirements to facilitates the collection, sorting,

and understanding of these, and it also allows sim-

ple analyses. Thus, requirements in natural and semi-

formal language are considered in this work.

3.3.2 Quality Criteria

In the IEEE Recommended Practice for Software Re-

quirements Speciﬁcation (IEEE, 1998), quality crite-

ria for requirements are deﬁned as follows:

DCSMARTGREENS 2016 - Doctoral Consortium on Smart Cities and Green ICT Systems

• correct: a requirement is correct if it matches

the functionality that the systems shall implement.

This cannot be checked by an automatized pro-

cess, a review has to decide whether a requirement

is correct or not.

• unambiguous: a requirement is unambiguous if it

has only one interpretation, or rather, each part

of the described system has its own uniques term

that is used consistency during the project. There-

fore, a glossary can be used that has to be used and

checked by editors. Otherwise, the application of

requirements speciﬁcation languages detect many

lexical, syntactic, and semantic errors that base on

ambiguous statements.

• complete: requirements are complete if all func-

tional as well as non-functional requirements of

the planned system are collected.

• consistent: a requirement is consistent if no char-

acteristic, logical, or temporal conﬂicts exist in it-

self. Additional, requirements have to be conﬂict-

free between each other, this also means that re-

quirements have to use the same terms to describe

functionalities. Using the same terms makes it

easier to detect same or conﬂicting requirements.

• ranked for importance and/or stability: require-

ments should be ranked, thus, each requirement

has an identiﬁer to indicate either the importance

or stability. Some requirements may be essential,

conditional, or optional for the ﬁnal system, i.e.

some requirements are necessary for a successful

implementation and others are nice to have.

• veriﬁable: a requirement is veriﬁable if its suc-

cessful implementation is measurable by a person

or machine. Requirements that include terms like

“works well” or “shall usually happen” are non-

veriﬁable.

• modiﬁable: requirements are modiﬁable if any

changes on them can be done easily, completely,

and consistency while retaining the structure and

style of the speciﬁcation, i.e. they should have a

coherent organization, are not redundant, and are

expressed separately.

• traceable: a requirement is traceable if its origin is

clear (backward traceability) and it is referenced

in later development steps (forward traceability).

The list gives an overview of quality criteria for re-

quirements that have to be considered for a successful

implementation of new systems. The standardization

tries to support the successful development of SoS

trough a template, the so-called use case methodol-

ogy (cf. Section 3.3.4). This template supports the

development of well-structured requirements. How-

ever, due to its extensive description of general and

technical aspects, a manual check of all these crite-

ria is difﬁcult. Thus, aim of this PhD project is to

support the syntactically correct and consistent acqui-

sition and check of requirements for SoS. This shall

be done automatically or rather semi-automatic.

3.3.3 Consistency Checks

As mentioned above, requirements are consistent if

no conﬂicts within one requirement and between re-

quirements exist (IEEE, 1998), i.e. requirements have

to be characteristic, logical, and temporal consistent.

Characteristic inconsistencies are conﬂicting objects,

e.g. a requirement says the transfer rate of the traf-

ﬁc camera amounts 98.304.000 Bit/s, and another re-

quirement implies that the data of the motion detector

have to be analyzed. These both requirements assume

two different techniques to record the current trafﬁc

volume, thus, an inconsistency between the applied

object exist. Logical and temporal inconsistencies re-

sult from conﬂicts between described actions in re-

quirements. For example, one requirement describes

that the data have be to transferred and analyzed, an-

other requirement implies that the data is analyzed

and than transferred, i.e.two requirements describe a

complete different behavior.

Inconsistencies within requirements written in

natural or semi-formal language can be avoided with

different known techniques, e.g. proofreading by a

third-party (Rupp, C. and die SOPHISTen, 2014),

glossaries (IEEE, 1998; Rupp, C. and die SOPHIS-

Ten, 2014; Robertson and Robertson, 2012), and text

mining (Berry and Castellanos, 2007). Proofreading

is the simplest one and is supported by various word

processing software, such as MS Word or browser

add-ons like spell checker (Smart Software, 2016).

However, these tools cannot check whether the de-

scribed requirements consistent or not; therefore, a

human has to check the requirements. Creating a

glossary has to be done manually; however, its consis-

tent use can be tool-supported. For example, the word

lights have different meanings, in the smart city con-

text lights can be trafﬁc lights or street lights, hence,

a clear deﬁnition in a glossary is needed. Text mining

uses linguistic analyses for extracting information and

detecting text patterns; therefore, techniques like clus-

tering, classiﬁcation, and retrieval can be used (Berry

and Castellanos, 2007). This approach can be applied

automatically on requirements.

The use of text mining techniques for consistency

checks operates with similarity checks. For detecting

inconsistencies between requirements, requirements

have to be found that have a high similarity because

Supporting the Standardization Process of Smart City Systems

inconsistencies occur frequently in requirements that

touch the same areas of a system (Port et al., 2011).

The process of text mining can be divided into two

phases: text preparation and text analysis (Tan, 1999).

The preparation adapts the text before it is analyzed

to reduce its complexity. These include, for example,

tokenization, stemming, and tagging (Kibble, 2013).

Tokenization splits the text into tokens that can be sin-

gle words or meaningful expression, e.g. trafﬁc ﬂow

and street lights. Stemming removes all afﬁxes, e.g.

supporting is shorten into support. Tagging associates

words with a grammatical category, e.g. ﬂow with

the type noun. A further text preparations are cluster-

ing techniques to group a set of data, so that similar

subjects are grouped together in a particular cluster

while dissimilar subjects are located in different clus-

ters (Tan, 1999). Based on the preparation, a Latent

Semantic Analysis (LSA) can be made that extracts

and represents the contextual-usage meaning of words

by statistical computations applied to a large corpus of

text (Port et al., 2011). With regard to the results of

the LSA, hints for inconsistencies can be given.

Aim of the PhD project is to adapt these tech-

niques to the use case methodology, which is de-

scribed in the next part.

3.3.4 IEC 62559-2: Use Case Methodology

Use Cases are described by the Object Management

Group (OMG)(OMG, 2011) as follows: “Use cases

are a means for specifying required usages of a sys-

tem. Typically, they are used to capture the require-

ments of a system, that is, what a system is sup-

posed to do.”. They are an effective methodology

to describe systems functionality and their bound-

aries (Cockburn, 2000; Rupp, C. and die SOPHIS-

Ten, 2014). The use case methodology is an accepted

method to describe requirements in a structured way

by natural language. Due to the presented template,

editors of the use case do not forget information, e.g.

the detailed description of actors and non-functional

requirements. However, the description of any possi-

bility and all boundaries of a system leads sometimes

to inconsistencies within the use case description.

This methodology is already used by the standard-

ization organization and an own template was devel-

oped for describing future SoS complete and consis-

tent (DKE, 2014; IEC, 2015). Regarding the com-

plexity of use case descriptions, a manual consis-

tency check is difﬁcult and should be tool-supported.

A web-based application to describe and collect use

cases already exist, the Use Case Management Repos-

itory (UCMR). It supports the development process

by various libraries, but it does not have any possi-

bility for an automated consistency check. The IEC

use case template is introduced below to get a ﬁrst

impression of the methodology.

The use case template is structured in eight parts:

description of the use case, diagrams of use case, tech-

nical details, step by step analysis, information ex-

changed, requirements, common terms and deﬁnition,

and custom information. However for explaining the

template in brief, it can also be split in four segments:

general information, functional description, technical

details, and additional information; that are subdi-

vided in further parts. The use case description starts

with general information, they may include an unique

name, objectives and a boundary to other use cases

or scenarios. On this basis, a complete description of

the required functionality is given as continuous text.

In the next step, the functional description is consti-

tuted as step-by-step analysis for different scenarios

whereas information objects and further requirements

are deﬁned. In parallel with these three activities,

terms are deﬁned and additional information are given

for supporting the understanding of the use case.

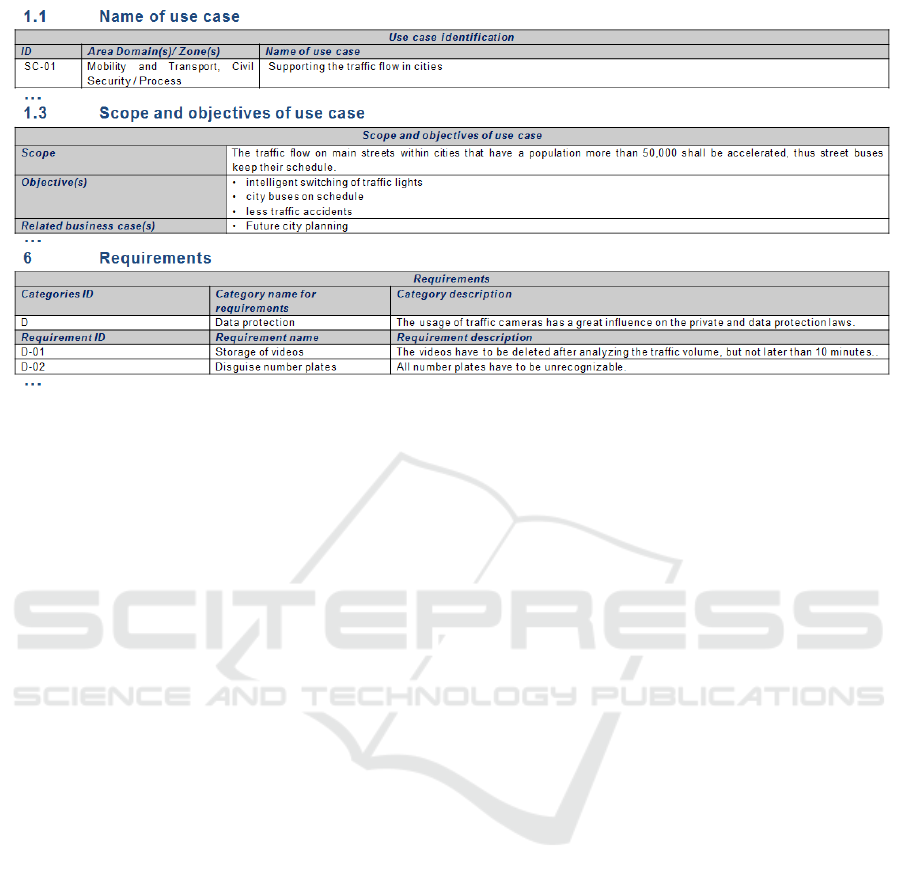

Figure 3 shows some parts of the use case tem-

plate based on the example Supporting the trafﬁc ﬂow

in cities. The tables Name of use case and Scope and

objectives of use case are part of the ﬁrst segment,

general information on the use case are given. The

unique identiﬁer is SC-01 and the use case is part of

the domains Mobility and Transport as well as Civil

Security and the zone Process (based on the Smart

City Infrastructure Architecture Model (SCIAM)). In

addition, a comprehensive name should be given for

the use case. The second table demonstrates bound-

aries, limits, and aims of the use case as well as the

link to city business cases. Thus, cities are deﬁned

for which the use case is relevant as well as objec-

tives that should be reached through the use case, e.g.

city buses on schedule and less trafﬁc accidents. Also,

relevant business cases are mentioned e.g. the future

city planning. The third table lists non-functional re-

quirements like the private and data protection laws

that have to be considered by the implementation of

the use case.

3.4 Related Work

In this part, an overview of related work regarding the

topics requirements speciﬁcation for smart spaces and

consistency checks are given. Various approaches are

considered and described in brief.

The approach by Evans et al. (Evans et al., 2014)

describes a model to gather requirements for spe-

cial systems, in their case an ambient assisted liv-

ing system is considered. They develop a six-step

activity list to collect and describe requirements in

DCSMARTGREENS 2016 - Doctoral Consortium on Smart Cities and Green ICT Systems

Figure 3: Use Case Methodology - Example.

a scenario-based process. These activities are: es-

tablish high-level objectives, establish scope, iden-

tify stakeholders, identify tasks / functionalities, iden-

tify system performance quality, and determine stake-

holder proﬁles. Furthermore, the process is comple-

mented with two further activities for supporting op-

erations and harmonizing requirements parallel to the

mentioned activities. At ﬁrst glance, it seams sim-

ilar to the use case methodology (cf. Section 3).

Both techniques describe objectives and scopes at the

beginning for a common understanding of require-

ments (or rather use cases). The identiﬁcation of

stakeholders or rather actors follows the objectives

and scopes. Afterwards, scenarios are identiﬁed in

which stakeholders or actors are involved. Regard-

ing the stakeholders or actors further requirements, al-

most non-functional requirements, are identiﬁed and

linked with the described functional requirement or

use case. These approaches differ in their given struc-

ture, the use case methodology seams more structured

and detailed as the scenario-based approach by Evans

et al. (Evans et al., 2014). Sutcliffe et al. (Sutcliffe

et al., 2006) also describes a similar scenario-based

approach. They describe their approach as an itera-

tive process whereby the requirements speciﬁcation

is followed by mock-ups and prototypes to involve all

stakeholders from the beginning in the speciﬁcation

process. Thus, the requirements description is more

user oriented and scenarios regarding special aspects,

such as cultural and local ones, are created.

The requirements engineering process for cyber-

physical systems has to note mechanical engineering,

electrical engineering, and computer science, i.e. all

relevant aspects for smart city systems are considered

(Wiesner et al., 2015). The approach by Wiesner et

al. considers the requirements engineering process

for future cyber-physical systems with a high num-

ber of components as a dynamic process that has to

be supported by a universal content model and nat-

ural language processing technologies for collecting

requirements. Therefore, domain speciﬁc models for

various components and systems as well as their inter-

faces have to be implemented for using such models

and technologies.

If methodologies and technologies reducing the

amount of inconsistent requirements are considered,

then approaches handling with inconsistent require-

ments can be also viewed to get another viewpoint

on it. Some authors are convinced that inconsisten-

cies within requirements can be tolerated when dis-

posal costs are higher than savings for a better un-

derstanding (cf. (Apfelbacher, 2007) and (Parnas and

Clements, 1986)). For these approaches, inconsis-

tencies have to be classiﬁed and detected in require-

ments’ speciﬁcations to make a decision on their rel-

evance and expected disposal costs. The PhD thesis

by Apfelbacher (Apfelbacher, 2007) describes an ap-

proach how inconsistencies within requirements, con-

cepts, and models for software systems can be de-

tected and how inconsistencies can be avoided from

beginning. First, the classiﬁcation of inconsistencies

is demonstrated by four inconsistent classes: unno-

ticed, semantical, speciﬁcation-, and model-based in-

consistencies. These inconsistencies except the un-

noticed one can be detected by different techniques

partly with tool support, while a human have to decide

whether it is an inconsistency or not. Apfelbacher

says that more than one reviser have to check the re-

quirements speciﬁcation to be sure that important in-

consistencies were removed. The reviser, in the best

Supporting the Standardization Process of Smart City Systems

case, are some developer and receiver of the require-

ments, so that both viewpoints of the requirements

speciﬁcation process are considered. This is partic-

ularly important for checking the model-based incon-

sistencies because these are often part of the concep-

tual product description to be established. This proof-

reading concept can be support by tools, such as UML

tools or word processors, to facilitate and accelerate

the consistency check especially for semantically in-

consistencies. Additionally, templates for the consis-

tency check can be created which contain e.g. check-

lists to remember proofreader on important things e.g.

special speciﬁcation guidelines.

To avoid inconsistencies from beginning, Apfel-

bacher describes a procedure to create requirements

and conceptual documents. His suggestion is a struc-

tured procedure which based on a good communica-

tion between all participants. It starts with the deter-

mination of the general procedure of the documenta-

tion process and the classiﬁcation of possible incon-

sistencies so that each project has to decide which

parts are relevant for them. Afterwards, a visual de-

scription of requirements and a concept, e.g. via UML

diagrams, are suggested which should be extended by

notes to improve the understanding. Finally, notes

and diagrams should be prepared, and these docu-

ments should be proofread similar to the procedure

for consistency checks.

The described procedure of creating structured

text and the hint to use tool support are two aspects

which are also considered in this work. However, the

aim is to remove inconsistencies, if they are detected

by a reviser whereas it should his or her decision what

is done with the inconsistency. Though, the classiﬁca-

tion of inconsistencies can be used for detecting and

rating inconsistencies for the reviser.

4 METHODOLOGY

The PhD project is structured by a template for design

science research. Design science research is a prag-

matic research paradigm to solve real-world problems

through the usage of information technology (IT) ar-

tifacts with a high priority on relevance in the appli-

cation domain (Hevner and Chatterjee, 2010). Thus,

the design science research links information systems

research and practice. For example, a real world

problem is the collection of consistent requirements

for systems particularly for complex systems, such as

smart cities (DKE, 2014). These systems are SoS,

i.e. each subsystem has its own requirements list, and

additionally, functional requirements for the complex

system and interface requirements are needed to de-

pict a requirements list for a SoS. The Design Sci-

ence Research Process (DSRP) model by Peffers et al.

(Peffers et al., 2006) is used to consider this real world

problem. The DSRP model describes a conceptual

model for researchers to carry out design science re-

search for information systems and requirements en-

gineering (Peffers et al., 2006). It provides a template

for readers and reviewers to recognize and evaluate

research work which is used for the PhD project (Pef-

fers et al., 2006). The template for the DSRP model

is shown in Figure 4.

The ﬁrst step of the DSRP model is the problem

identiﬁcation and motivation which deﬁnes a prob-

lem and should show the importance of a problem,

for motivating researchers to pursue a solution and

to accept results. Additionally, it helps to understand

the thinking on the problem. At the end of this step,

the state of the problem and the importance of its so-

lution are clear. The second step is objectives of a

solution. In this step, objectives are inferred from

the problem speciﬁcation. These objectives can be

quantitative or qualitative, i.e. indications that can be

used to compare the solution with the current state

or whether a new artifact is expected to support the

solution. Therefore, knowledge about the problem

speciﬁcation and current solutions and their efﬁcacy

are needed. The third step consists of design & de-

velopment, at this point the chosen solution have to

be implemented. Next to the realization of the solu-

tion, this step includes the description of requirements

and the resultant architecture of a solution. There-

fore, theory knowledge is needed to create a solution.

The fourth step is the demonstration. The solution

is applied e.g. in experimentations, simulations, case

studies, etc. to show its functionality and efﬁciency.

The ﬁfth step is the evaluation. The demonstration

of the solution is observed and metrics and analyses

are used to evaluate the solution. Thereby, the effec-

tiveness and efﬁciency are considered. If results of

the observation do not meet the expected results, the

process will iterate back to the second or third step to

adapt the expected objectives and implementation as

well as to evaluate the results again (also called De-

sign Process). Otherwise, the process ends with the

sixth step, the Communication; however, this step can

be reached from each step to share ideas, results, and

new ﬁndings (Peffers et al., 2006).

Based on the above mentioned process, this work

is structured by the DSRP model. During the ﬁrst

step, difﬁculties in the standardization process for

SoS were observed in standardization workgroups

and read in various reports (DKE, 2014; DKE, 2015).

These discoveries and the application of software en-

gineering techniques, such as the use case method-

DCSMARTGREENS 2016 - Doctoral Consortium on Smart Cities and Green ICT Systems

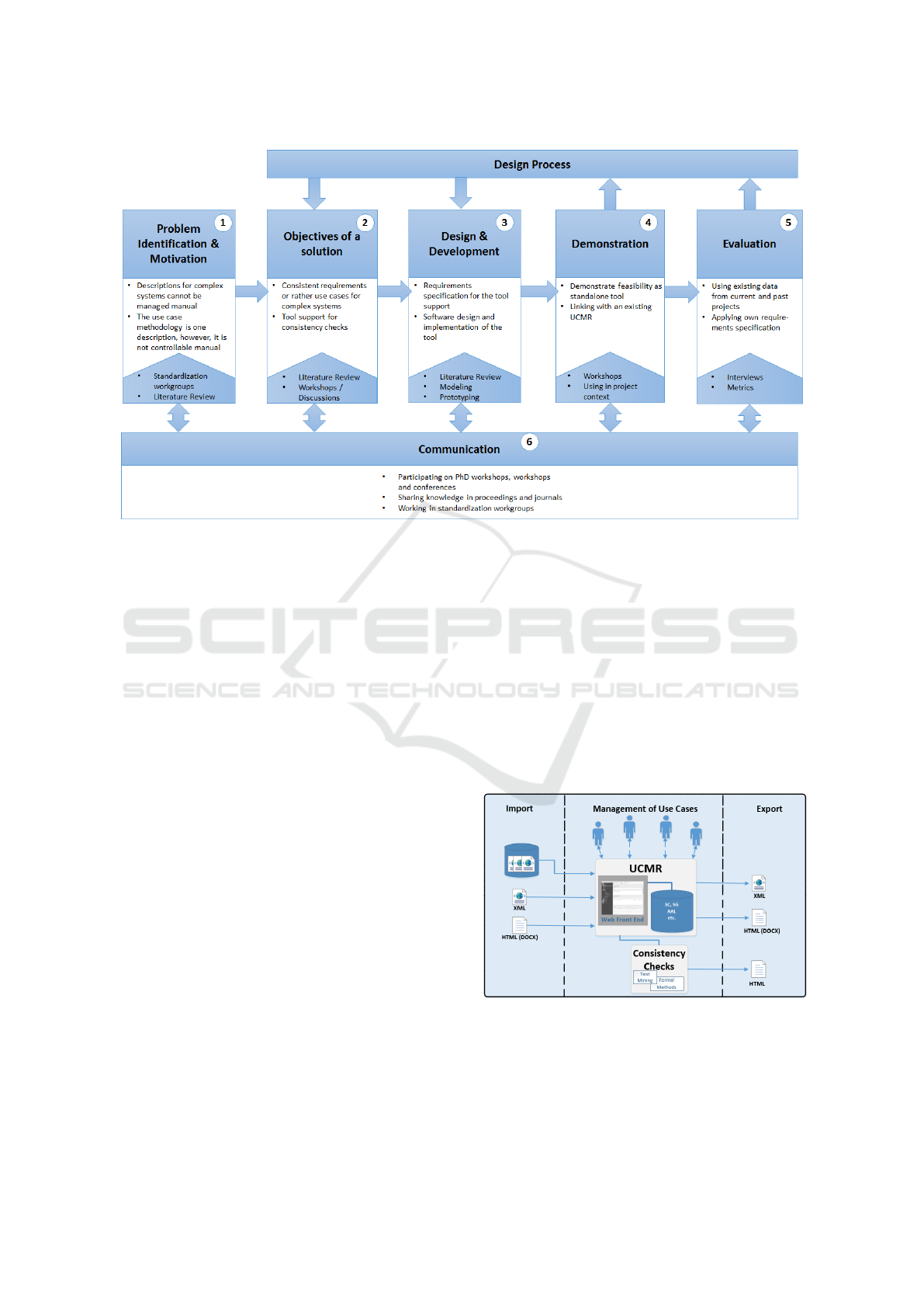

Figure 4: Design Science Research Process Model (according to (Peffers et al., 2006)).

ology (cf. Section 3), led to the a research question

for supporting the collection and management of re-

quirements (cf. Section 1). Syntactical correct and

consistent requirements can support the requirements

speciﬁcation or rather the use case methodology, thus,

these both properties and existing approaches are con-

sidered in this work. After creating an overview of

existing techniques and approaches, the design & de-

velopment process starts with a requirements speciﬁ-

cation and follows with an implementation. It should

also be pointed out that literature is reviewed and

models as well as prototypes are implemented. The

demonstration of the tool should be done as stan-

dalone tool for checking requirements that are not cre-

ated as use cases, e.g. the requirements speciﬁcation

of the tool itself, and as link to a UCMR. For the eval-

uation metrics are used to measure the amount of de-

tected incorrect and inconsistencies after executing a

consistency check. In addition, interviews with users

of the UCMR are carried out. In parallel with these

ﬁve steps, ideas and results are presented on work-

shops, proceedings, and standardization workgroups.

5 EXPECTED OUTCOME

The use case methodology (cf. Section 3) shall be

extended by an application for consistency checks.

This application shall be implemented for the UCMR;

however, the extension shall also be an independent

application for executing consistency checks for re-

quirements lists that do not base on the use case ap-

proach. Figure 5 shows the concept of the UCMR and

an included consistency check. The UCMR is a web-

based application for creating, collecting, and man-

aging use cases by different experts. Additionally, it

allows an import of use cases as XML or HTML ﬁles,

as well as an export. The consistency check shall be

an external application that is integrated within the

UCMR to provide a ﬁnal check before use cases are

stored or rather shared with other experts. The con-

sistency check shall also create a report, which can be

exported by the experts as HTML ﬁle.

Figure 5: Design.

Results of this work assist customer or experts

who create requirements (e.g. various experts, such as

ICT and domain experts for smart homes, smart grids,

smart cities, etc.), requirements engineers who man-

age requirements, and system architects who work

Supporting the Standardization Process of Smart City Systems

with these requirements. Next to the requirements im-

proved, the development of new standards that base

on requirements for future systems can be supported;

thus, standardization organizations are further beneﬁ-

ciaries. Additionally, all parties should be supported

through visualization techniques during the require-

ments speciﬁcation process to create an overview of

existing requirements and their relations, maybe it

can support the completeness of requirement speci-

ﬁcations.

6 STAGE OF THE RESEARCH

Currently, I am reviewing literature for existing tech-

niques to reduce syntactically incorrect and incon-

sistent requirements. Concurrently, techniques for

visualizing requirements are considered. Based on

the literature review, requirements for the consistency

check applications are collected and recorded. Re-

garding on the shown DSRP model, the work is at the

second step objectives of a solution, and regarding on

the deﬁned objectives in Section 2, the stage of re-

search is as follows:

• visualizing requirements: The literature review

for visualizing techniques is at the beginning;

thus, papers that give an overview of visualizing

requirements were read (Khairuddin and Hashim,

2008; Heim et al., 2008; Lamsweerde, 2009).

• reducing syntactically incorrect requirements:

The literature review for techniques to avoid syn-

tactically incorrect requirements is also at the

beginning, difﬁculties are described in (IEEE,

1998).

• reducing inconsistent requirements: To get con-

sistent requirements various techniques for the

different kind of requirement descriptions (nat-

ural language, semi-formal method, and formal

method) already exist. Some of these techniques

were considered and described on the survey, e.g.

simple proofreading (Rupp, C. and die SOPHIS-

Ten, 2014), using a glossary (IEEE, 1998; Rupp,

C. and die SOPHISTen, 2014; Ludewig, 2007),

Text Mining (Berry and Castellanos, 2007), Soft-

ware Cost Reduction method (Heitmeyer et al.,

1996), etc.

• implementing an approach: Based on the litera-

ture review a requirements list, design, and imple-

mentation are created and linked with the UCMR.

• evaluating the approach: First validation data

were collected. The ﬁrst validation shall be done

with the describe requirements for the consis-

tency check application (self-review). Further val-

idations base on use cases from the DISCERN

project (Discern, 2016) and various results from

German standardization organizations.

REFERENCES

Apfelbacher, R. (2007). Tolerierbare Inkonsistenzen in

Konzeptbeschreibungen. PhD thesis, University of

Postdam.

Berry, M. W. and Castellanos, M., editors (2007). Survey of

Text Mining: Clustering, Classication, and Retrieval,

volume 2. Springer.

CISCO and AGT International (2014). AGT and Cisco

Trafﬁc Incident Management Solution: Improving

Trafﬁc Safety and Efﬁciency. Technical report,

CISCO and AGT International.

Cockburn, A. (2000). Wrting Effective Use Cases. Addison-

Wesley Professional.

DaCosta, F. (2013). Rethinking the Internet of Things: a

scalable approach to connecting everything. Apress.

Discern (2016). Discern - Distributed Intelligence

for Cost-effective and Reliable Solutions.

http://www.discern.eu/ last visit on 28th January

2016.

DKE (2014). The German Standardization Roadmap Smart

City. Technical Report 1, DKE.

DKE (2015). The German Standardization Roadmap Smart

City. Technical Report 1.1, DKE.

Evans, C., Brodie, L., and Augusto, J. C. (2014). Require-

ments Engineering for Intelligent Environments. In

International Conference on Intelligent Environments.

Heim, P., Lohmann, S., Lauenroth, K., and Ziegler, J.

(2008). Graph-based Visualization of Requirements

Relationships. In Requirements Engineering Visual-

ization, pages 51–55. IEEE.

Heitmeyer, C., Jeffords, R., and Labaw, B. (1996). Auto-

mated consistency checking of requirements specica-

tions. In ACM Transactions on Software Engineering

and Methodology (TOSEM).

Hevner, A. and Chatterjee, S. (2010). Design Research

in Information Systems. In Integrated Series in

Information Systems 22, pages 9–21. Springer Sci-

ence+Business Media.

IEC (2015). IEC 62559-2:2015 Use case methodology -

Part 2: Deﬁnition of the templates for use cases, actor

list and requirements list.

IEEE (1990). Standard: IEEE Std 610 - IEEE Standard

Glossary of Software Engineering Terminology.

IEEE (1998). IEEE Recommended Practice for Software

Requirements Speciﬁcation.

ITU-T (2012). Overview of the Internet of things. Technical

Report Y.2060, ITU.

ITU-T FG-SSC (2014). Smart sustainable cities: An analy-

sis of deﬁnitions . Technical report, ITU-T.

Johnson, C. (2011). Achieving Systems Safety, chapter Cy-

berSafety: On the Interactions between CyberSecurity

DCSMARTGREENS 2016 - Doctoral Consortium on Smart Cities and Green ICT Systems

and the Software Engineering of Safety-Critical Sys-

tems, pages 85–95. Springer.

Khairuddin, N. N. and Hashim, K. (2008). Requirements

Visualization Techniques: A Comparative Analysis.

In Proceedings of the 8th Conference on Applied

Computer Science, ACS08.

Kibble, R. (2013). Introduction to natural language process-

ing. Technical report, University of London.

Lamsweerde, A. v. (2009). Requirements Engineering:

From System Goals to UML Models to Software Spec-

iﬁcations. Wiley.

Ludewig, J. (2007). Software Engineering. dpunkt Verlag.

OMG (2011). Uniﬁed Modeling Language. Technical re-

port, OMG.

Parnas, D. L. and Clements, P. C. (1986). A Rational Design

Process: How and Why to Fake It. IEEE Transactions

on Software Engineering, (2):251–257.

Peffers, K., Tuunanen, T., Gengler, C. E., Rossi, M., Hui,

W., Virtanen, V., and Bragge, J. (2006). The De-

sign Science Research Process: A Model for Produc-

ing and Presenting Information System Research. In

DESRIST, pages 83–106.

Port, D., Nikora, A., Hayes, J. H., and Huang, L. (2011).

Text Mining Support for Software Requirements:

Traceability Assurance. In System Sciences (HICSS).

Rittel, H. W. and Webber, M. M. (1973). Dilemmas in a

general theory of planning. Policy sciences.

Robertson, S. and Robertson, J. (2012). Mastering the

Requirements Process - Getting Requirements Right.

Addison-Wesley.

Rupp, C. and die SOPHISTen, editor (2014). Requirements-

Engineering und -Management. Hanser Verlag.

Smart Software (2016). Spell Checker for Chrome.

Sommerville, I. (2009). Software Engineering, volume 9,

chapter Formal Speciﬁcation. Addison Wesley.

Sommerville, I., Cliff, D., Calinescu, R., Keen, J., Kelly,

T., Kwiatkowska, M., McDermid, J., and Paige, R.

(2011). Large-scale complex IT systems. Communi-

cations of the ACM, 55(7):71–77.

Sutcliffe, A., Fickas, S., and Sohlber, M. M. (2006). PC-RE:

a method for personal and contextual requirements en-

gineering with some experience. Requirements Eng.

Systems and Software Engineering Directorate (2008). Sys-

tems Engineering Guide for Systems of Systems.

Technical report, Ofﬁce to the Deputy Under Sec-

retary of Defense for Acquisition and Technology,

Washington, DC.

Tan, A.-H. (1999). Text Mining: Promises and Challenges.

In South East Asia Regional Computer Confederation.

Tragos, E. Z., Angelakis, V., Fragkiadakis, A., Gundlegard,

D., Nechifor, C., Oikonomou, G., P

ohls, H. C., and

Gavras, A. (2014). Enabling Reliable and Secure IoT-

based Smart City Applications. In The First Interna-

tion Workshop on Pervasive Systems for Smart Cities.

Wagner, S. (2014). Verkehrssteuerung

uber die Siemens

private cloud”. Technical report, Siemens.

Wiesner, S., Baalsrud Hauge, J., and Thoben, K.-D. (2015).

Challenges for Requirements Engineering of Cyber-

Physical Systems in Distributed Environments. In

Advances in Production Management Systems: Inno-

vative Production Management Towards Sustainable

Growth.

Supporting the Standardization Process of Smart City Systems
