Dynamic Restoration in Interconnected

RBAC-based Cyber-physical Control Systems

Cristina Alcaraz

, Javier Lopez

and Kim-Kwang Raymond Choo

Computer Science Department, University of Malaga, Campus de Teatinos s/n, 29071, Malaga, Spain

School of Information Technology & Mathematical Sciences, University of South Australia, Adelaide, South Australia

Keywords:

Structural Controllability, Cyber-physical Systems, Security, Role-Based Access Control, Resilience.

Abstract:

Increasingly, automatic restoration is an indispensable security measure in control systems (e.g. those used in

critical infrastructure sectors) due to the importance of ensuring the functionality of monitoring infrastructures.

Modernizing the interconnection of control systems to provide interoperability between different networks, at

a low cost, is also a critical requirement in control systems. However, automated recovery mechanisms are

currently costly, and ensuring interoperability particularly at a low cost remains a topic of scientiﬁc challenge.

This is the gap we seek to address in this paper. More speciﬁcally, we propose a restoration model for inter-

connected contexts, taking into account the theory of supernode and structural controllability, as well as the

recommendations given by the IEC-62351-8 standard (which are mainly based on the implementation of a

role-based access control system).

1 INTRODUCTION

Cost-effective automated recovery mechanisms that

also ensure interoperability has been the subject of

various research efforts. For example, in our ear-

lier work (Alcaraz et al., 2016), we seek to promote

resilience capacities in the interconnection of cyber-

physical systems (CPSs), using existing restoration

approaches such as those speciﬁed in (Alcaraz and

Wolthusen, 2014). In this paper, we extend our pre-

vious work in (Alcaraz et al., 2016) by considering

the conceptual representation of controllability to il-

lustrate control contexts through the concept of struc-

tural controllability (introduced by Lin (Lin, 1974)).

We then present an interconnection model to illus-

trate real contexts where the interoperability between

CPSs has to be supported by both (i) policy en-

forcement points (PEPs) together with point decision

points (PDPs), and (ii) the Role-Based Access Con-

trol (RBAC)-based least privilege scheme deﬁned by

the IEC-62351-8 standard (IEC-62351-8, 2011).

The IEC-62351-8 is part of the IEC-62351 se-

ries (IEC-62351, 2011) which establishes end-to-end

security in control systems and the protection of

the communication channels. Concretely, the IEC-

62351-8 recognizes the RBAC model as a potentially

efﬁcient mechanism for wide use in control systems

and distributed services. Only authorized users and

automated agents can gain access to restricted data

objects, which may be located at distant geographi-

cal points and close to the observation scenario (e.g.,

substations). Moreover, through RBAC it is possible

to reallocate system controls and their security as de-

ﬁned by the organization policy, where the purpose is:

(i) to introduce authorization aspects under the condi-

tion of subjects-roles-rights where a limited number

of roles can represent many entities or IEC-61850 ob-

jects (IEC-61850, 2003); (ii) boost role-based access

control in the power system management; and (iii)

enable heterogeneity and audited interoperability be-

tween the different elements of a CPS (e.g., sensors,

meters, IEC-61850 objects etc.).

We also follow a decentralized network architec-

ture as represented in Figure 1, which is based on

supernode theory (Samuel et al., 2011) where a set

of control entities can apply for access via PEP re-

quests and specialized nodes known as supernodes

(i.e., PDPs). These PEP petitions are based on au-

thentication tokens that allow each entity to connect

with the closest PDPs, and these PDPs act as proxies

to provide peer-to-peer communication via the Inter-

net (see Figure 1). However, this connection is not

direct, since these proxies have to be connected to the

gateways (e.g., remote terminal units (RTUs)) that are

responsible for monitoring all incoming and outgo-

ing communications at the respective substations (i.e.,

Alcaraz, C., Lopez, J. and Choo, K-K.

Dynamic Restoration in Interconnected RBAC-based Cyber-physical Control Systems.

DOI: 10.5220/0005942000190027

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 19-27

ISBN: 978-989-758-196-0

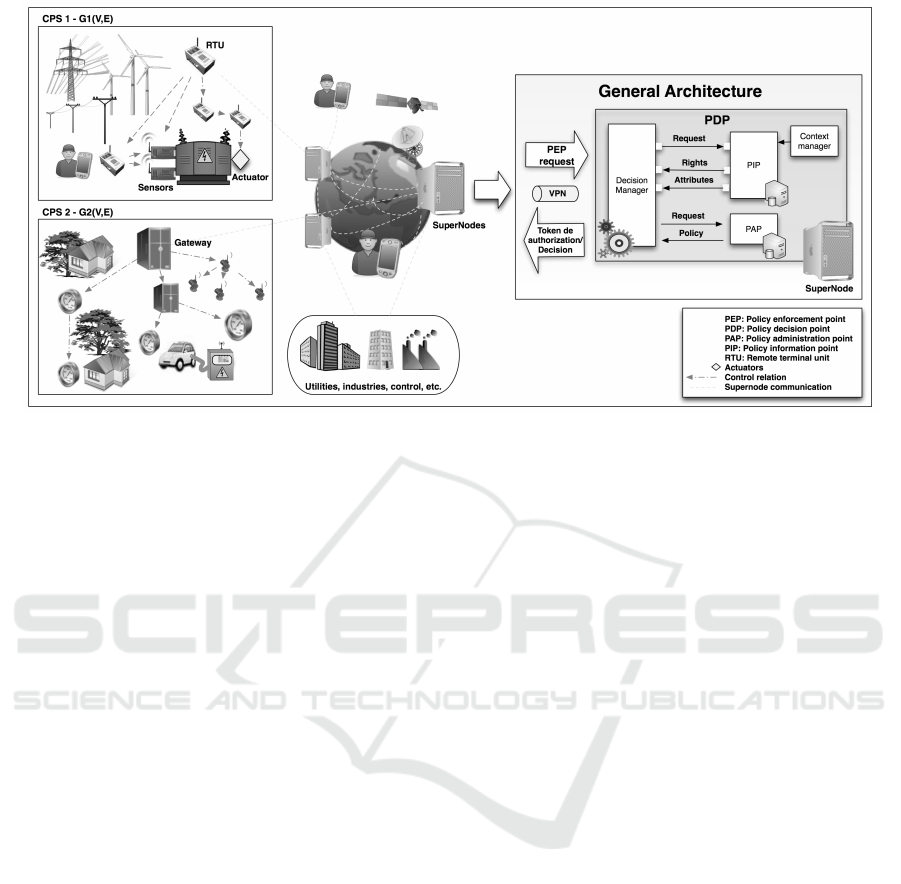

Figure 1: General architecture taking into account the network model given in (Alcaraz et al., 2016).

CPSs).

To conceptually characterize these interconnected

systems, the architecture has to be formalized us-

ing graph theory to embed the concept of struc-

tural controllability, such that G

(V,E) depicts a con-

trol subnetwork where V constitutes the control de-

vices or objects (e.g., IEC-61850, RTUs, smart sen-

sors, meters, and servers) and E the communication

links. Each distribution, G

(V,E), illustrates power-

law structures of the type y ∝ x

in order to repre-

sent realistic scenarios, such as those stated in (Pa-

gani and Aiello, 2013). In our case, we examine

pure power-law or scale-free distributions, such as

Power-Law Out-Degree (PLOD) with α (connectiv-

ity degree) ∼ 0.1,0.2 (Palmer and Steffan, 2000) or

Barab

asi-Albert (BA) model with α ∼ 3 (Albert and

Barab

asi, 2002). Under such a conﬁguration, the con-

trol is injected through two fundamental observation

rules simpliﬁed by Kneis (Kneis et al., 2006), adapted

from the original formulation (Haynes et al., 2002):

OR1 A vertex in N

observes itself and all its neigh-

bours, where OR1 is closely linked to the DOMI-

NATING SET problem.

OR2 If an observed vertex v of degree d ≥ 2 is adja-

cent to d − 1 observed vertices, then the remain-

ing unobserved vertex becomes observed as well

(OR1 ⊆ OR2).

The resulting set, denoted as N

, holds the mini-

mum set of driver nodes (n

) and supports the concept

of the POWER DOMINATING SET problem (Haynes

et al., 2002). Moreover, both rules produce hierarchi-

cal control graphs with several roots as access points.

Thus, an easy way to simplify the model would be

to impose a relationship between roots and a unique

gateway, where the roots follow the gateway. How-

ever, such a relationship entails adapting the algo-

rithm ‘Structural Controllability in SuperNode Sys-

tems’ of (Alcaraz et al., 2016) which require compli-

ance with the following interconnection conditions:

C1 keep the acyclicity of the network and the direc-

tion of control (e.g., a → b) from the gateway; and

C2 keep OR1 and OR2 at all times.

We now propose including additional restoration

capacities to safeguard the security, safety and stabil-

ity levels at high values, to satisfy both interconnec-

tion conditions [C1, C2], as well as requiring the con-

trol to be transparent to speciﬁc roles. As mentioned

in (Alcaraz et al., 2016), some of these roles and rights

have already been specifed by the IEC-62351-8 stan-

dard, which reserves: (i) seven roles for power and

control applications, (ii) 32.760 reserved for security

applications within the IEC-62351, and (iii) 32.767

for private use. From this set of reserves, we only

consider the seven deﬁned by the standard, which are

also deﬁned in Table 1.

Apart from the reserve suite, RBAC favors dy-

namic control by introducing the concept of dynamic

separation of duty (DSD), also deﬁned in (Alcaraz

et al., 2016). Through DSD the system can allow any

authorized personnel with speciﬁc roles and rights

(e.g., Operator and SECADM with control rights) to

execute speciﬁc actions in the ﬁeld so as to rapidly

manage a critical situation and in time. In the worst

cases, it also allows secondary roles to be activated to

attend to the situation. In this way, the system not

only refuses the temporary access to other entitites

SECRYPT 2016 - International Conference on Security and Cryptography

Table 1: Roles and rights belonging to IEC-62351-8.

Rights associated with IEC-62351-8 roles

Roles

View

Read

Dataset

Reporting

Fileread

Filewrite

Filemgnt

Control

Conﬁg

Settinggroup

Security

X X

X X X X

X X X X X X X

X X X X X

X X X X X X X X X

X X X X

X X X X X

Viewer: capacity to view data objects.

Operator: capacity to view data objects and values, and perform control.

Engineer: capacity to view data objects and values, access datasets and ﬁles, and

conﬁgure servers.

Installer: capacity to view data objects and values, write ﬁles and conﬁgure

servers.

SECADM: capacity to manage users-roles-rights, and change security setting.

SECAUD: capacity to audit the system by viewing audit logs.

RBACMNT: hereditary role from the SECADM with only the ability to manage

roles and rights.

(e.g., access to Viewers or Installers) but also avoids

the saturation of the communication channels.

However, although the dynamic access in critical

situations beneﬁts the management in the ﬁeld, the

use of RBAC does not, in any way, guarantee the re-

silience in the ﬁeld. It is also necessary to adapt au-

tomatic protection mechanisms with the capacity to

solve a determined situation. This feature is precisely

what differs this research from our previous work (Al-

caraz et al., 2016), where the goal was only to provide

access to critical environments in a less restrictive sit-

uation. Namely, the control in (Alcaraz et al., 2016)

is always possible from anywhere and at time, but it

does not consider the restoration measures required in

crisis situations and resilience assurance.

The dynamic preservation of control structural

properties generally results in additional computa-

tional costs (Alcaraz and Wolthusen, 2014), where

surprisingly there is lack of literature to provide guid-

ance on the selection of suitable restoration tech-

niques. For example, Nakayama et al. (Nakayama

et al., 2012) use tie-set notions in order to implement

ring-based solutions against link failures. A variant

of this solution is the rapid spanning tree protocol

(RSTP), an evolution of the spanning tree protocol

(STP), which can be used to manage trafﬁc loops and

broadcast congestion in mesh topologies (Marchese

and Mongelli, 2012). Tree-like structures are also ap-

plied to group and activate, via a nice tree decom-

position, backup instances of driver nodes in charge

of delivering control signals to the rest of the nodes

in the network (Alcaraz and Wolthusen, 2014), or

to build edge-redundant networks to activate backup

links (Alcaraz and Wolthusen, 2014; M

edard et al.,

1999; Quattrociocchi et al., 2014). Therefore, more

research is required to address issues relating to re-

silience against adversarial inﬂuences in critical con-

texts, particularly in a real-world situation.

The rest of this paper is organized as follows. Sec-

tion 2 introduces the restoration model for strongly in-

terconnected environments, and the correctness proof

and complexity. Section 3 demonstrates the validity

using a case study composed of different experimen-

tal simulations. Finally, Section 4 concludes the paper

and outlines future work.

2 POWER DOMINANCE IN CPSS

In this section, we adapted our previous work (Al-

caraz and Wolthusen, 2014) via an extension using

Algorithm 2.1 in order to repair damages caused by

the removal of edges (e.g., isolations or disconnec-

tions of a few links), and damages caused by the ad-

dition of new edges, probably due to the insertion of

false data injection attacks. More speciﬁcally, the ap-

proach proposed in this paper will provide the follow-

ing reparation strategies:

• re-link without parametrization (STG-1) with a

complexity cost of O





;

• re-link based on the search of those nodes with a

minimum diameter (STG-2) of O





; and

• the use of backups of N

through a tree-like struc-

ture based on a tree decomposition (STG-3) of ex-

ponential order.

Of the three reparation strategies, our research

principally focuses on STG-2 as the computational

cost is less than STG-3, and the parametrization helps

restrict the restoration processes. As for structural

changes and their detection, the gateways have to pe-

riodically measure the diameter (e.g., using breadth-

ﬁrst search of O





) to verify the real reach of a de-

termined node, and validating, in this case, the degree

of accessibility from/to the gateway. Once structural

changes have been detected, Algorithm 2.1 veriﬁes

the acyclicity of the network in order to satisfy the

ﬁrst condition [C1]. If it contains cycles caused by the

injection of edges, then it ﬁrst needs to clean the loops

and then check for unobserved nodes and restore

those nodes without observation (possibly caused by

the removal of cycles) through the strategy STG-x,

such that x = {1, 2, 3} (Alcaraz and Wolthusen, 2014).

Although restoration is ensured at this point, the

condition of keeping the direction of control from the

gateway still needs to be addressed. To do this, the

procedure CONNECT TO GATEWAY has to search for

each n

∈ N

(i.e., driver nodes with no parent) to

connect to the gateway such that (gateway, n

) ∈ E.

However, these new connections force us to consider

Dynamic Restoration in Interconnected RBAC-based Cyber-physical Control Systems

Algorithm 2.1: Resilience (G (V,E),N

,gateway,A,U

output (N

)

local n

,or1, or2;

or2

← false ; or1 ← false ;

comment: Stage 1: repair due to insertion of edges.

if isDAG(G (V,E))

then











G(V, E) ← Cycle Removal

(G(V, E));

U ← Unobserved Nodes

(G(V, E),N

);

or1 ← true ; or2 ← true ;

comment: Stage 2: repair due to removal of edges, as speciﬁed

comment: in (Alcaraz and Wolthusen, 2014).

while U 6= 











Randomly choose a vertex u ∈ U;

if u /∈ N

then











← Restoration Scheme (STG−x,G(V, E),

,u,A);

or1 ← true ;

{G(V, E),or1, or2} ← Connect to Gateway(G(V, E),gateway);

if or1

then

← Observation Completeness(G(V,E),N

,or2);

return (verifyOR2(G (V,E),N

,A,or2)))

U: Set of unobserved nodes; A: set of attacked nodes

or2 is a boolean variable required for verifyOR2.

CYCLE REMOVAL is a procedure that can adapt the Berger-Shor algo-

rithm for DAG deﬁned in (Healy and Nikolov, 2013) of O





UNOBSERVED NODES is a procedure that obtains the unobserved

nodes when topological changes arise because of a perturbation (an attack

or a failure), cycles or the unsuitable insertion of new links for connectivity

with the gateway (see Algorithm 2.2).

VERIFYOR2 is a veriﬁcation procedure of OR2 deﬁned in (Alcaraz

and Wolthusen, 2014).

updating, at least, the variable or1 (to true) declared

in Algorithm 2.1 as it is necessary to revise the obser-

vation completeness (i.e., verify the achievement of

OR1) and the fulﬁlment of OR2 (or2). This process

is reﬂected in Algorithm 2.3 where the set of unob-

served nodes (U ) is obtained. With this set, the algo-

rithm ﬁrst imposes the ﬁrst observation rule, in which

the unobserved nodes, u

, have to be included as part

of the N

to ensure the observation, at least, in them-

selves. However, this imposition also comprises a

veriﬁcation process of OR2 through the VERIFYOR2,

which is speciﬁed in (Alcaraz and Wolthusen, 2014).

The computation of both procedures for the observa-

tion completeness involves a computational cost of





+ O





= O





if we consider n ∼| N

| and

k =| U | in the worst case scenario.

2.1 Correctness and Complexity

The correctness proof of the dynamic restoration

problem is demonstrated when the following require-

ments are satisﬁed:

Algorithm 2.2: Unobserved Nodes (G(V, E),N

output (U )

local n

,U ← V \ N

,DS

← , N

← ;

while (U 6= )











Randomly choose a vertex n

∈ N

;

if n

/∈ (N

∪ N)

then











DS ← DS ∪{n

};

for each v ∈ V











if (n

,v) ∈ E

then

(

N ← N ∪ {v};

U ← U \ {v};

U ← U \ {n

};

return (U)

DS includes the set of drivers that complies with OR1.

N represents the set of neighbour nodes of a particular node.

Algorithm 2.3: Observation Completeness (G(V,E),N

.).

output (N

)

local v, u,U, N;

U ← Unobserved Nodes(G(V, E),N

);

while (U 6= )











Randomly choose a vertex u ∈ U;

if u /∈ (N

∪ N)

then











← N

∪ {u};

for each v ∈ V











if (u,v) ∈ E

then

(

N ← N ∪ {v};

U ← U \ {v};

U ← U \ {u};

or2 ← true ;

return (N

)

This loop represents the worst scenario due to a breach of OR1.

• the algorithm ensures controllability without vi-

olating the control structural properties, C1 and

C2, and correctly establishes connection with the

gateway (restoration);

• the algorithm is able to correctly complete in a

ﬁnite time (termination); and

• the algorithm is able to complete, guaranteeing

C1 and C2 at any moment (validity).

It is clear that if a node v

is not observed by a

driver node, then the control at that moment is not se-

cure. However, if there exists a driver node with the

minimum diameter, STG-2 automatically establishes

connectivity with v

; otherwise, STG-2 includes {v

}

in N

so as to force the observation, at least, of itself

(complying with OR1). Although the observation is

already guaranteed at this point by STG-2, review-

ing is also required of the connectivity to the gateway

SECRYPT 2016 - International Conference on Security and Cryptography

and the observation degree to maintain OR1 (through

Algorithm 2.3) and OR2 (through VERIFYOR2 (Al-

caraz and Wolthusen, 2014)) at all times.

In relation to termination of the algorithm, we ﬁrst

deﬁne the initial and ﬁnal conditions, follow by the

base cases to study the induction:

• Pre-condition: the set of attacked nodes, A, is not

empty (A 6= ) with existence (or not) of cycles,

and U 6=  or U = .

• Post-condition: no cycles (C1), U = , and both

OR1 and OR2 are fulﬁlled (C2).

• Case 1: there are no cycles after perturbations and

U = .

At this point, it is only necessary to verify the

secure connection to the gateway. However, this

procedure require variables or1 and or2 to be true;

thus, the procedures OBSERVATION COMPLETE-

NESS and VERIFYOR2 have to be performed in

order to comply with C1 and C2. After this,

the post-condition is accomplished as there are

no cycles, U = , and VERIFYOR2 always com-

pletes. Indeed the fulﬁlment of OR2 through

VERIFYOR2 is always successfully managed, and

the veriﬁcation procedure is analysed in (Alcaraz

and Wolthusen, 2014).

• Case 2: there are no cycles after the attack, and

U 6=  such that |U | = 1.

Under this condition, the instruction while is

reached and the algorithm has to check the ob-

servation degree for each unobserved node u

(in

this case, for just one unobserved node). To do

this, Algorithm 2.1 ﬁrst needs to trust restoration

procedures STG-x, where x = 1,2,3, the value of

which is deﬁned as an input parameter −. We re-

mark that the correctness of this last part has been

demonstrated in (Alcaraz and Wolthusen, 2014).

After restoration, U is updated since U \ {u

This updating is effective in each iteration until

set U is empty. After this, the connection with

the gateway must be checked, and the observa-

tion completeness and the VERIFYOR2 algorithm

have to be executed to verify OR1 and OR2 as

detailed in Case 1 of this proof.

• Case 3: there are cycles after the perturbation and

U = . This means that the acyclicity test has not

been achieved properly, and it is necessary to re-

move the cycles using CYCLE REMOVAL. How-

ever, this procedure may cause the following situ-

ations:

– the elimination of loops produces changes in U

such that |U| > 0. To obtain the new set of un-

observed nodes, it is necessary to execute Algo-

rithm 2.2. If |U

new

| = 1, Case 2 of this proof is

considered; otherwise, the induction described

below must be carried out for k iterations.

– The removal of edges does not produce changes

in U and Algorithm 2.2 veriﬁes that |U| = 0.

This also means that the instruction while is not

going to be performed, but it needs to check

the connection level with the gateway and the

observation degree (see Case 1 of the current

proof).

At the end of these two points, the algorithm en-

sures that U = ; C1 and C2 are satisﬁed; and the

post-condition becomes true; thus, Algorithm 2.1

terminates.

• Case 4: there are cycles after perturbation, but

the cardinality of set U ≥ 1. This condition forces

Algorithm 2.1 to execute instructions if and while

and results in the following cases, respectively:

– CYCLE REMOVAL produces new changes in

the set of unobserved nodes such that |U

new

| ≥

|U| ≥ 1. In this case, point one of Case 3 makes

sense (and in the induction deﬁned below).

– CYCLE REMOVAL does not produce changes in

U but |U| ≥ 1 due to perturbations. Given this,

the induction and/or Case 2 take place.

• Induction: in step k of the while (with k > 1) with

U 6= , k = |U| and |N

| ≥ 1, we randomly se-

lect a node u

∈ U in each iteration of the loop.

Once it has been chosen, Algorithm 2.1 proceeds

to repair the control conditions related to u

. In

this case, the selected strategy STG-x, such that

= 1,2,3. At the end of the algorithm execution,

set U and k (and even, the set of N

and observed

nodes O, such O ∼ ((V − U ) − N

)) are always

updated through U = U \{u

In the next state, with k −1, the procedure adopted

is still valid, indicating that the post-condition has

not yet been met (because U 6= ), and the loop

must be repeated for the next state k until k = 0.

When this occurs, Case 1 of this proof must be

veriﬁed to conclude that the post-condition is true;

therefore, Algorithm 2.1 ends.

To prove the termination of Algorithm 2.3, we ex-

plore:

• Pre-condition: or1 is true because U 6= .

• Post-condition: U =  and OR1 is met.

• Case 1: U 6=  such that |U| = 1. Algorithm 2.3

attempts to repair the observation by including u

∈ U as part of N

such that U = U \ {u

}. How-

ever, this implies reviewing the neighborhood of

in order to comply with OR1. As this procedure

Dynamic Restoration in Interconnected RBAC-based Cyber-physical Control Systems

may cause the new observed vertex u

with d ≥ 2

to be adjacent to d − 1 observed vertices, the sec-

ond observation rule has to be validated through

VERIFYOR2.

• Induction: When k = |U| ≥ 1, the loop must be

executed for each u

in U, where Case 1 needs to

also be considered and k has to be updated with

k − 1 each time.

Note that these two termination proofs state that

the latter requirement described above (i.e., the valid-

ity) is also satisﬁed because Algorithm 2.1 ﬁnishes

and ensures that the two observation rules are pro-

vided at all times without acyclicity.

As for computational costs in the worst case sce-

nario, Algorithm 2.1 requires adding the complex-

ity of the acyclicity test (with O





), the removal of

cycles (O





if we apply Berger-Shor (Healy and

Nikolov, 2013)), and the veriﬁcation process of OR1

with O





as deﬁned in (Alcaraz and Wolthusen,

2014). On the other hand, the complexity associ-

ated with STG-x (see (Alcaraz and Wolthusen, 2014))

together with the cost of connection to the gateway





(since ∀ n

∈ N

has no parent), the system

establishes a new connection (gateway,n

) ∈ E) and

the observation completeness (O





− see Section

2). As STG-2 has been chosen for our experimental

studies with O





, the total computation cost of Al-

gorithm 2.1, therefore, remains at a quadratic order.

3 RESULTS AND DISCUSSION

The experiments presented in this section were based

on the architecture given in (Alcaraz et al., 2016),

where the conceptual part of networks (PLOD with

α = 0.1,0.2 and BA with α = 3) were implemented in

Matlab and the part of PDPs were developed in Java

(following the recommendations given by the IEC-

62351-8 standard). For the authentication in each

CPS, an LDAPv3 server, through the Apache Direc-

tory Studio

T M

(Studio, 2013), was conﬁgured so as

to manage the access token; and for the insertions

in the authentication server, we followed the RFC-

2798 (Smith, 2010) under the attribute inetOrgPer-

son:userCertiﬁcate so as to store the encoded X.509

certiﬁcates together with relevant information asso-

ciated with granted roles and rights. Based on this

implementation, we simulated a critical scenario for

20 minutes, where |V |/2 random nodes were tar-

geted each time. This critical scenario was composed

of the interconnection of three independent power-

law networks (representing independent CPSs: CPS

CPS

and CPS

) with different scales: 100-500 nodes

(small networks), 500-1000 (medium networks), and

≥ 1000 nodes (large networks).

For the context management, two criticality

thresholds, denoted as MaxCCont and MinCCont

with values of 0.85 and 0.25 respectively, were de-

ﬁned in order to outline the accessibility degree.

Namely, MaxCCont drawn the border to activate the

DSD mechanism of the RBAC as deﬁned in (Alcaraz

et al., 2016). At this point, the value of the context

and its limitation to MaxCCont were continuously

controlled by specialised context managers, also spec-

iﬁed in (Alcaraz et al., 2016) and depicted in Figure 1.

These managers, integrated in each PDP, were respon-

sible for checking the criticality degree of a network

in relation to the accessibility degree of the protected

objects. To do this, these managers received, from

their closest gateways, information relating to the rate

of unobserved nodes that infringed OR1. In contrast,

MinCCont refers to the critical point at which a com-

plete restoration of the system is required. If we ob-

serve Figures 2 and 3, MinCCont < MaxCCont <

100.0%, such that 100.0% denotes the criticality rate

of the best case scenario in which we do not assume

risks associated with disconnections and isolations.

Table 2: Software entities: roles and rights belonging to

IEC-62351-8.

Entity Primary Rol Sec. Rol Access to Action Priority

E1 SECADM −

CPS

1,2,3

Control

priorControl

≥ 0.10

E2 SECAUD −

CPS

1,2

Read

priorRead

≥ 0.60

E3 Operator −

CPS

1,2,3

Control

priorControl

≥ 0.10

E4 Engineer Operator

CPS

1,3

Report

priorReport

≥ 0.30

E5 Installer

Engineer

CPS

1,2

Conﬁg

priorConﬁg

& ≥ 0.10

Operator

E? − − CPS

1,2,3

− −

In order to characterize the IEC-62351-8 standard,

we randomly assigned proﬁles to the control devices

(e.g., sensor, actuator, and RTU) and followed the six

control entities (software agents) deﬁned in (Alcaraz

et al., 2016). These six agents are summarized in Ta-

ble 2, and their behaviors plotted in Table 3. The idea

was that each agent had to constantly request access

according to the proﬁle predeﬁned in Table 2 and ex-

ecutes their desired actions in the destination node.

However, this access may be granted depending on

a set of parameters, such as the context, the type of

role of the subject, and the kind of action in the des-

tination. All these parameters were managed by the

PDPs, equipped with a rule-based expert system writ-

ten in JESS (Java

T M

Expert System Shell). Each rule

deﬁned the rights speciﬁed by the standard together

with those attributes that explained the conditions of

the context (e.g., degree of accessibility), the control

subjects’ characteristics (i.e., roles (Operator, Engi-

SECRYPT 2016 - International Conference on Security and Cryptography

neer, Viewer, Installer, SECADM, etc.) and permis-

sions (read, write, control, etc.)), as well as the type

of control object (e.g., sensor, actuator, RTU, etc.).

Table 3: Behaviors of the six software agents.

Control entities attempting to access restricted networks

Access E1 E2 E3 E4 E5 E?

Network 1 - PLOD α=0.1 - 1000 Nodes

Total 15 20 21 19 12 19

Normal 80.0 45.0 42.85 5.26 41.66 0.0

Denied 20.0 55.0 57.14 94.73 58.33 100.0

DSD 0.0 0.0 0.0 100.0 0.0 0.0

Network 2 - BA α=3 - 500 Nodes

Total 22 14 14 19 22 19

Normal 63.63 28.57 64.28 0.0 77.27 0.0

Denied 36.36 71.42 35.71 100.0 22.72 100.0

DSD 0.0 0.0 0.0 0.0 11.76 0.0

Network 3 - PLOD α=0.2 - 100 Nodes

Total 16 19 19 22 21 21

Normal 93.75 0.0 100.0 54.54 0.0 0.0

Denied 6.25 100.0 0.0 45.45 100.0 100.0

DSD 0.0 0.0 0.0 0.0 0.0 0.0

Access E1 E2 E3 E4 E5 E?

Network 1 - PLOD α=0.1 - 2000 Nodes

Total 8 15 10 8 7 10

Normal 100.0 73.33 100.0 0.0 42.85 0.0

Denied 0.0 26.66 0.0 100.0 57.14 100.0

DSD 0.0 0.0 0.0 0.0 0.0 0.0

Network 2 - BA α=3 - 1500 Nodes

Total 9 6 10 7 6 9

Normal 55.55 33.33 50.0 0.0 50.0 0.0

Denied 44.44 66.66 50.0 100.0 50.0 100.0

DSD 0.0 0.0 0.0 0.0 33.33 0.0

Network 3 - PLOD α= 0.2 - 1000 Nodes

Total 9 7 6 11 13 7

Normal 88.88 0.0 83.33 54.54 0.0 0.0

Denied 11.11 100.0 16.66 45.45 100.0 100.0

DSD 0.0 0.0 0.0 0.0 0.0 0.0

Small-Medium Network (ﬁrst experiment).

Medium-Large Network (second experiment).

Observing Figures 2 and 3, it is possible to note

that the different distributions, some of them per-

turbed with insertions (see Figure 2 and Figure 3 -

A, B (diameter and global efﬁciency

)), are able to

maintain their observation levels at all times. This

is because the context values (see Figure 2 and Fig-

ure 3 - C (observation degree)) remain at higher val-

ues than MaxCCont, the point at which the PDPs

has to start to ﬁlter the access. Moreover, observ-

ing the ﬁgures, we noted that large networks tend to

be more resilient than small networks (the ﬁndings

echoed those reported in (Nie et al., 2014; Alcaraz

et al., 2013)), which is due to their implicit connec-

tions. For this reason, it is recommended that the con-

ﬁguration of restoration mechanisms should depend

on the dimension of a network and the frequency of

the repairs, which should be explicitly deﬁned by the

maintenance and security policies of each organiza-

tion involved. For example, it is good practice to spec-

ify a restoration requirement in relation to the type or

frequency of an alert received from alarm managers

(integrated inside PDPs or gateways), or schedule a

routine maintenance.

The global efﬁciency is the inverse of the average short-

est path, and is inversely related to the path length.

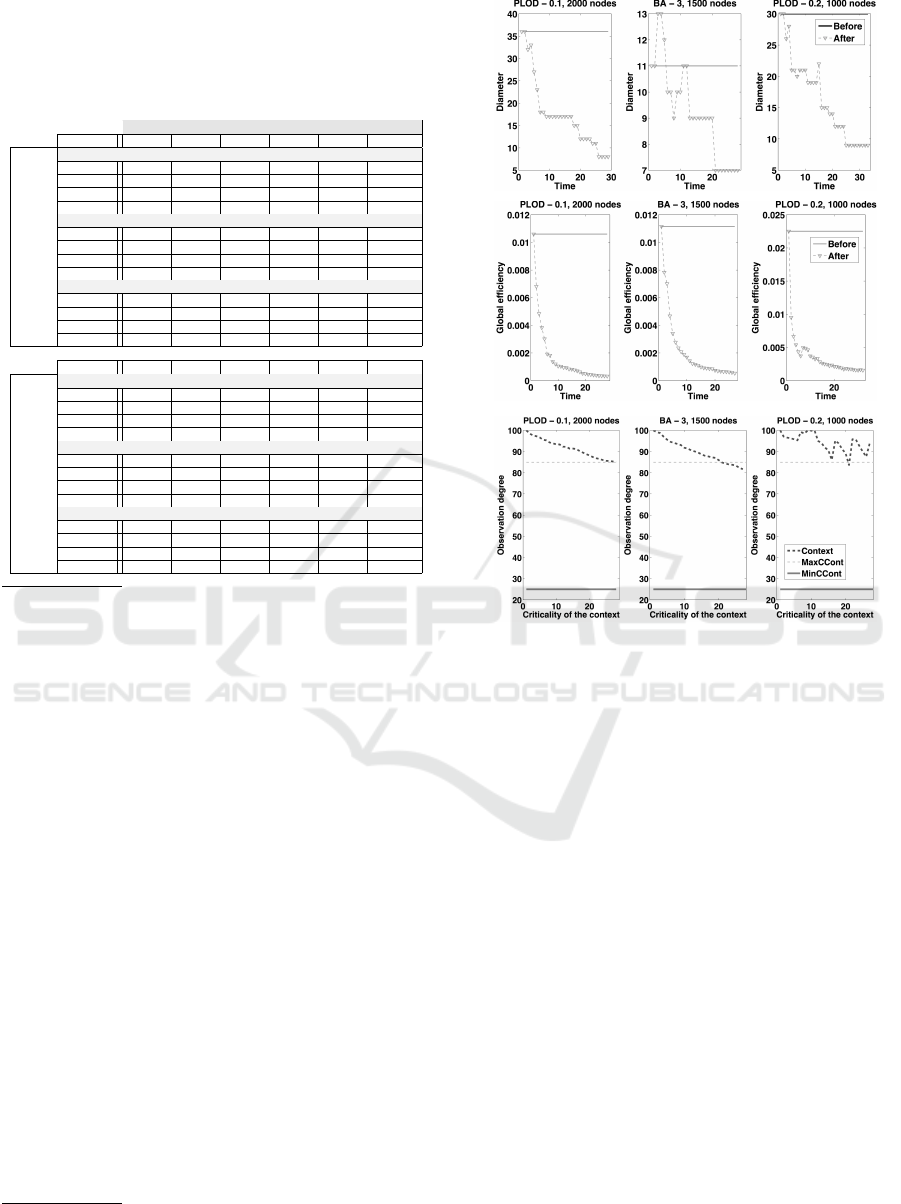

Figure 2: Threats and repair of medium and large networks:

(A, B) Diameter and gobal efﬁciency before and after per-

turbation; and (C) observation degree after restoration using

STG-2.

However, according to Table 3, DSD is only ac-

tivated for agents E4 and E5 to attend to small-

medium networks with identiﬁers CPS

(through E4

with 100% total access in Operator mode) and CPS

(through E5 with 11.76% access); and medium-

large networks with identiﬁer CPS

(through E5 with

33.33% of the accepted access total). In contrast, the

access is completely refused for E? and in all cases,

since this entity is unknown to the system. The rest

of the entities have access to the system depending

on the criticality degree of the context, denying all

those accesses that may collapse the communications.

These ﬁndings underline the suitability of our ap-

proach to be deployed for critical applications, where

the use of policy enforcement systems built on es-

tablished and recommended standards together with

mechanisms for resilience, help satisfy four of the

ﬁve control requirements, namely operational perfor-

mance, survivability, sustainability and safety.

Dynamic Restoration in Interconnected RBAC-based Cyber-physical Control Systems

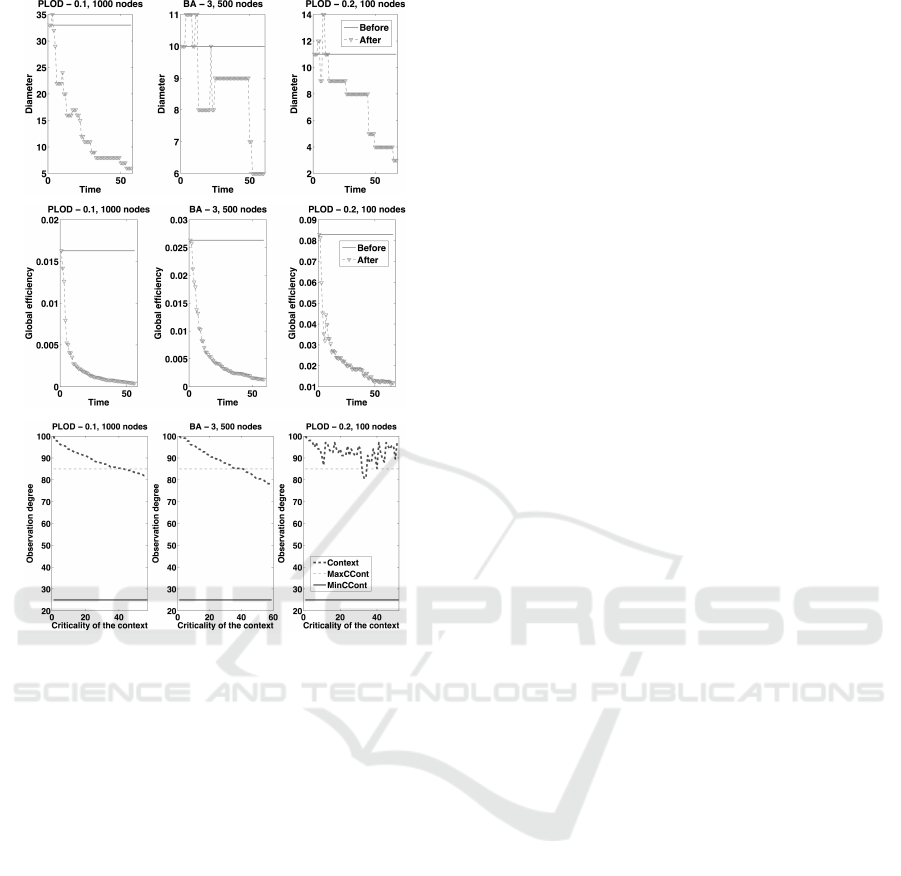

Figure 3: Threats and repair of small and medium networks:

(A, B) Diameter and gobal efﬁciency before and after per-

turbation; and (C) observation degree after restoration using

STG-2.

4 CONCLUSION

Our increasing reliance on information and commu-

nications technologies (ICT) affords exploitative op-

portunities for malicious actors targeting our critical

infrastructure. Building a resilient critical infrastruc-

ture is an important and ongoing area of national and

cyber security concern, and certainly a topic of cur-

rent interest. In this paper, we sought to address the

challenge of providing automated recovery mecha-

nisms and ensuring interoperability in a cost-effective

manner. More speciﬁcally, we extended our previ-

ous work (Alcaraz et al., 2016) in order to incorpo-

rate capacities of restoration and considering the con-

cept of structural controllability, the theory of supern-

ode and the IEC-62351-8 standard. To achieve this,

we presented an algorithm capable of adapting the

existing restoration proposals and restructuring the

network in order to respect the concept of supern-

ode. We then presented a theoretical and a practical

case study to demonstrate the feasibility of the algo-

rithm in a real-world context. For example, the re-

sults showed that the adaptation of restoration mea-

sures can help interconnected systems maintain their

accessibility levels at all times. This also means that

self-healing topics could become a primordial aspect

in critical infrastructure protection, where it is nec-

essary to provide preventive lightweight approaches

that allow overheads to be reduced. This will allow us

to achieve linear time averages, and lightweight secu-

rity approaches to protect the communication chan-

nels (Yang et al., 2016).

Future work will include incorporating this work

in a real-world system (to low scale), with the aims of

further reﬁnement.

ACKNOWLEDGEMENTS

The ﬁrst author receives funding from the Ram

on y

Cajal research programme ﬁnanced by the Ministerio

de Econom

ıa y Competitividad. In addition, this work

also has been partially supported by the same Ministe-

rio through the research project PERSIST (TIN2013-

41739-R), by the Andalusian government through the

project FISSICO (P11-TIC-07223) and by the Euro-

pean Commission through the H2020 project NECS

(H2020-MSCA-ITN-2015- 675320).

REFERENCES

Albert, R. and Barab

asi, A. (2002). Statistical mechanics

of complex networks. Reviews of Modern Physics,

74(1):4797.

Alcaraz, C., Lopez, J., and Wolthusen, S. (2016). Policy

enforcement system for secure interoperable control

in distributed smart grid systems. Journal of Network

and Computer Applications, 59:301 – 314.

Alcaraz, C., Miciolino, E. E., and Wolthusen, S.

(2013). Structural controllability of networks for non-

interactive adversarial vertex removal. In 8th In-

ternational Conference on Critical Information In-

frastructures Security, volume 8328, pages 120–132.

Springer.

Alcaraz, C. and Wolthusen, S. (2014). Recovery of struc-

tural controllability for control systems. In Eighth

IFIP WG 11.10 International Conference on Critical

Infrastructure, volume 441, pages 47–63. Springer.

Haynes, T., Hedetniemi, S. M., Hedetniemi, S. T., and Hen-

ning, M. A. (2002). Domination in graphs applied to

electric power networks. SIAM Journal on Discrete

Mathematics, 15(4):519–529.

Healy, P. and Nikolov, N. S. (2013). Hierarchical draw-

ing algorithms, chapter Chapter 13, pages 409–446.

SECRYPT 2016 - International Conference on Security and Cryptography

Handbook of Graph Drawing and Visualization, CRC

Press.

IEC-61850 (2003). Power utility automation - communica-

tion networks and systems in substations - parts 1-10.

TC 57 - Power systems management and associated

information exchange.

IEC-62351 (2007-2011). IEC-62351 parts 1-8: Infor-

mation security for power system control opera-

tions, international electrotechnical commission.

http://www.iec.ch/smartgrid/standards/, retrieved

September 2015.

IEC-62351-8 (2011). Power systems management and

associated information exchange - data and com-

munications security - part 8: Role-based access

control, international electrotechnical commission,

2011. http://www.iec.ch/smartgrid/standards/, re-

trieved Sept. 2015.

Kneis, J., M

olle, D., R., S., and Rossmanith, P. (2006). Pa-

rameterized power domination complexity. Informa-

tion Processing Letters, 98(4):145–149.

Lin, C.-T. (1974). Structural Controllability. IEEE Trans-

actions on Automatic Control, 19(3):201–208.

Marchese, M. and Mongelli, M. (2012). Simple pro-

tocol enhancements of rapid spanning tree protocol

over ring topologies. Computer Network, 56(4):1131–

1151.

edard, M., Finn, S. G., and Barry, R. A. (1999). Redun-

dant trees for preplanned recovery in arbitrary vertex-

redundant or edge-redundant graphs. IEEE/ACM

Trans. Netw., 7(5):641–652.

Nakayama, K., Shinomiya, N., and Watanabe, H. (2012).

An autonomous distributed control method for link

failure based on tie-set graph theory. Circuits and

Systems I: Regular Papers, IEEE Transactions on,

59(11):2727–2737.

Nie, S., Wang, X., Zhang, H., Li, Q., and Wang, B. (2014).

Robustness of controllability for networks based on

edge-attack. PLoS ONE, 9(2):1–8.

Pagani, G. A. and Aiello, M. (2013). The power grid as

a complex network: A survey. Physica A: Statistical

Mechanics and its Applications, 392(11):2688–2700.

Palmer, C. and Steffan, J. (2000). Generating net-

work topologies that obey power laws. In Global

Telecommunications Conference (GLOBECOM ’00),

volume 1, pages 434–438.

Quattrociocchi, W., Caldarelli, G., and Scala, A. (2014).

Self-healing networks: Redundancy and structure.

PLoS ONE, 9(2):e87986.

Samuel, H., Zhuang, W., , and Preiss, B. (2011). Improv-

ing the dominating-set routing over delay-tolerant mo-

bile ad-hoc networks via estimating node intermeeting

times. In EURASIP Journal on Wireless Communica-

tions and Networking, Hindawi Publishing Corpora-

tion, pages 1–12.

Smith, M. (2010). Deﬁnition of the inetOrg-

Person LDAP object class, RFC-2798,.

http://www.ietf.org/rfc/rfc2798.txt, retrieved Septem-

ber 2015.

Studio, A. D. (2006-2013). http://directory.apache.org/ stu-

dio/, retrieved September 2015.

Yang, Y., Lu, J., Choo, K.-K. R., and Liu, J. K. (2016).

Lightweight Cryptography for Security and Privacy:

4th International Workshop, LightSec 2015, Bochum,

Germany, September 10-11, 2015, Revised Selected

Papers, chapter On Lightweight Security Enforce-

ment in Cyber-Physical Systems, pages 97–112.

Springer International Publishing, Cham.

Dynamic Restoration in Interconnected RBAC-based Cyber-physical Control Systems
