Distributed PowerShell Load Generator (D-PLG): A New Tool for

Dynamically Generating Network Trafﬁc

∗

Paul Jordan

, Chip Van Patten

, Gilbert Peterson

and Andrew Sellers

Air Force Institute of Technology, Dayton, Ohio, U.S.A.

United States Air Force Academy, Colorado Springs, Colorado, U.S.A.

Keywords:

Network Trafﬁc Generator, Load Generator, Machine Learning, Online Failure Prediction.

Abstract:

Recently, a framework has been developed to automate the training of prediction algorithms but has only

been tested on one system. In order to generalize the approach a few key functions must be performed. One of

these functions is load generation. Unfortunately, a valid load generator has not been developed for a Microsoft

Windows active directory environment. In this paper we introduce and detail a tool that we have developed to

make the implementation of this new framework possible in a Microsoft domain, we present data generated

by our tool to demonstrate its efﬁcacy, and ﬁnish with several extensions and applications for our tool.

1 INTRODUCTION

There are many approaches to generating realistic

trafﬁc or capturing live trafﬁc for replay. Unfor-

tunately, none of these approaches are capable of

independently generating full-stack network trafﬁc

without naively replaying previously recorded traf-

ﬁc, which is of limited utility in simulating a produc-

tion environment where realistic data transmission is

not necessarily conﬁned to what’s already been ob-

served. This research is the result of an ongoing at-

tempt to generalize the Adaptive Failure Prediction

(AFP) framework developed by Irrera et al. in (Irrera

et al., 2015).

AFP automates the process of retraining a fail-

ure prediction algorithm after an underlying system

change by placing a target system under load before

injecting software faults to accelerate failure. Our tar-

get system is a Microsoft Windows active directory

domain services server and, as a result, we need to

generate a full-stack authenticated session in order to

sufﬁciently load the service.

In support of that research, we have developed a

tool for generating several kinds for network trafﬁc

and introduce it in this paper. Further, we demon-

strate the validity of our tool and that our technique

is generalizable and can leverage the AFP framework

∗

The views expressed herein are solely those of the au-

thors and do not reﬂect the ofﬁcial policy or position of

the U.S. Air Force, the Department of Defense, or the U.S.

Government.

in order to capture network transactions of arbitrary

arity between unbounded network components with

dynamic volume, variety, veracity, and velocity.

The rest of this paper is organized as follows. In

Section 2, we discuss other trafﬁc generation tools

and how ours is different. In Section 3, we outline

our tool and provide speciﬁc implementation details.

In Section 4, we describe the methodology used to

demonstrate the efﬁcacy of our tool. In Section 5 we

present our results after running our tool in a virtual

environment, we then conclude by outlining future

work in Section 6.

2 RELATED WORK

This section is broken into two subsections. The ﬁrst

brieﬂy covers the advances made in the ﬁeld of on-

line failure prediction and how they relate to our tool,

and the second details existing tools for network traf-

ﬁc generation.

2.1 Online Failure Prediction

In 2010, Salfner et al. published a survey of on-

line failure prediction techniques that categorized the

many approaches that have been explored into a tax-

onomy (Salfner et al., 2010). Many of these failure

prediction techniques are based in machine learning

and require steady system states but sadly, as the soft-

Jordan, P., Patten, C., Peterson, G. and Sellers, A.

Distributed PowerShell Load Generator (D-PLG): A New Tool for Dynamically Generating Network Trafﬁc.

DOI: 10.5220/0005961501950202

In Proceedings of the 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2016), pages 195-202

ISBN: 978-989-758-199-1

195

ware development life-cycle has grown shorter over

time, a steady system state is no longer a guarantee.

Since the publication of Salfner et al.’s survey, it

has been pointed out that while many effective tech-

niques for predicting failure exist, these techniques

are too difﬁcult to maintain and consequently are not

being used. In 2015, Irrera et al. published a frame-

work called the Adaptive Failure Prediction (AFP)

framework for dealing with this problem that auto-

mated the process of retraining a failure prediction

algorithm after an underlying system change (Irrera

et al., 2015). After a system change, a virtual clone of

the production system is made and then load against

this clone is generated. After the cloned system is suf-

ﬁciently loaded, faults are injected which quickly lead

to failure. This failure is captured, labeled, and used

to train a new predictor. The new predictor is com-

pared against the old one and replaces it if the new

outperforms the old.

The target system for this research is a Microsoft

Windows active directory domain services server and,

as a result, full-stack authenticated session trafﬁc is

required in order to sufﬁciently load the service. In

this work, we seek to enable the generalization of the

AFP framework and were unable to ﬁnd a sufﬁcient

load generation tool to carry out the automated re-

training of a predictor deﬁned in AFP.

2.2 Network Load & Trafﬁc Generation

Many tools exist for the purpose of generating net-

work trafﬁc. Generally, these tools are classiﬁed

into three categories: application-level, ﬂow-level,

and packet-level generators (Botta et al., 2012; Zach

et al., 2013). Application-level generators emulate

trafﬁc produced by applications on a network, ﬂow-

level generators replicate actual trafﬁc using statisti-

cal modeling, and packet-level generators create and

inject packets into the network. Network trafﬁc gen-

erators are further classiﬁed as open- or closed-loop.

Open-loop generators use a packet arrival model for

packet timing, whereas closed-loop generators wait

for a response to a sent request prior to sending the

next request (Weigle et al., 2006). Unfortunately, as

far as we can tell, none of the tools available generate

the necessary interaction with a deployed Microsoft

Windows active directory environment necessary to

facilitate the implementation of the AFP framework.

Active directory implements the Kerberos authentica-

tion protocol in Windows domains and due to its cryp-

tographic nature cannot be tested against replayed or

random trafﬁc; rather, a sequence of valid and invalid

requests and responses are necessary to stress test this

framework. Indeed, multi-step “handshakes” are nec-

essary for rich service delivery and this capability is

not realized by the current tools with any degree of

modularity or extensibility.

A brief review of the trafﬁc generators consid-

ered when researching this problem follows. The

Distributed Internet Trafﬁc Generator (D-ITG) (Botta

et al., 2012) is, as its name implies, a distributed

trafﬁc generator capable of performing application,

ﬂow, and packet-level generation using both open-

and closed-loop operations – sessions are initiated at

speciﬁc time intervals and, within each session, new

requests are not sent prior to receiving a response to

the previous request. Sadly, D-ITG currently only

supports TCP, UDP, ICMP, DNS, Telnet and VoIP

which does not suit our needs.

NTG (Zach et al., 2013) is an application-level,

distributed network trafﬁc generator which is both

open- and closed-loop. A key feature of NTG, as it

relates to our problem, is that it interacts with existing

network services. Unfortunately, it is only limited to

web, mail, and multimedia servers/services, which is

insufﬁcient for our purposes.

Swing (Vishwanath and Vahdat, 2009) is a ﬂow-

level, closed-loop trafﬁc generator that observes live

network trafﬁc, extracts distributions from the traf-

ﬁc, and generates new trafﬁc in a manner consistent

with the observed trafﬁc distributions. While this tool

provides the ability to generate statistically-realistic

trafﬁc from generators to listeners across a link, the

lack of both two-way trafﬁc and interaction with ex-

isting services (speciﬁcally authentication services)

does not satisfy the requirements for our problem.

A ﬁnal tool worth mentioning, while not a net-

work trafﬁc generator, is Microsoft’s Active Direc-

tory Performance Testing Tool (ADTest)

†

. Ofﬁ-

cial Microsoft documentation is limited, however

in (Bijaoui, 2011; Morowczynski, 2014; Suyanto

and Tiwari, 2010a; Suyanto and Tiwari, 2010b) we

ﬁnd that ADTest assesses the ability of Microsoft

2003/2008/2012 Active Directory Lightweight Direc-

tory Services (AD LDS) servers to add organization

units and users, and make various changes to Active

Directory to aid in developing requirements for an AD

LDS deployment. It is important to note that Mi-

crosoft no longer supports this tool (Morowczynski,

2014). Also of importance, ADTest is not capable

of testing other services that rely on active directory

domain services for authentication (e.g. RDP, SMB,

etc), nor can it be extended to do so, and is therefore

insufﬁcient for our goals.

While all of these tools are, in general, sufﬁcient

for generating trafﬁc in a network, they do not gener-

†

https://www.microsoft.com/en-us/download/

details.aspx?id=15275

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

196

ate full-stack, two-way authentication that is needed

in order to sufﬁciently load the active directory do-

main services service. Further, these tools work by

replaying trafﬁc transactions that have already taken

place and as a result, this type of trafﬁc cannot be used

to force any network services to do any meaningful or

realistic work. The AFP requires the target system be

placed under realistic load before injecting faults to

capture the most realistic failure data possible (Irrera

and Vieira, 2014; Irrera et al., 2015). Due to the na-

ture of the authentication protocols used in enterprise

domains, it is not possible to realistically generate this

trafﬁc without valid user credentials and a dynamic

authentication session that cannot be replayed due to

its cryptographic nature. A tool to generate this type

of trafﬁc did not previously exist.

3 DISTRIBUTED POWERSHELL

LOAD GENERATOR (D-PLG)

We present D-PLG, a new tool for the generation of

realistic network trafﬁc in a Microsoft Windows do-

main for the purposes of software testing or load gen-

eration. D-PLG can be classiﬁed as an application-

level closed loop trafﬁc generator and is a basic Win-

dows PowerShell script that uses native PowerShell

cmdlets for all of its functionality ensuring that the

most realistic trafﬁc possible is generated without

overburdening the client machines used for generat-

ing load. D-PLG offers what has not seen in other

trafﬁc generation products or tools by making actual

service requests and producing actual challenges and

responses for Windows authentication protocols.

D-PLG is written in the Windows PowerShell en-

vironment because it provides a tremendous amount

of power and ﬂexibility to generate trafﬁc that would

actually be generated by a users interaction with net-

work services since the same software applications

and libraries are used. As a result, D-PLG does re-

quire the use of client machines. However, this work

does show that generating this type of realistic trafﬁc

is possible by utilizing only a small number of ma-

chines, or without producing a noticeable burden on

in-use client machines.

In general, the intended architecture can be seen

in Figure 1. D-PLG is most effective if used by a few

client machines during idle downtimes but is devel-

oped in such a way that a user can still use a machine

that is generating load, but may notice degraded per-

formance depending upon how much trafﬁc that par-

ticular client is being asked to generate. D-PLG is

currently designed to run from one central location,

asking a conﬁgurable list of clients to produce trafﬁc

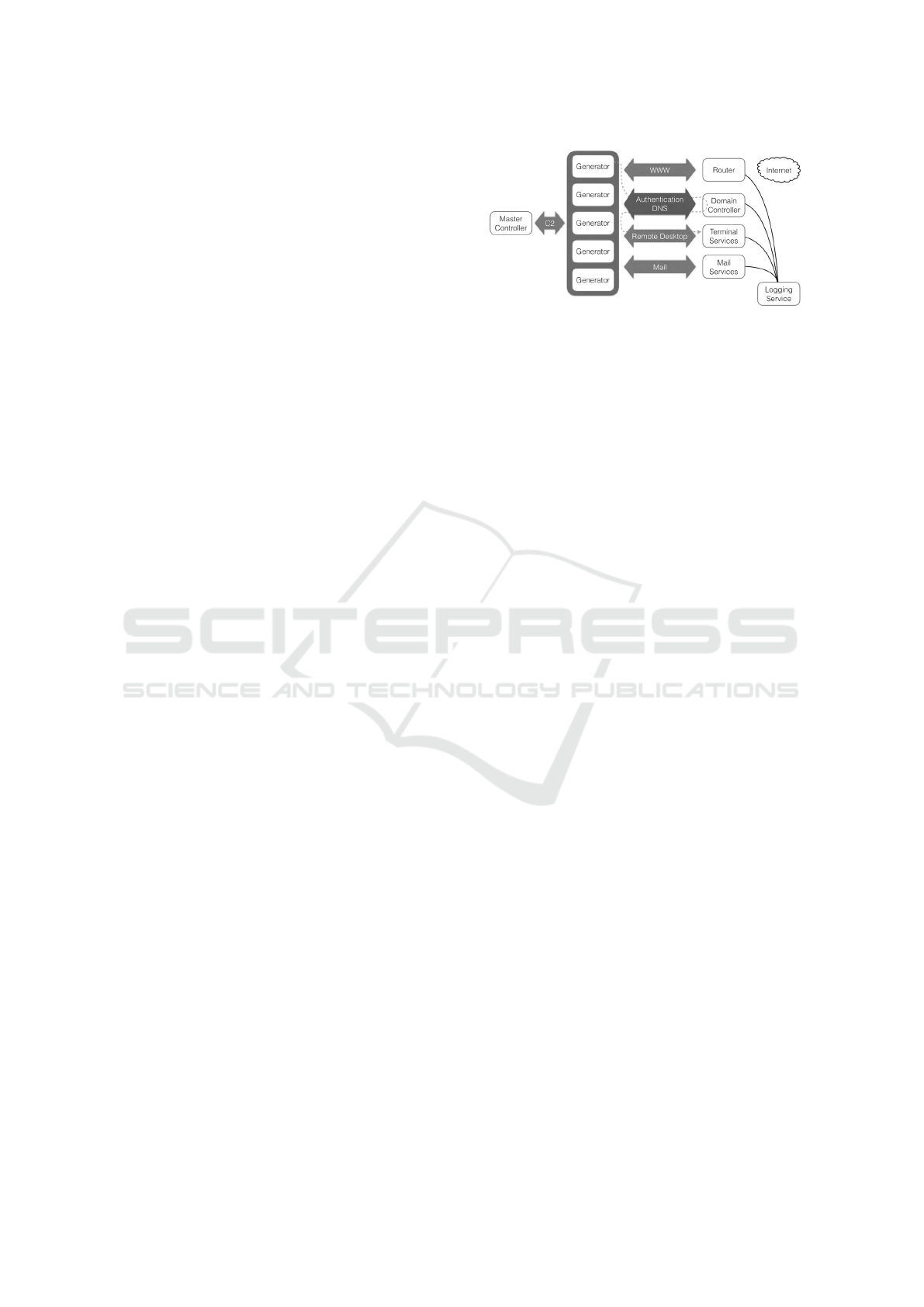

Figure 1: How each type of trafﬁc that is generated is

routed. Log events are ofﬂoaded to logging service for fur-

ther analysis.

for a ﬁxed period of time.

It should be noted that D-PLG implements a fea-

ture that has not been previously seen and thus, a com-

parison with the existing tools is difﬁcult. Relevant

existing tools simply replay previously observed traf-

ﬁc which may be more representative of realistic load,

but are incapable of creating any real work for crypto-

graphic system. Modern cryptography relies on ran-

dom and dynamic challenge-response protocols, as a

result any inbound requests that are not capable of

generating dynamic challenge responses are typically

dropped immediately.

In its present form, D-PLG is comprised of three

modules capable of generating full-stack web re-

quests, Microsoft remote desktop protocol, Microsoft

server message block (SMB) ﬁle sharing, and all as-

sociated authentication trafﬁc. An intended byproduct

of all of this trafﬁc is domain name system (DNS) re-

quests. An important part of any active directory do-

main is DNS and as a result, no load generator would

be complete without performing DNS lookups.

The rest of this section outlines each of the three

modules currently implemented as well as our plans

for future modules.

3.1 Web Browsing

D-PLG is capable of generating full-stack web re-

quests and presently simulates an actual user brows-

ing. This module is implemented using the ‘Invoke-

WebRequest’ PowerShell cmdlet which upon com-

pletion returns an object representing the full doc-

ument object model (DOM). The return of this ob-

ject allows us to programmatically simulate random

browsing within a returned page. As a result, our tool

is capable of generating realistic web trafﬁc against

a web server. This functionality is different from

the functionality implemented in many of the exist-

ing tools that only generate one-way transmission of

the web request. As a result, this module allows

users of our tool to generate realistic load against web

Distributed PowerShell Load Generator (D-PLG): A New Tool for Dynamically Generating Network Trafﬁc

197

servers and potentially automate realistic web appli-

cation testing.

The web browser was created with minimal effort

as our approach to D-PLG emphasizes rapid genera-

tion of modern internet-based interactions. In future

versions, we plan to implement more dynamic web

browsing to facilitate the use of D-PLG as an auto-

mated web application testing tool. Since the entire

DOM is returned, it is possible and relatively simple

to programmatically complete web forms, and sub-

mit REST API calls in only a few lines of PowerShell

code.

3.2 Remote Desktop Protocol

Remote Desktop Protocol (RDP) is a simple proto-

col that allows the sharing and remote control of a

Windows desktop environment. This module was in-

cluded to generate more authentication trafﬁc with

our active directory domain services server as well as

place load on our remote desktop services server. Ap-

plications for this module could include network in-

frastructure capacity and server sizing planning. The

module takes advantage of a modiﬁed third party

cmdlet (Brasser, 2015) which invokes a call to the na-

tive windows remote desktop application (mstsc.exe).

Our modiﬁcation only tells the cmdlet not to present

a window as to avoid interrupting an individual who

may be using the computer at the time of load gener-

ation.

Currently, the RDP module makes a full-stack re-

mote desktop connection with an RDP server with-

out producing a window which can allow us to take

advantage of clients in active states. The script then

sleeps for a few seconds and then closes the connec-

tion. In future versions, we would like to implement

some sort of actual interaction with the RDP server

like ﬁle upload or application use. This functional-

ity was based on a tool previously developed by Mi-

crosoft

‡

which is no longer maintained as evidenced

here (Szeto, 2012).

3.3 Server Message Block (SMB) File

Sharing

D-PLG implements an SMB ﬁle sharing module that

connects to a local or remote share, creates a ﬁle in the

share, ﬁlls that ﬁle with random ASCII data, saves the

ﬁle, deletes the ﬁle, and ﬁnally deletes the share. This

sequence of operations ensures that full-stack SMB

ﬁle sharing requests are utilized and thus, causing the

‡

https://www.microsoft.com/en-us/download/

details.aspx?id=2218

domain services server to authenticate the transaction

and the ﬁle sharing services server to process the data

being uploaded. This simple module could addition-

ally be used to ensure a ﬁle server is live before be-

ginning more complex operations.

Like the previous module, the SMB module was

rapidly built due to the ﬂexibility of our framework

and implemented in only fourteen lines of code. In fu-

ture versions, we plan to implement a variable amount

of upload data or allow the user to select his or her

own ﬁle. By allowing the user to upload a custom ﬁle,

this module could be used to test application aware

ﬁrewall rules to ensure certain types of ﬁles are or are

not allowed to traverse a network.

3.4 Future Modules

We have already implemented many core active direc-

tory domain services as a proof of concept, but would

like to point out how easy additional services would

be to implement in our script. For example, sim-

ple message transfer protocol (SMTP) trafﬁc could

be implemented in a single line of PowerShell code

using the ‘Send-MailMessage’ cmdlet. Additionally,

the ‘Out-Printer’ cmdlet would allow for the sending

of realistic full-stack network printer trafﬁc. To facil-

itate future development, we have published D-PLG

in its current form under the MIT license on GitHub

These modules demonstrate our platforms exten-

sibility and are representative of sophisticated net-

work interactions that are necessary to create a per-

formant load generator for the tableau of modern net-

working services.

4 METHODOLOGY

This section is split into two subsections. In the ﬁrst,

we describe in detail our virtual environment. In the

following section, we detail the design of our experi-

ments which utilized our virtual environment.

4.1 Virtual Environment

The virtual environment was hosted on two VMWare

ESXi 5.5 hypervisors each with two 2.6 GHz AMD

Opteron 4180 (6 cores each) CPUs and 64 GB mem-

ory. The individual virtual machines are detailed in

Tables 1, and 2. D-PLG uses cmdlets that did not

exist until PowerShell version 3.0 so each of the Mi-

crosoft (MS) Windows computers had the MS Win-

dows Management Framework version 4.5 installed.

https://github.com/paullj1/afp-dc/tree/master/D-PLG

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

198

The installation of this framework also necessitated

the installation of the MS .NET Framework version

4.5. In an enterprise environment these software

frameworks would more than likely already be in-

stalled as they are part of the service pack updates

that have since been released by Microsoft.

Table 1: Hypervisor 1.

Qty. Role Operating System CPU / Mem.

1 DC Win. Server 2008 2 / 2 GB

5 Client Win. 7 1 / 512 MB

Table 2: Hypervisor 2.

Qty. Role Operating System CPU / Mem.

1 RDP Win. Server 2008 1 / 4 GB

1 Log Ubuntu 14.04 LTS 1 / 1 GB

After installing the requisite software, each client

was added to the domain and required a few minor

modiﬁcations. First, D-PLG creates remote ‘PSSes-

sions’ on each client machine and then invokes the

cmdlets that have been assembled to generate the de-

sired load. In order for this to happen, the credentials

of the controller must be delegated so that they may

be used to make the connections through the PSSes-

sion. This delegation is done very simply through the

PowerShell cmdlet ‘Enable-WSManCredSSP’. The

ﬁnal modiﬁcation was for convenience; a copy of the

scripts to be executed remotely was placed on the

desktop of the Administrator user.

The domain controller had two MS Windows

Server roles enabled: active directory domain ser-

vices, and domain name service (DNS). One do-

main administrator account was used for command

and control trafﬁc, and individual user accounts were

created and used for RDP and simple authentication

trafﬁc. The RDP server only had one MS Windows

Server role enabled: remote desktop services.

The Ubuntu server was deployed and used as a

central log repository for analyzing load on the do-

main controller and RDP server. The default rsyslog

application was simply conﬁgured to accept incoming

connections and then the rsyslog Windows agent was

installed on the domain controller and RDP server.

D-PLG is divided into two scripts. The ﬁrst is the

‘LocalLoadGen’ script and is placed on each client

computer. We note here that placing the script on the

each client computer may not be ideal in a production

environment and this step could easily be automated

when the controller runs. Further, upon completion,

the script could be removed in a single PowerShell

command. The second script ‘RunLoadSim’ is de-

signed to act as a command and control element that

connects to each client and executes the ‘LocalLoad-

Gen’ script as an asynchronous job. In our experi-

ments, the command and control script was executed

from our RDP server.

4.2 Experiment Design

Two experiments were designed to test and demon-

strate the efﬁcacy of our tool and are detailed here.

In both of the following tests, D-PLG was run ﬁve

times, where each execution consisted of ﬁve minutes

of trafﬁc generation within our virtual environment.

The domain controller was sized based on Microsoft’s

community recommendation for up to ﬁfteen thou-

sand users in (Makbulolu and Geelen, 2012). Our

goal was to produce a sufﬁcient enough amount of

trafﬁc to achieve the level of load that was suggested

our server be able to sustain based on how it was

sized. To determine if that goal was achieved, ESXi’s

reporting tools were used to collect the relevant data

in the form of packet captures at the virtual switch-

ports of one client machine, the terminal server, and

the domain controller. Further data collected came

from the ESXi performance data. After each round

of our tests, the performance data were exported from

each of the hypervisors on the terminal server, one

client, and the domain controller. In these data, CPU

utilization, memory utilization, disk operations, and

network trafﬁc are reported on twenty second inter-

vals. Finally, as previously stated, the rsyslog Win-

dows Agent was used to forward the logs from the do-

main controller and RDP server to an Ubuntu server.

These log entries were then split into pieces that cor-

responded with each round of the tests.

The ﬁrst question we wanted to answer was, how

much trafﬁc can a PowerShell script really generate,

and is it enough to sufﬁciently load an enterprise do-

main controller? The ﬁrst experiment was designed

to answer that question. To maximize the amount of

trafﬁc and subsequent load generated, the client ma-

chines were only conﬁgured to make a single request.

To do this, the ‘RunLoadSim’ was only tasked to per-

form a basic authentication request to the domain con-

troller. The goal was to maximize the number of au-

thentication requests the server could handle based on

the way it was sized. In our case, that number was

ﬁfteen thousand users and a goal CPU utilization of

40%. To prevent overburdening the client machines,

we found that the highest frequency at which these

events could be created and handled was 10 per sec-

ond. Fortunately, ﬁve clients running for ﬁve minutes

making ten requests per second equated to exactly ﬁf-

teen thousand requests.

It should be noted here that the client machines

Distributed PowerShell Load Generator (D-PLG): A New Tool for Dynamically Generating Network Trafﬁc

199

used were signiﬁcantly less powerful than average

desktop computers typically found in an enterprise

environment. Each authentication event took 20 mil-

liseconds so the maximum number of requests per

second that was observed was ﬁfty. As a result, this

same experimental setup can sufﬁciently load a do-

main controller sized for seventy-ﬁve thousand users.

In the second experiment we wanted to determine

how much load could be produced without having a

signiﬁcant effect on the resources available to each

client machine. We conﬁgured the clients to utilize

each of the modules that are currently implemented

in D-PLG. In each round of the test the client ma-

chines looped continuously making an authentication

request to the domain controller, a full RDP connec-

tion, an SMB share connection, a web request to a

randomly selected URL, and ﬁnally a web request to a

URL randomly selected from the page returned by the

ﬁrst request. The loop was conﬁgured to run twice per

second, however due to the high latency of the web re-

quests, the client was not expected to make that many

requests every second of the test. This conﬁguration

choice was made to ensure maximum utilization when

possible.

5 EXPERIMENTAL RESULTS

In this section the results and data collected after con-

ducting the tests described in Section 4.2 are detailed.

To answer the quantity question, the number of pack-

ets produced per second was explored as well as CPU

utilization, memory utilization, log events, and net-

work operations on the domain controller. In this ﬁrst

round of tests, the domain controller reported an aver-

age of 56,291 log events over each ﬁve minute test or

approximately 187 log events per second. In addition,

an average of 6,267 packets per second were captured

over each of the ﬁve tests. Figure 2 shows the dis-

tribution on the number of packets sent and received

by the domain controller for each test and tells us that

the load was consistently high throughout each test.

On the client side, as we predicted, the load was also

relatively high as seen in Figure 4.

These results validate our hypothesis. The load

generated against the domain controller was consis-

tently at 40% which is exactly in-line with the amount

of load it should be expected to endure during peak

business hours per the Microsoft community recom-

mendations for sizing (Makbulolu and Geelen, 2012).

Unfortunately in this case, the client machines would

likely not have been usable during the test. For-

tunately, because only ﬁve low-end are needed ma-

chines to produce this load over a relatively short pe-

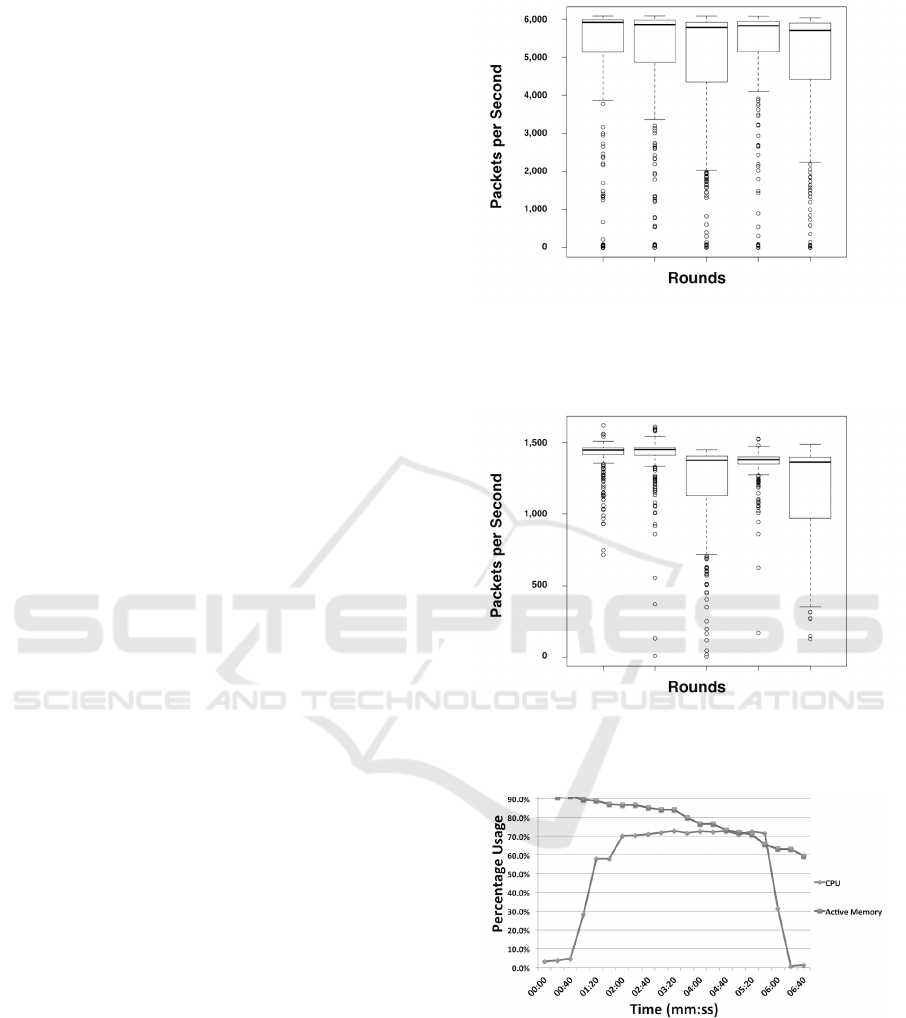

Figure 2: How many packets per second were sent or re-

ceived by the domain controller across all ﬁve rounds of the

ﬁrst test. In each test, approximately 1.8 million packets

were captured.

Figure 3: How many packets per second were sent or re-

ceived by one of the clients across all ﬁve rounds of the ﬁrst

test.

Figure 4: Client CPU and memory utilization during the

ﬁrst test.

riod of time, a simple solution to this problem would

be to purchase ﬁve inexpensive desktop computers for

this purpose, or conduct testing during an idle down-

time.

In the second test, we were trying to ﬁnd out if the

client machines could produce a sufﬁcient amount of

realistic trafﬁc without being over burdened so that

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

200

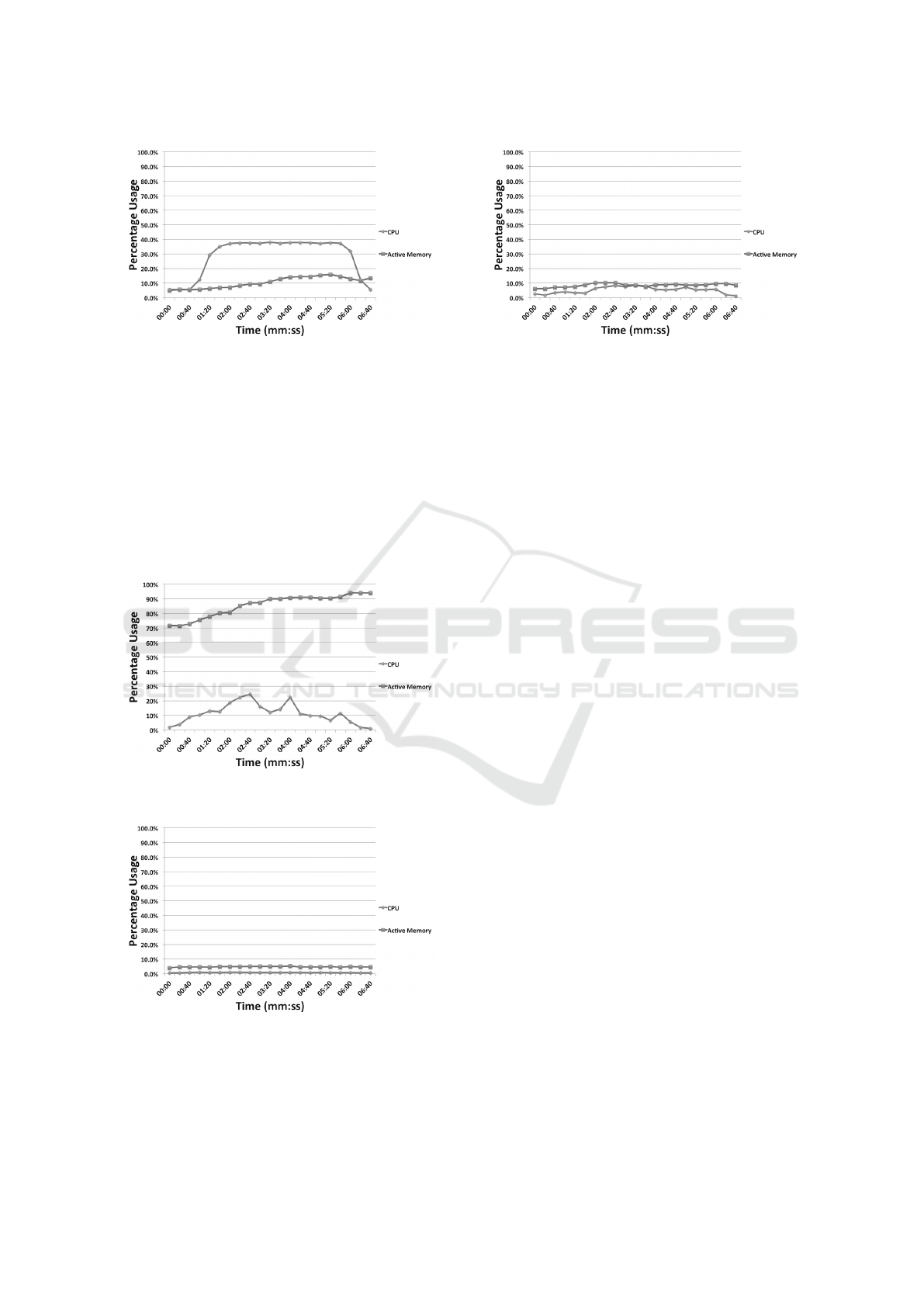

Figure 5: Domain controller CPU and memory utilization

during the ﬁrst test.

they could be used to generate load even as individ-

uals use them. To answer this question we examined

CPU and memory utilization, and packets transmit-

ted per second with respect to the client. The average

number of packets generated over the ﬁve minute tests

was 5,499 and the remainder of the data can be seen

in Figure 6. We also examined these same data with

respect to the domain controller and RDP server seen

in Figures 7, and 8 respectively.

Figure 6: Client CPU and memory utilization during the

second test.

Figure 7: Domain controller CPU and memory utilization

during the second test.

While the number of packets was relatively high,

these results do not demonstrate a sufﬁcient amount

of load on either the domain controller or RDP server.

Figure 8: RDP server CPU and memory utilization during

the second test.

We suspect that this is due to the majority of the time

spent during the test retrieving web-pages. As a re-

sult, if a proxy server or application aware ﬁrewall is

the target of this load generation, this level of traf-

ﬁc is sufﬁcient for that purpose. These results also

show that a client computer asked to generate trafﬁc

could still be used during a test. In future work, we

plan to test this infrastructure with non-blocking web-

requests so that more load can be placed against the

local services while web requests are being processed

externally. Alternatively, more client machines could

be used during the test.

In general, the results observed lead us to believe

that our tool can be extended and used under any cir-

cumstance where dynamic network transactions are

required between unbounded network components.

Further, these results show that our tool will allow us

to leverage the AFP framework in our future work.

6 FUTURE WORK

There are many opportunities for improvement in D-

PLG. If D-PLG is to be used to simulate realistic net-

work trafﬁc patterns that would normally be gener-

ated by humans, much work would have to be done to

balance the kinds of requests that get made. For ex-

ample, a typical user might log in, browse the web for

a few minutes, check his or her e-mail, then maybe

send an e-mail. Currently, D-PLG is extremely pre-

dictable with respect to what kind of request it will

make next. The framework can be made a lot more

relevant with programmatic generation schemes such

as REGEX-based pattern generation or training of in-

put validity via machine learning. For the purposes of

implementing the AFP however, the level and quality

of load observed is sufﬁcient.

More conﬁguration options could be added like

the depth of a browser simulation or having the

browser simulate ﬁlling out web forms using conﬁg-

Distributed PowerShell Load Generator (D-PLG): A New Tool for Dynamically Generating Network Trafﬁc

201

urable data. D-PLG could also allow for ﬁner grain

control over the SMB module allowing users to select

a ﬁle or specify the size of the randomly generated

ﬁle. Most of these conﬁguration options would be

implemented in a straightforward way.

Finally, as previously discussed, other modules

which take advantage of more of the native Win-

dows PowerShell cmdlets like ‘Send-MailMessage’

and ‘Output-Printer’ could be implemented with rela-

tive ease.

7 CONCLUSION

Based on the results of our tests, we believe that D-

PLG is capable of providing sufﬁcient load of net-

work services in a Microsoft Windows enterprise do-

main. Our ﬁve clients were able to generate ﬁfteen

thousand authentication requests over a ﬁve minute

time period which was very near the limit that our do-

main controller should be expected to handle based on

the Microsoft community recommendations. Further,

since our conﬁguration was based on these recom-

mendations, we also believe that our experiment will

scale for larger networks. We believe that the use of

client machines to produce this load is negligible and

have proven that it can be done centrally, with only a

few machines, without placing a signiﬁcant burden on

those client machines, and without installing any ad-

ditional software by use of the native Windows Pow-

erShell cmdlets. Finally, we believe that if necessary

and client machines are used during idle down times,

signiﬁcant load can be generated by D-PLG. We be-

lieve that this level of load is sufﬁcient for our pur-

poses of conducting further research in the area of

online failure prediction and could be used without

signiﬁcant modiﬁcation for other applications.

There are many established needs for having net-

work trafﬁc and load generators. We have demon-

strated one important role our tool can play, but be-

lieve that the results presented in this paper sug-

gest that D-PLG can ﬁll many other needs for dy-

namic trafﬁc generation. For example, in cybersecu-

rity training events, trafﬁc generators are used to sim-

ulate real trafﬁc to mask malicious trafﬁc. Other uses

include equipment sizing, stress testing, and software

testing. We believe that D-PLG can ﬁll these needs

as well and in general can be naturally extended and

used under any circumstance where dynamic network

transactions are required between unbounded network

components.

ACKNOWLEDGMENTS

This research was sponsored by the U.S. National Se-

curity Agency, National Information Assurance Edu-

cation and Training Program (Alice Shafer and Glenn

Ellisonn, Program Managers).

REFERENCES

Bijaoui, P. (2011). Microsoft Exchange Server 2003 Scal-

ability with SP1 and SP2. HP Technologies. Elsevier

Science.

Botta, A., Dainotti, A., and Pescap

e, A. (2012). A tool

for the generation of realistic network workload for

emerging networking scenarios. Computer Networks,

56(15):3531–3547.

Brasser, J. (2015). Script connect-mstsc - open rdp session

with credentials.

Irrera, I. and Vieira, M. (2014). A Practical Approach for

Generating Failure Data for Assessing and Compar-

ing Failure Prediction Algorithms. 2014 IEEE 20th

Paciﬁc Rim International Symposium on Dependable

Computing, pages 86–95.

Irrera, I., Vieira, M., and Duraes, J. (2015). Adaptive Fail-

ure Prediction for Computer Systems: A Framework

and a Case Study. 2015 IEEE 16th International

Symposium on High Assurance Systems Engineering,

pages 142–149.

Makbulolu, S. and Geelen, G. (2012). Capacity planning

for active directory domain services.

Morowczynski, M. (2014). How To Use the Active Di-

rectory Performance Testing Tool on Windows Server

2012 — Ask Premier Field Engineering (PFE) Plat-

forms.

Salfner, F., Lenk, M., and Malek, M. (2010). A survey

of online failure prediction methods. ACM Comput.

Surv., 42(3):10:1–10:42.

Suyanto, H. and Tiwari, M. (2010a). Windows 2008 AD

LDS Load Testing using ADTEST - Part 1 - TechNet

Articles.

Suyanto, H. and Tiwari, M. (2010b). Windows 2008 AD

LDS Load Testing using ADTEST - Part 2 - TechNet

Articles.

Szeto, A. (2012). Debug Assertion Failed: sockcore.cpp,

line 623.

Vishwanath, K. and Vahdat, A. (2009). Swing: Realistic

and responsive network trafﬁc generation. IEEE/ACM

Transactions on Networking, 17(3):712–725.

Weigle, M., Adurthi, P., Hernandez-Campos, F., Jeffay,

K., and Smith, F. (2006). Tmix: A Tool for Gener-

ating Realistic TCP Application Workloads in ns-2.

ACM SIGCOMM Computer Communication Review,

36(3):67–76.

Zach, P., Pokorny, M., and Motycka, A. (2013). Design

of Software Network Trafﬁc Generator. Recent Ad-

vances in Circuits, Systems, Telecommunications and

Control, pages 244–251.

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

202
