Reducing Transmitted Bits in a Memoryless RFID Anti-collision Protocol

Nikola Cmiljanic, Hugo Landaluce, Asier Perallos and Laura Arjona

DeustoTech-Fundaci

on Deusto, Deusto Foundation, Av. Universidades 24, 48007, Bilbao, Spain

Keywords:

RFID, Anti-collision, Tag Identiﬁcation, Window, Query Tree.

Abstract:

The use of Radio Frequency Identiﬁcation (RFID) technologies is growing. RFID enables data to be collected

from many objects, for identiﬁcation and other purposes. One of the main disadvantages in tag identiﬁcation,

known as the tag collision problem, is becoming signiﬁcant, since it leads to the increase in the number of

transmitted bits and identiﬁcation time. The window methodology is created with the aim to manage the

number of transmitted bits by the tags. As a result, tags transmit exclusively the bits deﬁned by the window

instead of sending their full ID value on every response. This paper presents a protocol with a standardized

window. The window size is transmitted as the exponent of power of 2. Simulations show that the proposed

solution with standarized window size reduces the number of bits transmitted by the reader, with respect to

other protocols using the window, which results in a lower number of total bits in the identiﬁcation process.

1 INTRODUCTION

Radio Frequency Identiﬁcation (RFID) is very popu-

lar, and it is experiencing a higher growth every day.

RFID is a technology that uses radio waves to auto-

matically identify people or objects. This technology

helps in many ﬁelds and provides information about

people, goods and products in transport. As opposed

to barcode, RFID does not require close handling, no

line of sight is required between the reader and the

object to be identiﬁed, and tags provide signiﬁcantly

greater storage capacity. Those are the reasons why

RFID is increasingly present.

The main components of an RFID system are: a

reader and transponders (in advance tags) (Finken-

zeller, 2010). RFID uses radiofrequency waves in or-

der to automatically identify and track tags attached to

objects. The reader is the main component, which is

in charge of managing the identiﬁcation process and

collecting data from the tags by using an antenna that

broadcasts radio waves. A tag is a small label which is

attached to an object that wants to be identiﬁed. The

reader sends out electromagnetic waves that the tag

antenna receives and backscatters with its ID, convert-

ing those waves into digital data.

Tags are categorized into: passive, active, and

semi passive. Passive tags are smaller and do not have

a power supply. They reﬂect the data received from

the reader to transmit their data. Active tags have an

integrated battery, which is used to provide voltage to

the chip and to transmit a longer distance. Semi pas-

sive tags use a battery only to power on the chip, so

the entire energy, which is received from the reader,

can be used for the transmission of data. Tags are

available in many shapes such as smart cards, coins,

keys, key fobs, clocks, and smart labels. RFID sys-

tems can also be classiﬁed according to the working

frequencies of the carrier signals: low frequency (LF)

125kHz-134kHz, high frequency (HF) 13.56Mhz, ul-

tra high frequency (UHF) 860-930 MHz, and super

high frequency (SHF). Depending on the frequency,

tags have various achievable ranges, from a few cm to

8 m (Finkenzeller, 2010).

The process of tag identiﬁcation comprises a

reader interrogation and a tag response. One of the

main problems in RFID systems happens when multi-

ple tags are interrogated by the reader simultaneously

and they reﬂect their respective signals back to the

reader at the same time. As a result of this obstruction

there is a failed transmission called collision. These

collisions cause the reader to be unable to identify

tags successfully and rapidly. Thus, RFID obtains

low tag reading performance and a high waste of en-

ergy. To minimize the inﬂuence of the tag collision

problem, RFID readers use an anti-collision protocol.

Anti-collision protocols can be divided into three cat-

egories: Aloha-based protocols which are probabilis-

tic, tree-based protocols which are deterministic, and

hybrid protocols (Klair et al., 2010).

Aloha-based protocols (Wang et al., 2009; J. and

T., 2008), come from computer networks and they use

a random access strategy in order to identify tags.

152

Cmiljanic, N., Landaluce, H., Perallos, A. and Arjona, L.

Reducing Transmitted Bits in a Memoryless RFID Anti-collision Protocol.

DOI: 10.5220/0005963201520157

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 6: WINSYS, pages 152-157

ISBN: 978-989-758-196-0

They are probabilistic protocols because tags send

data in a randomly selected slot in a frame to reduce

the possibility of collision. Accordingly, it is not guar-

anteed that all the tags will be identiﬁed (Wang et al.,

2009). When a collision occurs the tag will be asked

to send its data later with a random time delay.

Tree-based protocols are also known as determin-

istic protocols because all the tags in the interroga-

tion zone will be read within certain time limits (Feng

et al., 2006). A group of collided tags should be sepa-

rated into subsets repeatedly until every tag in the in-

terrogation zone responds correctly. The total amount

of information transmitted between readers and tags

is usually higher than in Aloha based protocols (Klair

et al., 2010). Tree based protocols require tags to have

’sleeping’ capability, as tags are silenced after the pro-

cess of identiﬁcation.

Hybrid protocols are created to avoid the problems

of Aloha and tree-based protocols (Wu et al., 2013).

Some advantages of hybrid protocols are that they can

achieve a higher slot efﬁciency than the other types. A

hybrid protocol consists principally of two combined

protocols: one is using randomized divisions in tree-

based algorithms, and another is using tree strategies

after a collision in Aloha-based algorithms.

Tags in the proposed window methodology (Lan-

daluce et al., 2013) can not locate the bit string repre-

senting the window size in the received command. In

this paper, the window standardization is performed.

The window is represented in a ﬁxed size string of 3

bits. When tags receive a command, they can sepa-

rate the part of the reader query from the part of the

window size string.

The rest of the paper is organized as follows.

Section 2 presents the window methodology and de-

scribes three tree based protocols of the state of the

art. In section 3 the proposed Standardized Query

Window tree protocol (SQwT) is presented. Section

4 presents evaluation results and the comparison with

some state of the art protocols. Finally, Section 5 con-

cludes the whole paper.

2 RELATED WORK

Some basic terms are given before presenting the

most related tree based protocols:

• Query is a broadcast command sent by the reader.

This command consists of a preﬁx (binary string)

that the tags will compare with their ID. If tags’ ID

does do not match the query, the reader command

will be rejected. In case that tags’ ID matches the

query, a response will be transmitted according to

each protocol.

• Slot is the time interval which is intended to or-

ganize the responses from the tags. Three types

of slots can occur depending on the number of tag

responses received at the reader: idle slot, when

(upon reader request) no tag answers; collision

slot, when more than one tag respond to a reader

query, and the reader can not understand the re-

sponse; and success slot, when the reader success-

fully identiﬁes a tag.

• Identiﬁcation process is the period including all

the reader queries and tags responses. It consists

of a certain number of time slots needed by the

reader to identify the entire set of tags.

Here some of the most important tree based pro-

tocols are presented.

2.1 Query Tree Protocol

The Query Tree protocol (QT) is one of the most sig-

niﬁcant tree based protocols (C. Law and Siu, 2000).

It is called memoryless protocol and it means that a

tag response depends on the current query but not

on the past history of the reader queries. QT tags

have the lowest hardware requirements because they

only compute a preﬁx-comparison operation between

a query and the tag ID. In each round the reader trans-

mits a query and the tags whose ID matches it, will

respond. In case that more than one tag respond, a

collision occurs and the reader will create two new

queries appending values 1 and 0 to the query. That

is, two new queries will be placed in a Last Imput

First Output stack (LIFO). If there is no answer upon

a query command, the reader knows that there is not

any tag with the required preﬁx and the query is re-

jected. When a preﬁx matches a tag’s ID, the tag

transmits the complete ID. By extending the preﬁxes

until only one tag’s ID matches, the algorithm can

identify the rest of the tags. The identiﬁcation pro-

cess is completed when the stack is empty. QT tags

transmit the whole ID every time they match a query.

In case more than one tag responds, a collision oc-

curs. Accordingly, all tags that match the query preﬁx

transmit their full ID and a lot of bits are wasted upon

every collision.

2.2 Smart Tree Traversal Protocol

Smart Tree Traversal protocol (STT) (Pan and Wu,

2011) is created in order to reduce the number of col-

lisions in QT. STT is a tree based protocol with the

ability of self-learning. The reader in this protocol dy-

namically generates queries according to the ability to

recognize tag density and distribution. Depending on

Reducing Transmitted Bits in a Memoryless RFID Anti-collision Protocol

153

the result of the tag response, the reader calculates the

next query:

• Upon a collision, the reader appends x bits of 0’s

on the last transmitted query where x =r+w

col

-1,

r denotes the minimum increase, and w

col

is the

number of consecutive collisions slots.

• When an idle slot occurs, the reader decreases

the query length by the number of bits y, where

y=r+w

emp

-1, by which to decrease the query, and

emp

is the number of consecutive idles.

• Upon a success response, the reader visits the sy-

metric node if the query ﬁnishes with 0 or it re-

turns one level if it ﬁnishes with 1.

On every collision, the full tag response, apart from

the initial query bits, is wasted. In order to alleviate

this issue, the window methodology is presented.

2.3 Query Window Tree Protocol

Instead of transmitting the whole ID value from the

tags, every tag response is limited. The Query win-

dow Tree protocol (QwT) is presented in the literature

(Landaluce et al., 2013). This methodology is applied

to the QT protocol to control the number of transmit-

ted bits by tags. The number of collisions is decreased

by transforming potential collisions into partial suc-

cesses called Go-On slots. The window is a bit-string

transmitted by the tags, instead of their full ID. If tags

match a reader query, they will synchronously trans-

mit the amount of bits of the ID speciﬁed by the win-

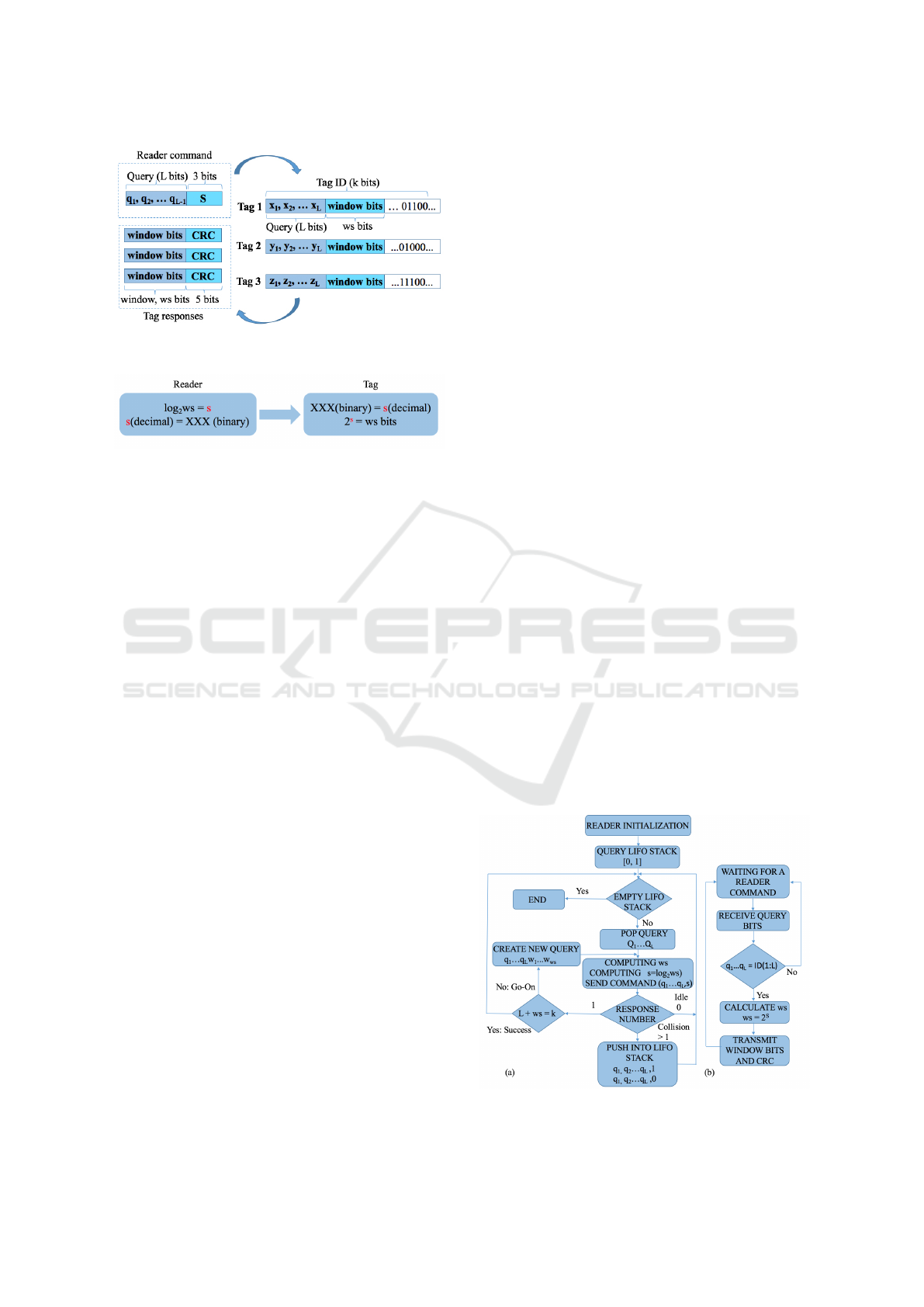

dow size, ws, instead of their full ID. This is shown

in Fig. 1. QwT uses cyclic redundancy check (CRC)

to differentiate between the type of tags’ responses,

which can be classiﬁed into four types:

• Idle slot: when no tag responds upon a reader

query. The reader rejects this query and contin-

ues with the identiﬁcation process by sending the

next query from the stack.

• Collision slot: when more than one tag responds

the window to the query, but the CRC received

by the reader is not consistent. The reader

creates two new queries: [q

, q

. . . q

, 0] and

, q

. . . q

, 1] where q

∈ [0, 1]. The reader trans-

mits the ﬁrst generated query with unchanged ws

and stores the second one into the stack.

• Go-On slot: when at least one tag responds the

window and the reader can understand it. If the

ID is not complete L+ws<k, where L is the length

of the query and k the length of the tag ID. It is

assumed a Go-On slot and the reader continues to

interrogate tags with an updated query made from

the last received window and the former query.

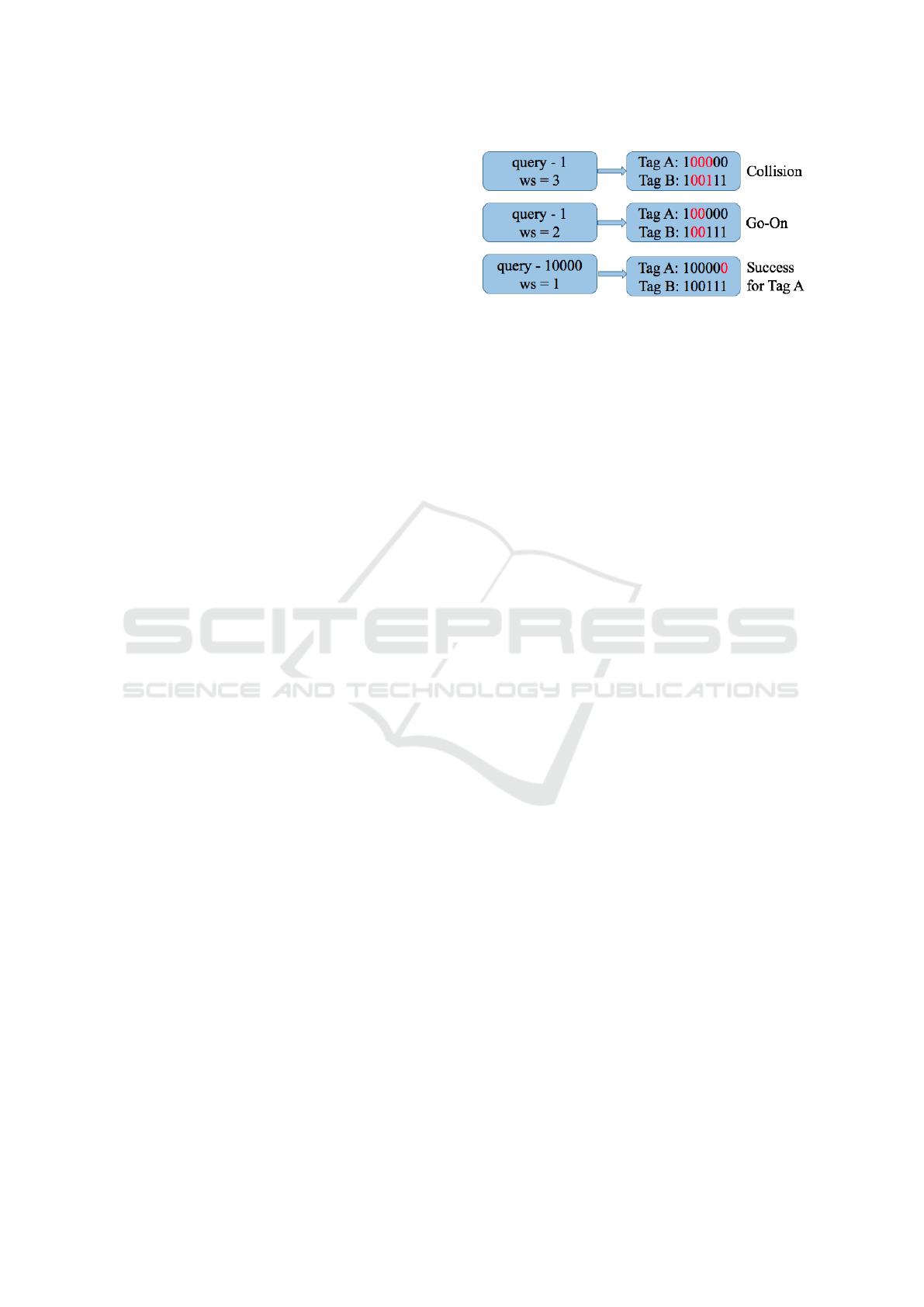

Figure 1: Window synchronized answer.

• Success slot: when the reader successfully re-

ceives the remaining values of the ID. The reader

collects the complete ID and stores it in a

database. In this slot L+ws=k is met.

Using the proposed QwT, the reader in each interro-

gation round transmits a query of L bits and preselects

ws using the expression (1), where β is an adjustable

parameter (Landaluce et al., 2013).

f (L) = k(1 − e

−βL

), 0 < L ≤ k (1)

When the calculated ws is high, the reader command

needs a high number of bits to represent it. That leads

to a wastage of the reader bits. In order to reduce

the number of the reader bits this paper proposes the

standardization of the window methodology.

3 STANDARDIZED QUERY

WINDOW TREE PROTOCOL

The presented protocol proposes the standardized

window to restrict the number of bits transmitted by

the reader, reducing the total number of transmitted

bits. A decrease of the reader bits is achieved by

reducing the amount of the window size bits in the

reader command. The presented protocol has the abil-

ity to locate the bit string representing the window

size in the received command, differentiating it from

the query by using a ﬁxed size at the end of the reader

command.

SQwT is also a memoryless protocol since the cur-

rent response of each tag only depends on the current

query and ws. Tags that match the reader preﬁx will

exclusively transmit ws bits.

A heuristic function which computes ws is given

in (1). An adequate value of β is 0.5 for the low-

est Go-On slots rate (Landaluce et al., 2013). After

calculating ws, the reader will choose the ﬁrst higher

power of 2 value. The obtained value is the number of

bits that matching tags should transmit from the ID.

The reader calculates the number of bits that tags

must respond to a matching query. Instead of sending

WINSYS 2016 - International Conference on Wireless Networks and Mobile Systems

154

Figure 2: Format of the reader command and tag responses

of the SQwT protocol.

Figure 3: Converting WS between reader and tag.

ws bits, SQwT will transmit a new value s which is

presented in (2).

s = log

ws (2)

As shown in Fig.2, the reader interrogates tags with a

query [q

, q

. . . q

] and a ﬁxed string s. All tags will

receive this broadcast message but only tags whose

ID matches the query will calculate s and respond to

the reader request. SQwT gives a constant place of 3

bits included in the reader command. It allows tags

to locate the amount of the window size string in the

received command. The matching tags calculate ws

by using the expression (3) and get the ﬁnal value.

ws = 2

(3)

The process is depicted in Fig.3. E.g., if ws=128,

the reader, ﬁrst uses (2) with result 7. This is codiﬁed

into the binary number 111. The reader transmits this

bit string attached to the predeﬁned query. The ID

length of 128 bits is the most common in RFID (GS1

and EPCglobal, ). For this reason SQwT uses 3 bits in

the reader query for s. For longer IDs, a larger value

of s should be used, and a longer bit string would be

needed.

The reader and tag ﬂow chart of SQwT are given

in Fig 4.(a) and (b). First, the reader initializes by

pushing two queries into a LIFO stack and the reader

pops the last pushed query. For the initial ws calcula-

tion, it uses ws=1. In other rounds, ws should be cal-

culated using (1) and the nearest power of 2 should be

chosen towards ∞. Subsequently, the reader obtains s

with (2) and codiﬁes it with 3 bits. Once s is calcu-

lated, a new reader command including a query and s

will be transmitted to the tags. The reader awaits for

the tags’ answers. Tags receive the reader command

(see Fig. 4.b) and compare the query with their ID.

Matching tags will calculate ws using (3) and will re-

spond the remaining ws bits from bit L w

. . . w

, and

a CRC. Depending on the type of response, the reader

will act as follows:

• Upon a collision the reader creates two new

queries: q

, q

. . . q

, 1 and q

, q

. . . q

, 0 and ws

is unchanged.

• For the cases when an empty window is received,

the transmitted query is rejected and another one

query is popped from the stack. The windows size

remains unchanged.

• In case the received CRC is positively checked,

the reader checks the expression L+ws=k, and if

it matches, the tag is successfully identiﬁed. A

new query is popped from the stack and textitws

is calculated using (1).

• In case detecting a Go-On (L+ws<k) slot,

the reader produces a new query attaching

, w

. . . w

to the last transmitted query until it

receives the full ID value. The windows size is

calculated using (1).

This procedure sequences repeatedly until it gets the

empty stack.

An example of identiﬁcation of six tags is depicted

in Fig.5 using QT and the proposed SQwT protocol.

The ID length k used is 8 bits and ws is computed

using exponential heuristic function with β=0.5. The

reader ﬁrst sends the query (0). Tags A, B, C and D

respond with the whole ID value and a collision oc-

curs using QT protocol. The difference with SQwT

protocol is in the tag response. After matching query

(0) the same tags as in the QT protocol will trans-

mit but just with the ﬁrst bits, deﬁned by ws value.

The reader can receive a partially successful response

add it adds the bit ’0’ to the previous query forming

Figure 4: Flow chart of the proposed SQwT protocol: (a)

for reader, (b) for tags.

Reducing Transmitted Bits in a Memoryless RFID Anti-collision Protocol

155

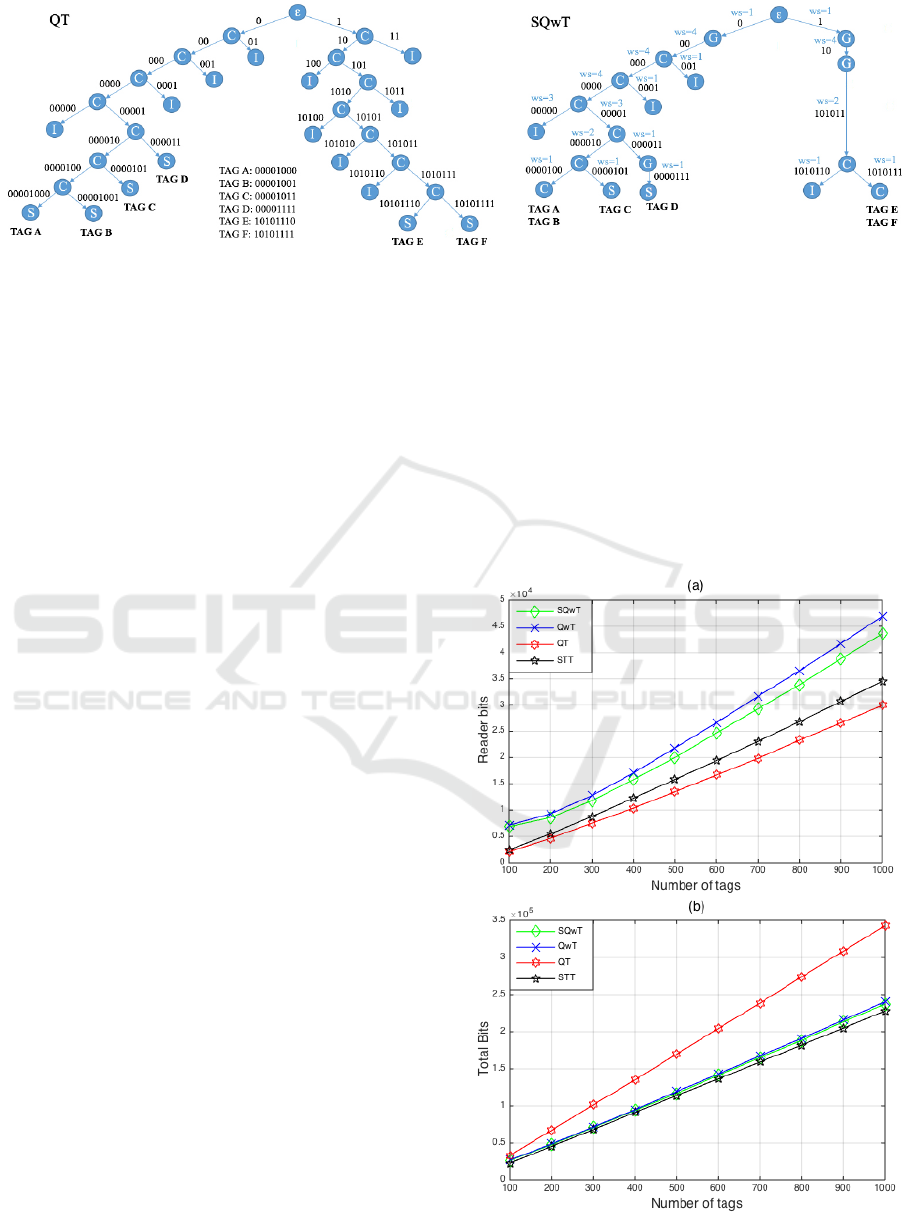

Figure 5: Example of the proposed SQwT and the QT protocol.

a new query (00) and it continues with the identiﬁ-

cation proccess. In this case (1) calculates ws 4 bits.

Again four tags match the query (00) and transmit the

following 4 bits. In this round, the reader can not

understand the responses and collision occurs. The

following part of tree is the same in both protocols

because 3 collided slots will occur. Every time a col-

lision occurs the reader pushes into the stack two new

queries: [q

, q

. . . q

, 0] and [q

, q

. . . q

, 1]. The left

subtree under the 0 branch of both protocols is the

same untill transmitting query 0000100. QT proto-

col needs to make one more interrogation round be-

cause tags respond the whole ID values as opposed

to SQwT which transmits just the last bits, and tags

A and B can be identiﬁed. After this success slot,

the reader pops the next query and can identify Tag

C. The reader pops out a new query from the stack

(000011), resulting in the identiﬁcation of tag D. QT

protocol needs two more slots in order to identify the

same number of tags. The right part of the tree is sig-

niﬁcantly reduced in the SQwT protocol. After trans-

mitting the ﬁrst query ’1’ from the right side of the

tree, two Go-On slots will occur. Afterwards, SQwT

pops the next query (101011) and detects a collision.

The last query created during the last collision results

in the identiﬁcation of the remaining two tags: Tag

E and Tag F. Eventually, when the comparison of QT

and SQwT is analyzed, results show a lower number

of transmitted bits per tag, and a decrease of the num-

ber of collisions.

4 EXPERIMENTATION

This section presents the evaluation of the simulation

results of the presented SQwT with QT (C. Law and

Siu, 2000), QwT (Landaluce et al., 2013) and STT

(Pan and Wu, 2011). The simulations are executed

using MatLab R2014. The number of tags has been

varied from 100 to 1000. Simulations are averaged

over 100 times for accuracy in the results, and the

IDs are randomly generated for every iteration with

a length of 128 bits. CRC is assumed 5 bits. Table

1 shows the calculation of the number of transmitted

bits for the protocols used in the simulation.

Simulated results in Fig.6.a present the reader bits

used in the identiﬁcation process. Presented results

show evidence of decreased reader bits for the pro-

posed SQwT protocol in the comparison with win-

dow based protocol, especially in dense tag environ-

ments. SQwT outperformed QwT in reader bits and

consumes total bits similar to STT. The total number

Figure 6: Performance of the SQwT: (a) reader bits, (b) total

bits.

WINSYS 2016 - International Conference on Wireless Networks and Mobile Systems

156

Table 1: Calculation of transmitted bits used in simulation.

Protocol Reader command Tag response

SQwT L + 3 ws +CRC

QwT L + blog

wsc + 1 ws +CRC

QT L k

STT L k − L

of bits transmitted between the reader and the tags

is shown in Fig.6.b. It is calculated as the number

of transmitted bits by the reader plus the number of

tag bits received on the reader side. Results indi-

cate that SQwT signiﬁcantly outperformed QT in total

bits with the inﬂuence of the window methodology.

The results indicate that SQwT is a dexterity proto-

col, which using a standardized window, reduces the

number of transmitted reader bits used in the identiﬁ-

cation process.

5 CONCLUSIONS AND FUTURE

WORK

A novel SQwT protocol for reducing the number of

reader bits is presented here. The standardized win-

dow methodology is proposed and the window size

is represented as a ﬁxed string of 3 bits. The basic

approach is the tag ability to locate the bit string rep-

resenting the window size in the received command,

differentiating it from the query. It is achieved by giv-

ing a constant place of 3 bits included in the reader

command. Simulated results proved the dexterity of

SQwT and outperformed other window based solu-

tion since the number of transmitted reader bits are

signiﬁcantly reduced. Future work will look at the

possibility of implementing SQwT to be adapted to

different ID distributions.

ACKNOWLEDGEMENTS

This work has been supported by the Spanish Min-

istry of Economy and Competitiveness under the iL-

ogisTICs project (TEC2013-45585-C2-2-R) and the

Basque Government under the UBITRACE project

(PC2013-71A)

REFERENCES

C. Law, K. L. and Siu, K. (2000). Efﬁcient memoryless

protocol for tag identiﬁcation. In Proceedings of the

4th International Workshop on Discrete Algorithms

and Methods for Mobile Computing and Communica-

tions,.

Feng, B., Li, J.-T., Guo, J.-B., and Ding, Z.-H. (2006). Id-

binary tree stack anticollision algorithm for RFID. In

11th IEEE Symposium on Computers and Communi-

cations, 2006. ISCC ’06. Proceedings., pages 207–

212.

Finkenzeller, K. (2010). RFID Handbook. Wiley.

GS1 and EPCglobal. ”GS1 EPC Tag Data Standard 1.6”

GS1, EPCglobal, Sept. 2011.

J., E. and T., L. (2008). Crc-16-based collision resolution

in EPCglobal Class1 Generation2 RFID systems. In

Proceedings of the International Conference on Wire-

less Information Networks and Systems, pages 61–65.

Klair, D., Chin, K.-W., and Raad, R. (2010). A survey and

tutorial of RFID anti-collision protocols. Communi-

cations Surveys Tutorials, IEEE, 12(3):400–421.

Landaluce, H., Perallos, A., and Zuazola, I. (2013). A fast

RFID identiﬁcation protocol with low tag complexity.

IEEE Communications Letters, 17(9):1704–1706.

Pan, L. and Wu, H. (2011). Smart trend-traversal protocol

for RFID tag arbitration. IEEE Transactions on Wire-

less Communications, 10(11):3565–3569.

Wang, C., Daneshmand, M., Sohraby, K., and Li, B. (2009).

Performance analysis of RFID Generation-2 proto-

col. IEEE Transactions on Wireless Communications,

8(5):2592–2601.

Wu, H., Zeng, Y., Feng, J., and Gu, Y. (2013). Binary

tree slotted aloha for passive RFID tag anticollision.

IEEE Transactions on Parallel and Distributed Sys-

tems, 24(1):19–31.

Reducing Transmitted Bits in a Memoryless RFID Anti-collision Protocol

157
