User-friendly Manual Transfer of Authenticated Online Banking

Transaction Data

A Case Study that Applies the What You Enter Is What You Sign Transaction

Authorization Information Scheme

Sven Kiljan

1,2,3

, Harald Vranken

1,3

and Marko van Eekelen

1,3

Faculty of Management, Science & Technology - Department of Computer Science, Open Universiteit,

P. O. Box 2960, 6401DL Heerlen, The Netherlands

Economy & Management - Lectureship Cybersafety, NHL Hogeschool,

P. O. Box 1080, 8900CB Leeuwarden, The Netherlands

Faculty of Science - Digital Security, Radboud University, P. O. Box 9010, 6500GL Nijmegen, The Netherlands

Keywords:

Online Banking, Security, Authentication, Trusted, Information, Transfer, Human Interaction.

Abstract:

Online banking relies on user-owned home computers and mobile devices, all vulnerable to man-in-the-middle

attacks which are used to steal money from bank accounts. Banks mitigate this by letting users verify infor-

mation that originates from these untrusted devices. This is not user-friendly since the user has to process the

same information twice. It also makes the user an unnecessary critical factor and risk in the security process.

This paper concerns a case study of an information scheme which allows the user to enter critical information

in a trusted device, which adds data necessary for the recipient to verify its integrity and authenticity. The

output of the device is a code that contains the information and the additional veriﬁcation data, which the

user enters in the computer used for online banking. With this, the bank receives the information in a secure

manner without requiring an additional check by the user, since the data is protected from the moment the user

entered it in the trusted device. This proposal shows that mundane tasks for the user in online banking can be

automated, which improves both security and usability.

1 INTRODUCTION

Security and usability are often seen as opposites. It

is easy to sacriﬁce one in order to improve the other,

but hard to improve one without affecting the other

negatively. The work in this paper has the main goal

to, in a very speciﬁc area, improve usability and (in-

directly) security. This area is the secure creation of

ﬁnancial transactions by users in online banking.

Home computers are vulnerable to Man-in-the-

Browser (MitB) attacks (Curran and Dougan, 2012).

Smartphones and tablets are not exempt from mal-

ware attacks either (Felt et al., 2011) and are also

vulnerable to MitB attacks if a browser is used to ac-

cess a (mobile) bank site. User-owned are not trusted

by banks since adversaries can use them to intervene

in the communication ﬂow between user and bank.

Banks often rely on small devices given to their cus-

tomers to have a trusted environment at the user’s side

(Poll and de Ruiter, 2013; Kiljan et al., 2014a). These

devices are used for user authentication (using one-

time passwords or challenge-response authentication)

and for transaction veriﬁcation.

The used information scheme in which users ver-

ify transaction data is known as What You See Is

What You Sign (WYSIWYS), of which an overview

is shown by Figure 1. WYSIWYS lets users verify

transaction information in a trusted environment that

a bank received previouslyfrom an untrusted environ-

ment. In step 1, the user enters transaction data in the

computer used for online banking, which sends it to

the bank using the Internet in step 2. Veriﬁcation of

whether the user and not an adversary provided the

transaction information through the untrusted envi-

ronment happens in step 3. The most important trans-

action information and a one-time password (OTP)

are returned over a secure channel to the bank authen-

tication device in possession of the user. The user ei-

ther conﬁrms or denies whether the data received in

step 4 is the same as what was entered in step 1. A

conﬁrmation is given by repeating steps 1 and 2 with

the OTP. The transaction information received in step

Kiljan, S., Vranken, H. and Eekelen, M.

User-friendly Manual Transfer of Authenticated Online Banking Transaction Data - A Case Study that Applies the What You Enter Is What You Sign Transaction Authorization Information

Scheme.

DOI: 10.5220/0005965102590270

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 259-270

ISBN: 978-989-758-196-0

259

Local trusted

environment

Remote trusted

environment

Untrusted

environment

User

Interaction legend

Untrusted

Trusted

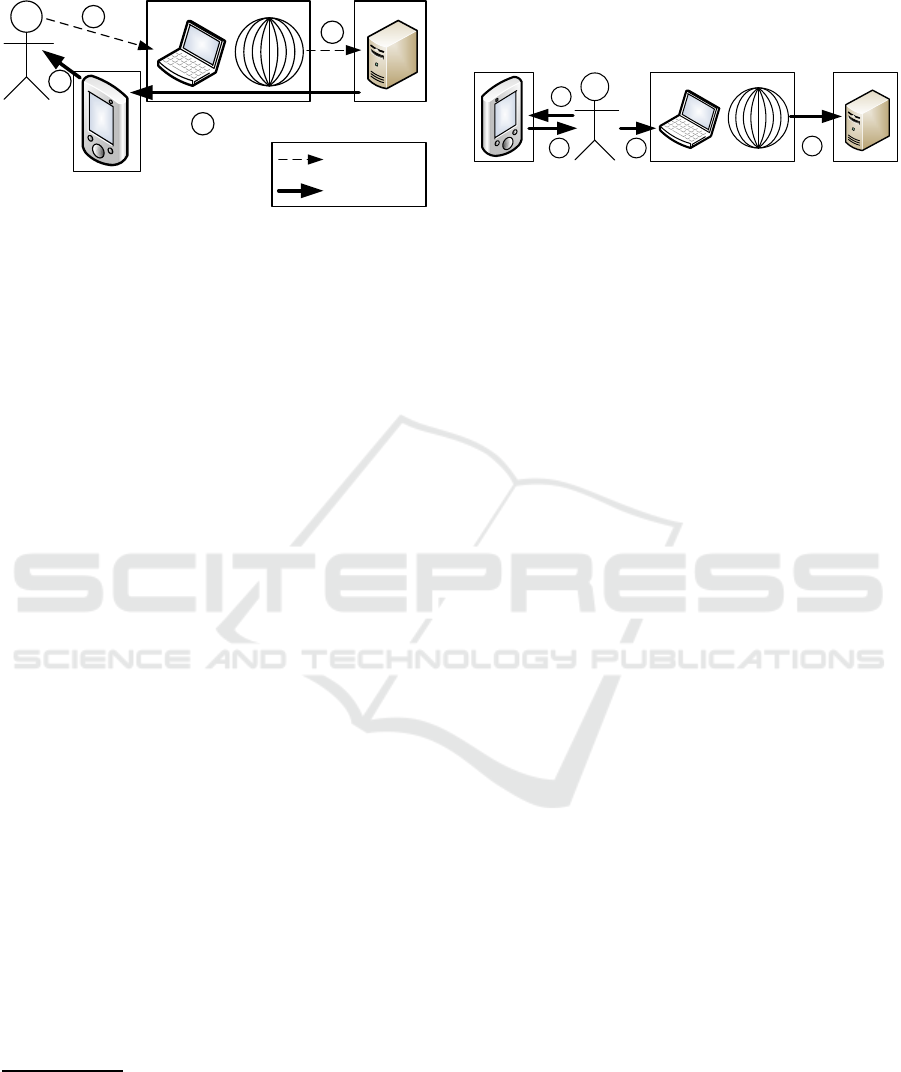

Figure 1: The information ﬂow between environments with

the What You See Is What You Sign authentication infor-

mation scheme.

4 is what the user sees, and the user effectively signs

the data when he or she sends the OTP back to the

bank.

Note that only the user is capable of provid-

ing the OTP (effectively the signature) since it is not

known by the untrusted environment. Returning the

OTP through the untrusted environment is therefore

not insecure. An aspect of WYSIWYS that is neither

secure nor user-friendly is that the user is required to

verify the same information twice: once upon entry

(step 1) and once when it is returned (step 4). Users

are quite unreliable in comparing numbers (AlZomai

et al., 2008), and mistakes (genuine due to simply not

seeing changed numbers, or abusive due to laziness)

can be expected. We proposed an alternative informa-

tion scheme named What You Enter Is What You Sign

(WYEIWYS) (Kiljan et al., 2014b). With WYEI-

WYS, transaction data is entered immediately in a

trusted environment before it is forwarded to the bank

in a secure manner, which makes the second veriﬁca-

tion that WYSIWYS has unnecessary. Our original

proposal misses an implementation which describes

how the critical transaction data entered by the user is

transferred from a trusted environment to an untrusted

environment that will forward it to the bank. We sug-

gested the use of a connection between the trusted au-

thentication device and the untrusted computer used

for online banking. Such a connection is troublesome.

For security, it widens the attack surface of the trusted

environment since it will be more exposed to the un-

trusted environment. In addition, online banking can

be done with a plethora of different devices. The au-

thentication device might not be capable of creating

This is unlike the use of the verb ‘sign’ in cryptography,

where it refers to the use of asymmetrical encryption to sign

a message with a private key, where the signature can be

used to verify a messages authenticity, integrity and non-

repudiation. Our deﬁnition of ‘signature’ for this paper is

data which warrants the authenticity and integrity of other

data, but not its non-repudiation.

a connection to the computer used for online banking

due to the lack of a compatible interface.

Local trusted

environment

Remote trusted

environment

Untrusted

environment

-Authenticity

-Integrity

-Availability

-Authenticity

-Integrity

2 3

User

Figure 2: An overview of the path the transaction data fol-

lows (trusted from the very ﬁrst step), and the information

security principles for which each environment is responsi-

ble.

The challenge therefore is to apply WYEIWYS in

a way that both increases usability and security (com-

pared to WYSIWYS). We propose the use of a code

to be transcribed by the user, which we refer to as a

Message Code (MC). See Figure 2 for an overview. In

step 1, the user starts with entering the critical trans-

action data in a trusted authentication device, which

‘signs’ it by adding data (the signature) that warrants

authenticity and integrity. Both the data and the signa-

ture are converted to an MC. The MC is read (step 2)

and transcribed into the untrusted environment (step

3), which forwards the data to a remote trusted en-

vironment (step 4). Integrity and authenticity of the

data is protected as it passes through the untrusted en-

vironment.

The one-way information ﬂow of reading a code

from a display and writing it on another device physi-

cally and logically separates the local trusted environ-

ment from the untrusted environment, reducing the

attack surface of the former. Since a connection be-

tween devices is not necessary, compatibility issues

are non-existent as any untrusted user-owned device

can be used.

Our contribution is an analysis and a case study

of a process that allows users to transcribe a message

and data which veriﬁes the integrity and authenticity

of the message together using a single code. In Sec-

tion 2, the steps and methods that can be used to gen-

erate an MC in a user-friendly and secure manner are

analyzed. The case study for an implementation of an

MC to secure ﬁnancial transaction online banking is

described in Section 3. Furthermore, in Section 4 we

reﬂect back on the case study, limitations of our work

and possible further research. Section 5 closes with

our concluding remarks.

SECRYPT 2016 - International Conference on Security and Cryptography

260

2 ANALYSIS OF GENERATING

AND VERIFYING AN MC

There are scenarios in which it is necessary for a ser-

vice provider to know whether a speciﬁc user pro-

vides a certain piece of information, and that the in-

formation was not altered along the way (either acci-

dentally or by an adversary). The amount of resources

spend on this depends on the value of the information

and how often the information ﬂow occurs. For ex-

ample, if an individual needs to register for a service

that needs certainty about the user’s identity, it is not

enough to just assume that the named individual is

actually the one he or she claims to be. If such a reg-

istration is only done once, it would be worthwhile

to have the user visit a branch ofﬁce of the service

provider and provide identiﬁcation documents, such

as a passport. In this scenario, the branch ofﬁce and

the person assisting the user (both under control of the

service provider) and the passport (provided by the

government) ascertain the identity of the individual.

However, such physical interaction is unwanted

if it concerns valuable information that the user

sends more often to the service provider. An exam-

ple is given by online banking. Users expect that

they can make transactions anywhere at anytime. A

trusted (from the perspective of the bank) environ-

ment is required that lets users provide information

securely. There are two distinct trusted environments:

the local trusted environment available to the user,

and the infrastructure of the service provider. Be-

tween these environments is a large untrusted envi-

ronment, where Man-in-the-Middle (MitM) attacks

occur. These attacks do not only occur on the In-

ternet (against which SSL/TLS can provide adequate

protection), but also on users’ computers. An exam-

ple are Man-in-the-Browser (MitB) attacks, through

which an adversary retrieves authentication creden-

tials or silently changes information between user and

service provider (Curran and Dougan, 2012). If users’

devices cannot be trusted, the most obvious approach

would be to provide each user a device that hosts a lo-

cal trusted environment. Users should be able to use

this device to provide required information in a secure

manner.

Weigold and Hiltgen proposed several online

banking transaction authentication methods (Weigold

and Hiltgen, 2011). For one of their proposals, the

user enters the same transaction details in an untrusted

computer used for online banking and in a trusted de-

vice, provided by the bank and in possession of the

user. The trusted device generates a one-time pass-

word (OTP), which the user enters on the untrusted

computer used for online banking. The OTP from

their proposal is created based on the information en-

tered on the trusted device, and protects the informa-

tion entered on the untrusted device. The information,

entered twice by the user, should be equal to corre-

spond with a valid TAC.

What we propose and analyze further in this sec-

tion is the use of a Message Code (MC). An MC not

only contains the information required to verify the

integrity and authenticity of a message, but also the

message itself.

Sender Recipient

Create message Read message

↓ ↑

Compress Decompress

↓ ↑

Sign Verify

↓ ↑

Encode Decode

↓ ↑

Trusted

Message Code Message Code

↓ ↑

Untrusted

→ Transfer →

Figure 3: An overview of the process required to create a

Message Code.

Figure 3 shows two trusted environments, and the

actions required to send and receive a message se-

curely using an MC. It is assumed that each party is

the only one which can control its own trusted en-

vironment. The paired intermediate steps related to

the processing of the message by both parties are ex-

plained in more detail.

2.1 (De)compression Algorithms

If applied correctly, compression reduces the size of

messages. A message will be part of the MC. Reduc-

ing its size would imply a reduction in the MC’s size,

which is beneﬁcial when the user has to transfer the

information later.

Table 1 shows an overview of the effect that the

Deﬂate

general-purpose compression algorithm has

on random text of different sizes. For such small

pieces of data a general-purpose compression algo-

rithm can have either a positive or a negative effect,

and is therefore unreliable. In the most optimal cir-

cumstance (in very speciﬁc cases of having 8 charac-

RFC 1951 - DEFLATE Compressed

Data Format Speciﬁcation version 1.3:

https://tools.ietf.org/html/rfc1951

User-friendly Manual Transfer of Authenticated Online Banking Transaction Data - A Case Study that Applies the What You Enter Is What

You Sign Transaction Authorization Information Scheme

261

ters of data), Deﬂate compresses data by 25%. De-

pending on the number of characters, the output can

actually have a size increase between 6.3% (30 char-

acters) and 28.6% (5 characters). This can be ex-

plained by that general-purpose compression algo-

rithms build a dictionary of data to compress based

on earlier compressed data. Therefore, small pieces

of data do not compress really well (or in some cases,

at all) with such algorithms.

An algorithm that specializes more on the com-

pression of very short pieces of text could be used in-

stead, and can be created by using a static dictionary

of commonly used text parts.

However, the amount

of compression it provides can be unreliable, depend-

ing on how well the message ‘ﬁts’ the pre-established

dictionary.

A completely custom algorithm can be designed

instead, tailored to removing and reconstructing re-

dundant information from messages that comply to

a pre-established structure. For the algorithm to be

durable, the messages’ structure should not change.

2.2 Securing and Verifying Authenticity

And Integrity

The recipient of an MC needs to be able to establish

the authenticity of the message’s source, and to verify

that the message was not changed after it was sent.

The sender has to prepare the data in such a way that

the recipient will be able to perform the necessary

checks. There are several ways in which the sender

can make these preparations, and for the receiver to

verify the message.

Digital signatures are an option. Using public key

cryptography, the integrity and authenticity of a mes-

sage can be established by adding a signature to the

message. In addition, digital signatures provide non-

repudiation: the sender cannot claim that he or she did

not send a message that the recipient has received and

validated. However, a drawback of digital signatures

is that key management is quite complex.

Message authentication codes (MAC) are another

option. A MAC is data added to a message with which

inferences can be made about its integrity and authen-

ticity, similar to a digital signature. Creating a MAC

requires the data of which the integrity and authentic-

ity should be protected (the message), and some secret

data which provides the authenticity (a secret key).

Verifying a MAC requires the message to be veriﬁed

and a secret key knownto the sender and the recipient.

A difference with digital signatures is that a single key

An example is SMAZ, compression for very small

strings:

https://github.com/antirez/smaz

Table 1: Output sizes of the Deﬂate compression algorithm,

based on 10,000,000 randomly generated text values with a

character range of [A-Za-z0-9], encoded in 8 bit ASCII.

Number of Size Compressed Number of Size Compressed

characters (bits) size (bits) characters (bits) size (bits)

5 40 40-56 18 144 128-160

6 48 40-64 19 152 136-168

7 56 48-72 20 160 136-176

8 64 48-80 21 168 144-184

9 72 64-88 22 176 160-192

10 80 72-96 23 184 160-200

11 88 72-104 24 192 176-208

12 96 80-112 25 200 184-216

13 104 96-120 26 208 192-224

14 112 104-128 27 216 200-232

15 120 104-136 28 224 200-240

16 128 112-144 29 232 216-248

17 136 112-152 30 240 224-256

is used. This simpliﬁes key management somewhat

since all involved parties (sender and recipient(s)) use

the same key, but it sacriﬁces non-repudiation since it

cannot be proven which party signed a message.

With MACs, it is initially required that the trusted

environment that generates the key sends it to the

other trusted environment, without an intermediate

untrusted environment. Otherwise a man-in-the-

middle could intercept the key. A public key in-

frastructure with trusted third-parties that issue cer-

tiﬁcates to create digital signatures might be a better

choice if it is not viable to securely transfer a secret

key from one trusted environment to the other at the

beginning of the authentication device’s lifespan.

Note that conﬁdentiality is not a security princi-

ple used in this analysis, nor in the case study in Sec-

tion 3. If it would be, authenticated encryption would

be one approach which combines conﬁdentiality, in-

tegrity and authenticity.

Whether a digital signature or MAC is used, it is

important to provide protection against replay attacks.

A cryptographic nonce (number used once) can pro-

vide protectionagainst such attacks if it is used to gen-

erate the digital signature or MAC. Note that a nonce

does not have to add data to the message itself as long

as the remote trusted environment is able to recon-

struct the nonce when verifying the message. Exam-

ples of such nonces include time stamps and counters.

2.3 Encoding/Decoding Methods

Compressed data, digital signatures and MACs often

do not consist exclusively of human readable data.

An encoding can convert data to human readable and

writable text. There are several approaches. Wise-

man et al. performed a comparison of three distinct

encoding schemes for one-time passwords used in de-

vice pairing (Wiseman et al., 2016). These will be re-

ferred to as Wiseman’s word encoding, Wiseman’s al-

phanumerical encoding and Wiseman’s numerical en-

SECRYPT 2016 - International Conference on Security and Cryptography

262

coding. Each encoding was tested on its efﬁciency

and perceived usability when transcribed by users on

home computers and mobile devices. A lower limit

was set on the length of the codes of 500 million pos-

sible combinations for each tested encoding scheme.

In addition, codes were padded when required to al-

ways give a ﬁxed length.

For Wiseman’s word encoding, the ﬁxed length

is 3 words of 3 letters. An index of 800 words was

used. Each of the three words in a code represents

log

(800) ≈ 9.644 bits.

For Wiseman’s alphanumerical encoding the ﬁxed

length is 5 alphanumeric characters using a set of 56

different characters from the range [a-zA-Z0-9], ex-

cluding ‘i’, ‘o’, ‘1’, ‘I’, ‘O’ and ‘L’. Each character in

the code represents log

(56) ≈ 5.807 bits. There are

also other alphanumerical encoding schemes. Base64

is probably the most famous encoding scheme that

outputs ‘real’ characters exclusively (that is: charac-

ters that most humans can see and interpret, assum-

ing that they are familiar with the English alphabet),

and each of its 64 characters represents a 6 bit value.

Base32 is a variation which uses 32 characters instead

and avoids the use of special and mixed case charac-

ters by only using upper case letters and some digits.

Each of Base32’s characters represents 5 bits. The

same binary data encoded in Base32 will be repre-

sented by more characters compared to Base64. A

variation of Base32 is Z-Base 32.

The most differ-

entiating aspect of Z-Base 32 is its use of lower case

characters.

Finally, there is Wiseman’s numerical encoding,

which presents all data as a base 10 number with

a ﬁxed length of 9 digits. Each digit represents

log

(10) ≈ 3.322 bits.

Wiseman et al. concluded that words are the eas-

iest to transcribe. It must be noted that they were

only interested in using an encoding scheme to cre-

ate a one-time password. This can be compared to the

security information required to validate the integrity

and authenticity of data, as discussed in the previous

section. However, an MC will contain both the data

itself and this security information, implying that its

length will be longer compared to that of a one-time

password in any encoding scheme. This is something

that should be kept in mind when making a decision

on what kind of encoding should be used.

The output of the encoding phase is an MC. Its

characters can be grouped to make them easier to

RFC 4648 - The Base16, Base32 and Base64 Data En-

codings:

https://tools.ietf.org/html/rfc4648

Human oriented base-32 encoding - O’Whielacronx

(2009):

http://philzimmermann.com/docs/human-

oriented-base-32-encoding.txt

transcribe. For example, words can be separated by

spaces and characters of alphanumerical codes can be

separated by dashes.

2.4 Code Transfer

After an MC is made, it needs to be transferred from

the trusted environment. The MC is meant to reach

another (remote) trusted environment. Different path-

ways can be taken, and most will use an untrusted

environment (as shown in Figure 3). If that is the

case, it is expected that the untrusted environment for-

wards the code to another trusted environment. The

untrusted environment provides availability while the

MC provides integrity and authenticity.

The MC can be read by the user from one (trusted)

device and entered in another (possibly untrusted). To

make this process user-friendly the MC should be as

short as possible and consist of characters that are

easy to read and write. The compression phase mostly

dealt with the MC’s length, while the encoding phase

focused on the text that is actually to be transferred by

the user.

Typographical mistakes can be detected by the re-

cipient due to that the code contains both the message

and additional data to verify its integrity and authen-

ticity. When a mistake is made, the message will not

correspond with the additional data when it is veriﬁed.

The recipient refuses to process the message further

and notiﬁes the user to correct his entry. This further

improves user-friendliness, since the user can make

and correct mistakes without repercussions.

This paper focuses mostly on a human-

transferable MC since it is the most universal

method to transfer information from a trusted device

to any untrusted device that allows user input,

independent from used software that the latter runs.

However, user-friendliness can be improved without

sacriﬁcing security in speciﬁc scenarios, depending

on the used untrusted device. Most smartphones have

a rear-facing camera which can be used to scan QR

codes. An MC could be converted to a QR code that

can be scanned by an application that forwards the

data to the trusted environment. A QR code would aid

in cases where user input is less user-friendly, such as

with touch keyboards on smartphones (Gallagher and

Byrne, 2015).

3 ONLINE BANKING CASE

STUDY

This section notes a case study for the feasibility of

using a Message Code (MC) for transaction authenti-

User-friendly Manual Transfer of Authenticated Online Banking Transaction Data - A Case Study that Applies the What You Enter Is What

You Sign Transaction Authorization Information Scheme

263

cation in online banking using the methods described

in Section 2. It ﬁrst explains why the use of an MC

can be beneﬁcial for security and usability in online

banking before describing each step of its generation

and veriﬁcation.

(3)

(2)(1)

(5) (4)

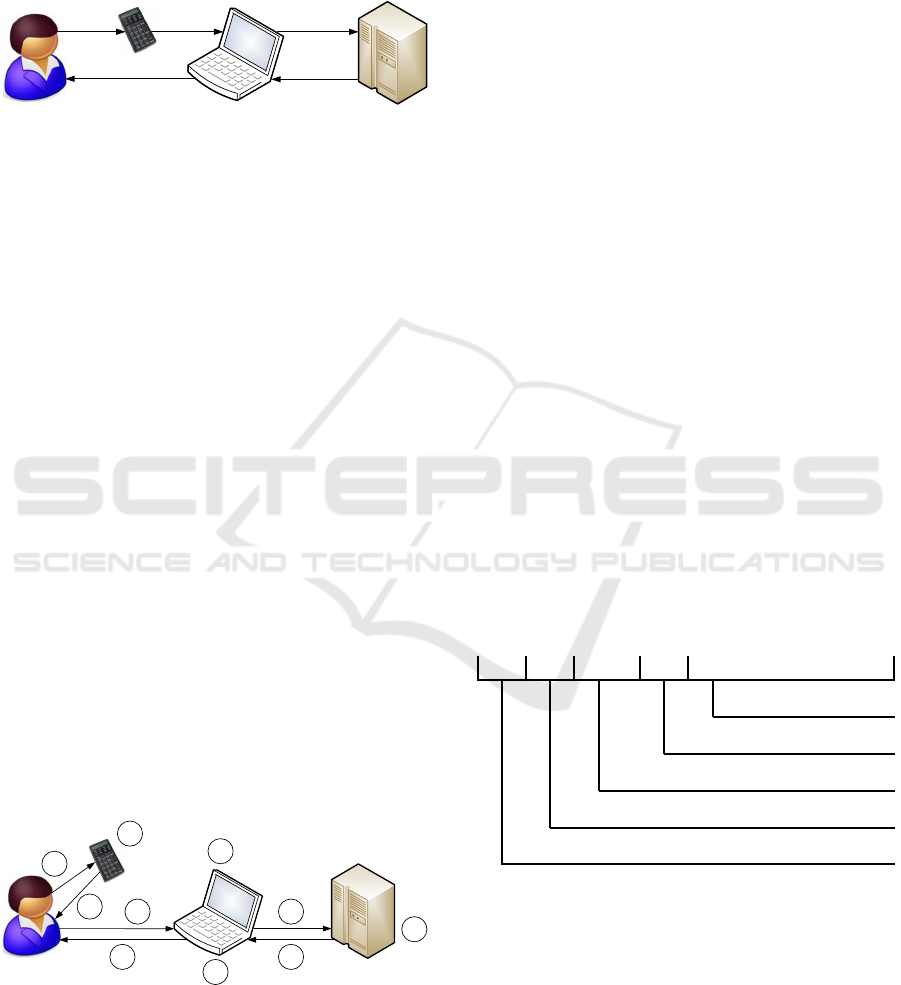

Figure 4: An overview of the What You Enter Is What You

Sign information scheme.

The user’s time should be used sparingly for secu-

rity actions (Herley, 2009), so it might be beneﬁcial

if the user would not have to process transaction de-

tails twice. We proposed WYEIWYS (Kiljan et al.,

2014b) as shown in Figure 4. The user enters criti-

cal transaction data (the destination account number

and the amount) in a trusted device in step 1. The

trusted device adds a digital signature and enters all

data in the user’s computer in step 2. The user’s com-

puter forwards the data to the bank in step 3. After

verifying the signature, the bank reports the validity

of the entered values back to the user in steps 4 and

5. The idea behind WYEIWYS is that a man-in-the-

middle will not be able to change the data between

steps 2 and 3 without the bank noticing it, since the

digital signature ensures the integrity and authenticity

of the entered critical transaction data. As shown in

Figure 4, the secure information ﬂow is one way only

and the user is not expected to perform any checks

afterwards.

The proposal does not specify which technology

should be used in step 2. Keyboard emulation was

suggested as one possible method, but this does re-

quire a connection and assumes that the user’s com-

puter (the untrusted device) actually supports key-

boards. Connecting devices (wired or wirelessly) can

also be quite cumbersome.

4 6

Figure 5: Overview of the information ﬂow of WYEIWYS

using a Message Code.

An MC could be used for transferring critical

transaction data in a way that reduces compatibility

issues. Figure 5 shows the information ﬂow if the

user would facilitate the transfer of the MC between

both devices. In step 1, the user enters critical transac-

tion information in the trusted device, which creates

an MC in step 2 that is shown to the user in step 3.

The user enters the MC into his home computer or

mobile device in step 4. A browser or application re-

ceives the MC in step 5 and forwards it to the bank

in step 6. The bank processes the MC in step 7 and

returns the resulting data back in step 8 if the MC is

valid. The data is processed by the user’s computer

in step 9 and shown to the user in step 10. If the MC

is invalid, an error would be returned through steps 8,

9, and 10, after which the user can correct any typo-

graphical mistakes made in step 4.

This section continues with the considerations of

constructing an MC in step 2 and the deconstruction

in step 7. Looking at Figure 3, the authentication de-

vice in possession of the user would be the trusted

environment available to the sender, the trusted envi-

ronment of the recipient would be the bank’s infras-

tructure, and the untrusted environment between them

would be represented by the user’s computer and the

Internet. The authentication device is used to create

the message and compress, sign and encode it to cre-

ate an MC. The bank decodes, veriﬁes the signature

and decompresses the data.

3.1 Create the Message

We consider the destination account number and

amount of money to be critical transaction informa-

tion. Both are entered by the user in step 1 in the

authentication device.

NL 76 SIMB 0 759 595 879

Account number

Account type indicator

Bank identiﬁer

Checksum (ISO/IEC 7064, MOD97-10)

Country code (ISO 3166-1 alpha-2)

Figure 6: The structure of a Dutch IBAN account. The ex-

ample IBAN account number is at the ﬁctional SIMulation

Bank and has a valid checksum.

For the example, we assume that a Dutch IBAN

is used as a destination account number. The struc-

ture of a Dutch IBAN is shown with an example in

Figure 6. The country code and checksum always

have the same location and length for all IBANs.

The checksum also always has the same location and

length. For Dutch account numbers, the bank identi-

SECRYPT 2016 - International Conference on Security and Cryptography

264

ﬁer consists of four uppercase letters, the account type

indicator is 0 for payment accounts and the account

number is always nine digits.

The amount of money is a value with two decimal

digits. For our proposal, we assume that a transac-

tion has a maximum value of less than one million

euro (so a maximum of e 999, 999.99). We also as-

sume that this method will only be used for domestic

transactions (from a Dutch account to another Dutch

account), so the user does not have to specify an al-

ternative currency. An example value the user could

enter is:

123456.78

To enter all values fully, the authentication device

would require a keyboard which allows the user to en-

ter [A-Z0-9] and possibly a decimal separator. Typo-

graphical mistakes in the IBAN can be detected by the

device by verifying the checksum. Such a check is not

possible on the amount of money, but the user can no-

tice typographical mistakes when shown on the screen

of the authentication device, and later (after step 10)

on the display of his or her computer.

3.2 Create the Message Code

For step 2, we deﬁne several phases to generate an

MC from the data entered in step 1.

• A compression phase, to compress user provided

data. This shortens the MC in the end.

• A signature phase, to generate data to protect the

message’s authenticity and integrity.

• An encoding phase, which creates a string value

from the data which a user can process.

3.2.1 Compress

There are several approaches for compression noted

in Section 2.1. Data in online banking transactions

is quite structured and well deﬁned. Therefore, an

example is given for a custom algorithm, tailored to-

wards the data to be transferred. The functions de-

scribed in Section 2.1 will be used: removal and re-

construction of redundantinformation, and restructur-

ing data types for more efﬁcient transportation.

To start, we use the IBAN from the example in

Figure 6 and an amount of e 123456.78:

NL76SIMB0759595879 12345678

We removed the decimal separator from the amount

to make it an integer value, which reduces complexity

for further processing.

We already stated that we will only use this

method for domestic transfers, so the country code

can be removed. The checksum in the next two dig-

its of the IBAN is only meant to protect against typo-

graphicalmistakes. It has already been veriﬁed during

entry in step 1, which is why we can also remove it.

As discussed earlier, a Dutch IBAN has a bank iden-

tiﬁer consisting of four upper case letters. Banks in

the Netherlands can reconstruct the destination bank

based on solely the account number, which is why

we can also remove it. Finally, the leading 0 in front

of the bank account number speciﬁes the type of ac-

count. Any other number would be a savings account.

Savings accounts do not support direct withdrawals or

deposits from payment accounts owned by other ac-

count holders, which is why we can also remove this

digit. This leaves us with:

NL 76 SIMB 0 759595879 12345678

The data in strikethrough text has been removed, and

needs to be reconstructed in step 5.

Dutch account numbers have a maximum value

of 999,999,999, which can be represented as an un-

signed integer by 30 bits.

The amount (as an integer)

has a maximum of 99,999,999,and can be represented

as an unsigned integer by 27 bits. In binary, account

number an and amount am are as follows (most sig-

niﬁcant bit ﬁrst):

an =

101101010001101000001101100111

am =

000101111000110000101001110

Since the length of the bit string of each value is

ﬁxed, the bit strings can be concatenated to create a

single string that can be split again in step 7 by the

bank. This concatenated string is the raw message

which must be processed further, and is 57 bits long.

3.2.2 Sign

For our example, there are only two parties involved

who need to access key material: the authentication

device (to create data for verifying the integrity and

authenticity of the message) and the bank (to perform

the veriﬁcation). Based on the various methods noted

in Section 2.2, a ﬁtting approach would be the use of

a MAC. It can be assumed that the bank can embed

a shared secret key in the authentication device in a

secure environment before it is given to a customer,

and there are no other parties involved which would

warrant the use of a public key infrastructure.

To prevent replay attacks, the MAC should be

based on both the message and a nonce. The nonce

itself is not secret, but should be unique and fresh for

Actually, the maximum value would be 999999990 due

to the inclusion of a checksum known as the ‘elfproef’, but

for the sake of simplicity for this paper, we assume the max-

imum is the maximum value provided by 9 digits.

User-friendly Manual Transfer of Authenticated Online Banking Transaction Data - A Case Study that Applies the What You Enter Is What

You Sign Transaction Authorization Information Scheme

265

each MC. We assume a nonce is used that does not

have to be part of the message (to keep it as short as

possible). This could be a nonce based on synchro-

nized clocks between authentication device and the

bank, or an incrementing counter of which the bank

keeps track.

To let the authentication device calculate MAC

mac

over message m (an and am concatenated, from

the previous step), we use a randomly generated key

k of 2048 bit, a 32-bit unsigned incrementing counter

as nonce n

, and a hash function H. Hence, we could

use:

mac

= H( k | n

| m )

Care must be taken with this approach, since it is

susceptible to length extension attacks if H is based

on the Merkle-D˚amgard construction (such as MD-

5, SHA-1 and SHA-2) (Sobti and Geetha, 2012). A

mitigation would be to use an alternative hash algo-

rithm. SHA-3 is based on the sponge construction,

which does not have this inherit limitation.

There-

fore, SHA-3 will be used for H for this example.

The strength of the MAC is based on its length.

A larger MAC is more secure against brute-force at-

tacks. However, since the MAC is part of the MC, a

longer MAC would result in a longer MC that needs to

be transcribed by the user. The length further depends

on the chosen encoding of the MC, since a MAC

with an aligned length prevents padding and there-

fore makes optimal use of the value of everycharacter.

The chosen encoding is Z-Base 32, which represents

5 bits for each encoded character. Z-Base 32 is further

discussed in Section 3.2.3.

The message is 57 bits, as discussed in the pre-

vious section. A 23 bit MAC would make the total

length 80 bits, which aligns with Z-Base 32 to be 16

characters. There is a 50% probability that a valid

MAC is guessed if an adversary guesses 2

times.

The number of guesses can be limited by the bank,

which can count the number of failed guesses and de-

lay or block further attempts. This is discussed more

in detail in Section 3.6.3.

The values and the output of the formula are:

The Keccak sponge function family:

http://keccak.noekeon.org/

k =

0x00 0x01...0xFF

0x00 0x00 0x00 0x01

m =

0x01 0x6A 0x34 0x1B 0x38 0xBC 0x61 0x4E

mac

= H{ k | n

| m } =

0x77 0x64 0xCE

3.2.3 Encode

The compression phase was used to compress the data

and turn it into a bit stream. Furthermore, we gave

an example of how a MAC can be calculated in the

signature phase and computed a MAC of 23 bits. In

the encoding phase, we combine the values from both

phases to create an MC, a human-readable text string

that the authentication device will show on its display.

The output of the compression phase is 80 bits.

Based on the encoding methods noted in Section 2.3

it is possible to tell how long the MC will be by calcu-

lating how much words or characters would be needed

to encode it, rounding up to ensure a ﬁxed length. If

the 800 word encoding from Wiseman et al. would

be used (Wiseman et al., 2016), the length would be

9 words or 27 characters without separators. Base64

would require 14 characters, and Base32 and Z-Base

32 would require 16 characters, all excluding separa-

tors. 25 characters would be required if only digits

were used.

To improve readability, separators would be re-

quired to create groups of characters. For words, that

would be a total of 35 characters (based on 8 spaces).

Based on groups of 4 characters each, three separators

would have to be added to Base64, Base32 and Z-

Base 32, bringing their number of characters respec-

tively to 17, 19 and 19. When only digits would be

used and 4 separators would be used to create groups

of 5 digits, 30 characters would be required. These

are the number of characters that the authentication

device’s display would be required to show.

Wiseman et al. (2016) tested their word encod-

ing with 3 words, which was the preferred encoding

by their test candidates. However, 9 words would be

quite long to show on an authentication device and

for users to enter on other devices. For this case study

we will use Z-Base 32 instead, which provides a good

balance between character length and recognition of

the used characters.

See Table 2 for an overview of the encoding pro-

Table 2: Creating a single human readable string from the message and the MAC using Z-Base 32.

Message MAC

Destinat. account: 759595879 (30 bits) Amount: 12345678 (27 bits) 0x7764ce (23 bits)

Bits 101101010001101000001101100111000101111000110 00010100111011101110110010011001110

Decimal 22 20 13 0 27 7 2 30 6 2 19 23 14 25 6 14

Z-Base 32 s w p y 5 8 n 6 g n u z q 3 g q

SECRYPT 2016 - International Conference on Security and Cryptography

266

cess using Z-Base 32. The result is an MC, which

could be displayed as:

swpy-58n6-gnuz-q3gq

3.3 Transfer the Message Code

As described in Section 2.4 and as shown by steps 3

and 4 in Figure 5, the user reads the MC from the

trusted authentication device and enters it in the un-

trusted computer used for online banking. To make

the transfer user-friendly, the MC’s length was re-

duced by compressing the message in Section 3.2.1

while it is structured by the alphanumerical encoding

chosen in Section 3.2.3.

If a mobile banking application on a smartphone

or tablet is used instead of a home computer, an alter-

native to the manual transfer by the user of the MC

from the authentication device to the mobile device

might be the use of a QR code if the device has a rear-

facing camera. The authentication device would show

the QR code to be scanned and the mobile banking ap-

plication would scan the QR code. An advantage of

this would be that the user is not required to manually

enter the MC as a text string into the mobile device.

Compression can still be applied to keep the QR code

as small as possible.

3.4 Verify the Message Code

Step 7 of Figure 5 concerns the veriﬁcation of the MC,

and is mostly step 2 in reverse order. First, the data is

decoded back into a bit stream and the message and

MAC are separated. After that, the bank needs to ver-

ify if the included MAC corresponds with the payload

to verify integrity and authenticity. Only if both are

veriﬁed will the message be processed further.

3.4.1 Decode

Decoding is the reverse of encoding as done at the end

of Step 2. Table 2 can be read starting from the bottom

row to get an idea of the decoding process. The result

is the top row’s bitstream.

3.4.2 Verify

The bank calculates its own MAC, and with that ef-

fectively performs the same steps as the authentica-

tion device did in step 2. The assumption is that the

bank has access to the same k and is able to deduce

. A counter was used for n

, which increases by

one for every generated MAC. The bank has to store

the nonce of the last received valid message to detect

replay attacks in future messages, which we will refer

to as n

as a 32-bit value is not included in the mes-

sage to keep the MC as short as possible. That is why

the bank has to deduce it. It is possible that the user

generates MACs which the bank never receives. This

can happen if the user is testing the workings of the

authentication device or when an online banking ses-

sion is disconnected, after generating the MAC but

before the bank receives it. Since n

is a counter that

is only incremented by the authentication device, all

the bank has to do to compensate for discrepancies

between the last stored value in the authentication de-

vice and at the bank would be to attempt to verify the

MAC multiple times with increasing values for the

nonce, starting at n

and increasing for an acceptable

number of messages which the bank did possibly not

receive. It might be likely that the user created a mes-

sage or two that were missed, but it is unlikely that

the user generated 50 messages. In this exceptional

scenario, the user could be requested to contact the

bank.

For our example, we assume that no previous MCs

were missed by the bank. Let k be the shared key be-

tween authentication device and bank, n

the earlier

mentioned stored nonce value at the bank (increased

to the value of n

+ 1 with each valid received mes-

sage), m the message, and mac

the MAC that the

bank calculates.

k =

0x00 0x01...0xFF

0x00 0x00 0x00 0x01

m =

0x01 0x6A 0x34 0x1B 0x38 0xBC 0x61 0x4E

mac

= H{ k | n

| m } =

0x77 0x64 0xCE

Now all the bank has to do is verify if mac

equals

mac

. If they are equal, the message is authentic and

its integrity is protected, and should therefore be pro-

cessed further.

3.4.3 Decompress

Decompression of m is the opposite operation of com-

pression as done in step 2. First, the two values are

separated, based on their lengths and positions. Let

an again be the destination account number and am

the amount of money.

an =

101101010001101000001101100111

am =

000101111000110000101001110

an is converted to an integer which results in a

value of 759,595,879. The IBAN is reconstructed

by supplementing the integer with known values. In

the end, the bank wants to have the same number as

shown in Figure 6.

User-friendly Manual Transfer of Authenticated Online Banking Transaction Data - A Case Study that Applies the What You Enter Is What

You Sign Transaction Authorization Information Scheme

267

The country code is easy since the transfers were

limited to Dutch domestic accounts. Therefore, the

bank knows the country code is

. As noted ear-

lier, banks in the Netherlands can identify which ac-

count number belongs to which bank, allowing them

to match the account number to the bank with the

bank code

SIMB

. Finally, the account type indicator

is always

for payment accounts. The value the bank

now has is:

NL ?? SIMB 0 759 595 879

The IBAN checksum is still missing, which can be

recalculated.

The fully reconstructed IBAN:

NL 76 SIMB 0 759 595 879

All that is needed to reconstruct the amount am

is a conversion to an unsigned 32-bit integer and a

division by 100 to create the original decimal value.

With domestic transfers it is not required for the user

to specify the currency if there is only one. Our ex-

ample concerns the Netherlands, which uses the euro.

Therefore, the bank knows that the value to transfer is

e 123456.78.

3.5 Further Processing

The bank returns the IBAN and the amount back to

the user’s browser (step 8 of Figure 5), which receives

(step 9) and shows (step 10) them. The user has the

opportunity to ﬁll in the rest of the non-critical trans-

action values and submit the transaction. An overview

screen could be shown before the user gives his ﬁ-

nal approval. Note that this ﬁnal approval would con-

cern usability (the user has one more chance to correct

any mistakes), and unlike WYSIWYS there is not a

mandatory secondary check of initially entered data

as a security action that the user has to perform. If a

user already checked the information on correctness

when it was entered, it would not be required to thor-

oughly check an overview of the data before ﬁnal ap-

proval is given.

3.6 Attack Analysis

The security of the system is based upon the gener-

ation and veriﬁcation of the MAC, which provides

integrity (‘Was the data changed in any way?’) and

authenticity (‘Does the data come from the expected

source?’). An adversary not having access to the key

should be unable to generate valid MACs at will.

European Committee for Bank-

ing Standards (August 2013) - IBAN:

http://www.europeanpaymentscouncil.eu/

documents/ECBS IBAN standard EBS204

V3.2.pdf

3.6.1 The Random Adversary

Steps 5 and 9 of Figure 5 are where malware could

modify transaction data before it is sent to the bank

and the bank’s reply before it is returned to the user.

Imagine that an adversary wants to change the des-

tination account number silently at the beginning of

step 5. An account controlled by the adversary is

NL 38 VIRB 0 307 633 357 (at the ﬁctional VIRtual

Bank). The attacker modiﬁes the data as follows (pre-

sented in their most clear data types for clarity) in step

Account Amount MAC

Original:

759595879

123456.78 0x77 0x64 0xCE

Modiﬁed:

307633357

123456.78 0x77 0x64 0xCE

When only the account number is changed in step

5, the bank would notice upon processing the data in

step 7 that the generated MAC is not based on the re-

ceived account and amount data. If the MAC does not

ﬁt the message (account and amount), the transaction

is discarded. For steps 8 and onward, the bank might

notify the user to contact the bank for clariﬁcation.

3.6.2 The Known Adversary

A ‘known’ adversary is an adversary to which the user

(for a legitimate reason) transfers money to, either at

the moment of an attack or in the past. The known

adversary, having full control of the user’s computer,

can attempt to use an older valid transaction code of

a transaction to the adversary to create a new transac-

tion in a replay attack.

Due to the inclusion of a nonce in the MAC, it is

possible for the bank to detect a replay attack. In our

example, we used a counter that increases by one for

each generated MAC. A bank could detect a replay at-

tack by storing n

, the nonce of the last received legit

message. Attempts to verify the MAC of the replayed

message would fail since n

would be lower than n

and the bank only checks the current and higher n

values.

Another potential attack vector exists with a

known adversary. If the user prepares a legitimate

transaction to the adversary, the adversary could

change the conﬁrmation that is given in step 10 to the

user. Through control of the user’s computer, the ad-

versary could change the veriﬁcation information in

step 9 and make the user think that the transaction

failed, which could make the user re-authenticate the

transaction and send it again. The re-attempt would

concern a second (illegitimate) transaction. Banks

could provide protection against this by monitoring

repeated transactions to the same destination account

number within a certain time frame.

SECRYPT 2016 - International Conference on Security and Cryptography

268

3.6.3 The Determined Adversary

The used MAC is relatively short (23 bits in the exam-

ple), to keep the MC as short as possible and to make

it align with the 5 bit boundary of Z-Base 32. A deter-

mined adversary might attempt to brute force a valid

MAC, since for every payload it can be expected that

one valid MAC exists in the range of 2

and since the

adversary has a 50% probability of guessing a correct

MAC when 2

attempts are made.

What limits an adversary is that the MAC can only

be veriﬁed by the bank (due to missing the secret

key required for generating and verifying the MAC).

The bank can register accounts for which repeatedly

wrong MACs are generated, and not process further

attempts from them for a speciﬁed amount of time.

An example could be a policy that limits the number

of wrong MACs to ten, after which further attempts

are hindered (such as, the customer of the account has

to contact the bank). With ten attempts, an adversary

has a 100%∗

= 0.00012% chance of success.

Brute forcing a transaction to a random destina-

tion address would not aid the adversary. In the un-

likely event that a valid MAC would be generated for

one message, it would not disclose the key required to

generate MACs for another message with a different

account number. Therefore, the destination address

provided by an adversary would most likely be under

control of the adversary. Further transactions to a des-

tination address for which multiple wrong MACs are

generated can be delayed or blocked by the bank.

4 DISCUSSION, LIMITATIONS

AND FURTHER RESEARCH

In Section 2 we analyzed methods that can be used

to create an MC. The case study in Section 3 shows

that it is possible to use a selection of these methods to

create and verify an MC for transaction authentication

in online banking in a way that is device-independent

and does not rely on the user to make redundant se-

curity decisions. Note that this is a case study which

only addresses the challenges faced in a single sce-

nario. Other scenarios could present different obsta-

cles and different methods might be more appropriate

to overcome these using an MC, or the use of an MC

might not be appropriate at all. For example, the case

study applied the WYEIWYS information scheme,

which is only usable if the user provides transaction

information and not a third-party (such as an online

e-commerce system). In the case of the latter, WYSI-

WYS might still be the best method to authorize such

transactions.

Further research could experiment by testing the

(perceived) usability when transferring MCs from one

device to another using different manual methods (al-

phanumerical, numerical, words-based), and possibly

expand on the idea of using automated methods when-

ever the use case allows it (such as QR codes through

mobile devices). Another point for further research is

mitigation of the attack vector described at the end of

Section 3.6.2, in which an adversary can trick a user to

perform a legitimate transaction again as a fraudulent

transaction. An example of such a mitigation might

be the authentication of a bank’s reply. In addition,

further research could examine whether WYEIWYS

using a code would be usable in other scenarios in

which a user needs to supply critical information us-

ing an untrusted environment, such as for providing

a phone number for (further) out-of-band authentica-

tion.

5 CONCLUDING REMARKS

We proposed a method that allows humans to transfer

both a message and data to secure the integrity and

authenticity of the message by transcribing a single

code. Different methods were examined to construct

such a code in a way that makes the transfer user-

friendly. In addition, a case study was performed in

which such a code was used to secure online banking

transactions for which the user provides critical infor-

mation.

The case study shows that for online banking, the

use of a Message Code can remove the necessity for

a user to verify entered information twice, as is cur-

rently done. By taking away a critical decision from

the user, usability is improved since the user has less

critical choices to make, which also improves security

since authenticity and integrity of the data rely less on

user activities.

ACKNOWLEDGMENTS

This article is a product of the Dutch Research Pro-

gram on Safety and Security of Online Banking. The

research program is funded by the Dutch banking sec-

tor (represented by the Dutch Banking Association),

the Police Academy, and the Dutch National Police.

REFERENCES

AlZomai, M., AlFayyadh, B., Jøsang, A., and McCullagh,

A. (2008). An exprimental investigation of the usabil-

User-friendly Manual Transfer of Authenticated Online Banking Transaction Data - A Case Study that Applies the What You Enter Is What

You Sign Transaction Authorization Information Scheme

269

ity of transaction authorization in online bank secu-

rity systems. In Proceedings of the sixth Australasian

conference on Information security-Volume 81, pages

65–73. Australian Computer Society, Inc.

Curran, K. and Dougan, T. (2012). Man in the Browser

Attacks. Int. J. Ambient Comput. Intell., 4(1):29–39.

Felt, A. P., Finifter, M., Chin, E., Hanna, S., and Wagner, D.

(2011). A Survey of Mobile Malware in the Wild. In

Proceedings of the 1st ACM Workshop on Security and

Privacy in Smartphones and Mobile Devices, SPSM

’11, pages 3–14, New York, NY, USA. ACM.

Gallagher, M. A. and Byrne, M. D. (2015). Modeling Pass-

word Entry on a Mobile Device. In Proceedings of the

International Conference on Cognitive Modeling.

Herley, C. (2009). So Long, and No Thanks for the Ex-

ternalities: The Rational Rejection of Security Advice

by Users. In Proceedings of the 2009 Workshop on

New Security Paradigms Workshop, NSPW ’09, pages

133–144, New York, NY, USA. ACM.

Kiljan, S., Simoens, K., De Cock, D., van Eekelen, M., and

Vranken, H. (2014a). Security of Online Banking Sys-

tems. Technical Report TR-OU-INF-2014-01 (Open

Universiteit).

Kiljan, S., Vranken, H., and Van Eekelen, M. (2014b). What

You Enter Is What You Sign: Input Integrity in an

Online Banking Environment. In Socio-Technical As-

pects in Security and Trust (STAST), 2014 Workshop

on, pages 40–47.

Poll, E. and de Ruiter, J. (2013). The Radboud Reader: A

Minimal Trusted Smartcard Reader for Securing On-

line Transactions. In Policies and Research in Iden-

tity Management - Third IFIP WG 11.6 Working Con-

ference, IDMAN 2013, London, UK, April 8-9, 2013.

Proceedings, pages 107–120.

Sobti, R. and Geetha, G. (2012). Cryptographic Hash Func-

tions: A Review. International Journal of Computer

Science Issues, 9(2):461–479.

Weigold, T. and Hiltgen, A. (2011). Secure conﬁrmation of

sensitive transaction data in modern Internet banking

services. In Internet Security (WorldCIS), 2011 World

Congress on, pages 125–132.

Wiseman, S., Mino, G. S., Cox, A. L., Gould, S. J., Moore,

J., and Needham, C. (2016). Use Your Words: De-

signing One-time Pairing Codes to Improve User Ex-

perience (to be published). In Proceedings of the 34rd

Annual ACM Conference on Human Factors in Com-

puting Systems. ACM Publications.

SECRYPT 2016 - International Conference on Security and Cryptography

270
