Evaluating SRAM as Source for Fingerprints and Randomness

on Automotive Grade Controllers

Bogdan Groza, Pal-Stefan Murvay and Tudor Andreica

Department of Automatics and Applied Informatics, Politehnica University of Timisoara, Timisoara, Romania

Keywords:

Physical Fingerprinting, Randomness, SRAM.

Abstract:

It is well known that the state of uninitialized SRAM provides a unique pattern on each device due to physical

imperfections. Both the afﬁnity toward some ﬁxed state as well as the deviation from it can be successfully

exploited in security mechanisms. Fixed values provide an efﬁcient mechanism for physical identiﬁcation and

for extracting cryptographic keys while the randomness of bits that ﬂip can be exploited as input for PRNGs

that are vital for the generation of ephemeral keys. In this work we try to give an assessment of these two ca-

pabilities on several state-of-the art automotive grade embedded platforms. The security of embedded devices

inside vehicles has gained serious attention in the past years due to the impact of emerging technologies, e.g.,

self-driving cars, vehicle-to-vehicle communication, which are futile in the absence of the appropriate secu-

rity mechanisms. Our examination of several state-of-the-art automotive grade controllers shows that SRAM

can offer sufﬁcient entropy and patterns for identiﬁcation but careful testing is needed as some models fail to

provide the expected results.

1 INTRODUCTION AND

MOTIVATION

Recent experimental research (Checkoway et al.,

2011), (Koscher et al., 2010) showed vehicles to be

trivial targets in front of determined adversaries. This

line of comprehensive academic research was pre-

ceded or followed by several other works in which a

plethora of vehicular subsystems were attacked, e.g.,

wireless keys (Ishtiaq Roufa et al., 2010), (Verdult

et al., 2012), (Wetzels, 2014), (Shoukry et al., 2013),

(Tillich and Wójcik, 2012), (Francillon et al., 2011),

wireless tire sensors (Verdult et al., 2012), the ABS

braking system (Shoukry et al., 2013), etc. Recent

surveys are done in (Miller and Valasek, 2014) and

(Studnia et al., 2013).

Security tools for alleviating these problems exist,

e.g., cryptographic protocols, but they do require the

existence of some capabilities that may be absent in

automotive grade controllers. Random number gen-

erators are one such resource that is not to be found

in several automotive grade platforms, e.g., none of

state-of-the-art devices that we target in the follow-

ing sections has such functionality. Adding peripheral

circuitry is not always an option as it increases pro-

duction costs. The automotive industry is highly sen-

sitive to ﬁnancial issues as devices are usually repli-

cated in many thousands or even millions of copies.

In terms of performance, automotive embedded

devices could be compared with earlier mobile de-

vices for which the problem of randomness gen-

eration was previously aproached (Krhovjak et al.,

2009). However, the main randomness sources em-

ployed in these cases (i.e. microphone and camera

input) are not generally available in automotive Elec-

tronic Control Units (ECUs).

Randomness is not the only desired functionality.

The capability of uniquely identifying a device is vi-

tal as well as extracting a key that was not previously

stored in the non-volatile memory. This opens road

for physical identiﬁcation of a device and for build-

ing cryptographic protocols that rely on keys that are

harder to extract and do not require an a-priori setup.

A more comprehensive discussion on such applica-

tions will follow.

The idea of using SRAM state as source for ﬁn-

gerprinting devices or for generating randomness was

ﬁrst explored by Holcomb et al. (Holcomb et al.,

2007), (Holcomb et al., 2009). At the same time,

it was noted by Guajardo et al. (Guajardo et al.,

2007a), (Guajardo et al., 2007b), that physical un-

clonable characteristics can be used for assuring Intel-

lectual Property (IP) protection, e.g., unique patterns

derived from the device characteristics can be used as

Groza, B., Murvay, P-S. and Andreica, T.

Evaluating SRAM as Source for Fingerprints and Randomness on Automotive Grade Controllers.

DOI: 10.5220/0005966401090120

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 109-120

ISBN: 978-989-758-196-0

109

encryption/decryption keys making the software us-

able only on the device that has the prescribed char-

acteristics. A survey on various sources behind Phys-

ically Unclonable Functions (PUFs) can be found in

(Maes and Verbauwhede, 2010), another overview is

available in (Rührmair and Holcomb, 2014).

While the idea of using SRAM state is not new,

here we target a distinct class of application and pro-

vide experimental results on platforms that to the best

of our knowledge were not subject to previous analy-

sis, i.e., automotive grade controllers. We begin with

a brief overview of potential applications in the auto-

motive domain.

1.1 Target Automotive Scenarios

To emphasize on the relevance of our analysis for au-

tomotive applications, here we outline three scenarios

that are target of our current and future work:

(i) Random Number Generators. The state-of-the-

art is generous in providing sources for ran-

domness. Oscillator drifts, the noise of Zen-

ner diodes, ring oscillators, etc. can be used as

sources of entropy. However, there are many

automotive embedded boards that do not have

such sources for garnering entropy. Moreover,

adding extra-circuitry is not always allowed and

it clearly increases the production costs which

is not desired by manufacturers. A relevant

example is the Tire Pressure Monitoring Sys-

tem (TPMS) which uses miniature sensors that

are placed inside the tire. Previous work (Ish-

tiaq Roufa et al., 2010) has shown this system

to have vulnerabilities that can easily lead to

several attacks: eavesdropping, vehicle track-

ing, battery drainage, message modiﬁcation,

etc. The academic community was quick to re-

act with proposals, e.g., (Xu et al., 2013) and

(Solomon and Groza, 2015), while the industry

proves to be aware too (Toth, 2014). Unfortu-

nately, the results presented in (Xu et al., 2013)

are on an Arduino based platform which is not

at all similar in terms of capabilities with real-

world sensors (that are far more constrained).

One of the most frequently used platform in

TPMS systems, i.e., the Inﬁneon SP37 from

(Solomon and Groza, 2015) which is also in-

cluded in our study, has no extra-circuitry for

generating randomness. In the absence of a se-

cure RNG, all the protocols proposed in (Xu

et al., 2013), (Solomon and Groza, 2015) are

void of practical signiﬁcance. Consequently,

one of the objectives of our work is to study

the security of the randomness extracted from

SRAM cells by providing concrete measure-

ments. In case of the SP37 sensor, our results

show that the entropy that can be extracted is not

high mostly due to the small size of the available

RAM.

(ii) ECU Fingerprinting. A common problem faced

by the automotive industry is the illegal re-

placement of various ECUs (Electronic Con-

trol Units) inside the car. E.g., by simply re-

placing the BCM (Body Control Module) one

can gain access to the car with a distinct car

key that is paired to the newer BCM. Stor-

ing some cryptographic keys inside the non-

volatile memory of the genuine ECU and later

use it for authentication is not a solution in case

that the adversary can gain access to this non-

volatile memory and copy it to a counterfeit

ECU. Cloning the software from one ECU to an-

other one will make these ECUs indistinguish-

able from the software level. However, using

the SRAM state as a ﬁngerprint can be a re-

alistic mean to decide if a particular ECU is

indeed the genuine one. As part of the diag-

nosis systems (a standardized functionality in-

side a car) each ECU can be requested to exter-

nalize a unique ﬁngerprint which can be stored

by the manufacturer (or some authorized third-

party) for subsequent veriﬁcation. In Figure 1

we make a suggestive depiction for such a pro-

tocol. To remove the need for a more demand-

ing protocol, we assume that the ECU regis-

tration procedure is done in a secure environ-

ment (indeed, this should be the case in prac-

tical scenarios). During the registration stage,

each ECU externalizes a ﬁngerprint, i.e., several

bytes from the uninitialized SRAM, to the OBD

(On-board Diagnosis Tool) which further sends

them to an OEM (Original Equipment Manu-

facturer) server where the ﬁngerprint is stored.

To make the ECU cooperate and externalize the

ﬁngerprint, the OBD tool ﬁrst sends a request

req which is signed by the OEM along with a

time-stamp t

req

to enforce freshness. The signa-

ture of the OEM s

OEM

= Sign

OEM



req,t

req



used to enforce only authorized sessions to ac-

quire this ﬁngerprint. The ECU then external-

izes the ﬁngerprint F

ECU

along with its identi-

ﬁer id

ECU

which are signed by the OBD tool and

sent to the OEM server. Later, for ECU identi-

ﬁcation, we rely on fuzzy cryptography as the

ﬁngerprint extracted from the ECU may present

small variations when compared to the original

one. First, the ECU sends its identiﬁcation num-

ber id

ECU

and some random value rnd

ECU

. Then

SECRYPT 2016 - International Conference on Security and Cryptography

110

the OBD tool sends a value that is encrypted

with the ﬁngerprint enc

ECU

(rnd

ECU

,rnd

OBD

)

and the helper data H

ECU

which will be used

to compensate for the noise in the new ﬁnger-

print. The ECU proves its identity by success-

fully decrypting the random value rnd

OBD

. The

encrypted challenge enc

ECU

(rnd

ECU

,rnd

OBD

)

can be of course generated by either the OBD

tool by acquiring the ﬁngerprint F

ECU

from the

OEM or by the OEM itself.

ECU registration (Secure Environment)

1. OBD → ECU: req,t

req

OEM

= Sign

OEM



req,t

req



2. ECU → OBD: id

ECU

3. OBD → OEM: id

ECU

dev

OBD

Sign

OBD

(id

ECU

dev

)

ECU identiﬁcation (Insecure Environment)

1. ECU → OBD: id

ECU

,rnd

ECU

2. OBD → ECU: H

ECU

,enc

ECU

(rnd

ECU

,rnd

OBD

)

3. ECU → OBD: rnd

ECU

,rnd

OBD

Figure 1: Suggestive depiction of component registration

and subsequent identiﬁcation based on ﬁngerprint.

(iii) Generation of unique cryptographic keys. There

are numerous devices inside the car which need

to operate with a unique cryptographic key. A

good example are wireless car keys (RF keys)

which despite being produced in thousands of

identical copies need to be seeded with unique

cryptographic keys (to avoid impersonation).

Many other examples can be envisioned, but

car keys are one of the most intensively stud-

ied vehicular device both in terms of practical

instances, e.g., (Verdult et al., 2012), (Wetzels,

2014), (Shoukry et al., 2013), (Tillich and Wój-

cik, 2012), (Francillon et al., 2011) or crypto-

graphic designs (Biham et al., 2008). Using

memory patterns offers an excellent alternative

to build an per-item unique key without speciﬁc

programming of the device, i.e., the uniqueness

of the key is simply guaranteed by the unique-

ness of the memory pattern. In Figure 2 we

make a suggestive depiction for a protocol in-

tended for key registration and subsequent ac-

cess to the car, this procedure is of course simi-

lar to the ECU ﬁngerprinting. First an OBD tool

initializes the BCM (Body Control Module) to

accept the ﬁngerprint from an RF key F

dev

. The

ﬁngerprint is sent by the RF key along with its

identiﬁcation number id

RFKey

. Again, to remove

the need for a more demanding protocol, we as-

sume that the key registration procedure is done

in a secure environment. For subsequent authen-

tication, the BCM sends a random challenge

rnd

BCM

which is coupled with the challenge

from the key rnd

RFKey

and encrypted with the

ﬁngerprint F

dev

(note that F

dev

may have some

bits affected by noise in comparison with the

original F

dev

) as enc

dev



rnd

RFKey

,rnd

BCM



For successful decryption and veriﬁcation from

the BCM, this is send along with helper data

dev

Key registration (Secure Environment)

1. OBD → BCM: req,t

,Sign

OEM

(req,t

)

2. RFKey → BCM: id

RFKey

dev

Authentication (Insecure Environment)

1. RFKey → BCM: rnd

RFKey

2. BCM → RFKey: rnd

BCM

3. RFKey → BCM: H

dev

, enc

dev



rnd

RFKey

,rnd

BCM



Figure 2: Suggestive depiction of key registration and sub-

sequent authentication based on ﬁngerprint.

These applications are graphically suggested in

Figure 3. The protocol depictions in Figures 1 and 2

are mere suggestions as it should be clear that prac-

tical adoption demands both standardization and a

more rigorous security analysis. But before that, in or-

der to test the feasibility of these ideas we need some

experimental measurements for the quality of SRAM

in providing the desired entropy and unique patterns.

This is the main goal of our work.

Our work is organized as follows. In Section 2

we provide a brief overview on the automotive grade

controllers that we put to test. Section 3 provides an

overview of the mathematical tools that we use for the

evaluation while section 4 provides the experimental

data.

2 DEVICES AND TECHNICAL

DETAILS

We begin by presenting the devices that are target of

our experiments, these are speciﬁcally chosen to meet

a large variety of automotive applications. Then we

proceed to presenting some technical details on how

memory dumps were performed on each of the de-

vices.

Evaluating SRAM as Source for Fingerprints and Randomness on Automotive Grade Controllers

111

LF/HF Receiver

Wheel Sensor (Infineon SP37T) Wheel Sensor (Infineon SP37T)

(Infineon SP37T) Wheel SensorWheel Sensor (Infineon SP37T)

LF/HF Antenna

Instrumet

Cluster

BCM

Engine

Control

Diagnosis

Module

Generate Random Session Key

Generate Fingerprint

Generate Random Session Key

Generate Fingerprint

Generate Random Session Key

Controller Area Network (CAN)

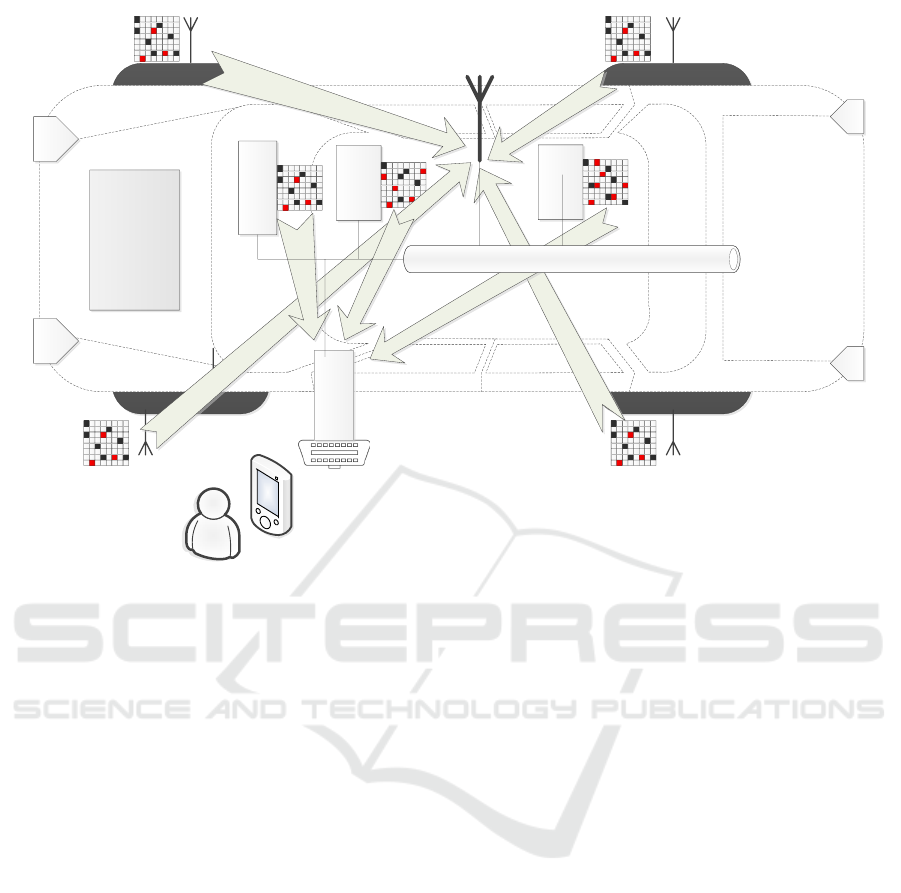

Figure 3: Suggestive depiction of our target automotive applications: generating randomness and ECU ﬁngerprinting (memory

cells depicted as constant zeros (white), ones (black) or ﬂipping (red).

2.1 Target Devices

The chosen microcontrollers cover the major device

categories employed in the automotive industry in

terms of available resources and processing power.

We now enumerate through these platforms and also

give hints on the target automotive scenario for each

of them:

(i) INFINEON SP37. This device represents the

low-end of the hierarchy, an application speciﬁc

integrated circuit built for tire pressure sensing

around an 8-bit 8051 core. The SP37 sensor has

a RAM memory that is limited to 256 bytes.

Due to inherent constraints on this platform

both ﬁngerprinting and generating randomness

are important functionalities for the applications

where this sensor is deployed.

(ii) FREESCALE S12 FAMILY. From the 16-bit

category we selected three members of the

S12 microcontroller family: MC9S12C128 ,

MC9S12DT256 and MC9S12XDP512 . They

are all built on the same S12 architecture with

the last one having an additional coprocessor

called XGATE. In terms of available RAM the

three platforms have 4KB, 12KB and respec-

tively 40KB of RAM. Members of this family

are suited for vehicle body components with av-

erage performance needs.

(iii) TEXAS INSTRUMENTS MSP FAMILY. Another

16-bit candidate included in our study is the

MSP430F2274 from Texas Instruments which

can be used in various vehicle body and info-

tainment applications. While members of the

MSP430 family can have up to 8KB of RAM,

our device features a memory of 1KB.

(iv) RENESAS RL78 FAMILY. The RL78/F14 is a

16-bit microcontroller from Renesas. It is used

in various automotive applications such as mo-

tor and body control, etc. The R5F10PPJ core

that we tested is equipped with a 20KB RAM

memory.

(v) INFINEON TRICORE FAMILY. In the high-end

32-bit microcontroller area we looked at the In-

ﬁneon TriCore family and selected two devices,

TC1782 and TC1797 designed for demanding

applications in the powertrain domain. They

both integrate the same TriCore 1.3.1 core us-

ing a total of 176KB of RAM and an addi-

tional coprocessor for peripheral management

with 16KB of RAM. The total RAM avail-

able is comprised of several sections of mem-

ory with various roles. We only used dumps

SECRYPT 2016 - International Conference on Security and Cryptography

112

from those RAM areas which are not used as

caches. The RAM associated with the main pro-

cessor is called Local Data RAM (LDRAM) and

has a size of 124KB that could be increased to

128KB if the data cache is not used. The main

core makes use of a program memory inter-

face with a 24KB Scratch-Pad RAM (SPRAM)

which could go up to 40KB if reducing the in-

struction cache size. The program memory unit

holds an additional 8KB of RAM called Over-

lay RAM. Finally, the 16KB of RAM associ-

ated with the coprocessor is called Parameter

RAM (PRAM). TC1782 features ECC (Error-

Correcting Code) protection for the RAM mem-

ories. Therefore, it is necessary to have the

RAM initialised to get a reliable working ECC.

If the initial state of the ECC-protected mem-

ory is undeﬁned the system will report and try to

correct bit errors that are erroneously detected.

(vi) OTHER PLATFORMS. Two additional platforms

from Freescale were also part of our study:

S12ZVHY64 and MPC5606B. They too have

ECC protected RAM but due to the way in

which the error protection mechanism is im-

plemented, the RAM on these platforms is not

suitable for ﬁngerprinting or as randomness

sources. On the S12ZVHY64, the ﬁrst access

to an uninitialised RAM location leads to the

initialization of that area before the read data is

returned. In the case of the MPC5606B a read

from the uninitialised RAM generates an error

interrupt which leads to a reset making it im-

possible to read the actual random data from the

memory. These are just two examples of devices

on which ECC protection prevents the access

to the raw RAM data after power-on reset but

similar situations can be encountered on various

other platforms.

Table 1 briefs over the employed platforms by also

specifying the size of available RAM on each.

2.2 Technical Details

We used two approaches for reading out the RAM

content from the selected microcontrollers. The ﬁrst

one is based on the debugger interface while the sec-

ond one uses serial communication.

The debugger interface was used for all platforms

where the corresponding debugger software provided

features for saving the content of the entire memory

areas. For this, a debugger connection was established

following a hard-reset with or without downloading of

object code (program download to ﬂash was avoided

where RAM areas were used as buffers during the

ﬂashing process). Program execution was stopped

at the ﬁrst instruction that allowed breakpoint setting

and at this point the content of RAM was read and

saved for processing. The applications residing on

the microcontrollers were in all cases limited to just

the most basic system initialization. This approach

was used for the MSP430 and TriCore platforms.

Some debugger software products do not offer the

possibility of dumping the content of memory areas

to a ﬁle. This was the case for the debuggers used

for the S12 and SP37 platforms. To address this, we

implemented a small application that read the content

of the RAM and sent it through a serial interface to

a PC on which the dump ﬁles were built. This com-

promised the initial content of several bytes in RAM

which were needed for program execution. The com-

promised memory locations were not included in the

analysis.

For each of the devices in our study, 100 mem-

ory dumps were taken for the analysis. Increasing the

number of samples from 50 to 100 did not lead to sig-

niﬁcant changes in the results, thus we considered 100

samples to be a sufﬁcient amount.

3 TESTING METHODOLOGY

AND RESULTS

We begin by a brief overview of the mathematical

tools behind our evaluation. We then proceed to the

measurements achieved for each of the devices.

3.1 Mathematical Tools

We now give a formal treatment of the mathemati-

cal tools that we use in our quantitative assessment

of SRAM for providing ﬁngerprints and randomness.

We denote as ﬁngerprint F

dev

of device dev, one ﬁxed

memory dump of the device which is the set of all val-

ues m for the ` memory locations taken into account ,

i.e.,

dev

= {m

dev

,...,m

dev

}

We do deﬁne the memory state S

dev

of device dev

in each subsequent experiment i ∈ [1..e] as:

dev

= {m

dev

,...,m

dev

}

Over all the experiments space, for any pair of de-

vices dev

,dev

we can now deﬁne two random vari-

ables which are of relevance to our analysis: the intra-

distance between distinct memory mappings of the

same device and the inter-distance between memory

mappings of two devices. That is,

Evaluating SRAM as Source for Fingerprints and Randomness on Automotive Grade Controllers

113

Table 1: Automotive grade platforms subject of our study.

Device Architecture Frequency RAM size Manufacturer

SP37 8 bit 12MHz 256B Inﬁneon

MC9S12C128 16 bit 50 MHz 4KB Freescale

MC9S12DT256 16 bit 50 MHz 12KB Freescale

MC9S12XDP512 16 bit 80 MHz 20KB Freescale

MSP430F2274 16 bit 16 MHz 1KB Texas Instruments

RL78/F14 32 bit 64 MHz 20KB Renesas

TC1782 32 bit 180 MHz 176KB Inﬁneon

TC1797 32 bit 180 MHz 176KB Inﬁneon

(i) the intra-distance is the Hamming distance be-

tween memory mappings of device dev

and the

ﬁngerprint F

dev

of device dev

, deﬁned as a ran-

dom variable over all e experiments:

dev

= Hamming(F

dev

),∀i ∈ [1..e]

(ii) the inter-distance is the Hamming distance be-

tween the memory mappings of device dev

and

the ﬁngerprint F

dev

of device dev

, deﬁned as a

random variable over all e experiments:

dev

,dev

= Hamming(F

dev

),∀i ∈ [1..e]

The intra-distance and inter-distance are useful

measurements for establishing the quality of ﬁnger-

prints that can be extracted from the device.

For assessing the quality of random sequences and

the entropy that results we need to measure the guess-

ing probability and entropy for each cell. These are

deﬁned as follows:

(iii) let memory cell m

(taken as byte) of device dev

be a random variable over the experiment space,

the guessing probability of memory cell m

device dev is deﬁned as the maximum probabil-

ity that cell m

takes a particular value, i.e.,

dev

) = max

{

Pr[m

= v] : v ∈ {0..255}

}

(iv) by deﬁnition, the minimum entropy of mem-

ory cell m

is log

(1/γ

dev

)) and consequently

we deﬁne the minimum entropy that can be ex-

tracted from the memory of device dev as the

sum of entropies for all the memory cells, i.e.,

dev

∑

i=1,`

log

(1/γ

dev

))

To account for potential manufacturing problems

between devices of the same type, we do measure the

Hamming distance between adjacent cells as well as

the distance between cells of extreme behaviour. For

the later, we take into account both bits of low entropy

The equation considers 8-bit memory cells.

and high entropy, where by low or high we deﬁne bits

that are greater or equal in value to one standard devi-

ation from the mean.

Let γ

dev

be the random variable that denotes the

guessing probability of an arbitrary memory cell from

device dev. Having the mean µ(γ

dev

) and variance

Var(γ

dev

), let the following two set of indexes deﬁned

over the guessing probabilities of each cell of device

dev:

low

dev

i : γ(m

dev

) ≤ µ(γ

dev

) + Var(γ

dev

)

high

dev

i : γ(m

dev

) ≥ µ(γ

dev

) + Var(γ

dev

)

Let, λ,Λ denote the cardinalities of the sets deﬁned

above I

low

dev

and I

high

dev

, then:

(v) we deﬁne the set of successive distances be-

tween locations of extreme cells with low or

high entropy on device dev as:

low

dev

d : d ← min (|x

i−1

− x

|,|x

− x

i+1

|),

i = 2..λ−1, x

∈ I

low

dev

high

dev

d : d ← min (|x

i−1

− x

|,|x

− x

i+1

|),

i = 2..Λ−1, x

∈ I

high

dev

(vi) we deﬁne the set of Hamming distances between

pairs of adjacent cells on device dev as:

dev

d : d ← Hamming(m

dev

2∗i

dev

2∗i+1

∀i ∈ [1..`/2]

The Hamming distances between pairs of adjacent

cells, while trivial to deﬁne, proved to be a very rel-

evant metric as at least two devices that yield good

entropy values later failed on this metric. Thus the

metric proves to be a very good sanity check.

SECRYPT 2016 - International Conference on Security and Cryptography

114

3.2 Experimental Data

The experimental results are obtained by analyzing

100 consecutive memory dumps on each of the de-

vices. For ﬁngerprints, we used the ﬁrst 64, 128 and

256 bits from the memory. By taking bytes located at

the end of the memory the results remained the same

as taking bytes from the beginning. The rest of the

analysis, i.e., guessing probability and entropy, was

done on the full memory dump over the entire set of

100 experiments.

(i) (ii)

(iii)

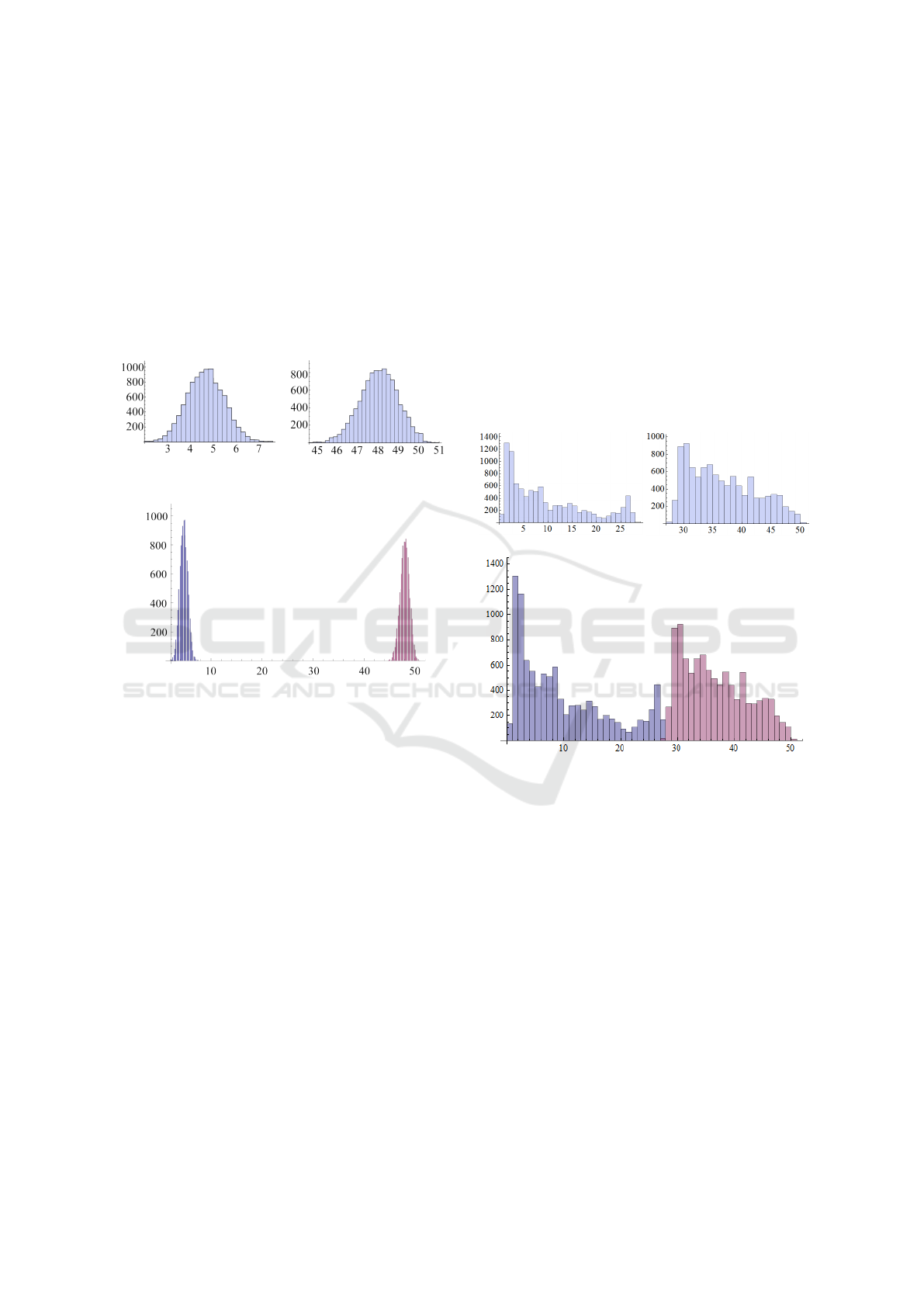

Figure 4: Experimental results on an MC9S12XDP512 :

intra-distance (i), inter-distance (ii) and the two combined

(iii) - measured as % for a larger ﬁngerprint of 512 bits.

FINGERPRINTING. The results were satisfactory

on most of the devices, with isolated abnormalities

on which we defer the discussion for the forthcom-

ing paragraph. The complete experimental results are

shown in Table 2. For ﬁngerprinting, memory dumps

from the same device show a variation for the mean of

the intra-distance µ(I

dev

) from 2.35% to 6.36% on all

of the Freescale S12 cores. When compared between

distinct devices the mean inter-distance µ(E

dev

,dev

)

ranged from 45.12% up to 51.73% which shows a

clear cut between the intra and inter-distances. This

allows an exact identiﬁcation of the device from a

small ﬁngerprint, e.g., 64-256 bit. Figure 4 shows the

plotted histogram for an MC9S12XDP512 core.

FINGERPRINT OVERLAPS FOR MSP430F2274 .

On the Texas Instruments platforms the results were

far from being satisfactory. The overlap between the

ﬁngerprint from one device and another is high. The

mean of the intra-distance µ(I

dev

) is between 7.28%–

8.81% and the mean of the inter-distance µ(E

dev

,dev

)

between 31.90%–36.96% which shows that ﬁnger-

prints are statistically distinguishable. However, the

high variance which leads to clear overlaps suggests

that multiple memory dumps will be needed for cor-

rect identiﬁcation. We are left without a clear ex-

planation for the source of this overlap and we can

imagine that distinct development boards equipped

with these cores may lead to distinct results. But for

the devices that we worked with, we are skeptical on

their potential practical use for this purpose. Figure 5

shows such an overlap for a 512 bit ﬁngerprint, which

should be sufﬁciently large for practical demands but

still cannot lead to a clean cut between the intra and

inter-distance.

(i)

(ii)

(iii)

Figure 5: Experimental results on MSP430F2274 : intra-

distance (i), inter-distance (ii) and the two combined (iii) -

measured as % for a ﬁngerprint of 512 bits.

f6 fb 62 ff bf de fc 44

ff f7 eb d7 ff fe f7 bf

37 ff f1 ff ff c7 5e bf

6d f6 65 af ff 6f bf eb

1b 18 10 20 20 60 80 2

0 0 80 1 0 15 91 68

97 0 a0 1 a0 4 11 24

0 0 82 54 81 1 3 a2

Figure 6: Biased chunks from un-initialized SRAM: 64 bits

at odd addresses (left) and 64 bits at even (right) addresses

on TC1782.

RANDOMNESS. The complete experimental re-

sults related to entropy are shown in Table 3 which

summarizes the mean and variance for the guess-

ing probability of each cell γ

dev

, the entropy of

each cell H

dev

and the hamming distances of ad-

jacent cells H

dev

. Graphical depictions are pro-

vided for the state of SRAM on each of the devices:

for MC9S12C128 and MC9S12DT256 in Figure 8,

Evaluating SRAM as Source for Fingerprints and Randomness on Automotive Grade Controllers

115

Table 2: Determined values for intra and inter-distances on the experimental devices (rows containing atypical results are

highlighted in gray).

Device Fingerprint Intra-distance Inter-distance

Size Mean Variance Mean Variance

dev

| µ(I

dev

) Var(I

dev

) µ(E

dev

,dev

) Var(E

dev

,dev

)

MC9S12XDP512 64 bit 5.02% 5.15% 46.93% 7.72%

MC9S12XDP512 128 bit 5.61% 2.66% 45.40% 4.11%

MC9S12XDP512 256 bit 4.87% 1.12% 49.08% 1.78%

MC9S12DT256 64 bit 2.35% 2.52% 48.74% 5.57%

MC9S12DT256 128 bit 3.86% 2.33% 47.26% 3.36%

MC9S12DT256 256 bit 3.71% 1.10% 48.95% 1.64%

MC9S12C128 64 bit 4.95% 5.43% 45.12% 4.59%

MC9S12C128 128 bit 6.36% 5.04% 51.73% 2.85%

MC9S12C128 256 bit 5.35% 2.48% 47.91% 1.81%

RL78/F14 64 bit 5.36% 13.88% 46.40% 18.22%

RL78/F14 128 bit 5.62% 6.85% 50.25% 6.82%

RL78/F14 256 bit 5.64% 4.90% 48.53% 2.89%

MSP430F2274 64 bit 8.81% 123.57% 31.90% 81.35%

MSP430F2274 128 bit 7.28% 83.83% 35.21% 49.38%

MSP430F2274 256 bit 7.72% 72.91% 36.96% 39.25%

(i)

(ii)

(iii) (iv)

Figure 7: Distribution of bytes with dominant ones (red),

zeros (black) or half zeros half ones (white) for: (i)

MC9S12XDP512 , (ii) TC1797 , (iii) TC1782 and (iv)

MSP430F2274 .

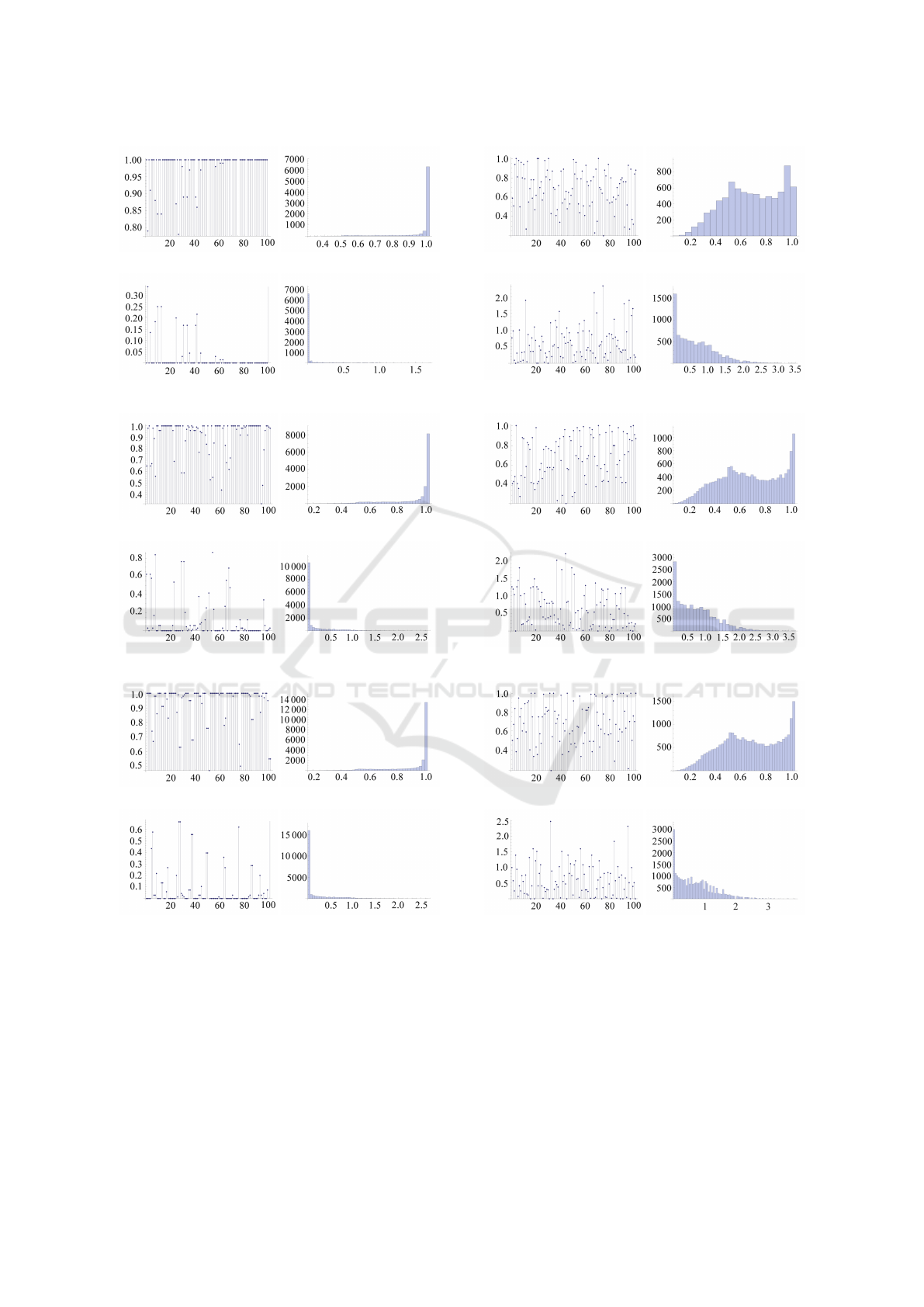

MSP430F2274 in Figure 9, SP37 in Figure 10, for the

4 memory areas from TC1782 and TC1797 in Figures

11, 12, 13 and 14. In all of the previous ﬁgures, we

depict the guessing probability of consecutive mem-

ory cells in the upper left corner followed by the his-

togram for the distribution of guessing probabilities

on the right side. Then we depict the entropy of con-

secutive memory cells in the bottom left corner and

the histogram for the distribution of entropies on the

right side. All of the plots show similar distributions.

The entropy varied from 0.39 bits/byte in case of

the MC9S12C128 core up to 0.70bits/byte in case of

the TC1797 core. This amount of entropy should be

enough for devices equipped with sufﬁcient memory.

However, for the case of the SP37 the results show

that the amount of entropy that can be collected is at

0.44 bits/byte leading to a total of around 53 bits of

entropy (assuming un-initialized RAM). This is likely

insufﬁcient for generating cryptographic keys, fortu-

nately the other environmental data that sensor col-

lects can be used (acceleration, temperature, pressure,

etc.) and this may lead to sufﬁcient entropy. Thus

the practical use of SRAM along with other sources

remains and alternative for the SP37 core. Due to

several abnormalities, the case of the TC1782 and

MSP430F2274 cores are separately discussed below.

With the exception of the previous two devices, the

hamming distance of adjacent cells is close to that of

random cells, having the mean at around 4 bits. These

distances are shown in the last two columns of Table

BIAS ON TC1782 AND MSP430F2274 . A rather

unexpected result was achieved on Inﬁneon TC1782 .

While the memory from TC1782 is of ECC type, we

expect that the entropy would be close to 0. This

happened with the PRAM, SPRAM and OVRAM.

However, for the LDRAM the entropy was higher

than for all of the other devices at 1.02 bits/byte.

SECRYPT 2016 - International Conference on Security and Cryptography

116

(i) (ii)

(iii) (iv)

MC9S12C128

(i) (ii)

(iii) (iv)

MC9S12XDP512

(i) (ii)

(iii) (iv)

MC9S12XDP512

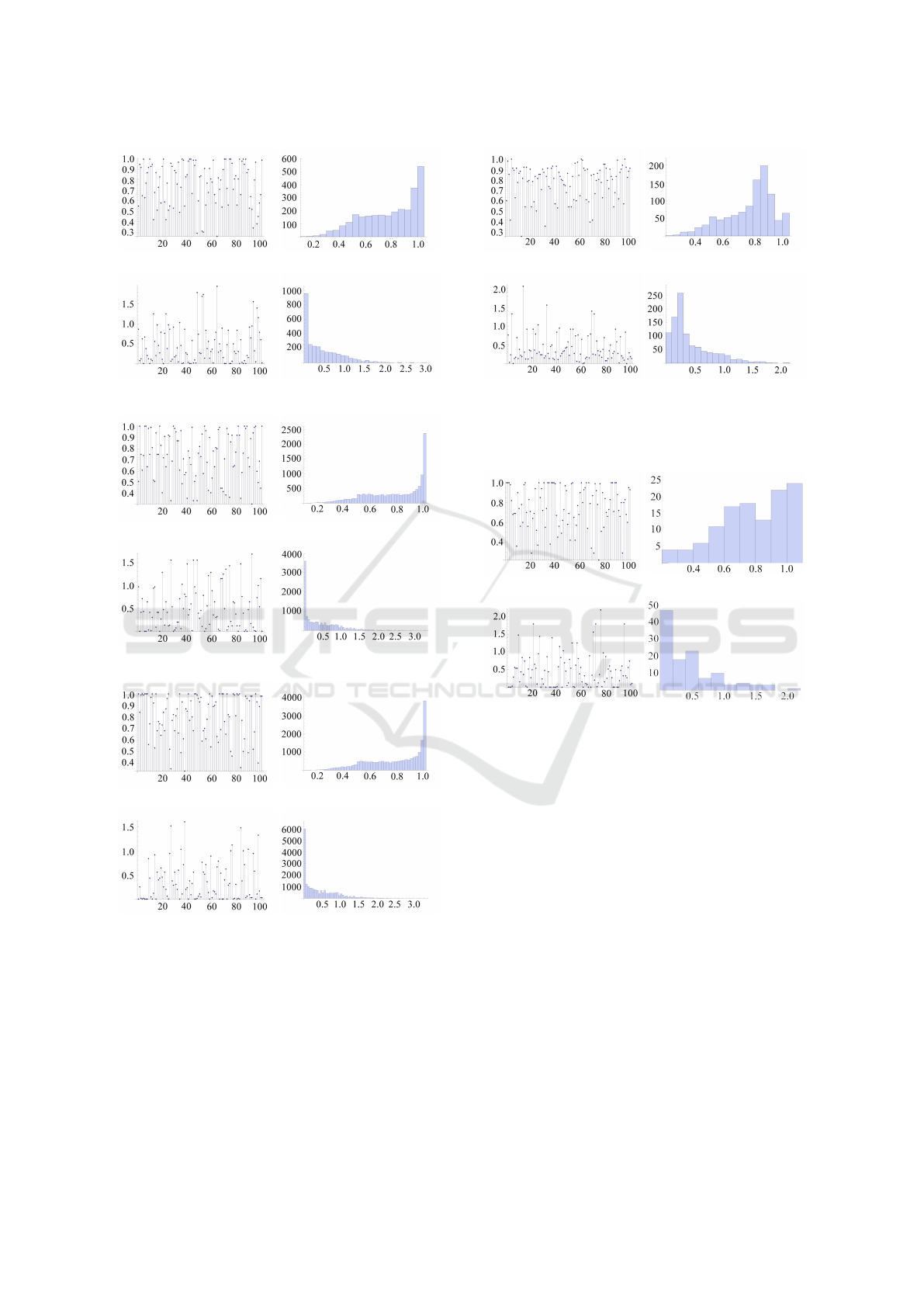

Figure 8: Experimental results on the three controllers from

Freescale: guessing probability (i), guessing probability

distribution (ii) entropy (iii) and entropy distribution (iv).

This ﬁnding is however contrasted by the bit patterns

that could be found in the memory. Notably, bits

from 64-bit blocks at odd addresses showed a bias to-

ward 1, while bits in 64-bit blocks at even addresses

showed a bias toward 0. Figure 6 shows parts of a

memory dump and the bias is clearly visible. This

(i) (ii)

(iii) (iv)

MSP430F2274

Figure 9: Experimental results on TI RF2500: guessing

probability (i), guessing probability distribution (ii) entropy

(iii) and entropy distribution (iv).

(i)

(ii)

(iii)

(iv)

SP37

Figure 10: Experimental results on SP37 : guessing proba-

bility (i), guessing probability distribution (ii) entropy (iii)

and entropy distribution (iv).

shows that for the ECC memory on TC1782 , de-

spite the fact that bits do frequently changed their

state, there is a correlation between adjacent loca-

tions and thus there exists dependence between bytes.

For MSP430F2274 a similar bias was observed, how-

ever, according to the datasheet of the product it is

not equipped with ECC memory. A visual inspec-

tion of the memory dumps showed large portions

that are biased toward 1 followed by portions that

are biased toward 0. Figure 7 depicts these distribu-

tions for TC1782 and MSP430F2274 in contrast with

two cores that do appear to have random behaviour:

MC9S12XDP512 and TC1797 . Bytes with domi-

nant ones are colored in red, dominant zeros are black

while half-zero/half-one bytes are white. The patterns

are clearly not random. For the moment we are un-

able to ﬁnd any explanation for this behaviour, but it

will stay in our focus for future work. We are how-

Evaluating SRAM as Source for Fingerprints and Randomness on Automotive Grade Controllers

117

Table 3: Determined values for guessing probability, entropy and Hamming distances of adjacent cells on the experimental

devices (rows containing atypical results are highlighted in gray).

Device Guessing (probability/byte) Entropy (bits/byte) Hamming (bits)

Mean Variance Mean Variance Adjacent Random

µ(γ

dev

) Var(γ

dev

) µ(H

dev

) Var(H

dev

) µ(H

dev

) µ(H

dev

)

MC9S12XDP512 0.78 0.04 0.41 0.20 3.98 4.00

MC9S12DT256 0.79 0.04 0.39 0.20 3.96 3.98

MC9S12C128 0.77 0.04 0.42 0.20 3.98 3.98

MSP430F2274 0.76 0.02 0.41 0.13 2.75 3.99

SP37 0.76 0.04 0.44 0.22 3.75 3.86

RL78/F14 0.73 0.04 0.51 0.23 3.62 4.00

TC1782 LDRAM 0.54 0.05 1.02 0.46 2.58 3.98

TC1782 PRAM 0.90 0.02 0.16 0.09 0.86 3.95

TC1782 SPRAM 0.90 0.02 0.17 0.10 0.93 4.03

TC1782 OVRAM 0.96 0.01 0.06 0.03 0.41 3.98

TC1797 LDRAM 0.70 0.04 0.59 0.28 3.93 3.99

TC1797 PRAM 0.65 0.05 0.70 0.34 3.89 3.98

TC1797 SPRAM 0.66 0.05 0.69 0.33 3.93 4.00

TC1797 OVRAM 0.68 0.05 0.64 0.30 3.87 3.99

(i) (ii)

(iii) (iv)

TC1782 - LDRAM

Figure 11: Null entropy cells (due to preloaded values) fol-

lowed by average entropy cells on the LDRAM of TriCore

TC1782: guessing probability (i), guessing probability dis-

tribution (ii) entropy (iii) and entropy distribution (iv).

ever pleased by the fact that the Hamming distance

of adjacent cells proved to be a marker that quickly

predicted this behavior. The result for the Hamming

distances of adjacent cells vs. randomly selected cells

are also depicted in Table 3. The distances between

cells of extreme values showed no abnormalities on

any of the devices, for this reason the experimental

values are not included.

(i) (ii)

(iii) (iv)

TC1797 - LDRAM

Figure 12: Constant entropy cells (due to preloaded code)

followed by average entropy cells on the LDRAM of In-

ﬁneon TriCore TC1797: guessing probability (i), guessing

probability distribution (ii) entropy (iii) and entropy distri-

bution (iv).

4 CONCLUSION

Our work provides comprehensive results on the qual-

ity of SRAM for providing ﬁngerprints and random-

ness on automotive grade controllers. The results

show that SRAM can be considered a good source

for both randomness and ﬁngerprints but careful test-

ing is needed as the results are not uniform between

devices. Notable, the MSP430F2274 controllers that

we used do not appear to provide enough accuracy

SECRYPT 2016 - International Conference on Security and Cryptography

118

(i) (ii)

(iii) (iv)

TC1782 - OVRAM

(i) (ii)

(iii) (iv)

TC1782 - PRAM

(i) (ii)

(iii) (iv)

TC1782 - SPRAM

Figure 13: High guessing probability and lack of entropy

for OVRAM, PRAM and SPRAM on Inﬁneon TriCore

TC1782: guessing probability (i), guessing probability dis-

tribution (ii) entropy (iii) and entropy distribution (iv).

for ﬁngerprinting. As expected, the ECC memory of

devices such as the TC1782 controller is not a good

source for randomness. In particular for TC1782 con-

troller the entropy of certain portions of RAM was

high when strictly drawn from the state of each byte

(i) (ii)

(iii) (iv)

TC1797 - OVRAM

(i) (ii)

(iii) (iv)

TC1797 - PRAM

(i) (ii)

(iii) (iv)

TC1797 - SPRAM

Figure 14: Regular values for entropy on OVRAM, PRAM

and SPRAm for Inﬁneon TriCore TC1797: guessing prob-

ability (i), guessing probability distribution (ii) entropy (iii)

and entropy distribution (iv).

after reset, but there was a high degree of correla-

tion between adjacent memory locations. We also

remark a similar bias between adjacent bytes for the

MSP430F2274 controllers.

Further investigations on the inﬂuence of environ-

Evaluating SRAM as Source for Fingerprints and Randomness on Automotive Grade Controllers

119

mental factors, e.g., temperature or electromagnetic

disturbances, on the state of SRAM are projected as

future work for us.

ACKNOWLEDGEMENT

This work was supported by a grant of the Romanian

National Authority for Scientiﬁc Research and Inno-

vation, CNCS-UEFISCDI, project number PN-II-RU-

TE-2014-4-1501 (2015-2017).

REFERENCES

Biham, E., Dunkelman, O., Indesteege, S., Keller, N., and

Preneel, B. (2008). How to steal cars–a practical at-

tack on keeloq. In EUROCRYPT, pages 1–18.

Checkoway, S., McCoy, D., Kantor, B., Anderson, D.,

Shacham, H., Savage, S., Koscher, K., Czeskis, A.,

Roesner, F., Kohno, T., et al. (2011). Comprehensive

experimental analyses of automotive attack surfaces.

In USENIX Security Symposium. San Francisco.

Francillon, A., Danev, B., Capkun, S., Capkun, S., and Cap-

kun, S. (2011). Relay attacks on passive keyless entry

and start systems in modern cars. In NDSS.

Guajardo, J., Kumar, S. S., Schrijen, G.-J., and Tuyls, P.

(2007a). FPGA intrinsic PUFs and their use for IP

protection. Springer.

Guajardo, J., Kumar, S. S., Schrijen, G.-J., and Tuyls, P.

(2007b). Physical unclonable functions and public-

key crypto for fpga ip protection. In Field Pro-

grammable Logic and Applications, 2007. FPL 2007.

International Conference on, pages 189–195. IEEE.

Holcomb, D. E., Burleson, W. P., and Fu, K. (2009). Power-

up sram state as an identifying ﬁngerprint and source

of true random numbers. Computers, IEEE Transac-

tions on, 58(9):1198–1210.

Holcomb, D. E., Burleson, W. P., Fu, K., et al. (2007). Initial

sram state as a ﬁngerprint and source of true random

numbers for rﬁd tags. In Proceedings of the Confer-

ence on RFID Security, volume 7.

Ishtiaq Roufa, R. M., Mustafaa, H., Travis Taylora, S. O.,

Xua, W., Gruteserb, M., Trappeb, W., and Seskarb,

I. (2010). Security and privacy vulnerabilities of in-

car wireless networks: A tire pressure monitoring sys-

tem case study. In 19th USENIX Security Symposium,

Washington DC, pages 11–13.

Koscher, K., Czeskis, A., Roesner, F., Patel, S., Kohno,

T., Checkoway, S., McCoy, D., Kantor, B., Anderson,

D., Shacham, H., et al. (2010). Experimental security

analysis of a modern automobile. In Security and Pri-

vacy (SP), 2010 IEEE Symposium on, pages 447–462.

IEEE.

Krhovjak, J., Matyas, V., and Zizkovsky, J. (2009). Gen-

erating random and pseudorandom sequences in mo-

bile devices. In Security and Privacy in Mobile Infor-

mation and Communication Systems, pages 122–133.

Springer.

Maes, R. and Verbauwhede, I. (2010). Physically unclon-

able functions: A study on the state of the art and

future research directions. In Towards Hardware-

Intrinsic Security, pages 3–37. Springer.

Miller, C. and Valasek, C. (2014). A survey of remote auto-

motive attack surfaces. Black Hat USA.

Rührmair, U. and Holcomb, D. E. (2014). Pufs at a glance.

In Proceedings of the conference on Design, Automa-

tion & Test in Europe, page 347. European Design and

Automation Association.

Shoukry, Y., Martin, P., Tabuada, P., and Srivastava,

M. (2013). Non-invasive spooﬁng attacks for anti-

lock braking systems. In Cryptographic Hardware

and Embedded Systems-CHES 2013, pages 55–72.

Springer.

Solomon, C. and Groza, B. (2015). Limon - lightweight

authentication for tire pressure monitoring sensors. In

1st Workshop on the Security of Cyber-Physical Sys-

tems (afﬁliated to ESORICS 2015).

Studnia, I., Nicomette, V., Alata, E., Deswarte, Y.,

Kaâniche, M., and Laarouchi, Y. (2013). Survey on

security threats and protection mechanisms in embed-

ded automotive networks. In Dependable Systems

and Networks Workshop (DSN-W), 2013 43rd Annual

IEEE/IFIP Conference on, pages 1–12. IEEE.

Tillich, S. and Wójcik, M. (2012). Security analysis of an

open car immobilizer protocol stack. In Trusted Sys-

tems, pages 83–94. Springer.

Toth, A. (2014). Method and system for monitoring a

parameter of a tire of a vehicle. EP Patent App.

EP20,120,464,019.

Verdult, R., Garcia, F. D., and Balasch, J. (2012). Gone in

360 seconds: Hijacking with hitag2. In Proceedings of

the 21st USENIX conference on Security symposium,

pages 37–37. USENIX Association.

Wetzels, J. (2014). Broken keys to the kingdom: Secu-

rity and privacy aspects of rﬁd-based car keys. arXiv

preprint arXiv:1405.7424.

Xu, M., Xu, W., Walker, J., and Moore, B. (2013).

Lightweight secure communication protocols for in-

vehicle sensor networks. In Proceedings of the 2013

ACM workshop on Security, privacy & dependability

for cyber vehicles, pages 19–30. ACM.

SECRYPT 2016 - International Conference on Security and Cryptography

120
