Host Discovery Solution: An Enhancement of Topology Discovery in

OpenFlow based SDN Networks

Pilar Manzanares-Lopez

, Juan Pedro Muñoz-Gea

, Francisco Manuel Delicado-Martinez

Josemaria Malgosa-Sanahuja

and Adrian Flores de la Cruz

Department of Information Technologies and Communications, Universidad Politecnica de Cartagena,

Antiguo Cuartel de Antigones, Cartagena, Spain

Department of Computing System, Universidad de Castilla-La Mancha, Albacete, Spain

Keywords:

Host Discovery, Monitoring, Software Deﬁned Networking.

Abstract:

Software Deﬁned Networking (SDN) is an emerging paradigm based on the separation between the control

plane and the data plane. The knowledge of the network topology by the controller is essential to allow the

implementation of efﬁcient solutions of network management and network resource utilization. Most of the

OpenFlow SDN controllers include a mechanism to discover the network nodes (router and switches) and

the links between them. However, they do not consider other important elements of the networks: the hosts.

In this paper we propose a host discovery mechanism to improve the topology discovery solutions in SDN

networks. The proposed mechanism, that has been coded as a software module in Ryu SDN controller, allows

the detection and tracking of hosts even when they don’t generate trafﬁc. The implemented software module

has been tested in emulated SDN networks and in real scenarios using ONetSwitch, a real programmable SDN

platform.

1 INTRODUCTION

Software Deﬁned Networking (SDN) is a new net-

working paradigm which is based on the separation

between the control plane and the data plane. In tra-

ditional IP networking, the network elements (routers

and switches) implement routing protocols which are

used to determine network paths and consequently

make routing decisions. Accordingly to these deci-

sions, the data packets will be forwarded. In contrast,

in SDN paradigm, the network elements only perform

packet forwarding (it is called data plane). The other

tasks, all of them included in the called control plane,

are located in an entity called the SDN controller.

The control plane is responsible for making decisions

on how packets should be forwarded by one or more

network devices and pushing such decisions down to

the network devices for execution (Haleplidis et al.,

2016).

In order to be able to make these decisions, it is

essential that the control plane has updated informa-

tion about the network topology. That is the reason

why network discovery is a key aspect of SDN. The

knowledge of the network topology is necessary to be

able to control and modify the data paths. Network

monitoring and trafﬁc engineering are also important

tasks in network management that require an accurate

knowledge of the network topology (Akyildiz et al.,

2014).

Most of the SDN controllers, e.g. POX (POX,

2016), Ryu (Ryu, 2016), OpenDayLight (ODL, 2016)

Floodlight (Floodlight, 2016), implement network

topology discovery mechanisms that are limited to the

discovery of network elements (switches and routers)

and links between them. However, in our opinion,

an important component of the network is not consid-

ered: the hosts. Identify the existence of hosts, even

before they generate trafﬁc, can offer to the controller

a very useful information to be used in the network

management tasks.

In this paper we propose a host discovery mech-

anism designed for SDN networks. This functional-

ity complements the non-standardized topology dis-

covery mechanism, based on the use of LLDP (Link

Layer Discovery Protocol) packets (IEEE, 2009), in-

cluded in most of the OpenFlow-based SDN con-

trollers.

The proposed mechanism has been coded and in-

cluded in the Ryu SDN controller and it has been

tested in two scenarios. On the one hand, the so-

Manzanares-Lopez, P., Muñoz-Gea, J., Delicado-Martinez, F., Malgosa-Sanahuja, J. and Cruz, A.

Host Discovery Solution: An Enhancement of Topology Discovery in OpenFlow based SDN Networks.

DOI: 10.5220/0005967000800088

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 1: DCNET, pages 80-88

ISBN: 978-989-758-196-0

lution has been tested in an emulated OpenFlow-

SDN network using Mininet (Mininet, 2016), the fa-

mous emulator in SDN. On the other hand, it has

been tested using ONetSwitches (Hu et al., 2014), an

all programmable SDN platform. The main chip of

ONetSwitch is the Xilinx Zynq-7045 SoC, which in-

tegrates ARM Cortex-A9 dual core processor-based

processing system (PS) and Kintex-7 FPGA-based

programmable logic (PL) into a single chip. The PS

part makes ONetSwitch software programmable and

the PL part enables the reconstruction of the hardware

logic. The use of the ONetSwitches allowed us to

evaluate the implemented host discovery module in

a wider set of experiments than using just the Mininet

emulator. Moreover, it led us to do a detailed analy-

sis of a part of the OpenFlow standard: the meaning

of the port status ﬁelds, which allow the controller to

track the status of each switch port.

The rest of the paper is structured as follows. Sec-

tion 2 describes the basic concepts of OpenFlow stan-

dard. Section 3 describes the non standardized topol-

ogy discovery solution implemented in most of the

OpenFlow-based controllers. Next, section 4 pro-

poses a mechanism to implement the host discovery

functionality, improving the basic topology discovery

of OpenFlow-based controllers. Section 5 describes

the usefulness of the host discovery utility. Finally,

section 6 concludes the paper.

2 SDN OPENFLOW

BACKGROUND

The separation between the infrastructure(forwarding

plane) and the SDN controller (control plane) is done

via standardized southbound interfaces. OpenFlow,

that is promoted by Open Network Foundations, is

the dominant standard providing the SDN southbound

interface between the SDN controller and the SDN

switches. In this paper we consider the OpenFlow

version 1.3 (ONF, 2012), the latest version of Open-

Flow that has support from switch vendors.

After the start-up, the switches and the controller

perform an initial handshake to establish the Open-

Flow connection. Each switch contacts its controller

on the corresponding IP address and TCP port num-

ber and establishes a TCP, which could be encripted

using TLS protocol. The switch and the controller

send a Hello message with the higher OpenFlow ver-

sion supported. Then, if the switch has support for

the OpenFlow version sent by the controller, the con-

troller sends a OFPT_FEATURES_REQUEST mes-

sage to the switch. The switch responds with an

OFPT_FEATURES_REPLY message that includes a

unique switch’s identiﬁer called datapath_id, its ac-

tive ports and the corresponding MAC addresses. Af-

ter that, the OpenFlow connection is established.

This initial handshake informs the controller about

the existence of switches, but not about the inter-

connection of the network elements. To obtain a

picture of the network topology, a topology discov-

ery solution must be implemented. Most of the

well-known SDN controllers implement a similar,

but non-standardized, topology discovery mechanism

that allows the discovery of the links interconnecting

switches. This mechanism is described in the follow-

ing section.

As part of the control plane, the controller could

use the network topology information to solve differ-

ent network management and control tasks. Among

them, a fundamental task is to ﬁnd out the most appro-

priate paths and conﬁgure the switches consequently

to do the forwarding tasks.

An OpenFlow switch consists of one or more ﬂow

tables and a group table. Using OFPT_FLOW_MOD

messages, the controller can add, update and

delete ﬂow entries in ﬂow tables, reactively (in re-

sponse to packets) or proactively. Each ﬂow en-

try consists of a match structure (many ﬁelds to

match ﬂows such as input switch port, Ethernet

source/destination address, VLAN ID, VLAN prior-

ity, IP source/destination address,...), a set of counters

and a set of actions. On packet arrival, the packet

is matched with the match ﬁelds in a table and, if

any entry matches, the counters in that entry are up-

dated and the associated actions are performed. If

no entry matches, then a table-miss event has oc-

curred. In OpenFlow 1.2 and earlier, every ﬂow ta-

ble has a default table-miss ﬂow entry. However,

in OpenFlow 1.3, the default table-miss ﬂow entry

must be inserted manually by the controller. The ac-

tions associated to a table-miss ﬂow entry may in-

clude dropping the packet, sending the packet to an-

other table, or sending the packet to the controller. In

the last case, a OFPT_PACKET_IN message is sent

from switch to controller, which carries the packet.

When controller receives the OFPT_PACKET_IN

message, it evaluates its contents and decides what

actions will be done over the packet included in the

OFPT_PACKET_IN message. Then, the packet is

returned to the switch in a OFPT_PACKET_OUT,

which carries the packet and a list of actions to be

applied over the packet. Also, the controller could

send an OFPT_FLOW_MOD message to include a

ﬂow entry in switch ﬂow table, in order to process

similar packets in future.

Host Discovery Solution: An Enhancement of Topology Discovery in OpenFlow based SDN Networks

3 TOPOLOGY DISCOVERY IN

OPENFLOW-BASED

NETWORKS

As described before, a SDN controller knows the ex-

istence of network elements thanks to the initial hand-

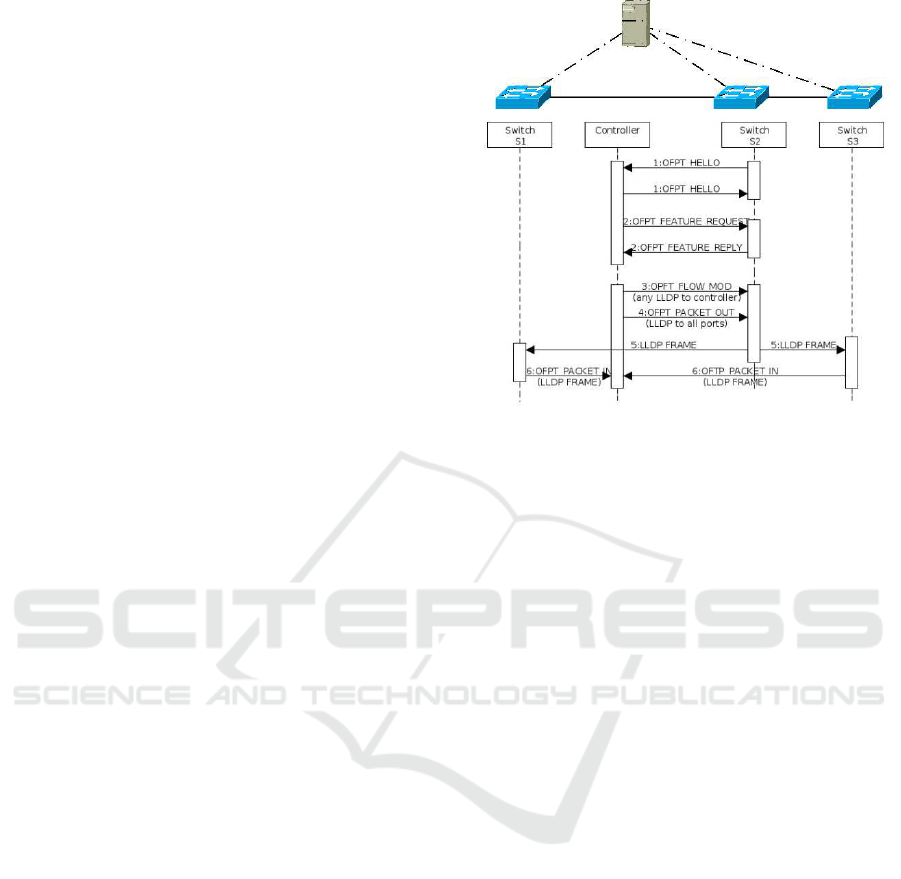

shake process. In ﬁgure 1, the initial handshake be-

tween switch s2 and the controller in represented by

steps 1 and 2. For simplicity, the handshake corre-

sponding to the rest of switches is not shown.

However, the mechanism to discover how the

switches are interconnected is not standarized in

OpenFlow-based networks. Nevertheless, most of

the OpenFlow-based controllers implement a topol-

ogy discovery based on LLDP (Link Layer Discovery

Protocol).

LLDP (IEEE, 2009) is vendor-neutral link layer

protocol in the Internet Protocol Suite used by net-

work devices for advertising their identity, capabili-

ties, and neighbors on IEEE 802 local area networks,

principally wired Ethernet. LLDP packets are sent by

devices from each of their ports at a ﬁxed interval, en-

capsulated in Ethernet frames with ethertype ﬁeld set

to 0x88cc. The LLDP frames are sent to the bridge-

ﬁltered multicast MAC address 01 : 80 :C2 : 00 : 00 :

0E. Therefore, the LLDP protocol is a one-hop pro-

tocol where the LLDP packets are only received by

directly connected network devices.

OpenFlow switches do not initiate the sending of

LLDP packets by themselves. To initiate the topol-

ogy discovery mechanism, the controller sends an

OFPT_PACKET_OUT message for each port of each

switch. Each OFPT_PACKET_OUT contains as pay-

load a LLDP frame and contains an instruction to send

this frame for the corresponding port (step 4 in ﬁg-

ure 1). The forwarding of the LLDP frame allows the

neighbors to know about themselves, but doesn’t al-

low the controller to obtain this information.

In order to let the controller know the relation

between switches, they must have a table ﬂow en-

try which orders to send to the controller, by an

OFPT_PACKET_IN message, any LLDP frame re-

ceived from any port except the Controller port. This

rule is sent by a OFPT_FLOW_MOD message after

the connection phase (step 3 in the ﬁgure), before the

sending of the ﬁrst LLDP packet.

Finally, after the reception of the

OFPT_PACKET_OUT messages, switches for-

ward the encapsulated LLDP frames for each port

except the incoming (step 5 in the ﬁgure). When

switches receive the LLDP packets, they send them

to the controller using OPFT_PACKET_IN messages

(step 6 in the ﬁgure).

The topology discovery mechanism includes the

Figure 1: Topology discovery process in OpenFlow-based

SDN networks.

discovery of switches and links between them but it

does not include the discovery of hosts. Some SDN

controllers such as Ryu and OpenDayLight imple-

ment a basic host discovery solution. This basic solu-

tion is based on the fact that the table-miss ﬂow en-

try of switches forces the sending of the packet to

the controller. Thus, when a switch receives ARP

or IP trafﬁc from a host, since there are no installed

ﬂow rules for the incoming ﬂow, the switch forwards

the ﬁrst received packet of the ﬂow to the controller.

Based on this packet, the controller discovers the host

identity.

Ryu (Ryu, 2016) is a component-based software

deﬁned networking framework that provides software

components to create network management and con-

trol applications. It supports OpenFlow and is pro-

grammed in Python. In particular, the topology

discovery functionality is implemented in a module

called /ryu/topology/switches.py.

Another mechanism to discover hosts could be the

use of the LLDP protocol in hosts. However, this so-

lution requires that a LLDP daemon has to be running

in each host. And depending of the case, this could

be very difﬁcult to assert, i.e. in topologies where

hosts and network devices are not administrated by

the same entity.

In the next section we present a host discovery

module that enhances the typical topology discovery.

Although the proposed mechanism has been imple-

mented in Ryu, it could be adapted to other SDN con-

trollers.

DCNET 2016 - International Conference on Data Communication Networking

4 PROPOSED HOST DISCOVERY

IN OPENFLOW-BASED

NETWORKS

4.1 Technical Aspects to be Considered

Our proposed mechanism to implement initial host

discovery, that is, without having to wait for the host

to generate trafﬁc, uses three kinds of informationthat

the SDN controller knows: the knowledge of a switch

ports, the changes in the status of the ports, and the

knowledge of links between switches. Next, we are

going to discuss each one and how it is useful during

the host discovery procedure.

After the session establishment, the controller

sends a port description request message to each

switch querying a description of all the Open-

Flow ports. The OpenFlow message type is

OFPT_MULTIPART_REQUEST, concretely a OF-

PMP_PORT_DESC. Each switch responds with a

port description reply message. In this case, the

message type is a OFPT_MULTIPART_REPLY, con-

cretely a OFPMP_PORT_DESC.

The port description reply enables the controller

to get a description of all the OpenFlow ports of that

switch. Among other ﬁelds, the description of a port

includes a unique port number that identiﬁes the port

on the switch, the MAC address for the port and two

ﬁelds called "conﬁg" and "state" which are composed

of several ﬂags. The structure of both ﬁelds is de-

scribed below:

enum ofp_port_config {

OFPPC_PORT_DOWN=1<<0;

/*Port is administratively down*/

OFPPC_NO_RECV=1<<2;

/*Drop all the pkts received by port*/

OFPPC_NO_FWD=1<<5;

/*Drop packets forwarded by port*/

OFPPC_NO_PACKET_IN=1<<6;

/*Do not send packet-in msgs for port*/

};

enum ofp_port_state {

OFPPS_LINK_DOWN=1<<0;

/*No physical link present*/

OFPPS_BLOCKED=1<<1;

/*Port is blocked*/

OFPPS_LIVE=1<<2;

/*Live for Fast Failover Group*/

};

The "conﬁg" value is set by the controller and it

is not changed by the switch. It is composed of four

ﬂags. According to the OpenFlow version 1.3 speciﬁ-

cation, the OFPPC_PORT_DOWN ﬂag indicates that

the port has been administratively brought down and

should not be used by OpenFlow.

The "state" value indicates the state of the phys-

ical link. It is composed of three ﬂags. Accord-

ing to the OpenFlow version 1.3 speciﬁcation, the

OFPPS_LINK_DOWN ﬂag indicates that the phys-

ical link is not present. The port state bits are

read-only and cannot be changed by the controller.

When any state ﬂags change, the switch sends a

OFPT_PORT_STATUS message to notify the con-

troller of the change.

Thanks to the LLDP-based topology discovery

mechanism implemented in most of the controllers,

the controller can distinguish between edge ports and

non-edge ports of the switches. The non-edge ports

are the ports which are used within the links between

switches. Consequently, they send and receive LLDP

messages. The edge ports are the ports which are not

used within the links between switches. They send

LLDP messages but do not receive anyone. Thus, the

controller can identify the ports that potentially could

be connected to hosts.

The deﬁnition of the "link down" ﬂag seems clear:

no physical link present. However, after analyzing

some experiments we made with the ONetSwitch

platform, the obtained results introduced some doubts

about it. According to the OpenFlow speciﬁcation,

the "link down" ﬂag in the port description reply

should be 0 if there is a connected link and 1 if not.

Nevertheless, from the experiments, we could con-

clude that the "state" value of a switch port is al-

ways 4, regardless whether there is a physical link

connected or not when the port description request is

received. That is, the "live" ﬂag is set to 1 and the

"link down" ﬂag is set to 0. Even more, if a switch

port is free, and then a host that is on is connected

to it, the "link down" ﬂag does not change and any

OFPT_PORT_STATUS message is generated.

From our observations we conclude that the "link

down" ﬂag does not inform if a link is present or not.

Actually, the "link down" ﬂag is used to indicate that a

change has happened, in particular, that the link con-

nected to that port is not available anymore.

For all that, in order to implement the host dis-

covery module, it is not enough knowing the edge

ports and check the initial "state" value indicated by

the port description reply messages. It is necessary to

implement a mechanism to certainly identify which

ports are connected to hosts. As it will be detailed

later, this mechanism is inspired by the host discovery

option of the open source utility nmap (Lyon, 2008).

On the other hand, the proposed advanced host

discovery mechanism also improves the basic host

discovery solution by offering reaction to the dy-

Host Discovery Solution: An Enhancement of Topology Discovery in OpenFlow based SDN Networks

Table 1: Pseudocode of the proactive_host_discovery func-

tion.

01: proactive_host_discovery():

02: for switch in network.switches:

03: for port in switch.ports:

04: if edge_port(port):

05: send_ping_arp_flowmod(switch,port)

06: send_ping_arp(switch,port,netaddress)

07: send_ping_arp_flowmod(switch,port):

08: match = (ether_types==ARP & eth_dst==port.hw_addr)

09: action = output_to_controller

10: msg=create_flow_mod_message(match,action)

11: send(msg, switch)

12: send_ping_arp(switch,port,netaddress):

13: for ip in range netaddress:

14: dst=FF:FF:FF:FF:FF:FF

15: src=port.hw_addr

16: dst_ip=ip

17: src_ip=broadcast_netaddress

18: ethfr=ether_frame(ARP_request,dst,src,dst_ip,src_ip)

19: send_packet_out(ethfr,switch,port)

namism of the network. Hosts can leave the network

at any moment and links can fail. To identify and

respond to the network changes, the proposed mod-

ule will listen and process the OFPT_PORT_STATUS

messages that are generated by the switches when a

port is added, modiﬁed or removed.

4.2 Proactive Search of Hosts

The proposed host discovery module must be able to

locate hosts which are initially connected to the net-

work, and also new hosts which join the network dur-

ing the period of time that the network is being moni-

tored.

As described before, using only the control mes-

sages exchanged between the switches and the con-

troller, it is not possible to differentiate non-connected

ports from ports connected to hosts. In order to solve

this ﬁrst task, the proposed mechanism implements a

solution inspired by the host detection option of the

open source nmap utility.

After the session establishment, and once the port

description messages have been exchanged, the con-

troller starts a proactive search of hosts. The pseu-

docode is shown in table 1.

The controller sends a set of

OFPT_PACKET_OUT messages for each

edge port to each edge switch (line 6). Each

OFPT_PACKET_OUT message contains an ARP

request asking for a particular IP address belonging

to the IP network address range. Although the

ARP request is created by the controller, the source

hardware address is set to the hardware address of the

edge port. Thus, when an ARP reply is generated to

respond to a proactively generated ARP request, the

switch will be able to differentiate the packet from

‘normal’ ARP replies (which are generated due to

trafﬁc between hosts) and send it to the controller.

After receivingeach of the OFPT_PACKET_OUT

messages destined to a particular edge port, the switch

sends the ARP requests out of the speciﬁed port. If

the edge port is a non-connected port, no ARP replies

will be received. However, if a host is connected to

the edge port, an ARP reply will be sent to the switch.

However, in order to perform the host discov-

ery task, the ARP reply must be received by the

controller. For that reason, as it can be observed

in the pseudocode (line 5), before sending the

OFPT_PACKET_OUT messages to a switch, the con-

troller sends a OFPT_FLOW_MOD message for each

edge port to add a new ﬂow entry in the OpenFlow ta-

ble. The match conditions for each new ﬂow entry

are: the input packet must be an ARP packet whose

hardware destination address is the edge port hard-

ware address. If the input packet matches, the packet

will be sent to the controller. Then, the controller will

process the ARP trafﬁc as usual (deﬁned in /topol-

ogy/switches.py), and a host will be discovered and

added to the list of hosts.

Based on both topology discovery and host dis-

covery modules, the controller will know the com-

plete network topology, that is, the switches, the links

between them, the IP and MAC addresses of the hosts

and the switch ports they are connected to.

4.3 Tracking of Host Connections

Dynamism of networks must be taken into account

when implementing a topology discovery solution:

ports can be added or deleted from switches, new

links can be established or existing links can fail.

Thus, the proposed host discovery mechanism must

also react to network changes that affect host connec-

tions.

As said before in section 4.1, if a change hap-

pens on a port, the switch notiﬁes the controller by

sending a OFPT_PORT_STATUS message. The rea-

sons to generate this type of message are: a port has

been added (OFPPR_ADD), a port has been deleted

(OFPPR_DELETE) or the state of a port has changed

(OFPPR_MODIFY).

The ﬁrst two reasons only affect to the number of

ports that must be taken into account: a port has been

added or a port has been deleted. However, the last

event is more complex.

If a link is suddenly disconnected, the switch de-

tects that a physical link is not present anymore, and

then a OFPT_PORT_STATUS message is sent to the

controller indicating the change in the port state from

4 (the "live" ﬂag set to 1) to 5 (both "live" ﬂag and

"link down" ﬂags are set to 1). This event is associ-

DCNET 2016 - International Conference on Data Communication Networking

ated to the physical disconnection of a link.

In a ﬁrst experiment, a ONetSwitch initially

has 4 non-connected ports. By means of an OF-

PMP_PORT_DESC message, the switch informs the

controller of the port state values: 4 (only the "live"

ﬂag set to 1). Then, a host (that is on) is connected

to the switch. In this situation, no OpenFlow message

is generated. A new physical link has been created

between the host and the switch, but no notiﬁcation

of port state change is generated. As it was tested be-

fore, the standard just deﬁnes a "link down" ﬂag to

indicate that the existing link connected to a port is

not available anymore.

Consequently, if the host (that is on) is phys-

ically disconnected, the switch generates a OF-

PPR_MODIFY message indicating that the port state

value has changed to 5 (both "live"and "link down"

ﬂags are set to 1). Finally, if the host is connected

again, another OFPPR_MODIFY message with port

state value 4 is sent to the controller. The conclu-

sion of this ﬁrst experiment is that the "link down"

ﬂag is certainly related to the fall (and later recovery)

of physical links, but it is not related to the establish-

ment of a new link.

In a second experiment the same switch has three

non-connected ports and the last one is connected to a

host that is off. As in the previous experiment, an OF-

PMP_PORT_DESC message is sent to the controller

to inform of the port state values: 4 (only the "live"

ﬂag set to 1). Continuing with the experiment, the

host is turned on. Although in this case the physi-

cal link already existed, a series of OFPPR_MODIFY

messages are sent to the controller.

Although there is a number of mechanisms which

can have impact on the link state, after analyzing the

OpenFlow trafﬁccapture and the hostand switch logs,

we could conclude that the OFPPR_MODIFY mes-

sages were generated due to Ethernet auto-negotiation

phase. The initial "port state" value that the switch

sent to the controller was 4. Then, when the host

is turned on, the switch indicates to the controller

that the link changes to down (a OFPPR_MODIFY

message is sent with "port state" value 5) until the

100 Mbps negotiation phase ﬁnishes. Then, a new

OFPPR_MODIFY message with "port state" value

4 is sent. Next, again, the switch indicates to the

controller that the link changes to down (a OF-

PPR_MODIFY message is sent with "port state"

value 5) until the 1000 Mbps negotiation phase ﬁn-

ishes. Then, a new OFPPR_MODIFY message with

"port state" value 4 is sent. Finally, when the host is

turned off again, two OFPPR_MODIFY messages are

sent to the controller: the ﬁrst one indicating a "port

state" value of 5 and the second one a "port state"

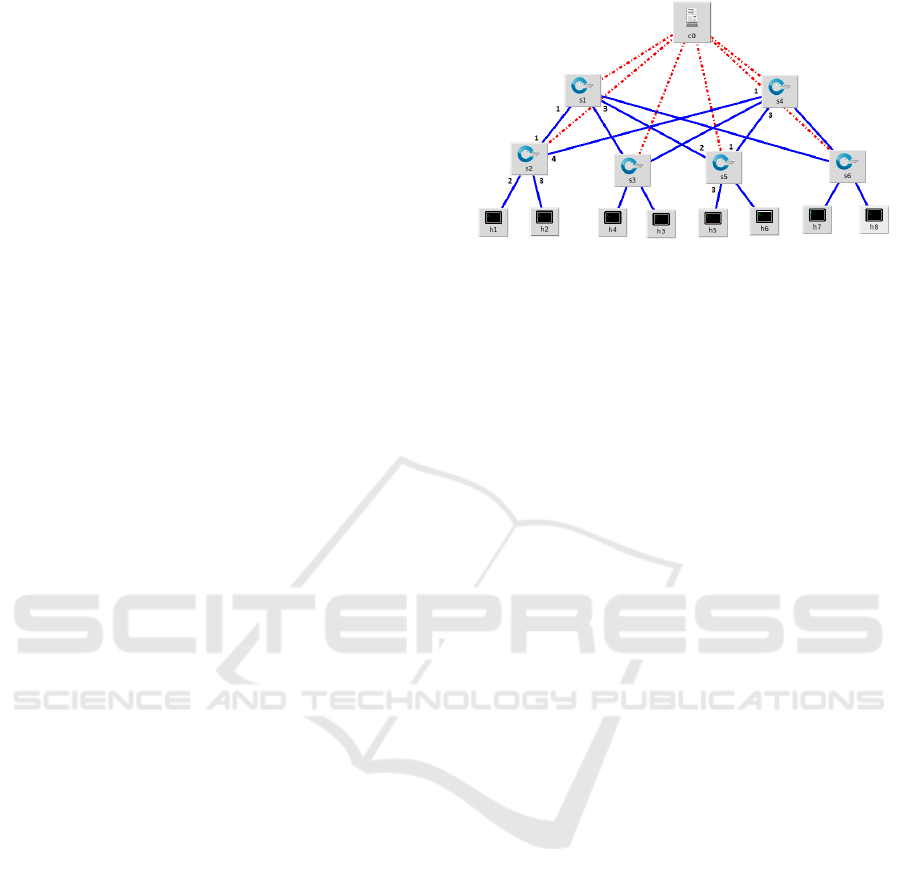

Figure 2: Fat-tree topology.

value of 4.

Taking into account the conclusions of the exper-

iments, the host discovery module must react to the

reception of OFPPR_MODIFY messages. When the

received "port state" value is 5, it must be checked

if there were a previously detected host connected to

that port. If so, the host will be eliminated from the

list of hosts. Otherwise, if the received "port state"

value is 4, it must be checked if it is an edge port.

If so, a proactive search of hosts on that port will be

initiated, as described in the previous section.

However, due to the fact that the joining of host

that is on does not generate a port status change and

consequently it does not generate any message to be

sent to the controller, it is necessary to periodically

repeat the proactive mechanism on all the edge ports.

5 USEFULNESS AND

EVALUATION OF HOST

DISCOVERY

Using the mechanism based on the exchange of LLDP

messages, SDN controllers can discover switches and

connections between switches. This topology infor-

mation can be used to determine the best path (short-

est path, in terms of number of hops) from a source

switch port to a destination switch port. However, ex-

isting SDN controllers only perform a basic host dis-

covery.

The discovery of hosts can be useful in a SDN net-

work topology discovery tool. For example, in a data

center, it is tedious and error-prone to manually main-

tain the locations of virtual machines due to their fre-

quent migration (Hong et al., 2015). The host discov-

ery module together with an adequate monitoring tool

provide an easy way to guarantee ﬂexible network dy-

namics, optimizing the use of the network resources.

On the other hand, the host discovery before they

generate trafﬁc can also be useful in redundant net-

works to solve the problem of ARP ﬂooding. With

Host Discovery Solution: An Enhancement of Topology Discovery in OpenFlow based SDN Networks

20000

40000

60000

80000

100000

120000

140000

0 20 40 60 80 100 120 140 160 180

Bps

Seconds

Flow Bandwitdth measured at the last switch

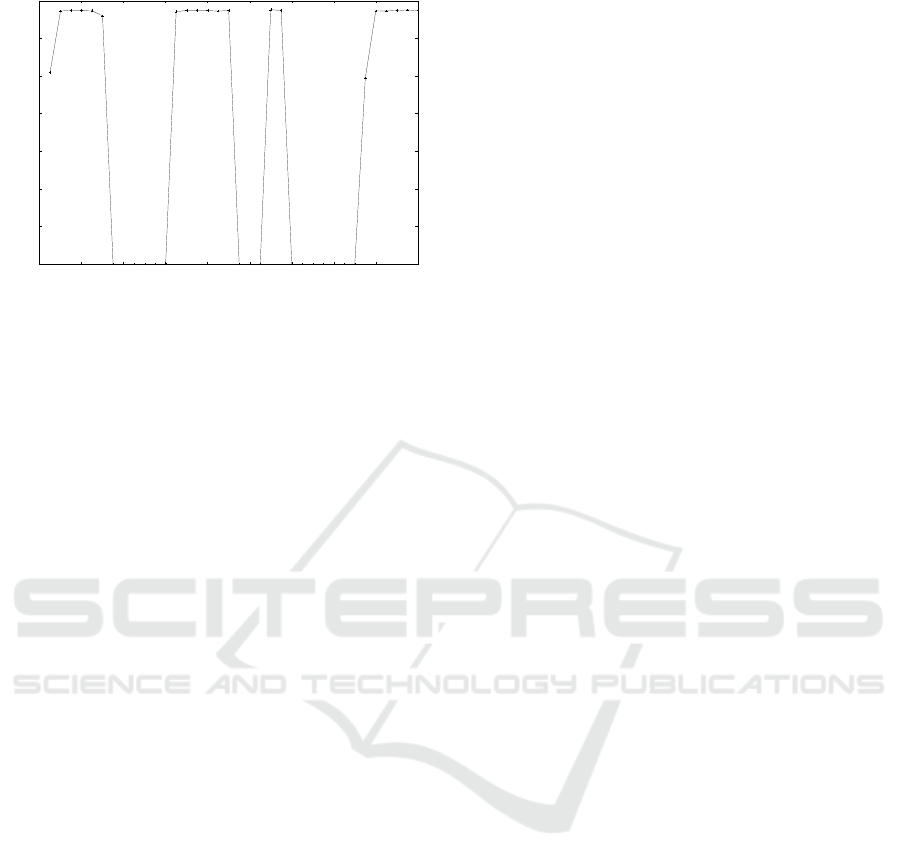

Figure 3: Flow bandwidth measurement obtained on the last

switch s5.

the proposed host discovery mechanism, ARP Re-

quest messages are only sent to edge switches, and

the ARP Responses are directly sent to the controller

who will be able to maintain a database of the MAC

and IP addresses of the activate hosts.

Figure 2 shows a fat-tree network, an example of

common data center interconnection topology. We

have used Mininet to emulate this topology. In this

scenario, we are going to show an example of the util-

ity of the tracking of host in the network management.

In the testbed, an UDP ﬂow is created between

host h2 (10.0.0.2) and host h5 (10.0.0.5) using the

iperf tool. When switch s2 receives the ﬁrst UDP

packet, due to the fact that there is no any ﬂow entry in

the OpenFlow table that matches, a miss-table event

occurs and, consequently, the UDP packet is sent to

the controller using an OFPT_PACKET_IN message.

The controller, who knows the location of h5 thanks

to the proposed host discovery module, calculates the

optimum path between switch s2 and switch s5, and

installs an adequate ﬂow entry on each intermediate

switch. If at a given moment h2 fails or migrates to

another point of the network, it is useful for the con-

troller to detect this change immediately in order to

act accordingly.

In this test, the UDP connection between host h2

and host h5 lasts 180 seconds. During this period, the

host h5 leaves the network and joins again later three

times. In the second 30, h5 leaves the network for 30

seconds; in the second 90, h5 leaves the network for

15 seconds and; in the second 120, h5 leaves the net-

work for 30 seconds. Thanks to the proposed host dis-

covery module, that includes host tracking, each time

that the host h5 leaves the network, the controller re-

alizes and intermediately deletes the ﬂow entries cor-

responding to the route between h2 and h5 on all in-

volved switches.

Figure 3 represents the transmission rate corre-

sponding to the ﬂow entry on switch s5 associated

to the UDP ﬂow between 10.0.0.2 (h2) and 10.0.0.5

(h5). The UDP ﬂow has been monitorized using a

monitoring tool developed by the authors of this work

(Muñoz-Gea et al., 2016). It has been monitored on

the last switch on the ﬂow path since this is what is

seen by the receiver. As can be observed, there is no

ﬂow entries corresponding to the UDP connection in

the ﬂow table of switch s5 during the interval in which

the host h5 is disconnected. Similar results are ob-

tained when the rest of switches are monitored.

OpenFlow also provides the possibility of get-

ting detailed statistics on speciﬁc ports on selected

switches. Making use of this functionality, results

showed in ﬁgure 4 havebeen obtained. The ﬁrst graph

shows the transmission rate of the ports on switch s2

(that is, the ﬁrst switch on the path between h2 and

h5).

The second graph corresponds to switch s5, the

last switch on the path. In this ﬁgure it can be ob-

served the reception rate of the ports on switch s5,

and even more descriptive, the transmission rate of

the port to which h5 is connected. As can be seen,

the transmission rate coincides with the expected re-

sult. The last two graphs represent the transmission

and reception rates of the ports on switches s1 and s4.

It is interesting to point out that, as can be seen

in the these graphs, at the beginning of the commu-

nication, the controller decides that the optimum path

between h2 and h5 is s2-s4-s5. However, after the

ﬁrst time that h5 leaves the network and later joins

again, the controller decides to select a new route be-

tween h2 and h5: s2-s1-s5. After the third and forth

re-joining to the network, the controller chooses the

route s2-s4-s5 again.

6 CONCLUSIONS

In this paper we have proposed a solution to imple-

ment a dynamic host discovery and tracking in SDN

OpenFlow networks. It has been implemented as a

new module of the well-known Ryu controller.

The module complements the non-standardized

topology discovery mechanism implemented in most

of the SDN OpenFlow controllers which, based on

the exchange of LLDP packets, are able to identify

switches and links between them. In order to deﬁne

the host discovery mechanism, we had to analyze a

particular aspect of the OpenFlow 1.3 standard: the

"port state" ﬂags and their relation with the genera-

tion of OFPT_PORT_STATUS messages. Both as-

pects are not widely described in the standard neither

the bibliography.

DCNET 2016 - International Conference on Data Communication Networking

20000

40000

60000

80000

100000

120000

140000

0 50 100 150 200

Bps

Switch s2: Tx speed port 4

Switch s2: Tx speed port 1

20000

40000

60000

80000

100000

120000

140000

0 50 100 150 200

Switch s5: Rx speed port 1

Switch s5: Rx speed port 2

Switch s5: Tx speed port 3

20000

40000

60000

80000

100000

120000

140000

0 50 100 150 200

Bps

Seconds

Switch s1: Rx speed port 1

Switch s1: Tx speed port 3

20000

40000

60000

80000

100000

120000

140000

0 50 100 150 200

Seconds

Switch s4: Rx speed port 1

Switch s4: Tx speed port 3

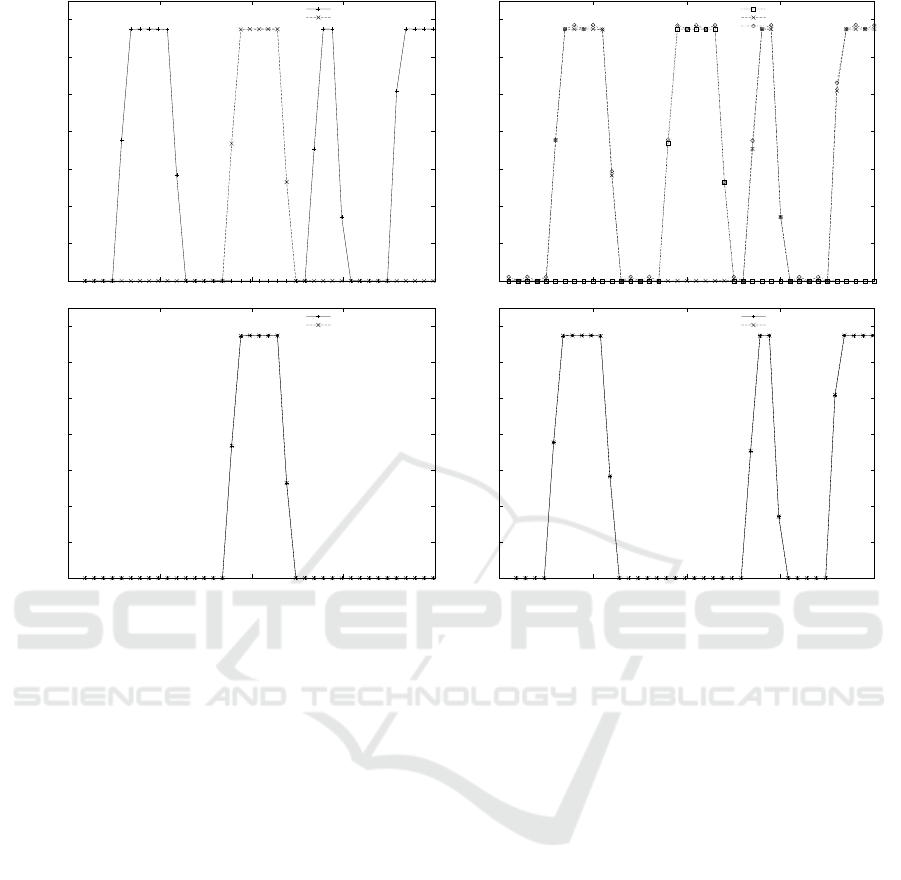

Figure 4: Transmission and reception rate of the ports on switches s2, s5, s1 and s4.

The proposed host discovery solution has been

tested in emulated OpenFlow-SDN networks us-

ing Mininet, and also, in real scenarios using

ONetSwitches, an all programmable SDN platform.

Some of the beneﬁts of the host discovery function-

ality have been described, and a use case has been

described and analyzed considering a data center in-

terconnection topology.

ACKNOWLEDGEMENTS

This work was supported by the MINECO/FEDER

Project Grant TEC2013-47016-C2-2-R (COINS) and

the MINECO/FEDER Project Grant TIN2015-66972-

C5-2-R.

REFERENCES

Akyildiz, I., Lee, A., Wang, P., Luo, M., and Chou, W.

(2014). A roadmap for trafﬁc engineering in sdn-

openﬂow networks. Computer Networks (71).

Floodlight (2016). Project ﬂoodlight: Open source

software for building software-deﬁned networks.

http://www.projectﬂoodlight.org/ﬂoodlight.

Haleplidis, E., Denazis, S., Pentikousis, K., Salim, J.,

Meyer, D., and Koufopavlou, O. (2016). Sdn layers

and architectures terminology. In RFC 7426.

Hong, S., Xu, L., Wang, H., and Gu, G. (2015). Poison-

ing network visibility in software-deﬁned networks:

New attacks and countermeasures. In Proceedings

of the 2015 Network and Distributed System Security

(NDSS) Symposium.

Hu, C., Yang, J., Zhao, H., and J.Lu (2014). Design of all

programmable innovation platform for software de-

ﬁned networking. In Open Networking Summit.

IEEE (2009). Ieee standard for local and metropolitan area

networks - station and media access control connec-

tivity discovery. In IEEE Std 802.1AB.

Lyon, G. F. (2008). Nmap Network Scanning. Insecure.com

LLC.

Mininet (2016). Mininet. an instant virtual network on your

laptop (or other pc). http://www.mininet.org.

Muñoz-Gea, J., Manzanares-Lopez, P., Malgosa-Sanahuja,

J., and de la Cruz, A. F. (2016). Network failures sup-

port for trafﬁc monitoring mechanisms in software-

deﬁned networks. In Proceedings of the IEEE/IFIP

Network Operations and Management Symposium,

NOMS’16.

ODL (2016). Opendaylight. http://www.opendaylight.org.

ONF (2012). Openﬂow switch speciﬁcation. version 1.3.0.

https://www.opennetworking.org/images/stories/

Host Discovery Solution: An Enhancement of Topology Discovery in OpenFlow based SDN Networks

downloads/sdn-resources/onf-

speciﬁcations/openﬂow/openﬂow-spec-v1.3.0.pdf.

POX (2016). Pox controller.

http://github.com/noxrepo/pox.

Ryu (2016). Build sdn agilely. component-based

software deﬁned networking framework.

https://osrg.github.io/ryu/.

DCNET 2016 - International Conference on Data Communication Networking
