Protecting Databases from Schema Disclosure

A CRUD-based Protection Model

Oscar Mort

agua Pereira, Diogo Domingues Regateiro and Rui L. Aguiar

Instituto de Telecomunicac¸

oes, DETI, University of Aveiro, Aveiro, Portugal

Keywords:

Access Control, Information Security, Database Schema, CRUD, Software Architecture.

Abstract:

Database schemas, in many organizations, are considered one of the critical assets to be protected. From

database schemas, it is not only possible to infer the information being collected but also the way organiza-

tions manage their businesses and/or activities. One of the ways to disclose database schemas is through the

Create, Read, Update and Delete (CRUD) expressions. In fact, their use can follow strict security rules or

be unregulated by malicious users. In the ﬁrst case, users are required to master database schemas. This can

be critical when applications that access the database directly, which we call database interface applications

(DIA), are developed by third party organizations via outsourcing. In the second case, users can disclose par-

tially or totally database schemas following malicious algorithms based on CRUD expressions. To overcome

this vulnerability, we propose a new technique where CRUD expressions cannot be directly manipulated by

DIAs any more. Whenever a DIA starts-up, the associated database server generates a random codiﬁed token

for each CRUD expression and sends it to the DIA that the database servers can use to execute the correspon-

dent CRUD expression. In order to validate our proposal, we present a conceptual architectural model and a

proof of concept.

1 INTRODUCTION

As our society becomes more and more dependent

on information systems, there is an increased need

to protect more efﬁciently our data stores from ma-

licious users. Data stores keep all types and kinds of

data, such as from persons, from processes and from

businesses. Independently from the type and/or kind,

in many organizations, business process models and

data are their key assets. As an example, we can say

very often that business process models are the base

for designing the conceptual and logical models for

the database responsible for storing the data to be pro-

tected.

Therefore, beyond protecting data which is tradi-

tionally the main concern, it is also crucial to pro-

tect the database schema. To demonstrate the impor-

tance of this problem, we can think of an organiza-

tion that rates its quality control process according to

some novel parameters and/or algorithms. These en-

tities (parameters and/or algorithms) will be mapped

in the database schema in one or more tables that, if

disclosed, a competitor can beneﬁt from. Thus, in

such situations, it is crucial for those organizations to

keep the knowledge about their database schemas as

contained as possible. Unfortunately, when following

traditional approaches, the knowledge about database

schemas is weakly protected. In the next paragraph

we brieﬂy explain how it happens.

There are several ways to master and therefore to

disclose database schemas. They can be organized

into two main categories: trustworthy and malicious.

The trustworthy category is based on authorization

processes. They can occur when programmers are

authorized to write Create, Read, Update and Delete

(CRUD) expressions for business logic. In order to

accomplish this goal, programmers must have access

to database schemas, partially or totally, depending

on the required extent. This mastering process as-

sumes that programmers are reliable and, therefore,

can be trusted. Nevertheless, serious security viola-

tions can still take place when software is developed

by third party organizations, i.e. it is outsourced. The

malicious category is based on malicious processes.

There are several possibilities, but at this moment

we emphasize situations where programmers inten-

tionally use CRUD expressions to disclose sensitive

and/or unauthorized parts of database schemas. For

example, by trying CRUD expressions iteratively and

successively until disclosing the required part of the

database schema. While for the ﬁrst category, there

is no other possibility than mastering programmers,

292

Pereira, Ó., Regateiro, D. and Aguiar, R.

Protecting Databases from Schema Disclosure - A CRUD-Based Protection Model.

DOI: 10.5220/0005967402920301

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 292-301

ISBN: 978-989-758-196-0

for the second category malicious users can resort to

several techniques to achieve the same result. These

aspects will be addressed in more detail in chapter 2

(Motivation).

A solution to avoid giving the programmers de-

tails about the server-side involves using a multi-

tier architecture, also called n-tier architecture. In a

multi-tier architecture, the presentation, application

processing and data management are physically sep-

arated. In this architecture, a programmer does not

need to know anything about the server-side expect

for the set of interfaces that are provided. A re-

lated architecture is the Service-Oriented Architecture

(SOA), where every feature that is implemented must

be made available as a service. Other services that use

them know nothing about their implementation, only

their interface and functionality.

This, however, does not solve our problem which

lies with the database applications, speciﬁcally what

we call a database interface applications (DIA). These

applications are applications that provide access to

the database and may be a service provided in a

SOA approach, for example, and not necessarily the

client that uses it. If the DIA that provides ac-

cess to the database is outsourced, the same prob-

lem with disclosing the database schema through the

CRUD expressions remains. On the other hand, if

the service is developed by the corporation that owns

the database, the developers still need to master the

database schema to write the required CRUD expres-

sions without using any other tools.

The conclusion is that security violations can oc-

cur when CRUD expressions can be used by DIAs.

In order to prevent their use, we propose a concep-

tual model where CRUD expressions are stored on

the server-side. CRUD expressions are pushed, kept

and managed by security servers and, from now on,

DIAs use secure tokens instead. Basically, DIAs are

provided with secure tokens and when they want to

execute a CRUD expression, they send a token to the

database server which, after a validation process, de-

cides if the token is valid. If so, it evaluates if the

correspondent CRUD expression can or cannot be ex-

ecuted. Details are provided in chapter 4. A proof of

concept based on Java, JDBC and SQL Server is also

presented to prove the feasibility of our architectural

model. It is expected that the outcome of this research

can contribute positively to the scientiﬁc community

effort towards more security in database applications.

The remaining of this paper is organized as fol-

lows. Chapter 2 presents the motivation for the work

detailed in this paper, chapter 3 presents the related

work, chapter 4 presents the architectural model of

the concept, chapter 5 presents a proof a concept of

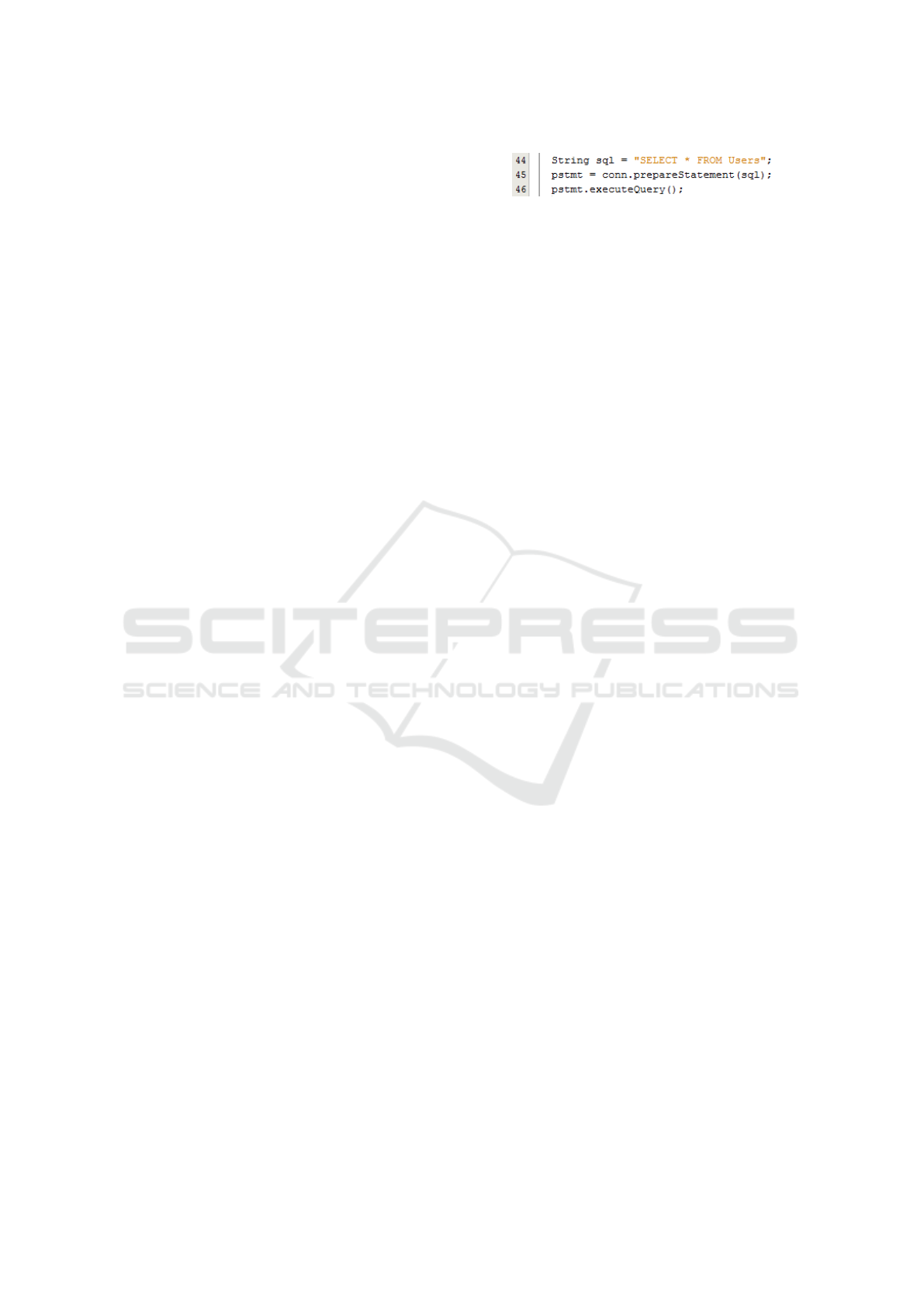

Figure 1: Select on a non-existent table.

the architectural model and chapter 7 concludes this

paper and details the future work.

2 MOTIVATION

The motivation for protecting the database schema

comes from: the observed practice of providing an

anonymized version of the database schema, along

with the data, when some business was required to

share it with consultants; and the fact that most

DBMS expose the database schema when carefully

crafted queries are issued at the DIA level. DIAs can

be organized into two layers: business layers and ap-

plication layers. Business layers are responsible for

interacting with databases (eventually through CRUD

expressions) and application layers sit on top of busi-

ness layers. We resort to these layers to organize this

chapter in two main sections: one for business layers

and another for application layers. There is an ad-

ditional section which slightly unveils the proposed

solution. The presented examples are based on SQL

Server and Java Database Connectivity (JDBC) for

SQL Server.

2.1 Business Logic Layer

During the development of the business layer, the

developers need to master the database schema in

order to write the CRUD expressions required by

the application. This can pose security problems if

the database schema cannot be disclosed, particularly

when the development of the business layer is out-

sourced. Furthermore, even if the developers do not

have access to the whole schema, they are able to

get information about it by trying to execute other

CRUD expressions. Notwithstanding the possibility

that the access control rejects the execution of said

CRUD expressions, the error messages generated by

the Database Management System (DBMS) can dis-

close information about database schema. To exem-

plify this problem, ﬁg. 1 shows a Select statement

that is trying to select all the information of the table

Users. Even if not allowed to execute Select state-

ments (due to access control constraints) SQL Server

returns the error message presented in Fig. 2. This

error message states that the table Users does not ex-

ist, this way disclosing information about the database

schema.

Protecting Databases from Schema Disclosure - A CRUD-Based Protection Model

293

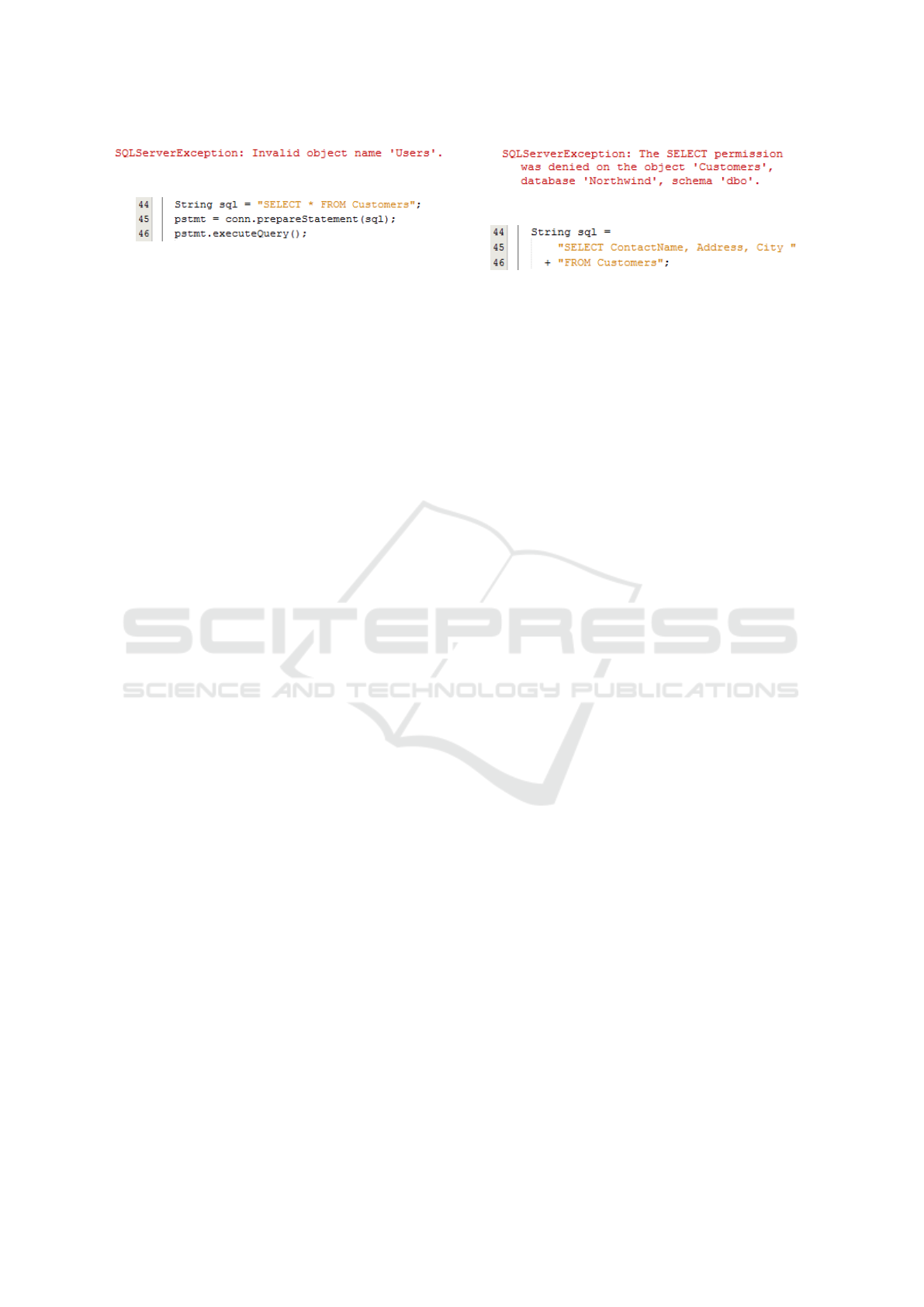

Figure 2: Raised error message for Select of Fig. 1.

Figure 3: Select on an existing table.

The same user can continue to issue other Select

statements as the one shown in Fig. 3. In this case,

the table exists but due to access control constraints,

an error message is raised, as shown in Fig. 4.

This error message also discloses information

about the database schema. Basically, the user be-

came aware that the database contains a table named

as Customers.

If the database is not effectively protected by ac-

cess control policies, the same user can try to disclose

sensitive schemas and data. In the example shown in

Fig. 5, the user (after becoming aware that table Cus-

tomers exists) is trying to ﬁnd out if table Customers

has columns ContactName, Address and City. Simi-

larly to previous examples, if some error message is

raised, the user can modify the query and retry its exe-

cution. Iteratively, the user will end up disclosing the

table schema.

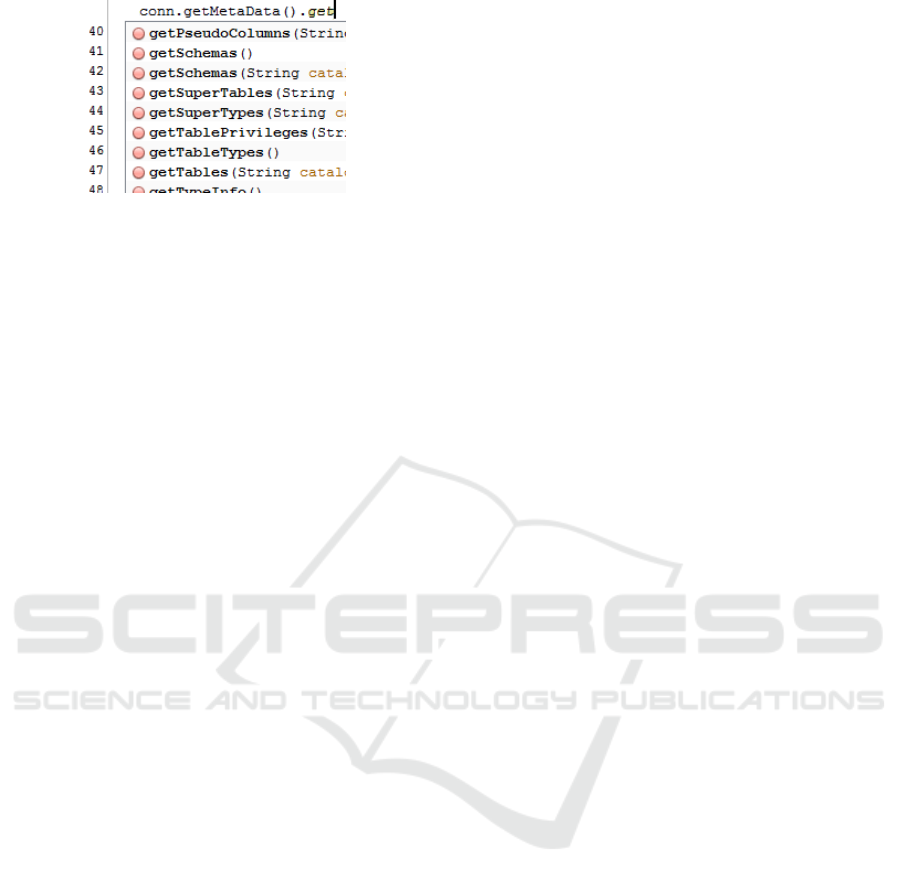

Finally, if an API such as JDBC is being used, then

users can have access to schemas through metadata

after issuing a Select statement. The metadata allows

users to obtain information such as table names, col-

umn names, column data types and other critical in-

formation, see Fig. 6. In this case we can disclose:

database schemas at line 41 and the database tables at

line 47, among others.

2.2 Application Layer

We can think that by decoupling the development pro-

cess of business and application layers and assign-

ing them to programmers playing different roles, it is

possible to hide (by encapsulation, wrapping or some

other technique) the CRUD expressions being used

by business layers from programmers of application

layers. Unfortunately, this is not possible. We em-

phasize the usage of reﬂection mechanisms of pro-

gramming languages, which can be used to expose

the CRUD expressions when the business layer is col-

located with the application layer in the same appli-

cation and, therefore, expose the database schema.

Moreover, resorting to reﬂection it is also possible to

implement additional security violations, such as re-

placing and modifying the underlying CRUD expres-

sions. One of the most well-known technique is SQL

Injection(Anley, 2002; Halfond et al., 2006).

Figure 4: Raised error massage for the select in Fig. 3.

Figure 5: CRUD to disclose a table schema.

2.3 Solution Proposal

As previously explained, if CRUD expressions are

allowed to be used on DIAs, there is no possibility

to prevent database schemas from being disclosed.

Therefore, to prevent attackers from accessing the

used CRUD expressions on the database, we propose

a technique that prevents their use by pushing them

to the server-side, i.e. the database server. From now

on, at the DIAs, CRUD expressions are replaced by

secure tokens. These secure tokens are randomly and

dynamically generated at runtime to avoid any se-

curity violation using other security breaching tech-

niques, such as replay attacks. Replay attacks are at-

tacks where a malicious user obtains valid token pairs

by capturing the communication between a legitimate

DIA and the server-side application, then using the

same token pairs to request the execution of the asso-

ciated CRUD expressions. To generate and manage

the required tokens at runtime we have a supervisor

application.

3 RELATED WORK

This section presents the different approaches used

to secure the database schema. Regarding database

schema, a lot of effort has been put into mapping the

schema (the relational model) to the object oriented

paradigm usually present in applications(Erhieyovwe

et al., 2013; Pereira et al., 2011; Russell, 2008). For

this, we have solutions such as Hibernate(Bauer and

King, 2005) and Eclipse Link(Eclipselink, 2013), and

even object-oriented databases(Bagui, 2003). They

aim at freeing developers from the need to master the

database schema, but they do not directly protect the

schema used in the database. Basically, programmers

can still write CRUD expressions and evaluate the re-

sults of their execution.

One possible reason for the lack of effort put

into protecting the database schemas is because there

is already a commonplace solution present in most

DBMS, which are the stored procedures (Garcia-

Molina, 2008; Sumathi and Esakkirajan, 2007; Ro-

hilla and Mittal, 2013). Stored procedures do protect

SECRYPT 2016 - International Conference on Security and Cryptography

294

Figure 6: Metadata provided by JDBC.

the database schema by encapsulating the CRUD ex-

pressions in the server-side. However they also have

some problems. Among them, we emphasize that

the use of stored procedures does not scale well be-

cause in complex database applications, the number

of stored procedures would increase (in some degree)

with the number of CRUD expressions. Another is-

sue, eventually the most relevant, is that their names

are static, meaning that they cannot be randomized.

Due to this, users can try to execute them once they

know their names.

There is also the possibility of using views to ac-

cess the data on a database (Roichman and Gudes,

2007; Chaudhuri et al., 2007; Wilson, 1988). Views

are deﬁned with a select expression and users access

the data provided by that expression, instead of ac-

cessing the tables directly. Nevertheless, the use of

views does not scale well. Basically, their number

also increases as the number of CRUD expressions

increases.

As we have mentioned, using the multi-tier ar-

chitecture allows the application processing and data

management to be physically separated. Thus not al-

lowing a client to connect directly to the database.

However, this solution is not aimed to be used at the

user level, but instead at the web server level that the

users connect to. In many cases, these web servers do

connect to the database directly, and all the assump-

tions we have made still hold. In fact, we can see that

they are the deﬁnition of a DIA, not the user applica-

tion/browser/etc.

Finally, in (Pereira et al., 2014; Pereira et al.,

2012) is presented an architecture where business

logic is dynamically built at runtime and in accor-

dance with the established access control policies.

Thus, CRUD expressions are deployed in each DIA

but only at runtime. Nevertheless, malicious users

can resort to reﬂection mechanisms to disclose the

database schema.

4 ARCHITECTURAL MODEL

Our main objective with this work is to avoid the de-

ployment of CRUD expressions in DIAs to prevent

database schemas from being disclosed. We start by

presenting a general conceptual model. Next, we

present a possible implementation for the conceptual

model.

4.1 Conceptual Model

As previously shown, to protect database schemas

from being disclosed by CRUD expressions, CRUD

expressions cannot be deployed in DIAs. However,

the use of CRUD expressions cannot be avoided.

CRUD expressions are unavoidable key entities to in-

teract with database servers (those based on the SQL

standard). This means that they need to be deployed

somewhere and also that, to be executed, database

servers need to know them. The ﬁrst obvious attempt

is to deploy them on database servers. However, this

solution can only be feasible if the next two questions

are positively answered. How can DIAs identify the

CRUD expressions to be executed? 2) Is this solution

effectively secure?

To answer the ﬁrst question we need a way to pro-

vide DIAs with a substitute for each CRUD expres-

sion. We call this substitute a token. Basically, a

unique token is associated with each CRUD expres-

sion. From now on, DIAs send tokens to database

servers instead of CRUD expressions. However, this

solution is not secure. For example, if each CRUD

expression is assigned a ﬁxed token, then malicious

users can resort to reﬂection mechanisms to disclose

tokens. Thereafter, being in possession of the to-

kens, the users can execute unauthorized CRUD ex-

pressions. As previously stated, even if the execu-

tion of some CRUD expression is not authorized by

any established access control policy, the returned er-

ror message always discloses some information about

the database schema. This security problem is inde-

pendent from the policy to deploy tokens (statically

or dynamically in DIAs).

To overcome this security gap, tokens need to be

generated such way that their values cannot be reused

outside the context in which they were generated. By

context we mean the running instances of the DIAs

and not the particular application deployed on a par-

ticular device. Thus, tokens need to be generated at

runtime and under the request of DIAs. No system

can be 100% secure, nevertheless, we can now ensure

that tokens are more secure, and the level of security

that can be reached with this approach depends on the

implementation process only. The level of security, as

we will see in the proof of concept, can be very high.

Finally, to close the argument, tokens being sent by

DIAs need to be validated before the execution of any

Protecting Databases from Schema Disclosure - A CRUD-Based Protection Model

295

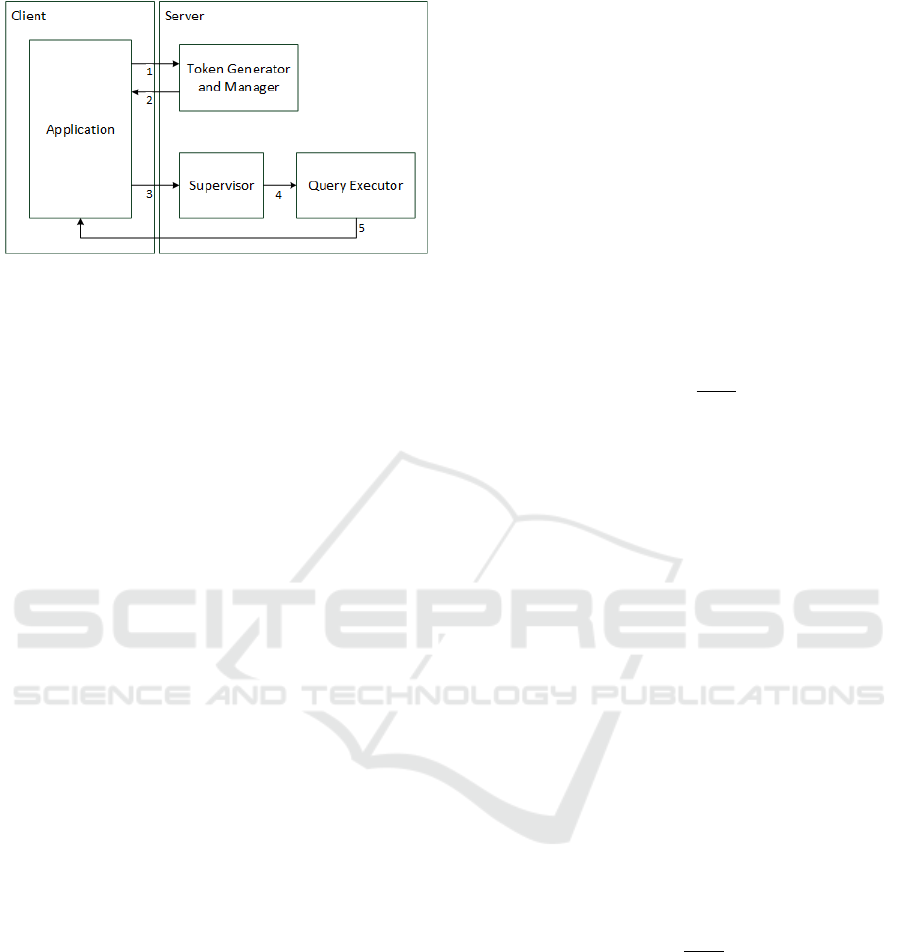

Figure 7: Conceptual model’s block diagram.

CRUD expression. This task can also be done in the

database server.

Fig. 7 shows a block diagram of the conceptual

model, where the client application is a DIA. The gen-

eral functionality is as follows:

1. The conceptual model starts with the application

(an instance of a DIA) connecting to the Token

Generator and Manager.

2. The Token Generator and Manager generates and

provides the necessary set of unique tokens to the

DIA.

3. The DIA uses the tokens to request the execution

of CRUD expressions.

4. Each token pair is veriﬁed and validated by the

Supervisor.

5. If the tokens are considered as valid, the corre-

spondent CRUD expression is executed by the

Query Executor and returns its output back to the

DIA.

If an invalid token is detected by the Supervisor,

that particular DIA should be prevented from sending

further tokens to avoid brute force attacks.

4.2 Conceptual Model Implementation

In this section we propose basic lines for an imple-

mentation of the conceptual model. This is only one

possibility among many others. With this example,

we expect to provide a better understanding of some

details that were not clear enough through the concep-

tual model.

Before presenting the general operation, we have

to provide some additional information. As previ-

ously mentioned, tokens need to be randomly gener-

ated every time a DIA is instantiated. In practice, this

means that the generated set of tokens needs to be ag-

gregated in a higher level entity. This higher level

entity uniquely identiﬁes the running instance. The

concept of Session can be used and we identify it as

SessionID. Basically, every time a DIA establishes a

valid connection, a SessionID is created. Then, the

set of tokens is randomly generated for the authorized

CRUD expressions for that SessionID. Each CRUD

expression is identiﬁed by a CrudSRID (CRUD Ses-

sion Remote ID).

This approach using two tokens decreases the

probability of a malicious user executing a CRUD ex-

pression that he was not meant to execute. Let S be

the number of active sessions, N

the number of Crud-

SRID tokens associated to session i, B the number of

random bits in the SessionID token and b the number

of random bits in the CrudSRID token. The prob-

ability γ, at any given moment, of a user randomly

guessing a valid pair of tokens is given by formula 1.

γ =

∑

n=1

B+b

(1)

The universe of possible tokens that can be used in

the system is given by 2

B+b

, i.e. each bit has two pos-

sible values and there are a total of B+b bits in each

token pair. The guessing probability γ is the number

of valid token pairs, i.e. the sum of the number of

CrudSRID tokens in each active session, divided by

the universe of possible token pairs.

The formula shows that the guessing probability

increases with the number of valid tokens (i.e. S and

), but it decreases with the increase in the number

of random bits in the tokens. Hence, a security expert

can accommodate the system to any number of ac-

tive sessions and CRUD expressions by manipulating

the number of bits used in each token. Additionally,

if N is the total number of CRUD expressions in the

system, then each session cannot have more than N

associated CrudSRID tokens. This implies that the

probability of randomly selecting a valid token pair is

majored by formula 2, so it is possible to measure the

maximum guessing probability Γ and lower it to be

within acceptable limits.

Γ =

S ∗ N

B+b

(2)

Consider then a system where the number of ac-

tive DIAs peaks at 1000 and the number of CRUD ex-

pressions conﬁgured in the system is 100. In this sce-

nario we can say that the maximum number of valid

token pairs will not exceed 100 000. Thus, following

formula 2, we can calculate the chance of a malicious

user guessing a valid token pair by chance given the

number of random bits in the tokens.

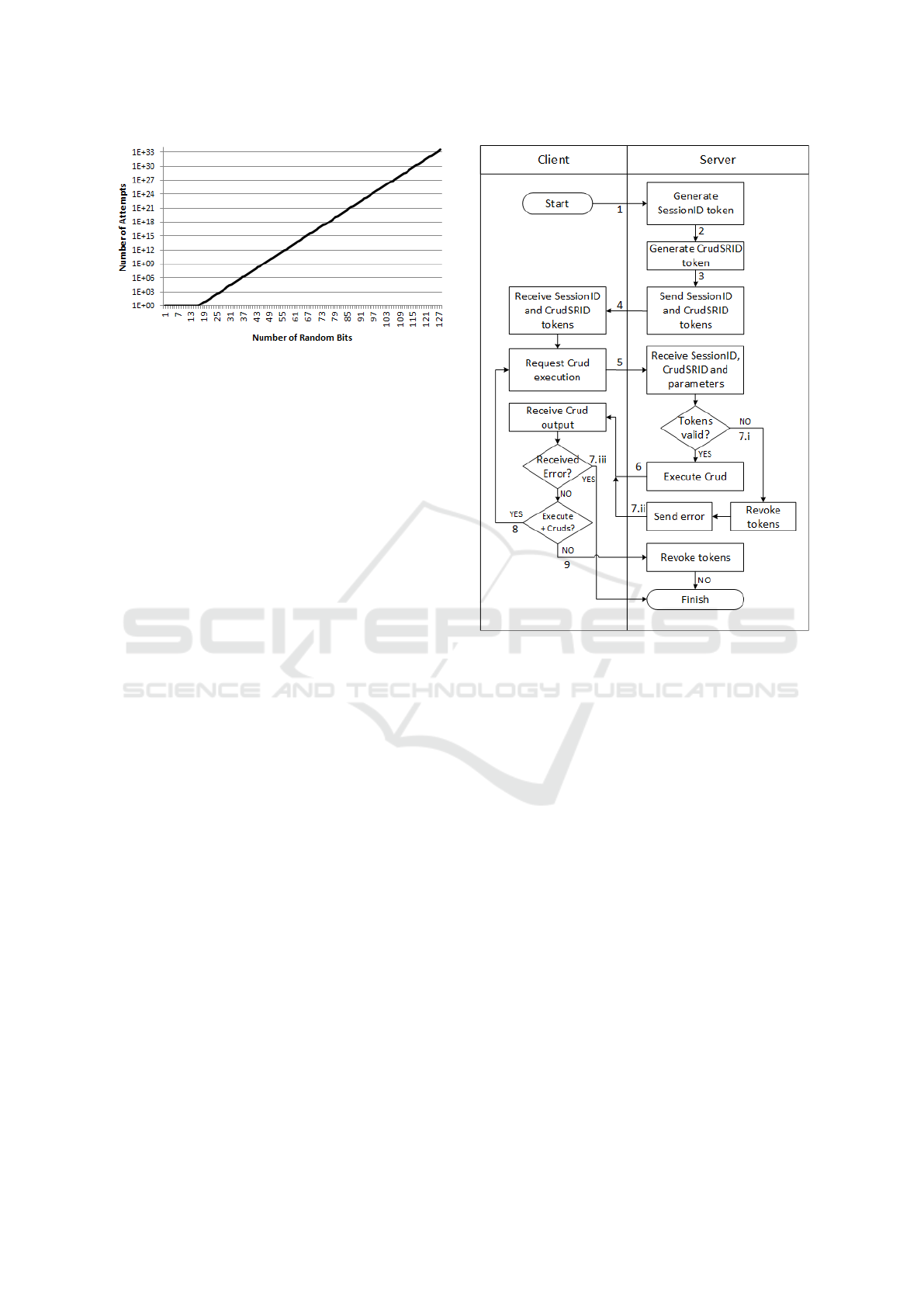

Fig. 8 shows the number of attempts required to

ﬁnd one of the 100000 valid token pairs given the to-

tal number of random bits in the tokens. Note that

the Y axis uses a logarithmic scale, so we can see that

SECRYPT 2016 - International Conference on Security and Cryptography

296

Figure 8: Number of attempts required to guarantee to ﬁnd

one of the 100.000 valid token pairs given the total number

of random bits in the tokens.

the number of attempts required to guarantee that a

malicious user is able to ﬁnd a valid token pair grows

exponentially with the number of random bits used

on the tokens. This shows that a security expert can

decrease signiﬁcantly the risk of a malicious user ex-

ecuting a CRUD expression that he was not meant to

execute, with small increases in the token’s number of

random bits.

Other techniques can be used in tandem with the

randomized tokens to decrease this risk, such as pre-

venting a user from requesting the execution of a

CRUD expression after invalid tokens are used, but

there are ways to go around them, potentially only

increasing the time between execution requests. We

will now detail the proposed implementation of our

solution.

A block diagram of our proposed implementation

of the conceptual model is shown in Fig. 9. The gen-

eral operation is as follows:

1. The DIA starts up and connects to the server-side

application.

2. The server-side application assigns a SessionID to

the DIA.

3. A random CrudSRID token is assigned to each

CRUD expression the DIA is authorized to use.

All CrudSRID are also assigned to the SessionID.

4. The SessionID and all the associated CrudSRIDs

are delivered to the DIA.

5. The DIA uses the SessionID and a CrudSRID to-

kens to request the execution of CRUD expres-

sions, passing also the parameters to the server-

side, if any.

6. The server validates the tokens, executes the cor-

respondent CRUD expression and outputs its re-

sults.

7. If any token is invalid, the DIA will not be allowed

to continue on using its tokens and: i) the Ses-

Figure 9: Proposed conceptual model implementation.

sionID and all CrudSRID tokens are revoked; ii)

an error is sent to the application; iii) the applica-

tion terminates.

8. The application requests the execution of more

CRUD as needed.

9. When the DIA has no more CRUDs to execute, it

terminates. The server, upon receiving the DIA’s

request to terminate, revokes its tokens.

4.3 Other Security Concerns

While this solution is aimed to solve a very speciﬁc

security problem, in practice its implementation may

introduce other security concerns and, thus, should

not be disregarded.

When the DIA connects to the server-side appli-

cation, it will need to authenticate not only to safely

associate a SessionID token to the session, but also to

determine which CRUD expressions can be used by

the DIA. Any authentication mechanism can be used,

as our solution is not dependent on any in particular,

but to provide a secure solution to this problem the

SSL/TLS protocol[17] can be used to not only pro-

vide a secure communication channel on which the

Protecting Databases from Schema Disclosure - A CRUD-Based Protection Model

297

DIA’s credentials can be sent safely, but also to pre-

vent attacks such as a man-in-the-middle.

Another security concern that should be consid-

ered when implementing this solution are replay at-

tacks. In a replay attack scenario, a malicious user

obtains valid token pairs by capturing the communi-

cation between a legitimate DIA and the server-side

application and then using the same token pairs to re-

quest the execution of the associated CRUD expres-

sions. Other attack that could use the SessionID token

is a denial of service attack, where a malicious user

could purposely use another client’s SessionID with

invalid CrudSRID tokens to revoke its tokens. These

problems can be avoided by, once again, using the

SSL/TLS protocol between the DIA and the server-

side application, since it encrypts the communication,

preventing the tokens’ disclosure at the network level.

5 PROOF OF CONCEPT

In this proof of concept, to identify the outcome

of the CRUD expression associated to each Crud-

SRID token that a DIA receives, we opted to send

a generic name with the CrudSRID token, e.g.

’GET ALL CLIENTS’ would mean that the asso-

ciated CrudSRID refers to a query that selects all

clients. This way, programmers know which infor-

mation they are requesting the database for. There

are, however, other methods for doing so. A more so-

phisticated method that can handle this transparently

for the programmer could be an extension of the work

presented in (Pereira et al., 2014).

Note that we also raise error messages when the

execution is aborted for some reason, e.g. because

invalid tokens were used. However, we now have

complete control over the message generated, so we

make sure that it does not disclose any information

about the underlying database schema when returned

to the user. With this technique, we effectively push

the queries from the DIA to the server-side, i.e. the

database server, protecting the database schema from

being disclosed unintentionally.

We will now present our proof of concept. It

is composed of the tables we had to create in the

database to contain the tokens and the CRUD expres-

sions, as well as the method used by the DIA to exe-

cute them, a stored procedure we called RemoteCall.

The RemoteCall stored procedure can be seen as a

mix of the supervisor and the query executor modules

shown in Fig. 7, since it ﬁrst validates the tokens it re-

ceives and then executes the relevant CRUD expres-

sion. The token generator and manager is a simple

server-side application that creates and revokes tokens

as needed when sessions are created and terminated,

so we will not detail it.

5.1 Database Tables

For our implementation to support the tokens and

store the CRUD expressions required by the DIAs,

we required two main tables: the Queries table and

the SessionQueries table. We also appended the Ses-

sionID parameter to an existing table that already

stored the connected DIAs, so that it can be validated.

The Queries table stores the actual CRUD expressions

to be used. The SessionQueries table maps a gener-

ated SessionID and the generated CrudSRID’s to the

ﬁxed database identiﬁer, i.e. the primary key of each

CRUD expression which is an incrementing CrudRID

value that remains constant for each CRUD.

We also wanted to support parameters for the

CRUD expressions, so we added an Operands table,

which stores metadata on the list of operands required

by each CRUD expression, such as the parameter’s

names and their data types, information that is re-

quired by the RemoteCall stored procedure. The us-

age of parametrized CRUD expression is explained

further in section 5.2 where we detail the RemoteCall

stored procedure.

To demonstrate how these tables are used to

achieve the desired functionality, consider the two

CRUD expressions A as SELECT * FROM Cus-

tomers and B as SELECT * FROM Orders WHERE

CustomerId = @CustomerId and ShipCountry =

@ShipCountry that exist in the Queries table and the

operands in the Operands table, shown on Table. 1

and Table. 2, respectively.

Table 1: Example of two CRUD expressions in the Queries

table.

CrudID CRUD Reference CRUD Expression

1 S Customers all A

2 S Orders byShipCountry B

Table. 1 shows an example of the Queries table

with two CRUD expressions. The ’CrudRID’ column

is the primary key, which is independent from the ses-

sions and is always the same for each CRUD expres-

sion. The ’CRUD Reference’ column is a generic

name related to the operation associated with the

CRUD expression and the ’CRUD Expression’ col-

umn is the associated SQL statement to be executed.

The CRUD expression has its parameters deﬁned

in the format ’@<parameter name>’, which facilitates

its execution by the RemoteCall stored procedure and

will be explained in section 5.2.

Table. 2 shows an example of the Operands ta-

ble. The ’CrudRID’ column references a query in

SECRYPT 2016 - International Conference on Security and Cryptography

298

Table 2: Example of information in the Operands table for

the queries in Table. 1.

CrudID Position Name Type

2 1 @CustomerId nchar(5)

2 2 @ShipCountry nvarchar(15)

the Queries table and the ’Position’ column denotes

the parameter position in the CRUD Expression that

the operand refers to and is used for performance op-

timization purposes. The ’Name’ column indicates

the name of the parameter used in the CRUD ex-

pression and the ’Type’ column indicates the operand

type, which follows the database management sys-

tem’s supported data types.

When a DIA initiates a new session with permis-

sion to use both CRUD expressions shown in Table.

1, it is assigned a random SessionID (12345678 in the

example) and the following information is appended

to the SessionQueries table:

Table 3: Example of the generated identiﬁers for a DIA ses-

sion in the SessionQueries table.

SessionID CrudSRID CrudRID

12345678 13572468 1

12345678 24681357 2

The information in Table. 3 shows us that the ses-

sion with the SessionID 12345678 can execute two

queries (i.e. the CRUD expressions with the CrudRID

1 and 2). Additionally, the DIA using that session has

to use the CrudSRIDs 13572468 and 24681357 to-

gether with its SessionID to execute each respective

query successfully.

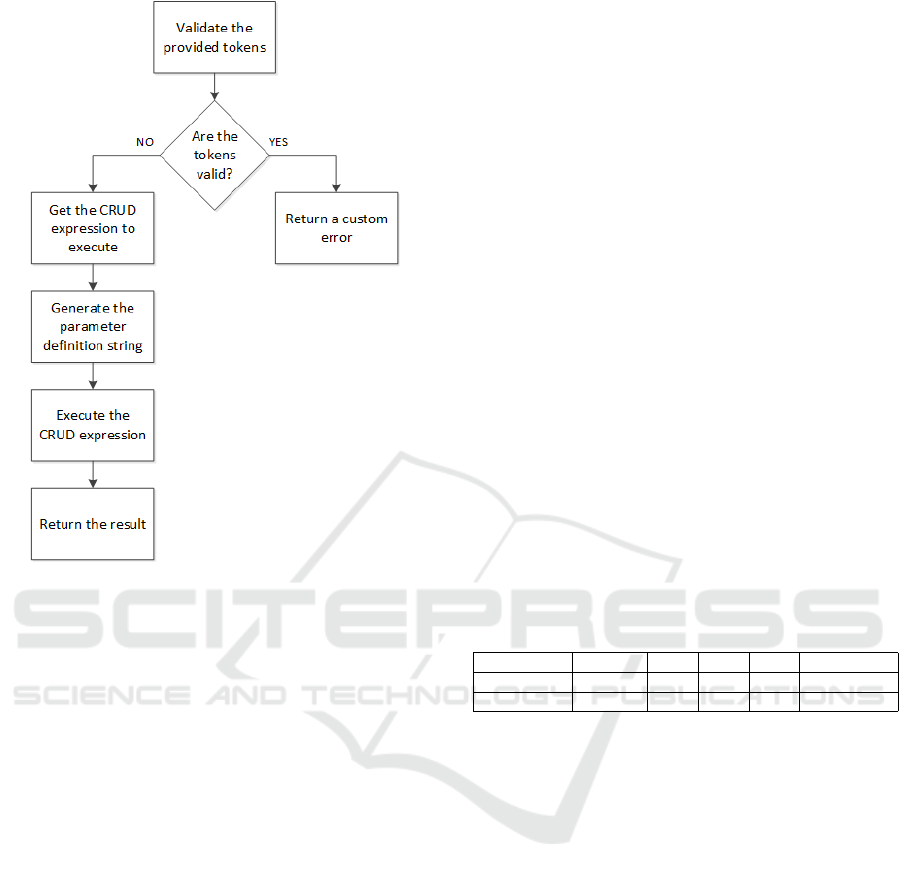

5.2 RemoteCall Stored Procedure

Having the database tables created, we now require a

way to execute the queries using the SessionID and

the CrudSRID tokens. To achieve this we chose to

use a stored procedure, which we called RemoteCall.

Stored procedures are able to take parameters as in-

puts and output the result of queries back to the DIA,

which is precisely the functionality we require. Since

we have the queries stored in a table, we can eas-

ily obtain the CRUD expression too, but the question

is how to get the DBMS to execute it. The process

varies from DBMS to DBMS and it must be done

carefully. Since the CRUD expression is a simple

string, appending the parameters received and execut-

ing it without any parameter validation is dangerous

because of attacks such as SQL Injection.

The DBMS used, i.e. SQL Server 2010, offered

two options to execute queries deﬁned in strings:

the EXEC and the sp executesql commands(IETF,

2008). The EXEC command allows executing CRUD

expressions stored in strings, but does not support

parametrization, which leaves it vulnerable to SQL

Injection attacks if used with parametrized queries.

On the other hand, the sp executesql command takes a

CRUD expression and a list of parameters. Not only

it is resilient against SQL Injection attacks by treat-

ing the parameters differently from the CRUD expres-

sion, even if they are strings themselves, but it also

enables the DBMS to perform optimizations.

The sp executesql command always receives a

statement, which is the CRUD expression to execute.

It also received two optional arguments, of which the

ﬁrst contains some metadata about the parameters of

the statement to execute, i.e. their names and data

types, and the other contains the parameters’ values.

A query that selects data from a table where a column

value is less than 10 would be executed as follows:

EXEC sp executesql N’SELECT * FROM table

WHERE col > @Param’, N’@Param int’, N’@Param

= 10’;

In the example above, the query retrieved from the

Queries table remains untouched, but the other pa-

rameters still need to be created by the RemoteCall

stored procedure prior to the execution of the query

per se. The result of the RemoteCall stored procedure

is exactly the same as if the CRUD expression had

been executed, therefore no changes are required in

DIA’s source code that handles it. Hence, the Remote-

Call stored procedure requires three arguments: the

SessionID, the CrudSRID, and a string called Params,

which by default is empty and contains the values of

the parameters needed to execute the CRUD expres-

sion.

Fig. 10 shows a block diagram of the RemoteCall

stored procedure implementation. The RemoteCall

stored procedure, upon being executed, retrieves the

CrudRID associated to the SessionID and the Crud-

SRID from the SessionQueries table. This is part

of the validation process of the tokens. If the Ses-

sionID or CrudSRID are not valid, i.e. if there is no

CrudRID associated with the token pair received, the

execution ends at this point, an error raised and the

session terminated. Then it retrieves the CRUD ex-

pression to execute from the Queries table, using the

CrudRID obtained initially. Next, the parameter deﬁ-

nition string is built from the information stored in the

Operands table. Finally, it executes the sp executesql

command with the CRUD expression retrieved, pass-

ing the parameter deﬁnition string and the parameter’s

values received from the DIA. Instead of the usual

CRUD expressions, for the DIA to pass the tokens

and the parameter values it executes the RemoteCall

stored procedure as follows:

EXEC PolicyServer2. remote.RemoteCall @Ses-

Protecting Databases from Schema Disclosure - A CRUD-Based Protection Model

299

Figure 10: RemoteCall stored procedure block diagram.

sionID = ?, @CrudSRID = ?, [@Params = ’@Param1

= <value>, @Param2 = <value>’];

The ﬁrst parameter would be the SessionID of the

DIA and the second parameter the CrudSRID of the

query to execute. The @Params is only needed if ad-

ditional parameters are required by the CRUD expres-

sion. It can be seen that these SQL expressions do

not disclose any information about the CRUD expres-

sion that will be executed, nor does it directly disclose

any information about the database schema, assuming

that the parameters and the columns’ names obtained

from executing them are aliases and they do not use

the same name as deﬁned in the database schema.

After the RemoteCall stored procedure was cre-

ated, we only had to ensure that it was not possible

for the DIAs to use any other method of executing

CRUD expressions. Hence, we revoked all the user’s

permissions on the database except the ability to ex-

ecute the RemoteCall stored procedure. This, how-

ever, limited its ability to execute the queries deﬁned

in the database due to the caller’s lack of permissions.

The solution found was to use the “execute as owner”

modiﬁer on the RemoteCall, effectively granting it

the permissions it required regardless of which user

called it. This also addresses the schema disclosure

problem created by the SQL Server’s JDBC driver

metadata, which returns empty result sets when in-

voking the methods.

5.3 Performance Assessment

In order to evaluate the overhead induced by our solu-

tion, a performance assessment was carried out. Ba-

sically, we compared the response time between the

traditional solution and the solution proposed in this

paper. Since we want to assess the overhead that our

solution imposes in a system, we aimed to maximize

its contribution in the results obtained. To achieve it

we used an environment where the execution time of a

Select statement is as low as possible: we created a ta-

ble with a single attribute of type Integer and only one

row was inserted into the table. Then, a Select state-

ment was written to select the inserted row. The two

solutions were implemented and tested in a PC with

Windows 7 Enterprise. All unnecessary processes and

networking were shut down.

We tested both solutions by performing 100.000

requests to the database executing the select statement

directly and using the RemoteCall stored procedure.

The tool used to perform the tests was Apache JMeter,

which provided the results are shown in Table. 4. The

results include the average time per request, the 90th,

95th and 99th percentile and includes the throughput

achieved with each solution, which is the number of

requests served per second.

Table 4: Performance test results over 100.000 requests.

Average 90% 95% 99% Throughput

Select 2 1 1 48 392,6 req/s

RemoteCall 2 1 1 48 351,9 req/s

From these results we can see that the overhead in-

troduced by the proposed solution slightly reduces the

throughput by about 41 requests per second, from 392

to 351, in this particular test suit. It is worth pointing

out that this test suit was aimed to maximize the con-

tribution of the overhead by using a very simple query

with a minimal result set. In a more realistic scenario,

the database computation time will be greater with

more complex queries and bigger data sets, making

the overhead contribution of the database processing

delay more signiﬁcant and close the gap between the

response time and throughput on both solutions.

Note that this overhead is constant. Having one

CRUD expression conﬁgured or thousands of them

does not impact the RemoteCall stored procedure ex-

ecution plan in any way. The only aspect that can

impact these results is if the CRUD expression, when

it is being fetched using the tokens, does not reside

in memory. This would require a disk access and a

much larger delay time, but it can be easily solved

by adapting the conceptual implementation. For ex-

ample, the supervisor application that resides close to

the database can store the CRUD expressions in mem-

SECRYPT 2016 - International Conference on Security and Cryptography

300

ory and implement the RemoteCall stored procedure

itself. The only downside to this approach is that the

client would not be able to use JDBC, relying instead

on a library that could provide a similar interface.

ACKNOWLEDGEMENTS

This work is funded by National Funds through FCT

- Fundac¸

ao para a Ci

encia e a Tecnologia under the

project UID/EEA/50008/2013.

6 CONCLUSION AND FUTURE

WORK

In this paper we have proposed a technique to prevent

database schemas from being disclosed in the DIAs

through the CRUD expressions being used. With this

technique, the CRUD expressions are stored in the

server-side instead of on the DIAs and are executed

using a set of tokens given to the DIAs. Since these to-

kens are randomly generated, the DIAs are not able to

disclose any information about the database schema

used, and the potential attacks against this technique

were discussed.

This technique requires every CRUD expression

to be stored on the server-side, which can be inconve-

nient while developing a DIA and might require a se-

curity expert to manually insert them. The existence

of an application that is capable of registering these

CRUD expressions in the server-side, and a library

that allows the programmer to retrieve the token of a

query using its generic name, would facilitate the us-

age of this technique. Furthermore, the RemoteCall

stored procedure can be simpliﬁed by removing the

deﬁnition string generation entirely, having it stored

directly in the Operands table instead of each param-

eter individually. However, this technique is more

prone to errors due to the strict syntax required, which

a CRUD registering application could address.

REFERENCES

Anley, C. (2002). Advanced SQL injection in SQL server

applications. White paper, Next Generation Security

Software . . . .

Bagui, S. (2003). Achievements and weaknesses of object-

oriented databases. Journal of Object Technology,

2(4):29–41.

Bauer, C. and King, G. (2005). Hibernate in action. Man-

ning Publications.

Chaudhuri, S., Dutta, T., and Sudarshan, S. (2007). Fine

grained authorization through predicated grants. In

Proceedings - International Conference on Data En-

gineering, pages 1174–1183, Istanbul.

Eclipselink, U. (2013). Understanding EclipseLink 2.4.

Eclipse.

Erhieyovwe, E., Oghenekaro, P., and Oluwole, N. (2013).

An Object Relational Mapping Technique for Java

Framework. International Journal of Engineering Sci-

ence Invention, 2(6):1–9.

Garcia-Molina, H. (2008). Stored Procedures. In Database

systems: the complete book, chapter 9.4, pages 391–

404. Pearson, 2nd e. edition.

Halfond, W., Viegas, J., and Orso, A. (2006). A classiﬁ-

cation of SQL-injection attacks and countermeasures.

Proceedings of the IEEE . . . .

IETF (2008). RFC 5246: The Transport Layer Security

(TLS) Protocol - Version 1.2.

Pereira,

O. M., Aguiar, R. L., and Santos, M. Y. (2011).

CRUD-DOM: a model for bridging the gap between

the object-oriented and the relational paradigms: an

enhanced performance assessment based on a case

study. International Journal On Advances in Soft-

ware, 4(1):158–180.

Pereira,

O. M., Regateiro, D. D., and Aguiar, R. L. (2014).

Role-Based Access Control Mechanisms. . . . (ISCC),

2014 IEEE . . . .

Pereira,

O. M., Aguiar, R. R. L., and Santos, M. Y. M.

(2012). ACADA: access control-driven architecture

with dynamic adaptation. SEKE’12 - 24th Intl. Conf.

on Software Engineering and Knowledge Engineer-

ing, pages 387–393.

Rohilla, S. and Mittal, P. K. (2013). Database Security

by Preventing SQL Injection Attacks in Stored Proce-

dures. Software Engineering Conference, 2006. Aus-

tralian, 3(11):915–919.

Roichman, A. and Gudes, E. (2007). Fine-grained access

control to web databases. Proceedings of the 12th

ACM symposium on Access control models and tech-

nologies - SACMAT ’07, page 31.

Russell, C. (2008). Bridging the Object-Relational Divide.

Queue, 6(June):18.

Sumathi, S. and Esakkirajan, S. (2007). Fundamentals of

relational database management systems. Springer.

Wilson, J. (1988). Views as the security objects in a mul-

tilevel secure relational database management system.

Proceedings. 1988 IEEE Symposium on Security and

Privacy.

Protecting Databases from Schema Disclosure - A CRUD-Based Protection Model

301
