How I Met Your Mother?

An Empirical Study about Android Malware Phylogenesis

Gerardo Canfora

, Francesco Mercaldo

1,2

, Antonio Pirozzi

and Corrado Aaron Visaggio

Department of Engineering, University of Sannio, Benevento, Italy

Centro Regionale Information Communication Technology - CeRICT scrl, Benevento, Italy

Keywords:

Malware, Phylogenesis, Lineage, Triage, Security, Android.

Abstract:

New malware is often not really new: malware writers are used to add functionality to existing malware,

or merge different pieces of existing malware code. This determines a proliferation of variants of the same

malware, that are logically grouped in “malware families”. To be able to recognize the malware family a

malware belongs to is useful for malware analysis, fast infection response, and quick incident resolution. In

this paper we introduce DescentDroid, a tool that traces back the malware descendant family. We experiment

our technique with a real world dataset of malicious applications labelled with the family they belong to,

obtaining high precision in recognizing the malware family membership.

1 INTRODUCTION

In the recent years Android platform has increasingly

been targeted by malware (F-Secure, 2015). This high

volume of new malware is not really “new”. As a

matter of fact malware, like any software, evolves.

Malware writers modify existing code in ways that

are typical in software industry and open source land-

scape (Walenstein and Lakhotia, 2012): they add fea-

tures to an existing malware, they can generate mul-

tiple conﬁgurations of the same malware to allow the

execution on several platforms, they merge together

components of different malware programs. Other

methods for changing malware include: recompiling

(Rosenblum et al., 2011), packing (Chen et al., 2008),

permuting, obfuscating (Nagra and Collberg, 2009),

or otherwise tweaking programs (Schipka, 2007).

The study of the malware evolution can concern

four different classes of problems: phylogenetic anal-

ysis, lineage reconstruction, variants identiﬁcation,

and code clones search. Phylogenetic analysis is the

study of similarities and differences in program struc-

ture to ﬁnd relationships within groups of software

programs, providing insights about new malware vari-

ants not available within the databases of malware sig-

natures (Jilcott, 2015). Lineage reconstruction is the

identiﬁcation of the ancestor-descendant relationships

among malware samples, identifying, if possible, the

direct samples from which a speciﬁc piece of mal-

ware may have been derived (Dumitras and Neamtiu,

2011).

Variants identiﬁcation consists of localizing mal-

ware samples that introduce an evolution with respect

to an existing malware (Jang et al., 2011). Finally,

ﬁnding code clones aims to retrieve which pieces

of codes are reused within a new malware sample

(Farhadi et al., 2014). Recognizing the relationships

among malware programs is at the basis of a variety

of security tasks, from malware characterization to

threat detection and cyber-attack prevention. In mal-

ware triage (Hu et al., 2009; Bayer et al., 2009; Jang

et al., 2011; Battista et al., 2016), lineage can be used

by malware analysts to understand trends over time

and make informed decisions about the best strate-

gies to dissect the malware samples. Moreover, iden-

tifying malware lineage and phylogenetic can help

to face more promptly zero day malware programs,

when they are or contain evolved versions of known

malware. The main limit of the methods already pro-

posed in literature is that they extract features at a

single level of program abstraction; thus, malware

writer could make ineffective the detection technique

by adopting an obfuscation technique at that level of

abstraction.

In this paper we introduce a method able to assign

a malware variant to the family it belongs to by us-

ing three different levels of program abstraction. The

three levels have been chosen to contrast the differ-

ent types of obfuscation that may be adopted by mal-

ware writers at the different layers of a program. We

310

Canfora, G., Mercaldo, F., Pirozzi, A. and Visaggio, C.

How I Met Your Mother? - An Empirical Study about Android Malware Phylogenesis.

DOI: 10.5220/0005968103100317

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 310-317

ISBN: 978-989-758-196-0

consider these levels as: op-code, Control Flow and

Function Call Graphs (CFG and DCG), and the se-

quence of system calls produced by the execution of

the malware. These features are then used for com-

puting two different functions of similarity, that are

considered as the metrics for the classiﬁcation phase.

In our evaluation, the method showed a very high pre-

cision in recognizing the provenance family of a mal-

ware.

The paper proceeds as follows. Section 2 intro-

duces the related literature divided into two research

topics: the building of malware phylogenesys, and the

identiﬁcation of malware variants; Section 3 describes

the method and Section 4 discusses the evaluation of

the method; ﬁnally, Section 5 draws the conclusions.

2 RELATED WORK

The problem of recognizing the malware families

mainly refers to two areas of research in malware

analysis: the building of malware phylogenesys, and

the identiﬁcation of malware variants. Goldberg et al.

(Goldberg et al., 1998) studied malware phylogeny by

applying sufﬁx trees to build phyloDAGs.

Erdelyi and Carrera (Carrera and Erd

elyi, 2004)

through phylogenetic trees computed the relation-

ships between 6 distinct groups of malware extracting

the function call graphs. Karim et al. (Karim et al.,

2005) used n-perms along with n-grams on op-code

sequences to classify malware and to compare with

existing classiﬁcation schemes. Ma et al. (Ma et al.,

2006) studied the diversity of shellcode by comput-

ing exedit distances of instruction byte sequences pro-

duced with code emulation. Wehner (Wehner, 2007)

showed how families of internet worms were related

by their normalized compression distance, leveraging

phylogenetic trees. Kong and Yan (Kong and Yan,

2014) introduced the transductive malware classiﬁca-

tion, a paradigm to infer family information of mal-

ware variants under certain circumstances.

Giannella and Bloedorn (Giannella and Bloedorn,

2015) developed a version of spectral clustering ap-

plied to behavior-based malware clustering, which

was a technique proposed and investigated by Rieck et

al.(Rieck et al., 2011). The main limit of this method

stands in the computational cost, which is high with

respect to baseline algorithms, as stated by the au-

thors. Our method outperforms this method in terms

of precision. Zhong et al. (Zhong et al., 2012) pro-

posed a classiﬁcation method based on function level

similarity comparison. The main difference with our

work is that Zhong et al. take into account only meta-

morphic malware, while our method is thought to ana-

lyze any kind of malware. Zhong et al. (Zhong et al.,

2013) proposed a system that classiﬁes malware by

extracting a set of code metrics from the programs

and computing the distance between programs. The

authors use a dataset that is much smaller than the

one used in our experiment and they measured per-

formances that are lower than ours. Yu and colleagues

(Yu et al., 2010) proposed a byte frequency based de-

tecting model to identify malware variants. Shang et

al. (Shang et al., 2010) presented a method aimed to

identify win32 malware variants computing similar-

ity between two binaries on the basis of their function

callgraph similarity: authors conclude that the method

has many drawbacks to fully realize malware auto-

matic analysis. The approach proposed by Cesare et

al. (Cesare and Xiang, 2011) builds a birthmark of

a malware based on the set of control graphs it has.

Authors conclude that using 10 000 samples the false

positive rate is less than 1%. Also Wu et al. (Wu et al.,

2013) based their work on function-call graphs in or-

der to identify metamorphic malware. They evaluate

their technique using more then 200 pairs of malware

vairiants obtaining a similarity score ranging from 0.2

to 0.4. Agrawal et al. (Agrawal et al., 2012) pro-

posed an abstract malware signature based on extract-

ing semantic summaries of malware code, obtaining

a true positive rate equal to 86%. Xiaofang et al.

(Xiaofang et al., 2014) proposed a similarity search

of malware variants using distance metrics based on

locality-sensitive hashing schemes, obtaining a pre-

cision equal to 0.9. Shen et al. (Shen et al., 2014)

proposed a technique consisting in detecting malware

variants generated by various obfuscation techniques,

by using the topology graph of payloads in order to

model relationships between components and the API

sets. They obtained a detection ratio ranging from

78.26% to 100.0%. Azab et al. (Azab et al., 2014) in-

vestigated whether the Trend Locality Sensitive Hash-

ing algorithm is useful to group binaries that belong to

the same variant, using the k-NN algorithm. They ob-

tain an accuracy equal to 0.989 using 878 binaries. As

it emerges from this discussion and at the best knowl-

edge of the authors, the method presented in this pa-

per is new, because it uses three different program ab-

stractions and similarity functions never applied be-

fore.

3 THE METHOD

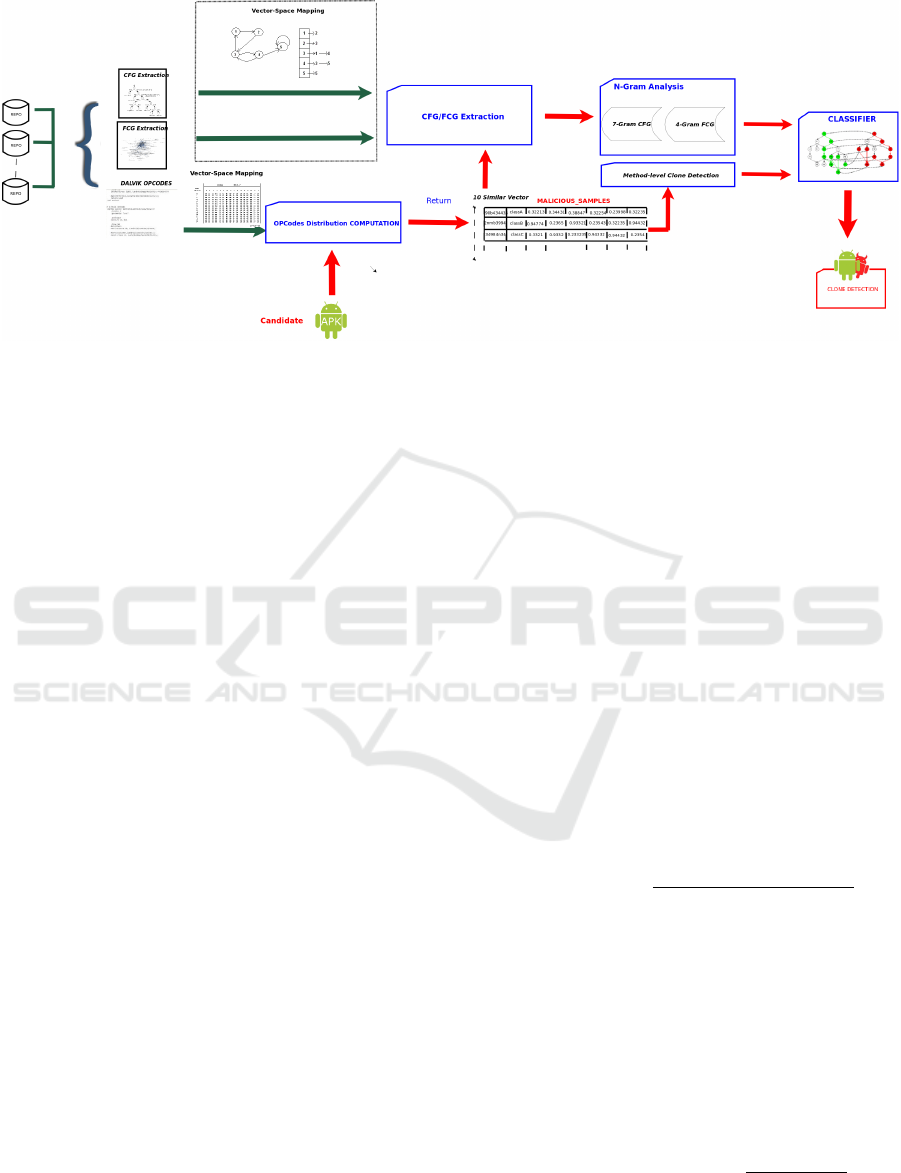

The main goal of DescentDroid is to identify the mal-

ware family a given malware has the highest proba-

bility to belong to. Our model is made of 4 stages

organized as a pipeline, where each stage generates

How I Met Your Mother? - An Empirical Study about Android Malware Phylogenesis

311

the input for the next one:

1. relative op-code frequency distribution analysis;

2. CFG/FCG extraction;

3. isomorphism analysis with ngrams;

4. classiﬁcation.

Each malware program m is associated to a vector

of features v

extracted from the code at three dif-

ferent levels of program abstraction: op-code listings,

Control Flow Graph and Function Call Graph, and se-

quences of syscalls.

The ﬁrst feature we extract is the op-code fre-

quency distribution: previous works (Canfora et al.,

2015), (Canfora et al., 2016), (Mercaldo et al., 2016)

demonstrated that this feature is able to effectively

identify a malware family. Op-code frequency dis-

tribution can be ineffective when obfuscation tech-

niques are adopted. Because of this consideration, we

extract a second class of features, which character-

ize the CFG and the FCG of a malware application.

Some papers (Kinable and Kostakis, 2011) and (Gas-

con et al., 2013) show that it is possible to accurately

detect malware families via call graph clustering and

function call graphs, and such techniques are robust

against obfuscation. In fact, it is observed that the

Control Flow is invariant between different mutations

of a worm (Kruegel et al., 2005).

The third class of features comprehends sequences

of system calls. These features are then used for com-

puting two different types of distances, that will be

used to establish the similarity between malware pro-

gram m and a malware Family F. This similarity is

obtained by the Isomorphism Analysis on the ngram

extracted both by the CFG and by the FCG.

The last stage is the classiﬁcation of the malware

program m

, accomplished through a similarity eval-

uation between a malware m

and a candidate fam-

ily F

, computed with two similarity scores, namely:

, F

), and SC

, F

These scores are functions of the three measures

extracted with the previous steps, described above.

A malware program m

is assigned to a malware

family F

if and only if the values of both the scores

for the malware compared with the correspondent val-

ues of scores for that family are smaller than the ﬁxed

threshold. Given t

the threshold for the similarity

score SC

, and t

the threshold for the similarity score

, m

∈ F

⇐⇒ SC

, F

) ¡ t

, F

) ¡

The thresholds have been established by empiri-

cal trials with 1000 samples belonging to the training

dataset, choosing the values which maximize the ac-

curacy: 0.0002 for SC

, and 0.10003 for SC

In the following subsections we describe each

stage in detail.

3.1 Stage 1: Relative Op-codes

Frequency Distribution Analysis

In this phase we extract the Relative Op-codes Fre-

quency Distribution. The business logic of an An-

droid application is contained in the .dex ﬁle used

by dalvik, an implementation of Java virtual machine

for Android environment. We extract the relative fre-

quency of the op-codes from the dex ﬁle: there are

255 different op-codes in the Ofﬁcial Dalvik Byte-

code Set Table (Dalvik, 2015). Op-codes implement-

ing similar functions are grouped in the same cate-

gory, e.g. op-code related to move operations (i.e.,

move, move/from16, move/16, move-wide, move-

wide/from16, move-wide/16, move-result, move-

result-wide, move-result-object op-code) are grouped

in move category.

Once extracted, the relative frequency of each op-

code is stored in a ﬁxed-size vector with 29 elements,

where each element represents the op-code category

(a density measure) the corresponding op-code falls

in. Then, we compare the vector extracted from m

with the vectors representing the families of the train-

ing dataset by using cosine similarity, in order to

obtain the 10 closest vectors (families) to m

. The

Cosine Similarity, is then computed for each of the

Dalvik Op-codes Category. The closer to 1 the dis-

tance is, the more similar two vectors are.

3.2 Stage 2: CFG/FCG Extraction

We extract the CFG and the FCG from the applica-

tions with AndroGuard (Androguard, 2015). Both the

CFG and the FCG of each candidate malware pro-

gram m

is extracted in the form of Adjacency Lists.

These Adjacency Lists are compared with the Adja-

cency Lists of the CFG and FCG of malware samples

contained in the collection of the training set through

a Similarity function for identifying common shared

structures between the candidate malware program m

and the malware families F

. Finally, these Adjacency

Lists are ready for the Isomorphism analysis stage

with the n-grams analysis.

3.3 Stage 3: Isomorphism Analysis with

n-grams

In this phase, we detect the contiguous sequence of

the instructions (CFG) or the contiguous sequence

of the invoked syscalls (FCG) that are in common

between the candidate malware program m

and the

SECRYPT 2016 - International Conference on Security and Cryptography

312

Figure 1: The 4-staged Architecture of DescentDroid.

malware families F

. This operation is equivalent to

extract common (CFG and FCG) subgraphs between

the candidate malware program m

and the malware

families F

. We consider 7-grams regarding the CFG

Adjacency Lists and 4-grams with regards to the FCG

Adjacency Lists. The choice of the ngrams param-

eter in the CFG and FCG is driven by an empirical

analysis i.e., we noticed that a smaller sequence is

likely to produce a high number of false positives.

For this reason we chose the smallest n that allows to

consider only the relevant portions of the graph. The

ngrams analysis detects the common maximum sub-

graph of the candidate with the 10 closest malware

samples returned by the op-code Frequency Distri-

bution Analysis. In addition to the ngrams analysis,

phase 3 performs the method-level similarity analy-

sis for the identiﬁcation of code clones at method-

level. This analysis compares the op-code Frequency

Distribution for each method with the distribution of

the top 10 returned vectors. The choice of compar-

ing the op-code distribution instead of the methods

name is driven by the fact that, in a code-reuse sce-

nario, methods name or more in general identiﬁers

can be changed or encrypted, while an identical op-

codes distribution still remains indicative of a code

clone. This analysis is resilient at least for type I, and

type II Clones but not for type III and type IV, in fact,

type I and II still have the same op-codes distribution

(Roy et al., 2009).

3.4 Stage 4: Similarity Scores

Computation

The last phase computes the similarity score which

evaluates the afﬁnity of the given malware m

to one

or more malware families F

through the classiﬁca-

tion. The malware variants detection is based on a

threshold analysis based on isomorphism ratio be-

tween malware samples.

The similarity scores we deﬁne take into account

also the numbers of n-grams detected in the Call

Graphs: if there are not ngrams taken from CFG nei-

ther from the FCG, then the Similarity Score is 0. This

means that there is no similarity between the candi-

date m

and the malware families F

of the training

set. The classiﬁcation is accomplished through two

Similarity Scores. SC

is deﬁned as:

max(#7 − gramsCFG, #4 − gramsFCG)

∗ methodSimRatio

(1)

In this formula, we assume that shared n-grams for

CFG or FCG exist: we take the maximum value of

the common n-grams (7-grams for the Control Flow

Graphs, and 4-grams for the Function Call Graphs)

and then multiply it with the methodSimRatio vari-

able. The methodSimRatio is a variable that spans in

the interval [0,1] and is deﬁned as follows:

methodSimRatio =

countO fClonedMethods

totalMethods

(2)

methodSimRatio is the ratio of cloned methods be-

tween the candidate apk and the i-th apk in the train-

ing dataset. 0 means that there are not cloned meth-

ods whereas 1 means that all the methods between

the two apps were cloned. Then we also deﬁned the

OpCodeSimScore spanning in the interval [0,1] as a

variable that expresses the similarity between the Fre-

quency Distribution of the Dalvik Op-codes of the 2

apps. The OpCodeSimScore is a variable deﬁned as

follows:

OpCodeSimScore = cos(θ) =

· F

kkF

(3)

where M

is the Relative Frequency of that i-th Cat-

egory of Op-code for the candidate malware m

and

How I Met Your Mother? - An Empirical Study about Android Malware Phylogenesis

313

is the Relative Frequency of that i-th Category of

Op-code for the Family F

that is part of the training

dataset. In this formula we don’t take into account the

Relative op-codes Frequency Distribution Sim Score

because, the 10 returned vectors are yet sorted by this

score. SC

is deﬁned as:

OpCodeSimScore ∗ (#7 − gramsCFG)∗

(#4 − gramsFCG) ∗methodSimRatio

(4)

Both the similarity scores are normalized so that when

a similarity score is close to 1 it means that the simi-

larity is maximum (1 means that the app is a perfect

clone), while 0 means that there is not similarity at all.

4 EVALUATION

The aim of the experiment is to evaluate the effec-

tiveness of DescentDroid in identifying the family a

malware program belongs to. The method consists

of classifying malware by using the threshold based

mechanism described previously. The classiﬁcation

results are measured with three metrics : precision, re-

call, and accuracy. The precision has been computed

as the proportion of the examples that truly belong to

class X among all those which were assigned to the

class:

Precision =

t p

t p + f p

(5)

where tp indicates the number of true positives and

fp indicates the number of false positives. The recall

has been computed as the proportion of examples that

were assigned to class X, among all the examples that

truly belong to the class, i.e. how much part of the

class was captured:

Recall =

t p

t p + f n

(6)

where fn is the number of false negatives. Then we

compute the Accuracy deﬁned as the overall correct-

ness of the model, computed as the sum of correct

classiﬁcations divided by the total number of classiﬁ-

cations:

Accuracy =

t p + tn

t p + f p +tn + f n

(7)

4.1 The Dataset

We built a dataset composed of 4000 Android mal-

ware applications of different kinds and covering

a wide spectrum of malicious intents from Drebin

Dataset (Arp et al., 2014; Spreitzenbarth et al.,

2013). Malware dataset is also partitioned according

to the malware families: each family contains samples

which have in common several characteristics, like

payload installation, the kind of attack and events that

trigger malicious payload (Zhou and Jiang, 2012). We

used 3000 malware samples as training dataset, while

the remaining 1000 have been used to test the effec-

tiveness of the proposed technique.

4.2 Analysis of Results

We submitted to DescentDroid 1000 malware sam-

ples labelled with the correspondent provenance fam-

ily: DescentDroid has correctly classiﬁed the family

of 979 malware samples, and then we obtained an ac-

curacy of:

Accuracy =

979

1000

= 97.9% (8)

The classiﬁcation is done with the two features,

namely the Final Similarity Scores 1 and 4 at the ﬁ-

nal stage. Table 1 shows the evaluation results, where

each family is associated to the number of the samples

it includes, and the precision and recall that we ob-

tained with the classiﬁcation. The malware submitted

belonged to 114 different families, and DescentDroid

identiﬁed the malware family with a precision ranging

in most cases from 0.9 to 1. Precisely, all the malware

samples belonging to 82 families were classiﬁed in

the right family (i.e., with precision equal to 1) which

corresponds to 57% of cases. This supports the ef-

fectiveness of DescentDroid to trace the provenance

family of a malware. Only in the 9.5 % of cases, we

obtain a precision equal to or smaller than 0.5.

We noticed that several families in the test set are

represented by a few malware samples, thus we won-

der if the classiﬁcation performances is somehow re-

lated with the family size. For answering this ques-

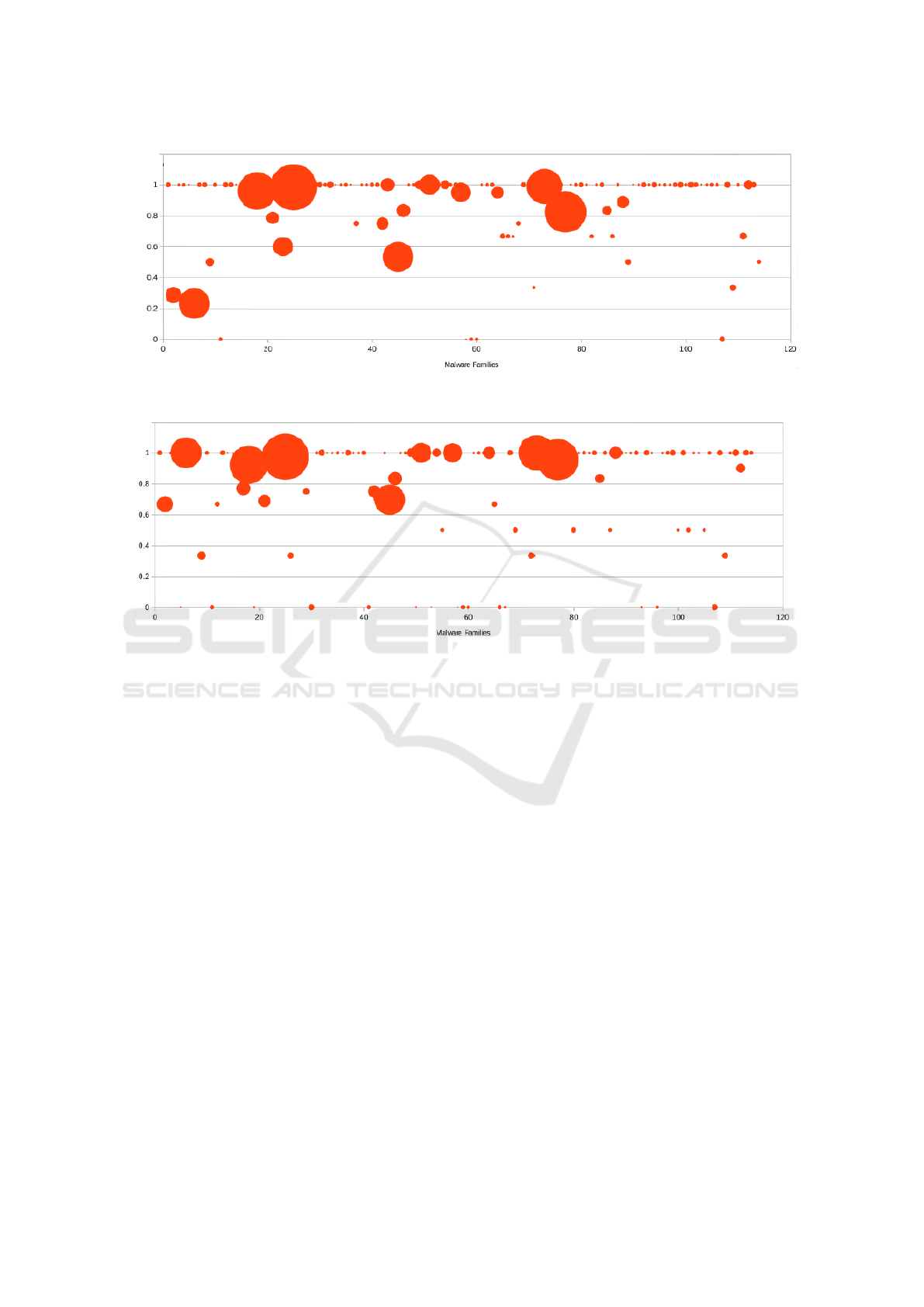

tion, we plotted in ﬁgure 2 and 3 the precision and

the recall obtained from each family with the corre-

sponding size of the family set: each circle repre-

sents a malware family and the radius of the circle

is proportional to the number of samples for that fam-

ily. About Precision, in Fig. 2 we can observe that

DescentDroid achieves a high precision both for mal-

ware families with a few (little circles) or many (big

circles) samples in the training dataset, except for 10

families: for those we measured a value of Preci-

sion under or near 0.5, as stated in Fig. 2. For all

those samples that belong to these families, Descent-

Droid would not behave better than a random classi-

ﬁer. These results mean that the ﬁnal Precision of the

Classiﬁcation process does not depend on the num-

ber of samples in the training set, but, could depend

on the level dissimilarity among the samples of the

same family. For strengthening this conclusion we

SECRYPT 2016 - International Conference on Security and Cryptography

314

Figure 2: Precision obtained by the evaluation.

Figure 3: Recall obtained by the evaluation.

run a correlation analysis between the families size

and the precision obtained, resulting a correlation in-

dex of 0.0658, which corresponds to a very irrelevant

correlation, and thus conﬁrms our conclusion. This

may be a reasonable explanation, since some families

count samples that are strongly different among each

others and share a very small part of code or behav-

ior. In this case DescentDroid lacks its effectiveness,

as our heuristic is based on the measure of the isomor-

phism ratio between malware samples. Then we can

deduce that, if the isomorphism ratio of a given mal-

ware family is low, therefore, the Precision for that

family is low. For the evaluation we used a Apple Mac

Pro 5.1, equipped with a Xeon QUADCore 2.66 GHz,

4GB RAM, and 320GB 7200 rpm HDD. The Execu-

tion Time for the whole analysis of a single malware

sample depends strongly on the size of the sample.

For the execution time, we obtained 0.33 min as the

minimum, 2.15 min as the average, and 5.33 min as

the maximum.

5 CONCLUSION AND FUTURE

WORK

In this paper we present a method for deriving the

family a malware belongs to. To achieve this goal,

we apply a four staged process which extracts three

different types of program abstractions, namely the

op-codes Frequency distribution, CFG/FCG extrac-

tion and the sequence of system calls produced by

the execution of the malware. Thus two similarities

metrics are computed and used for accomplishing a

threshold based classiﬁcation. The method demon-

strated its effectiveness as the 57% of families are rec-

ognized with precision equals to 1. As future work,

we are improving our method for being effective also

when a family shows a low rate of code and behav-

iors shared among samples, and, we are developing a

method to characterize the multi-family derivation of

a malware.

How I Met Your Mother? - An Empirical Study about Android Malware Phylogenesis

315

Table 1: Precision and Recall obtained with each family,

with the number of samples tested for each family (between

parentheses).

Family P R Family P R

AccuTrack (2) 1 1 Adrd (3) 0.28 0.66

Adsms (1) 1 1 Aks (2) 1 1

Anti (1) 1 0 BaseBridge (3) 0.23 1

BeanBot (2) 1 1 Biige (2) 1 1

Boxer (3) 0.5 0.33 Ceshark (2) 1 1

Coogos (2) 0 0 Copycat (3) 1 0.67

Cosha (3) 1 1 Dabom (1) 1 1

Dialer (1) 1 1 Dougalek (3) 1 1

DroidDream (13) 0.9 0.77 Koomer (1) 0 0

DroidRooter (2) 0.96 0 DroidSheep (4) 1 1

ExploitLinuxL (16) 0.78 0.69 FaceNiff (1) 1 1

FakeDoc (3) 0.6 1 FakeFlash (1) 1 1

FakeInstaller (191) 0.98 0.97 FakePlayer (3) 1 0.33

FakeRun (18) 1 1 FakeTimer (3) 1 1

Fakelogo (4) 1 0.75 Fakengry (2) 1 0

FarMap (1) 1 1 Fatakr (3) 1 1

Fauxcopy (1) 1 1 FinSpy (1) 1 1

Fjcon (2) 1 1 Flexispy (1) 1 1

FoCobers (3) 0.75 1 Fsm (1) 1 1

GPSpy (1) 1 1 Gamex (1) 1 1

Gapev (1) 1 0 Gappusin (8) 0.75 0.75

Geinimi (25) 1 0.72 Generic (1) 1 1

GinMaster (23) 0.53 0.69 Glodream (6) 0.83 0.83

Gmuse (1) 1 1 Gonca (2) 1 1

Hamob (3) 1 1 Hispo (1) 1 0

Iconosys (13) 1 1 Imlog (6) 1 1

JSmsHider (1) 1 0 Jifake (4) 1 1

Kidlogger (2) 1 0.5 Kiser (2) 1 1

Kmin (19) 0.95 1 Ksapp (1) 0 0

DroidKungFu (180) 0.96 0.92 Lemon (2) 0 0

LifeMon (1) 1 1 Luckycat (1) 1 1

Mania (1) 1 1 MobileTx (19) 0.95 1

Mobilespy (3) 0.67 0.67 Mobinauten (1) 0.67 0

Moghava (1) 0.67 0 Nandrobox (3) 0.75 1

Nickspy (2) 1 0.5 NickyRCP (1) 1 1

Nisev (1) 0.33 1 Nyleaker (3) 1 0.33

Opfake (188) 0.99 1 PdaSpy (1) 1 1

Penetho (3) 1 1 Placms (3) 1 1

Plankton (44) 0.82 0.95 Proreso (1) 1 1

QPlus (1) 1 1 Raden (2) 1 0.5

RediAssi (1) 1 1 RootSmart (2) 0.67 1

Rooter (1) 1 1 SMSZombie (2) 1 1

SMSreg (12) 0.83 0.83 Sakezon (2) 0.67 1

SeaWeth (2) 1 0.5 SendPay (8) 0.89 1

SerBG (3) 0.5 1 SheriDroid (1) 1 1

SmsWatcher (1) 1 1 Spitmo (3) 1 1

SpyBubble (1) 1 0 SpyHasb (3) 1 1

SpyMob (1) 1 1 SpyPhone (2) 1 0

Spyoo (1) 1 1 Spyset (2) 1 1

Stealer (2) 1 1 Stealthcell (2) 1 0.5

Steek (3) 1 1 Stiniter (2) 1 0.5

Tapsnake (1) 1 1 TigerBot (1) 1 1

Trackplus (2) 1 0.5 Denofow (1) 1 1

Hippo (2) 0 0 Typstu (2) 1 1

Vdloader (3) 0.33 0.33 Vidro (2) 1 1

Xsider (2) 0.67 1 Yzhc (10) 1 0.9

Zitmo (2) 1 1 Zsone (2) 0.5 1

REFERENCES

Agrawal, H., Bahler, L., Micallef, J., Snyder, S., and Vi-

rodov, A. (2012). Detection of global, metamorphic

malware variants using control and data ﬂow analy-

sis. In Military Communications Conference, MIL-

COM 2012, pages 1–6.

Androguard (2015). https://code.google.com/p/androguard/.

Arp, D., Spreitzenbarth, M., Huebner, M., Gascon, H., and

Rieck, K. (2014). Drebin: Efﬁcient and explainable

detection of android malware in your pocket. In Pro-

ceedings of 21th Annual Network and Distributed Sys-

tem Security Symposium (NDSS).

Azab, A., Layton, R., Alazab, M., and Oliver, J. (2014).

Mining malware to detect variants. In 5th Cybercrime

and Trustwortly Computing Cnference, pages 44–52.

Battista, P., Mercaldo, F., Nardone, V., Santone, A., and Vis-

aggio, C. A. (2016). Identiﬁcation of android malware

families with model checking. In International Con-

ference on Information Systems Security and Privacy.

SCITEPRESS.

Bayer, U., Comparetti, P. M., Hlauschek, C., Kruegel, C.,

and Kirda, E. (2009). Scalable, behavior-based mal-

ware clustering. In NDSS, volume 9, pages 8–11. Cite-

seer.

Canfora, G., Mercaldo, F., and Visaggio, C. (2016). Eval-

uating op-code frequency histograms in malware and

third-party mobile applications. Communications in

Computer and Information Science, 585:201–222.

Canfora, G., Mercaldo, F., and Visaggio, C. A. (2015). Mo-

bile malware detection using op-code frequency his-

tograms. In Proceedings of International Conference

on Security and Cryptography (SECRYPT).

Carrera, E. and Erd

elyi, G. (2004). Digital genome

mapping–advanced binary malware analysis. In Virus

bulletin conference, volume 11.

Cesare, S. and Xiang, Y. (2011). Malware variant detec-

tion using similarity search over sets of control ﬂow

graphs. In IEEE 10th International Conference on

Trust, Security and Privacy in Computing and Com-

munications (TrustCom), pages 181–189.

Chen, X., Andersen, J., Mao, Z. M., Bailey, M., and

Nazario, J. (2008). Towards an understanding of anti-

virtualization and anti-debugging behavior in modern

malware. In Dependable Systems and Networks With

FTCS and DCC, 2008. DSN 2008. IEEE International

Conference on, pages 177–186. IEEE.

Dalvik (2015). http://source.android.com/devices/tech/

dalvik/dalvik-bytecode.html.

Dumitras, T. and Neamtiu, I. (2011). Experimental chal-

lenges in cyber security: A story of provenance and

lineage for malware. CSET, 11:2011–9.

F-Secure (2015). https://www.f-secure.com/documents/

996508/1030743/Threat

Report H1 2014.pdf.

Farhadi, M. R., Fung, B., Charland, P., and Debbabi, M.

(2014). Binclone: detecting code clones in mal-

ware. In Software Security and Reliability (SERE),

2014 Eighth International Conference on, pages 78–

87. IEEE.

SECRYPT 2016 - International Conference on Security and Cryptography

316

Gascon, H., Yamaguchi, F., Arp, D., and Rieck, K. (2013).

Structural detection of android malware using em-

bedded call graphs. In Proceedings of the 2013

ACM Workshop on Artiﬁcial Intelligence and Security,

AISec ’13, pages 45–54, New York, NY, USA. ACM.

Giannella, C. and Bloedorn, E. (2015). Spectral malware

behavior clustering. In Intelligence and Security In-

formatics (ISI), 2015 IEEE International Conference

on, pages 7–12. IEEE.

Goldberg, L. A., Goldberg, P. W., Phillips, C. A., and

Sorkin, G. B. (1998). Constructing computer virus

phylogenies. Journal of Algorithms, 26(1):188–208.

Hu, X., Chiueh, T.-c., and Shin, K. G. (2009). Large-scale

malware indexing using function-call graphs. In Pro-

ceedings of the 16th ACM conference on Computer

and communications security, pages 611–620. ACM.

Jang, J., Brumley, D., and Venkataraman, S. (2011). Bit-

shred: feature hashing malware for scalable triage and

semantic analysis. In Proceedings of the 18th ACM

conference on Computer and communications secu-

rity, pages 309–320. ACM.

Jilcott, S. (2015). Scalable malware forensics using phylo-

genetic analysis. In Technologies for Homeland Secu-

rity (HST), 2015 IEEE International Symposium on,

pages 1–6. IEEE.

Karim, M. E., Walenstein, A., Lakhotia, A., and Parida, L.

(2005). Malware phylogeny generation using permu-

tations of code. Journal in Computer Virology, 1(1-

2):13–23.

Kinable, J. and Kostakis, O. (2011). Malware classiﬁcation

based on call graph clustering. Journal in computer

virology, 7(4):233–245.

Kong, D. and Yan, G. (2014). Transductive malware label

propagation: Find your lineage from your neighbors.

In INFOCOM, 2014 Proceedings IEEE, pages 1411–

1419. IEEE.

Kruegel, C., Kirda, E., Mutz, D., Robertson, W., and Vigna,

G. (2005). Polymorphic worm detection using struc-

tural information of executables. In Recent Advances

in Intrusion Detection, pages 207–226. Springer.

Ma, J., Dunagan, J., Wang, H. J., Savage, S., and Voelker,

G. M. (2006). Finding diversity in remote code injec-

tion exploits. In Proceedings of the 6th ACM SIG-

COMM conference on Internet measurement, pages

53–64. ACM.

Mercaldo, F., Visaggio, C. A., Canfora, G., and Cimitile, A.

(2016). Mobile malware detection in the real world.

In Proceedings of the 38th International Conference

on Software Engineering, ICSE 2016, pages 744–746.

Nagra, J. and Collberg, C. (2009). Surreptitious Software:

Obfuscation, Watermarking, and Tamperprooﬁng for

Software Protection. Pearson Education.

Rieck, K., Trinius, P., Willems, C., and Holz, T. (2011). Au-

tomatic analysis of malware behavior using machine

learning. Journal of Computer Security, 19(4):639–

668.

Rosenblum, N., Miller, B. P., and Zhu, X. (2011). Re-

covering the toolchain provenance of binary code. In

Proceedings of the 2011 International Symposium on

Software Testing and Analysis, pages 100–110. ACM.

Roy, C. K., Cordy, J. R., and Koschke, R. (2009). Compari-

son and evaluation of code clone detection techniques

and tools: A qualitative approach. Science of Com-

puter Programming, 74(7):470–495.

Schipka, M. (2007). A road to big money: evolution of

automation methods in malware development. Martin

[17].

Shang, S., Zheng, N., Xu, J., Xu, M., and Zang, H.

(2010). Detecting malware variants via function-call

graph similarity. In 2010 5th International Conference

on Malicious and Unwanted Software (MALWARE),

pages 113–120.

Shen, T., Zhongyang, Y., Xin, Z., Mao, B., and Huang, H.

(2014). Detect android malware variants using com-

ponent based topology graph. In IEEE 13th Interna-

tional Conference on Trust, Security and Privacy in

Computing and Communications (TrustCom), pages

406–413.

Spreitzenbarth, M., Echtler, F., Schreck, T., Freling, F. C.,

and Hoffmann, J. (2013). Mobilesandbox: Looking

deeper into android applications. In 28th International

ACM Symposium on Applied Computing (SAC).

Walenstein, A. and Lakhotia, A. (2012). A transformation-

based model of malware derivation. In Malicious and

Unwanted Software (MALWARE), 2012 7th Interna-

tional Conference on, pages 17–25. IEEE.

Wehner, S. (2007). Analyzing worms and network trafﬁc

using compression. Journal of Computer Security,

15(3):303–320.

Wu, L., Xu, M., Xu, J. Zheng, N., and Zhang, H. (2013).

A novel malware variants detection method based on

function-call graph. In 13Th IEEE Joint International

Computer Science and Information Technology Con-

ference (JICSIT), pages 1–5.

Xiaofang, B., Li, C., Weihua, H., and Qu, W. (2014). Mal-

ware variant detection using similarity search over

content fringerprint. In 26th Chinese Control and De-

cision Conference, pages 5334–5339.

Yu, S., Zhou, S., Liu, L., Yang, R., and Luo, J. (2010). Mal-

ware variants identiﬁcation based on byte frequency.

In Networks Security Wireless Communications and

Trusted Computing (NSWCTC), 2010 Second Interna-

tional Conference on, volume 2, pages 32–35. IEEE.

Zhong, Y., Yamaki, H., and Takakura, H. (2012). A

malware classiﬁcation method based on similarity of

function structure. In Applications and the Internet

(SAINT), 2012 IEEE/IPSJ 12th International Sympo-

sium on, pages 256–261. IEEE.

Zhong, Y., Yamaki, H., Yamaguchi, Y., and Takakura, H.

(2013). Ariguma code analyzer: Efﬁcient variant de-

tection by identifying common instruction sequences

in malware families. In Computer Software and Ap-

plications Conference (COMPSAC), 2013 IEEE 37th

Annual, pages 11–20. IEEE.

Zhou, Y. and Jiang, X. (2012). Dissecting android mal-

ware: Characterization and evolution. In Proceed-

ings of 33rd IEEE Symposium on Security and Privacy

(Oakland 2012).

How I Met Your Mother? - An Empirical Study about Android Malware Phylogenesis

317
