On Mutating UPPAAL Timed Automata to Assess Robustness of

Web Services

Faezeh Siavashi

, Dragos Truscan

and J

uri Vain

Faculty of Science and Engineering,

Abo Akademi University, Vattenborgsv

agen 3, 20500, Turku, Finland

Department of Computer Science, Tallinn University of Technology, Akadeemia tee 15A, Tallinn, Estonia

Keywords:

Web Service Composition, Speciﬁcation Mutation, Robustness Testing, Model-based Testing, UPPAAL,

TRON.

Abstract:

We present a model-based mutation technique for testing the robustness of Web service compositions. Speciﬁ-

cations of a Web service composition is modeled by UPPAAL Timed Automata and the conformance between

the model and the implementation is validated by online model-based testing with the UPPAAL TRON tool.

By applying a set of well-deﬁned mutation operators, we generated model mutations. We validate all generate

mutants and exclude the invalid ones. The remaining mutants are used for online robustness testing providing

invalid test inputs and revealing vulnerabilities of the implementation under test. We experimented our method

on a Booking System web service composition. The results show that from a total of 1346 generated mutants,

393 are found suitable for online model-based testing. After running the tests, 40 of the mutants revealed

3 new errors in the implementation. The experiment shows that our approach of mutating speciﬁcations is

effective in detecting errors that were not revealing in the conventional conformance testing methods.

1 INTRODUCTION

Recently, the popularity of web services has increased

in the industry. Web services are software appli-

cations that support machine-to-machine interactions

over the Internet. They are accessible via ubiquitous

protocols while expressing a well-deﬁned interface.

This advantage opens the door to new business oppor-

tunities by making it easy to communicate with part-

ner services and by covering a wider range of users.

Web Service Composition (WSC) is the combination

of different services to satisfy a new service. Exam-

ples of using WSC can be seen in many web appli-

cations that enhance their services by using utilities

that are offered by famous companies such as Google,

Amazon, and Facebook (Sheng et al., 2014).

One principle characteristics of a WSC is its dis-

tributed resources, where other services or client web

applications access to information by message proto-

cols. This kind of systems should be robust against

erroneous inputs. In this context, testing WSCs plays

an important role. Not only the expected behavior of

the implementation under test (IUT) should be tested,

but also the IUT should not contain any unexpected

behavior. The functionality of the system can be

checked by running test cases derived from the spec-

iﬁcation while ﬁnding unexpected behaviors of the

system can be done by robustness testing, which exe-

cutes invalid inputs and detects the vulnerabilities or

unexpected behavior of the IUT.

Deﬁning test inputs by modeling the speciﬁca-

tions is preferred over the manually written test scripts

since the machine can verify the correctness of the

models and automatically generate the test inputs.

Moreover, it supports more extensive and systemat-

ically constructed sets of test cases.

One way to create invalid test inputs is using mu-

tation testing, where a set of well-deﬁned mutation

operators systematically create syntactic changes to

the speciﬁcations and produce mutants. This con-

cept was primarily applied for mutating the source

code of a system, however, it has also been applied

to different modeling languages as well (Budd and

Gopal, 1985). Mutants generate invalid scenarios as

test cases, which are executed against the IUT. If the

IUT respects the mutation without raising an excep-

tion, it means that its behavior is inconsistent with its

speciﬁcation (i.e, the IUT accepts an unspeciﬁed se-

quence of inputs).

In this paper, we propose an approach for robust-

ness testing of WSCs using UPPAAL Timed Automata

(UTA). The conformance between the model and the

Siavashi, F., Truscan, D. and Vain, J.

On Mutating UPPAAL Timed Automata to Assess Robustness of Web Services.

DOI: 10.5220/0005970800150026

In Proceedings of the 11th International Joint Conference on Software Technologies (ICSOFT 2016) - Volume 1: ICSOFT-EA, pages 15-26

ISBN: 978-989-758-194-6

IUT is ﬁrst checked via UPPAAL TRON, an online

testing tool which supports both test generation and

test execution. In online testing, only one test input

is generated and executed on the IUT at a time, and

based on the test output the next test input will be se-

lected.

As a ﬁrst contribution, we introduce a testing

method, which derives mutants from the speciﬁcation

and executes them via online testing. We use a selec-

tion of the mutation operators that are deﬁned in the

literature and slightly change them to generate mu-

tants that are suitable for our work.

As a second contribution, in our methodology, we

add veriﬁcation properties to mutated model segments

to ensure reachability of the mutated elements at run-

time. This step is supported by a mutation genera-

tor tool, which implements selected mutation opera-

tors and performs early veriﬁcation of each mutant. If

a mutant does not pass the veriﬁcation properties, it

cannot be used for online testing, hence, we eliminate

them. Furthermore, to ensure that the mutated part

will be executed during the testing process, we mon-

itor whether the mutated elements are reached during

test execution.

As a third contribution, we empirically evaluate

which existing mutation operators for UPPAAL timed

automata are applicable to online testing. We deﬁne

two formulas to measure the efﬁciency of mutation

operators as well as their rates of fault detection.

The remainder of this paper is organized as fol-

lows: In Section 2, we brieﬂy review the background

studies. We present the steps of our methodology on

speciﬁcation mutation testing in Section 3 and selec-

tion criteria for valid mutants. The experiment is pre-

sented in Section 4. The results are discussed and pos-

sible improvements are suggested in Section 6, and

the threats of validity of the proposed method are dis-

cussed in Section 7. We review the literature for re-

lated work in Section 8. Finally, we conclude our

study and present future work in Section 9.

2 Background

We ﬁrst review UPPAAL tool set, and introduce the

conformance testing with UPPAAL TRON and the

concept of speciﬁcation mutation testing.

2.1 UPPAAL Timed Automata (UTA)

UPPAAL is a model-checker tool for modeling, simu-

lation, and veriﬁcation of real-time systems using an

extended version of timed automata called UPPAAL

timed automata (UTA) (Beharmann et al., 2004). A

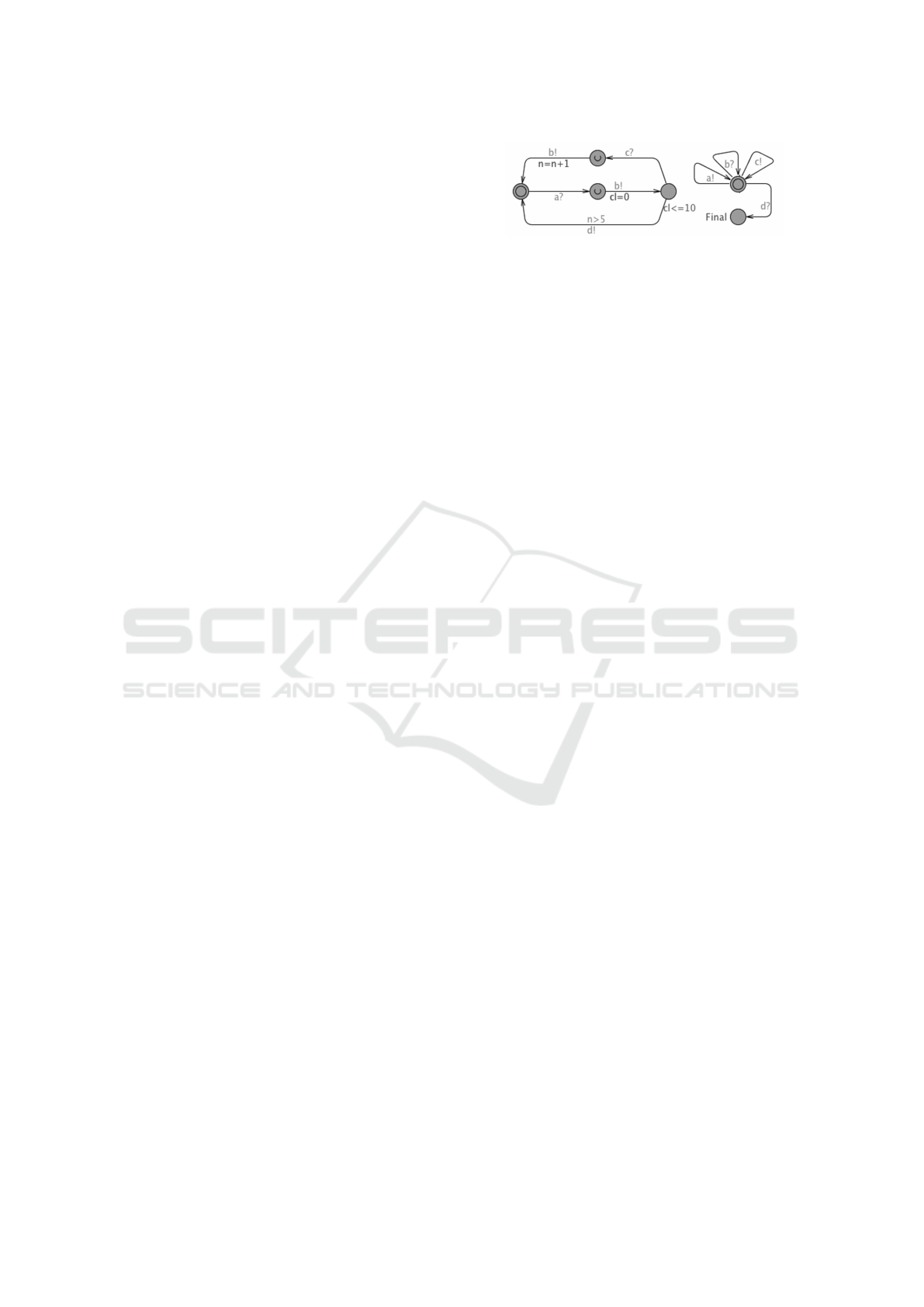

Figure 1: Example of an UTA model.

timed automaton is a ﬁnite state machine with loca-

tions, actions, and clocks.

In UPPAAL, a system is designed as a network of

several such timed-automata called processes work-

ing in parallel. A process can be executed individu-

ally or in sync with another process. Synchronization

of two processes is possible by using input/output ac-

tions (denoted as ”!” for emitting and ”?” for receiv-

ing synchronizations, respectively). The processes

consist of locations and edges. The state of the system

can be shown by the locations of all processes, their

clock values, and their variable values. The edges be-

tween locations represent state transitions including

clock resets. UPPAAL is extended further with global

and local to some process variables that can be of type

integer, boolean, and clock.

Transitions can be constrained by predicates (over

the clocks or variables) known as guards, which de-

ﬁnes when the corresponding edge is enabled. The

state transitions are speciﬁed on edges as variable up-

dates. A location can be restricted over the clock in-

variants, which specify how long the system can stay

in that location. If there is more than one enabled edge

at a time, then one of them will be randomly selected.

This means that UPPAAL supports non-deterministic

modeling, which gives more freedom to represent be-

haviors, especially in systems with random discrete

events (Hessel et al., 2008).

An example of a UTA model is shown in Figure 1.

The model consists of two automata modeling the be-

havior of a system under test and of its environment.

The communication between the system and its envi-

ronment is modeled using channel synchronizations

and shared variables.

The UPPAAL model-checker uses a simpliﬁed ver-

sion of TCTL (Alur et al., 1990), which enables to

exhaustively verify the models w.r.t their speciﬁca-

tions. The query language consists of state formu-

lae and path formulae. State formulae (ϕ) is an ex-

pression that describes the properties of an individ-

ual state while path formulae can be used to specify

which properties (like reachability, safety, and live-

ness ) hold over a given path (Beharmann et al., 2004).

If there is a state in the model that has no enabled

outgoing transitions, then the model is said to be in

a deadlock. A  not deadlock query, can be used

to verify that for all paths in the model, there is no

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

deadlock state.

The safety property checks that ”something bad

will never happen”. In UPPAAL it can be expressed

in the form A  ϕ (ϕ should be true in all reachable

states) and E  ϕ (there should exist a maximal path

such that ϕ is always true).

The liveness property determines that ”something

will eventually happen” and it is shown by A ♦ ϕ (ϕ

is eventually satisﬁed) and ϕ φ (whenever ϕ is sat-

isﬁed, then eventually φ will be satisﬁed).

Reachability properties validate the basic behavior

of the model by checking whether a certain property

is possible in the model with the given paths. The

reachability can be expressed in the form of E ♦ ϕ

(there is a path from the initial state, such that ϕ is

eventually satisﬁed along that path).

2.2 Online Model-based Testing

There are two distinct approaches in testing: ofﬂine

and online testing. In ofﬂine testing, the complete test

scenarios and test oracle are created before the test

execution, whereas online testing is a combination of

test generation and execution: only one test input at

a time is generated and executed and the next test in-

put depends on the current test output (Larsen et al.,

2005b). This continues until the test termination cri-

teria are satisﬁed or an error occurs. Usually, the test

stimulus is selected randomly from the enabled test

inputs. In online testing, the state-explosion problem

is reduced because only a portion of the state space is

needed to be calculated and stored at each time. Also,

the non-determinism of systems can be simulated on-

the-ﬂy by random selection of the tests.

In this study, we use the online Model-Based Test-

ing (MBT) UPPAAL TRON, which is an input/output

conformance testing tool for testing real-time systems

based on the rtioco conformance relation (Larsen

et al., 2005a). An UTA model typically consists of

two partitions: a system partition and an environment

partition. The abstract test inputs generated from the

environment are translated into executable test inputs

by using an adapter, which is an interface between

TRON and the IUT. The outputs of the IUT also trans-

lated to model-level test outputs. Thus, the I/O con-

formance of the model and of the IUT is observed by

TRON.

The result of online testing with TRON can be

passed, failed or inconclusive. An inconclusive test

result means that the environment model cannot be

updated since the IUT output is unexpected or it has a

delay in providing test output.

2.3 Speciﬁcation Mutation Analysis

Speciﬁcation mutation analysis is used to design

tests to evaluate the correctness and consistency of

the speciﬁcation and the program (Budd and Gopal,

1985). When the mutation analysis is applied to

the speciﬁcation a set of mutation operators create

slightly altered versions (mutants) of the speciﬁca-

tion. The tests will be generated from the mutated

speciﬁcation and used to assess whether the IUT is

accepting the faulty tests.

In the literature (Belli et al., 2016) the following

types of mutants are deﬁned:

Killed: A mutant is said to be killed if tests gener-

ated from it fail against the implementation, under the

precondition that the tests generated from the original

model have passed.

Alive: A mutant is called alive if the IUT passes

all test cases generated by the mutant. Alive mutants

can be divided into two types:

Equivalent: An alive mutant is semantically

equivalent if it manifests the same behavior as the

original model, whereas they are syntactically differ-

ent.

Non-equivalent: An alive mutant is known as

non-equivalent if it does not have the same behavior

as the original model, however, the differences can-

not be detected during testing. These mutants indi-

cate that the implementation is too permissive and is

not able to detect the invalid inputs.

Our goal of using mutation for testing is to ﬁnd

the non-equivalent alive mutants since they show

that there might be some inconsistencies between the

speciﬁcation and the implementation. Differing be-

tween non-equivalent alive mutants from equivalent

mutants is done manually.

3 METHODOLOGY

An overview of our method is given in Figure 2. It is

divided into ﬁve phases.

Design and Conformance Testing is based on our

previous work on design and validation of WSCs

(Rauf et al., 2014), where we presented an approach

to design web services and their behavioral interfaces

in UML. We transformed the design models from

UML to UTA for veriﬁcation and testing the imple-

mentation of a WSC.

The participating web services and the user behav-

ior are modeled as distinct timed automata. The user

behavior supports non-deterministic choices, as well

as timing criteria.

On Mutating UPPAAL Timed Automata to Assess Robustness of Web Services

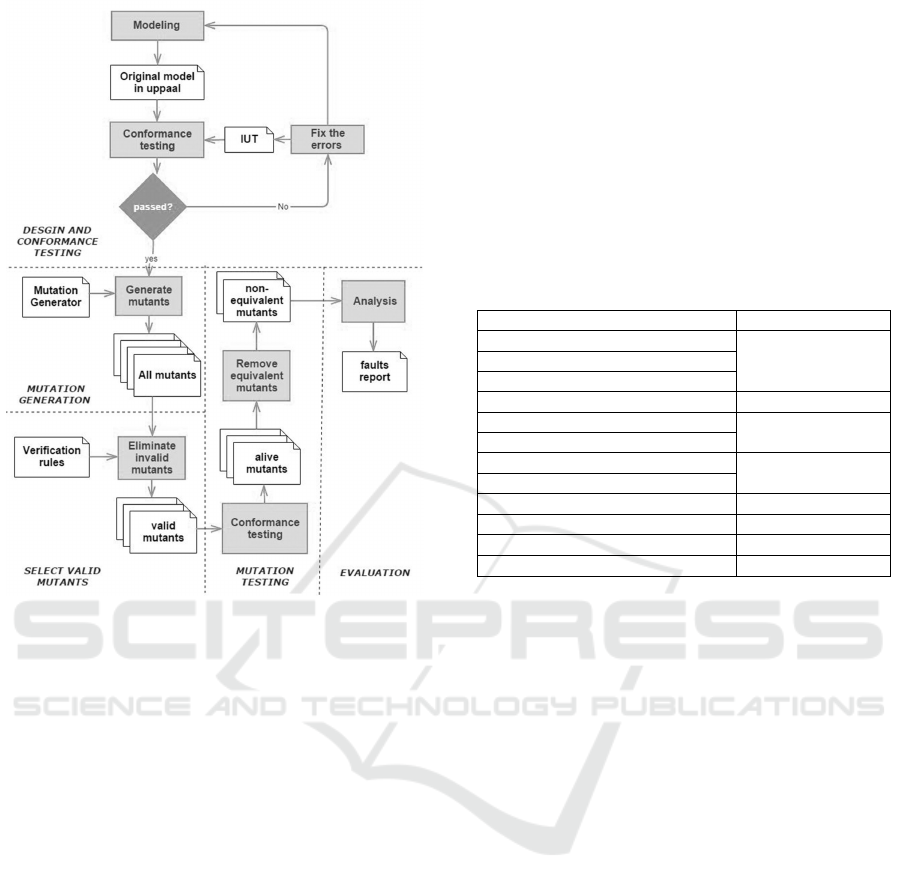

Figure 2: Our approach of Speciﬁcation Mutation Testing.

The model is veriﬁed according to the criteria and

timing constraints that are given in the requirements

of the WSC. The veriﬁcation is done using TCTL. For

instance, we ensure that the model is deadlock-free

and all states of the system are reachable meaning that

the model can reach all test goals. These veriﬁcation

rules ensure that the model is usable for online testing.

With TRON, an online testing session is estab-

lished and the conformance of the implementation is

checked. External errors in IUT or in the model are

ﬁxed.

Mutation Generation: Mutation operators for TA

have been formally deﬁned and presented by two

studies in the literature (Aboutrab et al., 2012; Aicher-

ing et al., 2013) and are shown in Table 1.

By summarizing Table 1, the following mutations

can be applied to the different elements of TA.

• Guard: A guard over clock variables can be mu-

tated in three ways: by widening, restricting, or

shifting the time value. If the guard contains other

variables than the clock variables, it can be mu-

tated by negating the predicate.

• Invariant: An invariant can be changed by shifting

it to a greater or smaller value. E.g., add/subtract

value 1 to/from the value of the invariant.

• Action: Name of I/O actions can be changed to

other deﬁned actions. Also, changing their source

and target locations will manipulate the behavior

of the model and so can be used as a mutant.

• Location: A location can be made a sink location,

which means that it accepts all other actions. It

simulates a trap condition, where all actions in the

process are accepted in the same location. Re-

moving a location and adding a new location are

other mutations that can be applied in TA.

Table 1: Mutation operators of timed-automata.

(Aboutrab et al., 2012) (Aichering et al., 2013)

Restricting Timing Constraints (RTC) Change guard

Widening Timing Constraints (WTC)

Shifting Timing constraints (STC)

- Change invariant

Resetting a Clock (RC) Invert reset

Not-Resetting a Clock (NRC)

Exchanging Input Actions (EIA) Change action

Exchanging Output Action (EOA)

Transferring Destination Locations (TDL) Change Target

- Change source

- Negate guard

- Sink location

We have restrict some of the operators in such

a way that they are suitable for online testing with

TRON. As we mentioned earlier, the IUT and its envi-

ronment (user, or other systems) are speciﬁed in sepa-

rate automata and they communicate by synchroniza-

tion of input/output transitions (actions). All transi-

tions between the IUT and its environment are ob-

servable by TRON. Based on the type of the input

or output, TRON controls which action can be exe-

cuted at a time. The mutation operators for transitions

without synchronizations (or internal transitions) will

not be observed by TRON. Therefore, we restrict the

mutation operators to only be applied to observable

synchronizations.

Additionally, we adapt the mutation operators to

be used for testing web services. For instance, for

each HTTP request message to a web service, we

have a corresponding HTTP response message and

they are modeled as a pair of input/output actions.

The requests are deﬁned as input actions coming from

the user (or the environment). One mutation option

would be to change the name of the input actions,

which mutates the sequence of the HTTP request

messages. However, deﬁning mutation for the HTTP

response messages (i.e, output actions) cannot help in

mutation analysis since the IUT generates them and

we can only observe them. For instance, for a booking

request, the WSC either accepts or rejects it and both

of these responses cannot be mutated in the model-

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

level. Therefore, we limit the mutation operators to

change the name of input actions only.

Finally, we do not change the direction of the syn-

chronizations (i.e, ”?” to ”!”) since, in our modeling

approach, the requests from the users are modeled as

input actions (”?”). Changing the inputs into output

actions means that the requests should be changed

into responses and it would not allow test generation

at all.

Below we present a list of operators that we se-

lected from Table 1 for our methodology.

1. Change Name of Input Action (CNI) replaces

the name of an input action (denoted by ”?”) with

the name of other actions. Thus, the expected se-

quence of the inputs to the implementation will be

different.

2. Change Target (CT) changes the target of an ac-

tion to other location. This operator can break the

ﬂow of test inputs and violate the state of the IUT.

Both input and output actions can be mutated by

this operator.

3. Change Source (CS) changes the source location

of an action to other locations. Similar to CT, this

operator gives a different I/O sequence.

4. Change Guard (CG) changes the clock constants

in guards by a random value. It is effective for

mutating the condition of enabling an action.

5. Negate Guard (NG) negates guards, which may

result in omitting some paths of the test model.

6. Change Invariant (CI) shifts the values of invari-

ant conditions to a different range, extending or

restricting the constraints of the model. It can

cause actions ﬁre earlier (or later) that the ex-

pected time.

7. Invert Reset (IR) deletes the resetting of the

clock and moves it to one action before or after. It

means that the resetting is ﬂipped one clock ear-

lier or later.

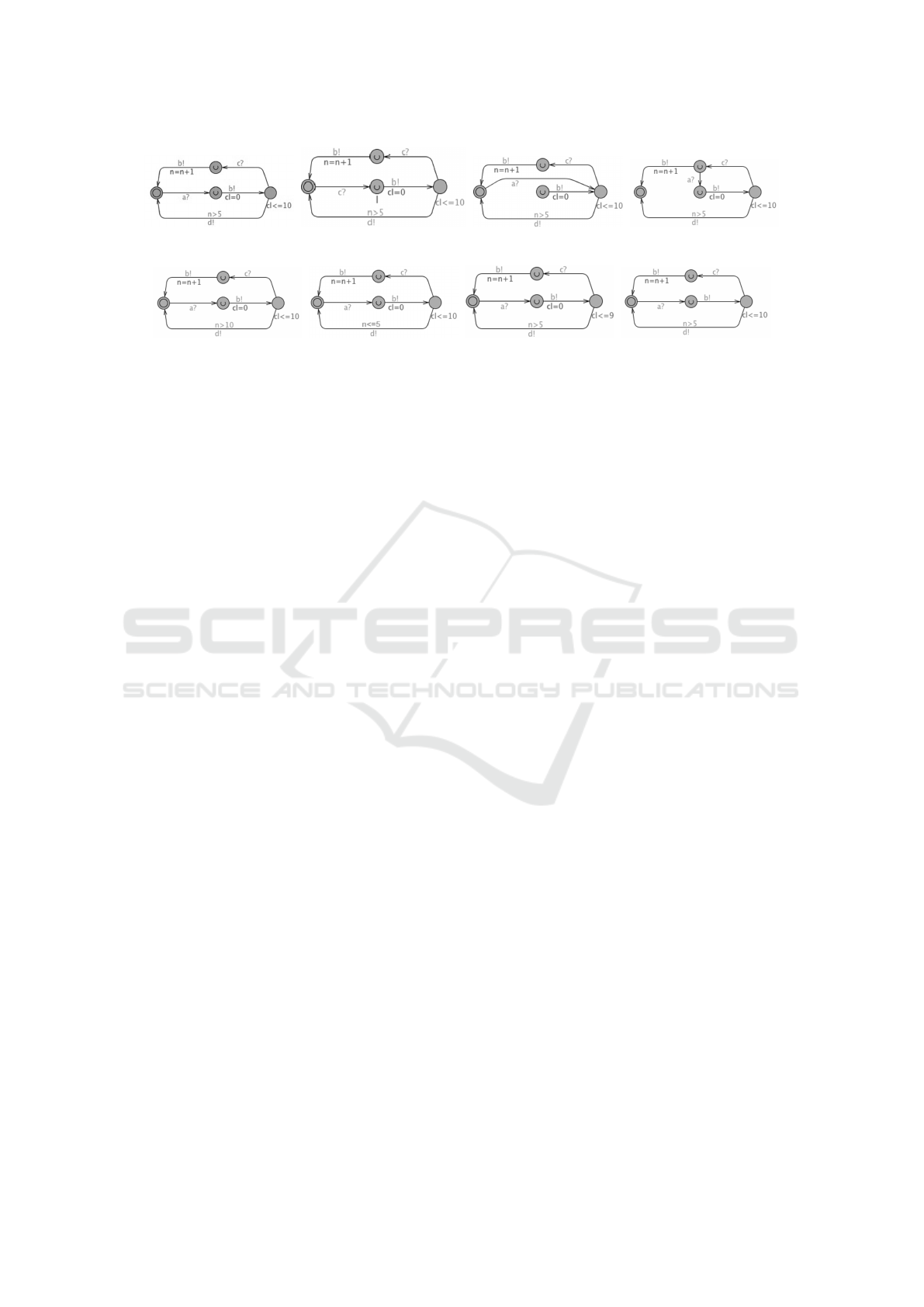

Figure 3 shows the generated mutants of a model

and sample mutants using the above operators. In our

approach, we only apply ﬁrst order mutation. That is,

a mutated model contains only one mutated segment

based on a single operator.

Select Valid Mutants: In our approach, we en-

force that every time a mutated model is generated,

we create a corresponding reachability rule to check

whether it is a valid mutant for online testing or not.

In UPPAAL, the reachability property is deﬁned

for locations, thus, when an action is mutated, we de-

ﬁne the reachability property for the target location

of that action. For instance, in Figure 3(b), the in-

put action a? is mutated into c?, hence, the reacha-

bility for this mutation should be deﬁned for its tar-

get location (i.e, l). For example, in Figure 3(b),

we have E  l, which veriﬁes that the mutation can

be executed. An alternative to the reachability rule

would be to deﬁne a trap variable (Gargantini and

Heitmeyer, 1999) and set its initial value to false. For

the mutated action, then, the variable will be updated

to true, and so the reachability can be achieved by

checking if the variable eventually will be set to true

(E  trap == true). One can use trap variables to

ensure that the mutation part of the model will be

reached during the test execution as well. In the case

that the minimum repetitive execution of mutation is

needed the boolean trap variable should be replaced

by an integer counter variable count and the reach-

ability condition with E  count >= const. Those

models that pass the veriﬁcation process are consid-

ered as valid mutants and can be executed against the

IUT.

Having veriﬁcation rules offers two main advan-

tages. First, it reduces the number of mutants used for

testing by eliminating false negatives which cause se-

mantic and syntactic errors. Secondly, it avoids hav-

ing traps in the model, which may increase the size of

the state space.

Mutation Testing: Each valid mutant model is

executed in a testing session with UPPAAL TRON.

The verdict of an online testing session with TRON

can be passed, failed, or inconclusive. In TRON, an

inconclusive verdict indicates that either the observed

output from the IUT is not valid, or there is an unac-

ceptable delay in sending inputs. We consider that the

mutants that generate inconclusive test cases, exhibit

different behavior than the original model and thus

they are considered as killed. If the IUT passes the

test, then two different scenarios are possible: either

the mutant is an equivalent model to the original one

(i.e, equivalent mutant), or not equivalent, but there is

a defect in the implementation that allows mutated in-

puts (i.e, non-equivalent mutant). We defer automatic

equivalence detection for future work. When execut-

ing the mutants we assume implicitly that these test

runs are exhaustive w.r.t. the mutation, i.e. all muta-

tions injected are also covered by these test runs.

Evaluation: The last phase of our methodology

is to evaluate the result by reasoning about the unex-

pected behaviors that the IUT shows during testing.

The non-equivalent mutants generate different invalid

test inputs, thus, these test inputs are manually eval-

uated to ﬁnd the correlations between them and the

actual faulty behaviors.

Tool Support: We implemented the selected mu-

tation operators as a tool in order to generate the mu-

tants automatically. The tool uses UPPAAL TA XML

On Mutating UPPAAL Timed Automata to Assess Robustness of Web Services

(a) The original model (b) CNI: Change the name of

input action

(e) CG: Change Guard (f) NG: Negate Guard (g) CI: Change Invariant (h) IR: Invert Reset

Figure 3: A model with examples of mutants generated by the selected mutation operators.

format as input. From a given model, the tool gener-

ates mutants based with the selected mutation opera-

tors. In addition, it adds reachability and deadlock-

freeness rules to the mutants and veriﬁes them with

the verifyta tool, which is a command-line veriﬁca-

tion tool for UPPAAL models.

4 EXPERIMENT

We exemplify our approach using the case study pre-

sented in (Rauf et al., 2014). In this section, ﬁrst, we

review the case study, and then we apply the speciﬁ-

cation mutation method.

4.1 Case Study

For evaluation, we used a WSC that is implemented in

REpresentational State Transfer (REST) (Richardson

and Ruby, 2008) architectural style. The composition

of web services is based on a central service which

orchestrates other services. This service synchronizes

the execution of different methods on the web ser-

vices participating in the composition and satisﬁes the

speciﬁcations. The central web service (i.e, the com-

position service) can invoke other services while ex-

hibits timed behaviors in a RESTful architecture.

The WSC offers a Hotel Booking System (HBS),

including a Card service, a Hotel service, and a Book-

ing service. This case study is speciﬁed, implemented

and veriﬁed in our previous work in details in (Rauf

et al., 2014). The Card service deals with payments

and refunds for booking requests, whereas the Hotel

service keeps track of the details of booking records

such as name, the number of days and type of room,

also giving access to the hotel manager for accept-

ing or declining the booking requests. The Booking

service is responsible for communications with cus-

tomers, the Hotel, and the Card services. From the

speciﬁcation of HBS, we deﬁne the following scenar-

ios:

Booking: A customer can search for a room in a

hotel by accessing the booking service. He books the

room (if it is available) and that booking is reserved

by the Booking service for 24 hours.

Payment: If the user does not pay within 24 hours

then the booking will be automatically canceled. If

the booking is paid, then the Booking service invokes

Card service and waits for the payment conﬁrmation.

Hotel Conﬁrmation: When the payment is con-

ﬁrmed, Booking service invokes the Hotel service to

conﬁrm the booking of the room. The Hotel service

can conﬁrm and assign a room for the customer, or it

can reject the request.

Refund: If the Hotel service does not respond

within 1 day, rejects the request, or does not con-

ﬁrm at all, the booking is canceled and the user is

refunded.

Check-in: If the Hotel service conﬁrms, then a

booking is made with the hotel. The user now can

check in to the hotel.

Hotel Payment Release: The payment is not re-

leased to the hotel until the user checks in. When

the user checks in, the Booking service releases the

money to the hotel and the booking is marked by the

hotel as paid.

4.2 Model

From the above descriptions, we have speciﬁed the

system as a UTA model which consists of four au-

tomata: three for the web services and one for the

environment. Figure 4 shows the models of the case

study and the interactions between the services and

the environment. In this experiment, we mutate only

the Booking service that is larger and handles the

communications among other services and users. The

Booking service model consists of 33 locations, 39

actions, 4 guards, and 4 clock invariants.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

Table 2: Result of mutation testing.

Name Generated Valid Killed Alive

CNI 180 28 24 3

CT 567 314 242 72

CS 567 38 6 32

CG 12 6 6 0

NG 4 1 1 0

CI 12 4 4 0

IR 4 2 2 0

Total 1346 393 285 107

After verifying the model, we developed an

adapter for translating the model-level inputs into

HTTP requests which are sent to the IUT, and then,

we generated tests using UPPAAL TRON. The use

of online MBT proved beneﬁcial as our implemen-

tation under test exhibits non-deterministic behavior.

For instance, in the scenario of Hotel Conﬁrmation,

there are three possible cases from the hotel: con-

ﬁrmation, rejection, or no response. Any of these

choices are given the same chance to be executed with

non-deterministic modeling.

4.3 Generating Valid Mutants

Table 2 shows the numbers of mutants generated from

each mutation operators. Since the Booking service

represents the composition of different web services

as well as communicating to the user, it is a good can-

didate to be mutated. The mutation generator pro-

vided 1346 mutants, from which 393 of mutants were

valid (i.e, passed the veriﬁcation rules). The total time

for generation and validation of all mutants took 258

seconds in a 4 cores machine running the Ubuntu 14.4

Server operating system. As the numbers show, hav-

ing veriﬁcation in the early stage of testing would help

in removing non-relevant mutants and hence the to-

tal time of the test execution will be considerably re-

duced.

As it can be seen in Table 2, a majority of 314

valid mutants are generated by the CT operator, in

contrast with 38 valid mutants provided by the CS and

28 from the CNI. The other mutation operators have

a small share of valid mutants.

4.4 Mutation Testing

We set the test session for executing tests 3 min-

utes for each mutant model covering all actions in

the model ensuring that the mutated element was also

covered at runtime. It roughly took 7 hours to com-

plete running all valid mutants. The time was suf-

ﬁcient for covering all valid mutations of interest.

Therefore, it was postulated that if no failure is de-

tected during this time, and the test is passed, then the

mutant is alive.

5 RESULTS

We check whether the alive mutants were able to show

any fault in the behavior of the web services and

which of the mutation operators generates more ef-

fective mutations in online testing.

We also present two formulas for the efﬁciency

of mutation operators showing how many of the alive

mutants address faults. We need, therefore, to sep-

arate the equivalent mutants from the alive mutants.

The analysis is based on the reasoning why the mu-

tated inputs could not be detected by the IUT.

Automatically detecting all equivalent mutants is

an impossible task since they are undecidable (i.e,

there is no possible solution to conﬁrm that a mutant

has equivalent behavior to its original program). Al-

though there are several approaches to the detection

of equivalent mutants, it still requires human effort.

We manually distinguished the equivalent mutants by

checking whether the mutants change the sequence of

the test scenarios and how it affects the functionality

of the IUT. It is done by checking if all the test sce-

narios can be covered by the mutants and where is the

location of the mutation in the model.

It is worth noting that not all of the non-equivalent

mutants cause violations in the functionality of the

IUT. For example, in the model of Booking ser-

vice, changing the target location of the action

post hotelChk to the location a does not cause an in-

valid test scenario. Despite the fact that such mutant

does not cover all test scenarios, it will pass the test.

The reasoning behind this is that from the initial loca-

tion, a, any booking requests will be considered as

a new booking request and will be a new booking

record. Therefore, such non-equivalent mutants do

not violate the functionality of the Booking service.

Since in the robustness testing the goal is to detect

unexpected behaviors of the IUT, having more alive

mutants indicates that the corresponding operators are

more effective. Hence, we deﬁne the following for-

mulas for analyzing the mutation operators:

Mutation Efﬁciency: For each mutation oper-

ator, we calculate how many mutants are alive. We

calculate the efﬁciency of each mutation operator in

generating alive mutants:

, (1)

where A is the number of alive mutants, V is the

number of valid mutants of operation i.

On Mutating UPPAAL Timed Automata to Assess Robustness of Web Services

(a)

(b) (c) (d)

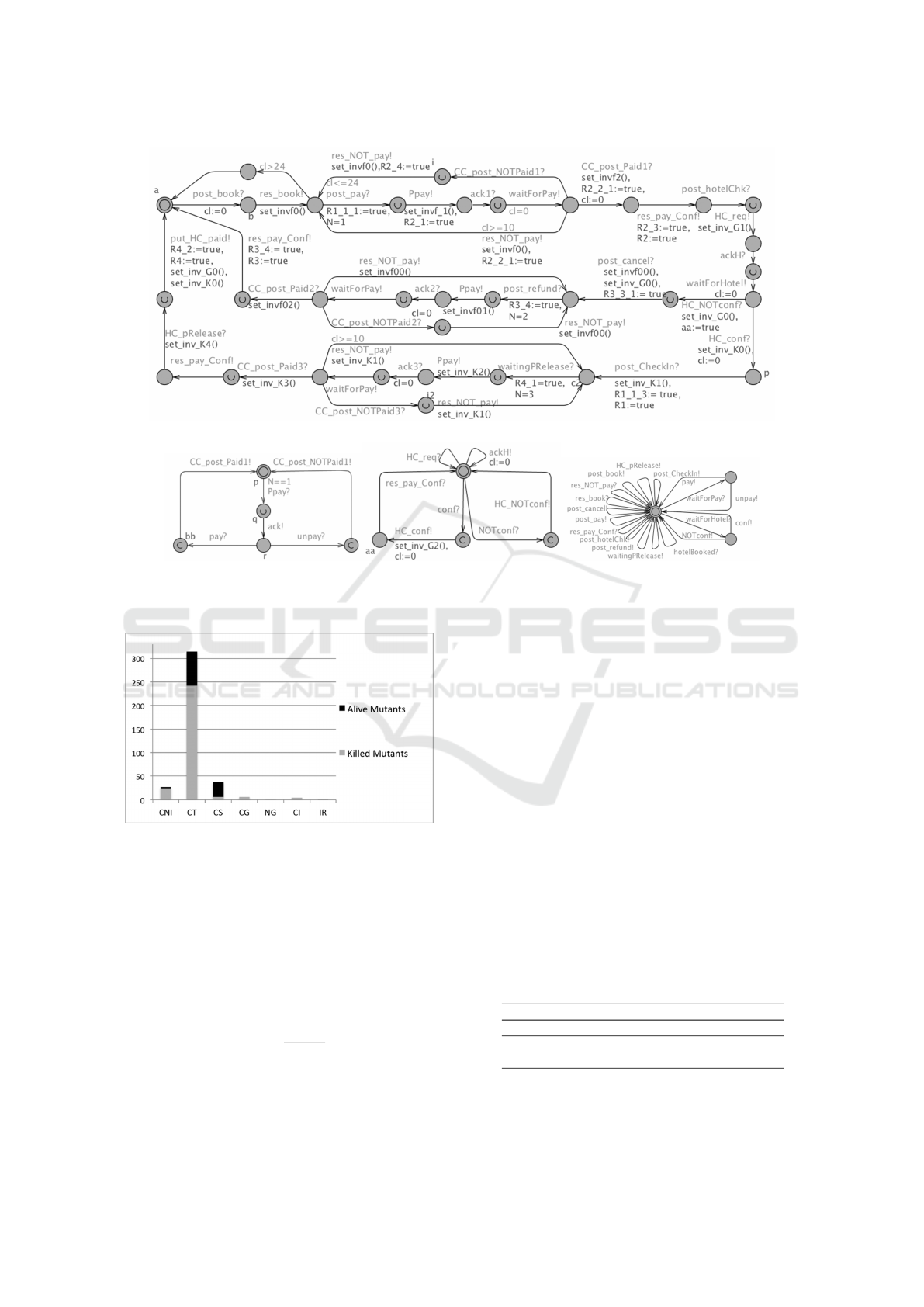

Figure 4: The model of HBS: (a) Booking service, (b) Card service, (c) Hotel service and (d) Environment.

Figure 5: The proportion of alive and killed mutants for

each mutation operator.

Mutation Fault Detection: After analyzing alive

mutants and removing the equivalent mutants, we

check which non-equivalent mutant corresponds to a

fault. For each mutant that was able to show a fault

in the IUT, we score the corresponding operator. For

each operator, we measure the mutation fault detec-

tion with following formula:

MFD

− E

, (2)

where NE is the number of non-equivalent mutants

that reveal hidden faults, T is the number of total mu-

tants and E is the number of equivalent mutants.

The primary result shows that the total alive muta-

tions belong to three operators: CT, CS, and CNI with

72, 32 and 3 mutants respectively. The CT operator is

a good candidate for mutation testing since it gener-

ates the highest number of alive mutants. It can be

debated that changing the order of the test inputs may

cause changing the state of the IUT and hence, the

IUT may reach to an unknown state (i.e, unexpected

condition). Moreover, as it can be observed from Fig-

ure 5 that the proportions for the total number of alive

and killed mutants for each individual operator show

that the mutation operators CT and CNI were the most

suitable operators for our case study.

By using Formula 1, we calculated the efﬁciency

of the operators CT, CS and CNI, which result in

22.9%, 84.2% and 10.7%, respectively (Table 3). This

means that the CS operator is more effective in suc-

cessfully generating alive mutations.

Table 3: Mutation efﬁciency and Mutation fault detection

of the mutation operators.

mutation efﬁciency fault detection

CT 22.9% 62.5%

CS 84.2% 8,3%

CNI 10.7% 0

Analysis of the result shows that there are some

faults in the implementation of the case study that

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

were not detected during the conformance testing. We

found the following problems in the behavior of the

implementation:

• Ten different mutants revealed the same fault in

the Hotel Conﬁrmation scenario. For example,

one faulty scenario is: from a single booking, it

is possible to send the conﬁrmation request more

than once. Nine of these mutants were generated

by the CT operator and one by the CS operator.

• Seventeen mutants showed that there is a fault in

the payment scenario of the IUT. After payment

conﬁrmation from Card service, a new payment

for the same booking can be made. Also, for a

single booking, there could be several payments.

Seven of these mutants are generated by the CT

operator and the rest 10 are from the CS operator.

• Thirteen mutants made faulty changes in the re-

fund scenario, which could not be detected in the

original testing. Four of them belong to the CT

and 9 are from the CS.

From 40 different mutants, 3 hidden faults are

revealed in the implementation.

Half of the mutants that revealed faults were from

the CT operator and half were from the CS. We used

Formula 2 to measure fault detection capability of

each mutation operator. The result of the calculation

is shown in Table 3 as well, showing that CT gets the

best score in revealing faults.

Table 3 illustrates information on how the muta-

tion operators are able to show some faults in the case

study. The result in the ﬁrst column shows how many

alive mutants have remained after the mutation testing

without having further information about the equiva-

lent mutants.

Here, it seems that CS is a better operator than the

others. However, after removing the equivalent mu-

tants and calculating the fault detection ability of each

operator, CT provides a better percentage. The second

column in the table shows the result. All of the alive

mutants generated by CNI were found equivalent and

hence CNI is ranked 0 in fault detection.

6 DISCUSSION

Some improvements can reduce the test execution

time while increasing the probability of ﬁnding faults.

For instance, both CS and CT were able to reveal

all three faults and since both of them have gener-

ated large numbers of mutants, selecting one of them

can considerably reduce test generation and execution

times. The result of mutation testing indicates that

an intelligent choice of the mutation operators can at-

tain high mutation efﬁciency scores while reducing

the time of testing.

Another improvement could be done in the pro-

cess of fault detection. Redundant work is done on

detecting the same faults. This extra effort can be re-

duced by categorizing the alive mutants in such a way

that all mutations of a certain location or action in the

model will be in a category. As soon as any of the

mutants in a category detects a fault, then the rest of

the mutants on that group can be eliminated from the

fault detection analysis. The idea behind this is that

the locations and actions in a model represent actual

states of the system under test and if there is a state

which contains a fault, then any mutant from that state

may be able to reveal that fault. However, more ex-

periments are needed to show the correctness of this

mutation reduction technique.

More extensive studies are needed in order to in-

vestigate how the speciﬁcation mutation can be ap-

plied in larger case studies preferably industrial-sized

web services. Besides, more experiment on larger

scales would be helpful in ﬁnding whether there is

any correlation between certain mutation operators

and the real faults in design and implementation of

web services.

It should be noted that the presented approach for

robustness testing does not speciﬁcally designed for

composite of web services, but any individual service

can also be tested. We selected the WSC since it in-

cludes more communications and timing behaviors.

The main downside of model-based mutation test-

ing comes from MBT: the process of design models

from the speciﬁcation, verifying them and writing the

test adapter (to translate model-level test inputs into

acceptable test script for the IUT and vice versa) is

time consuming. We have reduced the design and ver-

iﬁcation time by reusing the same models from the

previous research. The mutation testing does not add

any overhead into MBT. The mutation generator tool

automatically generates correct and valid mutations

and thus, it reduces the mutant generation time.

7 THREATS TO VALIDITY

There are three main threats related to our study. One

is related to the mutation operators. Despite the fact

that we have followed the systematically and formally

deﬁned mutation operators and implemented them in

our study, there might be some more effective muta-

tion operators or combinations of operators that we

have missed. We argue that the current number of

mutation operators provides a large number of mu-

On Mutating UPPAAL Timed Automata to Assess Robustness of Web Services

tants which can provide faulty test inputs which are

close to the accepted inputs.

Another threat is that although the test model is

designed and validated very carefully and the IUT is

well-tested, there might be some mistakes in design-

ing the test model. However, the probability of such

mistakes is low since we have applied conformance

testing and ﬁxed the bugs prior to mutation analysis.

Judgmental errors may have happened during the

classiﬁcation between equivalent and non-equivalent

mutants. For comparing the mutation models and the

original one, we checked the alive mutants and ap-

plied formal veriﬁcation rules.

8 RELATED WORK

A comprehensive analysis is done on all available mu-

tation testing method presenting the current state of

the art in this ﬁeld and the open challenges (Jia and

Harman, 2011) .

Lee and Offutt (Lee and Offutt, 2001) introduced

an Interaction speciﬁcation Model which formalize

the interactions among Web components. They de-

ﬁned a set of mutation operators for XML data model

in order to mutate the inputs of the Web components.

Li and Miller (Li et al., 2009) presented mutation

testing methods using XML schema to create invalid

inputs. Mutation testing is extended to XML-based

speciﬁcation languages for Web services. Lee et al.

presented an ontology based mutation operators on

OWL-S, which is an XML-based language for spec-

ifying semantics on Web services(Lee et al., 2008).

They mutate semantics of the speciﬁcations of their

case study such as data mutation, condition mutation,

etc. Wang and Huang presented a mutation testing ap-

proach based on OWL-S to validate the requirements

of Web services (Wang and Huang, 2008). Also,

Dominguez et al. presented a mutation generator tool

for WS-BPEL.

We discuss those that are similar to our approach.

Work has been done on using model checking tech-

niques for validation and veriﬁcation of WSC. There

are two studies that review the literature on testing

Web services (Rusli et al., 2011), (Bozkurt and other,

2010). Starting from speciﬁcation languages for mod-

eling Web services, researchers perform simulation,

veriﬁcation and test generation using model checking

tools. Most of the works use model checking for spec-

iﬁcation and veriﬁcation and only a group of them use

the models for the test generation as well. We discuss

those that are similar to our approach. Using TA mod-

els for mutation testing has been mostly studied on a

real-time and embedded system. In (Aboutrab et al.,

2012) and (Aichering et al., 2013) mutation operators

for TA are presented. Aboutrab et al. proposed a set of

mutation operators for timed automata to empirically

compare priority-based testing with other testing ap-

proaches (Aboutrab et al., 2012). However, in their

approach, the generation of mutations is done manu-

ally.

Aichernig at al. presented model-based mutation

testing real-time system using UPPAAL (Aichering

et al., 2013). The mutation operators that are deﬁned

in their work more detailed and some of them are im-

plemented as a mutation on bounded model-checking

and incremental SMT solving. They showed that us-

ing mutations for timed automata has potential on de-

bugging and revealing the unexpected behavior of the

IUT.

We applied/modiﬁed the mutation operators of TA

presented by these studies for testing the robustness of

WSC. Similar to (Aichering et al., 2013), we applied

mutations on non-deterministic models, however, in

their work, they use only the UTA model of the IUT

and do not consider the environment. In our approach,

however, each mutant is a closed model communicat-

ing with its environment as well as other systems. We

check deadlockfreeness and reachability in order to

reduce the number of invalid mutants. Also, we use

different veriﬁcation and test generation processes.

There are some works that target UTA as the spec-

iﬁcation language for Web services. In most of the

works, the authors transformed the speciﬁcation that

is deﬁned in their selected languages into UTA and

then they investigated their research. For instance,

in (Rauf et al., 2014), the speciﬁcation of a WSC is

deﬁned initially in the form of UML and then trans-

formed into UTA for an online testing purpose. In

(Cambronero et al., 2011), Cambronero et al. ver-

ify web services by the UPPAAL tool for validation

and veriﬁcation of their described system that is trans-

formed from WS-CDL into a network of TA. In (Dıaz

et al., 2007), Diaz et al. also provide a translation

from WS-BPEL to UTA. Time properties are speci-

ﬁed in WS-BPEL and translated to UTA. However,

requirements are not traced explicitly, while veriﬁca-

tion and testing are not discussed.

9 CONCLUSIONS AND FUTURE

WORK

Due to the increasing popularity of combining differ-

ent Web services as a new Web service, robustness

of such systems gained attention in the recent years.

We have presented a model-based mutation testing

approach for Web service compositions using the UP-

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

PAAL TA.

Our method starts with the design model that is

speciﬁed as UPPAAL TA, veriﬁed UPPAAL TRON ap-

plied for conformance testing thereafter.

We used our mutation generator tool which im-

plements a set of mutation operators applied on the

test model for the purpose of online testing. In or-

der to reduce the number of trivial invalid models and

also increase the efﬁciency of testing, we deﬁned a

set of veriﬁcation rules for each mutant. We veriﬁed

whether the generated mutants are deadlockfree and

if the mutation part of each mutant is reachable. If

both of these criteria are satisﬁed, then we select the

mutant as a valid mutant. We used UPPAAL TRON

for executing all of the mutation models against the

system under test.

We presented our approach with an experimental

study on Hotel Booking System as a case study. The

Web services are implemented in REST architectural

style and with timing constraints. Our hotel booking

case study has been designed and validated with UP-

PAAL test model and also the testing evaluated with a

series of mutation in the source code of the case study.

The results showed that from a total 1346 gener-

ated mutants, 393 were found to be valid mutants that

were usable for testing. After running the test, 40 of

the mutants were found to identify 3 hidden faults in

the implementation of the IUT. The experiment indi-

cates that our approach of speciﬁcation mutation test-

ing was effective to reveal inconsistency between the

speciﬁcation and the implementation under test.

The primary results of this study showed that our

method in robustness testing a valid approach in im-

proving the quality of web service implementations,

by detecting faults not detected by the traditional

MBT process.

Our experiments also showed that some of the ex-

isting mutation operators for time automata are more

efﬁcient than the others at ﬁnding faults.

There are some research directions that certainly

improve the current approach. The next work will be

running more experiments, on different case studies in

different application domains. More experiments help

us to gain more information about mutation operators

and correlations between the type of the case study

and the common faults.

Another improvement will be to investigate how

to detect equivalent mutants. Automation of this pro-

cess of the approach reduces the errors and increases

the scalability of the target applications.

Moreover, we plan to apply mutation selection and

mutation reduction techniques to increase the proba-

bility of fault detection. Deﬁning new mutation op-

erators, categorizing the mutants, etc., will be investi-

gated in our future work.

ACKNOWLEDGMENTS

We would like to thank prof. Andreas Zeller from

University of Saarland, Germany for his valuable

comments and anonymous reviewers for their useful

suggestions.

REFERENCES

Aboutrab, M. et al. (2012). Speciﬁcation mutation analysis

for validating timed testing approaches based on timed

automata. In 36th Annual IEEE Computer Software

and Applications Conference, COMPSAC 2012, Izmir,

Turkey, July 16-20, 2012, pages 660–669.

Aichering, B. et al. (2013). Time for MutantsModel-Based

Mutation Testing with Timed Automata. In Tests and

Proofs, pages 20–38. Springer.

Alur, R. et al. (1990). Model-checking for real-time sys-

tems. In Logic in Computer Science, 1990. LICS’90,

Proceedings., Fifth Annual IEEE Symposium on e,

pages 414–425. IEEE.

Beharmann, G. et al. (2004). A tutorial on uppaal. In For-

mal methods for the design of real-time systems, pages

200–236. Springer.

Belli, F. et al. (2016). Model-based mutation testingap-

proach and case studies. Science of Computer Pro-

gramming, 120:25 – 48.

Bozkurt, M. and other (2010). Testing web services: A sur-

vey. Department of Computer Science, King’s College

London, Tech. Rep. TR-10-01.

Budd, T. A. and Gopal, A. S. (1985). Program test-

ing by speciﬁcation mutation. Computer Languages,

10(1):63 – 73.

Cambronero, M. E. et al. (2011). Validation and veriﬁca-

tion of web services choreographies by using timed

automata. Journal of Logic and Algebraic Program-

ming, 80(1):25–49.

Dıaz, G. et al. (2007). Model checking techniques applied to

the design of web services. CLEI Electronic Journal,

10(2).

Gargantini, A. and Heitmeyer, C. (1999). Using model

checking to generate tests from requirements speciﬁ-

cations. In Software EngineeringESEC/FSE99, pages

146–162. Springer.

Hessel, A. et al. (2008). Testing Real-time Systems Using

UPPAAL. In Hierons, R. M., Bowen, J. P., and Har-

man, M., editors, Formal Methods and Testing, pages

77–117. Springer-Verlag, Berlin, Heidelberg.

Jia, Y. and Harman, M. (2011). An analysis and survey of

the development of mutation testing. Software Engi-

neering, IEEE Transactions on, 37(5):649–678.

Larsen, K. et al. (2005a). Testing real-time embedded soft-

ware using UPPAAL-TRON: an industrial case study.

In Proceedings of the 5th ACM international confer-

ence on Embedded software, pages 299–306. ACM.

On Mutating UPPAAL Timed Automata to Assess Robustness of Web Services

Larsen, K., Mikucionis, M., and Nielsen, B. (2005b). On-

line testing of real-time systems using uppaal. In

Grabowski, J. and Nielsen, B., editors, Formal Ap-

proaches to Software Testing, volume 3395 of Lecture

Notes in Computer Science, pages 79–94. Springer

Berlin Heidelberg.

Lee, S. et al. (2008). Automatic Mutation Testing and Sim-

ulation on OWL-S Speciﬁed Web Services. In Sim-

ulation Symposium, 2008. ANSS 2008. 41st Annual,

pages 149–156.

Lee, S. C. and Offutt, J. (2001). Generating test cases for

XML-based Web component interactions using mu-

tation analysis. In Software Reliability Engineering,

2001. ISSRE 2001. Proceedings. 12th International

Symposium on, pages 200–209.

Li, J.-h., Dai, G.-x., and Li, H.-h. (2009). Mutation anal-

ysis for testing ﬁnite state machines. In Electronic

Commerce and Security, 2009. ISECS’09. Second In-

ternational Symposium on, volume 1, pages 620–624.

IEEE.

Rauf, I. et al. (2014). An Integrated Approach for Designing

and Validating REST Web Service Compositions. In

Monfort, V. and Krempels, K.-H., editors, 10th Inter-

national Conference on Web Information Systems and

Technologies, volume 1, page 104115. SCITEPRESS

Digital Library.

Richardson, L. and Ruby, S. (2008). RESTful web services.

O’Reilly.

Rusli, H. M. et al. (2011). Testing Web services composi-

tion: a mapping study. Communications of the IBIMA,

2007:34–48.

Sheng, Q. et al. (2014). Web services composition: A

decades overview . Information Sciences, 280:218 –

238.

Wang, R. and Huang, N. (2008). Requirement Model-Based

Mutation Testing for Web Service. In Next Generation

Web Services Practices, 2008. NWESP ’08. 4th Inter-

national Conference on, pages 71–76.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications
