An Advanced, Adaptive and Multimodal Graphical User Interface for

Human-robot Teleoperation in Radioactive Scenarios

Giacomo Lunghi

1,2

, Raul Marin Prades

and Mario Di Castro

Engineering, CERN, 23, CERN, 1211, Geneva, Switzerland

Universitat Jaume I, Castelln de la Plana, Spain

Keywords:

Human-robot Interaction, Telerobotics and Teleoperation, Graphical User Interface, Network Robots,

Engineering Applications.

Abstract:

In this paper we present the user interface of a tele-robotic system, which allows CERN users to perform visual

inspections and tele-manipulation tasks inside the CERN accelerator complex. This graphical user interface

has been designed to be simple to use, in order to provide the operator with a comfortable system. Moreover,

the user interface is robot independent and it adapts itself to the robot conﬁguration, in order to provide a

general way for controlling any kind of robot used at CERN. Furthermore it allows the operator to choose

between different kinds of input (e.g. keyboard, joypad, haptic device, etc), in order to provide the most easy

human-robot interaction interface, which is a fundamental requirement for safe operations.

1 INTRODUCTION

The need of robotic platforms that can be tele-

operated safely is becoming predominant: the use of

robots in many industrial facilities can reduce the hu-

man risks to hazards (e.g. radioactivity, chemical and

electrical risks, oxygen deﬁciency etc.) and can also

increase the running time of the industrial plant, with-

out the need of stopping the entire system in case of

problems for allowing human operations (Keller et al.,

2008). However, industries are still not conﬁdent in

the usage of such a kind of robot for emergency main-

tenance and for non-automatic tasks, since the equip-

ment is usually delicate and expensive, and the inter-

action of the robot with it could create bigger dam-

ages, with the need of a longer human intervention.

CERN, the Organisation europenne pour la

recherche nuclaire, counts more than 50 km of un-

derground facilities which contains high technology

equipment that requires constant inspection and main-

tenance. The need of robotic tele-operated platforms

for CERN is increasing every year, due to the im-

provement of the machines, which will bring, among

other things, an increasing of the radiation, which will

make human interventions more difﬁcult (Kershaw

et al., 2013). Nowadays the commercial robotic plat-

forms which can allow this kind of interventions are

usually robots designed for military purposes, which

provide the necessary safety, bringing, though, a se-

ries of technology limitations which conﬁnes their us-

age.

One of the main limitations of such robots is the

usability of the system: robots operators usually re-

quire constant training limiting the number of opera-

tion personnel that can use the robot. The company,

then, has to create a team of robot operators that will

perform all the necessary interventions. Nevertheless,

an industrial facility presents often a huge number of

different components which could require a robotic

manipulation: the robot operator, then, is well trained

in the robot usage, but can’t have the complete knowl-

edge and the experience about the area in which the

intervention will take place and the characteristics of

the component to manipulate. It would be better, then,

to provide an easy to learn and easy to use robotic

system to the component responsible, who has the re-

quired knowledge about the component and the sur-

ronding environment to perform the operation in a

safer way.

Remote manipulation in industrial plants is still

an open issue and it has been treated for more than

20 years (Rolfe et al., 1999)(Rolfe, 2007)(Desbats

et al., 2008): a lot of effort, for example, has been put

in teleoperation control using haptic devices which

are able to provide direct feedbacks to the operator

(C¸ avus¸o

glu et al., 2002).

A Human Robot Interface is the bridge between

the operator and the workspace, it is composed by in-

put devices and output devices, it must be easy to use,

robust, complete and it must make as easy as possible

224

Lunghi, G., Prades, R. and Castro, M.

An Advanced, Adaptive and Multimodal Graphical User Interface for Human-robot Teleoperation in Radioactive Scenarios.

DOI: 10.5220/0005971402240231

In Proceedings of the 13th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2016) - Volume 2, pages 224-231

ISBN: 978-989-758-198-4

the accomplishment of the task by the operator.

According to (Ferre, 1997) the main requirements

of a Human Robot Interface are:

• to establish all the necessary connections between

the operator and the remote workspace. There are

two kind of connections: the actuation of the op-

erator on the remote workspace and, in the oppo-

site direction, the feedback of information to the

operator;

• to make easier the execution of task allowing the

operator to send high level commands as well as

make possible the direct actuation whenever nec-

essary;

• to give operator all the necessary information of

the workspace with the goal of reaching the high-

est level of transparency. This will allow the op-

erator to accomplish the task with dexterity as

well as making easier the supervision of the semi-

automatic tasks.

Studies on design of usable and learnable Graphical

User Interfaces have already been done, like in (Mar

ın

et al., 2005). Nevertheless, these GUIs are optimized

to work on a speciﬁc robot in a conﬁned and well-

known area and they do not adapt to different robotic

platforms or arms, which are dislocated in harsh and

unknown environments.

The goal of this paper is to present the results of a

preliminary multimodal (Cohen et al., 1998) Graphic

User Interface, that is both learnable and usable, and

to highlight the requirements for the future develop-

ment of a complete robotic system that can be given to

unexpert and untrained operators in order to perform

manipulation in the CERN facilities. In the next sec-

tion the GUI is presented highlighting the graphical

structure and the available input devices. Then, the

GUI is validated through a series of tests performed

by different kind of operators and the results are re-

ported in number of failures, average time of com-

pletion and number of collisions. Finally, a series of

future improvements is listed.

2 SYSTEM OVERVIEW

2.1 Communication

The graphical user interface communicates with the

robot through the CERN network, which allows to

establish a connection with any device connected

through ethernet, WiFi and GSM/UMTS inside the

CERN area. Especially, CERN provides an internal

full 4G coverage, which must be always available for

safety reasons, in order to provide a worker with the

possibility to call using his/her mobile phone in case

of emergency. In this way, all the devices connected

to the CERN network are reachable from any other

device.

Taking advantage of this network infrastructure,

it is possible to control any active robot on the CERN

area using a standard PC. The robot, then, can be con-

nected to the network using WiFi, if available, or 4G.

The Graphical User Interface contains the list of

all the controllable robots, together with the robot

conﬁguration (e.g. manipulator structure, number of

cameras, position of cameras, robot 3D model, plat-

form type and dimensions etc.). In the connection

phase then, the GUI shows to the operator the list

of available robots and their position. When clicking

on a robot, the hardware conﬁguration of the robot is

shown, providing information about the connectivity

and availability of the robot.

When the operator presses Connect the GUI es-

tablishes the communication with the robot, adapting

itself to the stored robot conﬁguration. At the connec-

tion, different network sockets are opened:

• a TCP Service socket on which service messages

are sent;

• a TCP Control socket for each controllable device

(i.e. platform, arm and PTZ camera);

• a RTP Camera socket for each camera feed.

Apart from the Service socket all the unused sockets

are paused by the GUI in order to not occupy band-

width (e.g. a not used camera, or the platform Control

socket while using the arm).

2.1.1 Clock Synchronization

Using an Internet-based network can create problems

in terms of communication delays. Having precise

timestamps is, then, a fundamental requirement, in

order to measure the delay of the controls and of

the video feedback. In this paper there is any treat

of these delays, but it provides a system to measure

them, which can be used for future work.

For this reason the GUI already includes the

timestamp of the messages in the communication

protocol. In order to provide precise timestamps,

the Graphical User Interface and the robot have to

synchronize their internal time at the beginning of

the communication. The synchronization model is

based on the usual four timestamp mechanism of the

Network Time Protocol (NTP). This commonly-used

mechanism measures the transmission delay between

communicating nodes and uses this to estimate the

An Advanced, Adaptive and Multimodal Graphical User Interface for Human-robot Teleoperation in Radioactive Scenarios

225

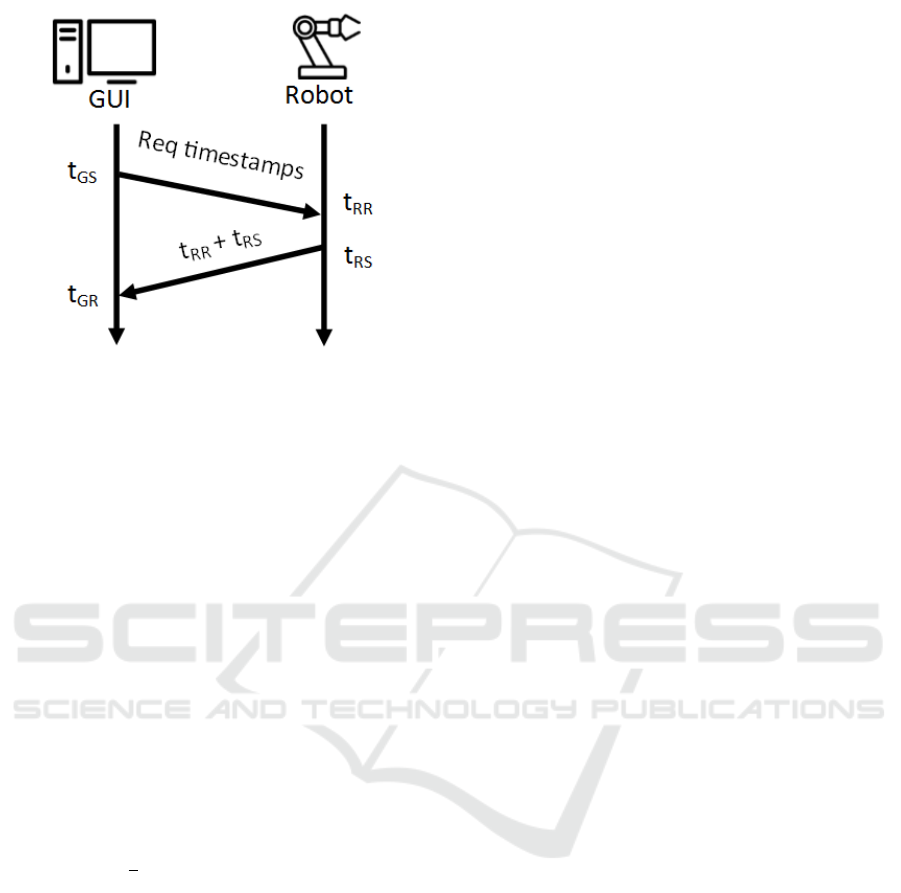

Figure 1: Synchronization model between the Graphical

User Interface and the robot.

offset between their respective clocks, in order to de-

termine the error in the client nodes clock with respect

to the time servers clock.

At the connection the GUI sends on the TCP Ser-

vice socket a request for a timestamp to the robot at

the GUI time t

. The robot receives the message at

the robot time t

and sends at the robot time t

both the timestamps t

and t

. The GUI receives

the message from the robot containing the two times-

tamps at the GUI time t

The GUI then uses the four timestamps to cal-

culate the clock offset and roundtrip message delay

relative to the server. The GUI can then reset its

own clock to compensate for any difference with the

servers clock. The timestamping mechanism is de-

signed based on an assumption that the forward and

backward communication delays are symmetric.

The delay in the communication t

then is equal

to:

[(t

) − (t

)] (1)

The synchronization model is highlighted in Figure

1. More precise timestamps can be obtained using

techniques like the one proposed in (Tian et al., 2008).

2.2 Control Interface

As soon as the operator connects to a robot, the

Graphical User Interface adapts itself to the robot con-

ﬁguration and the available input devices. It uses also

previously saved personalized conﬁgurations of the

user, if stored.

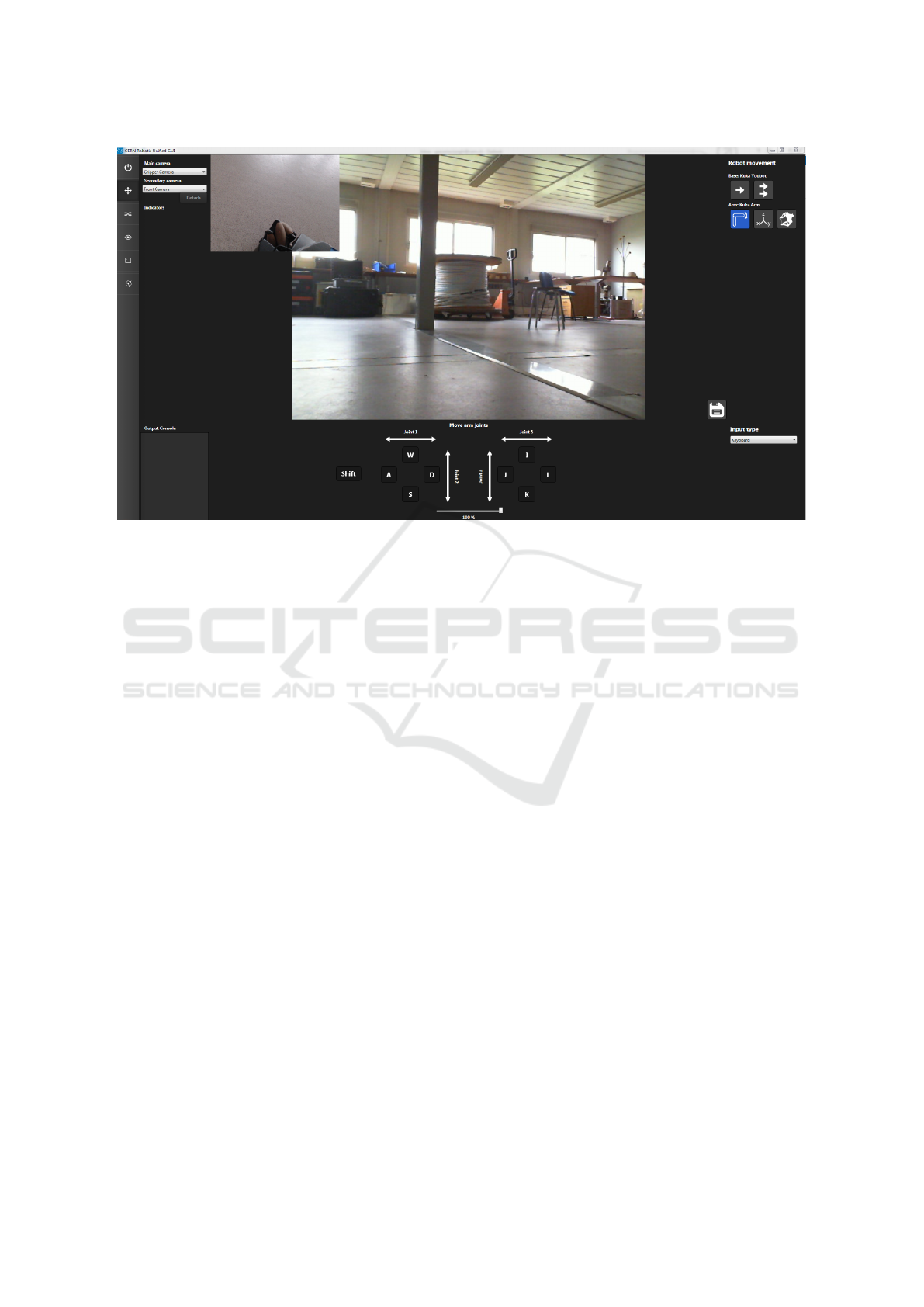

The control window of the GUI is organized as

shown in Figure 2. On the left side the list of cam-

eras mounted on the robot is available. The operator

can choose a main camera, that will be shown bigger

in the center of the window, and a secondary camera,

which will be shown smaller in one of the corners of

the bigger camera. In this way, the operator can see

simultaneously two cameras at the same time. In case

of multiple screens, the secondary camera can be de-

tached from the main window and opened in a sepa-

rated one, in order to have it bigger and more visible.

On the left bottom side there is the output console,

where all the messages from the robot and the GUI

(e.g. warnings and errors) are printed.

On the right top side there are the control modes.

The GUI provides the following control modes, de-

pending on the selected robot component; for a

robotic platform the GUI allows two drive modes:

• slow, in which the control maximum speed is the

50% of the platform maximum speed;

• fast, in which the control maximum speed is the

100% of the platform maximum speed.

Three control modes are allowed for a robotic arm:

• joint-by-joint control, in which the operator can

control every joint of the robotic arm;

• cartesian control, in which the operator can con-

trol the robotic arm, with the possibility of choos-

ing as reference coordinate system, the base of the

arm or the tool centre point;

• gripper, in which the operator can control the

gripper.

For a pan-tilt-zoom camera only one control mode

is allowed, which allows to move the camera and to

zoom in and out.

On the right bottom side it is possible to choose

the input device. The available input devices are listed

in a combo-box, and selecting a different input de-

vices changes the control view in the centre bottom

side. For safety reasons, changing the input device

stops all the control modes, in order to avoid unex-

pected behaviours.

The central bottom side contains the input view.

This part adapts to the robot conﬁguration and to the

input device. Further information can be retrieved in

Section 2.3.

For all the input devices, a slider is always visible

in the bottom side of the interface: this slider sets the

gain for the sent control. The operator, then, can set

the operating speed of the robot at the selected per-

centage of the maximum speed.

2.3 Input Devices

The main goal of this graphical user interface is to

provide a comfortable and ﬂexible system to the op-

erator for controlling the robot. Having the possibility

to choose between different input devices, then, it is a

ICINCO 2016 - 13th International Conference on Informatics in Control, Automation and Robotics

226

Figure 2: Control window of the Graphical User Interface connected to a robotic platform equipped with a robotic arm and

two cameras, with the keyboard as a selected input device.

fundamental requirement for achieving this ﬂexibility.

All the input devices are able to control all the types

of robot, adapting every time the control system to the

robot conﬁguration. The currently implemented input

controllers are the following:

• keyboard

• XInput joypad

• RGB-D sensor

• haptic device

• shell programming

The robot control using the keyboard or an XInput

joypad is quite similar: using the keyboard the keys

combination WASD for the left hand the IJKL for the

right hand are used; using an XInput joypad the oper-

ator uses the two analog sticks.

While driving the platform the left hand can con-

trol the longitudinal speed and the lateral speed (if

present, when using omni-directional wheels); the

right hand controls the rotation of the platform. When

controlling a robotic arm, instead, using the joint

by joint mode, the operator can control two joints

per hand. The control of the joints depends on the

arm conﬁguration (number of joints, direction of the

joints) in order to provide a control as much similar

as possible to the real conﬁguration of the arm. Since

with two hands it is possible to control only 4 joints,

the operator can keep pressed the left shift key or a

button on the controller to control the remaining joints

of the arm.

The control of a robotic arm in Cartesian control

mode using the keyboard or the joypad, instead, is

more sophisticated: if the coordinate reference sys-

tem is the arm base, then, the left hand controls the X-

Y coordinate of the end-effector while the right hand

controls its pitch and roll; pressing the left shift but-

ton of the keyboard or a button on the joypad, the left

hand controls the X-Z coordinate of the end-effector

while the right hand controls its pitch and yaw. This

behaviour of the left hand is different when control-

ling a robotic arm with the reference coordinate sys-

tem in the tool centre point: the left hand, in fact,

controls the X-Z of the end effector and X-Y while

pressing the left shift button of the keyboard or a but-

ton on the joypad. This setting gives to the operator

the feeling of navigating in the environment with the

arm when using the reference coordinate system in

the tool centre point.

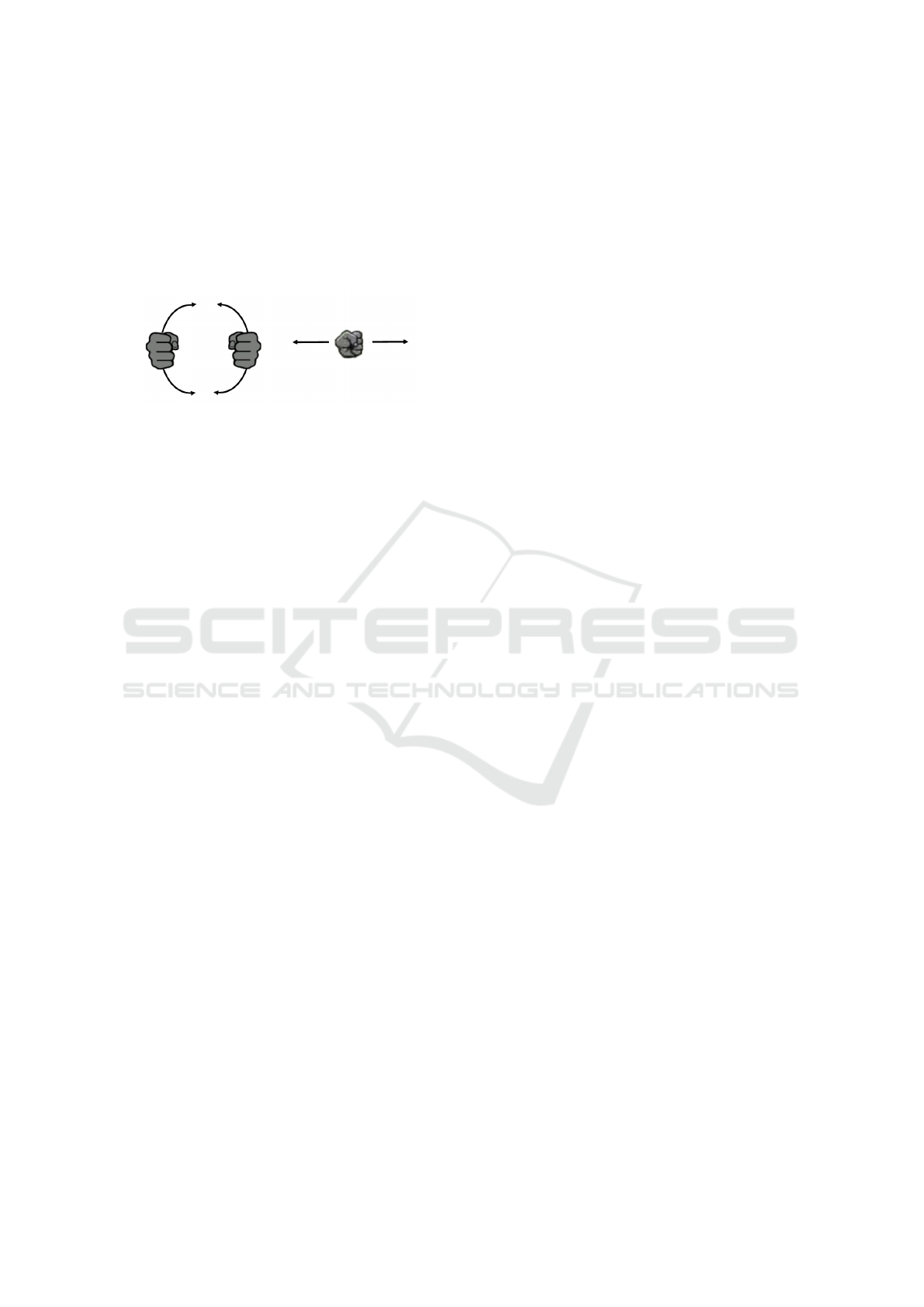

The operator control using the RGB-D sensor uses

the tracking of the hands of the operator for moving

the robots: while moving a robotic platform, the oper-

ator uses the hands like while using a steering wheel

(Figure 2). Moving the hands forward will acceler-

ate the platform, while pulling them back will slow it

down. Turning left and right will turn the platform:

the rotation rate of the platform is function of the dif-

ference in the vertical position of the two hands. For

stopping the robot it is sufﬁcient to clap the hands,

or removing the hands from the ﬁeld of view of the

sensor.

An Advanced, Adaptive and Multimodal Graphical User Interface for Human-robot Teleoperation in Radioactive Scenarios

227

A RGB-D sensor can be used also for controlling

a robotic arm: in this case only the world coordinate

control is allowed. The operator uses his right hand to

control the arm: all the control is done converting rel-

ative movements of the hand in the robot workspace.

For safety, the operator can move the robot only if the

hand is open; closing the hand will stop immediately

the robot.

Figure 3: Synchronization model between the Graphical

User Interface and the robot.

The robotic arm control is possible also using a

haptic device: two solutions have been implemented

but only one has been decided to be deployed on the

GUI. The ﬁrst one maps the workspace of the hap-

tic device in the workspace of the arm: this solution

is not optimal in term of usability since it doesnt al-

low very precise movements. Furthermore, most of

the intervention shown that the manipulation is done

only on one side of the robot (the front or one of the

sides): mapping the entire workspace of the arm on

the workspace of the haptic device then is not opti-

mal, in case of working on the side of the robot, since

the operator has to work in a uncomfortable position

with the device.

The second solution, instead, maps movement

variations of the haptic device in arm movement: in

this way the operator can change the relationship be-

tween robot movements and haptic device movements

and, if working in a conﬁned robot space, can use

the entire workspace of the device with higher pre-

cision. This solution carries the problem that the

robot workspace can be bigger than the haptic device

workspace: in the case that the operator arrives to the

end of the workspace of the haptic device while he

needs to continue in the same direction with the robot,

he has to stop the command sending from the haptic

device to the robot, to move in a better position the

device, and to start sending commands again. The

suggested approach in this case is to approach the in-

tervention workspace using another input device and

then using the haptic device for very precise move-

ments.

The last input option is the online programming

of the movements: the operator can create scripts in

order to perform repetitive operations in an automatic

way. The operator can use a simple script language

to move the robot (e.g. MOVE BASE 10 cm FOR-

WARD, TURN BASE 45 deg LEFT, ARM IN SAFE

POSITION), that can be combined together and cre-

ate a sequence program for the robot. The script can

be saved and loaded at any time. The operator can

pause the program at any moment or stop it and can-

cel it. This script language can be very useful in case

of presence of tools on the robot in a precise position

(programs which get and leave the tools on the base),

and to perform delicate operation automatically (un-

screwing a screw once the arm has been well aligned

to the screw). The GUI provides a visual IDE to cre-

ate, save and load programs.

2.4 Robot 3D Model

While performing manipulation tasks, it is often difﬁ-

cult to understand the pose of the arm using only the

on-board cameras. This problem is enhanced when

the operator controls the robot in world coordinate

since, sometimes, the inverse kinematics of the robot

chooses unpredictable poses: nevertheless, the oper-

ator sees the arm moving as expected, forgetting to

constantly check the arm pose, increasing the risks of

collisions. In order to provide as more information as

possible about the robot to the operator, a 3D model

of the robot can be opened while controlling it. The

3D model shows only the robot pose in real-time and

can be opened in a separate window and kept next to

the control window.

In this section the Graphical user interface is pre-

sented. In the next section the technologies used for

implementing it are shown.

3 SYSTEM IMPLEMENTATION

The Graphical User Interface is designed to work on

Microsoft Windows since it is the most used operating

system at CERN. It is implemented using C# using

WPF for the design of the graphic part. Nevertheless,

a version of the GUI implemented in Java has been

develop in order to provide a more portable version of

the system. The Java version of the GUI provides all

the functions except the support to the RGB-D sensor

and the 3D model of the arm.

The 3D model is implemented in Autodesk Inven-

tor and the communication between the GUI and in-

ventor is done using the provided SDK.

4 SYSTEM VALIDATION

The goal of the system validation of this GUI is to

prove its learnability, in terms of ability of the user

of learning the functionality of the system, and the

ICINCO 2016 - 13th International Conference on Informatics in Control, Automation and Robotics

228

usability. For this purpose a series of tests have been

designed using both a platform and a robotic arm. In

this section, ﬁrst, the tests are described; then the tests

rules are deﬁned. Three categories of operators have

been chosen for the validation. Finally, the results of

the tests are shown.

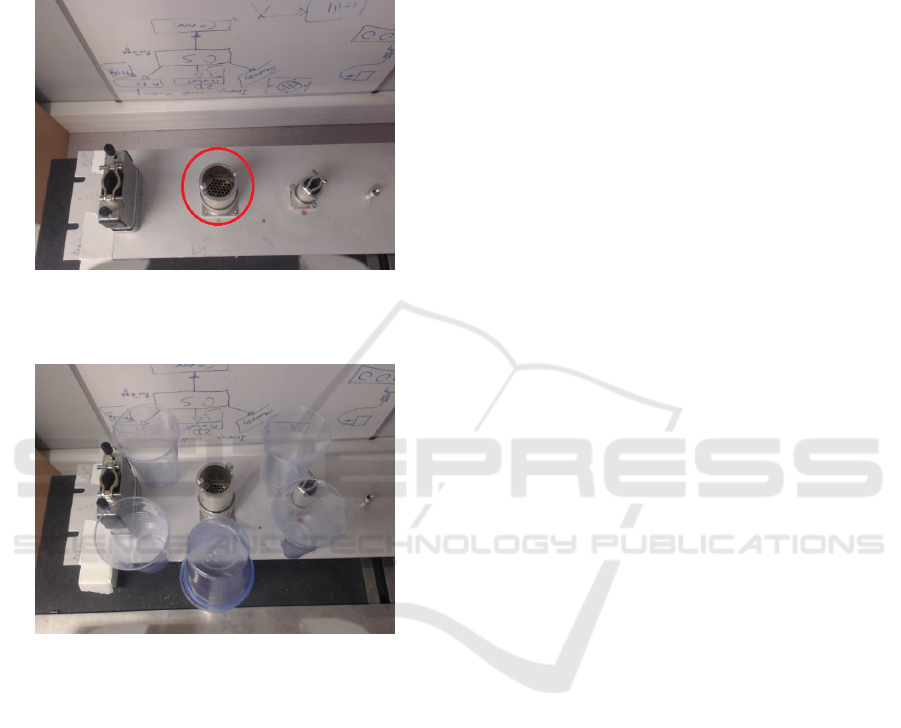

Figure 4: View from the gripper camera during the ﬁrst at-

tempt of the ﬁrst test. The operator had to unplug the circled

connector.

Figure 5: View from the gripper camera during the sec-

ond attempt of the ﬁrst test. The operator had to unplug

the circled connector taking care of not touching the plas-

tic glasses surrounding it. This test was performed without

having a direct view of the robot.

4.1 Tests Description and Hardware

Conﬁguration

Test 1: the operator has to use a Schunk Powerball

LWA 4P to detach a connector from a socket and to

leave the connector inside a container. The robot is

equipped with cameras, one on the gripper and one

on the robot base. Furthermore, two environmental

cameras have been installed, one looking at the side

of the robot and one looking at the front. Figure 4 and

ﬁgure 2 shows the test to be accomplished.

Test 2: the operator has to drive a Kuka Youbot

around a speciﬁed path. The path presents obsta-

cles, narrow corridors and sharp turns in a conﬁned

space. The robot is equipped with three cameras, one

in front, one facing backward and one on the gripper

of the arm. It is also provided with a light, since part

of the test has been performed in a dark room.

4.2 Tests Rules

During these tests, any previous information about

them has been provided to the operators. Further-

more, the tests have been performed singularly, in or-

der not to provide any suggestion to the other oper-

ators. Both tests, in fact, allow different approaches,

especially regarding the usage of the cameras: seeing

another operator performing the same task, then, can

help a lot in the operating techniques.

Each operator has ten minutes to use freely the

GUI: in this time he or she can use both the plat-

form and the arm, with all the provided input devices

and all the settings. It has to be taken in to account

that this time is not enough for learning how to op-

erate a robot, since what count the most in this kind

of tasks is the experience: current robot operators at

CERN follow at least one week full time course in or-

der to get experience with the robot, discover the best

camera setting to perform a task and so on. Neverthe-

less, avoiding operators long training is the purpose of

this Graphical User Interface, together with usability.

Ten minutes, in the end, looked the perfect amount of

time for the operator to get enough conﬁdence with

the control system, without getting experience.

Both tests have to be performed twice by each op-

erator: the ﬁrst time the test can be performed look-

ing directly at the robot while the second time the op-

erator must use only the onboard cameras. Between

the two times, the test is slightly changed by moving

things in order to reduce the operator experience on

it.

4.3 Operators Selection

The following operators have been selected for the

tests:

• Two Expert Operators, who currently operate

the CERN commercial robots in facilities. As

previously said, these operators have already fol-

lowed more than one week speciﬁc training on

robot tele-operation and they have already per-

formed different interventions in underground fa-

cilities. Nevertheless, it has been their ﬁrst ap-

proach to this robotic system.

• Two Project-involved Operators, who work in

similar robotic projects with the same hardware. It

has been possible, then, that they saw the system

during the development and they obtained some

An Advanced, Adaptive and Multimodal Graphical User Interface for Human-robot Teleoperation in Radioactive Scenarios

229

knowledge about the tests and the control system.

However, they did not have any experience in real

interventions.

• Two Entry-level Operators, who never saw both

the software and the hardware and they did not

have any experience in real interventions.

These three categories provide enough variety to vali-

date the learnability and the usability of the Graphical

User Interface.

4.4 Results

4.4.1 Test 1 Manipulation Task

Initially, all the operators could try the robotic arm for

ten minutes with all the input devices, then they exe-

cuted the task of detaching a connector from a socket

and putting it inside a box. The test has been repeated

twice: the ﬁrst time the operators could see the robot

and the operating area directly; the second time the

operators were operating the robot without directly

seeing it, but having only the onboard cameras as vi-

sual feedback. Nevertheless if the two attempts would

have been identical, the experience of the operators

about the experiment gained during the ﬁrst attempt

would have inﬂuenced the results. For this reason

the second attempt has been made more difﬁcult by

adding glasses around the connector: in this case the

operator had to be much more precise in order not to

touch the glasses.

In the following tables the results of the two at-

tempts are presented:

Table 1: First attempt.

Category # of fails Best time

Expert 0 40”

Expert 0 1’12”

Project involved 0 1’32”

Project involved 0 1’10”

Entry level 0 2’24”

Entry level 0 3’36”

Table 2: Second attempt.

Category # of fails Best time

Expert 0 56”

Expert 0 1’45”

Project involved 0 2’10”

Project involved 0 3’01”

Entry level 0 4’27”

Entry level 1 5’32”

Figure 6: The test robotic arm used during the second at-

tempt of the ﬁrst test.

It can be noticed that the average completion time

is quite short. The second attempt has been consid-

ered by the operators considerably more complicated

than the ﬁrst one. Most of the operators tried all the

input devices during the ﬁrst attempt. During the sec-

ond attempt instead, the approach to the connector has

been done using different input devices (haptic de-

vice, RGB-D sensor), but for precise operation they

all used the keyboard for controlling the arm joint by

joint and the joypad for controlling the arm in world

coordinates. The common feedback during the oper-

ation with the haptic device and the RGB-D sensor is

the difﬁculties on moving the arm precisely and very

slowly.

4.4.2 Test 2 Driving Task

For the driving task only one attempt has been done:

the operators had the possibility to train with the base

for ten minutes has before and then they executed the

test directly without having the possibility to see the

robot. In this test the number of collisions with the

environment have been counted. In the next table the

results are presented:

All the operators considered this test very compli-

cated due to the difﬁculties to see the position of the

robot in the environment using only cameras. Only

the expert operators used the camera equipped on the

arm to check the space around the robot. In terms of

input device, they mainly used the RGB-D sensor and

ICINCO 2016 - 13th International Conference on Informatics in Control, Automation and Robotics

230

Table 3: Test 2 results.

Category # of collisions Best time

Expert 1 5’31”

Expert 0 4’20”

Project involved 3 6’51”

Project involved 6 5’45”

Entry level 3 8’46”

Entry level 8 10’29”

the joypad for the easiest part of the path, and they all

switched to the keyboard or the joypad for the most

difﬁcult part.

Figure 7: The test platform used during the second test.

5 FUTURE WORK AND

CONCLUSIONS

In the future, more complex and precise feedbacks

have to be given to the operator. While operating a

robotic arm, it is extremely important to detect colli-

sions on the entire body of the arm: these feedbacks

can be reported visually to the operator, or physically,

actuating the haptic device or a sleeve equipped with

vibration buzzers can be worn by the operator.

Another important extension to the system is the

possibility to have a 3D view of the workspace: this

can be done using a depth camera mounted on the

robot. The collected information is then reported on

a 3D viewer. This will give to the operator the pos-

sibility to explore the workspace and to have multi-

ple views, which is not possible using only on board

cameras. Objects recognition and tracking could also

help the user in the grasping procedures and naviga-

tion (Mar

ın et al., 2002).

Above all, this paper showed that this preliminary

Graphical User Interface provides already an easy to

learn and easy to use environment. The feedbacks re-

ceived by the tester operators and their fast learning

time, as shown in the previous tables.

REFERENCES

C¸ avus¸o

glu, M. C., Sherman, A., and Tendick, F. (2002).

Design of bilateral teleoperation controllers for hap-

tic exploration and telemanipulation of soft environ-

ments. Robotics and Automation, IEEE Transactions

on, 18(4):641–647.

Cohen, P. R., Johnston, M., McGee, D., Oviatt, S. L., Clow,

J., and Smith, I. A. (1998). The efﬁciency of multi-

modal interaction: a case study. In ICSLP.

Desbats, P., Garrec, P., Perrot, Y., Measson, Y., Geffard, F.,

David, O., Gargiulo, L., Idasiak, J.-M., and Piolain, G.

(2008). Overview of robotic technologies for nuclear

hazardous environments. In Proceedings of ANS Joint

topical meeting. Emergency Management & Robotics

for Hazardous Environments, March, pages 9–12.

Ferre, M. (1997). Interfaz Dise

no de interfaces para robots

teleoperados. Desarrollo de un entorno de teleop-

eraci

on con caracter

ısticas multimedia. PhD thesis,

Tesis Doctoral. Universidad Polit

ecnica de Madrid.

1997. Madrid.

Keller, D., Perrot, Y., Gargiulo, L., Friconneau, J., Bruno,

V., Le, R., Soler, B., Tchah, M., Ponsort, D., Cham-

baud, P., et al. (2008). Demonstration of an iter rel-

evant remote handling equipment for tokamak close

inspection. In Intelligent Robots and Systems, 2008.

IROS 2008. IEEE/RSJ International Conference on,

pages 1495–1500. IEEE.

Kershaw, K., Feral, B., Grenard, J.-L., Feniet, T., De Man,

S., Hazelaar-Bal, C., Bertone, C., and Ingo, R. (2013).

Remote inspection, measurement and handling for

maintenance and operation at cern. International

Journal of Advanced Robotic Systems, 10.

Mar

ın, R., Sanchez, J., and Sanz, P. J. (2002). Object recog-

nition and incremental learning algorithms for a web-

based telerobotic system. In Robotics and Automa-

tion, 2002. Proceedings. ICRA’02. IEEE International

Conference on, volume 3, pages 2719–2724. IEEE.

Mar

ın, R., Sanz, P. J., Nebot, P., and Wirz, R. (2005). A

multimodal interface to control a robot arm via the

web: a case study on remote programming. Industrial

Electronics, IEEE Transactions on, 52(6):1506–1520.

Rolfe, A. (2007). A perspective on fusion relevant remote

handling techniques. Fusion Engineering and Design,

82(15):1917–1923.

Rolfe, A., Brown, P., Carter, P., Cusack, R., Gaberscik, A.,

Galbiati, L., Haist, B., Horn, R., Irving, M., Locke,

D., et al. (1999). A report on the ﬁrst remote han-

dling operations at jet. Fusion engineering and design,

46(2):299–306.

Tian, G.-S., Tian, Y.-C., and Fidge, C. (2008). High-

precision relative clock synchronization using time

stamp counters. In Engineering of Complex Com-

puter Systems, 2008. ICECCS 2008. 13th IEEE Inter-

national Conference on, pages 69–78. IEEE.

An Advanced, Adaptive and Multimodal Graphical User Interface for Human-robot Teleoperation in Radioactive Scenarios

231
