Object-relational Mapping Revised - A Guideline Review and

Consolidation

Martin Lorenz

, G

unther Hesse

and Jan-Peer Rudolph

Hasso-Plattner-Institut, University of Potsdam, August-Bebel-Str. 88, Potsdam, Germany

LZN Laser Zentrum Nord GmbH, Am Schleusengraben 14, Hamburg, Germany

Keywords:

Object-relational Mapping, O/R Middleware, Enterprise Patterns, Data Model Design.

Abstract:

Object-relational mapping (ORM) is a mechanism to link classes of an object-oriented (OO) programming

language to tables of a relational database management system (RDBMS). When designing a mapping for

an application’s domain model, different strategies exist to map associations and inheritance relationships to

database tables. Each strategy has a different impact on the application’s quality characteristics. Developers

need to understand the impact of a mapping strategy to make informed decisions. In the absence of cost models

to quantify the impact, guidelines and best practices have been developed to allow differentiated considerations

of strategies. However, looking closer at these guidelines, two major ﬂaws become apparent - incompleteness

and inconsistency.

In this paper, a comprehensive literature study is presented, which includes an analysis of guidelines and

best practices from industry and academia. We propose a consolidation approach, which identiﬁes relevant

aspects of mapping strategies that impact a system’s quality characteristics. The approach derives a multi-level

organization, which describes the relation between mapping strategy aspects and quality characteristics of a

system. The identiﬁed mapping aspects and the organization can serve as a framework to improve existing

guidelines and to resolve inconsistencies.

1 INTRODUCTION

Using relational database management systems to

persist objects of an OO domain model is a com-

mon approach. Object-relational (O/R) mapping rep-

resents a mechanism to bridge the semantic gap be-

tween OO programming languages and RDBMS. Due

to fundamentally different concepts of relational al-

gebra and the OO programming paradigm, a number

of challenges exist, when mapping objects to tables.

A particularly interesting challenge is the mapping of

class inheritance structures to database tables. From a

functional point of view, multiple correct approaches

exist that map objects of a class hierarchy to database

tables. These different approaches are commonly re-

ferred to as mapping strategies. Each strategy has a

different impact on the application’s non-functional

characteristics, i.e., its quality. For the remainder of

this paper, the term non-functional characteristics and

quality characteristics are used synonymously. The

semantics of the different strategies have been deﬁned

and documented in a number of publications (Ambler,

2003; Fowler, 2002; Keller, 1997; Holder et al., 2008)

and are widely accepted. The challenge for a devel-

oper is to decide what mapping strategy is optimal

with respect to a set of non-functional system char-

acteristics, e.g., maintainability, efﬁciency, usability.

Today, there exist many ORM frameworks, such as

Hibernate

, Doctrine

or SQLAlchemy

, which pro-

vide implementations of mapping functionality for

various OO programming languages, but they do not

choose a mapping strategy for class inheritance struc-

tures. In general, a framework is preconﬁgured to ap-

ply a single mapping strategy to all inheritance hierar-

chies, deﬁned in the domain model. It then provides

conﬁguration options that developers may use to con-

trol the application of mapping strategies for different

inheritance hierarchies in the domain modal. A map-

ping framework does not provide any intelligence or

automation approach that would suggest a mapping

strategy for a particular hierarchy. It is the developer

that has to decide what mapping strategy ﬁts best to

http://hibernate.org/

http://www.doctrine-project.org/projects/orm.html

http://www.sqlalchemy.org/

Lorenz, M., Hesse, G. and Rudolph, J-P.

Object-relational Mapping Revised - A Guideline Review and Consolidation.

DOI: 10.5220/0005974201570168

In Proceedings of the 11th International Joint Conference on Software Technologies (ICSOFT 2016) - Volume 1: ICSOFT-EA, pages 157-168

ISBN: 978-989-758-194-6

157

the desired non-functional characteristics of the sys-

tem. In the absence of cost models to quantify the im-

pact of a mapping strategy, developers rely on guide-

lines and best practices in their decision making pro-

cess. However, looking closer at these guidelines, two

ﬂaws become apparent - incompleteness and incon-

sistency.

In this paper, we present a literature study, which

compares and consolidates best practices and guide-

lines that are supposed to aid developers in the de-

cision making process. The selection of documents

comprises of academic publications, text books and

technical documentations of vendors of O/R mapping

frameworks. Our analysis reveals that the aspects of

the mapping process, addressed by the different au-

thors, vary greatly. The individual selection of map-

ping aspects is arbitrary and depends largely on the

author’s background and the scope of the document.

This presents a problem for software developers, who

seek for an answer to the question what mapping strat-

egy to implement. Based on our analysis, we propose

a consolidation approach to identify inconsistencies

and missing parts, to allow a reasonable comparison

of existing works. We provide a comprehensive eval-

uation that elaborates on the identiﬁed insufﬁciencies

and provides reasonable explanations, why they can

be observed. One result of our consolidation is a com-

prehensive set of mapping aspects. This set of aspects

can be applied to a number of purposes. First, it can

serve as a frame of reference for evaluations, discus-

sions or comparisons of O/R mapping strategies. Sec-

ond, it can help software developers understand the

impact of mapping strategy aspects on the system’s

quality. This allows to make distinctive decisions re-

garding the use of a mapping strategy. Furthermore,

it can serve as a reference for further research in the

area of ORM concepts.

The remainder of this paper is structured as fol-

lows: Section 2 explains our document selection pro-

cess. The consolidation approach is described in Sec-

tion 3. The results of the consolidation are presented

in Section 4. Section 5 contains the evaluation of our

results. Section 6 summarizes and concludes the pa-

per and Section 7 gives an outlook to future work.

2 PAPER SELECTION PROCESS

A vital part of our literature study is the selection of

relevant documents. In Section 2.1, we describe our

search approach and the selection criteria that have

been applied to identify a set of relevant documents.

Section 2.2, gives a brief introduction to the selected

documents.

2.1 The Search Process

For the identiﬁcation of potentially relevant docu-

ments, we followed the systematic literature review

(SLR) strategy, proposed by Kitchenham and Char-

ters (Kitchenham and Charters, 2007). We started

our document selection process by searching for pub-

lications about non-functional characteristics of in-

heritance mapping strategies. The initial search was

conducted using ACM’s digital library, the online

archive of the digital library of IEEE Computer Soci-

ety, Google Scholar, and Microsoft Academic Search.

We included the terms: “object”, “relational”, “map-

ping”, and “non-functional characteristics”, which led

us to a number of potentially relevant publications.

Based on references and citations, we employed a

forward/backward reference search to identify further

documents. For a detailed analysis, we selected those

documents that contain explicit discussions about the

impact of mapping strategies on system quality char-

acteristics. Holder et al. (Holder et al., 2008) de-

scribe the most structured analysis of quality char-

acteristics in the context of object relational map-

pings. Ambler (Ambler, 2003), Fowler (Fowler,

2002), Keller (Keller, 1997) and Philippi (Philippi,

2005) provide information about the behavior of in-

heritance mapping strategies. These ﬁve documents

represent the core of our literature study. Addition-

ally to research papers and textbooks, we decided to

look into technical documentations of O/R mapping

frameworks, e.g., Hibernate. We believe, a lot of soft-

ware developers start looking for guidance regarding

their mapping design in such documentations. Mostly

using Google, we searched for ORM tools for various

object-oriented programming languages. A brief in-

troduction to the selected documents is given in Sec-

tion 2.2.

2.2 Chosen Documents

We started out, by looking at the textbooks of

Fowler (Fowler, 2002) and Ambler (Ambler, 2003).

Both are focused on the conceptual level and ex-

plain the semantics of the three basic strategies,

namely Single-Table Inheritance, Table-per-Class

Inheritance and Table-per-Concrete-Class Inheri-

tance (Fowler, 2002). Since the terminology is not

consistent in the literature, the strategies are referred

to by different names in some publications, more on

this follows in Section 3.1. Fowler gives a short rec-

ommendation for use and an implementation exam-

ple for each strategy. Ambler explains the strategies

based on an example hierarchy and lists advantages

and disadvantages.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

158

Philippi (Philippi, 2005) suggests a model driven

approach to automatically generate object-relational

mappings based on non-functional software require-

ments. Therefore, the different inheritance mapping

strategies get a ﬁxed rating with respect to their un-

derstandability, maintainability, storage space con-

sumption and performance. Based on trade levels,

which express the requirements of the user, a strategy

is chosen accordingly. Thereby, Philippi (Philippi,

2005) extends previous approaches of automatic map-

ping generation. He builds on the idea of Keller et

al. (Keller et al., 1993), which only supports one in-

heritance mapping strategy for the entire class hierar-

chy. Hybrid designs are not considered. Philippi’s

rating of the strategies has the three levels positive

(+), moderate (o) and negative (-). Especially for un-

derstandability and maintainability, the reasoning or

metrics, which build the basis for the rating, are not

clearly described. The number of joins builds the

measure for performance, and the number of NULL

values and redundancy for storage space. Additional

inﬂuencing factors like inheritance depth or occurring

query patterns are not considered.

Holder et al. (Holder et al., 2008) suggest a met-

ric suite for object-relational mappings. Based on a

number of software quality characteristics that are in-

ﬂuenced by underlying object-relational mappings the

authors suggest four metrics. In their future work,

the authors consider a normalization of the metrics

to enable an automated selection of mapping strate-

gies. However, a cost model, based on these metrics,

has not yet been presented. Holder is more precise

than Philippi in the consideration of the inﬂuenced

non-functional characteristics. Especially the men-

tioned quality characteristics are a good starting point

for the analysis of the non-functional requirements in

Section 3.2.

Keller (Keller, 1997) describes several patterns to

map objects to tables on a structural level. This in-

cludes an explanation of the three basic inheritance

mapping strategies with an example. In addition,

Keller considers the consequences of the chosen strat-

egy on the characteristics of an application, for exam-

ple query performance and maintainability.

The examination of ORM tool or framework doc-

umentations shows how the industry deals with the

topic of strategy selection. We analyzed 18 cur-

rent ORM tools with respect to the support of the

three well-known inheritance strategies. In general

the tool documentations rarely give recommenda-

tions for use or information about the impact of the

strategies on non-functional software characteristics

like performance or maintainability. The reference

of OpenJPA (Apache Software Foundation, 2013)

lists some advantages and disadvantages per strategy,

which mainly relate to performance and space con-

sumption. Apache Torque’s (Apache Software Foun-

dation, 2012) and Propel’s (Propel Community, 2015)

documentation make short statements about the per-

formance of the strategies. The reference of Doc-

trine (Doctrine Team, 2015) contains considerations

about the impact of the two implemented strategies on

performance, design-time and the database schema.

In general, one can say that technical documenta-

tions of O/R mapping frameworks focus on explain-

ing functionality and conﬁguration. The impact and

consequences of choosing a particular mapping strat-

egy are widely discarded by the analyzed documenta-

tions.

3 THE CONSOLIDATION

APPROACH

As introduced in Section 1, the aim of this paper is to

identify inconsistencies and incompleteness in exist-

ing guidelines and best practices for choosing an op-

timal mapping strategy. To achieve this goal, we use

the method of consolidation as a process to compare

and combine the information and discussions from the

different sources.

We identiﬁed two challenges in this process. The

ﬁrst is a lack of a standardized terminology. This

is problematic, because it is difﬁcult to compare ar-

gumentations and discussions from different authors,

when they do not use a common vocabulary and def-

initions. The second challenge is the different levels

of abstraction that are used to discuss aspects and im-

pact of a mapping strategy. A high level of abstraction

leaves room for interpretation. This is problematic,

because the risk of misunderstandings or misinterpre-

tation is high. To address these two challenges, we

propose a three-step consolidation process. The ﬁrst

step is a consolidation of terminology. The second

step is a consolidation of mapping aspects. The third

step proposes an organization of mapping aspects that

allows to understand the relationship between func-

tional requirements and non-functional system char-

acteristics. It also visualizes the different levels of ab-

straction involved. That way, we are able to follow

the argumentation and reasoning of different authors

and we reduce the room for interpretation.

3.1 Step 1: Terminology Consolidation

Analyzing the documents presented in Section 2, it

becomes obvious that there exists no commonly ac-

cepted terminology. Across all papers, we observe

Object-relational Mapping Revised - A Guideline Review and Consolidation

159

a variety of synonyms that are used to describe the

same concepts. We identiﬁed this fact as a prob-

lem, because ambiguity is a possible source of mis-

understandings and eventually may lead to inconsis-

tencies. To perform a comprehensive and thorough

consolidation, we need to deﬁne a basic set of terms,

which represent a core set of vocabulary. We are con-

vinced that all authors have considered their vocab-

ulary carefully, to support their argumentations and

reasoning. However, we observed that most authors

omit the introduction of semantics regarding their

key vocabulary. By giving a semantic deﬁnition for

terms that we consider key to understanding our ar-

guments, we want to reduce the risk of ambiguity

and we allow to relate argumentations from other au-

thors to our work. Fortunately, there exists a stan-

dard (ISO/IEC 9075) for the Structured Query Lan-

guage (SQL) (ISO, 2011), which provides a compre-

hensive glossary for database artifacts and concepts.

The most current version of that standard is ISO/IEC

9075:2011. Any database related terminology used in

this document is based on that standard.

• O/R Mapping - or short ORM is an umbrella

term that describes the concepts and processes of

linking classes of an OO programming language

to tables of an RDBMS. It resembles conceptual

considerations rather than practical implementa-

tions. Often the term is used synonymously for

O/R middleware implementations such as Hiber-

nate. In our discussions, we refer to ORM only

when we mean conceptual consideration.

• O/R Middleware - is a technical implementa-

tion of the process of linking classes of an OO

programming language to tables of an RDBMS.

We refer to O/R middleware, when we talk about

the manifestation of mapping concepts or strate-

gies in coding artifacts. This includes full-ﬂetched

frameworks, such a Hibernate or Doctrine as well

as custom coding that implements O/R mapping

functionality.

• Entity - is a conceptual component of the applica-

tion. It is represented as a class deﬁnition that cap-

tures the entity’s attributes, which are relevant for

the application. An example for an entity could be

a customer or a product.

• Object Model - is the collection of all class def-

initions of the respective application. A synonym

would be domain modal or business modal. It

comprises, but is not limited to all entities the ap-

plication considers.

• Data Model - is the SQL database schema, which

is used to persist objects of the object model.

• Mapping Strategy - is a concrete design deci-

sion how to map an inheritance relationship be-

tween two or more classes to one or more rela-

tional database table(s). A single strategy does

not necessarily need to be applied to the com-

plete hierarchy. Within the tree of classes of an

inheritance hierarchy, each branch can be imple-

mented using a different strategy. In that, we talk

about a hybrid approach. Figure 1 illustrates such

hybrid approach for a hierarchy of three classes,

where the relationship between Employee and Ex-

ternalEmployee is implemented using the Single-

Table Strategy and the relationship between Em-

ployee and InternalEmployee using the Table-per-

Class Strategy.

• Mapping Speciﬁcation - is the overall mapping

design for a complete inheritance hierarchy. What

strategy is implemented for which branch of the

hierarchy is deﬁned by the mapping speciﬁcation.

Figure 1 explains the relationship between map-

ping strategy and mapping speciﬁcation.

• Single-Table Strategy - this strategy maps all

classes of a branch from an inheritance hierarchy,

which follows this strategy, to the same relational

table. It requires an additional relational ﬁeld in

the shared table, which indicates the class of each

row. Single Table Inheritance is also known as

One Inheritance Tree - One Table (Keller, 1997)

or Union Superclass (Holder et al., 2008). For the

remainder of this paper, we abbreviate it with ST

(Single Table).

• Table-per-Class Strategy - this strategy imple-

ments a one-to-one mapping between classes and

tables. The corresponding table of a class con-

tains a relational ﬁeld for each non-inherited class

attribute. Thus, object persistence is achieved by

distributing object data over multiple tables. In or-

der to link these tables, all tables share the same

primary key. In addition, the primary keys are

also foreign keys that mimic the inheritance re-

lationships of the object schema [9]. Each row in

a table then, maps to objects in that tables corre-

sponding class and subclasses. It is also known as

One Class One Table (Keller, 1997), Joined Table

Inheritance (Apache Software Foundation, 2013)

or Joined Subclass (Holder et al., 2008). For the

remainder of this paper, we abbreviate it with TPC

(Table-per-Class).

• Table-per-Concrete-Class Strategy - this map-

ping strategy only maps each concrete class to a

table. Thereby, all inherited and non-inherited at-

tributes of a class are mapped to the same table.

Each table then only contains instances of its cor-

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

160

responding concrete class. The strategy is also

known as One Inheritance Path One Table (Keller,

1997) or Union Subclass (Holder et al., 2008).

Philippi (Philippi, 2005) presents several variants

of the strategy. We focus on the most common

form, which is referred to as One ﬂattened ta-

ble for each concrete class. Some ORM doc-

umentations (e.g. OpenJPA) use the name Ta-

ble Per Class Mapping (Apache Software Foun-

dation, 2013), which can easily be taken for Class

Table Inheritance. For the remainder of this paper,

we abbreviate it with TPCC (Table-per-Concrete-

Class).

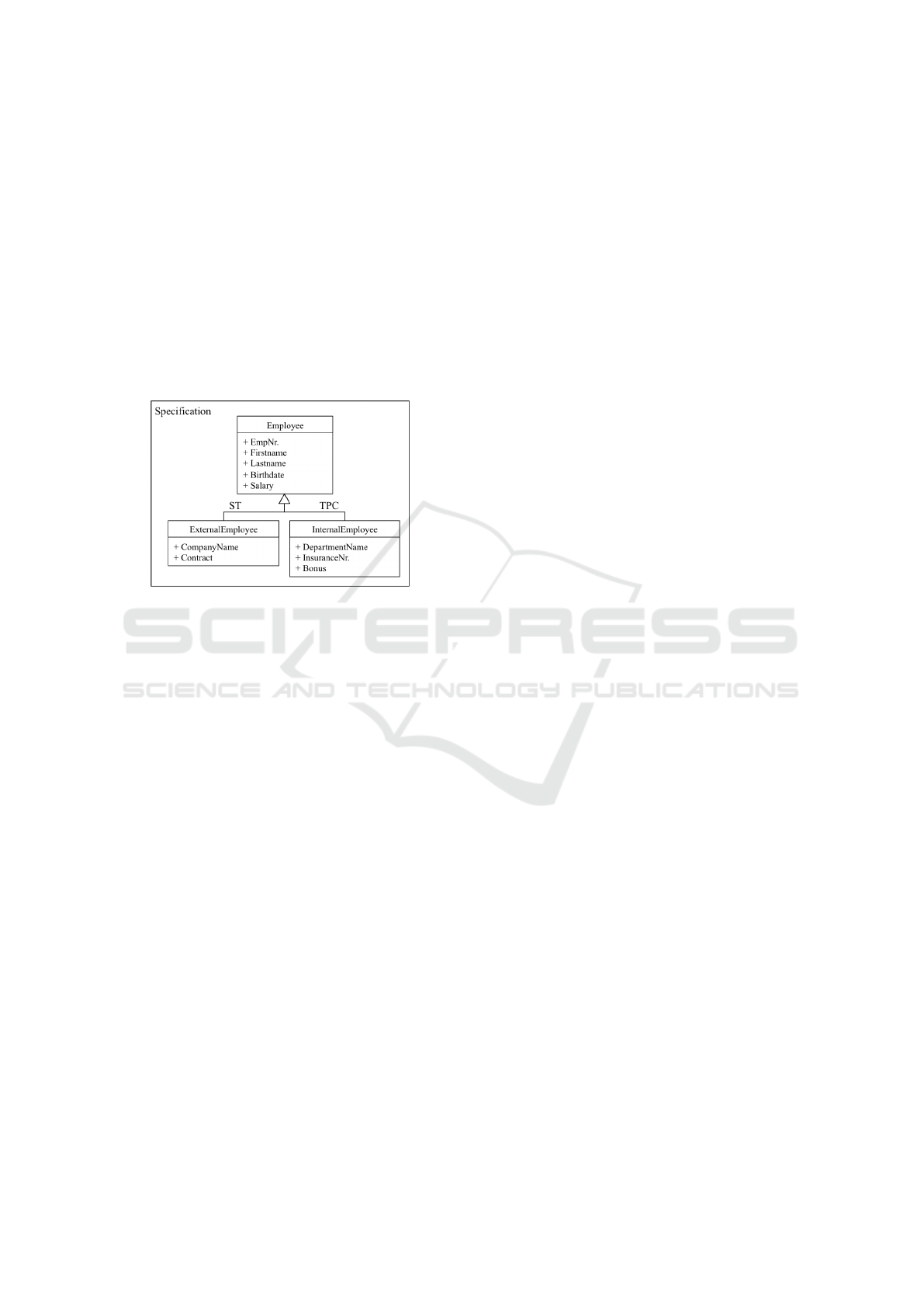

Figure 1: Example of classes used in section 3.2.

3.2 Step 2: Mapping Aspect

Consolidation

With a clear set of vocabulary, we are now able to

consolidate the mapping aspects (MA) discussed in

the analyzed set of documents. In the ﬁrst part of this

step, we collect all MA from the analyzed literature to

guarantee that our list of MA is complete with respect

to these documents. A large part of the collected MA

reﬂects functional system requirements. The follow-

ing enumeration lists the collected requirements and

explains their semantics. For a better understanding,

we provide examples, based on the class inheritance

structure, depicted in Figure 1. For reason of com-

pactness, we will not interpret the semantics for every

mapping strategy. We believe our descriptions to be

detailed enough to derive the respective differences

for each strategy.

• MA1 - Create new object: A new object has to

be persisted into the database. The characteris-

tic “new” means that the object refers to an en-

tity, whose logical identity has not yet been stored.

All attributes of the object have to be persisted in

the respective columns of the table(s), the object’s

class is mapped to. The identity of the object is

directly related to the primary key, the database

assigns to that object. An example would be the

storage of a new employee with the employee

number E-2132 in the database.

• MA2 - Read an object: Reading an object, rep-

resents the materialization of a single object from

the database. In this context, the object is accessed

using the key attribute(s), which relate to the log-

ical identity of the object and the entity it repre-

sents. An example would be the retrieval of the

employee with the employee number E-2132.

• MA3 - Update object: Updating an object is the

process of modifying all or just number of a se-

lected attributes for a speciﬁc object. The object

is accessed via its identity or primary key respec-

tively. An example would be an update of the

lastname of employee with employee number E-

2132.

• MA4 - Delete object: Deleting an object results

in the removal of all records and attributes that

are linked to the identity of the object. An exam-

ple would be the deletion of the employee with

employee number E-2132.

• MA5 - Polymorphic read: The “is-a”-relationship

that constitutes inheritance hierarchies is transi-

tive in nature. That means that a query on a

class that has subclasses needs to know whether

or not it should include its subclasses. Following

that line of thought, a polymorphic query includes

considers all records of class that it was executed

on, including all of its subclasses. An example for

a polymorphic read would be a query that lists all

employees where the lastname starts with the let-

ter “L”. All employees in the context of our exam-

ple means all internal and all external employees.

• MA6 - Non-polymorphic read: In contrast to the

polymorphic read, the non-polymorphic variant

is restricted only to records that are of the type,

the query was executed on. It does not consider

records of any subclasses.

• MA7 - Create new class attribute: A type of

change in the object model might be that a class

gets a new attribute. Looking at our example in

Figure 1, this could mean that we want to store

the middle name for all our employees. Conse-

quently, the class deﬁnition for the type Employee

is changed. That changed needs to be propagated

to the data model as well.

• MA8 - Update attribute data type: An update of

the attribute data type means that the data type of

the table column that stores a particular attribute

is changed. The reason for that might be tech-

nical (data base optimizations) or logical (salary

is changed from ﬂoating point number to double

Object-relational Mapping Revised - A Guideline Review and Consolidation

161

precision ﬂoating point number to increase preci-

sion).

• MA9 - Push attribute up: During the refactoring

process of an application, it might happen that one

or more attributes of a class are pushed to its su-

perclass. Looking at our example in Figure 1, t

could be that bonuses are now available for inter-

nal an external employees. In that case, Bonus

would become an attribute of the employee class.

• MA10 - Push attribute down: Similar to MA8, it

can happen that an attribute is pushed to a spe-

cialized class. In our example, it could be that, for

privacy reasons, the Birthdate is stored for inter-

nal employees only.

• MA11 - Delete class attribute: MA11 can be con-

sidered as the reverse operation to MA7.

• MA12 - Create new class from scratch: Appli-

cation systems evolve and new functionality is

added. In case new entities will be introduced to

support that new functionality, new classes have

to be added to the object model and consequently

need to be mapped to the data model.

• MA13 - Create new class via splitting: Refactor-

ing may result in the splitting of a single entity

into two or more specialized entities. That means,

that an existing class is replaced by two or more

classes. The objects of the existing class need

to be distributed across the newly created classes,

depending on their new role.

• MA14 - Delete class: Similar to MA12 and MA13

a refactoring may trigger the deletion of a class

from the object model. Depending of the speciﬁc

semantic of that refactoring, objects of the deleted

class may be erased or moved to other classes.

Subsequently, we added MA, which represent rele-

vant functionality that has not been addressed directly

in any of the analyzed documents. These MA are

derived from the authors’ experience with the imple-

mentation of O/R middleware. MA15 and MA16 re-

sult from refactoring approaches that consolidate two

or more classes of the object model. Two different

semantics can be found when consolidating classes.

• MA15 - Merge classes via pushing up: This hap-

pens, when the consolidation is done by moving

all attributes of a class to its superclass. Objects

of the subclass need to be added to the superclass.

• MA16 - Merge classes via moving horizontally:

From a functional point of view, MA16 is very

similar to MA15. However, there is an important

difference. Where MA15 requires only an change

and movement of object of the subclass, MA16

requires the adaptation of objects of both classes.

Additionally to these functional mapping aspects, we

collected a set of non-functional requirements from

the analyzed documents

• MA17 - Space consumption: the required storage

space of the database tables including indexes

• MA18 - Mapping conformance: expresses the re-

lational schema’s resemblance of the object model

• MA19 - Query complexity: the complexity to for-

mulate queries

MA1 through MA19 represent a comprehensive

set that covers relevant mapping aspects, which

should be addressed by a document that intends to

provide guidelines to understand the impact of a map-

ping strategy.

We do not claim this list to be complete. We would

like to see it as a starting point for further discussion

and invite researchers to add new aspects to that list.

3.3 Step 3: Requirements Organization

The requirements organization proposed in this pa-

per is inspired by a paper from Holder et al. (Holder

et al., 2008), where an approach towards a metric suite

for O/R mappings is proposed. Their approach is

based upon the ISO/IEC 9126 (ISO, 2001) standard

for software quality characteristics. The ISO/IEC

9126 (ISO, 2001) standard is meanwhile superseded

by the ISO/IEC 25010 (ISO, 2010). Its main contri-

bution is a mapping from high level non-functional

quality characteristics down to lower level character-

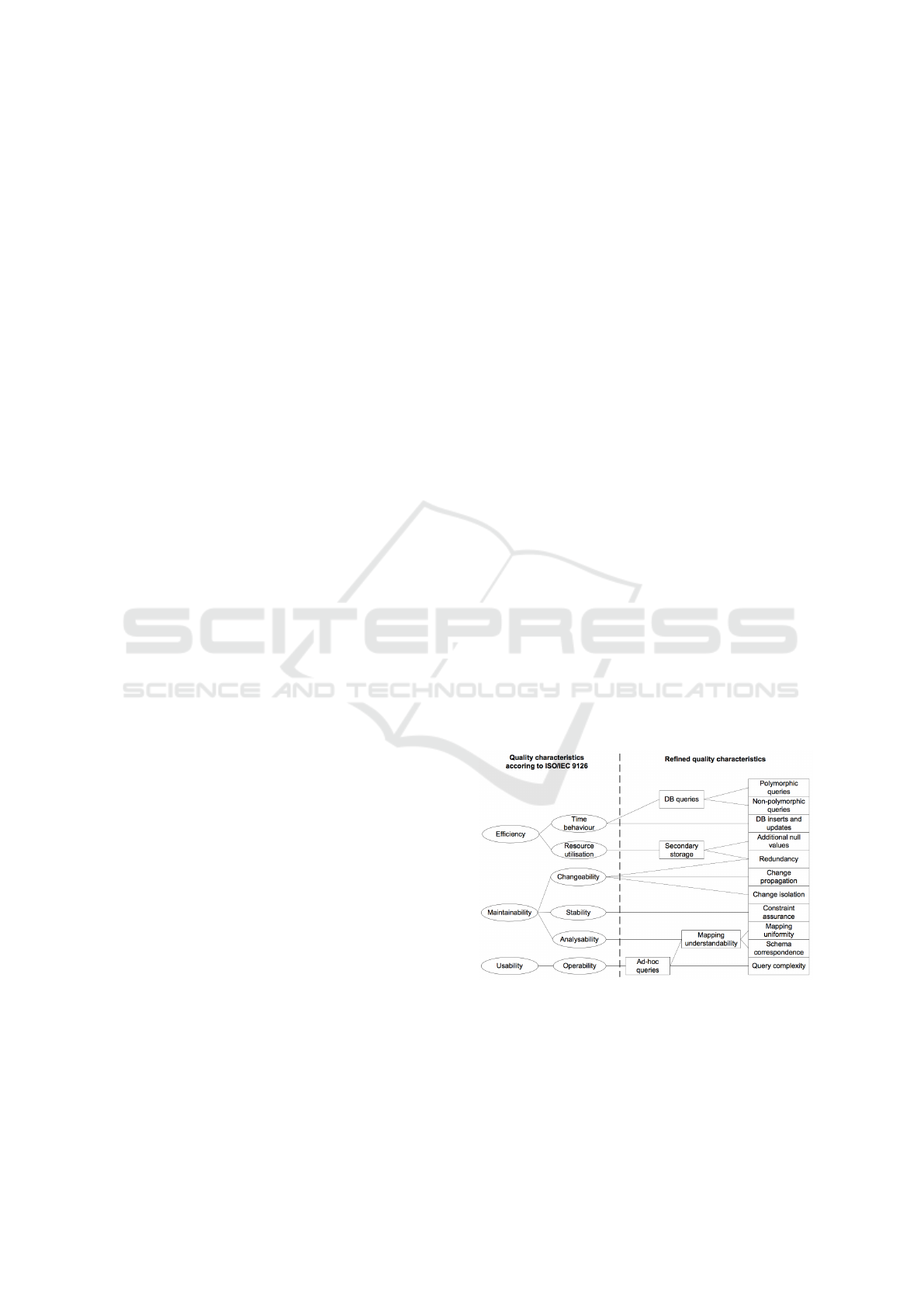

istics. Figure 2 depicts their approach. Not all of the

Figure 2: O/R Mapping Characteristics (Holder et al.,

2008).

characteristics deﬁned in (Holder et al., 2008) are ap-

plicable to inheritance relationships, e.g., constraint

assurance, redundancy. For a comprehensive discus-

sion about the considered quality characteristics, we

refer to (Holder et al., 2008). Holder et al.’s approach

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

162

has two advantages. First, it allows the identiﬁca-

tion of different abstraction levels and secondly, it

describes a relationship from non-functional system

characteristics down to lower level mapping strategy

aspects. Because we observed arbitrary switches be-

tween different levels of abstraction across and even

within the analyzed documents, we propose a number

of extensions to the existing approach. The main pur-

pose of these extensions is to resolve possible misun-

derstandings or misinterpretations, which result from

imprecise deﬁnitions or abstractions. Sections 3.3.1

through 3.3.3 elaborate on our proposed extensions.

3.3.1 Efﬁciency

Efﬁciency can be subdivided into Time behavior and

Resource utilization. Holder et al. map Resource uti-

lization to Additional null values, which is often used

synonymously for storage space consumption. Doc-

uments that broached the issue of null values always

related it to memory consumption, that is why we de-

cided to replace Additional null values with Memory

consumption. Time behavior is an abstraction of the

query performance of the database, regarding the cho-

sen data model. Holder et al. chose Polymorphic,

Non-polymorphic queries, and DB insert and updates

as appropriate subdivisions of Time behavior. We

believe this subdivision to be sufﬁcient, but to pre-

vent any misunderstandings, we chose a more precise

and elaborate naming. We subdivide Time behavior

into the CRUD operations Insert, Lookup, Update,

and Delete and the Set operations polymorphic and

non-polymorphic read. From a database perspective,

this categorization is more suited, because it allows a

more precise distinction of the actual mapping aspects

discussed.

3.3.2 Maintainability

Following ISO/IEC 25010 (ISO, 2010), Maintain-

ability can be subdivided into Changeability, Stabil-

ity, and Analysability. We disregard Stability, since

there are no inheritance mapping related aspects that

impact this characteristic. For a detailed discus-

sions on that topic, we refer to (Holder et al., 2008).

Changeability aggregates any system behavior that is

related to change. Change in this context means a

structural adaptation of the domain model and its ef-

fects on both O/R middleware and data model. Holder

et al. propose two characteristics - Change isola-

tion and Change propagation. These two character-

istics are a good example for vague deﬁnition and

loose semantics that we criticize. Holder et al. de-

ﬁne Change propagation “as the extent to which it is

necessary to adapt the relational schema and the O/R

mappings to changes in the object model” (Holder

et al., 2008). Change isolation on the other hand is

deﬁned as “the need to modify tables for adding or

deleting classes” (Holder et al., 2008). The deletion

of a class is a change in the object model, which raises

the question why this aspect is considered to be part of

Change propagation. We decided to adapt Holder’s

deﬁnition to make it more concrete. Change prop-

agation reﬂects operations, which change the struc-

ture of a class, e.g., adding or deleting an attribute.

Change isolation reﬂects all operations that change

the structure of the inheritance hierarchy, neglecting

the structure of the individual classes, e.g., adding or

deleting a class. The resulting mapping aspects are

derived from a simple enumeration of object model

changes, which can occur in an OO programming

language. The last subdivision of Maintainability is

Analysability. Holder redeﬁnes this as Mapping un-

derstandability and further into Mapping uniformity

and Schema correspondence. Mapping uniformity in-

dicates the degree of hybridness, which reﬂects the

variation of mapping strategies used for the hierarchy.

It refers to the overall mapping speciﬁcation and is

not applicable to individual mapping strategies. That

is why we do not regard it for further considerations.

Schema correspondence reﬂects the object model’s

resemblance in the relational schema.

3.3.3 Usability

Usability is translated into Operability and is rede-

ﬁned by Holder to Ad-hoc queries. In its essence,

Usability reﬂects the complexity to formulate queries

for a particular strategy. Working with relational

databases requires a fairly sophisticated under-

standing of relational algebra. This presents an

increased complexity for a developer. Even though

an ORM middleware is able to hide a good part of the

complexity of SQL, there are very few systems that

are able to hide the underlying relational database

completely. Depending on the chosen strategy, the

complexity to formulate efﬁcient database queries

varies. The aspect Query complexity reﬂects that.

With the structure depicted in Table 1, a developer

can directly see, which mapping aspect impacts what

non-functional characteristic of the system. With re-

spect to our literature analysis, this structure allows

to compare arguments and discussion points on dif-

ferent levels of abstraction. We will show that this is

beneﬁcial, because we are able to present reasonable

explanations why some of the inconsistencies can be

observed. It also helps authors of guidelines to struc-

ture and organize their documents, so developers have

a more precise understanding of the guidelines scope

Object-relational Mapping Revised - A Guideline Review and Consolidation

163

Table 1: Mapping Aspects Organization based on ISO/IEC 25010 (ISO, 2010).

ISO/IEC 25010

Characteristics

ISO/IEC 25010

Sub-characteristics

Reﬁned Characteristics Mapping Aspects

Efﬁciency

Time behavior

CRUD operations

MA1 - Insert

MA2 - Lookup

MA3 - Update

MA4 - Delete

Set operations

MA5 - Polymorphic read

MA6 - Non-polymorphic read

Resource utilisation MA17 - Space consumption

Maintainability

Changeability

Change propagation

MA7 - Create a new attribute

MA8 - Update attribute data type

MA9 - Push attribute up

MA10 - Push attribute down

MA11 - Delete an attribute

Change isolation

MA12 - Create a new class from scratch

MA13 - Create a new class via splitting

MA14 - Delete a class

MA15 - Merge classes via pushing up

MA16 - Merge classes horizontally

Analysability MA18 - Schema correspondence

Usability Operability MA19 - Query complexity

and intention.

4 CONSOLIDATION RESULTS

The consolidation approach proposed in Section 3

was applied for each of the three strategies - Single-

Table, Table-per-Class, and Table-per-Concrete-

Class. Tables 2, 3, and 4 depict our results. The

selected documents were analyzed with regard to the

mapping aspects identiﬁed in Section 3. For each

document, we tried to identify discussion points that

make a statement regarding the different mapping as-

pects. A (+) indicates a positive statement, meaning

that the authors assign a positive impact of the map-

ping strategy to the particular mapping aspect. A (-)

indicates a negative statement. We used (+/-) to in-

dicate that the author assigned both a positive and a

negative effect to the mapping aspect. This happens,

when an author leads an argumentation on an abstrac-

tion level, which contains a number of lower level

mapping aspects, e.g., Change isolation. On some of

the lower level aspects, the strategy has a positive and

on some it has a negative effect. If the author did not

clarify the exact mapping aspect, but chose to focus

the discussion on a more abstract level, it is not clear

to the reader what the author’s actual intention was.

As mentioned before, a high level of abstraction

leaves room for interpretation. We tried to resolve

imprecise discussions to the best of our knowledge

and understanding, to map all statements of the ana-

lyzed documents to our mapping aspects. Basis for

any interpretation are the mapping aspect semantics

deﬁned in Section 3.1. If a document contains a state-

ment regarding a mapping aspect, we record the ref-

erence and the location of that statement within the

document. Columns two through ﬁve refer to the se-

lected publications and textbooks. Column six, la-

beled ORM tools, contains results derived from the

analysis of technical documentations of ORM frame-

works. In general, the technical documentations that

we looked at focus on functionality. In most cases,

the discussion of inheritance mapping strategies, with

regard to the impact on non-functional system charac-

teristics is very brief or not done at all. For that reason

and for constraints to layout and space, we decided to

summarize the results in one column.

5 EVALUATION

The results of the consolidation approach presented in

Section 4 shows that there exist a number of inconsis-

tencies and missing parts. In this section, we elabo-

rate on the results of the consolidation approach. Fur-

thermore, it contains reasonable explanations to why

inconsistencies may occur.

5.1 Incompleteness

Incompleteness, i.e., the omission of relevant map-

ping aspects in the discussion of mapping strategies,

can be identiﬁed by the empty cells in the result ta-

bles (Table 2, Table 3, Table 4). For each empty cells,

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

164

Table 2: Discussion Single Table.

(Keller, 1997) (Fowler, 2002) (Ambler, 2003) (Philippi, 2005) ORM tools

MA1 + p. 12 l. 4 +

MA2 + p. 12 l. 4 +/- p. 279 l. 15 / p. 279 l. 27 + p. 240 l. 11 + +

MA3 + p. 12 l. 4 +

MA4 + p. 12 l. 4 +

MA5 + p. 12 l. 6 +/- p. 279 l. 15 / p. 279 l. 27 + p. 240 l. 8 + +

MA6 +/- p. 279 l. 15 / p. 279 l. 27 + p. 240 l. 11 + +

MA7 + p. 13 l. 1 - +/-

MA8 + p. 13 l. 1 - +

MA9 + p. 13 l. 1 + p. 279 l. 16 - +

MA10 + p. 13 l. 1 + p. 279 l. 16 - +

MA11 + p. 13 l. 1 - +

MA12 + p. 13 l. 1 + p. 240 l. 3 - +/-

MA13 + p. 13 l. 1 + p. 240 l. 3 - +/-

MA14 + p. 13 l .1 - +

MA15 + p. 13 l. 1

MA16 + p.13 l. 1

MA17 - p. 12 l. 10 - p. 279 l. 21 - p. 240 l. 11 - -

MA18 +/- p. 279 l. 14 / p. 279 l. 19 - +

MA19 + p. 13 l. 4 + p. 240 l. 13

Table 3: Discussion Table per Class.

(Keller, 1997) (Fowler, 2002) (Ambler, 2003) (Philippi, 2005) ORM tools

MA1 - p. 14 l. 6 - p. 242 l. 7 -

MA2 - p. 14 l. 6 - p. 286 l. 26, p. 286 l. 30 - p. 242 l. 7 - -

MA3 - p. 14 l. 6 - p. 242 l. 7 -

MA4 - p. 14 l. 6 - p. 242 l. 7

MA5 + p. 15 l. 1 - p. 286 l. 26, p. 286 l. 30 + p. 242 l. 5 - -

MA6 - p. 286 l. 26, p. 286 l. 30 - -

MA7 + p. 15 l. 7 + p. 242 l. 10 + +

MA8 + p. 15 l. 7 + p. 242 l. 10 + +

MA9 + p. 15 l. 7 - p. 286 l. 28 +

MA10 + p. 15 l. 7 - p.286 l. 28 +

MA11 + p. 15 l. 7 + p. 242 l. 10 + +

MA12 + p. 15 l. 7 + p. 242 l. 10 + +

MA13 + p. 15 l. 7 + p. 242 l. 10 + +

MA14 + p. 15 l. 7 +

MA15

MA16

MA17 + p. 15 l. 5 + p. 286 l. 21 + p. 242 l. 15 + +

MA18 + p. 286 l. 23 + p. 242 l. 3 +

MA19 - p. 15 l. 9 - p. 286 l. 32

it was not possible to ﬁnd a passage in the document

that discusses this mapping aspect. Consequently, a

software developer, who uses this document as a re-

source to get information about the consequences of

implementing a selected mapping strategy, would not

ﬁnd information regarding this particular aspect.

We note that the effort to understand and interpret

existing literature is considerate and not trivial. We

assume that it is not realistic that software develop-

ers would naturally consider such detailed examina-

tion. Omitting this effort, due to time or complexity

reasons, would result in a lot more blank cells in the

table. That is why we consider our effort to deﬁne

semantics and resolve abstract discussions as an im-

portant contribution, which is valuable for software

developers and guideline authors.

5.2 Inconsistencies

The inconsistencies become apparent, when compar-

ing individual predicates (+, -, +/-) within each row.

Rows that contain a positive statement as well as a

negative statement show that there must be an incon-

sistent argumentation regarding the impact of that par-

Object-relational Mapping Revised - A Guideline Review and Consolidation

165

Table 4: Discussion Table per Concrete Class.

(Keller, 1997) (Fowler, 2002) (Ambler, 2003) (Philippi, 2005) ORM tools

MA1 + p. 16 l. 10 - p. 295 l. 17 +

MA2 + p. 16 l. 10 + p. 295 l. 14 + p. 241 l. 7 + +

MA3 + p. 16 l. 10 +

MA4 + p. 16 l. 10 +

MA5 - p. 17 l. 1 - p. 296 l. 7 + -

MA6 + p. 295 l. 13 + +

MA7 - p. 17 l. 7 - p. 296 l. 5 - p. 241 l. 3 -

MA8 - p. 17 l. 7 - p. 296 l. 5 - p. 241 l. 3 -

MA9 - p. 296 l. 1 -

MA10 - p. 296 l. 1 -

MA11 - p. 17 l. 7 - p. 296 l. 5 - p. 241 l. 3 -

MA12 - p. 17 l. 8 - +

MA13 - p. 17 l. 8 - +

MA14 -

MA15

MA16

MA17 + p. 17 l. 4 +

MA18 +/- p. 295 l. 10 / p. 295 l. 18 +

MA19 +/- p. 17 l. 13 / p. 17 l. 11 + p. 241 l. 3

ticular mapping aspect. We observed two types of in-

consistencies, which have different root causes. The

ﬁrst type of inconsistency results from different levels

of abstraction and is discussed in Section 5.2.1. The

second type is caused by ambiguity and imprecise se-

mantics and is discussed in Section 5.2.2.

5.2.1 Inconsistencies through Abstraction

An example for contradicting opinions on different

abstraction levels is MA12 - create new class from

scratch - for the Single Table strategy in Table 2. An

overview of the different abstraction levels and the

corresponding discussions is depicted in Table 5.

Keller comes to a positive rating (Keller, 1997).

He argues that the simplicity of the mapping allows

an easy evolution. Ambler also comes to a positive

rating. He argues that the creation of a new class re-

quires merely the addition of new columns to the ta-

ble (Ambler, 2003). Ambler’s reason is on a lower

level than this of Keller, but both come to the same rat-

ing. Philippi’s evaluation of this point is negative. He

argues that maintainability of the Single Table strat-

egy is difﬁcult for complex object models (Philippi,

2005). A more detailed reasoning is not mentioned.

The documentation of Doctrine ORM argues that the

addition of new columns also impacts existing index

structures (Doctrine Team, 2015). Torque (Apache

Software Foundation, 2012) evaluates maintainabil-

ity positive, without giving any reason regarding this

decision. Philippi and the Torque documentation dis-

cuss maintainability on the highest level of abstrac-

tion. They come to a contradicting rating. Ambler and

Doctrine lead the discussion on a lower level. They

mention the concrete use case of creating a new class,

but they also are not of the same opinion. Whereas

Ambler argues that the addition of new columns is

simple. Doctrine remarks possible problems in the

adaptation of existing indices. Both authors mention

different aspects and consequently come to different

ratings. Keller argues on the level of modiﬁability

with a positive judgment.

Summarizing, it becomes clear that on different

levels the authors come to divergent ratings. We be-

lieve that this observation is a clear indicator for miss-

ing standards and understanding, regarding abstrac-

tion levels and mapping aspects.

5.2.2 Inconsistencies through Missing Semantics

The evaluation of MA12 in Section 5.2.1 showed that

argumentations on different levels of abstraction may

lead to different results. A second important observa-

tion is inconsistency, caused by missing or imprecise

semantics. An example for that is MA5 - Polymor-

phic read for the Table-per-Class strategy in Table 3.

Fowler (Fowler, 2002) and Philippi (Philippi, 2005)

argue that the Table-per-Class strategy is problematic

due to the high cost of joins, which need to be exe-

cuted to reconstruct a complete object. Keller (Keller,

1997) and Ambler (Ambler, 2003) argue that a Poly-

morphic read needs only one table access to identify

the requested objects, because all objects have also an

entry in their superclass tables. All authors discuss the

use case of a Polymorphic read, but they consider dif-

ferent aspects of this complex operation. In that case,

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

166

Table 5: Example for Inconsistencies due to Abstraction (Table 2: MA12 - New class from scratch)

ISO/IEC 25010

Characteristics

ISO/IEC 25010

Sub-characteristics

Reﬁned

Characteristics

Mapping

Aspects

. . .

Maintainability

- Philippi (Philippi, 2005)

+ Torque (Apache Software Foundation, 2012)

Changeability

+ Keller (Keller, 1997)

Change

propagation

. . .

Change

isolation

Create a new class

from scratch

+ Ambler (Ambler, 2003)

- Doctrine (Doctrine Team, 2015)

. . .

Analysability Schema correspondence

. . .

a positive or negative judgment is merely a reﬂection

of the author’s interpretation of what a Polymorphic

read actually consists of and what part of that has a

relevant impact. To resolve such inconsistencies, we

need detailed semantics and a quantiﬁcation approach

to clarify and measure the impact of that operation in

different strategies.

6 CONCLUSION

The goal of this paper is to identify inconsistencies

and incompleteness in existing guidelines and best

practices for O/R inheritance mapping strategies. We

described a systematic approach to identify and select

literature, containing guidelines and best practices for

O/R mapping strategies. We proposed a consolidation

approach to compare and combine the information

and discussions from the selected documents. The re-

sult of that approach is twofold. First, we derive a

comprehensive set of 19 mapping aspects. This set

merges the individual aspects identiﬁed in the ana-

lyzed literature and adds two new aspects, which are

relevant, but have not been found in any of the ana-

lyzed documents. Second, the consolidation contains

a proposal for a hierarchical structure of mapping as-

pects from high-level quality characteristics of the ap-

plication, i.e., efﬁciency, maintainability, and usabil-

ity to lower level features of O/R middleware. Our

evaluation shows that none of the analyzed documents

provides a comprehensive discussion of all 19 map-

ping aspects. This is problematic for developers, who

need to understand the impact of a mapping strategy

on their application’s quality characteristics. Further-

more, the evaluation shows that there are inconsisten-

cies across the literature. Due to missing or imprecise

semantics and arbitrary abstractions, different authors

come to inconsistent guidelines and best practices.

7 OUTLOOK AND FUTURE

WORK

Our literature study and consolidation revealed incon-

sistencies and missing parts in existing guidelines and

best practices for O/R inheritance mapping strategies.

The reasons for that are complex, but we see the root

cause of that in missing standards and imprecise def-

inition of concepts. This becomes obvious by just

looking at the different naming conventions for map-

ping strategies. Our analysis shows that the structures

and relations between a system’s quality characteris-

tics and aspects of O/R mapping strategies are com-

plex. Disregarding that complexity makes it difﬁcult

for software developers, to understand the impact of

their architectural designs. In the future, we see two

possible directions.

First, there should be an active discussion about

the derived set of mapping aspects and the proposed

organization of non-functional quality characteristics

and mapping strategy aspects. We would like to see

an active involvement of practitioners with experience

in the development of O/R mapping layers to validate

and possibly extend our proposed set of relevant map-

ping aspects. Furthermore, there may also be valid

reasons to adapt the organization in depth or width.

The contribution of this paper can be a ﬁrst step to-

wards a discussion for a frame of reference or even

a standard, which can be used by scientists and prac-

titioners to revise existing or develop new guidelines

for O/R mapping strategies. Comprehensive and con-

sistent guidelines are key to efﬁcient and informed ar-

chitectural decisions, when implementing O/R map-

ping layers.

The second direction that we would like to follow

is the development of a quantiﬁcation approach to ac-

tually measure the impact of a mapping strategy on

the system’s quality characteristics. During our litera-

ture study, none of the analyzed documents contained

any cost model or empirical evidence that would sub-

Object-relational Mapping Revised - A Guideline Review and Consolidation

167

stantiate the presented discussions. A quantiﬁcation

approach would be a valid and less vague replacement

for informal guidelines and best practices. We plan to

use the mapping aspects, deﬁned in this paper as a

starting point to conduct an empirical study and even-

tually develop a cost model. Such a cost model could

be the basis for an automated strategy selection that

allows to optimize an application towards a set of pri-

oritized quality characteristics.

REFERENCES

(2001). Iso/iec 9126-1:2001 software engineering – product

quality – part 1: Quality model.

(2010). Iso/iec 25010:2011 systems and software engi-

neering – systems and software quality requirements

and evaluation (square) – system and software quality

models.

(2011). Iso/iec 9075:2011 information technology -

database languages - sql.

Ambler, S. (2003). Agile Database Techniques: Effective

Strategies for the Agile Software Developer, chapter

14 - Mapping Objects to Relational Databases, pages

231–244. John Wiley & Sons, Inc., New York, NY,

USA.

Apache Software Foundation (2012). Torque inheritance

guide. [Accessed: June 22, 2015].

Apache Software Foundation (2013). Apache openjpa 1.2

user’s guide. [Accessed: June 22, 2015].

Doctrine Team (2015). Doctrine 2 orm 2 documentation.

[Accessed: June 22, 2015].

Fowler, M. (2002). Patterns of Enterprise Application Ar-

chitecture. Addison-Wesley Longman Publishing Co.,

Inc., Boston, MA, USA.

Holder, S., Buchan, J., and MacDonell, S. G. (2008). To-

wards a metrics suite for object-relational mappings.

In Proc. of the 1st Int. Workshop on Model-Based Soft-

ware and Data Integration (MBSDI), pages 43–54,

Berlin, Germany.

Keller, A. M., Jensen, R., and Agarwal, S. (1993). Per-

sistence software: Bridging object-oriented program-

ming and relational databases. In Proc. of the ACM

SIGMOD Int. Conf. on Management of Data, pages

523–528, New York, NY, USA.

Keller, W. (1997). Mapping objects to tables - a pattern

language. In Proc. of the European Conf. on Pat-

tern Languages of Programming Conf. (EuroPLOP),

Berlin, Germany.

Kitchenham, B. and Charters, S. (2007). Guidelines for

performing Systematic Literature Reviews in Soft-

ware Engineering. Technical Report EBSE 2007-001,

Keele University and Durham University Joint Report.

Philippi, S. (2005). Model driven generation and testing of

object-relational mappings. J. Syst. Softw., 77:193–

207.

Propel Community (2015). Propel documentation. [Ac-

cessed: June 22, 2015].

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

168
