Secure Data Storage Architecture on Cloud Environments

Tran Thi Xuan Trang

and Katsuhisa Maruyama

Graduate School of Information Science and Engineering, Ritsumeikan University, Kusatsu, Japan

Department of Computer Science, Ritsumeikan University, Kusatsu, Japan

Keywords:

Cloud Data Storage, Data Conﬁdentiality, Data Partitioning, Query Translation, Migration Approach.

Abstract:

Securing sensitive customer data outsourced to external servers in cloud computing environments is chal-

lenging. To maintain data conﬁdentiality on untrusted servers, conventional data security techniques usually

employ cryptographic approaches. However, most enterprises are unwilling to employ these approaches if

they require high-performance client devices to cipher the entire data. In this situation, separating out the con-

ﬁdential data is beneﬁcial since only the conﬁdential data are encrypted or stored in trusted servers. Although

this idea has already been proposed, its support is still insufﬁcient. This paper proposes a secure data storage

model in cloud computing environments that is based on the concept of data slicing and presents its proto-

type tool that supports the low-cost migration of existing applications. Our tool provides a structured query

language (SQL) translation mechanism that provides transparent access to partitioned data without changing

the original SQL queries. A simple case study shows how the proposed architecture implements secure data

storage in cloud computing environments.

1 INTRODUCTION

Cloud computing has become popular in many areas

of business over the last few years. Many enterprises

are excited about the potential to reduce information

technology (IT) costs and obtain advantages in scal-

ability, availability, and performance. The service

models of cloud computing are categorized into three

types (Mell and Grance, 2011; Zhang et al., 2010):

Software as a Service (SaaS), Platform as a Service

(PaaS), and Infrastructure as a Service (IaaS). While

SaaS allows enterprise customers to use the provider’s

applications running on a cloud infrastructure, PaaS

and IaaS allows them to develop, run, and manage ap-

plications on the cloud. In any model, the enterprises

can utilize their business applications without build-

ing and maintaining their own infrastructure. Thus,

some of them promote the introduction of cloud com-

puting and the migration of legacy applications to

cloud environments (Menychtas et al., 2013; Tak and

Tang, 2014).

However, these enterprises also face difﬁculties

deploying their existing applications to cloud envi-

ronments since they must put their sensitive data on

cloud servers (Catteddu and Hogben, 2009; Jansen

and Grance, 2011; Wei et al., 2014; Fernandes et al.,

2014). The salient risk is that attackers or collusive

cloud insiders can easily steal these sensitive data if

the data protection mechanism is vulnerable to vari-

ous kinds of attacks. Therefore, data conﬁdentiality

raises a great concern for enterprises. Most enterprise

managers or developers are unwilling to store sensi-

tive data in cloud storages.

Hybrid cloud (Mell and Grance, 2011), which

mixes private cloud and public cloud services, is a

possible option for enterprises that have already in-

vested in a private virtualization environment. It man-

ages some data (or resources) in-house and places

other data in a public area. For example, an enter-

prise might use a public cloud service, such as Ama-

zon Simple Storage Service (Amazon S3), to store

archived data for backup, but continue to maintain in-

house storage for sensitive data.

Although this strategy is reasonable, another prob-

lem might arise. A primary difﬁculty of hybrid

cloud deployment is how to minimize changes in

the existing enterprise applications. No matter how

similar the public and private cloud services are,

implementation-level gaps between the original and

revised applications are inevitable, and ﬁlling these

gaps is usually expensive. For example, the separa-

tion of sensitive data requires many changes to the

implementation code of the original application when

it is revised on cloud environments using conventional

data storage models. This complicates the migration

of existing enterprise applications to hybrid cloud en-

Trang, T. and Maruyama, K.

Secure Data Storage Architecture on Cloud Environments.

DOI: 10.5220/0005974400390047

In Proceedings of the 11th International Joint Conference on Software Technologies (ICSOFT 2016) - Volume 1: ICSOFT-EA, pages 39-47

ISBN: 978-989-758-194-6

vironments. All enterprises desire an environment

that optimizes scalability and cost-effectiveness of-

fered by a public cloud service if they could easily

maintain the security of their sensitive data. In other

words, they require a secure data storage model that

emphasizes the protection of data conﬁdentiality and

a mechanism that supports the deployment of their ex-

isting applications based on this model.

This paper proposes a new data storage model

that can protect sensitive data in cloud computing

environments. The model is based on data slicing,

which is the simple concept of separating the sensitive

and non-sensitive data appearing in enterprise appli-

cations. The sensitive data must be stored into secure

storages located on trusted servers, which can then

be encrypted. On the other hand, non-sensitive data

can be stored into public storages located on untrusted

servers. In general, sensitive data is a small portion of

the whole data volume and the sizes of such data are

small. Since a large volume of non-sensitive data can

be stored in public storages that are cheaper than se-

cure storages, enterprises can save data storage costs

while preserving the security level of their data.

Although this new secure storage model is beneﬁ-

cial from an economic perspective, the model, in gen-

eral, requires changes in implementation code with

respect to data access in existing enterprise appli-

cations, as mentioned before. The tasks achieving

these code changes are time-consuming and error-

prone. To avoid such troublesome tasks, we pro-

pose a mechanism that provides transparent access

to data stored in two kinds of partitioned storages

with SQL queries. The importance of transparent ac-

cess was inspired by the research work (Ferretti et al.,

2013). The mechanism automatically translates the

original SQL queries into ones that are compatible

with the new storage model. Therefore, the existing

applications running on private environments can run

on hybrid environments without altering any imple-

mentation code. The original data is automatically

stored into the partitioned storages and can be ac-

cessed from them. The applications do not need to

know that the data are actually partitioned. We imple-

mented this translation mechanism in our prototype

tool. To demonstrate its feasibility, we migrated an

open source application, Plandora, to the cloud envi-

ronment.

In our paper, we:

• Propose a new data storage model that can main-

tain data conﬁdentiality when enterprises migrate

their existing applications to cloud environments.

• Present an SQL translation mechanism that allows

the applications to transparently access the data

stored in the two partitioned storages on trusted

and untrusted servers.

• Show a running implementation that employs

the SQL translation mechanism and supports the

building of the initial database scheme based on

the new model.

The rest of this paper is organized as follows: Sec-

tion 2 introduces related work. Section 3 explains the

proposed data storage model. Section 4 elaborates the

implementation of the model. Section 5 presents a

case study of migration with a tool implementing the

proposed architecture. Section 6 summarizes this pa-

per and outlines our future work.

2 RELATED WORK

Several security issues and challenges on the adoption

of cloud computing have been reported (Catteddu and

Hogben, 2009; Jansen and Grance, 2011; Subashini

and Kavitha, 2011; Ren et al., 2012; Hashizume et al.,

2013; Fernandes et al., 2014). Some of the reports

emphasize data conﬁdentiality for (untrusted) cloud

storage.

The systems DEPSKY (Bessani et al., 2011) and

iDataGuard (Jammalamadaka et al., 2008) guaran-

tee data conﬁdentiality and integrity on multi-tenant

cloud services. The DEPSKY employs a secret shar-

ing scheme to avoid storing clear data in untrusted

clouds. The iDataGuard is a middleware that trans-

parently provides customers with secure ﬁle systems.

These systems are both based on data encryption

using cryptographic techniques. Moreover, cloud

database services (Hacig

us et al., 2002) employ

an encryption facility that can answer queries over

encrypted data (Ferrari, 2009; Weis and Alves-Foss,

2011).

Most existing approaches prevent the disclosure

of sensitive data stored in untrusted storage servers

with proper encryption. On the other hand, a few

approaches exploit fragmentation to avoid data en-

cryption (Aggarwal et al., 2005; Ciriani et al., 2011).

The basic idea standing behind these approaches is to

split data among multiple subsets, each of which is

managed by an independent cloud provider. A small

portion of the data is stored in local trusted storage,

while the major portion of the data is outsourced to

external storage servers. The concept of fragmenta-

tion was also adopted into a metadata based storage

model (Subashini and Kavitha, 2012). In this model,

data has to be segregated and further fragmented into

smaller units until each fragment does not have any

individual value.

Ideally, data encryption is an obvious solution to

protect sensitive data. However, it is not feasible for

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

every enterprise since the execution of queries on en-

crypted data still requires the computational overhead

although homomorphic encryption techniques (Gen-

try, 2009; Gomathisankaran et al., 2011; Yu et al.,

2012), which enable processing encrypted data with-

out decrypting it, are available. Therefore, a data frag-

mentation approach that can remove or reduce en-

cryption costs is likely to become an affordable op-

tion to outsource data. Nevertheless, there are not

sufﬁciently adequate models based on data fragmen-

tation, which achieve both the goals of data conﬁden-

tiality and transparent migration for existing applica-

tions to cloud environments. A new model that we

propose guards against the disclosure of sensitive data

and helps an existing application migrate the data to

cloud storage without requiring changes to its imple-

mentation code.

3 DATA STORAGE MODEL

In this section, we propose our secure data storage

model and present the overall architecture using this

model.

3.1 Data Slicing

The main idea of the new data storage model is to split

the original data into sensitive and non-sensitive data.

This technique is basically called data slicing (Fer-

retti et al., 2013). The split data are stored into two

independent areas: the (private) local storage and the

(public) cloud storage.

Original:!

!!!!Table!A!(PK,!c1,!c2,!c3)!

!!!!where:!!c1!is!sensi8ve!data!column!

!!!!!!!!!!!!!!!!!!!c2,!c3!are!non-sensi8ve!data!columns!

)

Sliced:)

))))Local.A!(PK,!c1,!link_key)!

!!!!Cloud.A!(link_key,!c2,!c3)!

Figure 1: Data splitting example.

Figure 1 depicts an example of the model’s data

slicing. The original table A has a primary key (PK)

and three columns: c1 containing sensitive data and

both c2 and c3 containing non-sensitive data. The

sensitive column c1 should be stored in the trusted

area (in this case, Local.A table) along with PK, while

the non-sensitive columns c2 and c3 can be stored

in the untrusted cloud area (in this case, Cloud.A ta-

ble). These two tables are linked together by a spe-

cial key (link key). In the proposed model, PK is not

Database'Engine'

Data'Encryp0on'

Data'Slicing'

Small'Data'

Volume'

Database''Link'

Building'

Database'

Structure

Mapping

Metadata''

SQL'

Transla0on

!"#$%&'()"&)(

*+",-)%&.(

Applica0on'

Large'Data'

Volume'

/0%"#$%&'()"&)(

*+#12,3.(

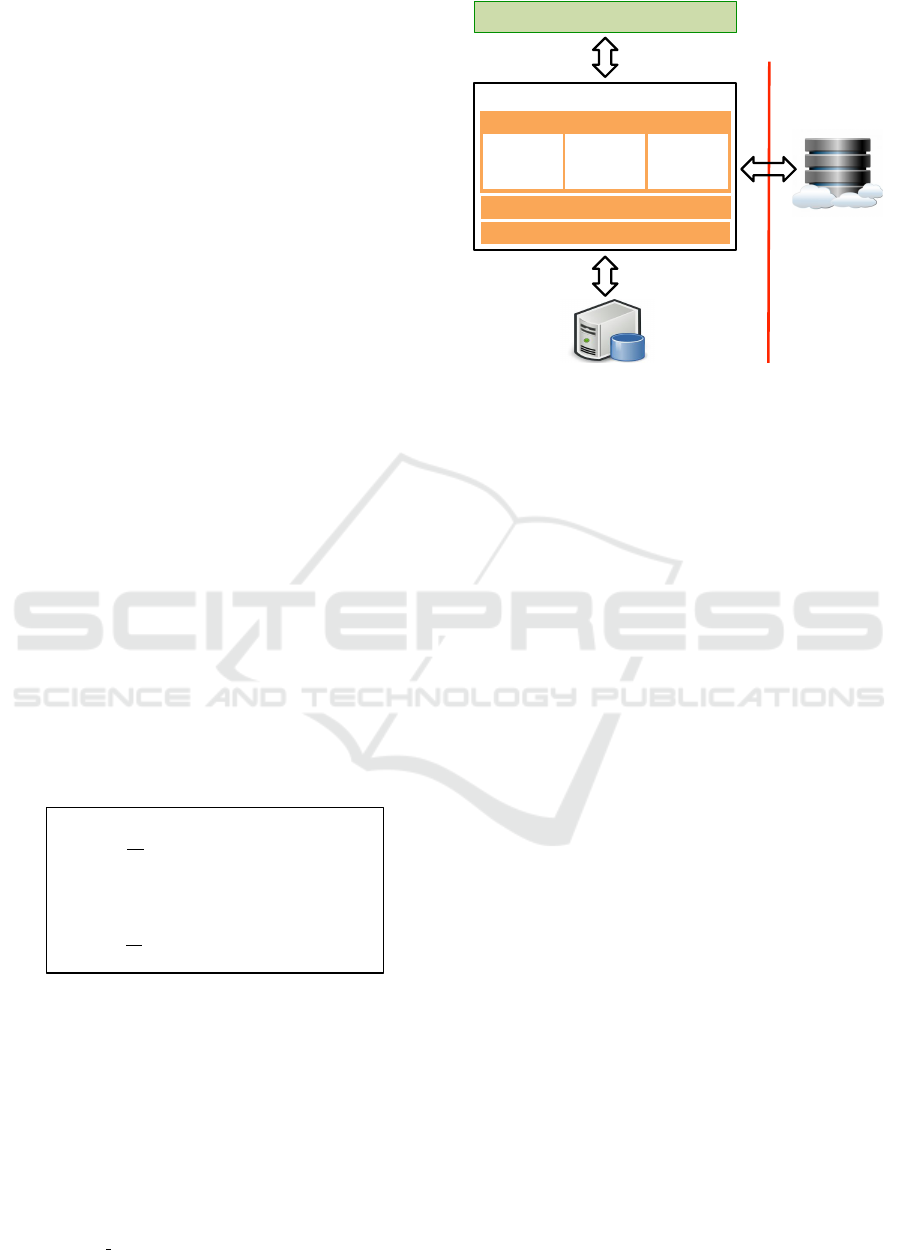

Figure 2: Overall architecture using our data storage model.

used to link the two partitioned tables since data slic-

ing would be complicated if PK was a combination of

many columns.

3.2 Architecture

Figure 2 shows the overall architecture adopting our

secure data storage model on cloud computing envi-

ronments.

Consider an explanatory application that has sev-

eral functions to access enterprise data consisting of

both sensitive and non-sensitive data. The application

runs on either the trusted area or the untrusted area

when it guarantees data conﬁdentiality inside of itself.

We are concerned with the conﬁdentiality of the sen-

sitive data. In this architecture, it is signiﬁcant that all

the sensitive data is always stored in the trusted area’s

private data storage. On the other hand, non-sensitive

data can be stored in the untrusted area’s public data

storage.

To attain this secure data storage architecture, the

database engine contains three modules: Data Slic-

ing, Data Encryption, and Database Link. All data

received from the application is sliced based on the

attributes of individual data. The Data Slicing mod-

ule splits the received data into data in the sensitive

columns (labelled with “sensitive”) and data in the

non-labelled column, and separately passes them to

the next modules. The data are encrypted and de-

crypted if needed by Data Encryption. Database Link

is responsible for executing distributed SQL queries.

The Data Slicing module is explained in detail in

the next three sections.

Secure Data Storage Architecture on Cloud Environments

Set$Property$to$

column$or$table:$$

Sensi4ve?$

Encryp4on?$

1.Read

Database$

schema$as$

SQL$Script

2.Generate 3.$Execute

Local&server

Slicing&wizard

Original$

database$

schema

Mapping$$

Metadata

Private$

database$

Linked$Server$

Object

Sensi4ve$data

Non-sensi4ve$

data

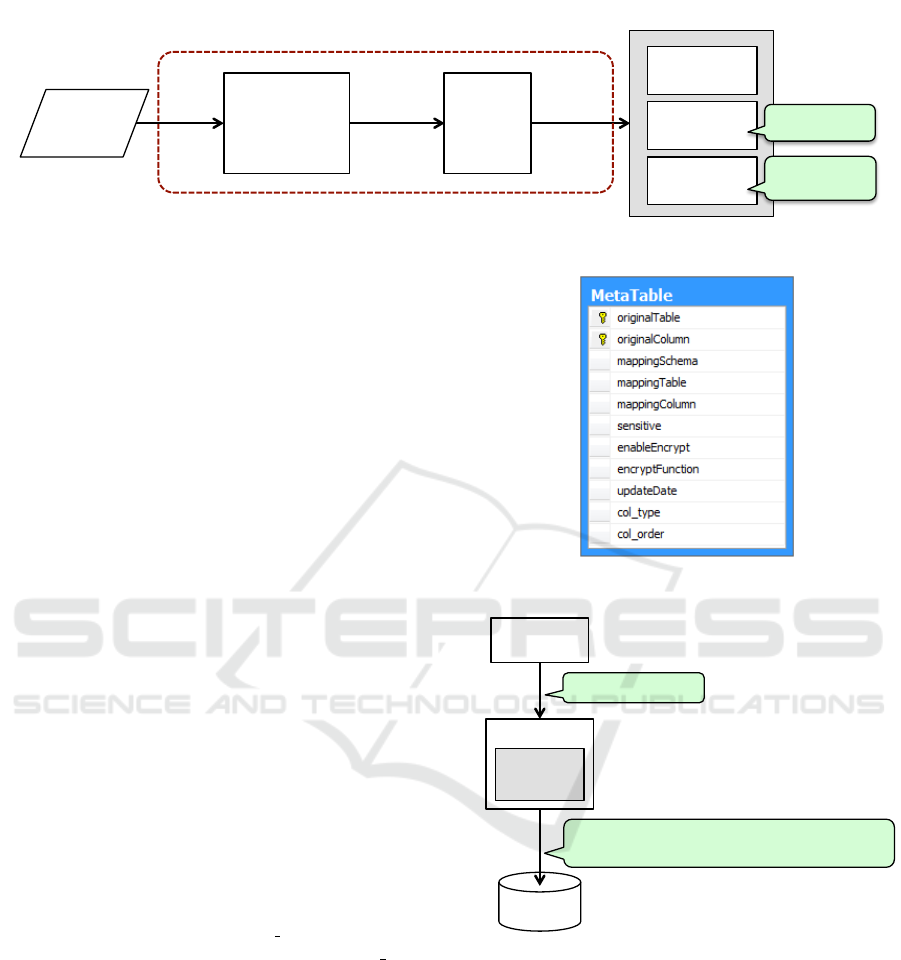

Figure 3: Database schema setup process.

3.2.1 Building Database Structure

Building Database Structure is used to set up the

database schema for slicing data. It reads the original

database schema and provides a series of steps to set

sensitive and encryption properties for columns and

tables. It behaves as a setup assistant that instructs

database administrators (owners) on how to conﬁgure

their database properties, as shown in Figure 3.

Based on a database administrator’s setting,

Building Database Structure generates and executes

SQL scripts to build a schema for Mapping Metadata,

a private database, and a public database. While gen-

erating SQL scripts for the private database schema,

Building Database Structure also determines which

columns need to be encrypted and encrypts data in

those columns using Data Encryption.

The public database is connected to the private

database through Linked Server Object on a local

server. Distributed queries can be run against the

Linked server and the queries can join tables from

more than one data source.

3.2.2 Mapping Metadata

Mapping Metadata is a meta-table that contains the

mapping information of the partitioned tables, and the

sensitive and encrypted column settings. The two last

attributes in the meta-table are col type to distinguish

between the link key and other columns and col order

to maintain the column order in the original table, as

shown in Figure 4.

3.2.3 SQL Translation

SQL Translation automatically translates SQL state-

ments from the application into statements that can

access data stored in two different storage areas.

This means that SQL Translation allows users to ac-

cess partitioned data transparently. SQL Translation

parses the user’s SQL statements and gets mapping

names in the meta-table. Then, it converts the SQL

statement into a new one with a JOIN clause between

Figure 4: Mapping Metadata for slicing data.

Database'

Data$Slicing$

SQL'

Transla/on'

Execute'

SELECT'*'FROM'Local.A'INNER'JOIN'Cloud.A'

'''''''''''''''''ON''Local.A.link_key'='Cloud.A'.link_key'

Applica/on'

SELECT'*'FROM'A'

Figure 5: SQL translation example.

two databases through the link key (see Figure 5). Fi-

nally, the new SQL statement can be executed to re-

trieve data from the private and public storages just as

the old one can.

SQL Translation also checks the encryption prop-

erty of all columns and generates SQL scripts to en-

crypt or decrypt data for the corresponding columns.

Based on the generated scripts, Database Engine en-

crypts and decrypts the data. The popular database

servers support several cryptographic algorithms, in-

cluding data encryption standard (DES), Triple DES,

Rivest Cipher (RC2), 128-bit advanced encryption

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

Applica'on

JDBC..Interface

SQL-JDBC)

Driver

Meta)

data

Driver

Connec5on

Statement

Select))

Transla5on

Update)

Transla5on

Tables)

A)temporary)database

deﬁned-trigger

SP_INSERT SP_UPDATE

SP_DELETE

Insert,(Update,(Delete



Linked)Server)Object

Select



APIs)

Local)Storage) Cloud)Storage)

Cloud-JDBC(

layer(

(

Database(Engine(

layer(

(

Applica=on(

layer(

(

Table)

Transla5on

Expression)

Transla5on

Insert))

Transla5on

Delete))

Transla5on

Column)

Transla5on

SQL.Transla'on

JSQL.Parser

Columns Expressions

SQLServer.Database.Engine

Cloud-JDBC.Driver

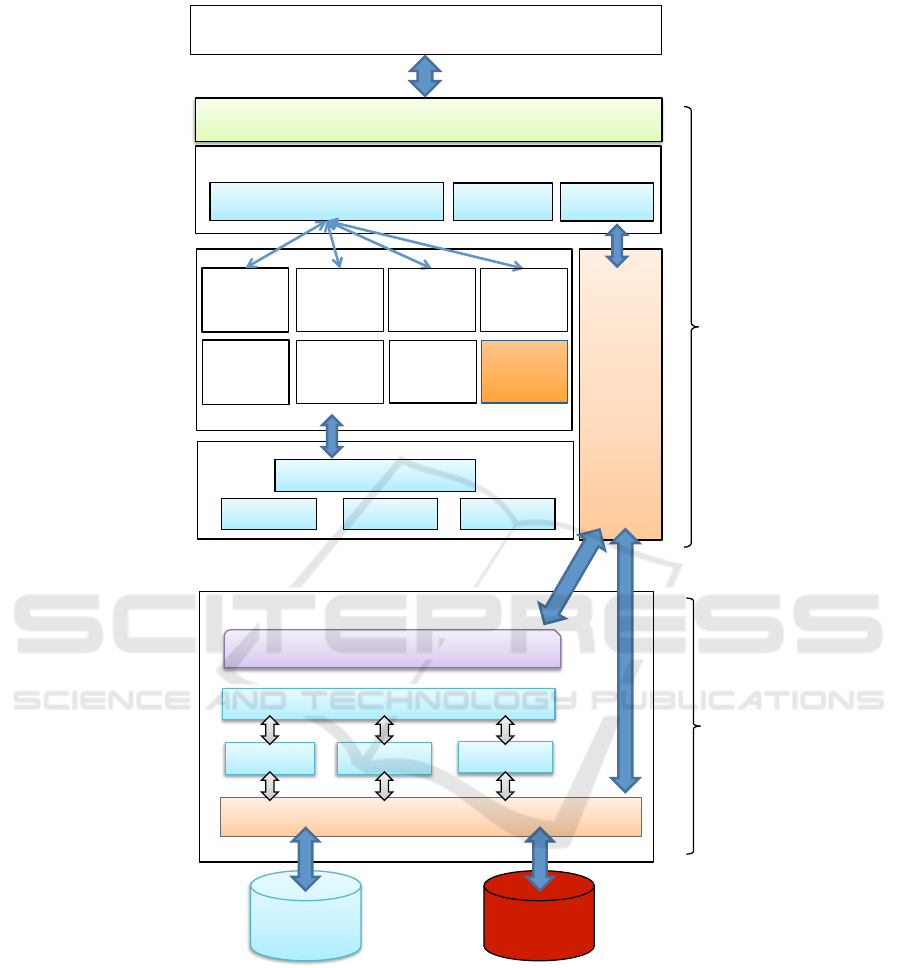

Figure 6: Detail architecture of the proposed model.

standard (AES), and 256-bit AES.

4 IMPLEMENTATION

We describe the detail architecture of the proposed

model in this section. As shown in Figure 6, the ar-

chitecture essentially consists of three layers: the Ap-

plication layer, the Cloud-JDBC (Java Database Con-

nectivity Interface) layer, and the Database Engine

layer.

The Cloud-JDBC layer is composed of a JDBC

interface, Cloud-JDBC Driver, SQL Translation, and

SQL-JDBC Driver. The Database Engine layer con-

tains several programmable objects (triggers and store

procedures) and a Linked Server Object.

Secure Data Storage Architecture on Cloud Environments

SELECT& FROM&

WHERE&

GROUP&BY&

ORDER&BY&

HAVING&

EXPs&

Columns&

JOIN&

Columns&

Sub&SELECT&

EXPs&

Sub&SELECT&

Columns&

EXPs&

Columns&

Mapping&

Columns&

Tables&

Mapping&Tables&

Mapping&

Columns&

is&replaced&

JOIN&clauses&between&

Mapping&Tables&

Tables&

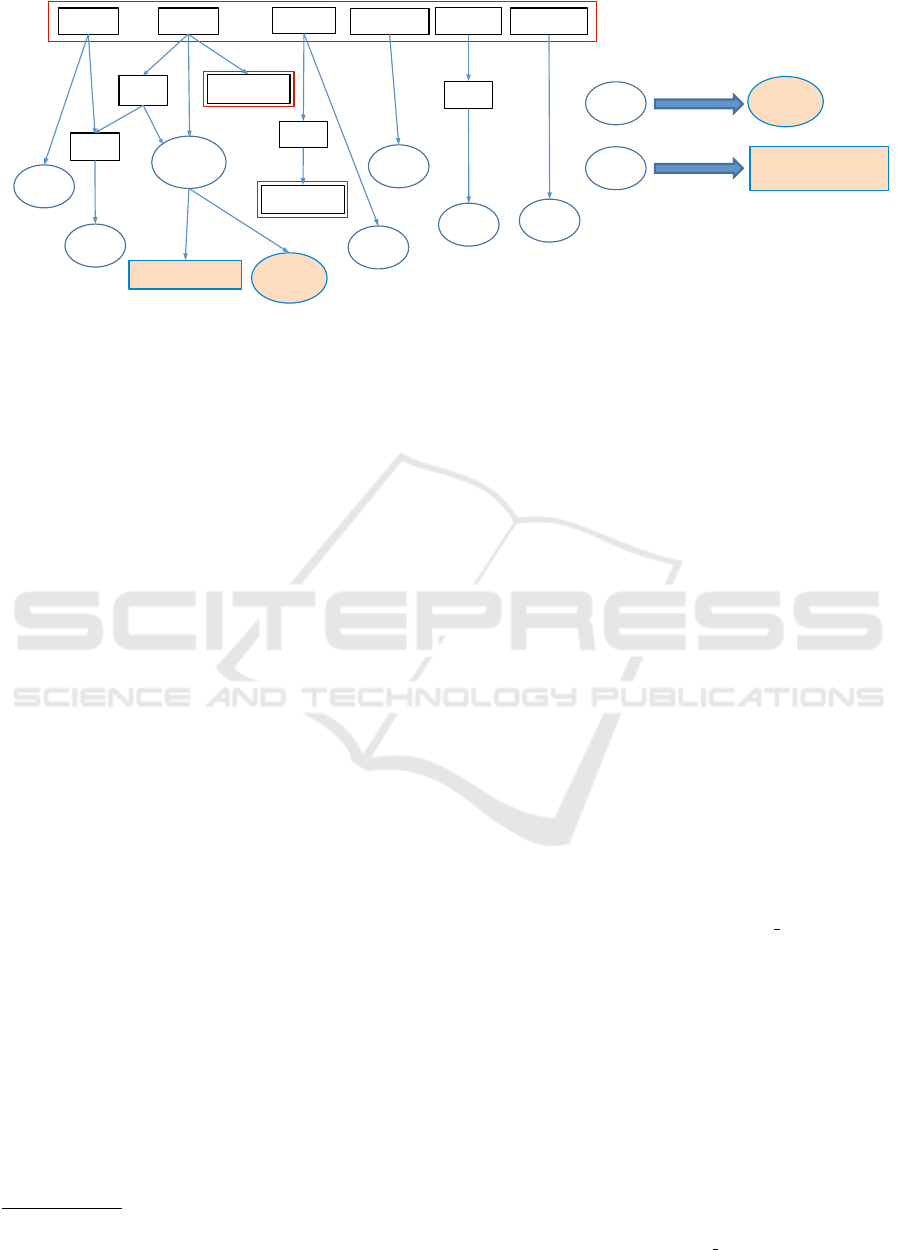

Figure 7: Mechanism of SELECT translation.

4.1 Cloud-JDBC Driver

Cloud-JDBC Driver is extended from the JDBC type

4 Driver to implicitly integrate SQL Translation into

migrated applications. This integration permits no

changes at the application logic level. This driver

connects to the SQL Server in the same way as the

JDBC driver. The only difference is the URL of con-

nection that is changed from “jdbc:sqlserver:” to

“jdbc:cloudsqlserver:”. Cloud-JDBC Driver is

packaged as a Java jar ﬁle and added into the migrated

application.

4.2 SQL Translation

Java SQL (JSQL) Parser module is a parser of SQL

statements, using JSqlParser

. This is called by SQL

Translation to translate SELECT, UPDATE, INSERT,

and DELETE statements. The translations for SE-

LECT and UPDATE are explained in the next two sec-

tions. The translations for INSERT and DELETE state-

ments are eliminated here since those are similar to

that for the UPDATE statement.

(1) SELECT Statement Translation

The Visitor design pattern is used to translate a SE-

LECT statement. Figure 7 shows the mechanism of

SELECT translation. The main syntax of a SELECT

statement is as follows.

SELECT columns FROM tables

WHERE expressions GROUP BY columns

HAVING expressions ORDER BY columns

The FROM clause is parsed to gather all data

source information (including tables, columns, map-

ping columns, mapping tables, and aliases) based on

JSqlParser translate SQL statements into a hierarchy of

Java classes (http://jsqlparser.sourceforge.net/).

Mapping Metadata. We use this data source as a dic-

tionary for translation.

Both replacing the corresponding column names

and inserting JOIN clauses between partitioned ta-

bles translates a SELECT statement. The SELECT,

WHERE, HAVING, and ORDER BY clauses comprise

the list of columns and expressions. In fact, each ex-

pression is a tree of columns and values. If the tree

node is a column, the mapping column in the data

source will replace it. Furthermore, the original ta-

bles are replaced by JOIN clauses between mapping

tables. The sub-SECLECT clause is translated into a

call by itself, recursively.

In addition, so that the return set of translated

queries continues to have the same result name

as the original queries, the tree-part column name

(Local.A.c1) is written as an alias, like the original

column c1.

(2) UPDATE Statement Translation

A temporary database is used to implicitly trans-

late UPDATE, INSERT, and DELETE statements.

This database has the same schema as the original

database, except for two columns, link key and Recor-

dActionType, which are added to each table. The

RecordActionType column has three values: U’, ‘I’,

and ‘D’ for update, insertion, and deletion, respec-

tively.

Figure 8 shows the procedure of the translation

for an UPDATE statement. SQL Translation trans-

lates this UPDATE statement into an INSERT INTO

statement. The INSERT INTO statement inserts data

into the temporary blank table A from both the Lo-

cal.A table and the Cloud.A table. The criteria of the

INSERT INTO statement is the same as that in the

WHERE clause of the UPDATE statement. For the

updated values of columns in a SET clause, the auto-

generated unique numeric link key and the RecordAc-

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

Local.A(

1.(INSERT(INTO(

2.(UPDATE(data(

3.(DELETE(all(record(

Temporary((table(A(

Cloud.A(

2.(UPDATE(data(

1.(INSERT(INTO(

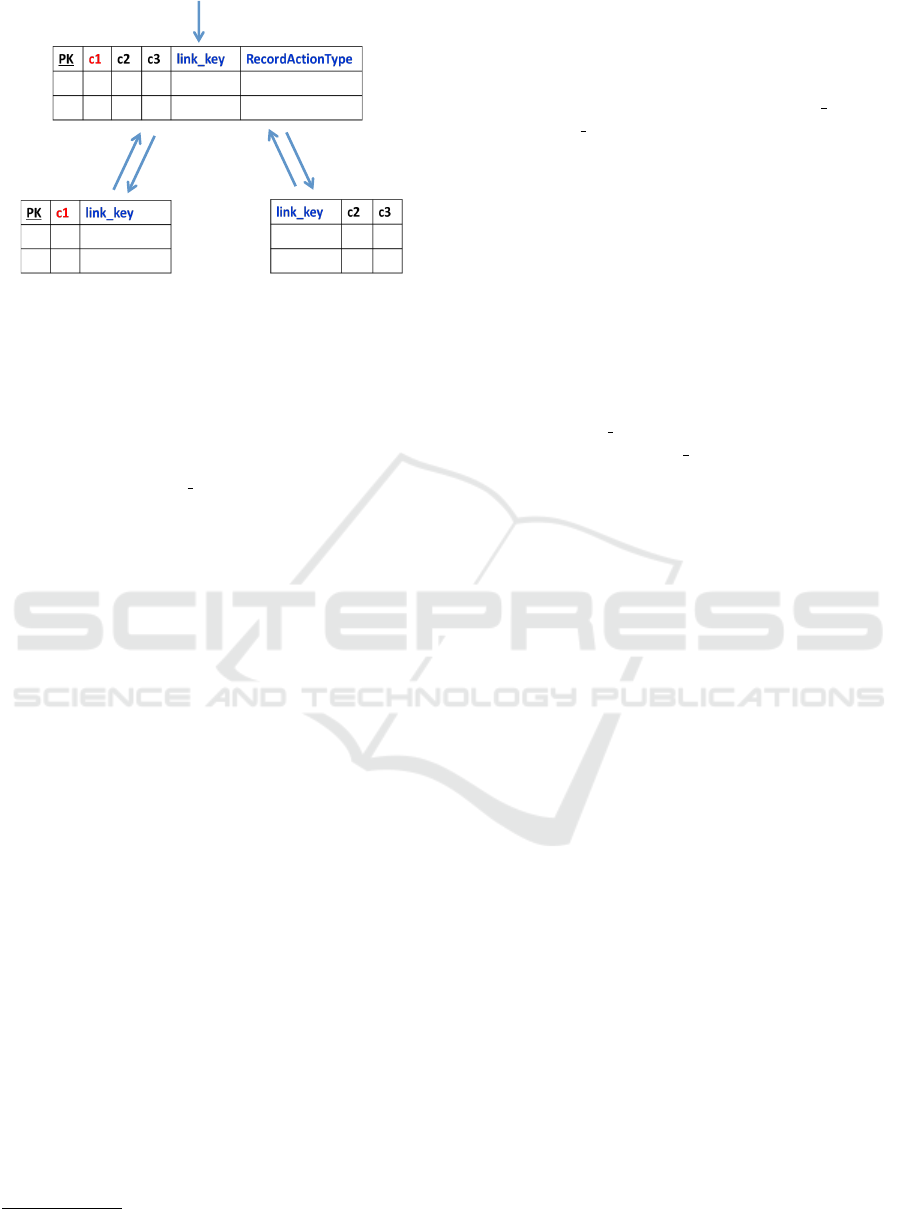

Figure 8: Procedure of UPDATE translation.

tionType having the U’ value are also added into the

SELECT clause of the INSERT INTO statement.

Running the INSERT INTO statement raises the

author-deﬁned-trigger, which is responsible for call-

ing the corresponding stored procedures based on the

RecordActionType column’s values. In this case, the

trigger will call the sp UPDATE stored procedure to

update both the Local.A table and Cloud.A table with

data selected from the temporary table A, and delete

all data in A.

5 CASE STUDY

To demonstrate the feasibility of the proposed archi-

tecture, we developed a prototype tool to implement

it. With this tool, we migrated the Plandora

to the

hybrid cloud environment to check whether it runs

correctly. This means that the migrated Plandora re-

turns the same result as the original Plandora when

users select, update, insert, and delete some data.

5.1 Setup and Deployment

In this study, we speciﬁed information (provider

name, server name, user name, password, and

database name) to connect to the original database.

Next, we chose the places for storages of the private

and public data. Then, we created a table with the at-

tributes (identiﬁcation number, username, password,

name, email, phone number, etc.) and stored data of

ﬁctitious persons. Finally, we marked the attributes

that store sensitive data. The current version of the

tool does not support data encryption.

After this setting up, the tool automatically con-

structs SQL scripts to create a Meta-table, a tem-

porary blank database, local and cloud database

Plandora is an open source tool to manage the software

development process (http://www.plandora.org/).

schemata, and stored procedures and triggers for IN-

SERT/UPDATE/DELETE statements. Figure 9 shows

Mapping Metadata of one of the tables in the Plan-

dora database. The project table is split into two ta-

bles saved in two database schemata, Local Plandora

and SERVER LINK.

We deployed the Plandora to the cloud environ-

ment as follows: (1) add the Java jar ﬁle of Cloud-

JDBC Driver that includes SQL Translation into the

Plandora project; (2) build the database schemata

in both the local and cloud storages by running the

SQL scripts generated by the tool; and (3) change

the connection URL from “jdbc:sqlserver:” to

“jdbc:cloudsqlserver:”. In the deployment, there

is no change in the implementation code of Plandora.

Figure 10 shows an actual translation by SQL

Translation for the SELECT statement in the tool. Ac-

cess to the project table consists of the accesses to the

two tables, Local Plandora..project (an alias of the lo-

cal project) and SERVER LINK...project (an alias of

the cloud project). The original SELECT statement

retrieves data from four tables. On the other hand, the

translated SELECT statement has three INNER JOINs

in the FROM clause. Both statements output the same

result, indicating that the translation is correct.

5.2 Experimental Results

Table 1 shows the experimental results for several

SQL translations using Plandora. In the experiment,

we prepared all SQL patterns from the full syntax of

SQL data manipulation language for selecting, updat-

ing, inserting, and deleting data in the database. In

Table 1, “Pass” represents the number of times the

same result was obtained and “Total” represents the

total number of trials. “NA” denotes no appearance in

Plandora.

The experimental results reveal that the proposed

SQL translation mechanism deals appropriately with

many of the 20 prepared SQL query patterns. In 14 of

the 15 patterns, except for “NA”, their “Pass / Total”

ratios exceed 95%.

In more detail, several test cases report errors in

patterns No. 1 and No. 3. We conﬁrmed that the er-

rors in pattern No. 1 all derive from the inconsistent

use of a word. The word “value” is a column name

in the Plandora database, but it is a reserved word in

JSqlParser. Therefore, JSqlParser failed to parse the

“value” column. In pattern No. 3, the SELECT DIS-

TINCT produced a “the text data type cannot be se-

lected as distinct because it is not comparable” error

in some cases. This error might result from a differ-

ence between database servers. The real Plandora is

designed to run in the MySQL database server, while

Secure Data Storage Architecture on Cloud Environments

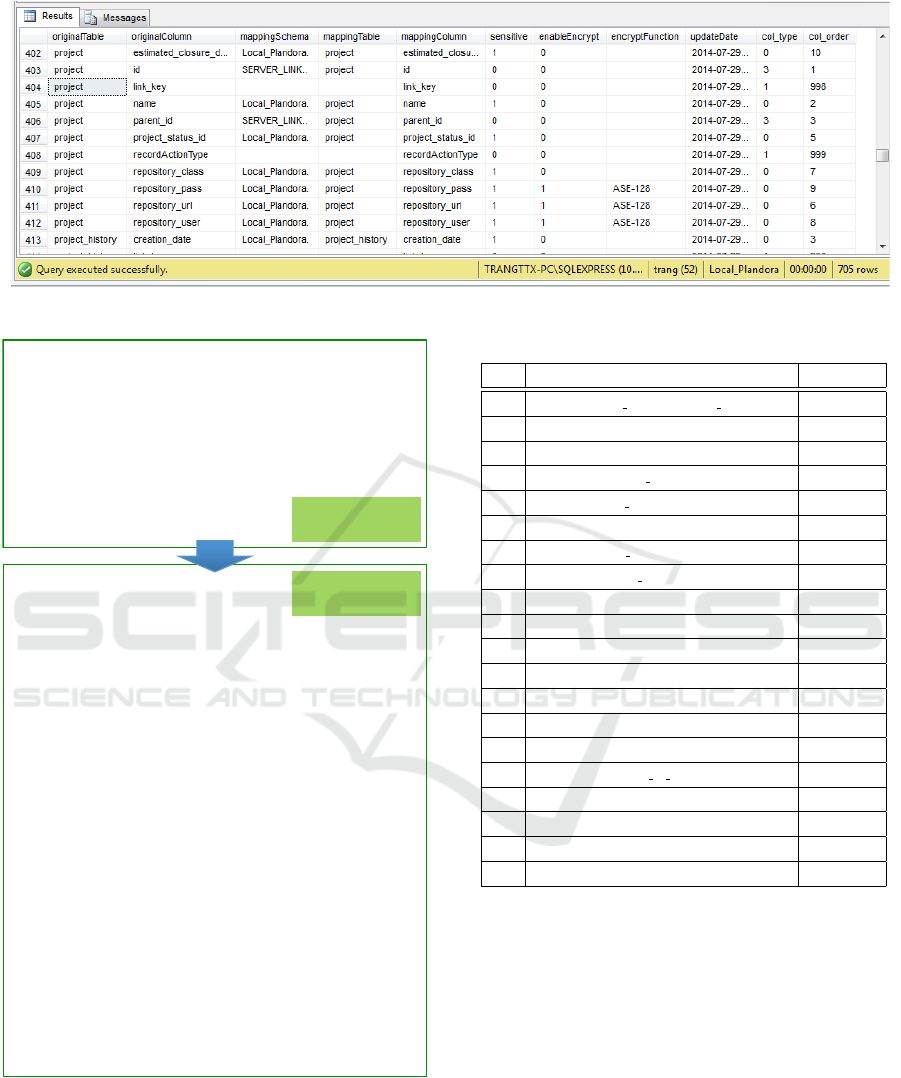

Figure 9: Mapping Metadata of Plandora database.

SELECT&p.id,&p.name,&a.descrip3on,&a.crea3on_date,&

p.es3mated_closure_date,&p.project_status_id,&p.parent_id,&&

ps.name&AS&PROJECT_STATUS_NAME,&&

p.can_alloc,&p.repository_url,&p.repository_class,&&

p.repository_user,&p.repository_pass,&p.allow_billable,&

ps.state_machine_order&

FROM&project&p,&planning&a,&project_status&ps,&leader&e&&

WHERE&p.id&=&a.id&AND&ps.id&=&p.project_status_id&AND&

(p.can_alloc&is&null&OR&p.can_alloc='1')&&AND&

p.id&=&e.project_id&AND&p.id&<>&'0‘&&

ORDER&BY&p.name&

SELECT&Cloud_project.id,&

Local_project.name,&

Local_planning.descrip3on,&

Local_planning.crea3on_date,&

Local_project.es3mated_closure_date,&

Local_project.project_status_id,&Cloud_project.parent_id,&&

Local_project_status.name&AS&PROJECT_STATUS_NAME,&

Cloud_project.can_alloc,&Local_project.repository_url,&

Local_project.repository_class,&Local_project.repository_user,&

Local_project.repository_pass,&Cloud_project.allow_billable,&

Cloud_project_status.state_machine_order&

FROM&SERVER_LINK...project&AS&Cloud_project&

INNER&JOIN&Local_Plandora..project&AS&Local_project&

ON&Cloud_project.link_key&=&Local_project.link_key,&

SERVER_LINK...planning&AS&Cloud_planning&

INNER&JOIN&Local_Plandora..planning&AS&Local_planning&

ON&Cloud_planning.link_key&=&Local_planning.link_key,&

Local_Plandora..project_status&AS&Local_project_status&

INNER&JOIN&SERVER_LINK...project_status&AS&Cloud_project_status&

ON&Local_project_status.link_key=&Cloud_project_status.link_key,&

SERVER_LINK...leader&AS&Cloud_leader&

WHERE&Cloud_project.id&=&Cloud_planning.id&AND&

Local_project_status.id&=&Local_project.project_status_id&AND&

(Cloud_project.can_alloc&IS&NULL&OR&&

Cloud_project.can_alloc&=&'1')&AND&&

Cloud_project.id&=&Cloud_leader.project_id&AND&

Cloud_project.id&<>&'0'&

ORDER&BY&Local_project.name&ASC&

Translated&

SELECT&statement&

Original&

SELECT&statement&

Figure 10: SELECT translation example.

we run it in the Microsoft SQL Server. Unfortunately,

several data types converted from MySQL to SQL

Server are incompatible.

Table 1: Experimental results for SQL translation.

No. SQL query patterns Pass / Total

1 SELECT select list FROM table source 482 / 500

2 SELECT TOP · · · NA

3 SELECT DISTINCT 76 / 100

4 SELECT INTO new table NA

5 WHERE search condition 500 / 500

6 GROUP BY expression 78 / 78

7 HAVING search condition 55 / 55

8 ORDER BY order expression 46 / 46

9 OVER clause NA

10 OPTION clause NA

11 WITH clause NA

12 Sub-query 200 / 200

13 SQL Aliases 20 / 20

14 SQL Expressions 70 / 70

15 SQL Operators 50 / 50

16 INSERT INTO table or view VALUES clause 18 / 18

17 SELECT INTO statement 25 / 25

18 INSERT INTO SELECT statement 200 / 200

19 UPDATE statement 50 / 50

20 DELETE statement 50 / 50

6 CONCLUSION

In this paper, we proposed an architectural model

that guarantees data conﬁdentiality while providing

transparent migration of existing applications to cloud

environments. Our proposed architecture success-

fully protects data conﬁdentiality by employing a data

slicing technique. Moreover, the running tool uses

an SQL translation mechanism to attain the required

level of transparency.

Our future work will address several issues. The

proposed model only aims the guarantee of data con-

ﬁdentiality. Concerns about data integrity and avail-

ability remain as unsolved issues. For example, how

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

the model protects unauthorized modiﬁcation of data

stored in public storages? How it preserves the con-

sistency of data stored in public and private storages

when the failure of the connection to a cloud storage

server occurs? These are popular questions but their

solutions are not trivial.

With respect to data conﬁdentiality of the model,

we are expanding it to other relational database man-

agement systems, such as MySQL, PostgreSQL, Or-

acle, and BD2. We also plan to evaluate the security

level and performance of the proposed architecture.

ACKNOWLEDGEMENTS

This work was partially sponsored by the Grant-in-

Aid for Scientiﬁc Research (15H02685) from the

Japan Society for the Promotion of Science (JSPS).

REFERENCES

Aggarwal, G., Bawa, M., Ganesan, P., Garcia-Molina, H.,

Kenthapadi, K., Motwani, R., Srivastava, U., Thomas,

D., and Xu, Y. (2005). Two can keep a secret: A dis-

tributed architecture for secure database services. In

2nd Biennial Conference on Innovative Data Systems

Research (CIDR 2005).

Bessani, A., Correia, M., Quaresma, B., Andr’e, F., and

Sousa, P. (2011). DEPSKY: Dependable and secure

storage in a cloud-of-clouds. In 6th Conference on

Computer Systems (EuroSys’11), pages 31–46.

Catteddu, D. and Hogben, G. (2009). Cloud computing:

Beneﬁts, risks and recommendations for information

security. Technical report.

Ciriani, V., di Vimercati, S. D. C., Foresti, S., Jajodia, S.,

Paraboschi, S., and Samarati, P. (2011). Selective data

outsourcing for enforcing privacy. Journal of Com-

puter Security, 19(3):531–566.

Fernandes, D. A., Soares, L. F., ao V. Gomes, J., Freire,

M. M., and In

acio, P. R. (2014). Security issues in

cloud environments: A survey. International Journal

of Information Security, 13(2):113–170.

Ferrari, E. (2009). Database as a service: Challenges and

solutions for privacy and security. In Asia-Paciﬁc Ser-

vices Computing Conference (APSCC 2009), pages

46–51.

Ferretti, L., Colajanni, M., Marchetti, M., and Scarufﬁ,

A. E. (2013). Transparent access on encrypted data

distributed over multiple cloud infrastructures. In

4th International Conference on Cloud Computing,

GRIDs, and Virtualization, pages 201–207.

Gentry, C. (2009). Fully homomorphic encryption using

ideal lattices. In 41st Annual ACM Symposium on The-

ory of Computing (STOC’09), pages 169–178.

Gomathisankaran, M., Tyagi, A., and Namuduri, K. (2011).

HORNS: A homomorphic encryption scheme for

cloud computing using residue number system. In

45th Annual Conference on Information Sciences and

Systems (CISS), pages 1–5.

Hacig

us, H., Iyer, B., and Mehrotra, S. (2002). Providing

database as a service. In 18th International Confer-

ence on Data Engineering (ICDE’02), pages 29–38.

Hashizume, K., Rosado, D. G., Fernndez-Medina, E., and

Fernandez, E. B. (2013). An analysis of security is-

sues for cloud computing. Journal of Internet Services

and Applications, 4(1):1–13.

Jammalamadaka, R. C., Gamboni, R., Mehrotra, S., Sea-

mons, K. E., and Venkatasubramanian, N. (2008).

iDataGuard: Middleware providing a secure network

drive interface to untrusted internet data storage. In

11th International Conference on Extending Database

Technology (EDBT’08), pages 36–41.

Jansen, W. and Grance, T. (2011). Guidelines on security

and privacy in public cloud computing. Technical Re-

port SP 800-144.

Mell, P. and Grance, T. (2011). The nist deﬁnition of cloud

computing. Technical Report SP 800-145.

Menychtas, A., Santzaridou, C., Kousiouris, G., Var-

varigou, T., Orue-Echevarria, L., Alonso, J., Gorrono-

goitia, J., Bruneliere, H., Strauss, O., Senkova, T., Pel-

lens, B., and Stuer, P. (2013). ARTIST methodology

and framework: A novel approach for the migration

of legacy software on the cloud. In 15th International

Symposium on Symbolic and Numeric Algorithms for

Scientiﬁc Computing (SYNASC), pages 424–431.

Ren, K., Wang, C., and Wang, Q. (2012). Security chal-

lenges for the public cloud. IEEE Internet Computing,

16(1):69–73.

Subashini, S. and Kavitha, V. (2011). A survey on security

issues in service delivery models of cloud comput-

ing. Journal of Networkand Computer Applications,

34(1):1–11.

Subashini, S. and Kavitha, V. (2012). A metadata based

storage model for securing data in cloud environment.

American Journal of Applied Sciences, 9(9):1407–

1414.

Tak, B. C. and Tang, C. (2014). Appcloak: Rapid migra-

tion of legacy applications into cloud. In International

Conference on Cloud Computing, pages 810–817.

Wei, L., Zhu, H., Cao, Z., Dong, X., Jia, W., Chen, Y., and

Vasilakos, A. V. (2014). Security and privacy for stor-

age and computation in cloud computing. Information

Sciences, 258:371–386.

Weis, J. and Alves-Foss, J. (2011). Securing database as

a service: Issues and compromises. IEEE Security

Privacy, 9(6):49–55.

Yu, A., Sathanur, A. V., and Jandhyala, V. (2012). A partial

homomorphic encryption scheme for secure design

automation on public clouds. In 21st Conference on

Electrical Performance of Electronic Packaging and

Systems, pages 177–180.

Zhang, Q., Cheng, L., and Boutaba, R. (2010). Cloud com-

puting: State-of-the-art and research challenges. Jour-

nal of Internet Services and Applications, 1(1):7–18.

Secure Data Storage Architecture on Cloud Environments
