NSIM-ACE: An Interconnection Network Simulator for Evaluating

Remote Direct Memory Access

Ryutaro Susukita

, Yoshiyuki Morie

, Takeshi Nanri

and Hidetomo Shibamura

Research Institute for Information Technology, Kyushu University,

6-10-1 Hakozaki, Higashi-ku, Fukuoka 812-8581, Japan

Institute of Systems, Information Technologies and Nanotechnologies, Fukuoka SRP Center Building 7F,

2-1-22 Momochihama, Sawara-ku, Fukuoka 814-0001, Japan

Keywords: Network Simulation, Interconnection Network, RDMA, Performance Evaluation, Parallel Processing,

Discrete Event Simulation.

Abstract: Network simulation is an important technique for designing interconnection networks and communication

libraries. Also network simulations are useful for the analysis of internal communication behavior in parallel

applications. This paper introduces a new interconnection network simulator NSIM-ACE. This simulator

enables us to evaluate RDMA directly while existing simulators do not have such capability. NSIM-ACE

also provides a similar user-interface to RDMA-based parallel programs for easy use. The experimental

evaluation indicates that the simulation accuracy is sufficient to compare performance of some RDMA-

based algorithms and the simulator is capable of predicting performance scalability for non-extinct

networks.

1 INTRODUCTION

Modern high performance parallel computers consist

of a large number of computing nodes connected via

an interconnection network. Applications running on

such systems perform computation

in parallel by communicating data between nodes.

Designing high speed interconnection networks and

communication libraries have an important role for

running parallel applications efficiently. However, it

is not an easy task to predict performance of

interconnection networks and communication

libraries at the design stage. Particularly, if a large

number of nodes communicate a large amount of

data simultaneously, communication performance

degrades from the theoretical value due to

communication contention. Therefore, simple

mathematical models of parameters including the

minimum communication latency between nodes

and the bandwidth predict inaccurate communication

performance. Analyzing communication behaviors

inside real machines is also an issue for efficient

parallel applications. It may be difficult because of

the same reason. As an attempt to solve these

problems, many interconnection network simulators

were developed so far.

NSIM is an interconnection simulator developed

for evaluating extreme-scale systems. Users can

configure detail of the target network. This simulator

focuses on simulation speed. The simulation model

is simplified not at the great expense of simulation

accuracy. A feature of NSIM is accepting programs

compatible with Message Passing Interface (MPI) as

input communication patterns. NSIM simulates the

target network by means of pseudo execution of

such a program. This feature provides with a user-

friendly simulation environment. NSIM is

implemented to be a parallel simulator on distributed

memory systems.

Adiga et al. (2005) developed a dedicated

simulator for predicting performance of three

dimensional torus network of IBM BlueGene/L. The

simulator inputs are traces of pseudo application

codes. The developers extended an IBM tracer for

generating the traces. This is a parallel simulator on

shared memory systems. Simulations of up to a 64K-

node network were reported.

BigNetSim (Choudhury et al., 2005) is a

simulator supporting various interconnection

networks. Users can flexibly configure network

parameters including topology, size and

communication latency. BigNetSim has two

254

Susukita, R., Morie, Y., Nanri, T. and Shibamura, H.

NSIM-ACE: An Interconnection Network Simulator for Evaluating Remote Direct Memory Access.

DOI: 10.5220/0005978802540261

In Proceedings of the 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2016), pages 254-261

ISBN: 978-989-758-199-1

execution modes. In one mode, it simulates

according to communication patterns artificially

generated inside the simulator. In the other mode,

BigNetSim simulates according to traces generated

by BigSim (Zheng et al., 2004), a simulator for

extreme-scale parallel computers.

FSIN (Ridruejo and Alonso, 2005) is an

interconnection network simulator included in a

simulation framework called INSEE. FSIN supports

a variety of router models and network topologies.

This simulator is based on relatively simple network

models where every network event spends equal

time. FSIN accepts two types of simulation inputs,

artificially generated communication patterns and

traces of MPI applications. FSIN has a unique

feature that it can feedback the simulation results to

original trances.

SimGrid (Casanova et al., 2014) is a simulator

for a wide area of computer systems including

processor, network, storage and grid computing.

SimGrid simulates these computer resources in a

unified model where if multiple tasks on the target

system require a resource simultaniouly, the

resource is shared by the tasks in an optimization

rule. This simulator accepts two types of simulation

inputs, programs written in an original format and

unmodified MPI programs.

Meanwhile, recent network interface cards

(NICs) used in high performance parallel computers

have the function of Remote Direct Memory Access

(RDMA). RDMA has the following advantages:

 Low communication latency: RDMA directly

transfer data from memory on the send node to

memory on the receive node.

 Efficient parallelization of communication and

computation: RDMA transfers data

independently of node processors.

 Minimum consumption of memory: RDMA

need no communication buffer.

Since MPI is the de fact standard of parallel

programming, the RDMA-based programming

model is not the main stream. However, the

advantages above give RDMA a potential to become

an alternative in coming high performance parallel

computers.

Communication libraries that adopt the RDMA-

based model include ARMCI (Nieplocha and

Carpenter, 1999) and GASNet (Bonachea, 2002).

These libraries have put/get operations in the RDMA-

base model. MPI also defines put/get operations in

addition to the message passing model. A recent

example of communication libraries that support the

RDMA-based model is the basic layer of ACP library

(Sumimoto et al., 2016). It aims at a primitive

communication library for parallel programing.

Unlike communications that require operations

in both the send and receive nodes, RDMA starts the

communication by either the send node or the

receive node. On the other hand, RDMA often needs

extra processing such as preparation for the

communication and the confirmation of a write

operation on the receive node. We need a different

design of communication libraries and a different

style of parallel programing.

However, existing interconnection network

simulators do not provide the function of handling

RDMA directly nor user-friendly interface to the

RDMA-based programs. In order to break this

limitation, we implemented the NSIM-ACE

interconnection network simulator by extending

NSIM. In this paper, we present this new simulator.

2 NSIM OVERVIEW

2.1 Network Model

NSIM supports mesh/torus networks up to six

dimensions and fat tree networks. NSIM assumes

that each node connected by the target network

consists of one processor and one or multiple NICs.

The target network is modeled as a combination of

routers, router-to-router links and router-to-NIC

links. The router model assumes static dimensional

routing, virtual cut-through and a pipelined router.

Data transfer on each link is simulated basically at a

packet level. However, NSIM employs a simulation

technique that gives the same accuracy as flit level

simulations. For saving memory usage, actual data are

not transferred but only information on data size is.

2.2 Inputs and Outputs

For communication patterns, NSIM accepts an MPI-

like program in which the prefix MPI_ of MPI

functions are replaced with MGEN_. This program

is called an MGEN program. In the MGEN program,

computational parts except for MPI functions are

replaced with MGEN_Comp (t) functions, where t is

a predicted computation time. This function enables

us to simulate communication taking into account

the difference of the start times between processes. It

is also used for simulations including computation

times. After a simulation, NSIM outputs a predicted

execution time of the input MGEN program.

Detailed statistics including the effective bandwidth

and the effective usage of each link are also

reported.

NSIM-ACE: An Interconnection Network Simulator for Evaluating Remote Direct Memory Access

255

2.3 Modules

NSIM consists of the following five modules:

 DES (Discrete Event Simulation)

A parallel discrete event simulator.

 MGEN (Message level event GENerator)

MGEN performs pseudo execution of the input

MGEN program and generates Message Level

Events (MLEs). An MLE corresponds to a

message in MPI.

 PGEN (Packet level event GENerator)

PGEN calls MGEN for generating MLEs and

generates Packet Level Events (PLEs) from the

MLEs. A PLE is an event of DES.

 SIM (SIMulation control)

SIM calls PGEN for generating PLEs and

enqueues them to the event queue of DES. SIM

also proceeds the simulation time of DES.

 EP (Event Processing)

EP processes packet transfer on the network. It is

the event procedure of DES.

2.4 Simulation Flow

At the beginning of a simulation, SIM calls PGEN.

PGEN internally calls MGEN. MGEN generates

MLEs from the MGEN program. It does not perform

actual communications. Then PGEN generates PLEs

from the MLEs. Each of these PLEs is an event that

injects a packet into the network from a send NIC.

SIM enqueues these PLEs to the event queue of DES

and proceeds the simulation time of DES so that

events are processed in correct time order. EP

processes PLEs so that the packet is injected into the

network. Also EP generates a new PLE that transfers

the packet to a next link, a next router or the receive

NIC. These PLEs are processed in correct time order

by DES. Finally the packet reaches the receive NIC.

The simulation is completed when all packets reach

receive NICs.

3 NSIM-ACE

3.1 Simulation Model

NSIM-ACE models two types of RDMA, i.e., put

and get operations. We focus put operations. In a put

operation, the send process transfers data from

memory on the send node to memory on the receive

node. First, data on memory are transferred to the

send NIC using DMA. The send NIC injects the data

into the network as packets. The packets are

transferred to the receive NIC on the network.

Packet transfer on the network is modeled as the

same way as in NSIM. If a packet of put data

reaches to the receive NIC, it is transferred to

memory on the receive node using DMA. After all

put data are transferred to memory, the receive NIC

sends a control packet to the send NIC. The put

operation is completed when the control packet

reaches the send NIC.

3.2 Inputs and Outputs

NSIM-ACE accepts an MGEN program for the

communication pattern.

For describing RDMA in MGEN programs, we

added new MGEN functions to NSIM.

 MGEN_acp_handle MGEN_rdma_put (int

dest_rank, int data_size, int tag)

MGEN_rdma_put issues a put operation which

transfers data of data_size bytes from the process

that calls this function to the process of rank

dest_rank. The tag is used for specifying a put

operation in the receive process. This function is

completed even if the put operation has not

completed yet. This function returns a handle

that corresponds to the put operation.

 void MGEN_rdma_poll (int tag)

MGEN_rdma_poll waits until the put operation

specified by tag completes data transfer to

memory on the receive node.

 void MGEN_acp_complete (MGEN_acp_handle

handle)

MGEN_acp_complete waits for the completion

of the put operation specified by handle.

The functions and the type those have prefix of

MGEN_acp_ in the names are similar to functions

and type in ACP library those have names without

MGEN_.

We show a sample MGEN program below.

#include “mgen.h”

int MGEN_Main(int argc, char

**argv){

int rank, size, ms=4, r, tag=0;

MGEN_Comm com = MGEN_COMM_WORLD;

MGEN_acp_handle handle;

MGEN_Comm_rank(com, &rank);

MGEN_Comm_size(com, &size);

r = (rank + 1) % size;

handle = MGEN_rdma_put(r, ms,

tag);

MGEN_rdma_poll(tag);

MGEN_acp_complete(handle);

}

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

256

In this program, each process puts data to a

neighbor process.

The NSIM-ACE simulates the target network

according to the communication pattern described

by the input MGEN program. After the simulation,

NSIM-ACE outputs a predicted execution time and

the same kinds of detail statistics as NSIM outputs.

3.3 Implementation

We implementation the put operation in a similar

way to a send operation in NSIM. If a put operation

is issued in the MGEN program, MGEN generates

an MLE that corresponds to the put data. One

difference from NSIM is that no receive operation is

explicitly issued in the MGEN program. Another

difference is the ordering of send and receive

operations. In NSIM, send and receive operations

are issued in order in the MGEN program. In NSIM-

ACE, the control packet of the put operation is sent

when all put data are transferred to memory

independently of the MGEN program, i.e., the order

is determined by intermediate results of the

simulation. We added the following new flow to

NSIM. After SIM proceeds the simulation time of

DES, it checks packets that reach each NIC. If all

packets of the put data reach a NIC, SIM calls

PGEN. PGEN internally calls MGEN. MGEN

generates an MLE that corresponds to the control

packet. From the MLE, PGEN generates a PLE that

injects the control packet into the network. SIM

enqueues it to the event queue. This modification

was not straightforward because NSIM was

designed on the assumption that all send and receive

operations are described and they are issued in order

in the MGEN program.

Another consideration is the choice of the time

step. DES was parallelized using conservative

algorithm with lookahead. We assumed that a PLE

of time t

that injects a control packet is generated

and then enqueued after the simulation time is

proceeded from t to t + Δt. The PLE is processed

after the simulation time is proceeded to t + Δt.

However, if Δt is too large, t

t + Δt. Since any

event of time between t

and t + Δt is processed

when the simulation time is proceeded to t + Δt, the

PLE is processed in a wrong time order. We set Δt to

the minimum latency of router-to-NIC links. The

injection PLE is generated when DES processes a

PLE of time t

that transfers the last packet of the put

data from a router to a NIC between t and t + Δt.

Since t

t and the latency from the router to the

NIC is equal to or larger than Δt, t

≥ t

+ Δt > t + Δt.

This guarantees that the injection PLE is processed

in correct time order. A similar discussion is applied

to get operations.

We did not change EP, which determines the

network model. The network is simulated in the

same way as NSIM.

4 EXPERIMENTAL

EVALUATION

In order to evaluate the simulation accuracy of

NSIM-ACE, we compared simulation results and

measurements on a real machine in three

experiments. In addition, we predicted performance

scalability beyond the number of processes in real

measurements using NSIM-ACE.

4.1 Random Ring

The random ring traffic is one of High Performance

Computing Challenge benchmark suite (Luszczek,

2006). Processes of the benchmark compose a ring

in a random order. Each process sends 2MB data to

the left and right neighbor processes in parallel and

receives 2MB data from the left and right neighbor

processes in parallel. The benchmark measures the

bandwidth of the data transfer.

4.1.1 Experimental Environment

We ran the benchmark on Fujitsu PRIMERGY

RX200 S7. Each node has one quad-core Intel Xeon

processor E5-2609 (2.40 GHz). Sixteen nodes are

connected by InfiniBand QDR switches. The

throughput of each switch is 4GB/s per one

direction. The port-to-port latency is 140

nanoseconds or below. The routing is destination-

based. The original random ring traffic benchmark is

written using MPI. We rewrote it using the put or get

operation in the basic layer of ACP library. We used

the InfiniBand implementation of ACP library. The

InfiniBand implementation creates a communication

thread per process. The communication thread are

always running when the process is running. We ran

only two processes per node for excluding the

impact of the communication thread on the

bandwidth. We ran two processes per node also in

two other experiments. The original benchmark

measures bandwidth in ten different random process

orders. We measured only in one process order.

The simulation parameters are listed in Table 1.

The DMA transfer speed was obtained by measuring

the throughput in the random ring traffic benchmark

of two processes on one node. We set the

NSIM-ACE: An Interconnection Network Simulator for Evaluating Remote Direct Memory Access

257

communication library overhead to zero because it is

so small compared to the one-hop latency of 2MB

data transfer that it has little impact on simulation

results. We set the other parameters according the

specification of the real machine. In order to predict

performance scalability above 16 nodes, we

simulated with another parameter set where the

parameters are the same except for that the number

of nodes are 256.

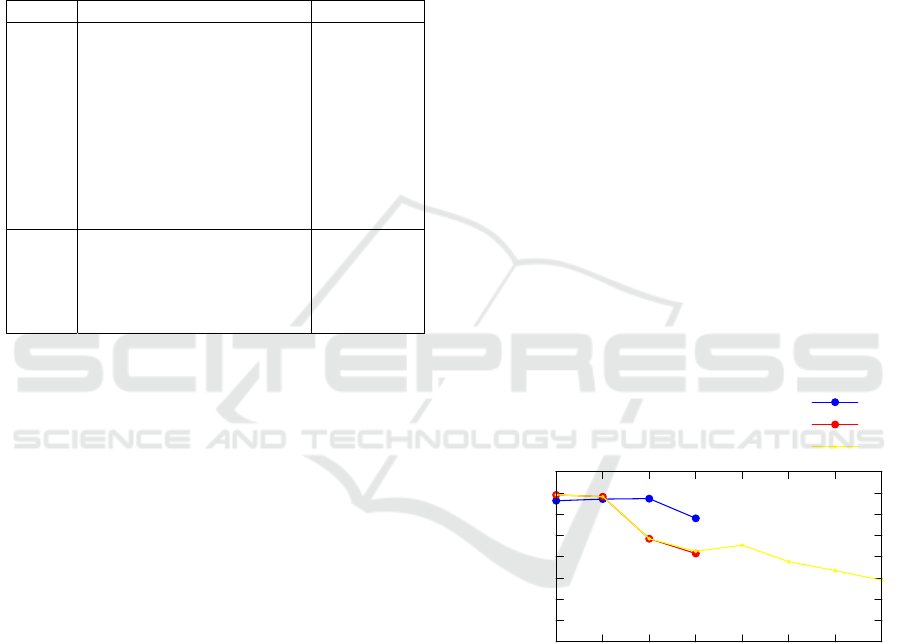

Table 1: Configuration Parameters for NSIM-ACE.

Type Parameter Value

Router

Maximum theoretical

communication speed of

network

Switch throughput

Routing calculation time

Virtual channel allocation

time

Switch allocation time

Switch latency

Cable latency

4.0 GB/s

4.0 ns

128 ns

0.6 ns

Node

DMA transfer speed

Communication library

overhead

Number of processes

2.8 GB/s

0 ns

One process

/ node

There are a few differences between the

simulations and the real measurement. One is in the

programs. The MGEN program was described by

extracting communication parts of the original

benchmark. NSIM-ACE assumes one process per

node as NSIM. We described the MGEN program so

that one process performs communications in

parallel that correspond to two processes in the real

machine. Another difference is intra-node

communications. NSIM-ACE does not simulate

intra-node communications. Instead we described

MGEN_Comp (t), where t is the communication

latency of 2MB data transfer in the node DMA. In

addition, algorithms of arbitration and routing are

different between the simulations and the real

machine. These differences may cause simulation

errors described below.

We performed simulations on HP ProLiant

ML350e Gen8 v2 in all three experiments. It has two

quad-core Intel Xeon processor E5-2407 v2 (2.4

GHz). NSIM-ACE required approximately 40

seconds for simulations when the number of process

was 512. These times were measured in sequential

executions including two other experiments.

4.1.2 Results and Discussions

The comparison of simulation and real machines are

shown in Figure 1. Simulation results agree well

with the real measurements at 4 and 8 processes.

However, they show lower bandwidth than the real

measurements at 16 and 32 processes. The

difference may be caused by differences in

arbitration and routing algorithms of the switches. In

this experiment, all nodes on which processes are

running are connected to the same switch if the

number of processes is 4 or 8. In this case, the

algorithm differences are unlikely to be seen.

Otherwise, the nodes on which processes are

running are connected to multiple switches. In this

case, there are multiple communication routes

between nodes. The simulation can be more likely to

occur communication contention than the real

measurements. As a result, it is possible to show

lower bandwidth than the real measurements.

The 256-node simulations predict that the

bandwidth gradually decreases above 32 processes.

However, if we actually increase nodes and those

connected to each switch for the real machine like

the simulations, such a machine is expected to give

higher bandwidth than the simulations because the

real machine shows higher bandwidth than the

simulations at 16 and 32 processes.

0.2

0.4

0.6

0.8

1.2

1.4

1.6

4 8 16 32 64 128 256 512

Throughput [GB/s]

Number of processes

16 nodes, Real machine

16 nodes, NSIM-ACE

256 nodes, NSIM-ACE

Figure 1: Random ring bandwidth of put operation.

4.2 Synchronization Barrier

Since a synchronization barrier communicates small

data, simple mathematical modeling is effective for

the performance prediction of the barrier itself.

However, we need the barrier simulation if it is

included in another communication pattern. For

example, a barrier is used for waiting until multiple

receive processes become ready for a put operation.

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

258

4.2.1 Ring Algorithm

Many algorithms are known for synchronization

barrier of p processes. One of simple algorithms is

ring. The complexity is O(p). This algorithm can be

implemented using put operations as follows. The

ring algorithm performs a barrier in p − 1 steps. In

each step, the process of rank i (i ≠ p − 1) puts some

data to some memory region of the process of rank i

+ 1. The process of rank p − 1 puts to the process of

rank 0. After that, the process of rank i (i ≠ 0) waits

for receiving the data from the process of rank i − 1

by polling the memory region. The process of rank 0

waits for receiving from the process of rank p − 1.

After p − 1 steps, the barrier is completed.

4.2.2 Recursive Doubling Algorithm

One of O(log p) algorithms is recursive doubling,

which can be implemented using put operations as

follows. If p = 2

, the recursive doubling algorithm

performs a barrier in n steps. In step i (i = 1, 2, 3, ...,

n), 2

processes are divided into groups of 2

processes in the rank order. In each group, each

process of smaller 2

− 1 ranks puts some data to

some memory region of the process whose rank is

the sender's rank + 2

− 1. Each process of larger 2

−

1 rank puts some data to some memory region of the

process whose rank is the sender's rank − 2

− 1.

Then the two processes waits for receiving the data

from each other by polling the memory region. After

n steps, the barrier is completed. If p = 2

+ r (0 < r

< 2

), this algorithm needs extra steps for r processes

before step 1 and after step n.

4.2.3 Experimental Environment

We compared simulation results of barrier time to

real measurements. We executed programs of both

algorithms written using ACP library on the same

machine as in the random ring experiment. In this

experiment, we observed fluctuation in average

barrier times larger than in usual measurements. We

measured the minimum barrier time in 100 same

barriers for obtaining the time required for the

barrier at the least on this machine.

We used the same configuration parameters as in

the random ring experiment except for the

communication library overhead. In this experiment,

the communication library overhead is not negligible

compared to the one-hop latency of put data. We

determined the communication library overhead by

measuring the barrier time of two processes on one

node. In this case, each of the two processes puts the

data to each other. The barrier time corresponds to

the communication library overhead excluding

network latency. In this environment, half of the

barrier time is closer because the NIC of the node

performs two put operations sequentially. The

determined value was 0.8 microseconds. For

obtaining the communication library overhead fitting

real measurements best, we also varied nearby 0.8

microseconds. The communication library overhead

in configuration parameters corresponds to the node

latency including the minimum latency of memory

access and that of the node DMA transfer in addition

to the communication library overhead. We call this

parameter node latency, hereafter.

We described MGEN programs in a similar way

to that in the random ring experiment.

When p = 512, NSIM-ACE needed 148 and 0.33

seconds for simulating the ring and recursive

doubling algorithms, respectively.

4.2.4 Results and Discussions

The comparison of the simulation results and the

real measurements is shown in Figure 2. If we set

the node latency to the real measurement (0.8 μs),

the simulation results are somewhat smaller than the

real measurements in both algorithms. If we vary the

node latency, the simulation results follow best the

trend of real measurements in the case of 0.6

microseconds. The comparison of the two

algorithms shows the recursive doubling algorithm

is faster than ring in real measurement as expected.

The simulation indicates the same result.

Furthermore, we find that the recursive doubling

algorithm is faster if p = 2

than otherwise in the real

measurements. The simulations also give the same

trend. In this experiment, the simulation accuracy of

NSIM-ACE is sufficient to compare the two

algorithms and reproduce the characteristics of the

recursive doubling algorithm if we give an

appropriate node latency. We conclude that NSIM-

ACE is so useful for the performance prediction of

barriers as simple mathematical modelling. Results

of 256-node simulations followed as the algorithm

complexities.

4.3 Particle Data Communication after

Domain Decomposition

4.3.1 Communication Pattern

In parallel gravitational N-body simulations, particle

data communications after domain decomposition

are described more directly than point-to-point or

collective communications of MPI (Susukita et al.,

NSIM-ACE: An Interconnection Network Simulator for Evaluating Remote Direct Memory Access

259

4 8 16 32

Barrier time [ μ

Real machine

NSIM-ACE, 0.9 μs node latency

NSIM-ACE, 0.8 μs node latency

NSIM-ACE, 0.7 μs node latency

NSIM-ACE, 0.6 μs node latency

4 8 16 32

Barrier time [ μs]

Number of processes

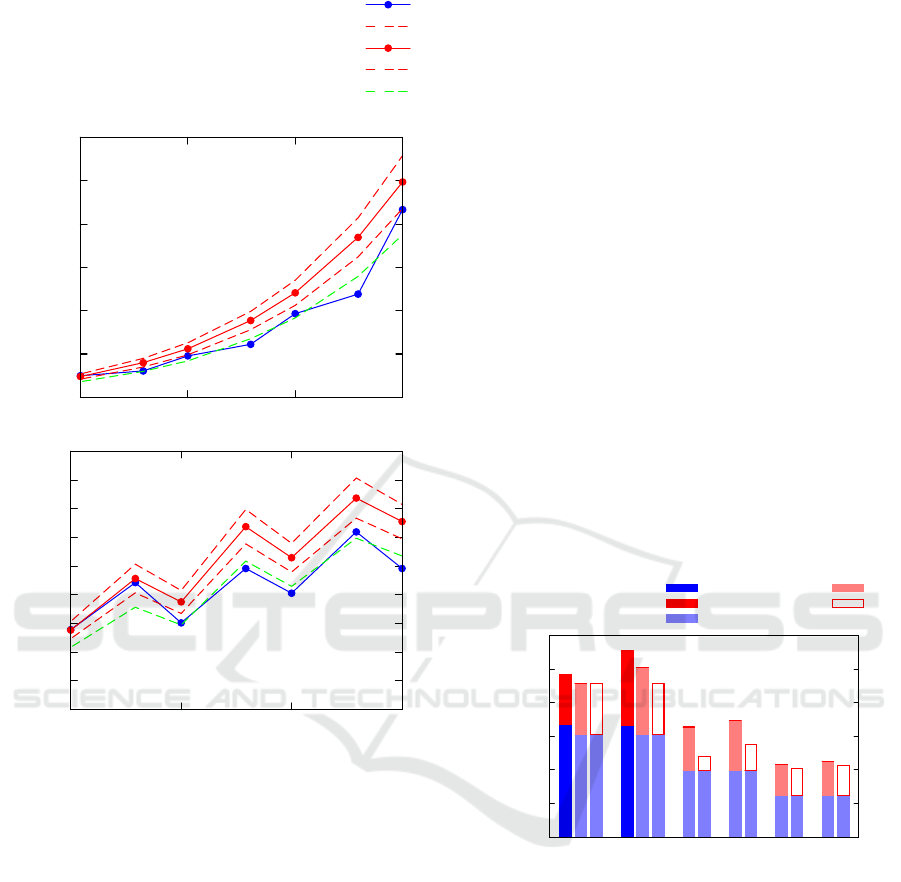

Figure 2: Barrier times of ring (top) and recursive

doubling (bottom) algorithms.

2015). In this communication pattern, we need a

synchronization barrier before the data packing or

after that.

4.3.2 Experimental Environment

In a previous report (Susukita et al., 2015), we

showed that simulation results of NSIM-ACE are in

good agreement with real measurements in regard to

this communication pattern. In addition, we found

that the simulations distinguish performance change

between two different synchronization points

described later. In this paper, we simulated the

communication pattern beyond the system size of

the real machine.

The same environment was used as in the report.

We executed with 64 and 128 processes on another

real machine only for recording communication

patterns. The largest put data decreased from 2.1

MB in the 32-process execution to 0.79 MB in the

128-process execution.

We described an MGEN program by extracting

put operations of particle data. We also simulated a

variant of the MGEN program in which we do not

describe MGEN_Comp calls for intra-node

communications, i.e., inter-node only variant.

NSIM-ACE required 0.65 and 0.83 seconds for

the 128-process simulations when we performed the

barrier before and after the packing, respectively.

4.3.3 Results and Discussions

The simulation results are shown in Figure 3. For 32

processes, differences between the simulation results

and the real measurements are less than 10% both in

the pack time and put operations. The simulations

predict that the barrier before the packing provides

better performance than the barrier after the packing

up to 128 processes. This means that NSIM-ACE is

able to propose a better synchronization point for a

non-existent machine on which we cannot actually

measure the performance.

Execution time [ms]

Real machine pack

Real machine put

NSIM-ACE pack

NSIM-ACE put

Inter-node only

NSIM-ACE put

Figure 3: Execution time of particle data communication.

The simulations of the inter-node only variant

indicate contributions of inter-node put operations.

They suggest that both inter- and intra- node put

operations are possible to make a great impact on the

results. When the number of processes is 32, the

latency of inter-node only simulations make little

difference between the two synchronization points,

while original simulations make a difference. We

inferred that intra-node put operations make the

difference. For example, intra-node put operations

may cause communication contention if we

SIMULTECH 2016 - 6th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

260

performed a barrier after the packing. By contrast,

when the number of processes is 64, the latency of

put operations is increased if we performed a barrier

after the packing even in inter-node only simulation.

In this case, inter-node put operations may cause

communication contention.

5 CONCLUSIONS

In this paper, we introduced NSIM-ACE, a new

interconnection network simulator for RDMA

evaluation. We implemented it by extending NSIM

simulator for large-scale interconnection networks.

The NSIM-ACE has a user-friendly interface where

the communication pattern is given in a similar way

to RDMA-based parallel programs. We performed

three experiments for evaluating the simulation

accuracy and predicting performance scalability.

The experiment on random ring bandwidth shows

that the simulator produces bandwidth degradation

due to communication contention. The experiment

on synchronization barrier indicates that the

simulation accuracy is sufficient to compare

performance of RDMA-based algorithms and find

algorithm characteristics. In addition, NSIM-ACE

can predict the better algorithm for a communication

pattern appearing in a particle simulation.

ACKNOWLEDGEMENTS

This work is supported by Core Research for

Evolutional Science and Technology (CREST)

Program of Japan Science and Technology Agency

(JST), Research Area “Development of System

Software Technologies for post-Peta Scale High

Performance Computing”, Research Theme

“Development of Scalable Communication Library

with Technologies for Memory Saving and Runtime

Optimization“. A part of computation was carried

out using the computer facilities at Research

Institute for Information Technology, Kyushu

University.

REFERENCES

Adiga, N. R. et al., 2005. Blue Gene/L Torus

Interconnection Network. IBM Journal of Research

and Development, Vol.49, pp.265-276.

Bonachea, D., 2002. GASNet Specification, v1.1. U.C.

Berkeley Tech Report (UCB/CSD-02-1207).

Casanova, H., Giersch. A., Legrand, A., Quinson, M. and

Sutero, F., 2014. Versatile, Scalable, and Accurate

Simulation of Distributed Applications and Platforms.

Journal of Parallel and Distributed Computing,

Vol.74, No.10, pp. 2899-2917.

Choudhury, N., Mehta, Y., Wilmarth, T. L., Bohm, E. J.

and Kale, L.V., 2005. Scaling an Optimistic Parallel

Simulation of Large-scale Interconnection Networks.

Proc. 37th Conference on Winter Simulation,

Conference, WSC ’05, pp.591-600.

Luszczek, P. R., Bailey, D. H., Dongarra, J. J., Kepner, J.,

Lucas, R. F., Rabenseifner, R. and Takahashi, D.,

2006. The HPC Challenge (HPCC) Benchmark Suite.

Proc. 2006 ACM/IEEE Conference on

Supercomputing, SC ’06.

Miwa, H. et al., 2011. NSIM: An Interconnection Network

Simulator for Extreme-Scale Parallel Computers,

IEICE Transactions on Information and Systems,

Vol.94, No.12, pp.2298-2308.

Nieplocha, J. and Carpenter, B., 1999. ARMCI: A

Portable Remote Memory Copy Library for

Distributed Array Libraries and Compiler Run-time

Systems. Proc. RTSPP of IPPS/SDP’99.

Ridruejo, F. J. and Alonso, J. M., 2005. INSEE: An

Interconnection Network Simulation and Evaluation

Environment. Proc. 11th Euro-Par Parallel

Processing Conference 2005, Euro-Par’05, pp.1014-

1023.

Sumimoto, S., Ajima, Y., Saga, K., Nose, T., Shida, N.

and Nanri, T. 2016. The Design of Advanced

Communication to Reduce Memory Usage for Exa-

scale Systems. Proc. 12th International Meeting on

High Performance Computing for Computational

Science (accepted).

Susukita, R., Morie, Y., Nanri, T. and Shibamura, H.,

2015. Performance Evaluation of RDMA

Communication Patterns by Means of Simulations,

Proc. 2015 Joint International Mechanical, Electronic

and Information Technology Conference (JIMET

2015), pp.141-147.

Zheng, G., Kakulapati, G. and Kalé, L.V., 2004. BigSim:

A Parallel Simulator for Performance Prediction of

Extremely Large Parallel Machines. Parallel and

Distributed Processing Symposium, International,

Vol.1, p.78b.

NSIM-ACE: An Interconnection Network Simulator for Evaluating Remote Direct Memory Access

261
