Cassandra’s Performance and Scalability Evaluation

Melyssa Barata

and Jorge Bernardino

1,2

Polytechnic of Coimbra, ISEC, Rua Pedro Nunes, Quinta da Nora, 3030-190 Coimbra, Portugal

Centre of Informatics and Systems, University of Coimbra, Pinhal de Marrocos, 3030-290 Coimbra, Portugal

Keywords: Performance, Scalability, NoSQL, Cassandra.

Abstract: In the past, relational databases were the most commonly used technology for storing and retrieving data,

allowing easier management and retrieval of any stored information organized as a set of tables. However,

today databases are larger in size and the query execution time can become very long, requiring servers with

bigger capacities. The purpose of this paper is to describe and analyze the Cassandra NoSQL database using

the Yahoo! Cloud Serving Benchmark in order to better understand the execution capabilities for various

types of applications in environments with different amounts of stored data. The experiments with

Cassandra show good scalability and performance results and how the database size and number of nodes

affect it.

1 INTRODUCTION

Nowadays NoSQL databases have become the

primary alternative to relational databases, with

scalability, availability, and fault tolerance being key

deciding factors. The environment for a NoSQL

database is a largely distributed database system that

allows rapid, ad-hoc organization and analysis of

high-volume data types (Cattell, 2010). A flexible

and schema-less data model, horizontal scalability,

distributed architectures, and the use of languages

and interfaces that are “not only” SQL typically

characterize this technology (Moniruzzaman and

Hossain, 2013); (Abramova et al., 2015).

When people discuss about performance and

scalability, they very often use these two words

synonymously even though they are very different

(Smith and Williams, 2000). Scalability refers to the

characteristics of a system to increase performance

by adding additional resources. When it comes to

large distributed systems, scalability is a desirable

characteristic in the network, system, or process,

which indicates its ability to either be prepared to

grow, or handle an increasing portion of the work

evenly (Pokorny, 2011). Size is just one aspect of

scale that needs to be considered. Scalability may

refer to various parameters of the system: how easy

is it to add more storage capacity, how much

additional traffic it can handle, or how many more

transactions can be processed (Kuwahara et al.,

2013). It provides the foundation for decisions in

designing a distributed web architecture. This is an

essential asset for many large-scale web

applications, being able to handle extremely large

amounts of users. On the other hand, performance

refers to the capability of how fast something can get

done (Huang and Luo, 2013). Therefore,

performance is the speed at which a computer

operates during a benchmark test.

Standard benchmarks are widely used for

comparing the performance of different systems,

answering the common question of “Which is the

best system in a given domain, for specific kinds of

applications?” (Barata et al., 2014). Benchmarking is

an essential aspect of any database management

system. In an increased competition scenario,

companies are more and more faced with the need of

finding management tools that allow them to

diagnose critical business factors, with the purpose

of doing better each time. For this reason,

benchmarking exists to fit the needs of companies

who seek a support tool to improve overall

performance.

The main purpose of this work is to benchmark

the Cassandra NoSQL database using the Yahoo!

Cloud Serving Benchmark, in order to better

understand their execution capabilities for various

types of applications in environments with different

amounts of stored data. We obtain performance and

scalability results using different numbers of

processing nodes that provide a better understanding

on how the performance of this NoSQL is affected

Barata, M. and Bernardino, J.

Cassandra’s Performance and Scalability Evaluation.

DOI: 10.5220/0005980101270134

In Proceedings of the 5th International Conference on Data Management Technologies and Applications (DATA 2016), pages 127-134

ISBN: 978-989-758-193-9

127

by the size of the database.

The remainder of this work is organized as

follows. We begin to describe in Section 2 the

Cassandra database used in these experiments, and

in Section 3 we explain and characterize the YCSB

benchmark. Section 4 presents our experimental

evaluation and lastly section 5 presents our

conclusions and future work.

2 CASSANDRA

NoSQL databases were created primarily to address

issues with web applications that need to operate

with enormous loads of data as well as being able to

scale without difficulty. Cassandra is a Column

Family NoSQL database that is designed to solve the

challenges associated with massive scalability. It can

support a very high update throughput while

delivering low latency. Cassandra is very similar to

the usual relational model, made of columns and

rows. The main difference is the stored data, which

can be structured, semi-structured or unstructured.

When it comes to storage in clusters, all of the

data is stored in distributed fashion over all nodes of

the cluster. When a node is added or removed, all of

its data is automatically distributed over other

available nodes, and a failing node will be replaced

instantly. Because of this, it is no longer necessary to

calculate and assign data to each node. Cassandra’s

architecture is known to be peer-to-peer (partitions

tasks or workloads between peers equally) and

overcomes master-slave limitations such as high

availability and massive scalability. Data is

replicated over multiple nodes in the cluster. Failed

nodes are detected by gossip protocols (peer-to-peer

communication protocol in which nodes periodically

exchange state information about themselves and

about other nodes they know about) and those nodes

can be replaced instantly (Cooper et al., 2010).

In Cassandra, data is indexed by a key that is of

the type String. This key represents a line where data

is found, and in each row the data is divided into

columns and column families. Each column in

Cassandra has a name, a value and a timestamp.

Both the value and the timestamp are provided by

the client application when data is inserted. Besides

the normal typed columns, another kind of column

exists, they are known as the super columns. The

thing that differentiates these columns from the

others is the fact that instead of having objects as

values, they have other columns as values.

In order to group columns, Cassandra has a

concept known as: Column Families, which is very

similar to relational database tables. Unlike columns,

the Column Families are not dynamic and must be

previously declared in a configuration file. They are

the unit of abstraction containing keyed rows which

group together columns and super columns of highly

structured data. Column families have no defined

schema of column names and types supported.

Similarly to columns, there is also the Super

Column Family, which is a Column family that just

contains Super columns. It is useful for modeling

complex data types such as addresses and other

simple data structures.

Lastly, column families are grouped into

Keyspaces. These Keyspaces can be compared to

Schemas in a relational database.

Cassandra was designed to handle large amounts

of data spread across many commodity servers.

Cassandra provides high availability through a

symmetric architecture that contains no single point

of failure and replicates data across nodes.

Cassandra’s architecture is a combination of

Google’s Big-Table (Chang et al., 2008) and

Amazon’s Dynamo (DeCandia et al., 2007). It is a

peer-to-peer model, which makes it tolerant against

single points of failure and provides horizontal

scalability. Each node exchanges information across

the cluster every second. A sequentially written

commit log on each node captures write activity to

ensure data durability (Datastax, 2014). Data is then

indexed and written to an in-memory structure called

memtable, which resembles a write-back cache.

Once the memory structure is full, the data is written

to disk in an SSTable (sorted string table) data file (a

file of key/value string pairs, sorted by keys). All

writes are automatically partitioned and replicated

throughout the cluster. When a read or write request

is made, any node in the cluster is able to handle it.

Through the key, the node that answered the

requisition can know which node possesses data

information.

3 YAHOO CLOUD SERVING

BENCHMARK (YCSB)

The Yahoo! Cloud Serving Benchmark (YCSB) is

one of the most used benchmarks, and provides

benchmarking for the bases of comparison between

NoSQL systems. The YCSB Client can be used to

benchmark new database systems by writing a new

class to implement the following methods (Cooper et

al., 2010): read, insert, update, delete and scan.

These operations represent the standard CRUD

operations: Create, Read, Update, and Delete.

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

128

A cloud service testing client consists of two

parts: workload generator and the set of scenarios.

Those scenarios are known as workloads, which

perform reads, writes and updates. The YCSB

predefined workloads are (GitHub, 2015):

 Workload A: Update heavy. This workload has a

mix of 50% reads and 50% updates.

 Workload B: Read heavy. This workload has a

95% of reads and 5% of updates.

 Workload C: Read only. This workload is 100%

read.

 Workload D: Read latest. This workload has a

95% of reads and 5% of inserts.

 Workload E: Short ranges. This workload has a

95% of scans and a 5% of inserts.

 Workload F: Read-modify-write. In this

workload, the client will read a record, modify it,

and write back the changes.

Due to space limits in the experimental evaluation

we only show the results using the workloads: A, B,

C, and D.

When a data set is generated, the client uses a set

of records that define the distributions that are most

likely to be chosen in the execution of operations. In

this benchmark three major distributions exist

(Cooper et al., 2010): Uniform, Zipfian and Latest.

In our experiment we use the uniform distribution

4 CASSANDRA EXPERIMENTAL

EVALUATION

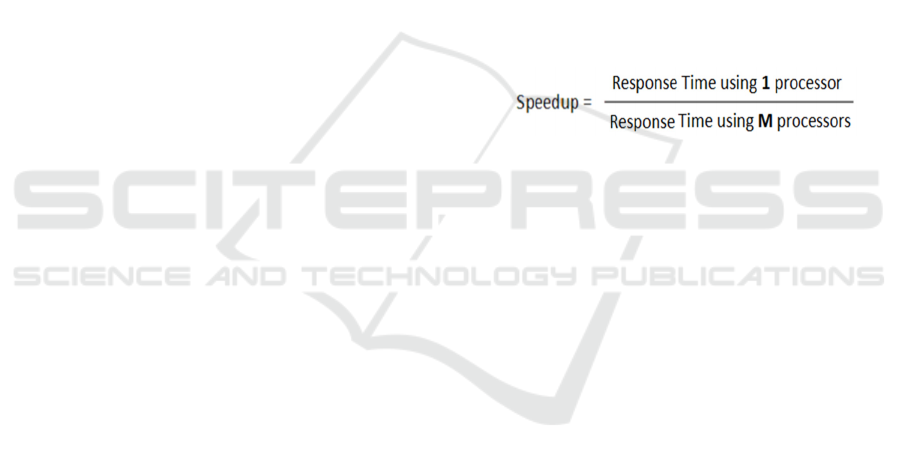

In this section the experimental setup, speedup

metric used and benchmarking results and analysis

of execution time for the workloads used with

uniform distribution will be presented.

4.1 Experimental Setup for YCSB

In this section we will describe our experiment using

the YCSB benchmark for the Cassandra database.

The tests were performed using three computers

using the Ubuntu Operating System. The computers

had the following characteristics Intel(R)

Core(TM)2 Quad CPU Q8300 @2.50GHz 2.51 GHz

3,99 GB of RAM available.

For this experiment we used a one node cluster

and a three node cluster, in which we loaded 10 000

000 and 100 000 000 records for the one node

cluster and then for the three node cluster

respectively. We performed 10 000 operations for

each scenario and used 1, 100 and 1000 threads.

All executions were repeated four times, and the

values presented in Section 5.2.1, 5.2.2, 5.2.3, 5.2.4,

5.2.5 and 5.2.6 are the average values of the three

executions. In order to maintain all executions

independent after each execution a computer restart

was effected. Due to the increased speed of

execution from the records in memory, this approach

of testing allowed us to have isolated results whose

runtimes are not influenced by the use of volatile

memory or the effect of cache results.

4.2 Speedup

In this experiment we use the speedup metric. The

speedup of a system is defined as the ratio between

response time using a processor and using multiple

processors or nodes (Karp and Flatt, 1990). The

speedup measures the increase in gain in

performance achieved using various processors

instead of a single processor and is calculated using

the following equation:

The ratio of the execution time using 1 processor to

the execution time with M processors. Ideally, one

would like Speedup=M, which is called ideal

speedup, although in practice this is rarely achieved.

An ideal speedup means that when we increase the

number of processors to M, the original response

time will be reduced by the same factor.

4.3 Cassandra Evaluation

In this section the benchmarking results and analysis

of execution time for workloads A, B, C, and D of

uniform distribution with 10 million and 100 million

records on 1 and 3 nodes will be presented.

4.3.1 Workload A

In this experiment we test workload A, which has

50% reads and 50% updates with uniform

distribution. Figure 1 shows the results for 10

million records and 100 million records for a single

node cluster and a 3 node cluster, with thread

variation of 1,100 and 1000.

Figure 1 shows workload A which has 50% reads

and 50% updates. In this figure we observe that the 3

node cluster was always faster than the 1 node

cluster. This was especially noticeable when dealing

with 100 and 1000 threads. We can see that the

results for 100 and 1000 threads were almost the

same in both scenarios. In Table 1 the speedup

Cassandra’s Performance and Scalability Evaluation

129

results for 1 and 3 nodes are presented.

Figure 1: Execution Time of Workload A.

Table 1: Speedup results for 1 and 3 nodes (Workload A).

1 Thread

(1->3)

100 Threads

(1->3)

1000 Threads

(1->3)

10 M Records

1.97 4.50 4.69

100 M Records

1.15 3.33 3.36

Analyzing Table 1 we conclude that in the 100

and 1000 thread case for the 3 node cluster in

comparison to the 1 node cluster the performance

results were always superlinear. With 100 threads

we obtained speedup results that were 4.5 times

faster for 10 million records and 3.33 times faster for

100 million records. For the 1000 thread case

scenario we see that it was 4.69 and 3.36 times faster

when using the 3 node cluster in comparison to the 1

node cluster in both 10 million and 100 million

records respectively. In both these cases the reason

for these superlinear results is due to the fact that

with one node there is always a limit, but if we

increase the number of nodes to 3 we are

incrementing power to a multiple factor of 3. The

overall gain is limited by the processing power of

the node which is not able to process all of the 100

threads at the same time, however, when we increase

the cluster size to 3 we are dividing more data and

because of this more gain is achieved. What this

means is that we are getting rid of this limit that

exists with the single cluster because we increase

processing power to 3 and therefore 300 threads are

going to be working simultaneously for the 3 node

cluster. However, when analyzing 1 thread we

observe that a speedup result of only 1.97 was

obtained for 10 million records, and a speedup result

of 1.15 for 100 million records. The reason why the

gain here was sublinear is because we increased

computing power by 3 and the additional node

overhead (any excess computation time, memory,

bandwidth or other resources) of network

communication is greater than this gain.

In conclusion, we expected some factors from

this experiment to have been different. For instance,

the performance was expected to improve

approximately 3 times more from the single node

cluster to the 3 node cluster in all threads. However

in the 1 thread scenario this did not happen because

in the 3 node cluster the database had to transfer

more information by network to execute each query.

Also, there was no improvement in execution time

from 100 to 1000 threads because of the network

overheads and the processing overheads. This could

be because the processor may not support more

threads at the same time due to the fact that both the

memory and the processor have a limit. Because of

this, it is apparent that from 1 thread to 100 threads

saturation was achieved. Since no improvements

were calculated from 100 to 1000 threads, it

becomes evident that at 100 threads our experiment

reached the limit of hardware resources available.

Table 2 presents the percentage gain obtained for

workload A.

Table 2: Percentage Gain for Workload A.

1 –> 100

Threads

100 -> 1000

Threads

10 M Records – 1 Node

39% 5%

10 M Records – 3 Nodes

73% 8%

100 M Records – 1 Node

12% 5%

100 M Records – 3 Nodes

70% 5%

In terms of gain, we conclude from Table 2 that

better results were achieved when going from 1 to

100 threads in all four cases. Distinct values between

different record sizes and nodes were noticed with

100 threads especially when dealing with 3 nodes. In

both 10 and 100 million records with 3 nodes there

was a gain of 73% and 70% respectively. These

results were undoubtedly better in comparison to

using a single node. When using 10 million records

and 100 million records when going from 1 to 100

threads with the single node we see a percentage

gain of 39% for 10 million records, and only a 12%

gain with 100 million records. On the other hand,

when going from 100 threads to 1000 threads we see

that almost no gain was achieved. Percentage gain

in this case when dealing with 10 million records

and 3 nodes was 8%, and only 5% when dealing

with 100 million records with 1 and 3 nodes, and 10

million records with 1 node.

4.3.2 Workload B

In this experiment workload B was tested with

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

130

uniform distribution. This workload has 95% reads

and 5% updates. Figure 2 shows the results for 10

and 100 million records for a 1 and 3 node cluster,

with 3 different thread variations (1, 100 and 1000).

Figure 2: Execution Time of Workload B.

Figure 2 shows workload B, from this figure we

conclude that that 3 node cluster always had faster

execution times than the 1 node cluster. In Table 3

we present the speedup results obtained for this

workload.

Table 3: Speedup results for 1 and 3 nodes (Workload B).

1 Thread

(1->3)

100 Threads

(1->3)

1000 Threads

(1->3)

10 M Records

1.47 3.93 4.10

100 M Records

1.10 2.78 2.92

In the 100 and 1000 thread case the performance

results obtained when using 10 million records from

1 node to 3 nodes were superlinear in both cases. For

100 threads it was 3.93 times faster and with 1000

threads it was 4.10 times faster as can be seen from

Table 3. With 100 million records the results we

obtained were also good having achieved an almost

linear speedup, 2.78 for 100 threads and 2.92 for

1000 threads. When using 1 thread the results

obtained were sublinear for both 10 million and 100

million records. When using 10 million records we

obtained a result of 1.47 from 1 node to 3 nodes, and

a result of 1.10 was calculated when using 100

million records. In both 100 and 1000 threads the

results were very similar, varying only by a few

seconds from 10 million records to 100 million

records as we can see from Figure 8. This is because

various threads are going through the CPU, and the

CPU can only do so many things at a given time,

therefore if a certain threshold is hit, it doesn’t

matter how many more things are trying to get

through the CPU, it is still limited by what the CPU

can process at a given time. Just because we add

more threads, does not mean we will obtain better

performance results. This workload in general

achieved slower results than those presented in

workload A because Cassandra is optimized for

write-heavy workloads. In Table 4 we present

workload B’s percentage gain.

Table 4: Percentage Gain for Workload B.

1 -> 100

Threads

100 -> 1000

Threads

10 M Records – 1 Node

28% 2%

10 M Records – 3 Nodes

73% 6%

100 M Records – 1 Node

15% 2%

100 M Records – 3 Nodes

66% 7%

When comparing the results obtained from Table

4 we can see that 100 and 1000 threads had very

different behavior. From 1 to 100 threads the 3 node

cluster once again had better results in both 10 and

100 million records with 73% and 66% percentage

gain respectively, while the single node cluster had a

gain of 28% for 10 million nodes, and 15% for 100

million nodes. However, when comparing the results

obtained from 100 to 1000 threads we conclude that

the gain was little to none in this experiment. The 3

node cluster here once again had a bit more gain

than the 1 node cluster with 6% for 10 million

records, and 7% for 100 million records, while the

single node cluster had a gain of only 2% for both 10

and 100 million records.

4.3.3 Workload C

In this experiment we test workload C which has

100% reads with uniform distribution. Figure 3

shows the results for 10 million records and 100

million records for a single node cluster and a 3

node cluster, with thread variation of 1, 100 and

1000.

Figure 3: Execution Time of Workload C.

In Figure 3 workload C results are presented. For

Cassandra’s Performance and Scalability Evaluation

131

this workload we have 100% of reads. The results

obtained from this experiment were similar to those

obtained from workload B which had 95% reads and

5% updates. When comparing execution times, we

can see a major improvement in time for 100 and

1000 threads in both 10 million and 100 million

records from 1 to 3 nodes. In Table 5 the speedup

results for 1 and 3 nodes are presented.

Table 5: Speedup results for 1 and 3 nodes (Workload C).

1 Thread

(1->3)

100 Threads

(1->3)

1000 Threads

(1->3)

10 M Records

1.59 3.54 3.61

100 M Records

1.04 2.97 2.99

From Table 5 we see that for 100 threads from 1

to 3 nodes it is 3.54 times faster with 10 million

records and 2.97 times faster with 100 million

records. On the other hand with 1000 threads

comparing the 1 node cluster to the 3 node cluster

we conclude that with 10 million records we

obtained an improvement of 3.61 and with 100

million records we got and improvement in speedup

of 2.99. Once again the same scenario from the two

previous workloads was observed with 1 thread.

With 10 million records the execution time was 1.59

times faster comparing 1 node to 3 nodes and with

100 million records the result was 1.04 times faster

with the 3 node cluster. These results are sublinear,

and have to do with the fact that the database had to

transfer more information by network to execute

each query and because computing power was

increased to 3, the node overhead of network

communication proved to be more than the gain we

obtained. As mentioned before, Cassandra is

optimized for write-heavy workloads, because of

this Cassandra’s efficient sequential use of disk for

updates reduces contention for the disk head.

However, the results here for both 100 and 1000

threads were as expected in terms of scalability

because as the number of nodes increased from 1 to

3, the results obtained also improved 3 times more

seeing as the execution time decreased significantly

from 1 to 3 nodes. Table 6 presents the gain in

percentage we calculated for workload C.

Table 6: Percentage Gain for Workload C.

1 -> 100

Threads

100 -> 1000

Threads

10 M Records – 1 Node

32% 3%

10 M Records – 3 Nodes

70% 5%

100 M Records – 1 Node

12% 1%

100 M Records – 3 Nodes

69% 2%

From Table 6 we conclude that from 1 to 100

threads the results obtained were better than from

100 to 1000 threads. With 100 threads we see that

for the 3 node cluster we had better percentage gain

in both 10 and 100 million records with 70% for 10

million records and 69% for 100 million records. In

case of the single cluster we see a gain of 32% for

10 million records, and only 12% for 100 million

records. However, for 1000 threads the gain was

once again close to none. For 10 million records a

gain of 3% was calculated in the single node cluster,

and 5% in the 3 node cluster. For 100 million

records a gain of only 1% for the 1 node cluster was

obtained and 2% for the 3 node cluster.

4.3.4 Workload D

In this experiment we test workload D which has 5%

inserts and 95% reads with uniform distribution.

Figure 4 shows the results for 10 million and 100

million records for a single node cluster and a 3

node cluster, with thread variation of 1, 100 and

1000.

Figure 4: Execution Time of Workload D.

Figure 4 shows workload D which includes 5%

of insert and 95% of read operations. This workload

is similar to workload B which has 95% reads and

5% updates. In terms of execution times even though

both workload B and D contain 95% reads, the insert

and update part of the workload changed everything

seeing as workload D presented faster results than

workload B. This is because in workload B an

update needs to firstly scan the whole table in order

to get the records to update, and in workload D data

is just simply inserted. For workload D the results

displayed major differences when comparing 1

thread to 100 and 1000 threads. Table 7 shows the

speedup results for the single node and 3 node

cluster.

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

132

Table 7: Speedup results for 1 and 3 nodes (Workload D).

1 Thread

(1->3)

100 Threads

(1->3)

1000 Threads

(1->3)

10 M Records

1.44 5.53 5.96

100 M Records

1.47 3.16 3.46

From Table 7 we see that the 1 thread scenario

has an improvement in terms of speedup that is 1.44

times faster with 10 million records and 1.47 times

faster with 100 million records when using the 3

node cluster as opposed to the 1 node cluster. The

results obtained here were not as expected in terms

of scalability because as the number of nodes

increased from 1 to 3, the results obtained were also

supposed to improve nearly 3 times more. Just like

in the previous workloads the explanation here is the

same seeing as additional node overhead of network

communication was greater than the gain. However,

when comparing the results for 100 and 1000

threads we see an improvement in execution time in

both threads. The results here were superlinear. With

100 threads we obtained a speedup result of 5.53

with 10 million records and 3.16 with 100 million

records. In the 1000 thread case we obtained a

speedup results that was 5.96 times faster with 10

million records and 3.46 times faster with 100

million records from 1 node to 3 nodes. In these four

cases the time reduced by 3 from 1 node to 3 nodes,

making these results super, seeing that as we

increased the number of nodes from 1 to 3 the

results also improved 3 times more. However, seeing

as the results from 100 to 1000 threads were very

similar in terms of execution time, saturation was

achieved at 100 threads. Table 8 presents the

percentage gain results for workload D.

Table 8: Percentage Gain for Workload D.

1 -> 100

Threads

100 -> 1000

Threads

10 M Records – 1 Node

26% 5%

10 M Records – 3 Nodes

81% 12%

100 M Records – 1 Node

32% 2%

100 M Records – 3 Nodes

69% 10%

After analyzing Table 8 we conclude that the

results here were much better when going from 1 to

100 threads as opposed to 100 to 1000 threads. 100

threads had superlinear results with 3 nodes having a

gain of 81% for 10 million records and 69% for 100

million records. For the single node cluster we

obtained a gain of 26% for 10 million records, and

32% for 100 million records. With 1000 threads we

see that better results were calculated once again

with the 3 node cluster in comparison to the 1 node

cluster. Having the 3 node cluster a gain of 12% for

10 million records, and 10% gain for 100 million

records. For the single cluster only a 5% gain was

obtained for 10 million records, and 2% for 100

million records.

5 CONCLUSIONS AND FUTURE

WORK

The popularity of NoSQL databases has increased in

recent years because they bring a number of

advantages compared to relational databases. In our

work we experimentally evaluated Cassandra, one of

the most popular Column family NoSQL databases.

Throughout the experimental evaluation we

assessed performance and scalability of the

Cassandra database using the Yahoo! Cloud Serving

Benchmark. The workloads that were used were

defined in a range of scenarios. We tested factors

such as data size, number of nodes, number of

threads, workload characteristics, and analyzed

whether desirable speedup and scalability properties

were met. By analyzing the results we concluded

that Cassandra exhibits good scaling capacity while

maintaining the performance which leads us to say

this database is highly optimized to work with large

volumes of data. After concluding our results we

expected some factors from this experiment to have

been different. For instance, the performance was

expected to improve 3 times more from the single

node cluster to the 3 node cluster in all thread cases.

However in the 1 thread scenario this did not happen

in any workload because in the 3 node cluster the

database had to transfer more information by

network to execute each query making the gain

sublinear because we increased computing power by

three and the additional node overhead of network

communication is greater than this gain. Also, there

was no major improvement or difference in

execution time when going from 100 to 1000 threads

because of the network overheads and the processing

overheads. This could be because the processor may

not support more threads at the same time due to the

fact that both the memory and the processor have a

limit. Since various threads are going through the

CPU, and the CPU can only do so many things at a

given time, if a certain threshold is hit, it doesn’t

matter how many more things are trying to get

through the CPU, it is still limited by what the CPU

can process at a given time. Just because we add

more threads, does not mean we will obtain better

performance results. Because of this, it is apparent

that from 1 thread to 100 threads saturation was

achieved. In terms of gain, we can also conclude that

Cassandra’s Performance and Scalability Evaluation

133

far better results were achieved when going from 1

to 100 threads when using 10 and 100 million

records for 1 and for 3 nodes. Distinct values

between different record sizes and nodes were

noticed when going from 1 to 100 threads especially

when dealing with 3 nodes. In both 10 and 100

million records with 3 nodes there was almost

always a better gain in comparison to using a single

node.

In general Cassandra’s workload executions are

fast except when it is necessary to execute scans, in

those cases the performance highly decreases and

the system is not as fast. It is important to remember

that regardless operation type the system must be

scaled adequately, according to the database size.

As future work, we intend to analyze and

compare the variation of execution time,

performance and scalability between different types

of NoSQL databases using the YCSB benchmark by

increasing record size, using more clusters and using

more operations. This approach would enable us to

better understand how NoSQL and relational

databases differ from one another comparing which

one is better for different purposes.

REFERENCES

Abramova V., Bernardino J., Furtado P. (2015), SQL or

NoSQL? Performance and scalability evaluation.

IJBPIM 7(4): 314-321 (2015)

Barata, M., Bernardino J., and Furtado P. (2014), "YCSB

and TPC-H: Big Data and Decision Support

Benchmarks," 2014 IEEE International Congress on

Big Data, Anchorage, AK, 2014, pp. 800-801.

Cattell R. (2010) “Scalable SQL and NoSQL data stores”

SIGMOD Record Vol. 39 No. 4 pp. 12-27.

Chang F., Dean J., Ghemawat S., Hsieh W., Wallach A.,

Burrows M., Chandra T., Fikes A., and Gruber R.

(2008) “Bigtable: A distributed storage system for

structured data” ACM Trans. Comput. Syst. (26) no. 2.

Charsyam - Cassandra Data Model - https://charsyam.

wordpress.com/tag/cassandra-data-model/ Accessed

08-01-2015.

Cooper, B. F., Silberstein, A., Tam, E., Ramakrishnan, R.,

Sears, R. (2010) “Benchmarking Cloud Serving

Systems with YCSB”, SoCC pp. 143-154.

Data Magnum –Graph Databases (Including Object DBS)

- http://data-magnum.com/lesson-8-graph-databases-

including-object-dbs/ Accessed 29-11-2015.

Datastax - Apache Cassandra™ 1.1 Documentation -

http://www.datastax.com/doc-source/pdf/cassandra11.

pdf - Accessed 31-05-2014.

DeCandia G., Hastorun D., Jampani M., Kakulapati G.,

Lakshman A, Pilchin A, Vosshall P., and Vogels W.,

(2007) “Dynamo: Amazon’s Highly Available Key-

Value Store”, SOSP pp.205-220.

GitHub - YCSB. - https://github.com/brianfrankcooper/

YCSB/wiki/core-workloads - Accessed 02-11-2015.

High Scalability - 5 Steps To Benchmarking Managed

NoSQL - DynamoDB Vs Cassandra - http://

highscalability.com/blog/2013/4/3/5-steps-to-benchma

rking-managed-nosql-dynamodb-vs-cassandra.html -

Accessed 04-11-2015.

Huang, Y. and Luo T. (2013) “NoSQL Database: A

Scalable, Availability, High Performance Storage for

Big Data”. ICPCA/SWS pp. 172-182.

Karp, A. and Flatt H. (1990) “Measuring Parallel

Processor Performance”, Commum. ACM Vol. 33 No.

5, pp.539-543.

Kuwahara, H., Fan, M., Wang, S., Gao, X., (2013) “A

framework for scalable parameter estimation of gene

circuit models using structural information”.

Bioinformatics, Vol. 29 No. 13 pp. 98-107.

Lakshman, A. and Malik P. (2010) “Cassandra – A

Decentralized Structured Storage System”, Operating

Systems Review Vol. 44 No. 2 pp. 35-40.

MongoDB – MongoDB CRUD Introduction.

http://docs.mongodb.org/manual/core/crud-introductio

n/ Accessed 29-11-2014.

Moniruzzaman A. B. M. and Hossain S. A. (2013)

“NoSQL Database: New Era of Databases for Big data

Analytics - Classification, Characteristics and

Comparison.” CoRR Vol. abs/1307.0191.

Pokorny J. (2011) “NoSQL databases: a step to database

scalability in web environment.” pp. 278-283.

Smith C., and Williams L. G. (2000) “Performance and

Scalability of Distributed Software Architectures: An

SPE Approach”. Scalable Computing: Practice and

Experience Vol. 3 No. 4.

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

134
