Toward IFVM Virtual Machine: A Model Driven IFML

Interpretation

Sara Gotti and Samir Mbarki

MISC Laboratory, Faculty of Sciences, Ibn Tofail University, BP 133, Kenitra, Morocco

Keywords: Interaction Flow Modelling Language IFML, Model Execution, Unified Modeling Language (UML), IFML

Execution, Model Driven Architecture MDA, Bytecode, Virtual Machine, Model Interpretation, Model

Compilation, Platform Independent Model PIM, User Interfaces, Front End.

Abstract: UML is the first international modeling language standardized since 1997. It aims at providing a standard

way to visualize the design of a system, but it can't model the complex design of user interfaces and

interactions. However, according to MDA approach, it is necessary to apply the concept of abstract models

to user interfaces too. IFML is the OMG adopted (in March 2013) standard Interaction Flow Modeling

Language designed for abstractly expressing the content, user interaction and control behaviour of the

software applications front-end. IFML is a platform independent language, it has been designed with an

executable semantic and it can be mapped easily into executable applications for various platforms and

devices. In this article we present an approach to execute the IFML. We introduce a IFVM virtual machine

which translate the IFML models into bytecode that will be interpreted by the java virtual machine.

1 INTRODUCTION

The software development has been affected by the

apparition of the MDA (OMG, 2015) approach. The

trend of the 21st century (BRAMBILLA et al.,

2014) which has allowed developers to build their

system starting with abstract models, as well, to

align with the imposed changes and respond to

industry requirements related to cost and time to

market. It is not expensive to update a system from

its high level representation which is the abstract

models than to update the source code after the

targeted system was built.

UML (OMG, 2005) is the most successful

software modeling language, standardized by Object

Management Group (OMG) since 1997. It permits

abstract concepts presentation that allows analysis

and program description from textual syntax to

graphical diagrams.

A new model driven approach was developed

which is the execution of UML models without code

generation. It is based on the compilation or

interpretation of UML models.

There are solutions that execute models as those

based on unified modeling languageUML. They

define a subset of behavioral models whose

semantics are executable. The OMG group proposed

a fundamental standard fUML (OMG, 2011), which

is a subset of UML that contains the most relevant

part of class diagrams for modeling the data

structure and activity diagrams to specify system

behavior; it contains all UML elements that are

helpful for the execution of the models.

UML (OMG, 2005) is the best language used to

easily and successfully model many things but it

may not be suited for all domains, for example when

it comes to design user interfaces and user

interactions, there has been no standard way to

model user interfaces.

Therefore, a solution was adopted by the OMG

group in March 2013 which is the interaction flow

modeling language IFML (OMG, 2015), a concept

of modeling language that allows the system

modeler to express the content, user interaction and

control behavior of application front-end.

IFML (OMG, 2015), permits a high level

abstract representation of the different front end

aspects such as content, interface organization,

interaction and navigation options, and connection

with the business logic and the presentation style

without considering the implementation-specific

issues.

IFML is a platform independent language that

has been elaborated with an executable mind. IFML

executability expresses the execution semantics and

220

Gotti, S. and Mbarki, S.

Toward IFVM Virtual Machine: A Model Driven IFML Interpretation.

DOI: 10.5220/0005986102200225

In Proceedings of the 11th International Joint Conference on Software Technologies (ICSOFT 2016) - Volume 1: ICSOFT-EA, pages 220-225

ISBN: 978-989-758-194-6

maps the PIM model of the executable IFML with

behavior in the selected specific user interface

platform. The executability is found through model

transformations and code generators that make

models easily mapped into executable applications

in various platforms and devices.

As depicted in fig. 1, two main approaches were

defined for executing models: Code generation and

Model implementation that has two different forms

of execution which are model interpretation and

model compilation.

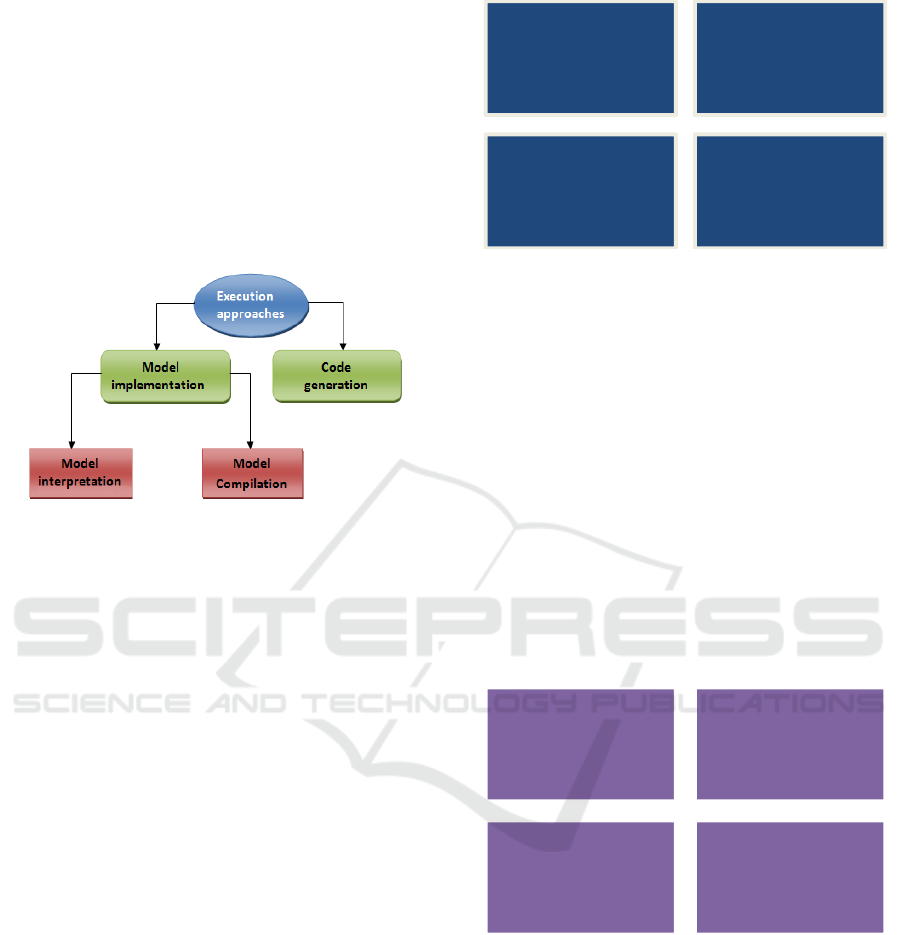

Figure 1: Types of model implementation.

In this paper, we opted for model interpretation

approach that aims to execute IFML models to

produce the bytecode equivalent.

The general plan of this article revolves around

the second part, which briefly presents the

interaction flow modeling language IFML, while the

third part is devoted to IFML executability, and

description of the kind of computation that an IFML

model specifies. The fourth part describes the

bytecode form that has been chosen as the target of

IFML execution. The IFML virtual machine process

will be shown in section five. The sixth section will

be devoted to the related works. It will be followed

by a conclusion in the seventh section indicating the

objectives status of the performed execution.

2 INTERACTION FLOW

MODELING LANGUAGE IFML

The user interface design became a more complex

task where many aspects intersect: graphic design

and aesthetics, enterprise visual identity, interaction

design, usability, multi-screen support, offline-

online usage, integration with backend business

logic and data, and coherence with the enterprise

organization models (BRAMBILLA et al., 2014).

Figure 2 shows the UI design problems.

Figure 2: UI design problems.

Furthermore, the execution of software systems

in multiple computing platforms is essentially

needed for today's technologies, and there is still no

support for multiple interfaces on multiple

computing platforms.

In order to prevent these problems to affect the

software system development, the interaction flow

modeling language was developed in 2012 and 2013

under the leadership of WebRatio. It was inspired by

the vast experience of 10 years of WebML

(WebRatio, 2008) that was dedicated to the

production of data-intensive Web applications.

IFML was adopted by the Object Management

Group (OMG) in March 2013.

Figure 3 describes the UI design solution, which

is the IFML.

Figure 3: UI design solution: IFML.

IFML supports the platform-independent

description of applications front end deployed on

systems such as desktop computers, laptops, PDAs,

mobile phones, and tablets regardless of the

technological details of their implementation, thing

that enables the communication of interface and

interaction design to nontechnical stakeholders,

enabling the early validation of requirements.

Each interface from UIs will be designed in

IFML as a ViewContainer; a ViewContainer

contains ViewComponents that enable content

Complexity of user

interfaces

Ineffective design

tools

Manual

specification of data

and visualization

No support for

human

interpretation of

data

Platform

independent

description of UIs

Focused on user

interactions and the

front-end behavior

No definition of

graphics and styles

open to extensibility

Toward IFVM Virtual Machine: A Model Driven IFML Interpretation

221

display and data entry. A view component can have

input and output parameters.

The user interactivity is expressed by Events in

association with ViewContainers and View-

Components. The event triggers actions that can

affect the interface; the reaction is denoted by

InteractionFlows that connect the event to a View-

Container, aViewComponent, or an Action. An

input-output dependency between elements can be

specified through parameter bindings associated

with navigation flows or through data flows that

only describe data transfer.

3 IFML EXECUTABILITY

The Model Driven Approach has appeared due to

the constraints related to the productivity and time to

market. It prompted the developers to focus on

modeling in the hopes of improving productivity by

increasing the levels of abstraction, automation, and

analysis.

According to MDA (OMG, 2015), developers

start with modeling their systems, after that they

generate an executable code (C, C++, Ada, Java,

Forth, even VHDL) automatically from their models

or directly execute them in order to generate the

equivalent binary.

For executing models, we need to define a

complete model that outlines the structure and the

behavior required enough to be executed.

IFML executability defines the execution

semantics of IFML language. It is an informal

description of the kind of computation that an IFML

model specifies. It defines the computation of values

shown in the views.

With the execution semantics we can reach any

executable behaviors in a specific user interface

platform from the platform independent IFML.

A user interacts with an interactive application

within a view and produces events that affect the

software system which reacts by changing the status

of views and executing actions that signal another

event and that are what the execution semantics of

IFML. The action functioning is not described by the

semantics of IFML.

Triggering events is one of execution semantics

aspects. With IFML execution semantics the Event

computation is treated after an event came out, it can

update the state of the ViewContainers and the

ViewComponents.

In fact, there are two forms of triggering events

produced by a user: event in a ViewContainer that

affect another ViewContainer by a NavigationFlow

and an event that affect an element inside the same

ViewContainer.

Events have effects on the state of user

interfaces. A state of interface gather visible

Viewcontainers, active ViewComponents, and

events.

AViewContainer is visible when it respects its

visibility turn according to a composition model that

contains the entire ViewContainers of the system.

A ViewComponent is active if its ViewContainer

is visible and its input parameters values are

available.

4 BYTECODE INTERMEDIATE

REPRESENTATION

Bytecode is a small and easy-to-understand set of

instructions designed for efficient execution by a

software interpreter.

It is a binary code that is usually processed by a

program, and then converted by a virtual machine

into a specific machine instructions understood by a

computer's processor. It includes instructions that are

executable by a virtual machine interpreter.

Bytecode is compiling source code result of a

language that comes with a virtual machine for each

platform thing that make the source language

statements compiled only once and then run on any

platform.

The most famous language today that uses the

bytecode and virtual machine approach is Java.

The Java compiler translates the java source code

into bytecode (class files), which can be executed

after by the Java Virtual Machine interpreter.

A bytecode, result from a source code

compilation, can be run in java virtual machine even

if the source code is not written in java.

One of the advantages of Java bytecode is that it

can be recompiled at each particular system platform

by a just-in-time compiler. Usually, this will enable

the Java program to run faster.

It is an output programming language

implementation used as an intermediate

representation which is hardware and operating

system independent, thing that makes interpretation

easy and fast.

After a Java file is compiled, all references to

variables and methods are stored in the constant pool

table as a symbolic reference in the java class file.

The constant pool table contains many structures

of various string constants, class and interface

names, field names, and other constants.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

222

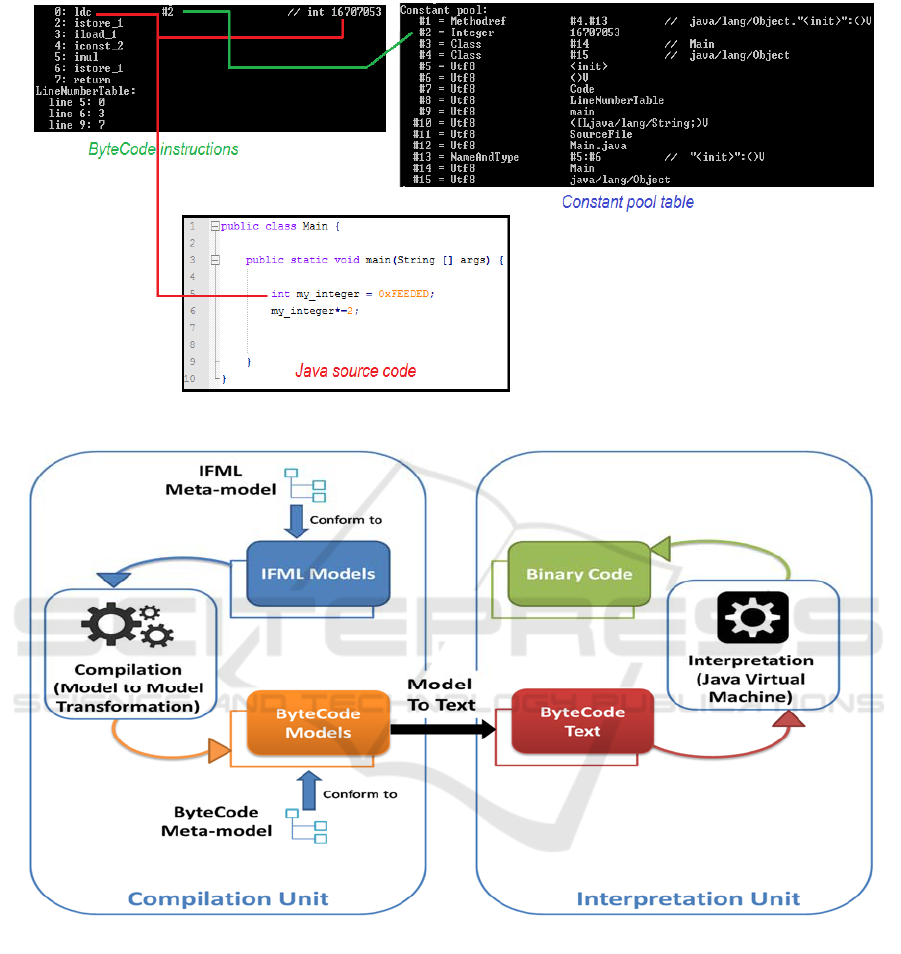

Figure 4: example of java class file (bytecode) from java source code.

Figure 5: IFVM virtual machine architecture.

All computation in the JVM centers on the stack.

Everything must be pushed onto the stack.

As depicted in figure 4, after compiling our java

example code, we obtain a java class file which

contains the constant pool table with bytecode

instruction equivalent.

The constant pool has 15 entries in total. Entry

#1 is Method public static void main, while #2 is for

integer value 0xFEEDED (decimal 16707053). Also

we have two entries #3 and #4 which corresponds to

this class and super class. Rest is the symbol table

storing string literals.

In the example’s bytecode sequences (see figure

4), the integer 16707053 is pushed onto the stack

with ldc instruction, then it is popped off the top of

the stack and stored back to the local variable by the

istore_1 instruction. After that, local variable is

multiplied by two by first pushing the local variable

onto the stack with the iload_1 instruction, and then

pushing two onto the stack with iconst_2.

After both integers have been pushed onto the

stack, the imul instruction effectively pops the two

integers off the stack, multiplies them, and pushes

the result back onto the stack. The result is popped

Toward IFVM Virtual Machine: A Model Driven IFML Interpretation

223

off the top of the stack and stored back to the local

variable by the istore_1 instruction.

5 IFML VIRTUAL MACHINE

Our contribution is to produce an IFML virtual

machine called IFVM for executing user interfaces

designed with IFML models.

In order to make possible an execution of such

models we opted for an approach that uses a model

driven transformation to equivalent executable

binary models.

A IFML model is translated to executable IFVM

virtual machine bytecode.

The IFVM virtual machine consists of two major

units: the compilation unit and the interpretation unit

(see Figure 5). The IFVM benefits from the

advantages of the famous java virtual machine.

The compilation unit compiles the IFML models

in order to generate the bytecode. While the second

unit which is the interpretation unit, it is dedicated to

the java virtual machine that will interpret the

bytecode generated in the previous unit in order to

produce the binary code in a specific platform.

The Java Virtual Machine represents an interface

between the bytecode and computer. Its

implementations for different platforms are called

Java runtime systems. The Java Virtual Machine

allows running the same bytecode on any platform.

So, "write once, run anywhere" java makes it

become a reality.

As introduced before, the bytecode produced

from the first unit (compilation) is equivalent to

IFML elements. It is the java bytecode which is

based on the instruction set of the java virtual

machine.

However, since IFML can be mapped to

executable programs and structures, such as a

relational database and a set of JSP templates and

components of the MVC architecture according to

(BRAMBILLA et al., 2014), it is easy to map IFML

models to the instruction set of IFVM.

Bytecode instructions are passed to and from

interactions through a stack without using registers,

like it is given in other compiled high-level

languages.

The IFVM bytecode has instructions similar to

those of java bytecode. IFVM instruction set

includes all java virtual machine instruction set.

The compilation unit represents a model to

model transformation aiming to produce IFVM

bytecode from the IFML model according to IFML

and bytecode metamodels.

The second unit starts by a step which is a model

to text transformation in order to produce the

bytecode text that will be used as input to the java

virtual machine.

6 RELATED WORKS

As depicted in figure 1, there are two basic types of

model implementations: the compilation and the

interpretation. While compilers admit compilation

approach and virtual machines admit interpretation

approach.

After the apparition of the MDA approach, many

researches developed approaches for executing

UML models applied on such a subset of UML

which semantics are executable. Among these

approaches, we cite (J. Chanda et al., 2010), (Knapp

et al, 2002), (Fredriksen et al., 2005).

(Knapp et al., 2002) Implements the code

generation approach, it develops a solution called

HUGO based on a set of tools for model checking

and generating Java code from UML model.

(J. Chanda et al., 2010) Implements the model

compilation approach; it takes context free

grammars for the two UML diagrams: Class diagram

(depicting the static design) and sequence diagram

(depicting behavioural design) and verifies the

syntactic correctness of the individual diagrams and

semantic correctness in terms of consistency

verification with other diagrams.

(Fredriksen et al., 2005) implements the model

interpretation approach. It develops a UML virtual

machine that executes UML models. It proposes a

subset of UML models and operational semantics for

directly executing those models.

It has been shown, in this section, that there are

many solutions proposed for allowing UML

execution. But no defined solution has been

presented for executing the user interface front end

that can be designed with IFML models. This work

is the first approach proposed for executing IFML

models.

7 CONCLUSIONS

IFVM is our virtual machine proposed for executing

IFML models after a big study of executability of

IFML platforms which depends on the events and

the status of IFML elements.

Our approach is based on an executable IFML

that represents the front end of a system. We have

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

224

defined an IFVM Virtual Machine for the efficient

execution of IFML models, which can be

implemented in many platforms due to java virtual

machine advantages.

Our approach eliminates erroneous intermediate

step which is the code generation before the

execution and increases the portability that came

from the advantages of virtual machine concept.

The domain modeling (back end) is one of the

most consolidated disciplines of information

technology. Many languages have been proposed

such as UML.

With IFML and the UML executable standards

fUML (OMG, 2011) (executable subset of UML)

and the Alf (OMG, 2013) the action language that

follows the fUML subset, we can propose as a future

work a framework that produces a complete model

driven executable system with both the front end

which can be presented by IFML and the back end

that can be designed by UML executable subset.

REFERENCES

OMG, “OMG Unified Modeling Language (OMG

UML)”, Superstructure, Version 2.0, http://www.

omg.org/spec/UML/2.0, 2005.

OMG, “Semantics of a Foundational Subset for

Executable UML Models (fUML)”, v1.0, 2011.

OMG, “Action Language for Foundational UML (Alf)”.

http://www.omg.org/spec/ALF/, 2013.

Knapp, A., and Merz, S., “Model checking and code

generation for UML state machines and

collaborations”, Proc. 5th Wsh. Tools for System

Design and Verification, 2002, p. 59-64.

Fredriksen, K.,”UMLexe–UML virtual machine: a

framework for model execution”, 2005.

BRAMBILLA, Marco et FRATERNALI,

Piero. Interaction Flow Modeling Language: Model-

Driven UI Engineering of Web and Mobile Apps with

IFML. Morgan Kaufmann, 2014.

OMG, MDA. “MDA Guide Version 2.0.” ,2015.

OMG, Interaction Flow Modeling Language. Version 1.0.

IFML (2015), available at http://www.omg.org/

spec/IFML/1.0/

WebRatio: http://www.webml.org (2008).

J. Chanda, A. Kanjilal, and S. Sengupta, “UML-compiler:

a framework for syntactic and semantic verification

ofUML diagrams”. Distributed Computing and

Internet Technology. Springer Berlin Heidelberg,

2010, p. 194-205.

Toward IFVM Virtual Machine: A Model Driven IFML Interpretation

225
