Boosting an Embedded Relational Database Management System with

Graphics Processing Units

Samuel Cremer, Michel Bagein, Sa

ıd Mahmoudi and Pierre Manneback

Computer Science Department, University of Mons, Rue de Houdain 9, 7000, Mons, Belgium

Keywords:

In-memory Database Systems, Embedded Databases, Relational Database Management Systems, GPU.

Abstract:

Concurrently, with the rise of Big Data systems, relational database management systems (RDBMS) are still

widely exploited in servers, client devices, and even embedded inside end-user applications. In this paper,

it is suggest to improve the performance of SQLite, the most deployed embedded RDBMS. The proposed

solution, named CuDB, is an ”In-Memory” Database System (IMDB) which attempts to exploit speciﬁcities

of modern CPU / GPU architectures. In this study massively parallel processing was combined with strategic

data placement, closer to computing units. According to content and selectivity of queries, the measurements

reveal an acceleration range between 5 to 120 times - with peak up to 411 - with one GPU GTX770 compared

to SQLite standard implementation on a Core i7 CPU.

1 INTRODUCTION

In recent years, to deal with the exponential growth

of data volumes, numerous new database techniques

have appeared. Major improvements have been ac-

complished, especially in the area of Big Data sys-

tems. The different issues involved in current data

growth do not only concern datacentres but also end-

user applications. Whether with desktop platforms or

mobile devices, numerous end-user applications em-

bed an RDBMS - such as SQLite, SQL Server Com-

pact or MySQL embedded. Such embedded RDBMS

usually serve as storage systems, as well as cache sys-

tems to reduce the number of interactions between

clients and servers, and hence preserve low latencies

of user interfaces. With mobile systems, they are

also used to compensate for long periods of connec-

tion loss. Increasing client-side computing capaci-

ties enables the processing of larger data volumes and

hence to reduce the number of client-server commu-

nications.

In this paper a hybrid implementation over CPU

and GPU is suggested in order to improve SQLite

performances, which is the most widely deployed

database engine throughout the world

(it is part of

the majority of smartphone OS, browsers, Dropbox

clients, etc.). Standard implementation of the SQLite

SQLite : Most Widely Deployed and Used Database En-

gine, www.sqlite.org/mostdeployed.html

engine is purely sequential. Its performances can be

improved by using all processing units of CPUs and

GPUs. For numerous applications, GPU architectures

are currently more efﬁcient than CPUs (Huang et al.,

2009) and have become essential in modern systems,

even in small devices like smartphones. The major

contribution of this paper is to propose a data place-

ment strategy allowing the exploitation of a clever

parallelism offered by multicore CPU and GPU archi-

tectures. The beneﬁt provided by the proposition here

is the improvement of the responsiveness of client ap-

plications and the energy efﬁciency of full ”client-

network-server” chains.

The remainder of this paper is structured as fol-

lows: Section 2 presents the state of the art and the

CuDBs position. Section 3 describes the internal ar-

chitecture of the system, its storage engine and how

join queries are processed. Evaluation results are pre-

sented in Section 4, and this paper ends with the con-

clusion and outlooks.

2 STATE OF THE ART

The idea of using hybrid CPU/GPU architectures to

accelerate the data processing of database engines

emerged in 2004 (Govindaraju et al., 2004), some

years before the release of general-purpose process-

ing on GPU (GPGPU) frameworks. Two main ap-

proaches have been proposed.

170

Cremer, S., Bagein, M., Mahmoudi, S. and Manneback, P.

Boosting an Embedded Relational Database Management System with Graphics Processing Units.

DOI: 10.5220/0005995701700175

In Proceedings of the 5th International Conference on Data Management Technologies and Applications (DATA 2016), pages 170-175

ISBN: 978-989-758-193-9

The ﬁrst one emerged in 2007 with GPUQP (Fang

et al., 2007). This approach divides query plans into

different action patterns which could be processed

with different levels of parallelism, either on CPU or

GPU targets. GPUQP introduced the basic design ar-

chitecture for most works which followed. So far, the

vast majority of research in this ﬁeld is focused on

very speciﬁc aspects of DBMS, and does not provide

a complete database engine. For example, GPUTx,

proposed by the authors in (He and Xu Yu, 2011),

focused on transaction management and their lock-

ing mechanisms. OmniDB (Zhang et al., 2013), is

another system in which the authors paid more atten-

tion to the maintainability properties of source code.

The objective of GPUDB (Yuan et al., 2013), was

to analyse the abilities of GPUs for online analyti-

cal processing (OLAP). Ocelot (Heimel et al., 2013)

can also be mentioned, an extension of MonetDB, a

kernel-adapter approach to make a portable database

engine across different hardware architectures, and

CoGaDB (Breßet al., 2013) which is mainly designed

to study the generation of execution plans. From

what is known, the latest project which is closest to

a DBMS is Galactica (Yong et al., 2014), but with a

partial support of SQL, it is rather intended to be used

in Big Data environments.

The second approach, initiated by Sphyraena

(Bakkum and Skadron, 2010), forces full query plan

processing on the GPU side. Sphyraena mainly suf-

fers from numerous data exchange penalties through

PCI Express bus and does not exploit CPU’s paral-

lelism, but it seems to be more promising in terms

of speed and efﬁciency improvements for embedded

databases.

Most previous solutions are partial DBMS and

work with ”read-only” databases. These different

works are more targeted to Big Data systems and do

not encounter many of the issues of full relational

database managements systems.

With CuDB, it is suggested to boost embedded

RDBMS running inside end-user applications, which

is fully justiﬁed by size limitations and the lack of

extensibility of GPU memories. The aim is to im-

prove the performances at the RDBMS engine level,

which implicitly increases the responsiveness of ap-

plications, while leveraging capabilities of available

hardware architectures. CuDB is a hybrid CPU / GPU

fully read-write RDBMS engine. The proposal targets

a high performance solution for either server clusters,

personal computers (workstations, laptops) or small

devices (embedded systems). It can also be noted

that only two commercial products, GPUdb (GIS-

Federal, 2014) and Parstream (Hummel, 2010), use

database engines on hybrid architectures (numerous

CPUs and GPUs) but these are mainly oriented for

geographic information systems (GIS) and Big Data

environments.

3 DESIGN OF CUDB

3.1 Internal Architecture

Before understanding how the solution works, the ar-

chitecture of SQLite will be presented brieﬂy. SQLite

can be subdivided into four logical units. The ﬁrst unit

is the interface where the incoming SQL queries are

received and results are sent back to user application.

The second logical unit is the SQL Command Proces-

sor where incoming SQL queries are parsed and com-

piled to a resulting query plan (opcode list). These op-

code lists are comparable to an assembly style instruc-

tion list and are interpreted by the third unit of SQLite

named ”Virtual Database Engine” (VDE). This virtual

machine is in charge of executing those opcodes on

data stored and managed into the last unit of SQLite,

the Storage Engine (SE). In CuDB, the SQLite API

is preserved. The two ﬁrst stages are also preserved

in order to maintain SQL language support and to re-

main compatible with existing applications.

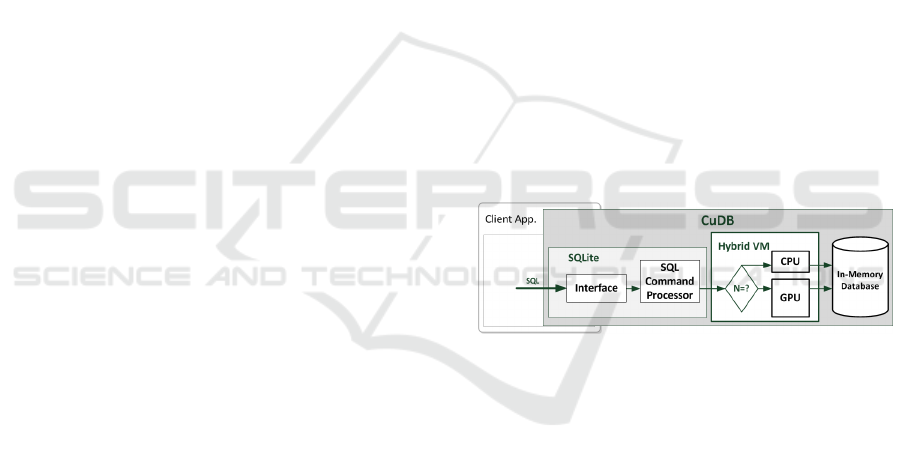

Figure 1: Internal architecture of CuDB.

VDE and SE units are the two components that in-

tensely require the most resources. To exploit speci-

ﬁcities of modern hardware architectures, CuDB em-

beds its own redesigned VDE and SE. (Figure 1). The

VDE of CuDB is designed as a Hybrid Virtual Ma-

chine (HVM) which incorporates two distinctive pro-

cessing engines. One is dedicated to the GPU, and the

other to the CPU, but both are based on the same par-

allel paradigm: each thread processes the query plan

on its own data rows. The workﬂow through the two

ﬁrst stages does not differ from the SQLite implemen-

tation. Then, the system adapts the received query

plan in order to launch it for processing, either on the

CPU or GPU. To get some beneﬁt from the hybrid

parallel hardware architecture, a same query-plan is

processed by each CPU or GPU thread on a differ-

ent dataset. Once a result row is calculated by a GPU

thread, it is sent to the main memory through an asyn-

chronous memory (pinned-memory). This technique

allows threads to start processing next rows without

Boosting an Embedded Relational Database Management System with Graphics Processing Units

171

waiting for the end of the transfers, which increases

the overall system performances.

To get some beneﬁt from the high memory band-

width between the graphic memory and GPU, the en-

tire database is hosted directly by the GPU global

memory (In-Memory-DB). The main advantage of

this design is to avoid most of the data transfers be-

tween the CPU and GPU, and delete most of the un-

necessary transfer latencies. With the “in-memory”

database and with the majority of the extraction

queries, experiments have revealed that performances

depend primarily on the available memory bandwidth

rather than computation power. Bandwidth between

the GPU and its dedicated memory is often higher

than that of a central RAM and CPU, and even more

than PCI-Express links. This fully justiﬁes the usage

of GPUs for query processing.

As with the majority of GPGPU systems, a cer-

tain amount of data is required for processing be-

fore the GPU becomes more efﬁcient than a CPU. To

make an efﬁcient use of hybrid architectures, HVM

chooses to execute processing, either on CPU cores

or GPU cores according to the data volume they have

to process. The implementation of the multi-core

CPU engine is based on the same principle as the

GPU version, but using POSIX threads instead of the

CUDA framework. To ensure maximum performance

on CPU, table duplications are also kept in the main

memory. The entire database is not duplicated in the

central RAM memory, but only in tables which are

processed faster on CPU (tables with less than 1000

rows). With the ﬁrst implementation of CuDB, a

separate memory management was used, with RAM

and GPU memory. The ”uniﬁed memory” method

provided by CUDA (from version 6) was tested to

avoid keeping a permanent copy of some tables. With

the ”uniﬁed memory”, CPUs and GPUs use a same

pointer to access the data. This makes writing code

much easier since automatically managing, different

memory transfers is achieved by the driver. However,

it was noted, over various experiments, that severe

slow-downs (between 2x to 9x) are introduced by the

”overhead” of automatic memory management: the

idea of using ”uniﬁed memory” on the engine was

abandoned. The work presented in (Landaverde et al.,

2014) also concludes that using ”uniﬁed memory” can

usually cause performance degradations.

3.2 Storage Engine

SQLite is one of the rare RDBMS which features a

dynamic typing system for each value: this is called

the ”Afﬁnity” mechanism. To preserve compatibility

with existing applications, CuDB supports dynamic

data typing. However, such functionality entails a

fairly high increase in complexity of treatments (dy-

namic casting of all data), and makes memory ac-

cesses less consistent (customized size of all data).

Performances of GPGPU solutions are very sensi-

tive to coherency of memory accesses (van den Braak

et al., 2010), which makes CuDB efﬁciency and per-

formance suboptimal when it handles dynamically

typed columns. To reach the best performance, a se-

lector was implemented for three different storage en-

gine conﬁgurations:

- (1) Afﬁnity: default storage conﬁguration. It

supports only dynamic typing similar to SQLite. Each

tuple is always preceded by a header, which is re-

quired to support the ”Afﬁnity” mechanism. Records

are stored in a linear way inside the memory, allowing

high data compactness.

- (2) Strict: storage conﬁguration with only static

typing support. No longer need to store typing head-

ers for each record. The performance is better through

more consistent memory access, and by disabling

”check type”’ features. Like the ”Afﬁnity” mode, this

is a row-oriented data structure.

- (3) Boost: to reach GPU peak performance, val-

ues are stored contiguously in the memory in order

to provide coalesced memory accesses. This can be

achieved thanks column-oriented and statically typed

storage conﬁguration.

Like MySQL, each table of the database can use

distinguishing storage conﬁgurations. With these dif-

ferent storage engines, the database can be adjusted to

its context while boosting the performances of appli-

cations with static data typing. With CuDB, database

insertions do not block the entire table and are pro-

cessed asynchronously by the CPU. On each database

update, data persistency is provided by a ”write-only”

mirror database saved on the hard drive.

3.3 JOIN Queries

The processing time of join queries highly depends on

the selected storage engine, for this reason, a descrip-

tion follows in this subsection of how CuDB handles

JOIN clauses. As CuDB conserves the query com-

piler from SQLite, the query plans generated by the

SQL Command Processor have to be used. The chal-

lenge is to ﬁnd the best way to automatically paral-

lelize the proposed plan. The query plan generated by

SQLite for a join-query with non-indexed columns,

like in query (1), proposes the creation of a temporary

indexation structure (B+ tree) for inserting records of

table t2. For each record of t1, corresponding records

of t2 are searched inside the transient indexed struc-

ture.

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

172

(1) SELECT * FROM t1 JOIN t2 ON t1.col2=t2.col3

This query plan has a complexity of O(m.log(m))

for creation and ﬁlling, plus O(n.log(m)) for pars-

ing the data. The classical B+ tree data structure

used by the SQLite virtual machine is not optimal

for an efﬁciently implementation on GPU architec-

ture. To beneﬁt from the massively parallel architec-

ture of a GPU, a data structure that can be ﬁlled con-

currently by numerous threads is required. Another

constraint is that each thread makes its own search

so that the traverse complexity of the structure must

be adapted to a sequential search. Several existing

GPU B+tree structures were investigated, for exam-

ple, T-trees and CSS-tree structures. However, it was

found that these structures cannot efﬁciently be ﬁlled

in a parallel way. Moreover, with the GPU B+tree,

a sequential pass through is slower than with a sim-

ple binary tree. Given that, once the temporary index

is ﬁlled, the structure is used in read only mode, the

approach is to use a simple vector of records. This

record-vector can be ﬁlled in a parallel way by all the

GPU threads, and can then be sorted, also in a par-

allel way. A sorted vector was obtained where each

thread could make a dichotomic search in O(log(n))

operations.

Several GPU sorting algorithms were investigated

and one of the fastest algorithms was the radix sort,

with a time complexity of O(n.w), in most cases,

where n is the number of keys of word length w. If all

keys are distinct, w is at least equal to log(n), but the

size of w can greatly increase when keys are strings.

With a database usage, the performances of a radix-

sort can be very variable depending on the key com-

plexity. For a database engine, the preference was to

select an algorithm which is independent of the sorted

values and datatypes. This is the reason why a bitonic

sorting algorithm was implemented. Figure 2 shows

the behaviour of such sorting algorithm.

The bitonic sorter is a sorting network with a worst

case complexity of O(n.log(n)

). The complexity of

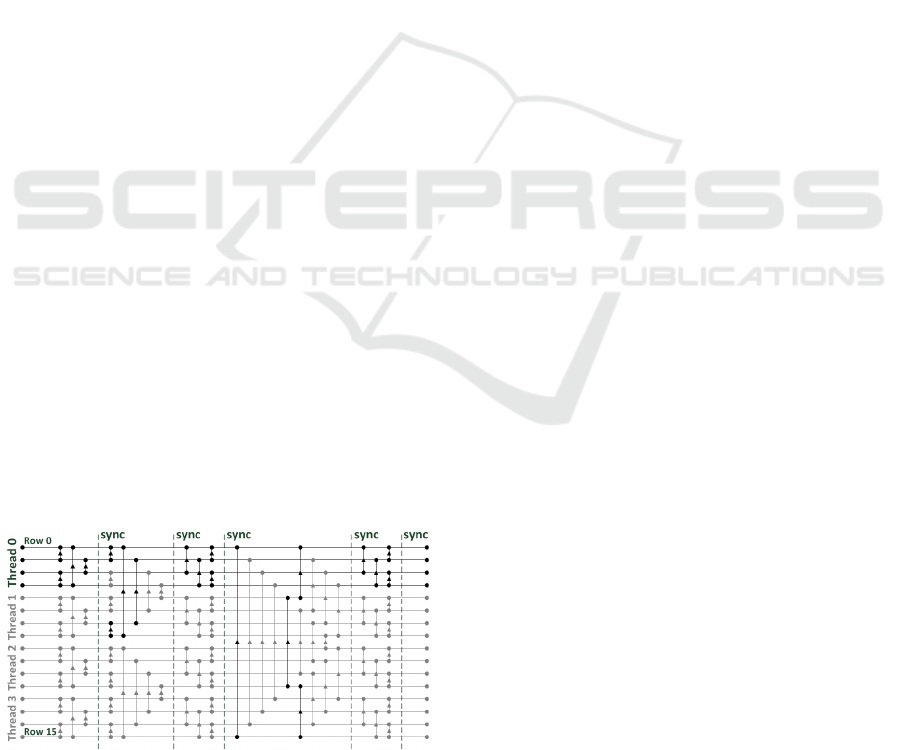

Figure 2: Implementation of the bitonic sorter algorithm on

GPU. Each thread sorts 4 rows, and thread synchronizations

are required after every 4 comparisons. The bold compar-

isons are processed by thread 0.

the bitonic sorter is slightly worse than with a radix

sort, but the performances are stable regardless of the

complexity of the sorted keys. To reduce the num-

ber of synchronizations, some implementation opti-

mization techniques were carried out following (Ha-

gen et al., 2010).

4 EVALUATION

For the performance evaluations, the time required

to process two sets of SELECT queries (single table

queries and JOIN queries) was measured with tables

of varying sizes (between one hundred and one mil-

lion rows with several numerical values and 80 char-

acter strings). The execution time of prepared state-

ments was measured so that the compilation time of

queries was not taken into account. The transfer times

required to send the query plans to the GPU were

considered, as well as the times needed by the GPU

to send the results to the CPU. Different conﬁgura-

tions of CuDB were compared with SQLite 3.8.10.2

and MySQL Embedded 5.7.11, both using in-memory

databases. The experiments were run on a desk-

top with a 4-core Intel i7-2600K CPU with Hyper

Threading, a 384-core GT740G5 GPU, and a 1536-

core GTX770 GPU. The maximal available memory

bandwidths were: 21 GB/s for the main DDR3 mem-

ory, 80 GB/s for the GT740, and 224 GB/s with the

GTX770. As performances can slightly ﬂuctuate,

each test was done a hundred times. The behaviour of

the system was quite constant, and for better readabil-

ity of this document, the average values are presented

here.

4.1 SELECT WHERE Queries

The different queries of this evaluation were applied

to non-indexed tables with columns of various data

types (numerical and strings). Figure 3 shows the

average speedups obtained by the different test con-

ﬁgurations with a standard implementation of SQLite

as reference engine. The performances of the three

storage engines were measured , but in order to not

overload this paper, only the slowest ”Afﬁnity” and

the fastest ”Boost” storage mode are shown. With the

hybrid engine of CuDB, queries applied to tiny tables

were processed by CPU cores and when the table size

exceeded one thousand records, the CuDB switched

from the CPU to GPU processing engine.

For tables of one million records, and with the

GTX770 GPU, speedups of 117x in Boost mode,

101x in Strict mode and 84x with the ”Afﬁnity” stor-

age engine were obtained. As the boosting of the

Boosting an Embedded Relational Database Management System with Graphics Processing Units

173

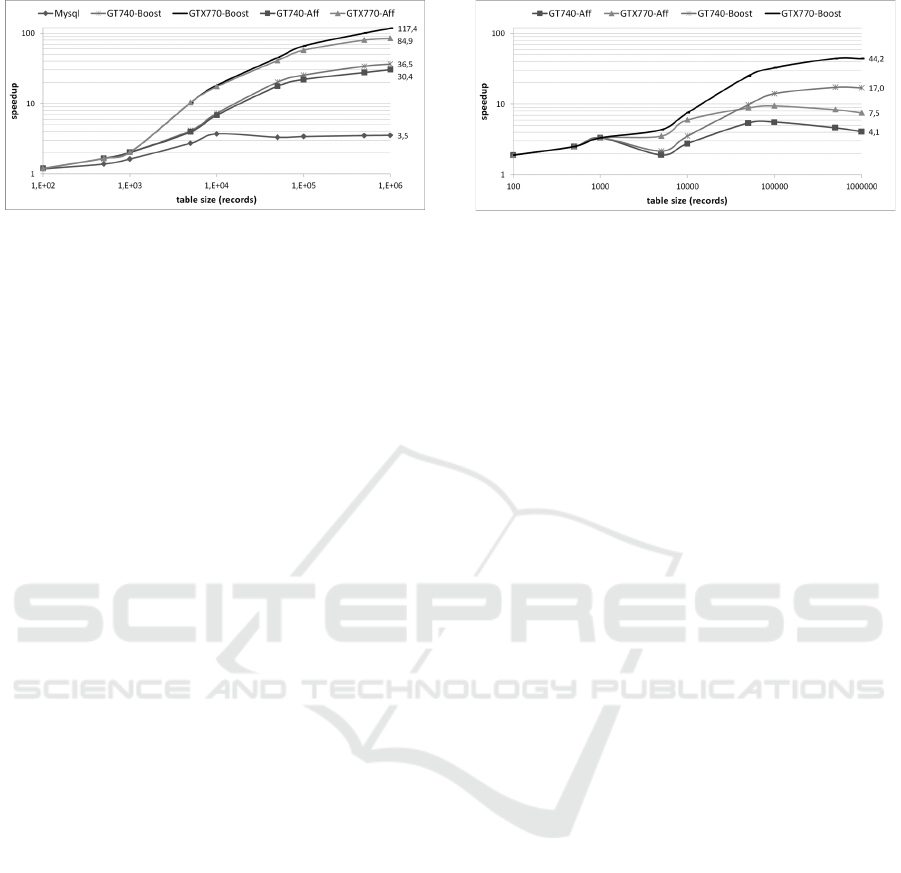

Figure 3: Average speedups with SELECT queries.

client-side embedded RDBMS system was investi-

gated, the system was evaluated with an entry level

GPU. A ”modest” GT740 procured already substan-

tial speedups of 36x, 31x and 30x with the three

different storage setups. These impressive speedups

needed to be put into perspective; since SQLite is not

the fastest in-memory RDBMS when scanning single

tables. The ”memory” storage engine of MySQL 5.7

is more than 3 times faster than SQLite for large ta-

ble scans. CuDB is still 33 times faster when com-

paring it to MySQL. Note that, during the experi-

ments, the highest speedups were obtained (411x with

the GTX770 and 107x with the GT740) for queries

applied on ﬁxed size string columns, and with a

”WHERE col LIKE susbstring%” search criterion.

4.2 SELECT JOIN Queries

In the previous subsection, it was shown that GPUs

are extremely fast at processing full table scans thanks

to their high memory bandwidth. In this subsection

the results for JOIN queries will be presented. The

subset of queries used for this evaluation includes

multi-table join queries (with up to ﬁve involved ta-

bles) and also ”self-join” queries. The tables were not

indexed and the join conditions were done on numer-

ical data. The join queries were always done in tables

with the same number of records. The average results

are shown in Figure 4. Like the previous evaluations,

for better readability, the results of the ”Strict” storage

engine are not shown.

For tables of one million records each, the

GTX770 GPU achieved an average speedup of 44x

in Boost mode, 21x in Strict mode and 7,5x in ”Afﬁn-

ity” mode while the GT740 GPU obtained speedups

of 17x, 8x and 4x. Unlike single table scans, the per-

formance gaps between the different storage engines

were signiﬁcant. For large datasets, switching from

”Afﬁnity” to ”Strict” makes join queries more than 2

times faster, and switching from ”Strict” to ”Boost”

produces again a 2x gain. As explained in subsec-

tion 3.3, for each table join, the GPU has to perform

a parallel sort. With ”Strict” tables, GPU threads do

Figure 4: Average speedups with JOIN queries.

not have to check each type of each data and with

”Boost” tables, the memory accesses are coalesced.

During sorting operations, each GPU thread has to ac-

cess and compare multiple tuples several times, unlike

single table scans where each thread accesses only

one record. That is why the performances of join

queries were impacted by the choice of an appropri-

ate storage engine. Moreover with the need to access

multiple records inside a single thread, the sorting al-

gorithm needs global synchronizations. With current

GPU architectures, there is no robust way to imple-

ment global synchronization without using the CPU.

With CuDB, most synchronizations imply a save and

restore of the GPU execution context. This is also

the reason why general speedups obtained with join

queries are lower than with single table scans.

The CPU-GPU engine switch still occurs at one

thousand records, but with join queries, the GT740

becomes faster than the CPU when involved tables

count a minimum of ten thousand records. That is

why there is a slight performance drop at ﬁve thou-

sand rows on Figure 4. Note that the peak speedups

were obtained with ”self-join” queries (66x with the

GTX770 and 28x with the GT740).

The results with MySQL are not shown on Fig-

ure 4 because MySQL was always much slower than

SQLite with the set of join queries. As was explained

in section 3.3, to reduce the time complexity for pro-

cessing big datasets, SQLite uses transient indexes to

compute join queries. MySQL does not, and imple-

ments such operations as nested loops. This results

in multiple days of computing time for joining tables

of a million records, while CuDB needs less than a

second.

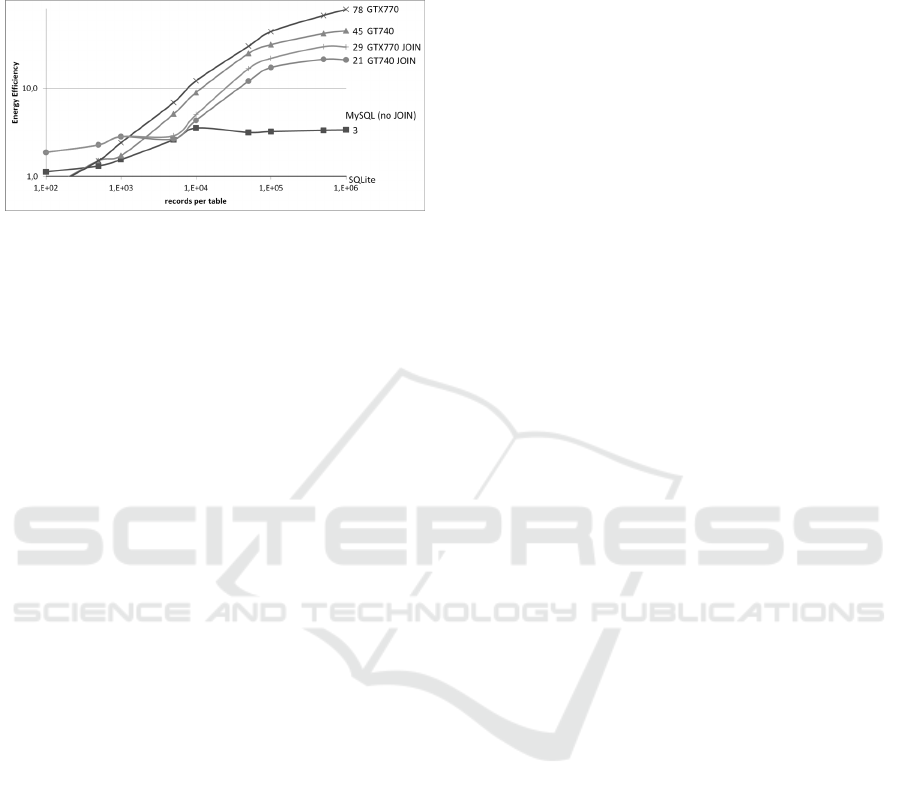

4.3 Energy Efﬁciency

As with the performance tests, two query cate-

gories were considered: single table queries, and join

queries. Based on energy consumption measurements

of all the queries with every platform conﬁguration,

for the following short report, an average of all en-

ergy efﬁciency ratios is proposed. Energy efﬁciency

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

174

is deﬁned as a ratio of energy consumed by SQLite

over energy consumed by tested platform. Figure 5

shows the average calculated energy efﬁciencies.

Figure 5: Energy efﬁciency: higher is better.

For a better readability, only results obtained with

CuDB in ”Boost” conﬁguration are shown. These re-

sults conﬁrm that the energy efﬁciency of embedded

RDBMS can be signiﬁcantly boosted by using a hy-

brid CPU/GPU query processing engine.

5 CONCLUSION AND FUTURE

WORKS

In this paper, it has been shown that GPU archi-

tectures can be exploited to speed up processing of

RDBMS. CuDB, an embedded RDBMS that is a per-

formance upgrade of SQLite in the context of par-

allel hybrid architecture, has been presented. CuDB

preserves the SQL support of SQLite as it retains its

API. It has also been shown that speedups of more

than 411x for queries on tables containing a million

entries were achieved. Here the different measures

have also shown that it is not necessary to have the

most powerful GPU to achieve satisfactory accelera-

tions. Weaknesses of GPGPU solutions for process-

ing small amounts of data were also tackled by using

a hybrid engine where light treatments remained on

the CPU. As perspectivess, the support of some ad-

ditional SQL clauses will be considered in order to

be compliant with TPC-H and SSB benchmarks. A

port of CuDB on OpenCL is also planned to target

other GPU manufacturers. Another important chal-

lenge is to overcome the limitations of the GPU mem-

ory capacity which is currently limited to 16GB for

high end GPUs. To overcome these size limitation,

the proposal is to pipeline the query processing en-

gine in order to mask memory transfers, and to trans-

fer the data through circular buffer mechanisms. The

overhead of transient memory requirements involved

in complex join queries could also be larger than the

physical GPU memory size. This will be also tackled

by pipelining and circular buffering.

REFERENCES

Bakkum, P. and Skadron, K. (2010). Accelerating sql

database operations on a gpu with cuda. In 3rd Work-

shop on GPGPU, pages 94–103, Pittsburgh, USA.

Breß, S., Siegmund, N., Bellatreche, L., and Saake, G.

(2013). An operator-stream-based scheduling engine

for effective gpu coprocessing. ADBIS, 8133:288–

301.

Fang, R., He, B., Lu, M., Yang, K., Govindaraju, N.,

Luo, Q., and Sander, P. (2007). Gpuqp : query

co-processing using graphics processors. In SIG-

MOD/PODS’07, pages 1061–1063, Beijing, China.

GIS-Federal (2014). Gpudb - a distributed database for

many-core devices. 54th HPC User Forum, Seattle.

Govindaraju, N., Lloyd, B., Wang, W., Lin, M., and

Manochad, D. (2004). Fast computation of database

operations using graphics processors. In SIG-

MOD/PODS’04 international conference on Manage-

ment of data, pages 215–216, Paris, France.

Hagen, P., Schulz-Hildebrandt, O., and Luttenberger, N.

(2010). Fast in-place sorting with cuda based on

bitonic sort. Parallel Processing and Applied Math-

ematics, 6067:403–410.

He, B. and Xu Yu, J. (2011). High-throughput transac-

tion executions on graphics processors. VLDB Endow-

ment, 8(5):314–325.

Heimel, M., Saecker, M., Pirk, H., Manegold, S., and

Markl, V. (2013). Hardware-oblivious parallelism for

in-memory column-stores. PVLDB, 6(9):709–720.

Huang, S., Xiao, S., and Feng, W. (2009). On the energy

efﬁciency of graphics processing units for scientiﬁc

computing. In IPDPS’09.

Hummel, M. (2010). Parstream - a parallel database on

gpus. GTC2010, San Jose, CA.

Landaverde, R., Zhang, T., Coskun, A., and Herbordt, M.

(2014). An investigation of uniﬁed memory access

performance in cuda. In HPEC 2014, Waltham, MA.

van den Braak, G., Mersman, B., and Corporaal, H. (2010).

Compiletime gpu memory access optimizations. In

ICSAMOS 2010, Samos, Greece.

Yong, K., Karuppiah, E., and Chong-Wee See, S. (2014).

Galactica: A gpu parallelized database accelerator. In

2014 International Conference on Big Data Science

and Computing, Beijing, China.

Yuan, Y., Lee, R., and Zhang, X. (2013). The yin and

yang of processing data warehousing queries on gpu

devices. VLDB Endowment, 6(10):817–828.

Zhang, S., He, J., He, B., and Lu, M. (2013). Omnidb:

towards portable and efﬁcient query processing on

parallel cpu/gpu architectures. VLDB Endowment,

6(12):1374–1377.

Boosting an Embedded Relational Database Management System with Graphics Processing Units

175
