An Empirical Evaluation of AXIOM as an Approach to Cross-platform

Mobile Application Development

Christopher Jones and Xiaoping Jia

DePaul University, College of Computing and Digital Media, 243 S. Wabash Ave, 60604, Chicago, IL, U.S.A.

Keywords:

Model-driven Development, Mobile Development, Domain-speciﬁc Modeling Languages.

Abstract:

AXIOM is a domain-speciﬁc modeling language for cross-platform mobile applications. AXIOM is based

on more general techniques such as Model-Driven Architecture and generates native code for the iOS and

Android platforms. Previous small-scale quantitative experiments suggested that AXIOM had the potential to

provide signiﬁcant productivity beneﬁts. We have since conducted a limited set of more complex, mid-scale

experiments and analyzed AXIOM’s capabilities using both quantitative and qualitative metrics to further

deﬁne AXIOM’s ability to improve developer productivity when building cross-platform mobile applications.

In this paper we describe the methodology of our mid-scale experiments and present the ﬁndings from source

code and SonarQube analyses. We evaluate these ﬁndings and discuss what they mean to AXIOM in general.

Finally, we look at possible changes to AXIOM’s syntax and capabilities.

1 INTRODUCTION

As of July, 2015 there were, by some estimates (sta,

2015), over 1.6 million apps in the Google Play Store

and another 1.4 million apps available in Apple’s

App Store. The popularity of these platforms, and

the emergence of new platforms such as the Win-

dows Phone, makes it desirable for mobile application

providers to write cross-platform applications.

AXIOM (Jones and Jia, 2015) is an approach

to model-driven development (MDD) (Vaupel et al.,

2014) that uses the Groovy language as its modeling

notation. Rather than depending on approaches that

use cross-platform programming languages and vir-

tual machines such as HTML5 and JavaScript (Ap-

pcelerator, Inc., 2011; The Apache Group, 2015)

(e.g. Appcelerator, Apache Cordova, etc.), AXIOM

uses a domain-speciﬁc modeling language (DSML)

as its representation. Its models undergo a series of

transformations and translations during their lifecy-

cle. By using a dynamic DSML we hope to avoid

some of the shortcomings of MDD approaches such

as the Object Management Group’s MDA (Staron,

2006; Uhl, 2008; Whittle et al., 2014; Mussbacher

et al., 2014), such as the lack of ﬁrst-class support

for user interface design, while still keeping the fo-

cus on writing models instead of code (Frankel, 2003;

Selic, 2003). By completely generating native code,

we hope to avoid the potential performance impacts

exhibited by many cross-platform, virtual machine-

based approaches (Charland and Leroux, 2011; Cor-

ral et al., 2012).

Our research attempts to answer questions about

model-driven development for mobile platforms us-

ing the AXIOM approach. Speciﬁcally, when com-

pared to native, handwritten code, we want to under-

stand AXIOM’s impact on developer productivity and

code quality.

2 THE AXIOM LIFECYCLE

The AXIOM lifecycle (Jia and Jones, 2013) has three

stages: Construction, Transformation, and Transla-

tion. As shown in Figure 1, each stage emphasizes a

different model that is gradually transformed into na-

tive source code.

During the Construction stage, business require-

ments, user interface, and application logic are cap-

tured in a platform-independent Requirements model

using AXIOM’s DSML. Applications are deﬁned as

a set of related views. Views support both platform-

independent and platform-speciﬁc widgets. Transi-

tions are deﬁned as attributes on the UI controls that

trigger them and may have optional guard conditions

and actions. AXIOM provides an event model to help

deal with common mobile interactions such as screen

taps and orientation changes.

264

Jones, C. and Jia, X.

An Empirical Evaluation of AXIOM as an Approach to Cross-platform Mobile Application Development.

DOI: 10.5220/0005995902640271

In Proceedings of the 11th International Joint Conference on Software Technologies (ICSOFT 2016) - Volume 1: ICSOFT-EA, pages 264-271

ISBN: 978-989-758-194-6

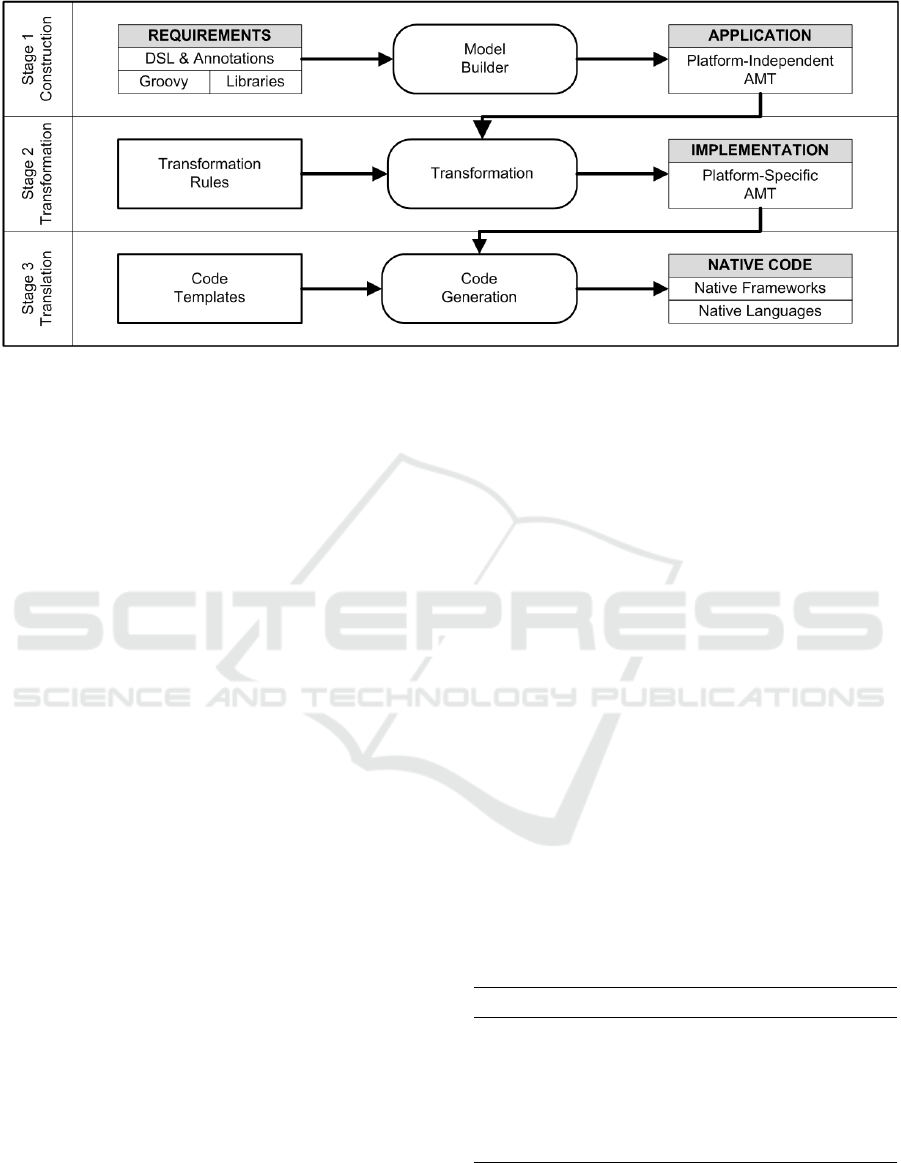

Figure 1: Evolution of AXIOM models.

Once the Requirements model has been deﬁned,

it is transformed into an Application model using a

model builder. The model builder uses a preprocessed

representation of the iOS and Android APIs to expose

a platform-independent version of the most common

widgets between the two platforms. Platform-speciﬁc

widgets can still be used if needed.

A series of transformation rules converts the Ap-

plication model into an Implementation model. The

rules preserve the original APIs so that platform-

speciﬁcity may be used when appropriate, while ab-

stracting common features into the core DSML. The

Implmentation model contains information needed

to generate three key aspects of the application’s

organizational hierarchy: modules, the macro-

organizational aspects of the application; resources,

the source ﬁles for the modules; and fragments, snip-

pets of content used to construct the resources.

The Translation stage converts the Implementa-

tion model into native code for the target mobile plat-

forms. AXIOM’s code templates capture knowledge

and information about the target platform’s native lan-

guage and SDK. The code generation process uses

these templates, combined with information within

the Implementation model, to completely generate all

artifacts such as project, class, and resource ﬁles.

3 METHODOLOGY

A proof-of-concept prototype tool was developed to

demonstrate the feasibility of AXIOM. The prototype

tool transforms AXIOM models into native imple-

mentations for the Android and iOS platforms. The

design of the generated code follows the common

MVC architecture. While only a subset of the native

iOS and Android APIs are currently supported, the

prototype tool adequately demonstrates the feasibility

and the potential beneﬁts of the AXIOM approach.

Using the prototype tool, we conducted two kinds

of analyses: small-scale and mid-scale. The results

of the small-scale tests have been reported on be-

fore (Jones and Jia, 2014). The mid-scale tests com-

pared the code generated from the AXIOM model

to hand-written code provided by experienced soft-

ware developers. In these experiments, ﬁve mid-sized

applications were developed featuring a variety of

navigation and user interactions. Table 1 describes

the applications and some aspects of their structure

and complexity. These applications were designed

to include UI components common to their native

platforms, some platform-neutral, others platform-

speciﬁc. We did not test AXIOM against the more so-

phisticated components such as GPS. Each mid-scale

application was analyzed quantitatively, to gauge AX-

IOM’s relative power and impact on developer pro-

ductivity, and qualitatively, to gauge its source code

organization, issues and issue density, and overall

complexity. These metrics were then compared to

equivalent hand-written code.

Table 1: Description of Mid-Scale Applications.

App. Description Screens

CAR Shop cars by make and model. 6

CVT Various unit conversions. 8

EUC Data on EU member countries. 3

MAT A matching memory game. 1

POS A simple point-of-sale system. 8

An Empirical Evaluation of AXIOM as an Approach to Cross-platform Mobile Application Development

265

4 QUANTITATIVE ANALYSIS

4.1 Relative Power

Relative power measures how much code in one lan-

guage is required to produce the same application in

another language. This provides a rough indication

of the relative effort expended by a developer to pro-

duce an application using different languages. Our

evaluation compared the source lines of code (SLOC)

of the AXIOM models to the generated SLOC for

both iOS and Android. For the comparative evalu-

ation of the SLOC, we used CLOC (Danial, 2013)

with Groovy as the source language for AXIOM. The

Android and iOS platforms were accounted for us-

ing Java and Objective-C respectively. The SLOC

counts do not include “non-essential” code such as

comments or block delimiters such as braces.

While SLOC is not ideal for representing appli-

cation complexity because of the potential size dif-

ferences introduced by developer ability, in this case

we felt the metric to be appropriate. First, the ap-

plications were straightforward enough that developer

ability was unlikely to be a signiﬁcant factor. Second,

we had only a single developer perform the actual

coding, which controlled for the variation in ability.

Third, had we analyzed story or function points, we

would likely have seen clustering of the data because

of the comparative simplicity of the applications.

Kennedy’s relative power metric, ρ

, is based on

SLOC and measures the relative expressiveness of

one language to another (Kennedy et al., 2004):

L/L

I(M

)

I(M

)

(1)

where I(M

) is the SLOC required to implement

model M in native code and I(M

) is the SLOC re-

quired to implement M in AXIOM.

Table 2 shows the SLOC and relative power for

each of the mid-scale experiments. The results show

that the AXIOM-generated code can be comparable

to, if not smaller than, handwritten Android and iOS

code. In the cases of the CVT and POS applications,

there was much less handwritten code than generated

code.

In many cases the SLOC of the AXIOM-

generated and handwritten code are almost the same.

However, in two of the experiments there is a wide

divergence: CVT and POS. In both cases, the basic

difference was in the approach taken to model the

code. In the case of the CVT application, both the

AXIOM model and hand-written code used a series

of “if” statements to perform the conversions. How-

ever, in the case of the AXIOM model, these cal-

Table 2: Comparison of relative powers.

Metric

Application

CAR CVT EUC MAT POS

Source Lines of Code

AXIOM 66 365 46 64 165

Handwritten

Android 889 538 913 245 957

iOS 594 431 559 193 677

Generated

Android 488 1,125 506 311 1,849

iOS 435 1,384 726 293 1,953

Relative Power of AXIOM to

Handwritten

Android 14.34 1.47 19.85 3.83 5.80

iOS 9.58 1.18 12.15 3.02 4.10

Generated

Android 7.39 3.08 11.00 4.86 10.89

iOS 6.59 3.79 15.78 4.58 11.84

culations spanned multiple views – one-per-unit-type

(length, power, volume, etc.). This lead to a signif-

icant amount of redundant code. Some efforts were

made to optimize the model further, but this exposed

some architectural limitations in the AXIOM proto-

type. In the case of the POS application, a similar

approach was taken, where multiple redundant views

were generated where it was not actually necessary.

In the handwritten code, the developer took an ap-

proach that allowed the application to take better ad-

vantage of its data-driven nature.

4.2 Developer Productivity

Developer productivity is inﬂuenced by many factors

but, as shown by Jiang (Jiang et al., 2007) and oth-

ers (Fried, 1991; Maxwell et al., 1996; Pendharkar

and Rodger, 2007), the two most signiﬁcant factors

in overall productivity are the average team size and

development language, accounting for approximately

25% of the variability in Normalized Productivity De-

livery Rate (PDR). PDR is the normalized work effort,

essentially the hours spent on the project, divided by

adjusted function points, which is the functional size

of the project in points multiplied by an adjustment

factor. In evaluating AXIOM’s ability to deliver on

its productivity goals, we focus on these two factors.

Jiang’s model was constructed by analyzing the

project database of the International Software Bench-

marking Standards Group (ISBSG) (ISBSG, 2015).

This database contains metrics and descriptive in-

formation about each of its over 6,700 development

and enhancement projects

. These projects include

100 types of applications across 30 industry verticals

Jiang’s work was based on release 10 of the ISBSG data-

base, which held data on 4,100 projects.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

266

spanning 26 countries. This project database is the

basis for other analyses of software productivity such

as those done by Liu (Liu and Mintram, 2005), Jef-

fery (Jeffery et al., 2000), and Lokan (Lokan, 2000).

This breadth of projects makes Jiang’s model well-

suited for our analysis.

Jiang’s complete model captures several proper-

ties such as team size, the type of language (3GL,

4GL, Application Generator), the platform (mid-

range, multi-platform, or PC), development tech-

niques used (OOAD, event modeling, regression

testing, or business area modeling). Some multi-

technique factors were included as well, that is, the

factor applied only if both of a pair of techniques were

used. Except for team size, each factor, I(X ), takes a

boolean value: 1 if X was used and 0 if it was not.

We held many factors constant in our experiments.

The team size was always 1 and we treated AXIOM

as a 4GL rather than an application generator since

it requires up-front development in the DSML ﬁrst.

Furthermore, we did not use event or business model-

ing or formal regression testing. Finally, we consider

both Android and iOS to be for the “PC” platform, a

decision we justify in greater detail below. This re-

duces Jiang’s equation to that shown in equation 2:

ln(PDR) = − 0.463 ∗ I(3GL) (2)

− 1.049 ∗ I(4GL)

− 0.269 ∗ I(PC)

− 0.403 ∗ I(OO)

+ 2.651

We emphasize that there is only one dominant and

variable factor remaining: the type of language be-

ing used to develop the application. For native de-

velopment we consider both Objective-C and Java as

3GL languages. When we apply the model for the

AXIOM and handwritten styles of development we

ﬁnd that PDR

Native

is 4.554 and PDR

AXIOM

is 1.097.

We thus ﬁnd that PDR

AXIOM

is slightly more than

4-times greater than PDR

Native

. However, there are

many factors that contribute to development produc-

tivity in Jiang’s model. What assurances do we have

that AXIOM is the single-most important contribut-

ing factor in our productivity analysis?

According to Jiang and others, the average team

size explains 17.3% of the variance in ln(PDR). De-

velopment language explains another 7.8% of the

variance when the languages are of different gener-

ations, that is 3GL vs. 4GL. The fact that the team

size was held constant, as were the other key fac-

tors, suggests that the type of language, native code

or AXIOM, accounts for almost all 100% of the vari-

ability in ln(PDR) in our analyses. We thus ﬁnd that

CAR CVT EUC

MAT

POS

Android

iOS

AXIOM Relative Power

Figure 2: Comparison of relative power.

PDR

AXIOM

is approximately four times greater than

PDR

Native

, suggesting that AXIOM can provide sig-

niﬁcant increases in productivity compared to devel-

opment using existing tools for native platforms.

But does the actual, measurable output of the

mid-scale experiments agree with the expected re-

sult of Jiang’s model? If we compare the expected

PDR

AXIOM

to the representational power metrics for

the handwritten code from Table 2, shown in Figure 2,

we ﬁnd signiﬁcant variance. The median representa-

tional power is 4.10 for iOS and 5.80 for Android,

which is consistent with Jiang’s model’s prediction of

4.554, shown as the horizontal line. One of the experi-

ments, CVT, required an amount of AXIOM code that

was only slightly less than the amount of hand-written

code needed to implement the application. That par-

ticular AXIOM model was naive, resulting in code

bloat. A more efﬁcient, but semantically more com-

plex model was devised using arrays of closures, but

the AXIOM prototype was unable to interpret it, a

limitation of tool rather than of technique.

5 QUALITATIVE ANALYSIS

For the qualitative analysis we used SonarQube

, an

open-source, static code quality analysis tool that is

popular with software developers. SonarQube per-

forms static source code analysis using common plu-

gins such as FindBugs (Hovemeyer et al., 2015).

Within SonarQube we used the Android Lint plugin

to analyze the Android code. It provides a more spe-

cialized analysis of the code and supporting ﬁles than

does the standard Java analysis, which was a reason-

SonarQube was formerly called Sonar.

An Empirical Evaluation of AXIOM as an Approach to Cross-platform Mobile Application Development

267

able second choice. For iOS we used an open-source

Objective-C analyzer called OCLint.

We eliminated from consideration ancillary ﬁles

such as XML ﬁles that are required to execute the ap-

plication, but which are often generated by IDEs and

supporting tools. We instead focus only on the Java

or Objective-C code, which is where most qualitative

issues will be found.

5.1 Issues and SQALE

SonarQube performs its analysis by applying indi-

vidual rules to the source code based on the lan-

guage being analyzed. For projects with multiple

languages, SonarQube can analyze each language ac-

cording to its own set of rules and then aggregate the

results. The rules are based on the SQALE Qual-

ity Model (Letouzey, 2012; Letouzey and Ilkiewicz,

2012), which organizes the non-functional require-

ments that relate to code quality and technical debt

into eight SQALE characteristics: Testability, Reli-

ability, Changeability, Efﬁciency, Security, Maintain-

ability, Portability, and Reusability. Each rule is given

a severity indicating how much of an impact its vio-

lation may have on the ﬁnished application. To some

extent these severities are arbitrary, but in general the

more severe the issue or rule violation, the greater

the chance that the code causing the issue contains

a latent defect. For example The most common issue

identiﬁed during our analysis, “Hardcoded Text”, is

considered a minor issue; it is undesirable and does

not represent a latent defect, but it does impact our

ability to update and maintain that code.

For our analysis we used only two categories of

issue severity: Major and Minor. Table 3 shows the

SonarQube and OCLint mappings to these categories.

Table 3: Mapping of issue severities.

Analysis SonarQube OCLint

Major Blocker, Critical, Major Major

Minor Minor, Info Minor, Info

Given the number of issues identiﬁed for an appli-

cation, and given the count of an application’s SLOC,

we calculate the number of issues per SLOC, or is-

sue density. Figure 3 shows the issue densities for

the handwritten (AND-H, IOS-H) and generated code

(AND-G, IOS-G).

In most cases, the AXIOM-generated code does

not fare as well as its handwritten counterpart. When

comparing the generated and handwritten code by ap-

plication for each platform, we ﬁnd that at best the

AXIOM-generated code has an issue density that is

CAR CVT EUC

MAT

POS

0.1

0.2

0.3

AND - H

AND - G

IOS - H

IOS - G

Issue Density

Figure 3: Comparison of issue densities.

138% that of the hand-written code while at worst it is

about 550% that of the handwritten code. This is con-

sistent with AXIOM’s template-based nature since

any issues present in the template, or in the translation

algorithm, will be injected into the generated code.

Issue density by itself is only one aspect of the

analysis. We must also consider the estimated time,

cost, and risk to remediate the issues once they have

been found. For the handwritten code we must ad-

dress each instance of the issue, and there is no guar-

antee that new instances of the issue will not be intro-

duced during subsequent development. Furthermore,

the ﬁxes do not propagate to other applications, so

they must be updated separately. With AXIOM, the

remediation of a translation template will likely take

longer than with the handwritten code. However, once

the update to the template is complete, the ﬁx will be

applied and the issue will not be re-introduced. Be-

cause the ﬁxes are cumulative, AXIOM represents a

better long-term investment for the remediation effort.

As industry best practices evolve, those practices can

be incorporated into the code templates more readily

than if we must refactor each application by hand.

5.2 Complexity

The ﬁnal set of qualitative metrics involve code com-

plexity. SonarQube provides an analysis of cyclo-

matic complexity for the overall application. While

this complexity is arguably not as important for gen-

erated code, since all maintenance is intended to be

done via the model rather than by changing the gen-

erated code directly, code that is more complex than

necessary will tend to be less performant than equiv-

alent, simpler code. The code generation templates

required to build such structures will typically be

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

268

more complicated than equivalent, simpler templates,

which can make the maintenance and extension of the

templates more difﬁcult as well as being more likely

to inject defects into the generated code.

Figure 4 shows that, in most cases, the AXIOM-

generated code has a much higher overall cyclo-

matic complexity. However, the raw SonarQube data

showed that at the function, class and ﬁle levels, the

complexity is often less than that of the handwritten

code. This disparity is explained because the AXIOM

prototype tends to generate more code than human

developers. It thus stands to reason that the overall

complexity would be consistently higher. Also, as has

been mentioned before, any complexity present in the

template from which the ﬁnal, translated code is gen-

erated will be passed into the generated code. Thus

these complexity values can be improved by enhanc-

ing the translation templates and transformation rules

to be more parsimonious.

6 DISCUSSION

Based on the mid-scale experiments, AXIOM has

generally been observed to reduce the number of

SLOC to be written when compared to the equiva-

lent native application even though the ﬁnal, gener-

ated SLOC might ultimately be greater, an admittedly

undesirable state. Our analysis suggests that AXIOM

signiﬁcantly affects developer productivity, owing to

its cross-platform nature and DSML, which enables

a more concise representation of an application than

the native code can as well as the fact that its transfor-

mation rules and templates are reusable across appli-

cations. This is reﬂected in the comparative represen-

tational power values from Table 2. However, some

CAR CVT EUC

MAT

POS

100

200

300

AND - H

AND - G

IOS - H

IOS - G

Overall Cyclomatic Complexity

Figure 4: Comparison of cyclomatic complexities.

cautions are in order.

First, it is unclear if Jiang’s model scales effec-

tively to smaller applications such as those in our mid-

scale experiments. Second, Jiang’s model does not

explicitly deal with mobile applications. We treated

each platform as equivalent to general PC develop-

ment, but it is uncertain if this is the case. Regard-

less, we expect that the coefﬁcients associated with

the platform would contribute equally in both cases

and thus not have a material impact on the overall

productivity difference described by Jiang’s model.

The coefﬁcients in the model may be different today

than in 2007 when the model was developed. Ad-

vances in tools, such as IDEs, and techniques, such

as agile development, may have affected the impact

of those factors on the model, causing the variation

associated with the development language to be less

important relative to other factors. Third, this analy-

sis does not include the effort required to build either

the templates or transformation rules. Including those

factors would likely reduce the overall impact of AX-

IOM on productivity for our mid-scale tests. How-

ever, because the transformation rules and templates

are generally intended to be re-used across many ap-

plications, we think it likely that, over time, the cost

of their development would be amortized and the pro-

ductivity gains would approach the more ideal case

that we have outlined.

There are other reasons why actual developer pro-

ductivity might be different from that suggested by

Jiang’s model. First, as is the case with all such pro-

ductivity assessments, there exist signiﬁcant differ-

ences between the capabilities of individual develop-

ers. In this evaluation, we had only a single devel-

oper, which eliminated that variability. However, the

fact that there was only a single set of trials obviously

makes our generalizations to the broader mobile de-

veloper population preliminary at best.

Second, the trials themselves did not exercise the

full suite of capabilities of many moderns mobile de-

vices including the position, direction, or motion sen-

sors. The focus was instead on the

Third, the DSML was in a state of ﬂux when the

mid-scale evaluations were being conducted. This

meant that the developer who produced the AXIOM

models might have encountered problems that caused

them to produce a less optimal model. Similarly as

new features of the language were introduced, the

developer may not have gone back and incorporated

them into any already complete models. We found

evidence of this in two of the mid-scale experiments.

In an earlier version of the CAR application, the AX-

IOM model was signiﬁcantly larger because the mod-

eler provided a naive model. Based on SonarQube

An Empirical Evaluation of AXIOM as an Approach to Cross-platform Mobile Application Development

269

analysis, the resulting source code was approximately

1,300 lines long. After updating the AXIOM model to

use newer features of the DSML, the generated code

was reduced to its present level of closer to 500 lines

of code. A similar problem was discovered with the

EUC application with similar results.

This suggests that one of the challenges with this

kind of MDD approach is striking a balance between

model ﬂexibility and model simplicity. By allowing

the full syntax of the Groovy language to be available

within the model, we increase the burden on the mod-

eler to apply intelligent software development best

practices to prevent bloating of the ﬁnal code. While

AXIOM performs some initial pre-processing of the

model to eliminate as many sources of inefﬁciency as

possible, it cannot realistically compensate for a com-

pletely inefﬁcient model while also guaranteeing that

the model’s semantics will be preserved after that op-

timization. This challenge is the same as that of many

compiler optimizers.

There are several ways in which AXIOM’s DSML

could be improved. For example, AXIOM is

platform-independent, but not particularly abstract.

Raising its level of abstraction is one important way

in which AXIOM could be extended. The goal is for

AXIOM to allow modelers to focus more on the struc-

ture and behavior of the application and less about

deﬁning individual views and transitions. AXIOM

exhibits many of its Groovy roots, and much of the

code uses native Groovy syntax. AXIOM could also

incorporate common architectural and implementa-

tion patterns. At present AXIOM is limited by a one-

size-ﬁts-all code generation strategy, which may be

ﬁne for small-scale applications, but which will not

scale effectively to larger, more complex software.

It would be useful if common patterns and platform

idioms could be incorporated into its DSML, mak-

ing it resemble an Architecture Description Language

(ADL) (Medvidovic and Taylor, 2000). These tech-

niques would provide more power to the modeling no-

tation and enable modelers to avoid the use of Groovy

syntax for common modeling constructs.

7 CONCLUSIONS

AXIOM is an approach to model-driven development

in the mobile domain that seeks to improve devel-

oper productivity while maintaining a high degree

of code quality. AXIOM does this using a DSML,

a multi-pass transformation process, and template-

driven code generation.

The ﬁve mid-scale tests used to test AXIOM’s im-

pact on developer productivity and code quality were

designed with a combination of platform-neutral and

platform-speciﬁc widgets, but did not attempt to in-

clude all possible mobile widgets and capabilities.

Although only a single developer performed these

tests, the results of both our quantitative and quali-

tative analyses are suggestive.

Based on the analysis using Jiang’s productiv-

ity metric, AXIOM’s single, platform-independent

DSML can deliver productivity that is about four

times greater than producing the equivalent code by

hand. An analysis of the SLOC required for the

AXIOM models compared to hand-written code pro-

duced by native tools for each platform suggests a

wider range in terms of productivity. In the worst

cases AXIOM required only slightly less code than

the equivalent native applications while in the best

case AXIOM required only about 8% of the lines of

code of an equivalent iOS application and only 5%

of the lines of code of an equivalent native Android

application.

AXIOM’s impact on code quality is ambiguous.

The AXIOM prototype generally produces more code

and thus more issues than the equivalent hand-written

code. However, with further optimizations and bet-

ter templates, there is every reason to believe that

the AXIOM approach can indeed be comparable, and

perhaps even better, than hand-written code precisely

because any changes made to the template will be ren-

dered in the generated code everywhere that template

is used rather than requiring case-by-case ﬁxes. The

analysis of the SonarQube data suggests that while

the native tools for each platform doubtless help pre-

vent some of the issues that can be introduced during

AXIOM’s Translation stage, they are not prevented in

their entirety. Those issues may be simple to elimi-

nate, but each issue requires at least some developer

time, which can be a drain on productivity.

The AXIOM DSML is young and can beneﬁt from

optimization. In particular it would be useful to incor-

porate mobile application patterns and idioms directly

into the language itself. This would further reduce the

size of the AXIOM models while also making it eas-

ier to design and construct code generation templates

to produce efﬁcient and optimized native code.

REFERENCES

(2015). Number of Apps Availabile in Leading App Stores

as of July 2015.

Appcelerator, Inc. (2011). Appcelerator. http://www.app

celerator.com/.

Charland, A. and Leroux, B. (2011). Mobile application

development: Web vs. native. Comm. of the ACM,

54(5):49–53.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

270

Corral, L., Sillitti, A., and Succi, G. (2012). Mobile mul-

tiplatform development: An experiment for perfor-

mance analysis. Procedia Computer Science, 10:736

– 743. MobiWIS 2012.

Danial, A. (2013). CLOC. http://cloc.sourceforge.net/.

Frankel, D. S. (2003). Model-Driven Architecture: Apply-

ing MDA to Enterprise Computing. John Wiley &

Sons, New York, NY.

Fried, L. (1991). Team size and productivity in systems de-

velopment bigger does not always mean better. Jour-

nal of Inf. Systems Manage., 8(3):27–35.

Hovemeyer, D., Pugh, B., Loskutov, A., and Lea, K. (2015).

Findbugs. http://ﬁndbugs.sourceforge.net/.

ISBSG (2015). Int. software benchmarking standards

group. http://www.isbsg.org/.

Jeffery, R., Ruhe, M., and Wieczorek, I. (2000). A compara-

tive study of two software development cost modeling

techniques using multi-organizational and company-

speciﬁc data. Inf. and Softw. Technology, 42(14):1009

– 1016.

Jia, X. and Jones, C. (2013). Cross-platform application

development using AXIOM as an agile model-driven

approach. In Software and Data Technologies, volume

411 of Communications in Computer and Information

Science, pages 36–51. Springer Berlin Heidelberg.

Jiang, Z., Naud, P., and Comstock, C. (2007). An investi-

gation on the variation of software development pro-

ductivity. International Journal of Computer and In-

formation Science and Engineering, pages 461–470.

Jones, C. and Jia, X. (2014). The AXIOM model frame-

work: Transforming requirements to native code for

cross-platform mobile applications. In 9th Annual Int.

Conf. on Evaluation of Novel Approaches to Software

Engineering, (ENASE 2014), pages 26–37, Lisbon,

Portugal.

Jones, C. and Jia, X. (2015). Using a domain speciﬁc

language for lightweight model-driven development.

In Evaluation of Novel Approaches to Software Engi-

neering, volume 551 of Communications in Computer

and Information Science, pages 46–62. Springer Intl.

Publishing.

Kennedy, K., Koelbel, C., and Schreiber, R. (2004). Deﬁn-

ing and measuring the productivity of programming

languages. The International Journal of High Per-

formance Computing Applications, (18)4, Winter,

2004:441–448.

Letouzey, J.-L. (2012). The sqale method deﬁni-

ton document. http://sqale.org/wp-content/uploads/

2010/08/SQALE-Method-EN-V1-0.pdf.

Letouzey, J.-L. and Ilkiewicz, M. (2012). Managing tech-

nical debt with the sqale method. IEEE Software,

29(6):44–51.

Liu, Q. and Mintram, R. (2005). Preliminary data analy-

sis methods in software estimation. Software Quality

Journal, 13(1):91–115.

Lokan, C. (2000). An empirical analysis of function point

adjustment factors. Information and Software Tech-

nology, 42(9):649 – 659.

Maxwell, K. D., Van Wassenhove, L., and Dutta, S.

(1996). Software development productivity of euro-

pean space, military, and industrial applications. IEEE

Trans. Softw. Eng., 22(10):706–718.

Medvidovic, N. and Taylor, R. N. (2000). A classiﬁca-

tion and comparison framework for software architec-

ture description languages. IEEE Trans. Softw. Eng.,

26(1):70–93.

Mussbacher, G., Amyot, D., Breu, R., Bruel, J.-M., Cheng,

B., Collet, P., Combemale, B., France, R., Heldal,

R., Hill, J., Kienzle, J., Schttle, M., Steimann, F.,

Stikkolorum, D., and Whittle, J. (2014). The relevance

of model-driven engineering thirty years from now. In

Model-Driven Engineering Languages and Systems,

volume 8767 of Lecture Notes in Computer Science,

pages 183–200. Springer International Publishing.

Pendharkar, P. C. and Rodger, J. A. (2007). An empirical

study of the impact of team size on software develop-

ment effort. Inf. Technol. and Manag., 8(4):253–262.

Selic, B. (2003). The pragmatics of model-driven develop-

ment. IEEE Softw., 20(5):19–25.

Staron, M. (2006). Adopting model driven software devel-

opment in industry - a case study at two companies.

In Proc. of Model Driven Engineering Languages and

Systems, 9th Int. Conf., MoDELS 2006, Genova, Italy,

pages 57–72.

The Apache Group (2015). Apache cordova.

https://cordova.apache.org/.

Uhl, A. (2008). Model-driven development in the enter-

prise. IEEE Softw., 25(1):46–49.

Vaupel, S., Taentzer, G., Harries, J. P., Stroh, R., Gerlach,

R., and Guckert, M. (2014). Model-driven develop-

ment of mobile applications allowing role-driven vari-

ants. In MODELS 2014, Valencia, Spain, September

28 - October 3, 2014. Proceedings, pages 1–17.

Whittle, J., Hutchinson, J., and Rounceﬁeld, M. (2014). The

state of practice in model-driven engineering. IEEE

Softw., 31(3):79–85.

An Empirical Evaluation of AXIOM as an Approach to Cross-platform Mobile Application Development

271
