Cloud Data Warehousing for SMEs

Sérgio Fernandes

and Jorge Bernardino

1,2

ISEC – Superior Institute of Engineering of Coimbra, Polytechnic Institute of Coimbra, 3030-190 Coimbra, Portugal

CISUC – Centre of Informatics and Systems of the University of Coimbra, University of Coimbra,

3030-290 Coimbra, Portugal

Keywords: Database as a Service, Cloud Computing, Cloud Databases, Database Management System, DBaaS,

DWaaS.

Abstract: The emergence of cloud computing caused a revolution in the universe of Information Technology. With

cloud computing solutions it is possible to access powerful features, hardware and software in less time and

with considerably lower costs by using the model "pay-as-you-go". At the same time, this turnover

increased information, and data warehouses must respond to this new reality. Small and medium enterprises

(SMEs) were deprived of owning a traditional data warehouse due to the costs involved, but the cloud has

made it possible to overcome this barrier. This paper provides an overview of Data Warehouse (DW) in the

cloud and presents the main characteristics of the following solutions: Amazon Redshift, IBM dashDB,

Snowflake, Teradata Active Data Warehouse Private Cloud, Treasure Data, and Microsoft Azure.

1 INTRODUCTION

In recent years, the significant growth in data

volume and its complexity makes organizations look

for ways to keep the focus on their business instead

of in their IT infrastructure. Advances in

infrastructure and technology have led companies to

trust the cloud model, including Data Warehouses

(DW). According to recent studies, in 2014 the use

of large scale DW increased by 25% to 31% in

implementing cloud-based DW services (Henschen,

2015).

A Data Warehouse (DW) is a central repository

of integrated data, time-variant and non-volatile to

support management decision process. This handy

vision can quickly identify potential customers and

to identify trends and patterns, which can also serve

to support a marketing campaign or product

promotions.

However, these systems require high

computational resources in order to manage the large

volumes of data involved and providing constantly

updated information to their users.

To put that in practice the enterprise can acquire

the computational power and space, however the

problems are the high costs involved into the initial

acquisition and maintenance. Therefore, companies

began to use the services in the cloud.

Cloud computing is presented as a medium that

allows easy acquisition of computational resources,

scalable infrastructure with minimal setup and it is a

service at a lower cost, using the model "pay-as-you-

go" (Malliga, 2012). Many organizations have

chosen to implement or migrate their systems,

processes and data in order to reap the benefits of

elasticity that this environment provides, so that IT

administrators need not worry about work peaks.

The cloud models can be classified in three types:

public, private and hybrid (Kaur et al., 2012). Cloud

providers usually offer three different basic services:

Infrastructure as a Service (IaaS); Platform as a

Service (PaaS); and Software as a Service (SaaS).

While there are companies that support the cost

of their data storage services, small and medium

enterprises (SMEs) could not afford to have a Data

Warehouse because of the associated costs. The

Cloud Data Warehousing reduces costs and

eliminates the heavy lifting in creating the

infrastructure, allowing entrepreneurs focus more on

their businesses.

Another service model, data warehouse as a

service (DWaaS), is a source of new solutions that

have the same or better level of performance. This

paper aims to analyse the following solutions of

Cloud DW for companies and assess their

characteristics: Amazon Redshift, IBM dashDB,

276

Fernandes, S. and Bernardino, J.

Cloud Data Warehousing for SMEs.

DOI: 10.5220/0005996502760282

In Proceedings of the 11th International Joint Conference on Software Technologies (ICSOFT 2016) - Volume 1: ICSOFT-EA, pages 276-282

ISBN: 978-989-758-194-6

Snowflake, Teradata ADW Private Cloud, Treasure

Data, and Microsoft Azure.

The remainder of this paper is organized as follows.

Section 2 provides a brief evolution of database

technology. Section 3 presents the data warehouse

solutions in the cloud and their characteristics. In

Section 4 existing solutions and its main features are

compared. Finally, section 5 presents the main

conclusions and suggests future work.

2 EVOLUTION OF DATABASE

TECHNOLOGY

Relational database management system (RDBMS)

is a DBMS based on the relational model, where

information is stored in tables with rows and

columns. Each row contains a unique identifying,

the primary key, which can be used to create the

relationship with other columns. This model is based

in relationships between keys, which has as

disadvantage the cost to process joins between

tables. This model allows companies to store

information with moderate volume of data.

With the explosion of Web 2.0 and mobile

applications, Big Data comes and the industry felt

the need for development of large RDBMS. One of

the proposed models was the Object Oriented

Database Management Systems (OODBMS)

representing the objects used in object-oriented

programming (Malliga, 2012), which uses all

mechanisms of identity, encapsulation, inheritance,

and the grouping of classes. It allows change and

improve performance. This is followed some time

later by the object-relational model database

management system (ORDBMS) that is similar to a

relational database but with a database based on

object-oriented model. Currently, there are several

models on the market, as described above. The most

used ones are still based on traditional RDBMS

(DB-Engines Ranking). The NoSQL databases

increased by about 7% in 2014, due to the fast and

flexible developments that made it possible to

reduce deployment costs (Henschen, 2015). NoSQL

engines are thought to store unstructured data and

thus to avoid the limitations of structured data in the

transactions of large volumes of information

(Abramova and Bernardino, 2013). The evolution of

the database involves migrating to the cloud.

2.1 Database for Cloud

If a small and medium enterprise (SME) needs to

create a new competitive platform, it needs a

database-compatible cloud. The use of shared disk

enables scalability, i.e. elastic support and offering

high availability for SLAs. Relational databases

were not designed from the ground to the cloud or,

for that matter, to deal with Big Data.

The databases available to the cloud can be based

on SQL or NoSQL. The solutions market Amazon

Relational Database Service (MySQL), Microsoft

SQL Azure (MS SQL), Heroku, Postgres SQL,

Xeround Cloud Database (MySQL) and Enterprise

DB (Postgres SQL) are based on the SQL model.

Already the Amazon Dynamo DB solutions,

Amazon Simple DB, Database.com (SalesForce),

Cassandra, MongoDB, CouchDB, Big Table, Hbase,

Redis and Google App Engine Datastore are all

based on NoSQL model (Malliga, 2012; Nayak et

al.; Pathak, 2013).

This methodology is designated by the DataBase

as a service (DBaaS). A recent Aberdeen Group

study reveals that companies using cloud-based

analysis systems increased user adoption by 35% to

52% as well as increased self-service Business

Intelligence systems in 42% to 65%. Other

advantage is the implementation of cloud solutions

turns out to have a smaller operation time (Lock,

2014).

2.2 Data Warehouse for Cloud

To achieve some productive results of the analysis

of a big-data it is necessary to have a data warehouse

(DW). The DW is a system that permits the analysis

of large volumes of data thus requiring large

computational processing power. It is also necessary

to have some investment or to adopt some Cloud

solutions (see Figure 1). This is what led to the

creation of the service model data warehouse as a

service (DWaaS).

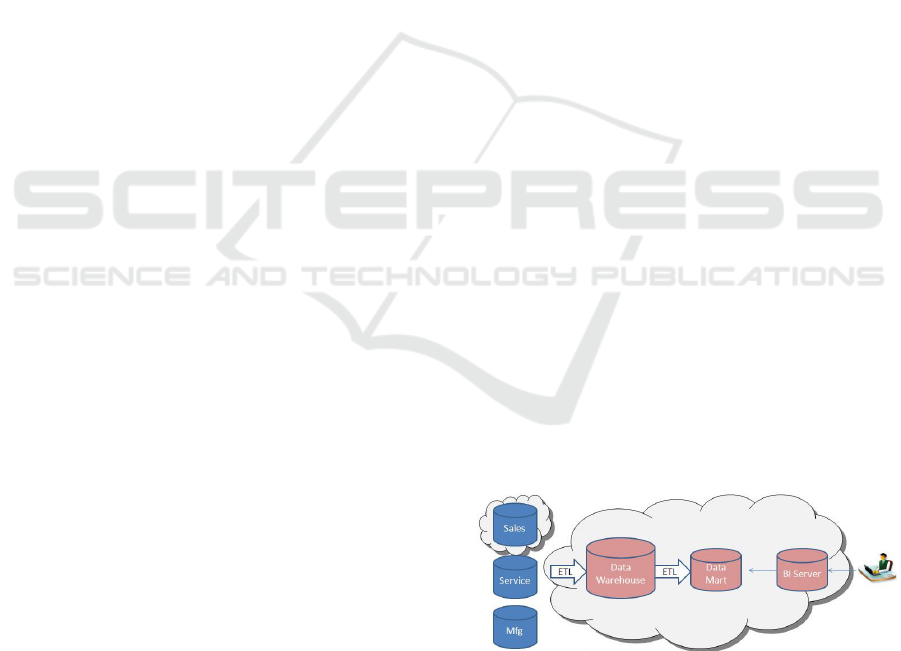

Figure 1: Data Warehouse in the Cloud (Deployment

Options for Cloud Computing).

Currently, there are solutions to ensure speed,

simplicity, scalability and analytical power

modernizing the data warehouse and respond to

Cloud Data Warehousing for SMEs

277

today's big data requirements. In the next section, we

will address some of the currently existing solutions.

3 CLOUD DATA WAREHOUSING

A data warehouse stored on the Cloud is queried via

analytical queries which are usually incorporated

into web services. Figure 2 exemplifies the evolution

of database systems over the years and the last

comes the latest model called data warehouse as a

service (DWaaS).

In this section we will present the following

solutions that support DWaaS and its main

characteristics: Amazon Redshift, IBM dashDB,

Snowflake, Teradata Active Data Warehouse Private

Cloud, Treasure Data, and Microsoft Azure.

Cloud

Database as a service

Data Warehouse as a

service

Premise

RDBMS

Traditional Data

Warehouse

DataVolume

Figure 2: Evolution of database systems.

3.1 Amazon Redshift

The solution Redshift in the Amazon AWS cloud

has shown to be very reliable. This platform was

created in 2012 and it provides petabytes of storage

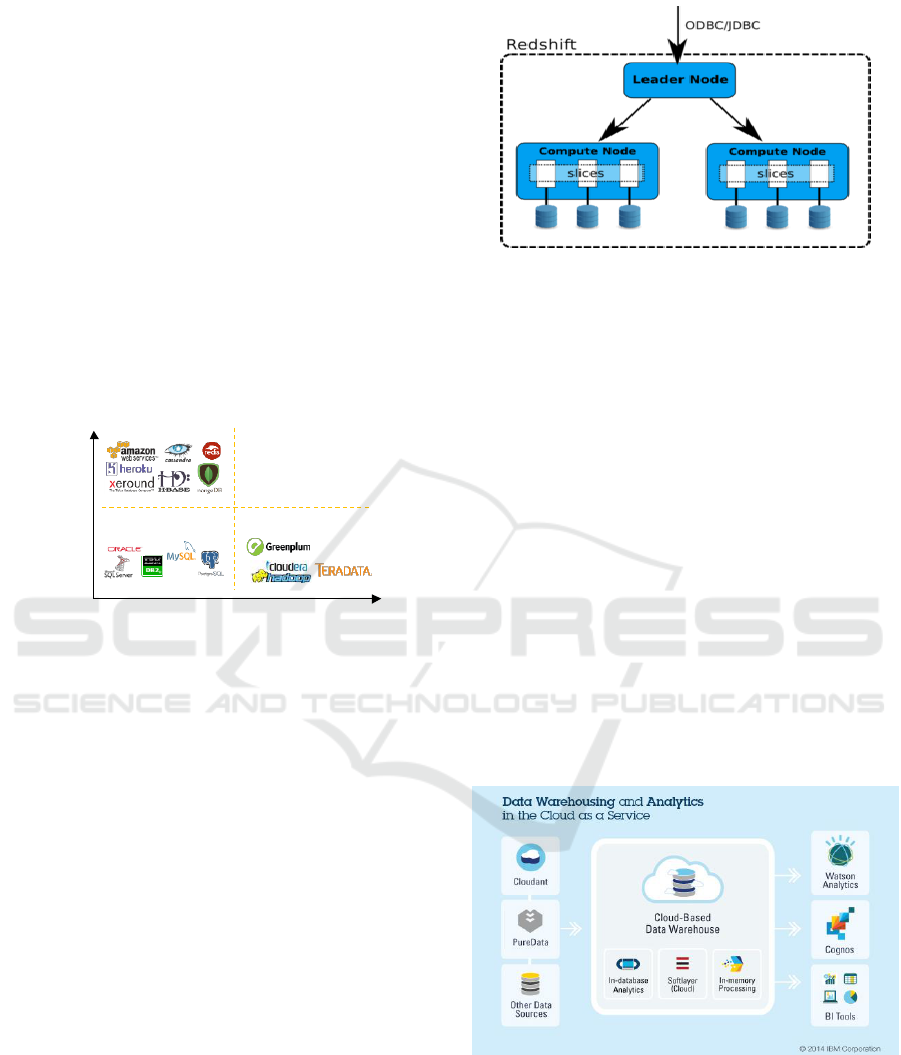

in the cloud across multiple nodes. Figure 3

illustrates the Redshift architecture built around two

types of nodes: a single Leader Node and a cluster of

Compute Nodes. The customer may use current

intelligence tools to perform quick and accurate

analysis of data, usually in catalogued reports. Most

administration tasks are executed in an automated

platform. This solution runs on a SQL platform,

based on PostgreSQL and is built to integrate with

Amazon Web Services as well as Amazon S3

(Redshift). It is available in the PaaS model and is

based on Massively Parallel Processing (Showflake

Computing: A New Take on a Data Warehousing in

the Cloud).

Figure 3: Amazon Redshift architecture (Redshift).

3.2 IBM dashDB

IBM presents the dashDB solution available through

IBM Bluemix (Cloud Platform) or Cloudant

(DBaaS). This platform ensures that robust stability

is fully managed in the cloud and simple with fast

provisioning at SoftLayer. Safety is also ensured by

SoftLayer Secure Cloud Infrastructure.

The solution ensures flexibility supporting data

volumes and processing speed. OLTP convergence

includes supporting the enterprise data warehousing

and analysis for the same database or in the cloud

parallel processing database (see Figure 5). The

performance is supported by the low latency with

IBM in-memory, compression, hardware

acceleration and parallel processing of analysis

algorithms libraries. The dashDB supports

integration DB2 database or PureData Analytics

System (PDA), and IBM Watson Analytics can

extract Business Intelligence (Dashdb).

Figure 4: IBM dashDB (Dashdb).

3.3 Snowflake

The Snowflake Elastic Warehouse solution appears

to be the first to create a data warehouse from

scratch for the cloud. It guarantees a 90% lower cost

compared to traditional storage solutions and the

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

278

only solution able to take advantage of flexibility

elasticity, scalability and cloud (Snowflake). The

company has specialists with many years of

experience that have identified the need to reinvent

the databases to achieve the power of cloud

computing.

Snowflake's Elastic Data Warehouse is the first

in SQL data solution built for the cloud and its

patented architecture separates physically and

logically integrates the storage and computing. As

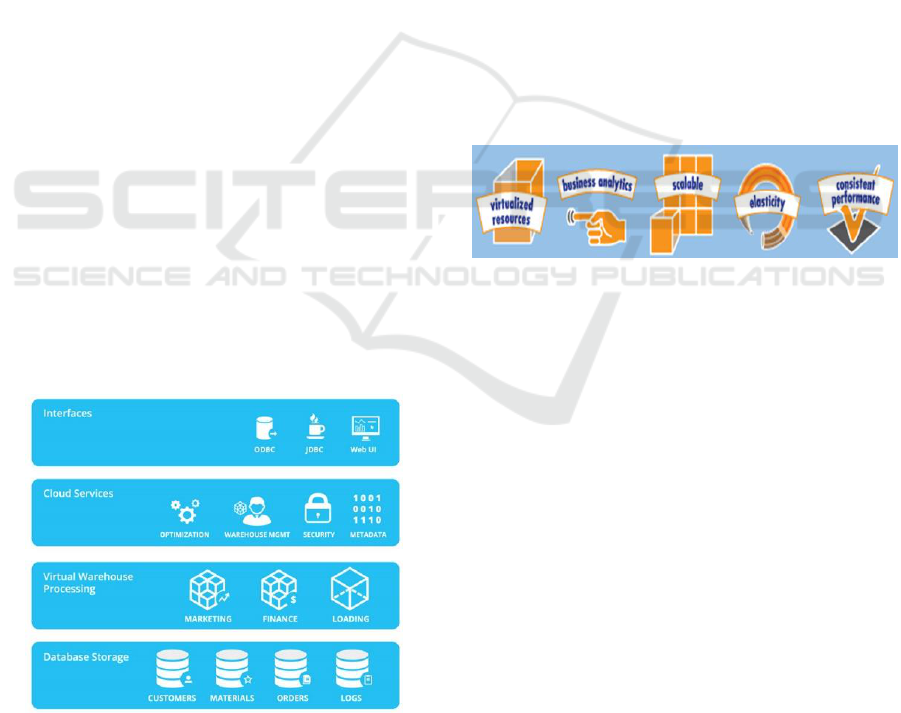

illustrated in Figure 6, it takes full advantage of the

cloud flexibility that would be impossible in a

traditional implementation. The solution gathers all

business data, structured or semi-structured in one

place for analysis and thus allow the use of SQL

tools with main focus on data analysis. The storage

system is based on JavaScript Object Notation

(JSON) that is currently being used in various

applications.

There is a guarantee that the client does not have

to spend time in the management of resources,

whether hardware or software. The multi-

dimensional elasticity enables optimum performance

at every scale and allows to upload information and

make an appointment at the same time because there

are no conflicting resources (Snowflake).

Snowflake was designed from the ground in a

non-MPP engine, and creates a PaaS solution that

automates the design, provisioning, and data

warehouse design allowing multidimensional

elasticity that is one of the main advantages of

cloud. The solution is available on the Amazon

platform or may be accessed through a tool-

dedicated connection (Showflake Computing: A

New Take on a Data Warehousing in the Cloud).

Figure 5: Snowflake logically integrates the storage and

computing but there is physical separation (Snowflake).

3.4 Teradata

The Teradata Active Data Warehouse Private Cloud

solution provides migration project to the cloud

ensuring best practice in the management and

security systems. It also provides training and

customer support (Teradata).

Teradata offers a simple solution producing a

single view of business. In data integration, it

includes processes to ensure the integrity, cleaning

or processing.

Teradata next-generation solution leverages and

extends the cloud resources through virtualized

resources, scalability, elasticity, self-service and

consistent performance (see Figure 7).

The solution integrates ETL and BI ecosystem in

a secure environment, reliable and hardware

management / software for Teradata. The use of

JSON allows flexibility in managing information.

The company ensures that the solution is ideal for

organizations that require a real-time storage or look

for real-time analysis via dashboards (Teradata

Turns to the Cloud, Offers Data Warehouse as a

Service).

Figure 6: Teradata ADW Cloud Characteristics (Teradata

Turns to the Cloud, Offers Data Warehouse as a Service).

3.5 Treasure Data

The Treasure Data Cloud service is available at a

reduced price, fast to implement, easy to use without

the need for specialized IT resources eliminating

complexity (Treasure). The solution was developed

based on Hadoop and other open source

technologies in order to keep costs down. Ensures

loading faster and easier data as well as processing

large volumes of data quickly in real time. With

Treasure it is not necessary to learn a new language,

due to the use of SQL-like and the JDBC driver that

allows the use of BI tools.

As shown in Figure 8, this service is available

through Amazon S3 that is scalable, reliable and

secure, allowing the elasticity and scalability. In

addition to this, it does not require an investment in

infrastructure (Treasure).

Cloud Data Warehousing for SMEs

279

Figure 7: Treasure Data (Treasure).

3.6 Microsoft Azure

Microsoft argues that the Azure Virtual Machines

platform is ideal for running SQL Server

applications because of new virtual images

optimized for performance and a simple

configuration (Microsoft Azure), as shown in Figure

The SQL Server engine was redesigned for the

multiple parallel processing (MPP) with Parallel

Data Warehouse (PDW). The MPP architecture

enables powerful distributed computing and

climbing accompanying the client's need and

reduces latency improving performance (The

Microsoft Modern Data Warehouse, 2013).

The company states that the warehouse relational

data were not designed to handle a large volume of

data. The proposed solution integrates the traditional

data warehouse with non-relational data and thus

supports any volume of information and real-time

processing (The Microsoft Modern Data Warehouse,

2013).

Figure 8: Microsoft Azure (The Microsoft Modern Data

Warehouse, 2013).

4 EVALUATION

In this section we evaluate the platforms described

in section 3. Table 1 illustrates the comparison of

Cloud Data Warehouse platforms concerning the

following aspects: manufacturer, security, delivery

method, BI (Business Intelligence), ETL (Extract-

Transform-Load), Cloud, payment model, and

elasticity. These solutions in the cloud prevent

SMEs to make a substantial investment in

Table 1: Cloud Data Warehouse platforms comparison.

Manufacturer

Security

Delivery

Method

ETL

Cloud

Payment Model

Elasticity

Redshift

Amazon

Yes

Amazon

Free 750hours

1000$/Year

/TB

Yes

dashDB

IBM

Yes

–

AES

256

Yes

IBM

Bluemix

Cloudant

Free to 1 GB.

50,00

US$/Monthly

Yes

Snowflake

Yes

PaaS

Yes

Amazon

e Azure

Yes

Teradata

Yes

From 1000$ to

5000$/

Monthly

Yes

Treasure

Data

Treasure

Data

Yes

Amazon

Yes

Azure

Microsoft

PaaS

Yes

Azure

Try for free

From 0.14€ to

1.9€/hour

Yes

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

280

infrastructure or hardware or software and being also

independent of a supplier who cannot even meet

their needs. Therefore, SMEs can experience these

solutions and decide which is the most advantageous

solution. In our opinion, the Snowflake solution is a

good solution that was developed and designed for

the cloud and by professionals with many years of

experience in the field (Showflake Computing: A

New Take on a Data Warehousing in the Cloud).

All other solutions identified belong to major

suppliers in the area and meet the needs of building

a data warehouse in the cloud. However, it is

necessary to consider all the features and consulting

enterprise solution for some more information and

support.

5 CONCLUSIONS AND FUTURE

WORK

In this paper we presented the evolution of

databases, their need to shift to cloud and some

existing solutions on the market for data

warehousing, emerging a new paradigm, Data

Wwarehouse as a Service (DWaaS).

For SMEs (Small and Medium Enterprises),

which generally do not have the opportunity to

acquire a lot of technology, cloud computing is

attractive because it offers flexibility in purchasing

additional IT resources at anytime, which is

especially useful in the rapid changes in today's

business model.

In this work we analyse and compare the most

popular Cloud Data Warehouse platforms: Amazon

Redshift, IBM dashDB, Snowflake, Teradata Active

Data Warehouse Private Cloud, Treasure Data, and

Microsoft Azure. All the platforms described in this

paper are accessible without the concern existing in

the acquisition and maintenance of IT resources.

DWaaS is seen as a good option for businesses

looking for an alternative to ownership and

management of the engine information. Thus, all

management activities, backup, recovery, security,

and performance and capacity management is

replaced by a monthly cost. Some market solutions

include the ETL process and BI.

The market is gaining more confidence in cloud

services and SMEs need a partner to assist their

membership of these services so they can move their

business to the cloud.

Many service providers only provide BI

solutions and the market is still immature,

alternative services varied widely in both cost and

performance of the type of services offered by

leading vendors discussed in the previous section.

As future work we pretend to evaluate these

solutions in a SME with real information doing a

complete assessment. This evaluation will be based

on a standard performance benchmark, but also

analysing the interface offered by platforms and the

initial steps necessary to build a complete data

warehouse.

REFERENCES

Malliga, P., “Database Services for Cloud Computing –

An Overview” International Journal of Computers &

Technology, Volume 2 No. 3, June, 2012.

Redshift [online] http://aws.amazon.com/pt/redshift/

(Accessed June 2015).

Dashdb [online] http://www-01.ibm.com/software/data/da

shdb/what-is.html (Accessed February 2016).

Snowflake [online] http://www.snowflake.net/ (Accessed

February 2016).

Teradata [online] http://www.teradata.com/Teradata-ADW

-Private-Cloud/ (Accessed February 2016).

Treasure [online] https://www.treasuredata.com/

(Accessed February 2016).

Microsoft Azure [online] https://azure.microsoft.com/

(Accessed February 2016).

Kaur, Harjeet, Agrawal, Prateek and Dhiman, Amita,

“Visualizing Clouds on Different Stages of DWH –

An Introduction to Data Warehouse as a Service”,

2012 Int. Conference on Computing Sciences.

DB-Engines Ranking [online] http://db-engines.com/en/

ranking (Accessed February 2016).

Nayak, A., Poriya, A. and Poojary, D., “Type of NoSQL

Databases and its Comparison with Relational

Databases”, International Journal of Applied

Information Systems (IJAIS).

Pathak, A. R., “Survey of Confidentiality and Integrity in

Outsourced Databases” Int. Journal of Scientific

Engineering and Technology, 1 April 2013.

Showflake Computing: A New Take on a Data

Warehousing in the Cloud [online] http://tdwi.org/

articles/2015/02/17/snowflake-computing.aspx

(Accessed February 2016).

Henschen, D., “5 Analytics, BI, Data Management Trends

For 2015” [online] https://www.ironsidegroup.com/20

15/02/02/top-5-trends-in-cloud-data-warehousing-and-

analytics-for-2015/ (Accessed March 2016).

Lock, M., “Rapid Insight with Results: Harnessing

Analytics in the Cloud”, June 2014.

Deployment Options for Cloud Computing [online]

http://www.b-eye-network.com/blogs/eckerson/archiv

es/2011/07/deployment_opti.php (Accessed March

2016).

Teradata Turns to the Cloud, Offers Data Warehouse as a

Service [online] http://www.cio.com/article/2381531/b

usiness-intelligence/teradata-turns-to-the-cloud--offers

Cloud Data Warehousing for SMEs

281

-data-warehouse-as-a-service.html (Accessed March

2015).

Microsoft Corporation, “The Microsoft Modern Data

Warehouse”, 2013. (Accessed March 2016) Available

http://download.microsoft.com/download/c/2/d/c2d2d

5fa-768a-49ad-8957-1a434c6c8126/the_microsoft_mo

dern_data_warehouse_white_paper.pdf.

Abramova, V. and Bernardino, J., 2013. NoSQL

databases: MongoDB vs Cassandra. In International

C* Conference on Computer Science and Software

Engineering (C3S2E '13). ACM, New York, USA.

Neves, P. C. and Bernardino, J.. Big Data in the Cloud: A

Survey. Open Journal of Big Data (OJBD) Vol 1 (2),

pp. 1-18, 2015.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

282
