Predicting Outcomes of ElimLin Attack on Lightweight Block Cipher

Simon

Nicolas T. Courtois

, Pouyan Sepehrdad

, Guangyan Song

and Iason Papapanagiotakis-Bousy

Computer Science Department, University College London, Gower street, WC1E 6BT, London, U.K.

Product Security Team, Qualcomm Inc, San Diego, CA, U.S.A.

Keywords:

Cryptanalysis, Finite Fields, Polynomial Equations, Block Ciphers, NP-hard Problems, MQ Problem, Phase

Transitions, XL Algorithm, Gr

obner Bases, ElimLin, Prediction, Time Series.

Abstract:

There are two major families in cryptanalytic attacks on symmetric ciphers: statistical attacks and algebraic

attacks. In this position paper we argue that algebraic cryptanalysis has not yet been developed properly due

to the weakness of the theory which has substantial difﬁculty to prove most basic results on the number of

linearly independent equations in algebraic attacks. Consequently most authors present a restricted range of

attacks which are shown experimentally to work with their computer but refrain from claiming results which

would work on a larger computer but have not yet been tested. For example in recent 2015 work of Raddum

we discover that (experimentally) ElimLin attack breaks up to 16 rounds of Simon block cipher however it

is hard to know what happens for 17 rounds. In this paper we argue that one CAN predict and model the

behavior of such attacks and evaluate complexity of the attacks which we cannot yet execute. To the best of

our knowledge this has never been done before.

1 INTRODUCTION - ElimLin

ElimLin has been invented in 2006/2007 (N. Courtois,

2007; Courtois, 2007b). It is typically viewed as a

super-simpliﬁed Gr

obner basis calculation technique

which nevertheless is a stand-alone powerful crypt-

analytic attack: it can break ciphers and recover the

key just by running some software without any hu-

man intervention. The study of ElimLin is interesting

(N. Courtois, 2012; P. Susil, 2016) precisely because

it is simpler to understand than more complex polyno-

mial algebra techniques (N. Courtois, 2000; N. Cour-

tois, 2003; J.-M. Chen and Yang, 2004; M. Bardet,

2004; T.J. Hodges, 2015).

1.1 Fundamental Problems

It is very disappointing to study the current Gr

obner

basis theory which only provides simple uncondi-

tional answers on the complexity of algebraic attacks

in some restricted cases and under assumptions which

systems of equations which we really are facing do

not satisfy (N. Courtois, 2003; J.-M. Chen and Yang,

2004; M. Bardet, 2004; T.J. Hodges, 2015). In gen-

eral it is important to note that extremely few things

are known in general about upper bounds on complex-

ity of algorithms. This is simply a major difﬁculty in

computer science in general: This applies in particu-

lar to most scientiﬁc statements which could guaran-

tee security of industrial cryptographic systems. Al-

most never researchers in cryptography attempt to

prove such statements. The nature of statements is

simply such that they cannot be proven, they can only

be disproved, cf. (Nash, 2012; Courtois, 2008). We

can derive this for example from Karl Popper philoso-

phy of science. More importantly this impossibility to

prove have been explicitly stated and afﬁrmed specif-

ically for the hardness of problems in cryptanalysis of

ciphers by US mathematician John Nash inside his re-

cently declassiﬁed letter to the NSA written as early

as 1955 (Nash, 2012). We see that there are good fun-

damental reasons to work run extensive experimen-

tations and extrapolate rather than try to achieve an

arguably impossible task to prove that our attack will

work for larger parameters.

1.2 ElimLin Basics

ElimLin is a curious sort of attack, cf. slide 126 in

(Courtois, 2016a). It can be described informally as

an iteration of 2 simple steps:

1. Find linear equations in the linear span.

Courtois, N., Sepehrdad, P., Song, G. and Papapanagiotakis-Bousy, I.

Predicting Outcomes of ElimLin Attack on Lightweight Block Cipher Simon.

DOI: 10.5220/0005999504650470

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 465-470

ISBN: 978-989-758-196-0

465

2. Eliminate some variables, and try 1. again.

ElimLin is a software cryptanalytic attack which

allows one to recover the secret key of many block ci-

phers (Courtois, 2007b; Courtois and Debraize, 2008)

and more recently in (N. Courtois and Susil, 2014;

Raddum, 2015; P. Susil, 2016).

The main characteristic of ElimLin is that it qui-

etly dissolves and makes disappear non-linear equa-

tions and generates linear equations. This algorithm

basically makes progressively disappear the main and

only thing which makes cryptographic schemes not

broken by simple linear algebra: non-linearity. It is

not clear however why this works and how well the

ElimLin attack scales for larger systems of equations.

2 ElimLin ON LIGHTWEIGHT

CIPHERS

A major difﬁculty with ElimLin is that so far it has

been successful only for relatively simple lightweight

ciphers. For more complex ciphers it seems to do

things which are relatively trivial, e.g. equations gen-

erated do NOT penetrate deeply inside the cipher, or

very slowly, cf. slide 153 in (Courtois, 2016a).

We are going right now to make some deﬁnite

progress in the direction of distinguishing between

trivial and non-trivial behavior for ElimLin. This is

NOT only about penetrating deeper inside the cipher.

Previous experience shows that ElimLin only starts

to work at a certain threshold. Before this threshold,

again nothing non-trivial can be observed even though

slow penetration occurs. This is not really apparent in

any of the current works or is lost in vast quantities

of data generated in computer simulations. It will be

more clearly visible in this paper. In this paper we

deﬁne a new criterion which shows that it is possible

to see that there exist two very different and easily

distinguishable patterns in ElimLin. Either the attack

follows one pattern, and does nothing trivial, or it fol-

lows another pattern and it is very clearly doing well.

2.1 Phase Transitions

It is known that many NP-hard problems are subject to

“phase transition”, with certain parameters that prob-

lem is hard, and then will rather abruptly transition

from “hard” to “easy to solve”. This what we ob-

serve with ElimLin. Let K be the number of Plain-

text/Ciphertext (P/C) pairs used in an ElimLin attack.

In this paper we are going to discover that at a cer-

tain threshold the number of NEW linear and linearly

independent equations generated at various stages of

the attack can follow one curve, and then switch to

another curve with a different asymptotic growth rate.

Conjecture 2.1 Consider a system of multivari-

ate equations derived from a block cipher written fol-

lowing one of the two basic strategies described in

(N. Courtois, 2007; Courtois, 2016a). Consider a sim-

ple known plaintext attack with K Plaintext/ciphertext

(P/C) pairs. Consider a case such that the cipher is

eventually broken by ElimLin, cf. (Courtois, 2007b;

Courtois, 2007a; Courtois and Debraize, 2008; Cour-

tois, 2016c; Raddum, 2015). The number of new

and linearly independent linear equations generated

by ElimLin algorithm goes through several distinct

stages St0-St3:

St0 Initially it grows linearly with K, and for certain

individual stages of the attack is simply equal to

0 and does NOT grow, cf. our later r

notation in

Section 3.

St1 Then it switches to another curve where it grows

faster than linearly in K.

St2 This until it reaches a saturation stage where the

cipher is completely broken by ElimLin. Here

we have a very rapid phase transition cf. Sec-

tion refBigPictureUpAndDown where the num-

ber of equations r

generated at one stage re-

becomes 0 simply because an earlier stage of the

attack reaches a certain threshold where combina-

torial explosion in additional equations generated

makes it complete the whole attack and not requite

the next stage to be executed].

One (old) example from 2007 which shows that the

number of equations grows faster than linear as a

function of the data complexity K in ElimLin can be

found at slide 153 in (Courtois, 2016a) and which

originally comes from (Courtois and Debraize, 2008).

3 OUR EXPERIMENTAL SETUP

AND NOTATION

More examples can be easily obtained using a ba-

sic software setup which we use at UCL to run a

hands-on student lab session on algebraic cryptanal-

ysis of block ciphers (Courtois, 2016c), which is part

of GA18 course on cryptanalysis taught at UCL. One

example could be easily obtained for the CTC2 ci-

pher, cf. (Courtois, 2007b; Courtois, 2007a; Courtois,

2016c). A more “modern” example can be generated

by using the equations generator for Simon block ci-

pher developed by Guangyan Song and UCL student

Ilyas Azeem in 2015-6, the complete source code of

which is available at github, cf. (Courtois, 2016c;

SECRYPT 2016 - International Conference on Security and Cryptography

466

Courtois, 2016b). The ElimLin is executed using us-

ing one of our implementations of ElimLin (Cour-

tois, 2016c; Courtois, 2016b) which has the nice par-

ticularity to display on screen the number of linear

equations generated at each stage/iteration of the al-

gorithm.

We recall the two main and only steps of ElimLin:

1 Find r

linear equations in the linear span, i =

0,1,2,3,....

2a If r

> 0 eliminate some r

variables, increment i

and try again Step 1.

2b Algorithm terminates when r

= 0 for some i.

In addition, in this paper, and by convention we

are going to deﬁne a step i = 0 which is differ-

ent than above, but the same which is implemented

in a common implementation of ElimLin (Courtois,

2016b). We will assume that r

will be the number

of linear equations which already appear in the equa-

tions, without executing any linear algebra. This is

a convention which allows researchers to distinguish

more easily between a “misleading” starting number

of variables (which is sometimes artiﬁcially inﬂated

due to methods used for equation generation and for-

mal coding) and the “real” or intrinsic number of vari-

ables which is there prior to execution or ElimLin.

Deﬁnition 3[ElimLin progress indicators]

Let V

start

or simply V if there is no confusion be the

initial number of variables. We deﬁne by r

the num-

ber of linear/afﬁne equations over GF(2) generated at

each stage of the algorithm where by convention r

the number of linear/afﬁne equations over GF(2) al-

ready present. We deﬁne

broken

∑

j=0

broken

∞

∑

i=0

(1)

where by convention r

= 0 if algorithm has

reached V

broken

= V at an earlier stage. We deﬁne also

broken

= V −

∑

j=0

(2)

and accordingly let V

unbroken

= V −

∑

∞

i=0

. Over-

all we will say that the algorithm terminates if

broken

= V and V

unbroken

= 0 and we deliberately ig-

nore the fact that some variables could be subject to

a brute force step, cf. FXL method in (N. Courtois,

2003). Overall our goal is to achieve for a certain i

that

broken

start

= 1 or

unbroken

start

= 0 (3)

4 HOW TO PREDICT THE

SUCCESS OF ElimLin

We start by a simple example which shows that accu-

rate prediction is feasible.

4.1 On Growth Rate in ElimLin

On the ﬁgure below we show the number of linear

equations generated at stage 4 [counting from 0] of

the ElimLin algorithm for 8 rounds of Simon block

cipher. We should note that nothing remarkable hap-

pens at earlier stages 0,1,2,3, the growth is linear and

therefore very easy to predict. We have then asked

Microsoft Excel to produce a polynomial interpola-

tion for this data series.

Figure 1: Number of linearly independent equations gener-

ated at stage 4 of the ElimLin algorithm for 8 rounds of

Simon 64/128 obtained with the exact software setup of

(Courtois, 2016c).

4.2 Analysis of Our Prediction

First property we need to note is that the polynomial

prediction seems to be the right tool here. This is

justiﬁed by the fact that the normalized squared error

value R

is very high and close to the theoretical max-

imum of 1, and also that high degree coefﬁcients are

substantially smaller (in absolute values) that lower

degree polynomial coefﬁcients.

Secondly we observe that ElimLin eventually

breaks the cipher here because the number of newly

generated linear equations grows faster than the num-

ber of variables which grows linearly with K. Eventu-

ally we obtain a sufﬁcient number of linear equations

which makes ElimLin compute all the variables and

obtain the 128-bit secret key together with all the in-

termediate variables. This was previously observed

in other cases where ElimLin was applied cf. (Cour-

tois, 2016a; Courtois and Debraize, 2008; Courtois,

2007a; N. Courtois, 2007).

Predicting Outcomes of ElimLin Attack on Lightweight Block Cipher Simon

467

4.3 Limitations vs. Improvements

We do not know any counter-example which would

contradict our asymptotic super-linear growth rule.

For 8 rounds of Simon cipher we observed that the

growth remains strictly linear for equations computed

at stage 3, however some equations are only com-

puted at stage 4 and this occurs quite early starting

from K = 1. However Simon is a particularly simple

cipher. For more complex ciphers, the ElimLin algo-

rithm could have serious problems to enter this behav-

ior or start working and exhibit any sort of non-trivial

behavior. However when ElimLin starts to work for

some cipher and produces new equations which de-

pend on the plaintext or ciphertext data in a non-trivial

way, steady progress is observed. Except maybe if

there isn’t enough data available. A certain type of

counter-example could occur for some ciphers with

small blocks which would maybe not be able to allow

K to be large enough for ElimLin to terminate.

Improvements. We stress that this powerful phe-

nomenon of combinatorial explosion which eventu-

ally leads to ElimLin breaking the cipher occurs al-

ready for a basic straightforward application of Elim-

Lin in a known-plaintext attack (KPA) scenario. Sev-

eral methods to make ElimLin work better by us-

ing well-chosen P/C pairs. One method which has

been used ever since ElimLin was invented (Courtois,

2007b; Courtois, 2007a; N. Courtois, 2007) is to ex-

ploit a CPA (chosen-plaintext attacks) with plaintext

which differ by extremely few bits, for example in

a counter mode. More recently new methods have

been proposed which allow to generate additional lin-

ear equations not automatically discovered by Elim-

Lin (N. Courtois and Susil, 2014) and (P. Susil, 2016).

In this paper we again focus on very simple vari-

ants of ElimLin in order to show that high accuracy

predictions (e.g. with R

≈ 1) are possible to achieve.

This success should encourage and set up standards

for further research on more realistic and more pow-

erful but also more complex applications of ElimLin,

cf. (N. Courtois and Susil, 2014; P. Susil, 2016; Rad-

dum, 2015).

5 THE BIG PICTURE - LONG

TERM PREDICTIONS

As already explained in Conjecture 2.1 page 2, we ex-

pect that there are at least 3 distinct stages in ElimLin

algorithm. With these notations until now we have

been only looking at stage St1 of the attack. In this

section we look at the big picture and the main phase

transition ST1-2 which is the most fundamental one

because we have really here a transition from “hard”

to “easy” and some sort of combinatorial explosion in

the number of generated equations at one stage which

for even higher K makes this stage i of the attack un-

necessary because the attack will terminate at an ear-

lier stage i − 1. This is best seen by looking at how

the value of V

unbroken

evolves with growing K.

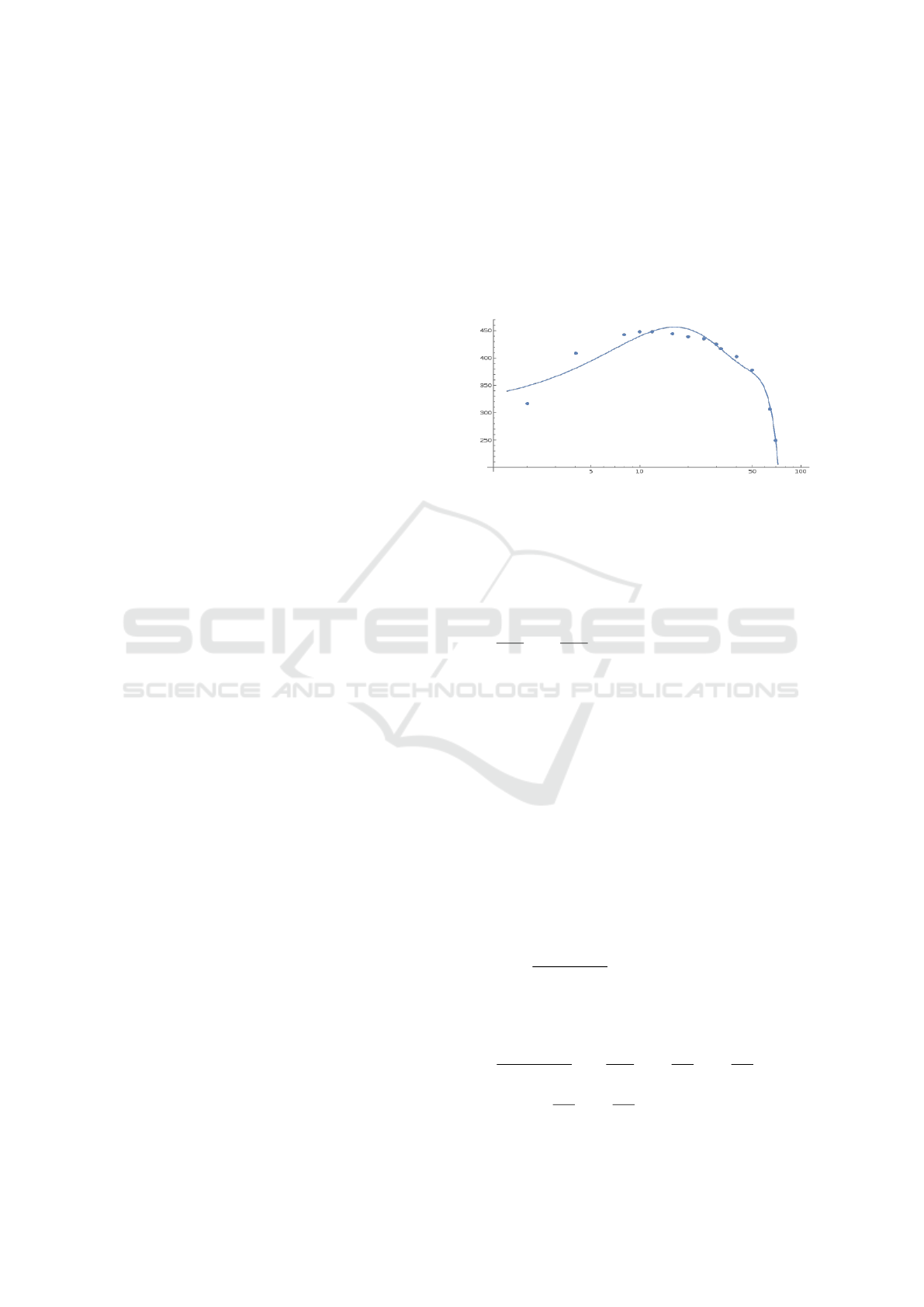

Figure 2: Number of variables when ElimLin terminates

unbroken

for 8 rounds of Simon 64/128 obtained with the

exact software setup of (Courtois, 2016c).

This curve seems a lot harder to predict than until

now. For example we have obtained the following

polynomial predictor

unbroken

(K) =

−

1.35

2.07

−1.12 ·K

+22.4 ·K +308.25

(4)

for which we have R

= 0.9863. Substantially bet-

ter accuracy can be achieved by focusing on another

quantity and looking at a wider range or prediction

methods. We have tried many different predictors ob-

tained with Microsoft Excel and WolframAlpha cloud

online service www.wolframcloud.com which offers

higher precision and more advanced functionalities.

In general focusing on the ratio V

unbroken

start

gives

substantially better results, as V

start

grows linearly

with K and our primary interest in this paper is a de-

viation from that linear growth which is the default

(trivial) behavior. The curves become then more reg-

ular and more intelligible, cf. later Figure 4. For ex-

ample we obtained R

= 0.9941 with

unbroken

(K)

start

= 1.07 · x

−0.485

− 0.127 (5)

Then we obtained R

= 0.9989 with a polynomial of

degree 6:

unbroken

(K)

start

= −

−

7.5

− 0.112K + 0.8083 (6)

SECRYPT 2016 - International Conference on Security and Cryptography

468

Finally we have obtained an even better result R

0.9998 with

unbroken

(K)

start

= −

9.57

(lnK)

1.00

(lnK)

−

3.19

(lnK)

−

1.35

lnK + 0.65. (7)

Goals. Overall in security of block ciphers the main

goal for further development of prediction techniques

will be ﬁrst to predict the moment when the curve on

Figure 2 starts falling. This is the main phase transi-

tion from “hard” to “easy” in any ElimLin attack.

5.1 Are Reliable Extrapolations

Possible?

So far we have only worked with data from simula-

tions and all our predictions are highly accurate just

because we had quite a few data points and have de-

ployed sufﬁcient effort to compute predictors with

standard techniques. The fact that several methods

give remarkably good results should however be a

warning sign. This together with insufﬁcient amount

of data will be a major difﬁculty when researchers in

the future are going to try to build predictive models

to extrapolate and compute the complexity of simula-

tions which they have not done. In an extrapolation

scenario it is easy to see that even though different

methods used will give excessively good results on

the actual data in a certain interval, they could diverge

and could fail to predict the curve on a larger inter-

val. Even in this case these predictions can be used

to determine the possible or plausible range of results

which one can expect to achieve.

A real solution for this difﬁculty would be to have

an “

a priori” idea about the nature of the curve and

its growth. We had that in Section 4.1 and the poly-

nomial approximation has larger degree coefﬁcients

which have decreased rapidly conﬁrming our “

a pri-

ori” idea on super-linear growth approximated by a

polynomial. Here for predicting V

unbroken

(K) which

is essentially proportionnal ot sum of the r

we also

expect a polynomial prediction and we obtained R

0.9989. This is also a somewhat consistent predictor

with rapidly decreasing coefﬁcients of higher degree.

If so, shouldn’t we use a lower degree predictor?

5.2 Are Low Degree Polynomial

Extrapolations Possible?

If we look at our later Figure 4 or again how

quickly lower degree coefﬁcients decrease in predic-

tors above, we could be tempted to use a linear or low

degree predictor. Our experience shows that cutting

small higher degree terms in these predictors is dis-

astrous and does not lead to quality predictions, not

even on smaller intervals. For example we can cut

the beginning of current series and restrict to poly-

nomials of degree 2 for

unbroken

(K)

start

and we obtain a

predictor of

unbroken

(K)

start

≈

−

7.7

K + 0.26 which

is neither very consistent with more accurate predic-

tors computed above nor with the data trend at most

places.

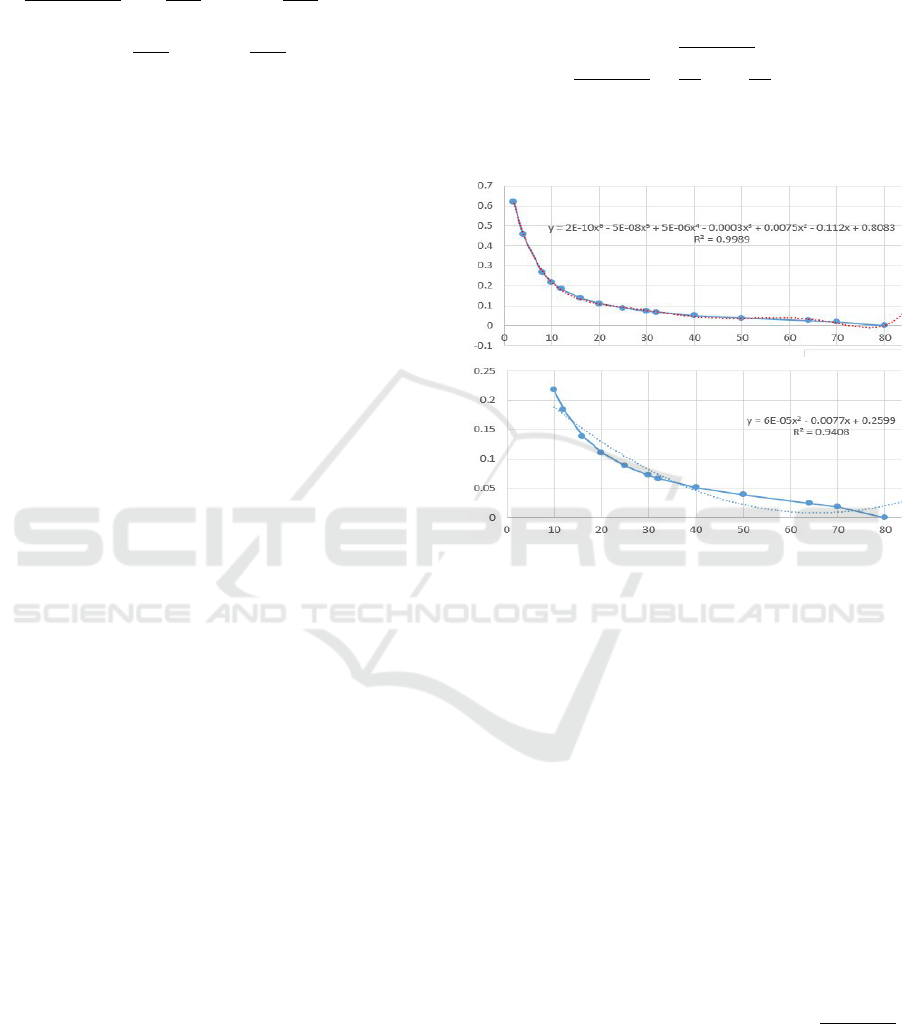

Figure 3: Good vs. bad predictors: decreasing the degree

of a polynomial prediction for the same Simon 64/128 8

rounds.

The latter graph is deﬁnitely not a predictor we

would recommend!

6 ON COMPARATIVE

STRENGTH OF CIPHERS

Another major application of ElimLin techniques and

possible extrapolations is to make comparison be-

tween different ciphers. For example current research

indicates that Simon is broken for up to 16 rounds

(Raddum, 2015) and CTC2 for up to 7 rounds, both

using ElimLin algorithm. Is it possible to claim that

one round of Simon is substantially weaker than one

round of CT2? We would agree with this claim. On

the ﬁgure below we show how the quantity

unbroken

(K)

start

decreases for 7 rounds for each cipher. We conclude

that both ciphers are broken for some K value but

with ElimLin we still have a long way to go before

the attack terminates resulting in much higher data

complexity and running times. This shows that there

exist ciphers fundamentally weaker than CTC2 even

Predicting Outcomes of ElimLin Attack on Lightweight Block Cipher Simon

469

though CTC2 was designed to be quite vulnerable to

algebraic attacks (Courtois, 2007b; Courtois, 2007a).

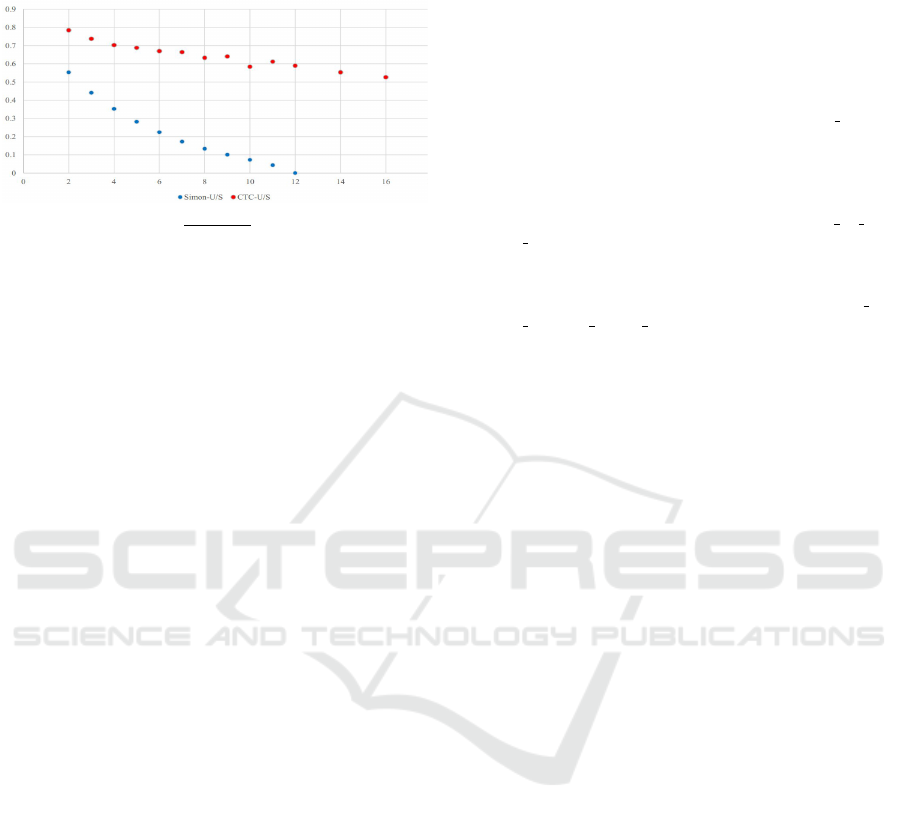

Figure 4: The value of

unbroken

(K)

start

for 7 rounds of Simon

64/128 (blue) compared to toy cipher CTC2 with 7 rounds

and 8 S-boxes per round and 10/24 key bits known (red).

This per-round weakness of Simon is expected to

be compensated by a larger number of rounds.

7 CONCLUSION

In this position paper we propose to predict the suc-

cess of the number of equations generated in algebraic

attacks on the recently very popular NSA block cipher

Simon. We argue that such predictions are necessary.

This is due the fundamental weakness of Gr

obner ba-

sis theory (T.J. Hodges, 2015) and in complexity the-

ory in general (Nash, 2012). This is very important

for ciphers such as Simon which is currently a can-

didate for ISO standardisation. In absence of more

powerful computers we have no other choice than to

extrapolate in order to simply evaluate the security of

ciphers against already known attacks.

In this paper we show that very highly accurate

predictions are possible. However in absence of an

“

a priori” model of how the curve should behave they

do not remove some major incertitudes. The fact that

highly accurate predictions can be obtained by sev-

eral very different methods indicates that such pre-

dictions are not exact science and must be manipu-

lated with precaution. Simple low degree predictions

will not work cf. Figure 3 Higher degree polynomial

approximations seem to work very well. In future

works we are going to analyse more complex appli-

cation scenarios of ElimLin (N. Courtois and Susil,

2014; N. Courtois and Susil, 2014; Raddum, 2015;

P. Susil, 2016) and produce quality extrapolations.

REFERENCES

Courtois, N. (2000-2016b). Algebraic cryptanalysis soft-

ware,. http://www.cryptosystem.net/aes/tools.html.

Courtois, N. (2007a). Ctc2 and fast algebraic at-

tacks on block ciphers revisited. In eprint.

eprint.iacr.org/2007/152/.

Courtois, N. (2007b). How fast can be algebraic attacks on

block ciphers? In Dagstuhl Seminar 07021, Symmet-

ric Cryptography. dagstuhl.de.

Courtois, N. (2008). New frontier in symmetric

cryptanalysis. In Invited talk at Indocrypt 2008.

http://www.nicolascourtois.com/papers/front indocry

pt08.pdf.

Courtois, N. (2016a). Algebraic attacks vs. design of block

and stream ciphers. In slides used in UCL GA18

course “Cryptanalysis”, University College London.

http://www.nicolascourtois.com/papers/algat all teac

h 2015.pdf.

Courtois, N. (2016c). Software and algebraic crypt-

analysis lab,. In University College London.

http://www.nicolascourtois.com/papers/ga18/AC Lab

1 ElimLin Simon CTC2.pdf.

Courtois, N. and Debraize, B. (2008). Speciﬁc s-box cri-

teria in algebraic attacks on block ciphers with sev-

eral known plaintexts. In WEWoRC 2007, pp 100-113.

Springer.

J.-M. Chen, N. C. and Yang, B.-Y. (2004). On Asymptotic

Security Estimates in XL and Gr

obner Bases-Related

Algebraic Cryptanalysis. In ICICS’04, pp. 401-413.

Springer.

M. Bardet, J.-C. Faug

ere], B. S. (2004). On the com-

plexity of Gr

obner basis computation of semi-regular

overdetermined algebraic equations. In ICPSS, Pro-

ceedings of International Conference on Polynomial

System Solving.

N. Courtois, T. Mourouzis, G. S. P. S. and Susil, P. (2014).

Combined algebraic and truncated differential crypt-

analysis on reduced-round simon,. In proc. of SE-

CRYPT 2014. INSTICC.

N. Courtois, G. V. B. (2007). Algebraic cryptanalysis of the

data encryption standard,. In IMA Cryptography and

Coding, pp. 152-169. Springer.

N. Courtois, J. P. (2003). About the xl algorithm over gf(2).

In CT-RSA 2003, pp. 141-157. Springer.

N. Courtois, A. Shamir, J. P. A. K. (2000). Efﬁcient algo-

rithms for solving overdeﬁned systems of multivariate

polynomial equations. In Eurocrypt’2000, pp. 392-

407. Springer.

N. Courtois, P. Sepherdad, P. S. S. V. (2012). Elimlin algo-

rithm revisited. In FSE 2012. Springer.

Nash, J. (2012). letter to the nsa. In declassiﬁed material

from 1955. www.nsa.gov.

P. Susil, P. Sepehrdad, S. V. N. C. (2016). On selection of

samples in algebraic attacks and a new technique to

ﬁnd hidden low degree equations. In Int. J. Inf. Sec.

vol. 15 iss. 1, pp. 51-65. Springer.

Raddum, H. (2015). Algebraic analysis of the simon block

cipher family. In LatinCrypt 2015, pp. 157-169.

Springer.

T.J. Hodges, S.D. Molina, J. S. (2015). On the existence

of semi-regular sequences. In DIMACS Workshop

on the Mathematics of Post-Quantum Cryptography.

arxiv.org/1412.7865.

SECRYPT 2016 - International Conference on Security and Cryptography

470
