A Multi-platform End User Software Product Line Meta-model for

Smart Environments

Vasilios Tzeremes and Hassan Gomaa

Computer Science Dept., George Mason University, Fairfax, Virginia, U.S.A

Keywords: End User Development, Software Product Lines (SPL), Meta-modeling, Variability Modeling, Middleware,

Smart Environments, Smart Spaces, Software Product Line Architecture.

Abstract: End User (EU) architectures for smart environments aim to enable end users to create and deploy software

applications for their smart spaces. EU Software Product Lines (SPL) extend EU architectures for smart

environments with product line support to promote reuse and software application portability. This paper

describes a meta-modeling approach for developing EU SPLs for smart environments. We present a meta-

model as the basis for developing a framework for creating EU SPLs and deriving EU applications. The meta-

model is composed of platform independent and platform specific meta-models. This paper describes in detail

both parts of the meta-model and discusses the relationships and mappings between them. This paper also

presents the XANA EU SPL framework that was developed using the proposed platform specific meta-model

and discusses XANA’s product line creation and application derivation process.

1 INTRODUCTION

Smart environments, also called smart spaces, are

environments equipped with visual and audio sensing

systems, pervasive devices, sensors, and networks

that can perceive and react to people, sense on-going

human activities and respond to them (Kindberg and

Fox, 2002). Several End User (EU) architectures have

been proposed to assist end users to create

applications for their smart environments. EU

architectures act as the middleware between software

applications and devices deployed in the smart space

while providing friendly user interfaces for end users

to create software applications. Team Computing

(TeC) (Sousa et al., 2010) and Puzzle (Danado and

Paternò, 2012) are examples of EU architectures for

smart environments.

Even though EU architectures enable end users to

create applications for their spaces, not all smart

environments are configured the same way.

Furthermore device capabilities vary across different

smart environments. This causes end users to have to

create similar applications from scratch for different

environments. Software Product Line (SPL) methods

address software reuse by explicitly analysing and

developing the common and variable parts of a family

of systems (Gomaa, 2005). However, existing SPL

methods target software engineers instead of end

users and their processes are rigid. In an end user

environment, the process is more agile and end users

are not familiar with SPL methods. Furthermore,

product derivation in a traditional SPL environment

is based on feature selection and products must be

compliant with the SPL architecture. End user

environments vary and are not guaranteed to match

the SPL architecture.

EU SPLs for smart spaces provide a lightweight

approach for SPL development while addressing the

dynamic nature of these environments. In particular,

EU SPLs extend EU architectures to create a family

of applications that are then customized for different

smart environments (Tzeremes and Gomaa, 2016).

Figure 1 shows the EU SPL process. SPL designers

create EU SPLs and end users derive applications for

their smart spaces. SPL designers are technical end

users or domain experts that develop software

applications either for personal or commercial

purposes. End users are ordinary users that want to

create applications for their smart spaces. The XANA

EU SPL framework provides an example of tool

support for the implementation of EU SPLs.

This research investigates the extension of EU

architecture meta-models for supporting the creation

of EU SPLs. In detail, this paper describes a meta-

modeling approach and framework for creating EU

SPLs for smart environments. Our approach provides

290

Tzeremes, V. and Gomaa, H.

A Multi-platform End User Software Product Line Meta-model for Smart Environments.

DOI: 10.5220/0006003802900297

In Proceedings of the 11th International Joint Conference on Software Technologies (ICSOFT 2016) - Volume 1: ICSOFT-EA, pages 290-297

ISBN: 978-989-758-194-6

platform independent and platform specific EU SPL

modeling support. In the platform independent phase,

EU SPL engineers create platform independent

models that can be tailored to different EU

architectures through an application derivation

process. In the platform specific phase, EU SPL

engineers create platform specific models that are

bound to specific EU platforms. Platform specific

models provide an additional capability, since they

have access to platform specific functionality that is

not available to the platform independent models.

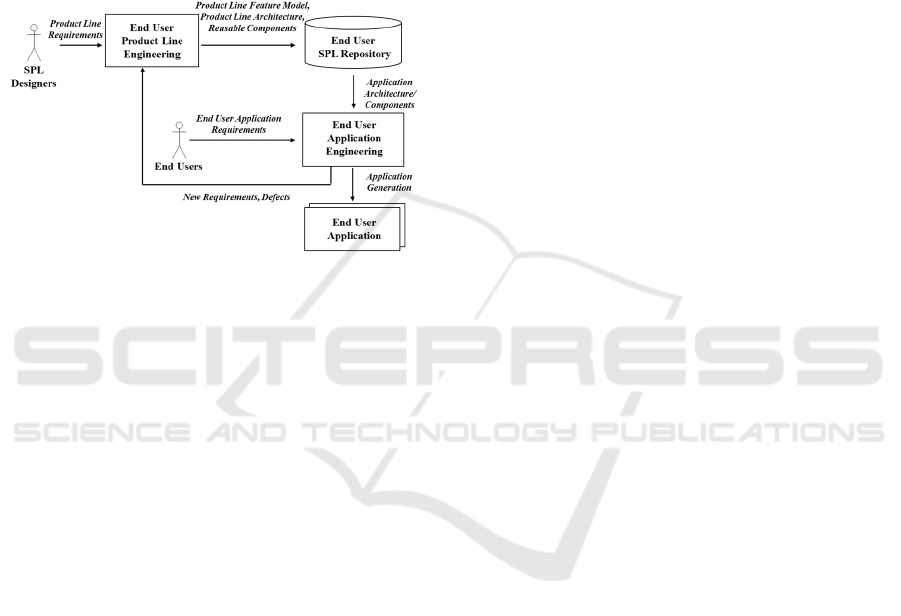

Figure 1: End User Software Product Line Process.

This paper is organized as follows. Section 2

discusses related work that this research builds on.

Section 3 describes the overall EU SPL meta-

modeling approach for smart environments. Sections

4 and 5 describe in detail the platform specific and

platform independent meta-models respectively.

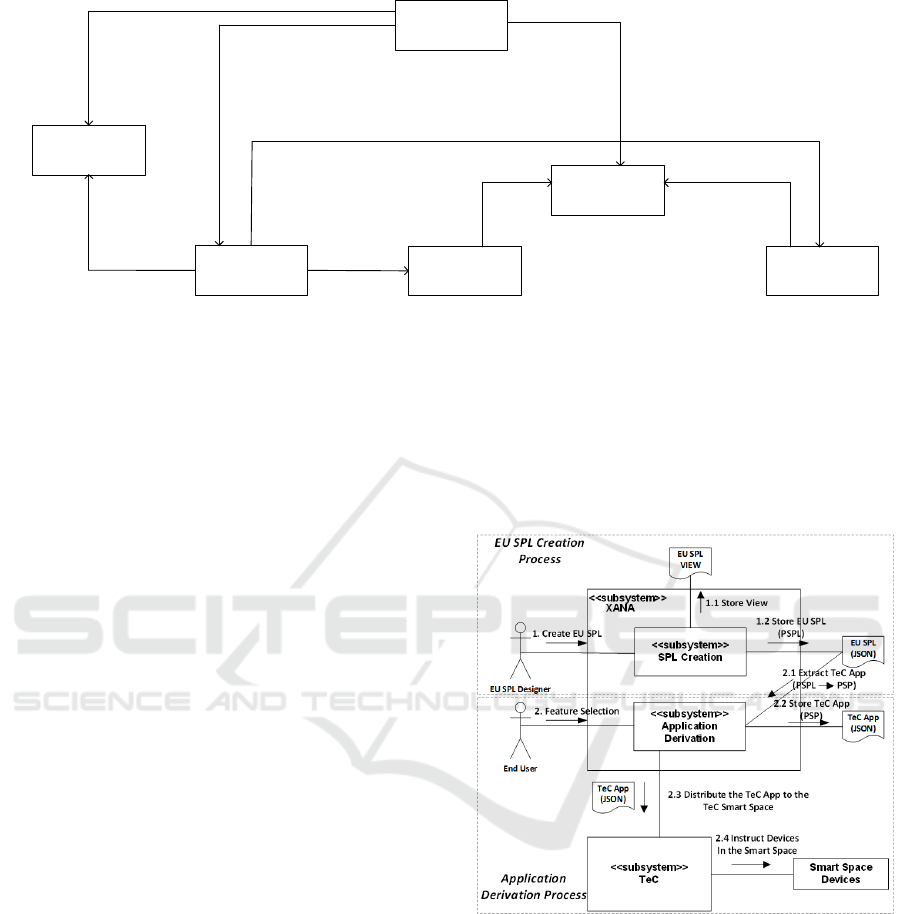

Section 6 describes the XANA EU SPL process

flows. Finally, section 7 provides conclusions and

discusses future work.

2 RELATED WORK

Several middleware architectures have been proposed

for implementing smart environments (Whitmore et

al., 2015). Some of those initiatives are the ROS

(Quigley et al., 2009), JCAF (Bardram, 2005) and the

Smart Products (Mühlhäuser, 2008) projects. EU

architectures extend middleware architectures by

adding end user support. They provide user friendly

interfaces for end users to be able to develop

programs for their spaces. Some of the most

important EU architectures are Puzzle (Danado and

Paternò, 2012), PIP (Chin et al., 2010), FedNet

(Kawsar et al., 2008) and TeC. This research presents

an approach for extending EU architectures for smart

spaces with product line concepts to promote reuse

and application portability.

Model Driven Architecture (MDA) is a software

development framework based on automatic

transformations of models (Debnath et al., 2008).

MDA separates business and application logic from

underlying platform technology, distinguishing the

following models: Computation Independent Model

(CIM), Platform Independent Model (PIM), Platform

Specific Model (PSM) and code. The Common

Variability Language (CVL) adds variability to MDA

models. In particular CVL, is a Domain Specific

Language (DSL) for modeling variability in models

that are based on Meta Object Facility (MOF)

standard defined by the Object Management Group

(OMG) (Reinhartz-Berger et al., 2014). Our approach

is influenced by the PSM, PIM and CVL concepts but

was expanded to end user development for smart

spaces.

3 OVERVIEW OF THE EU SPL

META-MODEL FOR SMART

ENVIRONMENTS

There are several common characteristics across EU

architectures for smart spaces. For example all event

driven EU architectures consist of components that

are abstractions of devices, sensors, actuators,

application, services etc. and connections between the

components to create application logic. There is also

significant variability between EU architectures. For

example some EU architectures account for user-

context, location, temporal relationships while others

do not. There is commonality and variability across

EU SPLs for smart spaces. For example, a feature

implementation of one EU architecture can be

significantly different from one architecture to

another. To capture the commonality and variability

of EU architectures and EU SPLs, we propose the EU

SPL meta-model. Figure 2 shows the EU SPL meta-

model for smart environments. This meta-model

consists of platform independent and platform

specific meta-models. The platform independent

meta-model is composed of the Platform Independent

Product Line (PIPL) and the Platform Independent

Product (PIP) meta-models. PIPL captures product

line metadata for creating software product lines for

smart environments, in particular the product line

features and the component architecture that

implements each feature. The component architecture

describes the smart environment components,

connectors and other artefacts that are needed for the

feature implementation. The PIP meta-model

describes the structure of software applications that

can be derived from the PIPL model. To derive PIP

A Multi-platform End User Software Product Line Meta-model for Smart Environments

291

models application engineers select product line

features from the PIPL model. The selected features,

combined with the application component

architecture are used to create the PIP. Both PIPL and

PIP models are platform independent models that can

be instantiated for different platforms.

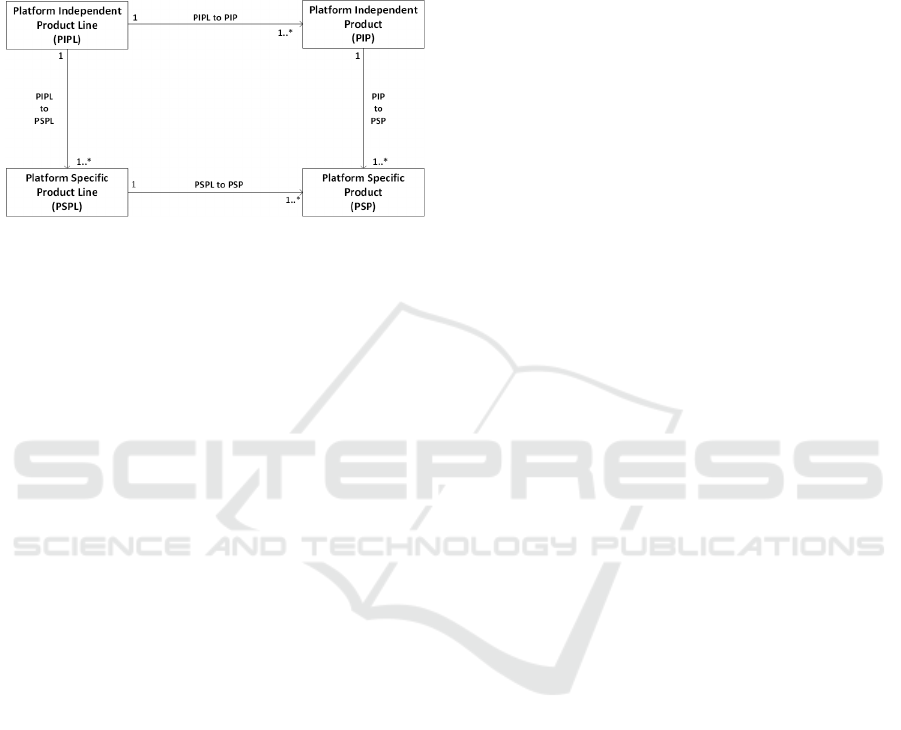

Figure 2: End User SPL Meta-model.

The platform specific meta-model consists of the

Platform Specific Product Line (PSPL) and the

Platform Specific Product (PSP) meta-models. The

PSPL meta-model is used for creating EU SPL

models for specific EU applications on specific

platforms. Similar to the PIPL meta-model, the PSPL

meta-model captures the product line features and

their inter-dependencies, in addition to the component

architecture that implements each feature. The PSPL

meta-model is platform specific. PSPL models are

derived from PIPL models. The PSP meta-model

captures the application architecture. A shown in

Figure 2, PSP models can be derived from PSPL

models or alternatively from PIP models.

There is a one-to-many relationship between the

platform independent and the platform specific

models. For instance, multiple PSPL models for

different platforms can be created from the PIPL

model. Product line engineers can model platform

independent EU SPLs using the PIPL meta-model

that can be converted to PSPL models for different

platforms. Similarly, many PSP models can be

generated from the PIP model. Application engineers

can generate different PIP models that can then be

converted to PSP models for different platforms.

The PIPL to PIP and PSPL to PSP model

relationships are also one-to-many. This implies that

several PIP models can be created from one PIPL

model. Although multiple PSP models can be derived

from one PSPL model, the PSPL and PSP models

need to be for the same target platform. For example

a PSPL model designed for the TeC EU architecture

can generate PSP models that apply only to the TeC

platform. The following sections of this paper

describe the platform specific and platform

independent meta-models.

4 PLATFORM SPECIFIC

META-MODELS

This section describes the platform specific meta-

models, in particular the PSL and PSPL meta-models

for the Team Computing (TeC) EU architecture,

before describing how they can be generalized into

platform independent meta-models in Section 4. In

particular, section 4.1 introduces TeC and presents its

application (PSP) meta-model, section 4.2 discusses

how we extended the TeC application meta-model to

create the TeC PSPL.

4.1 Platform Specific Product for TeC

Team Computing (TeC) is an event driven generic

architectural style that enables end users to design and

deploy personalized software for their spaces. It

provides a diagrammatic language for application

creation of a collection of activities that work together

to achieve a common goal. TeC applications, also

called Teams, have no central control: elements play

their roles autonomously and their behavior is

emergent (Sousa et al., 2010).

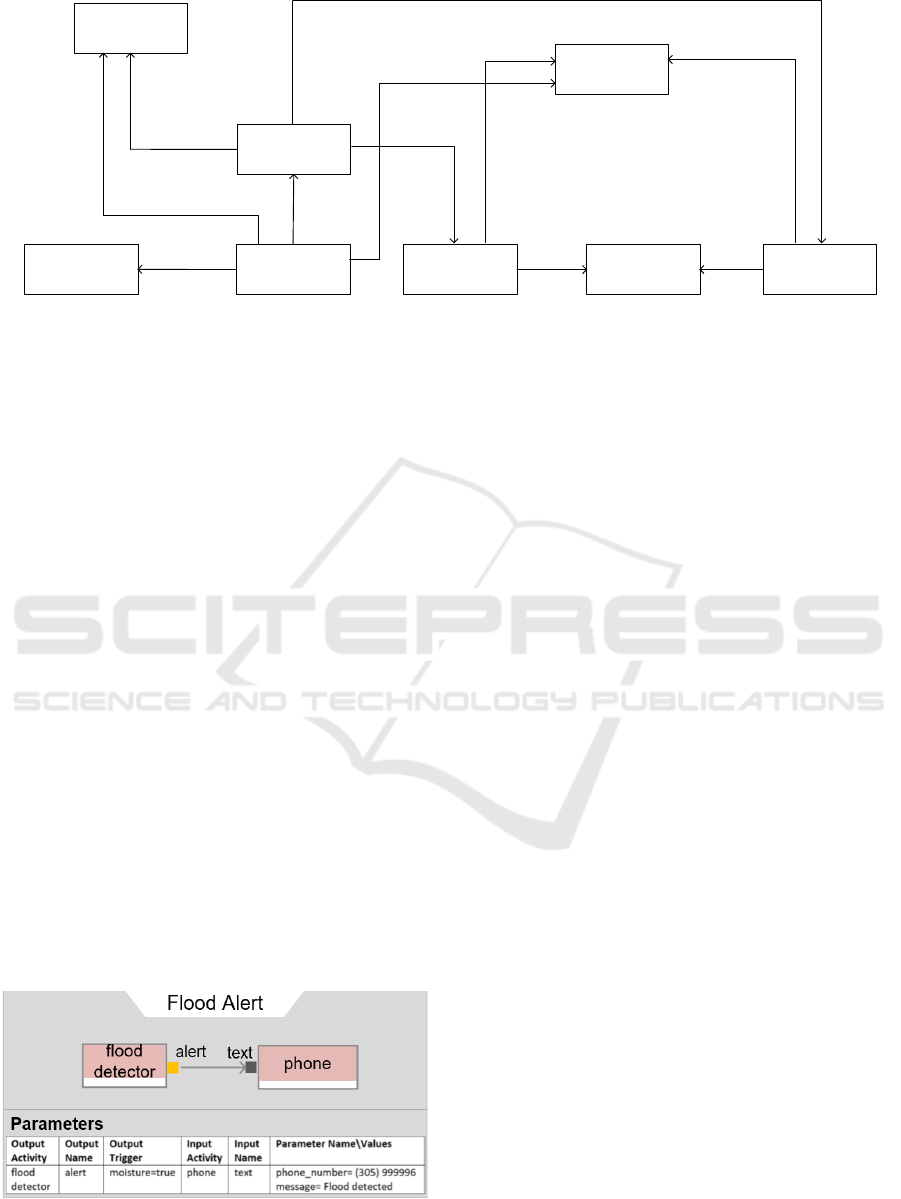

Figure 3 shows the application meta-model for

TeC. In detail, the Team Design entity captures

information about TeC teams. Team designs can be

deployed to zero-or-more locations. For example one

Team Design might apply to devices available to the

family room of a smart home versus another one that

applies to the entire house. A team design is realized

by one-or-more Activity Sheets. Activities Sheets are

software components, devices, and humans operating

in ubiquitous computing environments. Activities

Sheets have zero-or-more Inputs and Outputs. Inputs

are component interfaces for receiving data. Outputs

are also component interfaces but they are used for

sending data. Outputs are bound by triggering

conditions that when evaluated to true causes the

output to be sent. In TeC, device connectivity can be

achieved by having outputs from one Activity Sheet

sent to inputs of another Activity Sheet. Inputs and

Outputs can contain zero-or-more Payloads. Payloads

capture data that are in the form of key-value pairs

that are sent from Outputs to Inputs. The Activity

Connector entity is responsible for capturing the

Activity Sheet’s connectivity within a Team Design.

The Activity Connector is composed by zero-or-more

Inputs and Outputs.

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

292

Activity Sheet

Output InputPayload

Activity

Connector

has

contains contains

isSend

has

Activity

Parameter

isParameterized

0..*

isReceived

Team Design

1..*

Location

isDeployed

isRealized

0..*

isConfigured

isConnected

0..*

Figure 3: TeC Application Meta-model (PSP).

Figure 4 shows the Team Design of a “Flood

Alert” team. The “Flood Alert” Team Design is

composed of a flood detector and a Phone TeC

Activity Sheets. The flood detector Activity Sheet

represent moisture sensors deployed in the

environment and the Phone Activity Sheet a house

phone that supports landline messaging. The flood

detector Activity Sheet has an Output called “alert”

that sends flood notifications to the “text” Input of the

Phone Activity Sheet. The Activity Connector entity

for the Team Design is composed of the “alert”

Output and the “text” Input. The “alert” output has a

triggering condition that is evaluated to true when the

flood detector detects moisture. When moisture is

detected, “alert” sends two Payloads to the “text”

input. The keys of the payloads are phone_number

and message. The Phone Activity Sheet will interpret

the phone_number payload value as the number to

text and the message payload value as the contents of

the message to send. An Activity Sheet can have zero-

or-more Activity Parameters. Activity Parameters

capture internal parameters of Activity Sheets. An

example of an Activity Parameter in the “Flood

Alert” example can be moisture threshold values for

the flood detector Activity Sheet. When the moisture

threshold values are exceeded then the sensor can

report moisture.

Figure 4: Flood Alert – TeC Team.

4.2 Platform Specific Product Line for

TeC

We extended the TeC PSP model with product line

support to create the TeC PSPL meta-model shown in

Figure 5. The objective of the TeC PSPL meta-model

is to be able to derive multiple TeC PSP models from

one TeC PSPL model. The TeC PSPL meta-model is

composed of the feature and the component meta-

models. The feature meta-model is platform

independent and describes the relationship of the EU

SPL with features and the dependency among

features. The component meta-model is specific to

the TeC platform and describes the relationships

between product line features and the TeC Product

Line component architecture that realizes each

feature.

As shown in Figure 5, an EU SPL is composed of

one or more features. Each feature describes a

specific functionality that the EU SPL supports.

Features can be common, optional, alternative,

default, or parameterized. Common features are

features that exist in all products derived from the

product line. Optional features are features that can be

found in only some products derived from the product

line. Alternative features are features that are

mutually exclusive. Default features are one of a

group of alternative features that the EU SPL designer

has pre-selected for product derivation.

Parameterized features are features that can be

parameterized by end users during application

derivation. Features can belong to feature groups.

Feature groups can be thought as a set of features that

share a common set of constraints. The Feature

Dependency entity captures the dependency among

features. A feature condition is used to identify

whether a given feature is selected or not in a derived

architecture.

A Multi-platform End User Software Product Line Meta-model for Smart Environments

293

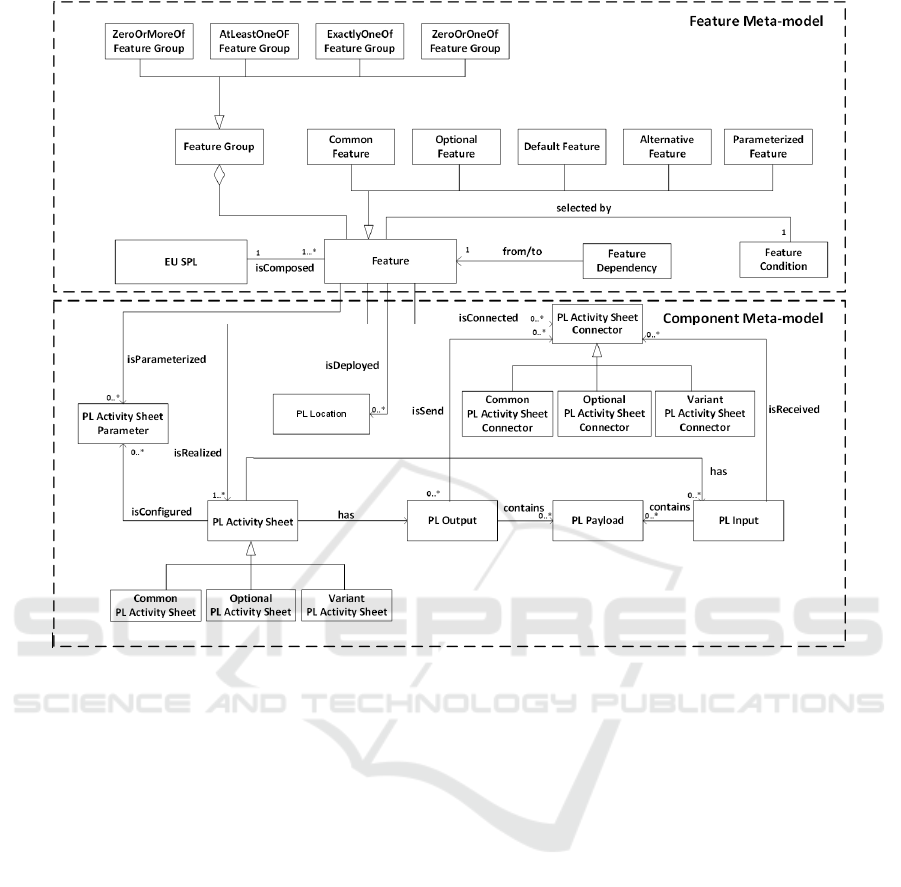

Figure 5: TeC Platform Specific Product Line (PSPL) Meta-model.

The TeC PL component architecture extends the

TeC application meta-model with product line

support. In particular, EU SPL features are realised

by one-or-more PL Activity Sheets and are connected

to zero-or-more PL Activity Connectors. PL Activity

Sheets can be common, optional or variant. Common

PL Activity Sheets are available to all PSPs derived

from the PSPL. Optional PL Activity Sheets might be

available only to some PSPs. Variant PL Activity

Sheets are mutually exclusive PL Activity Sheets. PL

Activity Sheets can have zero-or-more PL Inputs and

PL Outputs. PL Inputs and PL Outputs can have zero-

or-more PL Payloads. PL Activity Connectors can

also be common, optional or variant. A feature is

parameterized by zero-or-more PL Activity

Parameters. Finally, features can be deployed in zero-

or-more PL Locations.

The application derivation process from the TeC

PSPL to the PSP model involves a set of model

conversions. The PSPL component model for each

derived feature is converted to the PSP component

model and is added to the TeC application

architecture. PL Activity Sheets in the PSPL model

are converted to Activity Sheets in the PSP model.

Similarly, PL Activity Connectors are converted to

Activity Connectors, PL Activity Parameters are

converted to Activity Parameters and PL Locations

are converted to Location entities.

5 PLATFORM INDEPENDENT

META-MODELS

We further extended the PSPL and PSP meta-models

to create the Platform Independent Product Line

(PIPL) and the Platform Independent Product (PIP)

meta-models, which do not depend on any particular

EU platform. The platform independent models apply

to all EU architectures that support component and

connector architectures.

5.1 Platform Independent Product

Line (PIPL)

Similar to the PSPL, the PIPL meta-model is

composed of the feature and the component meta-

models. The feature meta-model is the same as the

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

294

Feature

PLComponent PLOutput PLInput

PLComponent

Connector

has

isSend

has

PLComponent

Parameter

isConfigured

0..*

isReceived

0..*

1..*

isConnected

isParameterized

isRealized

0..*

Common

PLComponent

Connector

Optional

PLComponent

Connector

Variant

PLComponent

Connector

Common

PLComponent

Optional

PLComponent

Variant

PLComponent

ComponentMetamodel

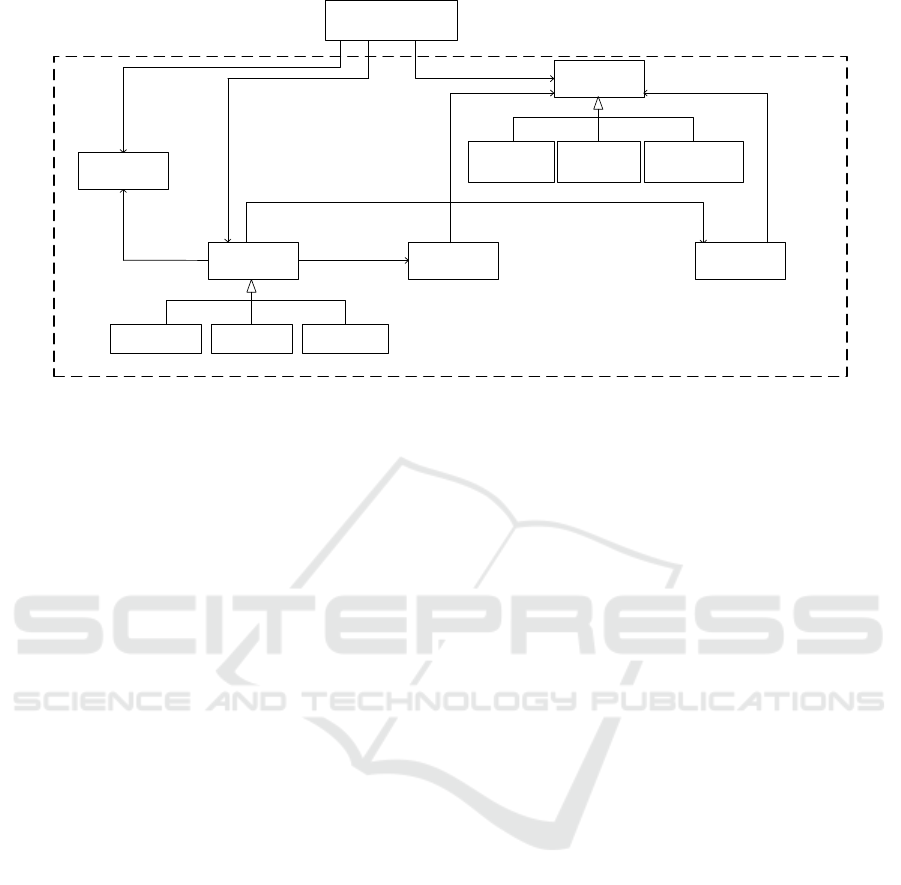

Figure 6: Platform Independent Product Line (PIPL) Meta-model.

PSPL shown on Figure 5. The component meta-

model is designed to support common component

connector functionality across different EU

architectures. Figure 6 shows the PIPL component

meta-model. In particular, each feature in the PIPL is

realised by one-or-more PL Components, is

connected by zero-or-more PL Component

Connectors, and is parameterized by zero-or-more PL

Component Parameters. PL Components are similar

to PL Activity Sheets of the TeC PSPL. PL

Components are generic components that represent

software and hardware entities that are part of the

smart environment. PL Components can be common,

optional or variant and they have zero-or-more PL

Inputs and PL Outputs. PL Component Connectors

indicate how PL Components are connected. PL

Component Connectors can be common, optional or

variant. PL Component Parameters are used to

parameterize PL Components.

5.2 Platform Independent Product

(PIP)

The Platform Independent Product (PIP) meta-model

describes the structure of models derived from PIPL

models. Figure 7 shows the PIP meta-model. End user

applications in the PIP meta-model are represented by

the Product entity in PIP. Products are members of the

product line. The Product is composed of one-or-

more Components, is connected by zero-or-more

Component Connectors, and is configured by zero-or-

more Component Parameters. Components can have

zero-or-more inputs to receive input and zero-or-

more outputs to send data.

To derive a PIP model from PIPL features the

following conversion must occur: 1) Each PL

Component that is part of the feature realization must

be converted to a Component in the PIP model 2) PL

Component Connectors must be converted to

Component Connectors and 3) PL Component

Parameters must be converted to Component

Parameters in the PIP model.

6 XANA EU SPL FRAMEWORK

To validate our approach we used the proposed EU

SPL meta-models to implement the XANA EU SPL

framework for smart spaces. The XANA framework

enables EU SPL designers to create EU SPLs and end

users to derive applications for their smart spaces.

Figure 8 shows XANA’s product line creation and

application derivation process flows.

XANA is a platform specific EU SPL framework

for TeC. The EU SPL is created using the TeC PSPL

meta-model and derived applications (PSPs) are TeC

application models that can be deployed to different

TeC environments. To validate this research, we

implemented the XANA prototype, developed EU

SPLs for smart spaces, and deployed derived

applications to the TeC Android simulator.

6.1 EU SPL Creation

The uppermost part of Figure 8 shows the EU SPL

creation process in XANA. During product line

creation, EU SPL designers define the product line

features and create the product line architecture. The

XANA prototype SPL creation user interface is

divided into four sections: 1) Feature Model, 2) Fea-

A Multi-platform End User Software Product Line Meta-model for Smart Environments

295

Component

Output Input

Component

Connector

has

isSend

has

Component

Parameter

isConfigured

0..*

isReceived

0..*

1..*

0..*

isConnected

isParameterized

isRealized

Product

(EndUserApplication)

0..*

Figure 7: Platform Independent Product (PIP) Meta-model.

ture Component Architecture Editor 3) Component

Selector and 4) Feature Parameter table.

The Feature Model organizes product line features

in a tree structure. Each feature is decorated with a

feature symbol to indicate the feature type. The

Feature Component Architecture Editor captures the

component and connector architecture that realizes

each feature. The component selector section lists the

available TeC components that can be used to realize

a feature. The Parameter table captures connection

details between connected TeC components.

After SPL designers complete creating the

product line features they submit the EU SPL to the

XANA’s SPL Creation subsystem for storage. The

SPL Creation subsystem stores the XANA EU SPL

visual representation shown on step “1.1” in Figure 8.

Then the SPL Creation subsystem transforms the EU

SPL visual representation to a Java object structure

representing the product line. The Java objects are

serialized to JSON objects in the file system for long

term storage shown on step “1.2” in Figure 8. Both

the Java and JSON representations are based on the

TeC PSPL meta-model shown in Figure 5.

6.2 Application Derivation

The bottom part of Figure 8 shows the EU application

derivation process in XANA. During application

derivation, end users are presented with the end user

view of the feature model and the feature parameter

table. End users, based on their requirements, select

features from the feature model, configure the feature

parameter table, and submit their selections to the

XANA’s Application Derivation subsystem as shown

on step “2 Feature Selection” in Figure 8.

The Application Derivation subsystem extracts

the component architecture of the selected features

from the PSPL shown on step “2.1” in Figure 8 and

composes the TeC App (PSP). The TeC App is

serialized to JSON in the file system shown on step

“2.2” in Figure 8. The Application Derivation

subsystem distributes the JSON representation of the

TeC App to the target TeC platform shown on step

“2.3” in Figure 8. The TeC platform will store the

TeC App as shown on step “2.4” in Figure 8 and

deploy it to the smart space devices.

Figure 8: XANA EU SPL Creation and Application

Derivation Process flow.

7 CONCLUSIONS

As EU architectures for smart spaces expand, end

users will be faced with the challenge of having to

develop the same types of applications for different

environments. EU SPLs for smart spaces enable end

users to derive and port software applications

developed for individual spaces. In this paper we

presented an EU SPL meta-model for creating end

user product lines. The EU SPL meta-model is

ICSOFT-EA 2016 - 11th International Conference on Software Engineering and Applications

296

composed of platform independent and platform

specific meta-models. The platform specific meta-

model was discussed in the context of the TeC EU

architecture. The platform independent meta-model is

a meta-model for creating product lines for EU

applications that support component and connector

architecture. The paper also presented the XANA EU

SPL framework, which is based on the EU SPL

platform specific meta-model, that was developed to

validate this work.

The benefits of our approach are a) the EU SPL

meta-model is used to add product line support to end

user architectures defined for smart spaces b) product

lines are designed to be platform independent and are

adapted for different platforms. Currently we are

investigating expanding the platform independent

product line meta-model to directly derive

applications for different platforms. Furthermore,

additional work is needed in the evolution and

validation of end user product lines. In particular,

processes need to be defined to handle EU SPL

evolution that involve new requirements, defect

reporting, and product line versioning etc. In addition,

a validation framework needs to be investigated for

verifying the end user product lines.

ACKNOWLEDGEMENTS

This work is partially supported by the AFOSR award

FA9550-16-1-0030.

REFERENCES

Bardram J. E., (2005) The Java Context Awareness

Framework – a Service Infrastructure and

Programming Framework for Context-aware

Applications, Proc. Third International Conf. on

Pervasive Computing. Springer, Berlin, pp 98–115

Chin J., Callaghan V., Clarke G., (2010) End-user

Customization of Intelligent Environments. In:

Nakashima H et al (eds) Handbook of Ambient

Intelligence and Smart Environments. Springer US,

Boston, MA, pp 371–407

Danado J., Paternò F., (2012) Puzzle: a visual-based

environment for end user development in touch-based

mobile phones. In: Human-Centered Software

Engineering. Springer, pp 199–216.

Debnath N, Leonardi MC, Mauco MV, et al (2008)

Improving Model Driven Architecture with

Requirements Models. In: ITNG 2008 5th International

Conference pp 21–26.

Kawsar F, Nakajima T, Fujinami K (2008) Deploy Sponta-

neously: Supporting End-Users in Building and

Enhancing a Smart Home. In: 10th International Conf.

in Ubiquitous Computing. Seoul, pp 282–291

Gomaa, H., Designing Software Product Lines with UML,

Addison-Wesley, 2005.

Kindberg J, Fox A (2002) System Software for Ubiquitous

Computing. IEEE Pervasive Comput 70–81.

Mühlhäuser M (2008) Smart Products: An Introduction. In:

Mühlhäuser et al (eds) Constructing Ambient

Intelligence: AmI 2007 Workshops, Revised Papers.

Springer Berlin, Heidelberg, pp 158–164.

Quigley M, Conley K, Gerkey BP, et al (2009) ROS: an

open-source Robot Operating System. In: ICRA

Workshop on Open Source Software.

Reinhartz-Berger I, Figl K, Haugen Ø (2014) Model-

Driven Engineering Languages and Systems: 17th

International Conference, MODELS, Valencia, Spain.

Proceedings. In: Dingel J, Schulte W, Ramos I, et al.

(eds). Springer, Cham, pp 501–517.

Sousa JP, Tzeremes V, El Masri A (2010) Space-aware

TeC: End-user Development of Safety and Control

Systems for Smart Spaces. In: Systems Man and

Cybernetics, IEEE International Conference on.

Istanbul, Turkey, pp 2914–2921.

Tzeremes V, Gomaa H (2016) XANA: An End User

Software Product Line Framework for Smart Spaces.

In: 2016 49th Hawaii International Conference on

System Sciences, pp 5831–5840.

Whitmore A, Agarwal A, Xu L (2015) The Internet of

Things–A Survey of Topics and Trends. Inf Syst Front

17:261–274. doi: 10.1007/s10796-014-9489-2.

A Multi-platform End User Software Product Line Meta-model for Smart Environments

297
