A Hybrid Visualization of the Environment using Smart

Ultrasound-based Sensor Arrays

Emir Sokic, Kenan Softic, Mina Ferizbegovic, Jasmina Zubaca and Melita Ahic-Djokic

Faculty of Electrical Engineering, Sarajevo, Bosnia and Herzegovina

Keywords:

Sensory System, Environment Analysis, Distributed System, Ultrasound, Laser, Sensor, Robotics.

Abstract:

This paper presents the work in progress on the design and testing of a distributed ultrasound-based sensory

system for hybrid 1D and 2D environment visualisation. Many common sensors used in robotics, such as

infrared and ultrasonic sensors, cameras and lasers mainly focus on quantifying distances and shapes, while

rarely have the ability to differentiate among different sensed surfaces/materials. We propose an inexpensive

prototype sensory system based on popular ultrasonic sensors which uses ultrasonic reﬂections to determine

the acoustic reﬂection coefﬁcients. This additional feature allows differentiating among sensed objects. More-

over, the developed ultrasonic cells are equipped with a microcontroller for basic signal processing and a

communication link for integration into a sensor network. In this paper, we discuss the possibility of fusing

obtained sensor array data and laser measurements.

1 INTRODUCTION

Probably the most important part of an autonomous

robotic system is a precise and reliable sensing el-

ement. Without sensors, it is extremely difﬁcult

to achieve any type of motion control. Techniques

such as SLAM (simultaneous localization and map-

ping problem) rely on information provided by sen-

sors (Fuentes-Pacheco et al., 2015). Analysis of

the robotic system surroundings is very important

in different areas: industrial robotics (Kaltsoukalas

et al., 2015), medical surgery, space exploration

(Elfes et al., 2006), and autonomous navigation of

unmanned underwater, ground, or air vehicle, just to

name a few.

Different types of sensors are used for environ-

ment analysis: infrared and ultrasonic sensors, (ther-

mal) cameras, lasers etc. Different sensors have dif-

ferent disadvantages: optical sensors are sensitive to

environmental conditions (such as light, rain, fog,

etc.) (Benet et al., 2002), lasers are power-demanding

(Jung et al., 2008) and expensive, RGB cameras can-

not provide information about distance of nearby ob-

jects or object structure on their own (Fern

andez et al.,

2007).

In contrast, ultrasonic sensors are cheap, rela-

tively accurate and reliable. These sensors, which are

widely used in robotic systems, ﬂow measurements

(Han et al., 2011), fault detection (D. Champaigne,

2007) and process monitoring (Kim et al., 2011) are

able to assess the structure and solidity of materials

(Grzelak et al., 2014).

Common low-cost solutions, such as the popular

HC-SR04, are ultrasonic sensors primarily developed

for distance measurements. In our previous work

(Zubaca et al., 2015) we have described the design

of an ultrasonic cell which is able to measure the dis-

tance and additionally measure the magnitude of the

reﬂected ultrasonic wave and differentiate among dif-

ferent materials. In this paper we will brieﬂy present

the ultrasonic cell, while more information may be

found in (Zubaca et al., 2015).

A single ultrasonic cell may be used as a stan-

dalone sensing element. However, using multiple spa-

tially distributed sensors may enrich the information

on the observed environment. Therefore, we pro-

posed and developed a sensor array/network. The

ultrasonic cells communicate on two different buses:

SPI bus used for automatic remote (re)programming

of the cells, and RS485 bus for communication. The

buses are controlled by a master device, which acts

as the in-between element that processes communi-

cation between slave ultrasonic cells and master PC

computer.

One of the ﬁnal goals of this project is to create

a hybrid multidimensional sensing platform, as illus-

trated in Figure 1. Combining ultrasonic readings

with other sensors (e.g. RGB camera) enables ac-

Sokic, E., Softic, K., Ferizbegovic, M., Zubaca, J. and Ahic-Djokic, M.

A Hybrid Visualization of the Environment using Smart Ultrasound-based Sensor Arrays.

DOI: 10.5220/0006008705730578

In Proceedings of the 13th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2016) - Volume 1, pages 573-578

ISBN: 978-989-758-198-4

573

Image fusion

Ultrasonic

transducer

array

Environment

Camera

Figure 1: The hybrid 2D imaging system - ultrasonic cells

and RGB camera. Sensor array is mounted on a platform

with optional two degrees of freedom for an improved spa-

tial coverage.

Figure 2: Left: original RGB image, Right: the expected

structural image (different materials are represented by dif-

ferent gray levels).

quiring a multidimensional informationally-rich im-

age. Every single cell analyses a smaller visual angle,

while an array creates a hybrid image for a wider spa-

tial area. Ideally, using the proposed system one may

obtain images shown in Figure 2. Therefore, objects

with different structure/surface may be represented by

different attributes (e.g. grayscale intensity), which is

the ultimate goal of this research.

Since this paper represents the work in progress,

it is focused on the implementation of 1D array of

ultrasonic cells, which allows obtaining plane maps

of surroundings. Moreover, we have compared and

validated the system measurement results with laser

measurements, and presented a method for data fu-

sion. The RGB image fusion are considered to be the

part of a future work.

The paper is organized as follows. Section II de-

scribes the principles of operation of the ultrasonic

cell. A brief report on the current hardware and soft-

ware organization of the measurement system is given

in Section III, while the experimental results are pre-

sented in the last section, together with conclusions

and guidelines for future work.

2 PRINCIPLE OF OPERATION

Ultrasonic waves emitted from a sound source propa-

gate through the air and when they reach an obstacle

they will reﬂect back. The time needed for the sound

wave to travel forward and backward can be easily

measured. Under the assumption that the sound speed

is constant, the distance between the source and ob-

stacle is simply computed knowing the time-of-ﬂight.

This is the general principle used for distance mea-

surement (e.g. HC-SR04 sensor).

The reﬂected sound wave is attenuated due to two

facts: attenuation of sound waves due to the absorp-

tion in air, and due to the absorption of the obstacle

itself. Therefore, if the distance from the obstacle is

known, then it is possible to determine its acoustic

reﬂection coefﬁcient. In other words, two different

obstacles at a same distance will reﬂect sound waves

with different magnitudes.

As derived in the paper (Zubaca et al., 2015), a

simpliﬁed sound propagation model may be described

using:

= A

|{z}

initial

· e

−αd

| {z }

f light

· R

|{z}

re f lection

· e

−αd

| {z }

f light

, (1)

= A

· R · e

−2αd

, (2)

= A

· R · 10

−B·2·d/10

, (3)

⇒ R =

B·2·d/10

, (4)

where A

and A

represents the magnitudes of the re-

ﬂected and transmitted waves respectively, R is the

reﬂection coefﬁcient of the material, d is the distance

between the obstacle and the ultrasonic sensor, while

B = 10α represents the attenuation of the ultrasonic

wave in the air, which includes the losses induced by

voltage-sound conversion, temperature, pressure and

humidity (Vladi

sauskas and Jakevi

cius, 2004).

3 SYSTEM DESIGN

The proposed distributed system consists of three

parts: array of ultrasonic cells, master device and

communication controller and a master processing

software on a PC.

3.1 Smart Sensor - Ultrasonic Cell

A block-structure of the developed ultrasonic cell is

provided in Figure 3, while its physical realisation is

given in Figure 4. The ultrasonic cell is based around

an Atmel ATmega328p controller and the UTT4016

ultrasonic transceiver.

ICINCO 2016 - 13th International Conference on Informatics in Control, Automation and Robotics

574

Figure 3: Ultrasonic cell structure.

The MCU is used for exciting the transceiver, sim-

ple preprocessing of received sound signals and estab-

lishing communication between a master PC and the

ultrasonic transceiver.

The transceiver sends and receives ultrasound on

40kHz central frequency.

The master PC sends requests to the MCU over a

RS485 bus to generate square wave signals, typically

bursts with duration of 0.5ms. These bursts are con-

verted to sine waves using band-pass ﬁltering prop-

erties of the ultrasonic transceiver. Then, sinusoidal

waves are emitted from the transceiver, and received

back. Signal ﬁltering and ampliﬁcation is conducted

on the board. In order not to violate the Nyquist-

Shannon theorem related to the maximal MCU AD

converter signal sampling rate (6kHz), the ampliﬁed

voltage signals with central frequency 40kHz are de-

modulated to the [0 − 2kHz] band. The MCU samples

and processes the demodulated signal with 6kHz sam-

pling rate, estimates the magnitude of the reﬂected

signal, and sends it back to the PC in real-time. The

estimation is based on truncated Whittaker-Shannon-

Kotelnikov series (Ye and Song, 2012):

(t) =

∑

k=−N

(kT )sinc(2ω

(t − kT )), (5)

where sinc(t) = sint/t for t 6= 0 and sinc(0) = 1,

2N + 1 represents the number of samples, T is the

sampling period, and ω

is the band-limit of the de-

modulated signal. Our setup used N = 50 samples,

which resulted in the maximal error of 5.6% over the

full scale range. Typical on-board signals are pre-

sented in Figure 5.

Experimentally obtained mapping of the reﬂec-

tion coefﬁcients for some common materials/objects

is presented in Figure 6 (from (Zubaca et al., 2015)).

3.2 Master Controller and

Communication Module

The master controller and communication module is

designed to be an interface between the PC and re-

Figure 4: Physical implementation of the ultrasonic cell.

The dimensions of the cell are 5x5 [cm], with the possibil-

ity of reducing the dimensions to 2.5x5 [cm] by cutting and

stacking the two segments of the PCB on top of each other.

3 4 5 6 7 8 9 10 11

−4

−2

[V ]

3 4 5 6 7 8 9 10 11

−1

t[ms]

[V ]

Figure 5: Signals generated and received by the transceiver

), the demodulated signal (U

) and discrete-time sam-

pled demodulated signal (U

) processed by the MCU.

mote ultrasonic cells. It consists of a master con-

troller and communication bus. The structure of the

proposed system is depicted in Figure 7.

The master controller is essentially an Atmel AT-

mega2560 microcontroller which is primarily used to

activate slave select (SS) pins and provide SPI func-

tionality to a remote PC during cell programming. It

0 0.2 0.4 0.6 0.8 1

0.5

Figure 6: The dispersion of the reﬂection coefﬁcient R for

different materials.

A Hybrid Visualization of the Environment using Smart Ultrasound-based Sensor Arrays

575

U.Cell 1 U.Cell m U.Cell n

Master

controller

Figure 7: The topology of the distributed sensory system.

is connected with the PC using both USB and RS485

bus. In theory, based on the number of available pins,

this controller can program up to 50 ultrasonic cells.

In order to control, optionally (re)program and

power the ultrasonic cells, a hybrid 8-pin bus was

used. It consists from: 1. communication bus based

on RS-485 standard (2 pins), 2. programming bus

which uses SPI communication (3 pins), and 3. the

power line provided from a bipolar 10-15V power

supply (3 pins). It is interesting that in order to

use standard 8-pin Ethernet connectors and cables,

the MISO line is excluded from the SPI bus, there-

fore reducing the needed number of wires from 9

to 8. This means that cell programming is executed

”blindly”, and that the reprogrammed cell itself must

report that it is successfully programmed. In case of

any malfunction, the user may use the ICSP connec-

tors equipped with 4 pin SPI bus directly available on

the ultrasonic cell PCB.

3.3 Software on PC

In order to effectively control and test the ultrasonic

cell array, a suitable software application needed to

be developed. Currently, the graphical user interface

(GUI) of the developed application in MATLAB is

not ﬁnished nor fully interactive. However, most of

the 1D visualisation functions, deﬁnitions and dis-

positions of sensors, real-time communication with

remote ultrasonic cells, replication of obstacles and

simple data fusion are implemented as scripts and ac-

cessible using command line. Screenshots from im-

plemented measurement indications are shown in Fig-

ures 10 and 11.

4 EXPERIMENTAL SETUP AND

DISCUSSION

In this paper we will focus on discussing a part of ex-

perimentally obtained data using the designed 1D ul-

trasonic ultrasonic array (with up to 8 sensors), and

Figure 8: Physical disposition of an ultrasonic array - linear

mode.

Figure 9: Physical disposition of an ultrasonic array - circu-

lar mode.

pinpoint the advantages and drawbacks of the de-

signed system.

In order to test the functionality of the system, the

ultrasonic cells are spatially aligned into two typical

dispositions: linear (Figure 8) and circular (Figure 9).

Sick LMS220 Laser system was used for veriﬁ-

cation of the measurement results, as well as image

fusion. It has angular resolution up to 0.25 degree,

although the measurement are re-sampled with 2 de-

grees resolution for easier view. The laser connects

directly to the master PC via USB/RS232 converter.

4.1 Linear Sensor Disposition

Figure 10 depicts one interesting demonstration setup,

where sensors are distributed 10cm apart on a straight

line parallel to a two material obstacle (wood and

plasterboard). Despite their signiﬁcant directivity and

very narrow beam angles (around 3 to 5 degrees),

each sensor is able to relatively accurately detect the

presence and distance of the obstacle set around 80cm

from the sensors. In addition, they provide the re-

ﬂection coefﬁcients of their sensed obstacle, which is

computed using the distance of the obstacle and the

magnitude of the reﬂected signal (Equation (4)).

For viewing purpose, the measurement (distance,

reﬂection coefﬁcient)=(d

) of i − th sensor (i =

1,...8) positioned at location (x

) is visually pre-

sented using the following rules:

• each measurement d

is marked with a circle C

positioned at location (x

• the circle C

is shaded using the value R

(zero

means completely acoustically absorptive, and

one means completely reﬂexive surface)

ICINCO 2016 - 13th International Conference on Informatics in Control, Automation and Robotics

576

• the thick segments that connect circles C

and C

i+1

are given in parametric form x = (1 −t)x

+tx

i+1

and y = (1 − t)d

+ td

i+1

, and shaded using the

function r(t) = R

(1 −t) +R

i+1

t where 0 ≤ t ≤ 1,

• if the measurements obtained from ultrasound or

lasers are out of ﬁgure viewing range, the mea-

surement are clipped for simpler representation.

It is visible from Figure 10 that ultrasonic sensors

readings are quite informative and provide a very sim-

ilar representation of the actual scenario. The obsta-

cle is visible and its left and right side are represented

by different reﬂection coefﬁcients, therefore they may

indicate different materials. This type of information

may be of signiﬁcant importance for an autonomous

robotic system (e.g. parking sensors, navigation and

mapping, material inspection etc.).

4.2 Circular Sensor Disposition

Another speciﬁc experiment is demonstrated in Fig-

ure 11. The sensors are spatially distributed on a

semi-circle, 25 degrees apart. A solid wooden obsta-

cle is positioned at the same distance as in the ﬁrst

experiment (80cm from the laser).

Due to the relatively poor angular resolution of the

sensor array, in cases such as one depicted on Figure

11 it is possible that only a small number of sensors

detect the obstacle. Nevertheless, using data fusion

of ultrasonic readings with laser reading, the obtained

results may be used to enrich the visual representa-

tion of laser readings only. The principal idea is to

map sensor readings onto the laser measured contour.

The algorithm is formulated similarly to the case of

linearly arranged sensors:

• each measurement d

from sensor positioned at

) and rotated for α

is marked with a cir-

cle C

positioned at location (x

+ d

cos(α

),y

sin(α

)) = (xL

,yL

• the circle C

is shaded using the value R

• for each of the measurements from the

laser (angle,distance)=(β

) where

j = 1...(max.laser.angle/ang.resolution), sets

of corresponding indices i and j are found such

that |α

− β

| is minimal. The latter set shall

be denoted as J = { j

, j

,..., j

} where n is the

number of used sensors.

• for each part of the laser obtained contour which

lies between points j

and j

k+1

where k = 1,...n

(in total s = j

k+1

− j

number of segments), ev-

ery smaller segment < j

, j

p+1

> is drawn by a

thick line and linearly shaded using the interpo-

lation r(t) = R

(1 − t) + R

p+1

t = (R

+ ((p −

k)/s)∗(R( j

k+1

)−R( j

))(1−t)+(R

+((p−k +

1)/s) ∗ (R( j

k+1

) − R( j

))t where 0 ≤ t ≤ 1,

• if the measurements obtained from ultrasound or

lasers are out of ﬁgure viewing range, the mea-

surement are clipped for simpler representation.

The visual interpretation of fused laser and ultra-

sonic data derived using the latter algorithm are pre-

sented in Figure 11.

4.3 Discussion and Guidelines for

Future Work

The system proposed hybrid ultrasound-based sen-

sory has great potential for creating informationally

rich images of the environment, especially when dif-

ferentiating surfaces or structure of objects. Never-

theless, additional improvements need to be made.

As for the hardware, the burst length, ampliﬁca-

tion levels and calibration of ultrasonic cells needs to

be investigated more thoroughly. Additional mech-

anisms that allow motions of the sensor platform,

in combination with a suitable algorithm which ex-

ploits the possibility of ”single cell sender - multiple

cells receivers” concept would certainly compensate

the drawbacks of ultrasonic cells (such as directivity).

Moreover, adding horns to sensors would change the

ampliﬁcation and directivity of the cells.

The visualisation software needs to be improved,

in order to allow easy user interaction (adding sen-

sors, obstacles, display measurements etc.). In addi-

tion, the RGB camera readings and readings from a

2D ultrasonic array needs to be fused.

ACKNOWLEDGEMENTS

This research is conducted as part of the project ”A

hybrid 2D visualization of the environment using ul-

trasonic reﬂections”, funded by the Federal Ministry

of Education and Science Bosnia and Herzegovina.

REFERENCES

Benet, G., Blanes, F., Sim

o, J. E., and P

erez, P. (2002).

Using infrared sensors for distance measurement in

mobile robots. Robotics and autonomous systems,

40(4):255–266.

D. Champaigne, Kevin andSumners, J. (2007). Low-power

electronics for distributed impact detection and piezo-

electric sensor applications. Aerospace Conference,

9:3911–3919.

Elfes, A., M. Dolan, J., Podnar, G., Mau, S., and Marcel,

B. (2006). On generating the motion of industrial

A Hybrid Visualization of the Environment using Smart Ultrasound-based Sensor Arrays

577

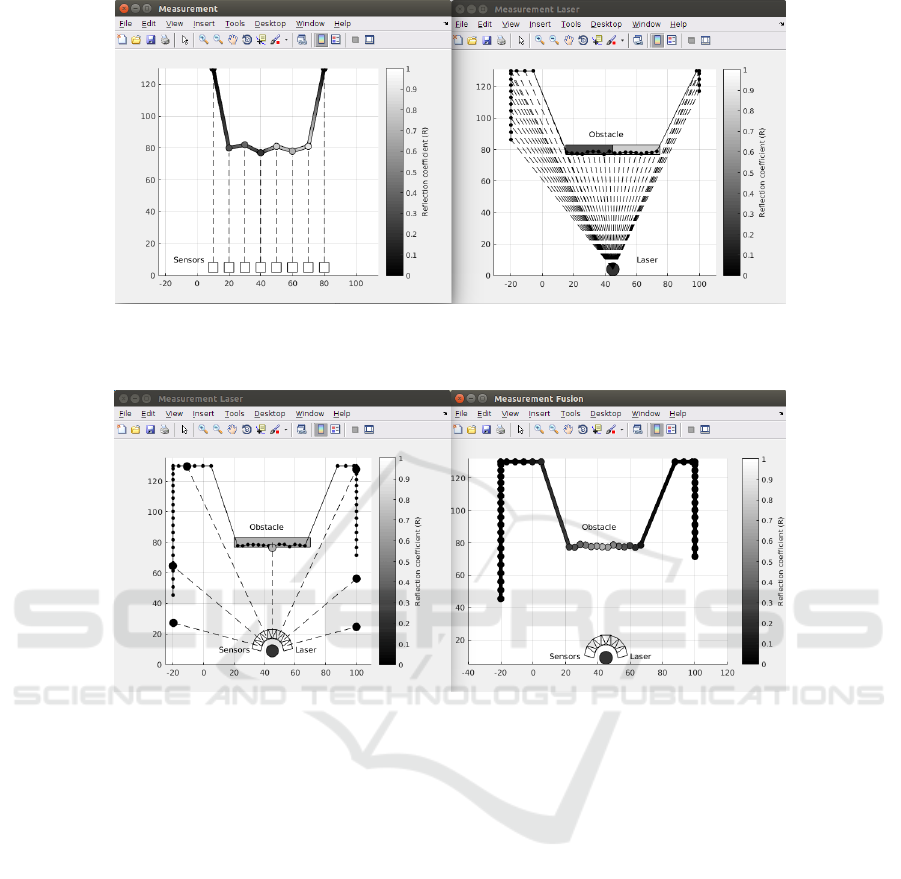

Figure 10: Left: visualisation of measurement results obtained by linearly dispositioned ultrasonic cells, Right: visualisation

of laser measurements and presentation of the actual obstacle. Different grayscale tones are used for depicting the determined

reﬂection coefﬁcient.

Figure 11: Left: visualisation of measurement results obtained by circularly positioned ultrasonic cells, laser measurements

and reconstruction of actual obstacle. Right: Fusion of laser and ultrasonic data. Different grayscale tones are used for

depicting the extrapolated reﬂection coefﬁcient.

robot manipulators. Safe and efﬁcient robotic space

exploration with tele-supervised autonomous robots,

1:104–113.

Fern

andez, I., Mazo, M., L

azaro, J. L., Pizarro, D., Santiso,

E., Mart

ın, P., and Losada, C. (2007). Guidance of a

mobile robot using an array of static cameras located

in the environment. Autonomous Robots, 23(4):305–

324.

Fuentes-Pacheco, J., Ruiz-Ascencio, J., and Rend

on-

Mancha, J. M. (2015). Visual simultaneous localiza-

tion and mapping: a survey. Artiﬁcial Intelligence Re-

view, 43(1):55–81.

Grzelak, S., Czok

ow, J., Kowalski, M., and Zieli

nski,

M. (2014). Ultrasonic ﬂow measurement with high

resolution. Metrology and Measurement Systems,

21(2):305–316.

Han, X., Wang, J., Peng, Z., and Zhang, J. (2011). A

study of ultrasonic ﬂowmeter in ship piping leakage

detection system. Intelligent Systems and applications

(ISA), 1:769–773.

Jung, H. G., Cho, Y. H., Yoon, P. J., and Kim, J. (2008).

Scanning laser radar-based target position designation

for parking aid system. Intelligent Transportation Sys-

tems, IEEE Transactions on, 9(3):406–424.

Kaltsoukalas, K., Makris, S., and Chryssolouris, G. (2015).

On generating the motion of industrial robot manipu-

lators. Robotics and Computer-Integrated Manufac-

turing, 32:65–71.

Kim, D.-H., Yang, B.-S., and Lee, S.-B. (2011). 3d boiler

tube leak detection technique using acoustic emission

signals for power plant structure health monitoring.

Prognostics and System Health Management Confer-

ence, 1:256–263.

Vladi

sauskas, A. and Jakevi

cius, L. (2004). Absorption of

ultrasonic waves in air. Ultragarsas, 1:50.

Ye, P.-x. and Song, Z.-j. (2012). Truncation and aliasing er-

rors for Whittaker-Kotelnikov-Shannon sampling ex-

pansion. Applied Mathematics-A Journal of Chinese

Universities, 27(4):412–418.

Zubaca, J., Ferizbegovic, M., Softic, K., Sokic, E.,

and Ahic-Djokic, M. (2015). Design of a dis-

tributed ultrasound-based sensory system. In Informa-

tion, Communication and Automation Technologies

(ICAT), 2015 XXV International Conference on, pages

1–6. IEEE.

ICINCO 2016 - 13th International Conference on Informatics in Control, Automation and Robotics

578
