StorylineViz: A [Space, Time, Actors, Motion] Segmentation Method

for Visual Text Exploration

Iwona Dudek

and Jean-Yves Blaise

UMR CNRS/MCC 3495 MAP, Campus CNRS Joseph Aiguier, 31 chemin J. Aiguier, 13402, Marseille, France

Keywords: Visualisation, Knowledge Modelling, Sensemaking, Spatio-Temporal Data, Textual Content, Narratives.

Abstract: Supporting knowledge discovery through visual means is a hot research topic in the field of visual analytics

in general, and a key issue in the analysis of textual data sets. In that context, the StorylineViz study aims at

developing a generic approach to narrative analysis, supporting the identification of significant patterns

inside textual data, and ultimately knowledge discovery and sensemaking. It builds on a text segmentation

procedure through which sequences of situations are extracted. A situation is defined by a quadruplet of

components: actors, space, time and motion. The approach aims at facilitating visual reasoning on the

structure, rhythm, patterns and variations of heterogeneous texts in order to enable comparative analysis,

and to summarise how the space/time/actors/motion components are organised inside a given narrative. It

encompasses issues that are rooted in Information Sciences - visual analytics, knowledge representation –

and issues that more closely relate to Digital Humanities – comparative methods and analytical reasoning on

textual content, support in teaching and learning, cultural mediation.

1 INTRODUCTION

A broad picture of the evolution of information

sciences over the past decade shows that big data,

meaning here big volumes of data, dynamically

changing data, as well as high variety, highly

heterogeneous data, has paved its way to the top of

the research agenda. In parallel, availability of large

collections of non-structured textual content,

typically found in digital libraries, has fostered the

emergence of research works clearly intermingling

knowledge discovery issues with visualization

issues. Said briefly, there is a move towards bridging

the gap between on one hand linguistics-based

approaches – i.e. for instance spotting markers of

cause-effect relations in text corpora, as in

(Marshman et al. 2008) – and on the other hand

information visualisation approaches – i.e. for

instance tileBars for document visualisation

(Spence, 2001), or basic wordclouds. Hence

supporting text analysis through visual means has

become a hot research topic in the field of visual

analytics (VA), a field described in its early days by

Thomas and Cook as “focusing on analytical

reasoning facilitated by interactive visual

interfaces” (Thomas and Cook 2005).

In that context, the StorylineViz study builds on

the premise that a narrative can be segmented into

successive or parallel situations differentiated from

one another other basing on changes in time, space,

actors, or motion. Situations act as a semantic filter,

helping to analyse and compare heterogeneous texts

and collections of texts basing on common metrics.

(Figure 1)

Appropriate visualisations (in the sense of VA

end products) depicting sequences, rhythms,

alternations of situations can then help experts and

end users perform reasoning tasks on the narrative

structure of texts, ranging from stylistic profiling

(differences and similarities inside and across

writing genres, or inside an author’s works) to

comparative analysis (different recounts of the same

story for instance). (Figure 2)

The research unfolds in two sub-challenges a

knowledge modelling challenge (How can we spot

changes in space? What exactly makes a space to be

differentiated form another – a name, a size? Who

are actors - human beings only? ...) and a

visualisaton challenge (What visual solutions could

help underligning expected or unexpected patterns

inside or across texts?).

The paper is structured as follows: section 2

introduces the reason-to-be of this research, its

starting point. In section 3 we position our

contribution with regards to existing approaches in

the fields of visual analytics on one hand, and of text

Dudek, I. and Blaise, J-Y.

StorylineViz: A [Space, Time, Actors, Motion] Segmentation Method for Visual Text Exploration.

DOI: 10.5220/0006034600210032

In Proceedings of the 8th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2016) - Volume 1: KDIR, pages 21-32

ISBN: 978-989-758-203-5

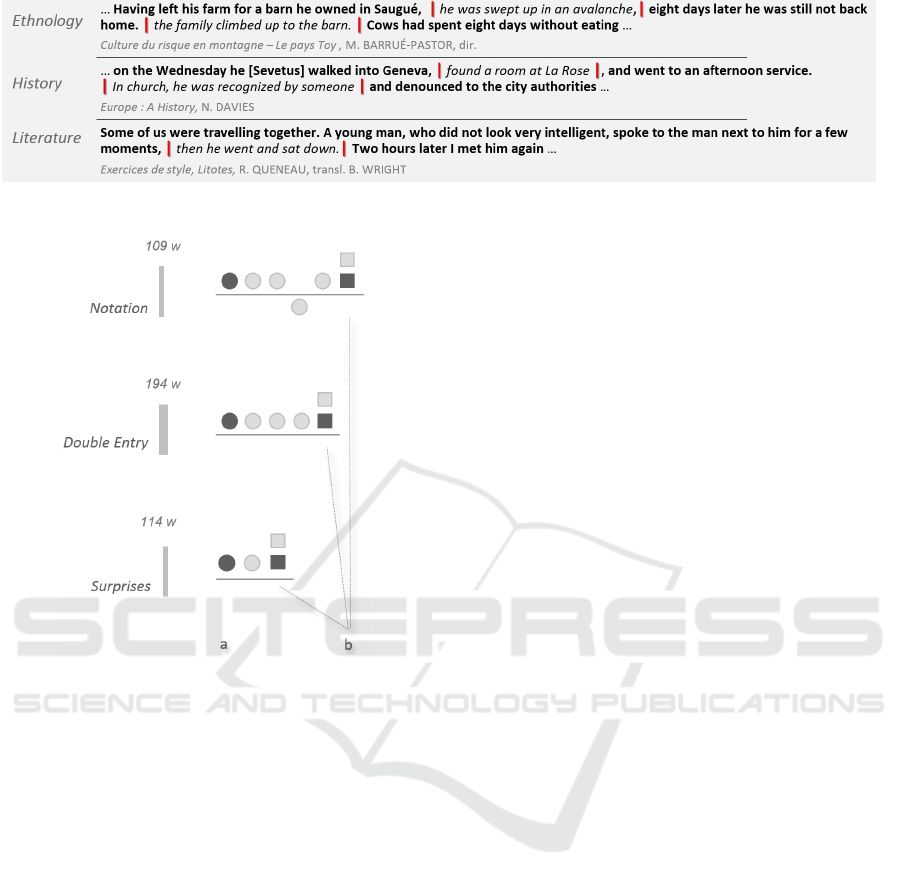

Figure 1: Identification of situations in heterogeneous texts.

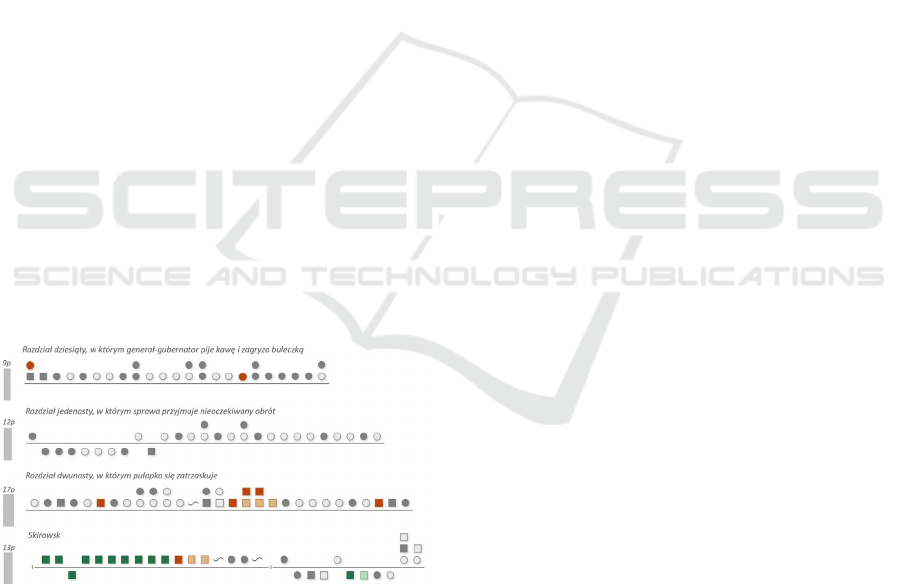

Figure 2: A comparison of how situations unfold in time

and space in three recounts of the same story (from R.

Queneau’s Exercises in Style). Note for instance that only

situations (a, b, first and last symbols) remain

systematically the same across in these three versions.

analysis on the other hand. Section 4 details our

choices in terms of knowledge modelling, i.e. how

the space/time/actors/motion components are used in

the segmentation of textual content. Section 5 then

presents a series of experimental visualisations

aimed at demonstrating in what the whole approach

should be beneficial in terms of knowledge

discovery for text analysis. In section 6 we pinpoint

strengths and weaknesses of the approach, and in

particular challenges ahead if wanting to apply the

approach on a large scale. Finally, a short conclusion

sums up what we think can be considered as fruitful

feedbacks from this study.

2 RESEARCH ISSUE

There is naturally a large range of features

researchers may want to extract from text corpora,

and analyse through visual means. Some are clearly

structure-related, like in (Marshman et al. 2008b)’s

comparative analysis of lexical knowledge patterns.

Others by contrast focus on spotting topics like

Sabol’s topical-temporal maps (Sabol, 2012), a

visual metaphor allowing an interactive analysis of

how prominent topics in large collection of news

releases change over time.

So why did we choose to focus on extracting the

spatio-temporal content of textual data? The idea

came as a natural continuation of years of research

conducted on the architectural and urban heritage. A

significant part of the historical evidence we use is

extracted from texts, ranging from inventories to

travel diaries. At the end of the day hints are

recorded as relevant for a given place, a given time,

mentioning a given set of actors. But both place and

time are likely to be partially, when not poorly,

described (a document will for instance mention

something occurring “on street A at the beginning of

spring”). Neither space nor time are consistently

defined inside sources, and across sources (varying

precision, varying granularity).

The statement of need from which the

StorylineViz study originates can be summed up as

follows: can we represent in a systematic, synthetic

and universal form paths by their spatial and

temporal components? A ‘path’ is here understood

as a series of situations leading from an initial state

to a final state. This series is consistent or not in

terms of spatial scale or quality of the information

describing situations. It can be continuous or not (i.e.

including or not temporal breaks). The notion of

path can be used to interpret, and structure (i.e.

segment according to division consistent lines) a

variety of heterogeneous historical evidence: travel

diaries, witness reports, inventories, iconographic

material, etc.

But this notion of path could, when looking from

closer, act as a potential semantic filter far beyond

its initial field of concern - historical evidence. It is

obviously closer to the content of a narrative that to

highly structured data sets handled in route

calculations offered by GPS applications for

KDIR 2016 - 8th International Conference on Knowledge Discovery and Information Retrieval

instance. Hence the attempt we present in this paper

to try and see in what such an approach to text

segmentation could be fruitful, beyond its initial

context of emergence.

StorylineViz should be understood as a proof-of-

concept study that aims at developing a generic

approach to narrative analysis, supporting the

identification and visualisation of significant

patterns inside textual data, and ultimately

knowledge discovery and sensemaking.

Narratives as seen from that general point of

view are strongly heterogeneous (from whole texts

to just series of facts, from a book or collection to a

few paragraphs). In addition, they can be

contradictory or conflicting (different recounts of a

series of events) or transformed (typically by

translations). As of today they are often categorised

(a play, a travel diary, an eye-witness report) and

analysed from an expert’s point of view (linguistics,

literature, history, etc.) but hard to synthesize and to

compare to one another.

In this contribution we propose an approach in

which a narrative is segmented in a series of

situations in ordinal time (i.e. only the order of

appearance of situations is defined: situation A

occurs before situation B, but neither A nor B need

to be actually dated). A situation is differentiated

from another basing on the variation of one of four

parameters: time, space, actors, and motion.

Our approach’s core objective is to facilitate

visual reasoning on the structure, rhythm, patterns

and variations of texts in order to enable

comparative analysis and to summarise in a clear-cut

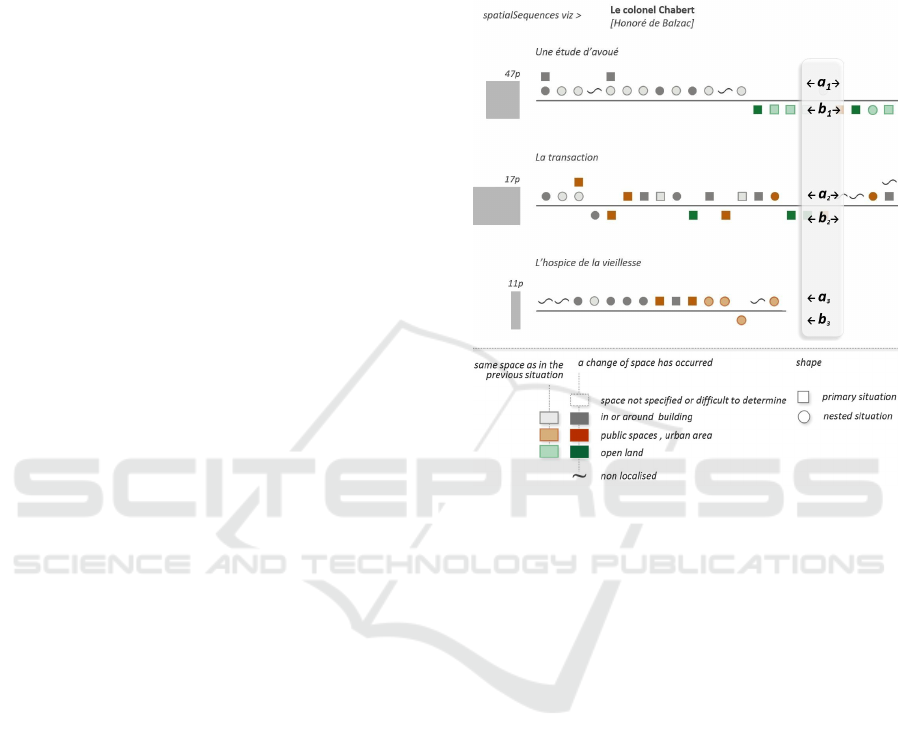

Figure 3: Visualisation of the spatio-temporal content of a

Fandorin mystery by Boris Akunin (partial view): each

line corresponds to a chapter, each situation is represented

by one or several symbol distributed along the line. Notice

similarities and differences between these four chapters

highlighted for example by the colour of graphic signs

(type of space – orange and green correspond to “large”

spaces – urban areas or open land whereas greys

correspond to spaces in and around a given building) or by

their shape (circles correspond to nested spaces, i.e. actors

are inside vehicles or objects that can move or be moved).

manner how the space/time/actors/motion

components are organised inside and across

narratives. (Figure 3).

Quantitative and qualitative parameters can then

be taken into account, allowing the association of

causal or contextual indicators. The segmentation

procedure is seen as a common ground between

varieties of narratives. It aims at facilitating

analytical focus+context views of complex

narratives, comparisons inside collections, and more

generally visual reasoning on structure, rhythm,

patterns and variations. If proven workable the

approach opens a number of application scenarios,

among which:

 Comparing oral or written recounts of the same

series of events as made witnesses of the same

series of events.

 Supporting the identification of trends and

patterns in writing genres in an edutainment-

like approach.

 Combining the segmentation procedure and its

visualisation with a cartographic platform in

order to analyse emblematic "travel diaries".

 Allowing for a synthetic and systematic

comparison of urban tracks, tourist routes, etc.

(type and number of situations on a particular

course, patterns of regular alternations or not,

etc.).

 Analysing the changes over time of a route

from point A to point B (situations added,

retrieved or modified).

 Uncovering differences in the interpretation of

texts by different readers.

At the end of the day, the approach can also be

seen as an attempt to step out of discipline-specific

frameworks so as to promote sort-of “universal”,

comparison-enhancing, metrics of narratives.

3 SCIENTIFIC CONTEXT

Open access to massive textual content, typically as

found in digital libraries, has fostered the emergence

of research works intermingling knowledge

management, visualization, and language processing

issues. In this contribution we focus on large non-

structured texts. Unlike when handling structured

data sets, working on large texts, today often made

available in large open access repositories such as

Gallica, introduces specific challenges. (Oelke,

2010) summarizes some of them: quantity (amount

of words), polysemy (of words, references, literary

imagery), flexibility (of rules in natural languages),

StorylineViz: A [Space, Time, Actors, Motion] Segmentation Method for Visual Text Exploration

interpretation (use of a predefined knowledge of the

world by humans).

Our study proposes an approach that centres on

semantic aspects, applicable across collections of

texts. It builds on the idea that visualisation can help

users explore, analyse and cross-examine textual

documents. This idea is backed by research works

covering a wide range of issues: (Oelke et al, 2010)

VisRA tool focuses on readability analysis, (Koch et

al, 2014) VarifocalReader focuses on multi-layer

visualisation/navigation and interactive annotation,

(Vuillemot et al, 2009) POSvis on relationships and

co-occurences in the flow of a text (Wanner et al,

2011) approach digs in the notion of opinion and

sentiment in book rating, ...

Those examples share a common mantra: human

analysis of textual content, sensemaking in large

and/or complex textual data sets, can be facilitated

by adapted abstract visualisations. They also share a

common statement: full automatic algorithms can

hit their limit when facing complex texts.

Accordingly, our study does relate to the above

research works in terms of scientific context, but it

clearly leaves aside the NLP (Natural Language

Processing) issues. We shall in this contribution

focus on the knowledge modelling step on one hand,

and on the visualisation step on the other hand.

Mainstream research works at the intersection of VA

and NLP have been investigating approaches that

strongly rely on a line per line, word per word

analysis of texts: statistical approaches (e.g.

occurrences of words, lengths, word types), Named

Entities Recognition (NER) related approaches (e.g.

user selections of words, ontologies, opinion

indicators), machine-learning approaches (e.g.

extraction of significant linguistic patterns). In all

these cases, language itself - i.e. the occurrences,

positions, lengths, relations of words and sentences -

is at the heart of a discipline specific analysis.

By contrast our approach builds on a

segmentation bias that is:

 neutral - allowing for a discipline-independent

cross-examination of texts,

 unrelated to text features such as lengths (a new

situation can occur inside one sentence, or

after three pages),

 focusing on supporting visual comparisons of

rhythms and sequences, at user-chosen

aggregation levels.

As will be discussed in section 6, we do

acknowledge that the language processing step

remains at this stage of our research an unaddressed

issue. The segmentation of texts used in the study

has been done manually: it could be seen as a

weakness in terms of significance and reusability of

the approach.

We believe that before any attempt at

“automatizing” language processing it is key to

formalise a robust, insight-gaining, unambiguous

segmentation protocol, and to evaluate in what the

visualisations can be beneficial. Accordingly we

consider that our study can contribute to pinpointing

a new research path, at a time when the focus is

often put on the processing of massive data sets.

4 METHOD

We introduce a text analysis method that builds on

the identification of quadruplets of components:

actors, space, time and motion. These components

are used to segment a narrative and translate it into

sequences of situations in ordinal time (only the

order of events considered). (Figure 4)

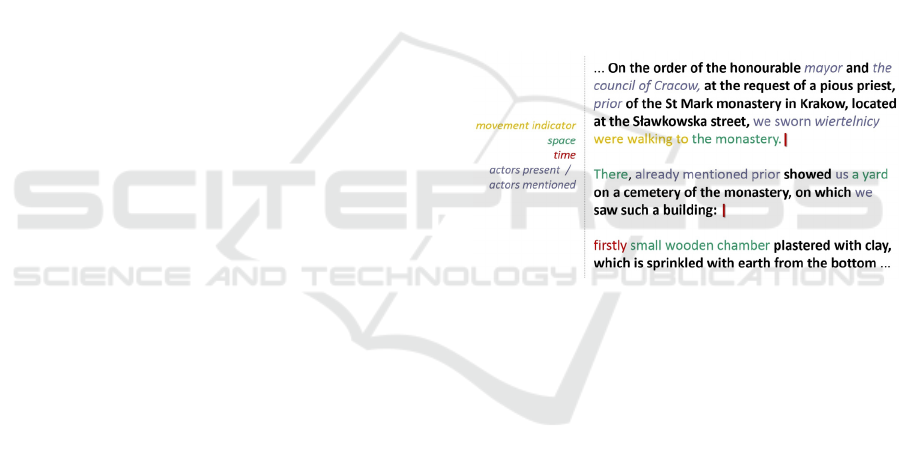

Figure 4: Segmentation into situations - four indicators

(Actum feria sexta ante Fabiani et Sebastiani [19I] anno

Domini 1596).

The way each component is defined and

structured is detailed in the following sub-sections.

At the end of the analysis phase the text under

scrutiny is entirely transformed into sequences of

situations as they occur in the narrative. Sequences

are then translated into a visual language.

4.1 The Concept of ‘Situation’

A situation is basically a sort-of token, resulting

from the segmentation procedure. However we are

here far from a segmentation at the word or sentence

level: situations are determined by changes of values

in a quadruplet of descriptors (space, time, actors,

and motion). A change of one of the four descriptors

introduces a new situation. (Figure 5)

Situations occurring in the past of the story (e.g.

reminiscences - narrating past experiences) are

differentiated from those occurring in the course of

the story.

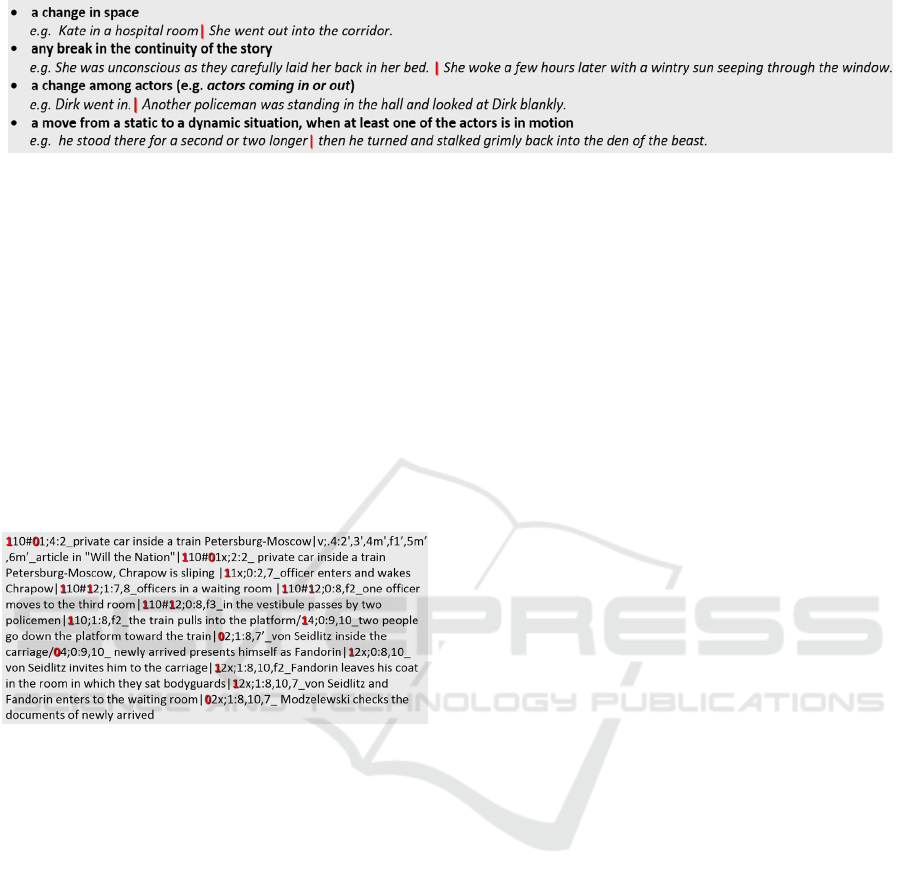

KDIR 2016 - 8th International Conference on Knowledge Discovery and Information Retrieval

Figure 5: A segmentation procedure ending in the identification of independent situations basing on changes in space, time,

actors or motion: example of application to D. Adams’ The Long Dark Tea-Time of the Soul.

Situations are identified at this stage through a

manual annotation and segmentation process - a

dozen of texts ranging from literature to ethnology

have been tested, covering three languages. Each

situation is associated manually with a value for

each of the descriptors, and with a short paraphrase

summarising “what happens”. The four values are

translated into an alphanumeric code comprising

indicators for each of four parameters and separators

that allow for a processing of the information, i.e.

for a transfer into fields of an RBBMS dataset which

in return is queried in order to produce the

visualisations. (Figure 6)

Figure 6: Example of the alphanumeric code resulting

from the annotation phase (in red, the code corresponding

to the motion indicator - 0 static 1 dynamic – example

from The Death of Achilles by B. Akunin).

Situations can also be grouped by predefined

sequences such as chapters (or any other main

division of a document).

4.2 Space Parameter

The space parameter defines where the action takes

place (i.e. Where does the action begin? Does it

continue in the same location? Are the subsequently

cited places well identified or in vaguely mentioned

locations? Are there many quick changes of space?).

But ‘space’ as geographers, historians, architects, or

ethnologists picture it is far from being one and only

one notion. It can be described quantitatively

(positions, size, exact morphology) or qualitatively

(through linguistic indicators, or a relation to a

Named Entity, for instance a toponymy like in

(Kergosien et al., 2014).

In the context of this study we need to spot in the

flow of a narrative the moments when a change of

space occurs, and therefore leads to a new situation

(whether spaces are associated with a given named

entity - e.g. Paris, or are present in the flow of part-

of-speech – e.g. in the second cellar). Detecting such

changes implies defining unambiguous lines of

division between spaces. To do so, we reinterpret the

concept of scale, in accordance with previous

research on spatio-temporal information retrieval

(Blaise and Dudek, 2005, 2008, 2012). What is

meant by scale is not a map’s numerical ratio, but

the idea that spaces can be classified according to

alternative spatial granularities.

Our model of space includes 16 indicators (3

non-spatial descriptors and 13 scale identifiers). The

non-spatial descriptors concern the situations where

space is not clearly assessed (metaphorical

descriptions, undefined space, space is not present) –

in other words non-spatial descriptors help dealing

with incomplete, ill-defined, or simply missing

spatial information. The thirteen scale identifiers are

organised into six groups (e.g. in and around a

building, public spaces, open land). An additional

parameter is taken into consideration: primary vs.

nested spaces. Primary spaces correspond to

‘simple’ situations (e.g. Jane is in her room, Jane is

walking in the garden). Nested situations appear

when actors are inside vehicles or objects that can

move or be moved inside a primary space (e.g. Jane

is travelling by train.).

4.3 Time Parameter

The time parameter corresponds to the when

question: it explains the story’s development over

time (e.g. continuous progression from present to

future, regressive present-to-past development,

multiple changes of time, etc.). The time model

builds on the notion of ordinal time (Aigner et al.,

2011): situations are analysed from the point of view

of an order of appearance (before/after) in the flow

of the narration, but neither quantified nor anchored.

(Figure 7)

StorylineViz: A [Space, Time, Actors, Motion] Segmentation Method for Visual Text Exploration

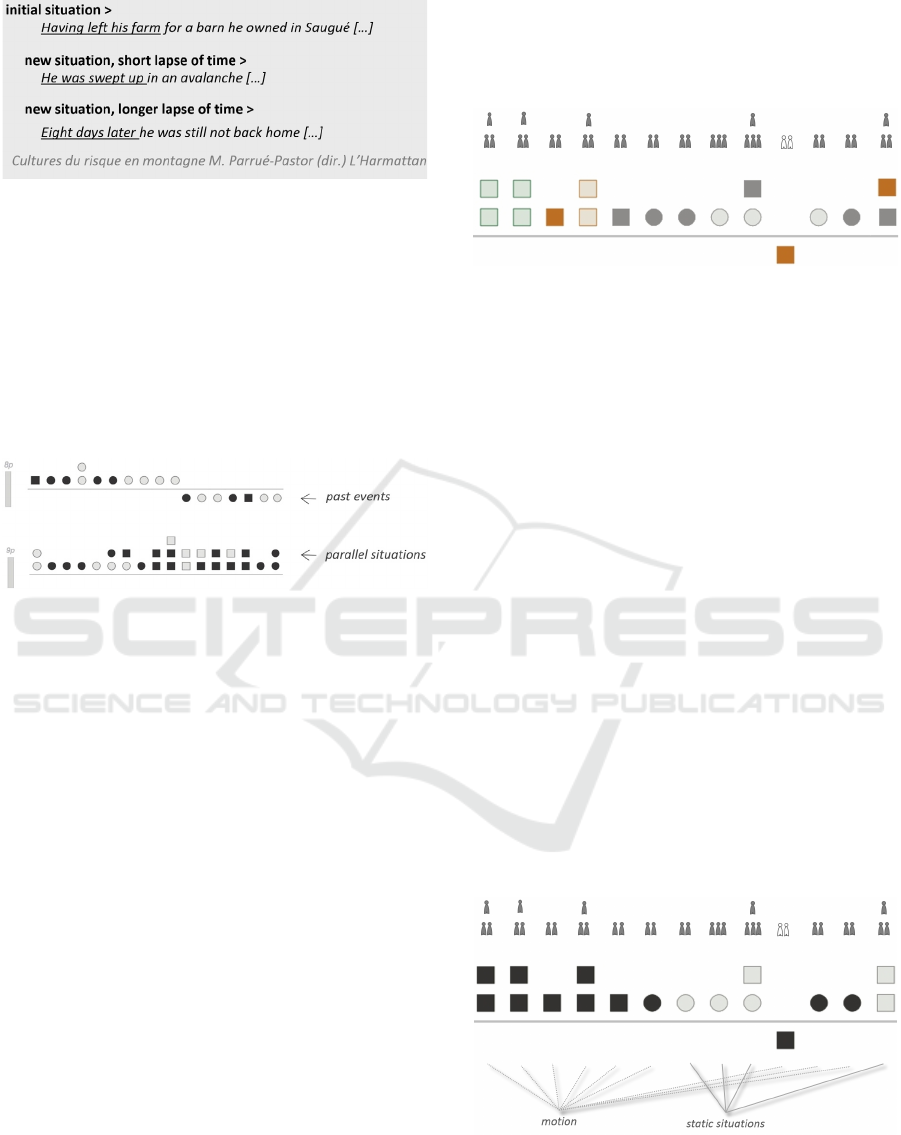

Figure 7: Change of situations - temporal disruptions.

A qualitative assessment of time continuity is

associated to each situation change (lapse of time

separating a situation from the next one).

Successive situations are identified in the order

of the narration (as the story unfolds) as belonging to

the present of the story or its past (things having

occurred “before the present of the story”).

Situations can also be tagged as being parallel

(occurring at the ‘same’ time). (Figure 8)

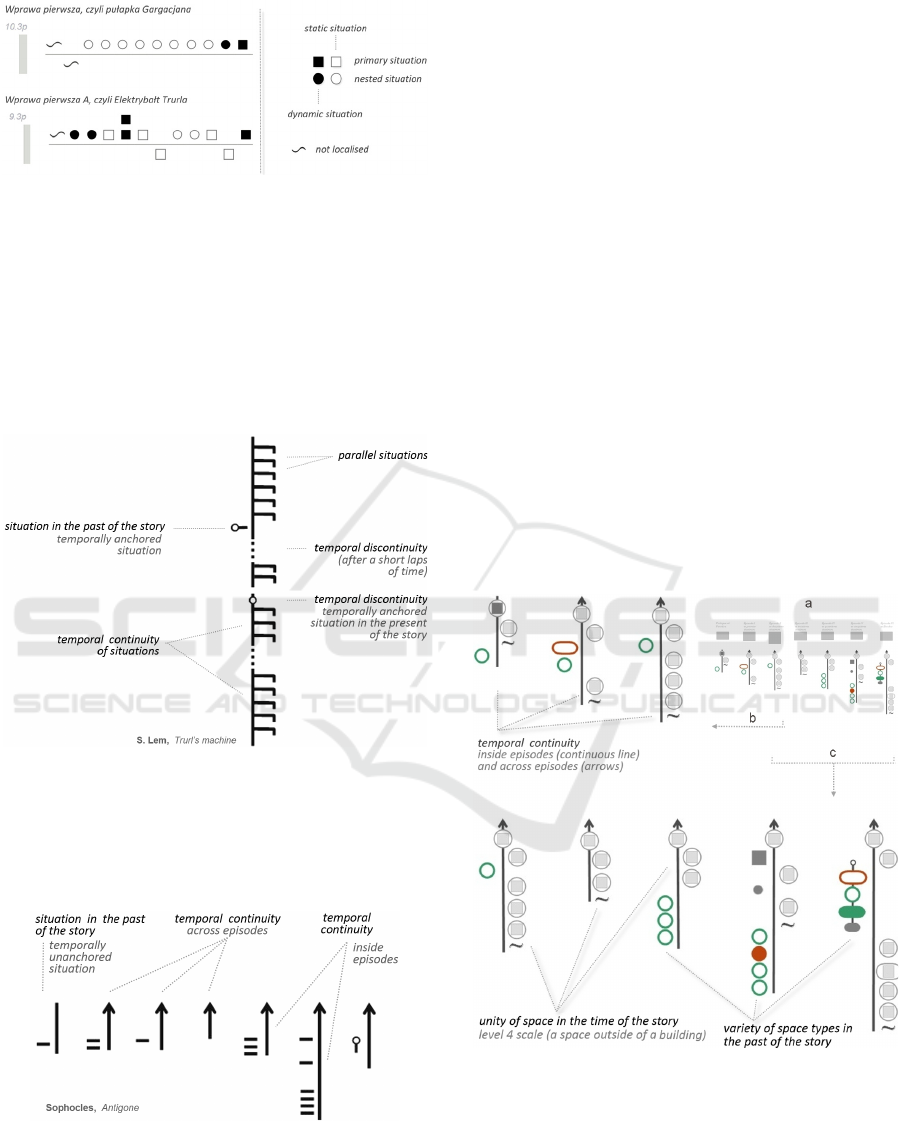

Figure 8: Top, past situations are represented below the

horizontal line. Bottom, parallel situations are represented

by graphic elements “piled” one over the other above the

horizontal line.

Additional indicators are used to further describe

parallel situations (actors mutually aware of one

another or not, typically), or to identify customary

behaviours (occurring repeatedly).

4.4 Actors

Actors are yet another trigger of situation change.

They may be individuals, well defined groups of

people, but can they also be indistinctly specified

groups (e.g. a crowd), things (e.g. thinking

machines), or animals? We here need to

disambiguate the very concept of actor: are ants

mentioned in B. Werber’s Empire of the ants actors?

Our strategy is to consider actors as a being or a

consistent group of beings, real or imaginary

creatures or entities, fitted with the ability to make

choices and to act. Actors may be human beings, but

also gods (e.g. Zeus, Dionysus), thinking machines,

androids, animals (e.g. the wolf in Little Red Riding

Hood), and so on. The description of actors is then

fine-tuned. Actors physically engaged in a situation

(i.e. present) are distinguished from actors that are

only mentioned (e.g. in a conversation, in thoughts),

individual actors are distinguished from consistent

groups either identified (e.g. the Celts) or not (e.g. a

crowd). (Figure 9)

Figure 9: Actors appearing in each situation of S. Lem’s

Trurl's Machine. Situations are read from left to right.

Here Trurl and Klapaucius, the two engineers (bottom part

of the lines showing actors as silhouettes) are being chased

by Trurl’s machine gone mad (top part of these lines, one

silhouette alone). A reference to past events is made

(orange square below the horizontal grey line), and that

past situation concerns two actors not present but

mentioned (white silhouettes).

Finally, major events concerning actors can also

open up on a situation change – a severe injury, or a

death of an actor needs to be reported.

4.5 Motion

Finally, motion is also a key element in the

definition of a situation (only the motion of actors is

considered). Motion is important to state since it

helps unveiling spatial and temporal continuities or

discontinuities in the narrative. An intensive use of

motion indicators in a text may characterise writing

genres (e.g. logbooks), may underline recurrent

stylistic elements (e.g. a speed chase with the

police), stylistic characteristics of an author,

differentiate acts inside one play, help understanding

changes in space, and so on.

Figure 10: A partial view of motion analysis visualisation

corresponding to S. Lem’s Trurl's Machine. Light grey

elements indicate static situations (e.g. the engineers

discuss with the mayor of a town in which they sought

refuge).

KDIR 2016 - 8th International Conference on Knowledge Discovery and Information Retrieval

Naturally we need to be clear on what we mean

by motion. The strategy is to focus on movements

that introduce a change of location but not

necessarily a change of space (e.g. someone is

walking down a street). From the point of view of

this criterion situations may then be classified as

static or dynamic. A dynamic situation implies the

motion of at least one of the actors, motion

understood as moving in space (e.g. walking,

marching, strolling, running, driving a car…).

(Figure 10)

5 VISUAL SOLUTIONS

Our approach bases on the idea that interactive

visual interfaces can help various target users

perform reasoning tasks in application fields ranging

from expert analysis to education or cultural

mediation. Accordingly visualisation, as defined by

R. Spence (i.e. a cognitive activity) is a key

component of the study, both in the understanding of

a given narrative’s “spatio-temporal profile” and in

fostering comparisons inside collections of texts.

Depending on the parameters a user may choose to

privilege (space/time/actors/motion), different

visualisations are proposed. We detail them in the

following sub-sections. All of these visualisations

share some common design principles:

 Situations are represented one by one and

aligned as they occur in the original text (left

to right, or top-down).

 Each situation is represented by an interactive

symbol (a multidimensional icon). Shape,

colour and position are used to transfer

visually the information on each situation.

 A rephrasing of the actual text corresponding to

each situation is available on user demand.

 Parallel situations, i.e. situations co-occurring

in time, are grouped and represented together.

 Actors are visualised on user demand, with

colours differentiating the nature or type of

actors (actors present, mentioned, injured, or

groups of actors).

Situations are grouped by sequences (chapters or

other grouping mechanism adequate for a particular

writing genre) in order to grab more easily an

understanding of the text’s structural features.

5.1 Spatial Sequences Visualisation

In the spatial sequences visualisation situations are

represented in ordinal time from left to right along

horizontal bars. Each horizontal bar corresponds to a

sequence of situations. All reminiscences are

situated below horizontal bars (Fig. 11 b

Colour and shapes are used to differentiate the

occurrences of various spatial scales.

Figure 11: Organisation and legend of the spatial

sequences visualisation. Bottom, legend of the

visualisation. Colours correspond to ranges of scales.

Squares and circles differentiate nested spatial

configurations (e.g. driving a car in a city) from primary

spatial configurations (e.g. walking in a city). Top, a

partial view of the spatial sequences visualisation

corresponding to Balzac’s Colonel Chabert. Note for

instance the contrast between spatial location of present

) and past (b

) of the story in chapter one (colours), or

the quasi-absence of past events in chapter 3 (b

5.2 Motion Analysis Visualisation

The motion analysis visualisation uses the same

general organisation as the previous: situations are

represented in ordinal time from left to right along a

horizontal bar.

But here the focus is put on the motion

component of the model: colours and transparency

representing different types of space are replaced by

black-and-white motion indicators. This

visualisation is used to differentiate static and

dynamic situations, thereby better underlining in

particular rhythms inside a text. (Figures 10, 12)

StorylineViz: A [Space, Time, Actors, Motion] Segmentation Method for Visual Text Exploration

Figure 12: Organisation and legend of the motion analysis

visualisation. Left, a partial view of the visualisation

corresponding to S.Lem’s Cyberiad. Note for instance the

long sequence of static, nested situations in chapter 1.

Right, legend of the visualisation.

5.3 Temporal Continuity

The temporal continuity visualisation focuses on

assessing visually to which extent the story unfolds

without interruption in time. (Figure 13)

Figure 13: The temporal continuity visualisation applied to

S. Lem’s Trurl’s Machine. The visualisation shows an

intensive use of parallel situations, and spots three lapses

of time disrupting the temporal continuity.

A typical example of time continuity is the classical

unity of time rule for drama.

Figure 14: The temporal continuity visualisation applied to

Sophocles’ Antigone, the visualisation illustrates the unity

of time pattern.

Each sequence (i.e. chapter, episode, etc.) is here

represented as a vertical line. A line topped with an

arrow shows a temporal continuity with a previous

situation. Small horizontal lines distributed on the

left side of the vertical line correspond to situations

occurring in the past of the story. Parallel situations

are identified by symbols positioned on the right

side of the vertical line. The vertical line is disrupted

by various symbols in cases of temporal

discontinuity (different symbols are used to

represent short lapses of time, jumps in time,

temporally unanchored events, etc.).

5.4 Spatio-temporal Continuity

The spatio-temporal continuity visualisation builds

on the same design as the previous, but adds

symbols representing the space parameter. Whereas

in the spatial sequences visualisation (section 5.1)

we only deliver an indication about the group of

scales corresponding to a situation, we here allow

for a visual coding of each of the thirteen individual

scales. Fine-grain differences can be made for

instance to differentiate a situation occurring inside a

building from a situation occurring in a building’s

courtyard, or in a flat forming part of the building.

(Figure 15)

Figure 15: Spatio-temporal continuity visualisation

corresponding to Antigone of Sophocles (a – entire

visualisation, b,c - fragments). Note contrast in terms of

space between the past of the story (symbols on the left of

the vertical lines) and the present of the story (symbols

situated on the vertical time-line and on the right of it).

Note also that in the present of the story space remains

unchanged (in front of the palace).

KDIR 2016 - 8th International Conference on Knowledge Discovery and Information Retrieval

5.5 Implementation and Evaluation

The approach has been tested on different types of

text: a play (Sophocles), crime stories (A.Christie,

B.Akunin), science fiction and fantasy (S.Lem,

T.Pratchett, D.Adams), French literature (H.Balzac,

R.Queneau), reports of interviews (e.g. ethnological

research) or historical texts (e.g. 16th century textual

building inventories).

The corpus includes textual content written in

English, French and Polish. One of the reasons of

this choice was to check that the approach is

workable in different languages. Another reason was

to test the impact of a given natural language - i.e.

test if the segmentation of a given textual content,

once translated into another language, remains fully

consistent with the original.

As mentioned in section 4.1 the annotation step

results in alphanumeric codes associated to each

situation. These codes, along with bibliographic data

and other general information concerning the texts,

are stored in an RDBMS structure. They are

interpreted on the fly (Perl scripts) to produce SVG

(Scalable Vector Graphic) interactive visualisations

available inside standard web browsers.

5.6 Evaluation

An early “feasibility” evaluation was carried out

with a group of non-experts (twelve students in

mechanical engineering) in order to get a first

feedback on the knowledge modelling bias

(segmentation into sequences of situations). We

asked testers to depict an everyday series of actions,

such as their home to work routine, using the

graphical codes. We then asked then to complement

the description of each individual situation with one

or several qualitative parameters of their choice.

Some recurrent parameters emerged, such as sound,

amount of light, mood, etc. What this evaluation

procedure did usefully underline is that the logic

behind the segmentation protocol is easily

understood, and somewhat intuitive.

Yet there is a clear difference between asking

testers to analyse one of their own everyday routine

in terms of series of situations and having them

uncover these situations from a textual content using

predefined segmentation rules. In a second round we

therefore implemented a more demanding evaluation

setup, with this time eight testers from different

countries (Marie Curie fellows focusing on reality-

based 3D modelling – no native speakers of English)

working on two extracts from novels written in

English. The testers were first introduced to the

approach, and shown the whole set of segmentation

rules. Following, they were asked to work on a first

text that they had to segment under supervision. This

step was needed to make sure that the protocol was

clear enough for them. These two phases lasted for

an hour and a half. Testers were then left for one

hour with a 1000 words text that they had to

segment on their own, i.e. on one hand they had to

spot situation changes and on the other hand they

had to qualify each situation with regards to space

(what scale?) to time (any disruption?) actors (who

is concerned?) and motion (do actors move?).

Before analysing the results, it has to be said

clearly that the length of the text, the amount of

testers, and the time devoted to the evaluation (two

hours and a half all included) are certainly not

sufficient in order to draw firm conclusions. This

evaluation, however, did help us spotting significant

trends (including weaknesses) and ultimately helps

understanding where to go next.

A central issue we wanted to raise was whether

or not situations, can easily and unambiguously be

differentiated from one another. We analysed both

the raw, quantitative results (number of situations

spotted, types of scales identified, quantity of

switches between static and dynamic situations, etc.)

and the oral remarks made by the testers at the end

of the evaluation.

Results show that generally speaking the concept

of situation is quite easy to use – testers had no

particular difficulty in spotting different situations

and tagging them with values for the four

parameters. But if the mechanism was found clear,

we spotted a number of ambiguities deriving from

two different issues: comprehension and individual

interpretation of the segmentation rules on one hand,

and inherent “fuzziness” of texts on the other hand.

5.6.1 Comprehension Issues

The evaluation showed us that the testers had some

difficulties with time discretisation and scale

identification. Although testers globally understood

the rules, they did not have enough time to get

familiar with them before the test - they somehow

discovered them as they progressed in the

segmentation of the text.

We also noticed different individual interpret-

tations of the segmentation rules: e.g. what does

‘after an instant’ really mean? Testers disagreed on

this very notion. What kind of space is ‘a railway

station’? A building, a building and its surroundings,

an inside, an outside? Here again each tester pictured

what ‘a railway station’ is his own way.

StorylineViz: A [Space, Time, Actors, Motion] Segmentation Method for Visual Text Exploration

A certain number of segmentation rules as we

had verbalised them turned out to be either too

loosely defined, or too interpretative – typically the

notion of parallel situations that encompasses

someone spying on others from behind a window to

a phone call connecting two people located in

different parts of the world. One type of parallel

situations appeared as particularly confusing, when

several groups of people are in the same space but

act independently of one another - in this case the

rule itself needs rethinking.

Finally, some testers questioned the segmen-

tation rules themselves when the rules, according to

them, did not let them stick close enough to the text.

In the text proposed Kate is driven to the airport in a

taxi – but no mention is made of the taxi driver in

the initial situation. Those testers considered that

putative actors – here the taxi driver – should be

mentioned, although according the segmentation

rules they were given only actors mentioned in the

text should be specified.

Briefly speaking, the evaluation showed that

segmentation rules and definitions of scales,

temporal disruptions, motion and actors need to be

further clarified and illustrated by examples in order

to pin down the concepts and reduce existing

ambiguities. More generally the above compre-

hension issues underline the fact that more time

should be spent on explaining the segmentation rules

prior to the evaluation itself. Moreover applying

correctly the segmentation rules requires a thorough

understanding of how space and time are discretised

– which implies a steep learning curve.

At this stage the approach requires from readers

and annotators a good understanding of the

segmentation rules, but also keeping a certain

“distance” with the text in order to avoid confusing

what is really written, with what one may deduce,

understand or imagine. What we asked the testers to

do – segmenting of a text into an alphanumeric code

using a set of segmentation rules and of discrete

values – requires from annotators skills and

capabilities. It is a demanding task that limits the

circle of people who can be expected to carry out the

annotation step. What remains to be verified is the

level of readability of the visualisation we proposed.

5.6.2 Inherent Fuzziness of Texts

There are a number of factors that impact the way

space, time, actors and motion are verbalised by

authors. Texts are written with a significant amount

of unsaid, or half-said elements – voluntary

omission of details, figures of speech, etc.

Consider this yet straightforward example: “She

set off in search of first a newspaper and then some

coffee. She was then unable to find a working

phone”. Should the reader here consider time as

continuous, or as interrupted for a short while, for a

long while? The author does not say openly whether

there is a time disruption or not. The same can

happen when mentioning spaces, actors, or even

motion. Texts are the way they are, and readers will

anyway interpret and understand them differently,

whatever semantic-based segmentation rules one

may write – a feature of what Alfred Korzybski

named verbal levels (Korzybski, 1951).

The evaluation showed the inherent fuzziness of

texts can be seen as an obstacle, but can also be seen

as a potential object of study, an opportunity for

instance to use the segmentation rules in order to

localise areas where readers interpret a text

differently.

Interpreting the evaluation’s results should

however be done with caution. The segmentation’s

learning curve is definitely steep: further evaluation

efforts are therefore clearly needed (for example

finding a match between a text and a visualisation in

a setup where several possibilities are shown). It also

underlined unexpected potential benefits of the

approach, in its current state of development:

 It helps comparing how different people

understand and interpret the spatio-temporal

content of a text.

 It enhances debate, and helps uncovering

precisely (in the flow of the text) where

alternative interpretations occur, and why.

 It facilitates the communication by one

individual of his own understanding of a text

by supporting (through visual means) his

discourse on rhythms of a narrative in a context

+ focus manner;

 It could be used to weigh and compare the level

of interpretation required from readers

depending on the text or author.

6 LIMITATIONS AND

PERSPECTIVES

As mentioned in the introduction, we report in this

paper a proof-of-concept study that aims at

developing a generic approach to narrative analysis.

Accordingly there are a number of limitations that

we can quote, but that we will not detail, and notably

the following:

KDIR 2016 - 8th International Conference on Knowledge Discovery and Information Retrieval

 We consider that the corpus of texts used as test

cases is representative in terms of variety,

heterogeneity, but it definitely is a partial

corpus.

 The evaluation phase should clearly be

deepened – notably with regards to fine-tuned

usage scenarios.

 The comprehensibility of the segmentation

rules for a wider public should be better

assessed, as well as the learning curve.

 The implementation is a robust one, but it

certainly could be rethought or improved.

But beyond these general remarks, there are two

major lines of development, discussed hereafter, that

we think need to be mentioned and that somehow

underline potential perspectives.

6.1 Visual Reasoning: Still a Challenge

Our approach bases on the idea that the combination

of a non-standard segmentation procedure with

appropriate visualisations can offer users new

opportunities to perform reasoning tasks, and

uncover pieces of knowledge inside textual content.

But such a statement can only be corroborated (or

invalidated) if the experimental setup proposed to

testers is fully satisfactory. The visualisations we

ended on do show the idea is worth exploring, but

the implementation is at this stage not fully

satisfactory. For instance support for a visual cross-

examination of texts “within the eyespan” (Tufte,

2001) needs to be improved. Accordingly we

consider that our study needs to be extended and

deepened in order to state without doubt that the

approach is indeed, generic, workable across various

types of texts, and fruitful in terms of knowledge

discovery.

6.2 The Impact of Manual Annotation

Even more significant in terms of limitation of the

research’s potential impact is the fact that the

annotation process - i.e. the segmentation of texts –

is to this day a manual process. This clearly

undermines perspectives of application of such an

approach on a large scale. But on the other hand it

also opens a clear perspective (and challenge) for

this research. The approach hits the limits of existing

NLP based methods. Hence rounds of discussion we

are at this stage having with VA and NLP partners to

try and investigate how the approach could be

developed on a large scale. Even if a fully automated

annotation process would turn out to be out of reach,

working on semi-automatic procedures in the

context of the emergent crowdsourcing paradigm

would clearly open tangible large-scale application

perspectives. Furthermore, human annotation is by

itself a meaningful activity, opening perspectives, as

mentioned in section 5, in terms of communication

and comparative analysis of text interpretation. Both

going towards more automation in the segmentation

process, and sticking to a human process, can

therefore be considered as lines of development of

the approach.

His contribution introduces a generic approach to

narrative analysis: the approach’s main claim is that

extracting the spatio-temporal content of a narrative

and visualising it in ordinal time as a series of

situations can help spotting and exploring

significant patterns, trends, exceptions across

various types of texts.

It builds on a knowledge modelling effort and on

explorative visual analyses. The approach should

lead to a multipurpose visualisation framework

helping to reshape the way we understand,

summarise, and explain a narrative.

Our approach encompasses issues that are rooted

in Information Sciences - Visual Analytics,

Knowledge Representation – and issues that more

closely relate to Digital Humanities – comparative

methods and analytical reasoning on textual content,

support in teaching and learning, time and space

perception modelling, etc.

Although the corpus on which the approach has

been tested remains partial, the experimentation does

show the approach is workable across various types

of texts, and in each case does uncover patterns

suitable for comparison. The evaluation carried out

paved the way towards usage scenarios that would

focus more on assessing differences between reading

experiences than on the “automatization” of the

segmentation.

Beyond the segmentation issue, the approach

investigates the potential services of visualisation as

a non-verbal means to communicate an under-

standing of a text, in particular of how space and

time unfold inside narratives. A number of the

patterns unveiled are somehow expected (e.g. the

rigorous storyline of Sophocles’ Antigone - unity of

action, time and place, or a recurrent element in

Agatha Christie’s crime stories – a concluding

chapter with all actors in one space discussing the

whole sequence of past events that lead to the

crime.) Finer-grained findings revealed a number of

other characteristics for example varying proportion

of elements situated in the past of narration in

various texts, specific motion characteristics of

StorylineViz: A [Space, Time, Actors, Motion] Segmentation Method for Visual Text Exploration

chapters, authors using extensively parallel situa-

tions as a mean to reinforce the suspense, and so on.

In all cases

To conclude, visualisations produced until now

show an interesting interpretative potential. They

could be used for example to support teaching and

learning activities, helping learners to quickly get a

hold on patterns, trends, exceptions, and to carry out

comparative analyses across texts (for instance using

the approach in order to support pupils with learning

disabilities such as dyslexia). We consider that, at

this stage, the approach has proven workable, but

will need further improvement loops (more case

studies, more rounds of evaluation) before becoming

fully operable.

REFERENCES

Marshman, E., L’Homme, M.C., Surtees, V., 2008.

“Verbal markers of cause-effect relations across

corpora.” In Managing ontologies and lexical

resources, edited by Madsen B.N, Thomsen H.E, 159-

174. Copenhagen: Internationale Sprogstudier og

Vidensteknologi, Litera.

Spence, R., 2001. Information Visualization. Pearson

Addison-Wesley ACM Press: Harlow.

Thomas, J. J., Cook, K. A., 2005. Illuminating the Path:

The Research and Development Agenda for Visual

Analytics. IEEE CS Press.

Marshman, E., Van Bolderen, P., 2008b. “Interlinguistic

variation and lexical knowledge patterns.” In

Managing ontologies and lexical resources, edited by

B.N Madsen, H.E Thomsen, 263-278. Copenhagen:

Internationale Sprogstudier og Vidensteknologi,

Litera.

Sabol, V., 2012. “Visual Analysis of Relatedness in

Dynamically Changing Repositories”. Paper presented

at the MOVE-REAL 2012 thematic school, Fréjus,

October 08-12.

Oelke, D., 2010. “Visual document analysis: Towards a

semantic analysis of large document collections”. PhD

dissertation, University of Konstanz.

Oelke, D., Spretke, D.; Stoffel, A.; Keim, D., 2010.

“Visual readability analysis: How to make your

writings easier to read”. In IEEE Symposium on

Visual Analytics Science and Technology (VAST),

2010, 123 - 130.

Koch, S., John, M., Wörner, M., Müller, A., Ertl T., 2014.

“VarifocalReader – In-Depth Visual Analysis of Large

Text Documents”. In IEEE Transactions on

Visualisation and computer graphics Vol2. N.12:

1723-1732.

Vuillemot, R., Clement, T., Plaisant, C., Kumar, A. 2009.

“What's being said near 'Martha'? Exploring name

entities in literary text collections”. In IEEE

Symposium on Visual Analytics Science and

Technology (VAST) 107-114.

Wanner, F., Fuchs, J., Oelke, D., Keim, D.A., 2011. “Are

my Children Old Enough to Read these Books? Age

Suitability Analysis”. In Polibits: research journal on

computer science and computer engineering with

applications 43: 93-100.

Kergosien, E., Laval, B., Roche, M., Teisseire, M. 2014.

“Are opinions expressed in land-use planning

documents?” In International Journal of Geographical

Information Science vol. 28, issue 4: 739-762.

Blaise, J.Y., Dudek, I., 2005. “Using abstraction levels in

the visual exploitation of a knowledge acquisition

process” In Proceedings of I-Know 2005, Graz,

Austria, 543-552.

Blaise, J.Y., Dudek, I., 2008. “Profiling artefact changes: a

methodological proposal for the classification and

visualisation of architectural transformations” In

Digital Heritage, Proceedings of VSMM 2008 -

Virtual Systems and Multimedia, Archeolingua, 349-

356.

Blaise, J.Y., Dudek, I., 2012. “Analyzing Alternative

Scenarios of Evolution in Heritage Architecture:

Modelling and Visualization Challenges.” In Journal

of Multimedia Processing and Technologies, Vol. 3,

no. 1: 29-48.

Aigner, W., Miksch, S., Schumann, H., Tominski, C.,

2011. Visualization of Time-Oriented Data

. Human-

Computer Interaction Series Springer-Verlag: London.

Korzybski, A., 1951. “The role of language in the

perceptual processes”, In Perception: An Approach To

Personality, edited by Blake R., Ramsey G., 170-205.

New York: The Ronald Press Company.

Tufte, E.R., 2001. Envisioning information. Graphics

Press : Cheshire.

KDIR 2016 - 8th International Conference on Knowledge Discovery and Information Retrieval
